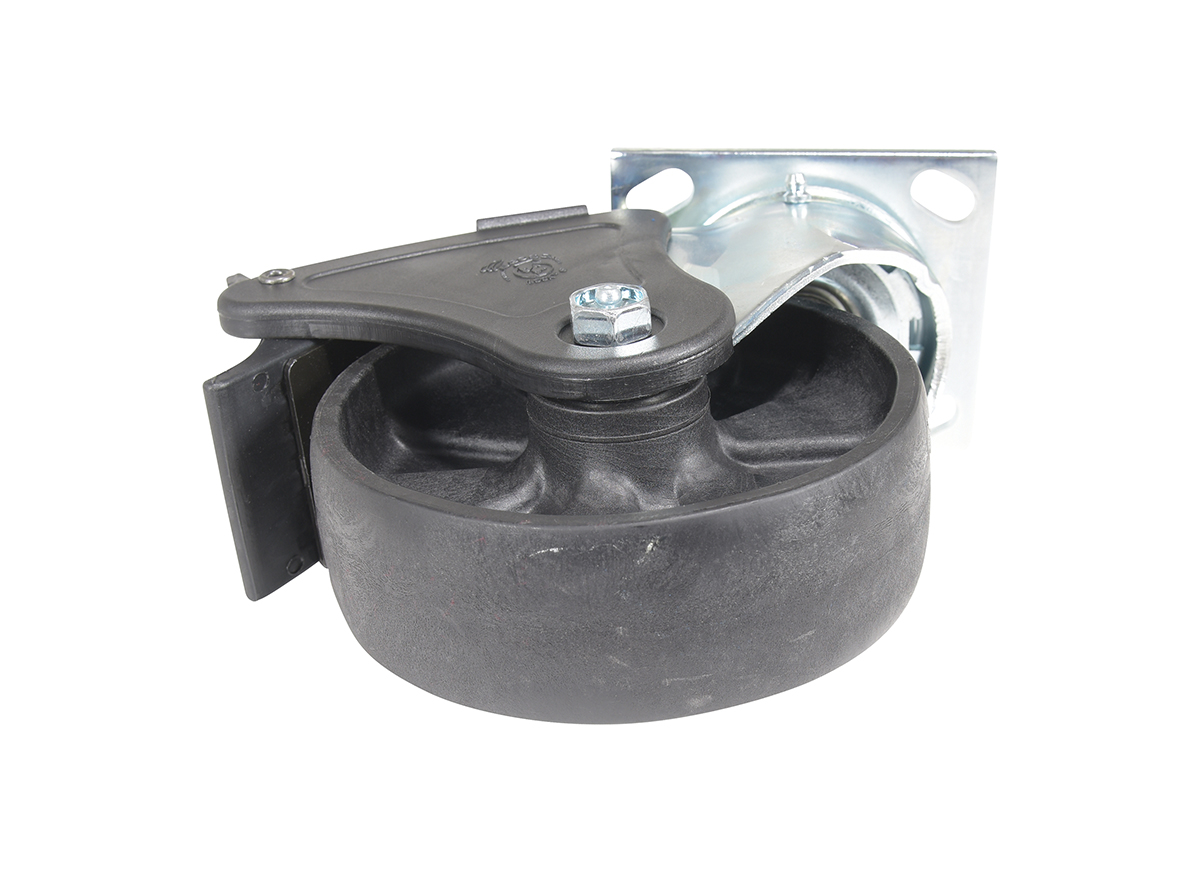

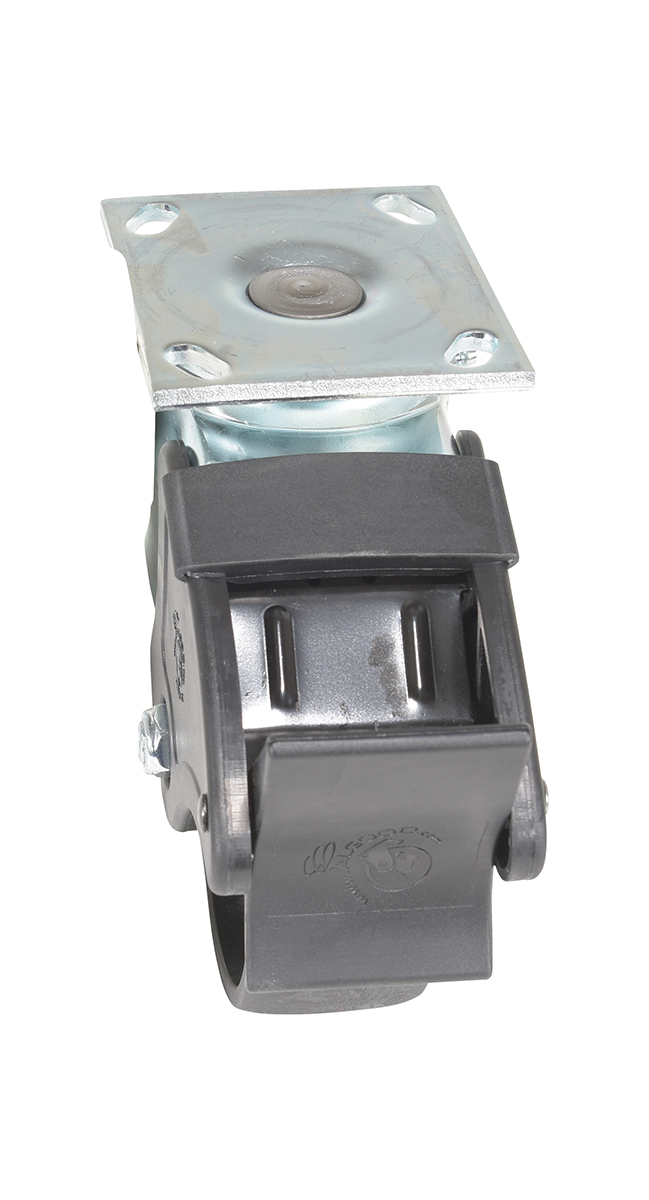

model: CST-HLD-6X2GFN-SWTB1

Featured Casters & Wheels

Polyurethane (DT, Green) Casters

Glass Filled Nylon Casters

Japanese Engineered Spring Loaded Towing Casters

Cast Iron Casters

Pneumatic Wheel

Heavy Duty Polyurethane Casters

Mold On Rubber (On Aluminum) Casters

Polyurethane (SI) Casters

Metal Alloy Wheel

model chart

Product Family Overview

Print Friendly

Upgraded Glass Filled Nylon, Light Duty (RX) Casters

SERIES: CST-HLD-GFN

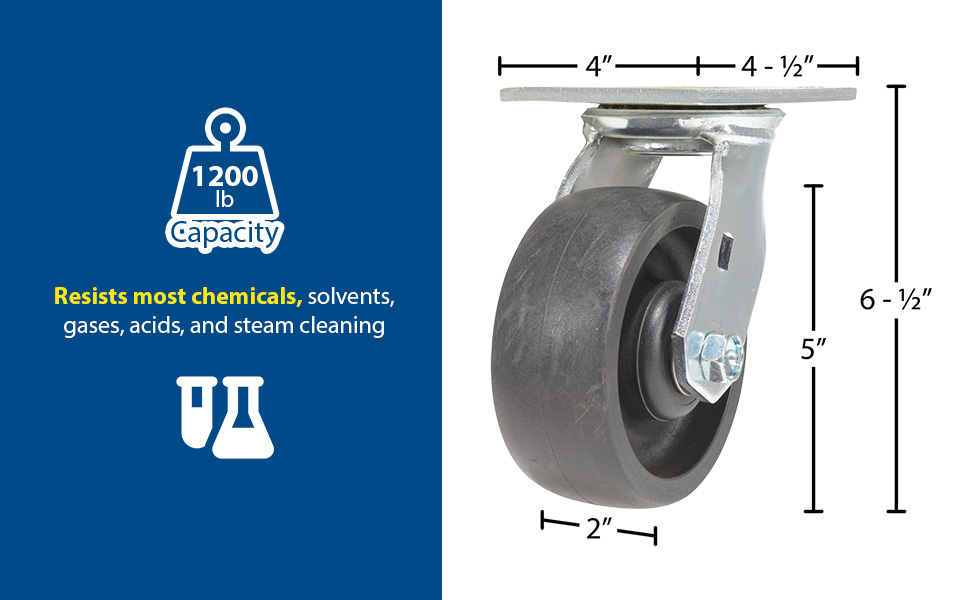

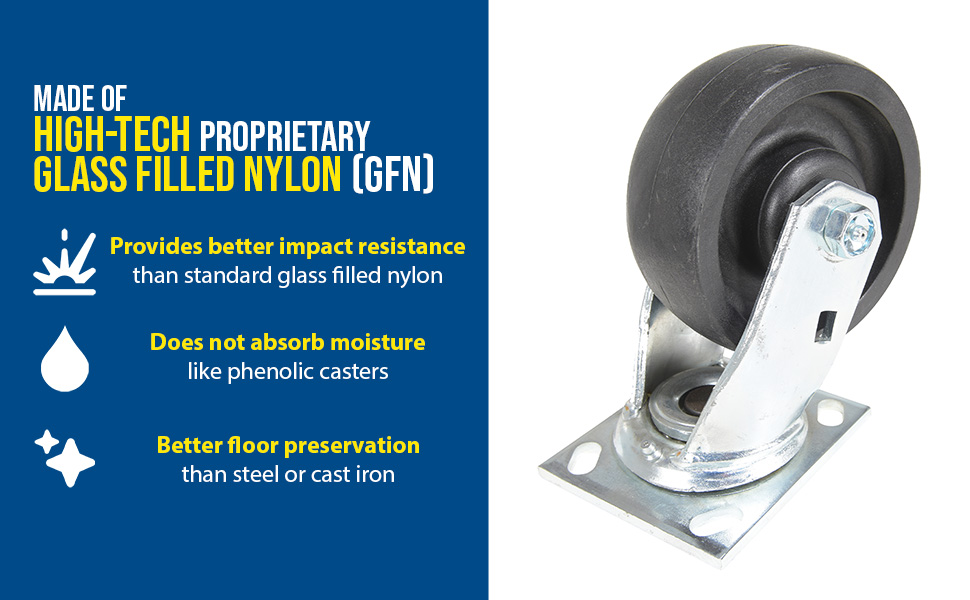

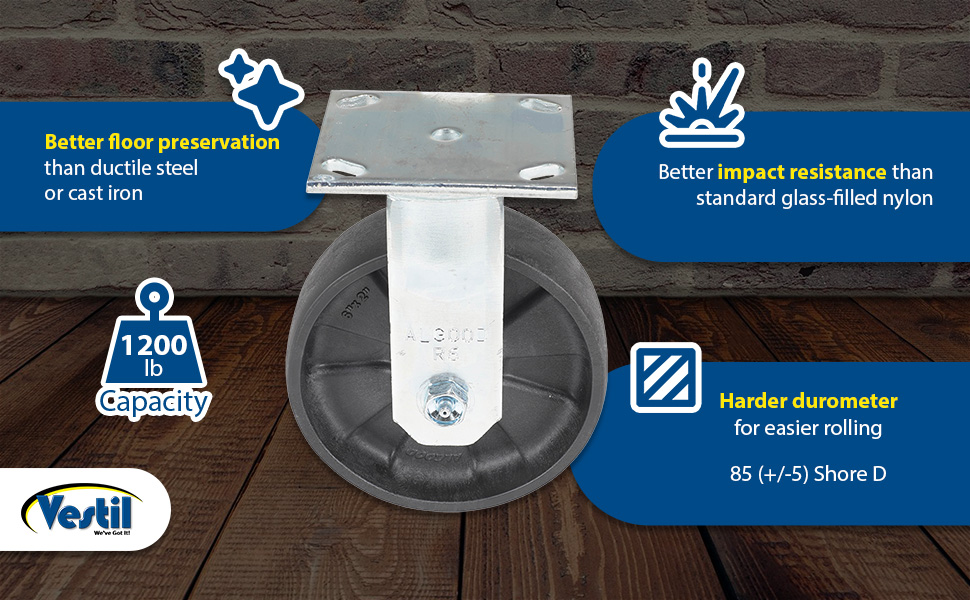

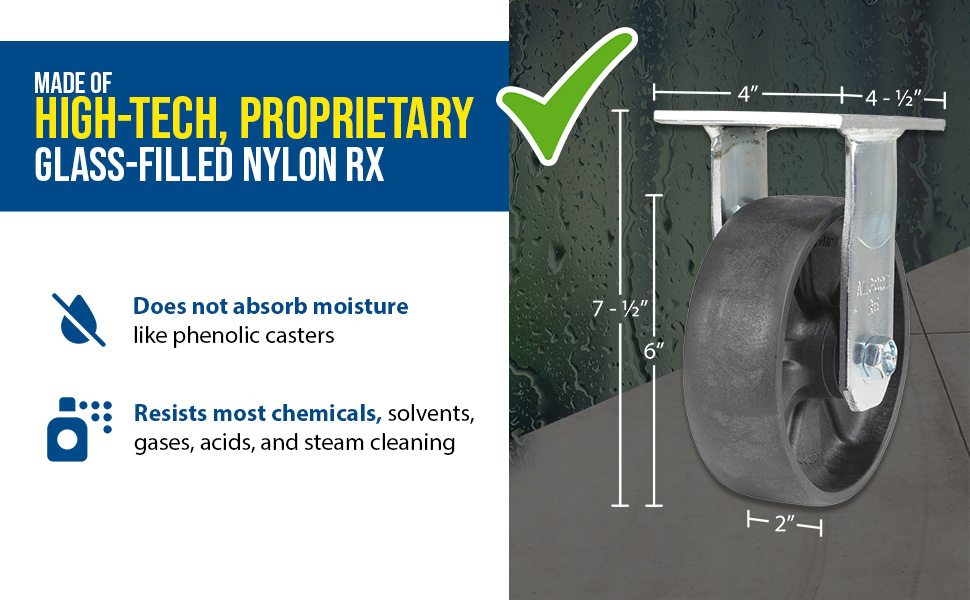

Made of high-tech proprietary glass filled nylon (RX). Provides better impact resistance than standard glass filled nylon. Does not absorb moisture like phenolic, and offers better floor preservation than steel or cast iron. Resists most chemicals, solvents, gases, acids and steam cleaning. Top plate measures 4 x 4-1/2". Black tread color. 85 (+/-5) Shore D. Wheel core material is glass filled nylon.

Non-Marking
Absorbs Impact
Moisture Resistant
Harder Durometer Allows For Easier Rollability
Enviromentally Friendly
Ball Bearing

Non-Marking
Absorbs Impact
Moisture Resistant
Harder Durometer Allows For Easier Rollability
Enviromentally Friendly
Ball Bearing

Other "Go-To" Casters

Rubber (DK - Conductive) Casters

Polyurethane (DT, Green) Casters

Polyurethane (SI) Casters

Flat-Free (Rubber)

Follow @vestilmfg

Additional Models In This Family
view entire Image Gallery

CST-HLD-5X2GFN-SWTB1

CST-HLD-4X2GFN-R

CST-HLD-5X2GFN-S

CST-HLD-4X2GFN-SWB

CST-HLD-8X2GFN-S

CST-HLD-4X2GFN-S

CST-HLD-6X2GFN-S

CST-HLD-8X2GFN-R

CST-HLD-4X2GFN-SWTB1

CST-HLD-4X2GFN-S

CST-HLD-6X2GFN-SWB

CST-HLD-6X2GFN-SWTB1

CST-HLD-5X2GFN-R

model chart

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

The Search Box below is for Casters within the Model Chart on this page. Not an entire site search.

Model	PDFs	Caster Size	Type	Capacity (lbs.)	Overall Height	Top Plate Size	Net Wt. (lbs)

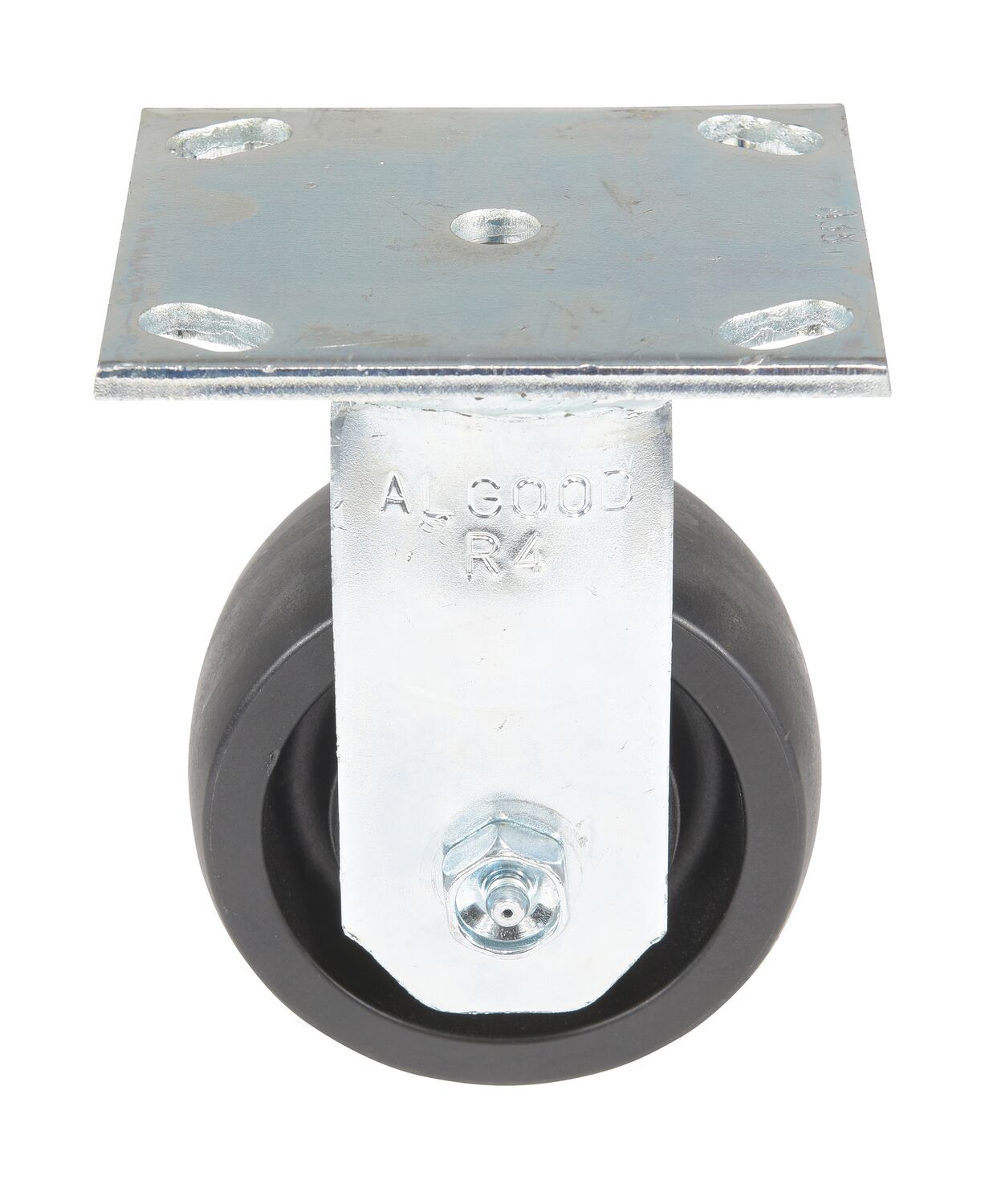

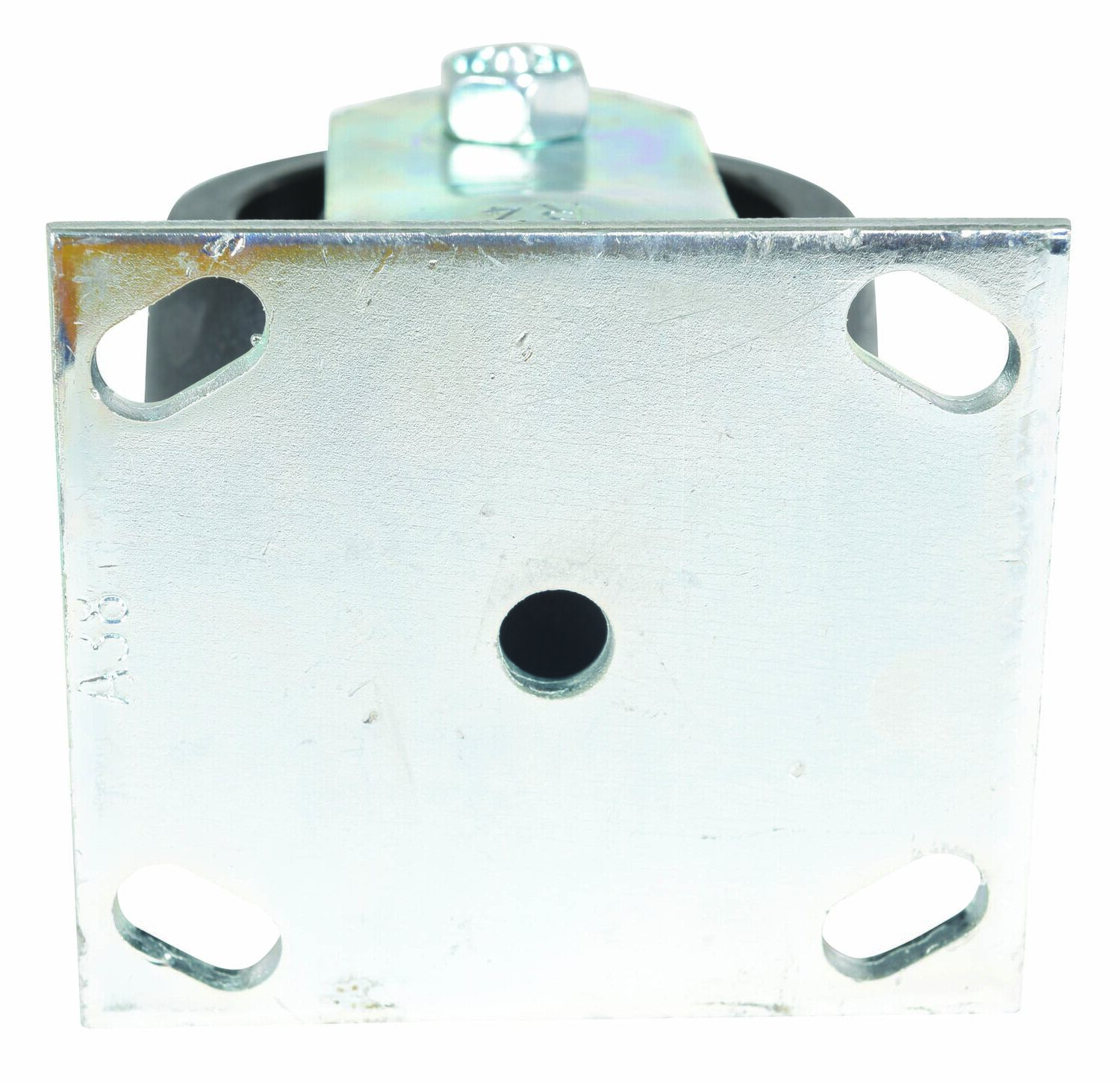

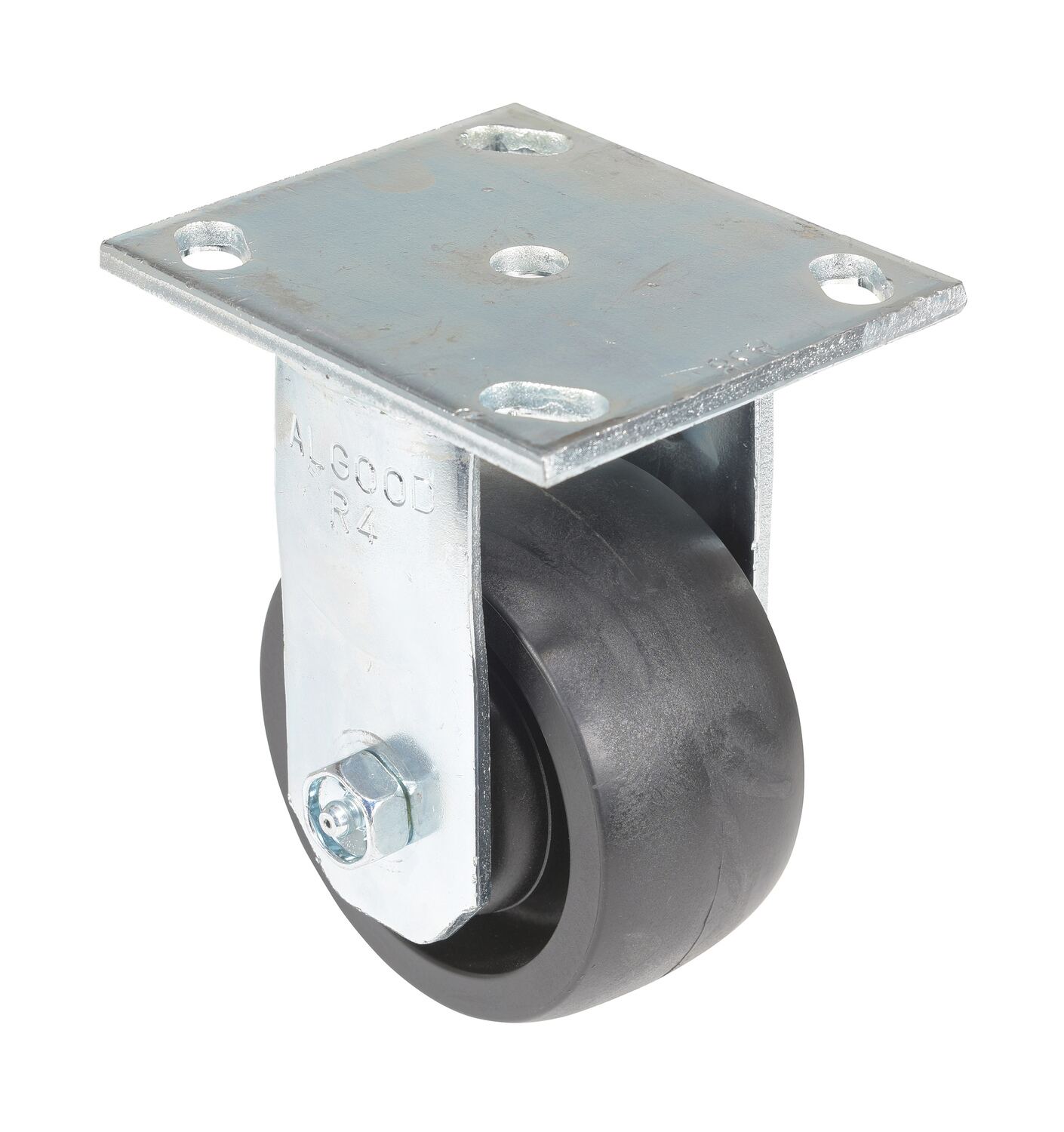

CST-HLD-4X2GFN-R	3 YEARS Limited Warranty	4 x 2	RIGID	1200	5-3/4	4 x 4-1/2	3.56
CST-HLD-5X2GFN-R	3 YEARS Limited Warranty	5 x 2	RIGID	1200	6-1/2	4 x 4-1/2	3.96

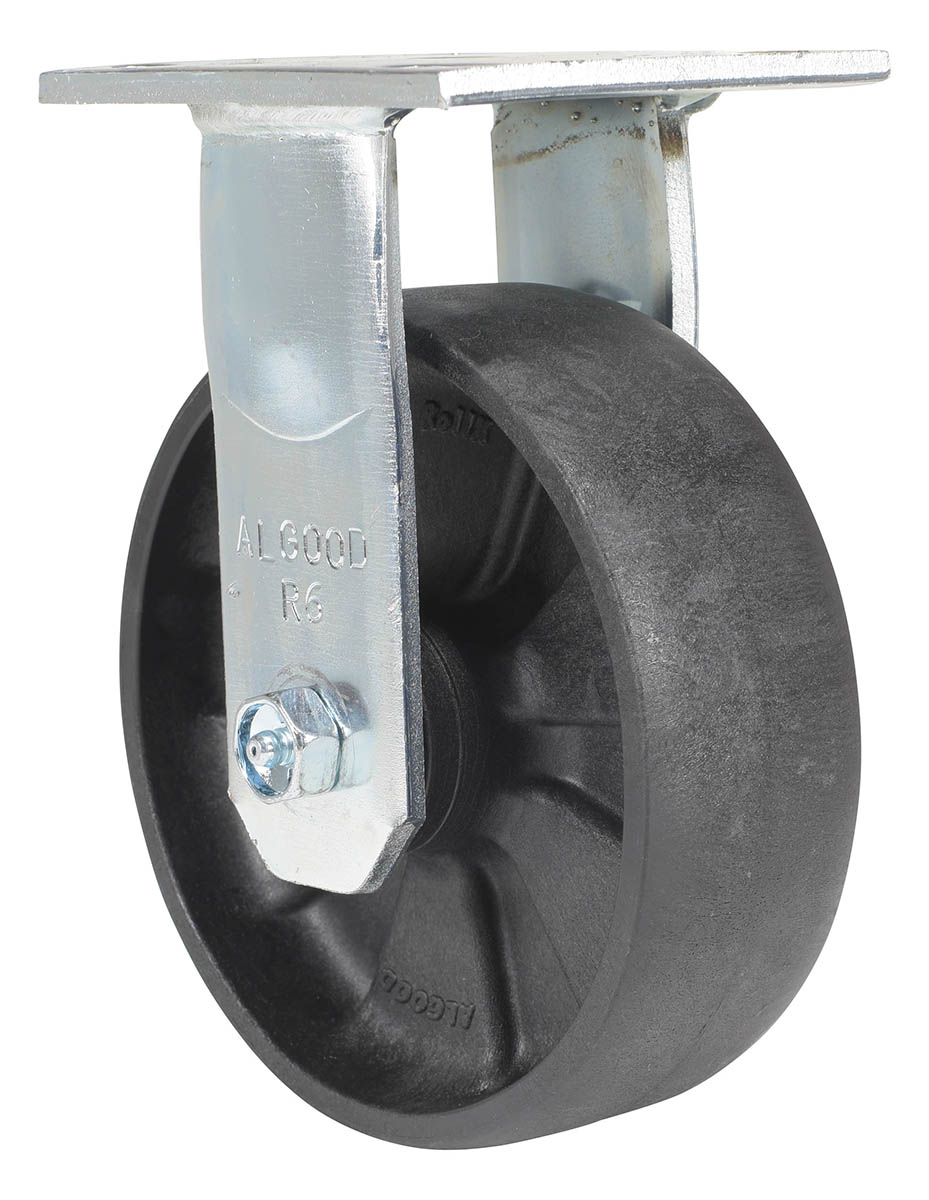

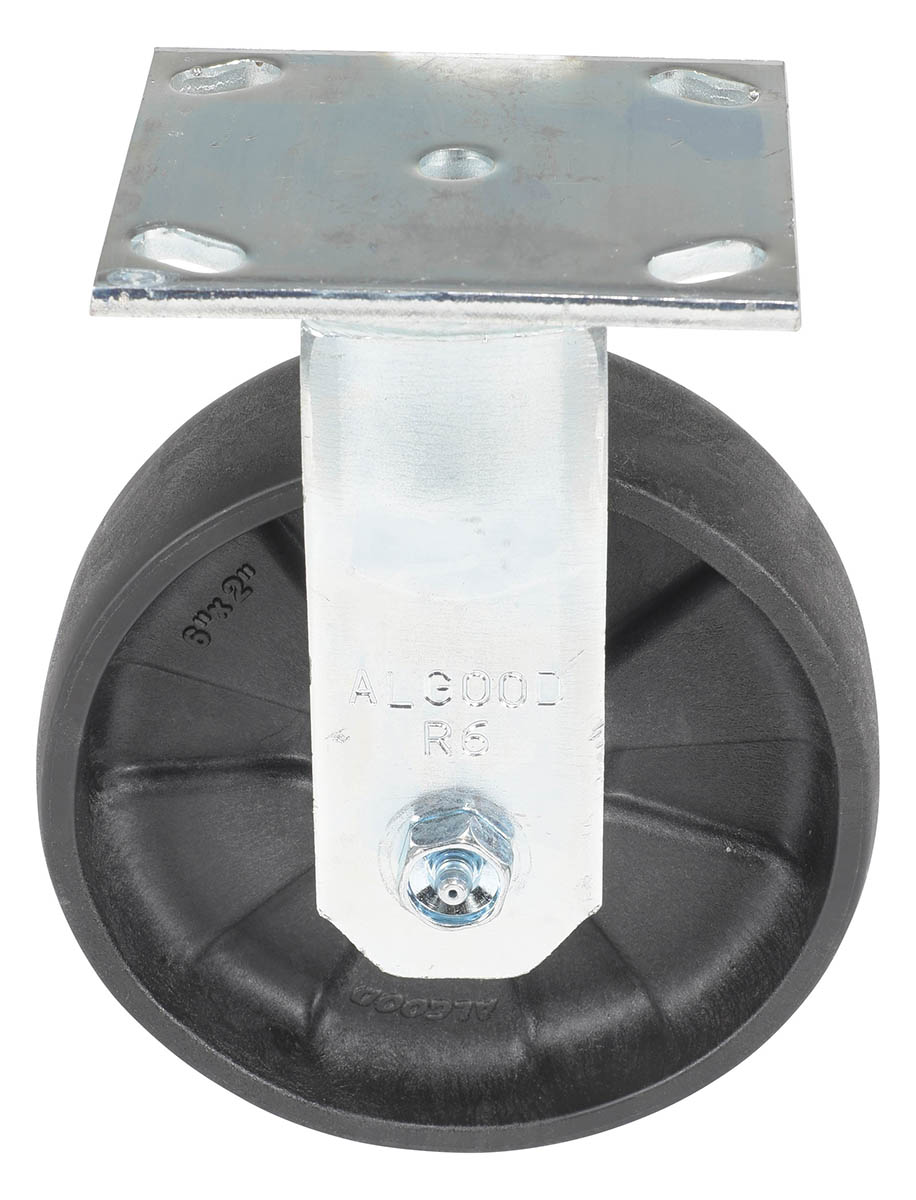

CST-HLD-6X2GFN-R	3 YEARS Limited Warranty	6 x 2	RIGID	1200	7-1/2	4 x 4-1/2	4.02
CST-HLD-8X2GFN-R	3 YEARS Limited Warranty	8 x 2	RIGID	1200	9-1/2	4 x 4-1/2	4.9

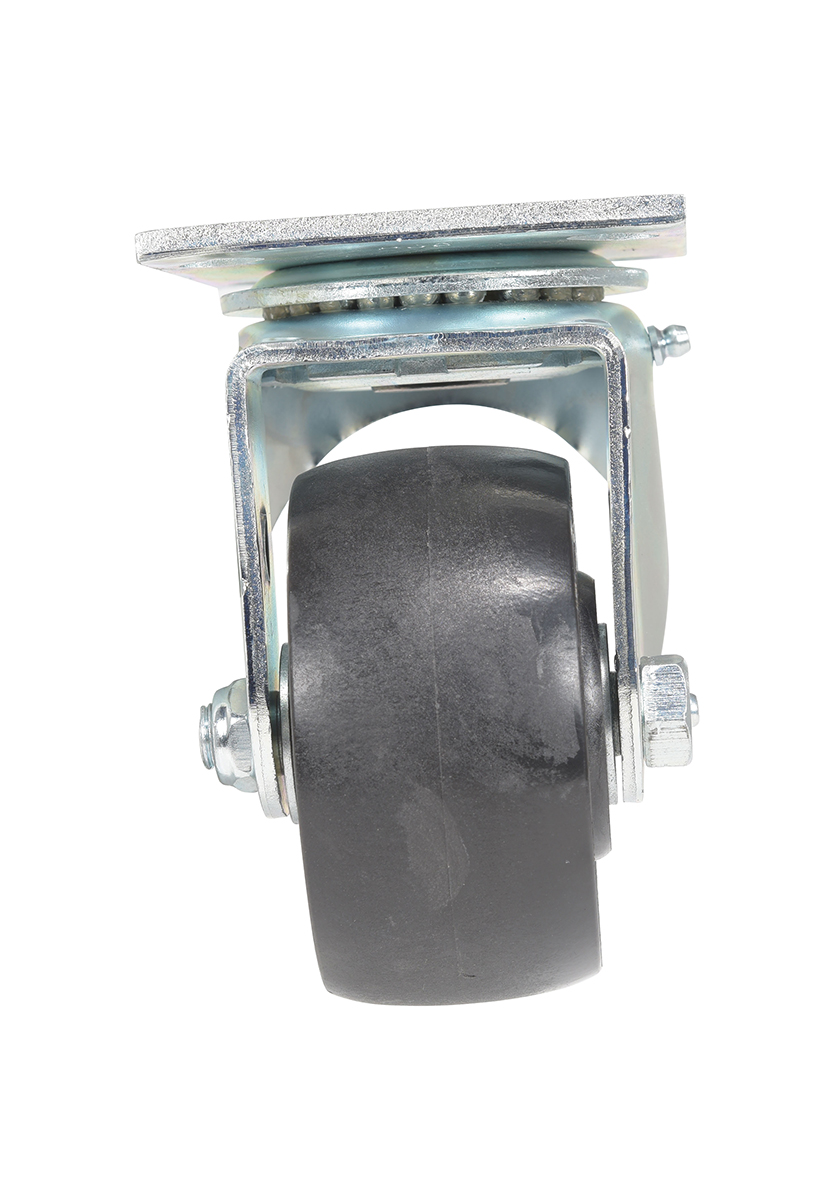

CST-HLD-4X2GFN-S	3 YEARS Limited Warranty	4 x 2	SWIVEL	1200	5-3/4	4 x 4-1/2	4.68
CST-HLD-5X2GFN-S	3 YEARS Limited Warranty	5 x 2	SWIVEL	1200	6-1/2	4 x 4-1/2	5.03

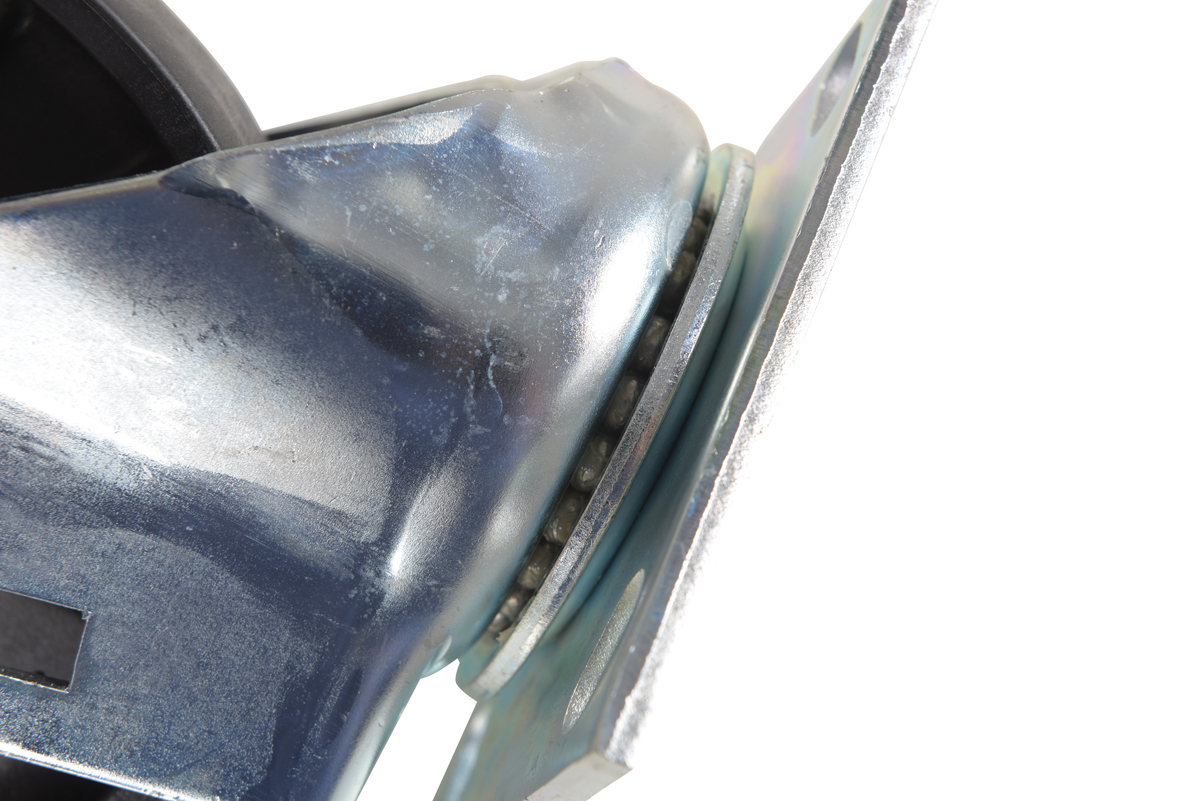

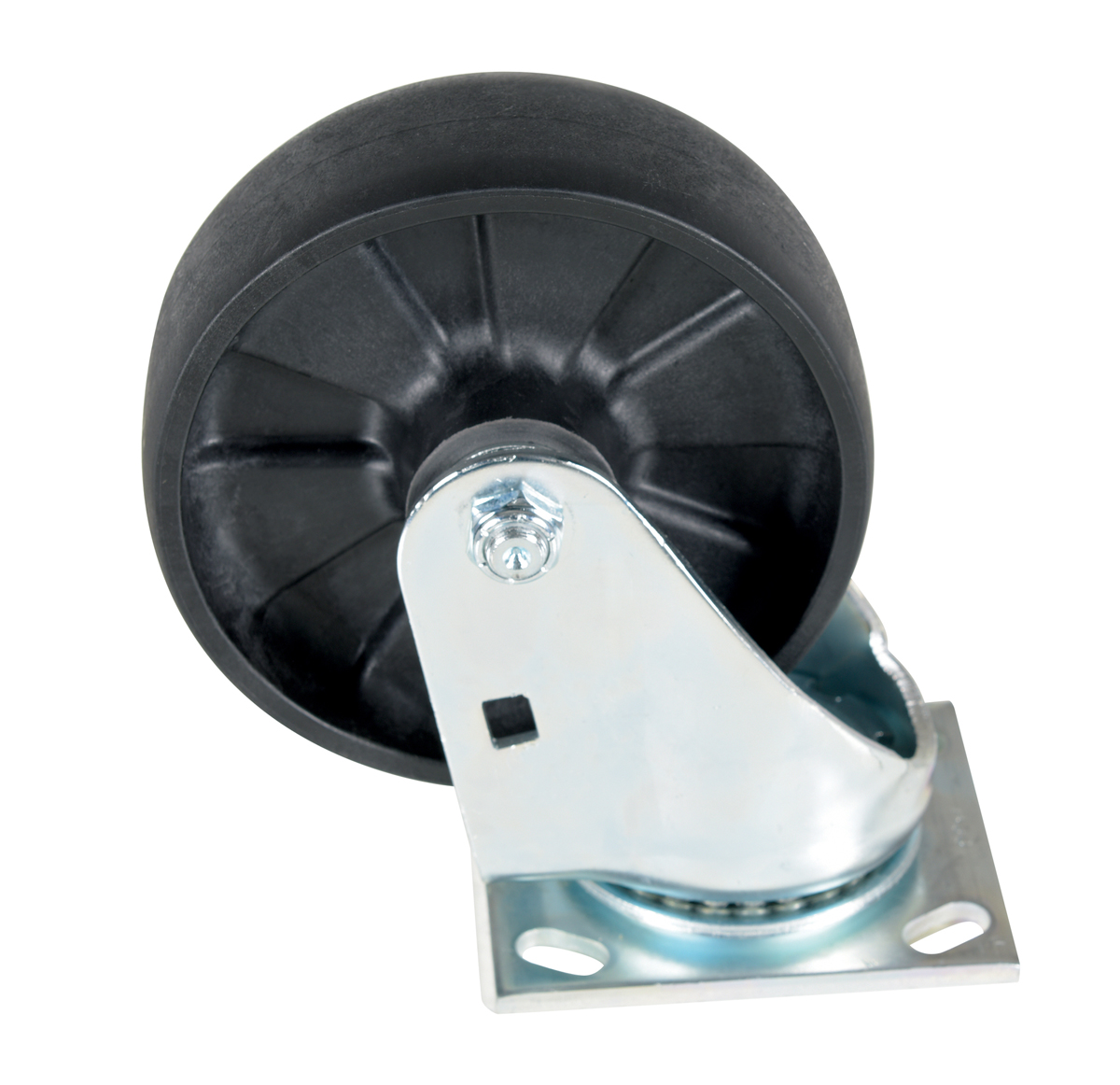

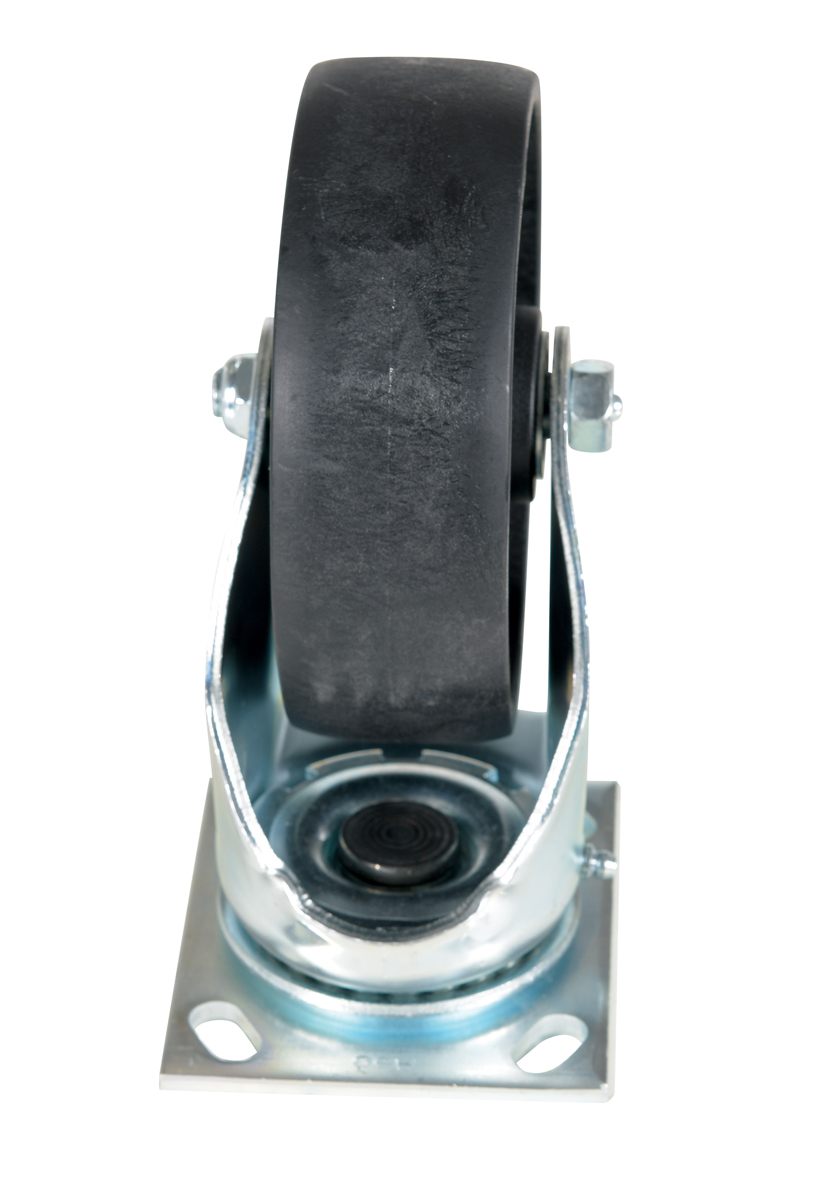

CST-HLD-6X2GFN-S	3 YEARS Limited Warranty	6 x 2	SWIVEL	1200	7-1/2	4 x 4-1/2	5.16
CST-HLD-8X2GFN-S	3 YEARS Limited Warranty	8 x 2	SWIVEL	1200	9-1/2	4 x 4-1/2	5.97

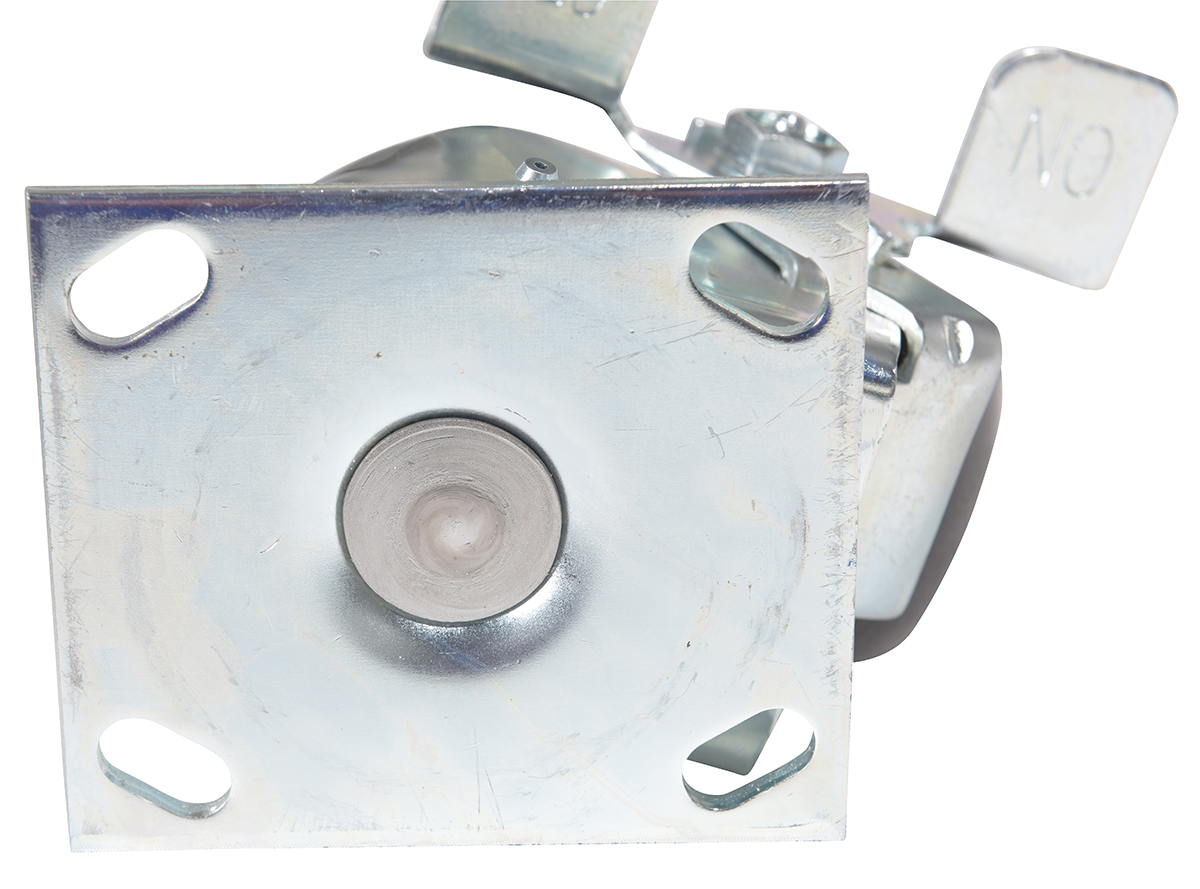

CST-HLD-4X2GFN-SWB	3 YEARS Limited Warranty	4 x 2	SWIVEL W/BRAKE	1200	5-3/4	4 x 4-1/2	5.06

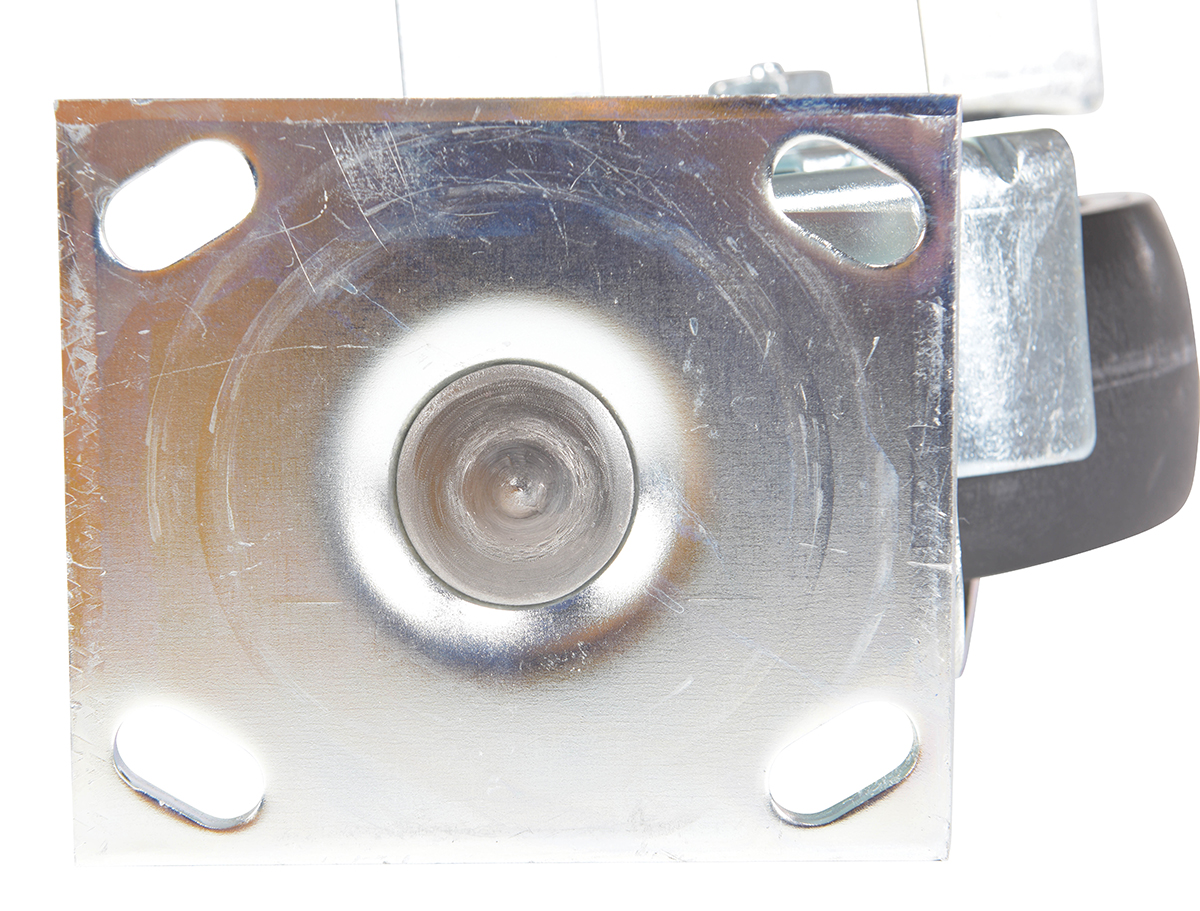

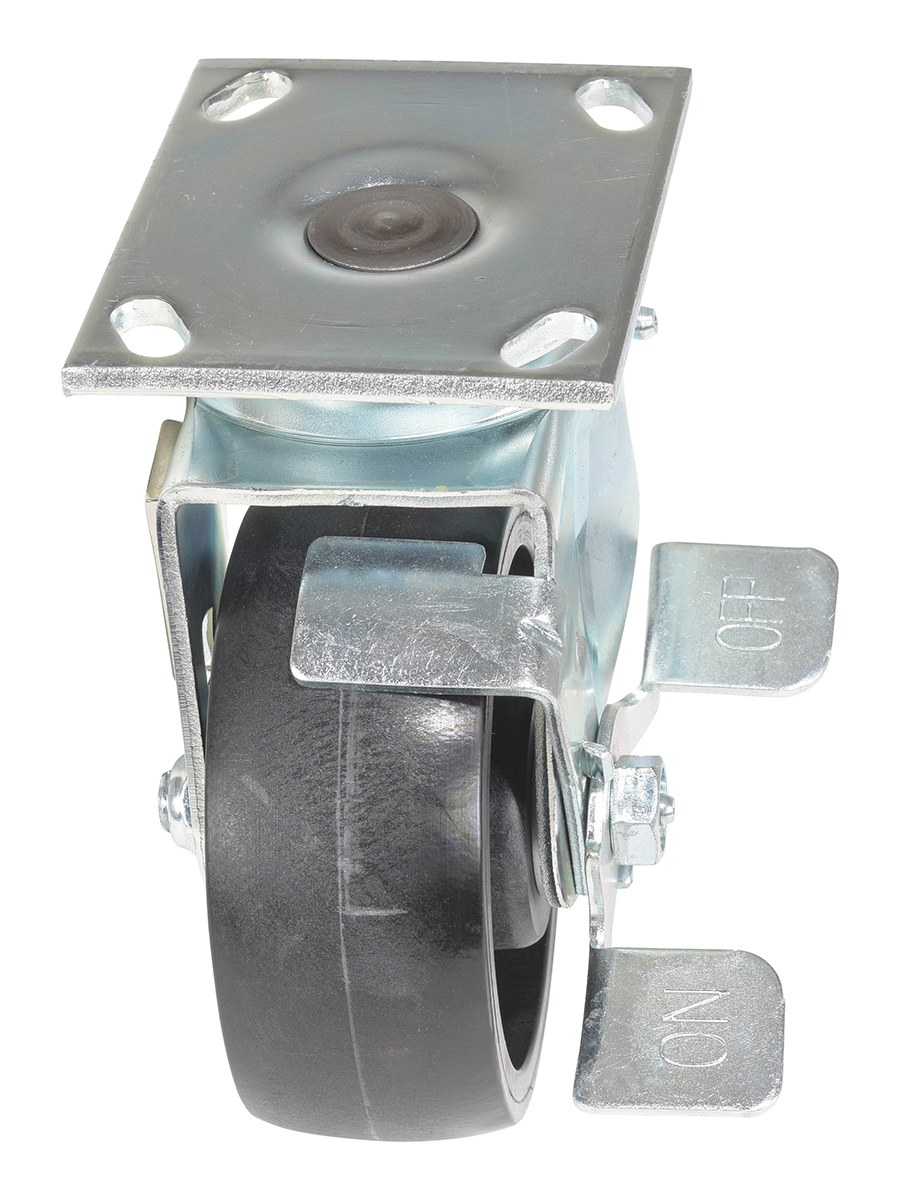

CST-HLD-5X2GFN-SWB	3 YEARS Limited Warranty	5 x 2	SWIVEL W/BRAKE	1200	6-1/2	4 x 4-1/2	5.42
CST-HLD-6X2GFN-SWB	3 YEARS Limited Warranty	6 x 2	SWIVEL W/BRAKE	1200	7-1/2	4 x 4-1/2	5.54
CST-HLD-8X2GFN-SWB	3 YEARS Limited Warranty	8 x 2	SWIVEL W/BRAKE	1200	9-1/2	4 x 4-1/2	6.41

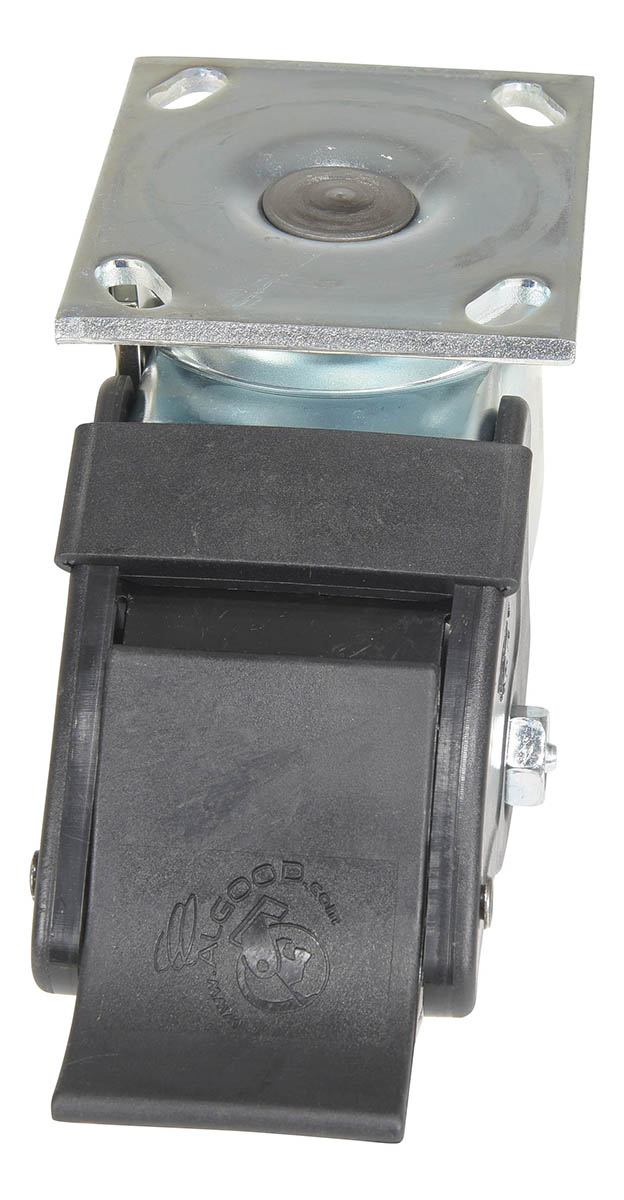

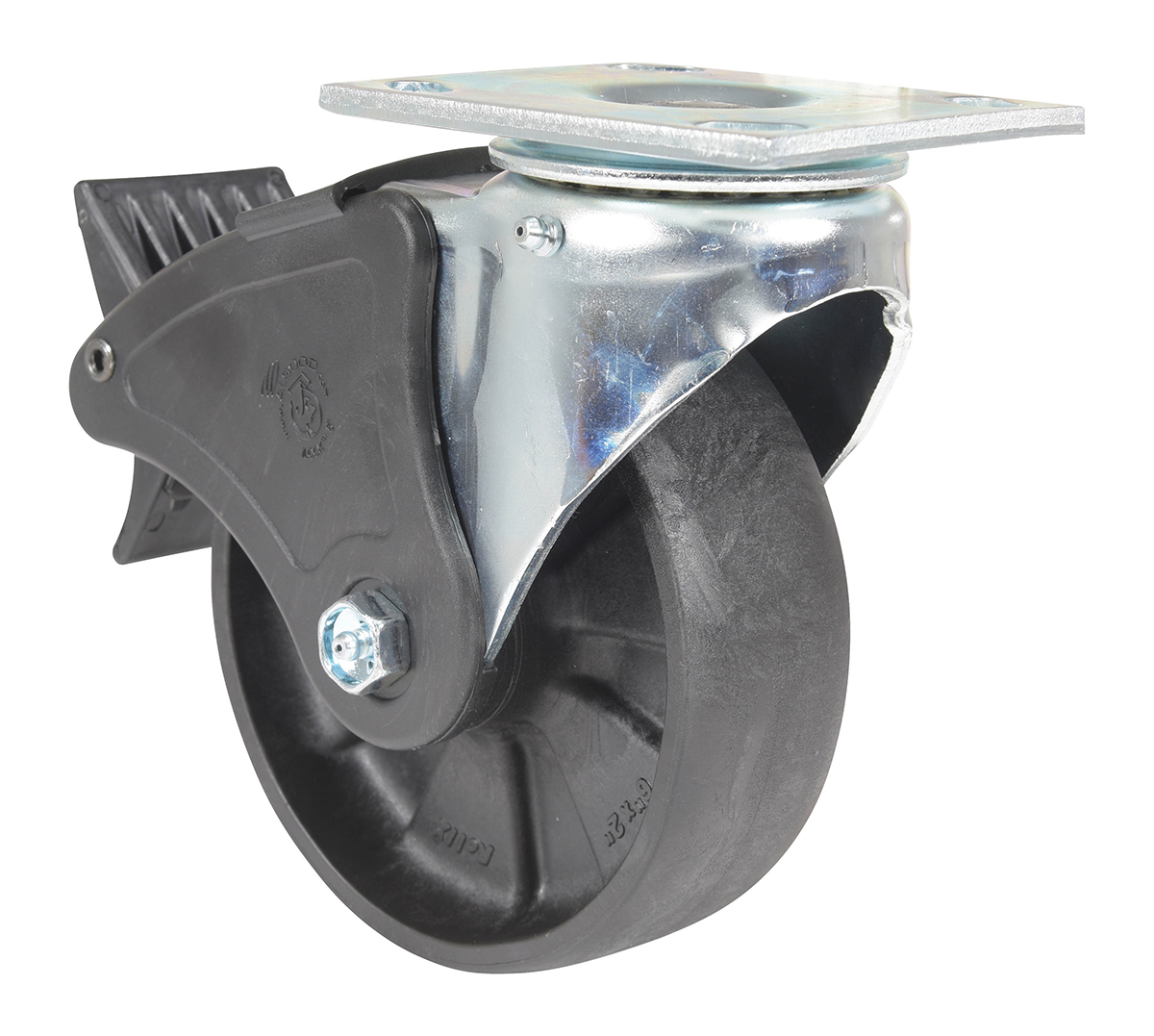

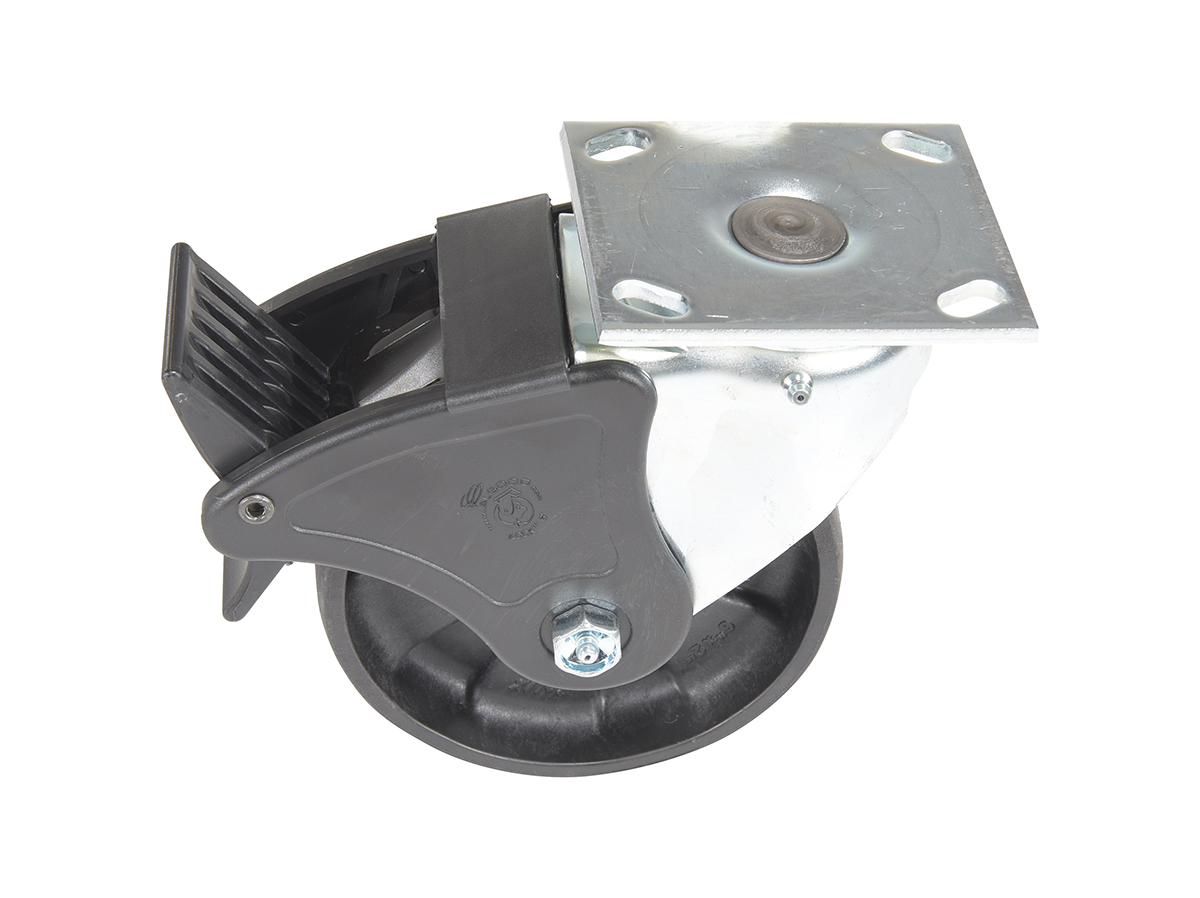

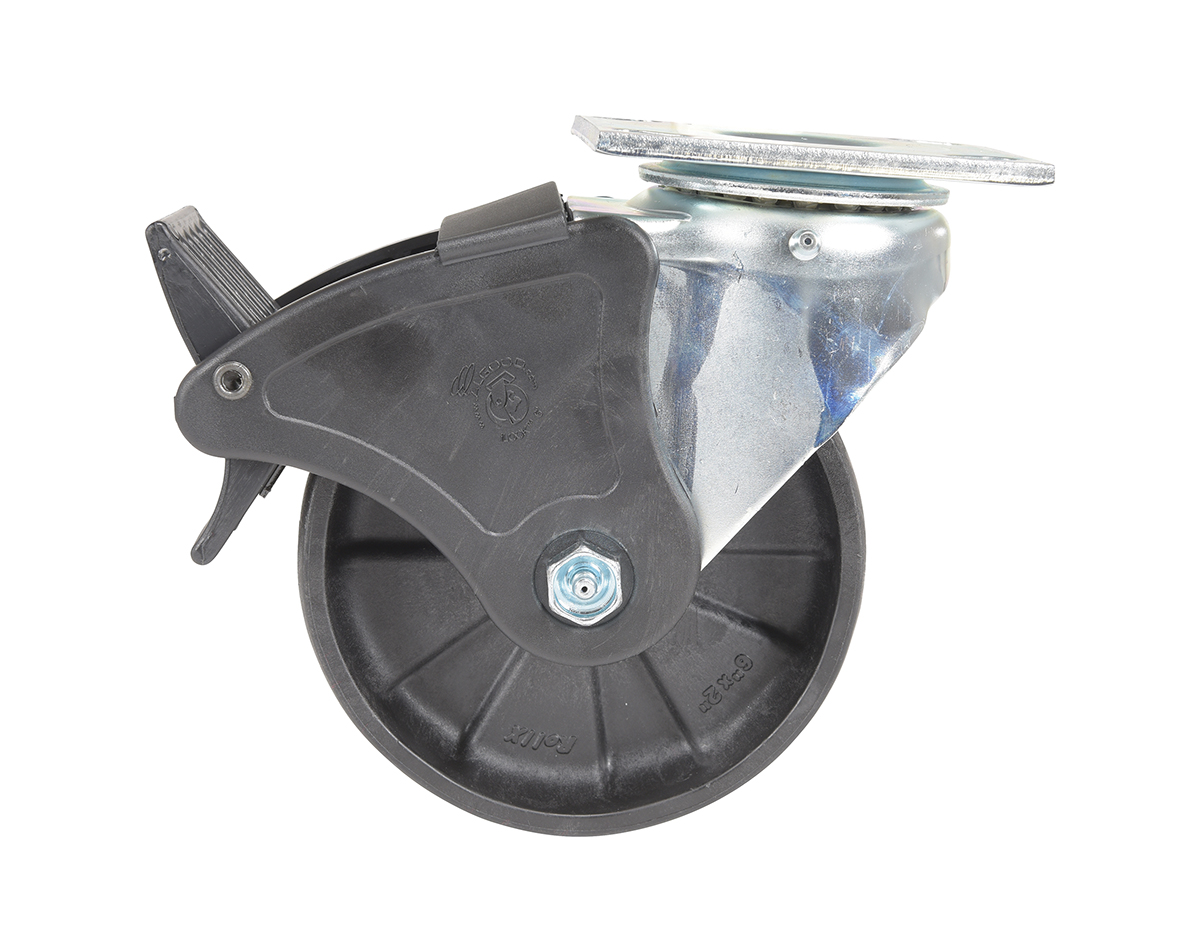

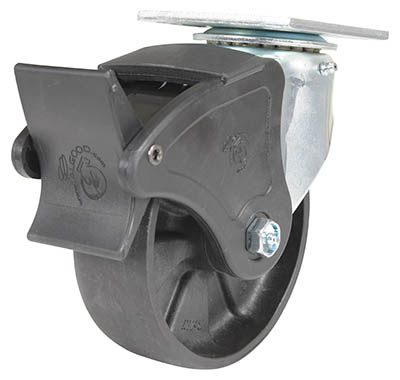

CST-HLD-5X2GFN-SWTB1	3 YEARS Limited Warranty	5 x 2	Swivel w/Total Brake	1200	6-1/2	4 x 4-1/2	5.73

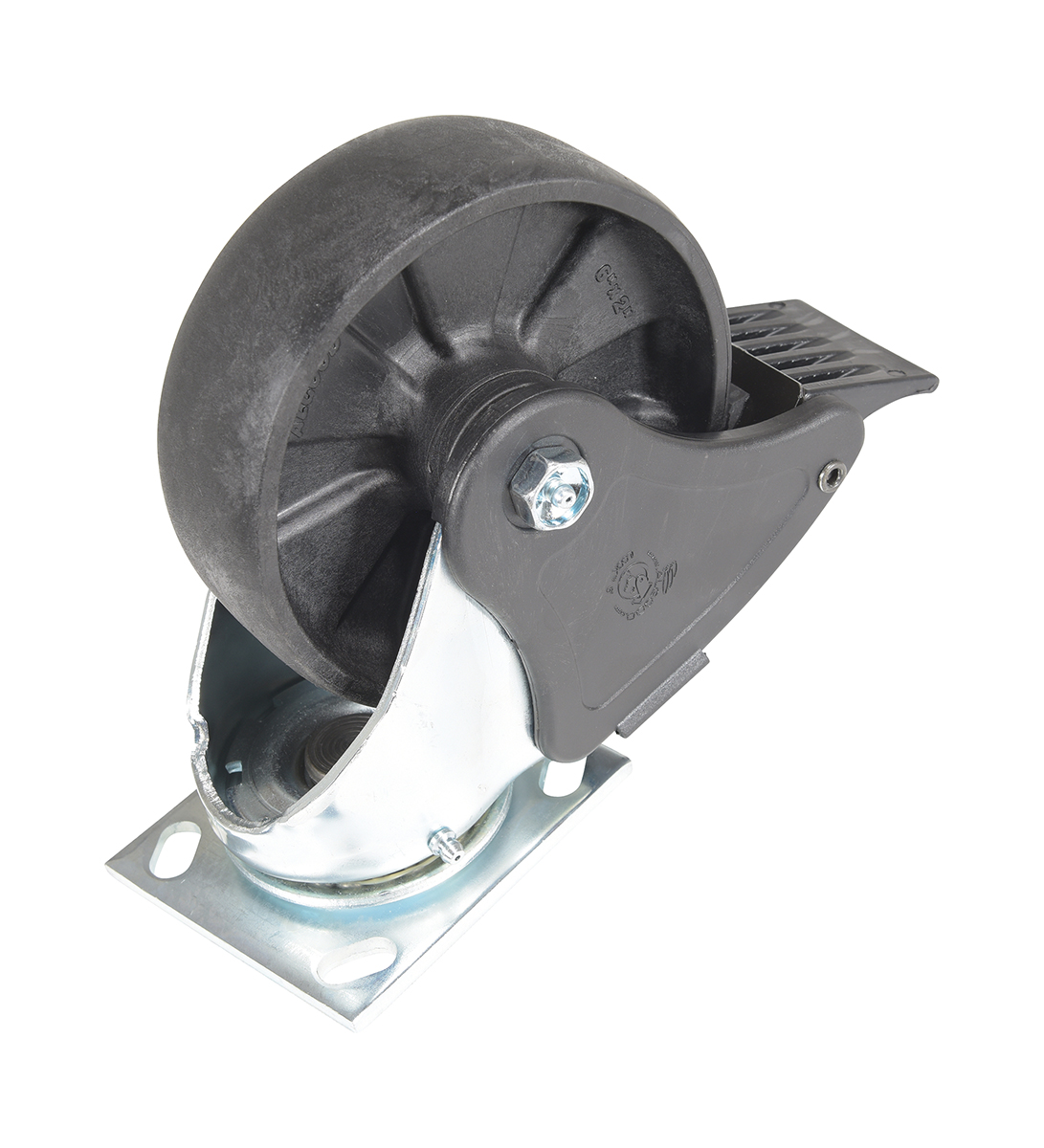

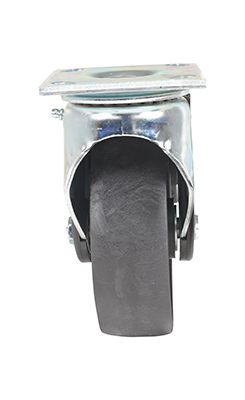

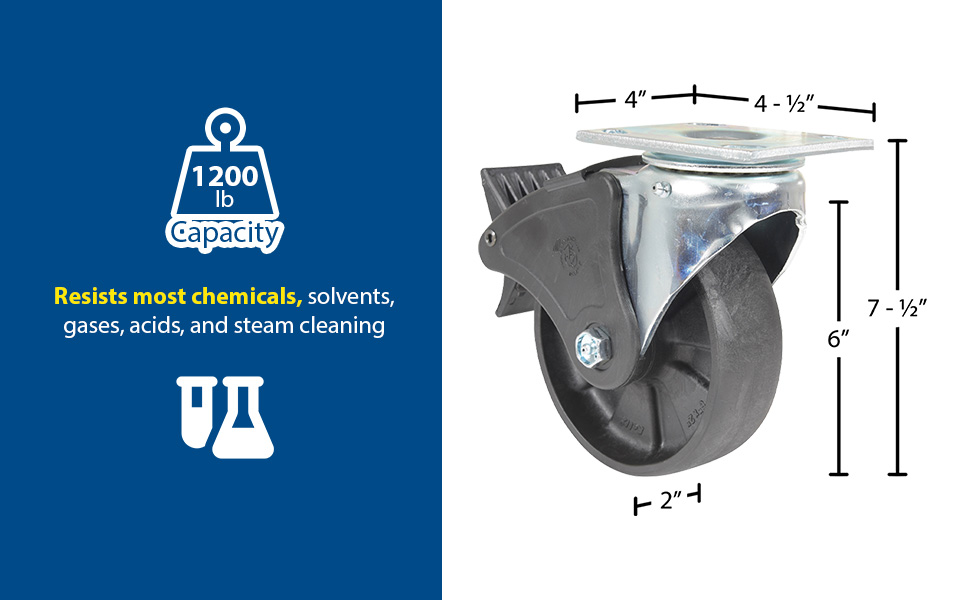

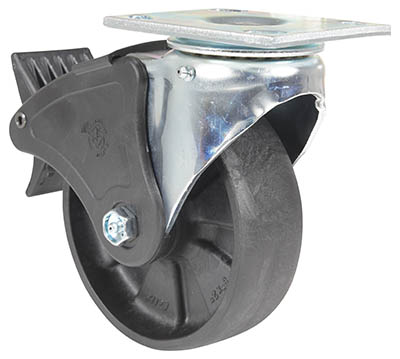

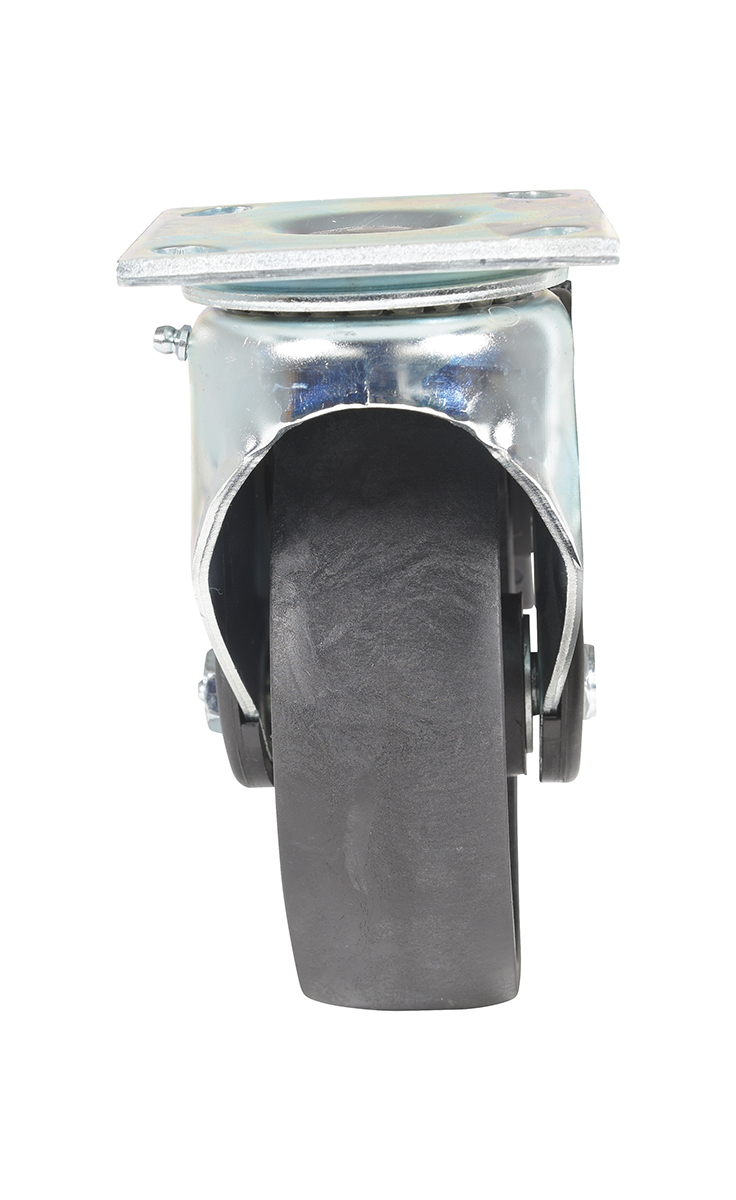

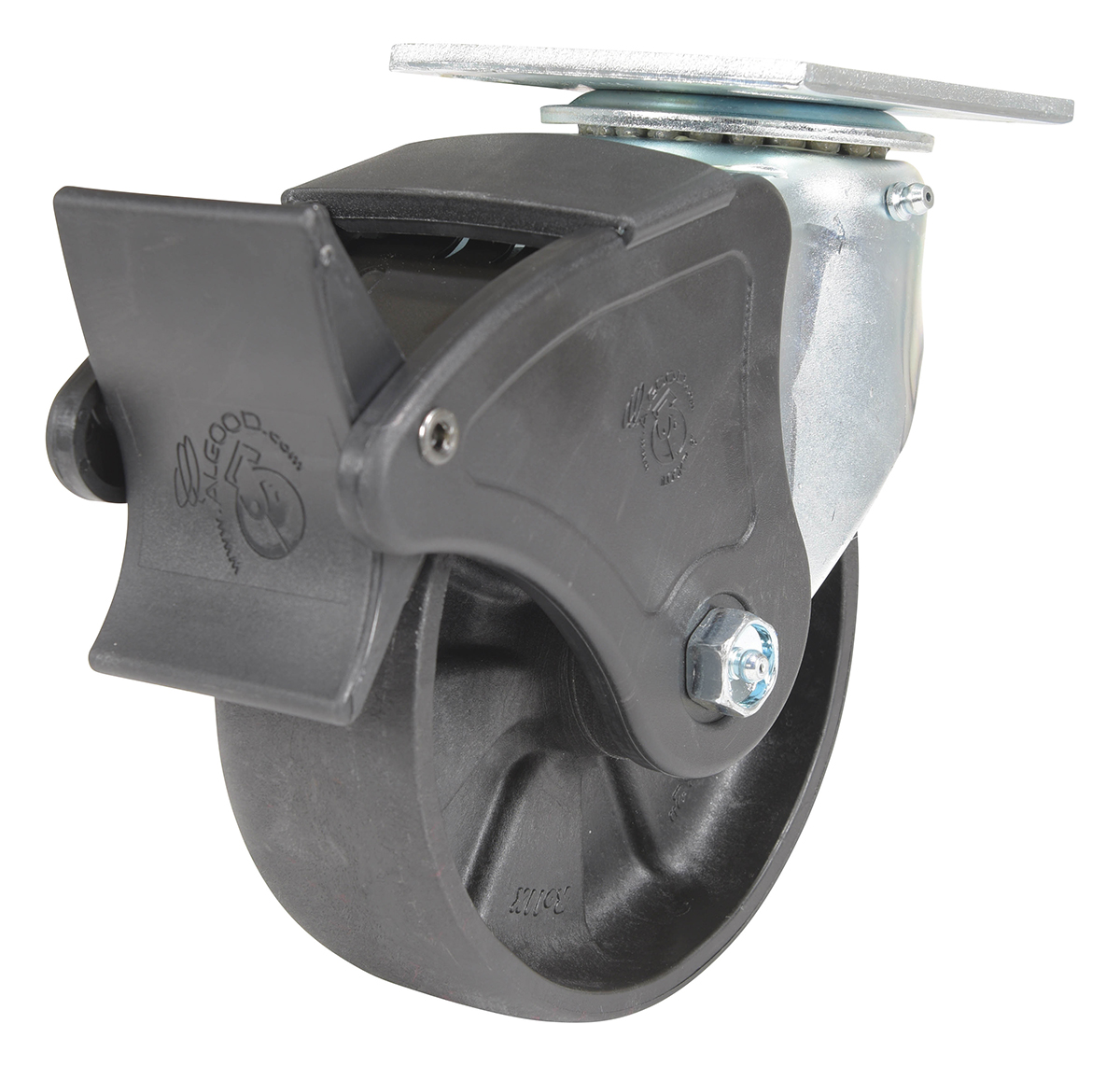

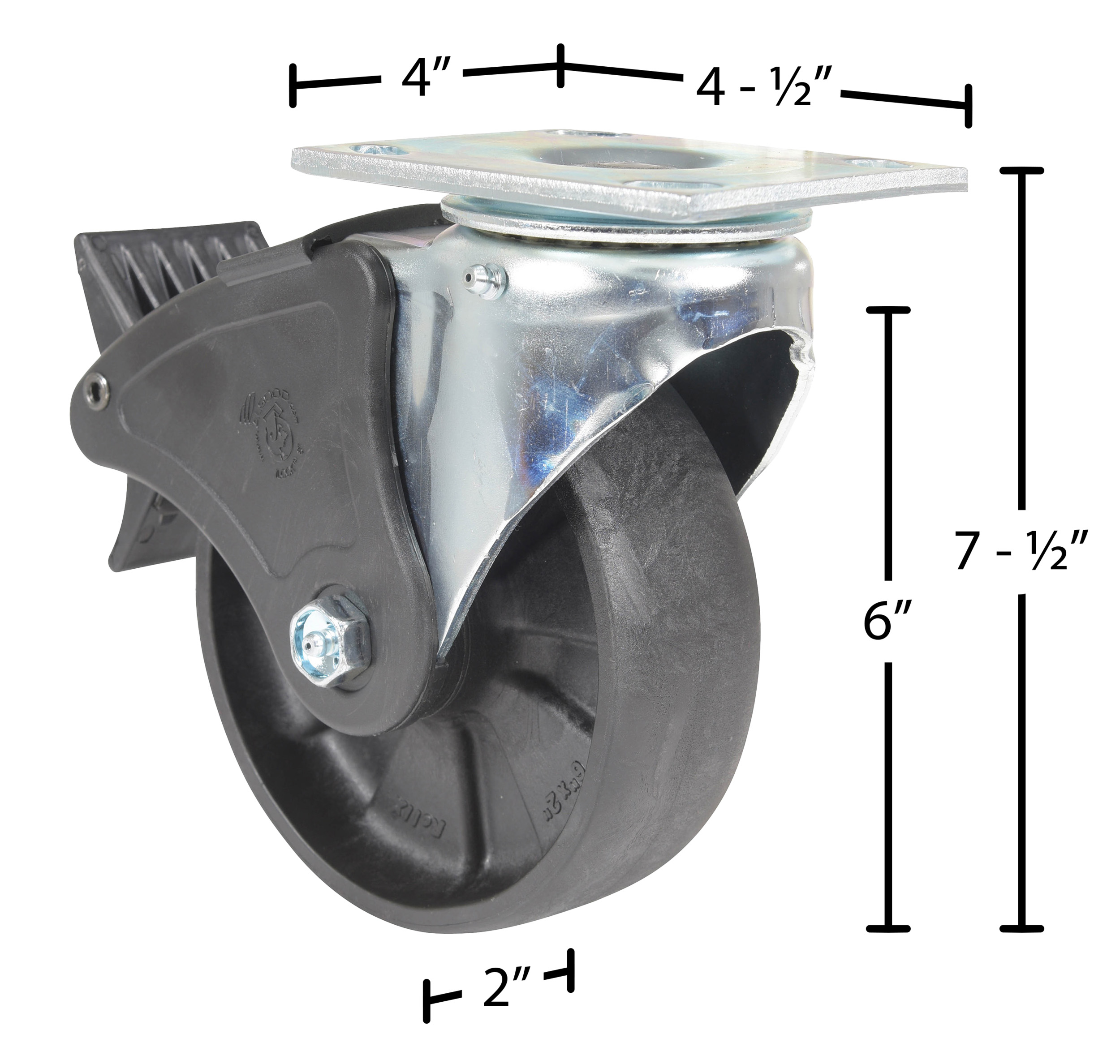

CST-HLD-6X2GFN-SWTB1	3 YEARS Limited Warranty	6 x 2	Swivel w/Total Brake	1200	7-1/2	4 x 4-1/2	5.83

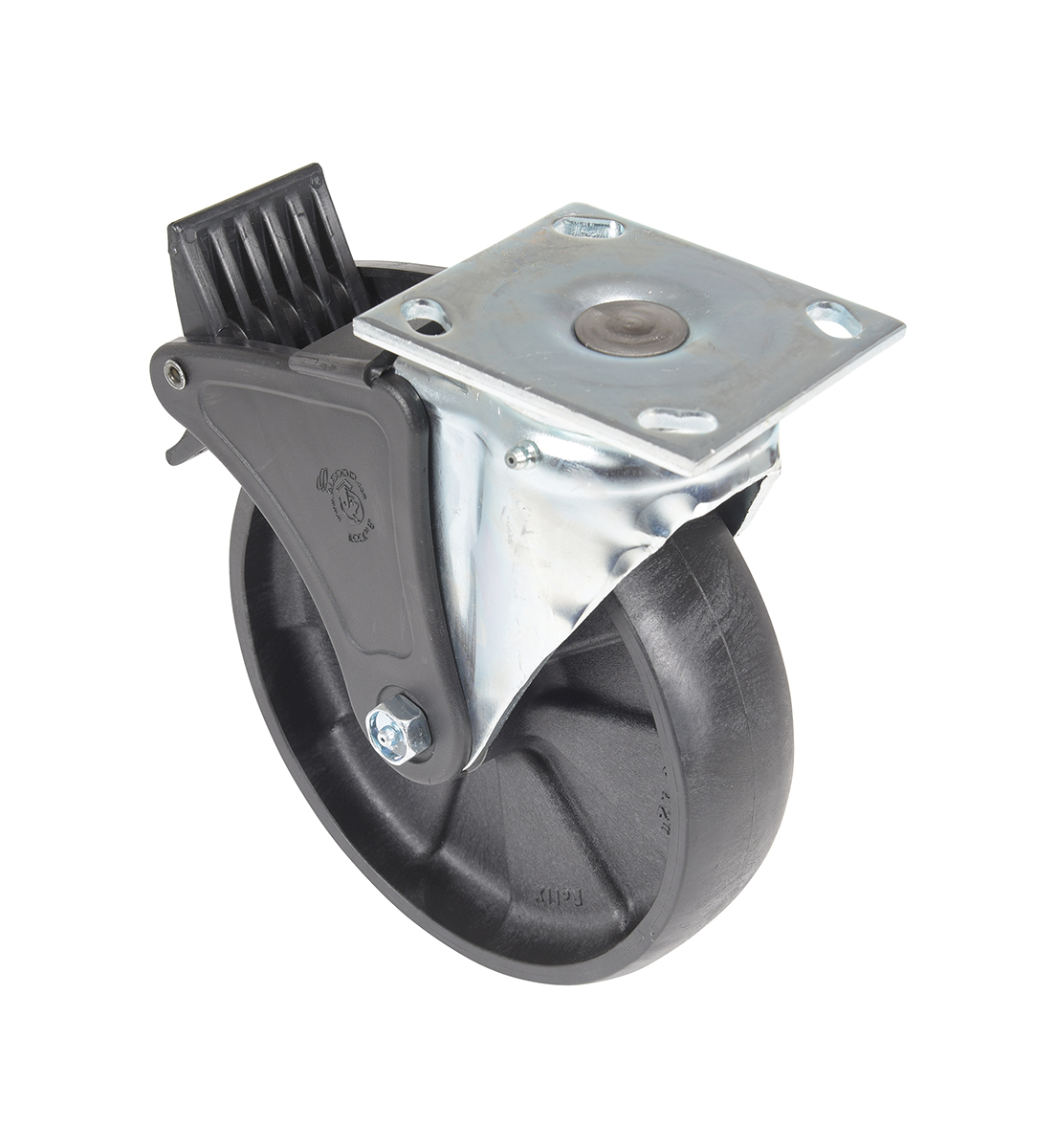

CST-HLD-8X2GFN-SWTB1	3 YEARS Limited Warranty	8 x 2	Swivel w/Total Brake	1200	9-1/2	4 x 4-1/2	6.71

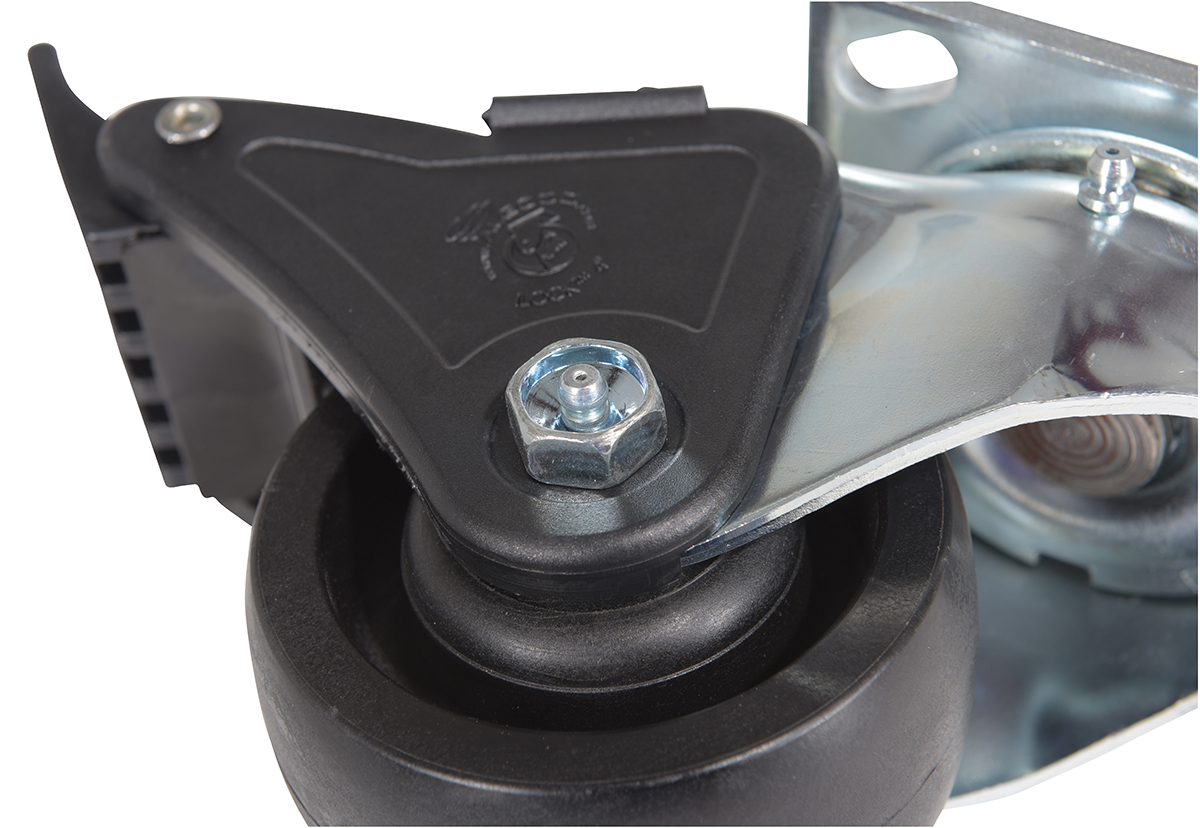

CST-HLD-4X2GFN-SWTB1	3 YEARS Limited Warranty	4 x 2	SWTB1	1200	5-3/4	4 x 4-1/2	5.34
