Product Family Overview


Flat-Free (Rubber)
SERIES: CST-VE-FF

a pneumatic tire without the worry of a flat tire or hassle of refilling air. This includes a quiet, smooth, cushioned ride, that can protect fragile cargo and provide shock absorption. Additionally, it provides more options in both size and capacity compared to other flat-free designs.a pneumatic tire without the worry of a flat tire or hassle of refilling air. This includes a quiet, smooth, cushioned ride, that can protect fragile cargo and provide shock absorption. Additionally, it provides more options in both size and capacity compared to other flat-free designs.

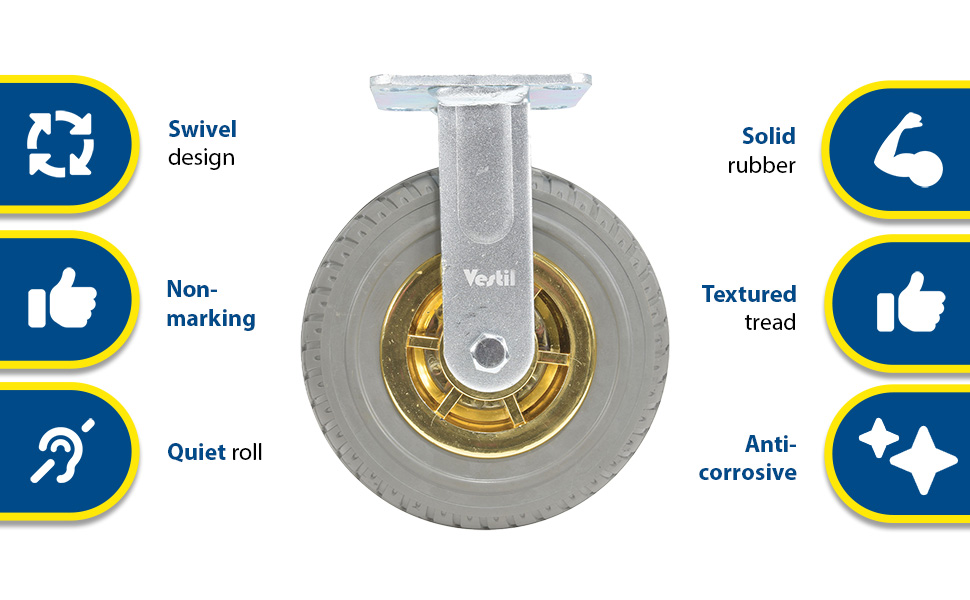

  • FLAT-FREE
  • SMOOTH RIDE PERFORMANCE
  • QUIET OPERATION
  • NON-MARKING
  • ADDED TREAD DESIGN FOR TRACTION
  • ANTI-CORROSIVE & RUST RESISTANT ZINC PLATED FINISH
  • GREASE ZERK FITTINGS
  • BALL BEARINGS

a pneumatic tire without the worry of a flat tire or hassle of refilling air. This includes a quiet, smooth, cushioned ride, that can protect fragile cargo and provide shock absorption. Additionally, it provides more options in both size and capacity compared to other flat-free designs.a pneumatic tire without the worry of a flat tire or hassle of refilling air. This includes a quiet, smooth, cushioned ride, that can protect fragile cargo and provide shock absorption. Additionally, it provides more options in both size and capacity compared to other flat-free designs.

  • FLAT-FREE
  • SMOOTH RIDE PERFORMANCE
  • QUIET OPERATION
  • NON-MARKING
  • ADDED TREAD DESIGN FOR TRACTION
  • ANTI-CORROSIVE & RUST RESISTANT ZINC PLATED FINISH
  • GREASE ZERK FITTINGS
  • BALL BEARINGS

Additional Models In This Family

Model Specific Details




All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is for Casters within the Model Chart on this page. Not an entire site search.
Model Image PDFs Caster
Size
Type Capacity
(lbs.)
Overall
Height

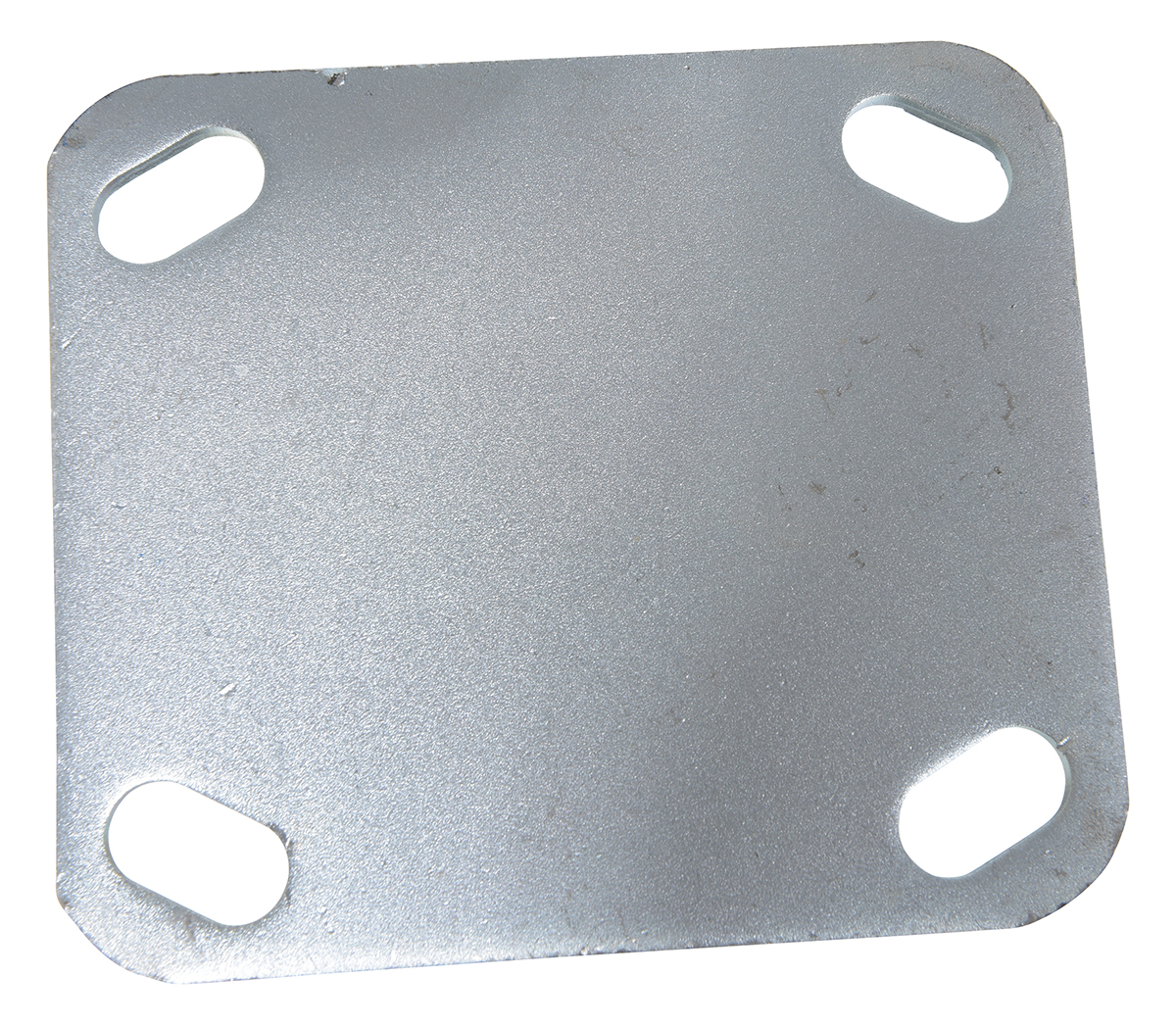

Top Plate
Size
Net Wt.
(lbs)

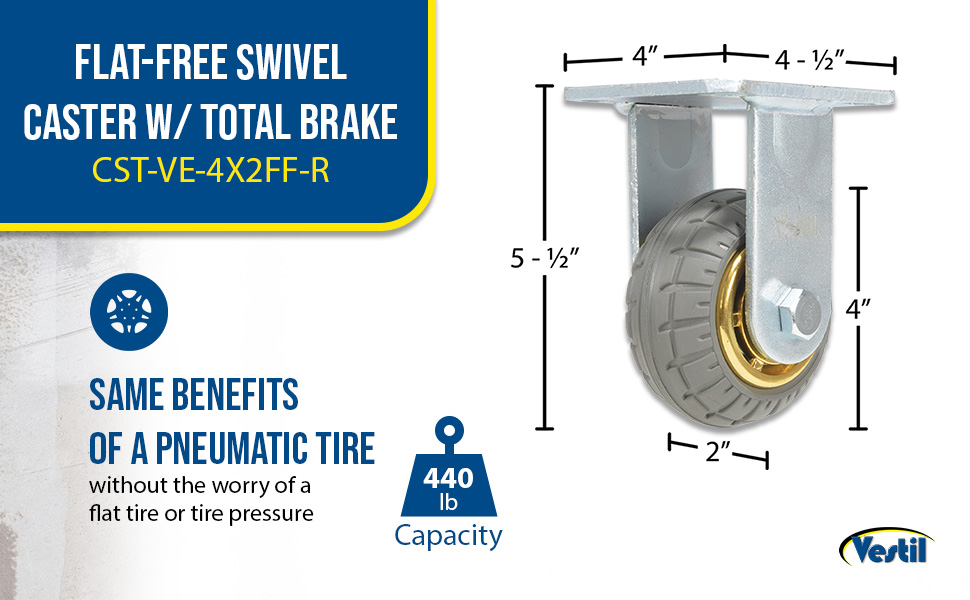

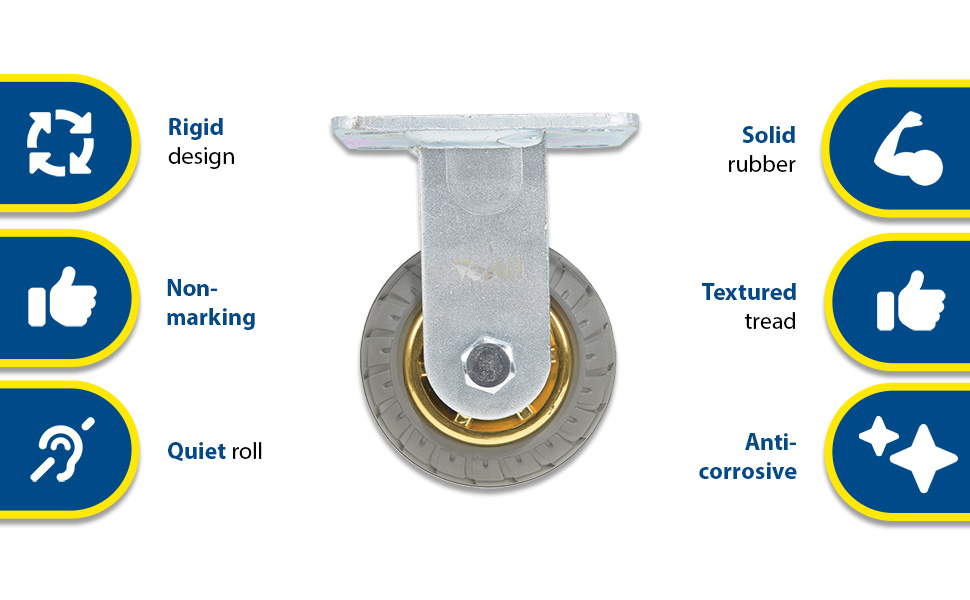

CST-VE-4X2FF-R CST-VE-4X2FF-R Limited Warranty4 x 2RIGID4405-1/2 4 x 4-1/23.27
CST-VE-5X2FF-R CST-VE-5X2FF-R1 YEAR Limited Warranty5 x 2RIGID5076-1/2 4 x 4-1/23.95

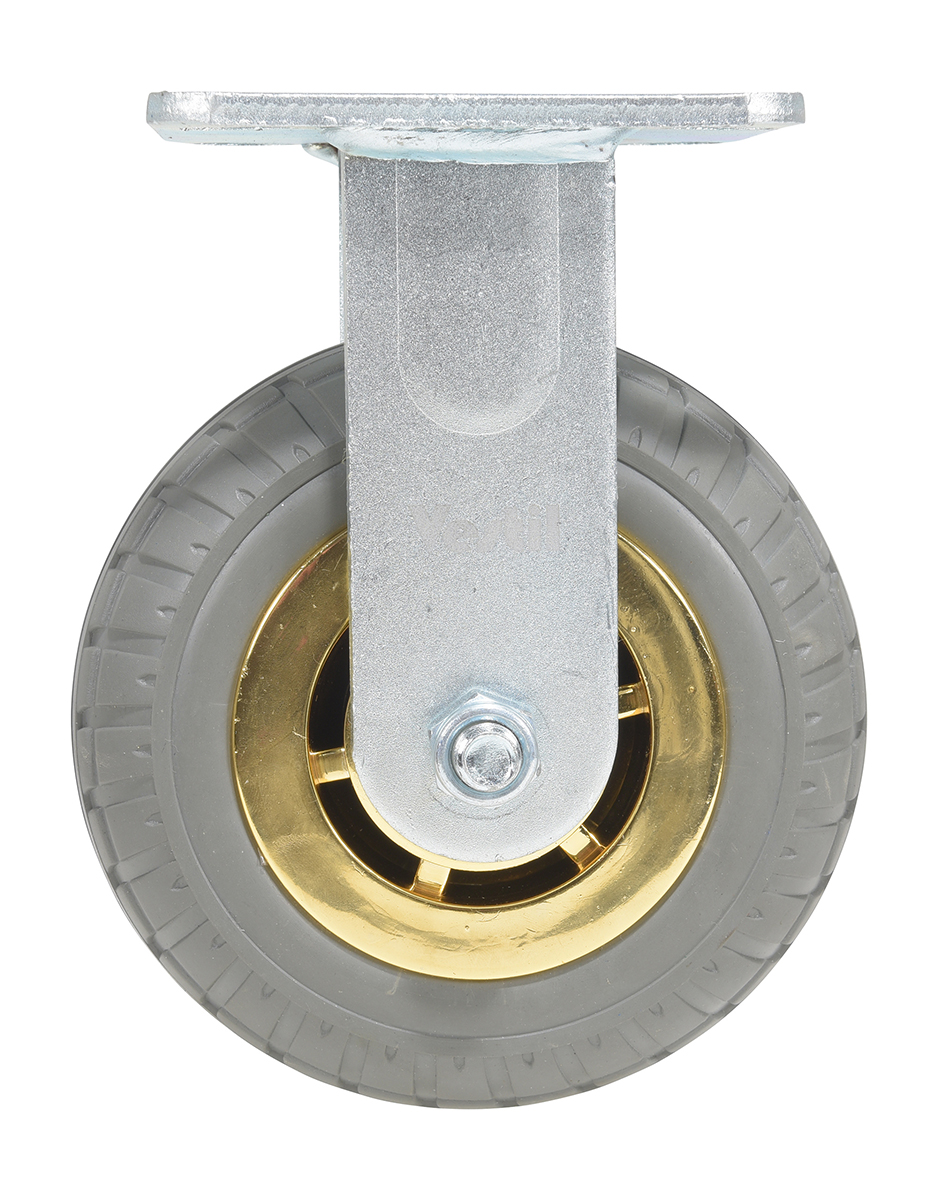

CST-VE-6X2FF-R CST-VE-6X2FF-R1 YEAR Limited Warranty6 x 2RIGID6177-1/2 4 x 4-1/24.77

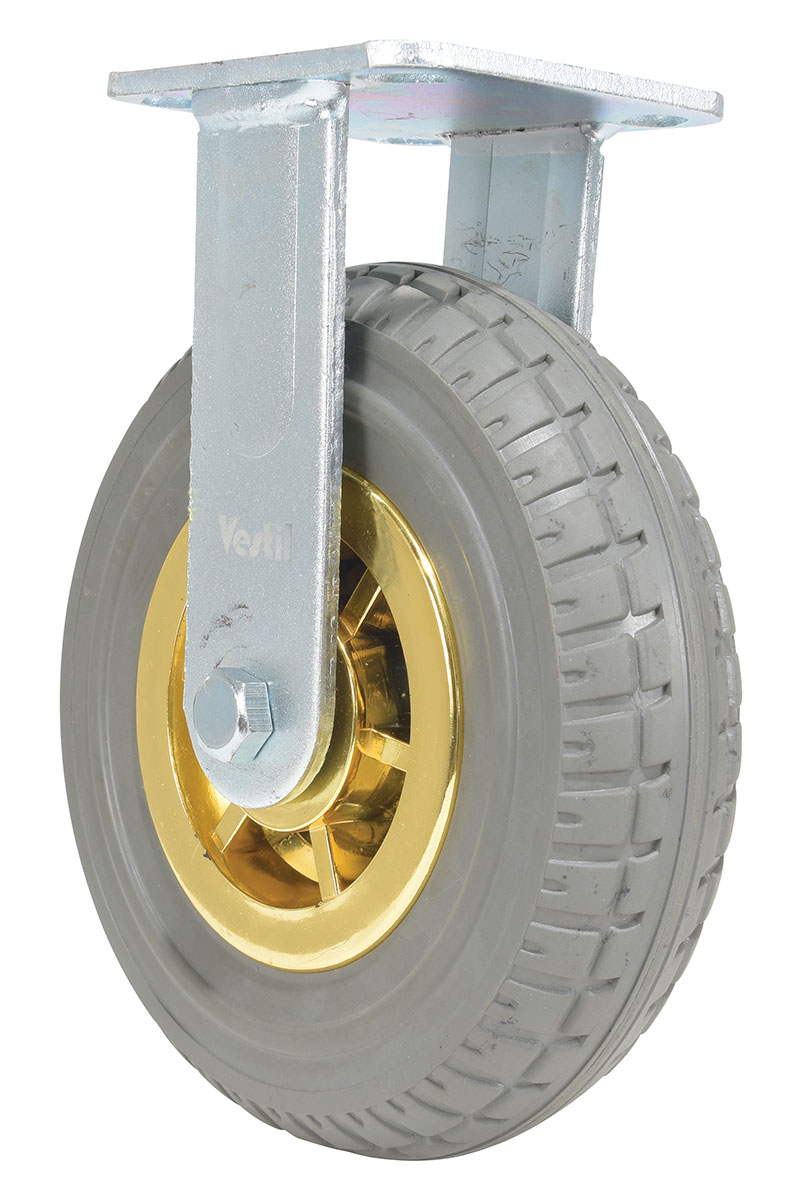

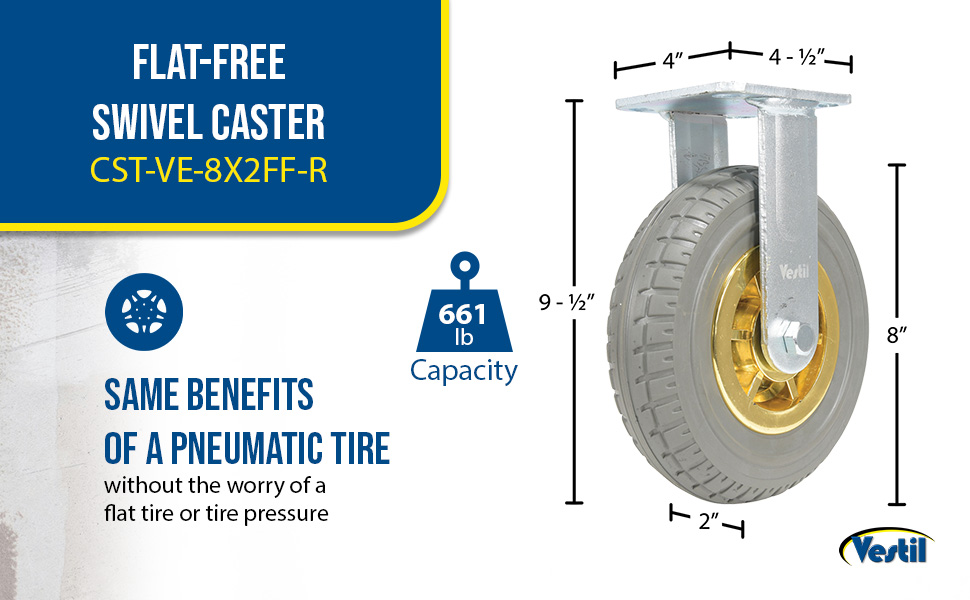

CST-VE-8X2FF-R CST-VE-8X2FF-R1 YEAR Limited Warranty8 x 2RIGID6619-1/2 4 x 4 1/26.99
CST-VE-4X2FF-S CST-VE-4X2FF-S Limited Warranty4 x 2SWIVEL4405-1/2 4 x 4-1/24.12

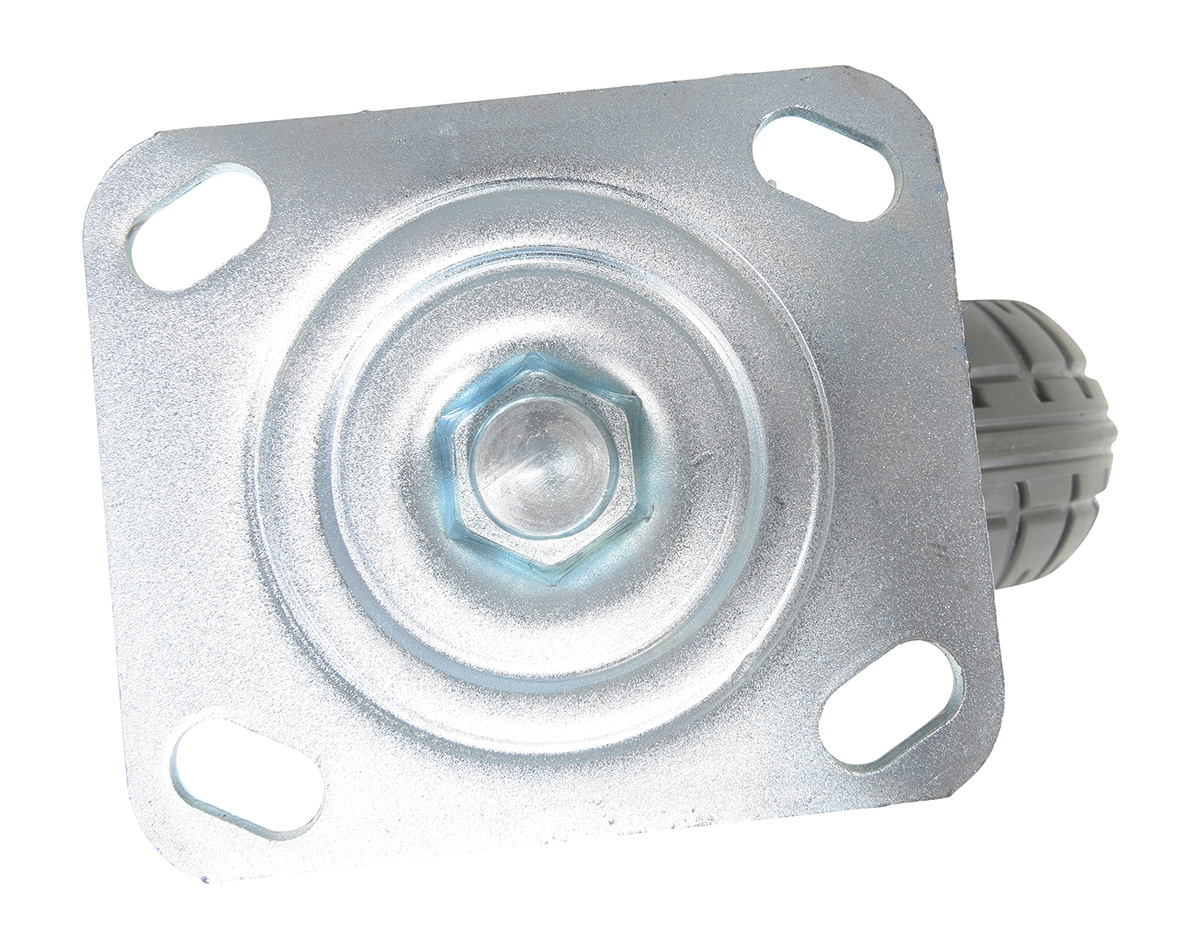

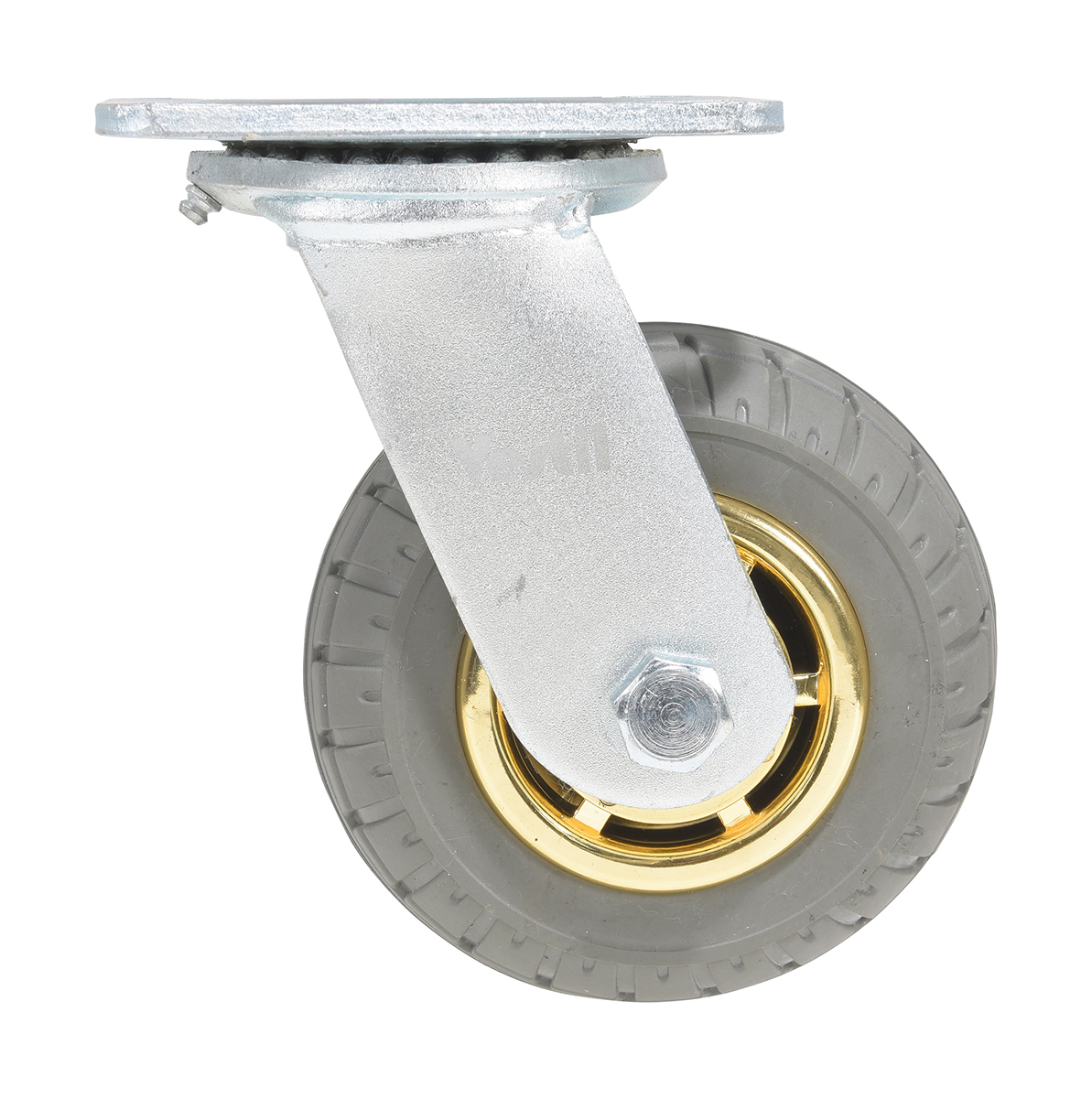

CST-VE-5X2FF-S CST-VE-5X2FF-S1 YEAR Limited Warranty5 x 2SWIVEL5076-1/2 4 x 4-1/24.77

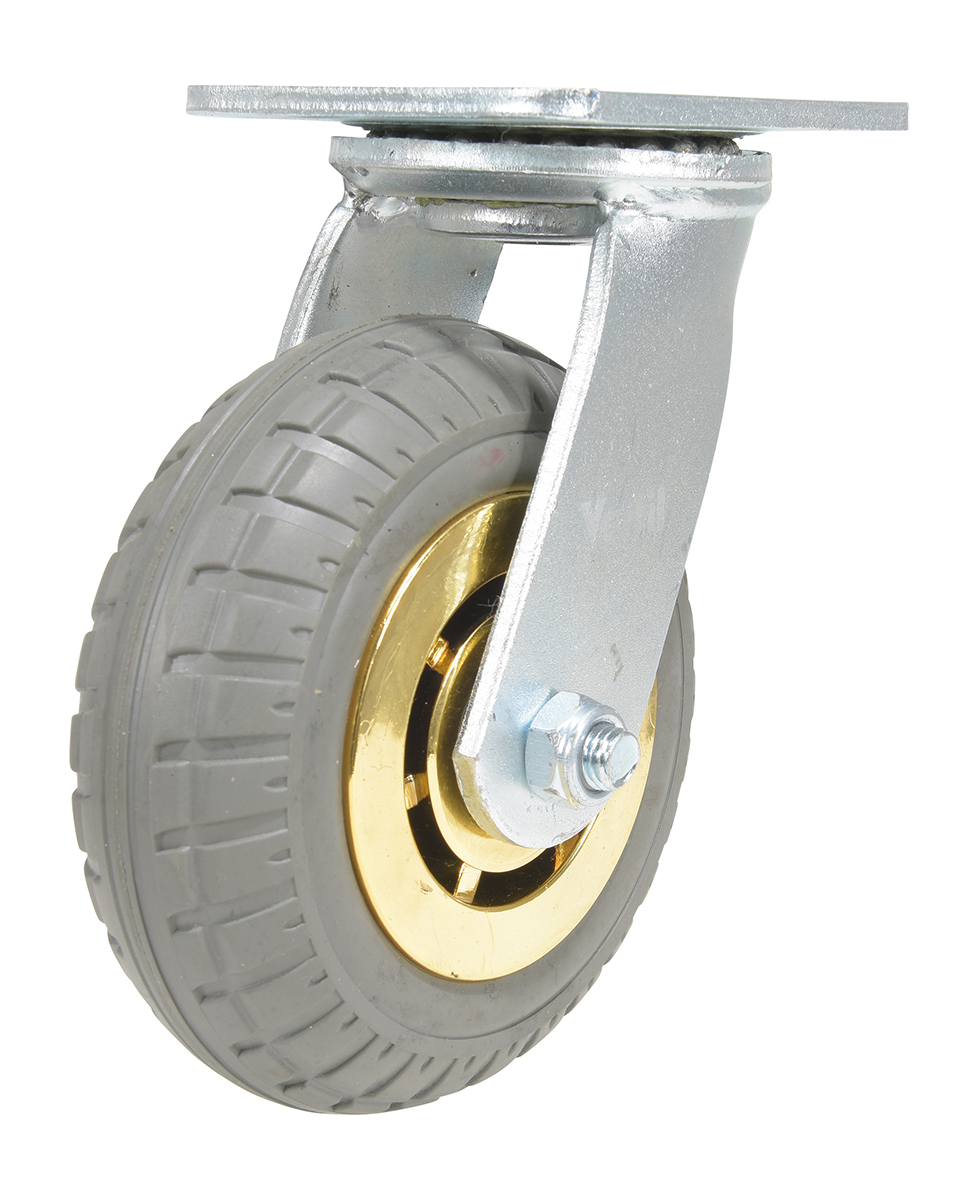

CST-VE-6X2FF-S CST-VE-6X2FF-S1 YEAR Limited Warranty6 x 2SWIVEL6177-1/2 4 x 4-1/25.61

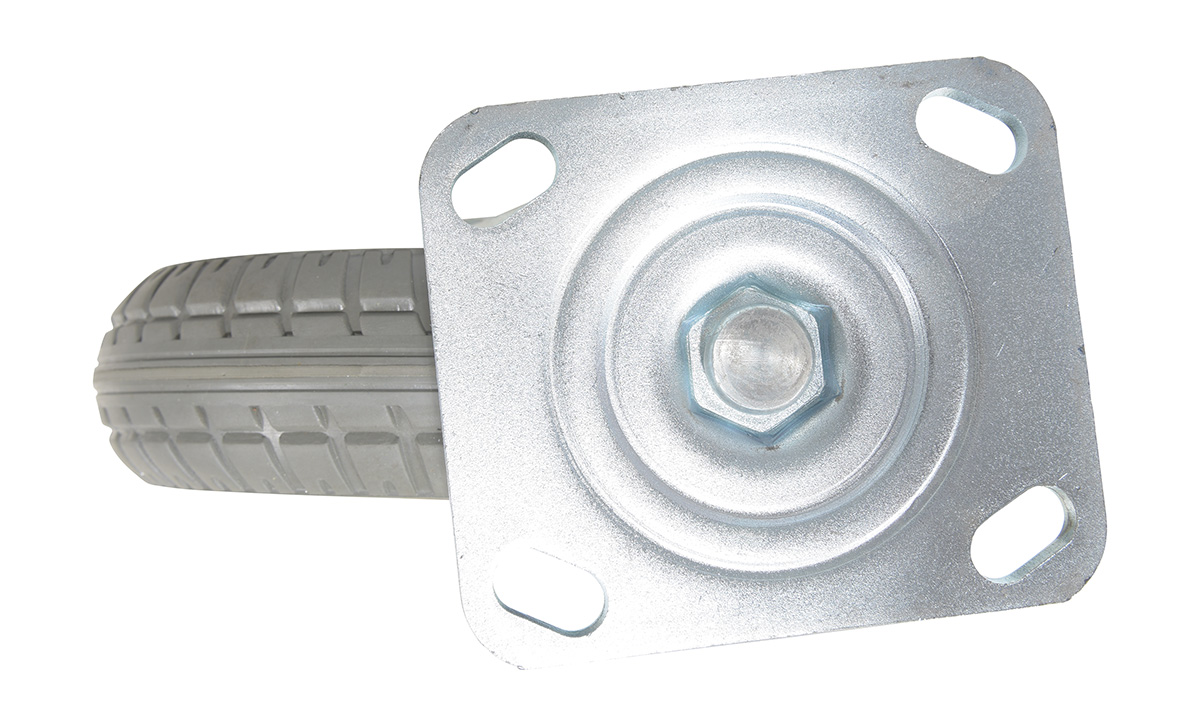

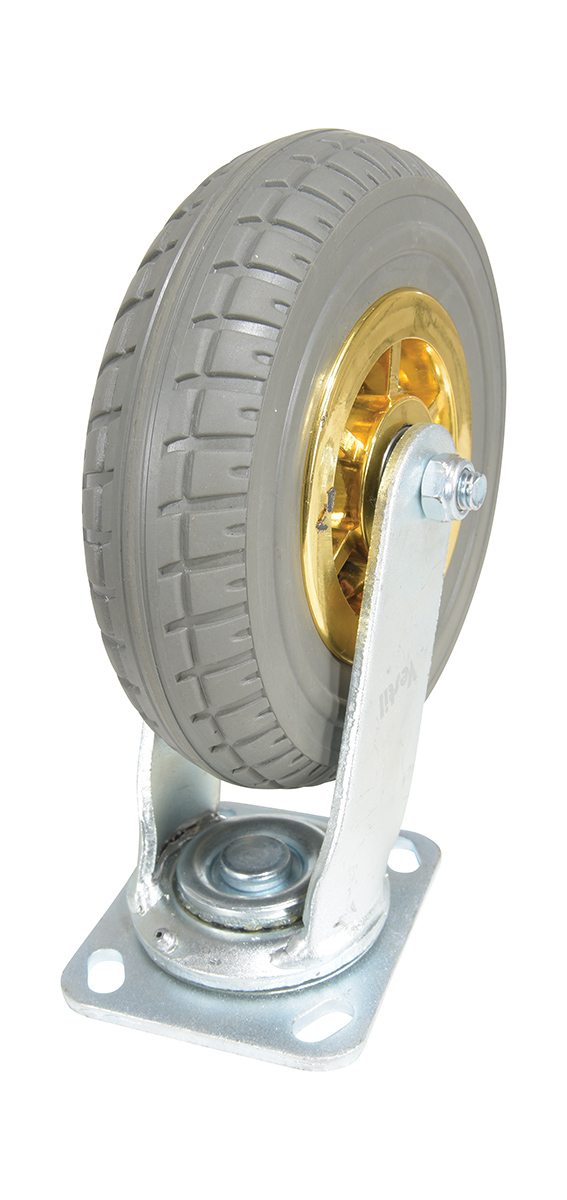

CST-VE-8X2FF-S CST-VE-8X2FF-S1 YEAR Limited Warranty8 x 2SWIVEL6619-1/2 4 x 4-1/27.87

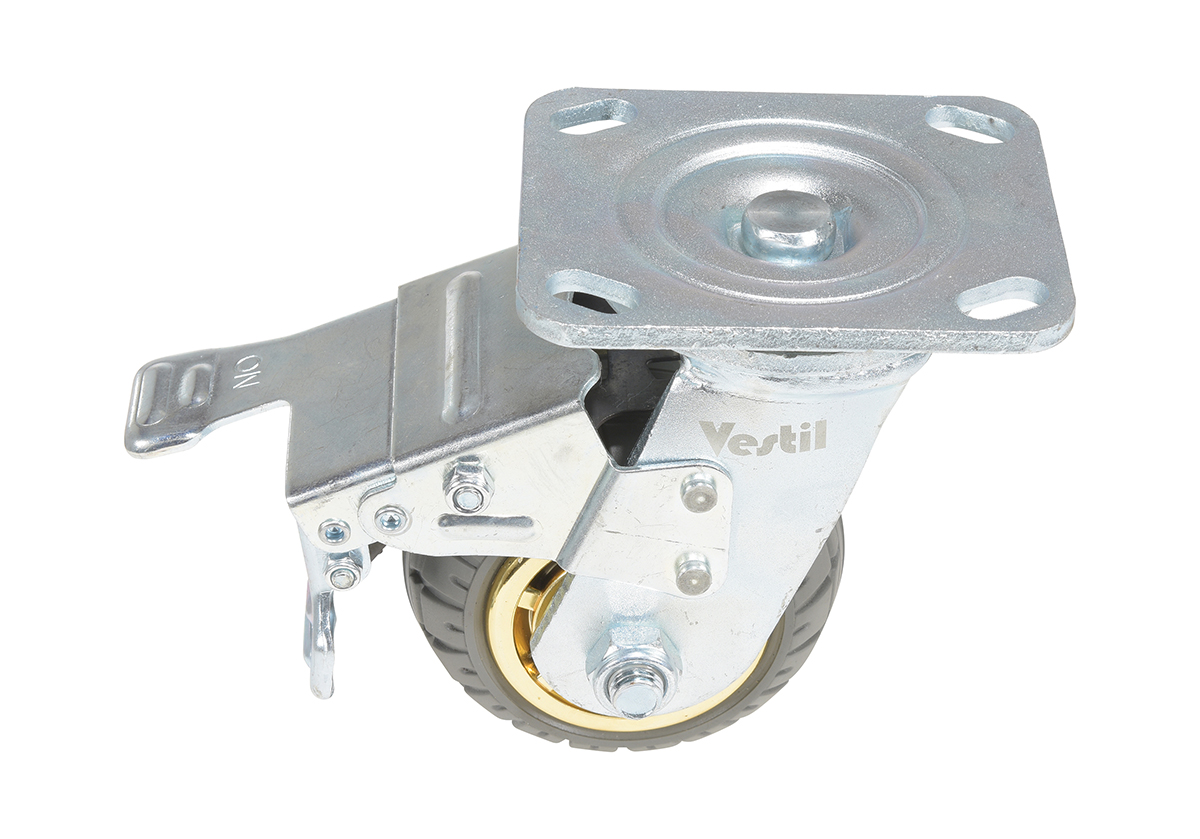

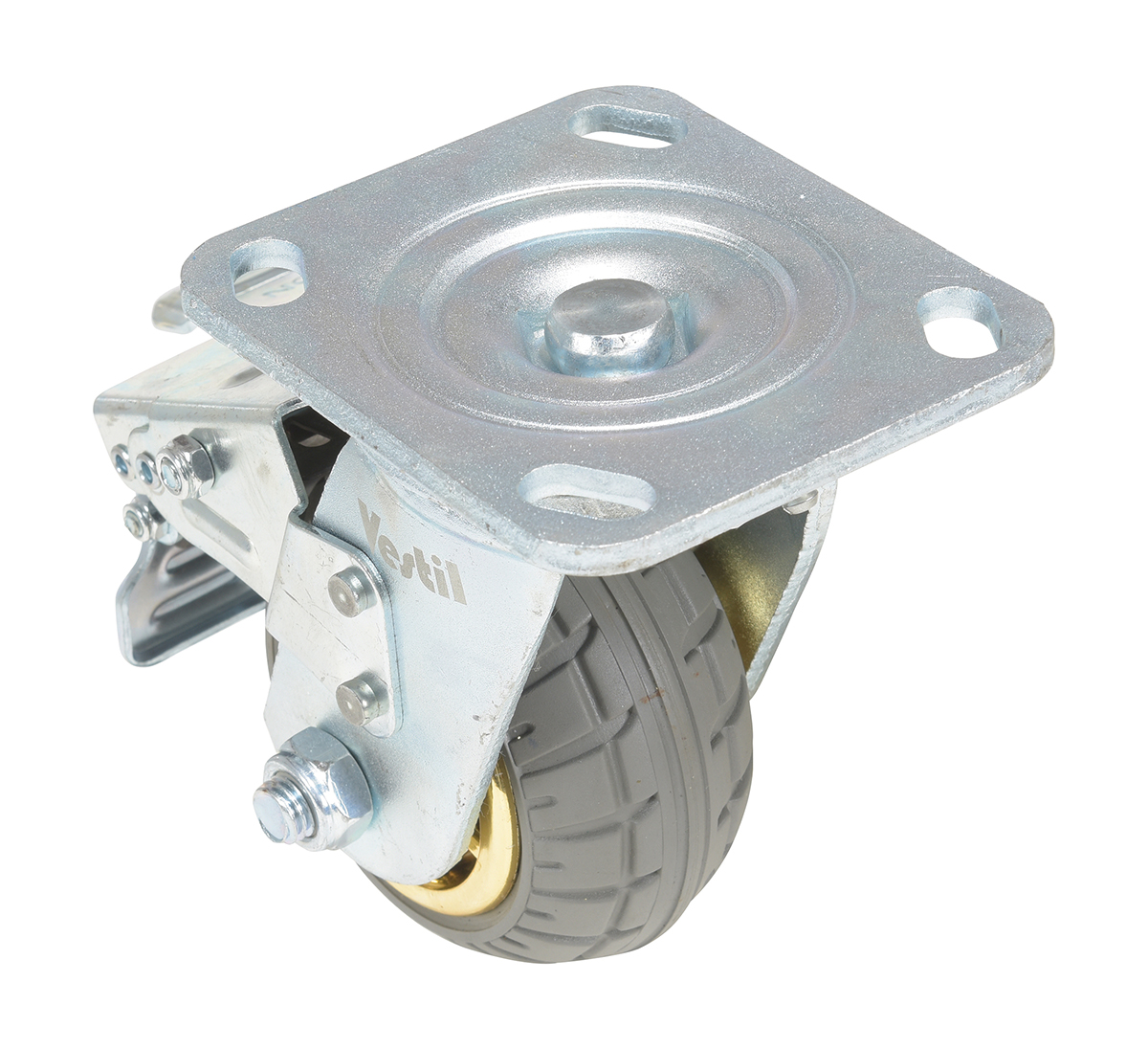

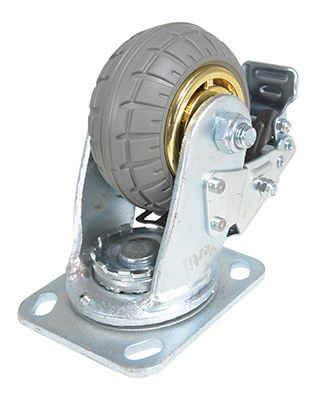

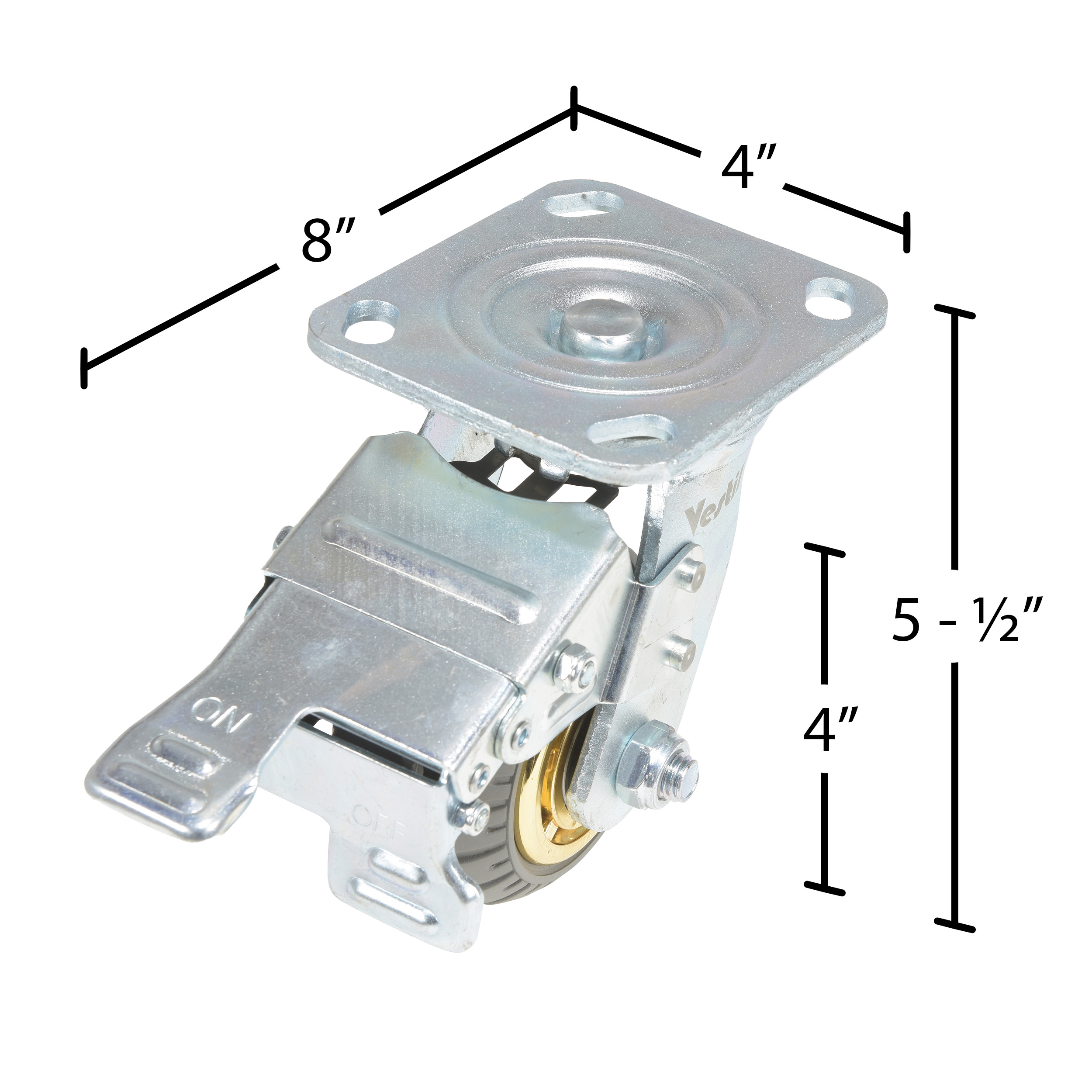

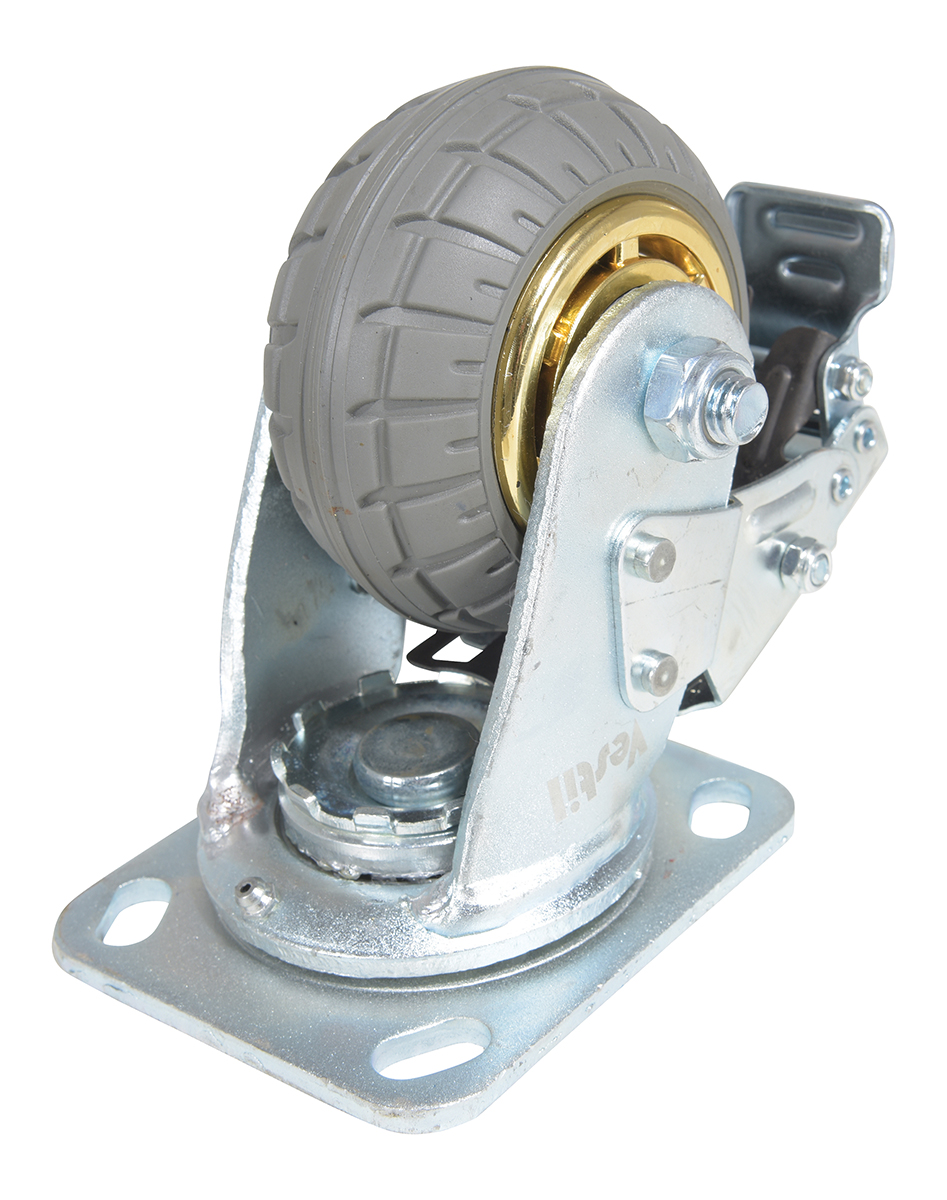

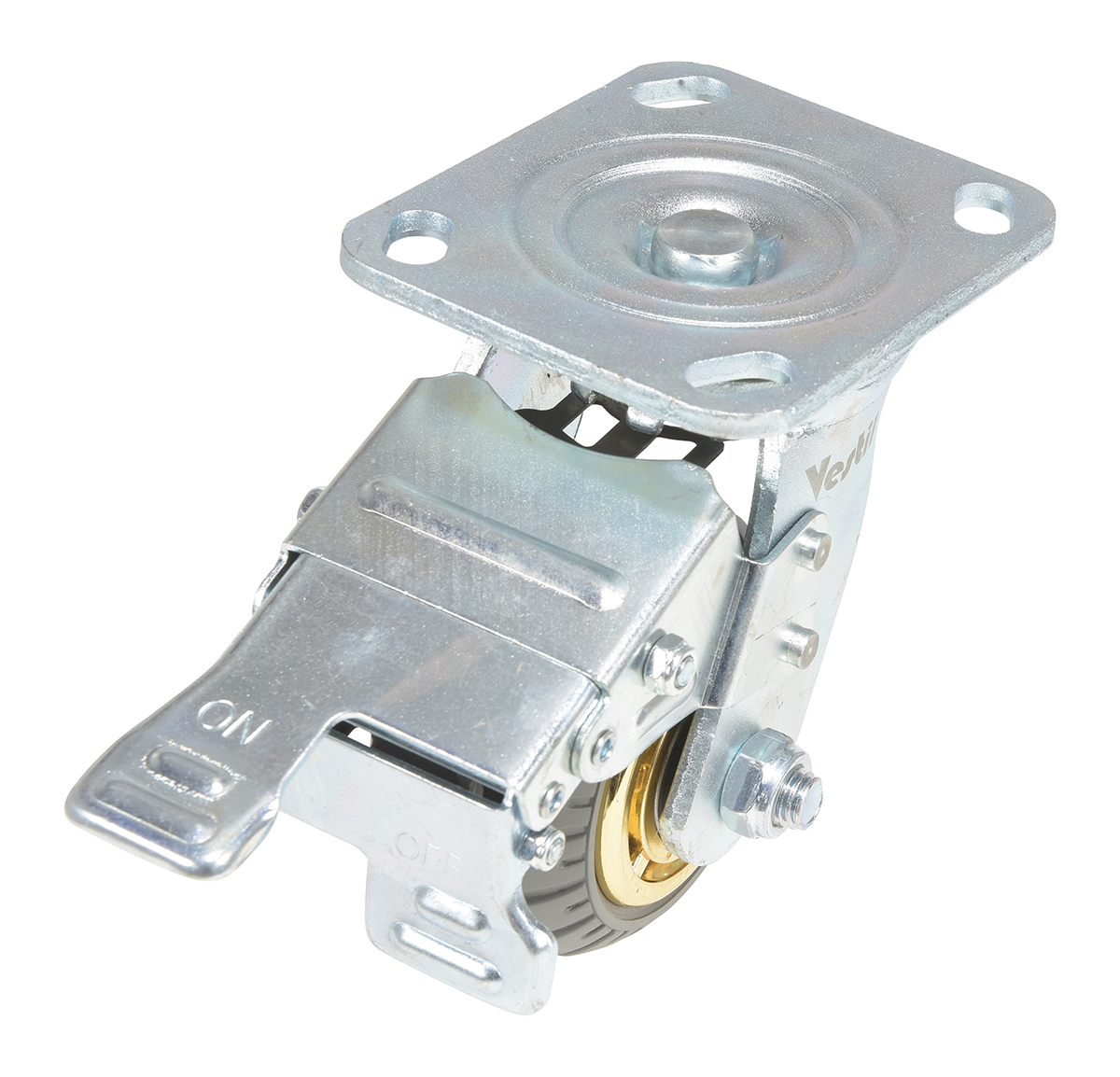

CST-VE-4X2FF-SWTB CST-VE-4X2FF-SWTB Limited Warranty4 x 2SWIVEL W/TOTAL BRAKE4405-1/2 4 x 4-1/24.9
CST-VE-5X2FF-SWTB CST-VE-5X2FF-SWTB1 YEAR Limited Warranty5 x 2SWIVEL W/TOTAL BRAKE5076-1/2 4 x 4-1/25.56

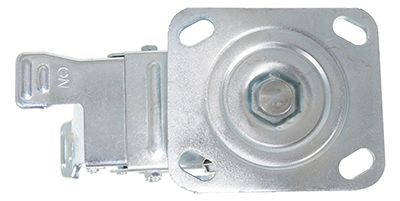

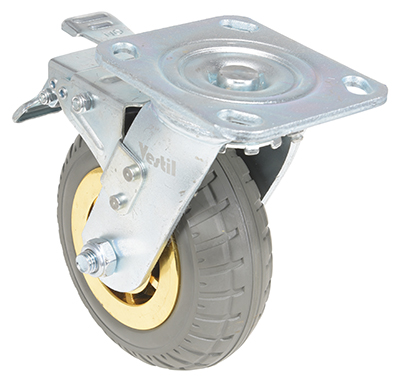

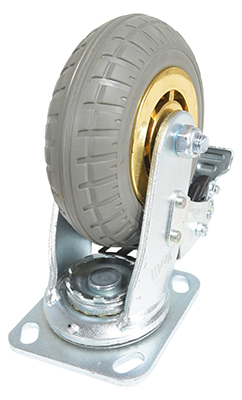

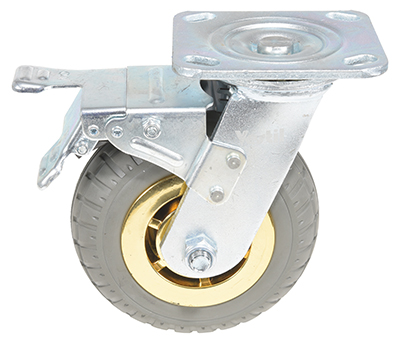

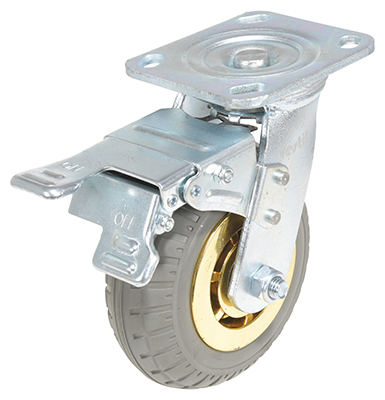

CST-VE-6X2FF-SWTB CST-VE-6X2FF-SWTB1 YEAR Limited Warranty6 x 2SWIVEL W/TOTAL BRAKE6177-1/2 4 x 4-1/26.43
CST-VE-8X2FF-SWTB CST-VE-8X2FF-SWTB1 YEAR Limited Warranty8 x 2SWIVEL W/TOTAL BRAKE6619-1/2 4 x 4-1/28.93

KEY: = Click For Expanded Model Details -- = Approval Drawing -- = Testing Certificate -- Warranty


Flat-Free (Rubber) PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

No Approval Drawings For This Product

Testing Certificates


CST-VE-4X2FF-R

CST-VE-4X2FF-S

CST-VE-4X2FF-SWTB

CST-VE-5X2FF-R

CST-VE-5X2FF-S

CST-VE-5X2FF-SWTB

CST-VE-6X2FF-R

CST-VE-6X2FF-S

CST-VE-6X2FF-SWTB

CST-VE-8X2FF-R

CST-VE-8X2FF-S

CST-VE-8X2FF-SWTB

SDS Sheets

No SDS Sheets For This Product

Other PDF's


Directory Links Of Available PDF's For All Products


Q: What casters are good for rough or uneven terrain?

A: The CST-VE-FF SERIES are good for rough or uneven terrain.
