Product Family Overview


TPR(Thermoplastic Rubber) On Stainless Steel Casters
SERIES: CST-E-SS-TPR

Stainless steel casters are excellent for corrosion resistance. They are ideal for applications where frequent wash downs are a necessity or have exposure to cleaning agents, steam, or other corrosive agents which could rust or corrode. Thermoplastic rubber (TPR) provides a smooth quiet ride with a non-marking tread. It offers great floor preservation and is resistant to most chemicals.

  • 304 Stainless steel rigging
  • Non-marking
  • Chemical & moisture Resistant
  • Sealed raceway
  • Smooth ride performance
  • Quiet operation
  • 6202 heat treated precision ball

Stainless steel casters are excellent for corrosion resistance. They are ideal for applications where frequent wash downs are a necessity or have exposure to cleaning agents, steam, or other corrosive agents which could rust or corrode. Thermoplastic rubber (TPR) provides a smooth quiet ride with a non-marking tread. It offers great floor preservation and is resistant to most chemicals.

  • 304 Stainless steel rigging
  • Non-marking
  • Chemical & moisture Resistant
  • Sealed raceway
  • Smooth ride performance
  • Quiet operation
  • 6202 heat treated precision ball

Additional Models In This Family

Model Specific Details




All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is for Casters within the Model Chart on this page. Not an entire site search.
Model Image PDFs Caster
Size
Type Capacity
(lbs.)
Overall
Height
Top Plate
Size
Net Wt.
(lbs)
CST-E-SS-3X1TPR-R CST-E-SS-3X1TPR-R1 YEAR Limited Warranty3 x 1-1/4RIGID2254-1/2 2-3/4 x 3-3/40.8

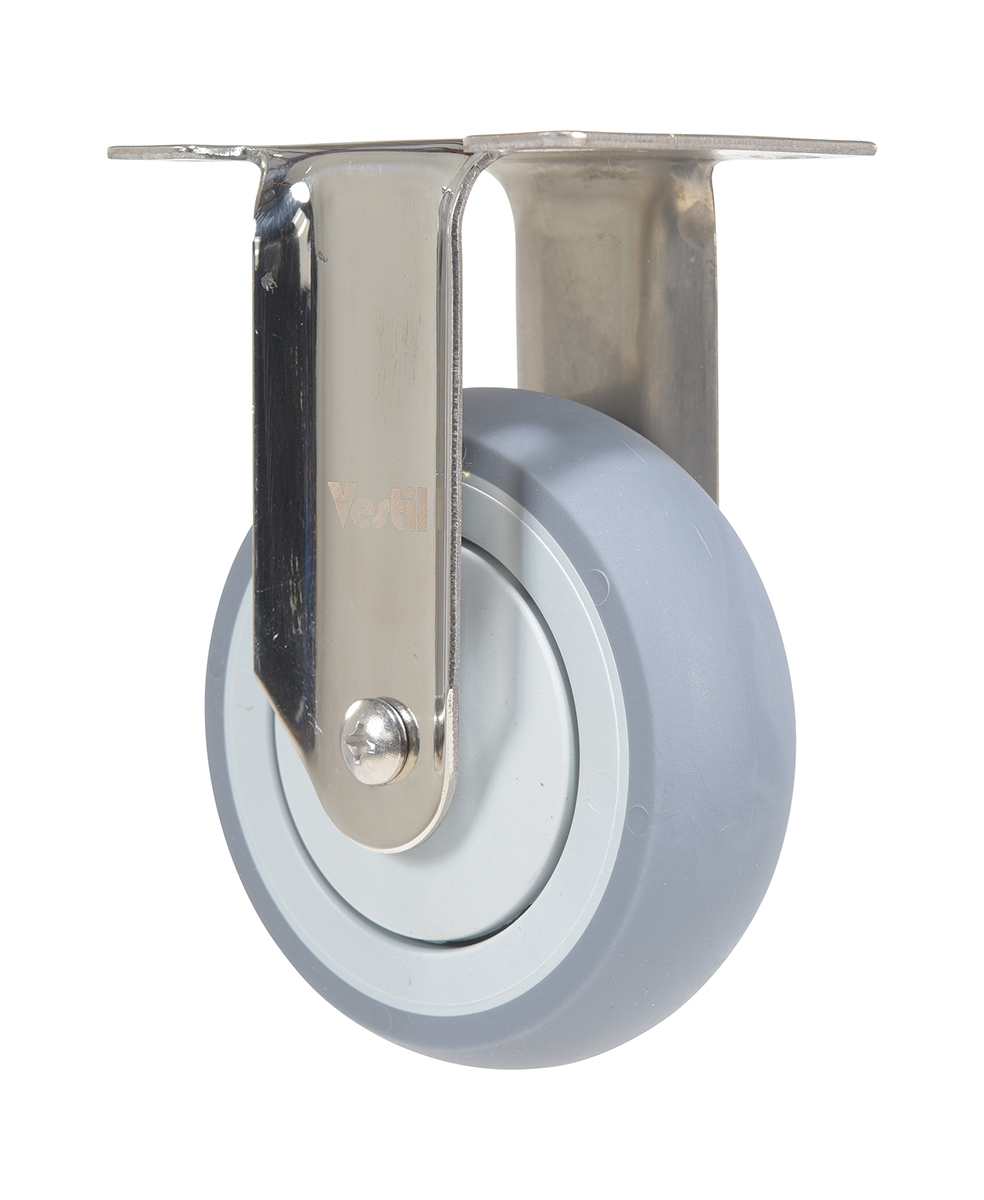

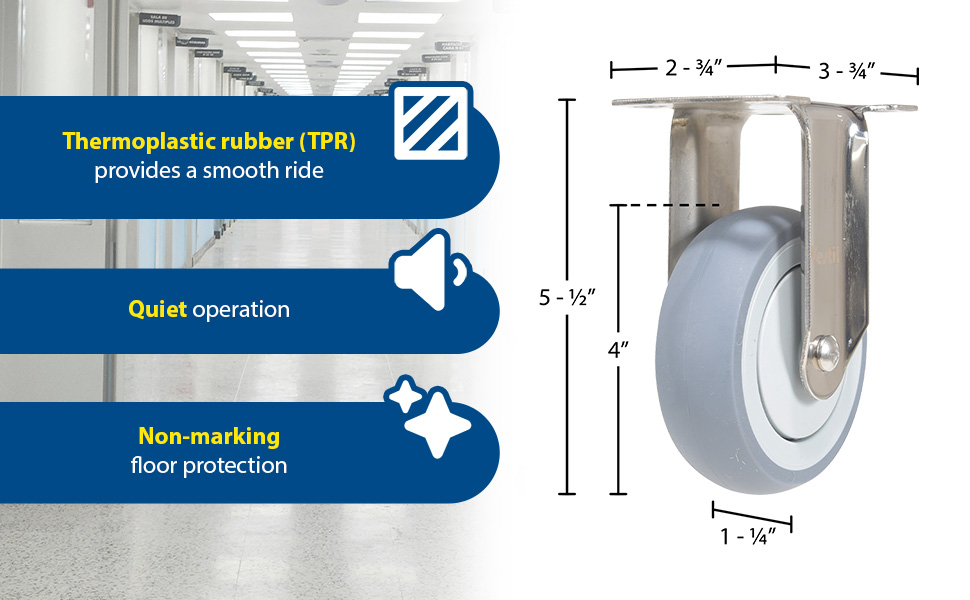

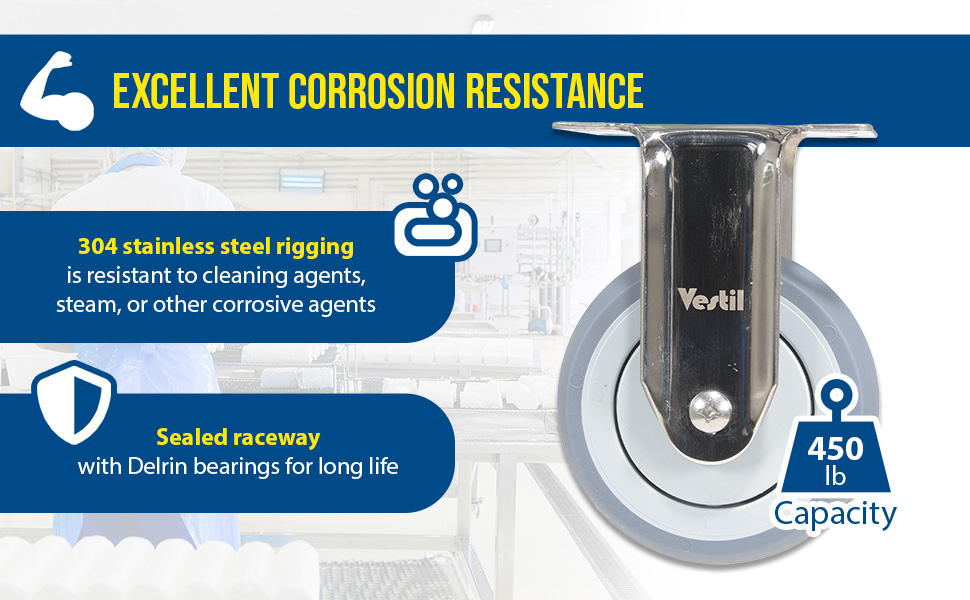

CST-E-SS-4X1TPR-R CST-E-SS-4X1TPR-R1 YEAR Limited Warranty4 x 1-1/4RIGID4505-1/2 2-3/4 x 3-3/41.1

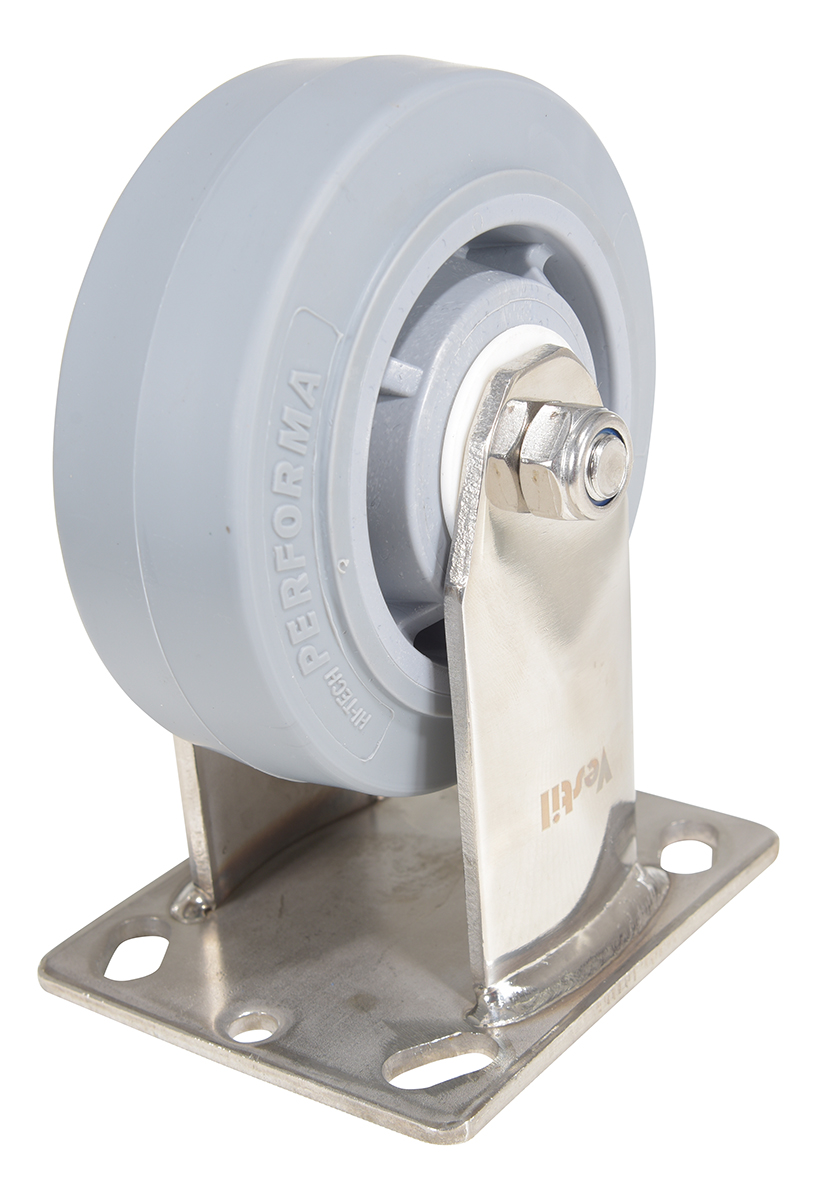

CST-E-SS-5X2TPR-R CST-E-SS-5X2TPR-R1 YEAR Limited Warranty5 x 2RIGID5006-1/2 4 x 4-1/23.2

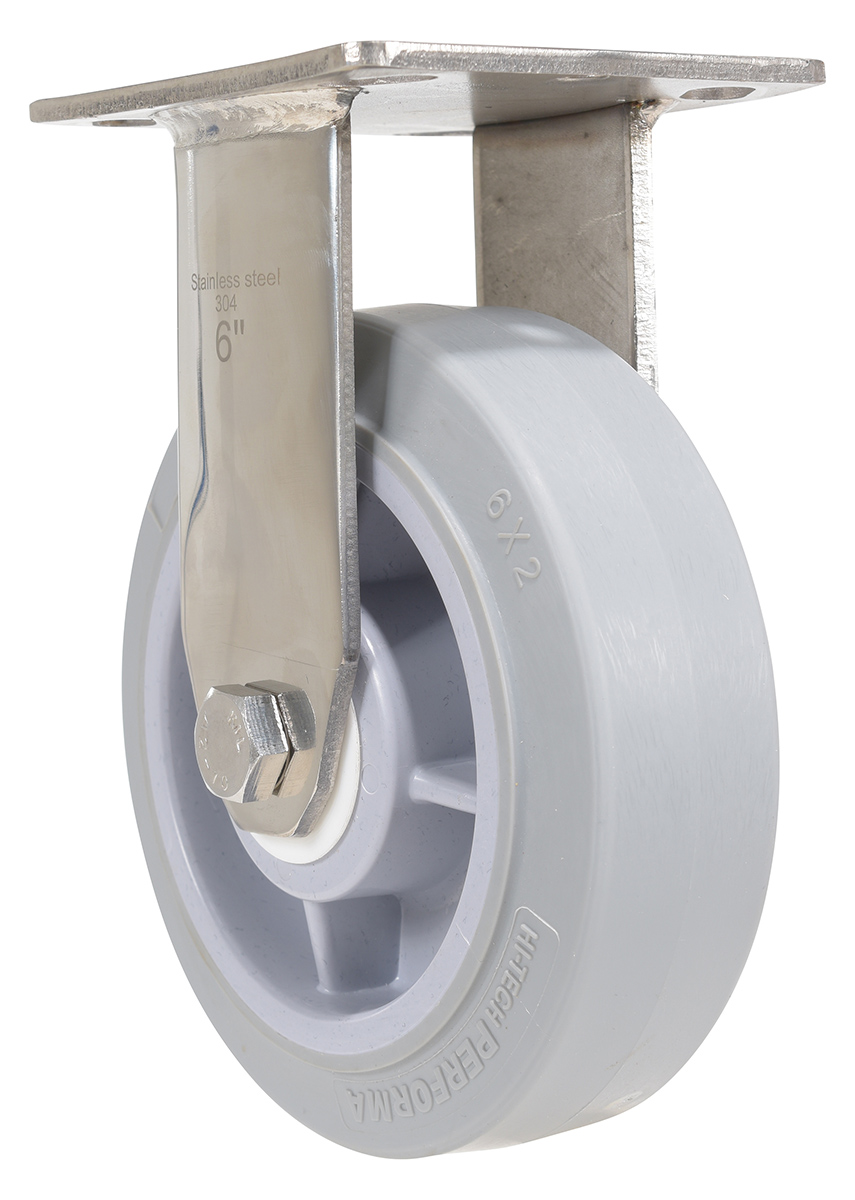

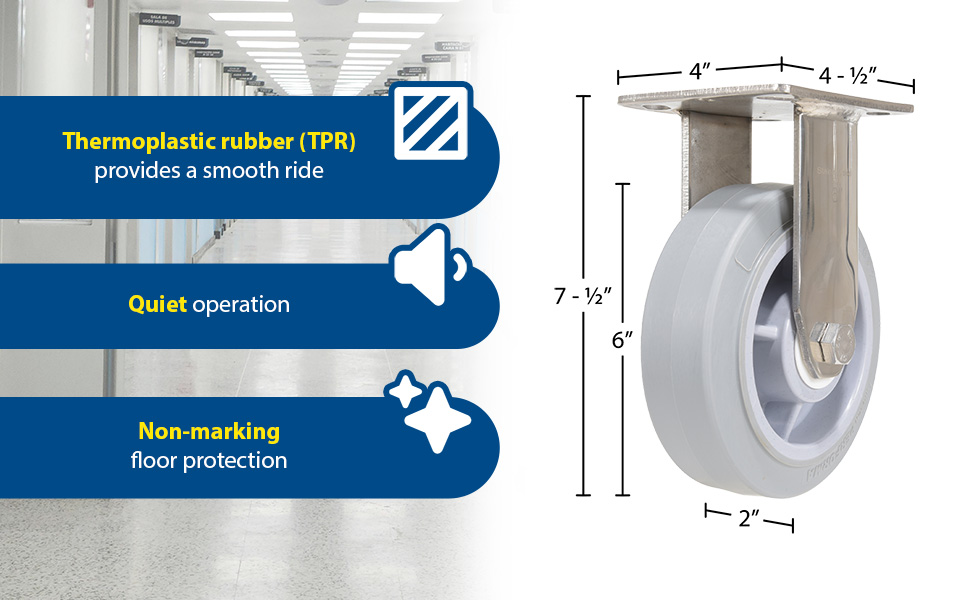

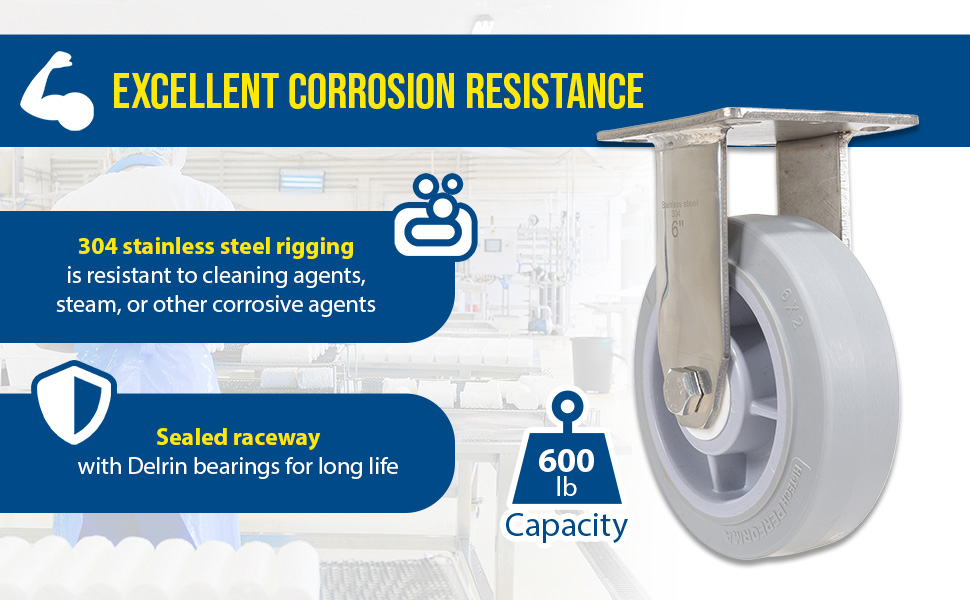

CST-E-SS-6X2TPR-R CST-E-SS-6X2TPR-R1 YEAR Limited Warranty6 x 2RIGID6007-1/2 4 x 4-1/23.6

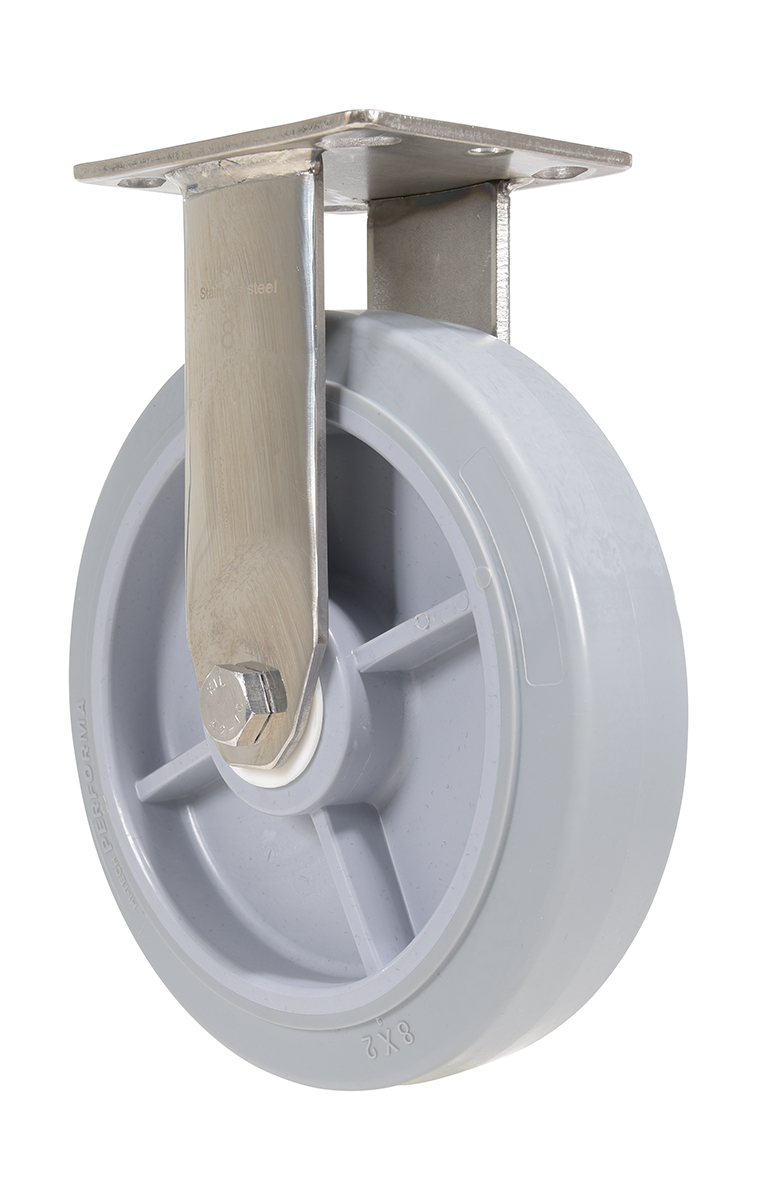

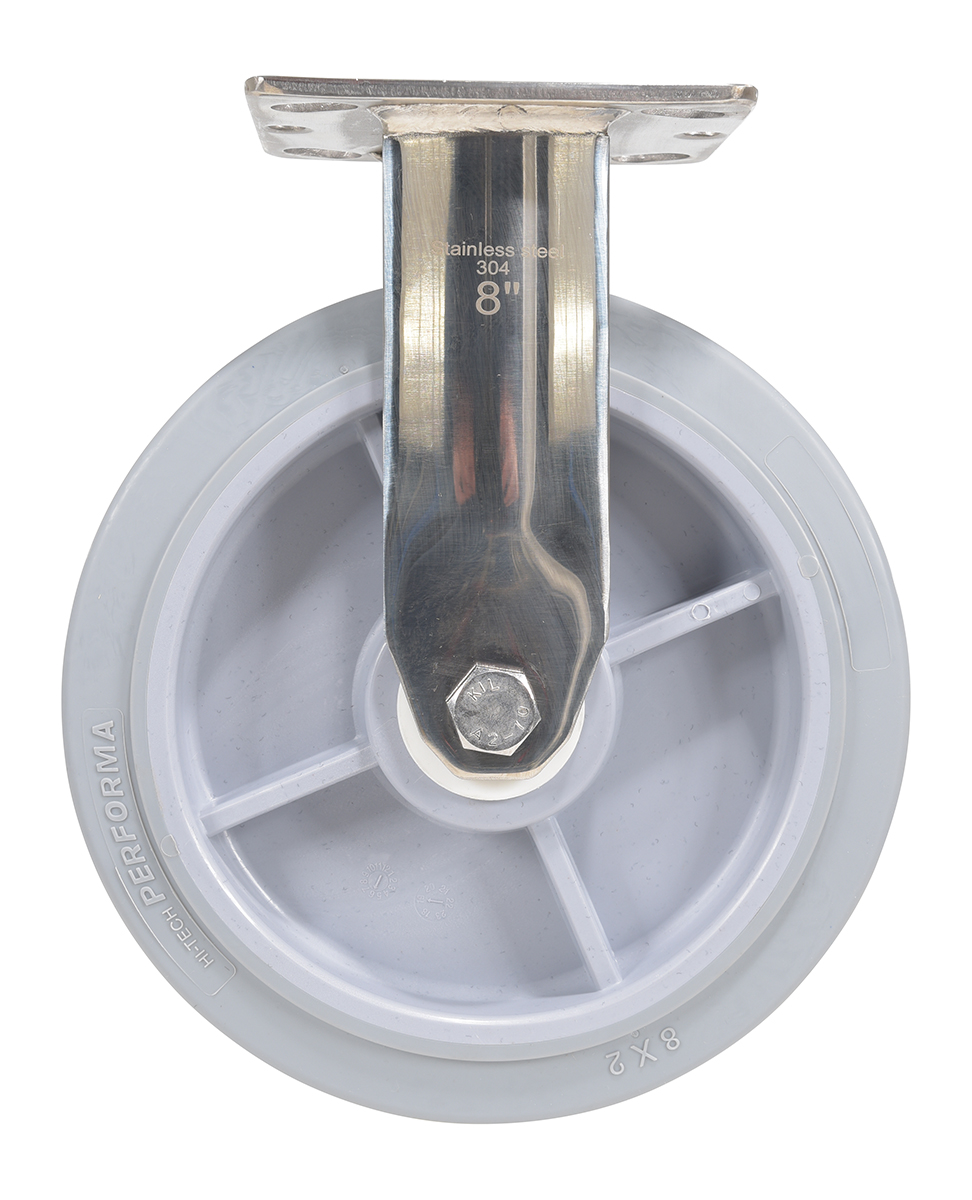

CST-E-SS-8X2TPR-R CST-E-SS-8X2TPR-R1 YEAR Limited Warranty8 x 2RIGID6759-1/2 4 x 4-1/24.6
CST-E-SS-3X1TPR-S CST-E-SS-3X1TPR-S1 YEAR Limited Warranty3 x 1-1/4SWIVEL2254-1/2 2-3/4 x 3-3/41.3

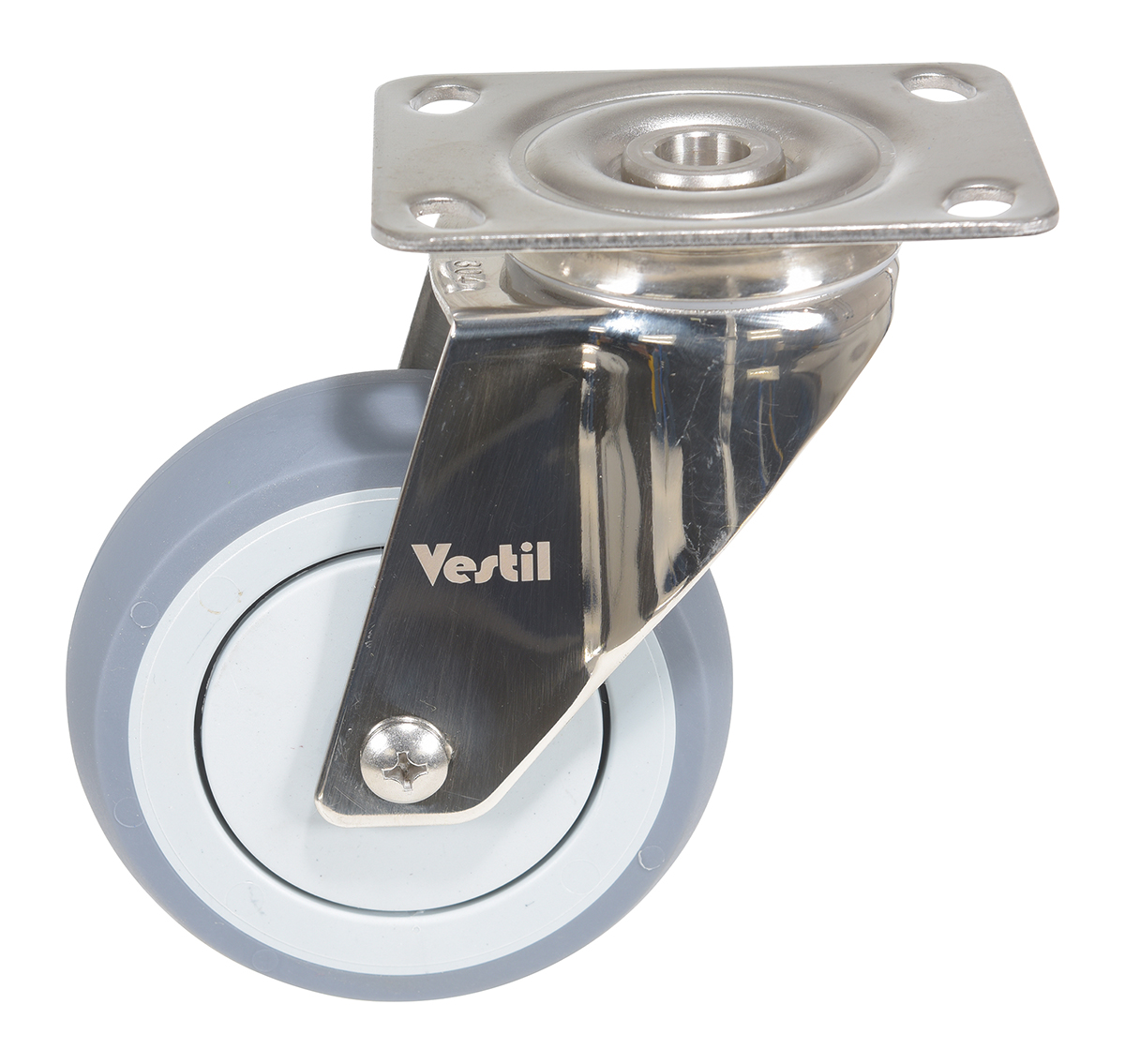

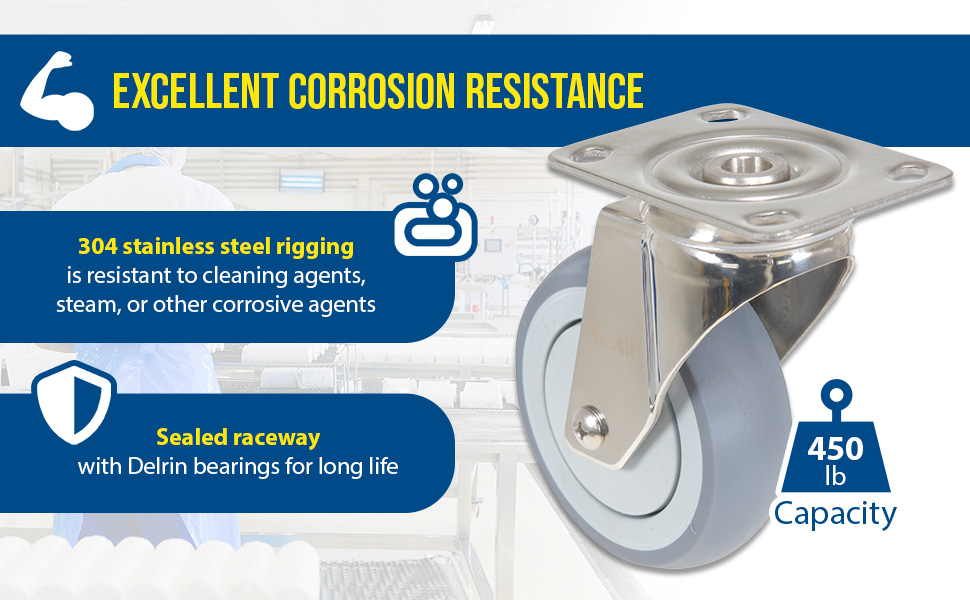

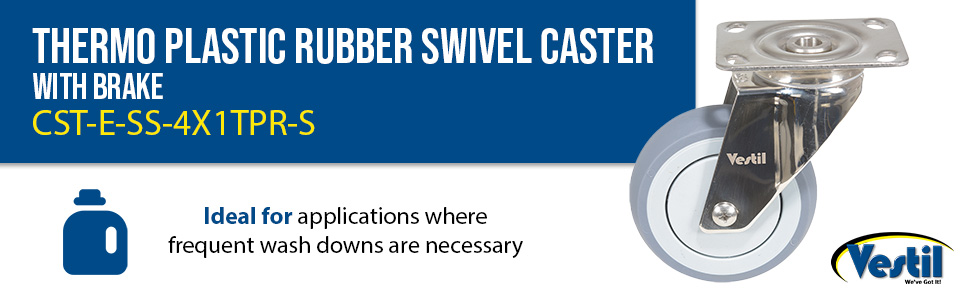

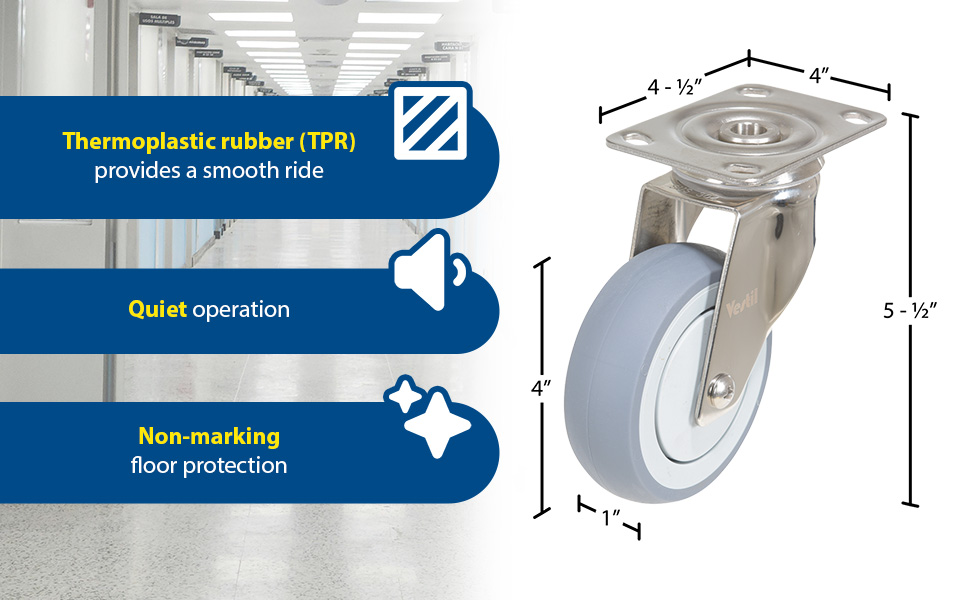

CST-E-SS-4X1TPR-S CST-E-SS-4X1TPR-S1 YEAR Limited Warranty4 x 1-1/4SWIVEL4505-1/2 2-3/4 x 3-3/41.5

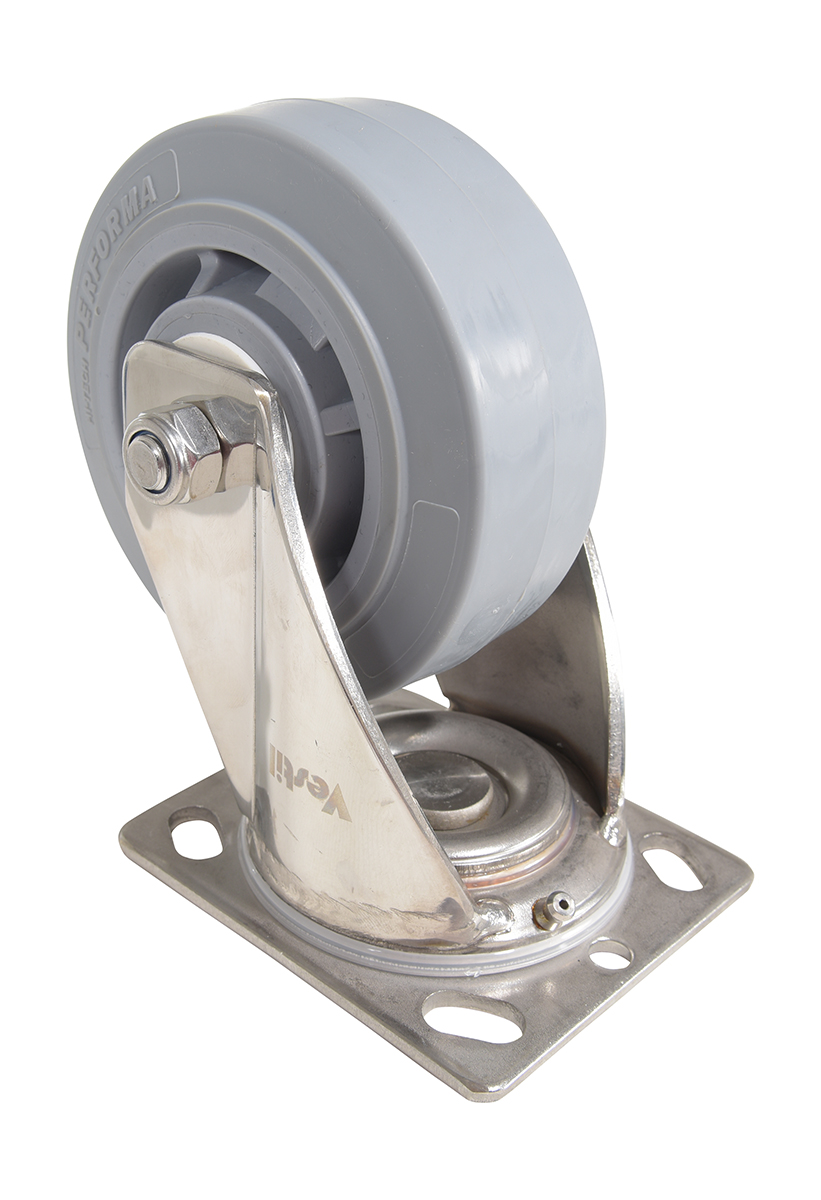

CST-E-SS-5X2TPR-S CST-E-SS-5X2TPR-S1 YEAR Limited Warranty5 x 2SWIVEL5006-1/2 4 x 4-1/24.2

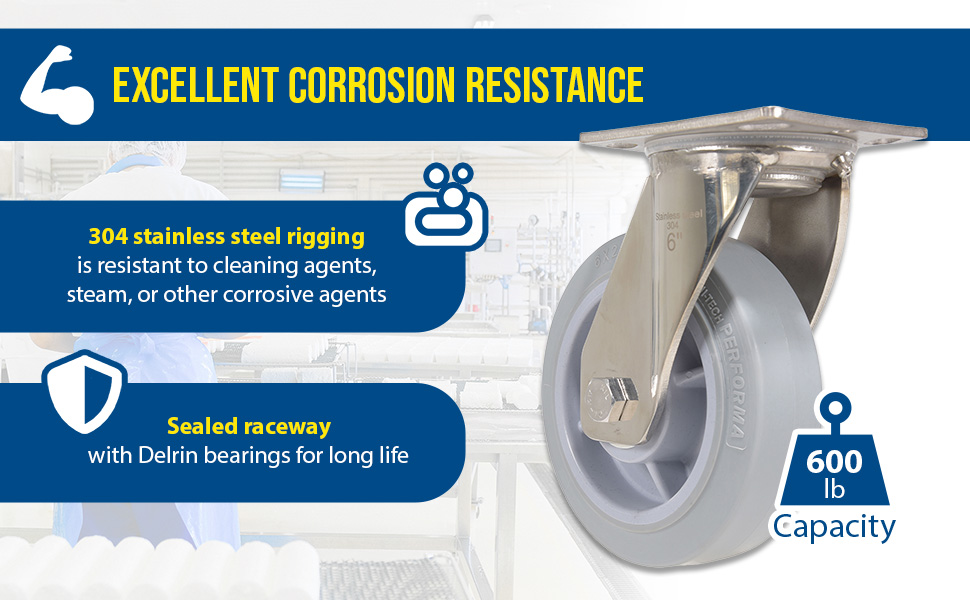

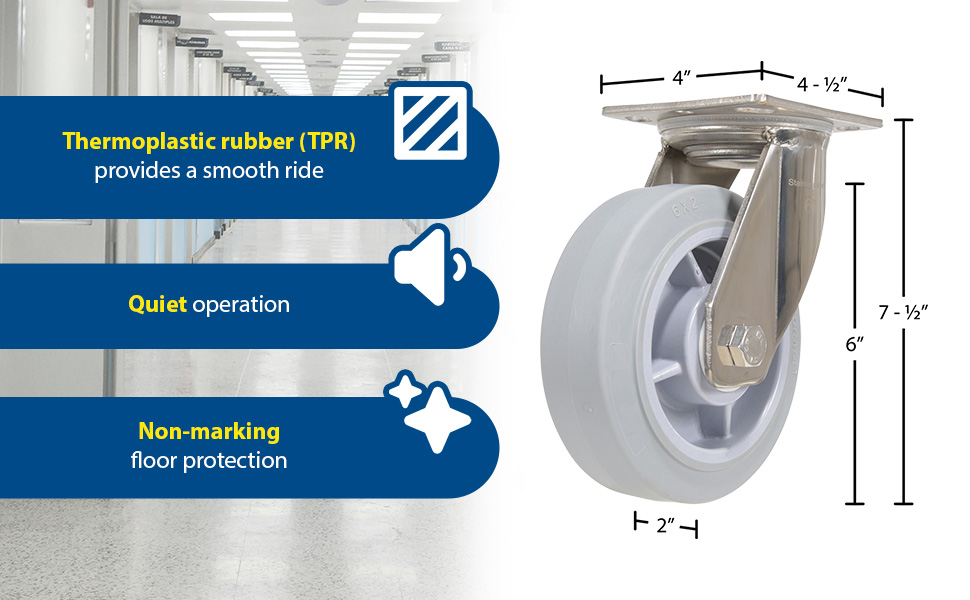

CST-E-SS-6X2TPR-S CST-E-SS-6X2TPR-S1 YEAR Limited Warranty6 x 2SWIVEL6007-1/2 4 x 4-1/24.6

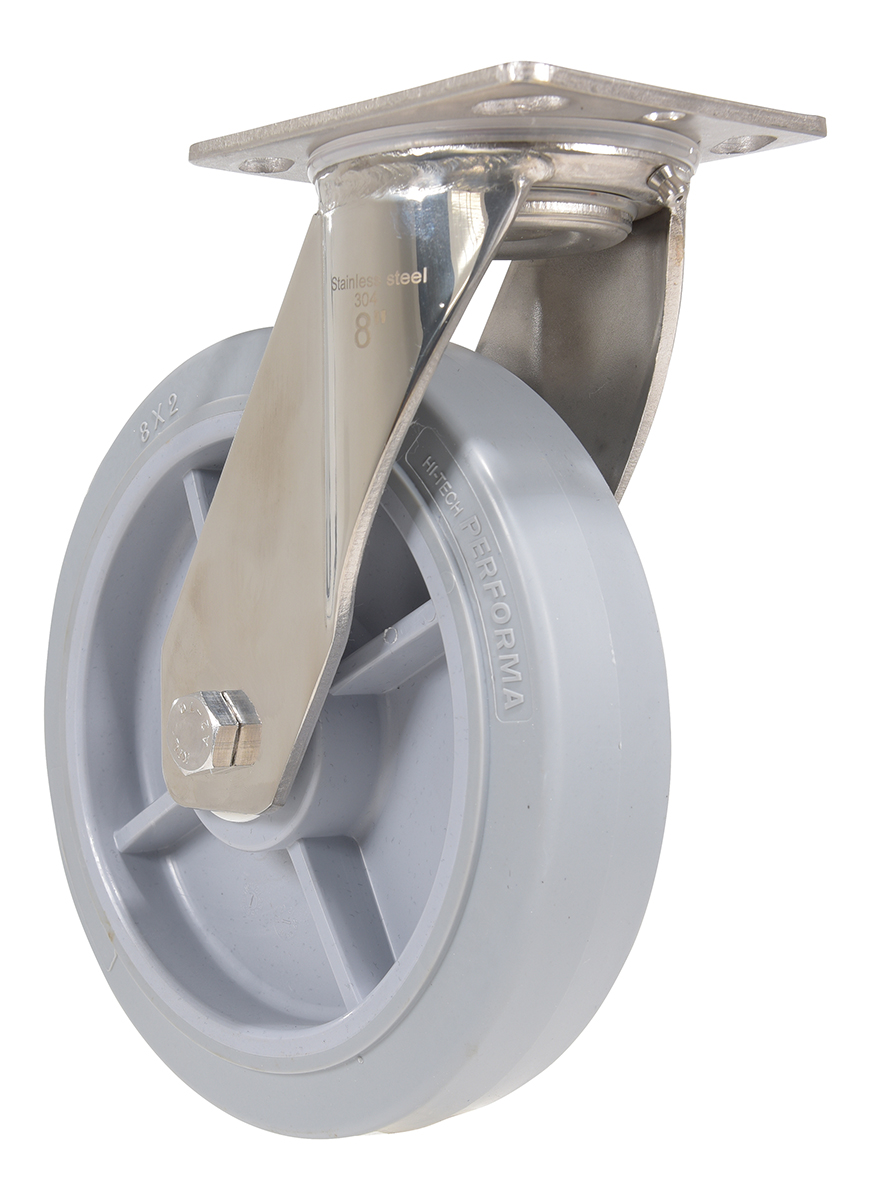

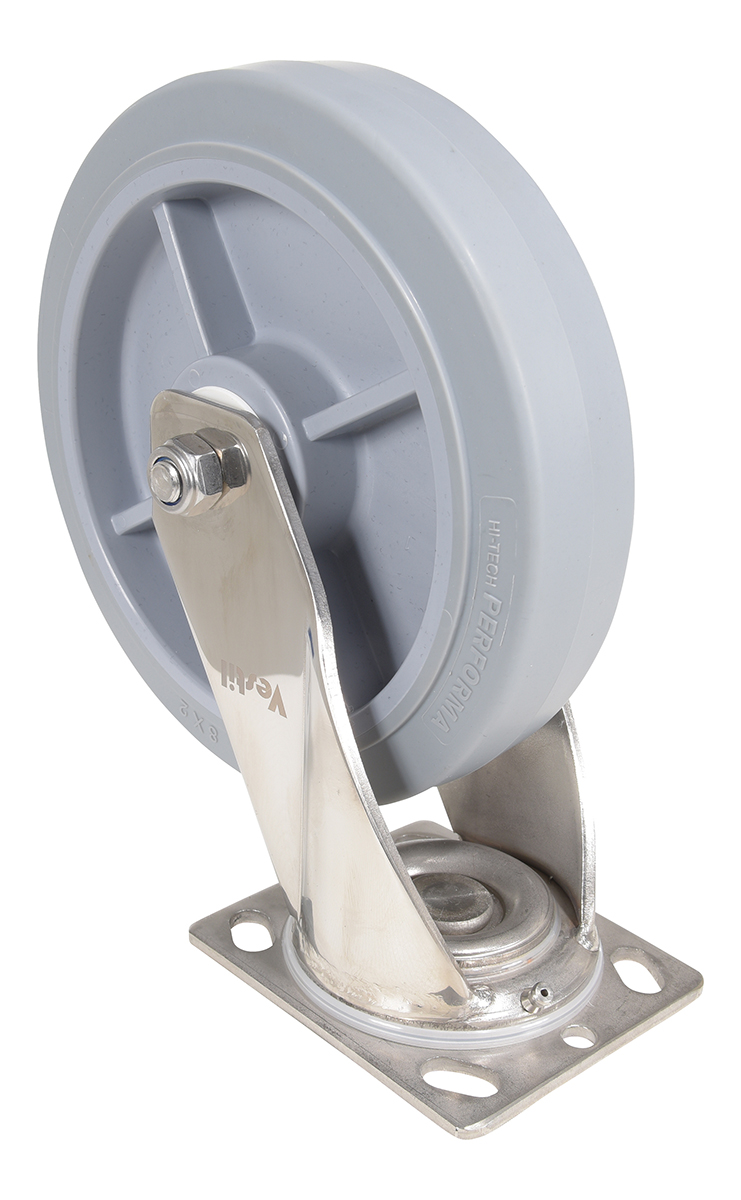

CST-E-SS-8X2TPR-S CST-E-SS-8X2TPR-S1 YEAR Limited Warranty8 x 2SWIVEL6759-1/2 4 x 4-1/25.7

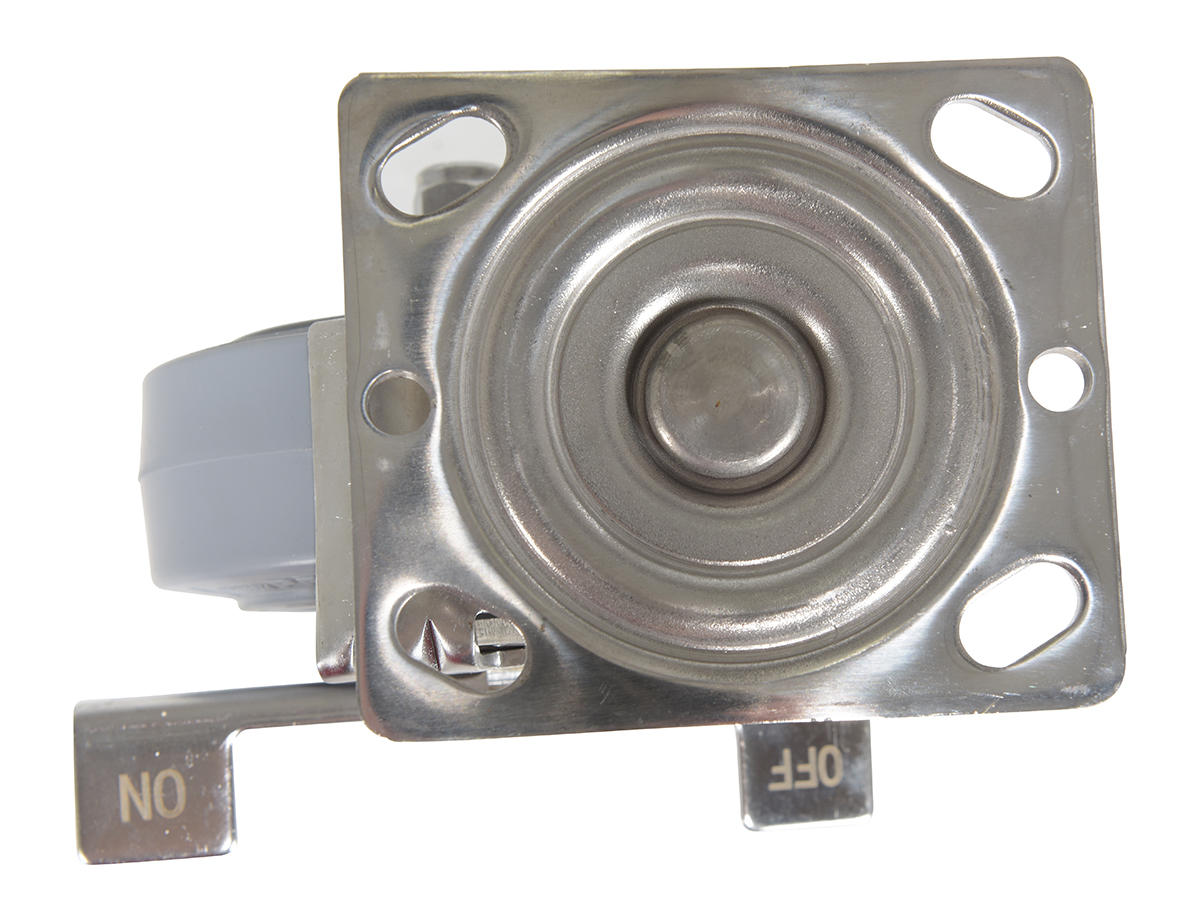

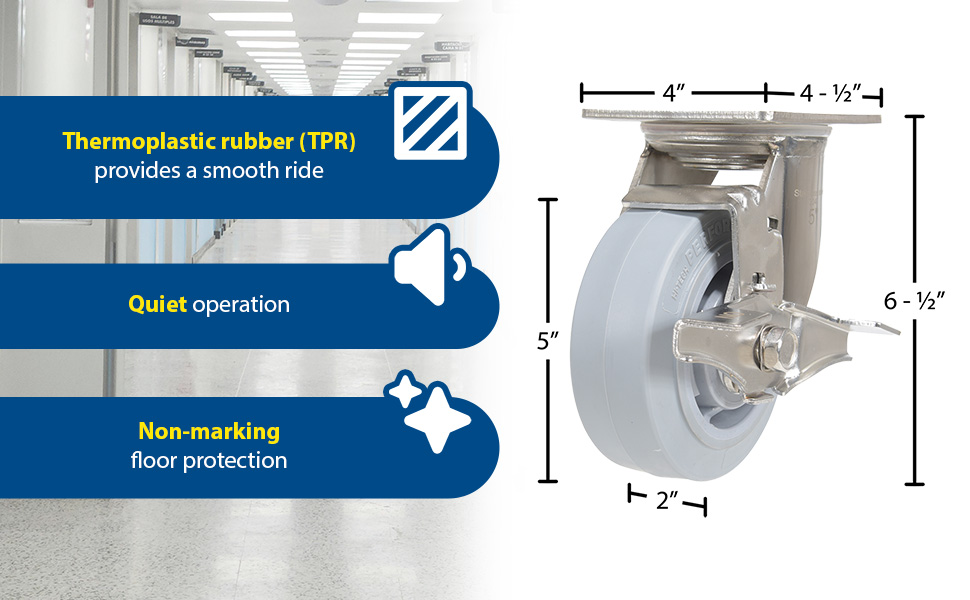

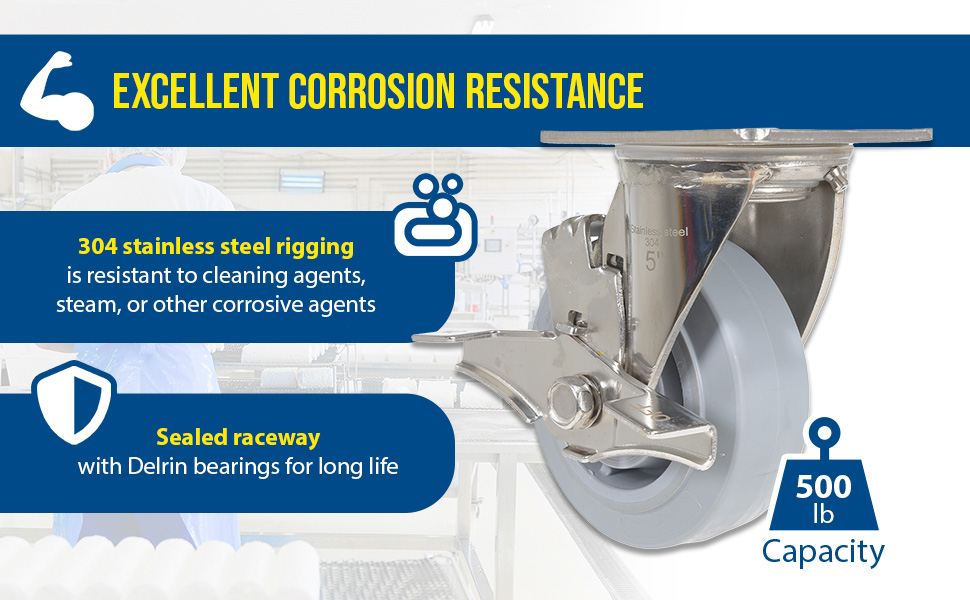

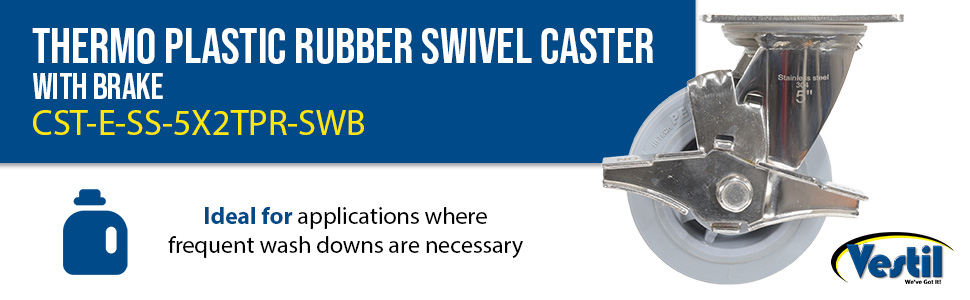

CST-E-SS-5X2TPR-SWB CST-E-SS-5X2TPR-SWB1 YEAR Limited Warranty5 x 2SWIVEL W/BRAKE5006-1/2 4 x 4-1/24.9

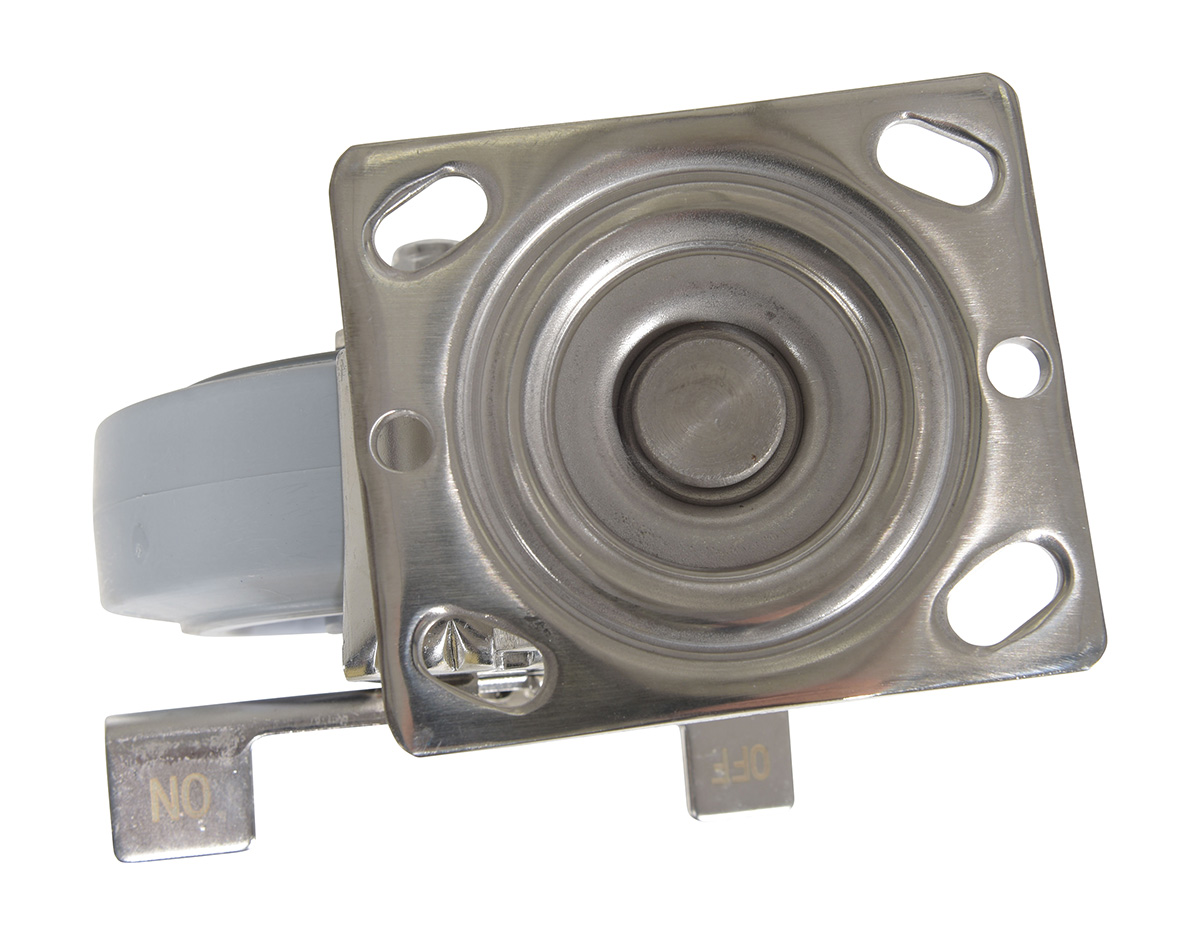

CST-E-SS-6X2TPR-SWB CST-E-SS-6X2TPR-SWB1 YEAR Limited Warranty6 x 2SWIVEL W/BRAKE6007-1/2 4 x 4-1/25.3

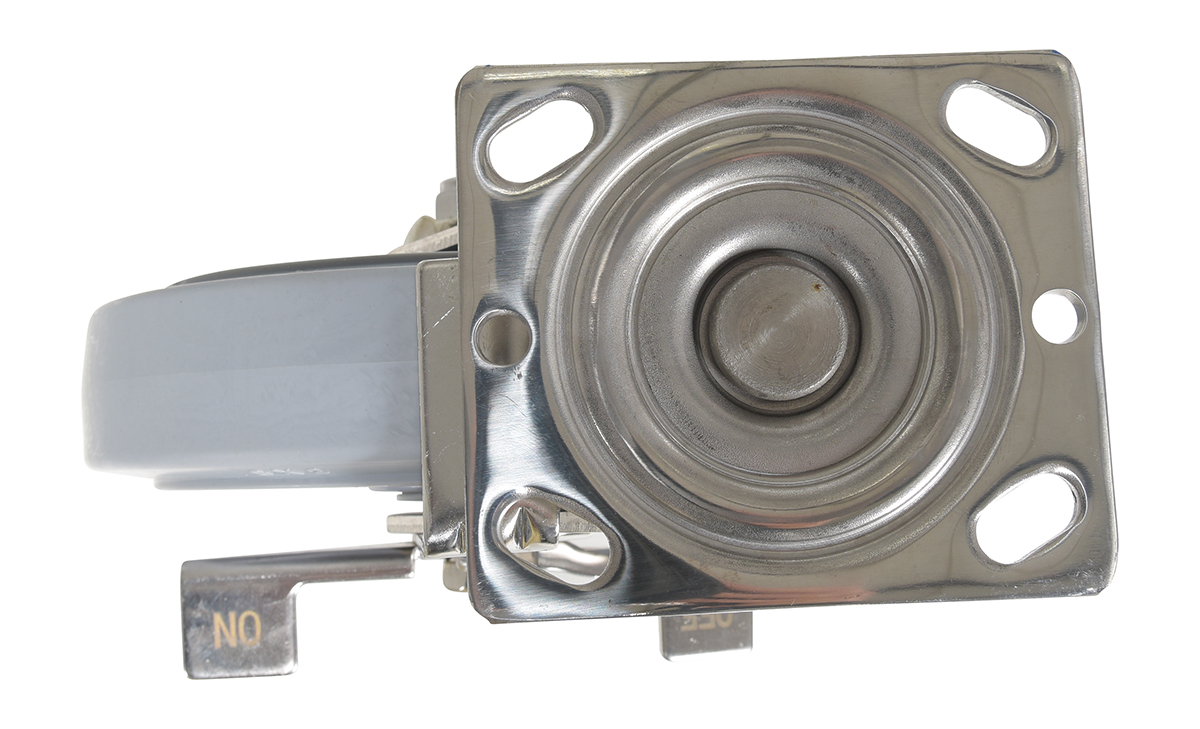

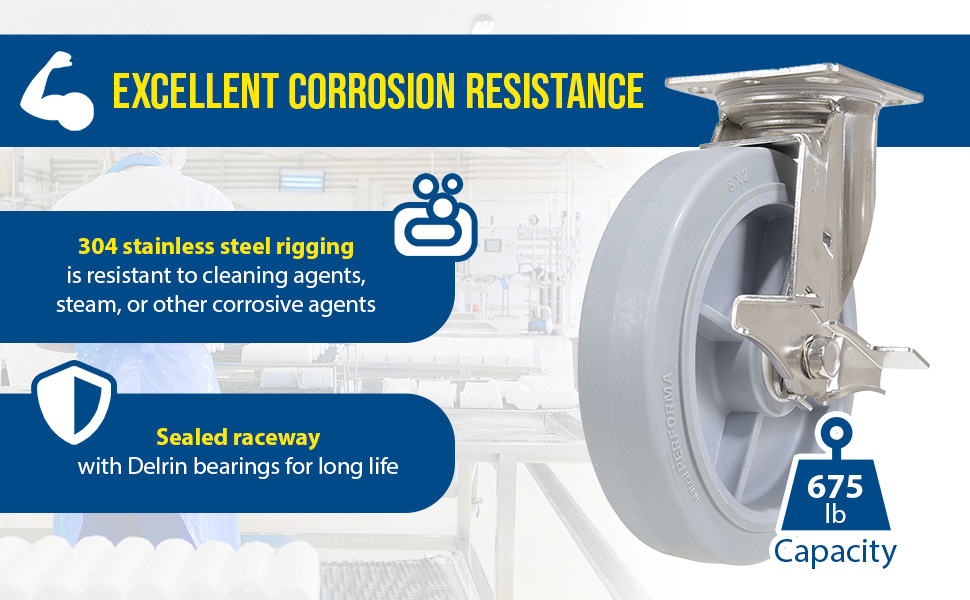

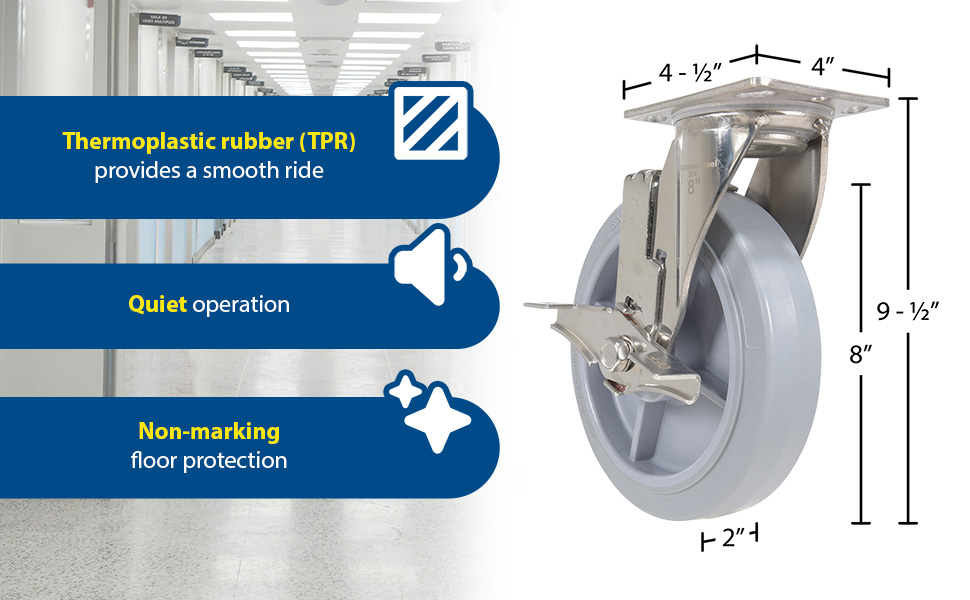

CST-E-SS-8X2TPR-SWB CST-E-SS-8X2TPR-SWB1 YEAR Limited Warranty8 x 2SWIVEL W/BRAKE6759-1/2 4 x 4-1/26.3

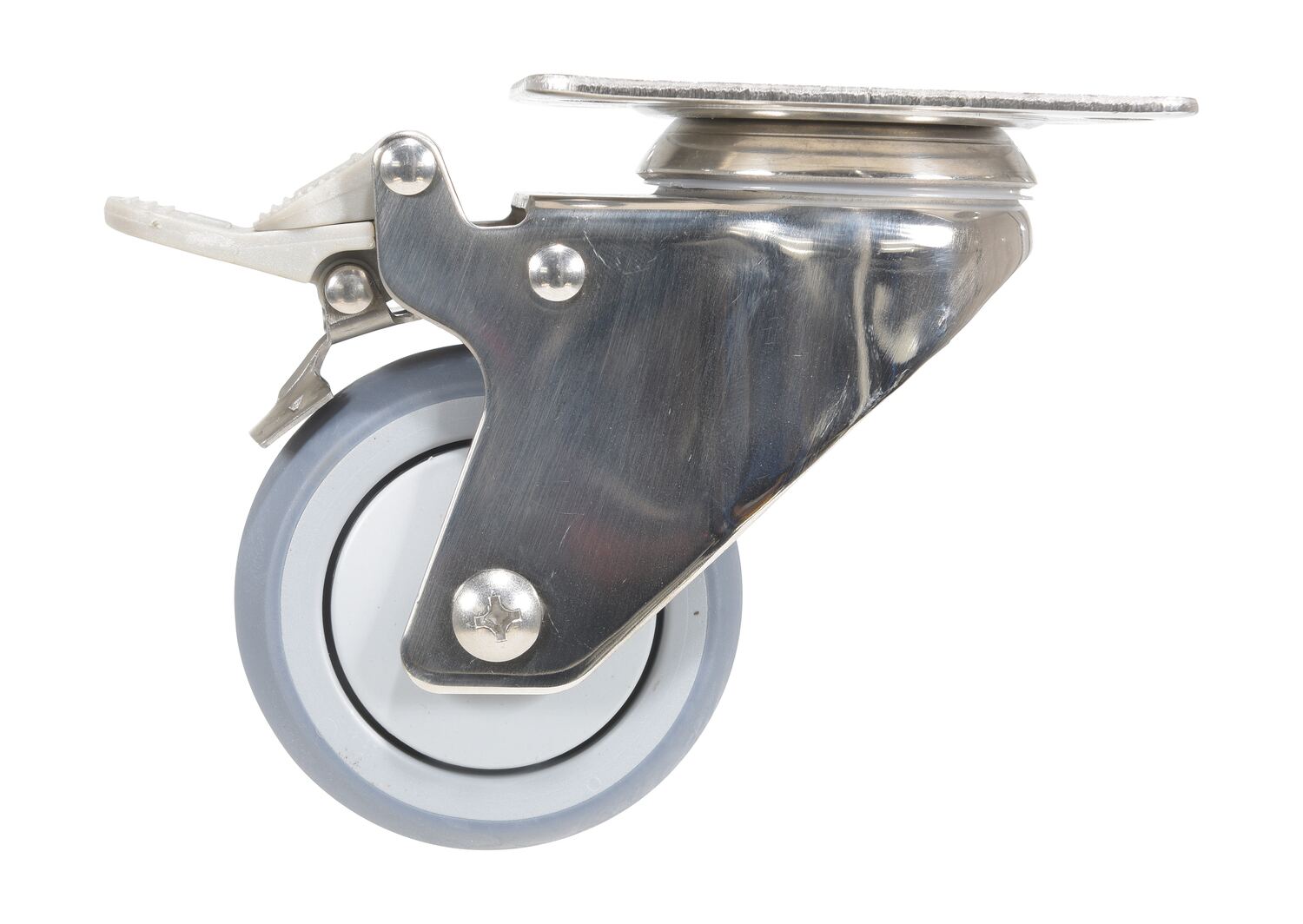

CST-E-SS-3X1TPR-SWTB CST-E-SS-3X1TPR-SWTB1 YEAR Limited Warranty3 x 1-1/4SWIVEL W/TOTAL BRAKE2254-1/2 2-3/4 x 3-3/41.5

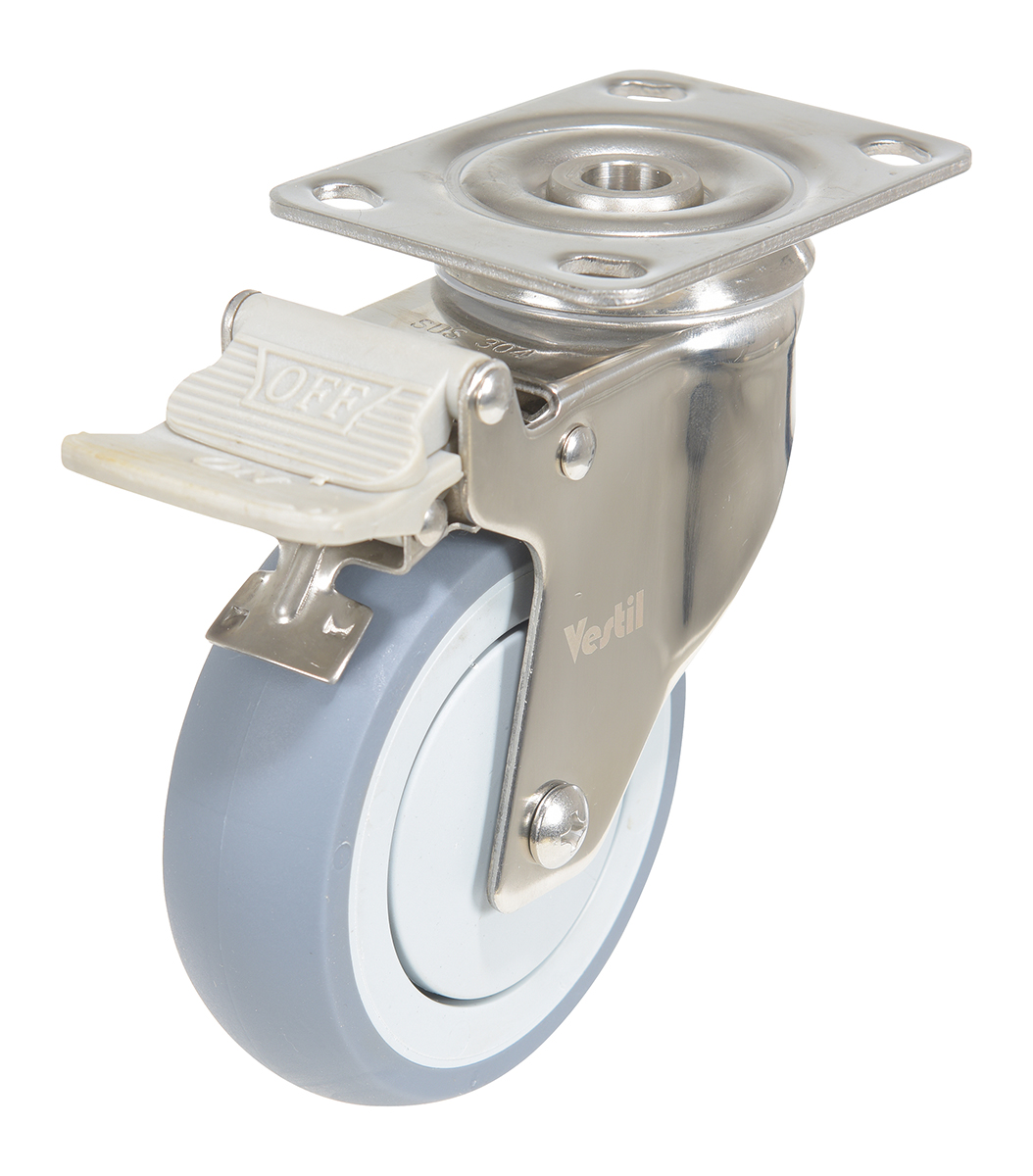

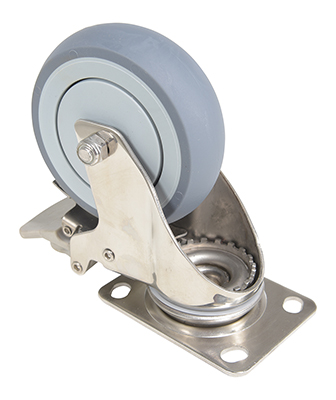

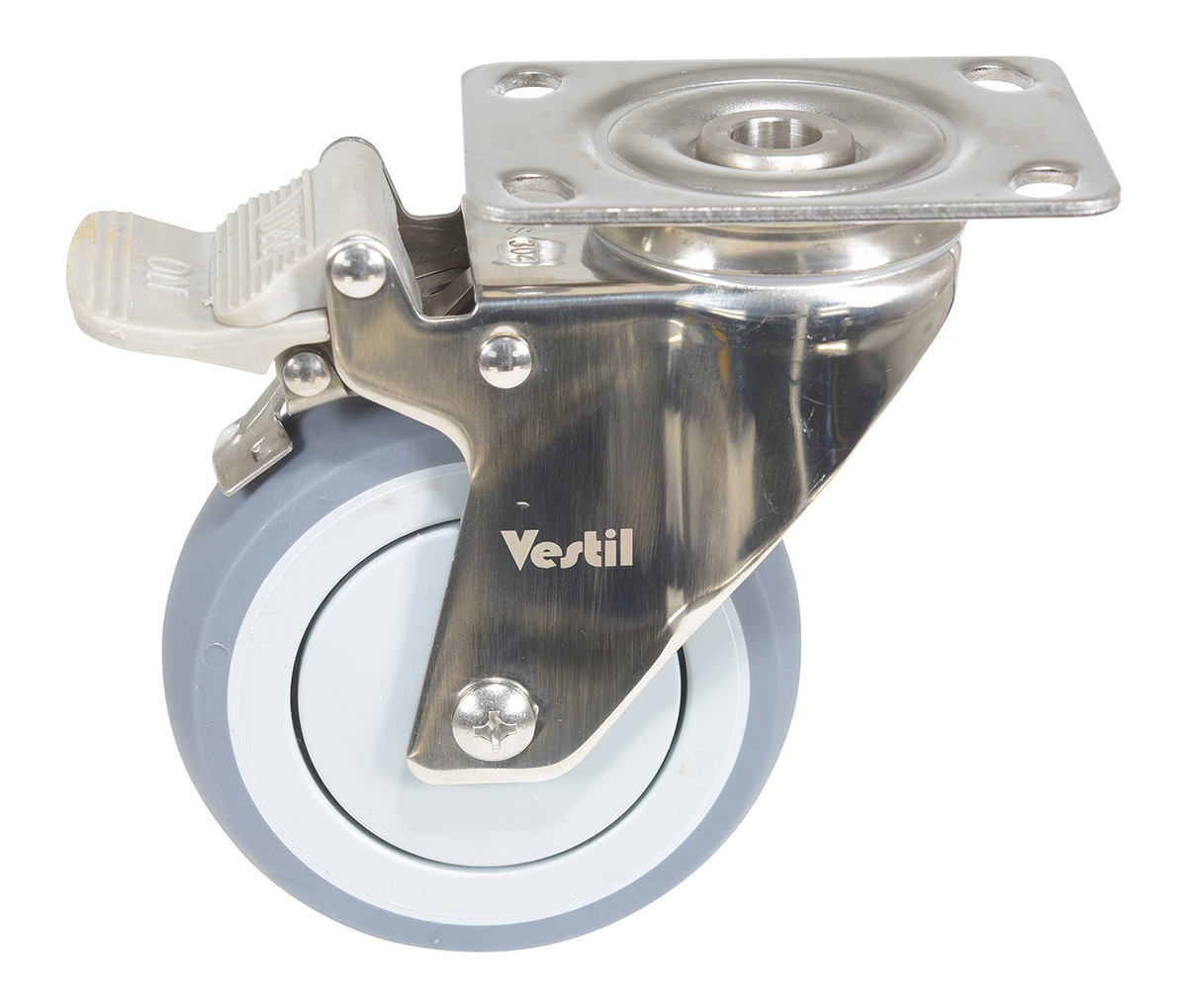

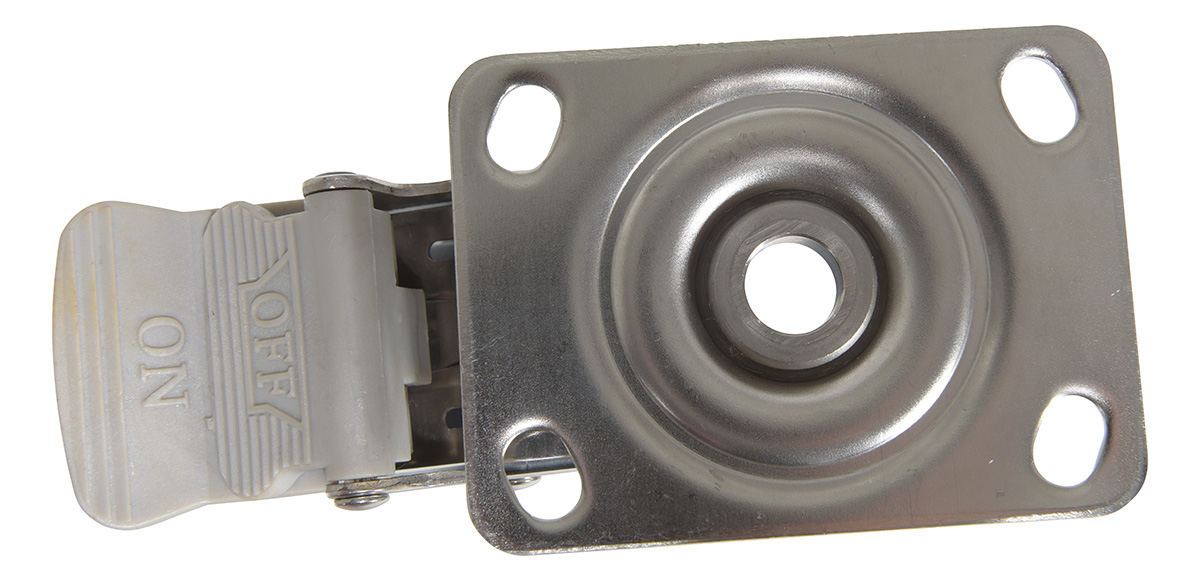

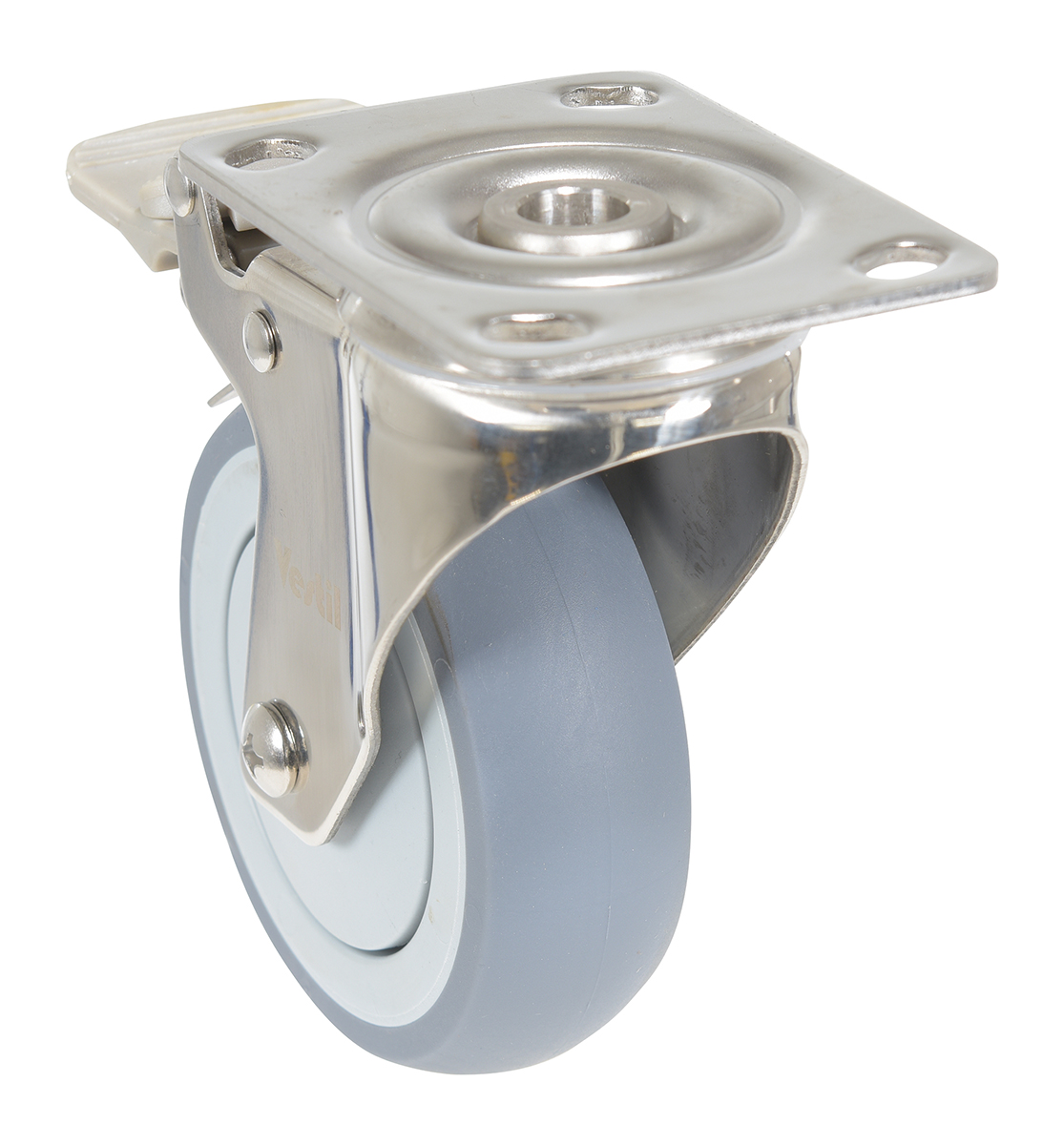

CST-E-SS-4X1TPR-SWTB CST-E-SS-4X1TPR-SWTB1 YEAR Limited Warranty4 x 1-1/4SWIVEL W/TOTAL BRAKE4505-1/2 2-3/4 x 3-3/41.8

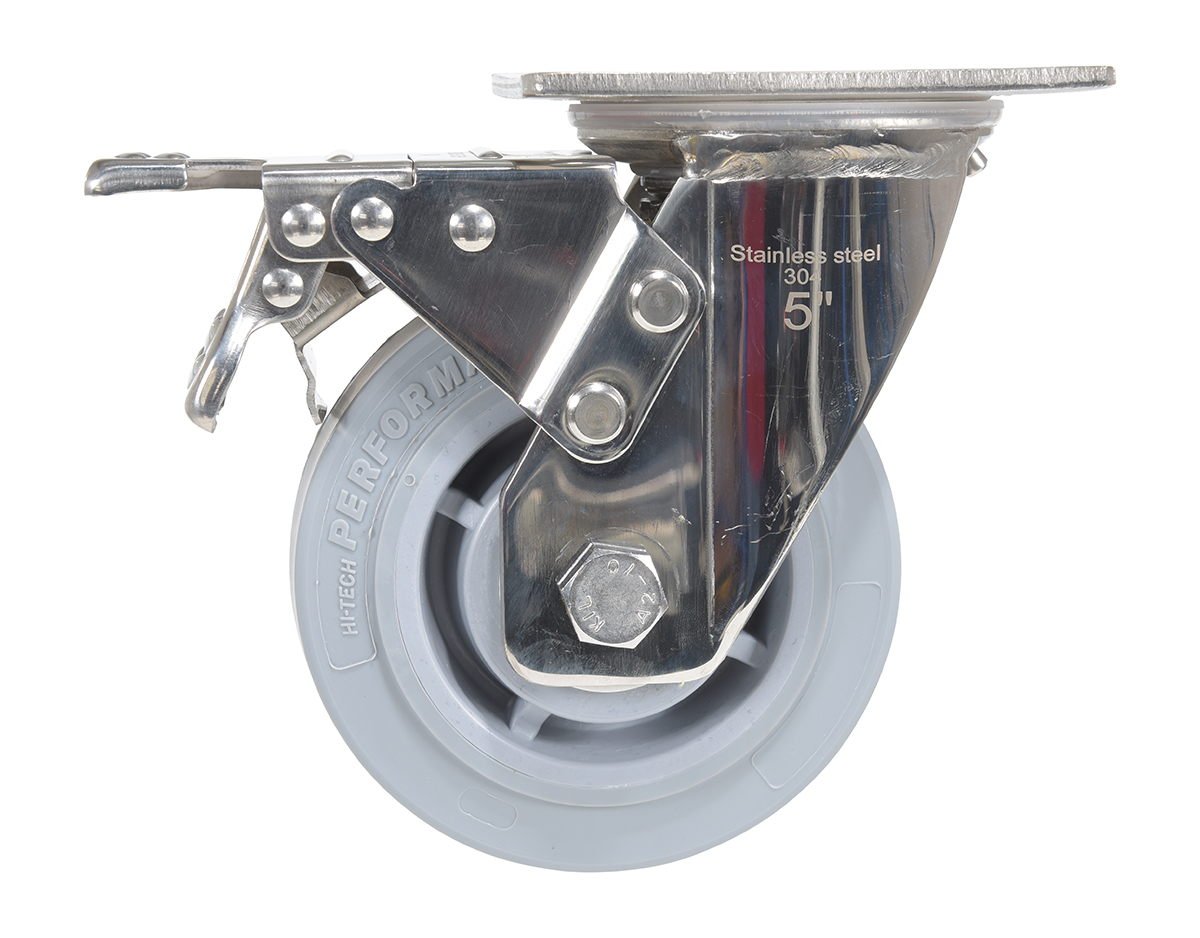

CST-E-SS-5X2TPR-SWTB CST-E-SS-5X2TPR-SWTB1 YEAR Limited Warranty5 x 2SWIVEL W/TOTAL BRAKE5006-1/2 4 x 4-1/25.2
CST-E-SS-6X2TPR-SWTB CST-E-SS-6X2TPR-SWTB1 YEAR Limited Warranty6 x 2SWIVEL W/TOTAL BRAKE6007.5 4 x 4-1/25.6

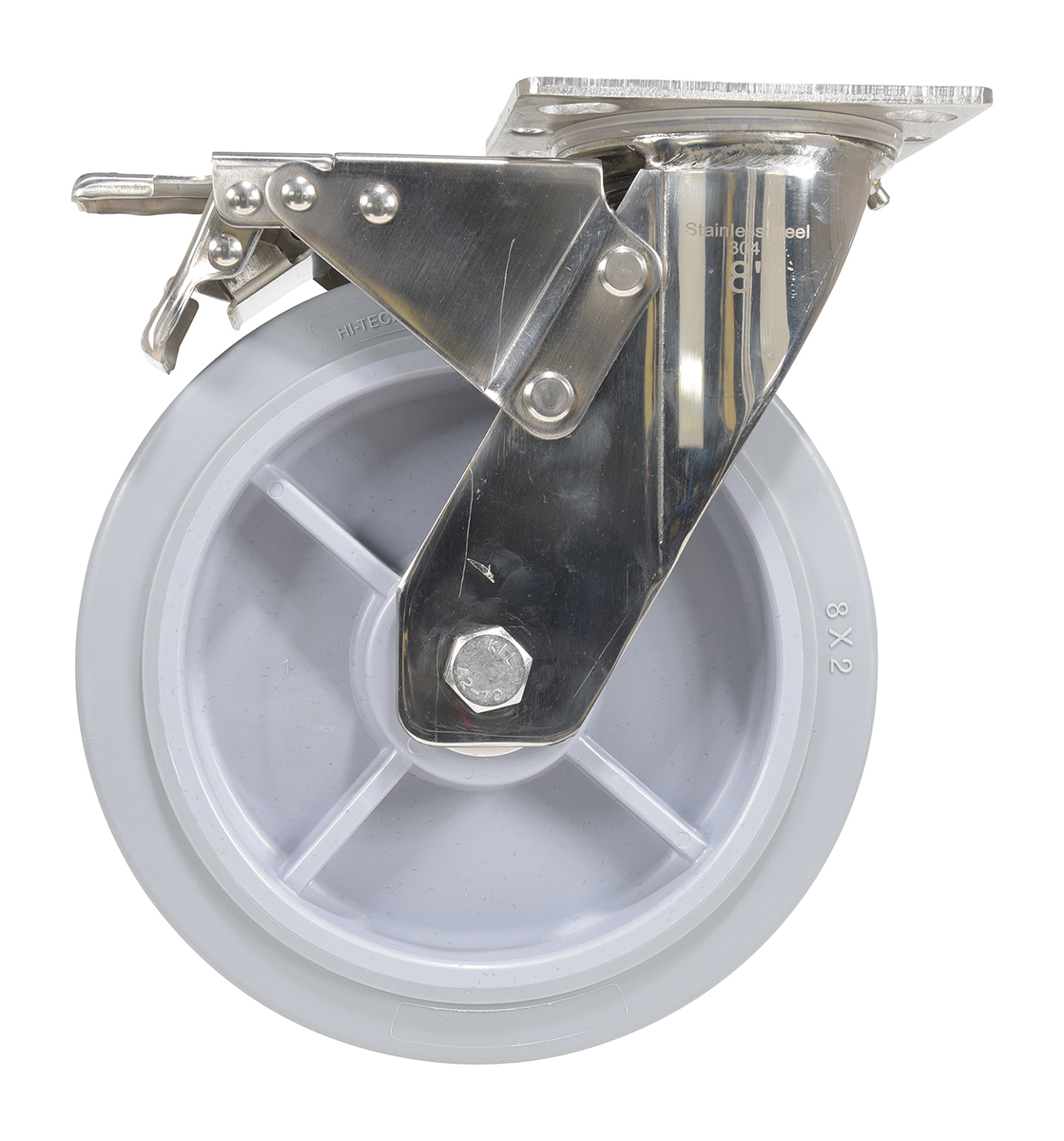

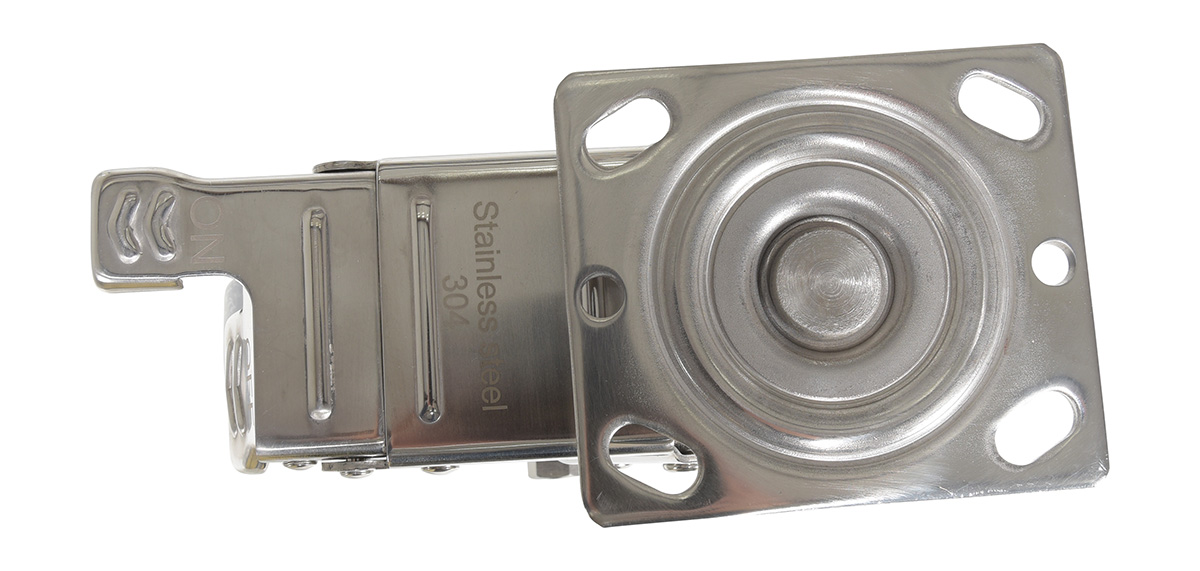

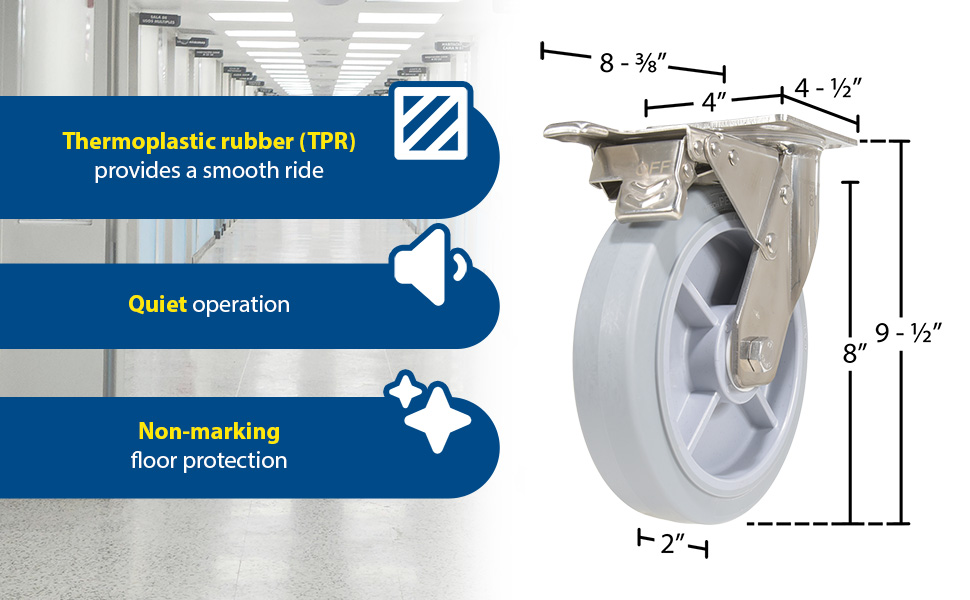

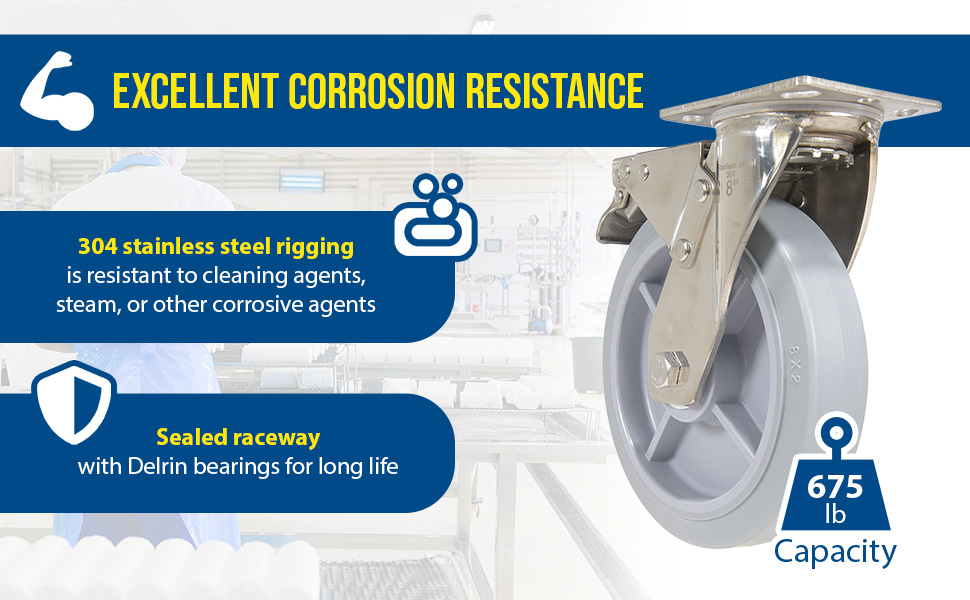

CST-E-SS-8X2TPR-SWTB CST-E-SS-8X2TPR-SWTB1 YEAR Limited Warranty8 x 2SWIVEL W/TOTAL BRAKE6759-1/2 4 x 4-1/26.8

KEY: = Click For Expanded Model Details -- = Approval Drawing -- = Testing Certificate -- Warranty


TPR(Thermoplastic Rubber) On Stainless Steel Casters PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

No Approval Drawings For This Product

Testing Certificates


CST-E-SS-3X1TPR-R

CST-E-SS-3X1TPR-S

CST-E-SS-3X1TPR-SWTB

CST-E-SS-4X1TPR-R

CST-E-SS-4X1TPR-S

CST-E-SS-4X1TPR-SWTB

CST-E-SS-5X2TPR-R

CST-E-SS-5X2TPR-S

CST-E-SS-5X2TPR-SWB

CST-E-SS-5X2TPR-SWTB

CST-E-SS-6X2TPR-R

CST-E-SS-6X2TPR-S

CST-E-SS-6X2TPR-SWB

CST-E-SS-6X2TPR-SWTB

CST-E-SS-8X2TPR-R

CST-E-SS-8X2TPR-S

CST-E-SS-8X2TPR-SWB

CST-E-SS-8X2TPR-SWTB

SDS Sheets

No SDS Sheets For This Product

Other PDF's


Directory Links Of Available PDF's For All Products
