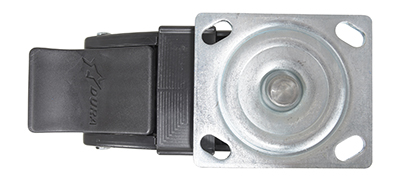

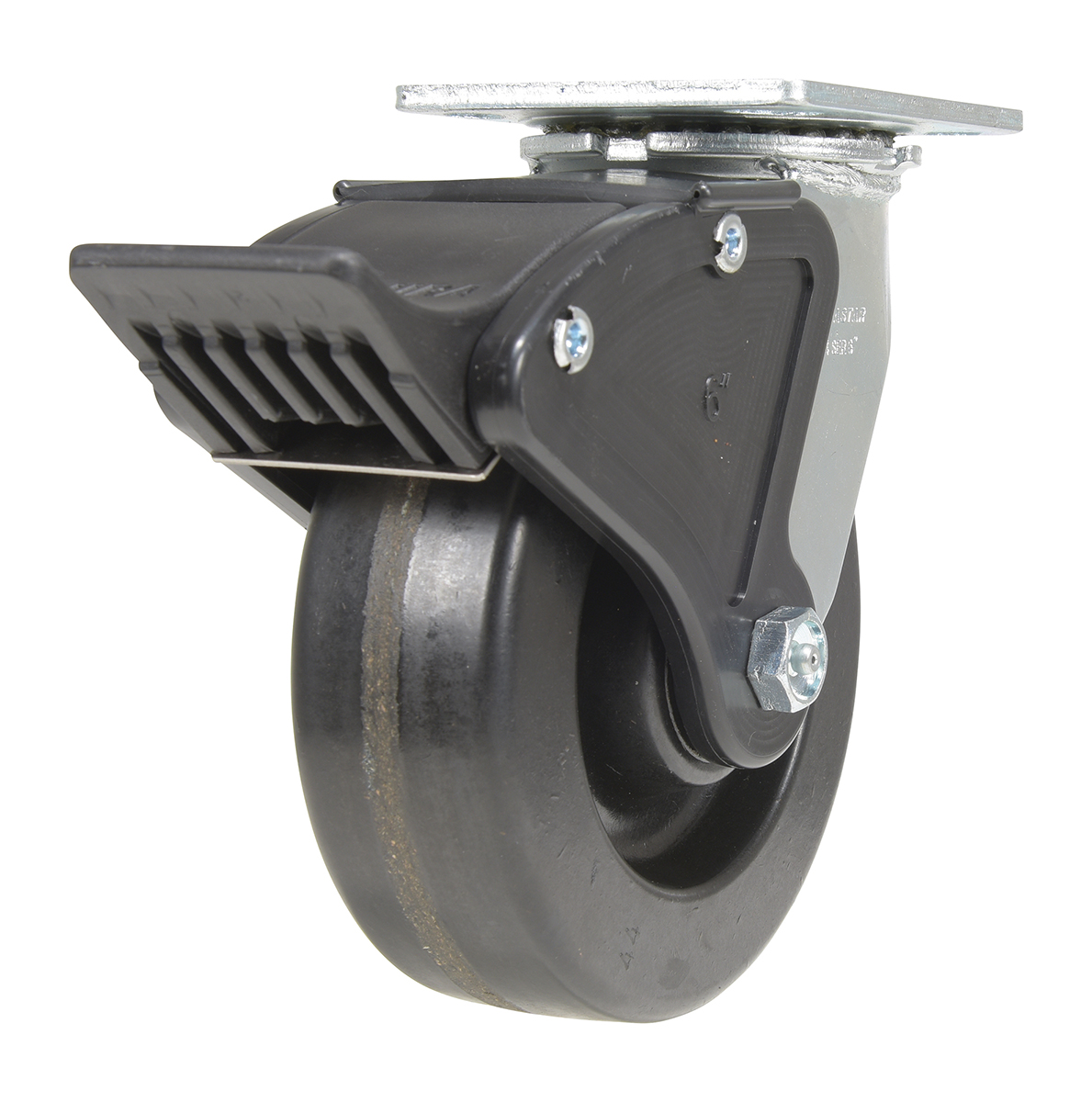

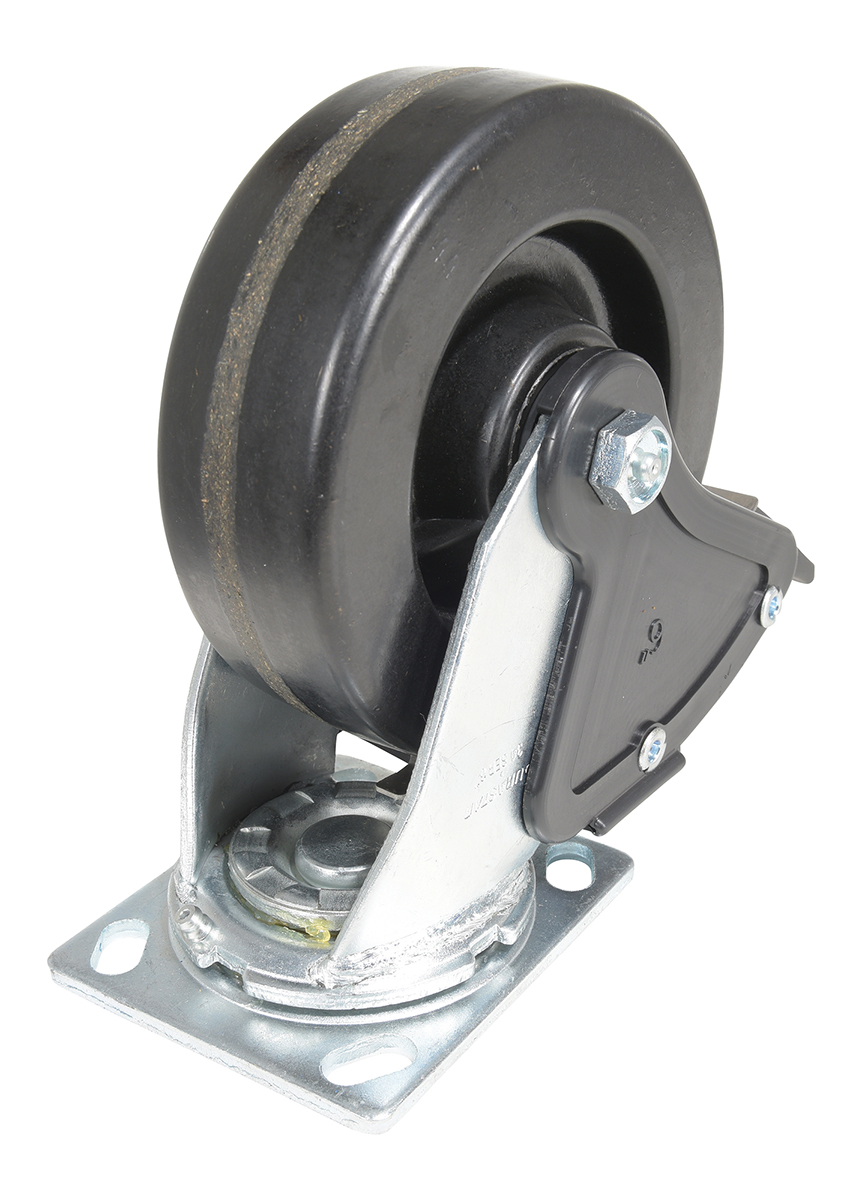

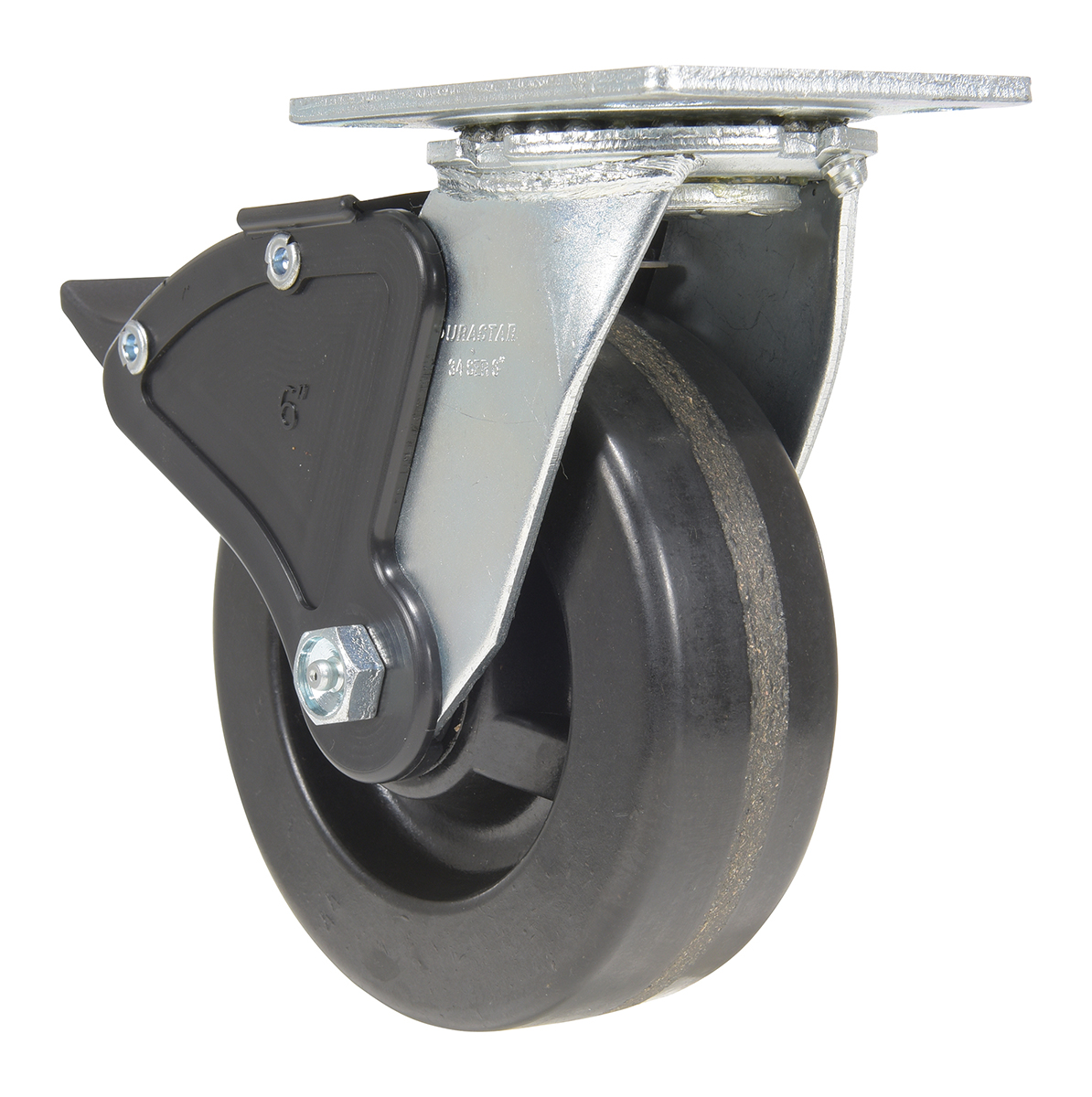

model: CST-VE-6X2PH-SWTB

Featured Casters & Wheels

Rubber (DK - Conductive) Casters

High Quality Non-Marking Polyurethane Elastomer

High Capacity Non-Marking Glass Filled Nylon Casters

Polyurethane (SI - Electrostatic Dissipating) Casters

Polyurethane Wheel

Foam Filled Wheel

Mold On Rubber (On Aluminum) Casters

Phenolic Wheel

model chart

Product Family Overview

Print Friendly

Phenolic Casters

SERIES: CST-VE-PH

Phenolic wheels have a high resistance to impact damage, while providing protection for floors in commercial and industrial settings. Resistant to water, oil, and grease. It is also spark resistant and operates in a wide temperature range. Black tread color. Wheel core is phenolic. 100 Shore A.

RESISTANT TO MOST CHEMICALS
EASY ROLL PERFORMANCE
ANTI-CORROSIVE & RUST RESISTANT ZINC PLATED FINISH
HARDENED DOUBLE BALL RACEWAY
GREASE ZERK FITTINGS
ROLLER BEARINGS

RESISTANT TO MOST CHEMICALS
EASY ROLL PERFORMANCE
ANTI-CORROSIVE & RUST RESISTANT ZINC PLATED FINISH
HARDENED DOUBLE BALL RACEWAY
GREASE ZERK FITTINGS
ROLLER BEARINGS

Other "Go-To" Casters

Polyurethane Casters (Blue)

Elastic Rubber (Blue) Casters

Polyurethane Casters (Yellow)

Flat-Free (Rubber)

Follow @vestilmfg

Additional Models In This Family
view entire Image Gallery

CST-VE-4X2PH-R

CST-VE-6X2PH-S

CST-VE-5X2PH-SWB

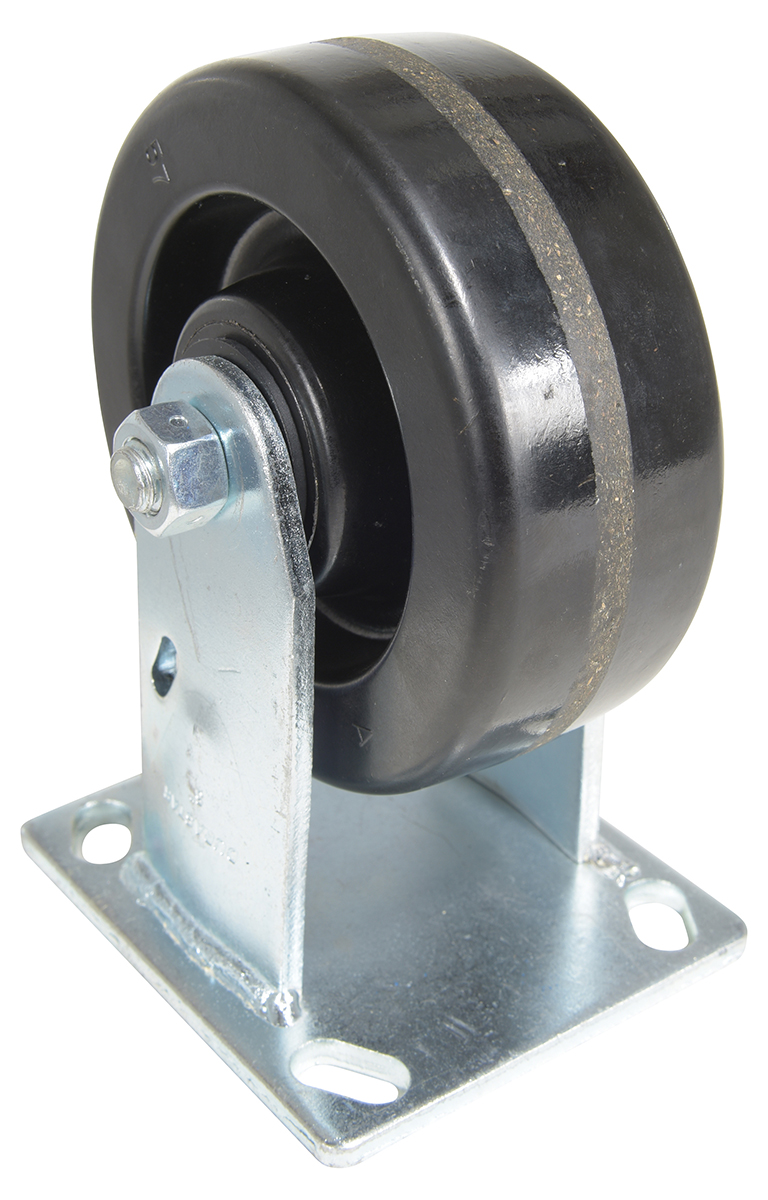

CST-VE-5X2PH-R

CST-VE-8X3PH-4PSL

CST-VE-8X3PH-S

CST-VE-8X3PH-R

CST-VE-5X2PH-R

CST-VE-4X2PH-S

CST-VE-4X2PH-SWTB

CST-VE-8X2PH-S

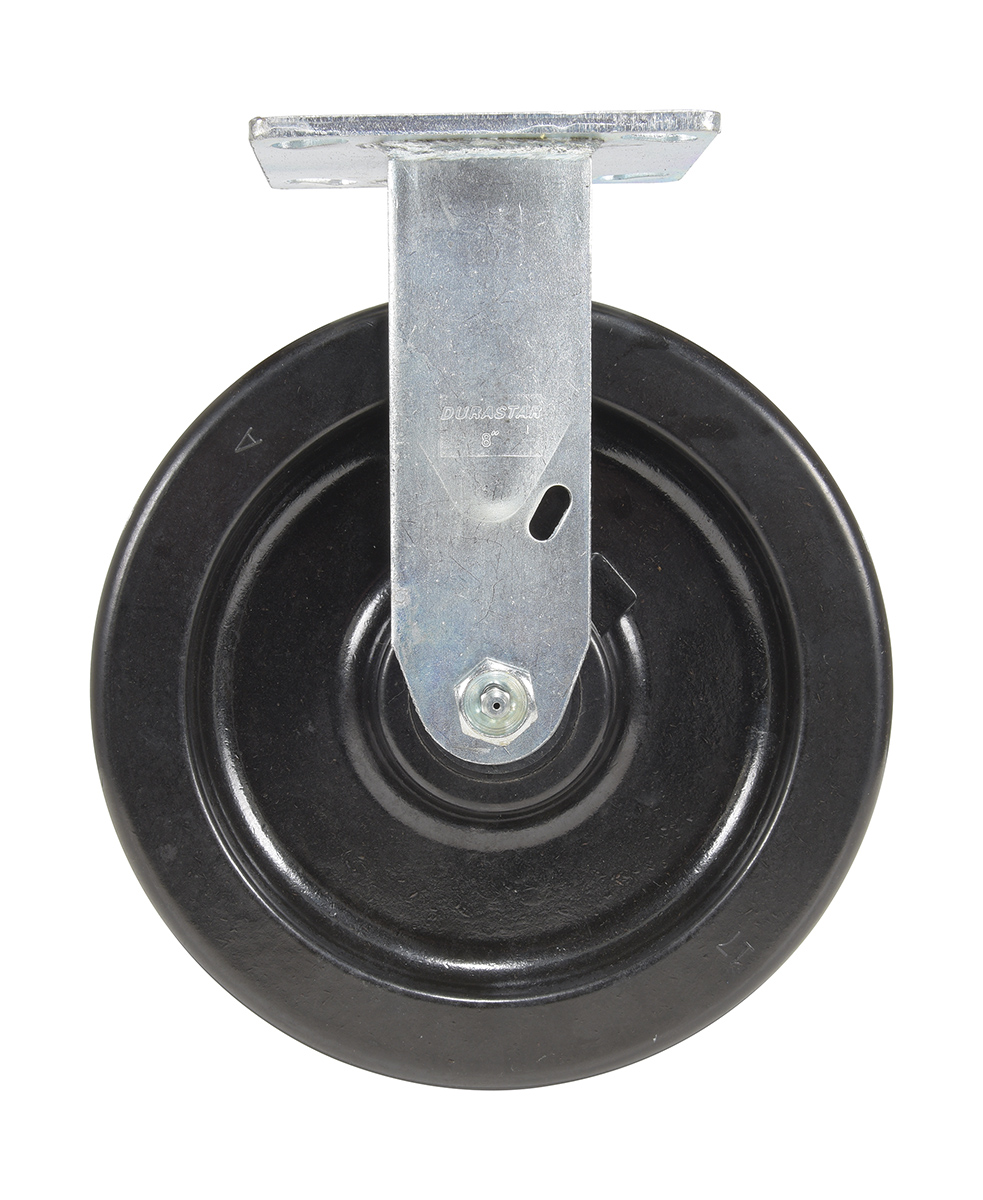

CST-VE-8X2PH-R

CST-VE-6X2PH-R

CST-VE-8X2PH-SWB

CST-VE-4X2PH-SWTB

model chart

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

The Search Box below is for Casters within the Model Chart on this page. Not an entire site search.

Model	PDFs	Caster Size	Type	Capacity (lbs.)	Overall Height	Top Plate Size	Net Wt. (lbs)

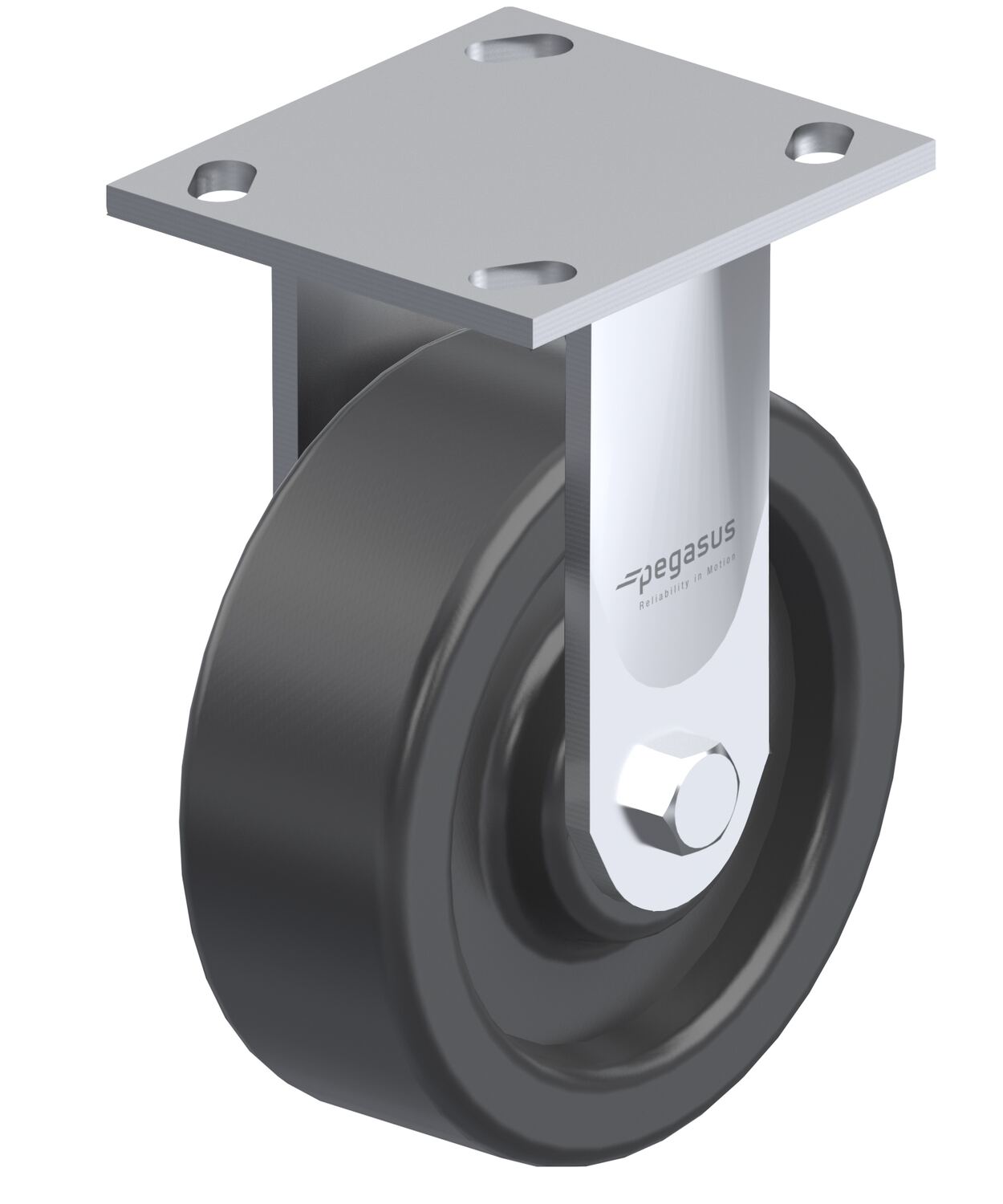

CST-VE-4X2PH-R	1 YEAR Limited Warranty	4 x 2	RIGID	800	5-1/2	4 x 4-1/2	5

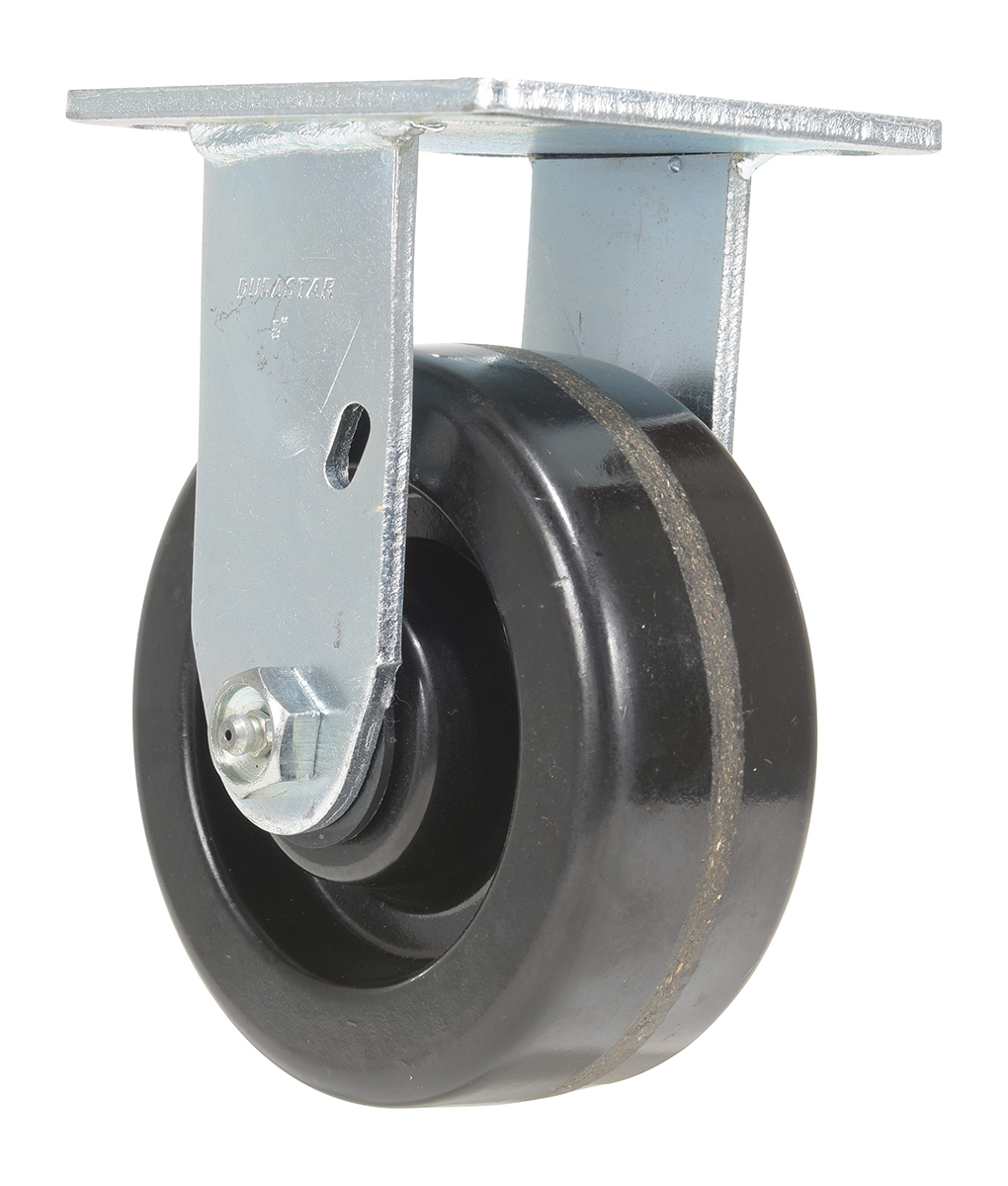

CST-VE-5X2PH-R	1 YEAR Limited Warranty	5 x 2	RIGID	1000	6-1/2	4 x 4-1/2	5
CST-VE-6X2PH-R	1 YEAR Limited Warranty	6 x 2	RIGID	1200	7-1/2	4 x 4-1/2	6

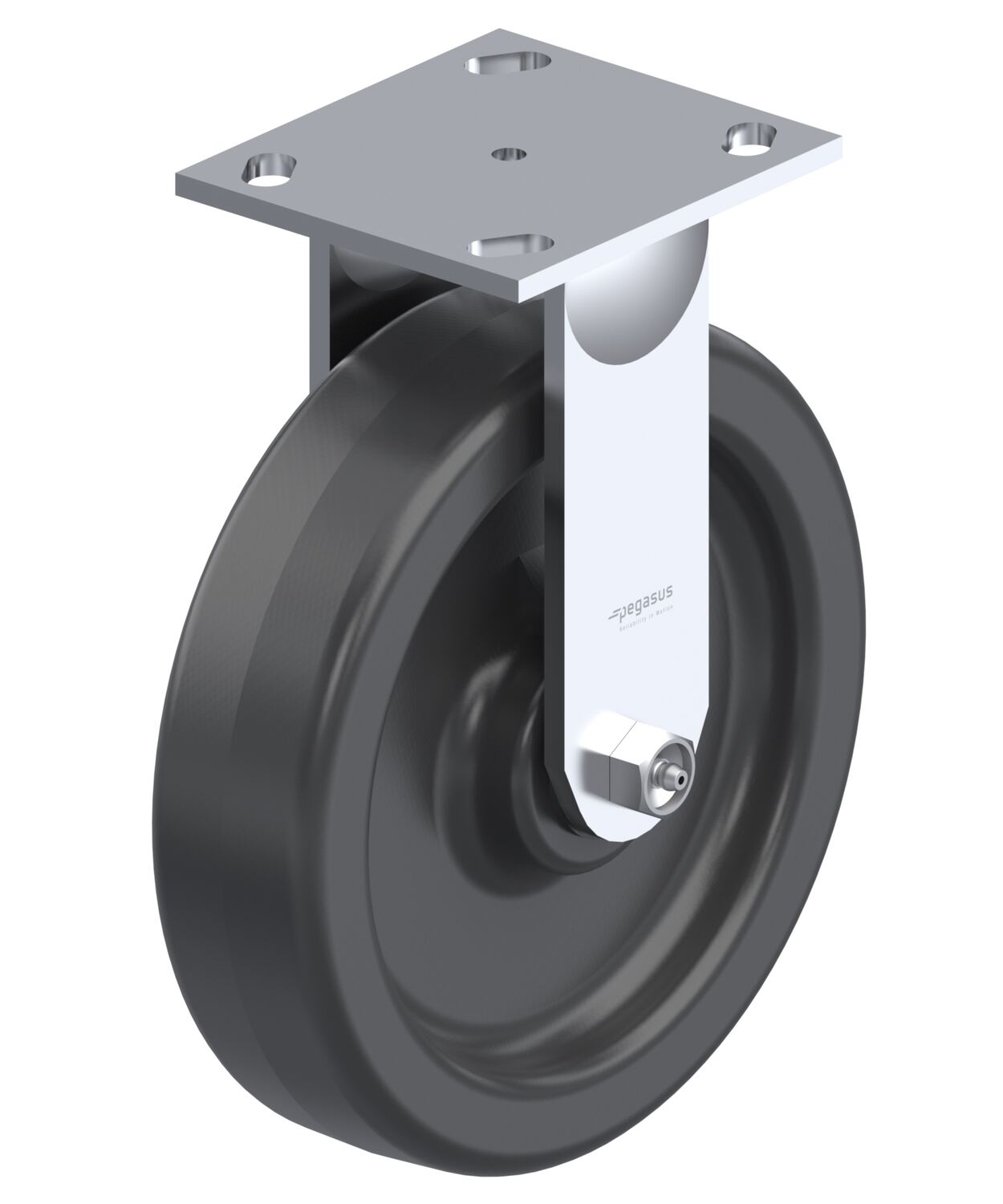

CST-VE-8X2PH-R	1 YEAR Limited Warranty	8 x 2	RIGID	1250	9-1/2	4 x 4-1/2	7
CST-VE-8X3PH-R	Limited Warranty	8 x 3	RIGID	2500	9-1/2	4-1/2 x 6-1/4	15

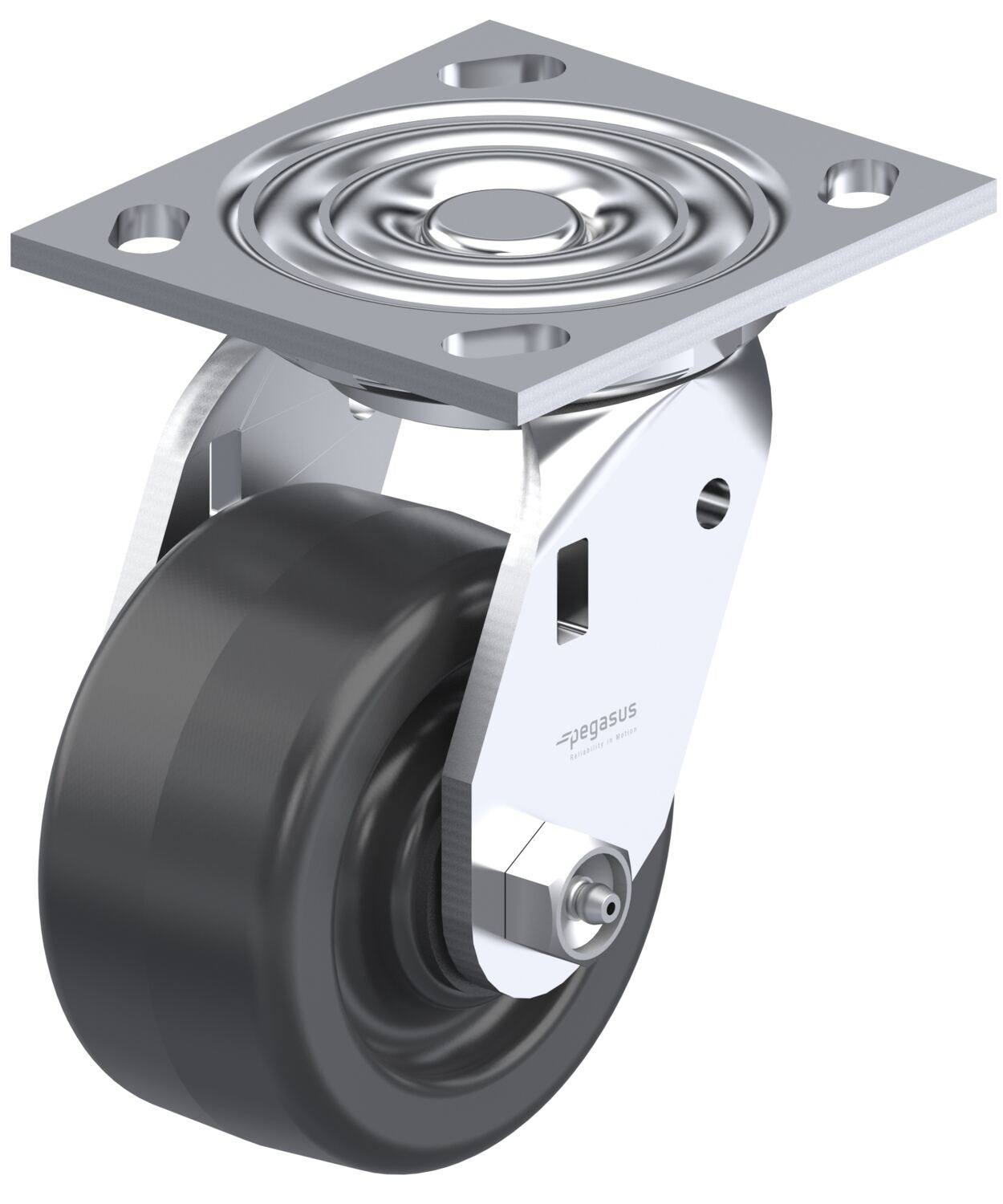

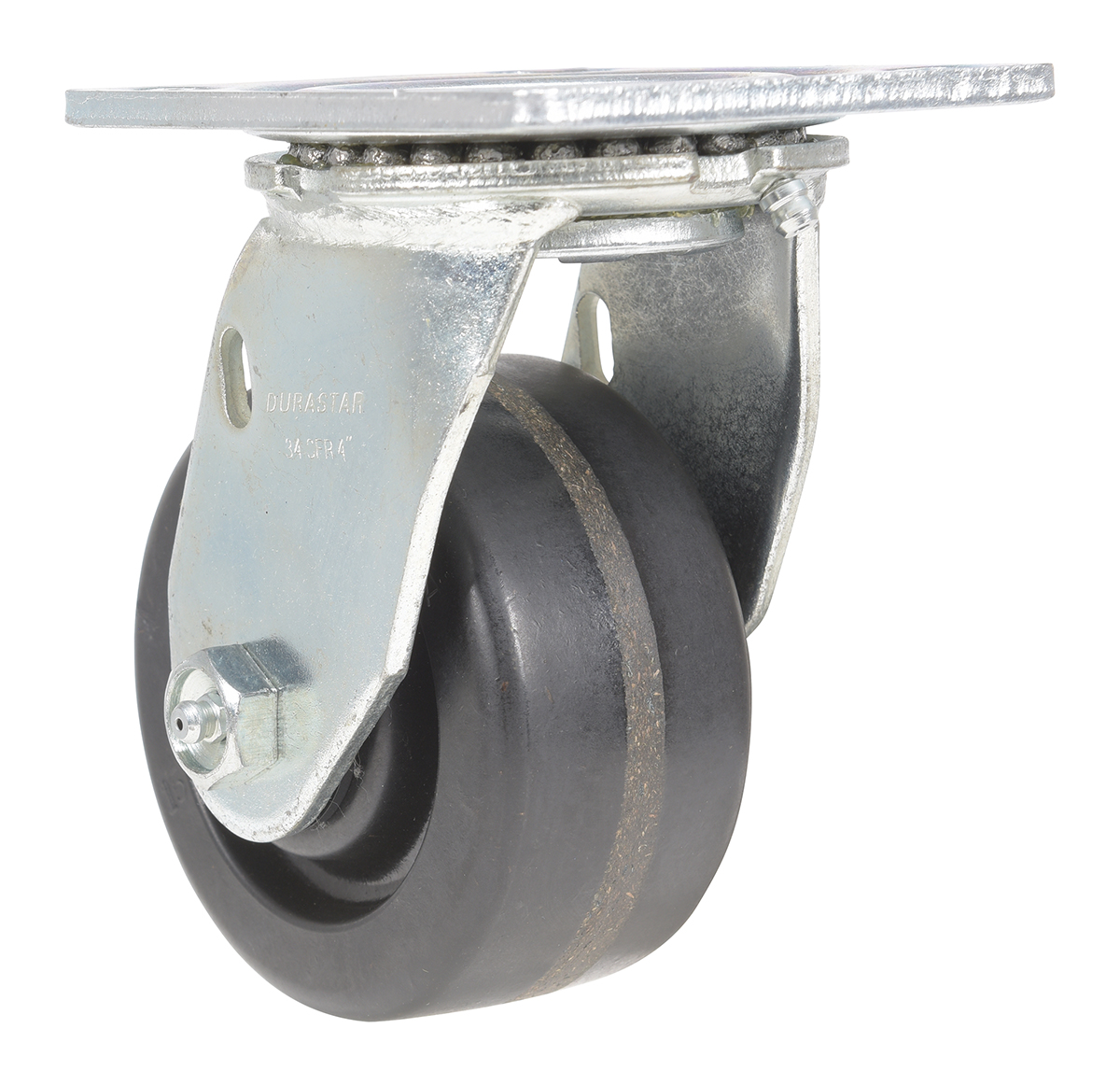

CST-VE-4X2PH-S	1 YEAR Limited Warranty	4 x 2	SWIVEL	800	5-1/2	4 x 4-1/2	5

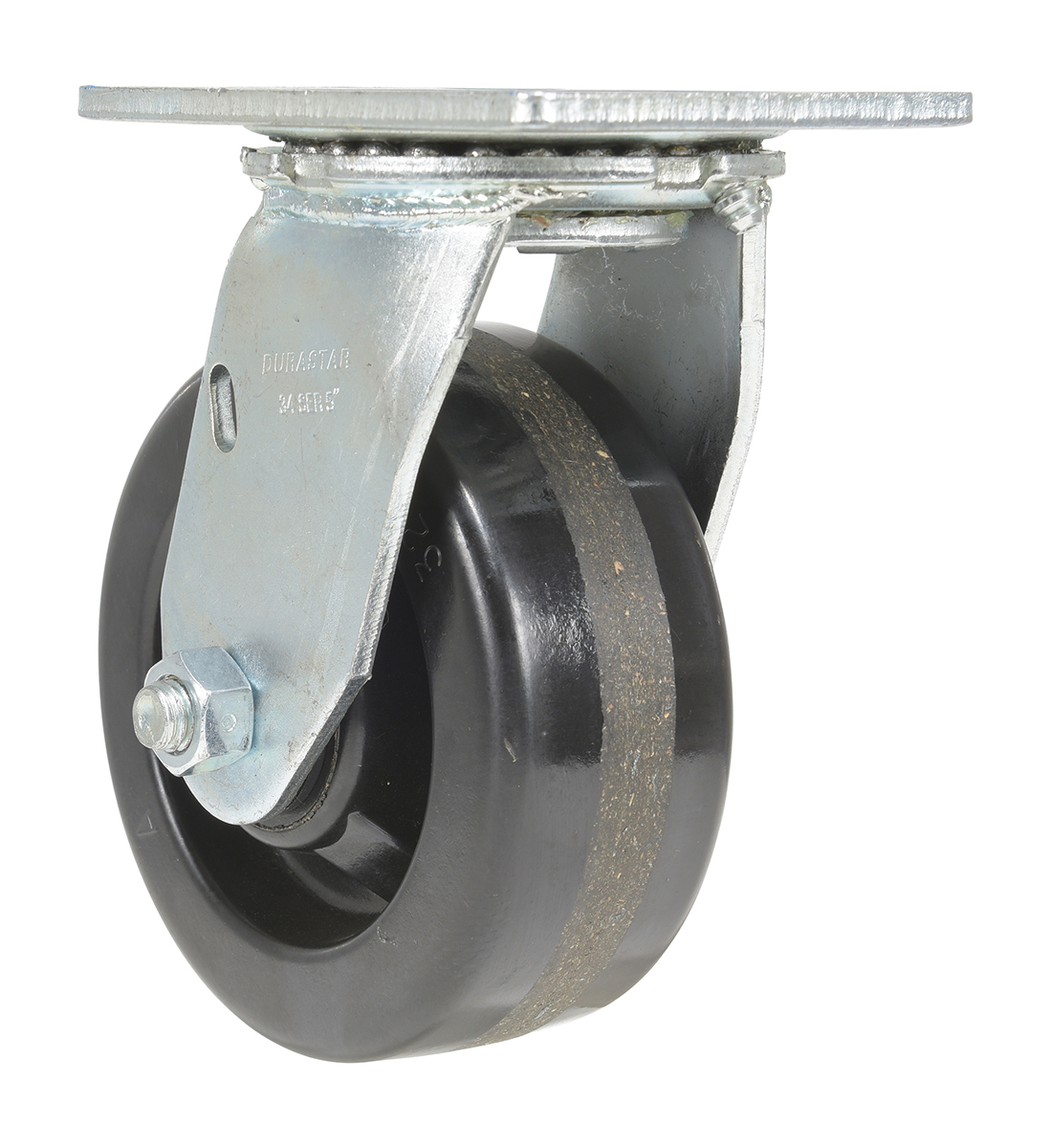

CST-VE-5X2PH-S	1 YEAR Limited Warranty	5 x 2	SWIVEL	1000	6-1/2	4 x 4-1/2	6

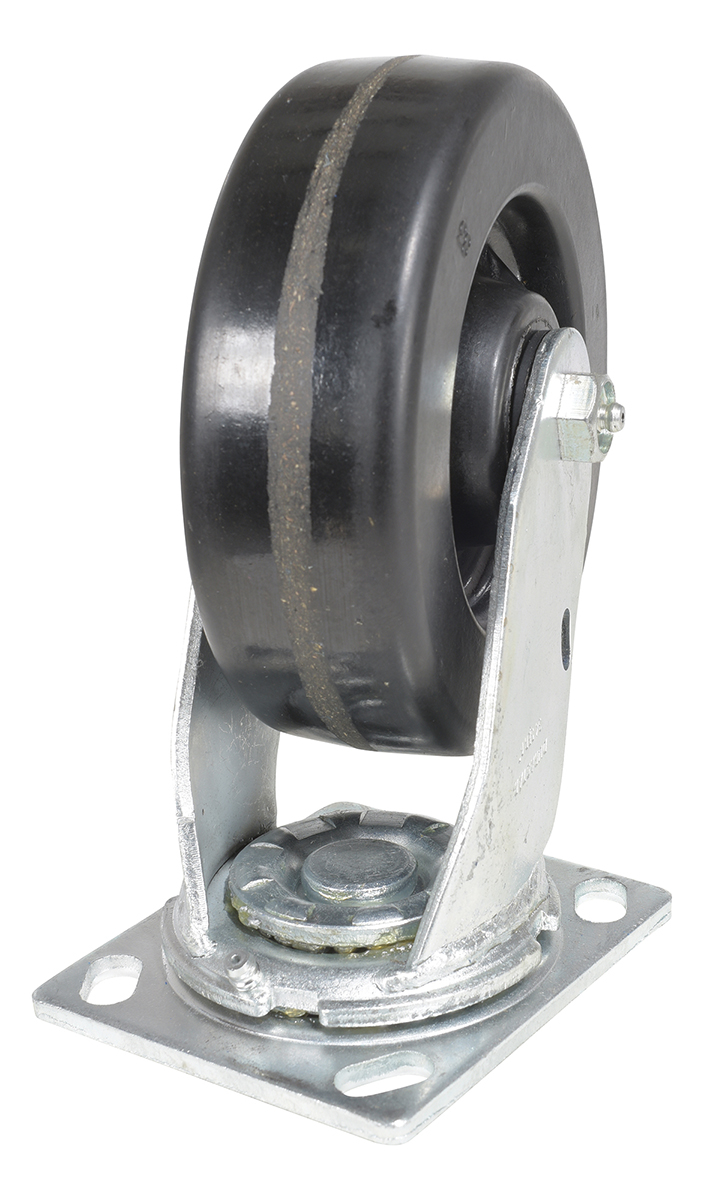

CST-VE-6X2PH-S	1 YEAR Limited Warranty	6 x 2	SWIVEL	1200	7-1/2	4 x 4-1/2	7

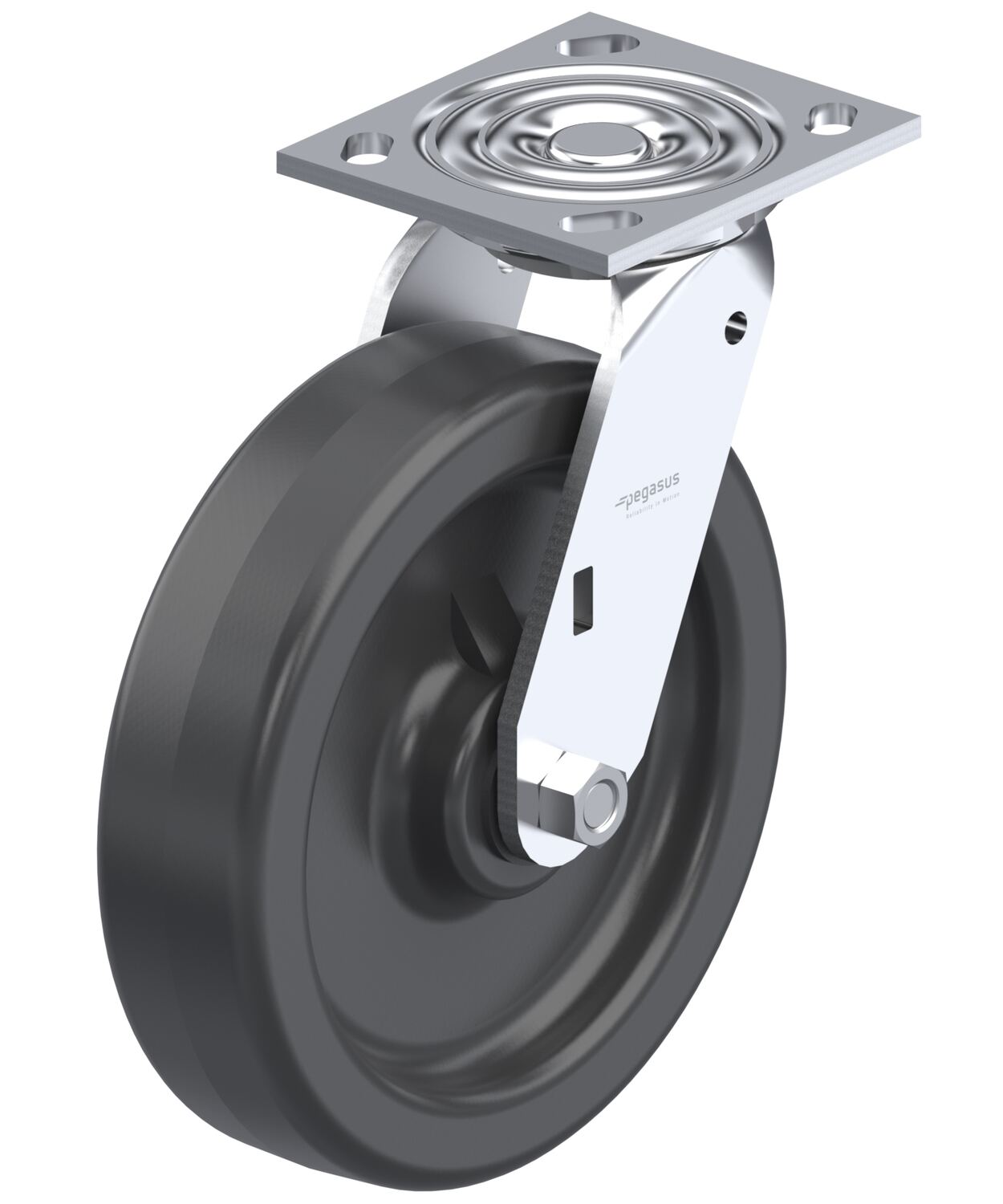

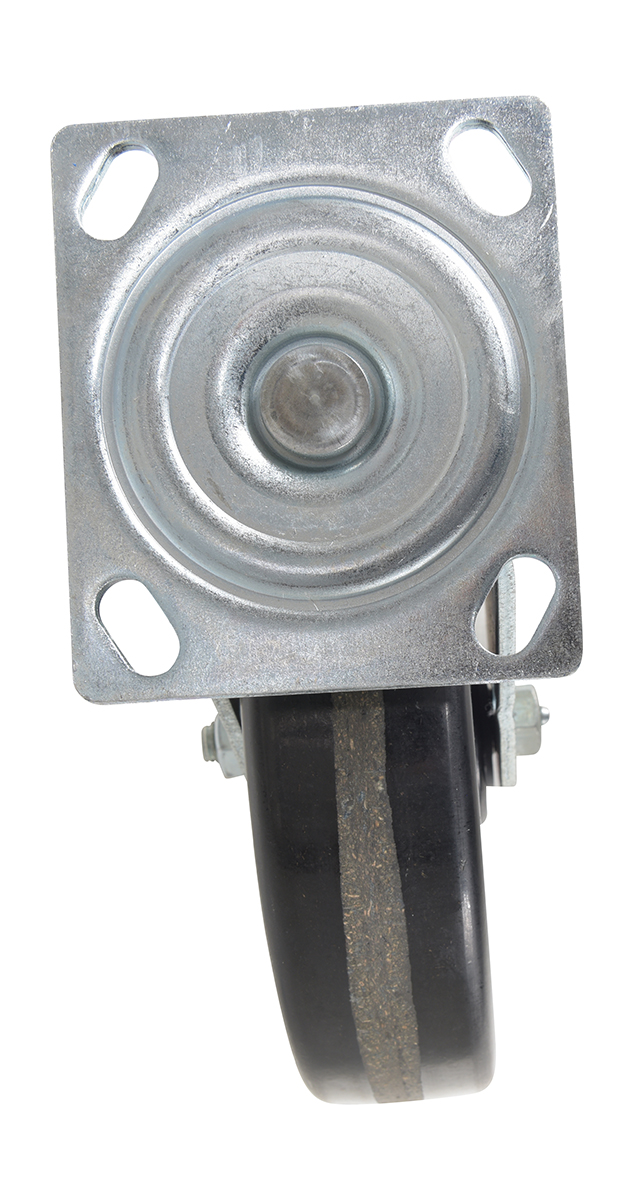

CST-VE-8X2PH-S	1 YEAR Limited Warranty	8 x 2	SWIVEL	1250	9-1/2	4 x 4-1/2	8

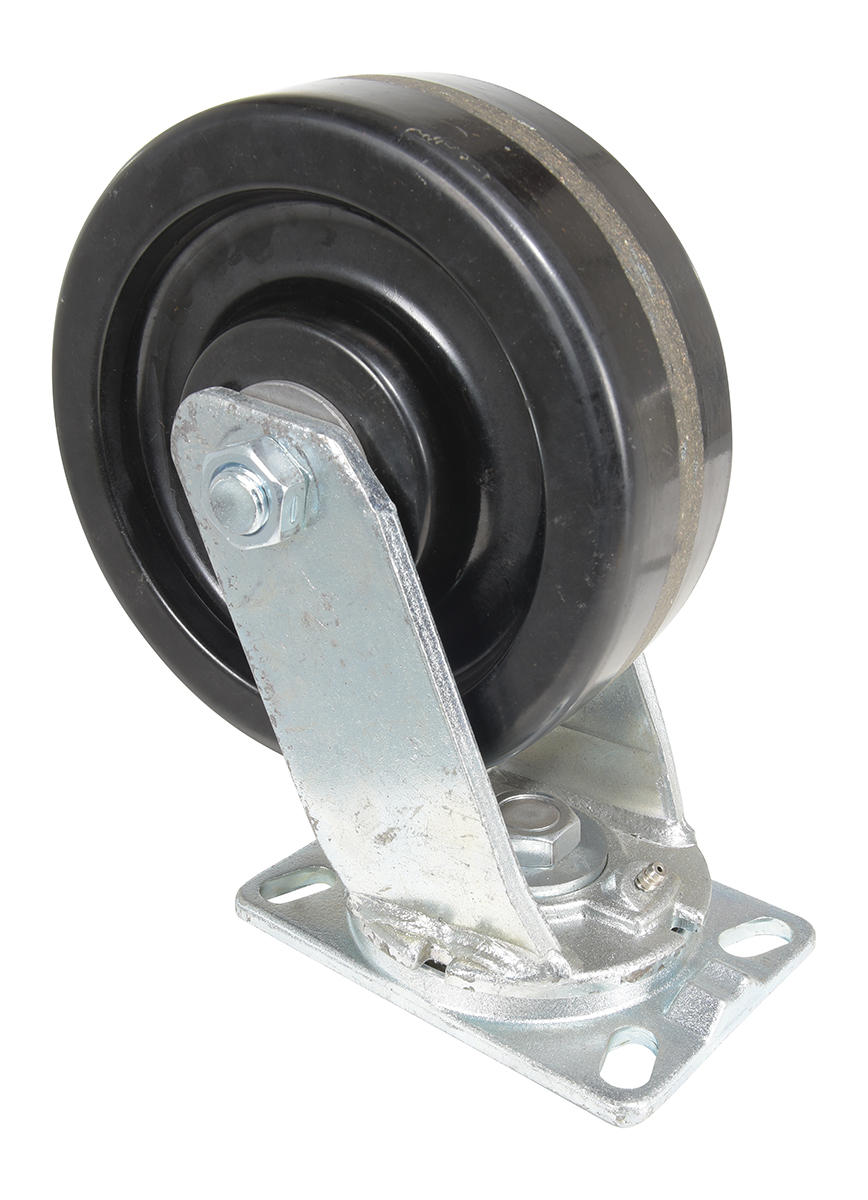

CST-VE-8X3PH-S	Limited Warranty	8 x 3	SWIVEL	2500	10	4-1/2 x 6-1/4	18
CST-VE-8X3PH-4PSL	Limited Warranty	8 x 3	SWIVEL 4 LOCK	2500	10	4-1/2 x 6-1/4	18

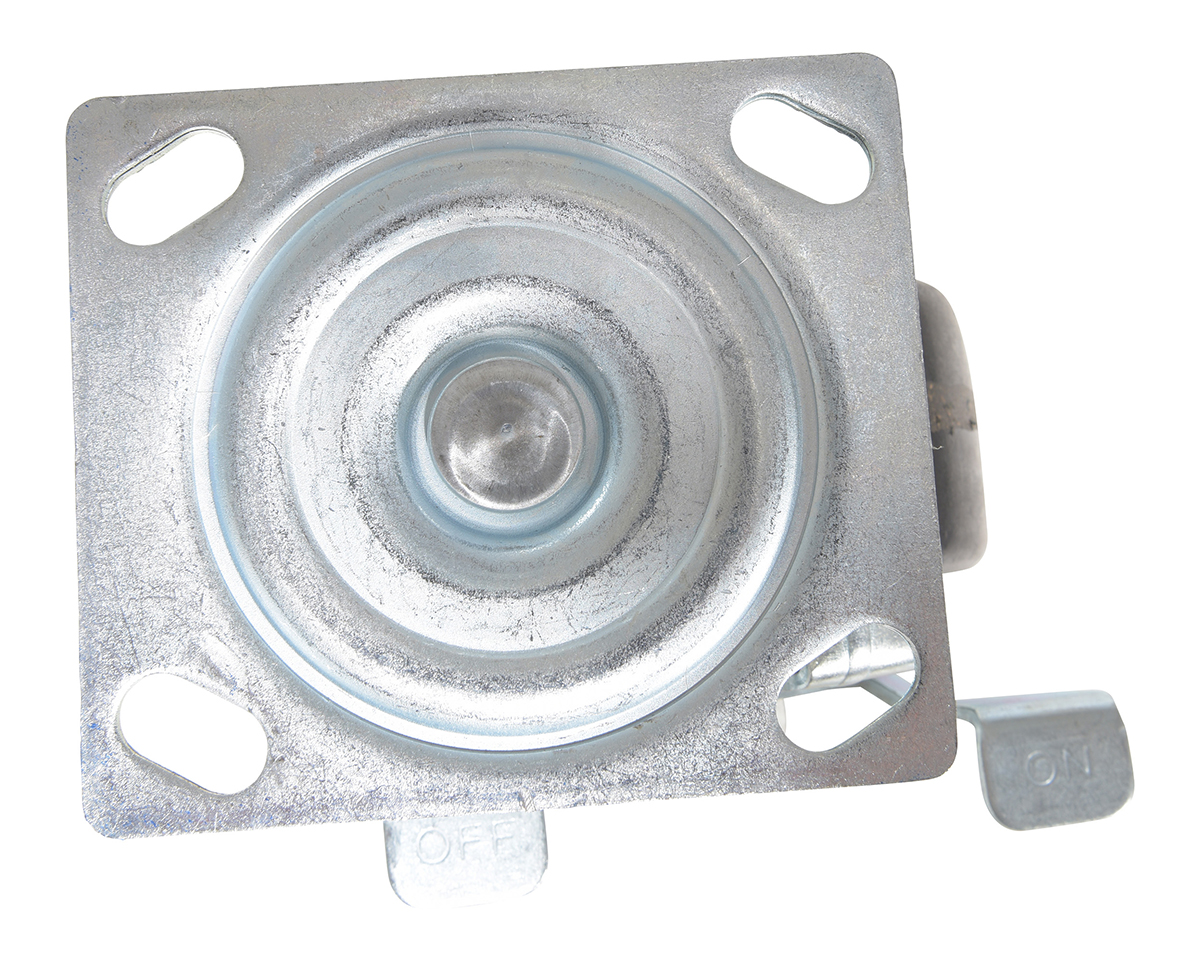

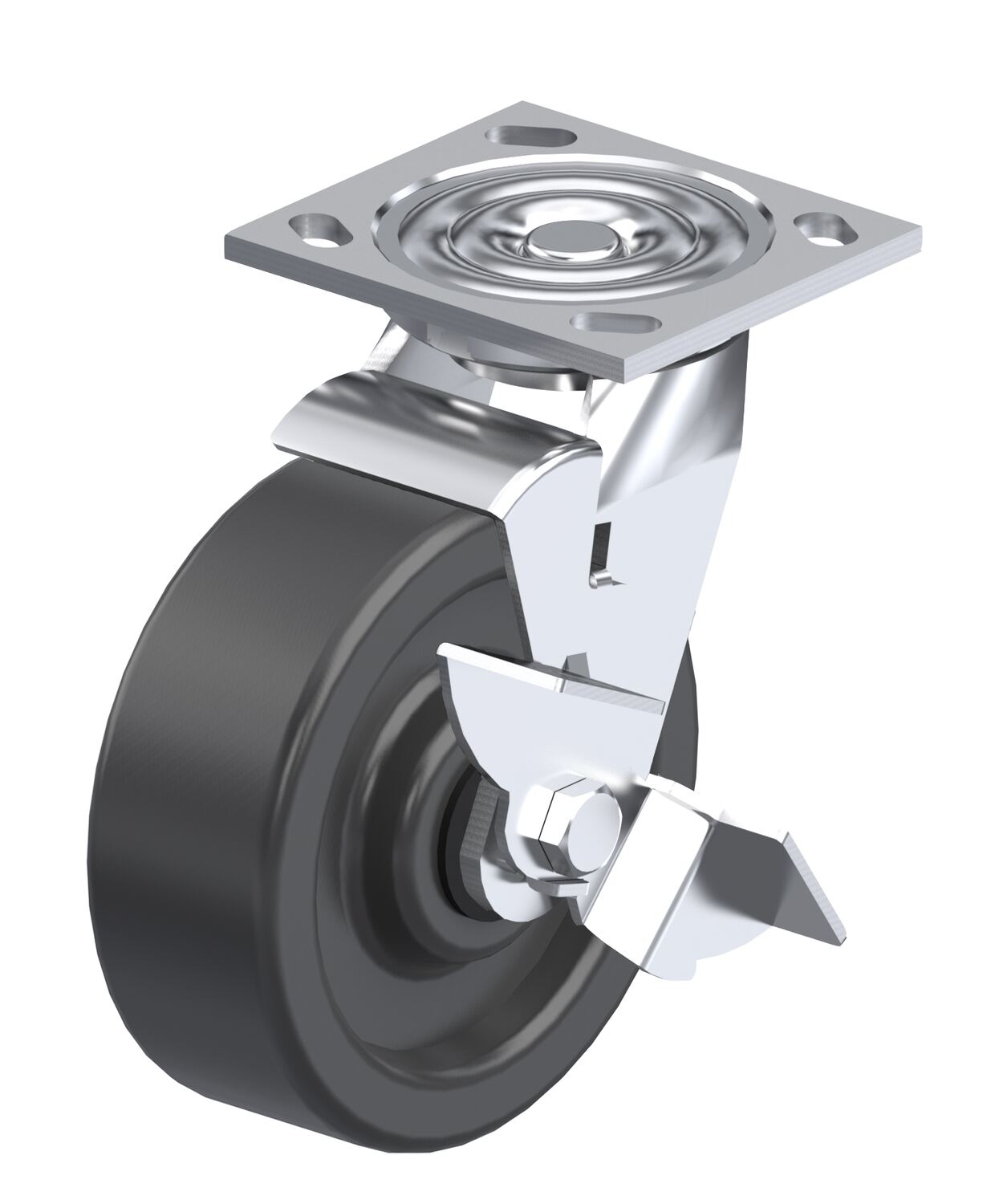

CST-VE-4X2PH-SWB	1 YEAR Limited Warranty	4 x 2	SWIVEL W/BRAKE	800	5-1/2	4 x 4-1/2	6
CST-VE-5X2PH-SWB	1 YEAR Limited Warranty	5 x 2	SWIVEL W/BRAKE	1000	6-1/2	4 x 4-1/2	6

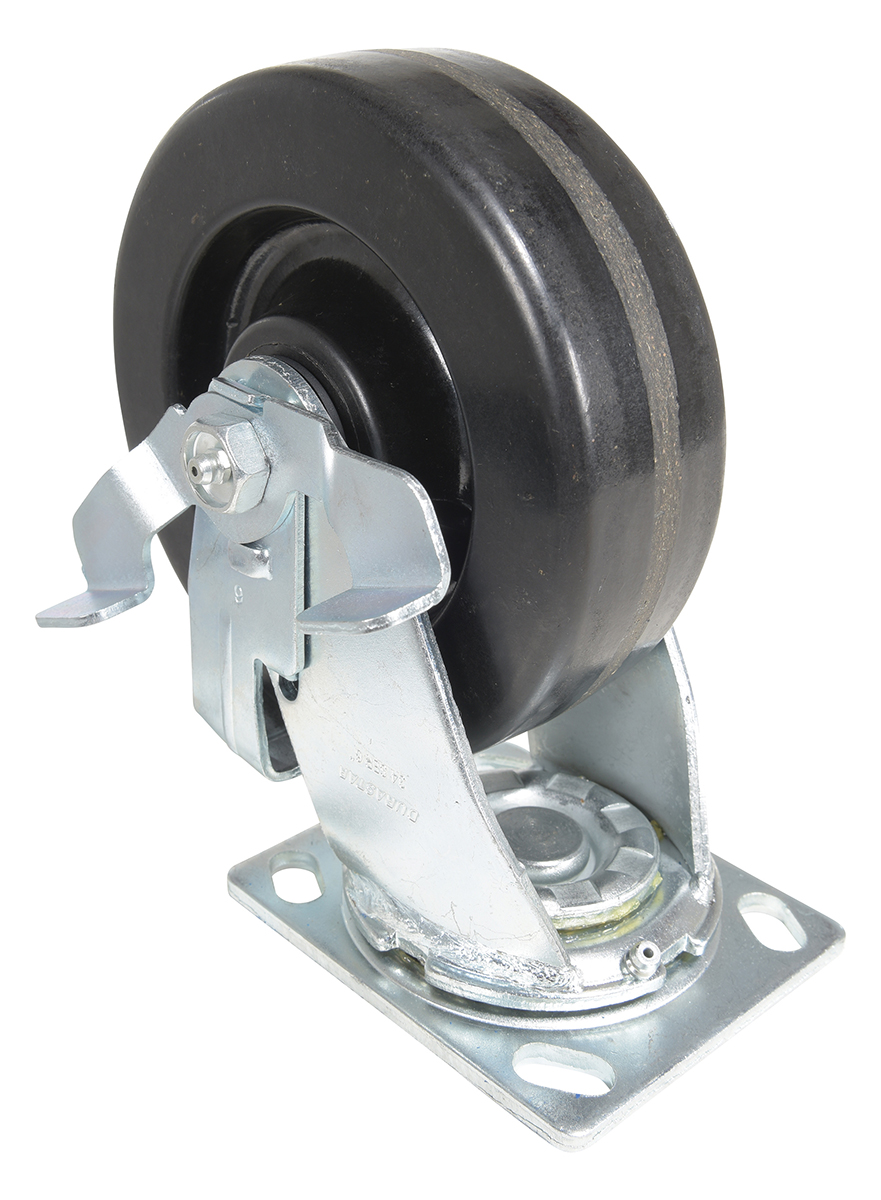

CST-VE-6X2PH-SWB	1 YEAR Limited Warranty	6 x 2	SWIVEL W/BRAKE	1200	7-1/2	4 x 4-1/2	7

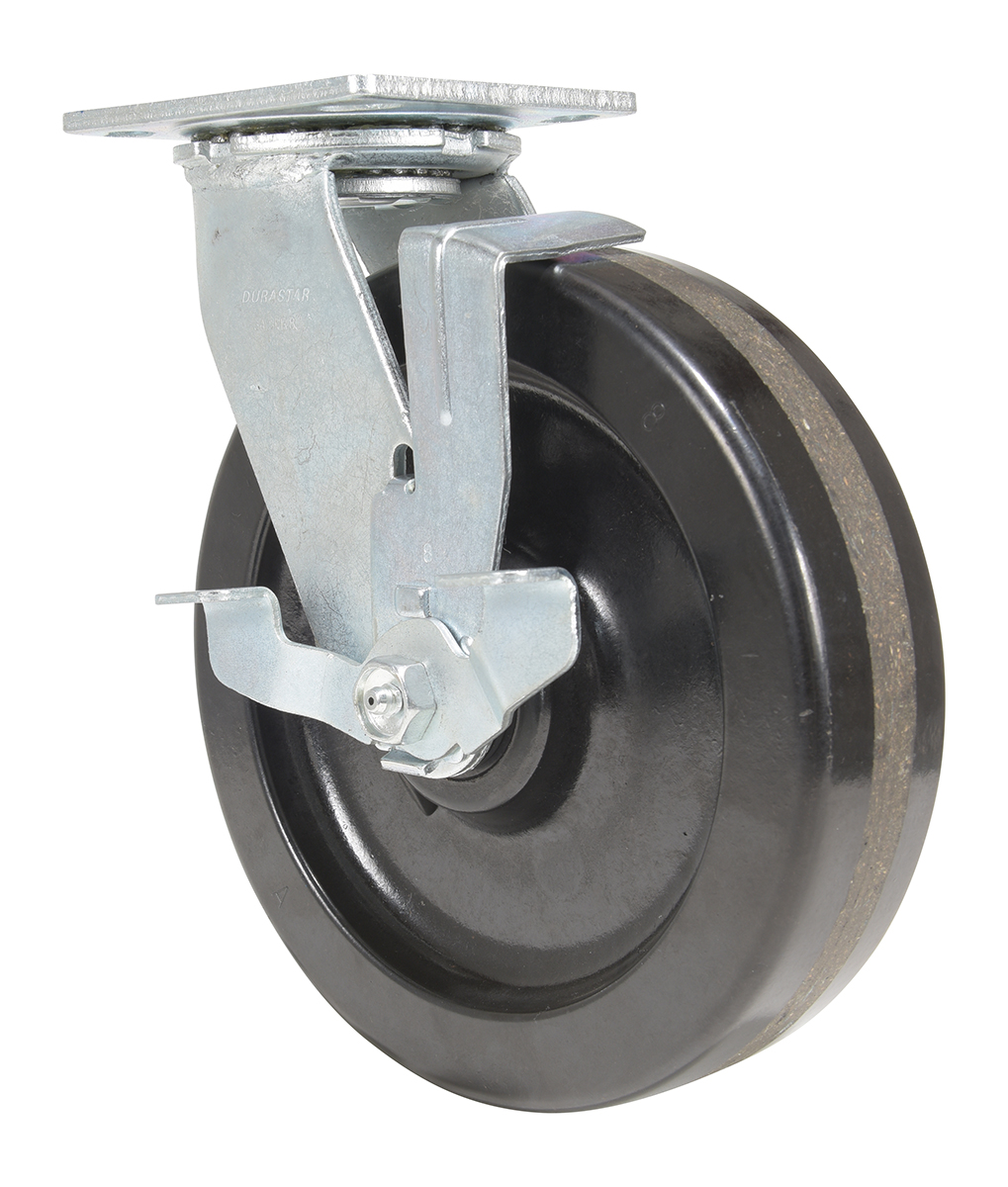

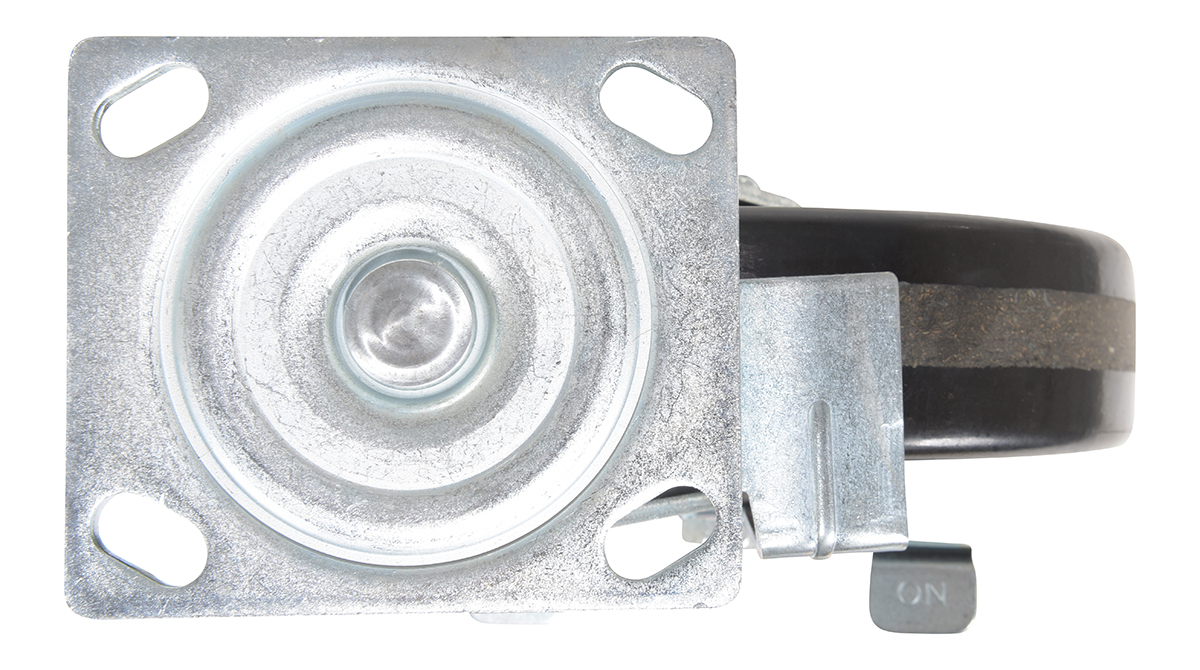

CST-VE-8X2PH-SWB	1 YEAR Limited Warranty	8 x 2	SWIVEL W/BRAKE	1250	9-1/2	4 x 4-1/2	9
CST-VE-4X2PH-SWTB	1 YEAR Limited Warranty	4 x 2	SWIVEL W/TOTAL BRAKE	800	5-1/2	4 x 4-1/2	6

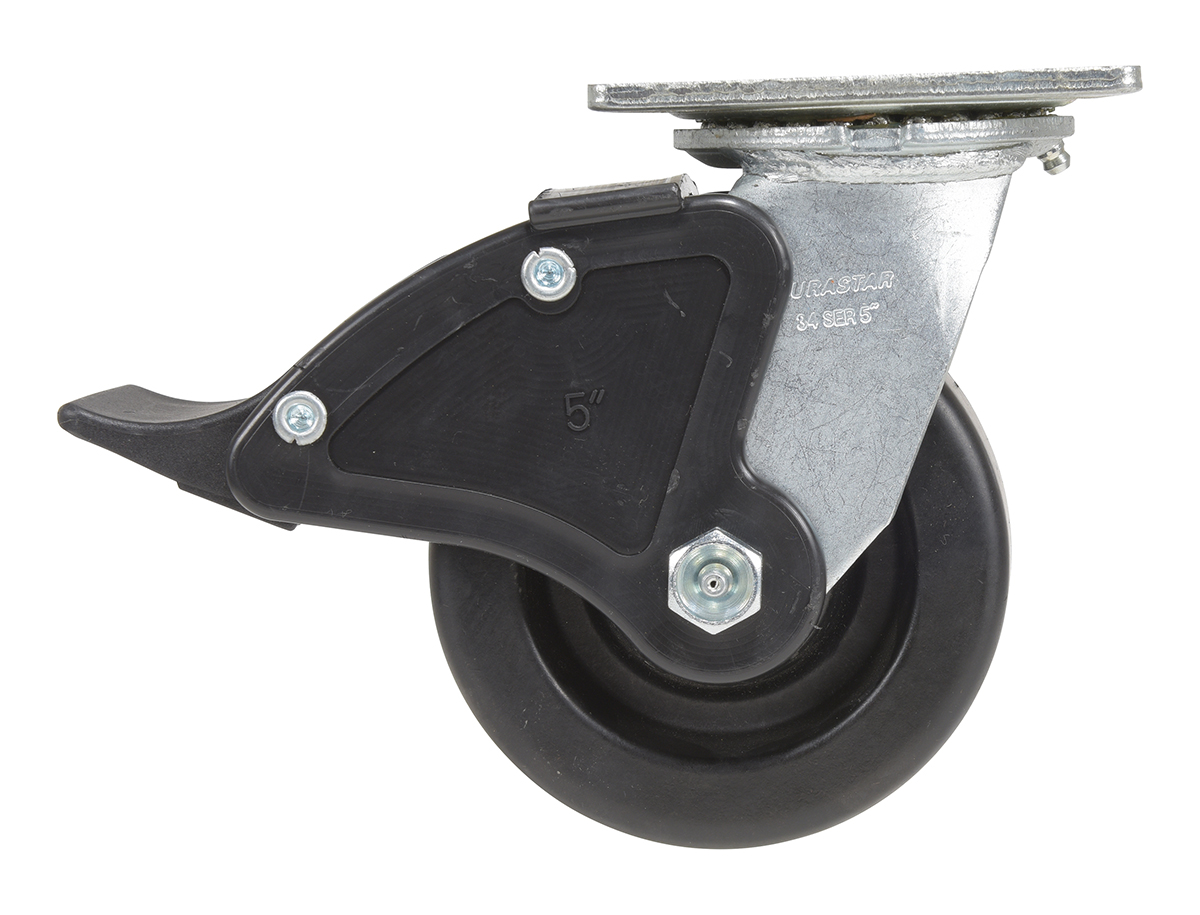

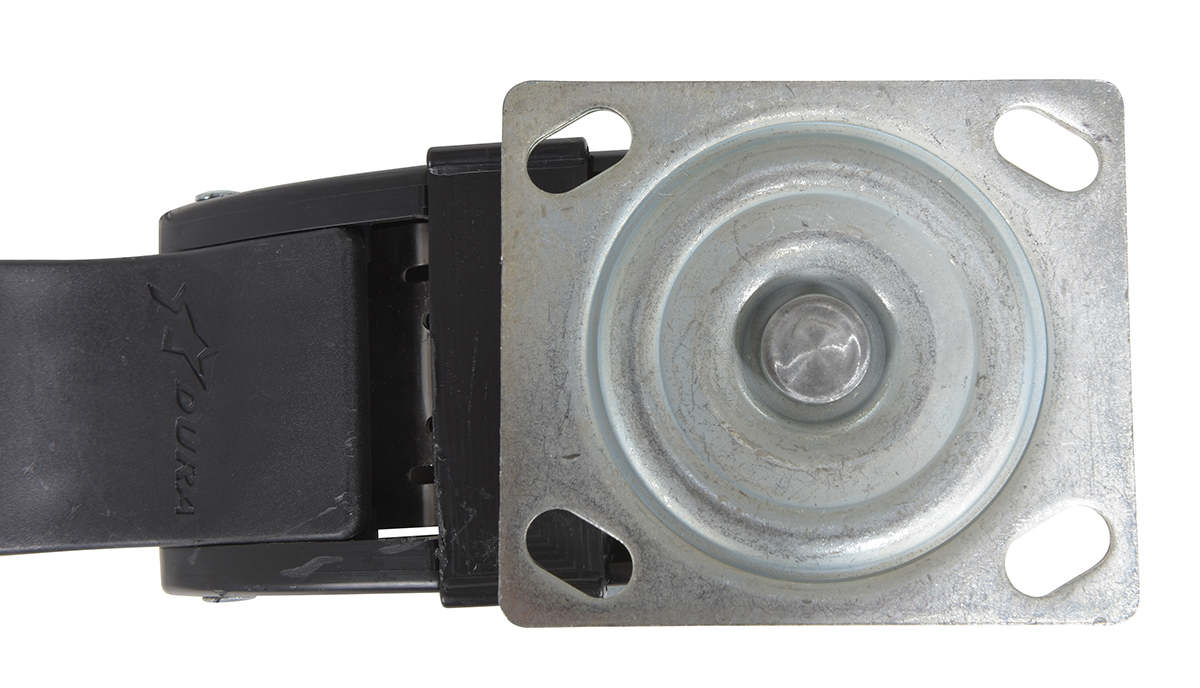

CST-VE-5X2PH-SWTB	1 YEAR Limited Warranty	5 x 2	SWIVEL W/TOTAL BRAKE	1000	6-1/2	4 x 4-1/2	7

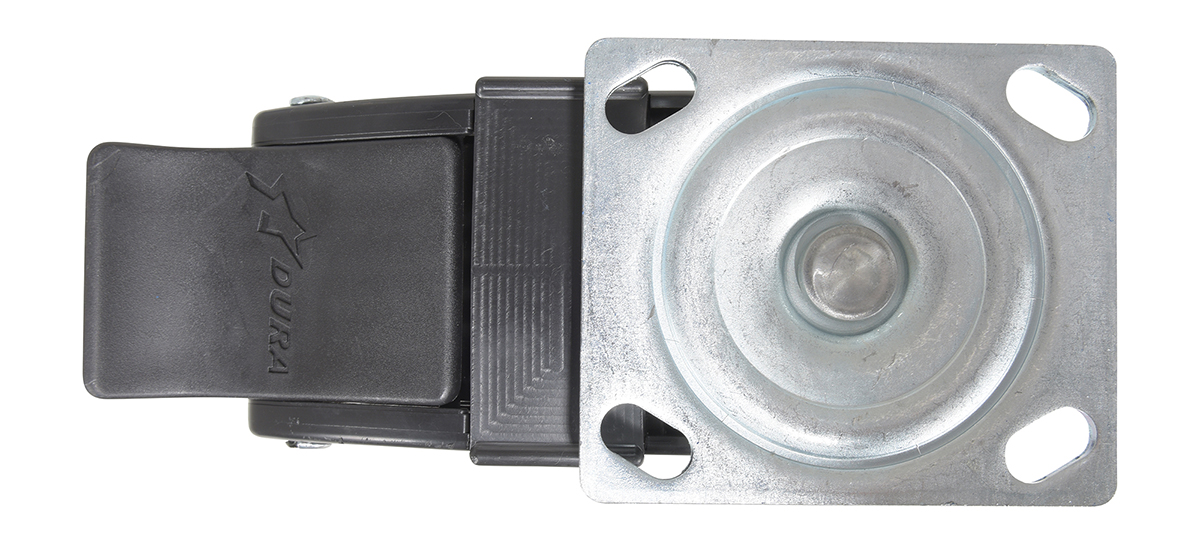

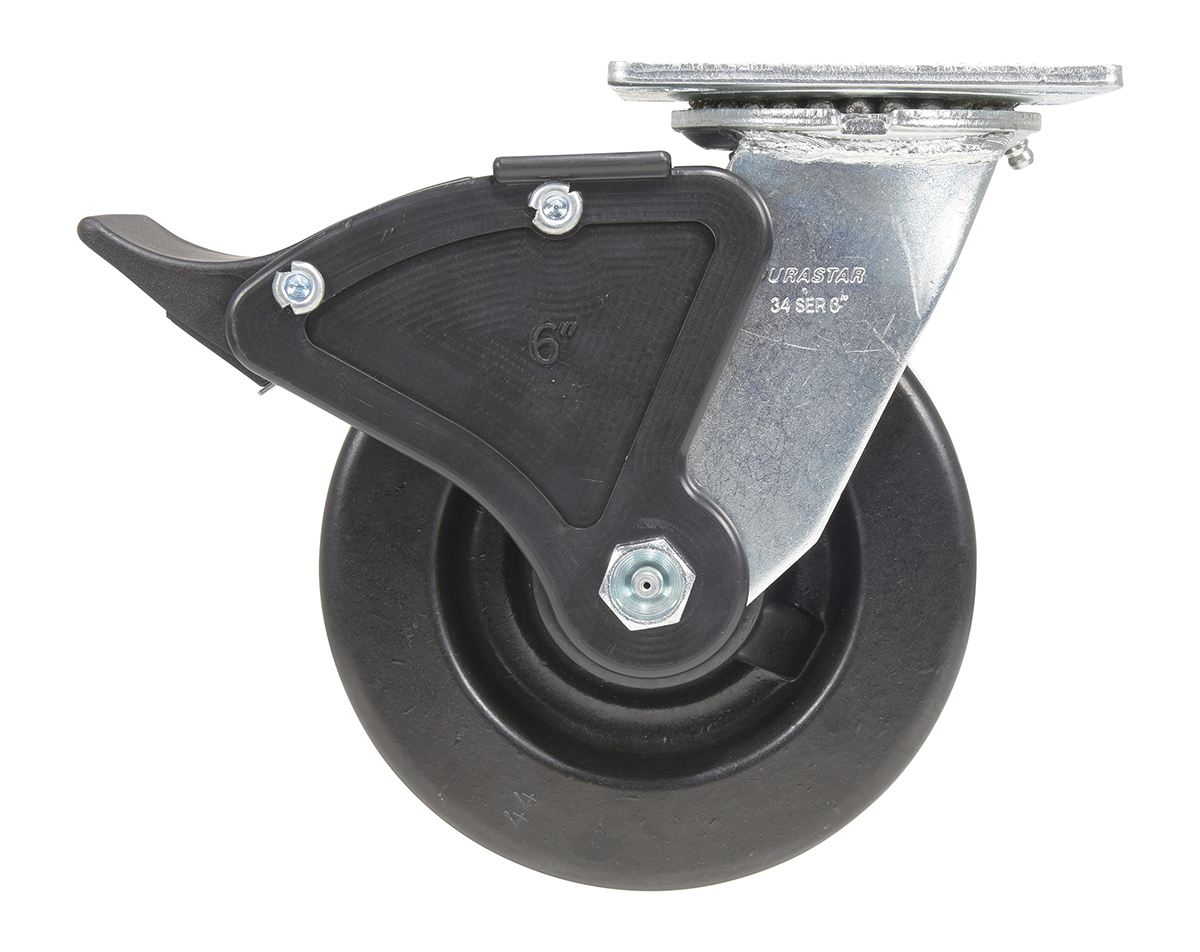

CST-VE-6X2PH-SWTB	1 YEAR Limited Warranty	6 x 2	SWIVEL W/TOTAL BRAKE	1200	7-1/2	4 x 4-1/2	7

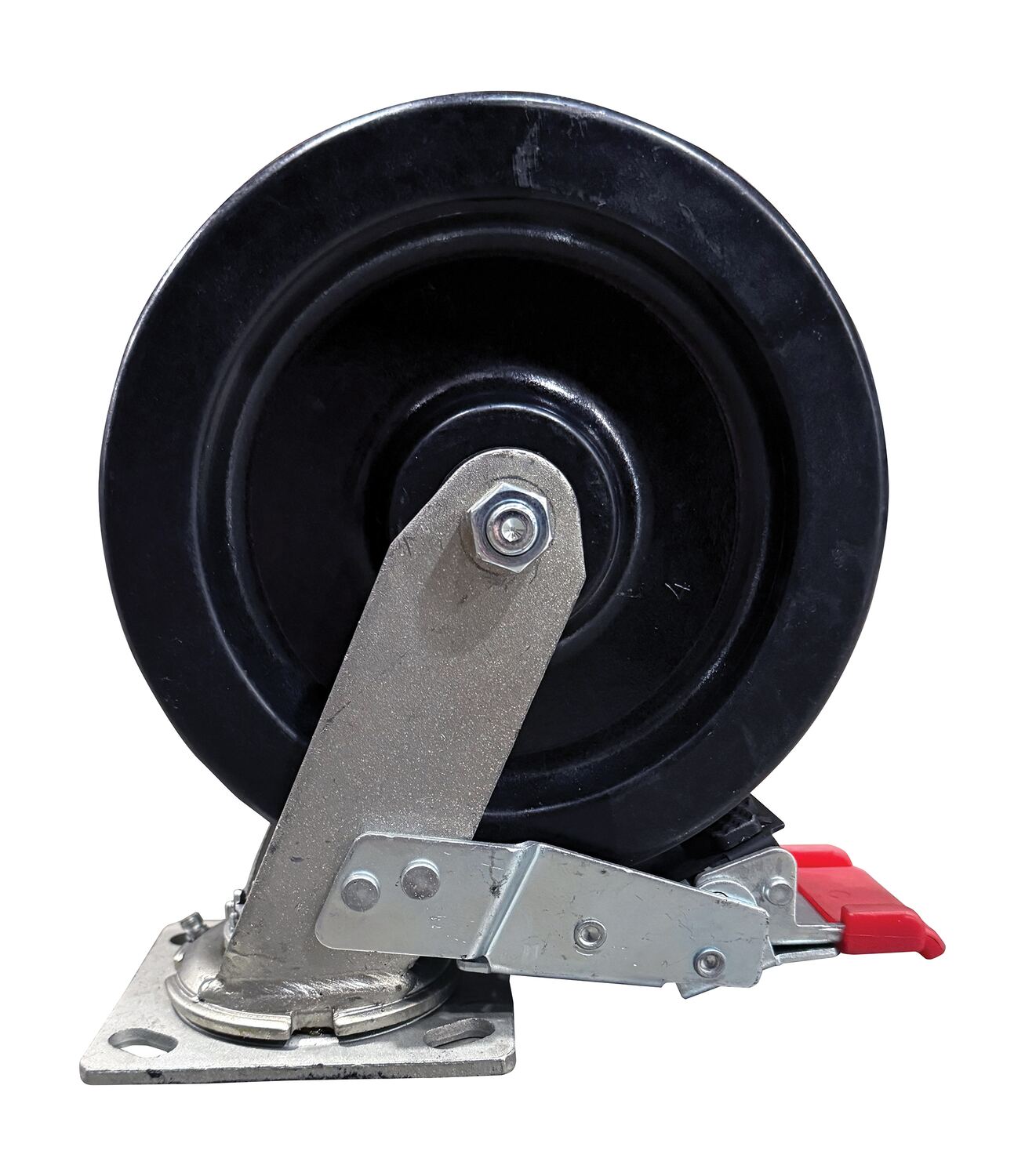

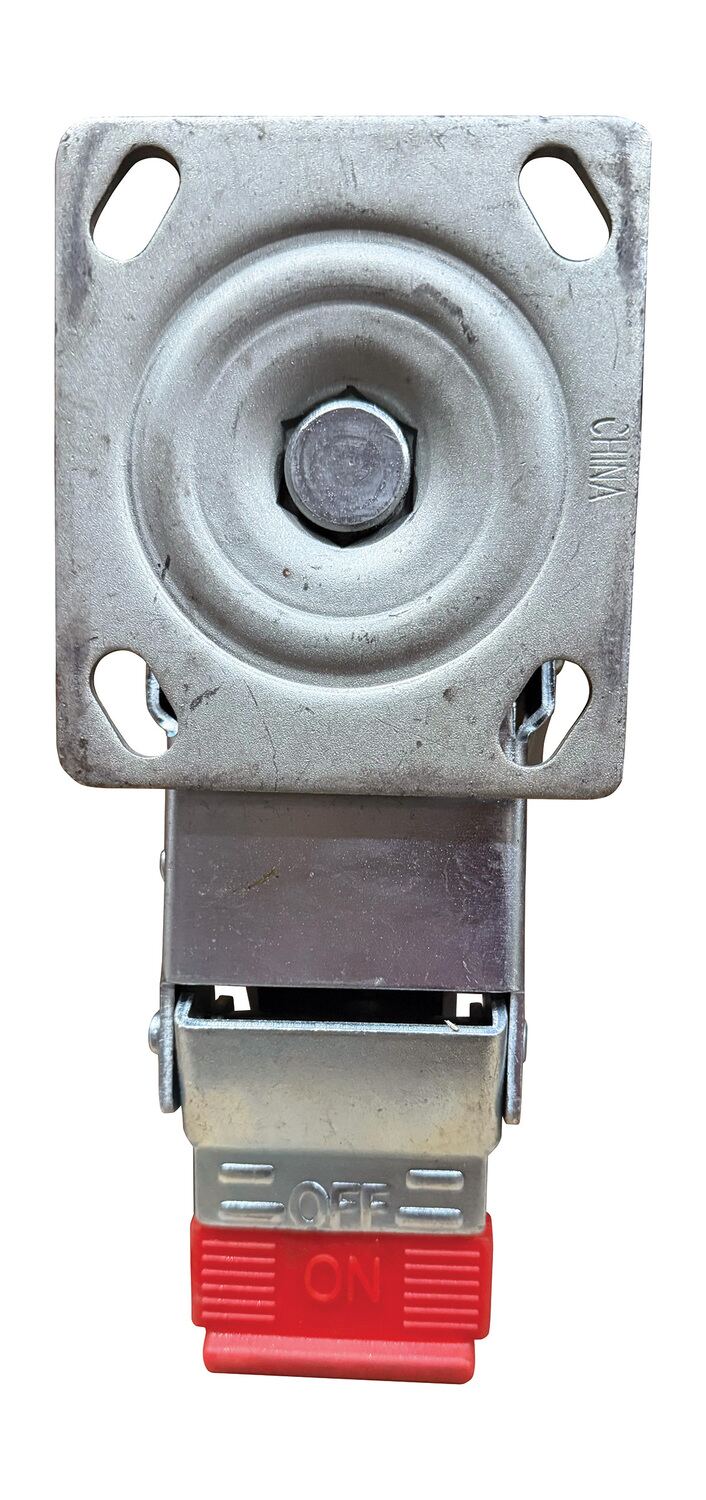

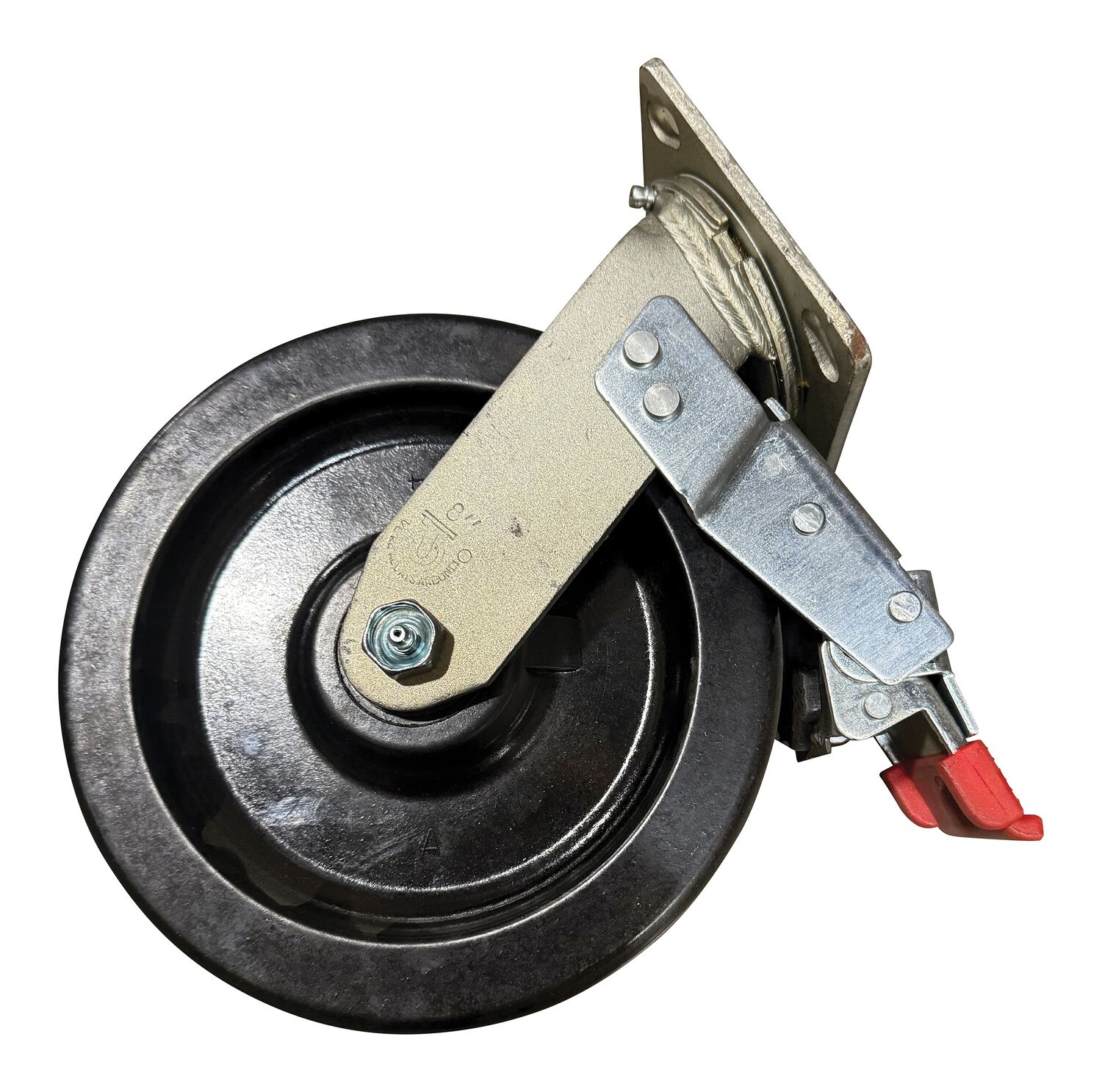

CST-VE-8X2PH-SWTB	1 YEAR Limited Warranty	8 x 2	SWIVEL W/TOTAL BRAKE	1250		4 x 4-1/2	8
