Polyurethane (Solid) Casters

- - - -

Description
Model Chart
PDF's
Image Gallery

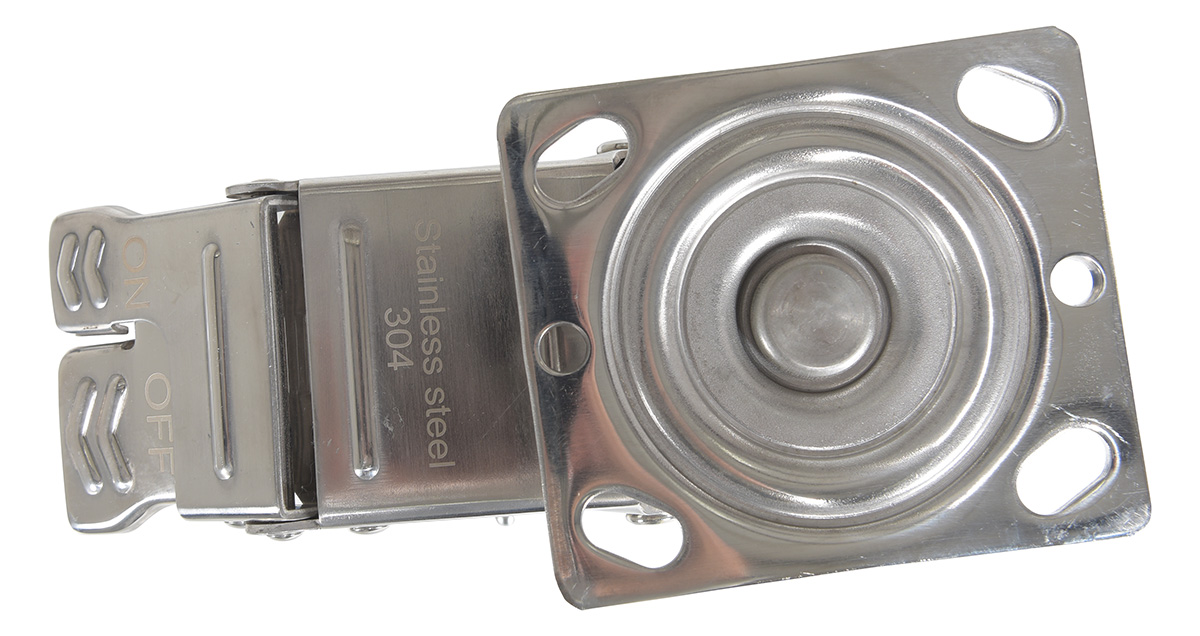

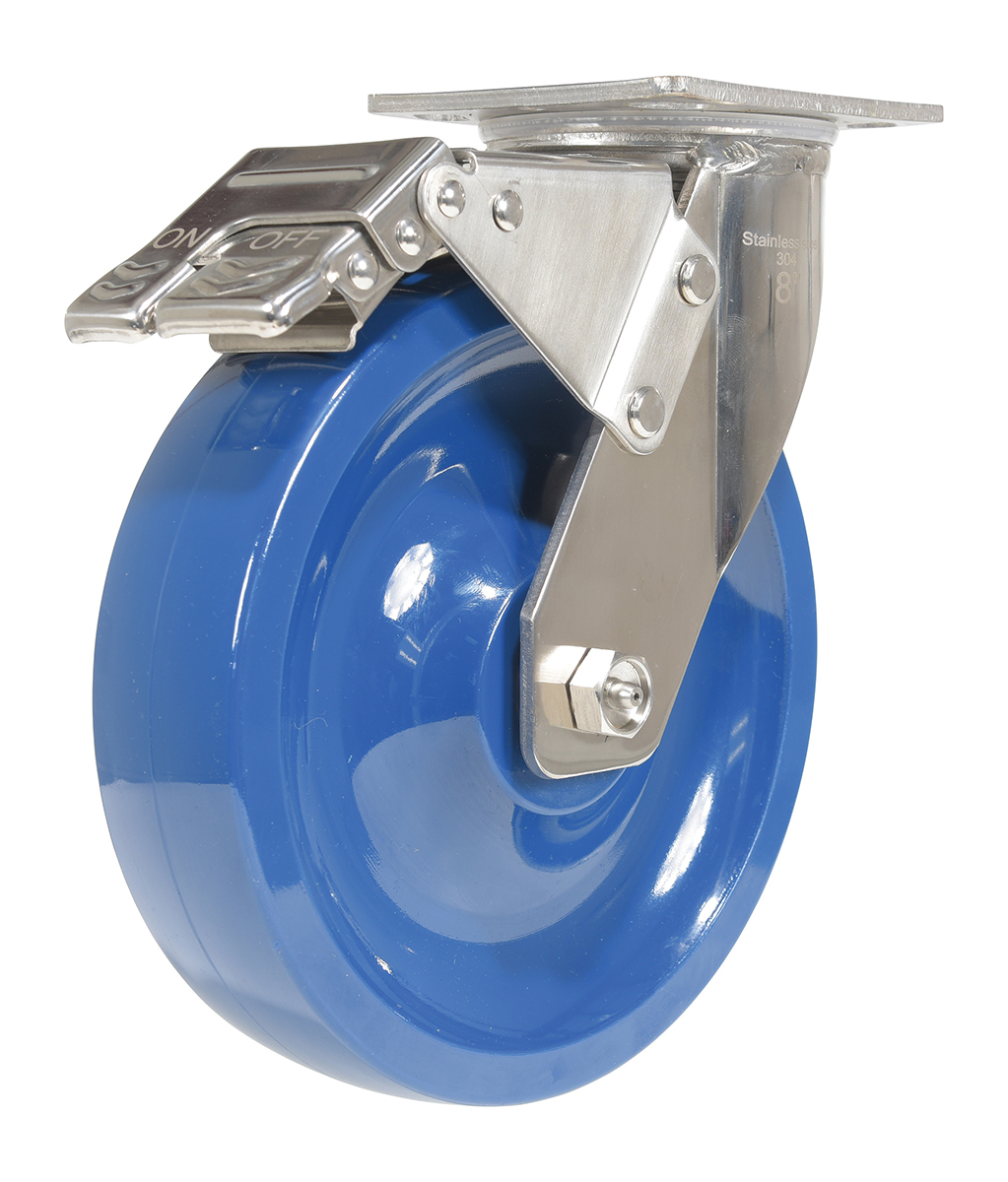

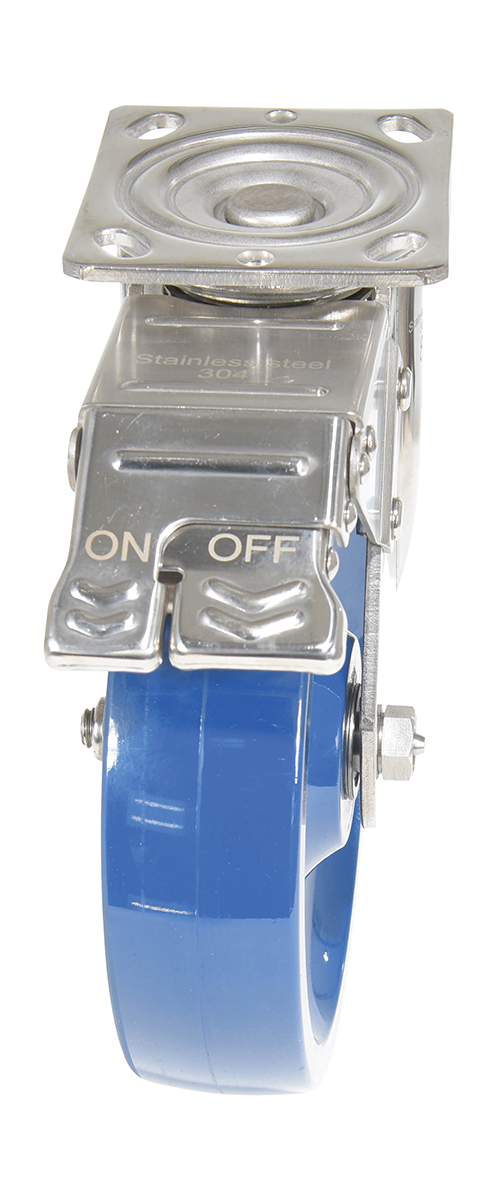

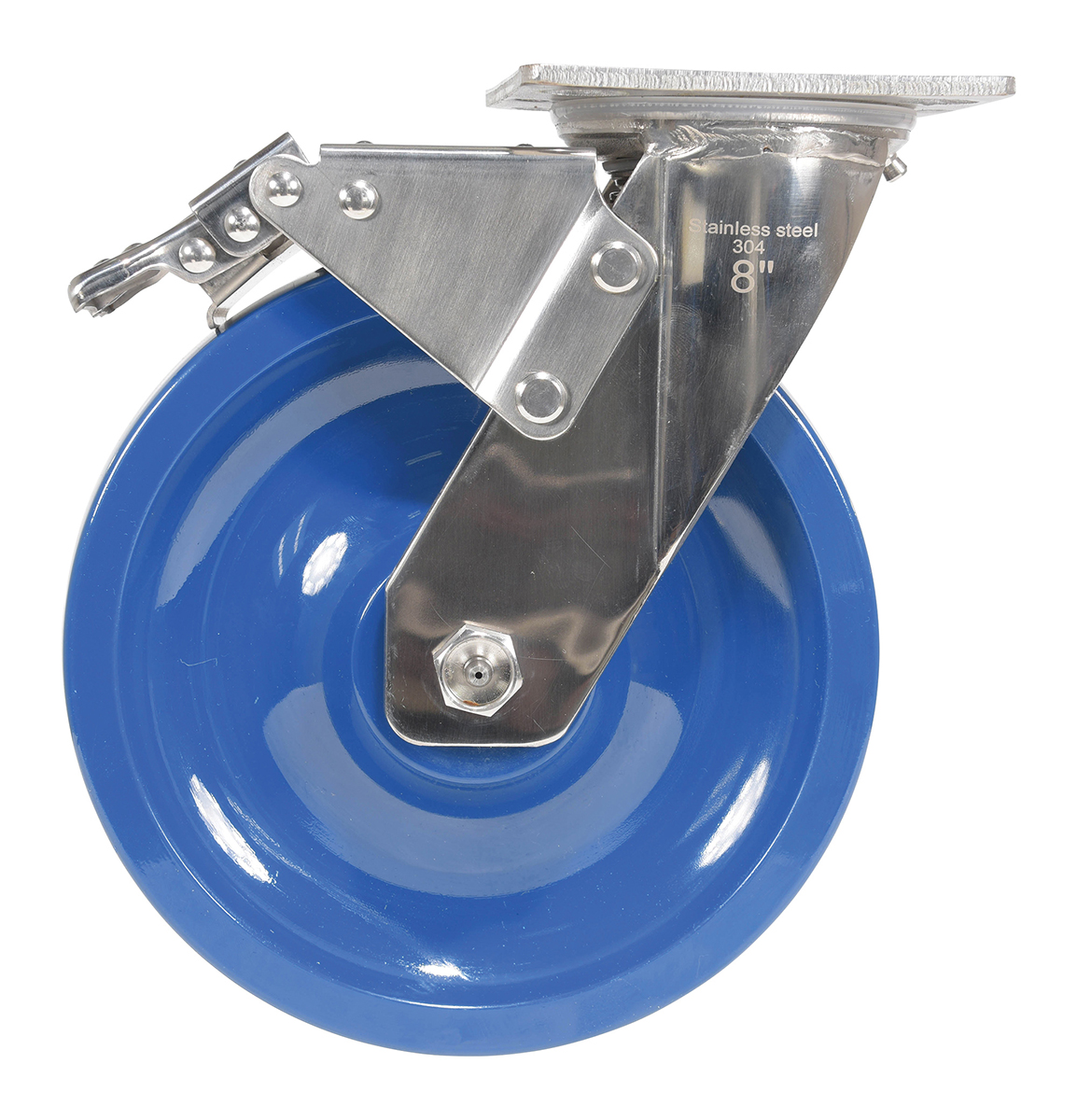

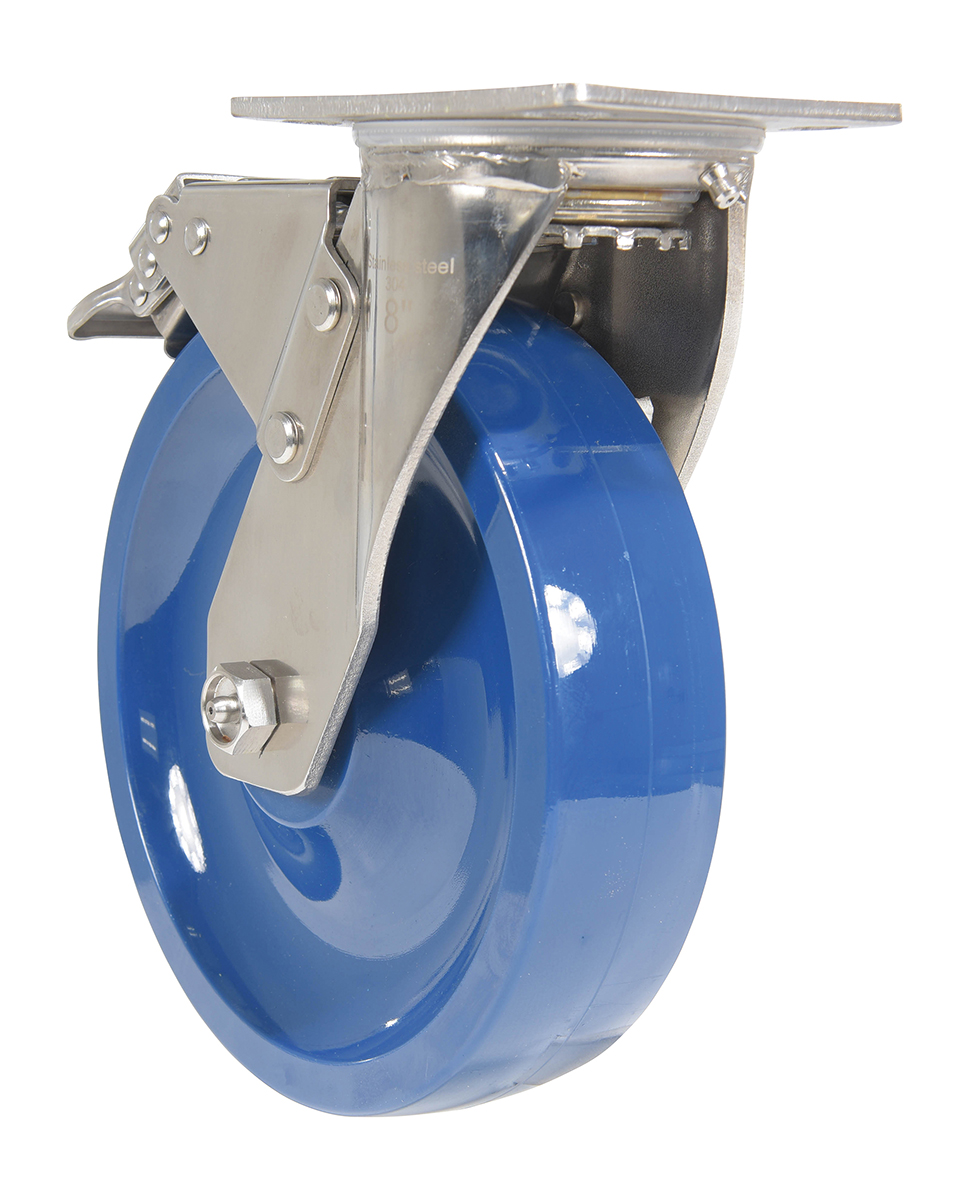

CST-F-SS-8X2SP-SWTB_A.jpg CST-F-SS-8X2SP-SWTB_B.jpg CST-F-SS-8X2SP-SWTB_C.jpg CST-F-SS-8X2SP-SWTB_D.jpg

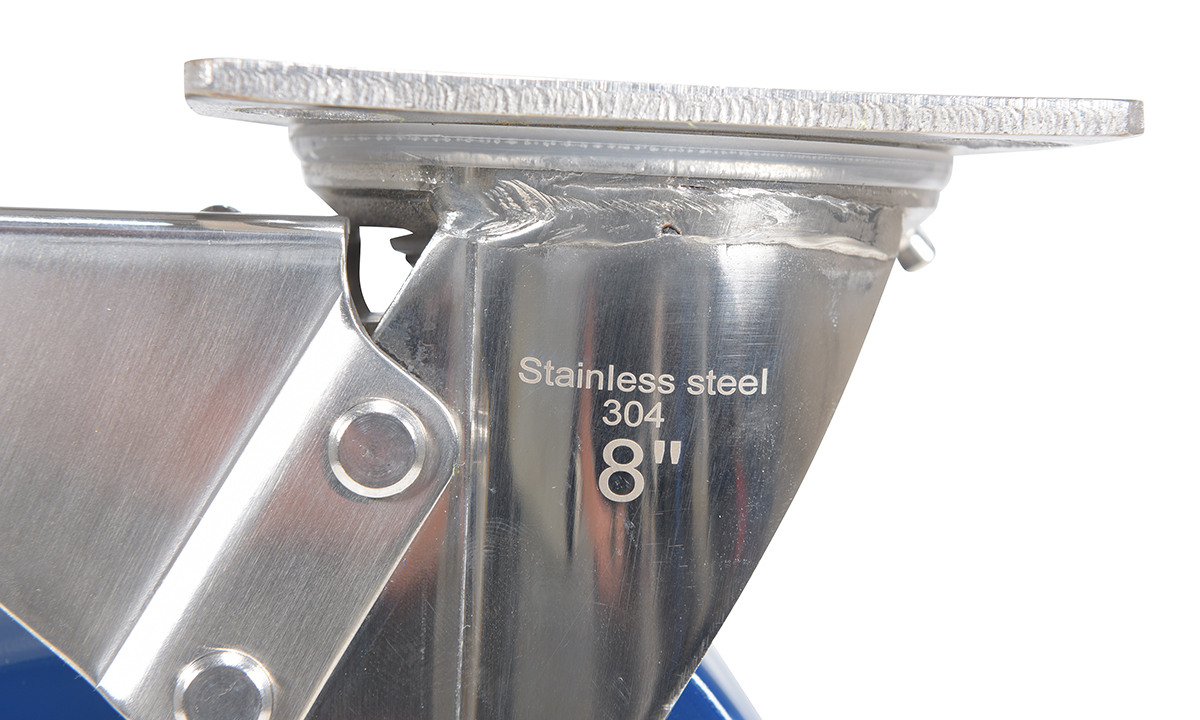

CST-F-SS-8X2SP-SWTB_E.jpg CST-F-SS-8X2SP-SWTB_F.jpg

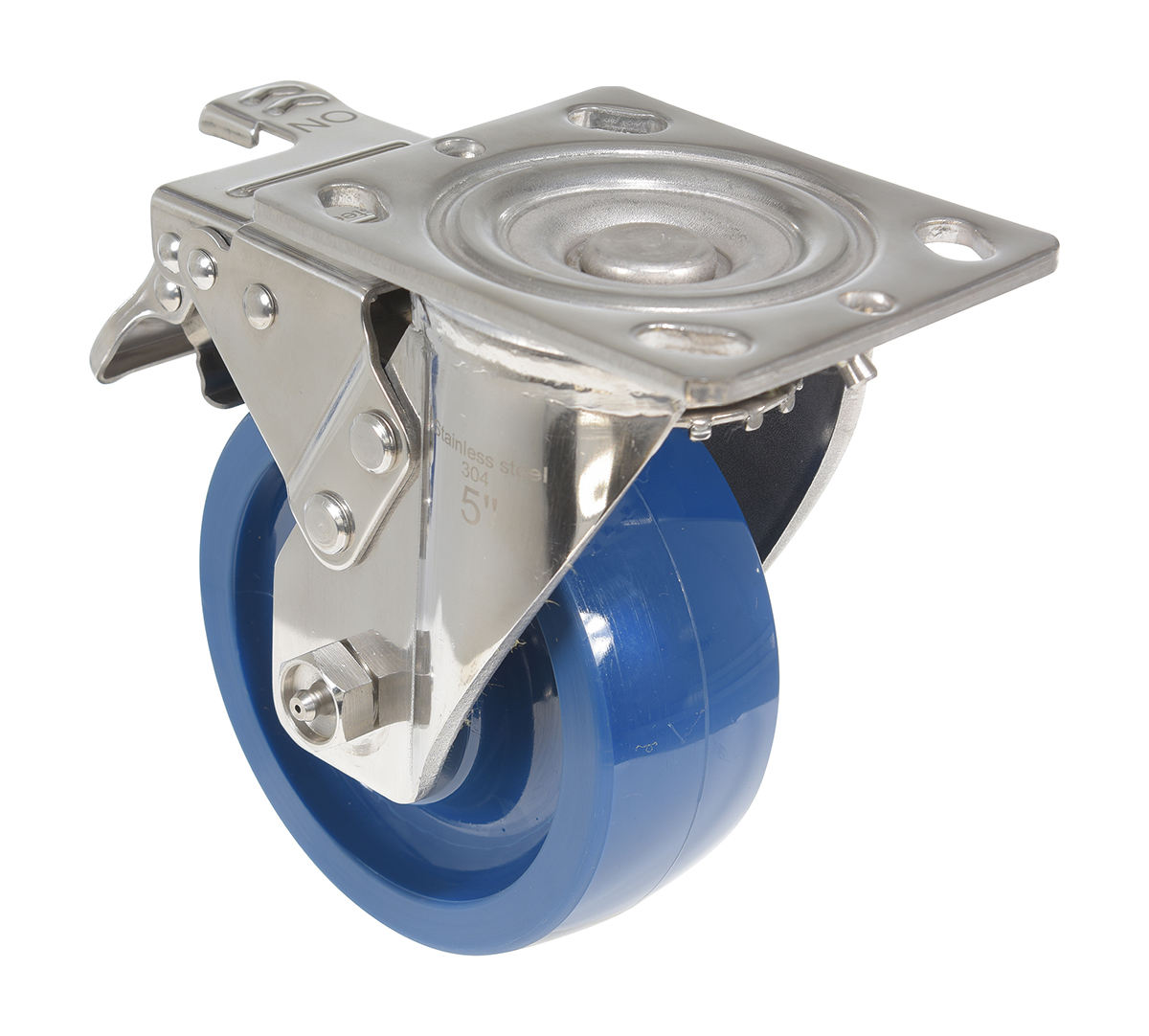

Polyurethane (Solid) Casters

model: CST-F-SS-8X2SP-SWTB



Featured Casters & Wheels


Semi-Steel Casters
High-Tech Non-Marking Polyurethane
Cast Iron Casters
High Capacity Non-Marking Glass Filled Nylon Casters
High Quality Non-Marking Polyurethane-Elastomer
Urethane Solid Foam Wheels
Caster Pads
High Quality Non-Marking Thermoplastic Polyurethane
Phenolic Wheel
model chart

Product Family Overview

Print Friendly
Polyurethane (Solid) Casters
SERIES: CST-F-SS-SP

Made of heavy gauge cold rolled 304 stainless steel. solid polyurethane tread is 100% washable. The upgraded proprietary tread is steam cleanable, and can resist oil, grease, water and most solvents. The one piece mold eliminates bonding failure, and provides a higher impact resistance. Perfect for food processing, bakeries, laboratories, medical facilities, and other stainless steel applications.

  • Premium grade 304 stainless steel rigging
  • Non-marking high-quality tread
  • Resists oils, grease, water, and most solvents
  • Easy roll performance
  • Sealed raceway
  • Plain bore w/ delrin bushing

Made of heavy gauge cold rolled 304 stainless steel. solid polyurethane tread is 100% washable. The upgraded proprietary tread is steam cleanable, and can resist oil, grease, water and most solvents. The one piece mold eliminates bonding failure, and provides a higher impact resistance. Perfect for food processing, bakeries, laboratories, medical facilities, and other stainless steel applications.

  • Premium grade 304 stainless steel rigging
  • Non-marking high-quality tread
  • Resists oils, grease, water, and most solvents
  • Easy roll performance
  • Sealed raceway
  • Plain bore w/ delrin bushing

Other "Go-To" Casters

 Dual Wheel Polyurethane (SI) - Highly Ergonomic Upgrade Casters Polyurethane (DT, Green) Casters Glass Filled Nylon (RX) Pneumatic Casters

Additional Models In This Family
view entire Image Gallery

CST-F-SS-8X2SP-S

CST-F-SS-8X2SP-S

CST-F-SS-6X2SP-SWB

CST-F-SS-6X2SP-SWB

CST-F-SS-8X2SP-SWB

CST-F-SS-8X2SP-SWB

CST-F-SS-5X2SP-SWB

CST-F-SS-5X2SP-SWB

CST-F-SS-5X2SP-SWB

CST-F-SS-5X2SP-SWB

CST-F-SS-3X1SP-S

CST-F-SS-3X1SP-S

CST-F-SS-4X2SP-SWB

CST-F-SS-4X2SP-SWB

CST-F-SS-6X2SP-SWB

CST-F-SS-6X2SP-SWB

CST-F-SS-5X2SP-R

CST-F-SS-5X2SP-R

CST-F-SS-4X2SP-SWTB

CST-F-SS-4X2SP-SWTB

CST-F-SS-6X2SP-SWTB

CST-F-SS-6X2SP-SWTB

CST-F-SS-6X2SP-SWTB

CST-F-SS-6X2SP-SWTB

CST-F-SS-6X2SP-SWTB

CST-F-SS-6X2SP-SWTB

CST-F-SS-4X2SP-R

CST-F-SS-4X2SP-R

CST-F-SS-8X2SP-SWTB

CST-F-SS-8X2SP-SWTB

model chart
How To Purchase

Model Specific Details



All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is for Casters within the Model Chart on this page. Not an entire site search.
Model Image PDFs Caster
Size		 Type Capacity
(lbs.)		 Overall
Height		 Top Plate
Size		 Net Wt.
(lbs)
CST-F-SS-3X1SP-R CST-F-SS-3X1SP-R3 YEARS Limited Warranty3 x 1-1/4RIGID3004-3/8 3-5/8 x 2-1/20.95
CST-F-SS-4X2SP-R CST-F-SS-4X2SP-R3 YEARS Limited Warranty4 x 2RIGID8005-3/4 4 x 4-1/23.11
CST-F-SS-5X2SP-R CST-F-SS-5X2SP-R3 YEARS Limited Warranty5 x 2RIGID10006-9/16 4 x 4-1/23.51

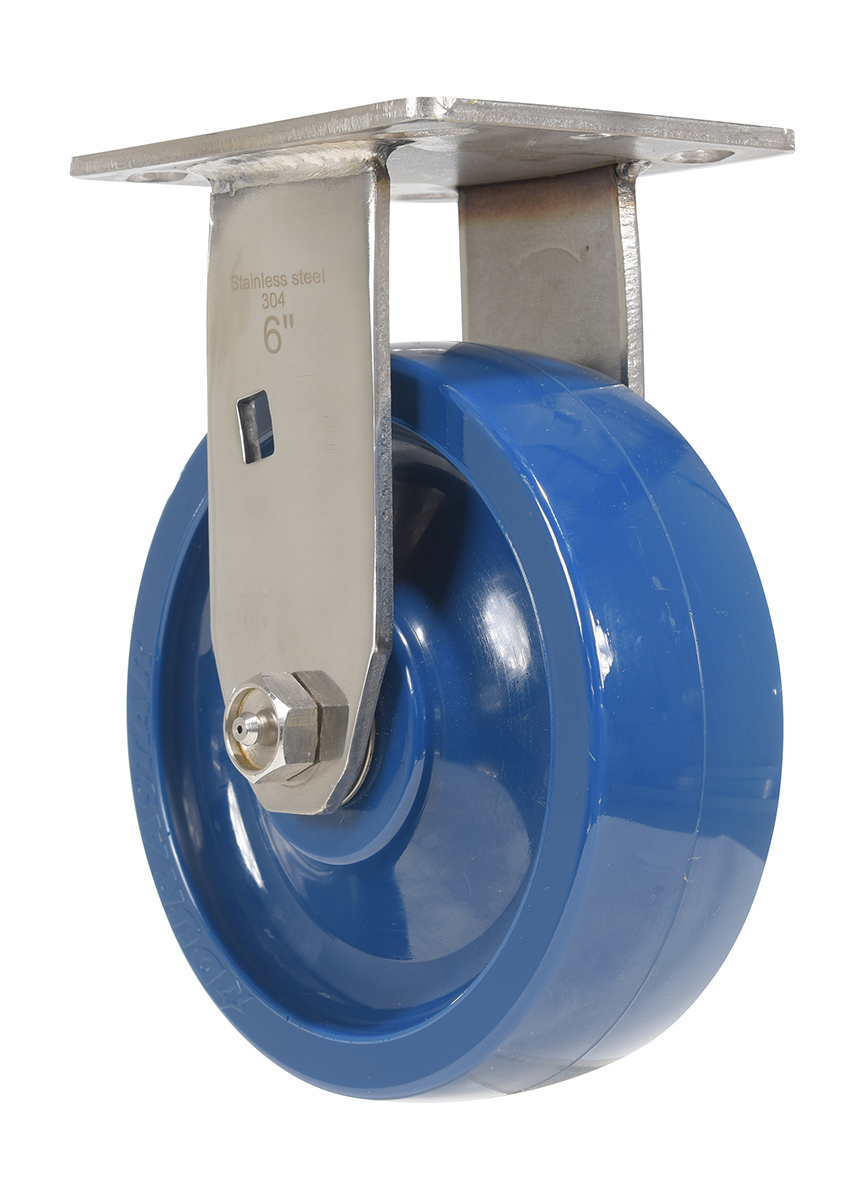

CST-F-SS-6X2SP-R CST-F-SS-6X2SP-R3 YEARS Limited Warranty6 x 2RIGID12007-9/16 4 x 4-1/24.15

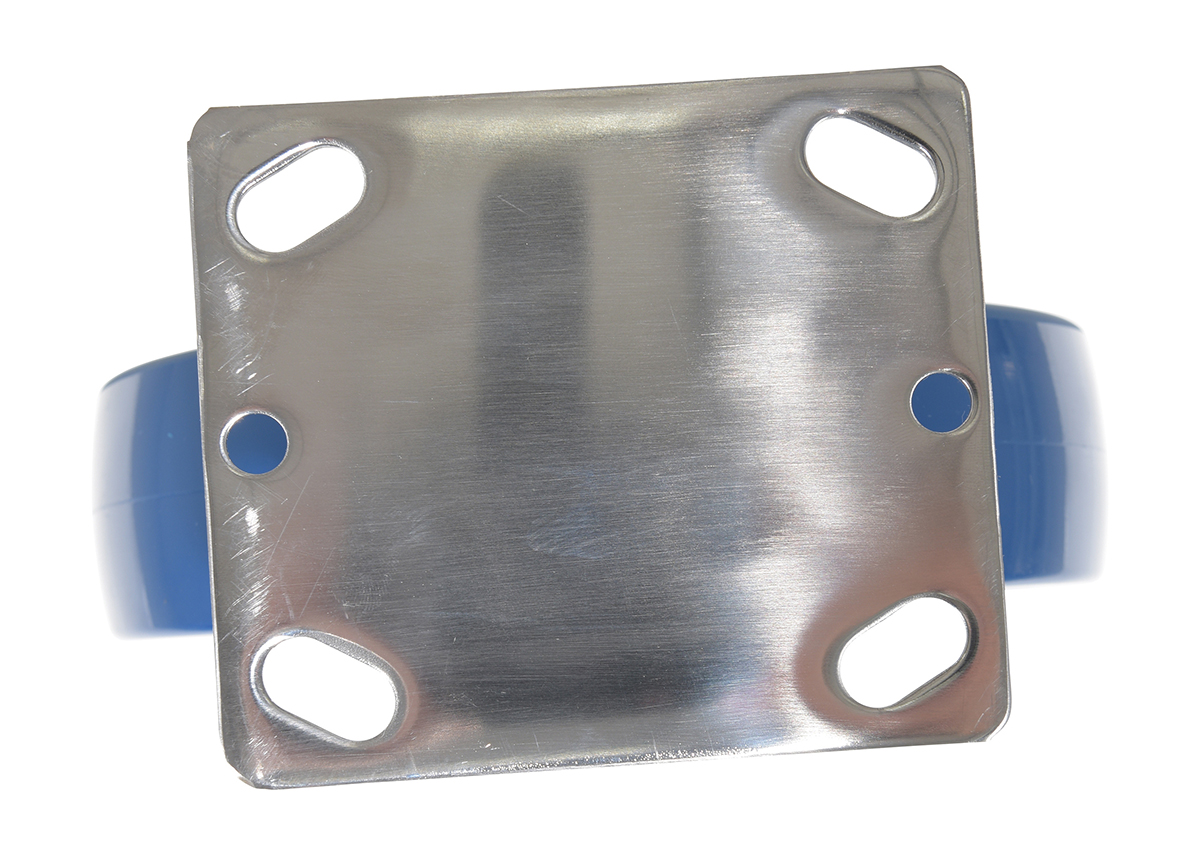

CST-F-SS-8X2SP-R CST-F-SS-8X2SP-R3 YEARS Limited Warranty8 x 2RIGID12509-1/2 4 x 4-1/25.6
CST-F-SS-3X1SP-S CST-F-SS-3X1SP-S3 YEARS Limited Warranty3 x 1-1/4SWIVEL3004-3/8 3-3/4 x 2-3/41.59

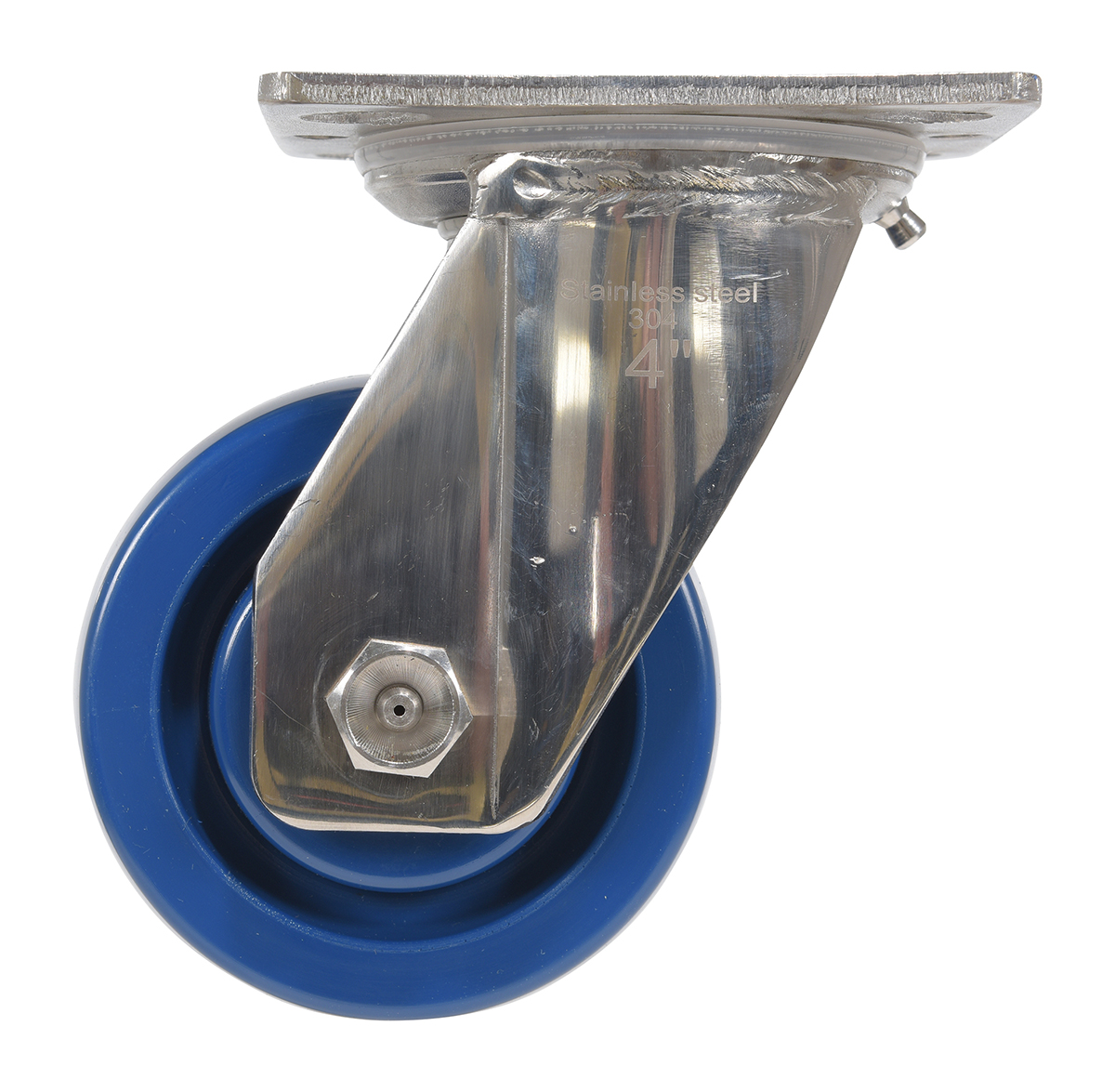

CST-F-SS-4X2SP-S CST-F-SS-4X2SP-S3 YEARS Limited Warranty4 x 2SWIVEL8005-3/4 4 x 4-1/24.18

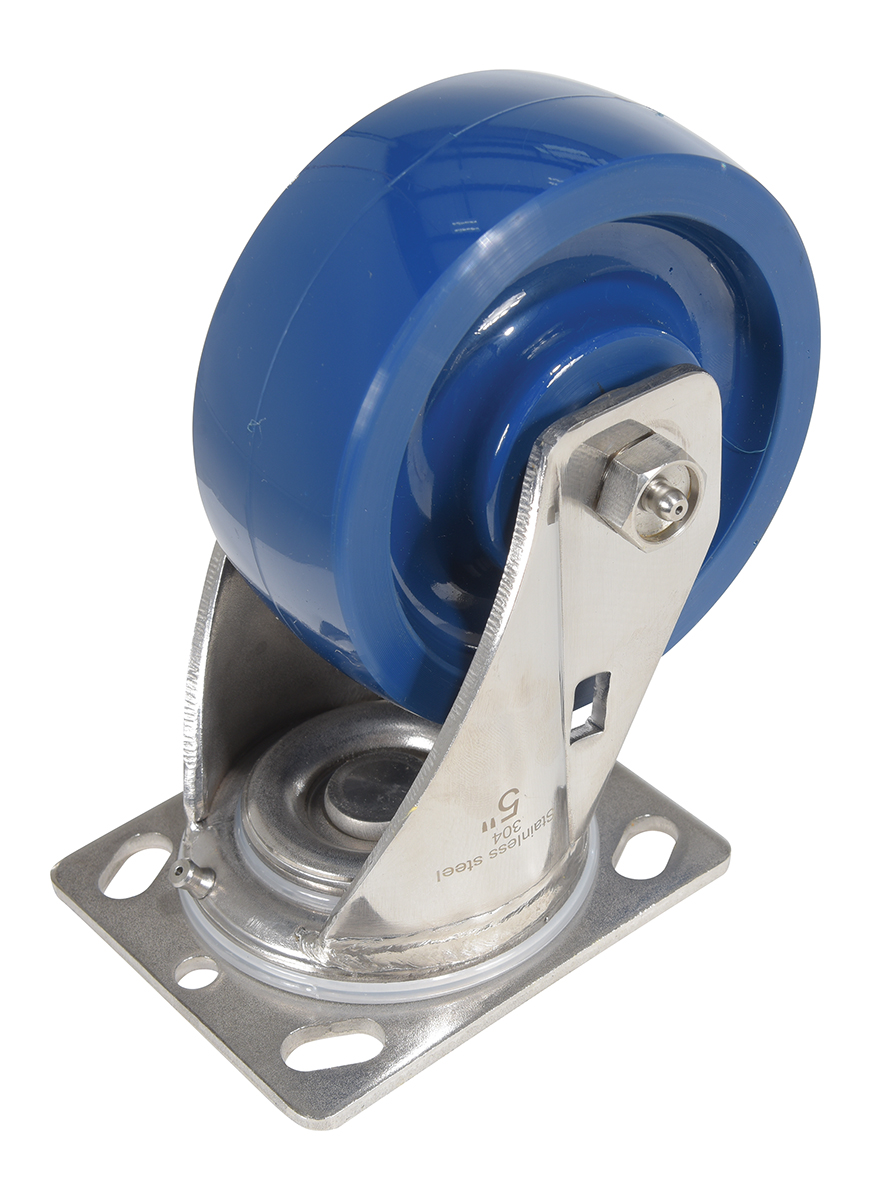

CST-F-SS-5X2SP-S CST-F-SS-5X2SP-S3 YEARS Limited Warranty5 x 2SWIVEL10006-9/16 4 x 4-1/24.61
CST-F-SS-6X2SP-S CST-F-SS-6X2SP-S3 YEARS Limited Warranty6 x 2SWIVEL12007-9/16 4 x 4-1/25.4
CST-F-SS-8X2SP-S CST-F-SS-8X2SP-S3 YEARS Limited Warranty8 x 2SWIVEL12509-1/2 4 x 4-1/26.73
CST-F-SS-3X1SP-SPOSI CST-F-SS-3X1SP-SPOSI3 YEARS Limited Warranty3 x 1-1/4SWIVEL POSI LOCK3004.1875 2-3/4 x 2-7/81.74
CST-F-SS-4X2SP-SWB CST-F-SS-4X2SP-SWB3 YEARS Limited Warranty4 x 2SWIVEL W/BRAKE8005-3/4 4 x 4-1/24.77
CST-F-SS-5X2SP-SWB CST-F-SS-5X2SP-SWB3 YEARS Limited Warranty5 x 2SWIVEL W/BRAKE10006-9/16 4 x 4-1/25-1/4

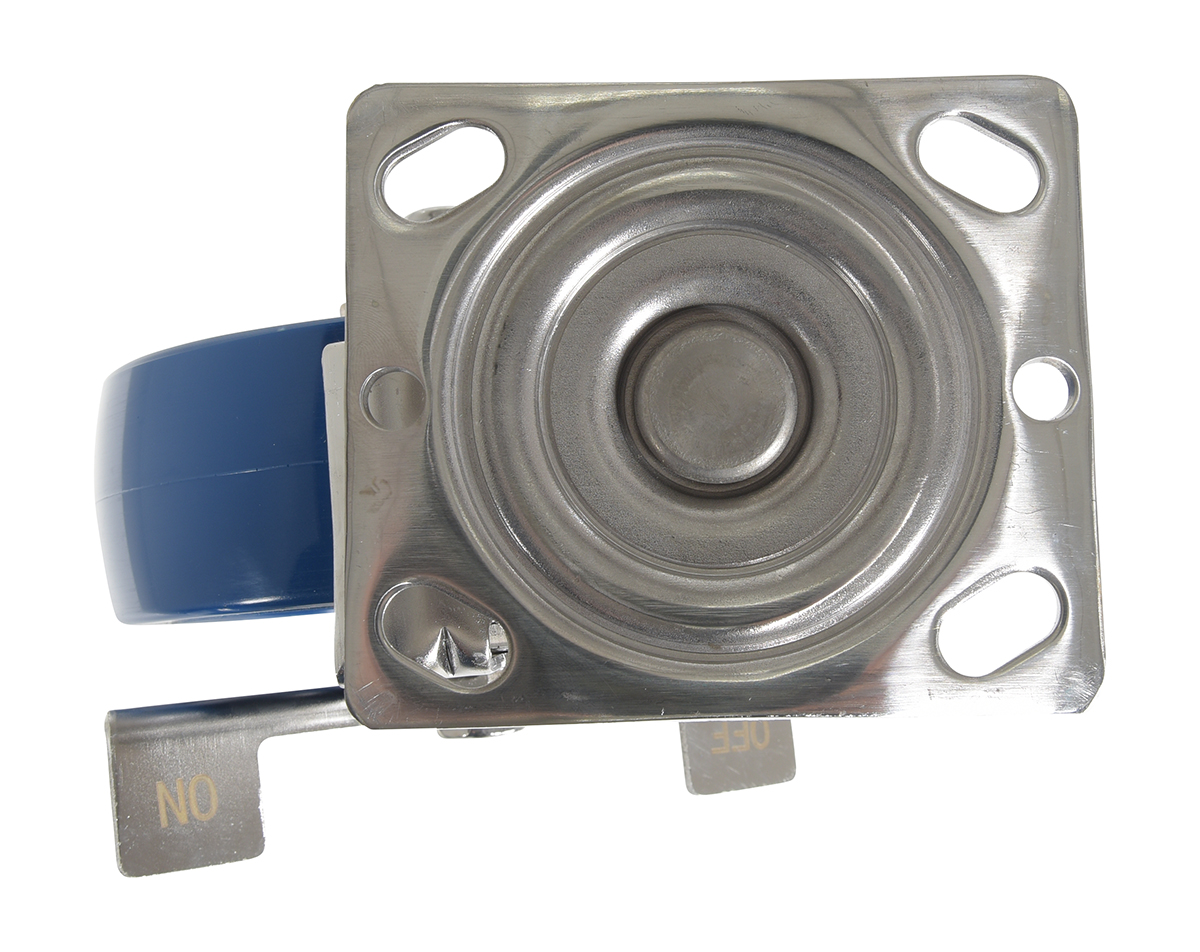

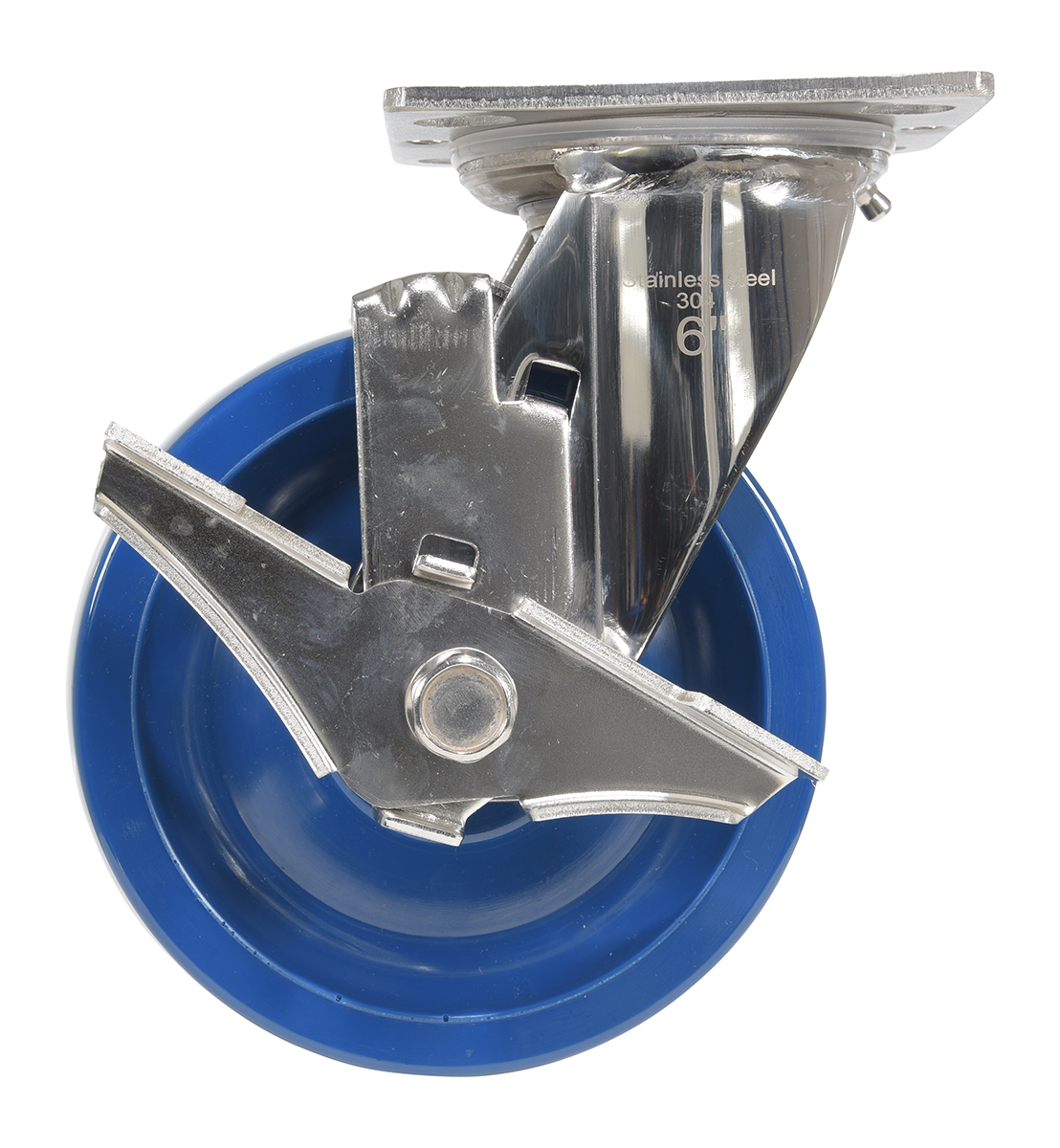

CST-F-SS-6X2SP-SWB CST-F-SS-6X2SP-SWB3 YEARS Limited Warranty6 x 2SWIVEL W/BRAKE12007-9/16 4 x 4-1/26
CST-F-SS-8X2SP-SWB CST-F-SS-8X2SP-SWB3 YEARS Limited Warranty8 x 2SWIVEL W/BRAKE12509-1/2 4 x 4-1/27.41
CST-F-SS-4X2SP-SWTB CST-F-SS-4X2SP-SWTB3 YEARS Limited Warranty4 x 2SWIVEL W/TOTAL BRAKE8005-3/4 4 x 4-1/25.09

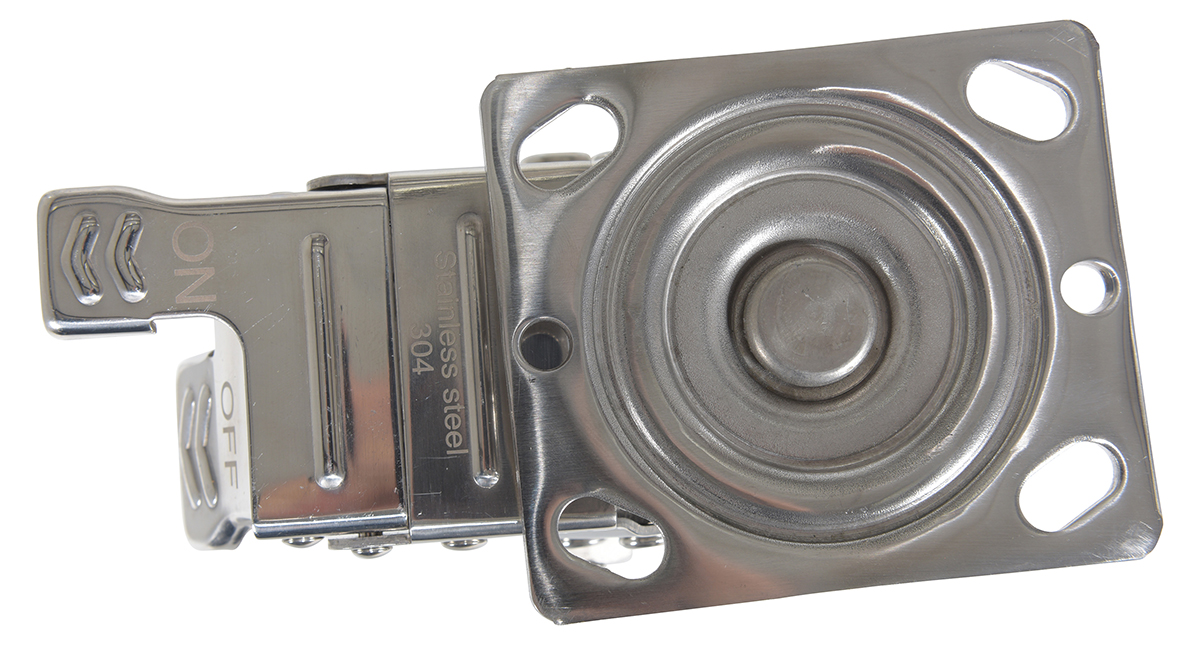

CST-F-SS-5X2SP-SWTB CST-F-SS-5X2SP-SWTB3 YEARS Limited Warranty5 x 2SWIVEL W/TOTAL BRAKE10006-9/16 4 x 4-1/25.55
CST-F-SS-6X2SP-SWTB CST-F-SS-6X2SP-SWTB3 YEARS Limited Warranty6 x 2SWIVEL W/TOTAL BRAKE12007-1/2 4 x 4-1/26.2
CST-F-SS-8X2SP-SWTB CST-F-SS-8X2SP-SWTB3 YEARS Limited Warranty8 x 2SWIVEL W/TOTAL BRAKE12509-1/2 4 x 4-1/27.88

KEY: = Click For Expanded Model Details -- = Approval Drawing -- = Testing Certificate -- Warranty

Polyurethane (Solid) Casters PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

No Approval Drawings For This Product

Testing Certificates


CST-F-SS-3X1SP-SPOSI

CST-F-SS-4X2SP-R

CST-F-SS-4X2SP-S

CST-F-SS-4X2SP-SWB

CST-F-SS-4X2SP-SWTB

CST-F-SS-5X2SP-R

CST-F-SS-5X2SP-S

CST-F-SS-5X2SP-SWB

CST-F-SS-5X2SP-SWTB

CST-F-SS-6X2SP-R

CST-F-SS-6X2SP-S

CST-F-SS-6X2SP-SWB
