Cast Iron/ Semi-Steel Casters

- - - -

Description
Model Chart
PDF's
Image Gallery

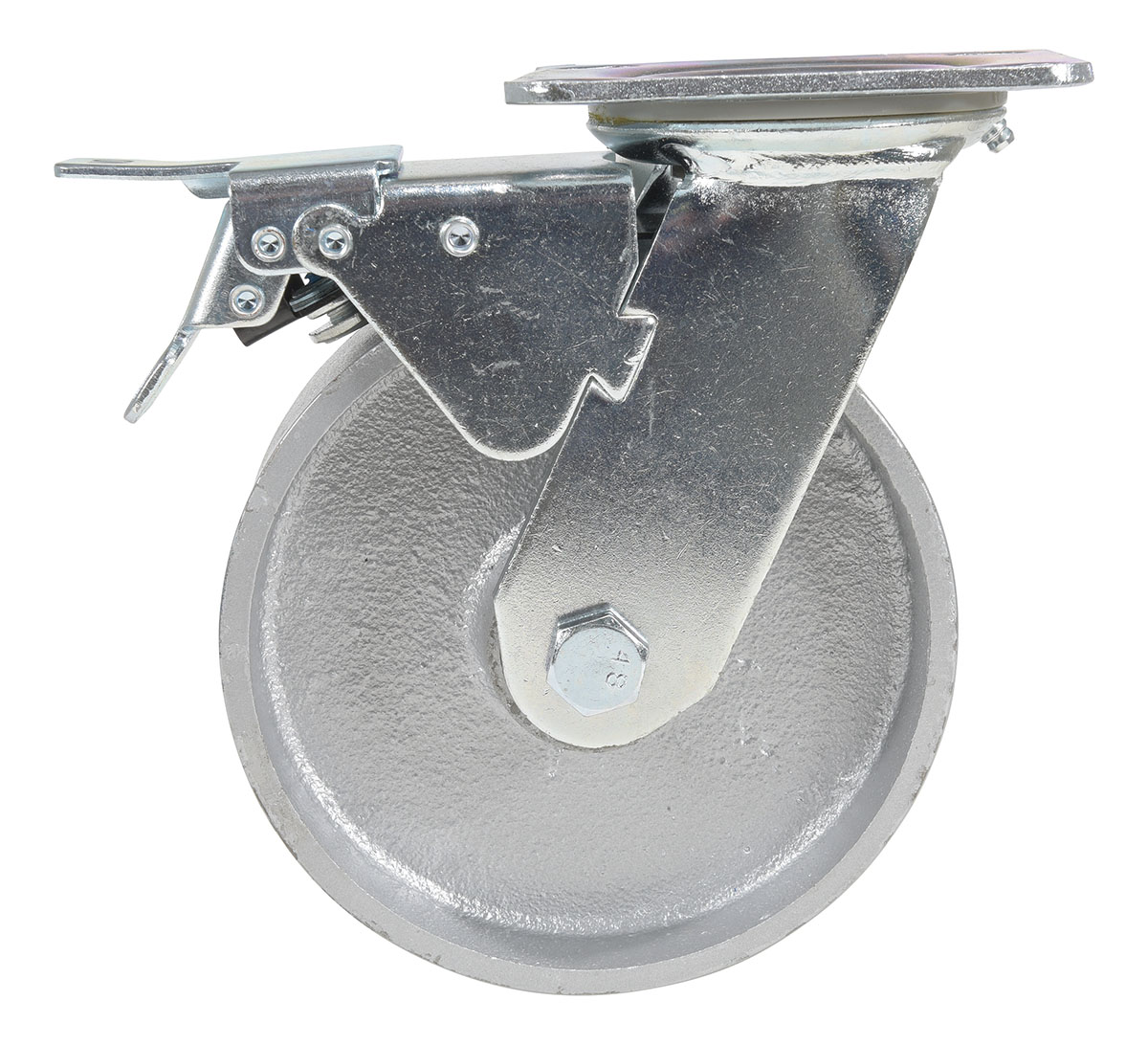

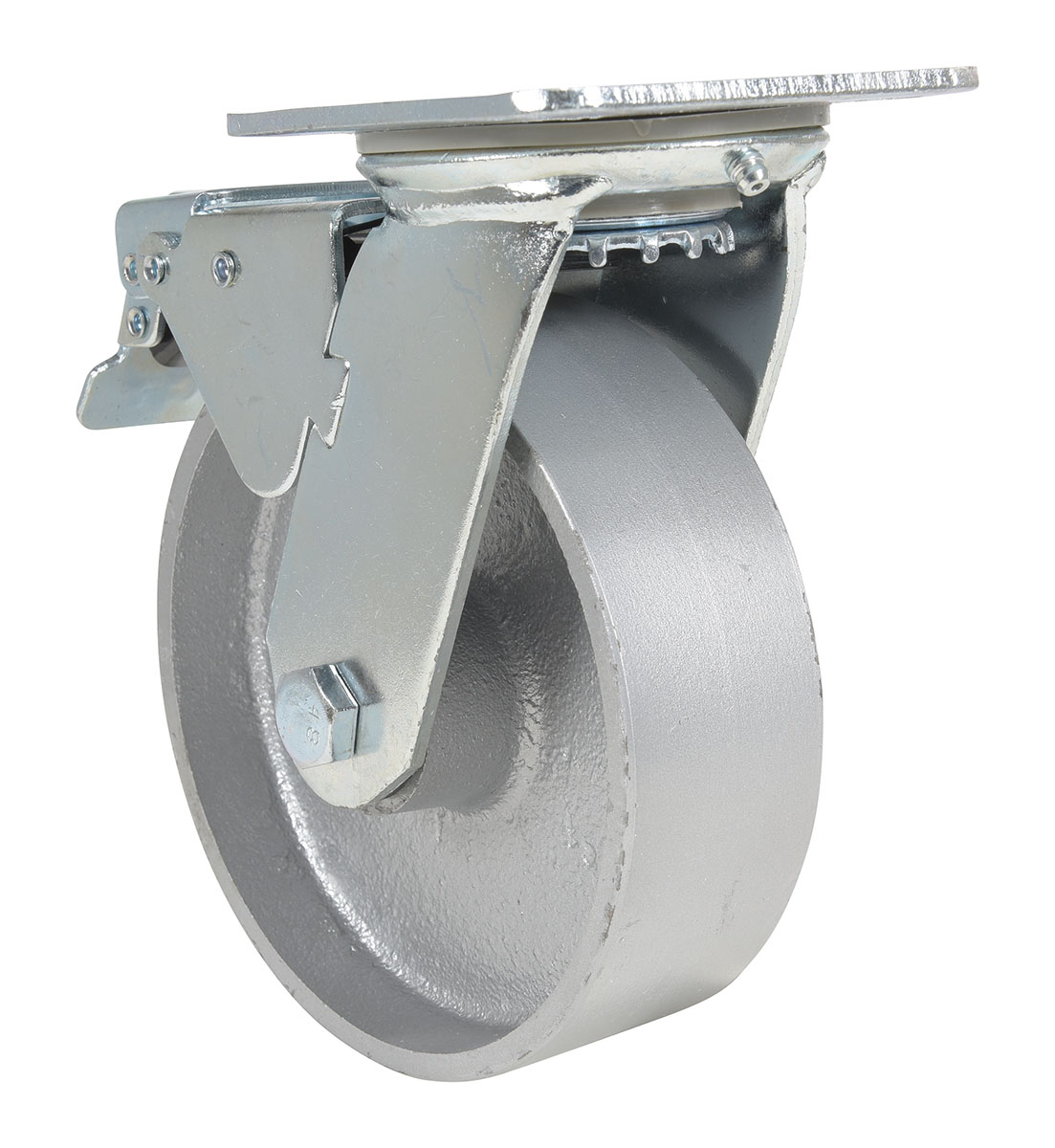

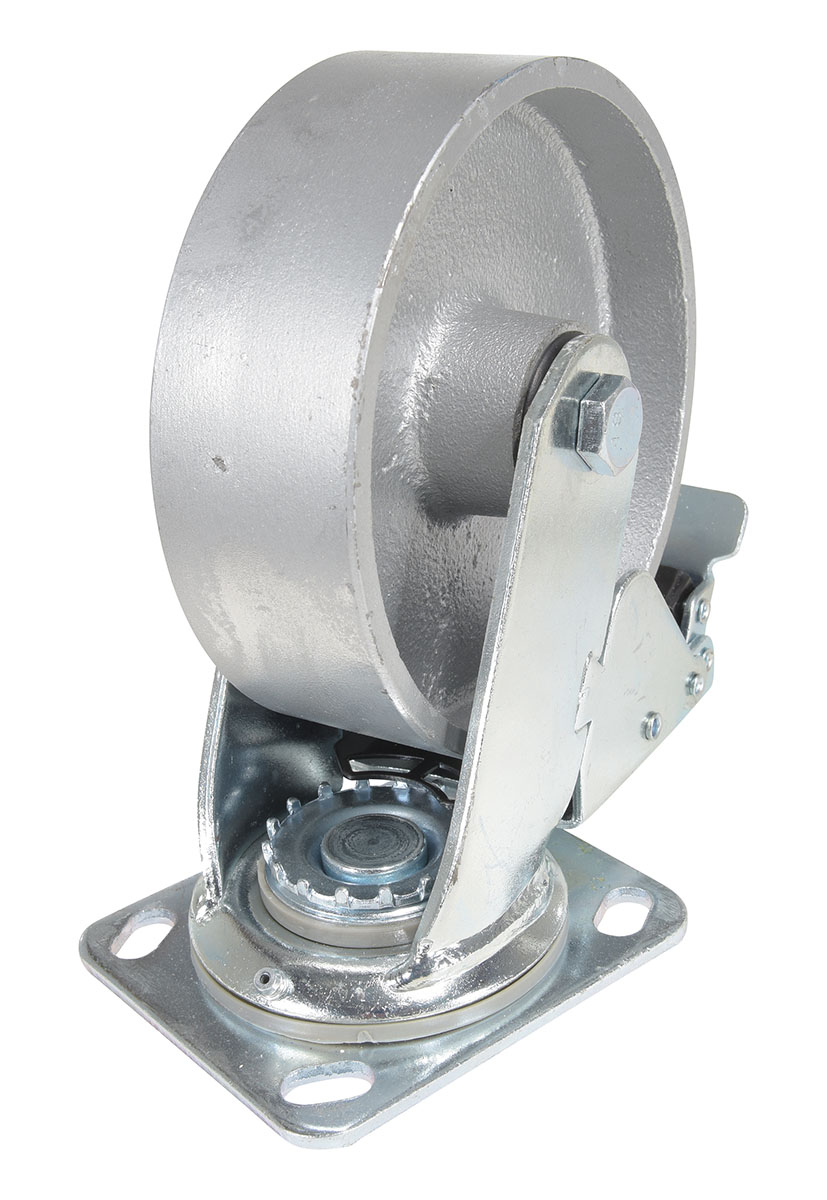

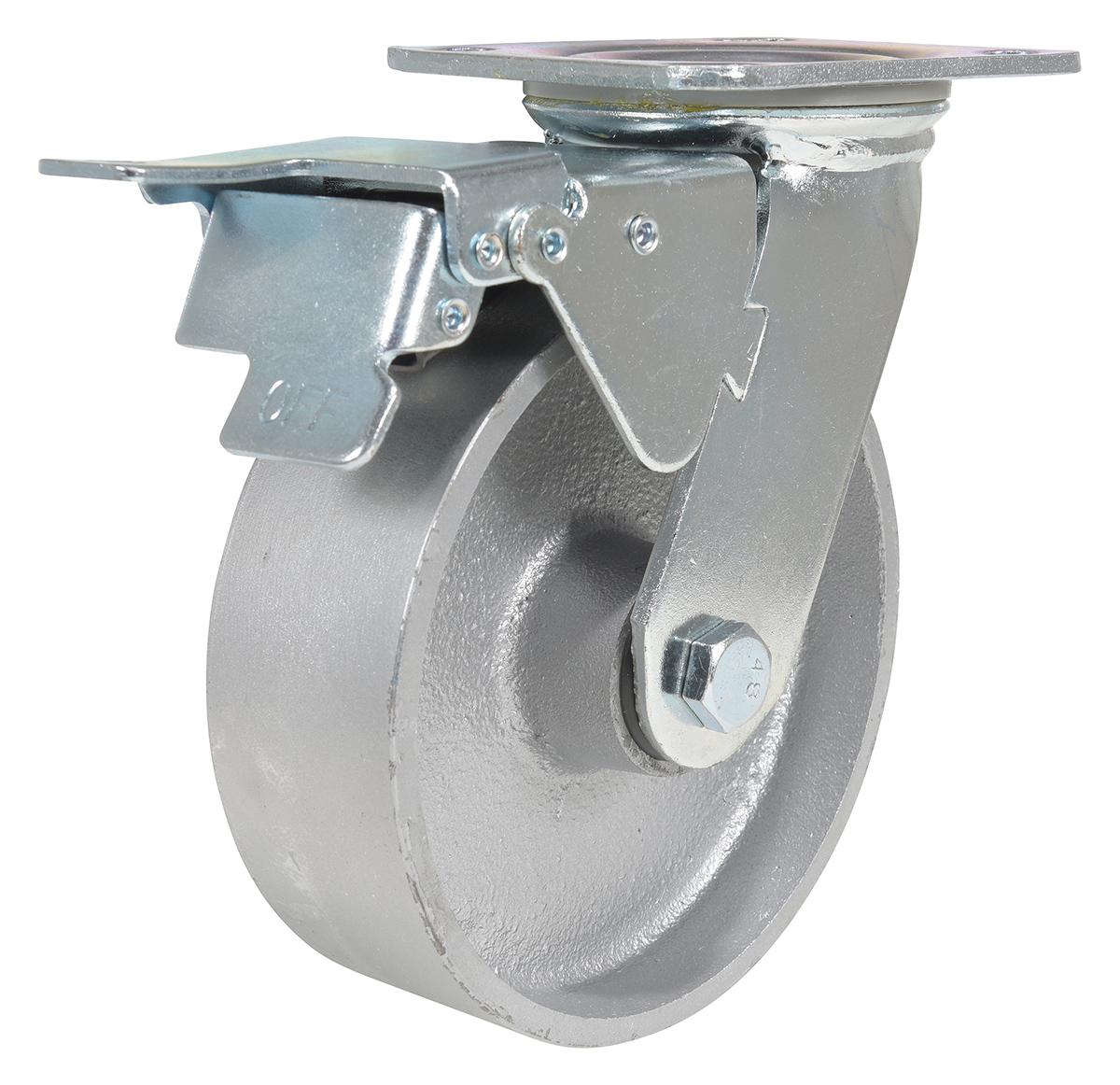

CST-VE-6X2CI-SWTB_A.jpg CST-VE-6X2CI-SWTB_B.jpg CST-VE-6X2CI-SWTB_C.jpg CST-VE-6X2CI-SWTB_D.jpg
Cast Iron/ Semi-Steel Casters

model: CST-VE-6X2CI-SWTB



Featured Casters & Wheels


Elastic Rubber (Blue) Casters
Mold On Rubber Wheel
Polyurethane Casters
Upgraded Kingpinless Glass Filled Nylon (RX) Casters
Polyurethane (SI) Casters
Glass Filled Nylon (RX)
Premium Heavy Duty Polyurethane
Flat-Free (Foam-Filled) Casters
VE Wheel
model chart

Product Family Overview

Print Friendly
Cast Iron/ Semi-Steel Casters
SERIES: CST-VE-CI

Cast iron casters are a cost efficient way of getting industrial carts and dollies back to running smoothly. The units are abrasion resistant even when transporting substantial weight. Swivel model allows the user to change directions and maintain increased control over the device. Simple attachment for immediate use upon installation. Gray tread color.

  • Bearing dust cover seals
  • Hardened bearing raceway
  • Double welds on inside & outside of fork mounts
  • Roller bearing
  • Anti-corrosive & rust resistant zinc plated finish

Cast iron casters are a cost efficient way of getting industrial carts and dollies back to running smoothly. The units are abrasion resistant even when transporting substantial weight. Swivel model allows the user to change directions and maintain increased control over the device. Simple attachment for immediate use upon installation. Gray tread color.

  • Bearing dust cover seals
  • Hardened bearing raceway
  • Double welds on inside & outside of fork mounts
  • Roller bearing
  • Anti-corrosive & rust resistant zinc plated finish

Other "Go-To" Casters

 Glass Filled Nylon (RX) Polyurethane (SI) Casters Poly On Poly Casters (Orange) Dual Wheel Polyurethane (SI) - Highly Ergonomic Upgrade Casters

Additional Models In This Family
view entire Image Gallery

CST-VE-4X2CI-SWTB

model CST-VE-4X2CI-SWTB

CST-VE-5X2CI-SWTB

model CST-VE-5X2CI-SWTB

CST-VE-8X2CI-S

model CST-VE-8X2CI-S

CST-VE-8X2CI-SWTB

model CST-VE-8X2CI-SWTB

model chart
How To Purchase

Model Specific Details



All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is for Casters within the Model Chart on this page. Not an entire site search.
Model Image PDFs Caster
Size		 Type Capacity
(lbs.)		 Overall
Height		 Top Plate
Size		 Net Wt.
(lbs)
CST-VE-4X2CI-R CST-VE-4X2CI-R1YEAR Limited Warranty4 x 2RIGID11025-5/8 4 x 4-1/27
CST-VE-5X2CI-R CST-VE-5X2CI-R1YEAR Limited Warranty5 x 2RIGID13226-1/2 4 x 4-1/28
CST-VE-6X2CI-R CST-VE-6X2CI-R1YEAR Limited Warranty6 x 2RIGID15437-1/2 4 x 4-1/29
CST-VE-8X2CI-R CST-VE-8X2CI-R1 YEAR Limited Warranty8 x 2RIGID17609-1/2 4 x 4-1/210
CST-VE-4X2CI-S CST-VE-4X2CI-S1YEAR Limited Warranty4 x 2SWIVEL11025-5/8 4 x 4-1/27
CST-VE-5X2CI-S CST-VE-5X2CI-S1YEAR Limited Warranty5 x 2SWIVEL13226-1/2 4 x 4-1/28
CST-VE-6X2CI-S CST-VE-6X2CI-S1YEAR Limited Warranty6 x 2SWIVEL15437-1/2 4 x 4-1/210
CST-VE-8X2CI-S CST-VE-8X2CI-S1 YEAR Limited Warranty8 x 2SWIVEL17609-1/2 4 x 4-1/211
CST-VE-4X2CI-SWTB CST-VE-4X2CI-SWTB1 YEAR Limited Warranty4 x 2SWIVEL W/TOTAL BRAKE11005-1/2 4 x 4-1/28
CST-VE-5X2CI-SWTB CST-VE-5X2CI-SWTB1 YEAR Limited Warranty5 x 2SWIVEL W/TOTAL BRAKE13206-1/2 4 x 4-1/29
CST-VE-6X2CI-SWTB CST-VE-6X2CI-SWTB1 YEAR Limited Warranty6 x 2SWIVEL W/TOTAL BRAKE15407-1/2 4 x 4-1/210
CST-VE-8X2CI-SWTB CST-VE-8X2CI-SWTB1 YEAR Limited Warranty8 x 2SWIVEL W/TOTAL BRAKE17609-1/2 4 x 4-1/212

KEY: = Click For Expanded Model Details -- = Approval Drawing -- = Testing Certificate -- Warranty

Cast Iron/ Semi-Steel Casters PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

No Approval Drawings For This Product

Testing Certificates


CST-VE-4X2CI-R

CST-VE-4X2CI-S

CST-VE-4X2CI-SWTB

CST-VE-5X2CI-R

CST-VE-5X2CI-S

CST-VE-5X2CI-SWB

CST-VE-5X2CI-SWTB

CST-VE-6X2CI-R

CST-VE-6X2CI-S

CST-VE-6X2CI-SWB

CST-VE-6X2CI-SWTB

CST-VE-8X2CI-R

CST-VE-8X2CI-S

CST-VE-8X2CI-SWTB

SDS Sheets

No SDS Sheets For This Product

Other PDF's


"Go-To" Caster's Brochure

Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets

Related or Similar Products:

Go To Casters
Product

Go To Casters

Best Casters
Product

Best Casters

Better Casters
Product

Better Casters

Good Casters
Product

Good Casters

Specialty Casters
Product

Specialty Casters

Wheels
Product

Wheels

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Cast Iron/ Semi-Steel Casters




Cast iron casters are a cost efficient way of getting industrial carts and dollies back to running smoothly. The units are abrasion resistant even when transporting substantial weight. Swivel model allows the user to change directions and maintain increased control over the device. Simple attachment for immediate use upon installation. Gray tread color.

  • Bearing dust cover seals
  • Hardened bearing raceway
  • Double welds on inside & outside of fork mounts
  • Roller bearing
  • Anti-corrosive & rust resistant zinc plated finish
