Product Family Overview


Hydra Carts
SERIES: HYDRA

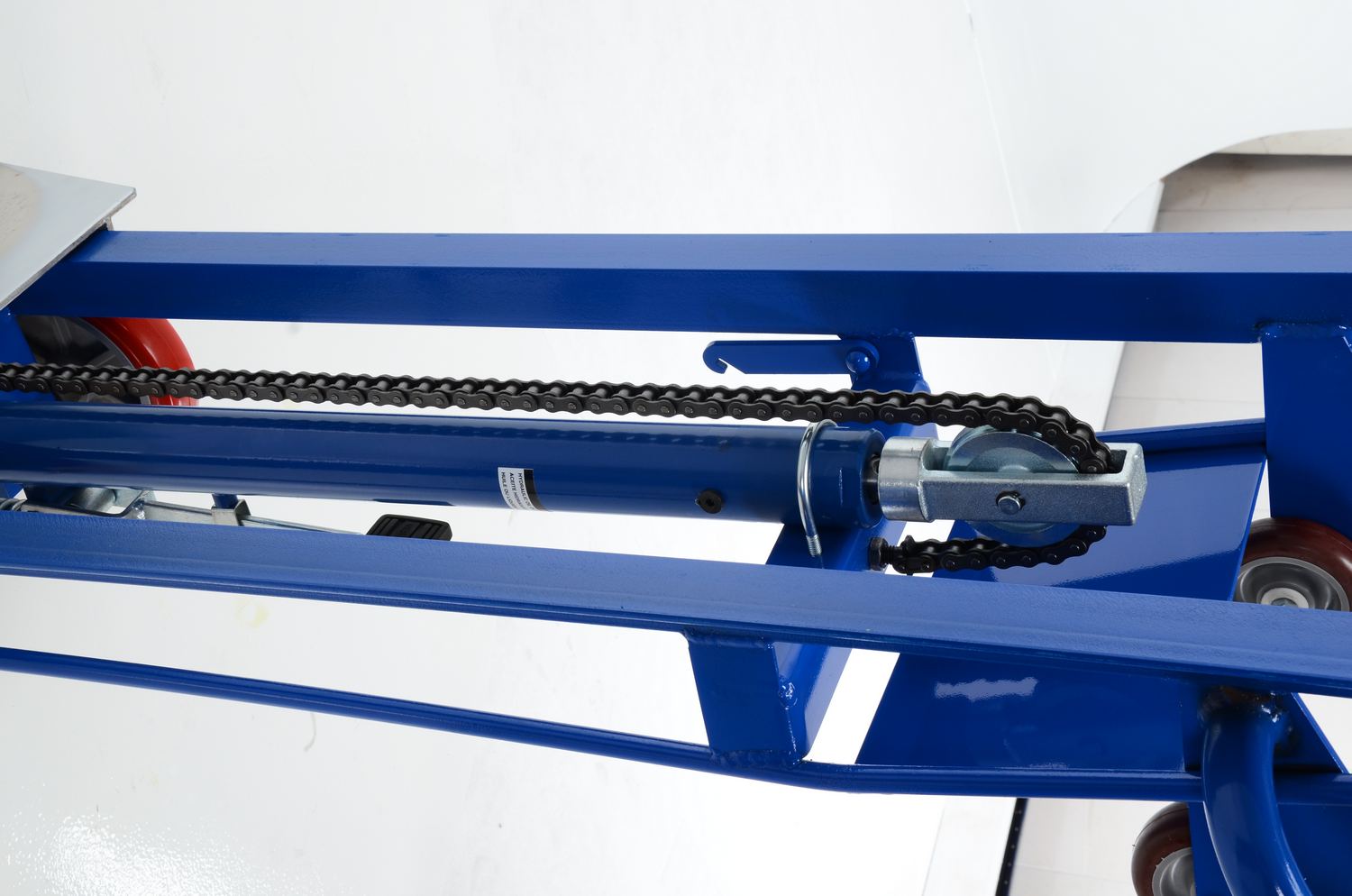

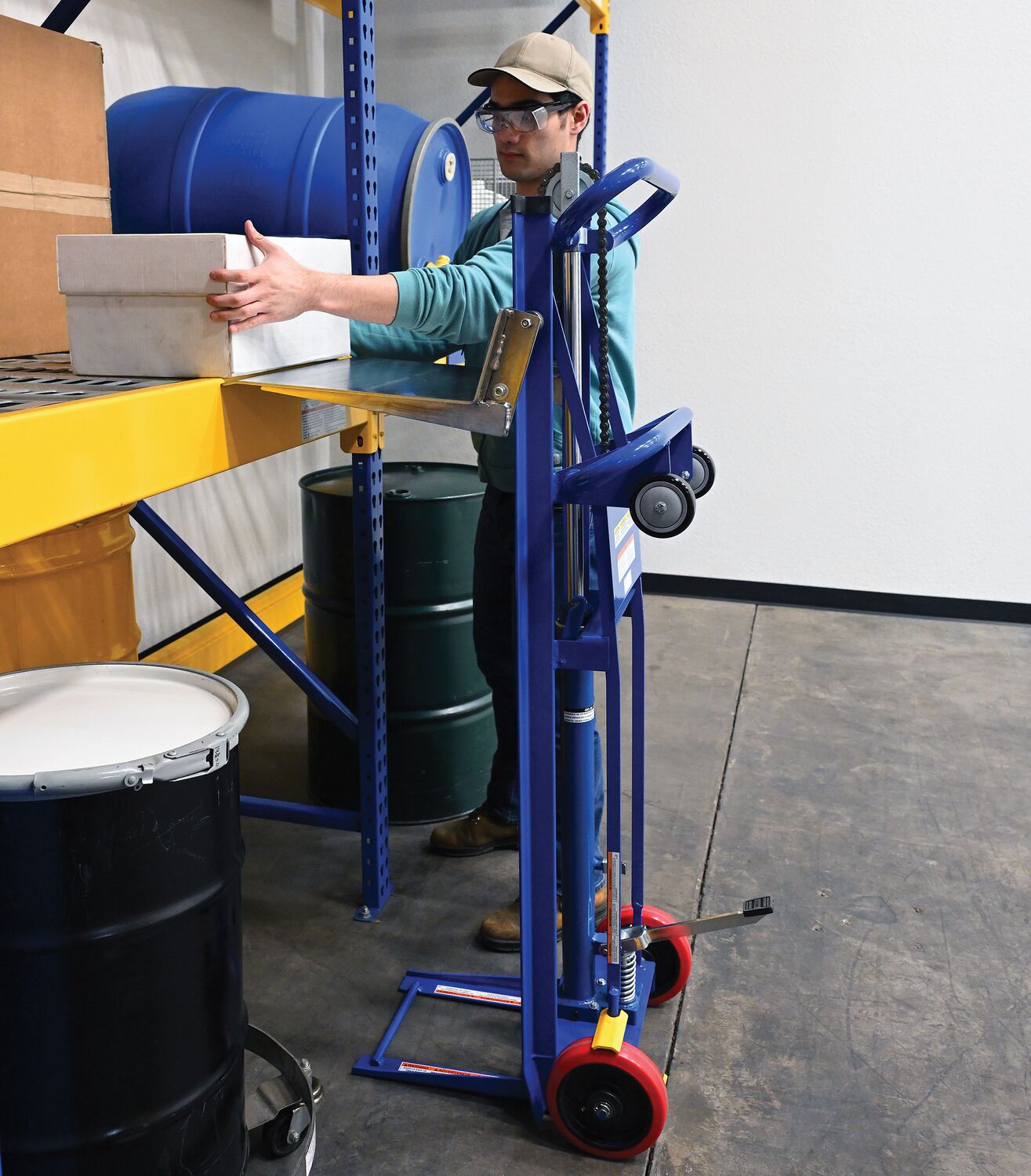

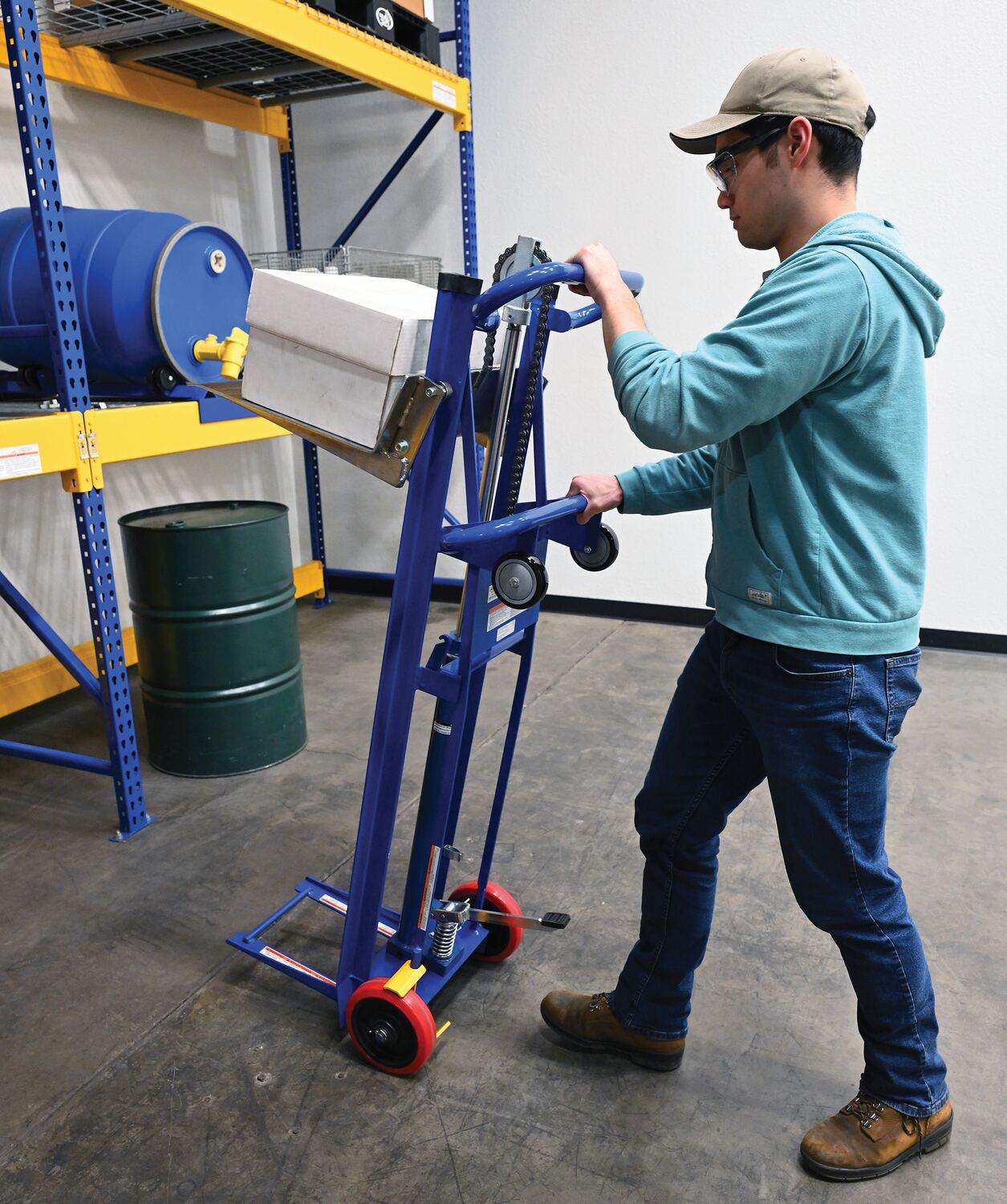

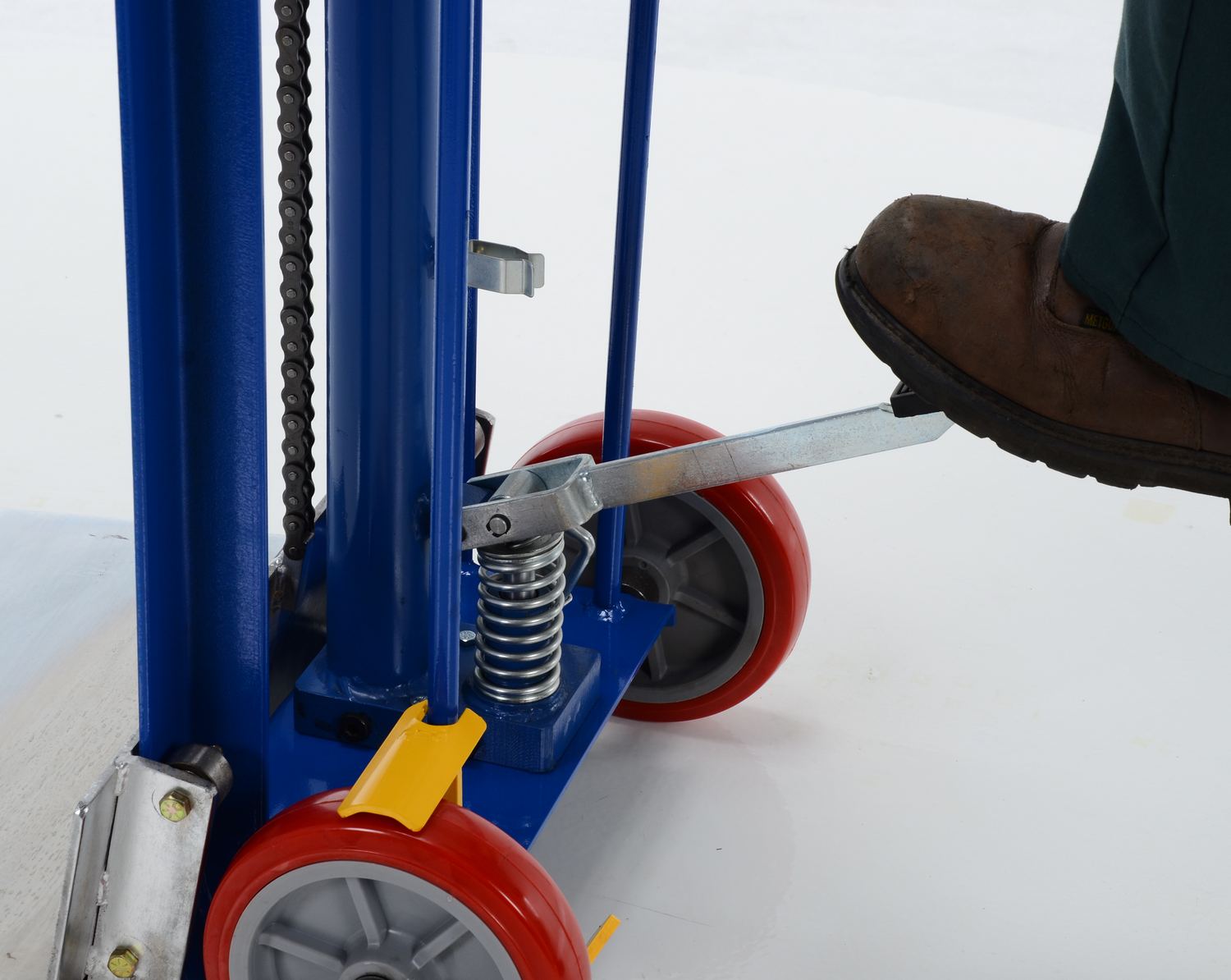

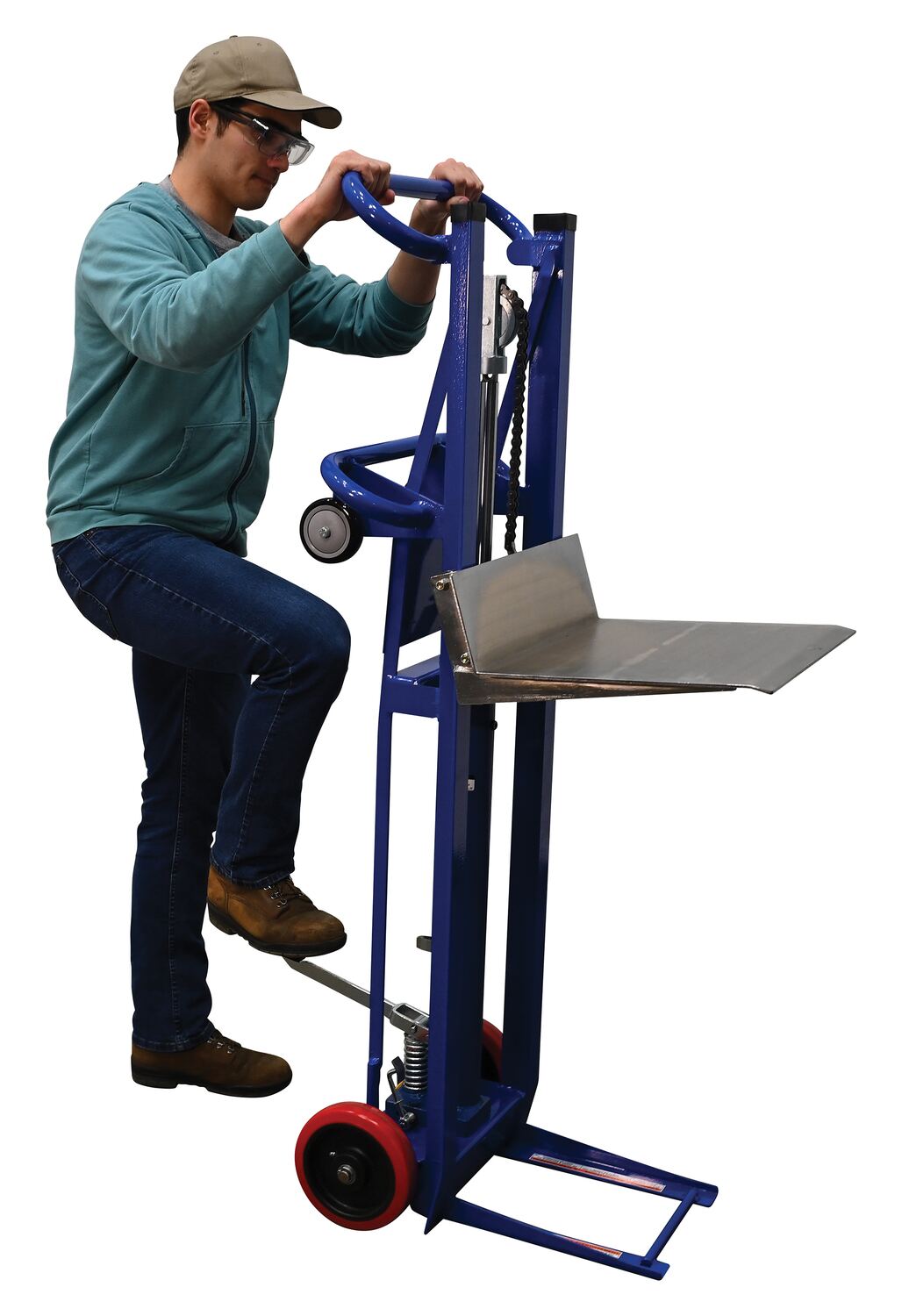

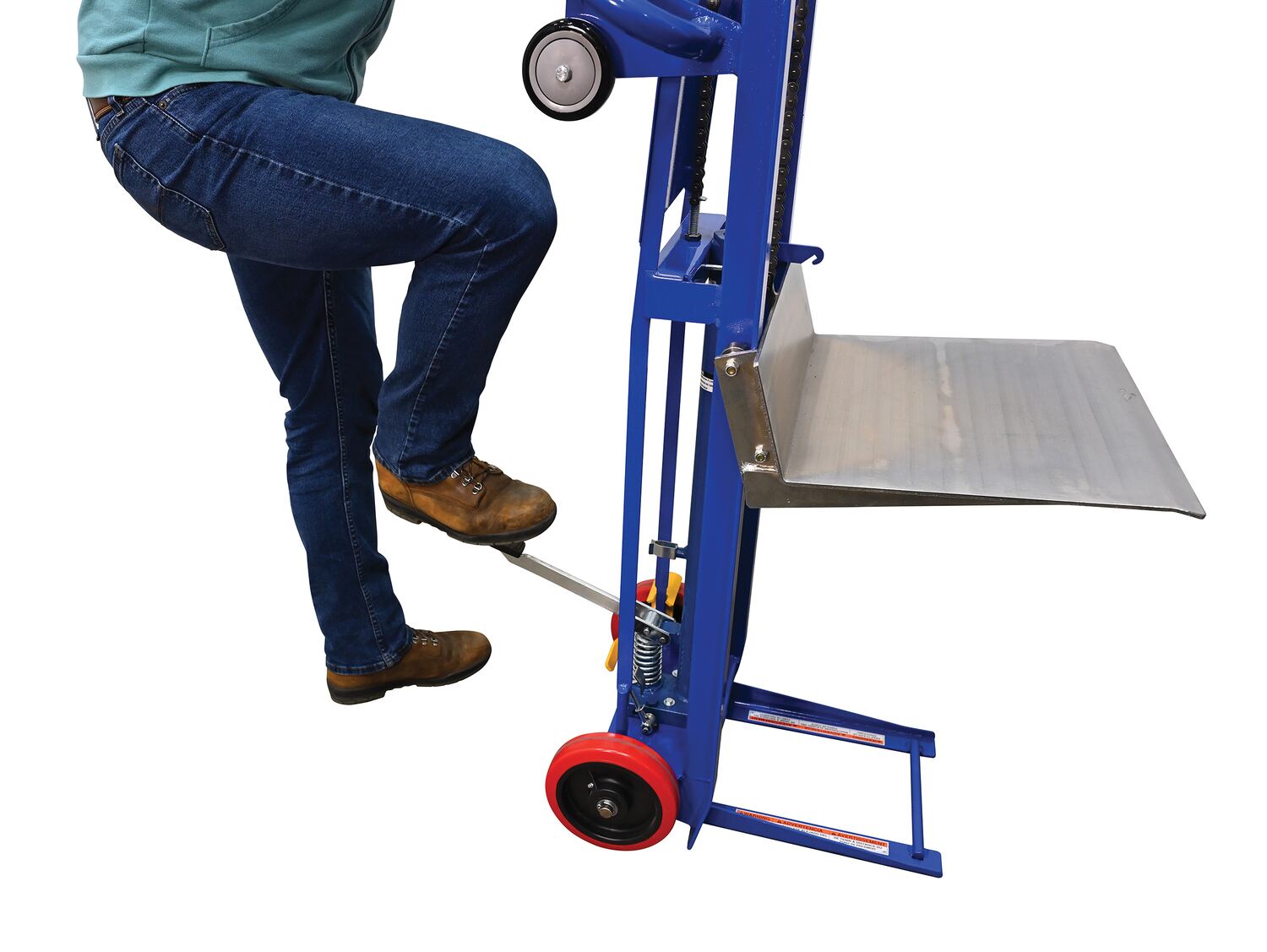

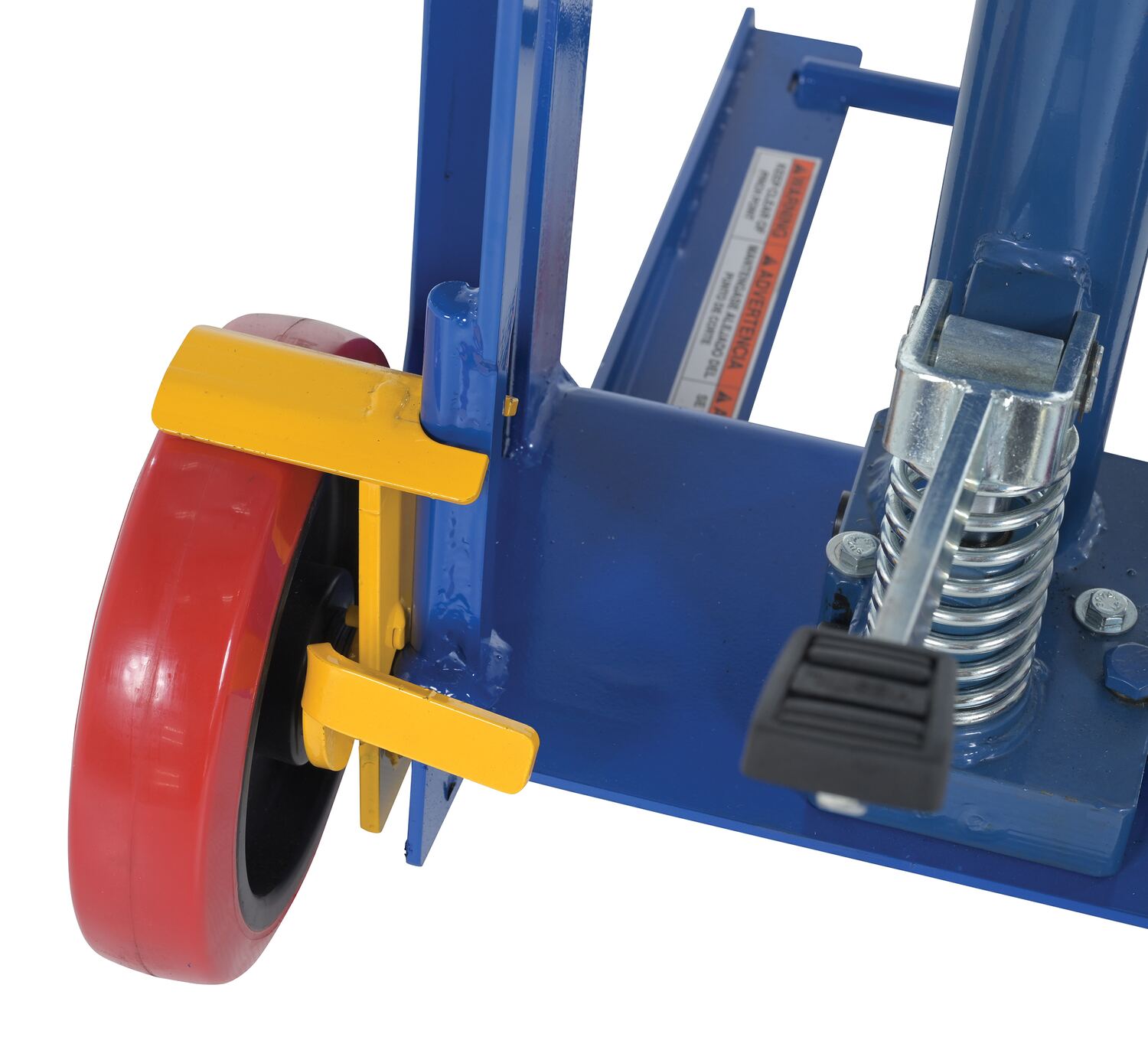

Transport loads in the lowered position and maneuver work materials to an ergonomic height. Ideal in compact work areas. Safe and easy one person handling of loads up to 1,000 lbs. An efficient way to unload heavy objects from semi trailers. Rugged steel construction for years of service. Dependable precision built hydraulic system is activated by easy action foot lever. Additional rollers on the handle make loading into a delivery truck easy. Steel construction. Approximately 1" of lift per pump. Models HYDRA-2 & HYDRA-4 come standard with a single wheel brake. HYDRA-HD has (2) two swivel casters with brakes. Baked-in powder coat finish for toughness.

  • Ideal in compact work areas and for many years of service
  • Efficient way to unload heavy objects for one person handling

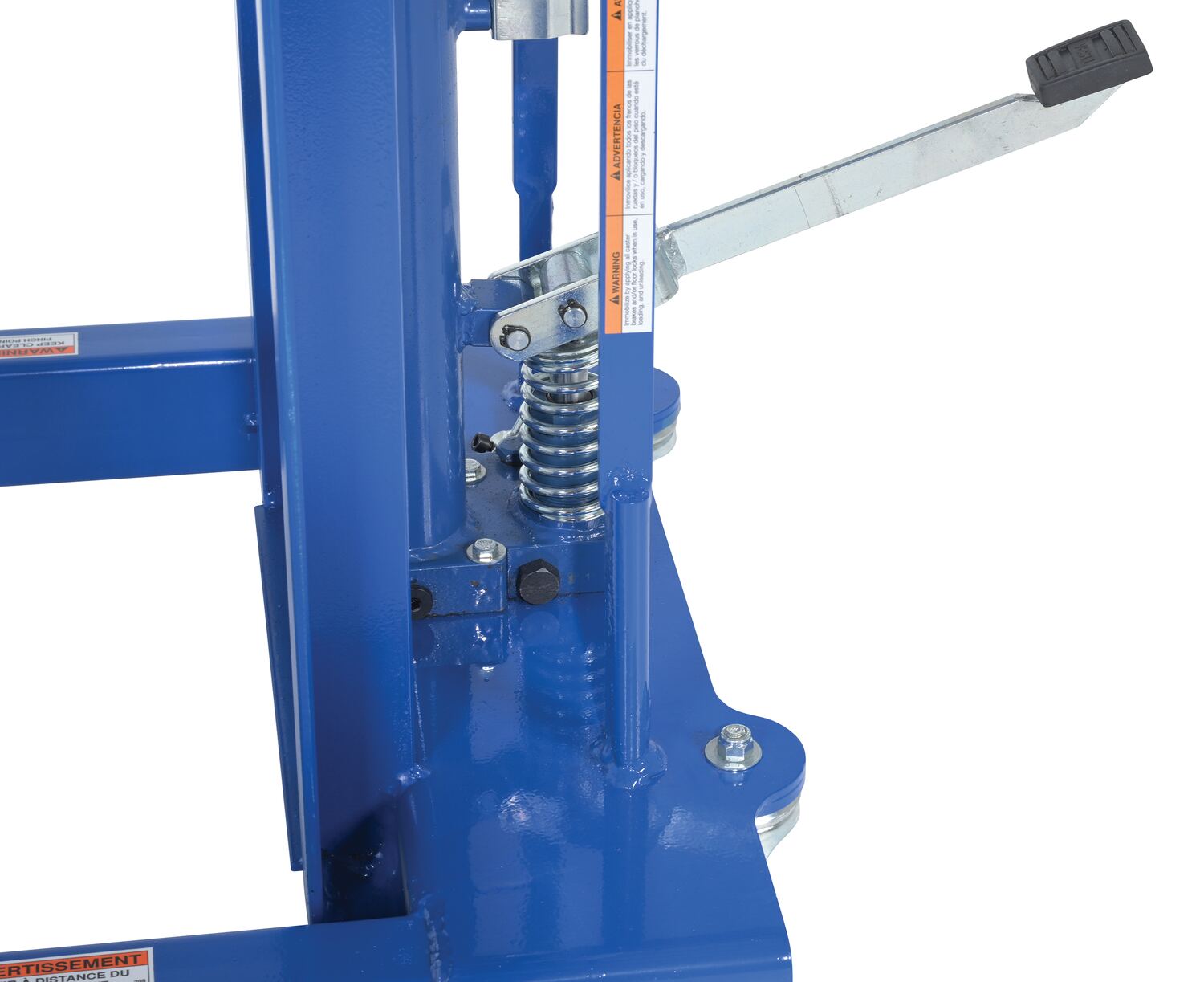

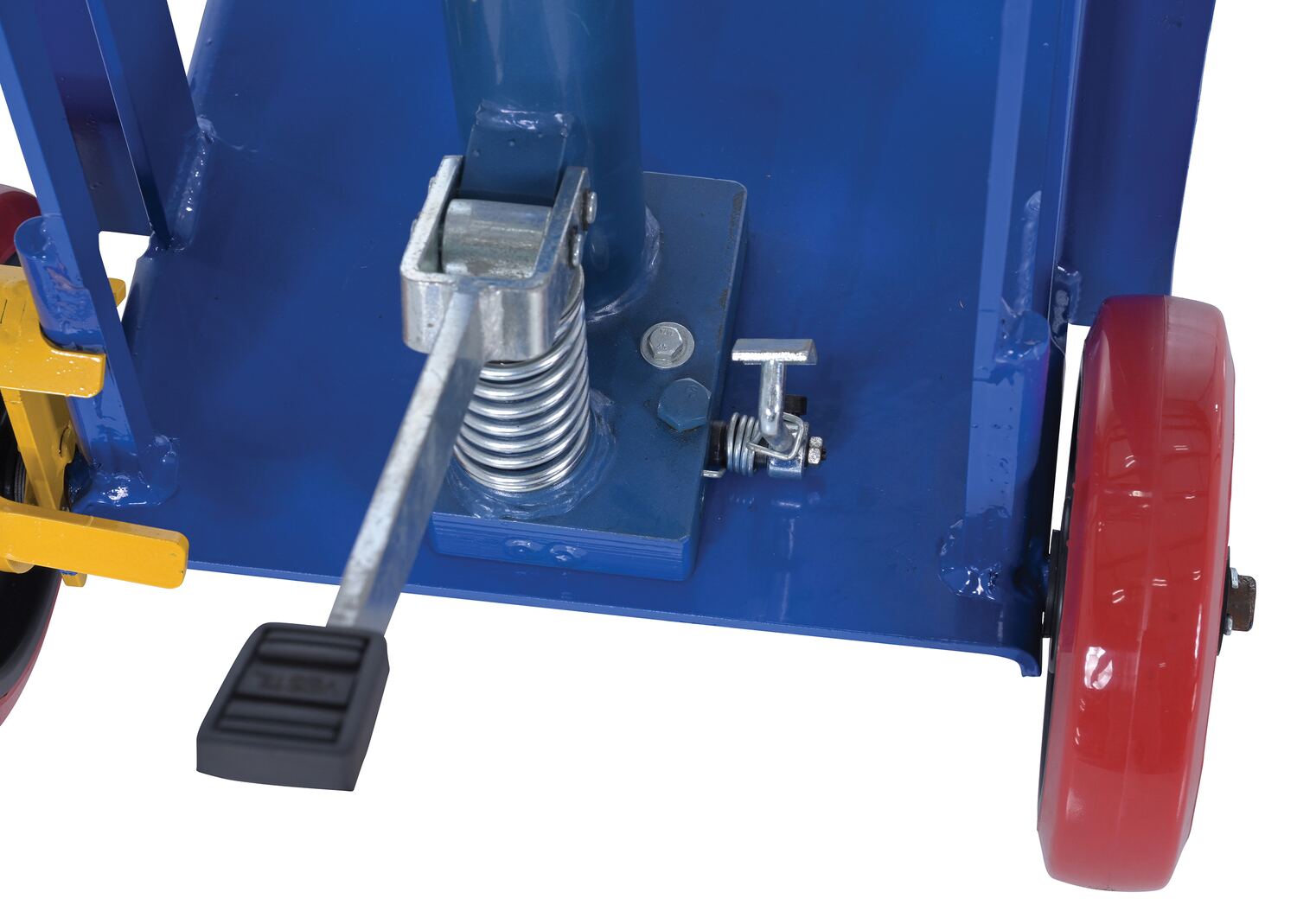

  • Precision built hydraulic system is activated by an easy action foot lever

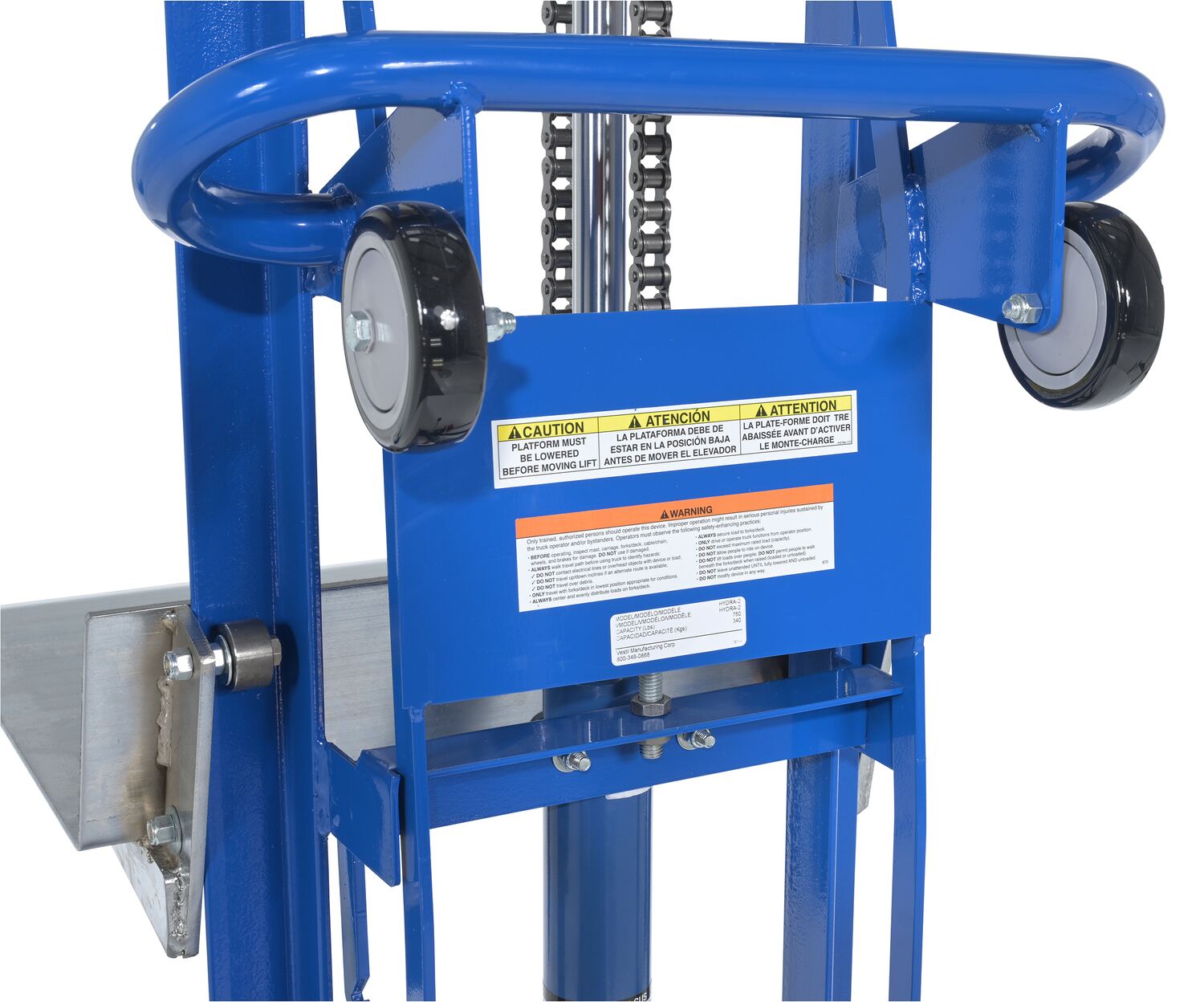

  • Additional rollers on handle make loading into a truck easy

Transport loads in the lowered position and maneuver work materials to an ergonomic height. Ideal in compact work areas. Safe and easy one person handling of loads up to 1,000 lbs. An efficient way to unload heavy objects from semi trailers. Rugged steel construction for years of service. Dependable precision built hydraulic system is activated by easy action foot lever. Additional rollers on the handle make loading into a delivery truck easy. Steel construction. Approximately 1" of lift per pump. Models HYDRA-2 & HYDRA-4 come standard with a single wheel brake. HYDRA-HD has (2) two swivel casters with brakes. Baked-in powder coat finish for toughness.

  • Ideal in compact work areas and for many years of service
  • Efficient way to unload heavy objects for one person handling
  • Precision built hydraulic system is activated by an easy action foot lever
  • Additional rollers on handle make loading into a truck easy

Additional Models In This Family

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

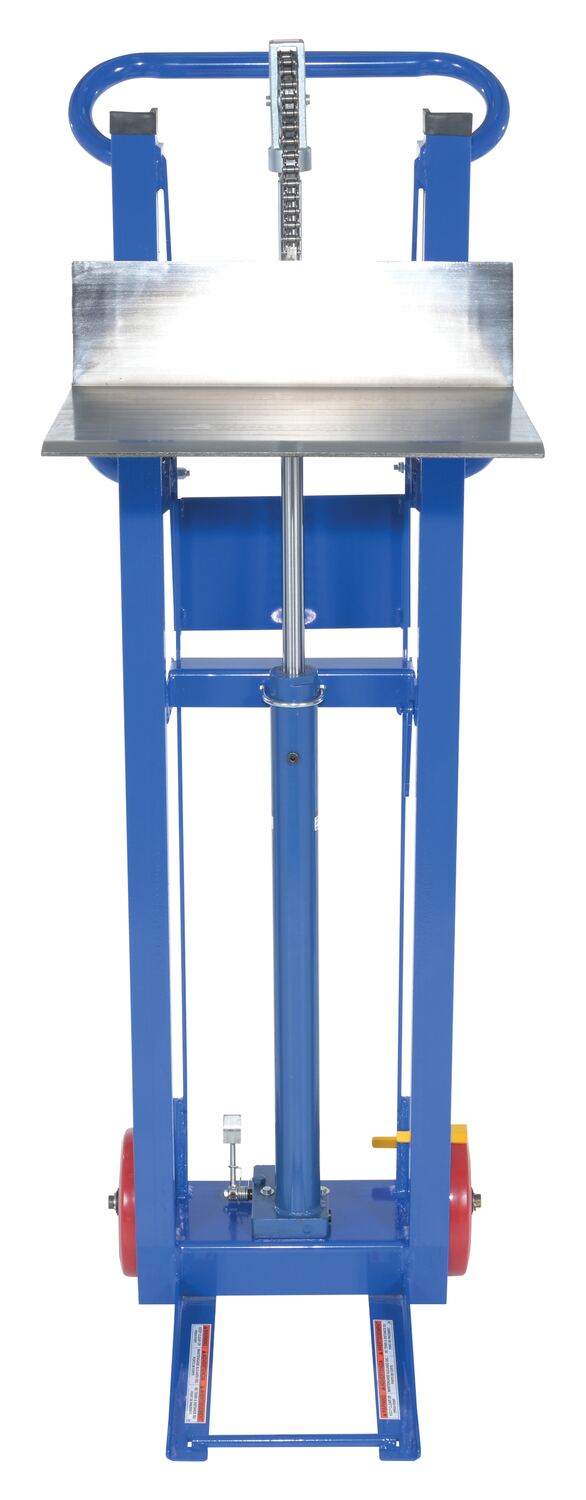

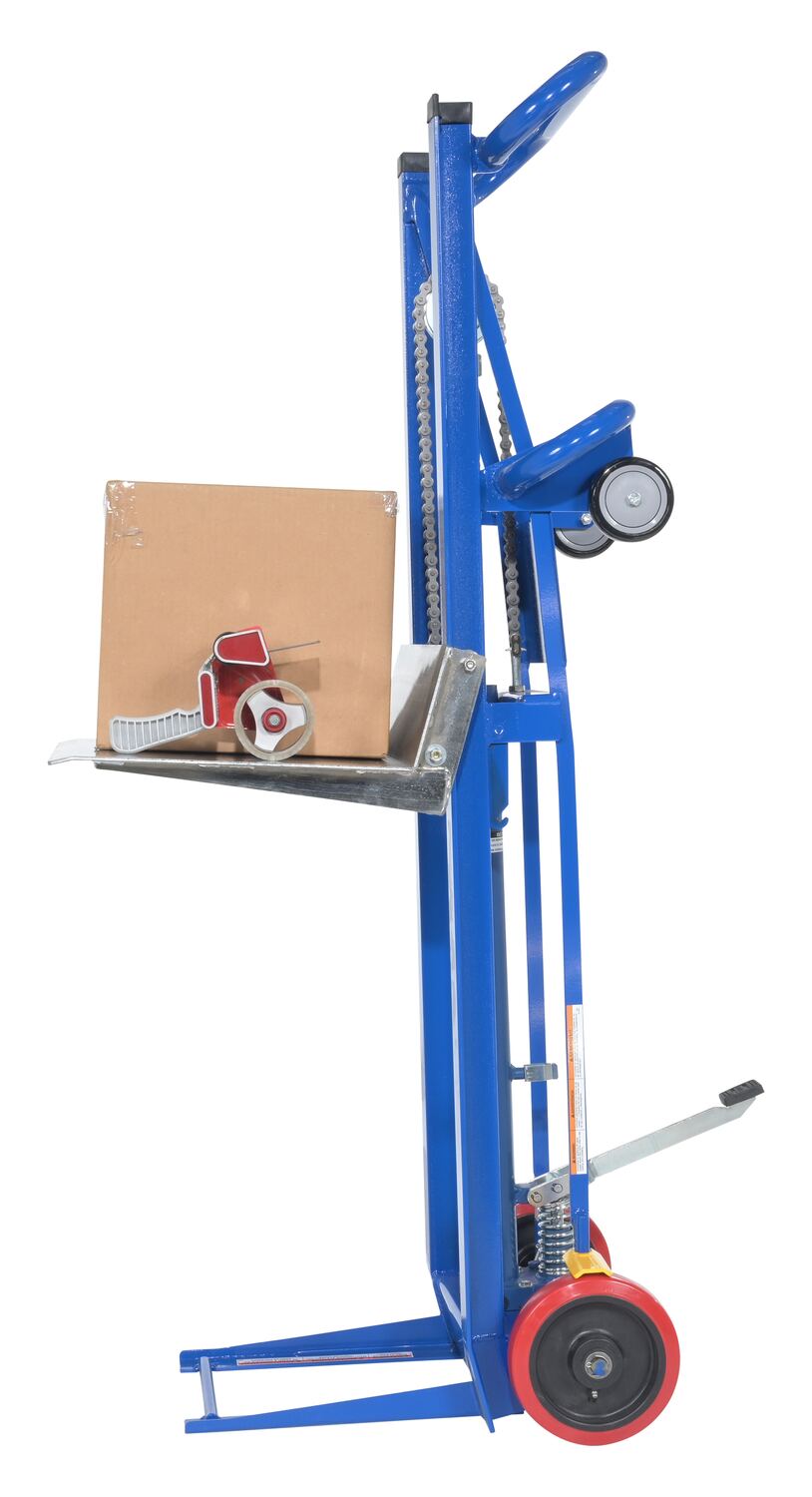

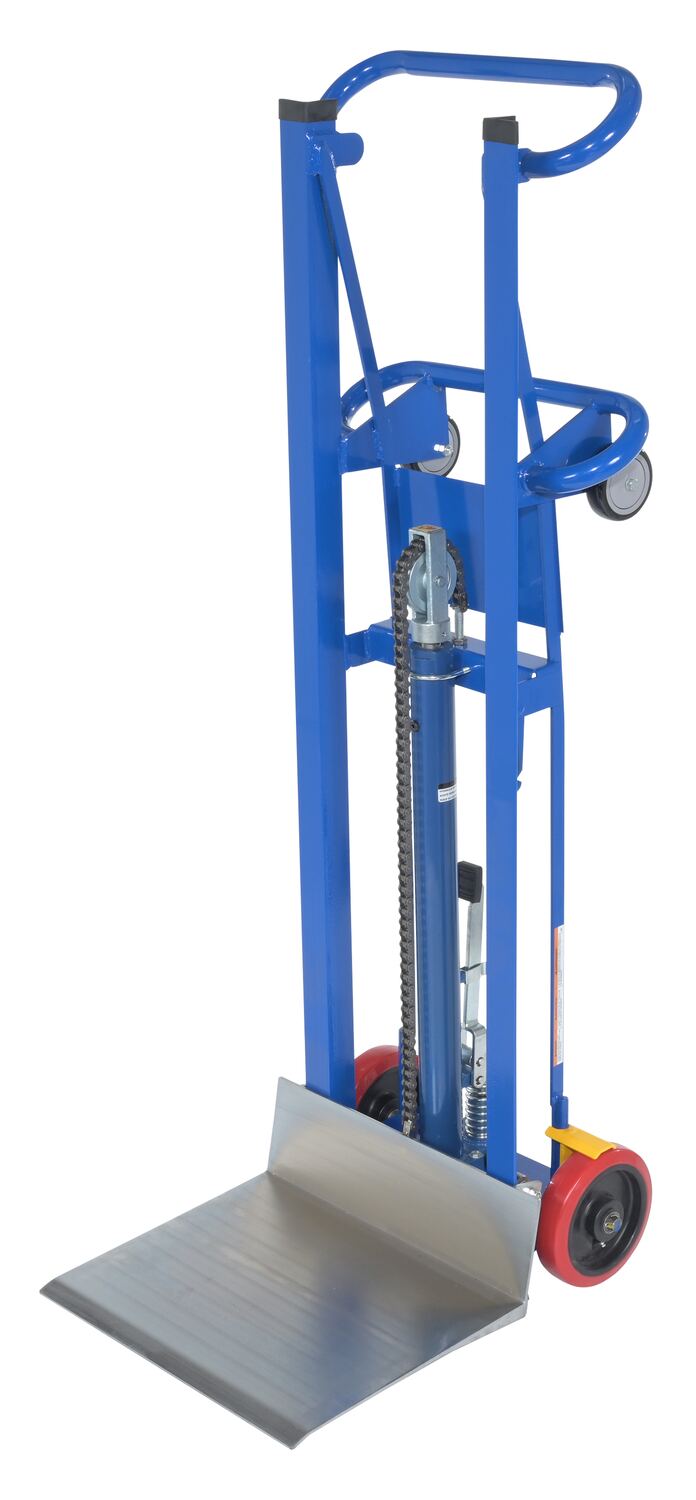

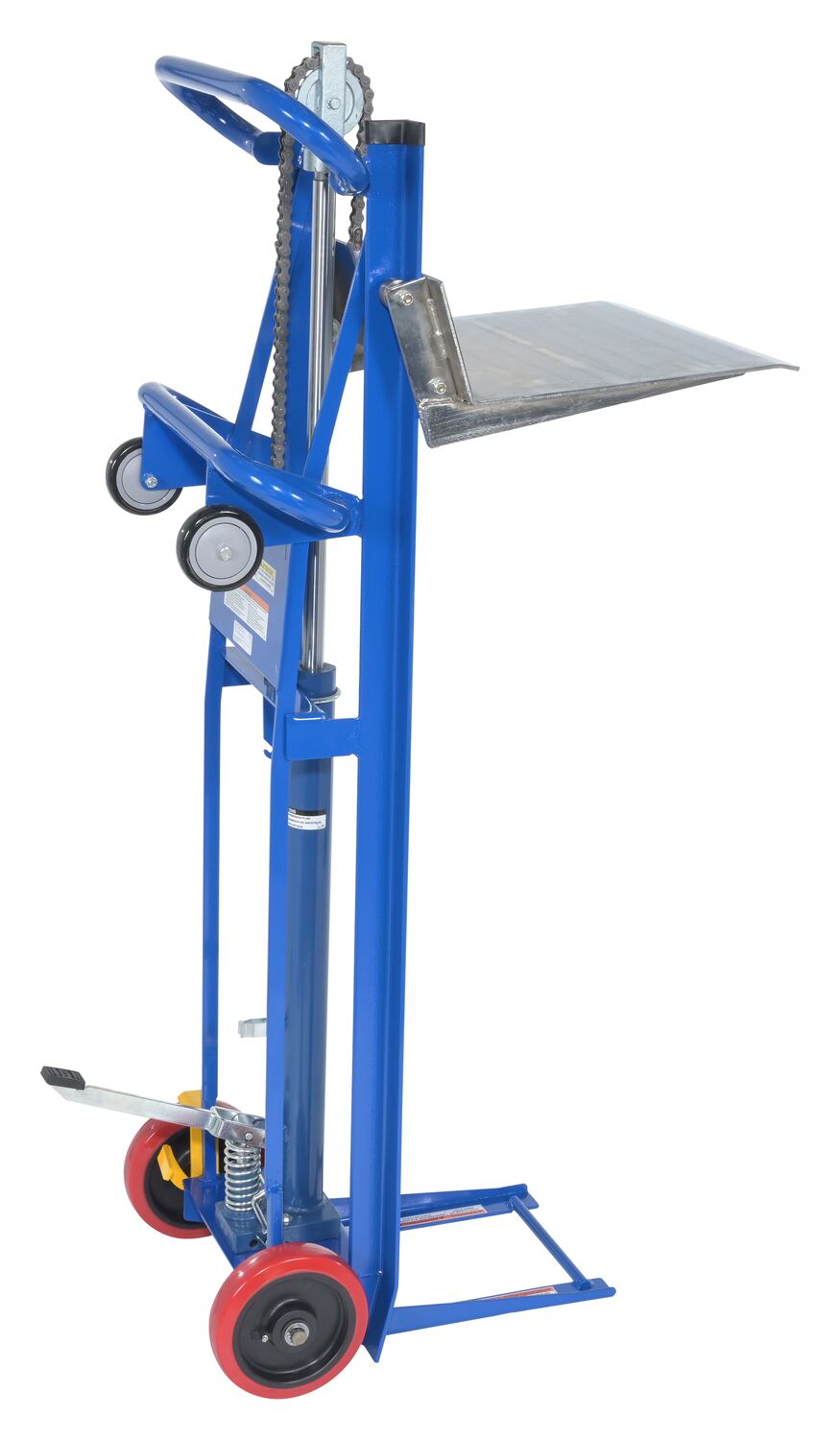

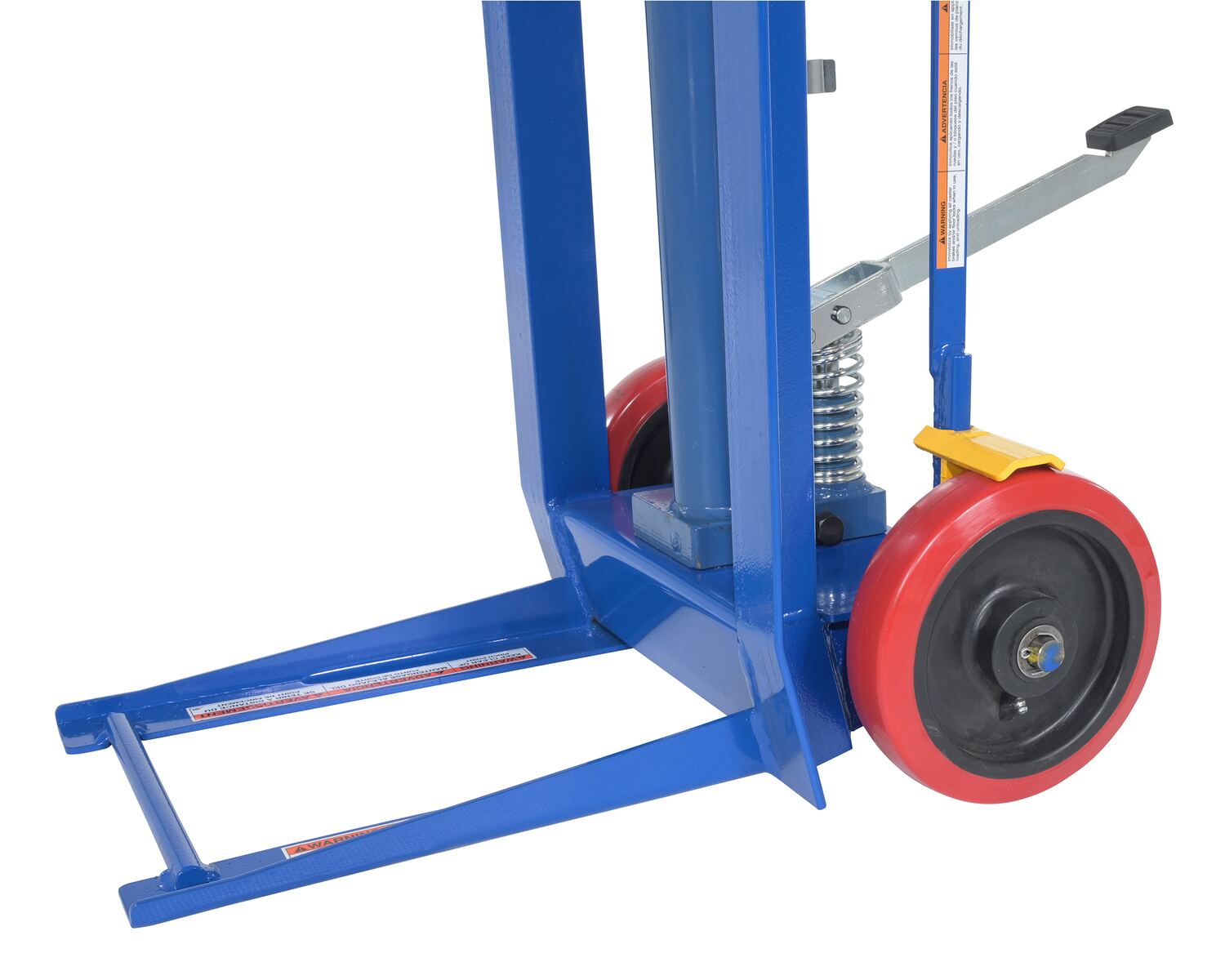

HYDRA-2 HYDRA-290 Days Limited WarrantySteel Hydra Lift Cart 20 In. x 16-3/16 In. 750 Lb. Capacity BlueUniform Capacity (lb.): 750
Platform Width (in.): 20
221

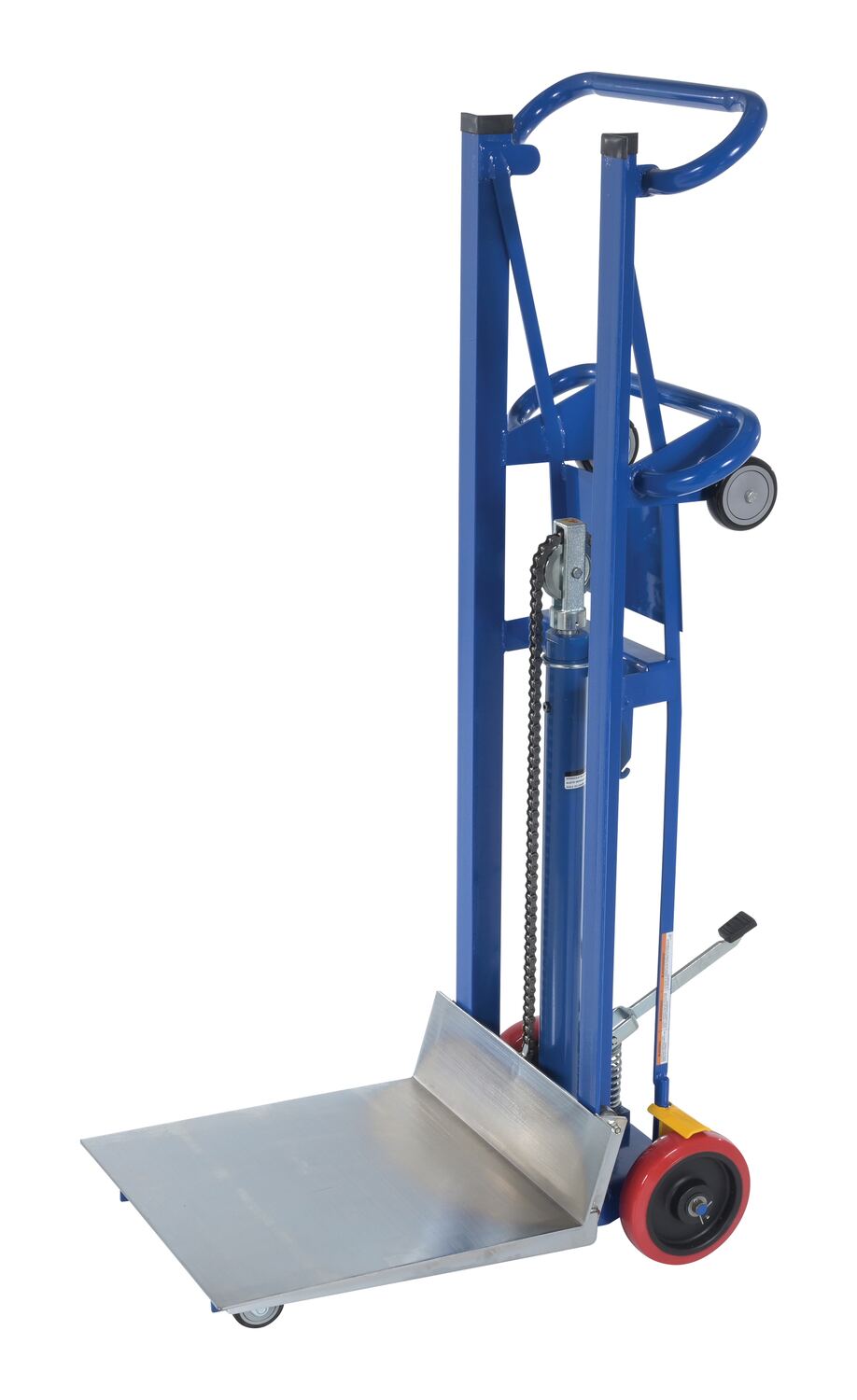

HYDRA-4 HYDRA-490 Days Limited WarrantySteel Hydra Lift Cart 20 In. x 21-3/8 In. 750 Lb. Capacity BlueUniform Capacity (lb.): 750
Platform Width (in.): 20
234

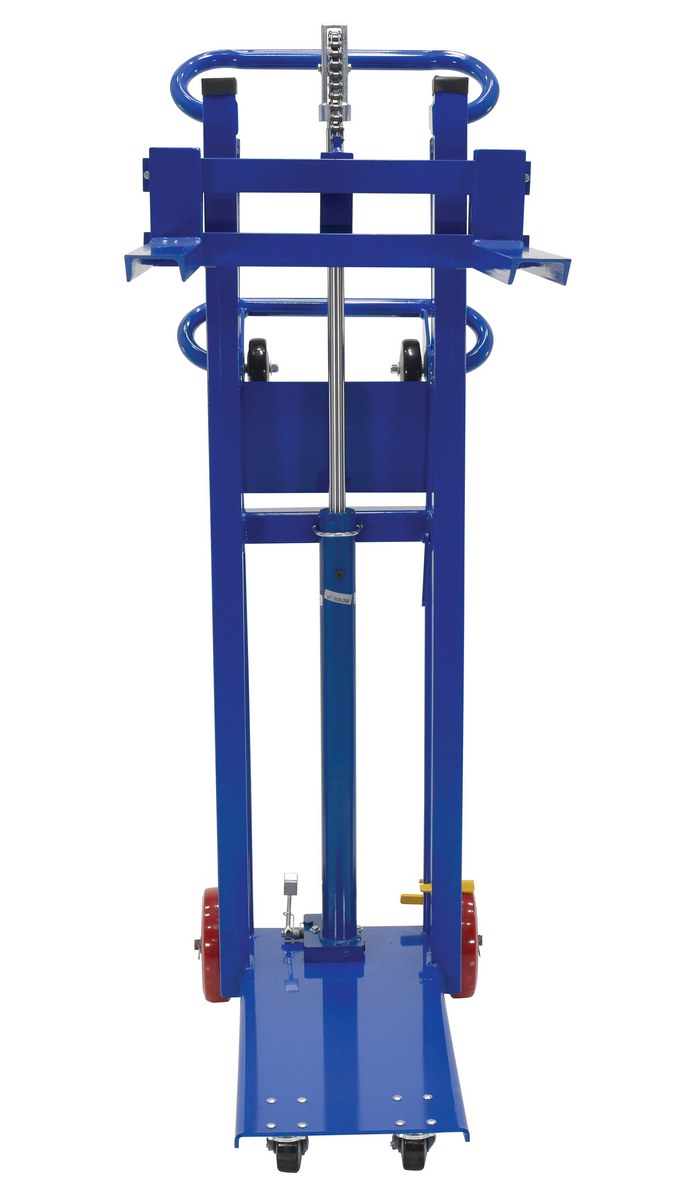

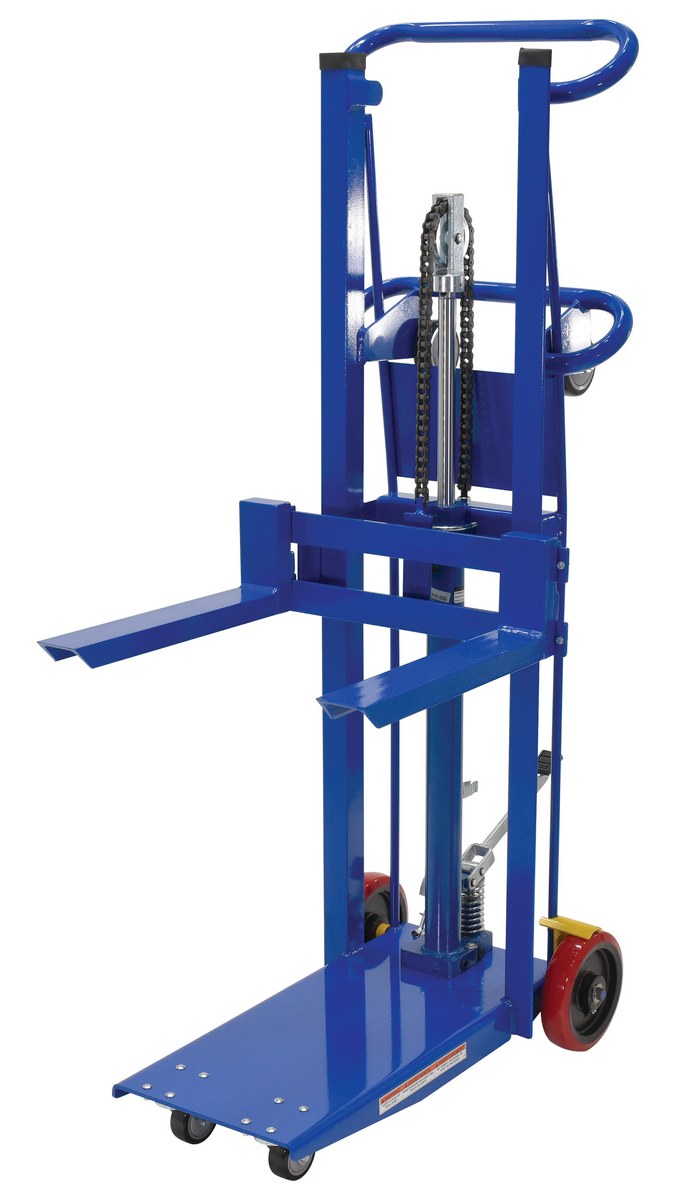

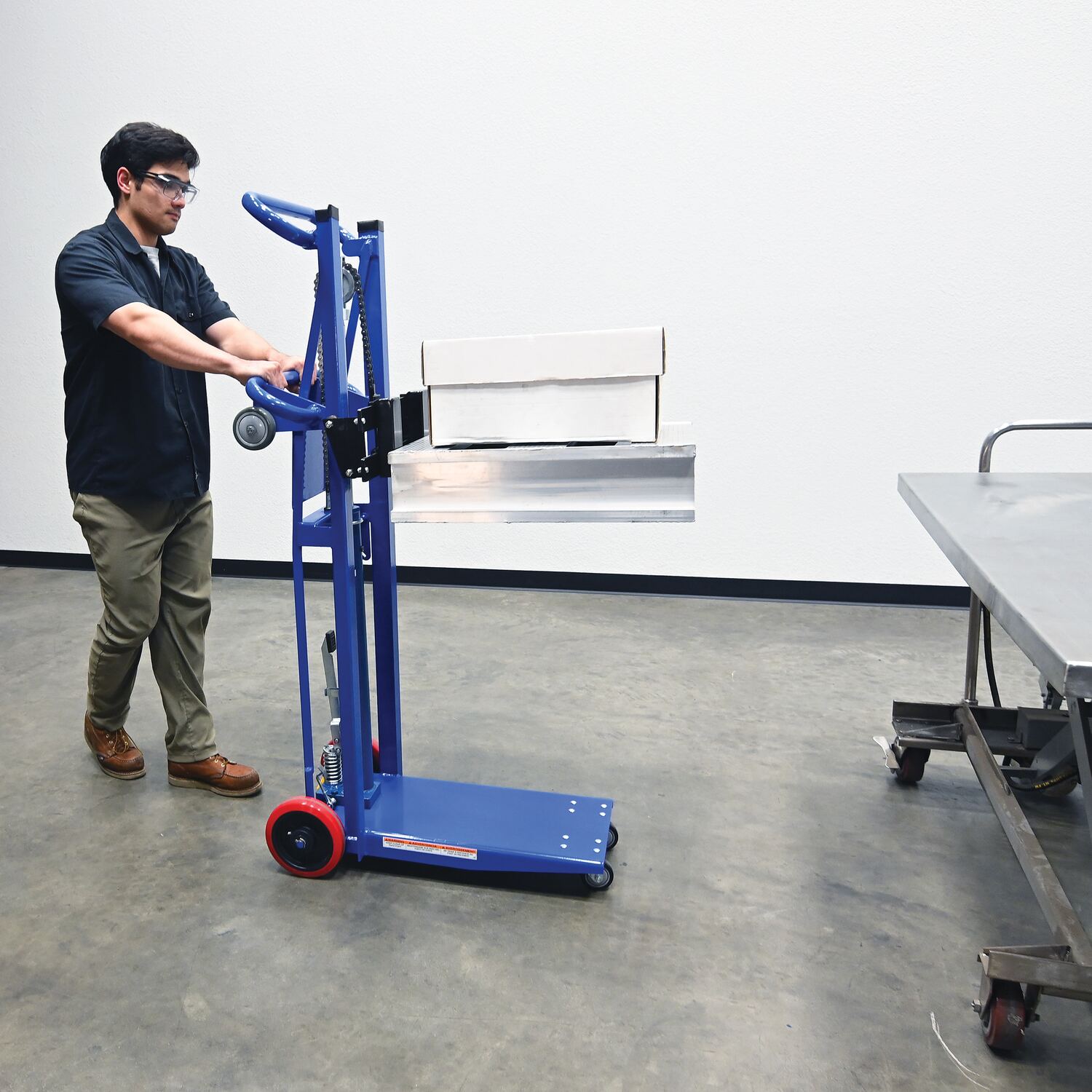

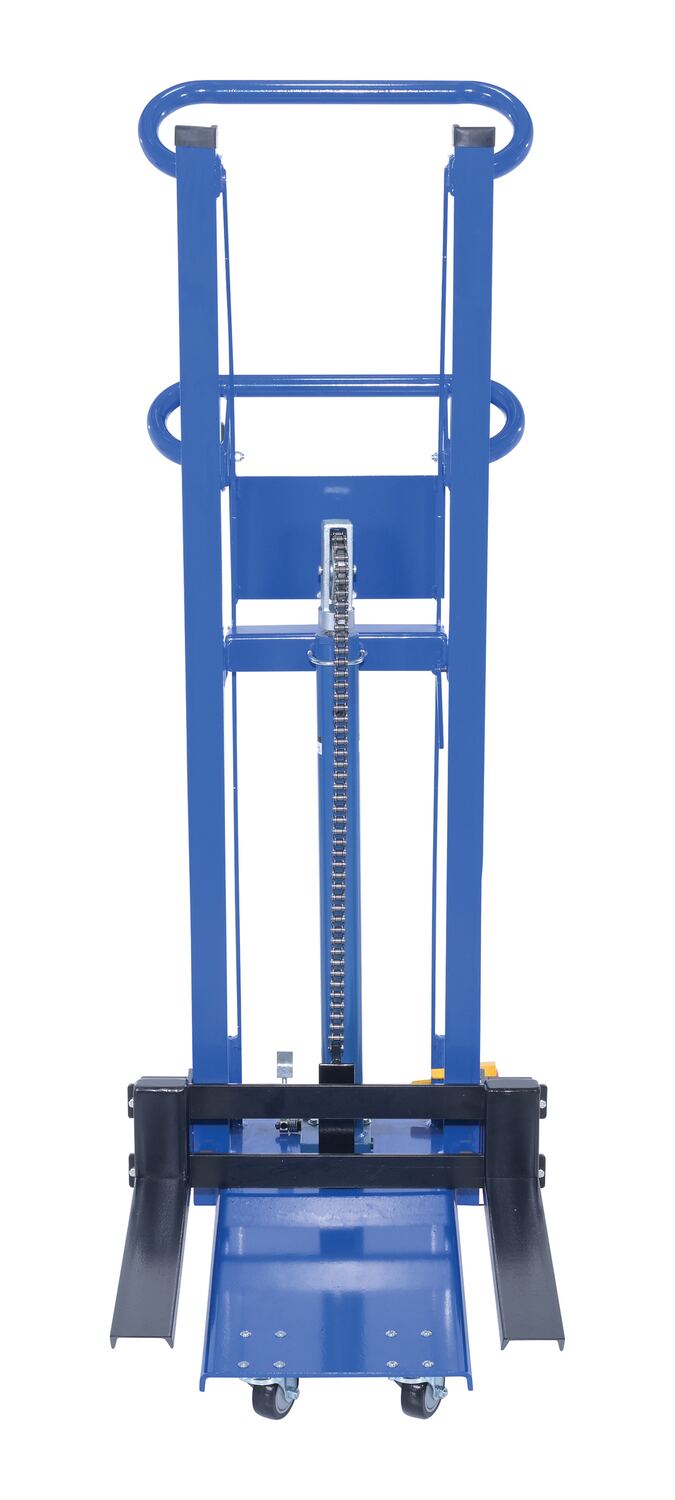

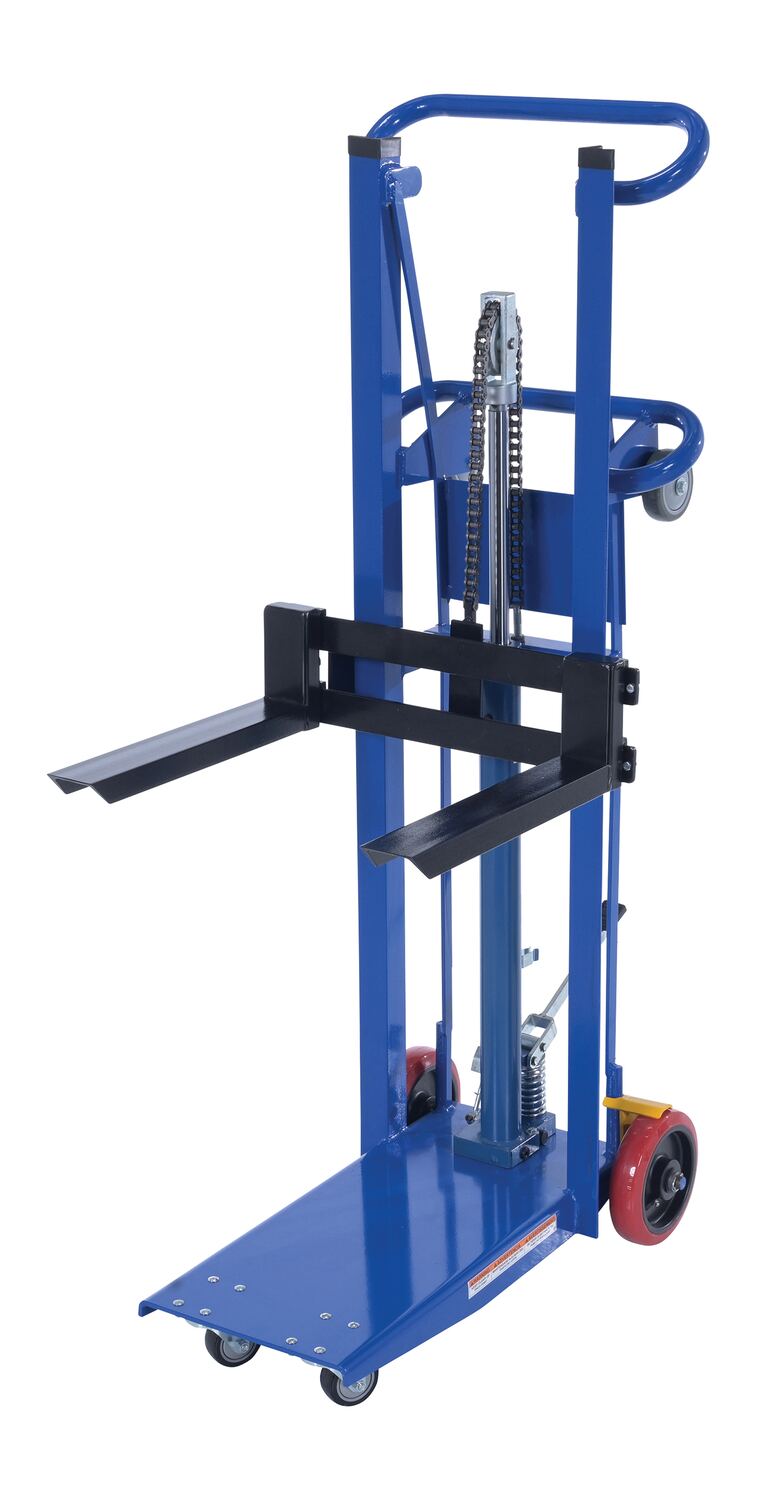

HYDRA-4-AF-18 HYDRA-4-AF-1890 Days Limited WarrantySteel Hydra Lift Cart with Forks 22 In. x 20 In. 750 Lb. Capacity BlueUniform Capacity (lb.): 750
Platform Width (in.): 20
245

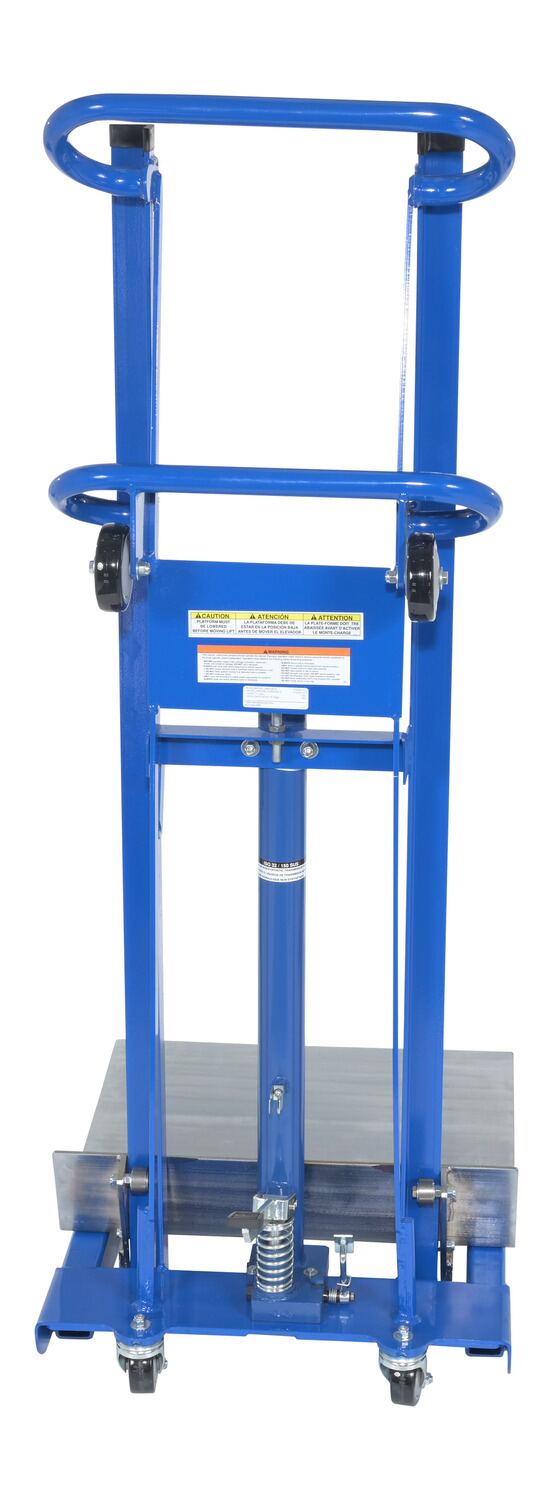

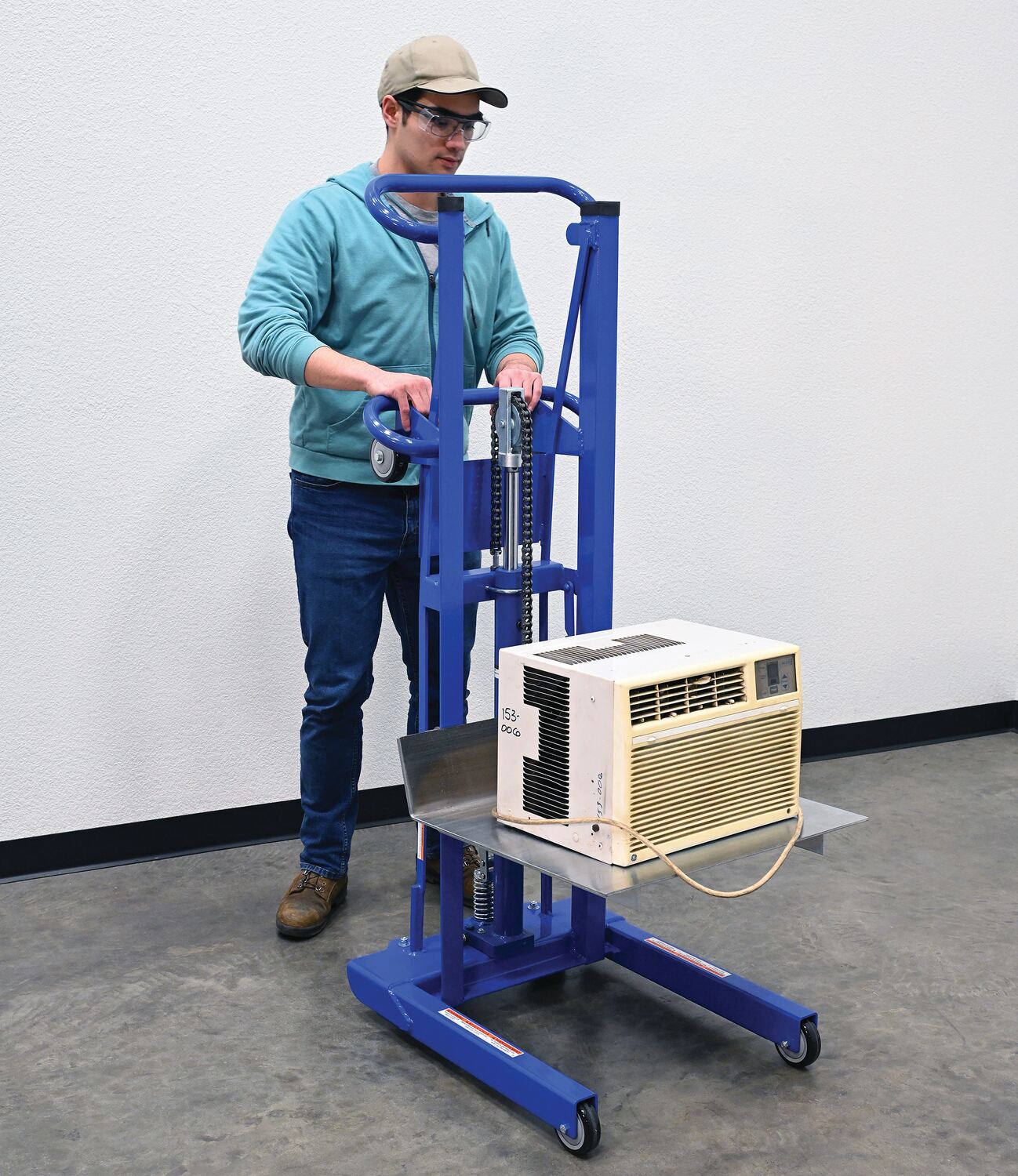

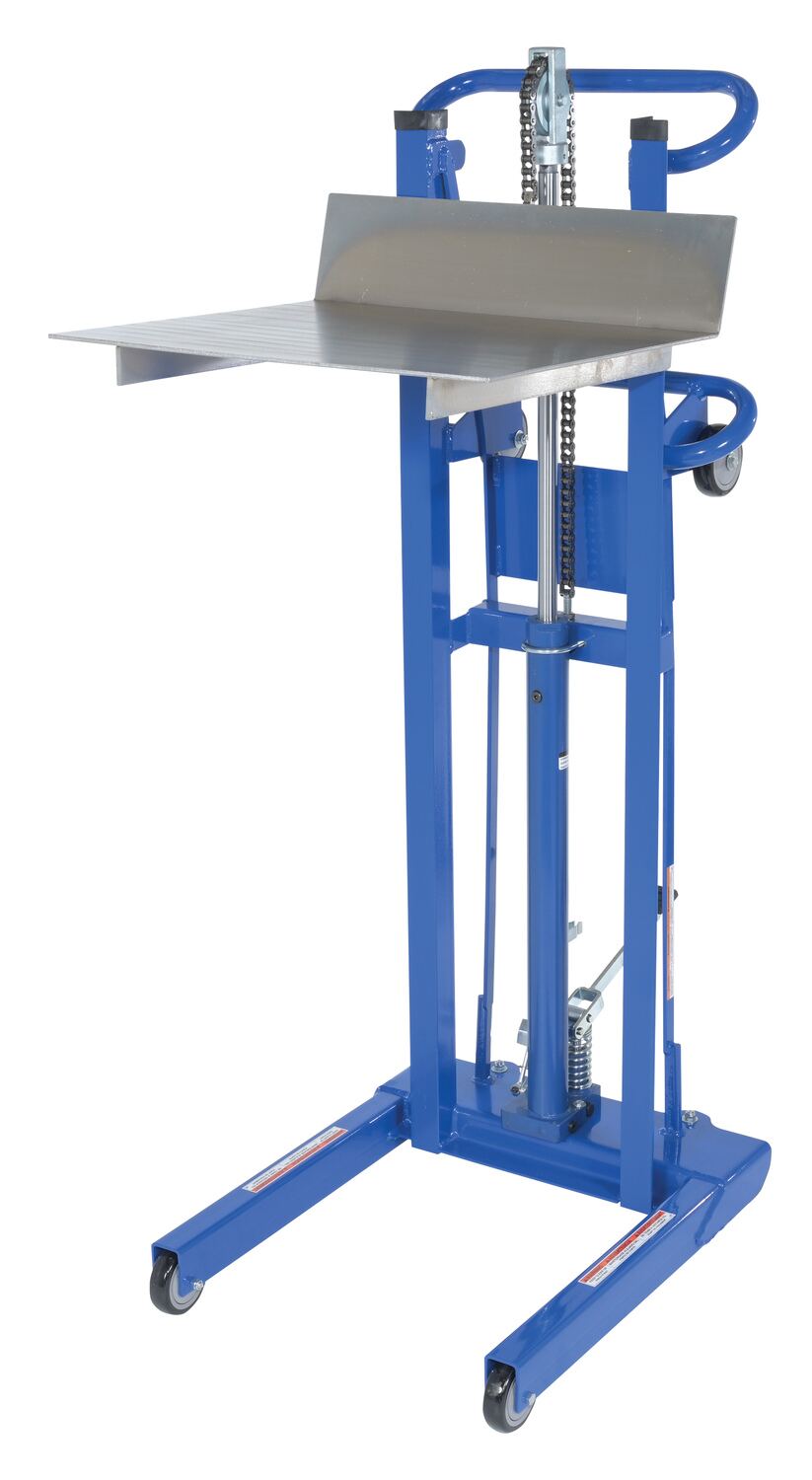

HYDRA-HD HYDRA-HD90 Days Limited WarrantySteel Hydra Lift Cart 35-5/16 In. x 61-13/16 In. 1000 Lb. Capacity BlueUniform Capacity (lb.): 1000
Platform Width (in.): 24
241

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

HYDRA-2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 750
Platform Width (in.): 20
Uniform Capacity (lb.): 750
Platform Width (in.): 20

HYDRA-4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 750
Platform Width (in.): 20
Uniform Capacity (lb.): 750
Platform Width (in.): 20

HYDRA-4-AF-18
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 750
Platform Width (in.): 20
Uniform Capacity (lb.): 750
Platform Width (in.): 20

HYDRA-HD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1000
Platform Width (in.): 24
Uniform Capacity (lb.): 1000
Platform Width (in.): 24
For More Details of the Option Click the Red Model Button

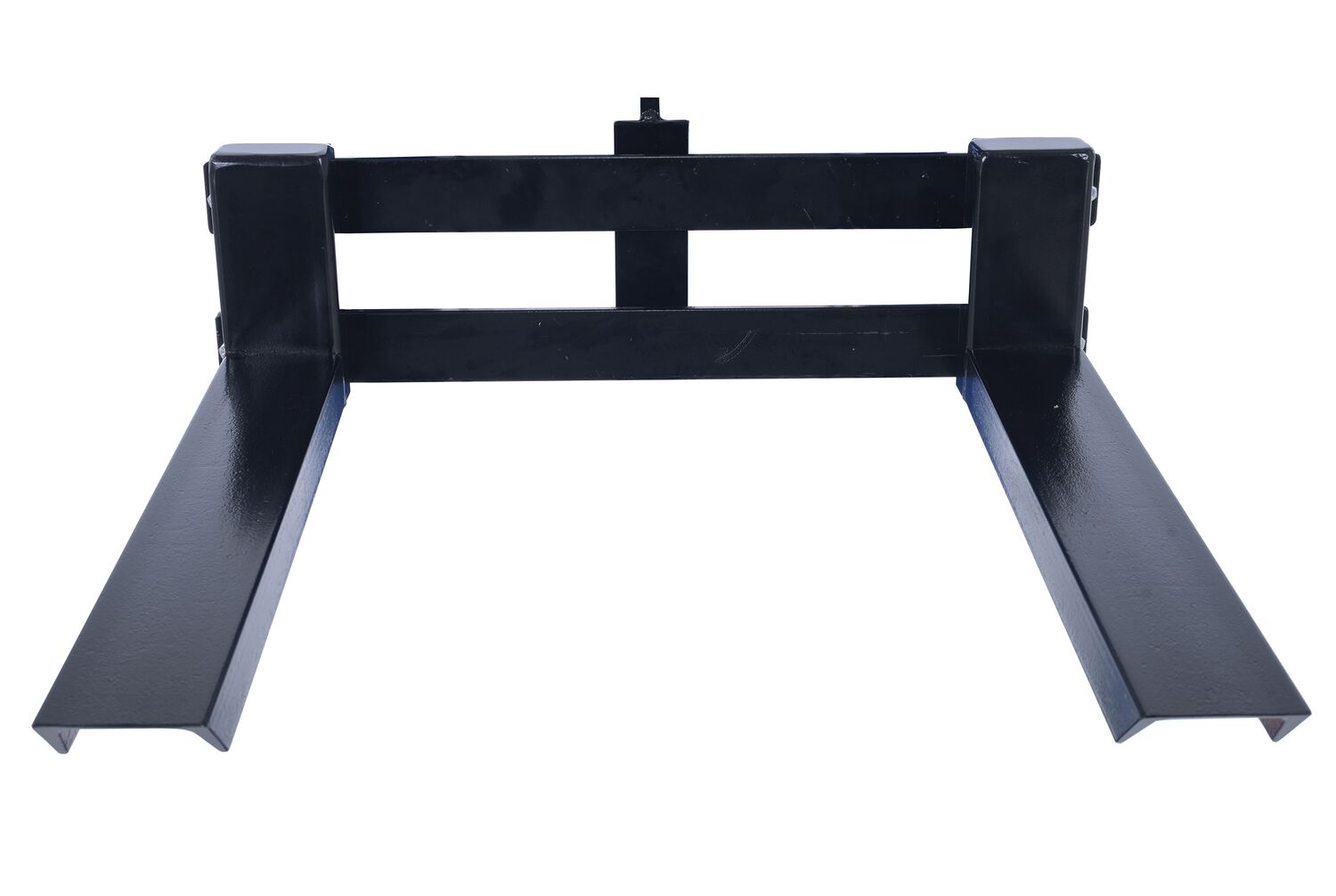

HYDRA-AF-18 HYDRA-AF-1890 Days Limited WarrantySteel Adjustable Forks Attachment 6 In. to 22 In. For Hydraulic Lift Cart Model YellowFork Width/Length (in.): 3 x 18
Forks O.D. Minimum/Maximum (in.): 6 to 22
41

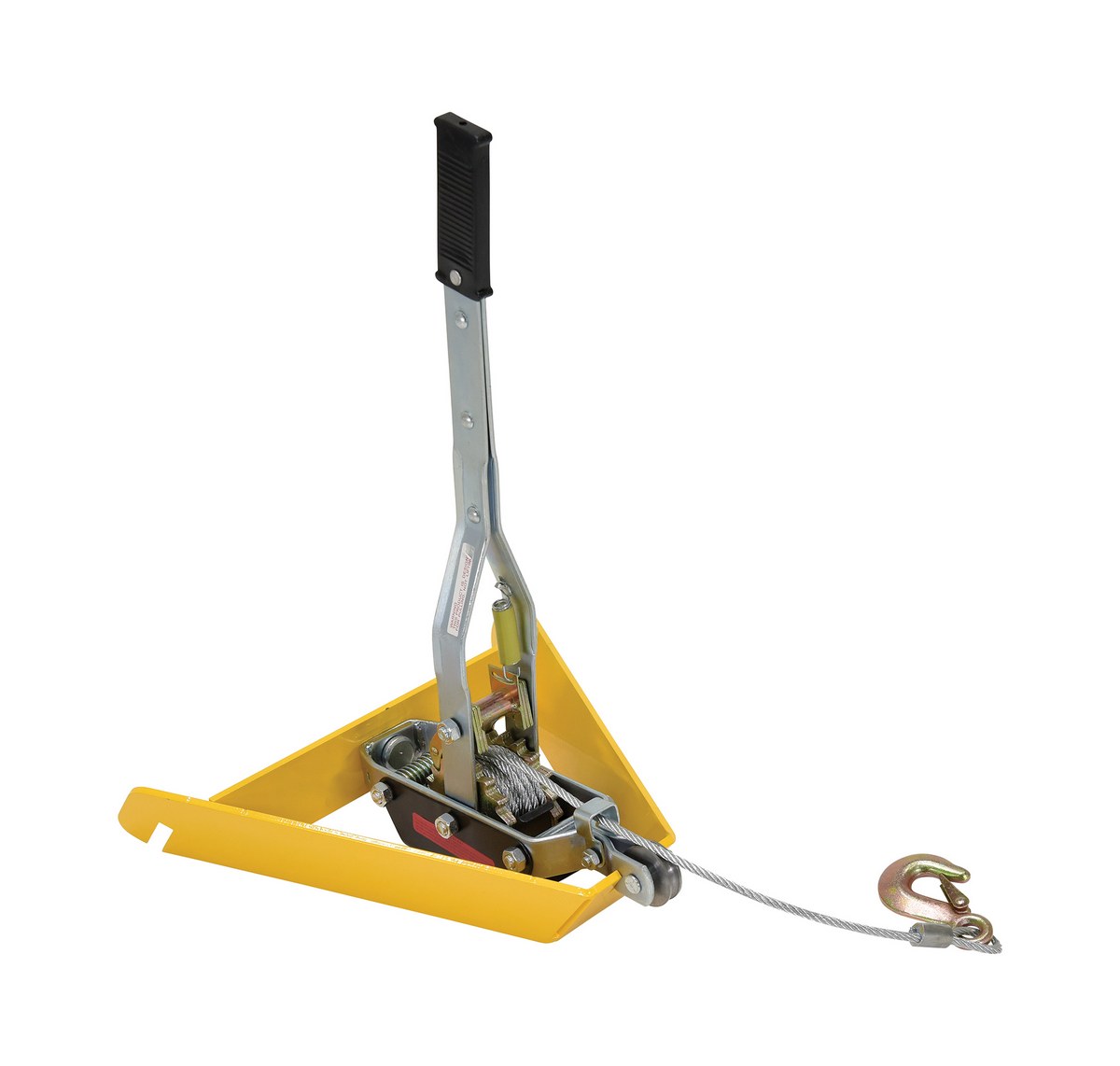

HYDRA-H HYDRA-H90 Days Limited WarrantySteel Hand Crank Winch & Hook Attachment For Hydra Lift Cart Model YellowMaximum Capacity (lb.): 400
23

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above

Hydra Carts PDF's will open in a new window when clicked.

Manuals


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


HYDRA-2

HYDRA-4

HYDRA-4-AF-18

HYDRA-AF-18

HYDRA-H

HYDRA-HD

SDS Sheets

Hydraulic Oil SDS Sheet for: HYDRA-2
Hydraulic Oil SDS Sheet for: HYDRA-4
Hydraulic Oil SDS Sheet for: HYDRA-4-AF-18
Hydraulic Oil SDS Sheet for: HYDRA-HD

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products


Q: What is the cable length of the HYDRA-H?

A: Single line cable length: 9.85' Double line cable length: 5'






Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Hydra Carts




Transport loads in the lowered position and maneuver work materials to an ergonomic height. Ideal in compact work areas. Safe and easy one person handling of loads up to 1,000 lbs. An efficient way to unload heavy objects from semi trailers. Rugged steel construction for years of service. Dependable precision built hydraulic system is activated by easy action foot lever. Additional rollers on the handle make loading into a delivery truck easy. Steel construction. Approximately 1" of lift per pump. Models HYDRA-2 & HYDRA-4 come standard with a single wheel brake. HYDRA-HD has (2) two swivel casters with brakes. Baked-in powder coat finish for toughness.

  • Ideal in compact work areas and for many years of service
  • Efficient way to unload heavy objects for one person handling
  • Precision built hydraulic system is activated by an easy action foot lever
  • Additional rollers on handle make loading into a truck easy


Model # Description Attributes Net Wt.
(lbs)
HYDRA-2 HYDRA-2Steel Hydra Lift Cart 20 In. x 16-3/16 In. 750 Lb. Capacity BlueUniform Capacity (lb.): 750
Platform Width (in.): 20
221
HYDRA-4 HYDRA-4Steel Hydra Lift Cart 20 In. x 21-3/8 In. 750 Lb. Capacity BlueUniform Capacity (lb.): 750
Platform Width (in.): 20
234
HYDRA-4-AF-18 HYDRA-4-AF-18Steel Hydra Lift Cart with Forks 22 In. x 20 In. 750 Lb. Capacity BlueUniform Capacity (lb.): 750
Platform Width (in.): 20
245
HYDRA-HD HYDRA-HDSteel Hydra Lift Cart 35-5/16 In. x 61-13/16 In. 1000 Lb. Capacity BlueUniform Capacity (lb.): 1000
Platform Width (in.): 24
241
