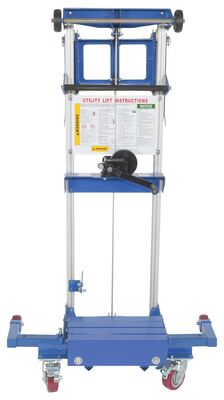

A-LIFT-CB_J.jpg A-LIFT-CB_A.jpg A-LIFT-CB_I.jpg A-LIFT-CB_C.jpg
A-LIFT-CB_D.jpg A-LIFT-CB_E.jpg A-LIFT-CB_G.jpg A-LIFT-CB_H.jpg
Hand Winch Lift Trucks

model: A-LIFT-CB



Featured Ergonomic Solutions


Portable Aluminum Load Lifter
Adjustable Pallet Stands
Elevating Lift Carts
Hydraulic Post Tables w/ Rounded Tops
DC Powered and Manual Scissor Carts
Powered All Terrain Stackers and Pallet Trucks
Integral Scale for Scissor Tables
Versatile Quick Lifts
Ground Lift Scissor Tables
model chart

Product Family Overview

Print Friendly
Hand Winch Lift Trucks
SERIES: A-LIFT

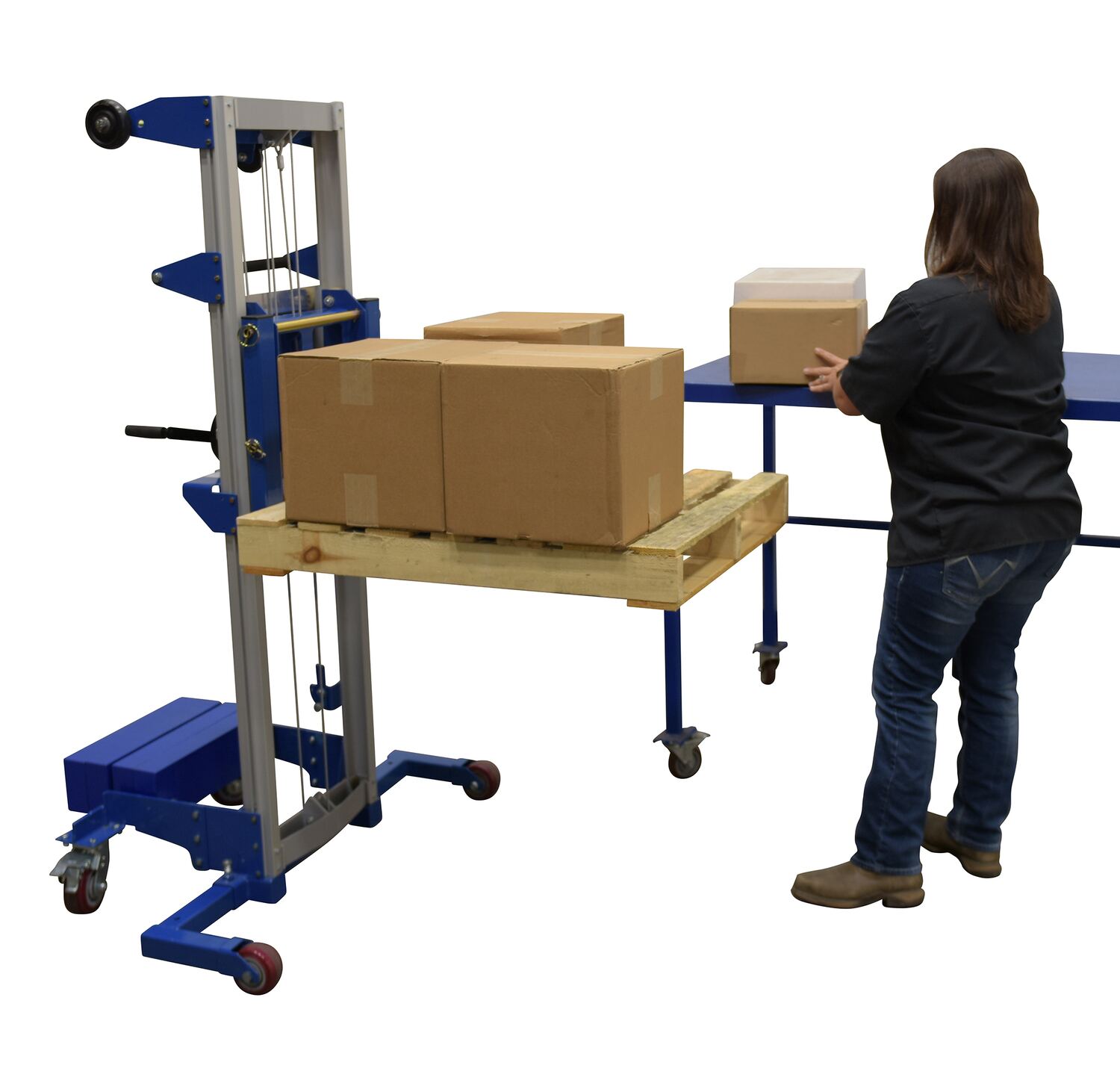

Compact lift trucks are designed to lift material to and from shelves, move office equipment, and install ceiling/wall appliances. Constructed of durable steel-and-aluminum. The rugged 4" wide by 1-3/4" thick steel forks measure 22" long (20-1/2." O.D.). Operated by a hand-crank winch that features a reversible handle and a hold-down device for securing the carriage during transport. Forks raise 1" per complete hand crank rotation. The non-adjustable forks can be inverted to provide different height ranges. Two 8" non-marking rear wheels, two 2" front swivel casters. Counter balanced design has poly-on-poly wheels, (2) 5" rear swivel wheels, (2) 4" front wheels. Models ending with 'HP' and 'EHP' suffixes have extended height capabilities. These units have a 2 stage mast system and a telescoping inner mast frame, giving the user the ability to extend the forks above the height of the first mast.

Optional aluminum ladder can be retrofitted or ordered with A-LIFT. Ladder retracts into unit upright when not in use. Model A-LIFT-LAD is 20-1/2"W x 57-1/2"H, while model A-LIFT-EHP-LAD is 20-5/8"W x 69-1/2"H with 11-3/4 rung spacing. Ladder capacity is 250 lbs.

  • Lightweight portable lifts are great for hundreds of applications

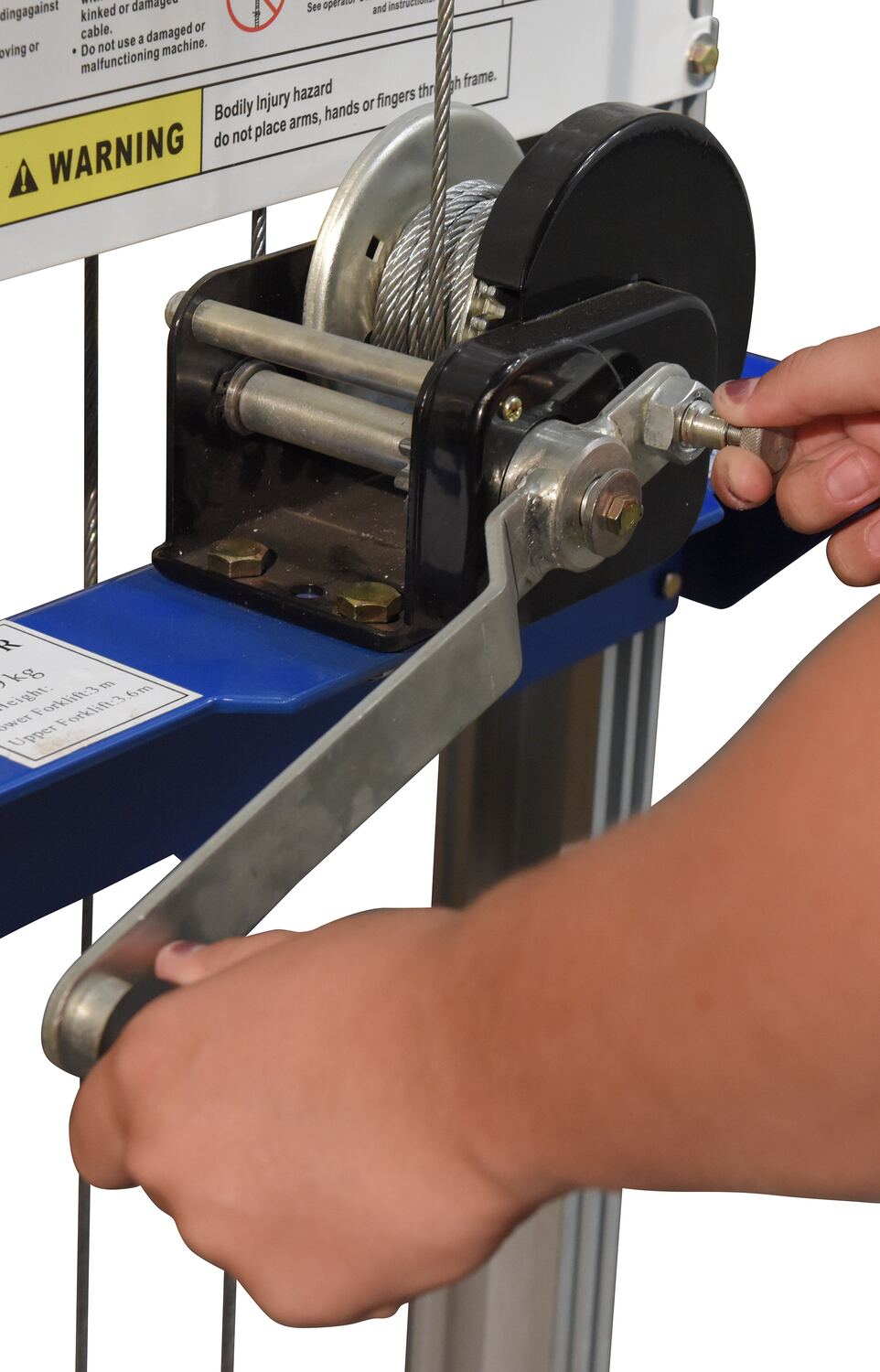

  • Manual cable winch easily raises and lowers forks
  • Counterbalance weight design keeps unit from tipping with heavy loads

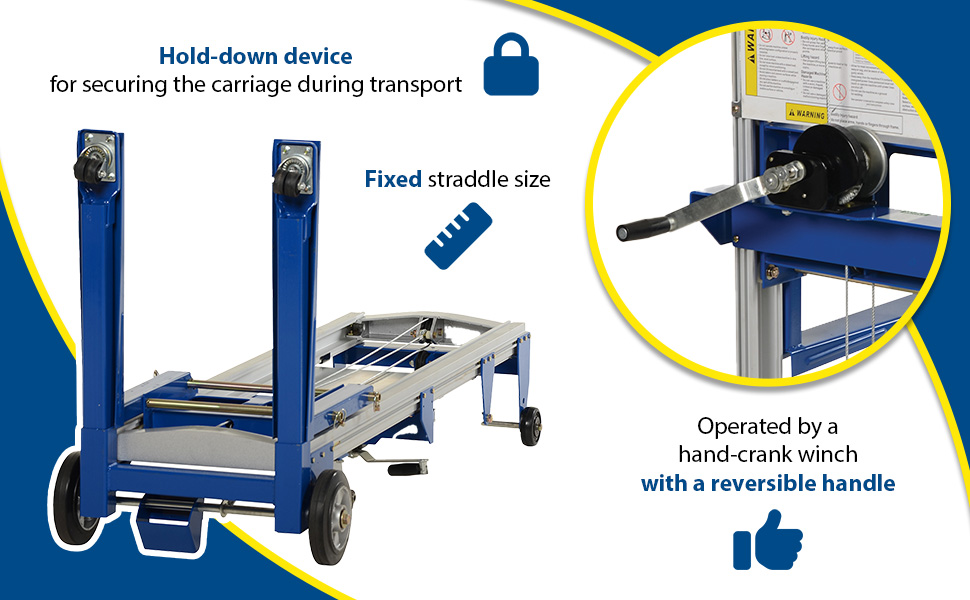

  • Hold-down device secures carriage during transport

Compact lift trucks are designed to lift material to and from shelves, move office equipment, and install ceiling/wall appliances. Constructed of durable steel-and-aluminum. The rugged 4" wide by 1-3/4" thick steel forks measure 22" long (20-1/2." O.D.). Operated by a hand-crank winch that features a reversible handle and a hold-down device for securing the carriage during transport. Forks raise 1" per complete hand crank rotation. The non-adjustable forks can be inverted to provide different height ranges. Two 8" non-marking rear wheels, two 2" front swivel casters. Counter balanced design has poly-on-poly wheels, (2) 5" rear swivel wheels, (2) 4" front wheels. Models ending with 'HP' and 'EHP' suffixes have extended height capabilities. These units have a 2 stage mast system and a telescoping inner mast frame, giving the user the ability to extend the forks above the height of the first mast.

Optional aluminum ladder can be retrofitted or ordered with A-LIFT. Ladder retracts into unit upright when not in use. Model A-LIFT-LAD is 20-1/2"W x 57-1/2"H, while model A-LIFT-EHP-LAD is 20-5/8"W x 69-1/2"H with 11-3/4 rung spacing. Ladder capacity is 250 lbs.

  • Lightweight portable lifts are great for hundreds of applications
  • Manual cable winch easily raises and lowers forks
  • Counterbalance weight design keeps unit from tipping with heavy loads
  • Hold-down device secures carriage during transport

Other Portable Load Lifters

 Versatile Quick Lifts Adjustable Height Work Stand Portable Hand Winch Lifter Manual & DC Work Positioners

Additional Models In This Family
view entire Image Gallery

A-LIFT-EHP-LAD

A-LIFT-EHP-LAD

A-LIFT-S-EHP

A-LIFT-S-EHP

A-LIFT-LAD

A-LIFT-LAD

A-LIFT-S-EHP

A-LIFT-S-EHP

A-LIFT-CB

A-LIFT-CB

A-LIFT-R

A-LIFT-R

A-LIFT-CB-HP

A-LIFT-CB-HP

A-LIFT-S

A-LIFT-S

A-LIFT-LAD

A-LIFT-LAD

A-LIFT-EHP-LAD

A-LIFT-EHP-LAD

A-LIFT-EHP-LAD

A-LIFT-EHP-LAD

A-LIFT-EHP-LAD

A-LIFT-EHP-LAD

A-LIFT-CB-EHP

A-LIFT-CB-EHP

A-LIFT-CB-HP

A-LIFT-CB-HP

A-LIFT-R

A-LIFT-R

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

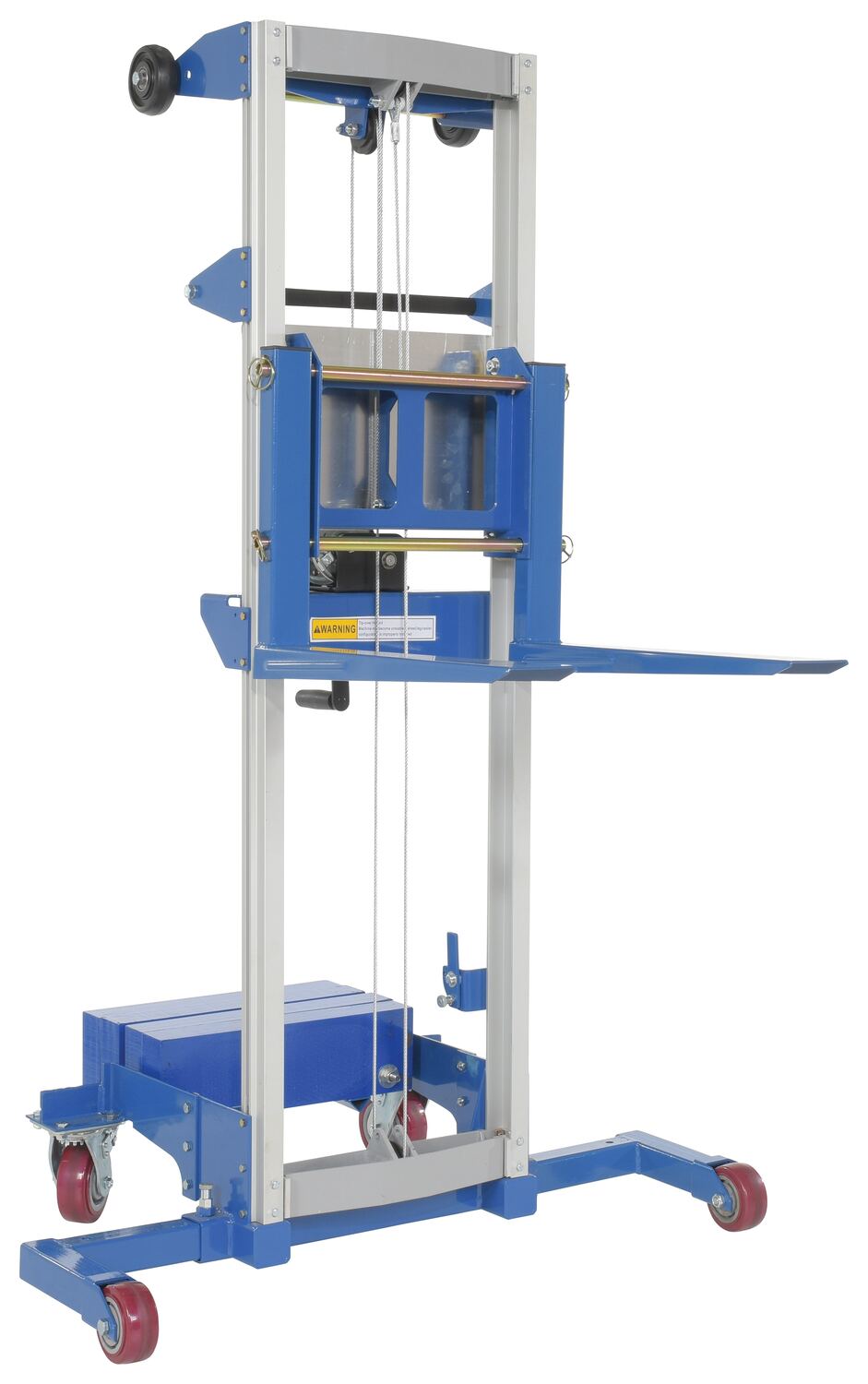

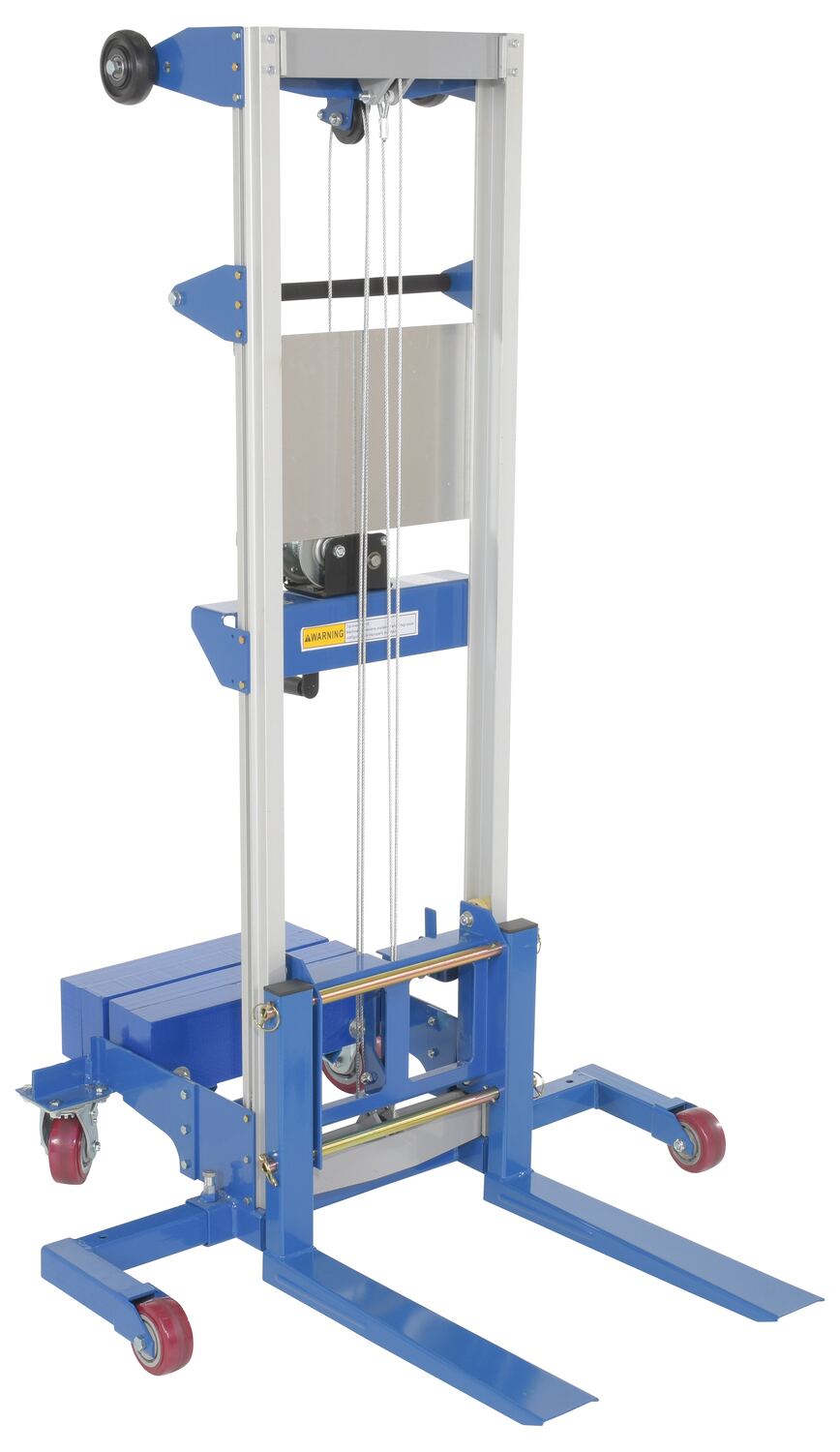

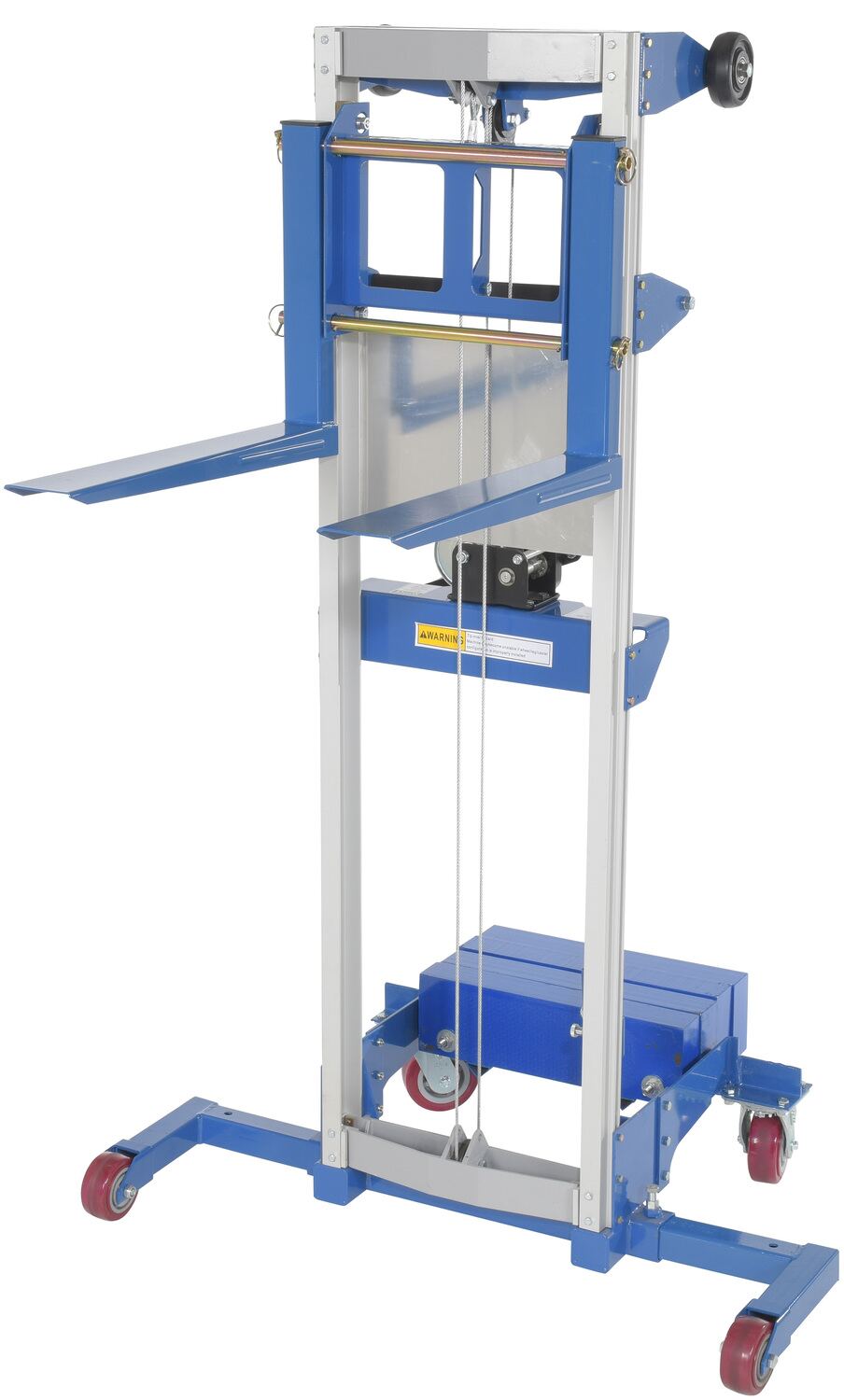

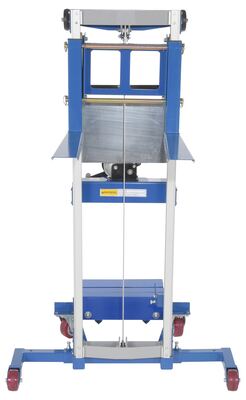

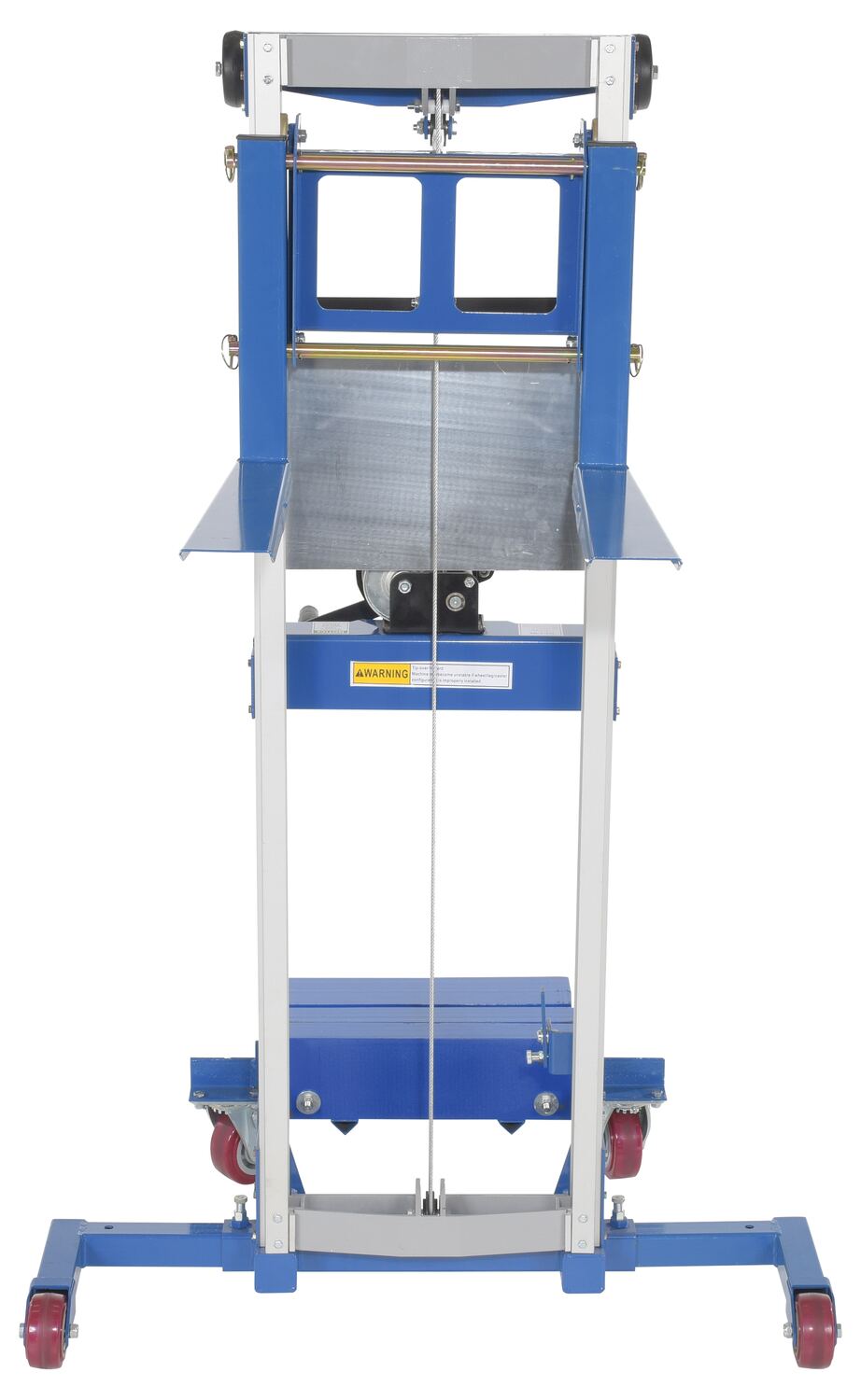

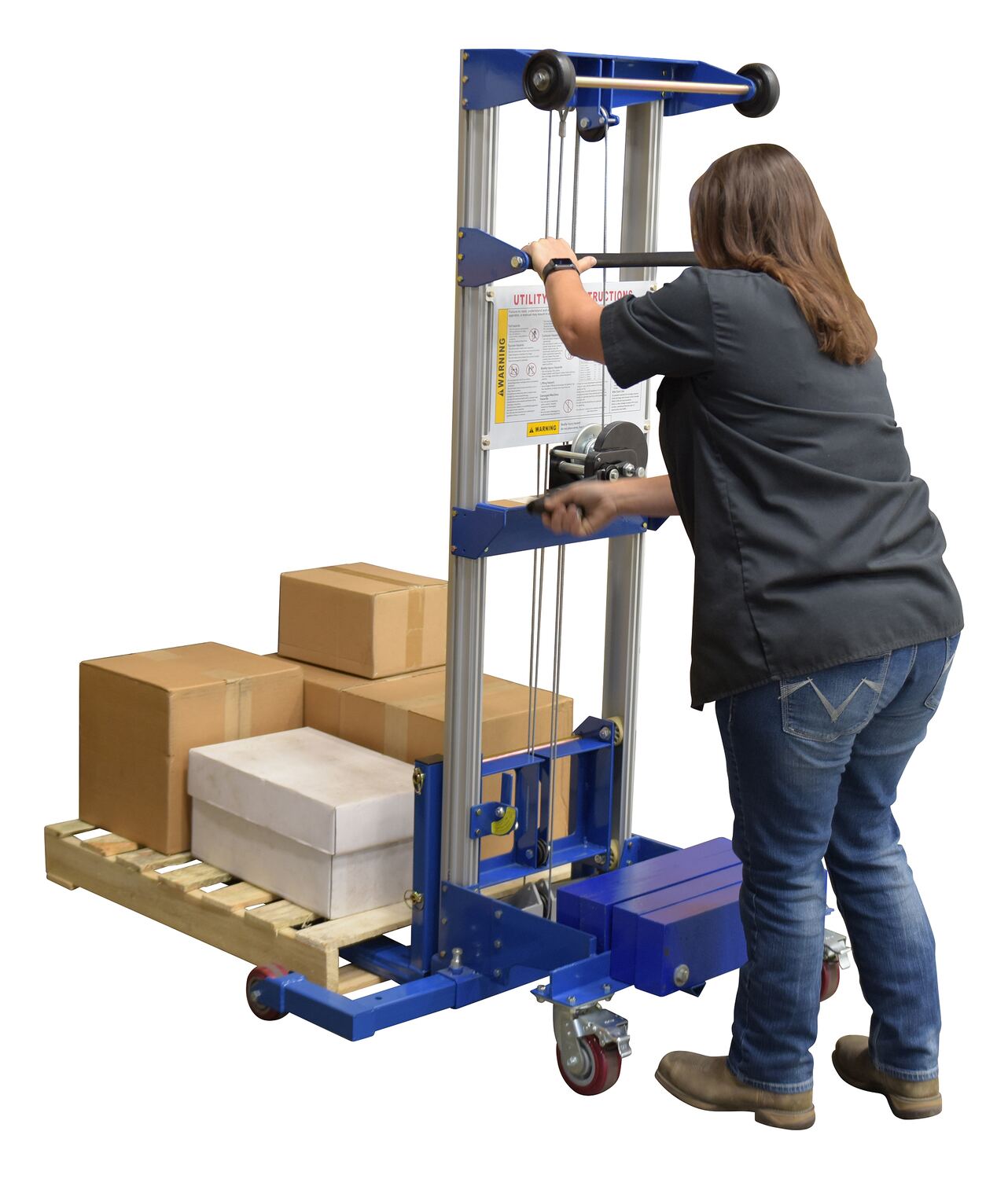

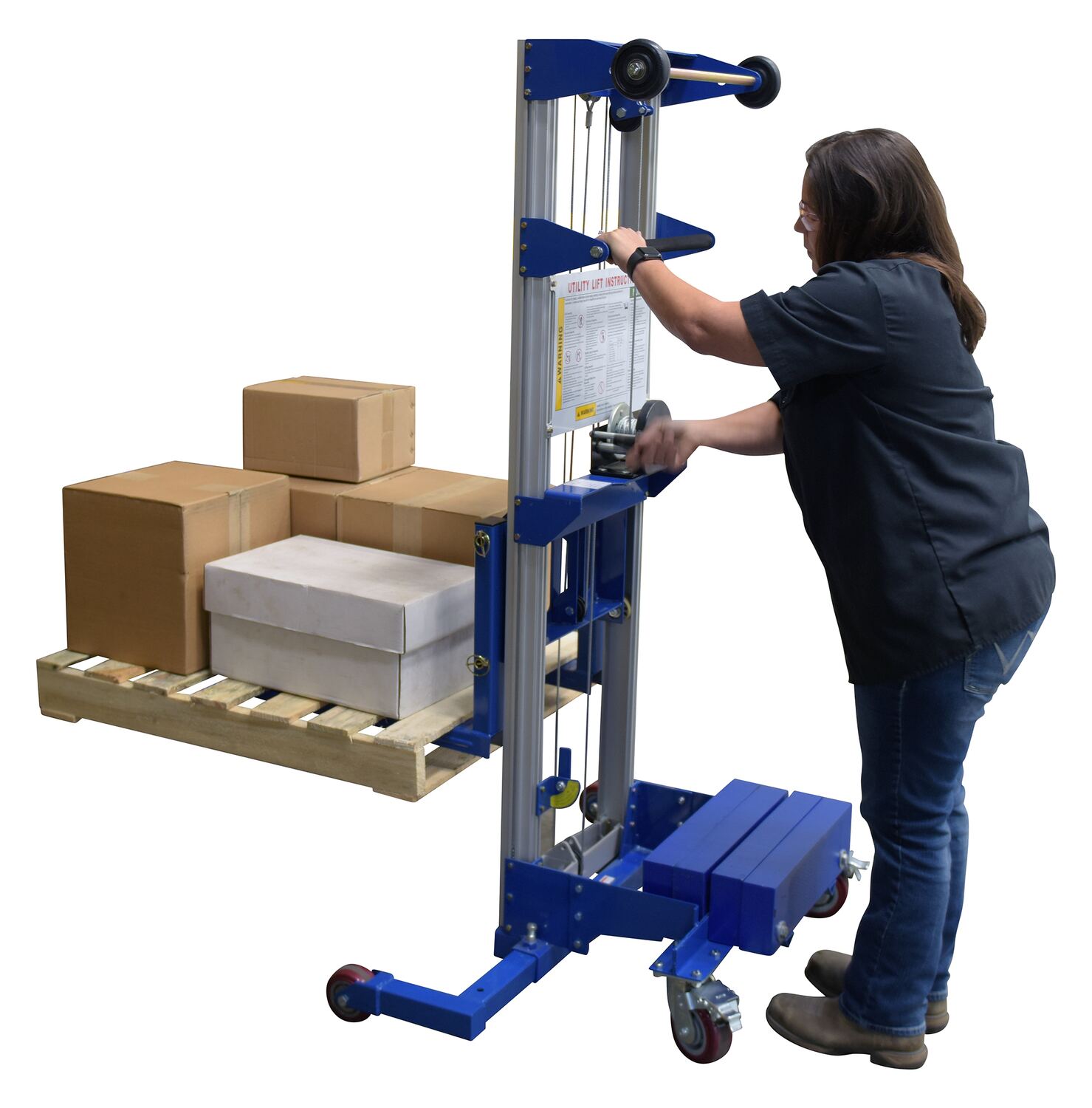

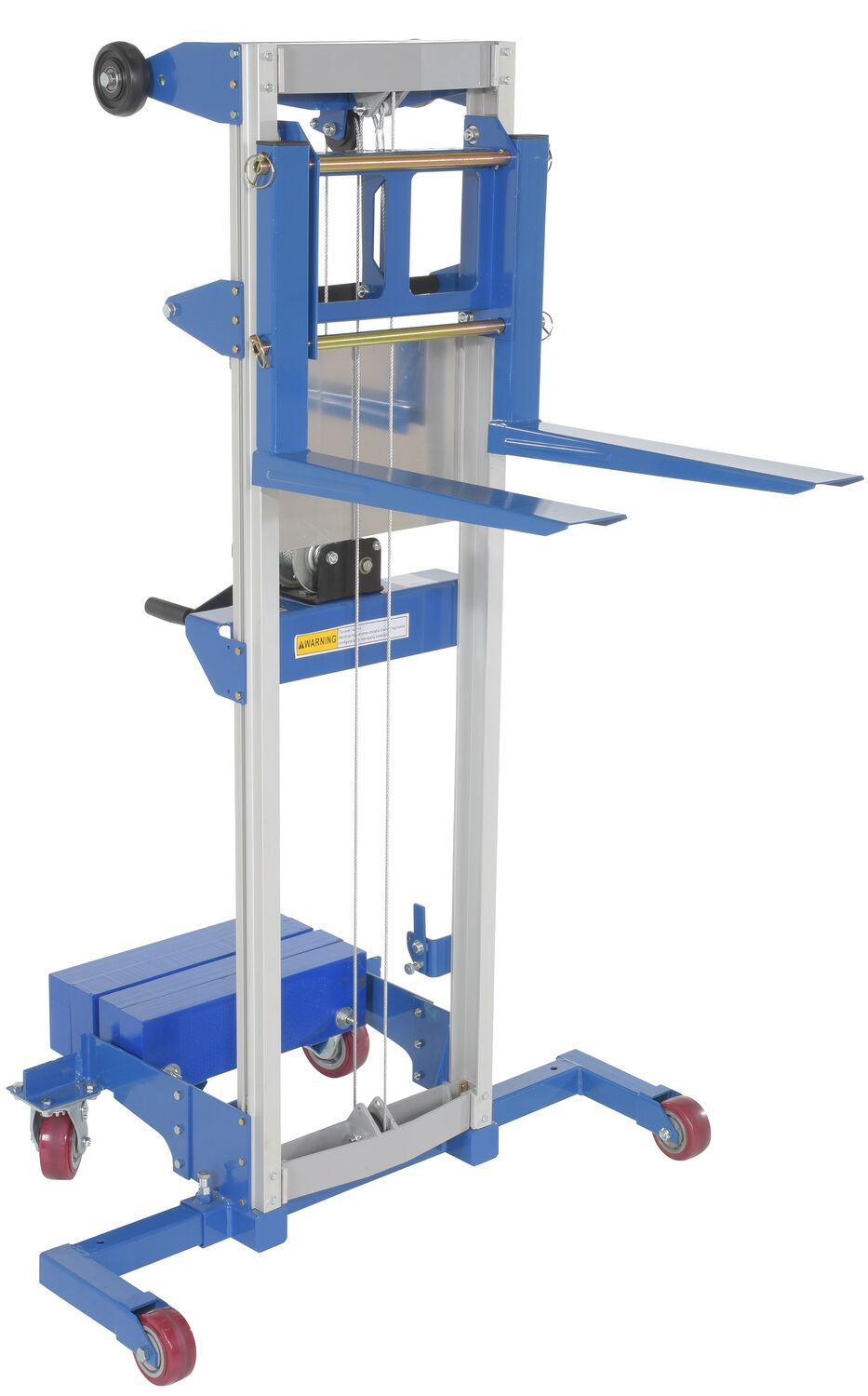

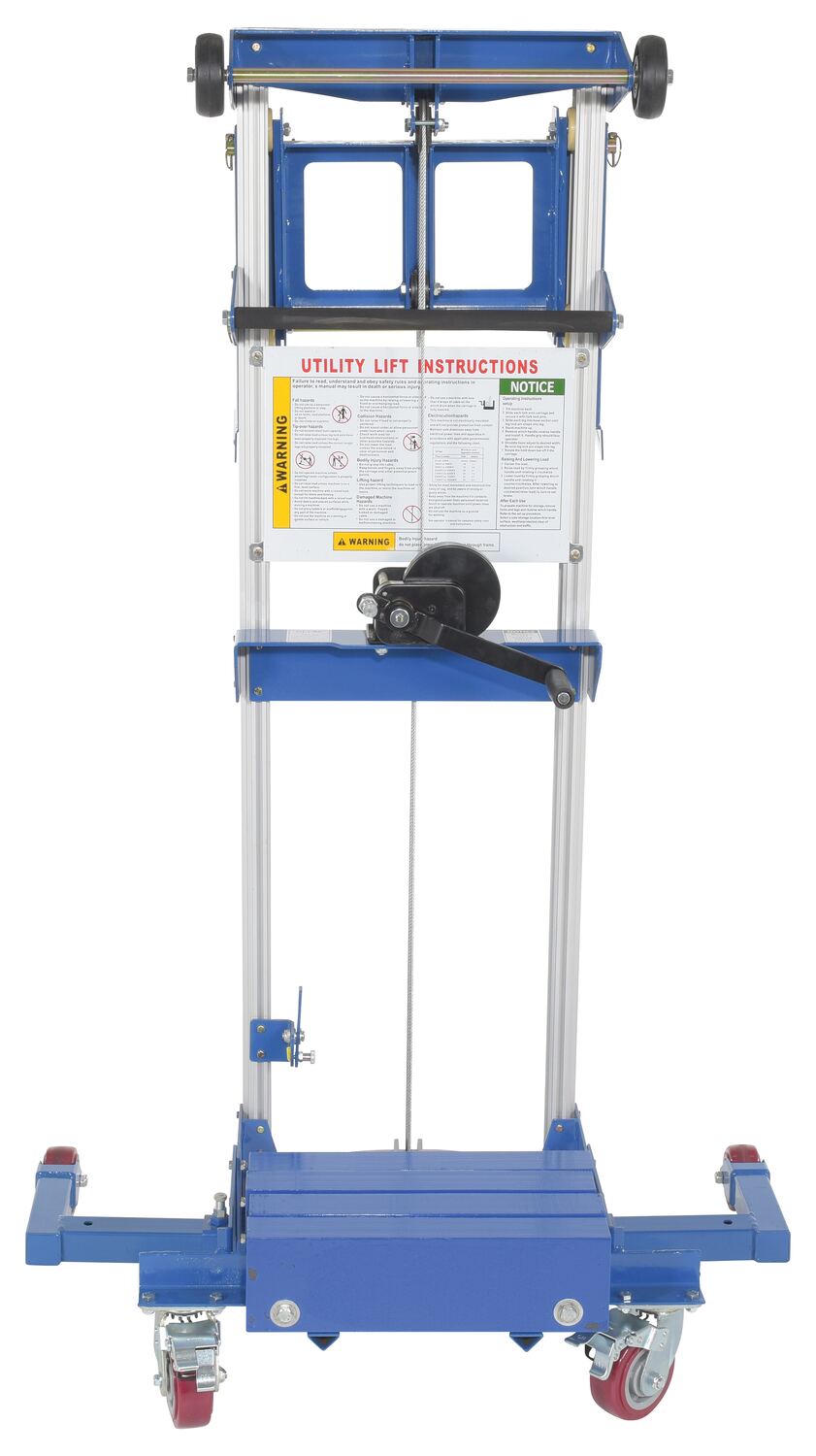

A-LIFT-CB A-LIFT-CB1 Year Limited WarrantyAluminum/Steel Manual Hand Winch Lift Truck With Counter Balance 500 Lb. Capacity Silver/BlueUniform Capacity (lb.): 500
Lowered Height with Forks Down (in.): 2		437

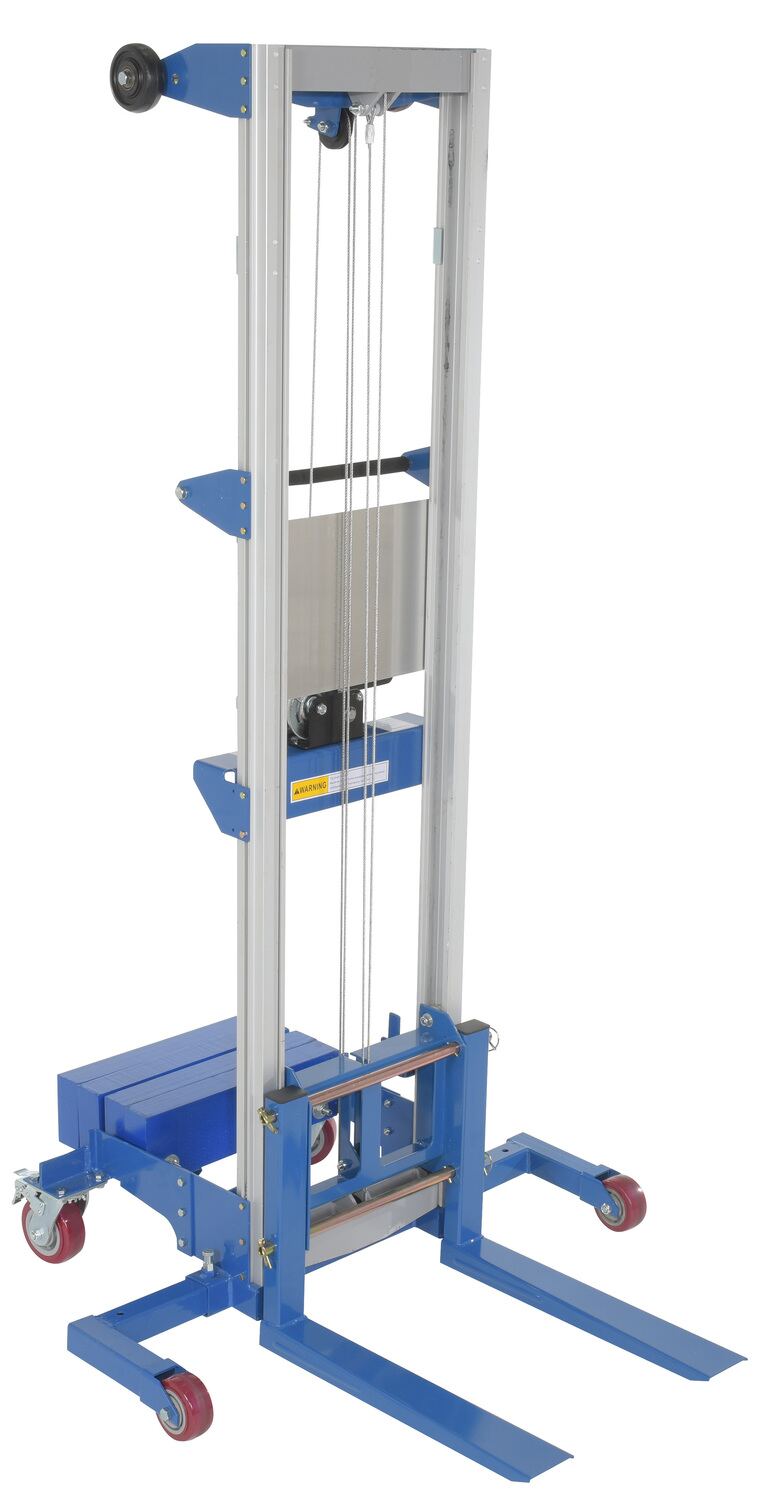

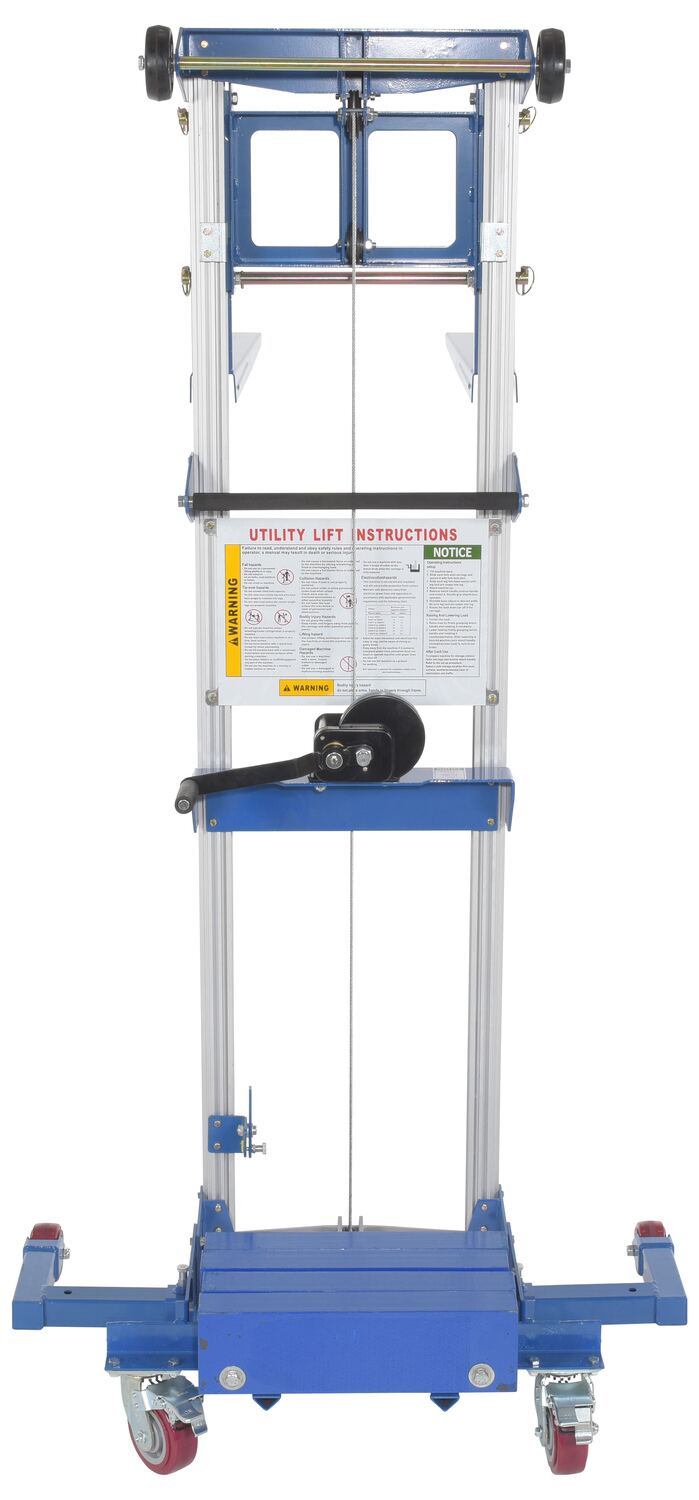

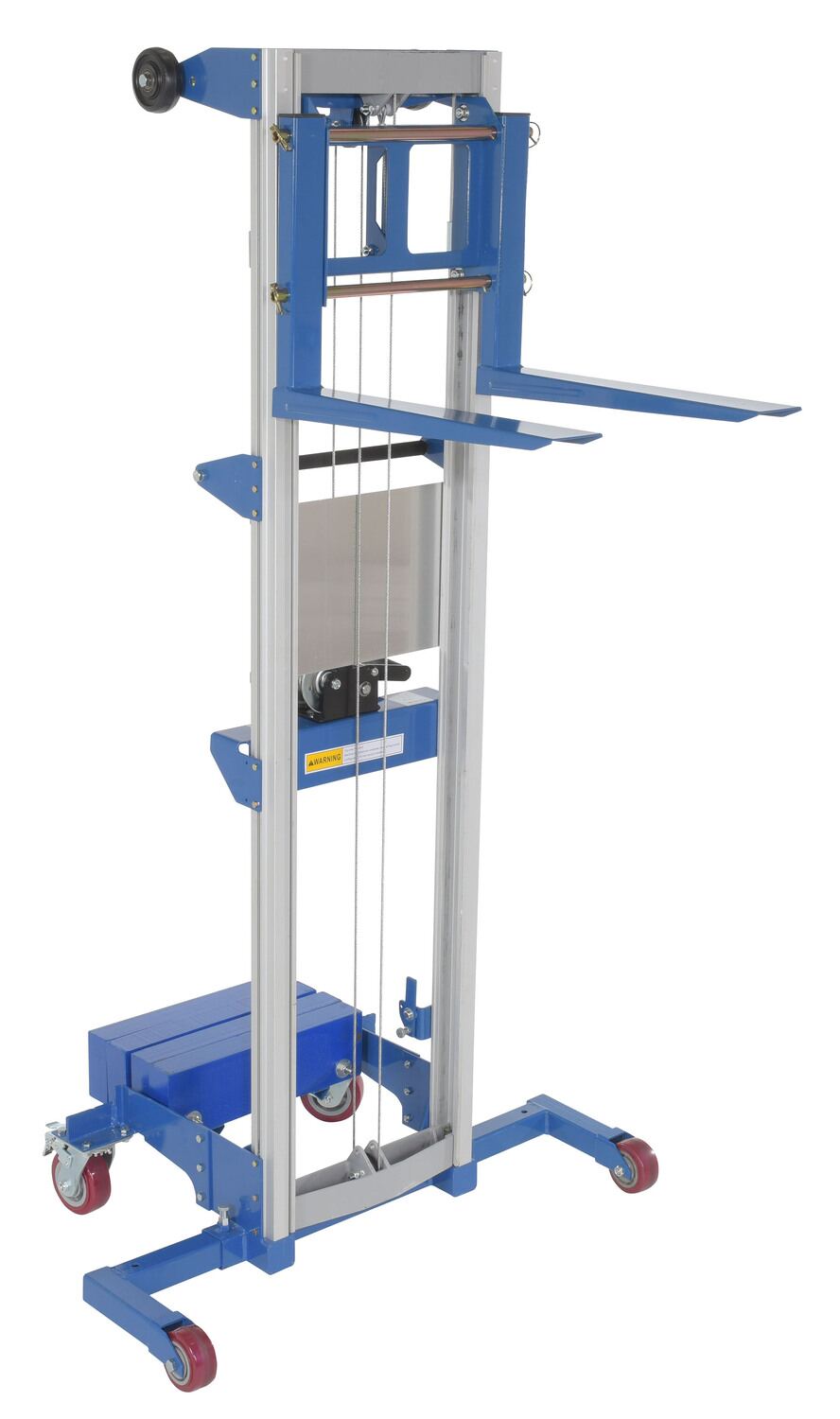

A-LIFT-CB-EHP A-LIFT-CB-EHP1 Year Limited WarrantyAluminum/Steel Manual Hand Winch Lift Truck With Counter Balance 350 Lb. Capacity Silver/BlueUniform Capacity (lb.): 350
Lowered Height with Forks Down (in.): 2 / 21-1/4		454

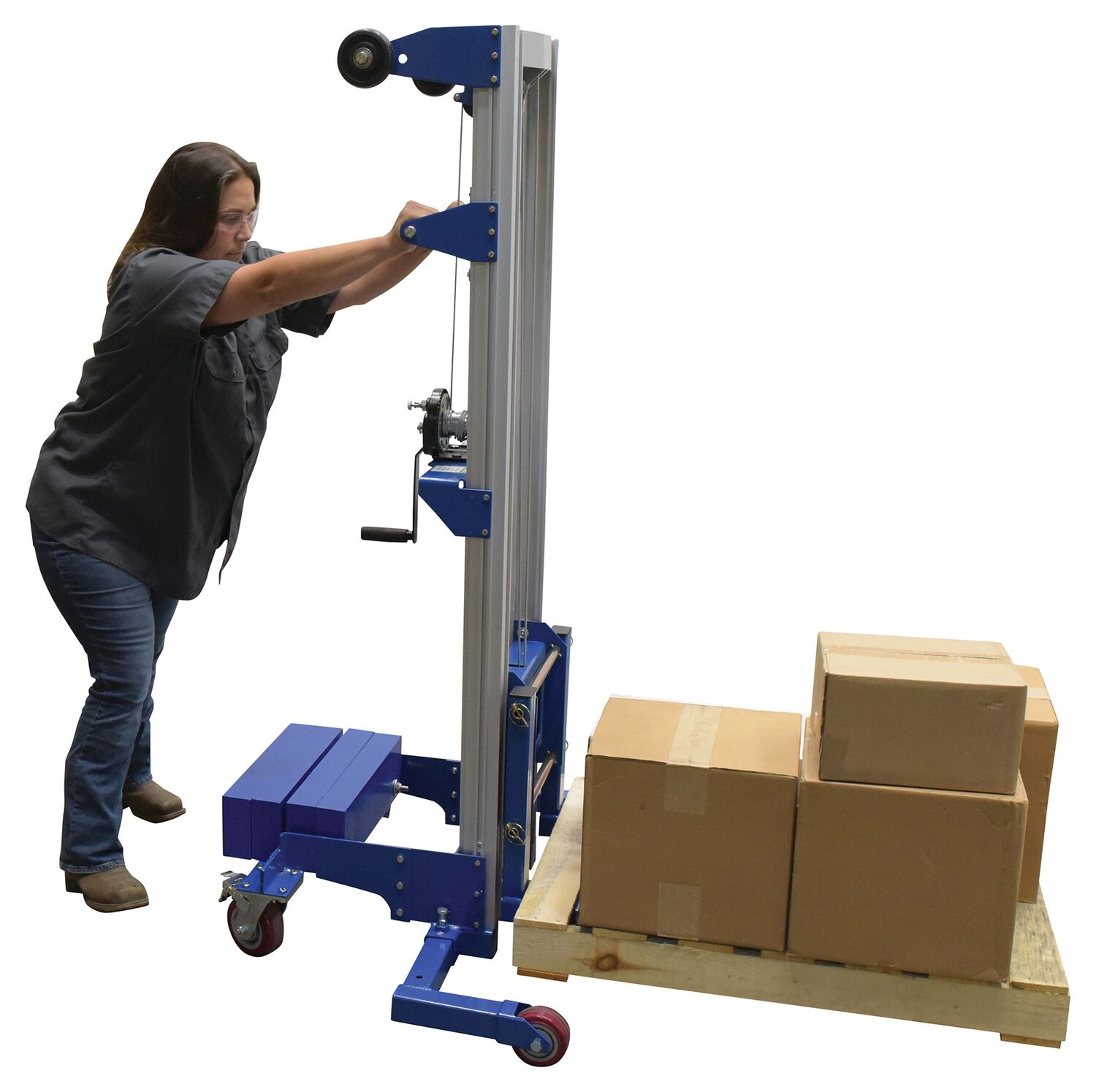

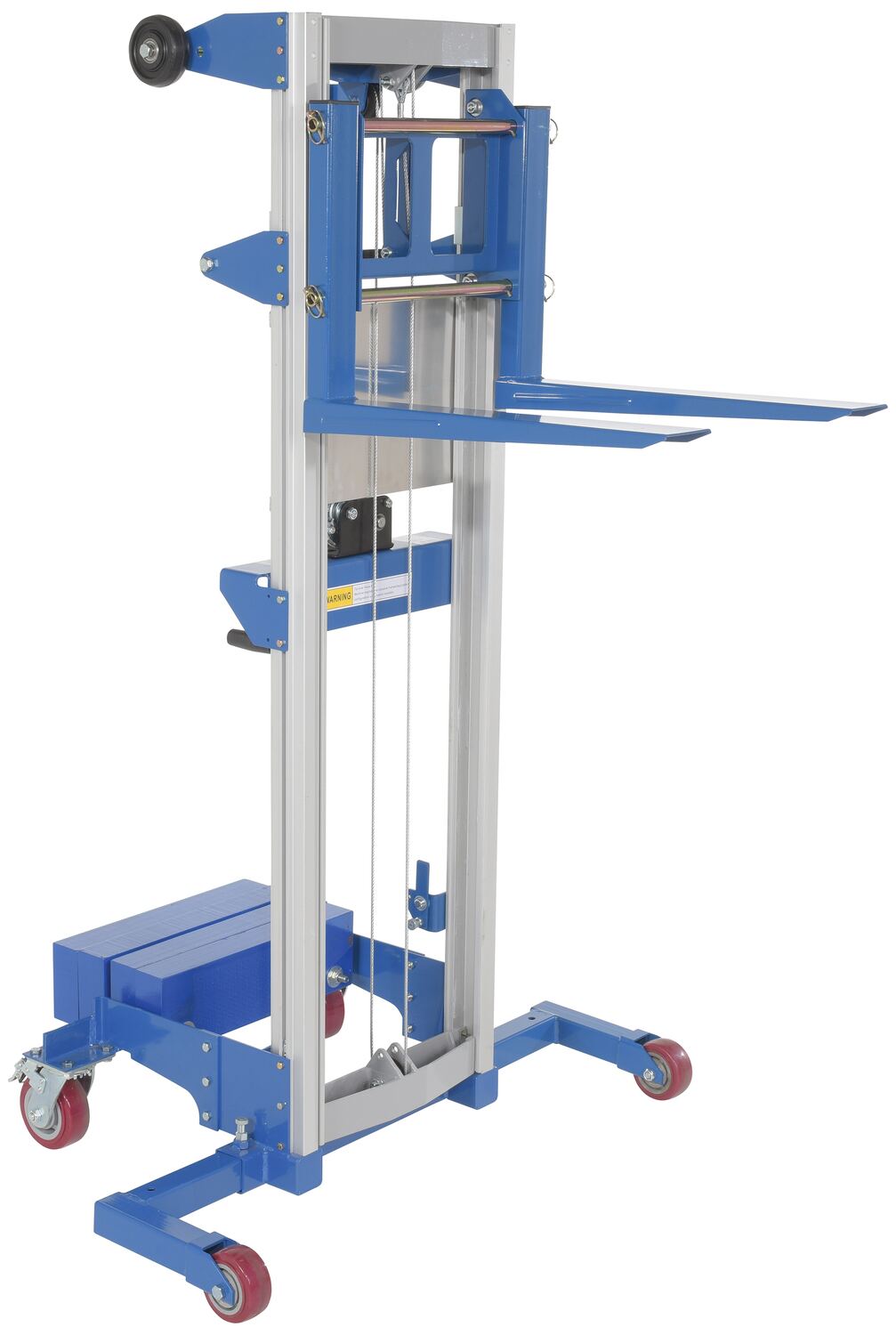

A-LIFT-CB-HP A-LIFT-CB-HP1 Year Limited WarrantyAluminum/Steel Manual Hand Winch Lift Truck With Counter Balance 400 Lb. Capacity Silver/BlueUniform Capacity (lb.): 400
Lowered Height with Forks Down (in.): 2 / 21-1/4		445

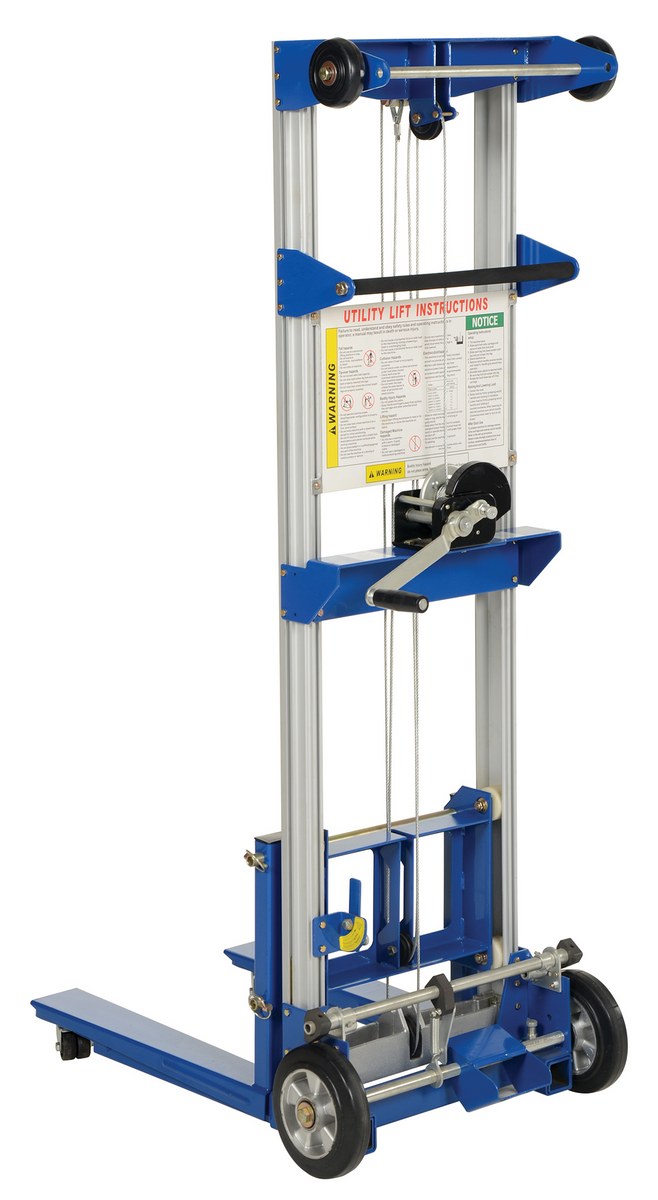

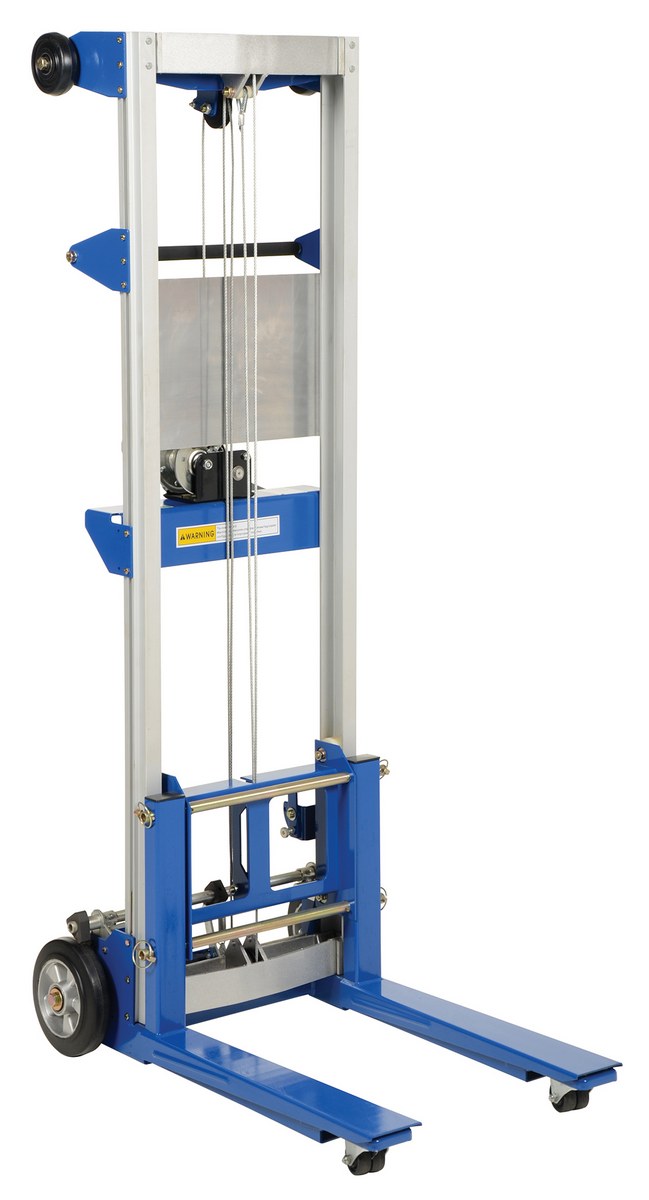

A-LIFT-R A-LIFT-R1 Year Limited WarrantyAluminum/Steel Fixed Straddle Manual Hand Winch Lift Trucks 500 Lb. Capacity Silver/BlueUniform Capacity (lb.): 500
Lowered Height (in.): 3-1/2 / 23-1/2		191

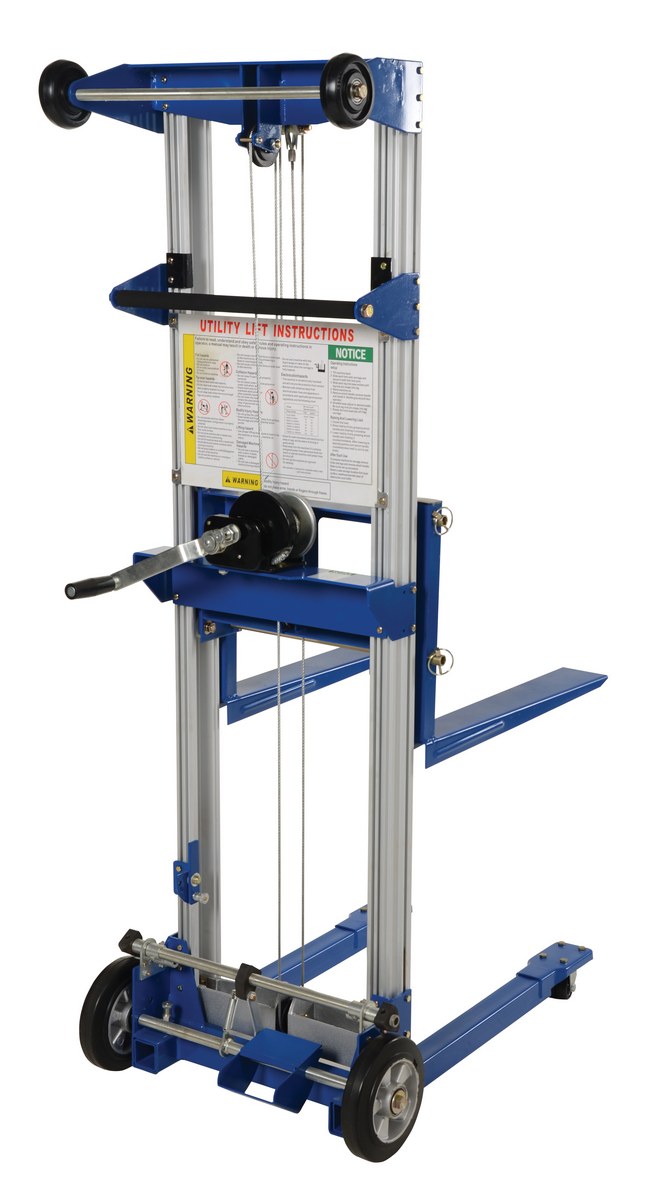

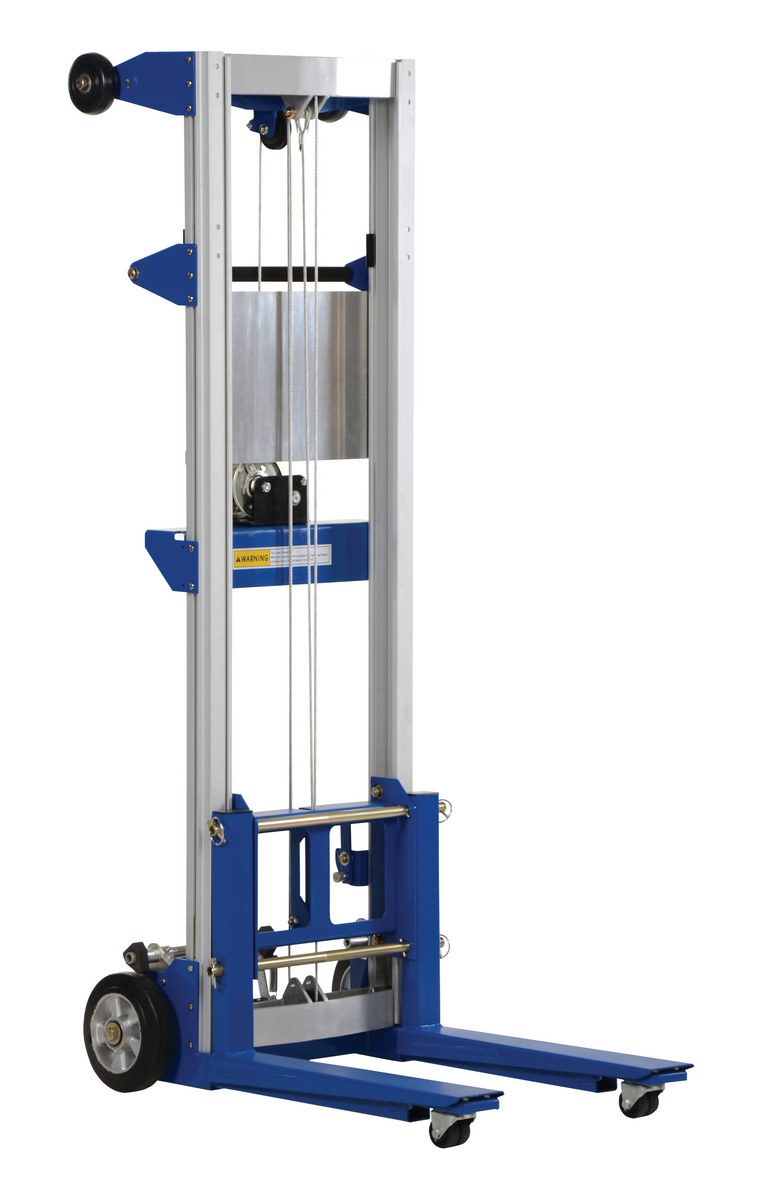

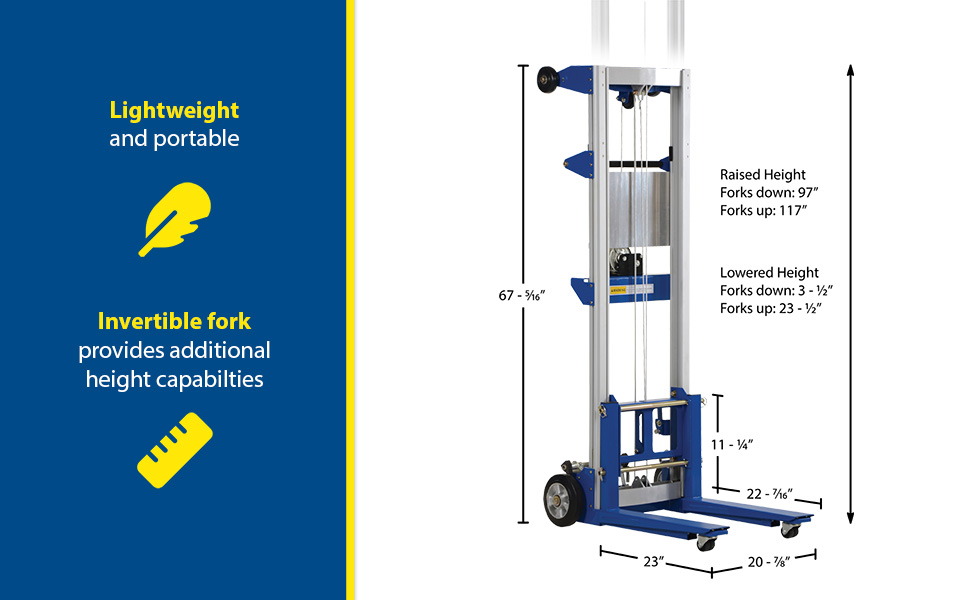

A-LIFT-R-HP A-LIFT-R-HP1 Year Limited WarrantyAluminum/Steel Fixed Straddle Manual Hand Winch Lift Trucks 400 Lb. Capacity Silver/BlueUniform Capacity (lb.): 400
Lowered Height (in.): 3-1/2 / 23-1/2		203

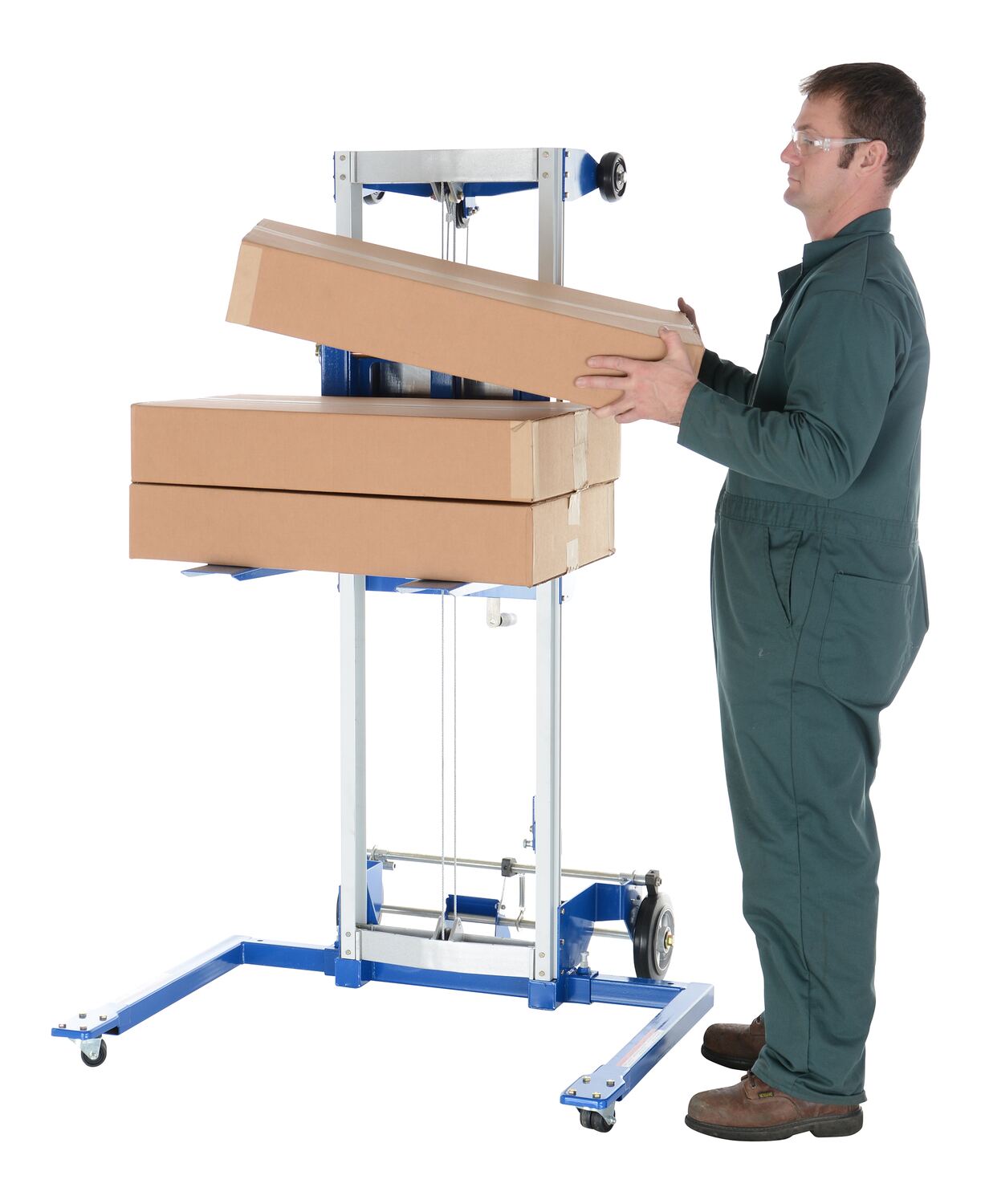

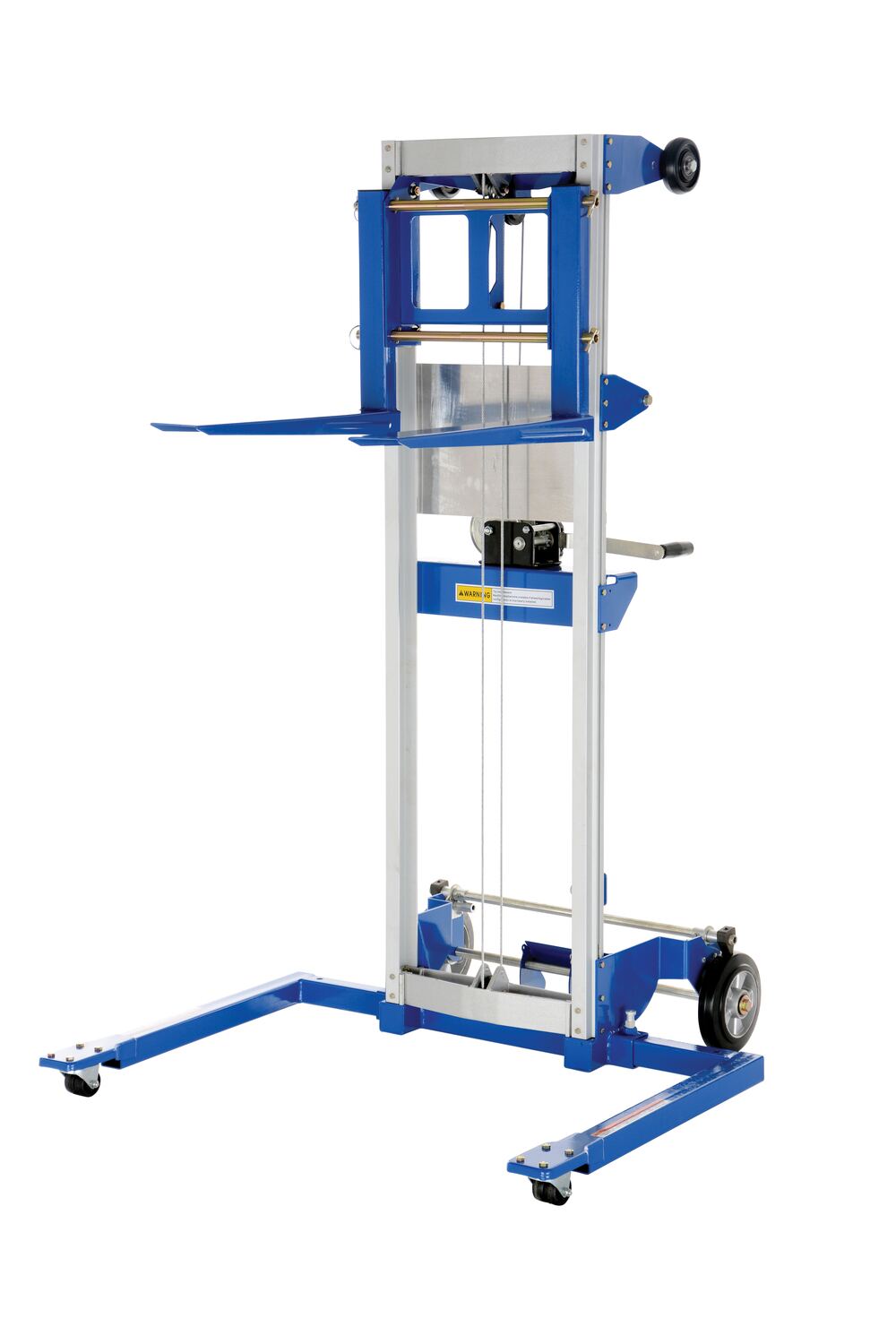

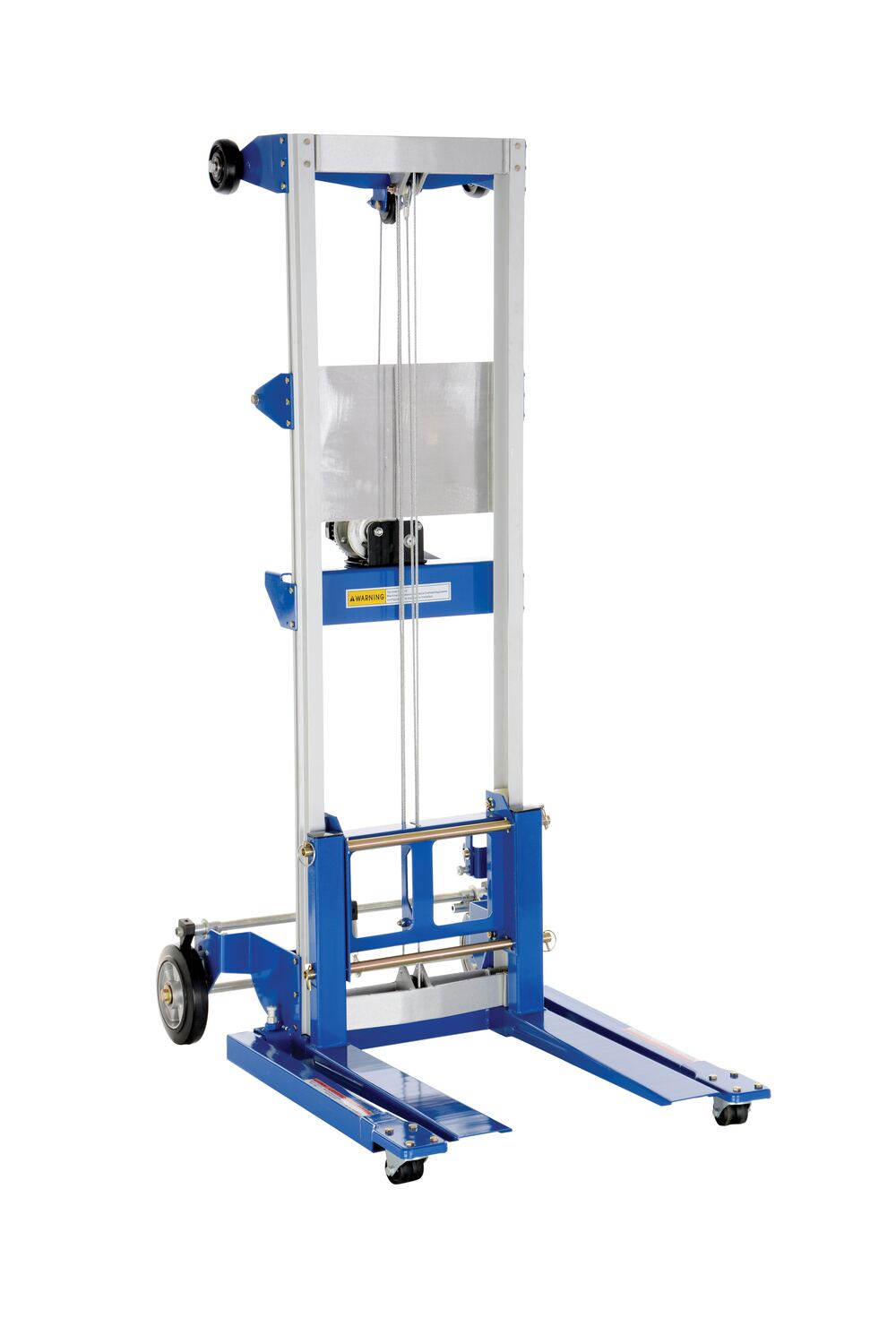

A-LIFT-S A-LIFT-S1 Year Limited WarrantyAluminum/Steel Adjustable Straddle Manual Hand Winch Lift Trucks 500 Lb. Capacity Silver/BlueUniform Capacity (lb.): 500
Lowered Height (in.): 1-1/4 / 21-1/4		200

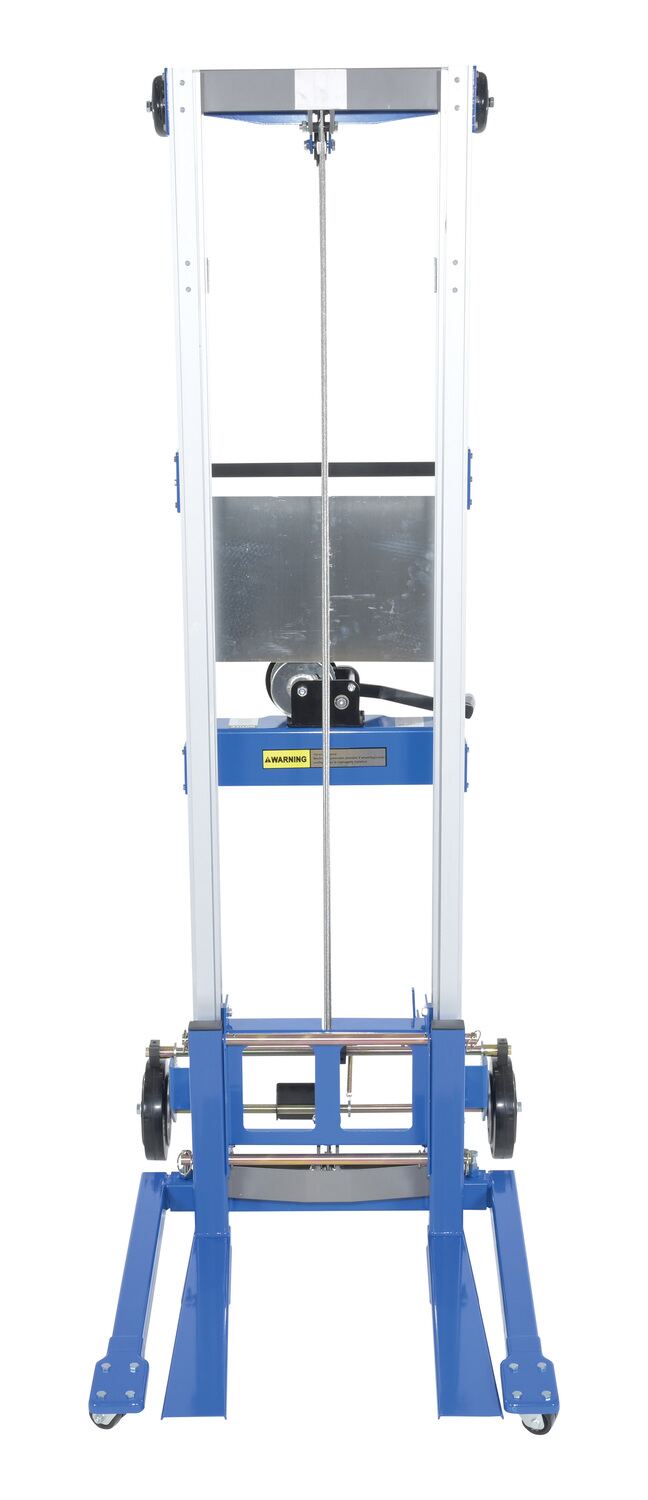

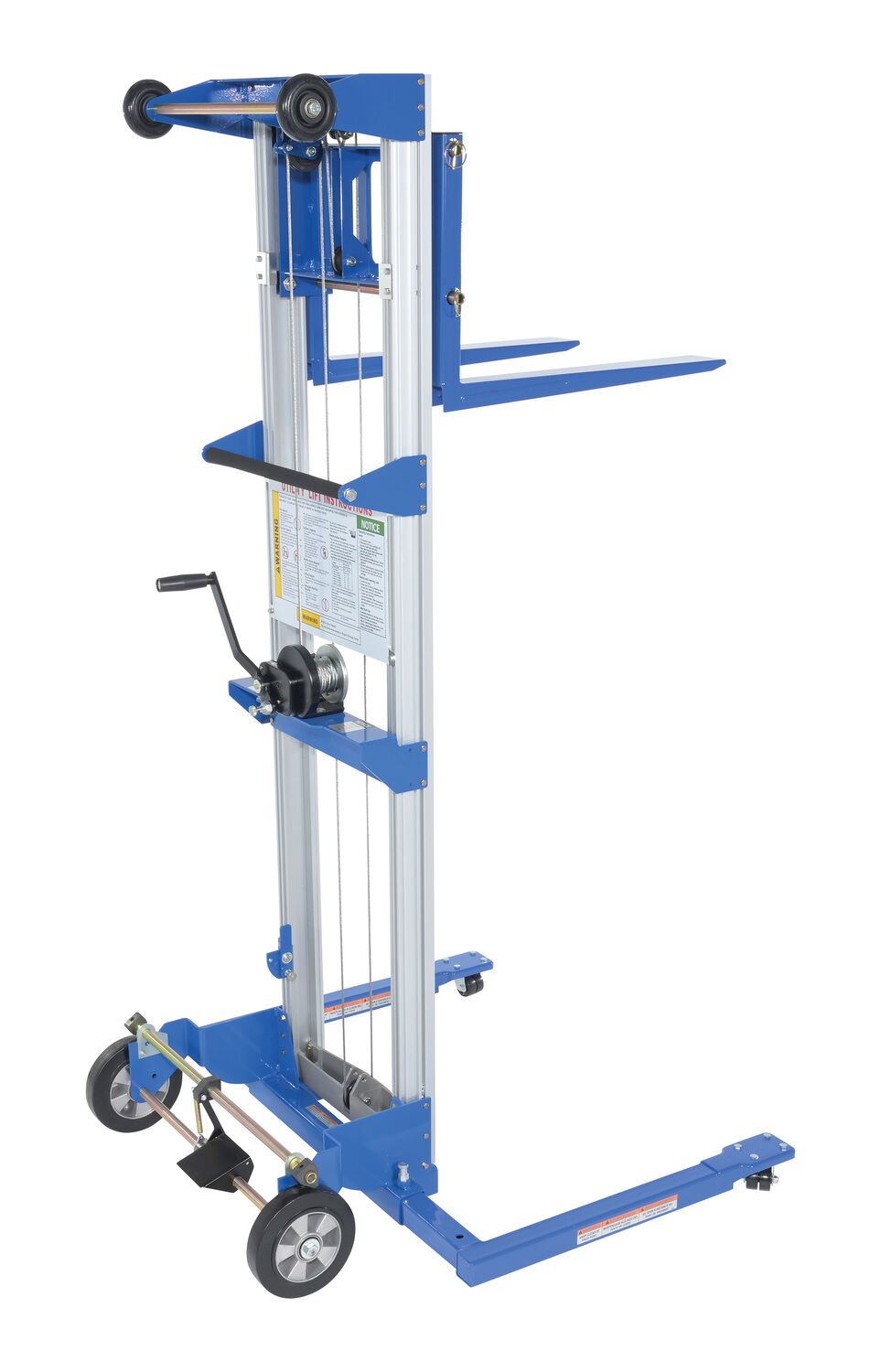

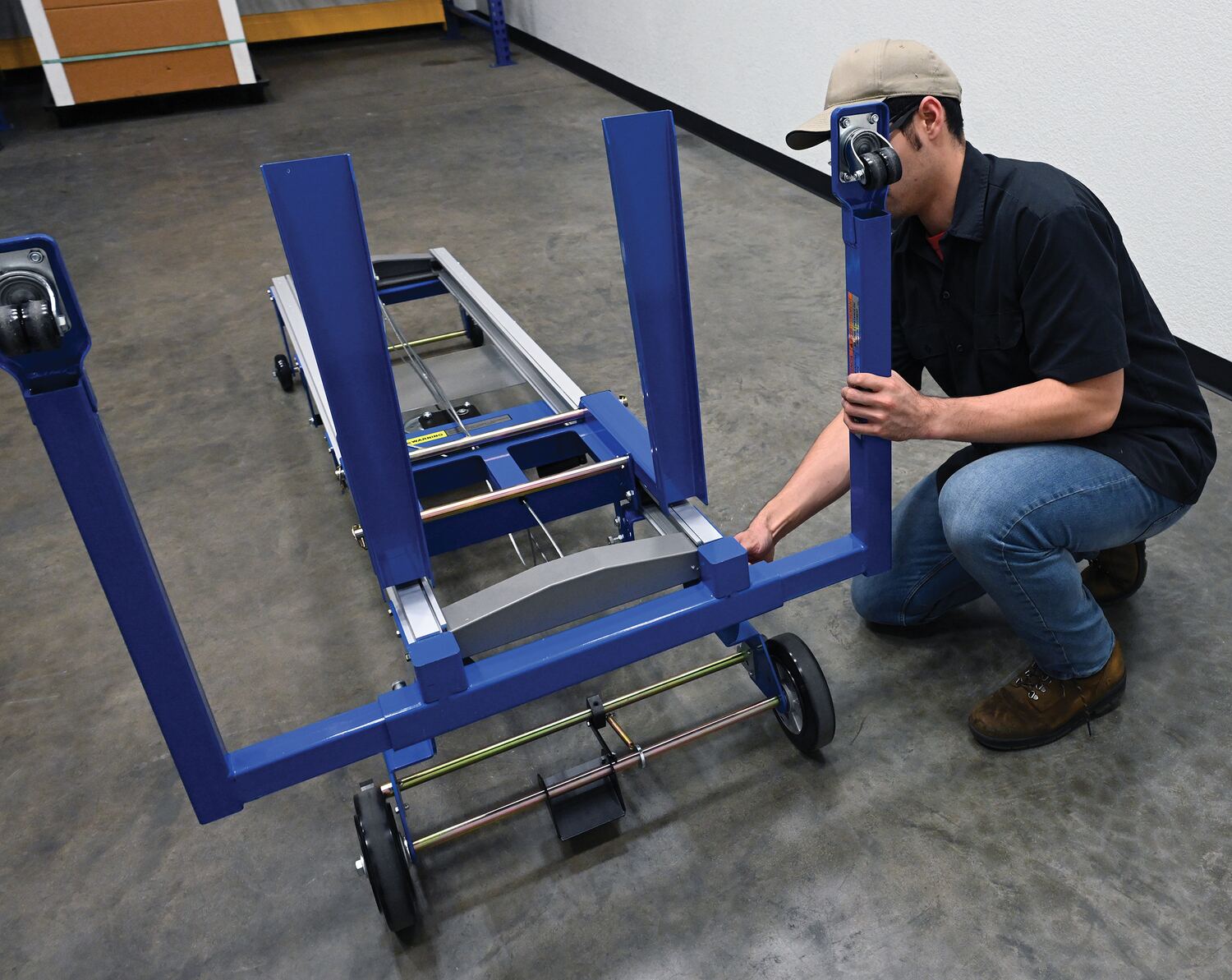

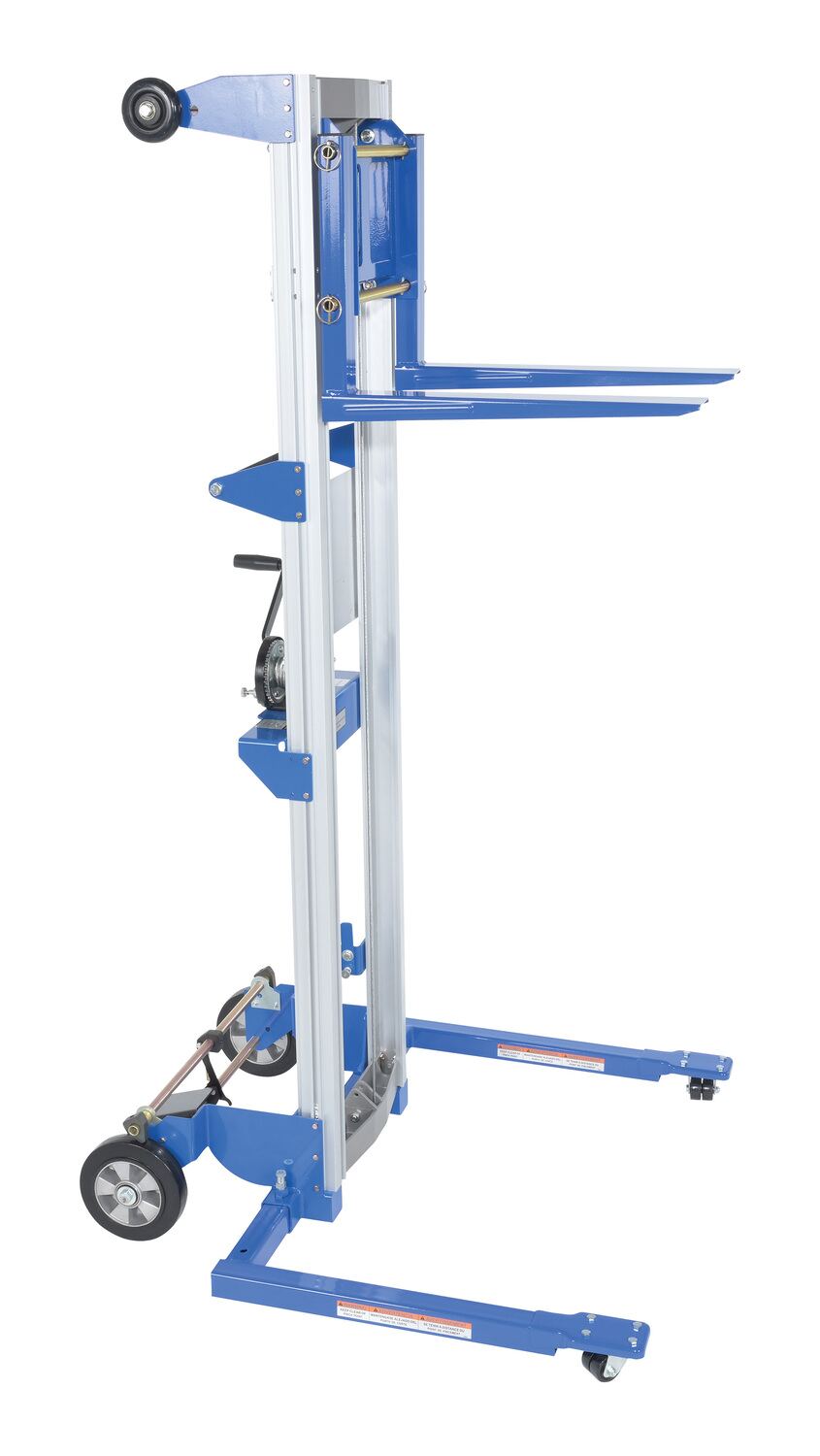

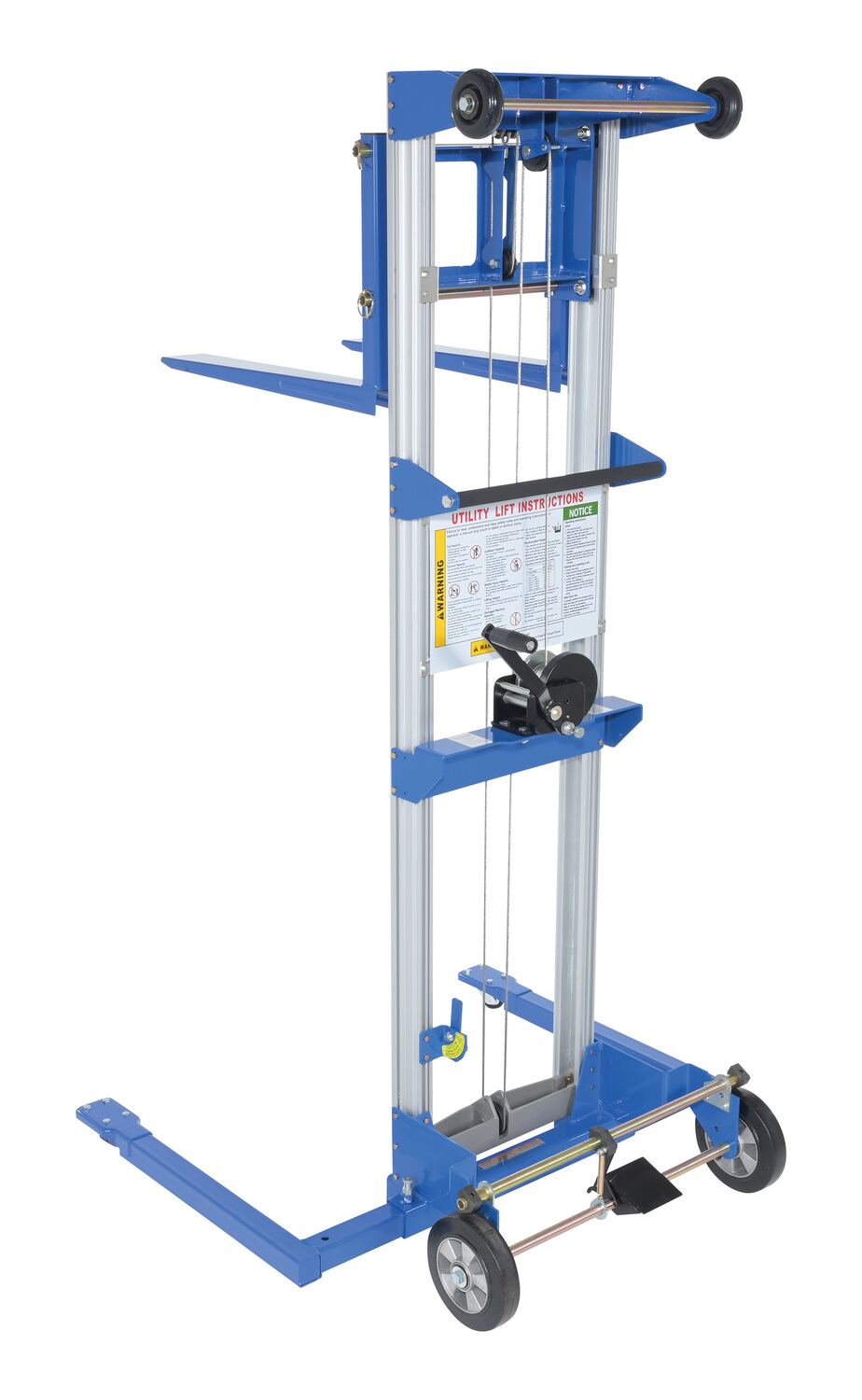

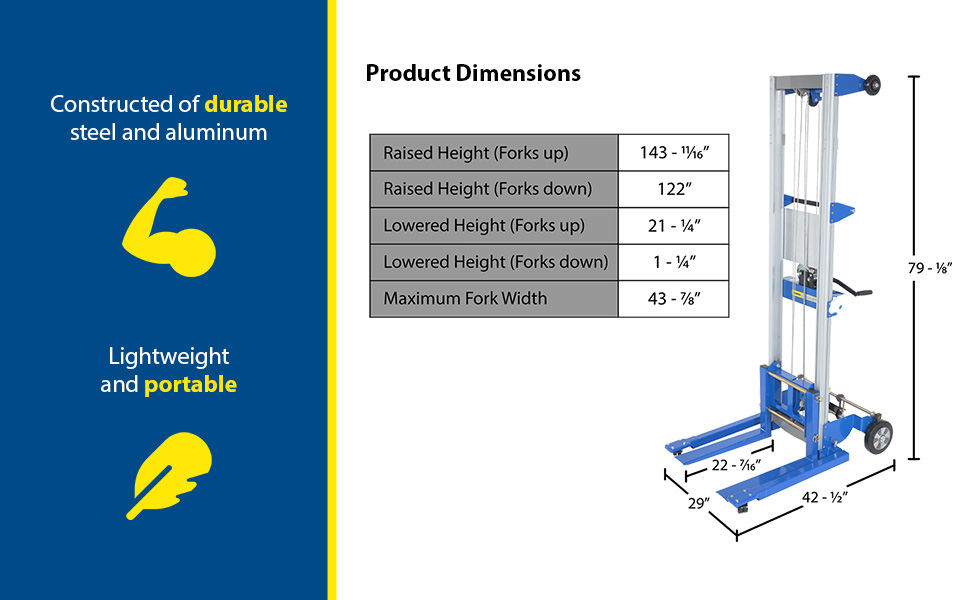

A-LIFT-S-EHP A-LIFT-S-EHP1 Year Limited WarrantyAluminum/Steel Adjustable Straddle Manual Hand Winch Lift Trucks 350 Lb. Capacity Silver/BlueUniform Capacity (lb.): 350
Lowered Height (in.): 1-1/4 / 21-1/4		226

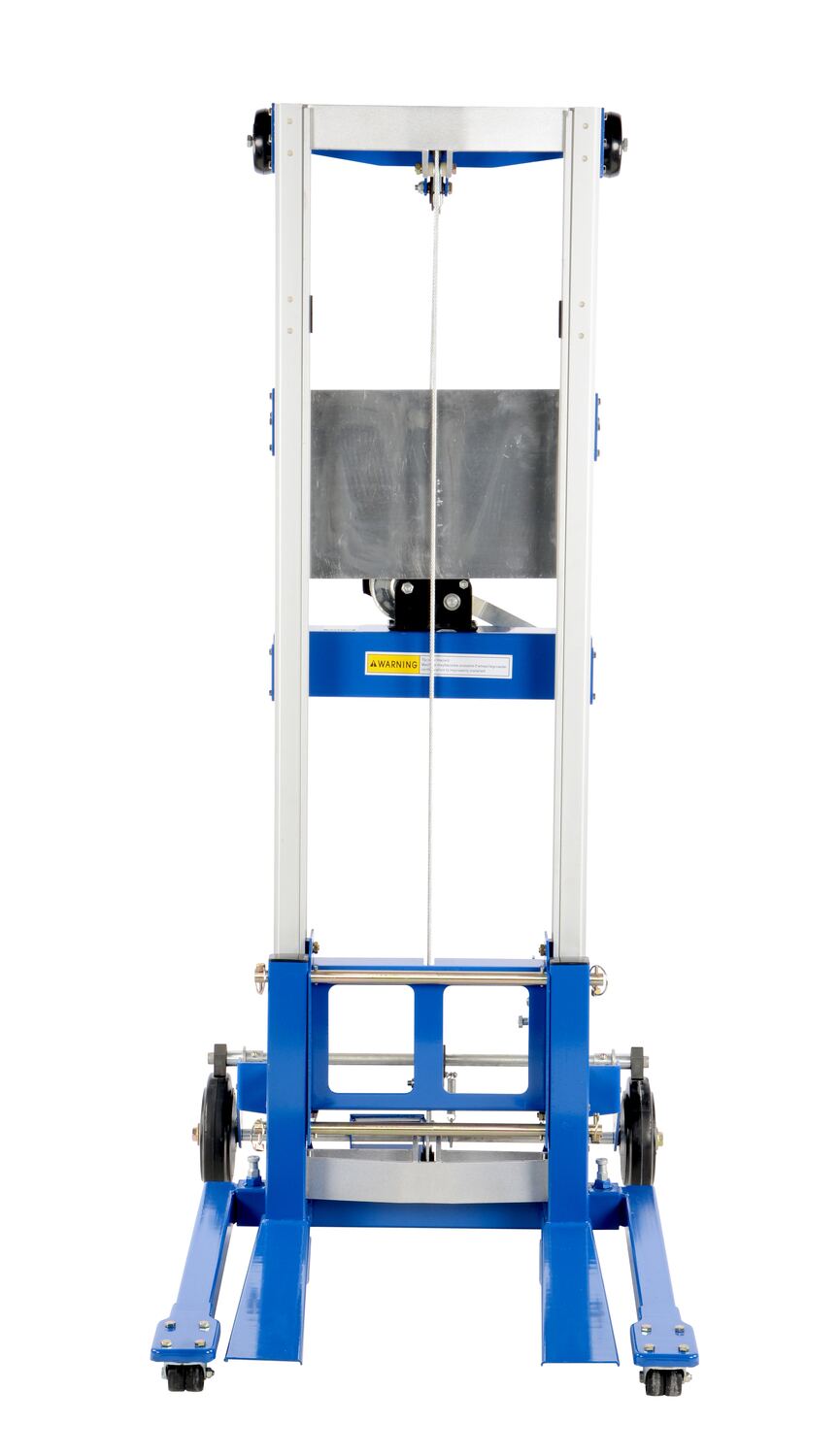

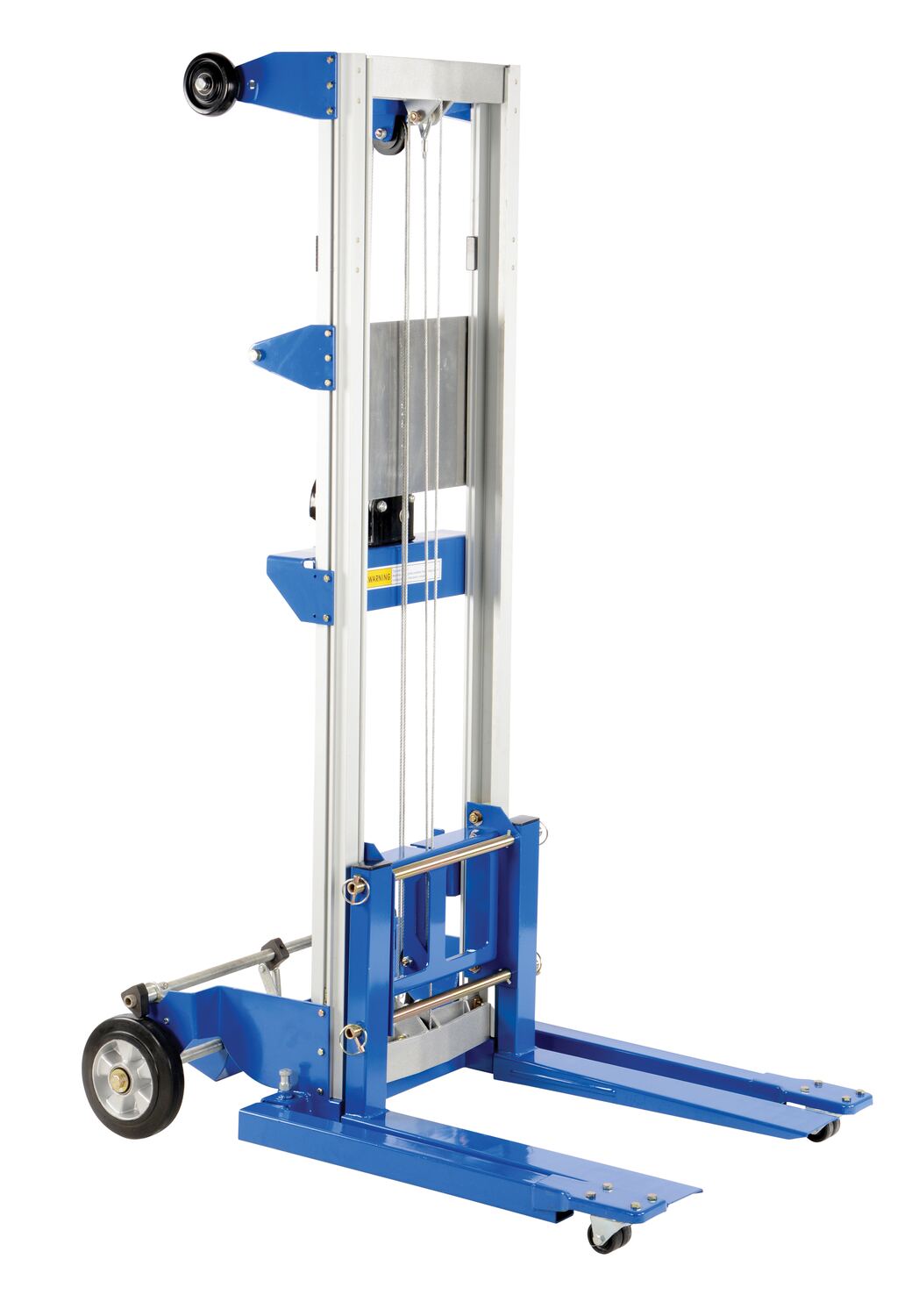

A-LIFT-S-HP A-LIFT-S-HP1 Year Limited WarrantyAluminum/Steel Adjustable Straddle Manual Hand Winch Lift Trucks 400 Lb. Capacity Silver/BlueUniform Capacity (lb.): 400
Lowered Height (in.): 1-1/4 / 21-1/4		219

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

A-LIFT-CB
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 500
Lowered Height with Forks Down (in.): 2
Uniform Capacity (lb.): 500
Lowered Height with Forks Down (in.): 2

A-LIFT-CB-EHP
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 350
Lowered Height with Forks Down (in.): 2 / 21-1/4
Uniform Capacity (lb.): 350
Lowered Height with Forks Down (in.): 2 / 21-1/4

A-LIFT-CB-HP
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 400
Lowered Height with Forks Down (in.): 2 / 21-1/4
Uniform Capacity (lb.): 400
Lowered Height with Forks Down (in.): 2 / 21-1/4

A-LIFT-R
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 500
Lowered Height (in.): 3-1/2 / 23-1/2
Uniform Capacity (lb.): 500
Lowered Height (in.): 3-1/2 / 23-1/2

A-LIFT-R-HP
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 400
Lowered Height (in.): 3-1/2 / 23-1/2
Uniform Capacity (lb.): 400
Lowered Height (in.): 3-1/2 / 23-1/2

A-LIFT-S
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 500
Lowered Height (in.): 1-1/4 / 21-1/4
Uniform Capacity (lb.): 500
Lowered Height (in.): 1-1/4 / 21-1/4

A-LIFT-S-EHP
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 350
Lowered Height (in.): 1-1/4 / 21-1/4
Uniform Capacity (lb.): 350
Lowered Height (in.): 1-1/4 / 21-1/4

A-LIFT-S-HP
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 400
Lowered Height (in.): 1-1/4 / 21-1/4
Uniform Capacity (lb.): 400
Lowered Height (in.): 1-1/4 / 21-1/4
For More Details of the Option Click the Red Model Button

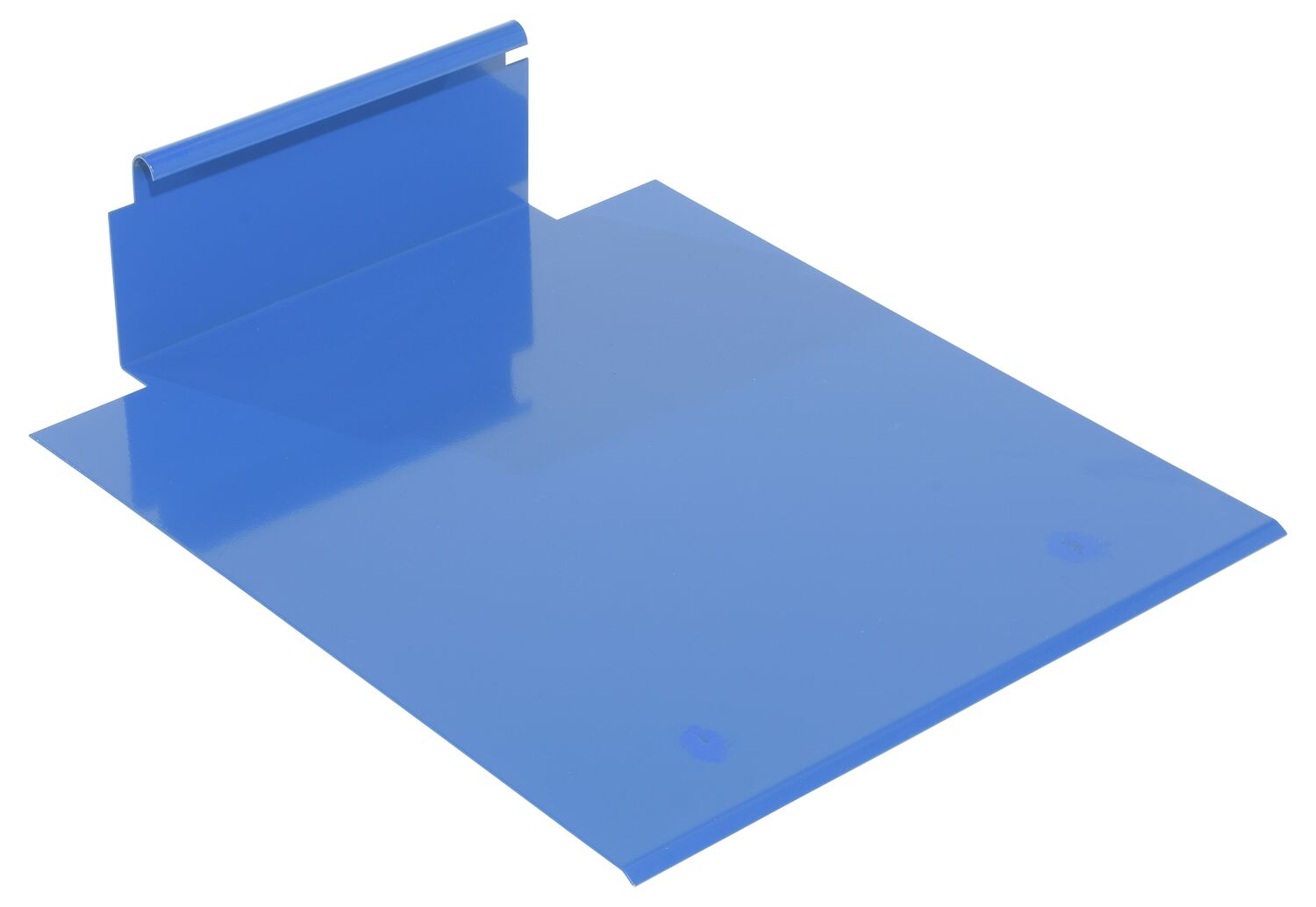

A-LIFT-DK A-LIFT-DK1 Year Limited WarrantySteel Deck Platform For Hand Winch Lifts 24-1/4 In. x 20-1/2 In. 500 Lb. Capacity Blue-
18

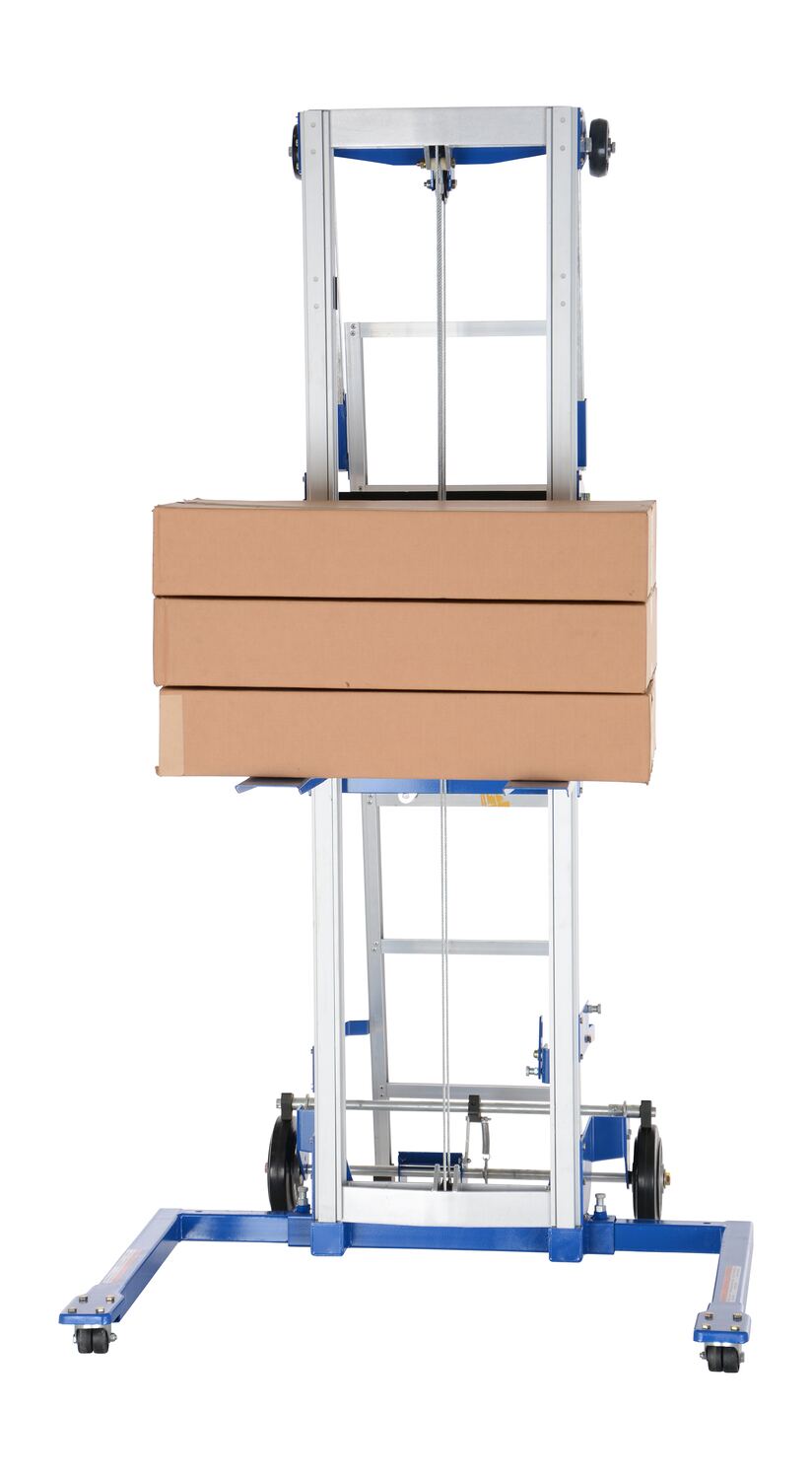

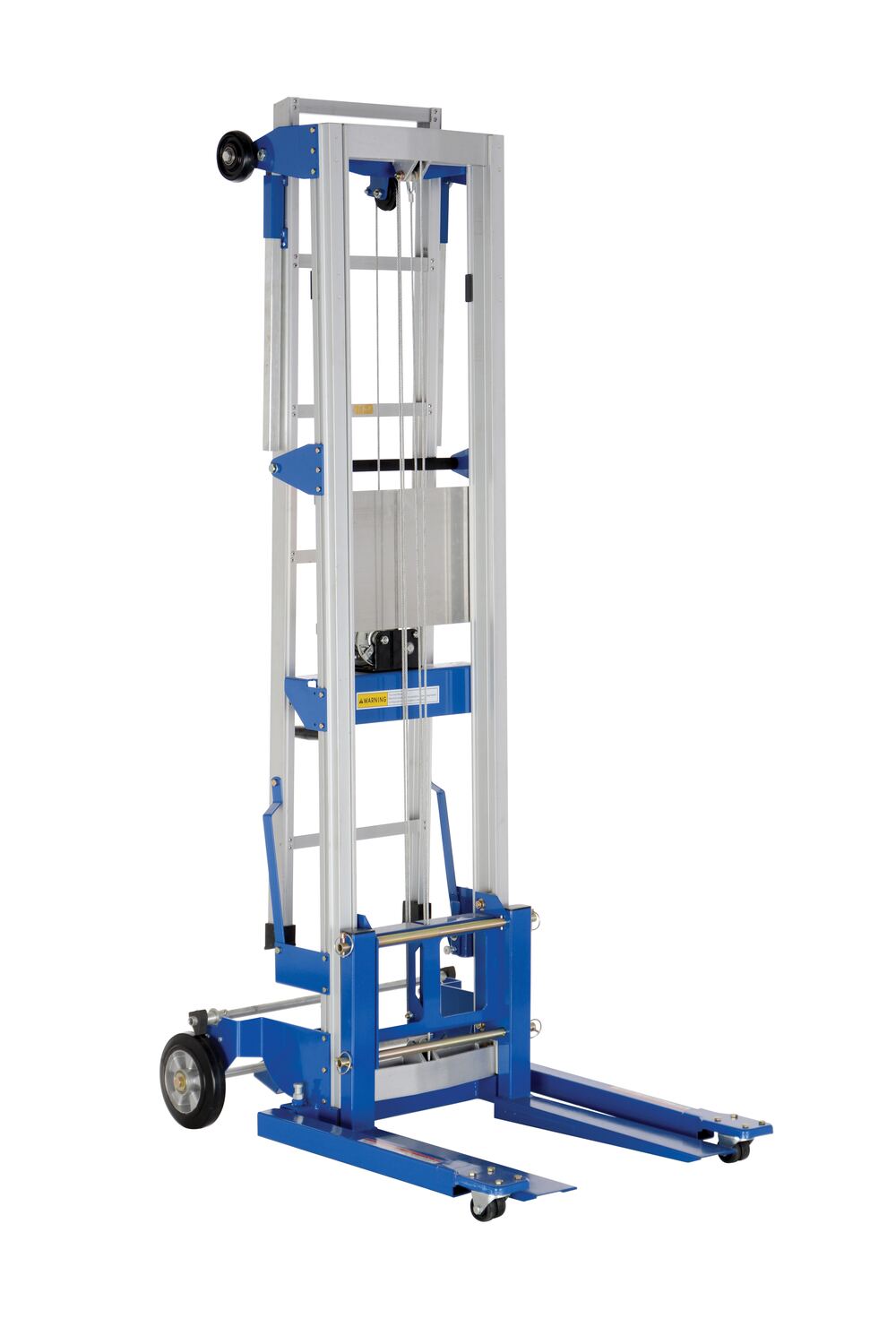

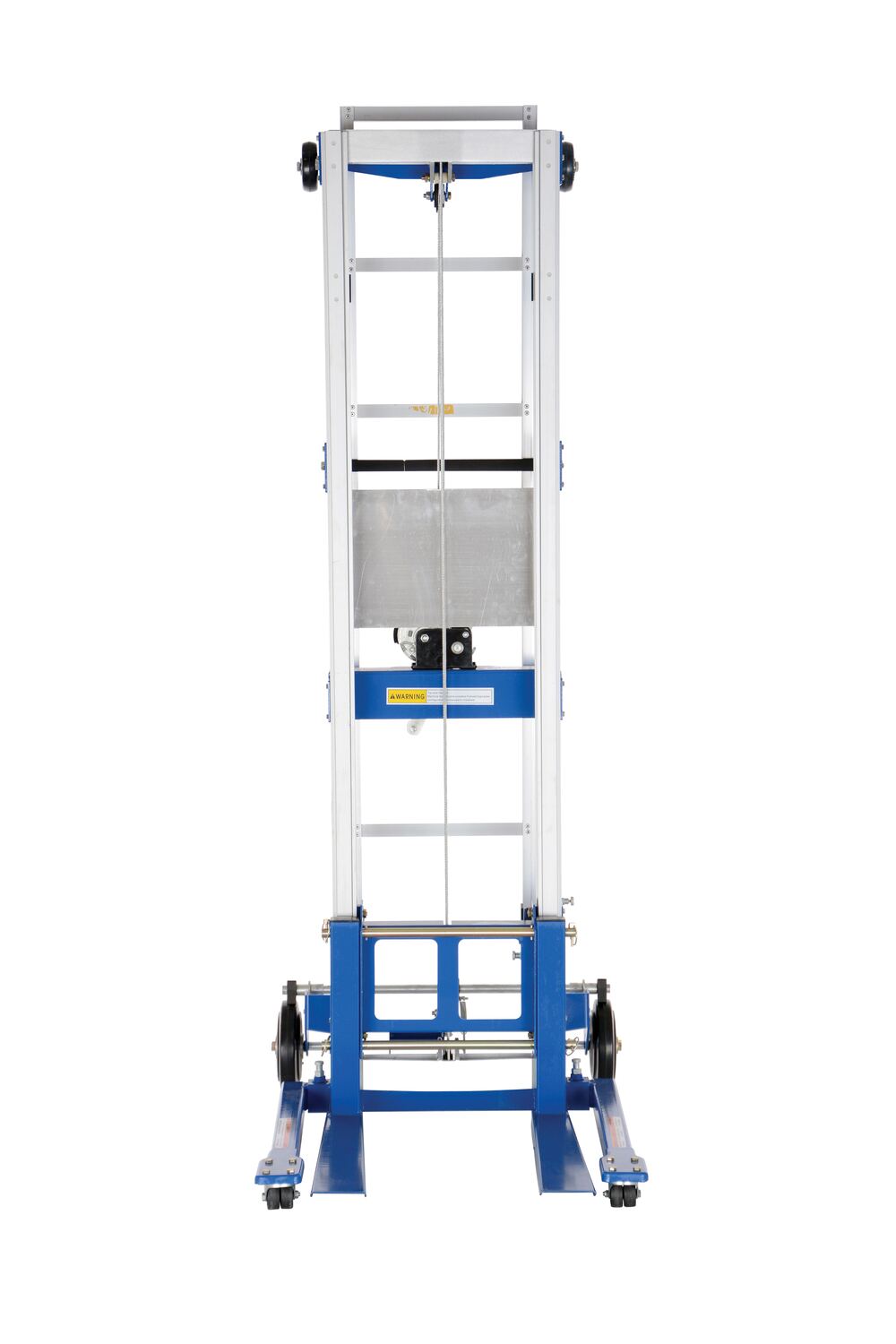

A-LIFT-EHP-LAD A-LIFT-EHP-LAD90 Days Limited WarrantyFactory Installed Aluminum/Steel Retractable Ladder For A-LIFT-EHP Models 250 Lb. Capacity SilverLadder Uniform Capacity (lb.): 250
Rung Spacing (in.): 11-3/4		19

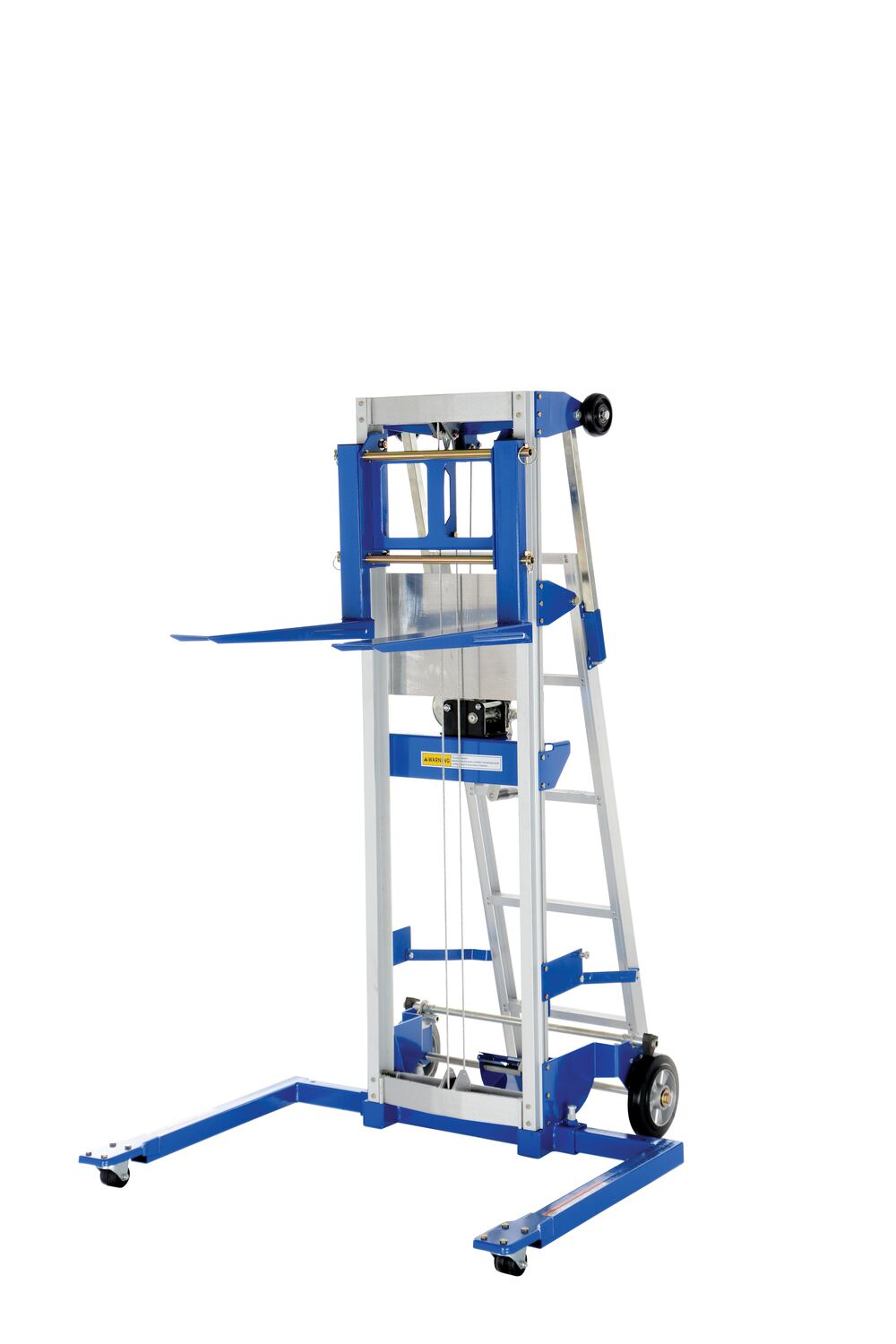

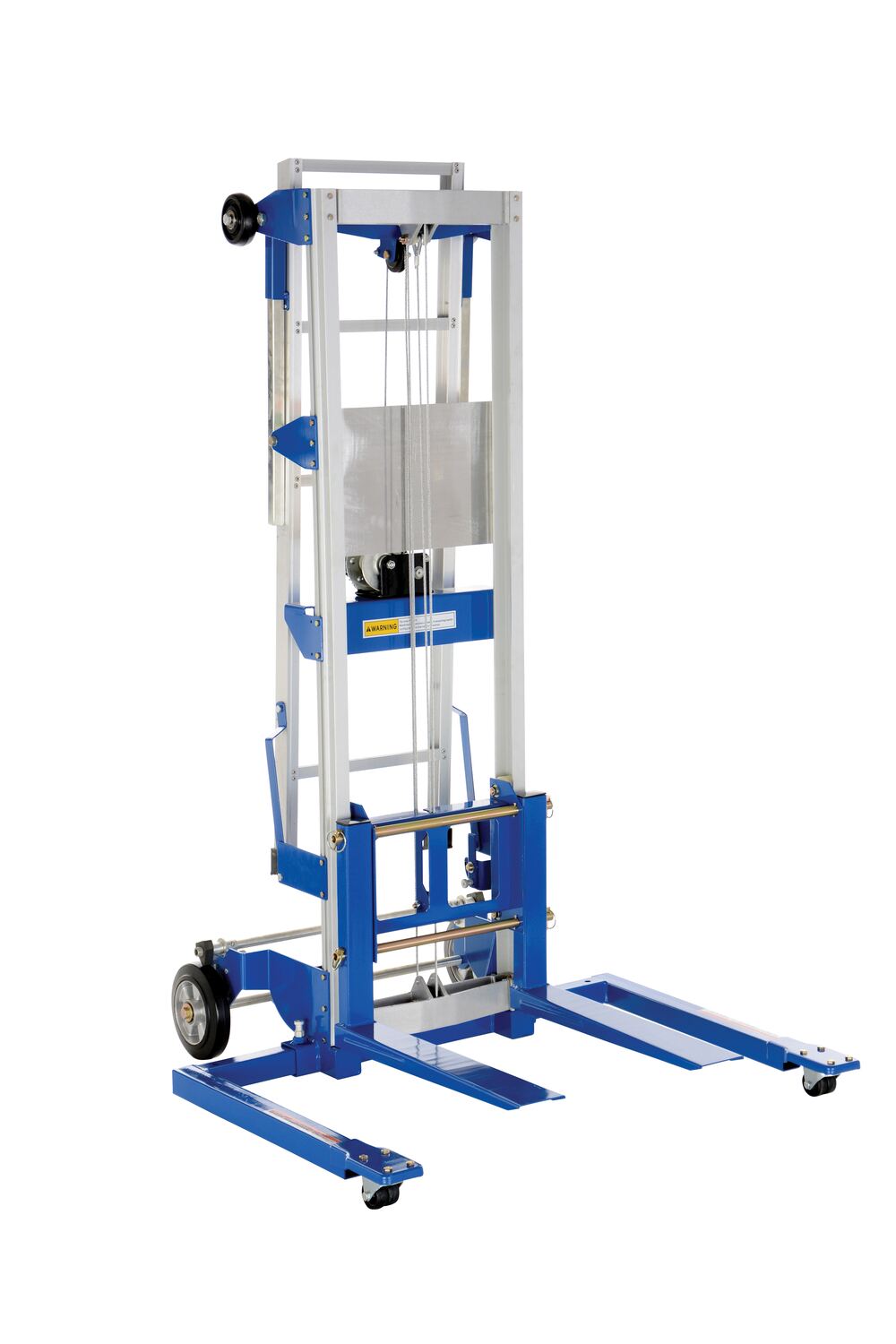

A-LIFT-LAD A-LIFT-LAD90 Days Limited WarrantyFactory Installed Aluminum/Steel Retractable Ladder For A-LIFT Models 250 Lb. Capacity SilverLadder Uniform Capacity (lb.): 250
Rung Spacing (in.): 11-3/4		17

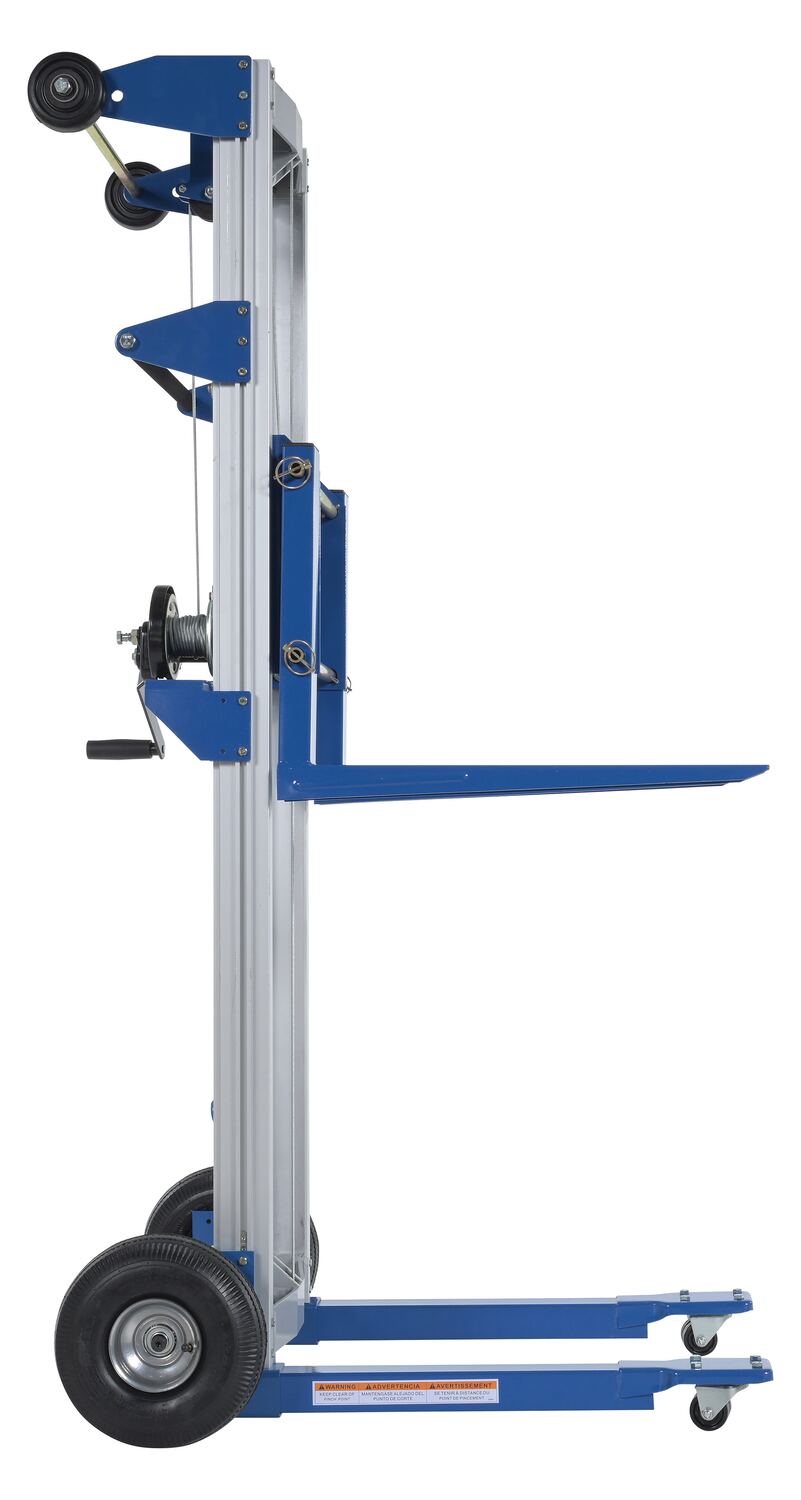

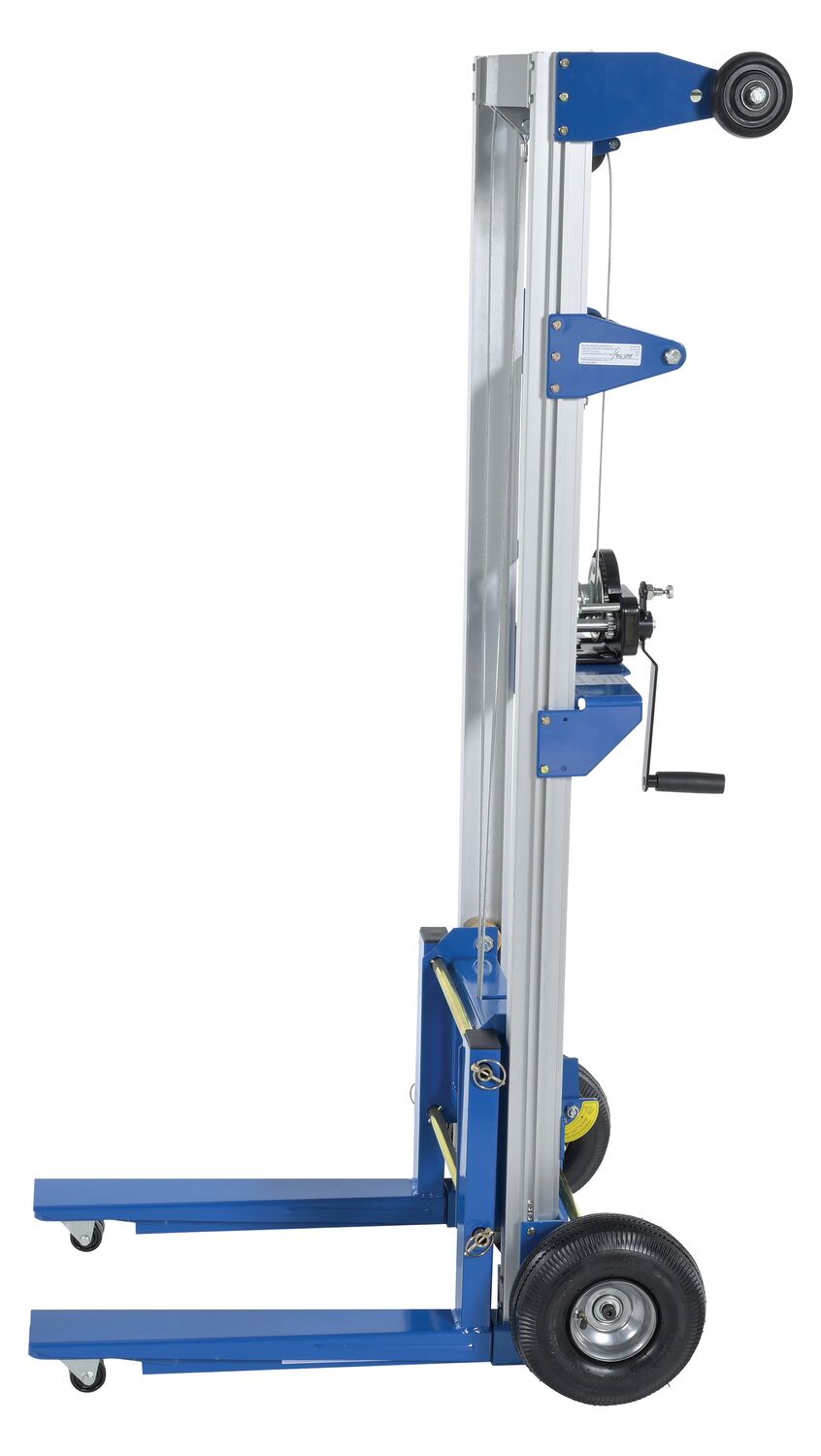

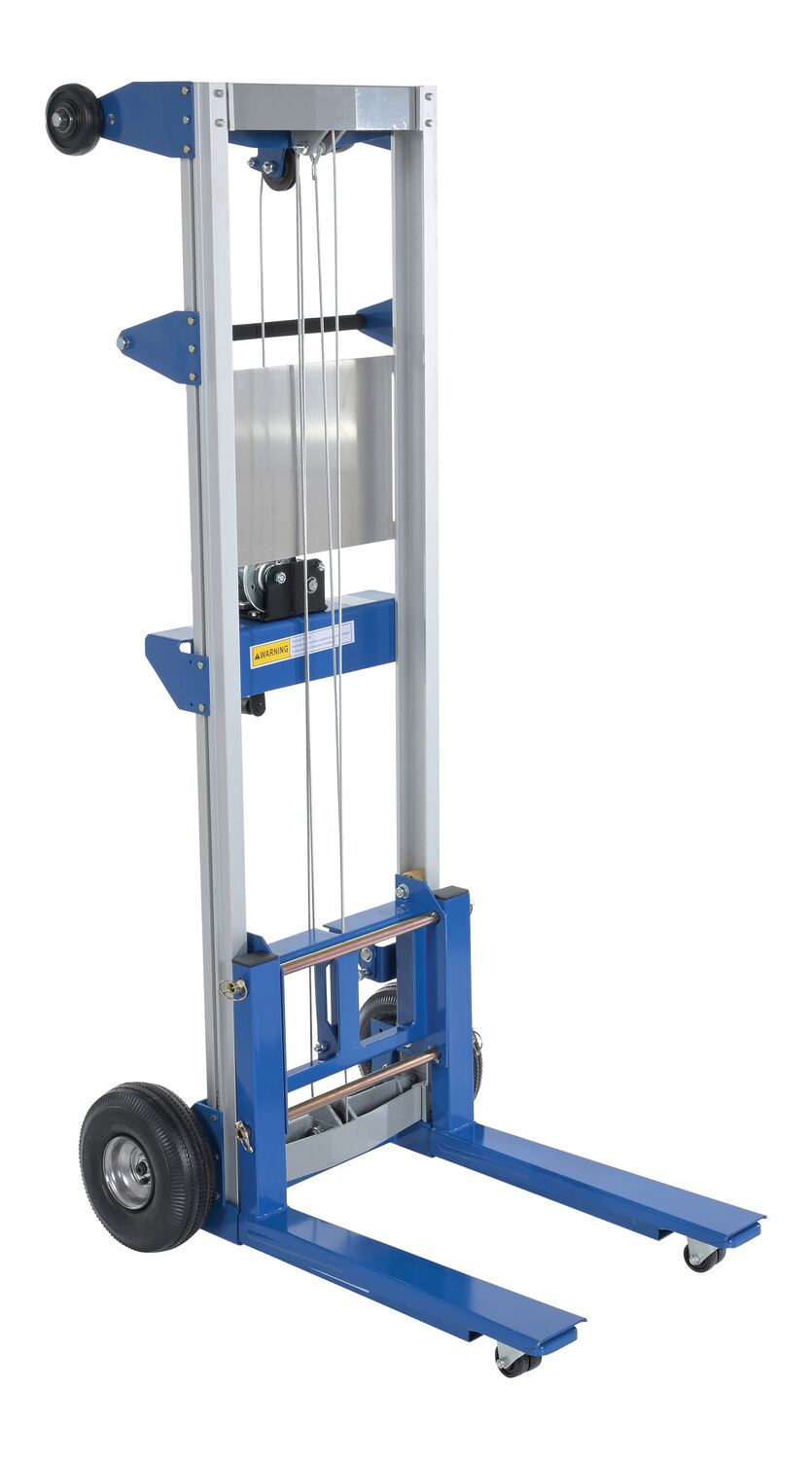

A-LIFT-PN A-LIFT-PN90 Days Limited WarrantyPneumatic Rear Wheels For Hand Winch Lift Trucks 10 In. x 4 In. BlackWheel Diameter (in.): 10
Wheel Width (in.): 4		11

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Hand Winch Lift Trucks PDF's will open in a new window when clicked.

Manuals


A-LIFT
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


A-LIFT-CB

A-LIFT-CB-EHP

A-LIFT-CB-HP

A-LIFT-DK

A-LIFT-R

A-LIFT-R-HP

A-LIFT-S

A-LIFT-S-EHP

A-LIFT-S-HP

Testing Certificates


A-LIFT-CB

A-LIFT-CB-EHP

A-LIFT-CB-HP

A-LIFT-DK

A-LIFT-PN

A-LIFT-R

A-LIFT-R-HP

A-LIFT-S

A-LIFT-S-EHP

A-LIFT-S-HP

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Q: What is the overall height with the forks raised for A-LIFT-R-HP?

A: The raised forks are 3" above the frame.

Q: At what point does the frame raise?

A: The frame of the A-LIFT-R-HP telescopes up when it hits 68".

Q: What is the maximum working height or the top step height on the A-LIFT-EHP-LAD option?

A: The top step height is 66.5"

Q: Can the ladder be installed on a counter balance lift?

A: No the ladder cannot be installed on the A-LIFT-CB.

Q: Can a ladder be added to an existing lift truck?

A: Yes a ladder can be added to an existing lift truck in the field. Choose appropriate model number that corresponds with for your lift truck, or contact sales with your lift truck serial number.
