Powered Drive and Powered Lift Hydraulic Scissor Carts

- - - -

Description
Model Chart
PDF's
Image Gallery

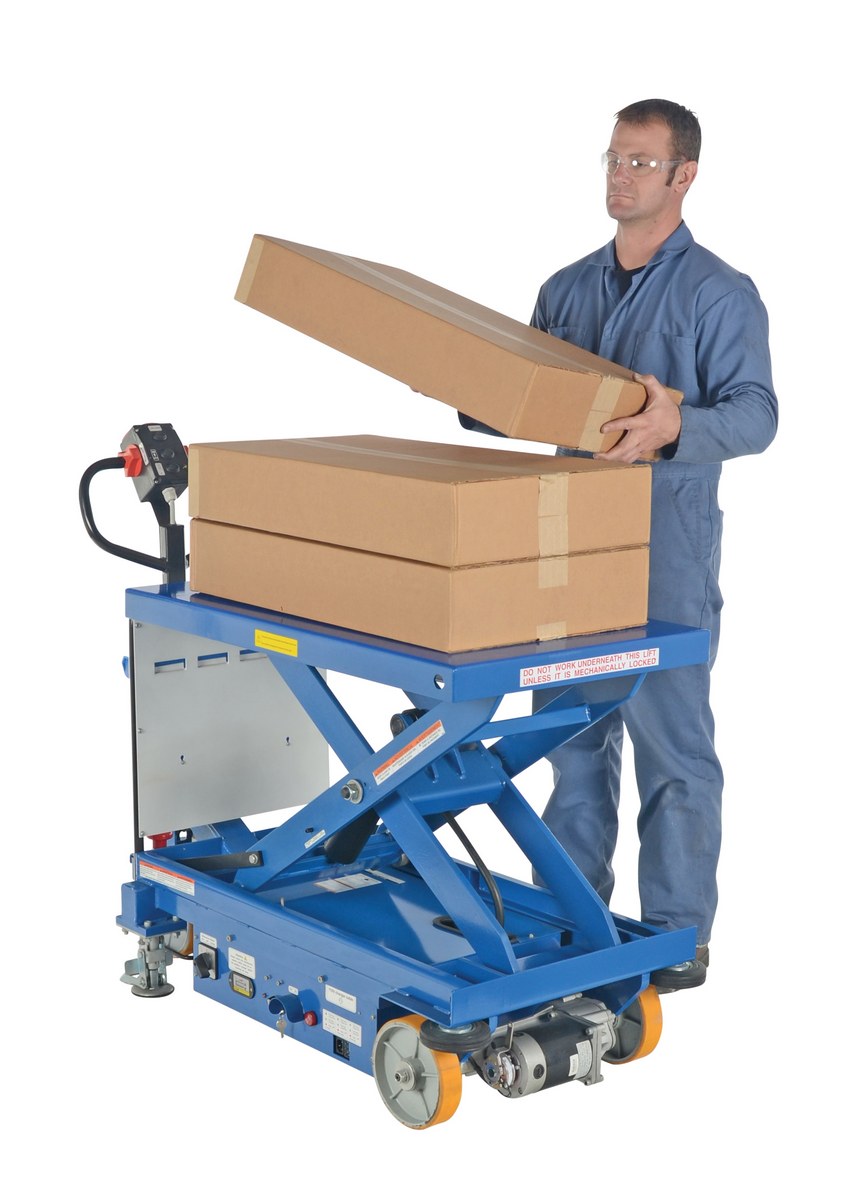

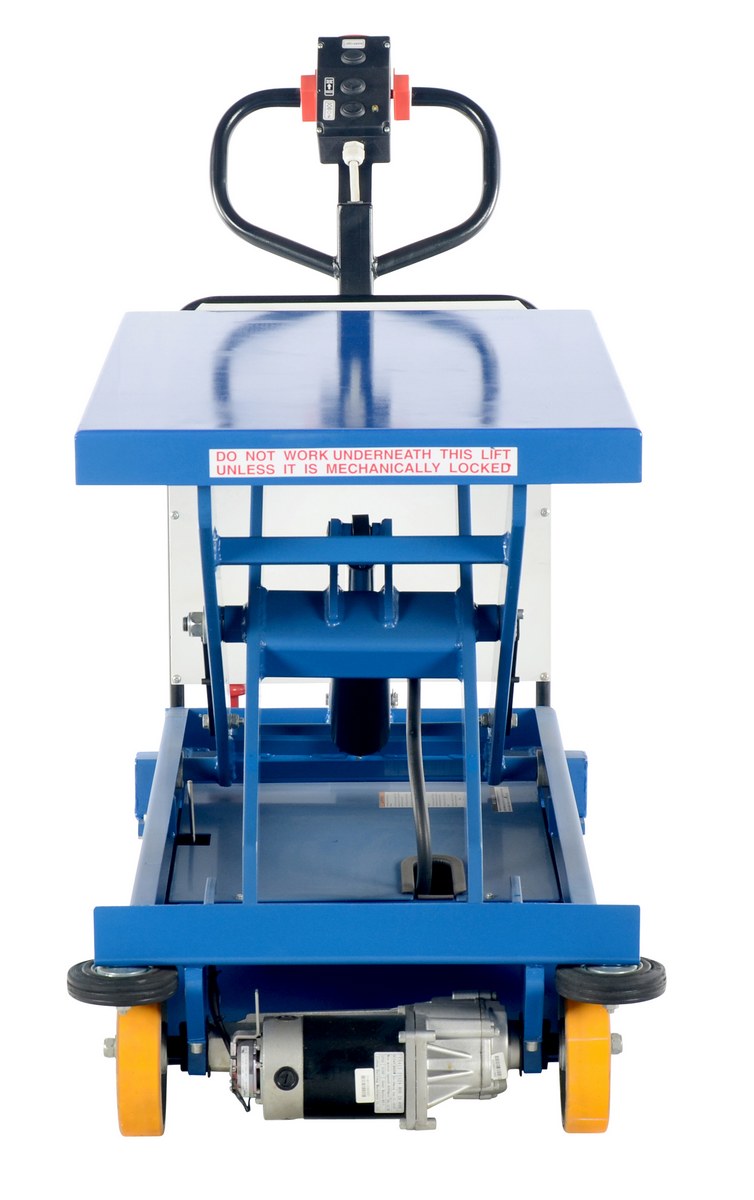

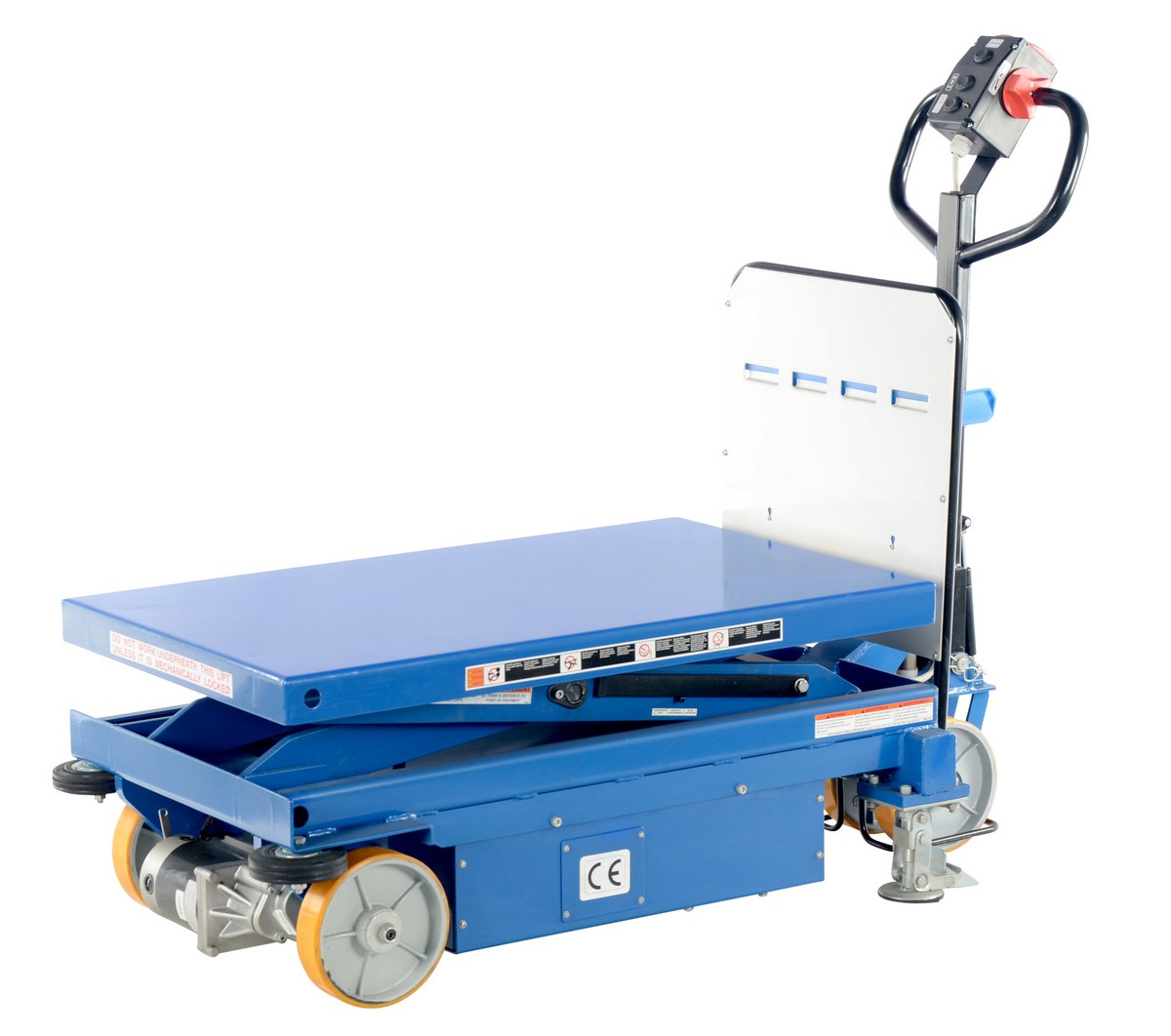

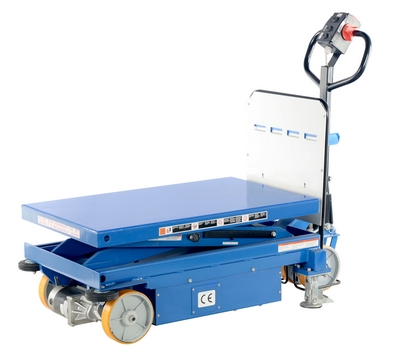

CART-1500-DC-CTD_E.jpg CART-1500-DC-CTD_A.jpg CART-1500-DC-CTD_B.jpg CART-1500-DC-CTD_C.jpg

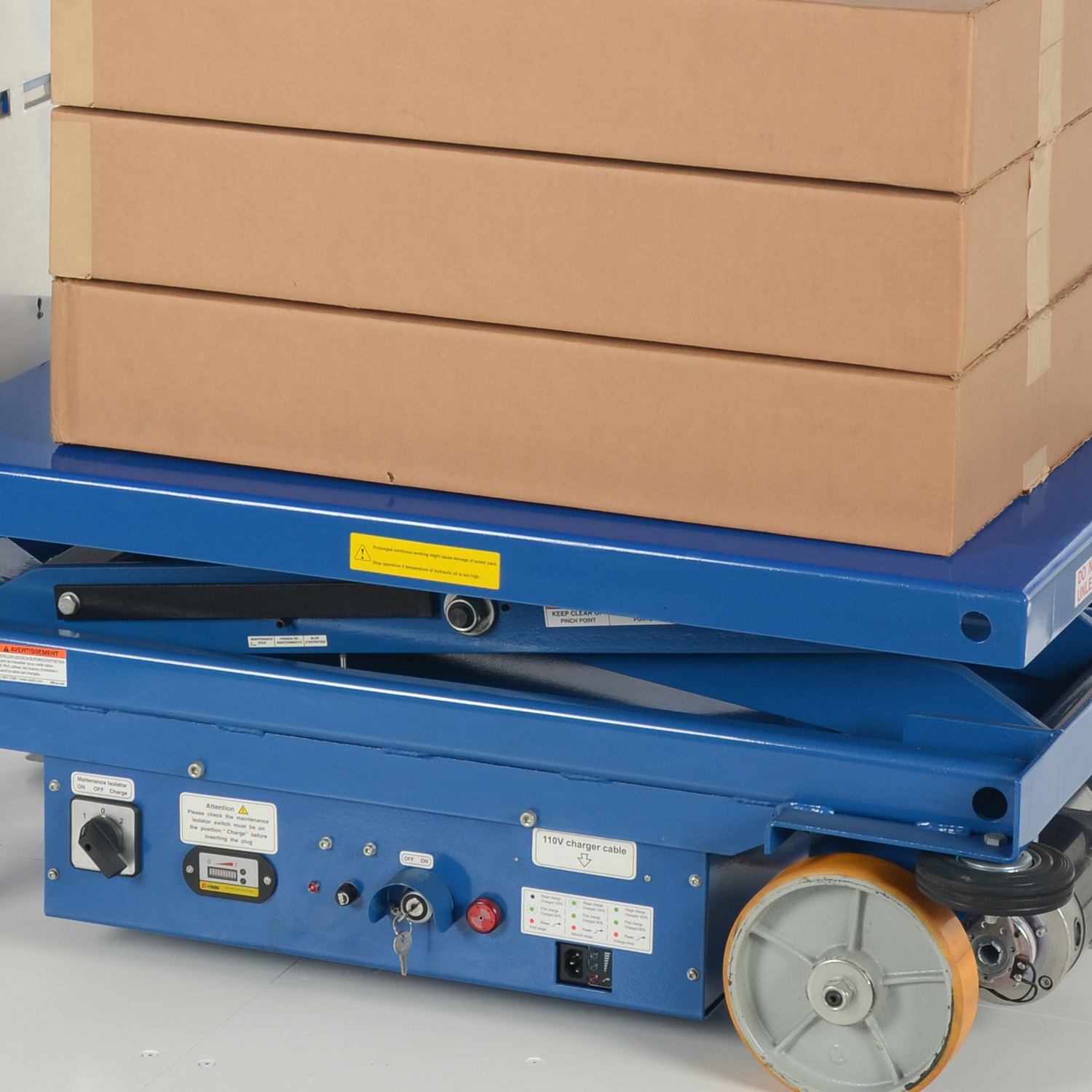

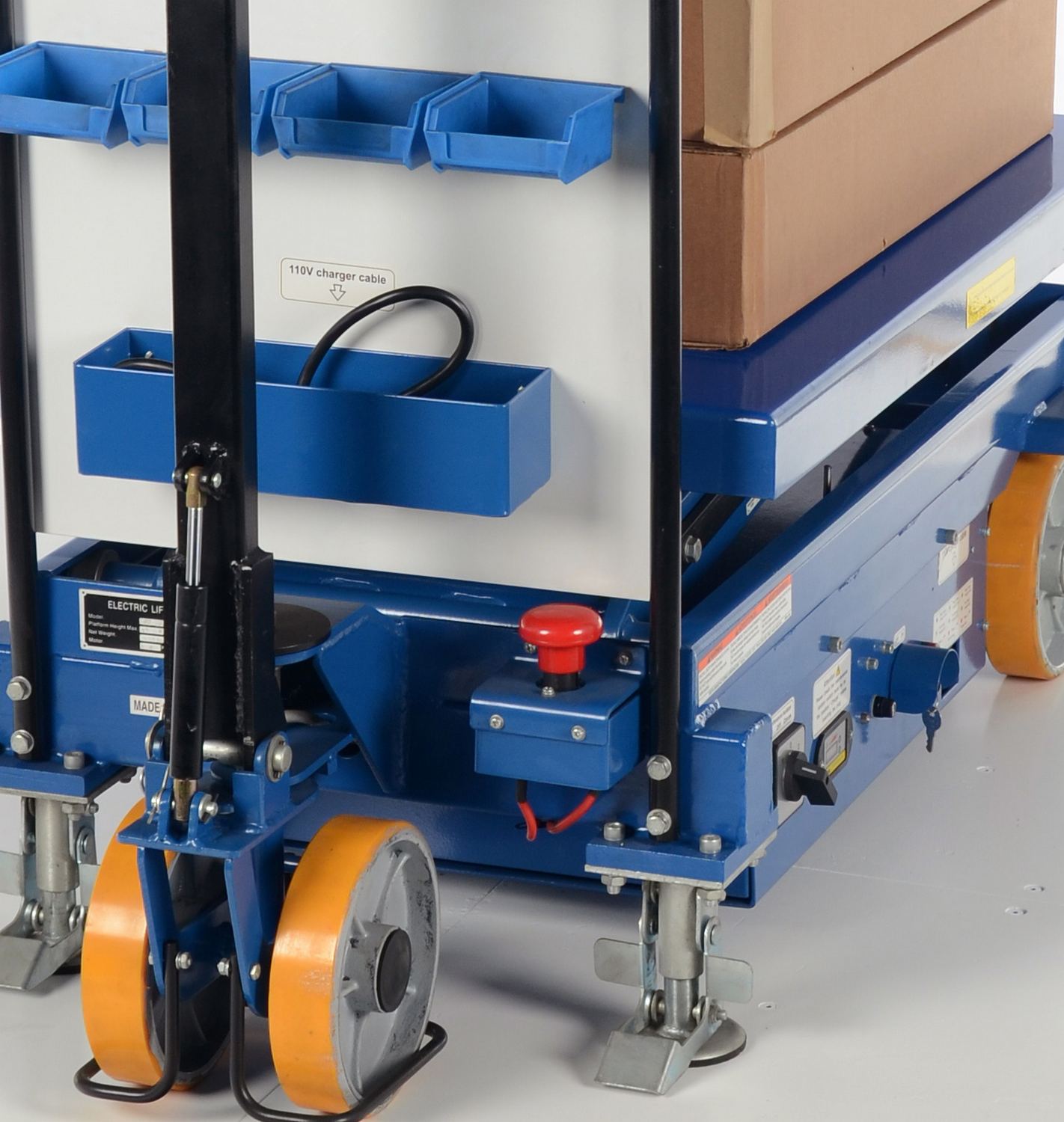

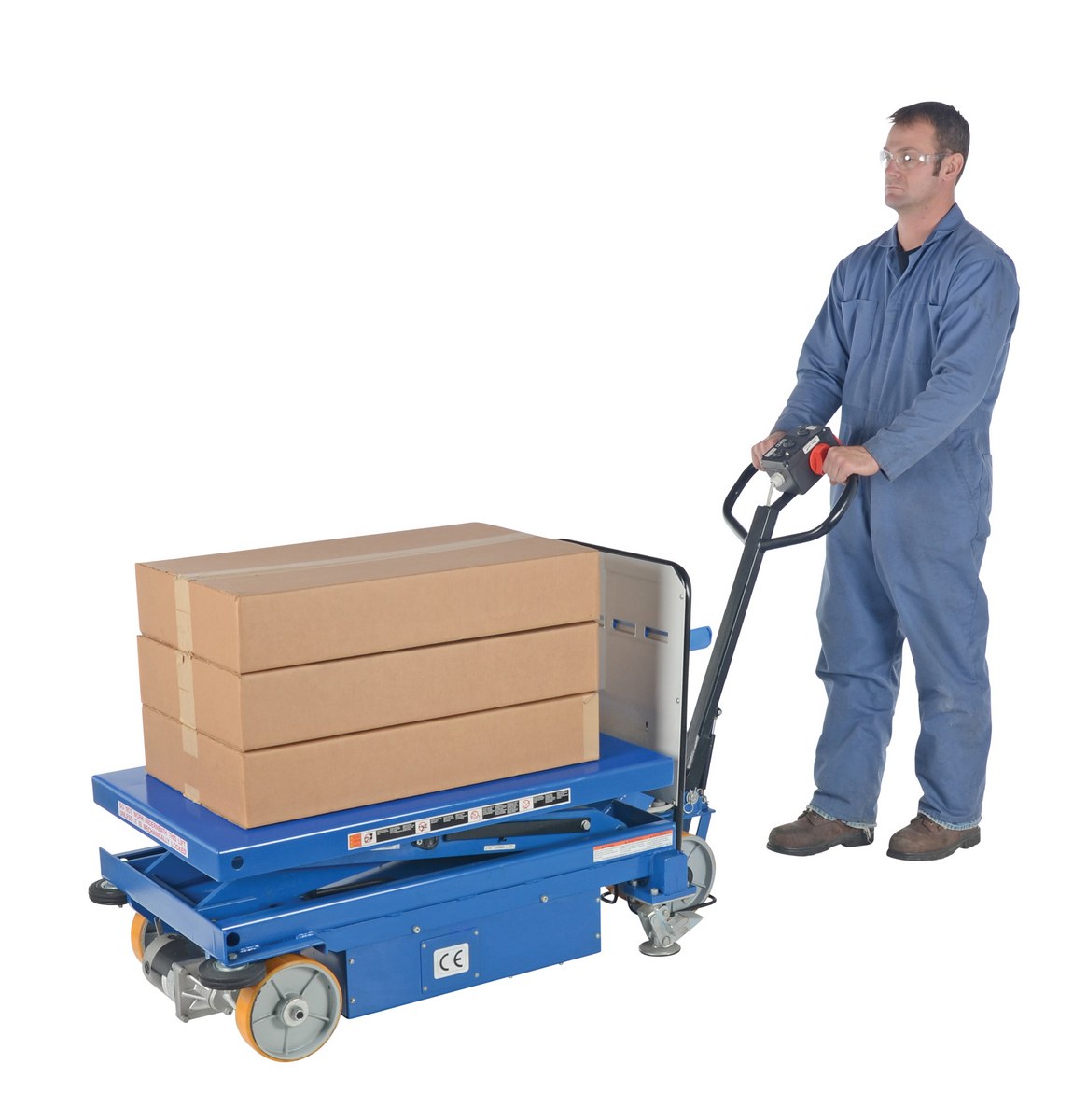

CART-1500-DC-CTD_D.jpg CART-1500-DC-CTD_1.jpg CART-1500-DC-CTD_2.jpg CART-1500-DC-CTD_3.jpg
Powered Drive and Powered Lift Hydraulic Scissor Carts

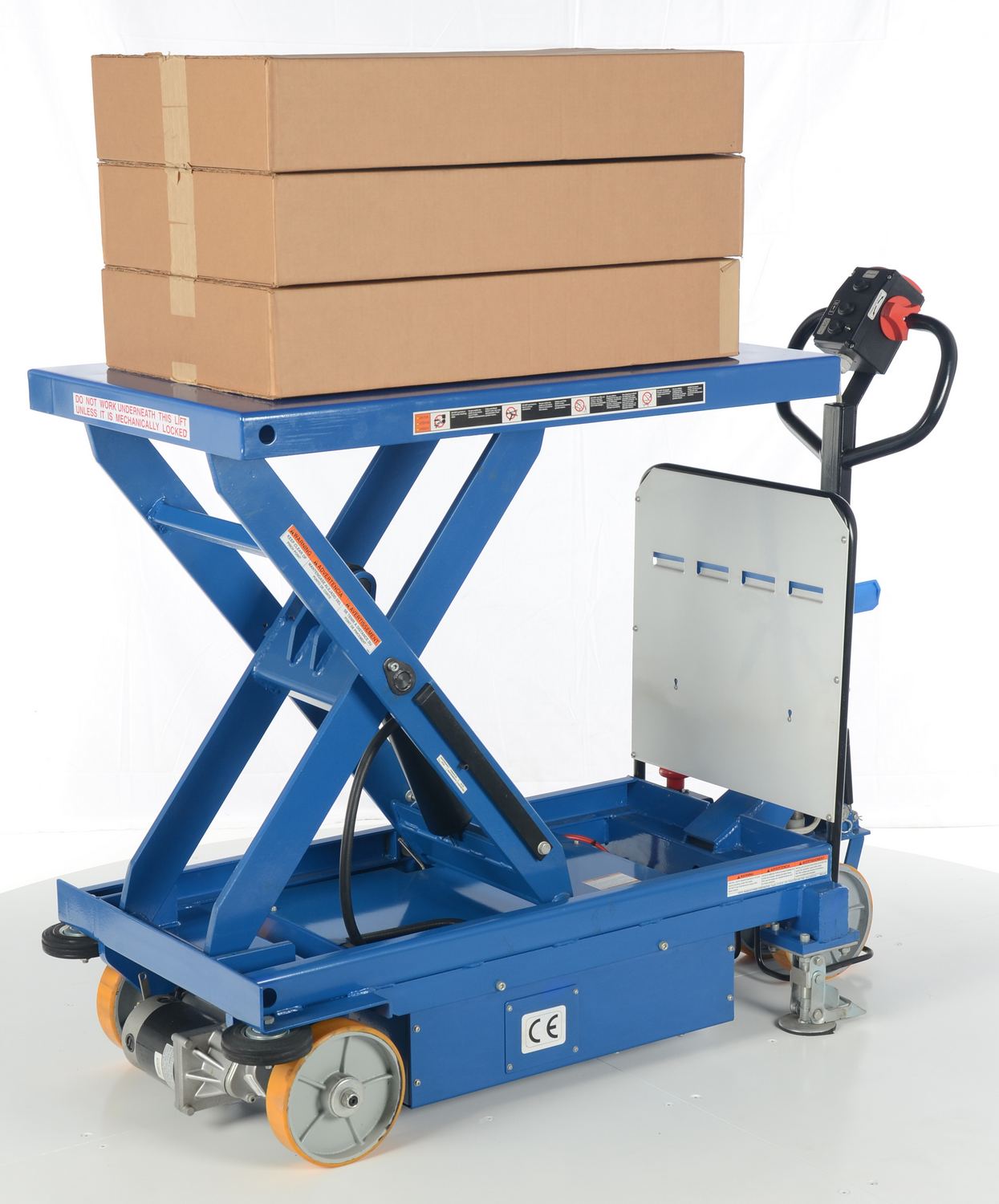

model: CART-1500-DC-CTD



Featured Ergonomic Solutions


Manual & Electric Stackers
Self-Elevating Spring Tables
Wheel Nose Pallet Trucks
Auto-Hite Carts
Super Low Profile Pallet Trucks
Electric Stackers (Pramac)
Economical Powered Lift Table
Electric Pallet Truck (Pramac)
High Tote Lifter
model chart

Product Family Overview

Print Friendly
Powered Drive and Powered Lift Hydraulic Scissor Carts
SERIES: CART-*DC-CTD

24V DC STANDARD

Fully powered carts provide users with motorized, variable-speed travel as well as powered lifting capability. Carts roll smoothly and quietly on poly-on-steel wheels. High torque 24V DC drive and lift motors handle heavy-duty jobs. Standard features: easy-to operate throttle that adjusts forward and reverse speeds over a range of 0-3.7 mph, deck level control buttons (raise and lower), emergency reverse function, automatic braking, horn, key switch, integrated battery charger, and battery charge indicator. These carts use two 12V batteries.

  • Unique lift design quickly raises & lowers material
  • Ergonomic cart design improves user safety
  • Caster construction provides easy portability when loaded
  • Steel construction offers long lasting rugged use

24V DC STANDARD

Fully powered carts provide users with motorized, variable-speed travel as well as powered lifting capability. Carts roll smoothly and quietly on poly-on-steel wheels. High torque 24V DC drive and lift motors handle heavy-duty jobs. Standard features: easy-to operate throttle that adjusts forward and reverse speeds over a range of 0-3.7 mph, deck level control buttons (raise and lower), emergency reverse function, automatic braking, horn, key switch, integrated battery charger, and battery charge indicator. These carts use two 12V batteries.

  • Unique lift design quickly raises & lowers material
  • Ergonomic cart design improves user safety
  • Caster construction provides easy portability when loaded
  • Steel construction offers long lasting rugged use

Other Elevating Lift Carts

 Low Profile Scissor Cart w/ Auto-Shift Foot Pump & Powered Scissor Lift Tables Portable Electric Hydraulic Lift Table w/ Attached Hoist Pneumatic Tire Elevating Carts

Additional Models In This Family
view entire Image Gallery

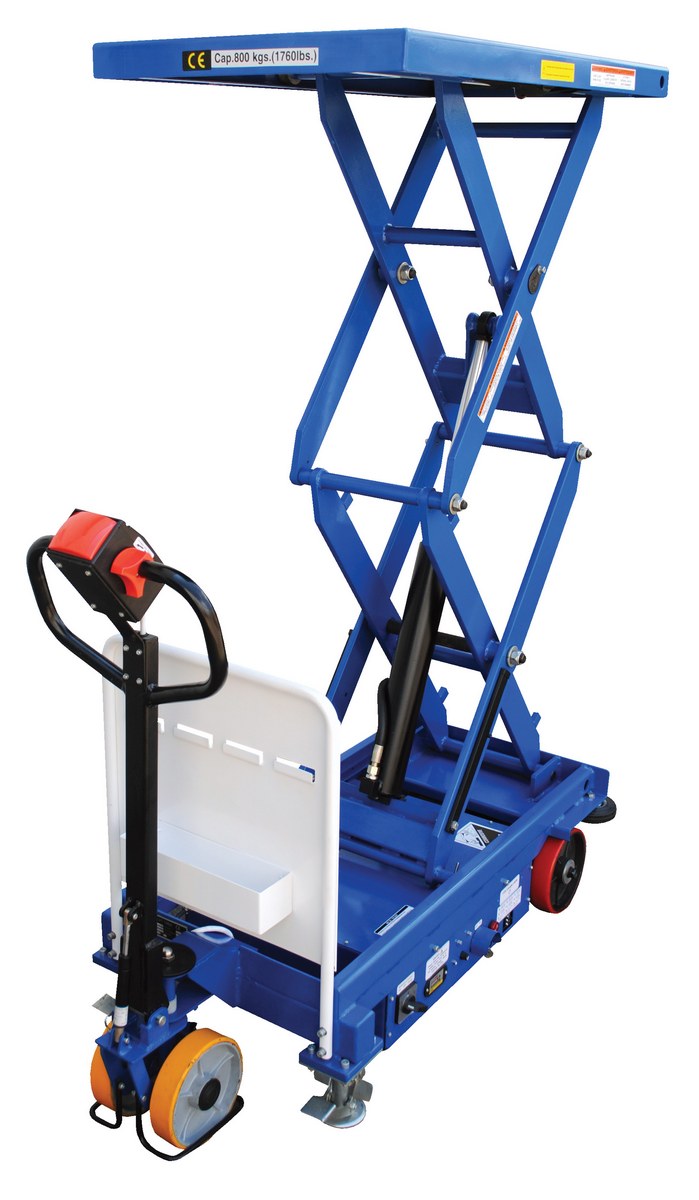

CART-1000D-DC-CTD

model CART-1000D-DC-CTD

CART-1000-DC-CTD

model CART-1000-DC-CTD

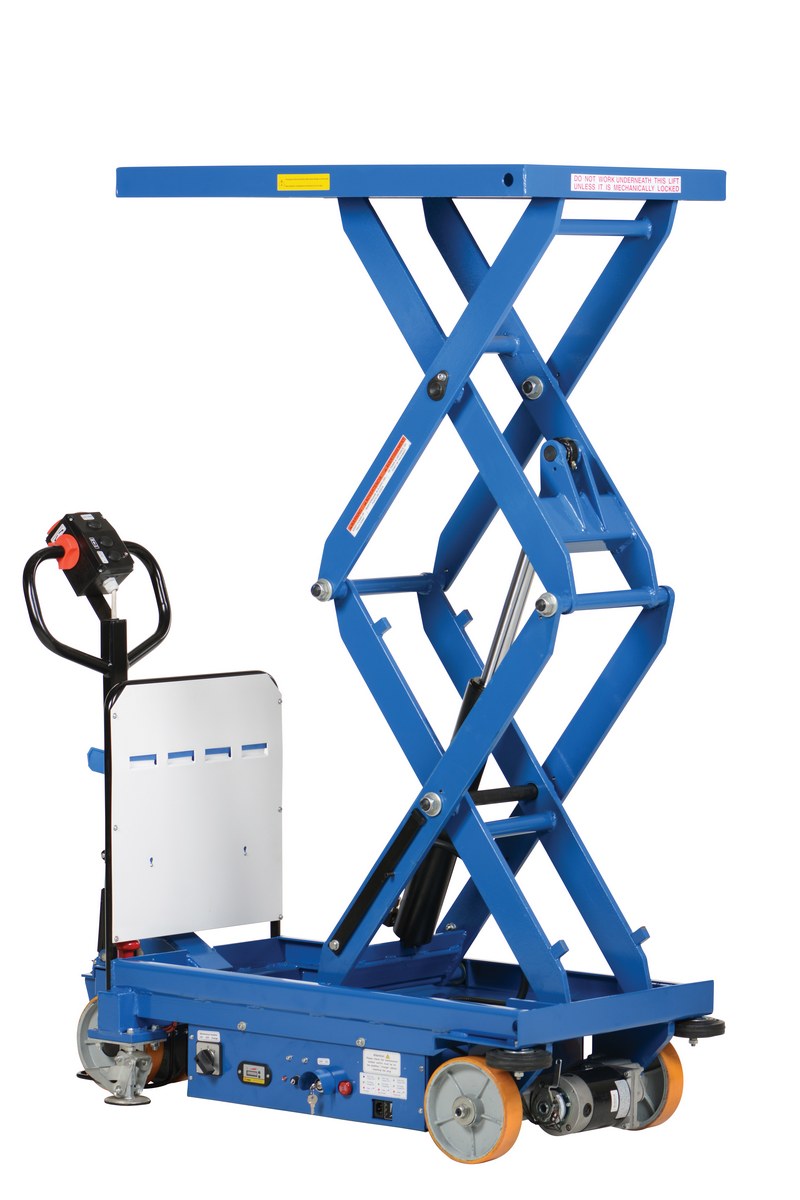

CART-1500D-DC-CTD

model CART-1500D-DC-CTD

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
CART-1000-DC-CTD
CART-1000-DC-CTD1 Year Limited WarrantySteel Powered Drive and Powered Lift Hydraulic Single Scissor Cart 24 In. x 40 In. 1000 Lb. Capacity BlueUniform Capacity (lb.): 1000
Platform Width (in.): 24		492
CART-1000D-DC-CTD
CART-1000D-DC-CTD1 Year Limited WarrantySteel Double Powered Drive and Powered Lift Hydraulic Double Scissor Cart 24 In. x 40 In. 1000 Lb. Capacity BlueUniform Capacity (lb.): 1000
Platform Width (in.): 24		607
CART-1500-DC-CTD
CART-1500-DC-CTD1 Year Limited WarrantySteel Powered Drive and Lift Hydraulic Scissor Cart 40 In. x 24 In. 1500 Lb. Capacity BlueUniform Capacity (lb.): 1500
Platform Width (in.): 24		670
CART-1500D-DC-CTD
CART-1500D-DC-CTD1 Year Limited WarrantySteel Powered Drive and Lift Hydraulic Double Scissor Cart 40 In. x 24 In. 1500 Lb. Capacity BlueUniform Capacity (lb.): 1500
Platform Width (in.): 24		706

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

CART-1000-DC-CTD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1000
Platform Width (in.): 24
Uniform Capacity (lb.): 1000
Platform Width (in.): 24

CART-1000D-DC-CTD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1000
Platform Width (in.): 24
Uniform Capacity (lb.): 1000
Platform Width (in.): 24

CART-1500-DC-CTD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1500
Platform Width (in.): 24
Uniform Capacity (lb.): 1500
Platform Width (in.): 24

CART-1500D-DC-CTD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1500
Platform Width (in.): 24
Uniform Capacity (lb.): 1500
Platform Width (in.): 24
Powered Drive and Powered Lift Hydraulic Scissor Carts PDF's will open in a new window when clicked.

Manuals


CART-CTD
Owners Manual

CART-1500D-DC-CTD
Owners Manual

CTD
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


CART-1000-DC-CTD

CART-1000D-DC-CTD

CART-1500-DC-CTD

CART-1500D-DC-CTD

Testing Certificates


CART-1000-DC-CTD

CART-1000D-DC-CTD

CART-1500-DC-CTD

CART-1500D-DC-CTD

SDS Sheets


Lead Acid Battery SDS Sheet for: CART-1000-DC-CTD
Hydraulic Oil SDS Sheet for: CART-1000-DC-CTD

Lead Acid Battery SDS Sheet for: CART-1000D-DC-CTD
Hydraulic Oil SDS Sheet for: CART-1000D-DC-CTD
Lead Acid Battery SDS Sheet for: CART-1500-DC-CTD
Hydraulic Oil SDS Sheet for: CART-1500-DC-CTD
Lead Acid Battery SDS Sheet for: CART-1500D-DC-CTD
Hydraulic Oil SDS Sheet for: CART-1500D-DC-CTD

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Q: What is the time it takes to raise the cart to the max height?

A: The CART-1500-DC-CTD unloaded would take 11 seconds to max height. When the cart is loaded it would take 13 seconds to raise to max height.

Q: How many lifts per battery charge for the CART-1500-DC-CTD?

A: 20-30 cycles per continuous use per charge.

Q: How many seconds to fully raise CART-1000D-DC-CTD with and without a load?

A: With a load, it takes 18 seconds to fully raise. Without a load, it takes 16 seconds to fully raise.
