Pneumatic Tire Elevating Carts

- - - -

Description
Model Chart
PDF's
Image Gallery

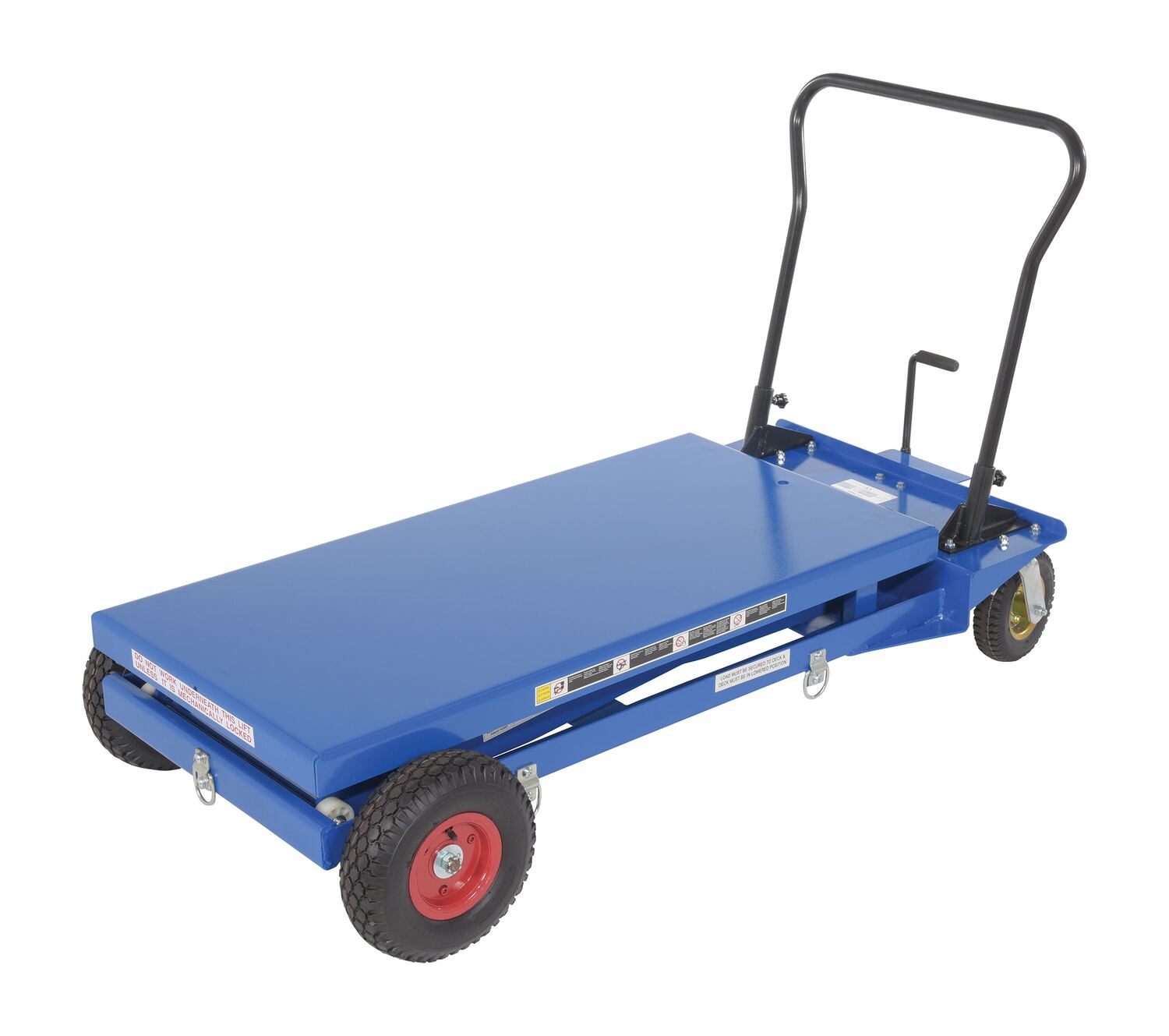

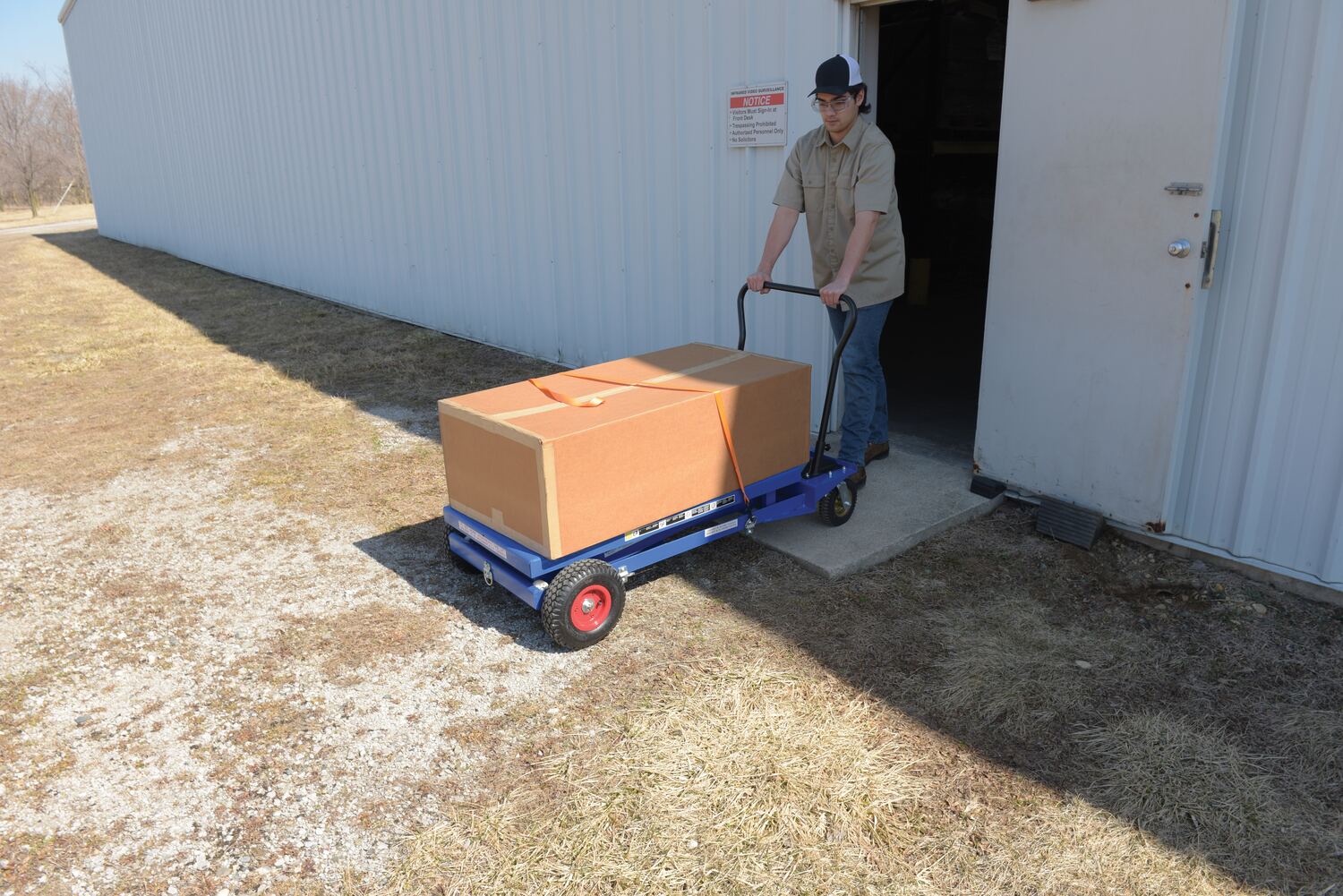

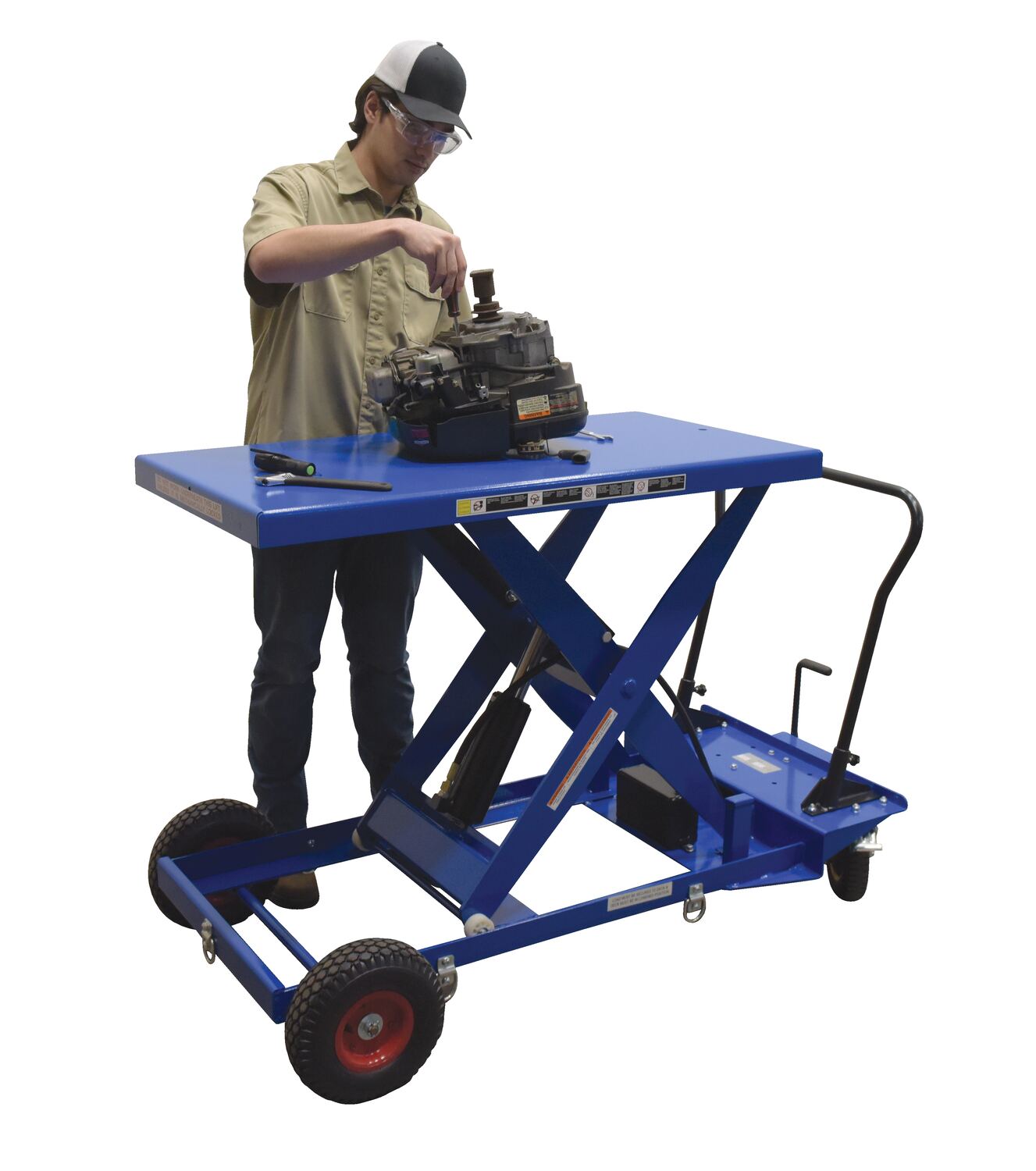

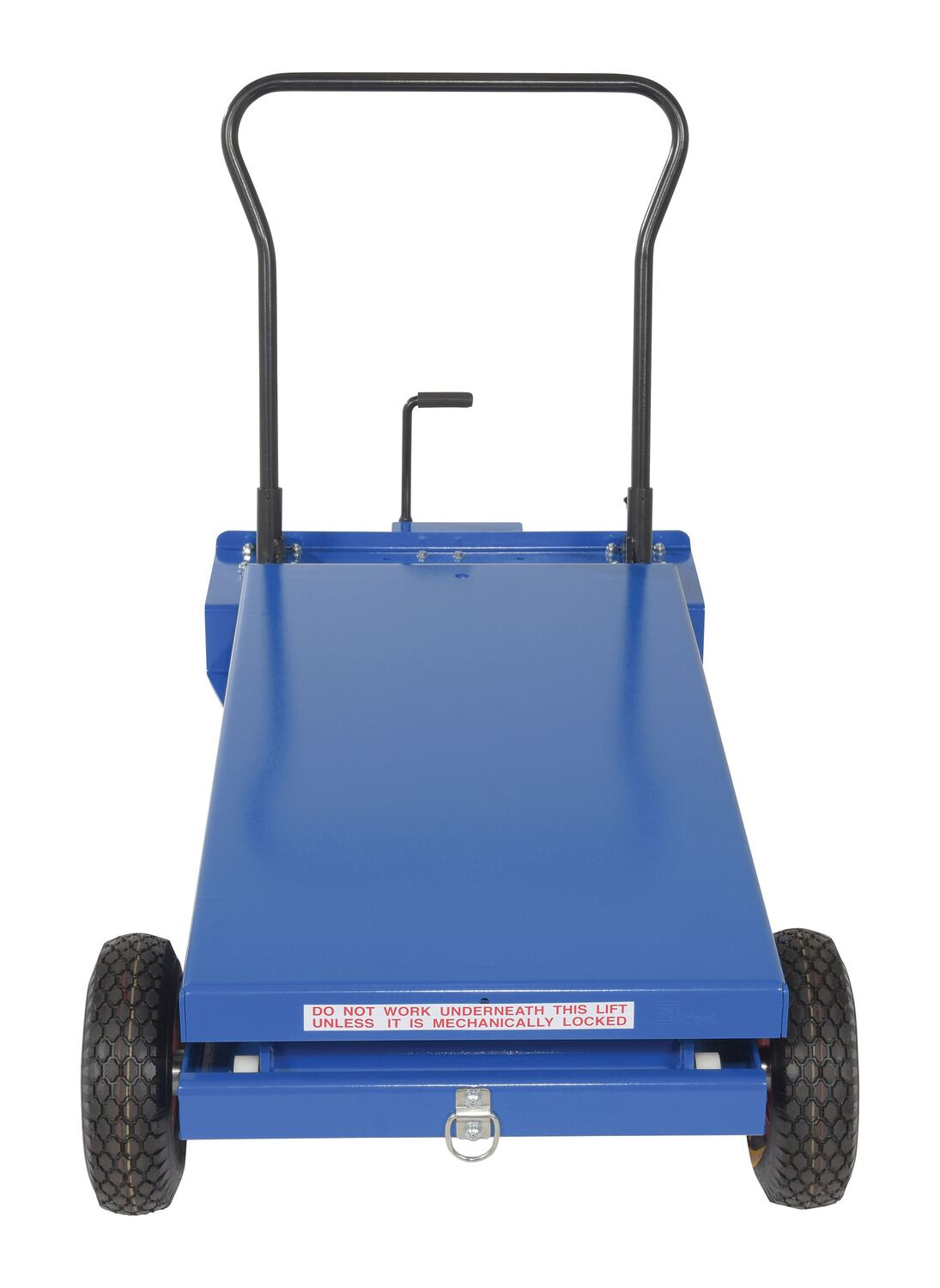

CART-PN-1000_A.jpg CART-PN-1000_B.jpg CART-PN-1000_C.jpg CART-PN-1000_D.jpg

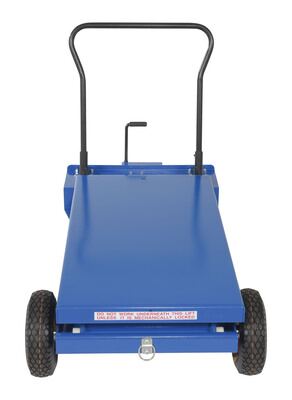

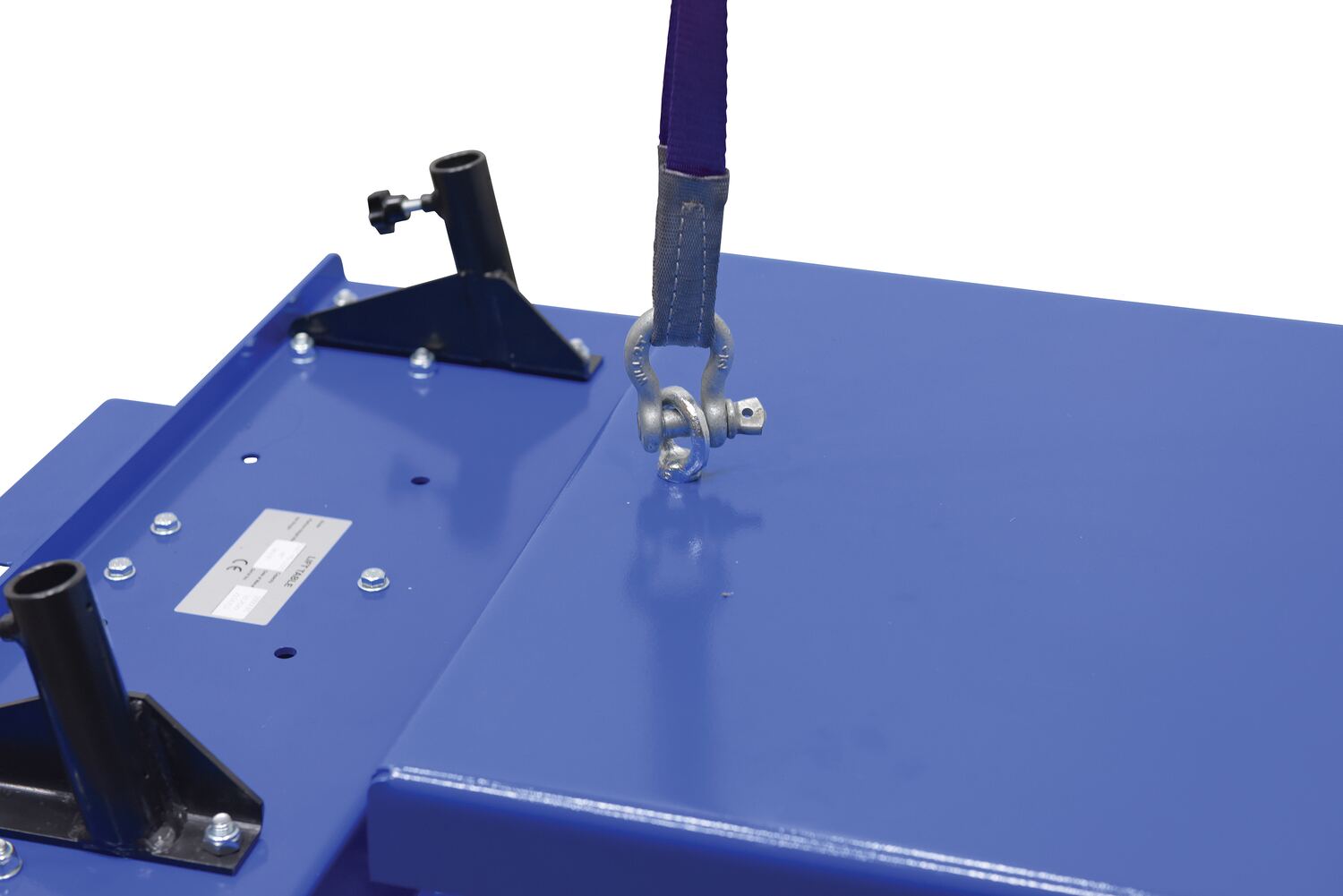

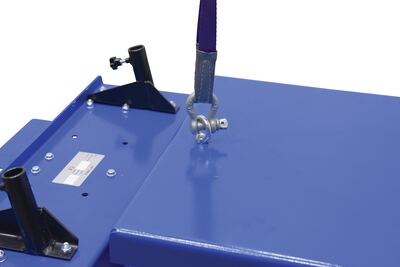

CART-PN-1000_E.jpg CART-PN-1000_F.jpg CART-PN-1000_H.jpg
Pneumatic Tire Elevating Carts

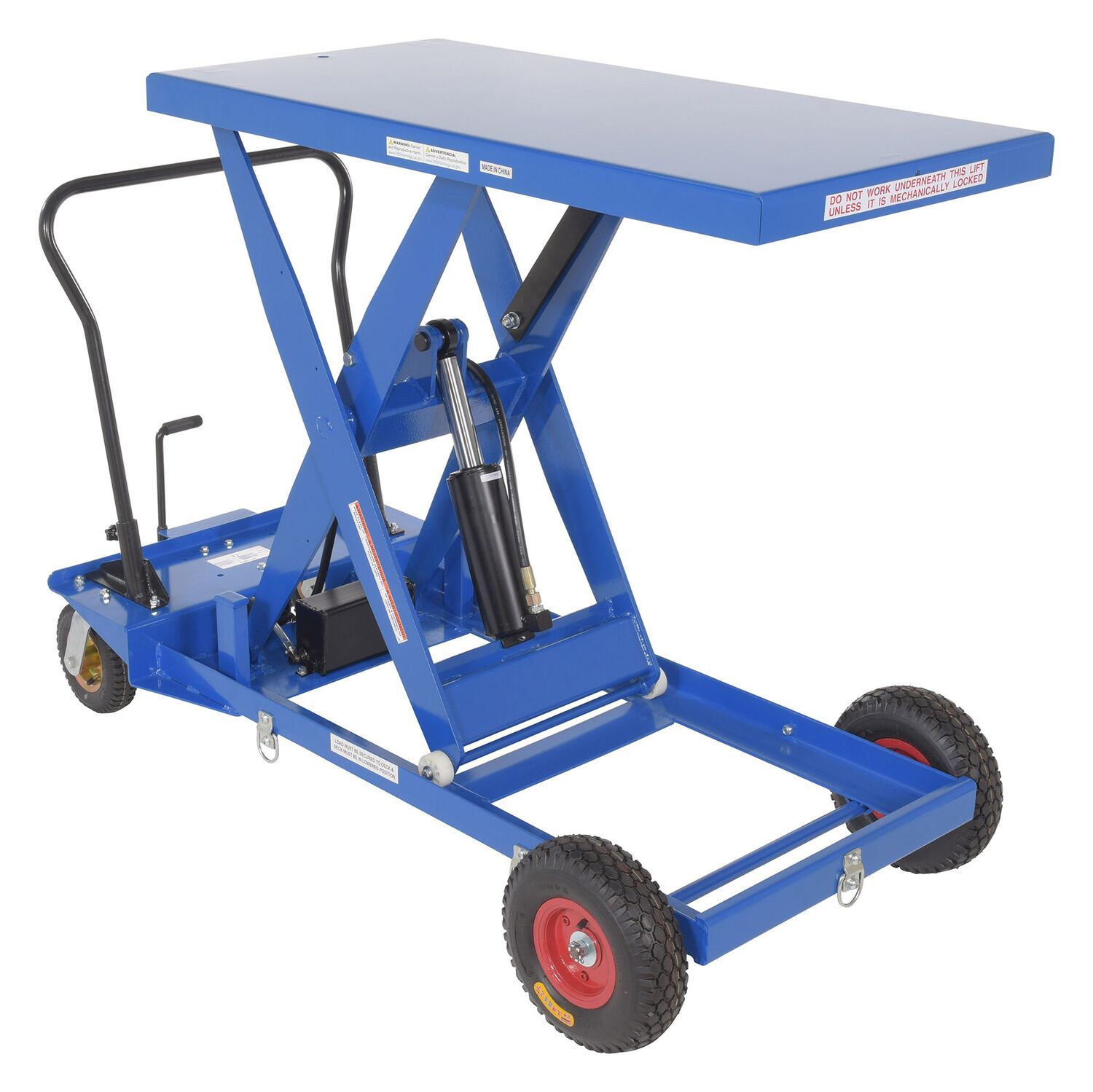

model: CART-PN-1000



Featured Ergonomic Solutions


Lite Load Lifts
Lift & Tilt Tables
Air Hydraulic Carts (partially stainless steel)
Fork Truck Jacks
Post Tables
Ground Lift Scissor Tables
Portable Hydraulic Equipment Kit
Pallet Truck Stop
Lift & Tilt Cart with Sequence Select (partially stainless steel)
model chart

Product Family Overview

Print Friendly
Pneumatic Tire Elevating Carts
SERIES: CART-PN

Pneumatic Tire Elevating Carts are designed to be used at nurseries, gardens, construction sites, and gravel pits. Large front and rear pneumatic tires allow for movement over most surfaces. Great for moving loads over terrain. These carts minimize operator bending and lifting. Hydraulic system includes a soft-lowering down valve. Little exertion is required to raise and lower platform. The simplicity and compactness of these carts make them ideal for lifting and transporting loads. Rugged welded steel construction. Baked-in powder-coated toughness.

  • Hydraulic cart design is ergonomic and for landscaping and construction sites
  • Unit is powder coated and constructed of welded steel for long lasting durability
  • Pneumatic tires are ideal for moving smoothly over rough conditions

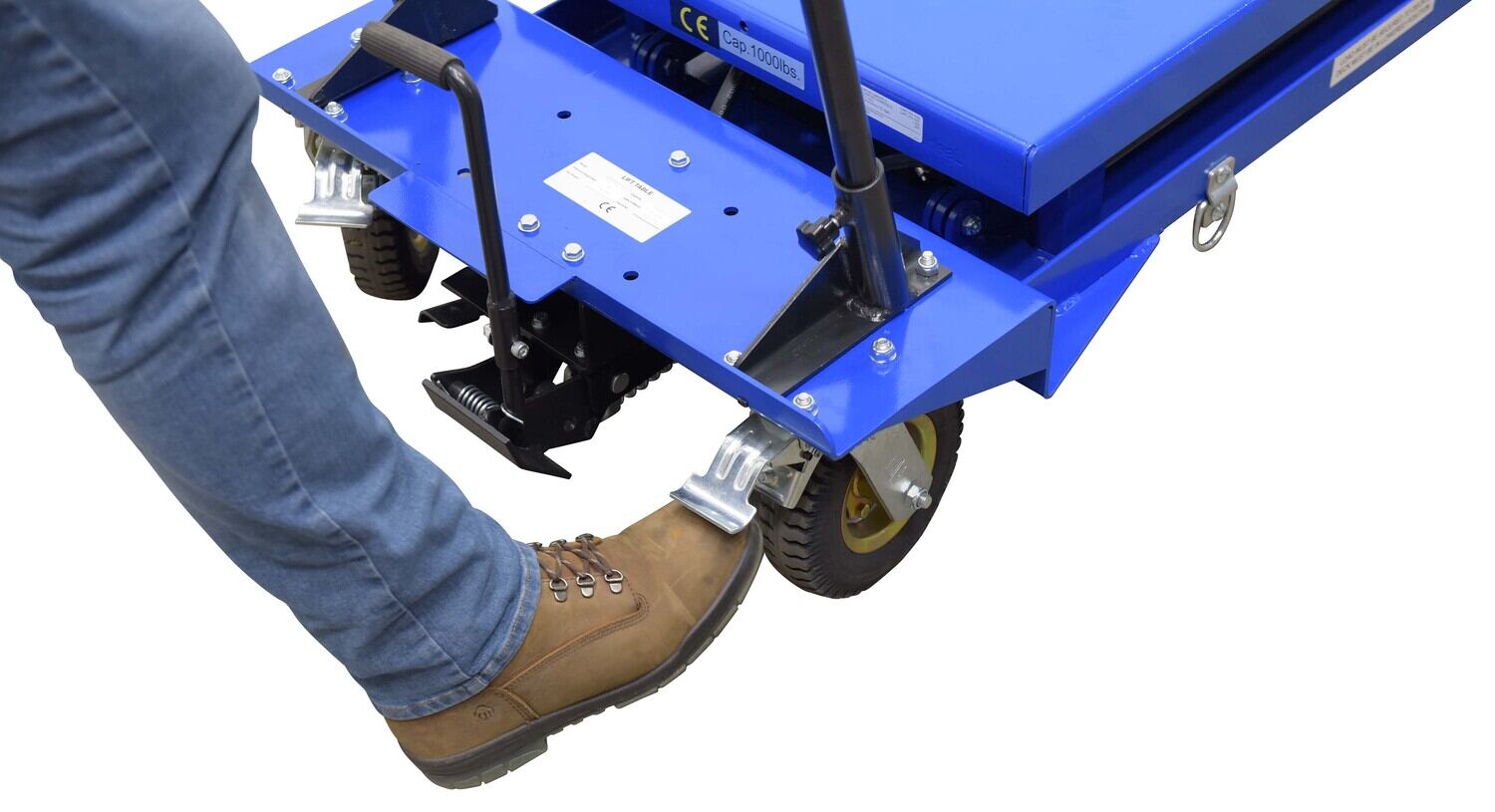

  • Foot actuated pump can elevate or lower for maximum efficiency

Pneumatic Tire Elevating Carts are designed to be used at nurseries, gardens, construction sites, and gravel pits. Large front and rear pneumatic tires allow for movement over most surfaces. Great for moving loads over terrain. These carts minimize operator bending and lifting. Hydraulic system includes a soft-lowering down valve. Little exertion is required to raise and lower platform. The simplicity and compactness of these carts make them ideal for lifting and transporting loads. Rugged welded steel construction. Baked-in powder-coated toughness.

  • Hydraulic cart design is ergonomic and for landscaping and construction sites
  • Unit is powder coated and constructed of welded steel for long lasting durability
  • Pneumatic tires are ideal for moving smoothly over rough conditions
  • Foot actuated pump can elevate or lower for maximum efficiency

Other Elevating Lift Carts

 Adjustable Pallet Stands Auto-Shift Hydraulic Elevating Carts Pneumatic Tire Elevating Carts Scissor Carts with Built-In Scale

Additional Models In This Family
view entire Image Gallery

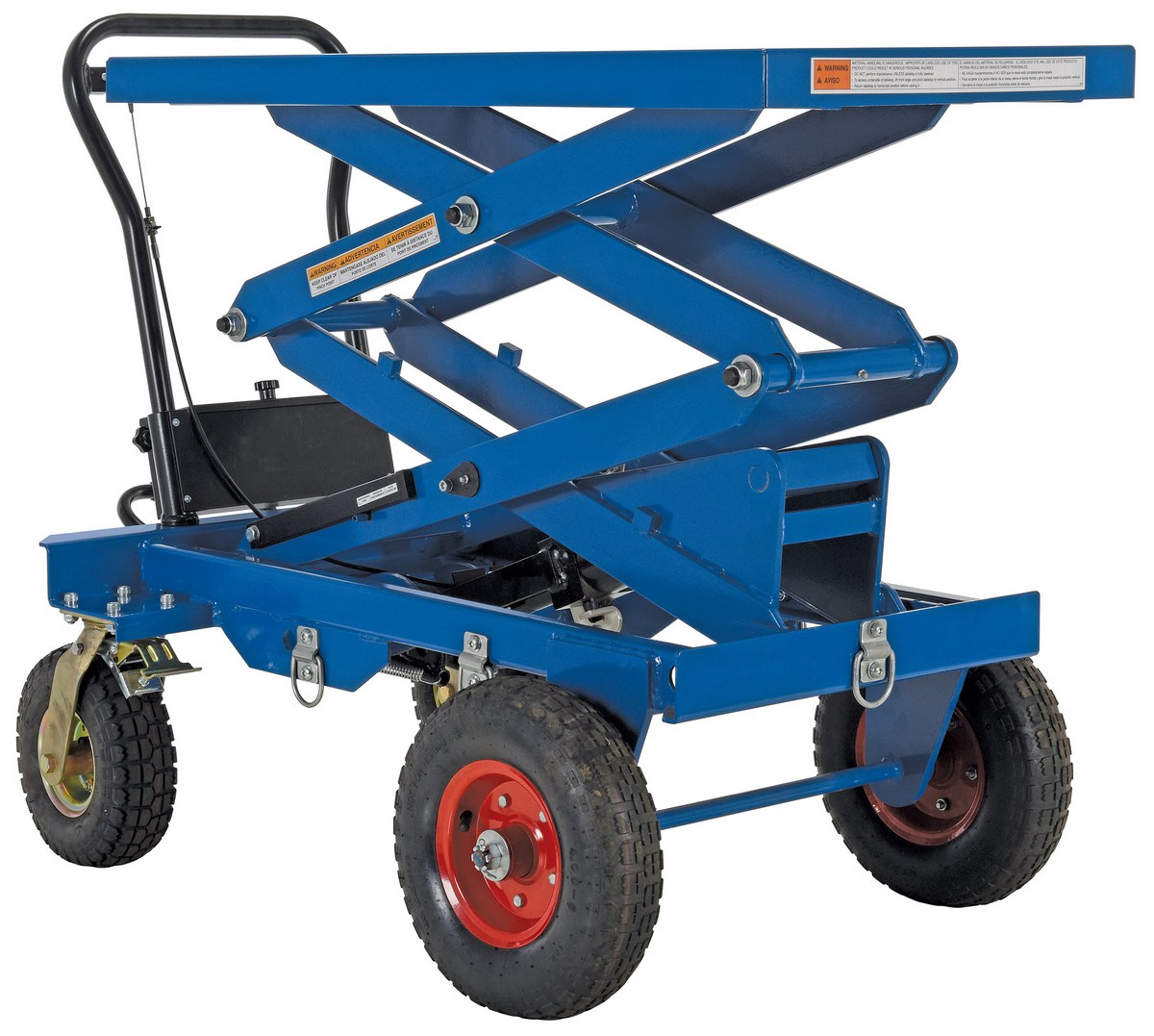

CART-PN-600-D

model CART-PN-600-D

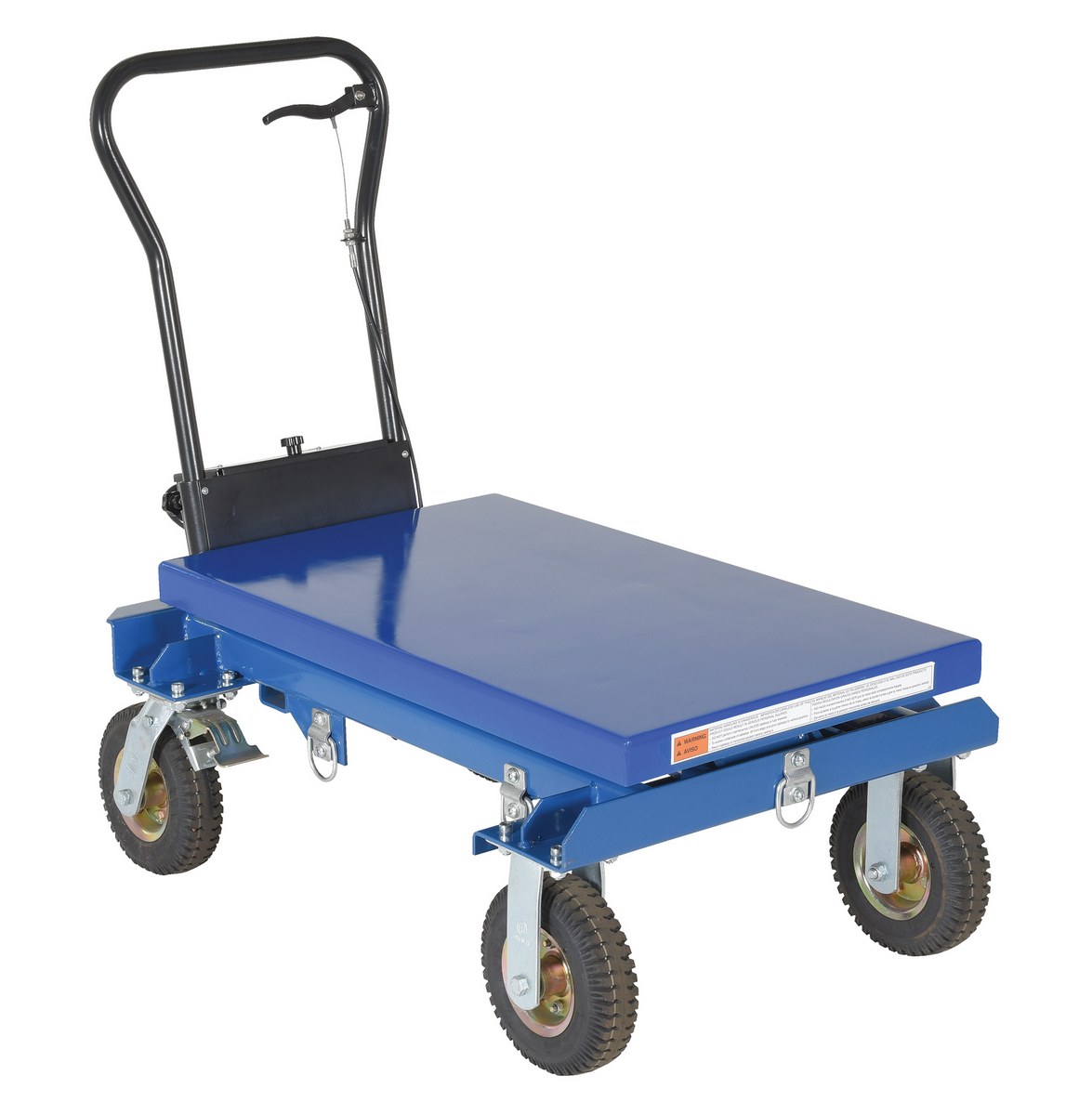

CART-PN-600

model CART-PN-600

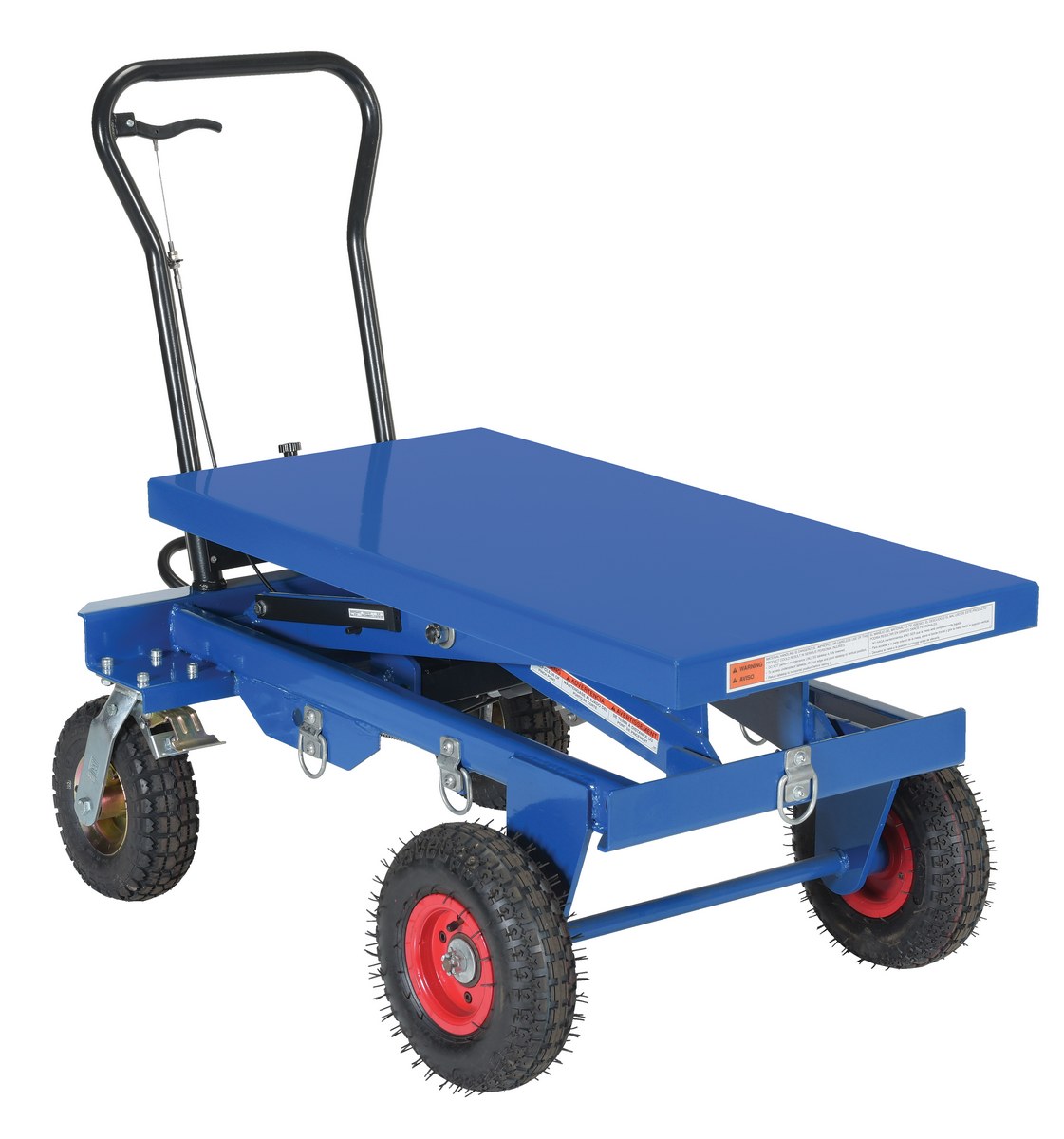

CART-PN-1500

model CART-PN-1500

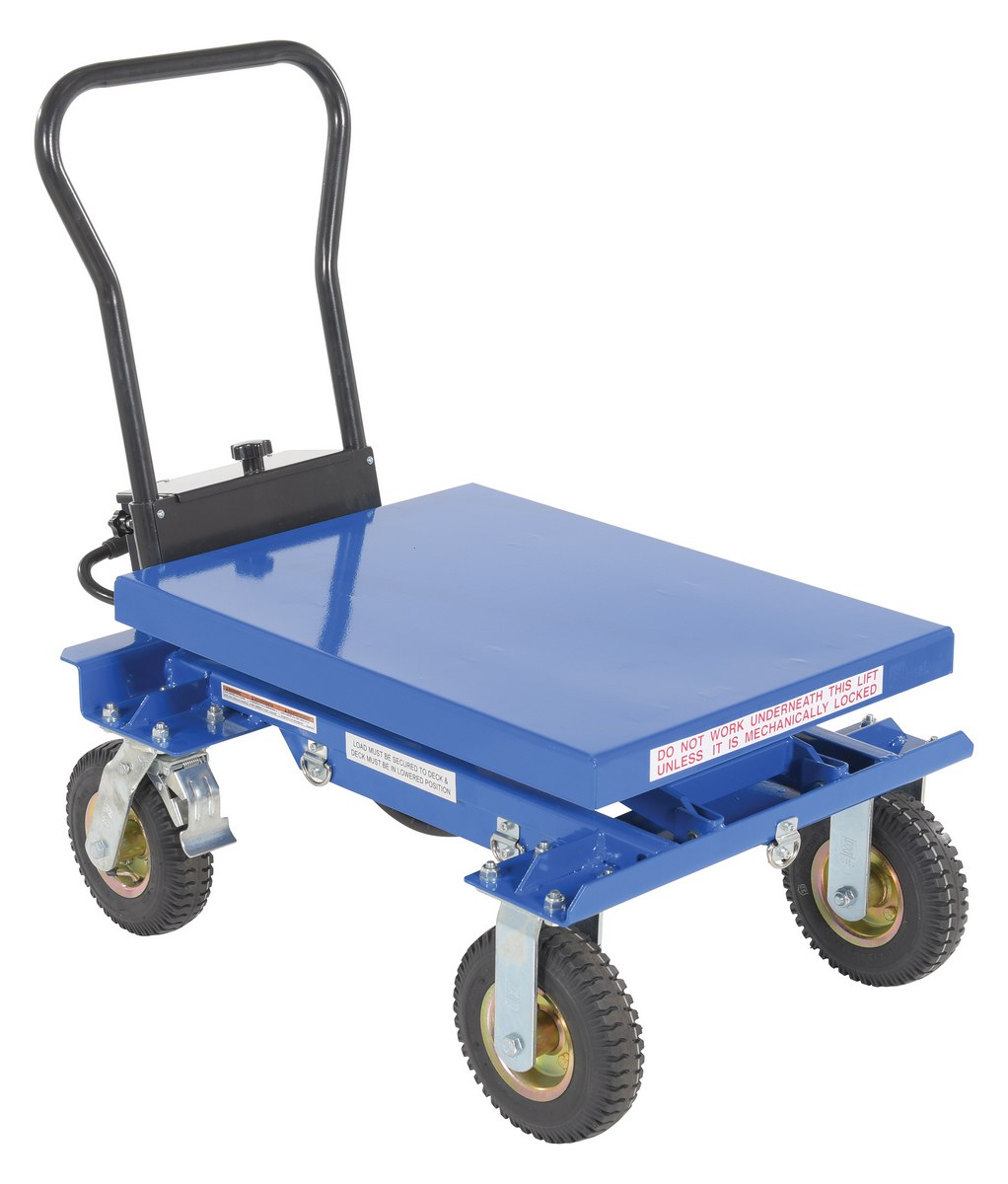

CART-PN-400

model CART-PN-400

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
CART-PN-1000 CART-PN-10001 Year Limited WarrantySteel Rough Terrain Elevating Cart 24 In. x 48 In. 1000 Lb. Capacity BlueUniform Capacity (lb.): 1000
Platform Width (in.): 24		560
CART-PN-1500 CART-PN-15001 Year Limited WarrantySteel Rough Terrain Elevating Cart 20-1/2 In. x 40 In. 1500 Lb. Capacity BlueUniform Capacity (lb.): 1500
Platform Width (in.): 20-1/2		396
CART-PN-400 CART-PN-4001 Year Limited WarrantySteel Rough Terrain Elevating Cart 20-1/2 In. x 27-1/2 In. 400 Lb. Capacity BlueUniform Capacity (lb.): 400
Platform Width (in.): 20-1/2		222
CART-PN-600 CART-PN-6001 Year Limited WarrantySteel Rough Terrain Elevating Cart 20-1/2 In. x 33-1/2 In. 600 Lb. Capacity BlueUniform Capacity (lb.): 600
Platform Width (in.): 20-1/2		266
CART-PN-600-D CART-PN-600-D1 Year Limited WarrantySteel Rough Terrain Elevating Cart 20-1/2 In. x 40 In. 600 Lb. Capacity BlueUniform Capacity (lb.): 600
Platform Width (in.): 20-1/2		430

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

CART-PN-1000
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1000
Platform Width (in.): 24
Uniform Capacity (lb.): 1000
Platform Width (in.): 24

CART-PN-1500
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1500
Platform Width (in.): 20-1/2
Uniform Capacity (lb.): 1500
Platform Width (in.): 20-1/2

CART-PN-400
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 400
Platform Width (in.): 20-1/2
Uniform Capacity (lb.): 400
Platform Width (in.): 20-1/2

CART-PN-600
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 600
Platform Width (in.): 20-1/2
Uniform Capacity (lb.): 600
Platform Width (in.): 20-1/2

CART-PN-600-D
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 600
Platform Width (in.): 20-1/2
Uniform Capacity (lb.): 600
Platform Width (in.): 20-1/2
Pneumatic Tire Elevating Carts PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings


CART-PN-1000

CART-PN-1500

Testing Certificates


CART-PN-1000

CART-PN-1500

CART-PN-400

CART-PN-600

CART-PN-600-D

SDS Sheets

Hydraulic Oil SDS Sheet for: CART-PN-1000
Hydraulic Oil SDS Sheet for: CART-PN-1500
Hydraulic Oil SDS Sheet for: CART-PN-600
Hydraulic Oil SDS Sheet for: CART-PN-600-D

Other PDF's


Pneumatic Tire Elevating Carts Mailing Brochure

Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Q: What is the Thickness/gauge of the steel on the table surface on the CART-PN-1500?

A: The steel is gauge 12.

Q: Is there an emergency/safety stop in case of hydraulic failure on the CART-PN-1500?

A: This unit comes with one single lifting assembly. There are no hydraulic hoses in this design and no chance of sudden hydraulic failure. Unit will drift down at very slow pace if there is internal leak and in case of lifting assembly damage it will not lift the table at all.

Q: What is the height from the floor to the bottom of the cart in the lowered position?

A: It is 8.5" from floor to bottom of CART-PN-400.

Q: What is the height and width of the handle on the CART-PN-600?

A: The handle is 14 in wide and 32 in long.
