Product Family Overview

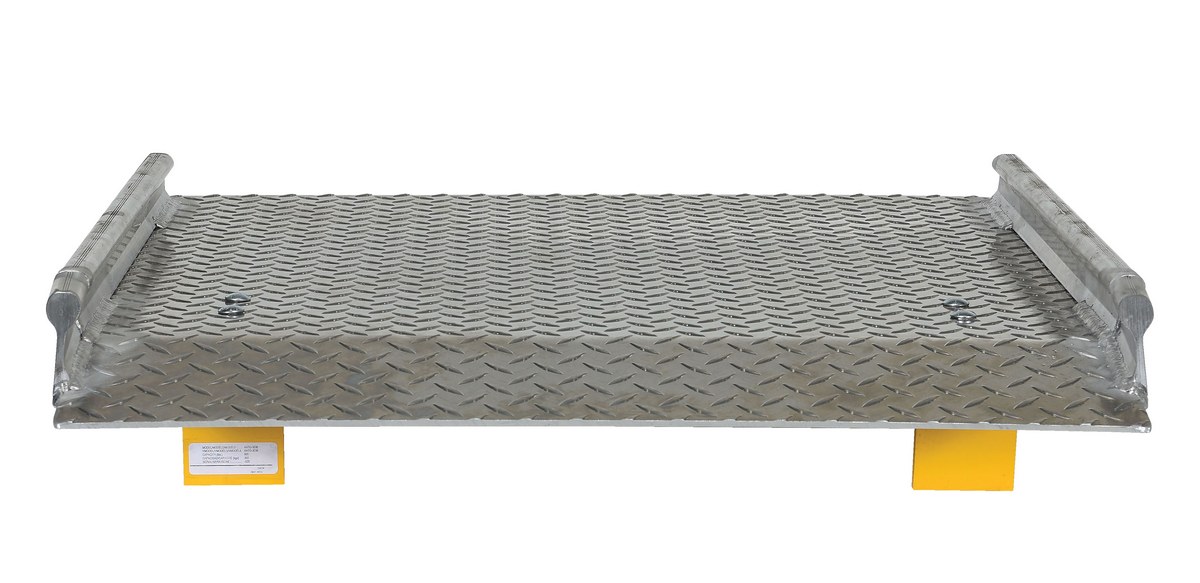

Aluminum Hand Truck Dockboards
SERIES: AHTD

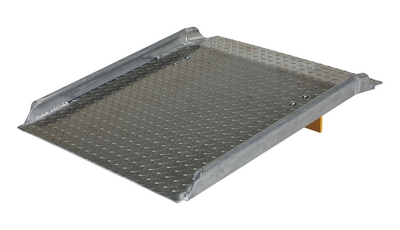

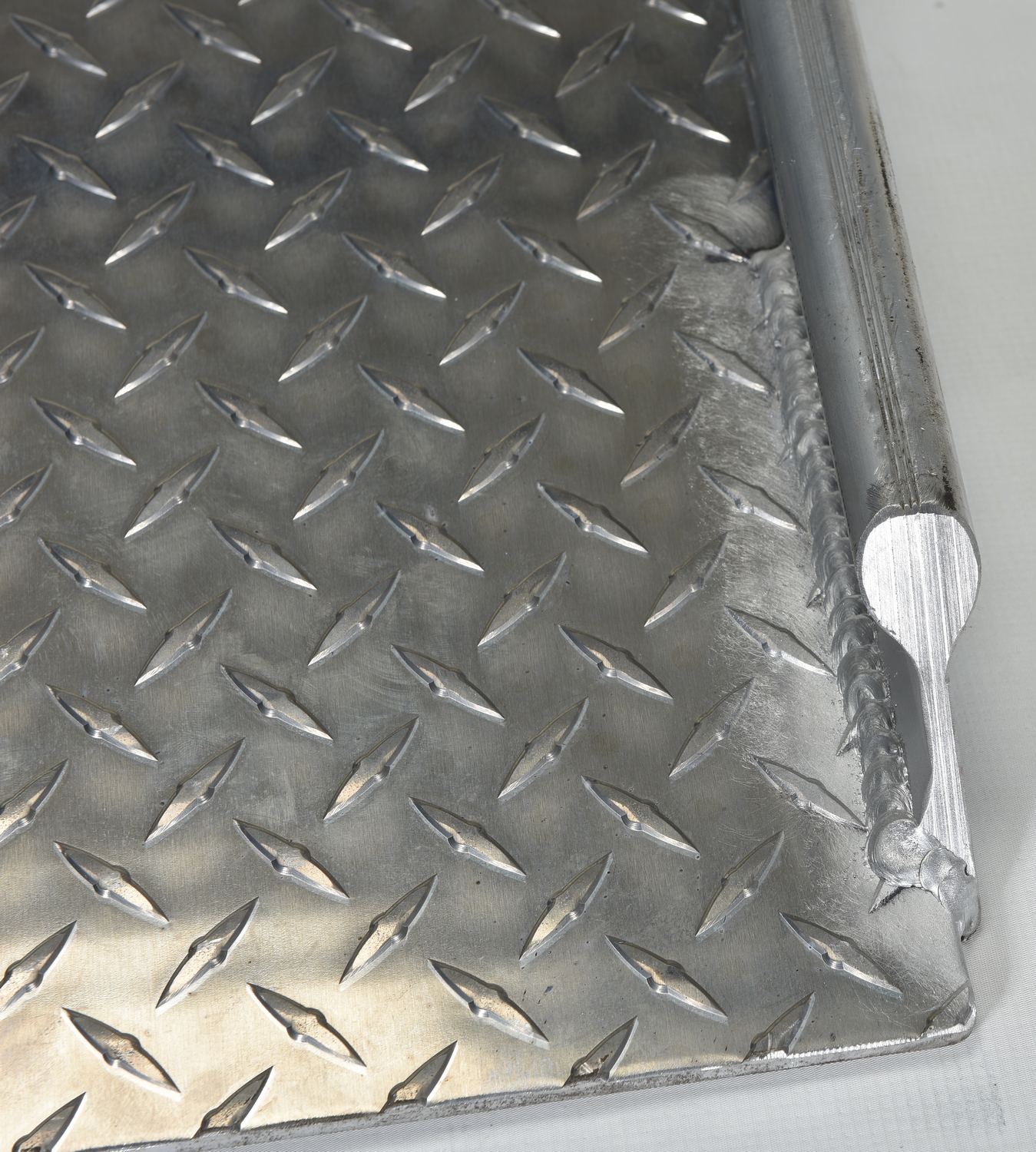

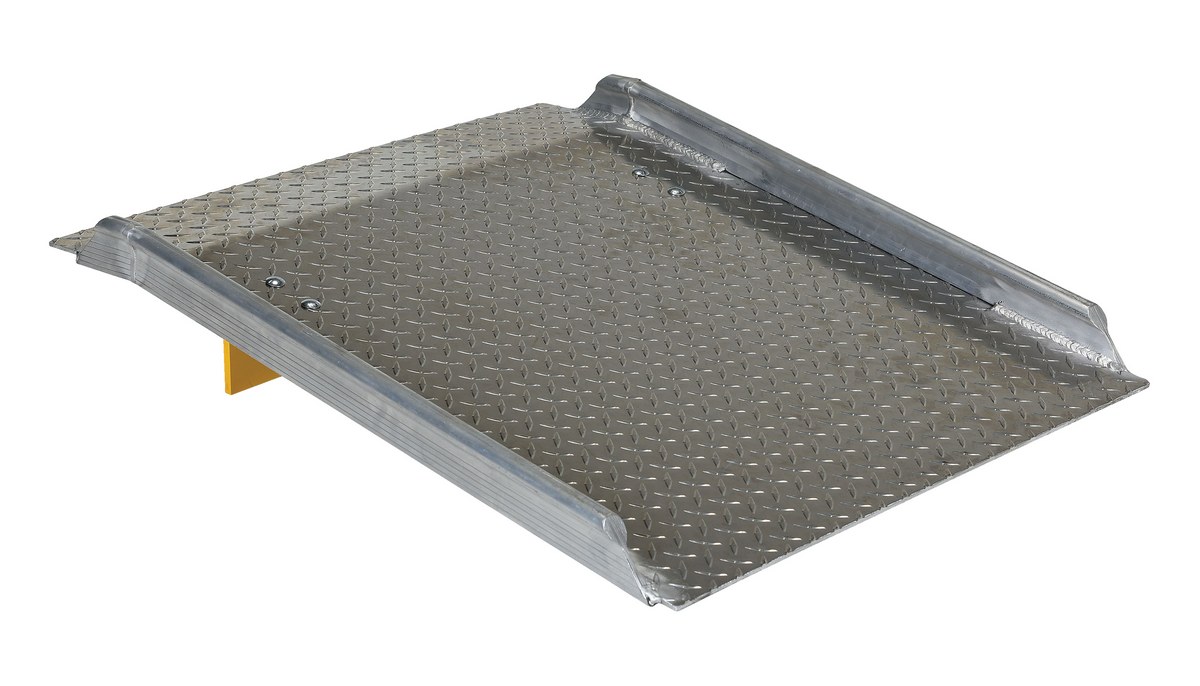

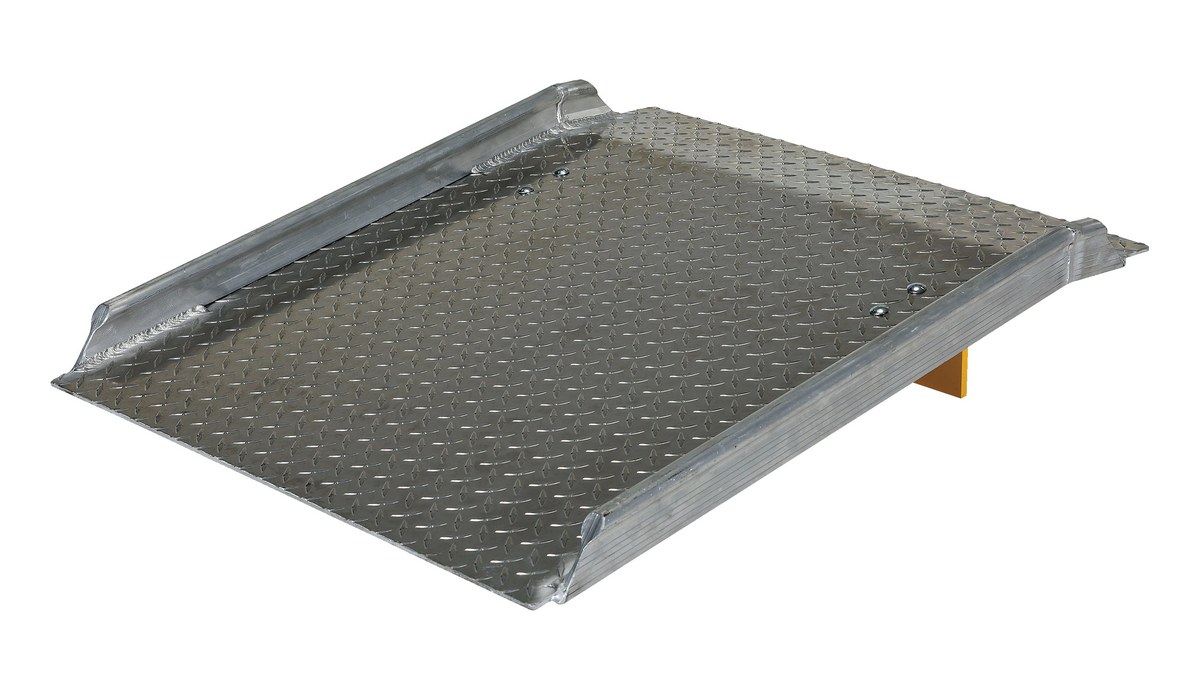

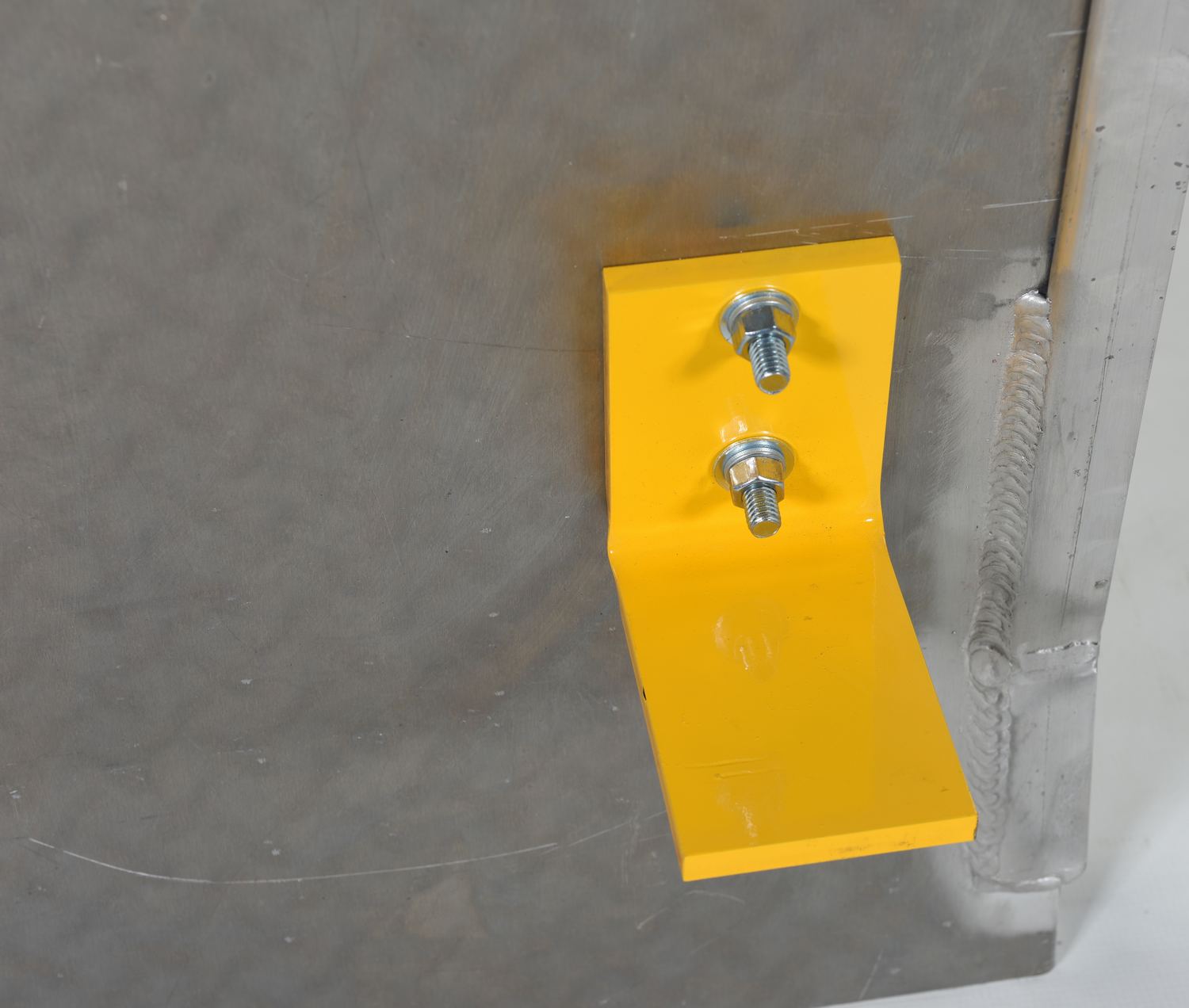

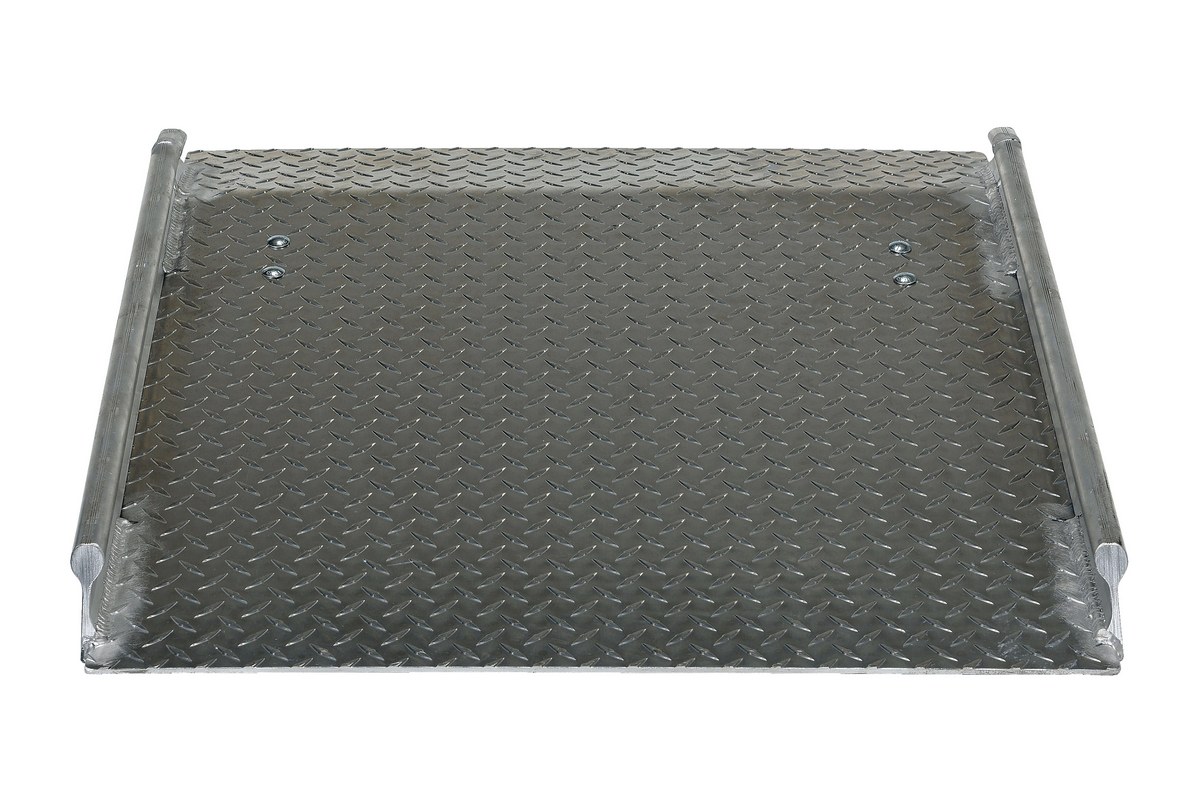

The Aluminum Hand Truck Dockboards are lightweight and can be carried and positioned by one person. Provides a safe and convenient bridge between dock and truck. Welded aluminum diamond tread plate surface and beveled edges provide safe and smooth entry and exit. The 12 degree bend is located 6" from edge and is designed to keep ramp edges flush with the dock surface and the truck floor. The unit is equipped with bolt-on locking legs and full length aluminum curbs that provide hand holds and reduce chance of roll off. 800 lb. uniform capacity. Designed for use with two-wheeled hand trucks. 3/16" plate thickness. Manufactured in compliance with OSHA.

  • Lightweight design is ideal for foot or hand truck traffic
  • Beveled entrance and exit edges provide smooth transition
  • Tread plate surface ensures skid-resistant safe traction
  • Bolt-on locking legs and lifting handles for OSHA compliance

The Aluminum Hand Truck Dockboards are lightweight and can be carried and positioned by one person. Provides a safe and convenient bridge between dock and truck. Welded aluminum diamond tread plate surface and beveled edges provide safe and smooth entry and exit. The 12 degree bend is located 6" from edge and is designed to keep ramp edges flush with the dock surface and the truck floor. The unit is equipped with bolt-on locking legs and full length aluminum curbs that provide hand holds and reduce chance of roll off. 800 lb. uniform capacity. Designed for use with two-wheeled hand trucks. 3/16" plate thickness. Manufactured in compliance with OSHA.

  • Lightweight design is ideal for foot or hand truck traffic
  • Beveled entrance and exit edges provide smooth transition
  • Tread plate surface ensures skid-resistant safe traction
  • Bolt-on locking legs and lifting handles for OSHA compliance

Additional Models In This Family

AHTD-3648

model AHTD-3648

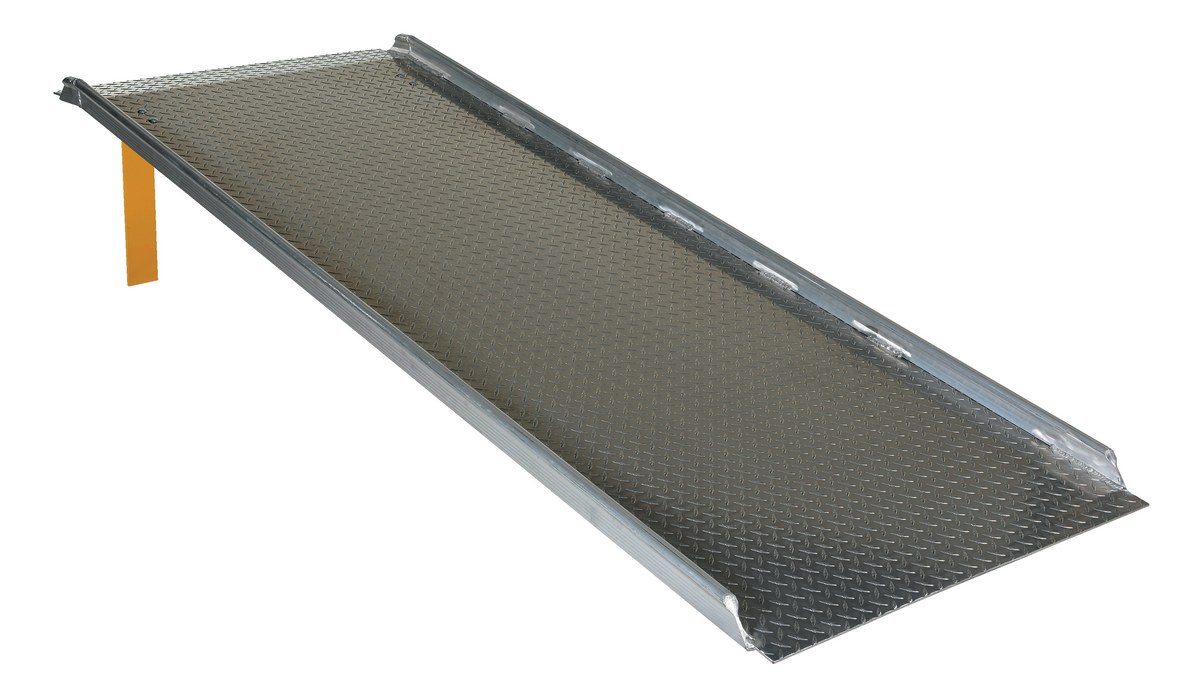

AHTD-3696

model AHTD-3696

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
AHTD-3036 AHTD-303690 Days Limited WarrantyAluminum Diamond Tread Hand Truck Dock Board with Curbs 35-7/8 In. x 31-1/4 In. x 7-3/16 In. 800 Lb. Capacity SilverUniform Capacity (lb.): 800
Bend or Crown (degrees): 12
235
AHTD-3048 AHTD-304890 Days Limited WarrantyAluminum Diamond Tread Hand Truck Dock Board with Curbs 47-7/8 In. x 31-1/4 In. x 10-3/16 In. 800 Lb. Capacity SilverUniform Capacity (lb.): 800
Bend or Crown (degrees): 12
246
AHTD-3648 AHTD-364890 Days Limited WarrantyAluminum Diamond Tread Hand Truck Dock Board with Curbs 47-7/8 In. x 37-1/4 In. x 10-3/16 In. 800 Lb. Capacity SilverUniform Capacity (lb.): 800
Bend or Crown (degrees): 12
242
AHTD-3660 AHTD-366090 Days Limited WarrantyAluminum Diamond Tread Hand Truck Dock Board with Curbs 59-7/8 In. x 37-1/4 In. x 13-3/16 In. 800 Lb. Capacity SilverUniform Capacity (lb.): 800
Bend or Crown (degrees): 12
265

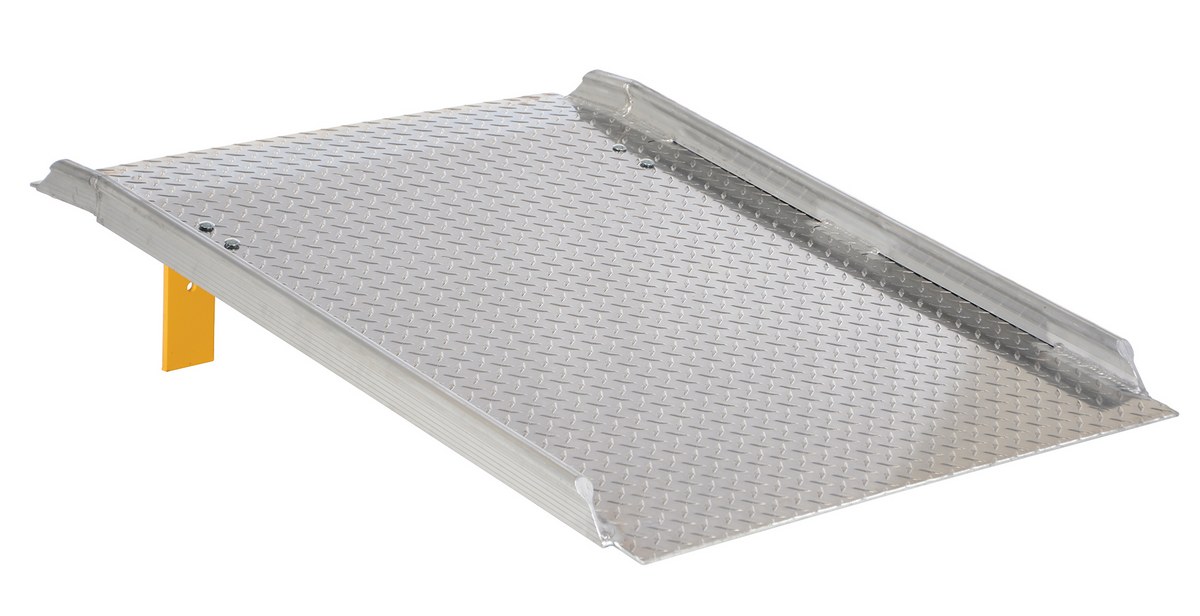

AHTD-3672 AHTD-367290 Days Limited WarrantyAluminum Diamond Tread Hand Truck Dock Board with Curbs 71-7/8 In. x 37-1/4 In. x 16-1/8 In. 800 Lb. Capacity SilverUniform Capacity (lb.): 800
Bend or Crown (degrees): 12
95
AHTD-3696 AHTD-369690 Days Limited WarrantyAluminum Diamond Tread Hand Truck Dock Board with Curbs 95-7/8 In. x 37-1/4 In. x 19-1/8 In. 800 Lb. Capacity SilverUniform Capacity (lb.): 800
Bend or Crown (degrees): 12
107

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

AHTD-3036
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 800
Bend or Crown (degrees): 12
Uniform Capacity (lb.): 800
Bend or Crown (degrees): 12

AHTD-3048
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 800
Bend or Crown (degrees): 12
Uniform Capacity (lb.): 800
Bend or Crown (degrees): 12

AHTD-3648
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 800
Bend or Crown (degrees): 12
Uniform Capacity (lb.): 800
Bend or Crown (degrees): 12

AHTD-3660
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 800
Bend or Crown (degrees): 12
Uniform Capacity (lb.): 800
Bend or Crown (degrees): 12

AHTD-3672
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 800
Bend or Crown (degrees): 12
Uniform Capacity (lb.): 800
Bend or Crown (degrees): 12

AHTD-3696
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 800
Bend or Crown (degrees): 12
Uniform Capacity (lb.): 800
Bend or Crown (degrees): 12
For More Details of the Option Click the Red Model Button
Aluminum Hand Truck Dockboard-Options
Model PDFs Description
DPR-2616 - Steel Dock Plate Storage Rack 26 In. x 6 In. Yellow
1HDL Compliance Certificate One Handle
SDP Compliance Certificate Smooth Deck Plate (Diamond side down with grip tape)
S2B Compliance Certificate Special 2nd Bend Location
SBL Compliance Certificate Special Bend Location
SLL Compliance Certificate Special Location of Legs
ATC-12 Compliance Certificate Anti-Theft Chain (144")
LHDL Compliance Certificate Extra Pair of Legs with Handles & Hardware
TRADE Compliance Certificate Trade in Allowance (F.O.B. IN)
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above

Aluminum Hand Truck Dockboards PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets


Approval Drawings

Testing Certificates


AHTD-3036

AHTD-3048

AHTD-3648

AHTD-3660

AHTD-3672

AHTD-3696

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Aluminum Hand Truck Dockboards




The Aluminum Hand Truck Dockboards are lightweight and can be carried and positioned by one person. Provides a safe and convenient bridge between dock and truck. Welded aluminum diamond tread plate surface and beveled edges provide safe and smooth entry and exit. The 12 degree bend is located 6" from edge and is designed to keep ramp edges flush with the dock surface and the truck floor. The unit is equipped with bolt-on locking legs and full length aluminum curbs that provide hand holds and reduce chance of roll off. 800 lb. uniform capacity. Designed for use with two-wheeled hand trucks. 3/16" plate thickness. Manufactured in compliance with OSHA.

  • Lightweight design is ideal for foot or hand truck traffic
  • Beveled entrance and exit edges provide smooth transition
  • Tread plate surface ensures skid-resistant safe traction
  • Bolt-on locking legs and lifting handles for OSHA compliance


Model # Description Attributes Net Wt.
(lbs)
AHTD-3036 AHTD-3036Aluminum Diamond Tread Hand Truck Dock Board with Curbs 35-7/8 In. x 31-1/4 In. x 7-3/16 In. 800 Lb. Capacity SilverUniform Capacity (lb.): 800
Bend or Crown (degrees): 12
29
AHTD-3048 AHTD-3048Aluminum Diamond Tread Hand Truck Dock Board with Curbs 47-7/8 In. x 31-1/4 In. x 10-3/16 In. 800 Lb. Capacity SilverUniform Capacity (lb.): 800
Bend or Crown (degrees): 12
38
AHTD-3648 AHTD-3648Aluminum Diamond Tread Hand Truck Dock Board with Curbs 47-7/8 In. x 37-1/4 In. x 10-3/16 In. 800 Lb. Capacity SilverUniform Capacity (lb.): 800
Bend or Crown (degrees): 12
33
AHTD-3660 AHTD-3660Aluminum Diamond Tread Hand Truck Dock Board with Curbs 59-7/8 In. x 37-1/4 In. x 13-3/16 In. 800 Lb. Capacity SilverUniform Capacity (lb.): 800
Bend or Crown (degrees): 12
55
AHTD-3672 AHTD-3672Aluminum Diamond Tread Hand Truck Dock Board with Curbs 71-7/8 In. x 37-1/4 In. x 16-1/8 In. 800 Lb. Capacity SilverUniform Capacity (lb.): 800
Bend or Crown (degrees): 12
95
AHTD-3696 AHTD-3696Aluminum Diamond Tread Hand Truck Dock Board with Curbs 95-7/8 In. x 37-1/4 In. x 19-1/8 In. 800 Lb. Capacity SilverUniform Capacity (lb.): 800
Bend or Crown (degrees): 12
107

Options


Aluminum Hand Truck Dockboard-Options
Model PDFs Description
DPR-2616 - Steel Dock Plate Storage Rack 26 In. x 6 In. Yellow
1HDL Compliance Certificate One Handle
SDP Compliance Certificate Smooth Deck Plate (Diamond side down with grip tape)
S2B Compliance Certificate Special 2nd Bend Location
SBL Compliance Certificate Special Bend Location
SLL Compliance Certificate Special Location of Legs
ATC-12 Compliance Certificate Anti-Theft Chain (144")
LHDL Compliance Certificate Extra Pair of Legs with Handles & Hardware
TRADE Compliance Certificate Trade in Allowance (F.O.B. IN)
