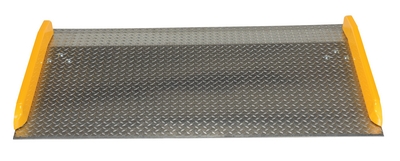

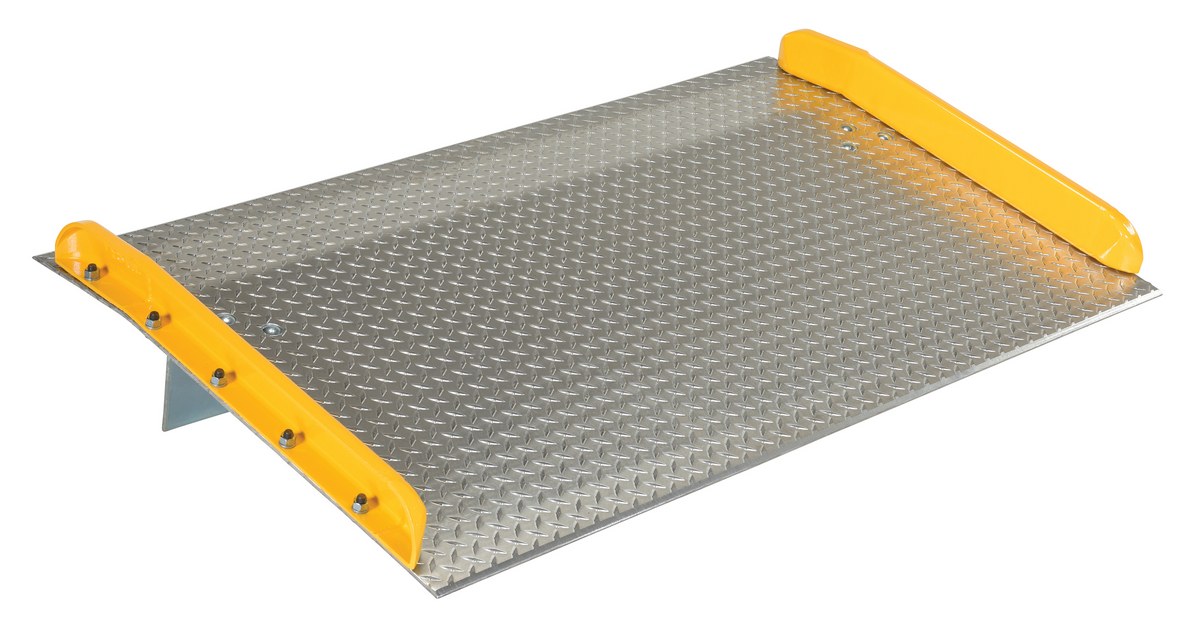

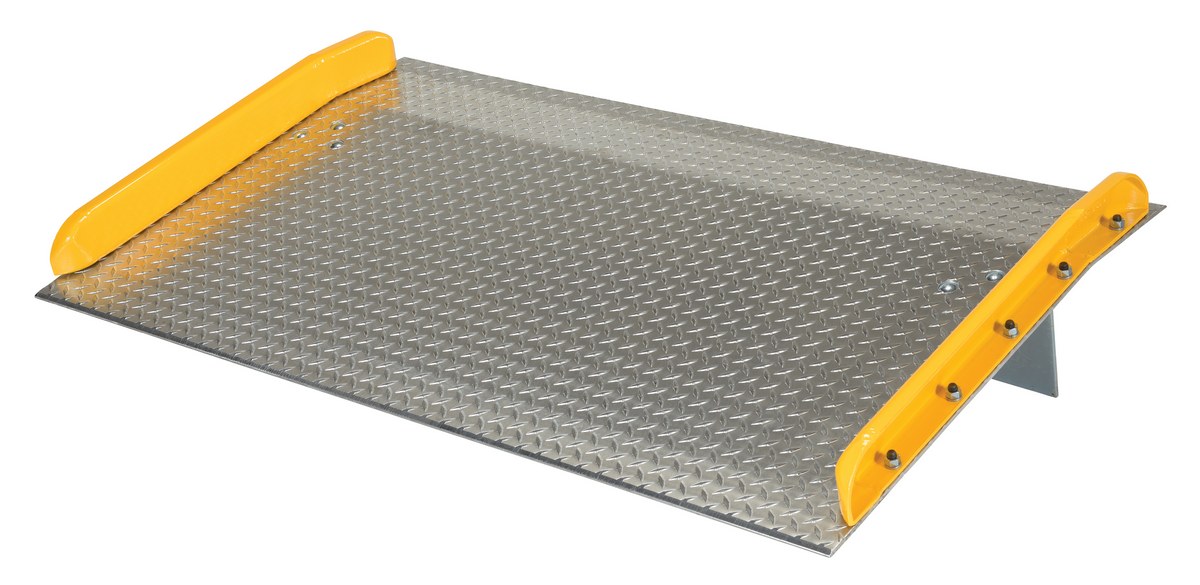

TAS-10-6036_A.jpg TAS-10-6036_B.jpg TAS-10-6036_C.jpg TAS-10-6036_D.jpg
TAS-10-6036_F.jpg TAS-10-6036_G.jpg TAS-10-6036_H.jpg TAS-10-6036_I.jpg

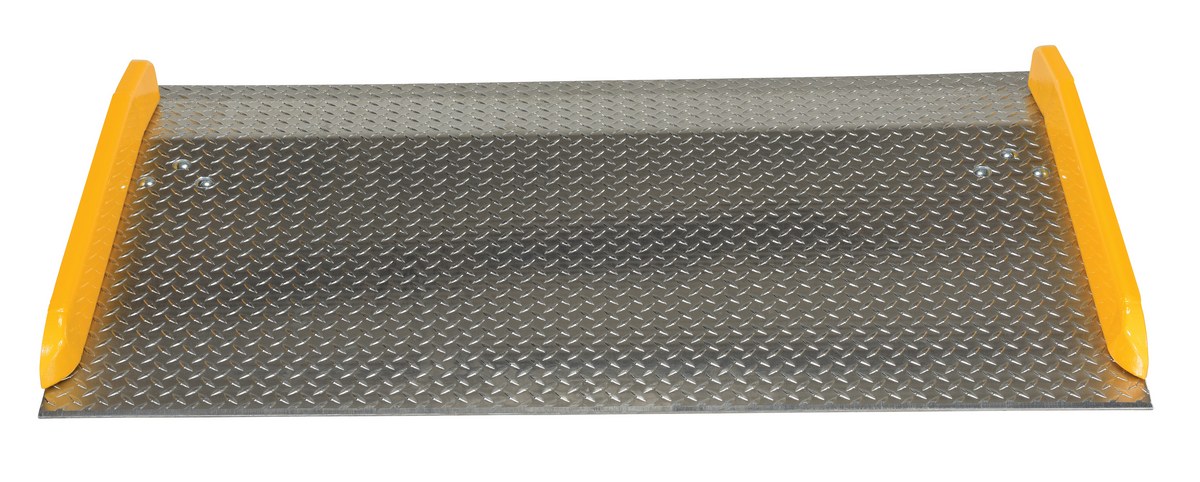

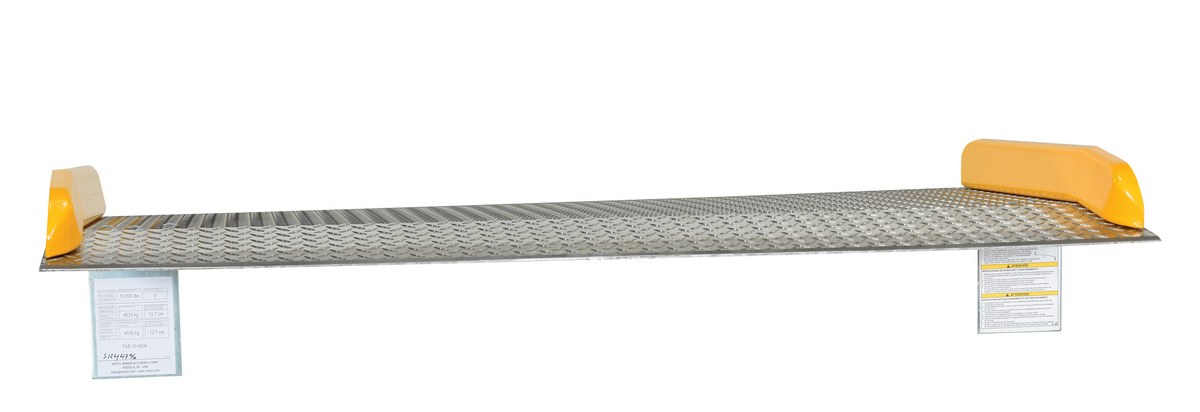

Aluminum Truck Dockboards with Steel Safety Curbs

model: TAS-10-6036



Featured Loading Dock Equipment


Trailer Wheel Locks
LED Dock Loading Lights
Specialty Molded Dock Bumpers
Dock Gates
Aluminum Hand Truck Dockplates
E-TRACK Cargo Bar Assist Tool
Aluminum Pick-Up/Van Ramp
Overhead Door Warning Barriers
Dock Safety & Maintenance
model chart

Product Family Overview

Print Friendly

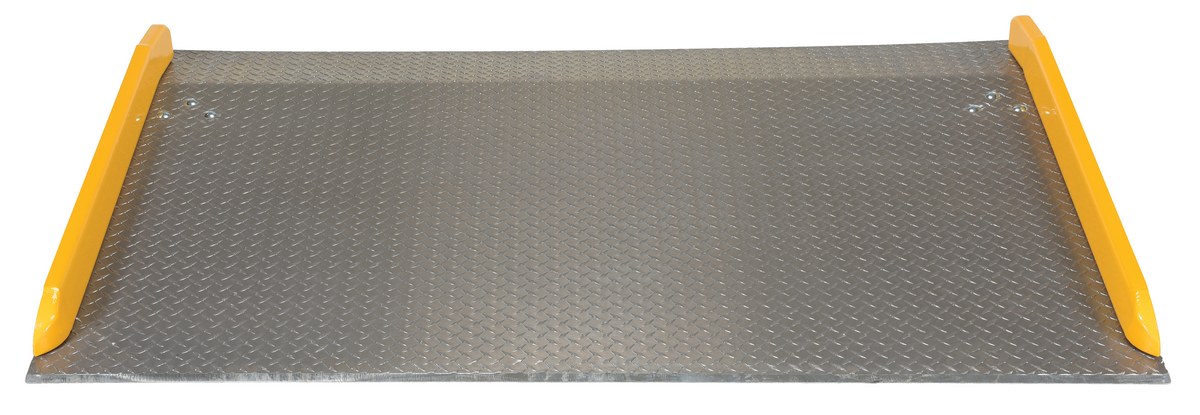

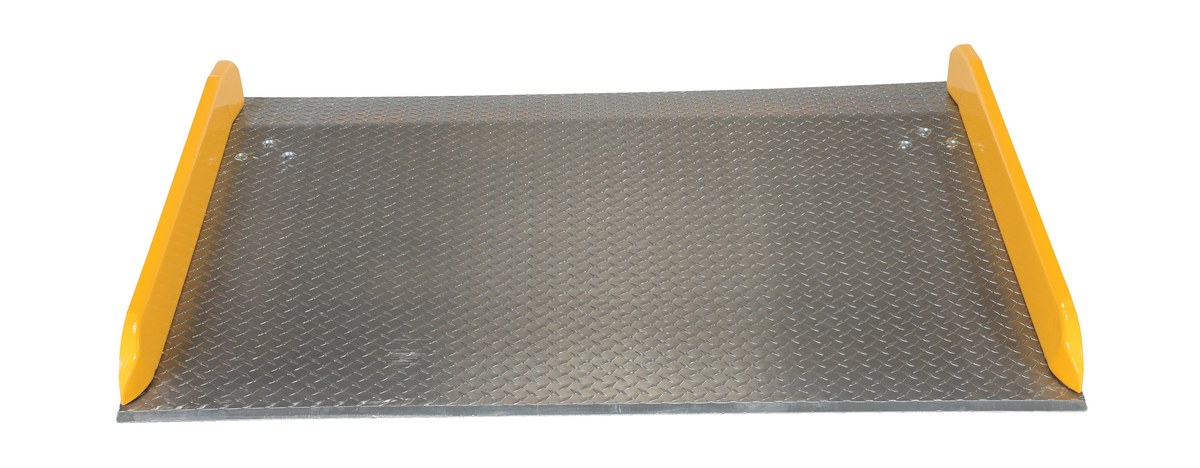

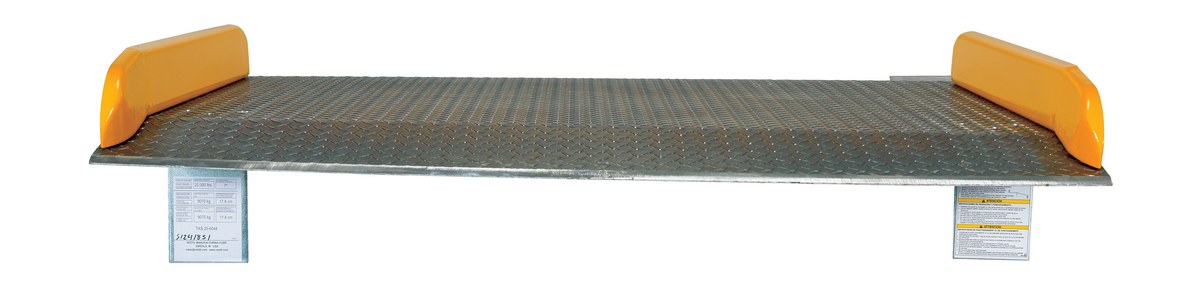

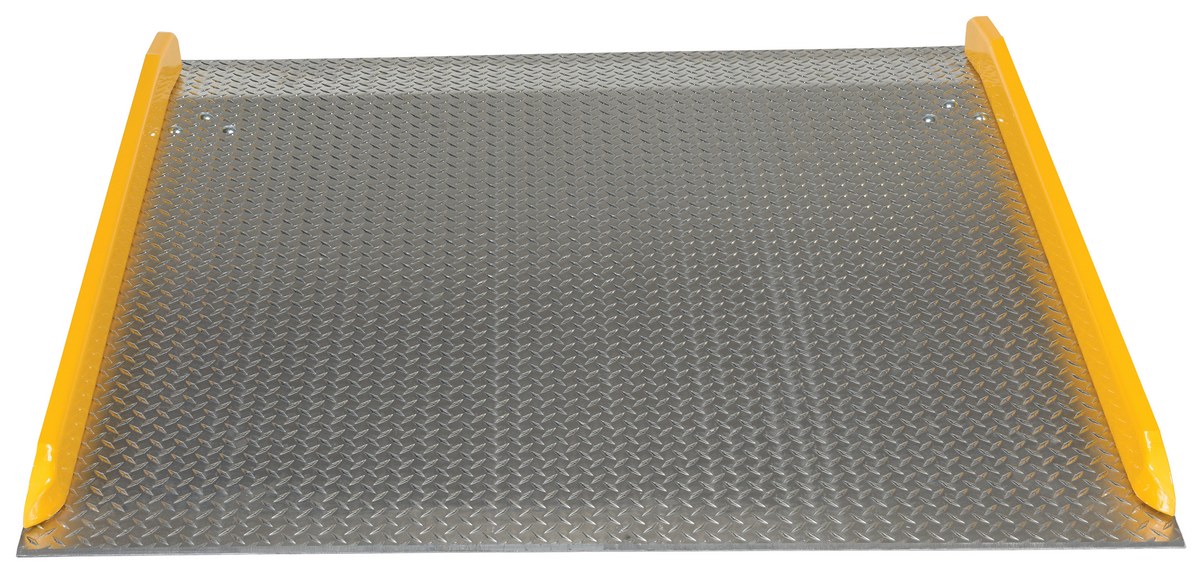

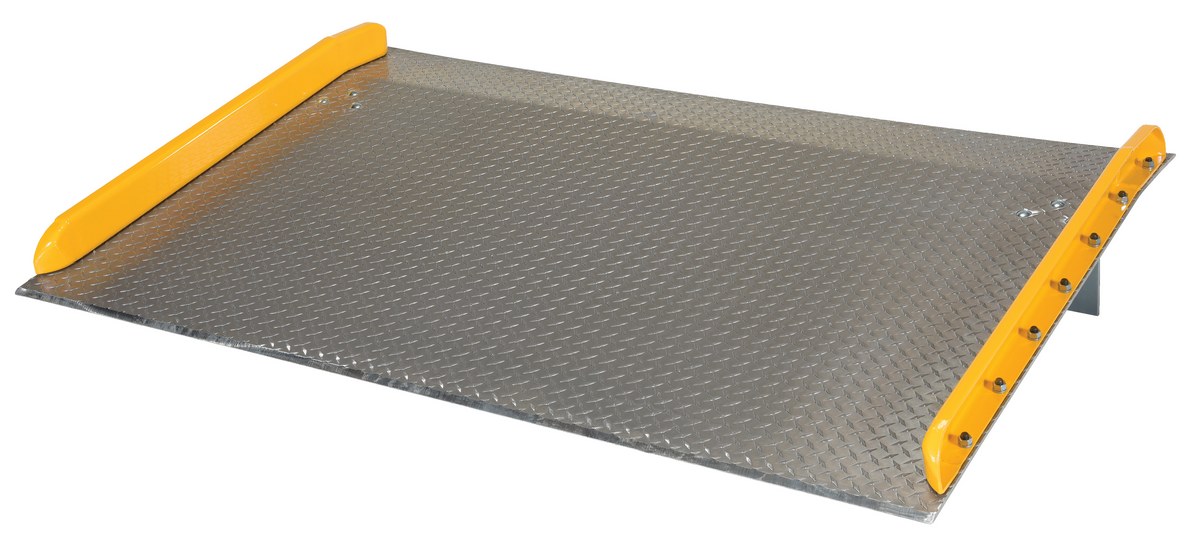

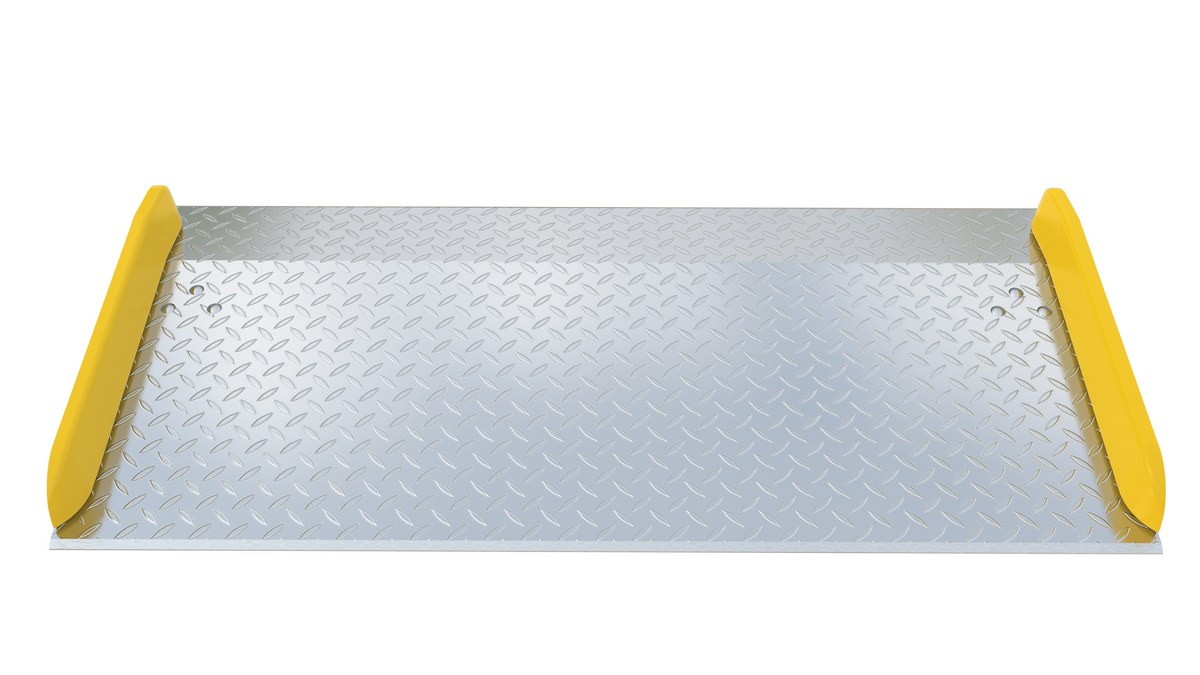

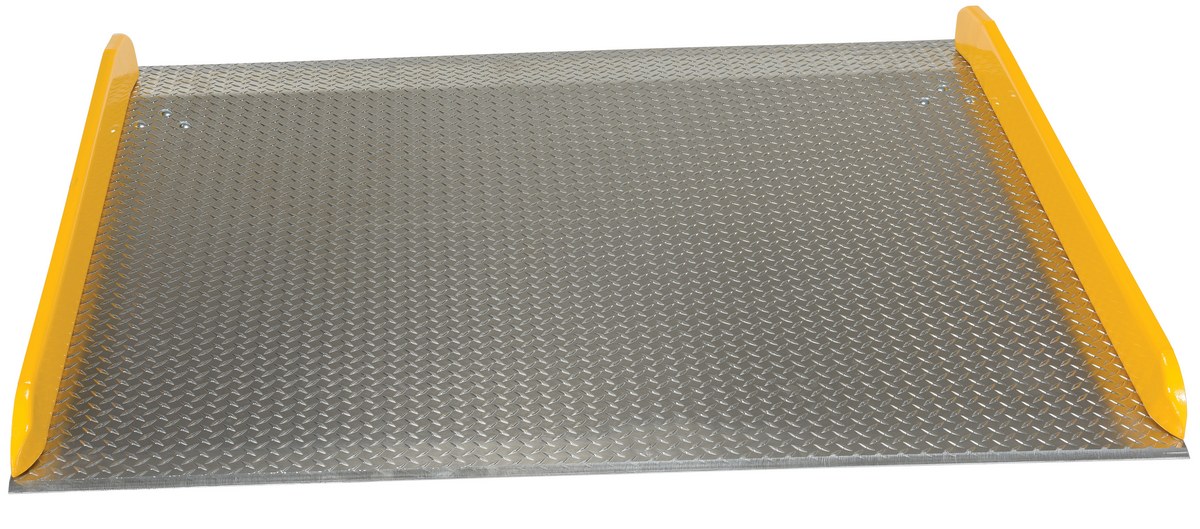

Aluminum Truck Dockboards with Steel Safety Curbs
SERIES: TAS

Aluminum Truck Dockboards with Steel Safety Curbs are designed for portability and safety. The deck is made of tough high strength aluminum diamond tread plate. The edges are beveled for smooth entry and exit. Safety curbs are yellow baked-in powder coated for toughness and are constructed of steel with cast tapered ends. Steel legs are bolted on for increased durability. Legs are located 11" from the beveled edge. The legs are canted for easier fork truck portability. The bend is 11 degrees and 9" from the beveled edge. Manufactured in compliance with OSHA. When using three-wheeled fork trucks order dockboard with capacity at least four-times the lifting capacity of fork truck.

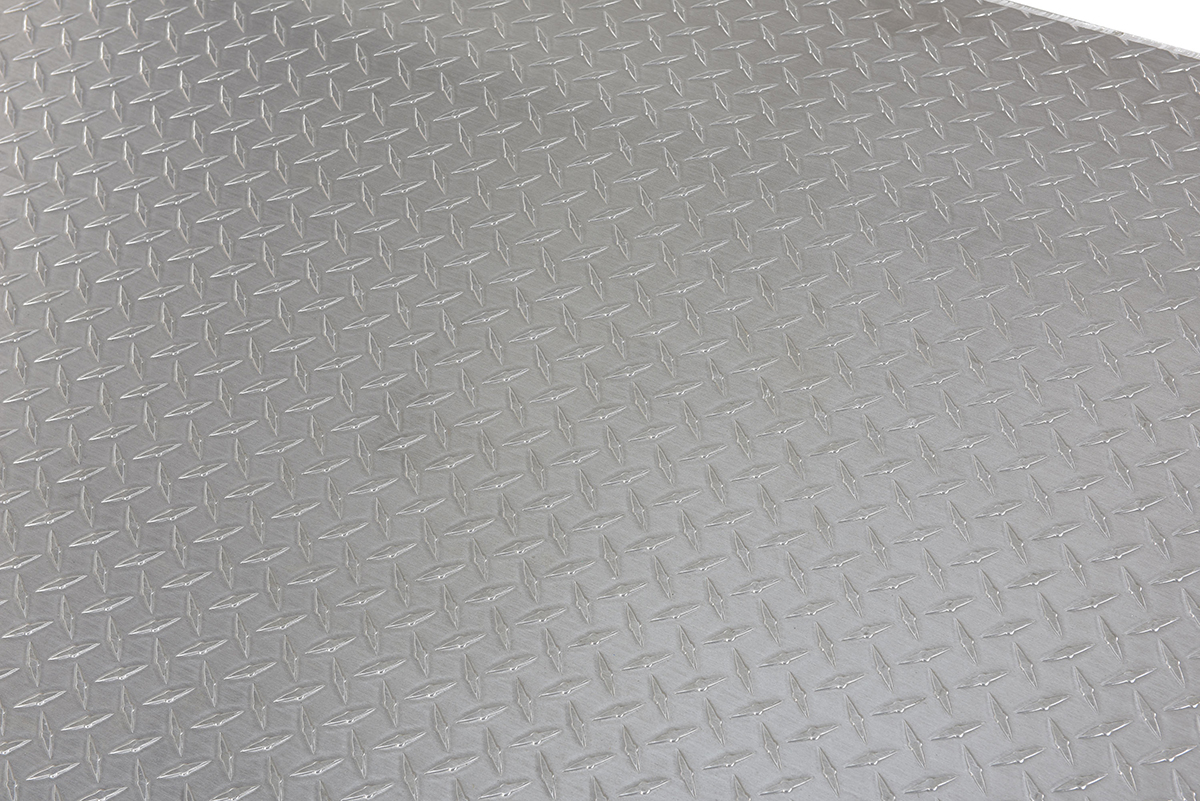

  • High-strength aluminum tread plate material is durable yet lightweight

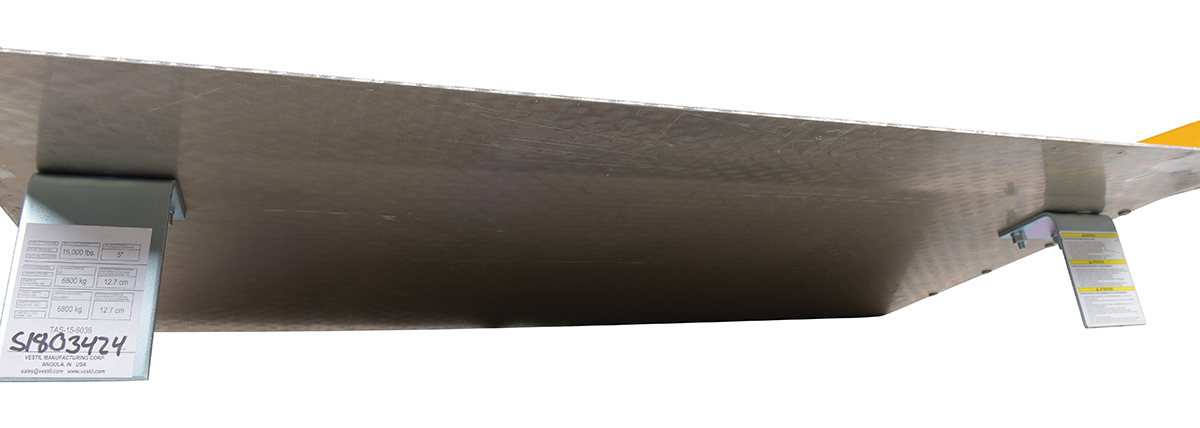

  • Zinc-plated locking legs are within OSHA compliance
  • Beveled entrance and exit edges allow for smoother transition
  • Heavy-duty steel curbs are painted yellow and bolted to deck plate for safer use

Aluminum Truck Dockboards with Steel Safety Curbs are designed for portability and safety. The deck is made of tough high strength aluminum diamond tread plate. The edges are beveled for smooth entry and exit. Safety curbs are yellow baked-in powder coated for toughness and are constructed of steel with cast tapered ends. Steel legs are bolted on for increased durability. Legs are located 11" from the beveled edge. The legs are canted for easier fork truck portability. The bend is 11 degrees and 9" from the beveled edge. Manufactured in compliance with OSHA. When using three-wheeled fork trucks order dockboard with capacity at least four-times the lifting capacity of fork truck.

  • High-strength aluminum tread plate material is durable yet lightweight
  • Zinc-plated locking legs are within OSHA compliance
  • Beveled entrance and exit edges allow for smoother transition
  • Heavy-duty steel curbs are painted yellow and bolted to deck plate for safer use

Other Dockplates & Dockboards

 Steel Dock Plate Storage Rack Aluminum Economizer Dockplates Steel Railroad Dockboards Aluminum Mini Dockplates

Additional Models In This Family
view entire Image Gallery

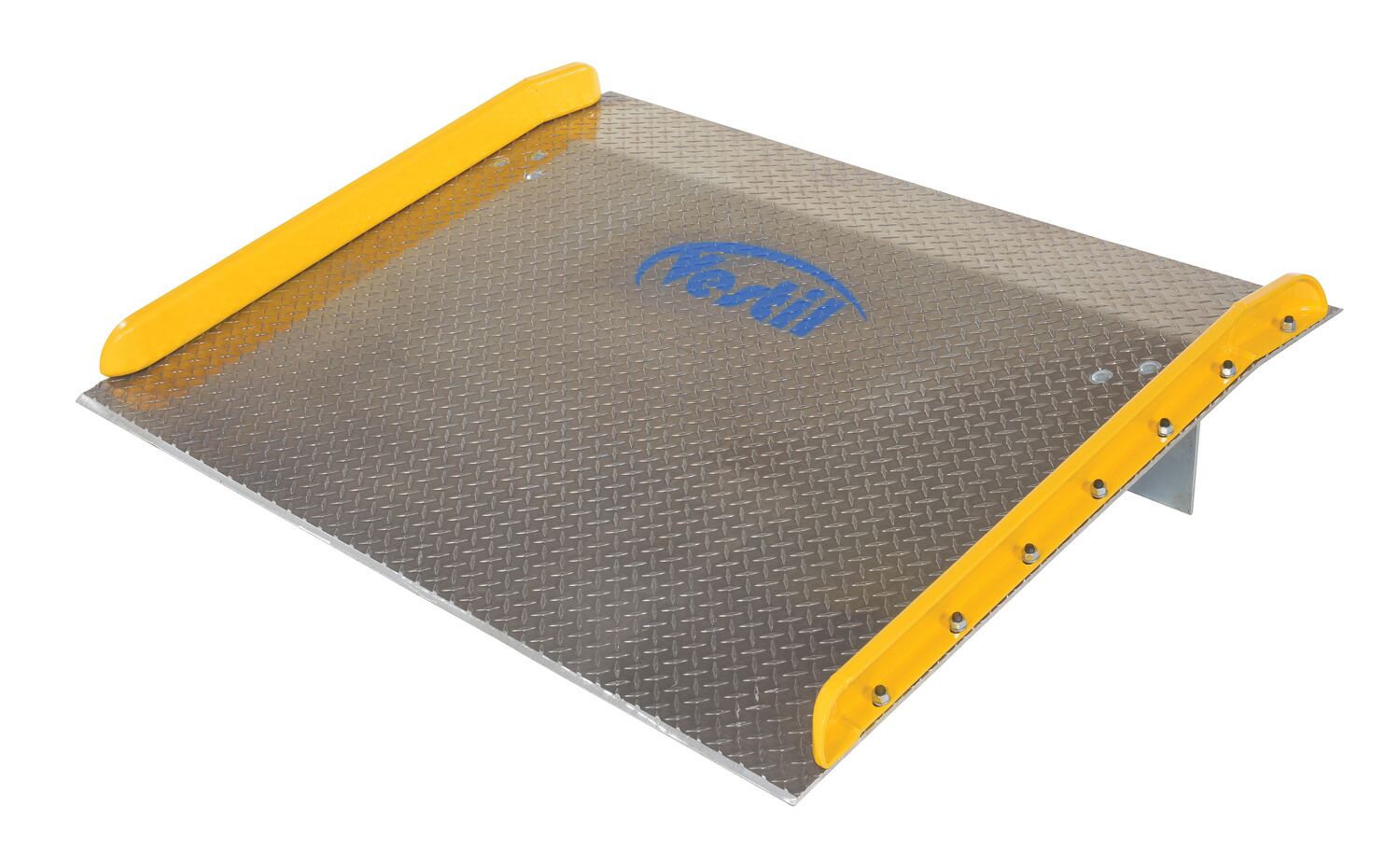

TAS-10-6048

TAS-10-6048

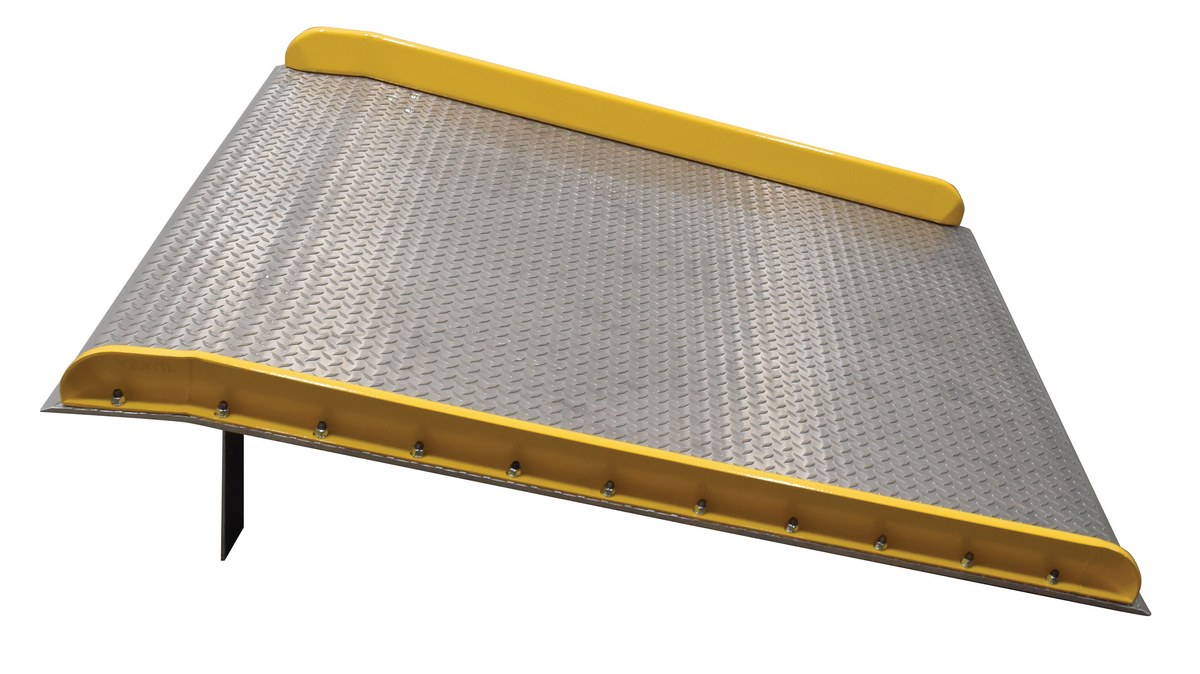

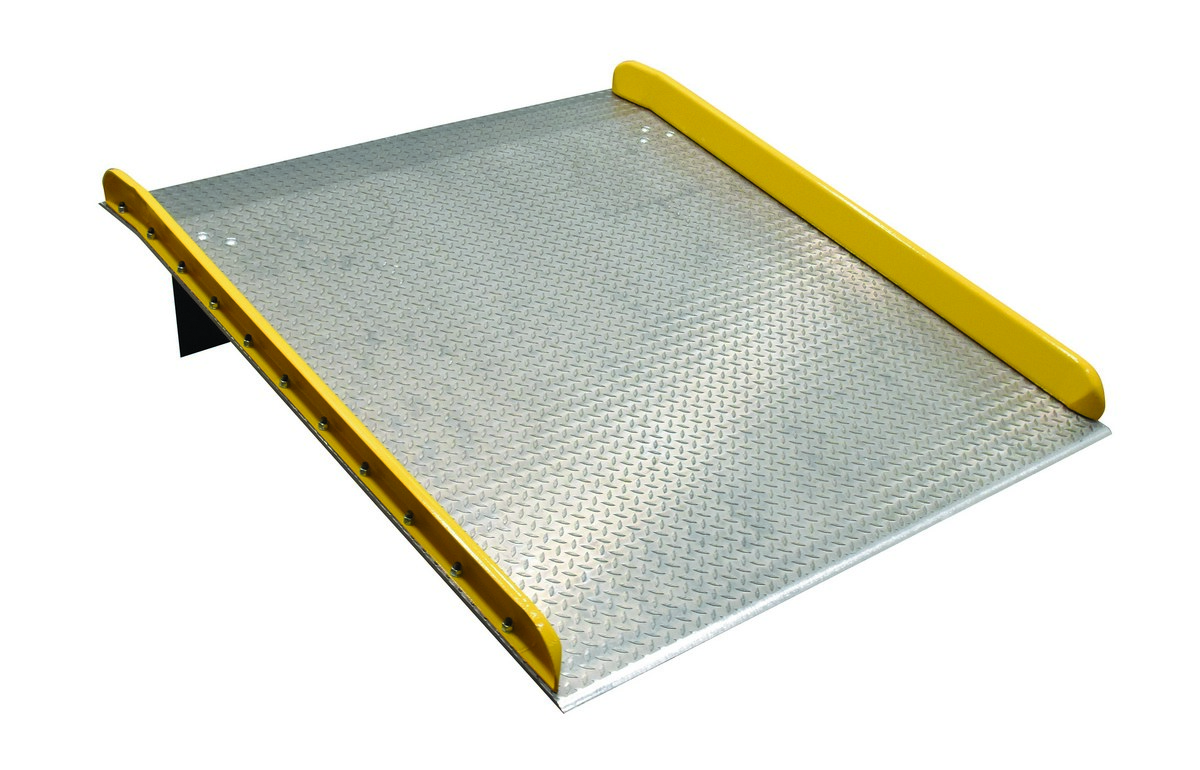

TAS-15-6072

TAS-15-6072

TAS-10-6048

TAS-10-6048

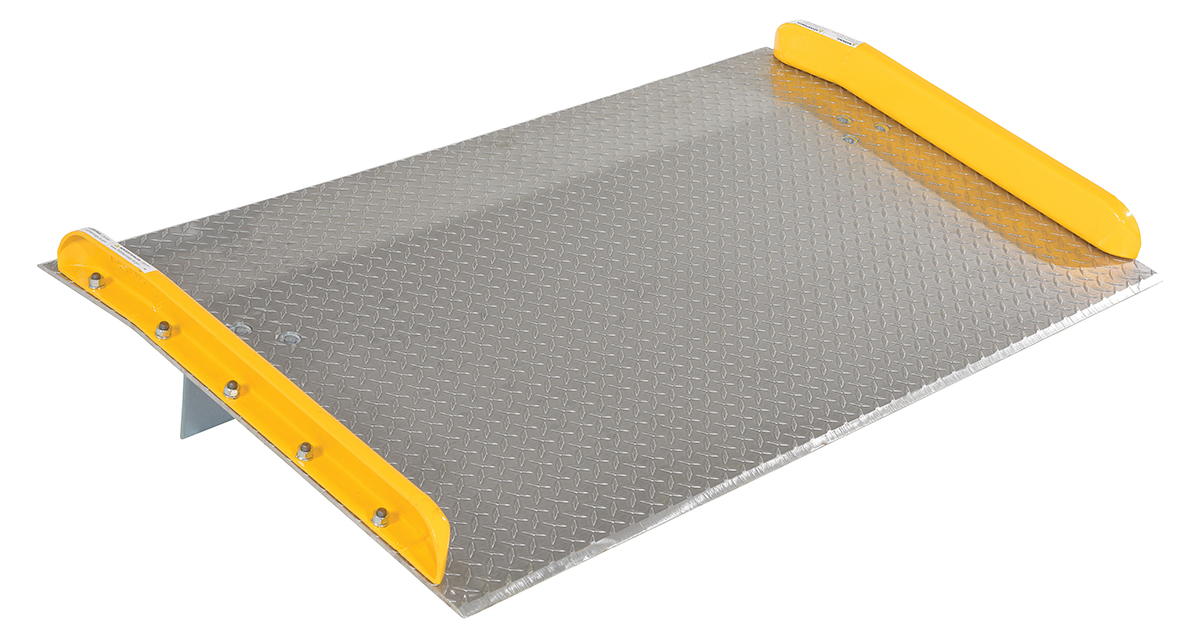

TAS-15-6036

TAS-15-6036

WH-TAS

WH-TAS

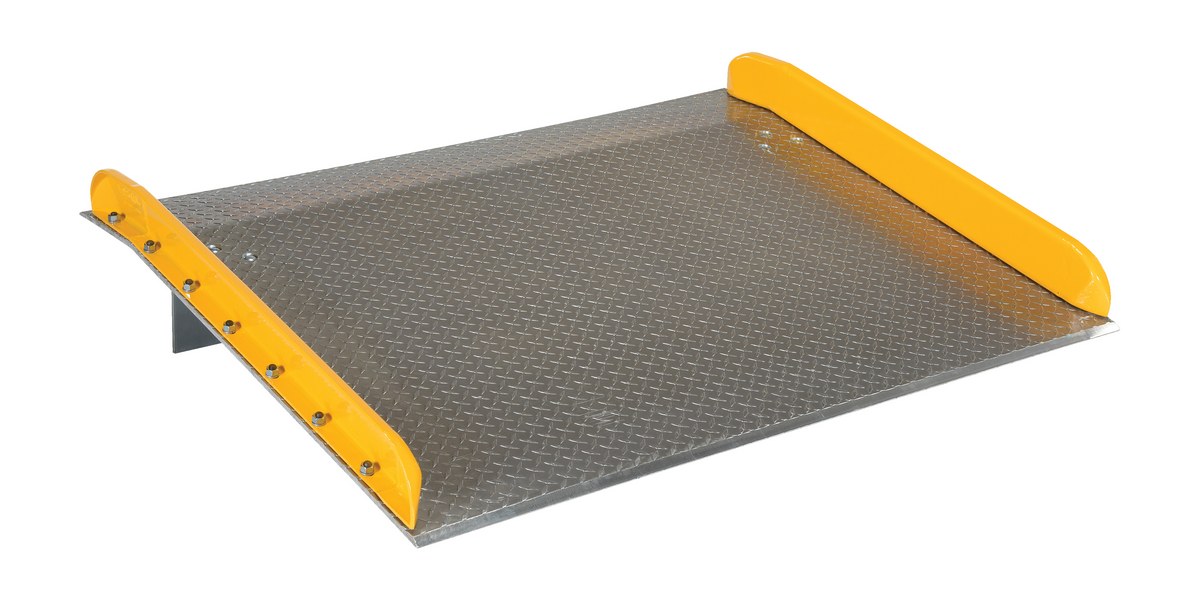

TAS-20-6048

TAS-20-6048

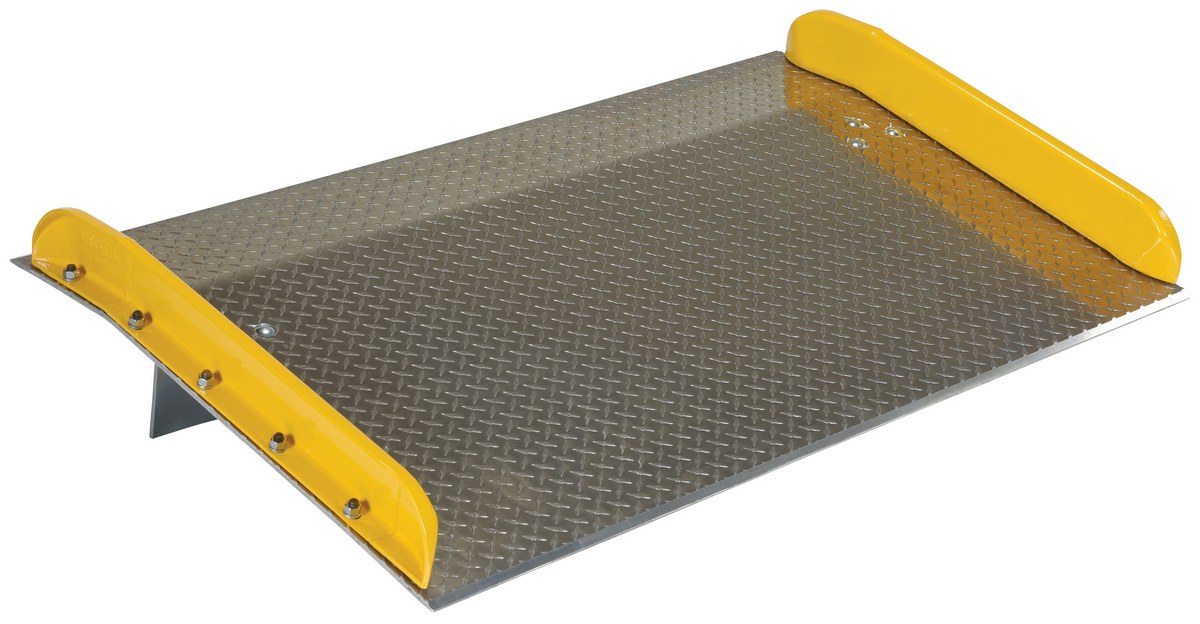

TAS-20-6036

TAS-20-6036

WHHDL-TAS

WHHDL-TAS

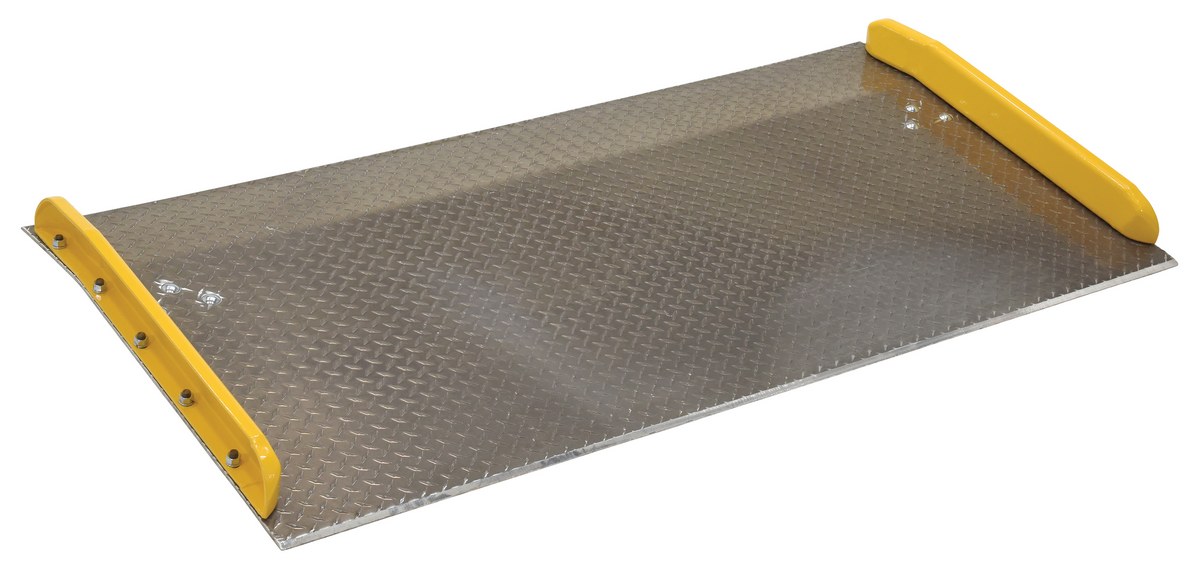

TAS-10-7236

TAS-10-7236

TAS-15-6036

TAS-15-6036

TAS-10-6048

TAS-10-6048

TAS-20-7248

TAS-20-7248

TAS-10-6036

TAS-10-6036

TAS-15-6036

TAS-15-6036

TAS-20-6036

TAS-20-6036

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
TAS-10-6036 TAS-10-603690 Days Limited WarrantyAluminum Dock Board Steel Curb 60 In. x 36 In. 10,000 Lb. Capacity SilverUniform Capacity (lb.): 10000
Height Difference at 11 degree/19 percent (in.): 5		112
TAS-10-6048 TAS-10-604890 Days Limited WarrantyAluminum Dock Board Steel Curb 60 In. x 48 In. 10,000 Lb. Capacity SilverUniform Capacity (lb.): 10000
Height Difference at 11 degree/19 percent (in.): 7		129
TAS-10-6060 TAS-10-606090 Days Limited WarrantyAluminum Dock Board Steel Curb 60 In. x 60 In. 10,000 Lb. Capacity SilverUniform Capacity (lb.): 10000
Height Difference at 11 degree/19 percent (in.): 10		160
TAS-10-6072 TAS-10-607290 Days Limited WarrantyAluminum Dock Board Steel Curb 60 In. x 72 In. 10,000 Lb. Capacity SilverUniform Capacity (lb.): 10000
Height Difference at 11 degree/19 percent (in.): 12		220
TAS-10-7236 TAS-10-723690 Days Limited WarrantyAluminum Dock Board Steel Curb 72 In. x 36 In. 10,000 Lb. Capacity SilverUniform Capacity (lb.): 10000
Height Difference at 11 degree/19 percent (in.): 5		110

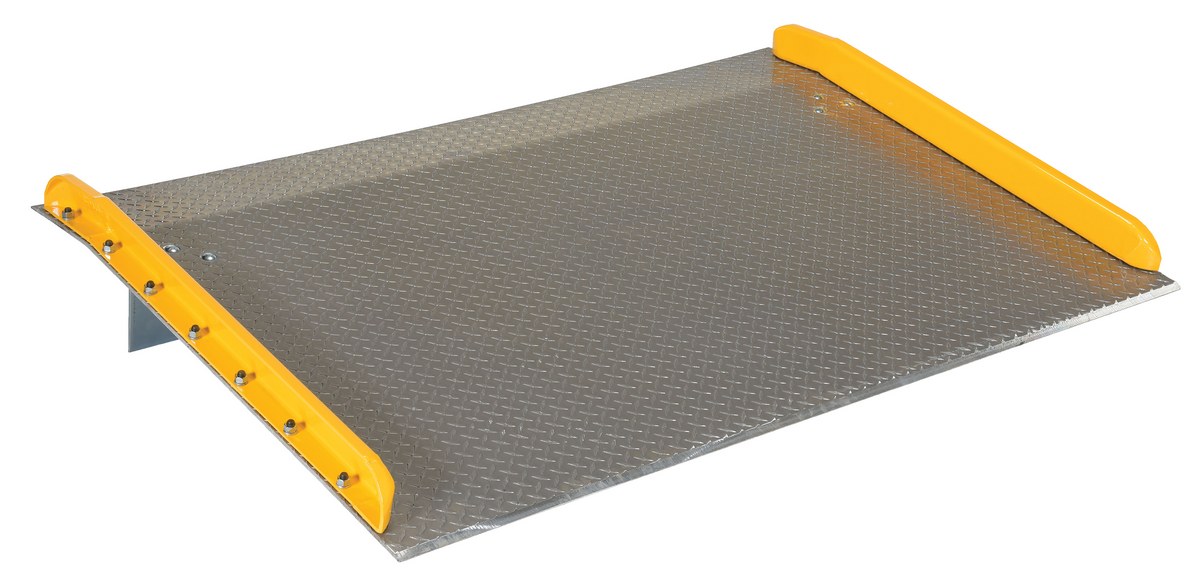

TAS-10-7248 TAS-10-724890 Days Limited WarrantyAluminum Dock Board Steel Curb 72 In. x 48 In. 10,000 Lb. Capacity SilverUniform Capacity (lb.): 10000
Height Difference at 11 degree/19 percent (in.): 7		157
TAS-10-7260 TAS-10-726090 Days Limited WarrantyAluminum Dock Board Steel Curb 72 In. x 60 In. 10,000 Lb. Capacity SilverUniform Capacity (lb.): 10000
Height Difference at 11 degree/19 percent (in.): 10		252

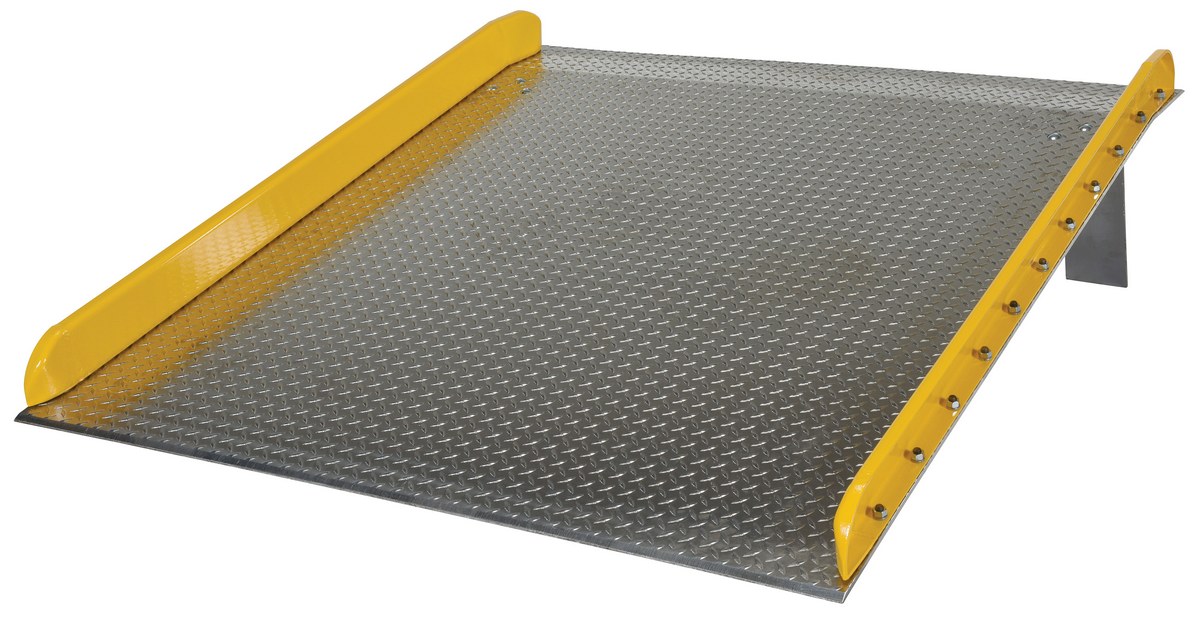

TAS-10-7272 TAS-10-727290 Days Limited WarrantyAluminum Dock Board Steel Curb 72 In. x 72 In. 10,000 Lb. Capacity SilverUniform Capacity (lb.): 10000
Height Difference at 11 degree/19 percent (in.): 12		380
TAS-15-6036 TAS-15-603690 Days Limited WarrantyAluminum Dock Board Steel Curb 60 In. x 36 In. 15,000 Lb. Capacity SilverUniform Capacity (lb.): 15000
Height Difference at 11 degree/19 percent (in.): 5		110
TAS-15-6048 TAS-15-604890 Days Limited WarrantyAluminum Dock Board Steel Curb 60 In. x 48 In. 15,000 Lb. Capacity SilverUniform Capacity (lb.): 15000
Height Difference at 11 degree/19 percent (in.): 7		146
TAS-15-6060 TAS-15-606090 Days Limited WarrantyAluminum Dock Board Steel Curb 60 In. x 60 In. 15,000 Lb. Capacity SilverUniform Capacity (lb.): 15000
Height Difference at 11 degree/19 percent (in.): 10		220
TAS-15-6072 TAS-15-607290 Days Limited WarrantyAluminum Dock Board Steel Curb 60 In. x 72 In. 15,000 Lb. Capacity SilverUniform Capacity (lb.): 15000
Height Difference at 11 degree/19 percent (in.): 12		251
TAS-15-7236 TAS-15-723690 Days Limited WarrantyAluminum Dock Board Steel Curb 72 In. x 36 In. 15,000 Lb. Capacity SilverUniform Capacity (lb.): 15000
Height Difference at 11 degree/19 percent (in.): 5		123

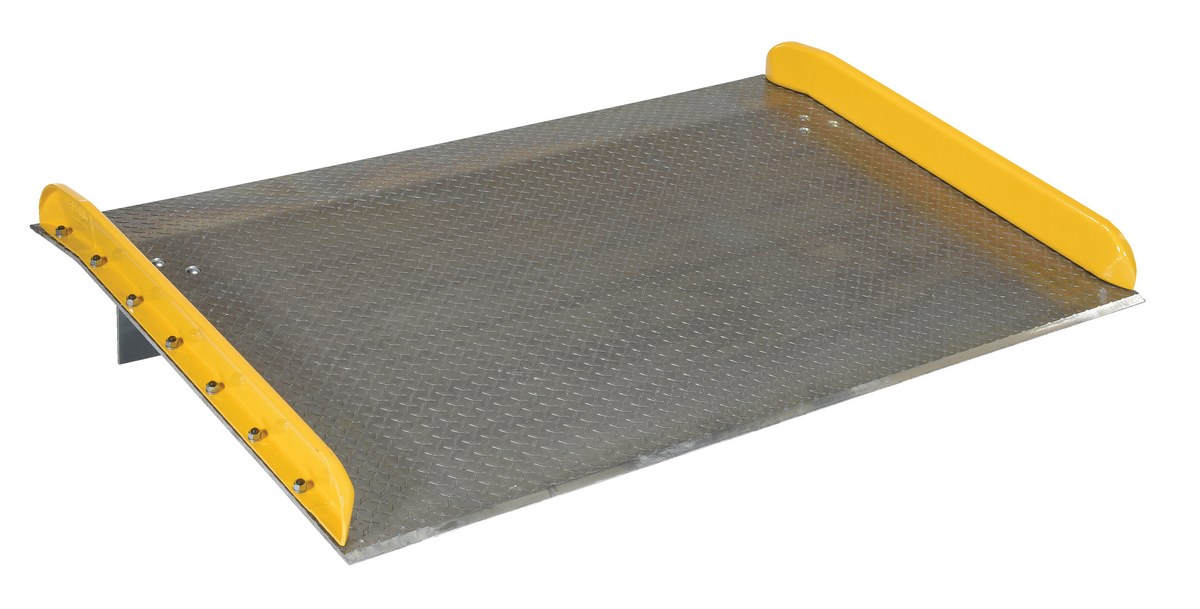

TAS-15-7248 TAS-15-724890 Days Limited WarrantyAluminum Dock Board Steel Curb 72 In. x 48 In. 15,000 Lb. Capacity SilverUniform Capacity (lb.): 15000
Height Difference at 11 degree/19 percent (in.): 7		191
TAS-15-7260 TAS-15-726090 Days Limited WarrantyAluminum Dock Board Steel Curb 72 In. x 60 In. 15,000 Lb. Capacity SilverUniform Capacity (lb.): 15000
Height Difference at 11 degree/19 percent (in.): 10		252
TAS-15-7272 TAS-15-727290 Days Limited WarrantyAluminum Dock Board Steel Curb 72 In. x 72 In. 15,000 Lb. Capacity SilverUniform Capacity (lb.): 15000
Height Difference at 11 degree/19 percent (in.): 12		381
TAS-20-6036 TAS-20-603690 Days Limited WarrantyAluminum Dock Board Steel Curb 60 In. x 36 In. 20,000 Lb. Capacity SilverUniform Capacity (lb.): 20000
Height Difference at 11 degree/19 percent (in.): 5		122
TAS-20-6048 TAS-20-604890 Days Limited WarrantyAluminum Dock Board Steel Curb 60 In. x 48 In. 20,000 Lb. Capacity SilverUniform Capacity (lb.): 20000
Height Difference at 11 degree/19 percent (in.): 7		196
TAS-20-6060 TAS-20-606090 Days Limited WarrantyAluminum Dock Board Steel Curb 60 In x 60 In 20,000 Lb. Capacity SilverUniform Capacity (lb.): 20000
Height Difference at 11 degree/19 percent (in.): 10		230
TAS-20-6072 TAS-20-607290 Days Limited WarrantyAluminum Dock Board Steel Curb 60 In. x 72 In. 20,000 Lb. Capacity SilverUniform Capacity (lb.): 20000
Height Difference at 11 degree/19 percent (in.): 12		275

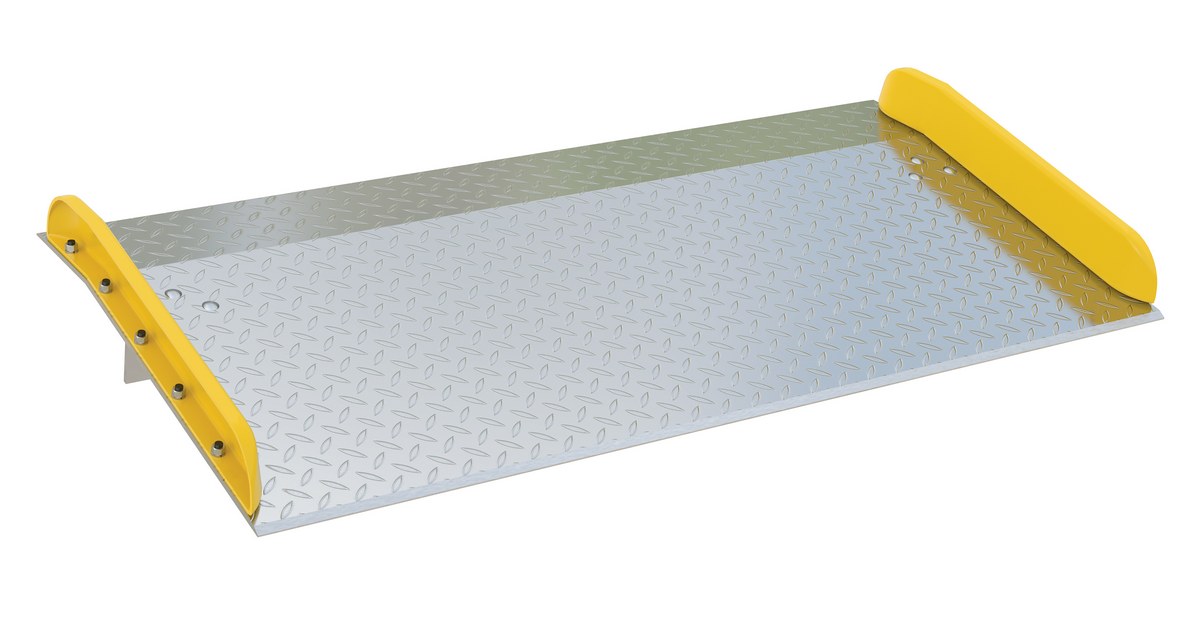

TAS-20-7236 TAS-20-723690 Days Limited WarrantyAluminum Dock Board Steel Curb 72 In. x 36 In. 20,000 Lb. Capacity SilverUniform Capacity (lb.): 20000
Height Difference at 11 degree/19 percent (in.): 5		138
TAS-20-7248 TAS-20-724890 Days Limited WarrantyAluminum Dock Board Steel Curb 72 In. x 48 In. 20,000 Lb. Capacity SilverUniform Capacity (lb.): 20000
Height Difference at 11 degree/19 percent (in.): 7		216

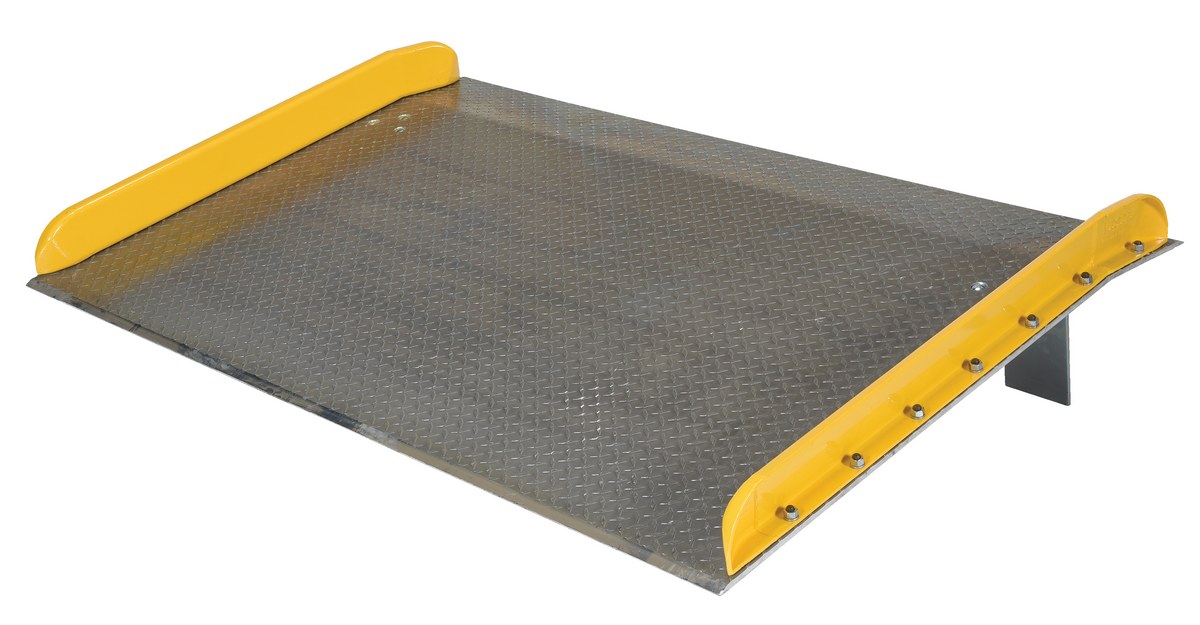

TAS-20-7260 TAS-20-726090 Days Limited WarrantyAluminum Dock Board Steel Curb 72 In. x 60 In. 20,000 Lb. Capacity SilverUniform Capacity (lb.): 20000
Height Difference at 11 degree/19 percent (in.): 10		287
TAS-20-7272 TAS-20-727290 Days Limited WarrantyAluminum Dock Board Steel Curb 72 In x 72 In 20,000 Lb. Capacity SilverUniform Capacity (lb.): 20000
Height Difference at 11 degree/19 percent (in.): 12		380

* Custom Sizes Available As Special Order

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

TAS-10-6036
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 10000
Height Difference at 11 degree/19 percent (in.): 5
Uniform Capacity (lb.): 10000
Height Difference at 11 degree/19 percent (in.): 5

TAS-10-6048
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 10000
Height Difference at 11 degree/19 percent (in.): 7
Uniform Capacity (lb.): 10000
Height Difference at 11 degree/19 percent (in.): 7

TAS-10-6060
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 10000
Height Difference at 11 degree/19 percent (in.): 10
Uniform Capacity (lb.): 10000
Height Difference at 11 degree/19 percent (in.): 10

TAS-10-6072
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 10000
Height Difference at 11 degree/19 percent (in.): 12
Uniform Capacity (lb.): 10000
Height Difference at 11 degree/19 percent (in.): 12

TAS-10-7236
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 10000
Height Difference at 11 degree/19 percent (in.): 5
Uniform Capacity (lb.): 10000
Height Difference at 11 degree/19 percent (in.): 5

TAS-10-7248
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 10000
Height Difference at 11 degree/19 percent (in.): 7
Uniform Capacity (lb.): 10000
Height Difference at 11 degree/19 percent (in.): 7

TAS-10-7260
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 10000
Height Difference at 11 degree/19 percent (in.): 10
Uniform Capacity (lb.): 10000
Height Difference at 11 degree/19 percent (in.): 10

TAS-10-7272
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 10000
Height Difference at 11 degree/19 percent (in.): 12
Uniform Capacity (lb.): 10000
Height Difference at 11 degree/19 percent (in.): 12

TAS-15-6036
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 15000
Height Difference at 11 degree/19 percent (in.): 5
Uniform Capacity (lb.): 15000
Height Difference at 11 degree/19 percent (in.): 5

TAS-15-6048
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 15000
Height Difference at 11 degree/19 percent (in.): 7
Uniform Capacity (lb.): 15000
Height Difference at 11 degree/19 percent (in.): 7

TAS-15-6060
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 15000
Height Difference at 11 degree/19 percent (in.): 10
Uniform Capacity (lb.): 15000
Height Difference at 11 degree/19 percent (in.): 10

TAS-15-6072
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 15000
Height Difference at 11 degree/19 percent (in.): 12
Uniform Capacity (lb.): 15000
Height Difference at 11 degree/19 percent (in.): 12

TAS-15-7236
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 15000
Height Difference at 11 degree/19 percent (in.): 5
Uniform Capacity (lb.): 15000
Height Difference at 11 degree/19 percent (in.): 5

TAS-15-7248
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 15000
Height Difference at 11 degree/19 percent (in.): 7
Uniform Capacity (lb.): 15000
Height Difference at 11 degree/19 percent (in.): 7

TAS-15-7260
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 15000
Height Difference at 11 degree/19 percent (in.): 10
Uniform Capacity (lb.): 15000
Height Difference at 11 degree/19 percent (in.): 10

TAS-15-7272
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 15000
Height Difference at 11 degree/19 percent (in.): 12
Uniform Capacity (lb.): 15000
Height Difference at 11 degree/19 percent (in.): 12

TAS-20-6036
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 20000
Height Difference at 11 degree/19 percent (in.): 5
Uniform Capacity (lb.): 20000
Height Difference at 11 degree/19 percent (in.): 5

TAS-20-6048
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 20000
Height Difference at 11 degree/19 percent (in.): 7
Uniform Capacity (lb.): 20000
Height Difference at 11 degree/19 percent (in.): 7

TAS-20-6060
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 20000
Height Difference at 11 degree/19 percent (in.): 10
Uniform Capacity (lb.): 20000
Height Difference at 11 degree/19 percent (in.): 10

TAS-20-6072
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 20000
Height Difference at 11 degree/19 percent (in.): 12
Uniform Capacity (lb.): 20000
Height Difference at 11 degree/19 percent (in.): 12

TAS-20-7236
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 20000
Height Difference at 11 degree/19 percent (in.): 5
Uniform Capacity (lb.): 20000
Height Difference at 11 degree/19 percent (in.): 5

TAS-20-7248
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 20000
Height Difference at 11 degree/19 percent (in.): 7
Uniform Capacity (lb.): 20000
Height Difference at 11 degree/19 percent (in.): 7

TAS-20-7260
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 20000
Height Difference at 11 degree/19 percent (in.): 10
Uniform Capacity (lb.): 20000
Height Difference at 11 degree/19 percent (in.): 10

TAS-20-7272
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 20000
Height Difference at 11 degree/19 percent (in.): 12
Uniform Capacity (lb.): 20000
Height Difference at 11 degree/19 percent (in.): 12
For More Details of the Option Click the Red Model Button
HDL-TAS HDL-TAS90 Days Limited WarrantyHandle Kit For Aluminum Dock Boards with Steel CurbsAttachment Method:
2

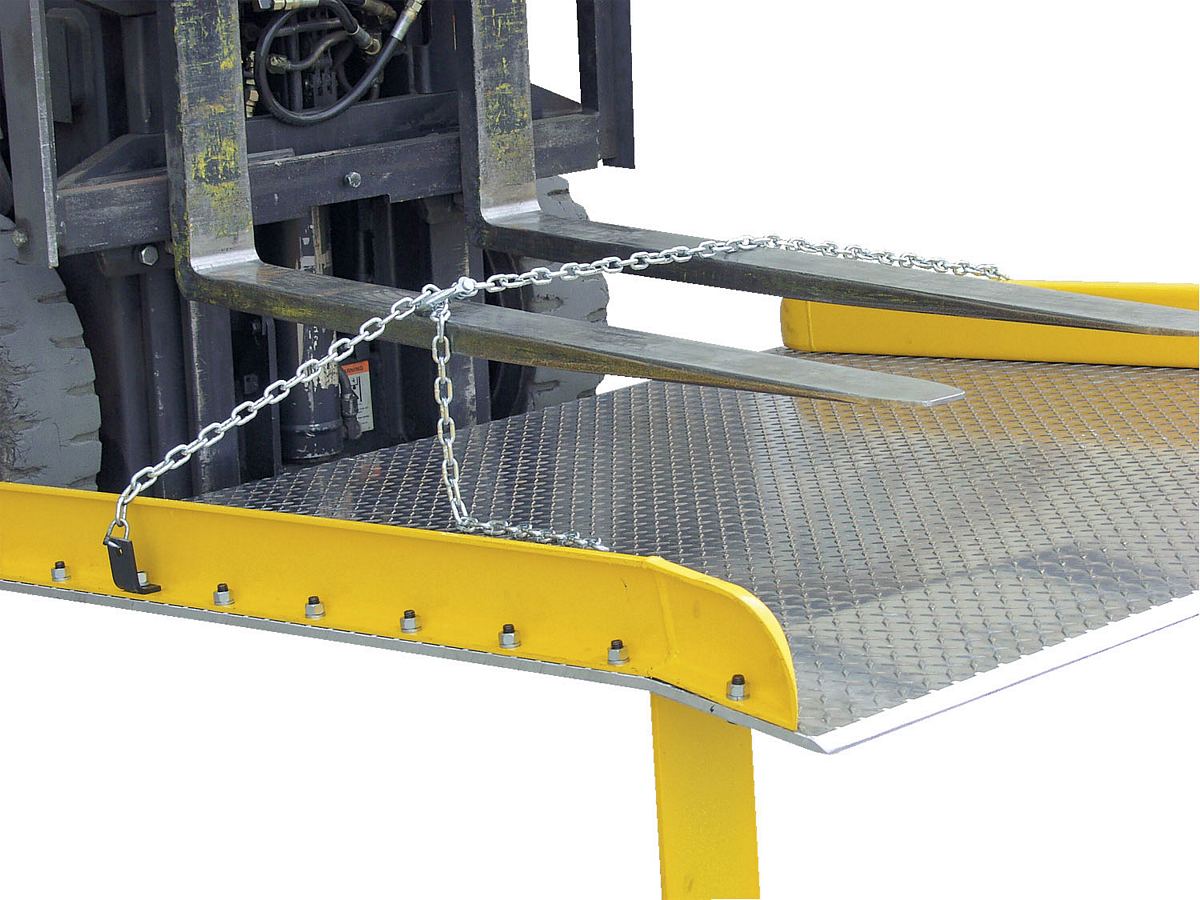

LC-TAS-48-66 LC-TAS-48-6630 Days Limited WarrantySteel Curb Lifting Chains 42 In. Length for Steel Dock Boards SilverChain Length (in.): 42
Chain Diameter (in.): .25		8
LC-TAS-72-84 LC-TAS-72-8430 Days Limited WarrantySteel Curb Lifting Chains 60 In. Length for Steel Dock Boards SilverChain Length (in.): 60
Chain Diameter (in.): .25		9
RPL-ALUM 30 Days Limited WarrantyFactory Installed Removable Pickup Loops For Aluminum Dock BoardsUsable Loop Width/Height Each (in.): 7-1/2 x 2-1/2
WH-TAS WH-TAS30 Days Limited WarrantyWheel Kit for Aluminum Dock Board with Steel CurbCapacity (lbs): 200
Quantity of Casters: 2		5
WHHDL-TAS WHHDL-TAS30 Days Limited WarrantyWheel and Handle Kit for Aluminum Dock Board with Steel CurbCapacity (lbs): 200
Quantity of Casters: 2		11
Model Image PDF Description
SSL Compliance Certificate Sliding Span Locks (BTA Only)
SP Compliance Certificate Span Pins & Holes (4 Holes per side)
HOLE Compliance Certificate Extra Span Holes
PIN Compliance Certificate Extra Span Pins
ALL Compliance Certificate Leverlift
SBL Compliance Certificate Special Bend Location
S2B Compliance Certificate Second Bend Location
ATC-12 Compliance Certificate Anti-Theft Chain (144")
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Aluminum Truck Dockboards with Steel Safety Curbs PDF's will open in a new window when clicked.

Manuals


DOCK BOARDS
Owners Manual

Survey Sheets


Dock Board Survey
Survey Sheet

Approval Drawings


HDL-TAS

LC-TAS-48-66

LC-TAS-72-84

TAS-10-6036

TAS-10-6048

TAS-10-6060

TAS-10-6072

TAS-10-7236

TAS-10-7248

TAS-10-7260

TAS-15-6036

TAS-15-6048

TAS-15-6060

TAS-15-6072

TAS-15-7236

TAS-15-7248

TAS-15-7260

TAS-20-6036

TAS-20-6048

TAS-20-6060

TAS-20-6072

TAS-20-7236

TAS-20-7248

TAS-20-7260

TAS-20-7272

WH-TAS

WHHDL-TAS

Testing Certificates


HDL-TAS

LC-TAS-48-66

LC-TAS-72-84

RPL-ALUM

TAS-10-6036

TAS-10-6048

TAS-10-6060

TAS-10-6072

TAS-10-7236

TAS-10-7248

TAS-10-7260

TAS-10-7272

TAS-15-6036

TAS-15-6048

TAS-15-6060

TAS-15-6072

TAS-15-7236

TAS-15-7248

TAS-15-7260

TAS-15-7272

TAS-20-6036

TAS-20-6048

TAS-20-6060

TAS-20-6072

TAS-20-7236

TAS-20-7248

TAS-20-7260

TAS-20-7272

WH-TAS

WHHDL-TAS

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Related or Similar Products:

Aluminum Truck Dockboards (Welded Aluminum Curbs)
Product

Aluminum Truck Dockboards (Welded Aluminum Curbs)

Aluminum Economizer Dockplates
Product

Aluminum Economizer Dockplates

Aluminum Hand Truck Dockplates
Product

Aluminum Hand Truck Dockplates

Aluminum Truck Dockboards with Steel Safety Curbs
Product

Aluminum Truck Dockboards with Steel Safety Curbs

Aluminum Hand Truck Dockboards
Product

Aluminum Hand Truck Dockboards

Aluminum Mini Dockplates
Product

Aluminum Mini Dockplates

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Aluminum Truck Dockboards with...

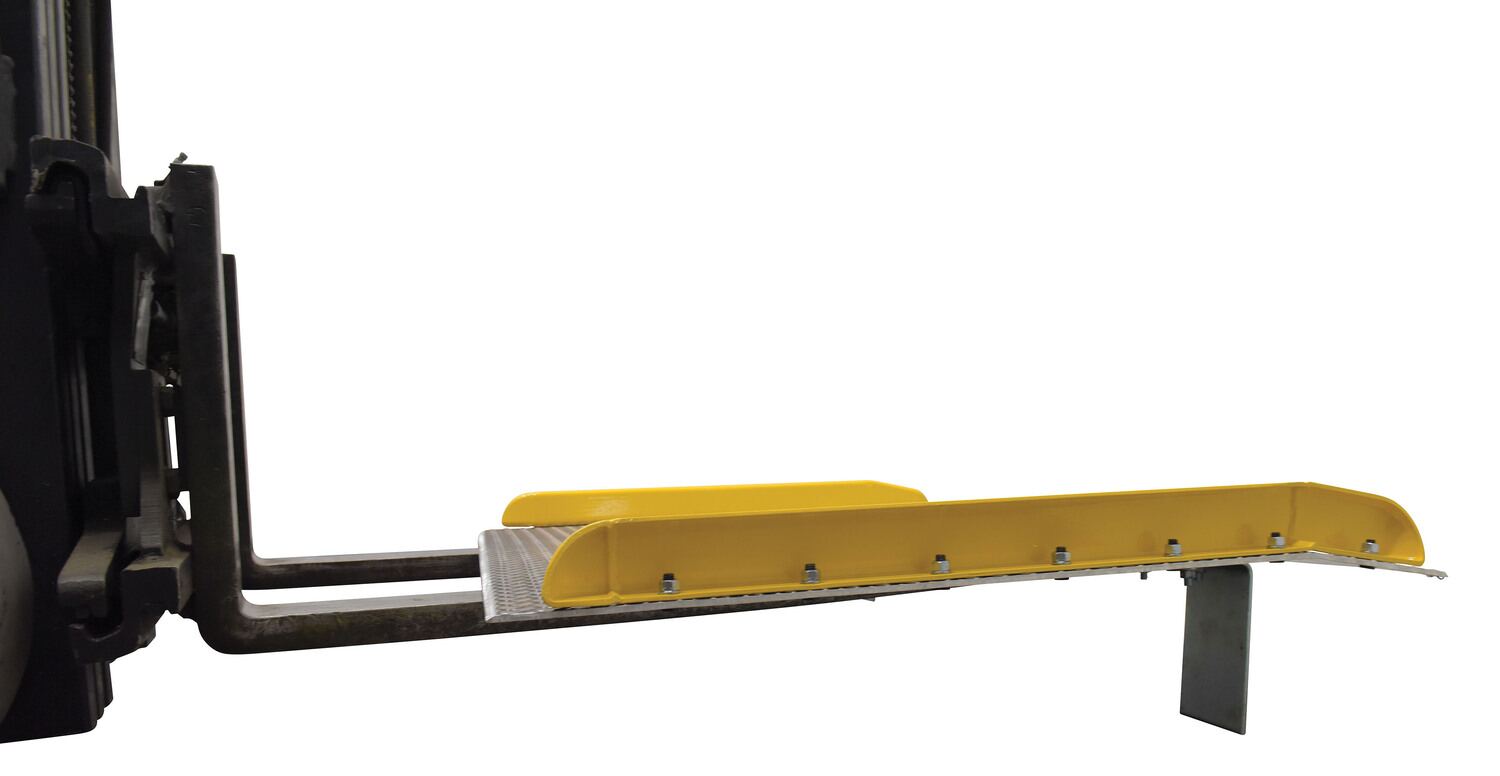

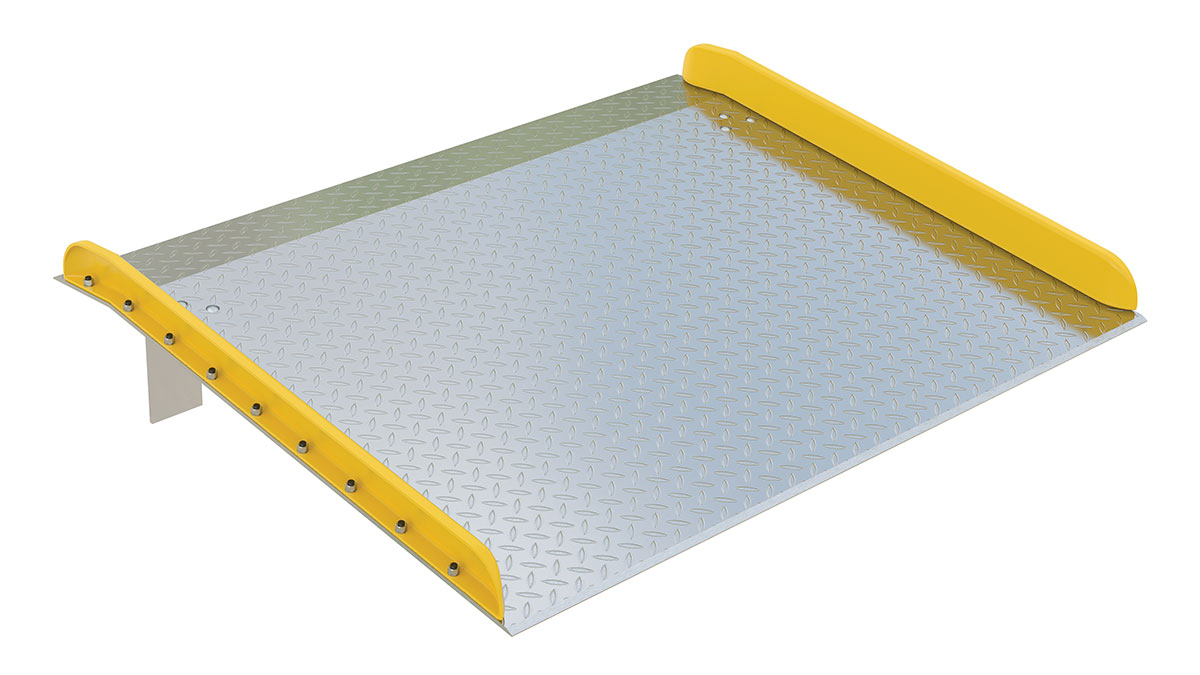

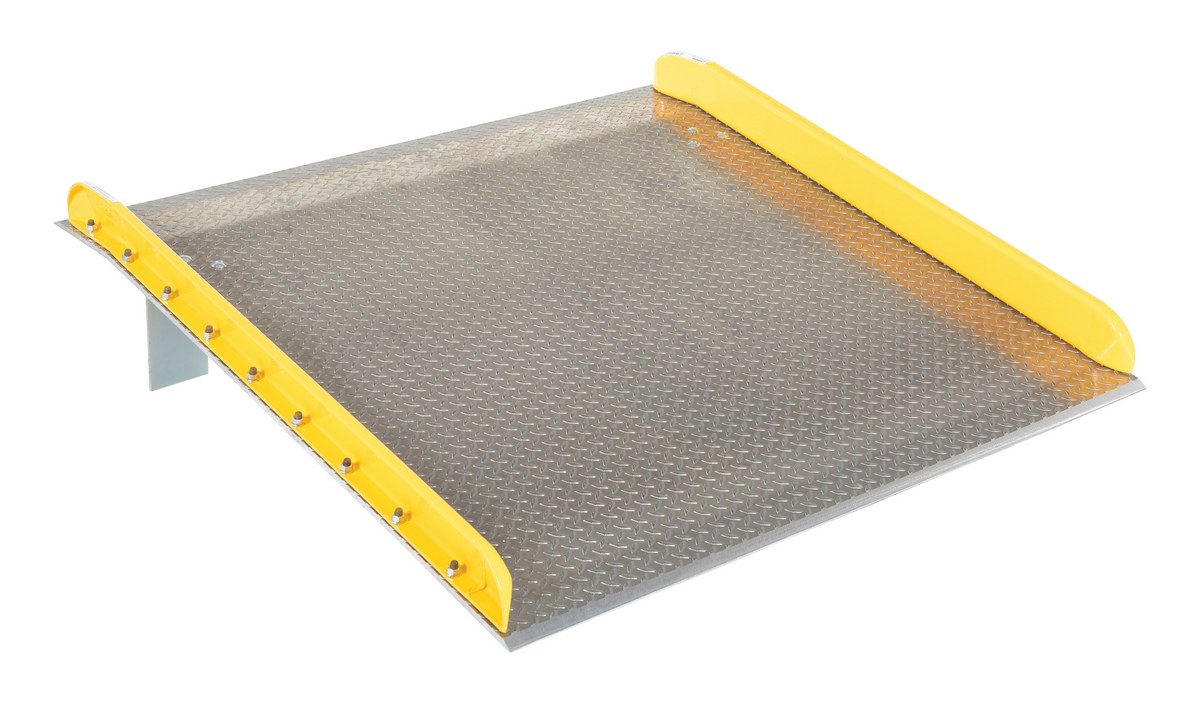

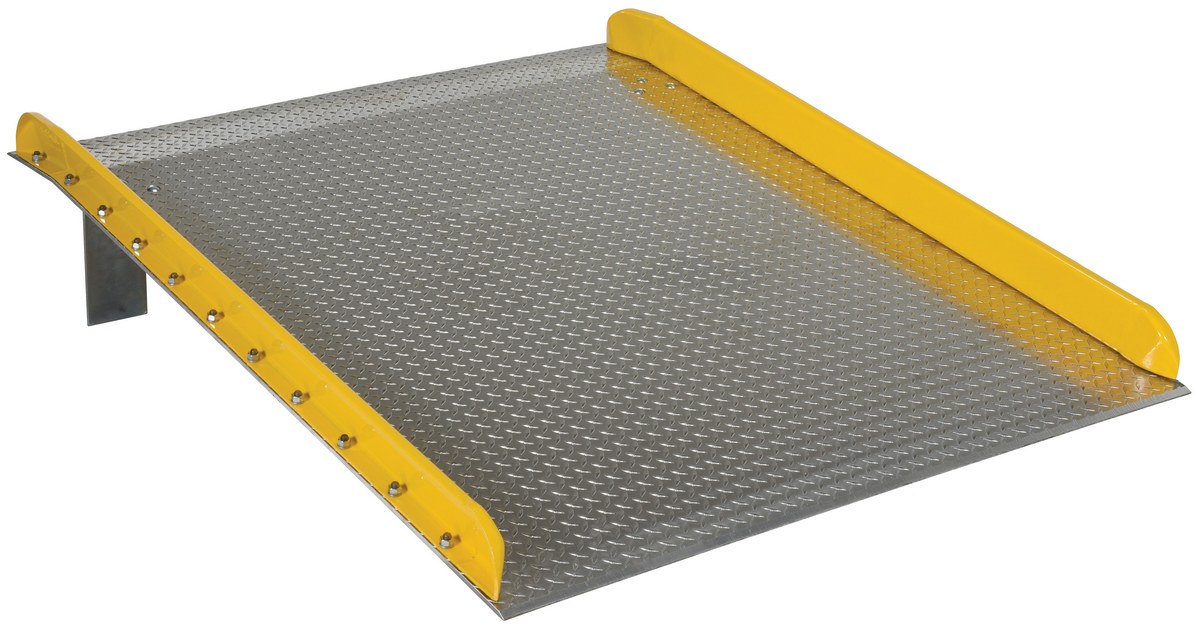

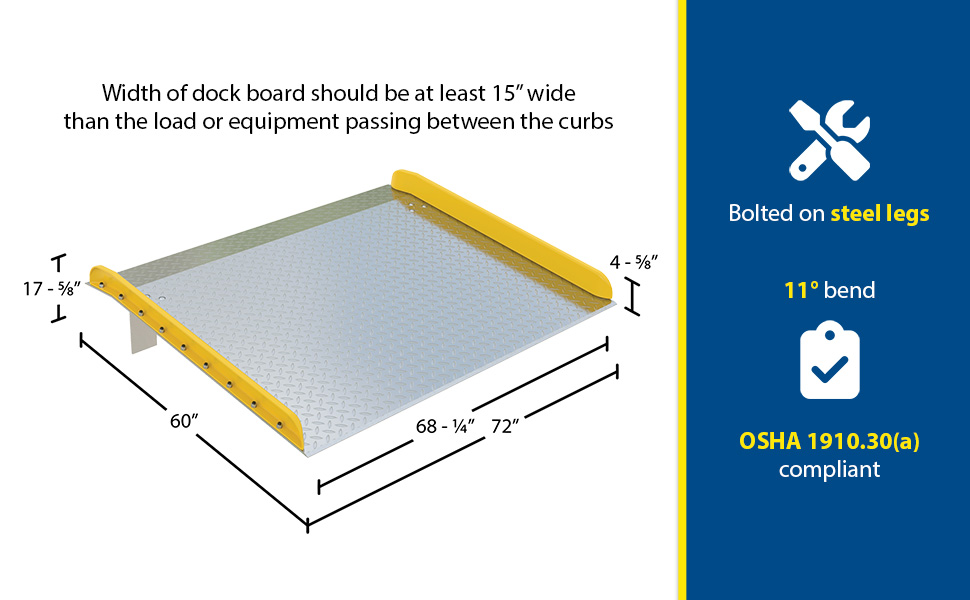

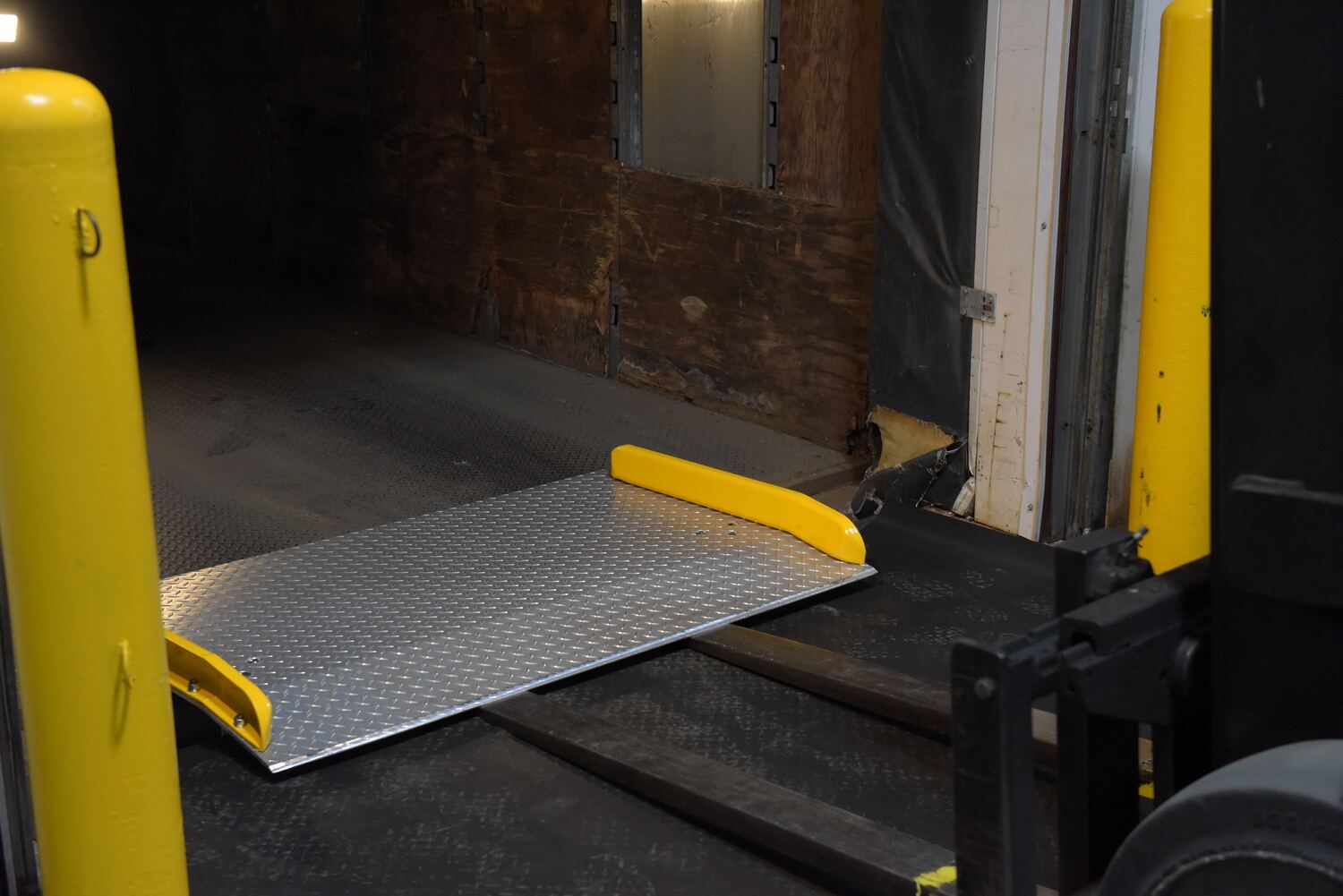

Aluminum Truck Dockboards with Steel Safety Curbs are designed for portability and safety. The deck is made of tough high strength aluminum diamond tread plate. The edges are beveled for smooth entry and exit. Safety curbs are yellow baked-in powder coated for toughness and are constructed of steel with cast tapered ends. Steel legs are bolted on for increased durability. Legs are located 11" from the beveled edge. The legs are canted for easier fork truck portability. The bend is 11 degrees and 9" from the beveled edge. Manufactured in compliance with OSHA. When using three-wheeled fork trucks order dockboard with capacity at least four-times the lifting capacity of fork truck.

  • High-strength aluminum tread plate material is durable yet lightweight
  • Zinc-plated locking legs are within OSHA compliance
  • Beveled entrance and exit edges allow for smoother transition
  • Heavy-duty steel curbs are painted yellow and bolted to deck plate for safer use

Model # Description Attributes Net Wt.
(lbs)
TAS-10-6036 TAS-10-6036Aluminum Dock Board Steel Curb 60 In. x 36 In. 10,000 Lb. Capacity SilverUniform Capacity (lb.): 10000
Height Difference at 11 degree/19 percent (in.): 5		112
TAS-10-6048 TAS-10-6048Aluminum Dock Board Steel Curb 60 In. x 48 In. 10,000 Lb. Capacity SilverUniform Capacity (lb.): 10000
Height Difference at 11 degree/19 percent (in.): 7		129

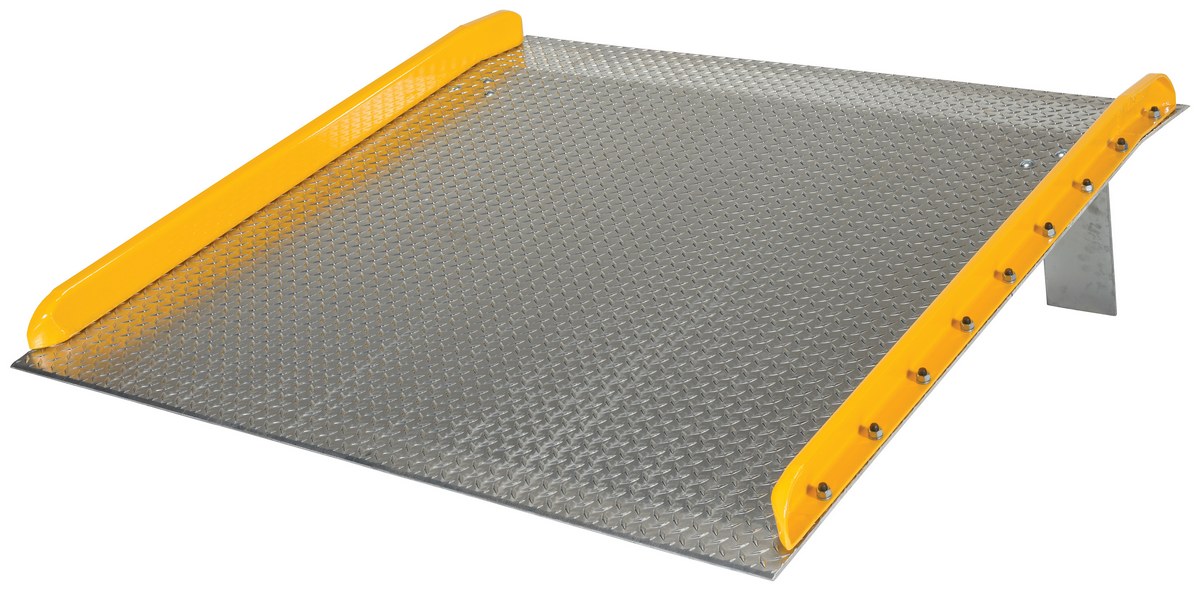

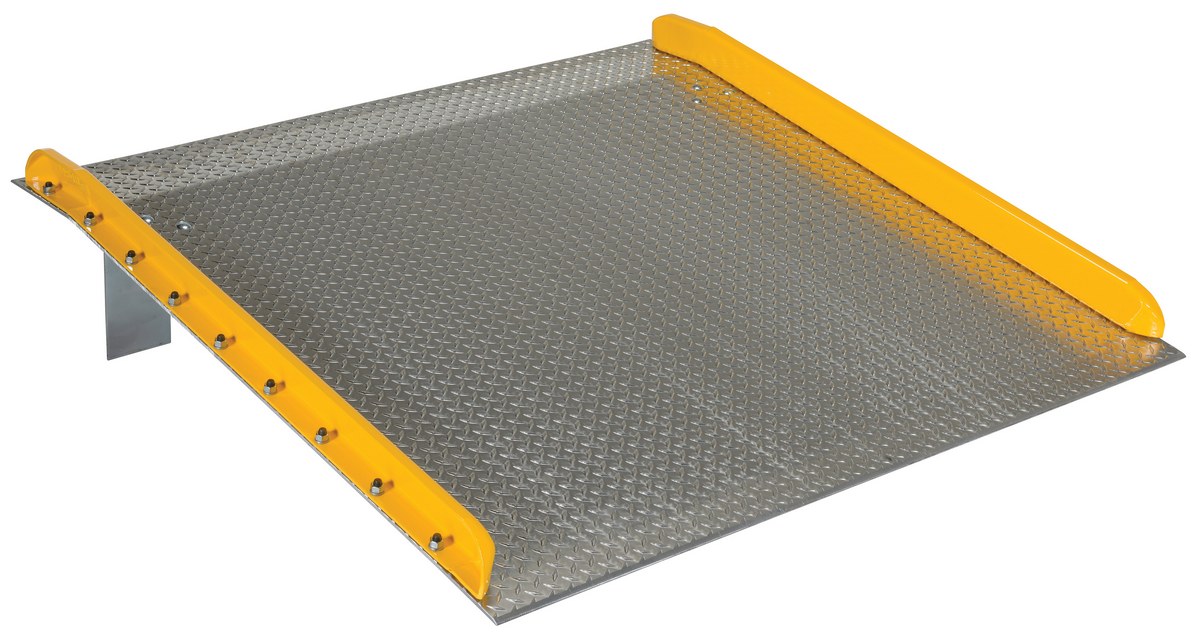

TAS-10-6060 TAS-10-6060Aluminum Dock Board Steel Curb 60 In. x 60 In. 10,000 Lb. Capacity SilverUniform Capacity (lb.): 10000
Height Difference at 11 degree/19 percent (in.): 10		160
TAS-10-6072 TAS-10-6072Aluminum Dock Board Steel Curb 60 In. x 72 In. 10,000 Lb. Capacity SilverUniform Capacity (lb.): 10000
Height Difference at 11 degree/19 percent (in.): 12		220
TAS-10-7236 TAS-10-7236Aluminum Dock Board Steel Curb 72 In. x 36 In. 10,000 Lb. Capacity SilverUniform Capacity (lb.): 10000
Height Difference at 11 degree/19 percent (in.): 5		110
TAS-10-7248 TAS-10-7248Aluminum Dock Board Steel Curb 72 In. x 48 In. 10,000 Lb. Capacity SilverUniform Capacity (lb.): 10000
Height Difference at 11 degree/19 percent (in.): 7		157

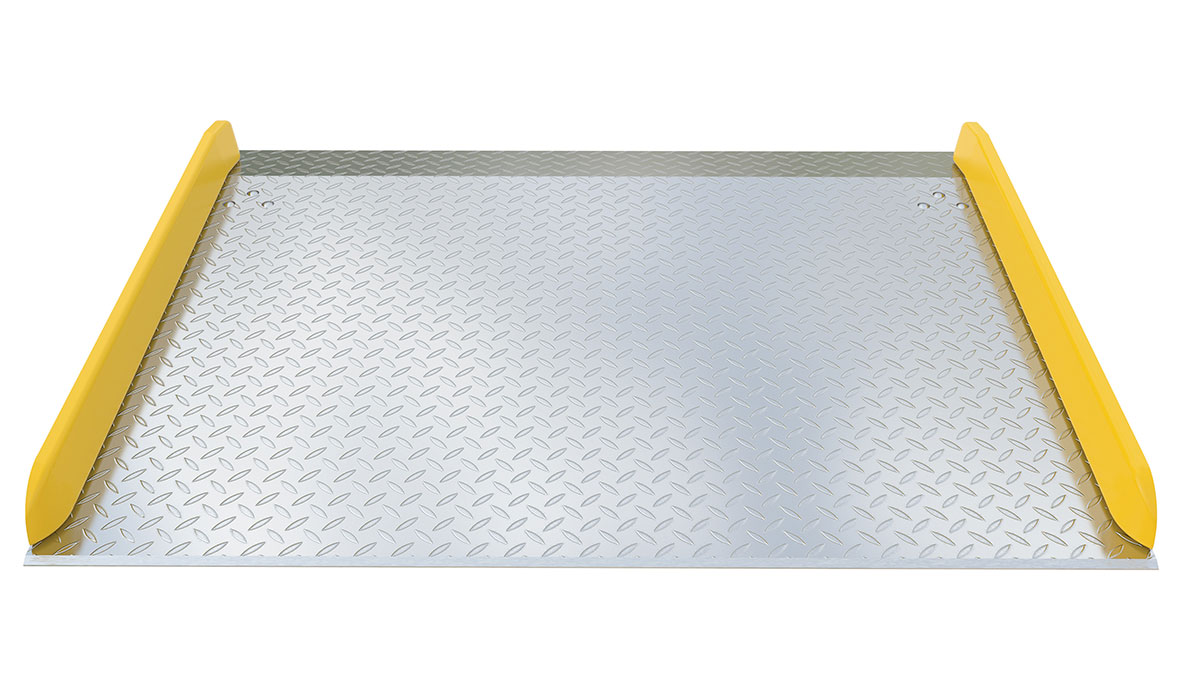

TAS-10-7260 TAS-10-7260Aluminum Dock Board Steel Curb 72 In. x 60 In. 10,000 Lb. Capacity SilverUniform Capacity (lb.): 10000
Height Difference at 11 degree/19 percent (in.): 10		252
TAS-10-7272 TAS-10-7272Aluminum Dock Board Steel Curb 72 In. x 72 In. 10,000 Lb. Capacity SilverUniform Capacity (lb.): 10000
Height Difference at 11 degree/19 percent (in.): 12		380
TAS-15-6036 TAS-15-6036Aluminum Dock Board Steel Curb 60 In. x 36 In. 15,000 Lb. Capacity SilverUniform Capacity (lb.): 15000
Height Difference at 11 degree/19 percent (in.): 5		110

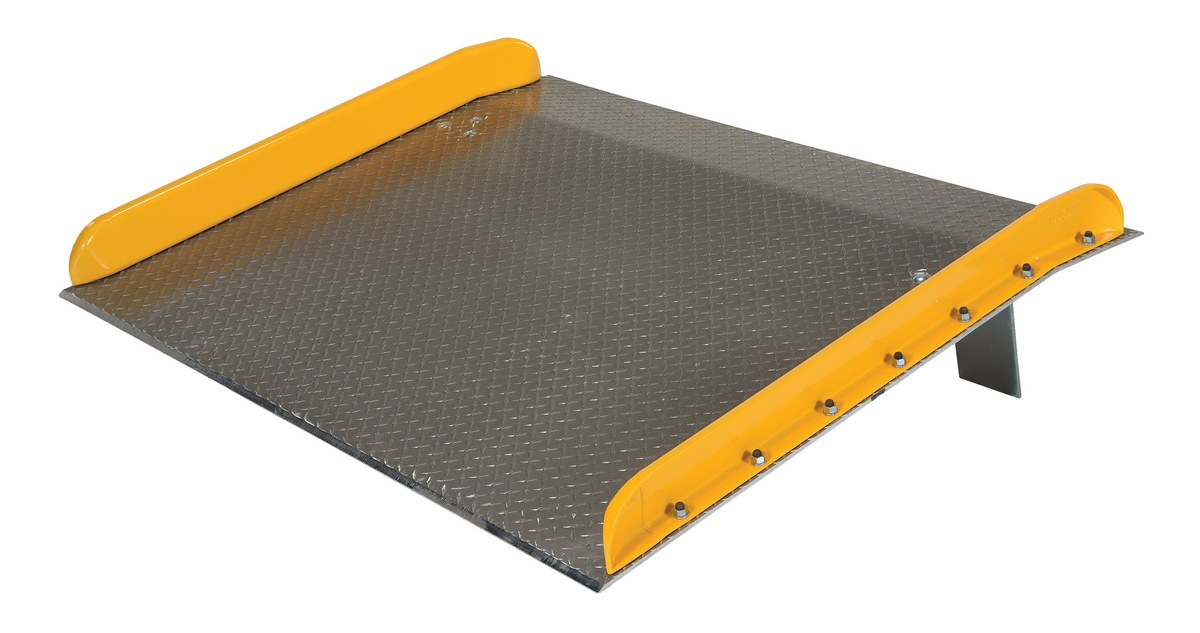

TAS-15-6048 TAS-15-6048Aluminum Dock Board Steel Curb 60 In. x 48 In. 15,000 Lb. Capacity SilverUniform Capacity (lb.): 15000
Height Difference at 11 degree/19 percent (in.): 7		146
TAS-15-6060 TAS-15-6060Aluminum Dock Board Steel Curb 60 In. x 60 In. 15,000 Lb. Capacity SilverUniform Capacity (lb.): 15000
Height Difference at 11 degree/19 percent (in.): 10		220
TAS-15-6072 TAS-15-6072Aluminum Dock Board Steel Curb 60 In. x 72 In. 15,000 Lb. Capacity SilverUniform Capacity (lb.): 15000
Height Difference at 11 degree/19 percent (in.): 12		251
TAS-15-7236 TAS-15-7236Aluminum Dock Board Steel Curb 72 In. x 36 In. 15,000 Lb. Capacity SilverUniform Capacity (lb.): 15000
Height Difference at 11 degree/19 percent (in.): 5		123
TAS-15-7248 TAS-15-7248Aluminum Dock Board Steel Curb 72 In. x 48 In. 15,000 Lb. Capacity SilverUniform Capacity (lb.): 15000
Height Difference at 11 degree/19 percent (in.): 7		191

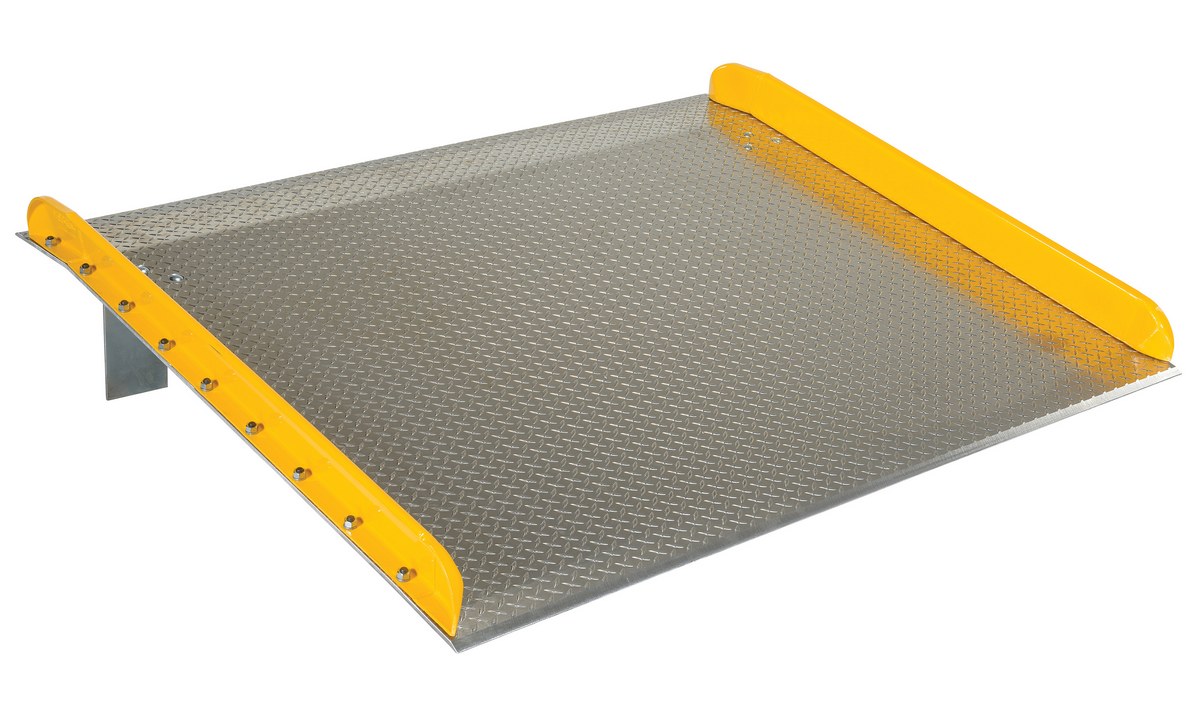

TAS-15-7260 TAS-15-7260Aluminum Dock Board Steel Curb 72 In. x 60 In. 15,000 Lb. Capacity SilverUniform Capacity (lb.): 15000
Height Difference at 11 degree/19 percent (in.): 10		252
TAS-15-7272 TAS-15-7272Aluminum Dock Board Steel Curb 72 In. x 72 In. 15,000 Lb. Capacity SilverUniform Capacity (lb.): 15000
Height Difference at 11 degree/19 percent (in.): 12		381
TAS-20-6036 TAS-20-6036Aluminum Dock Board Steel Curb 60 In. x 36 In. 20,000 Lb. Capacity SilverUniform Capacity (lb.): 20000
Height Difference at 11 degree/19 percent (in.): 5		122
TAS-20-6048 TAS-20-6048Aluminum Dock Board Steel Curb 60 In. x 48 In. 20,000 Lb. Capacity SilverUniform Capacity (lb.): 20000
Height Difference at 11 degree/19 percent (in.): 7		196

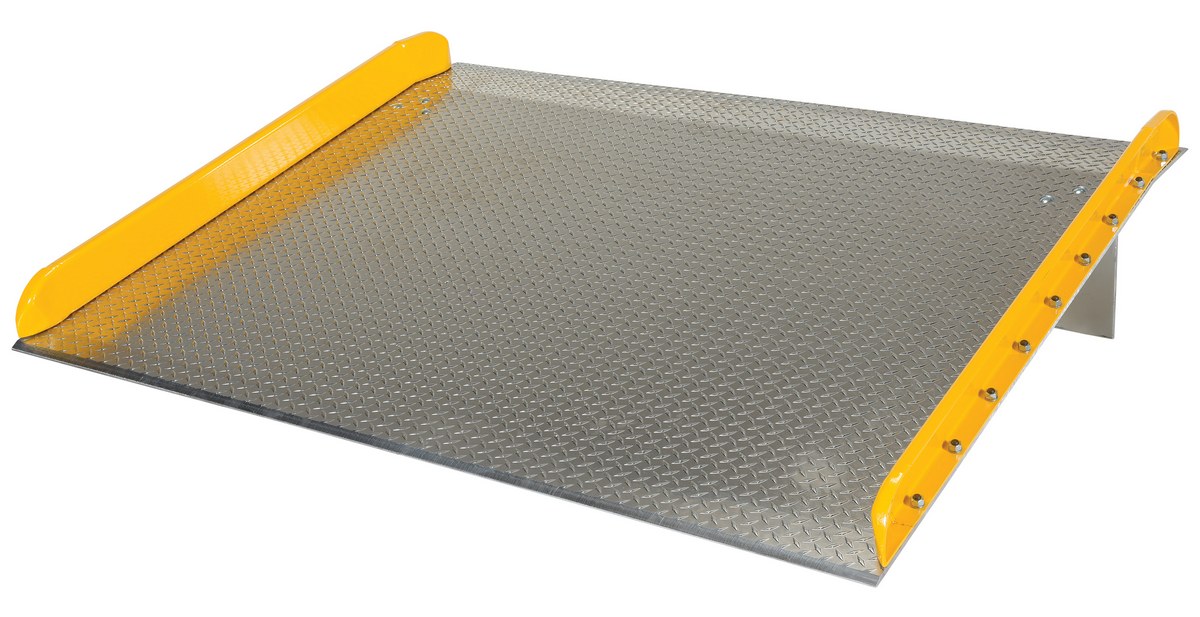

TAS-20-6060 TAS-20-6060Aluminum Dock Board Steel Curb 60 In x 60 In 20,000 Lb. Capacity SilverUniform Capacity (lb.): 20000
Height Difference at 11 degree/19 percent (in.): 10		230
TAS-20-6072 TAS-20-6072Aluminum Dock Board Steel Curb 60 In. x 72 In. 20,000 Lb. Capacity SilverUniform Capacity (lb.): 20000
Height Difference at 11 degree/19 percent (in.): 12		275

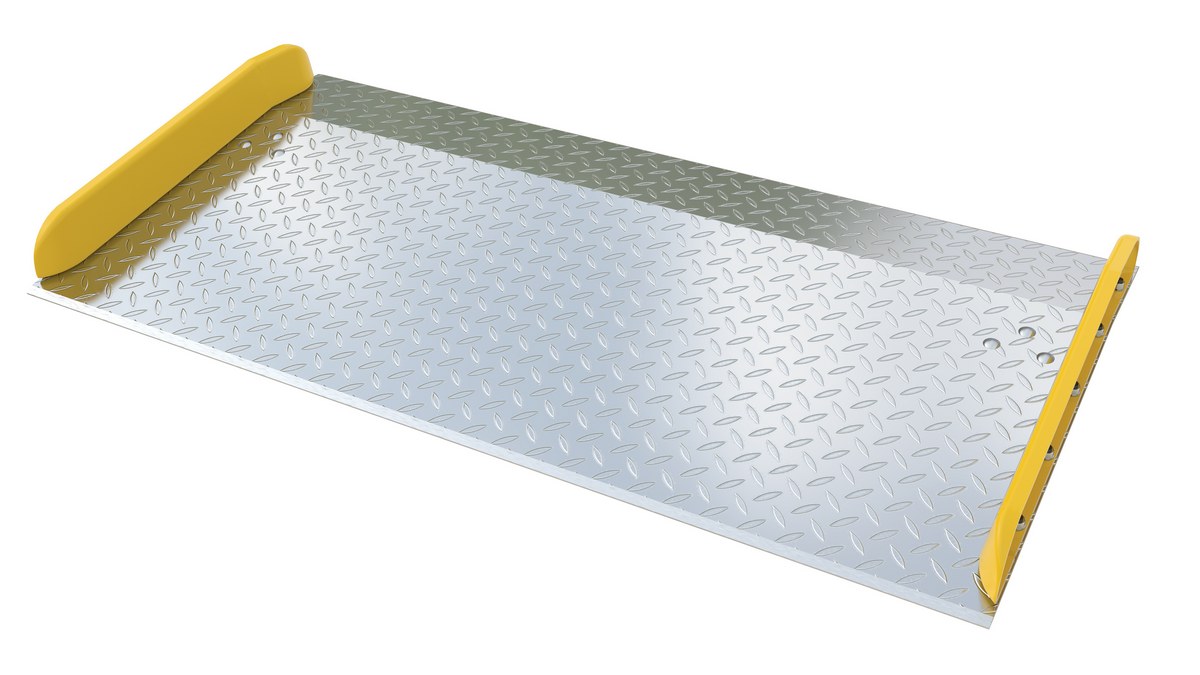

TAS-20-7236 TAS-20-7236Aluminum Dock Board Steel Curb 72 In. x 36 In. 20,000 Lb. Capacity SilverUniform Capacity (lb.): 20000
Height Difference at 11 degree/19 percent (in.): 5		138
TAS-20-7248 TAS-20-7248Aluminum Dock Board Steel Curb 72 In. x 48 In. 20,000 Lb. Capacity SilverUniform Capacity (lb.): 20000
Height Difference at 11 degree/19 percent (in.): 7		216
TAS-20-7260 TAS-20-7260Aluminum Dock Board Steel Curb 72 In. x 60 In. 20,000 Lb. Capacity SilverUniform Capacity (lb.): 20000
Height Difference at 11 degree/19 percent (in.): 10		287
TAS-20-7272 TAS-20-7272Aluminum Dock Board Steel Curb 72 In x 72 In 20,000 Lb. Capacity SilverUniform Capacity (lb.): 20000
Height Difference at 11 degree/19 percent (in.): 12		380

Options


Model Image PDF Description
SSL Compliance Certificate Sliding Span Locks (BTA Only)
SP Compliance Certificate Span Pins & Holes (4 Holes per side)
HOLE Compliance Certificate Extra Span Holes
PIN Compliance Certificate Extra Span Pins
ALL Compliance Certificate Leverlift
SBL Compliance Certificate Special Bend Location
S2B Compliance Certificate Second Bend Location
ATC-12 Compliance Certificate Anti-Theft Chain (144")

Our Customer Service Associates Are Here To Assist You!
Call Vestil At 260-665-7586 Or info@vestil.com
