Medium Duty High Performance Auto-Wrap Stretch Wrap Machine

- - - -

Description
Model Chart
Options
PDF's
Image Gallery
SWA-60-AW_A.jpg SWA-60-AW_B.jpg SWA-60-AW_C.jpg SWA-60-AW_D.jpg
SWA-60-AW_F.jpg SWA-60-AW_G.jpg SWA-60-AW_K.jpg SWA-60-AW_J.jpg
Medium Duty High Performance Auto-Wrap Stretch Wrap Machine

model: SWA-60-AW



Featured Packaging Equipment


Aluminum Pallets & Skids
Powered Photography Carousel
Medium Duty High Performance Auto-Wrap Stretch Wrap Machine
Hand Held Stretch Wrappers
Heavy-Duty Banding Cart
Cargo Protectors
Steel Pallets with Hot-Dipped Galvanized Finish
Impulse Bag Sealers
Reel Roll Dispenser
model chart

Product Family Overview

Print Friendly
Medium Duty High Performance Auto-Wrap Stretch Wrap Machine
SERIES: SWA-AW

115V 1-Phase Standard

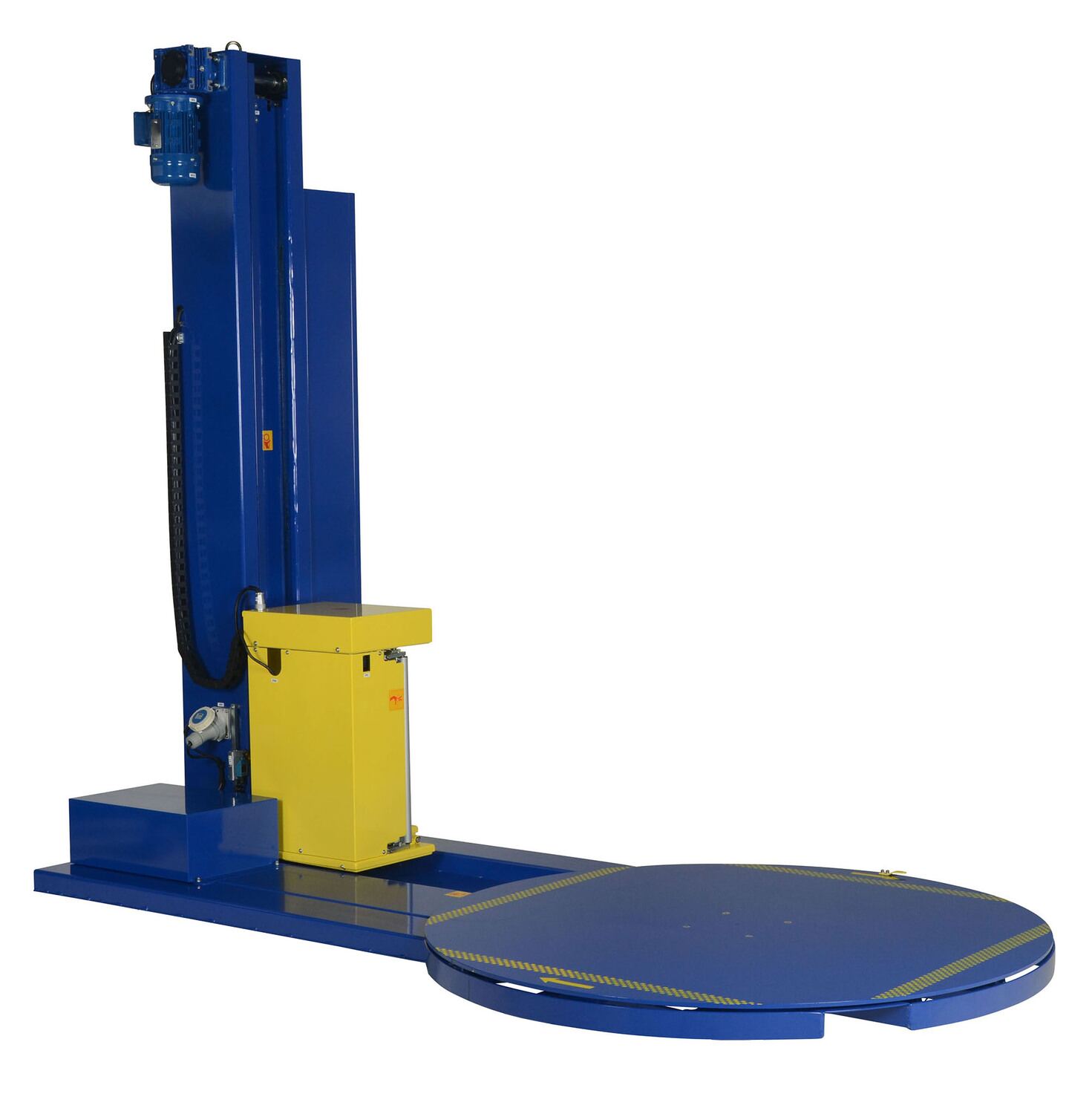

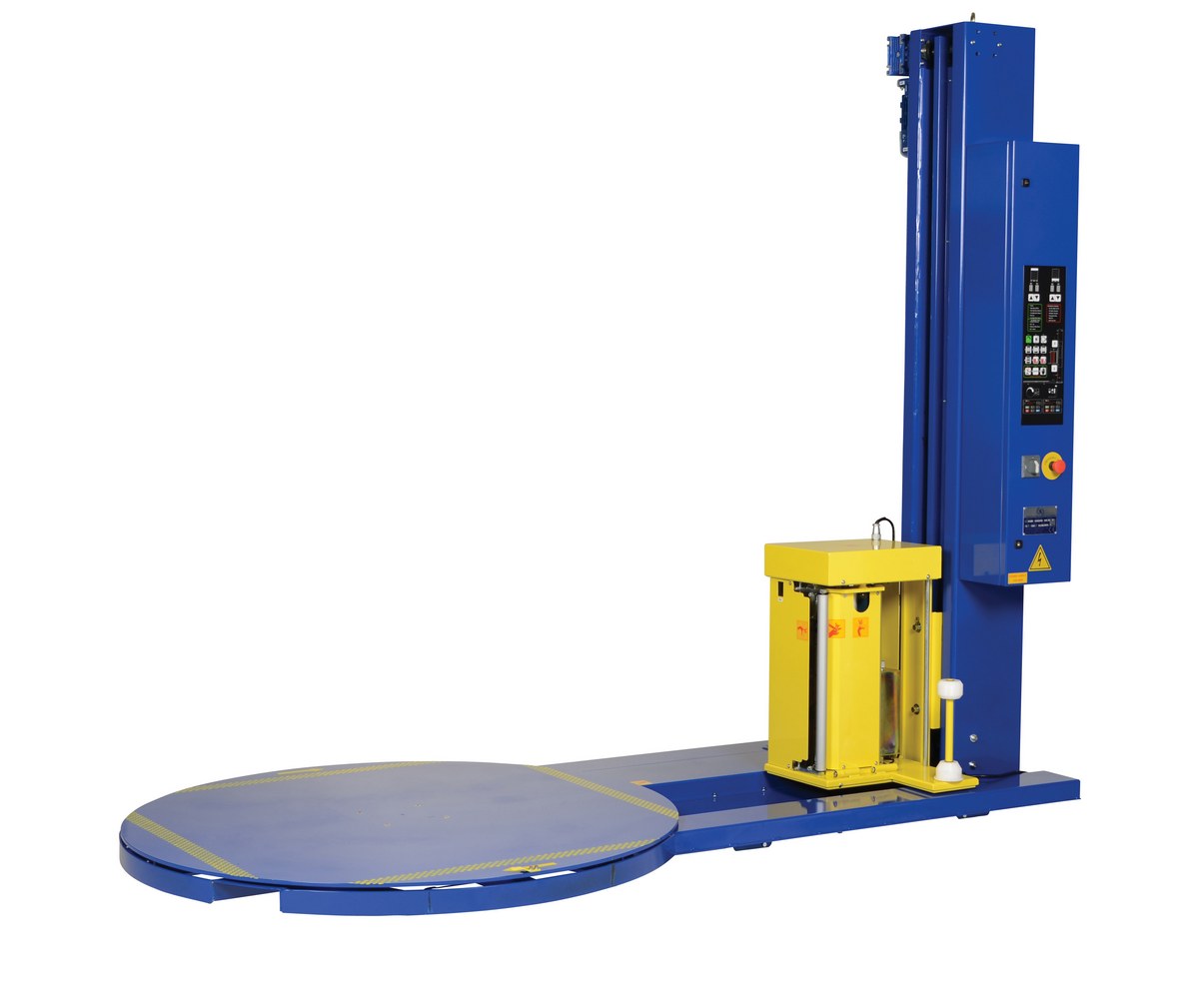

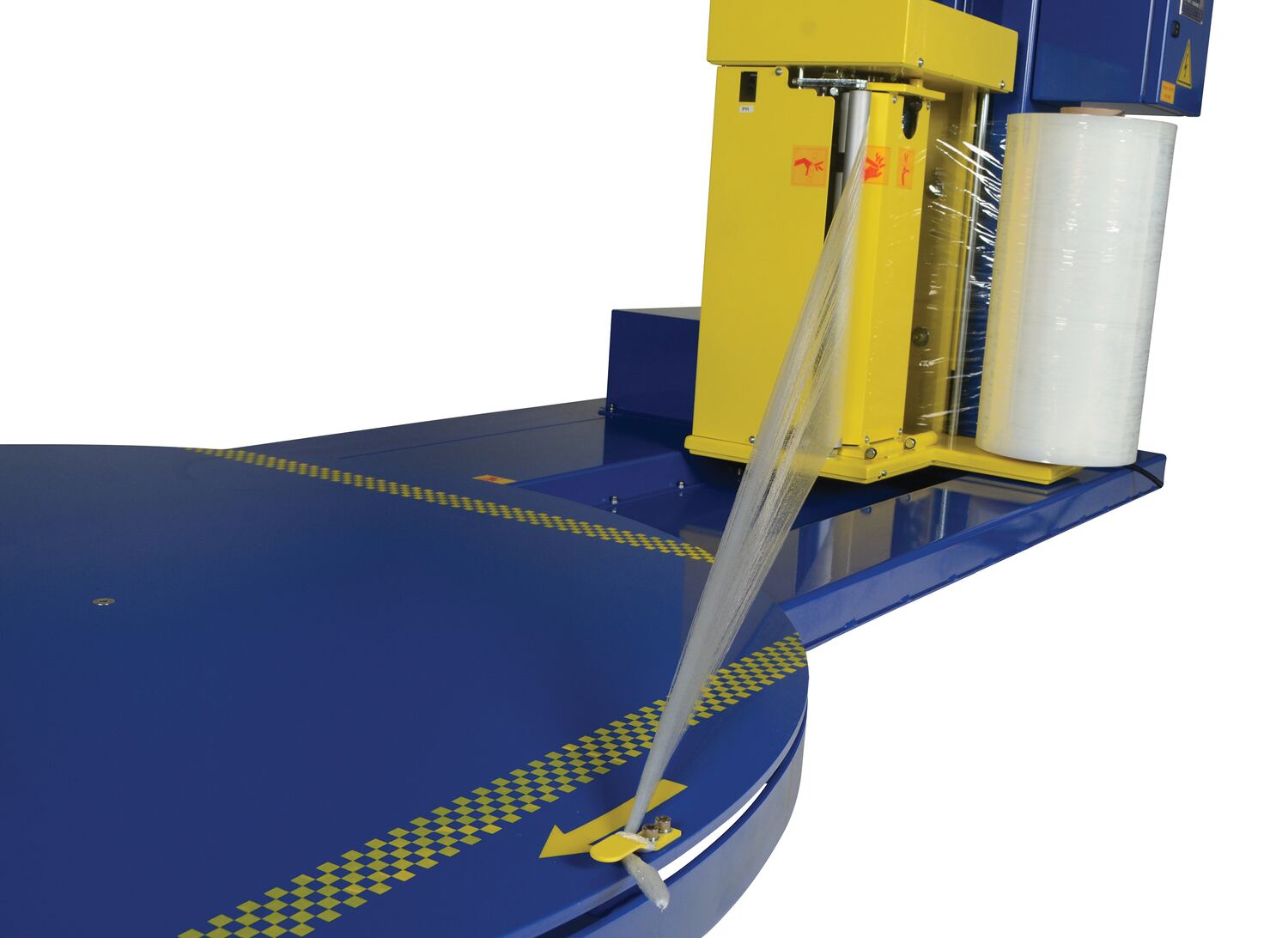

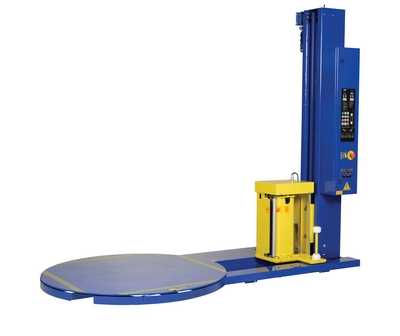

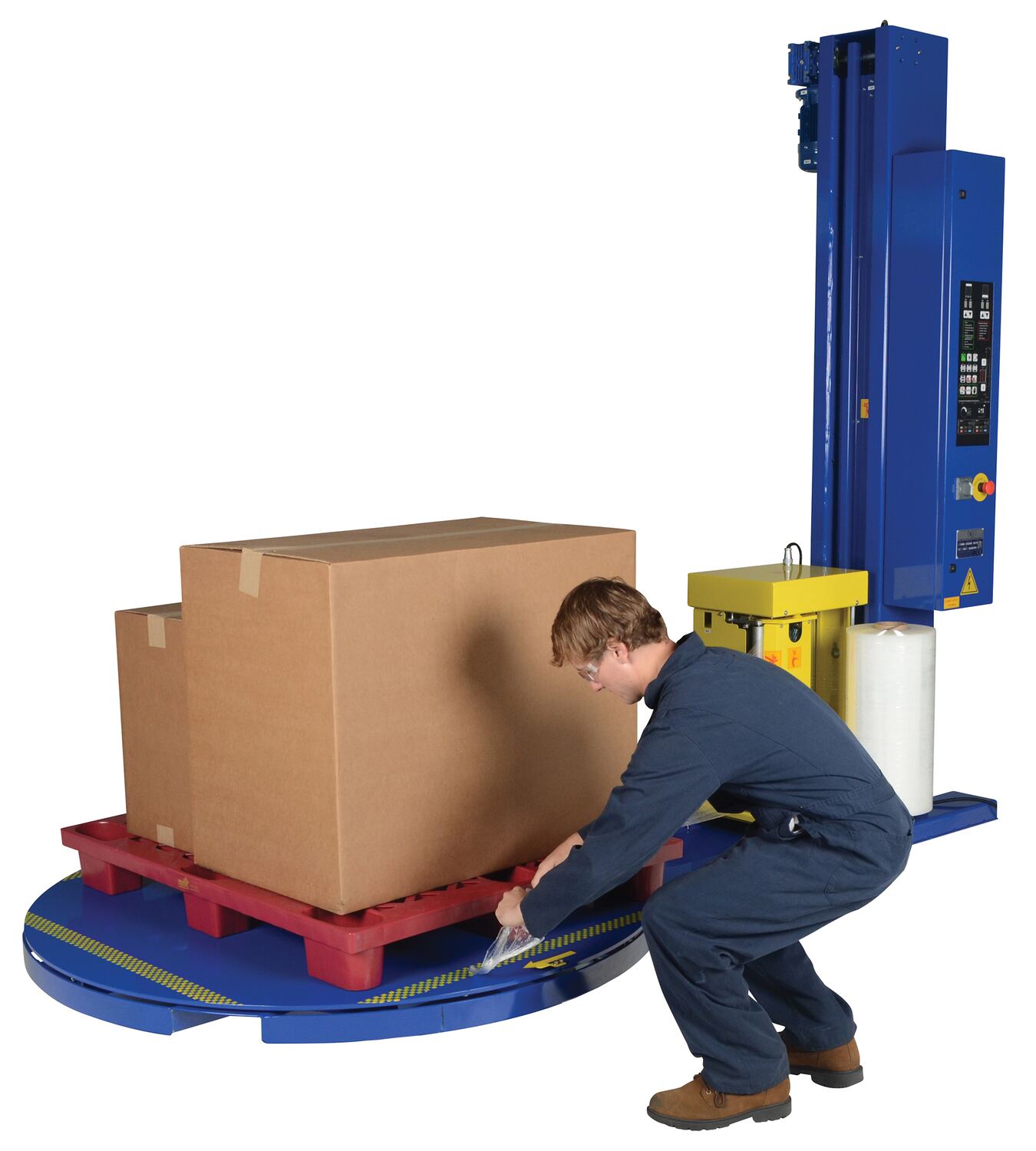

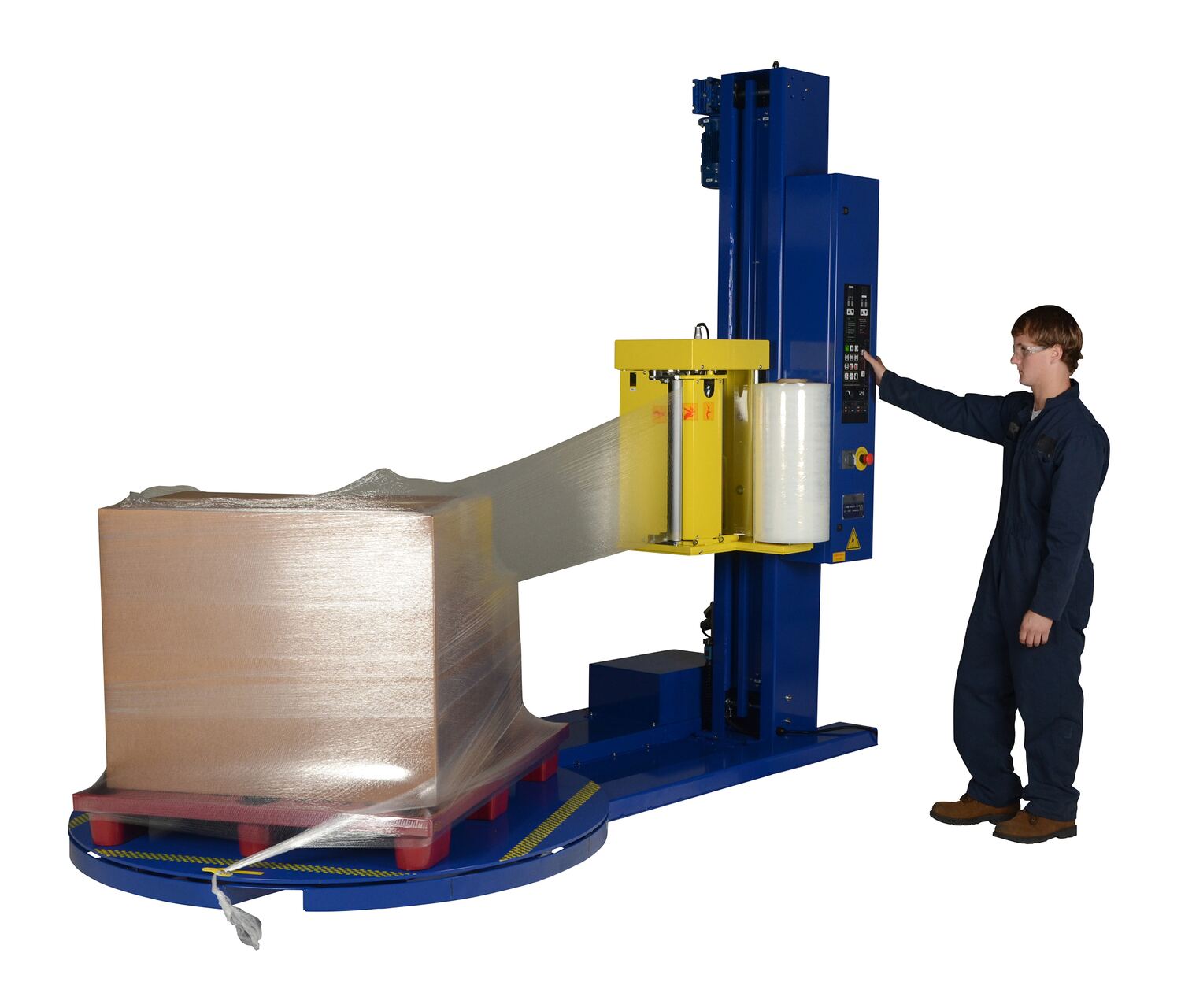

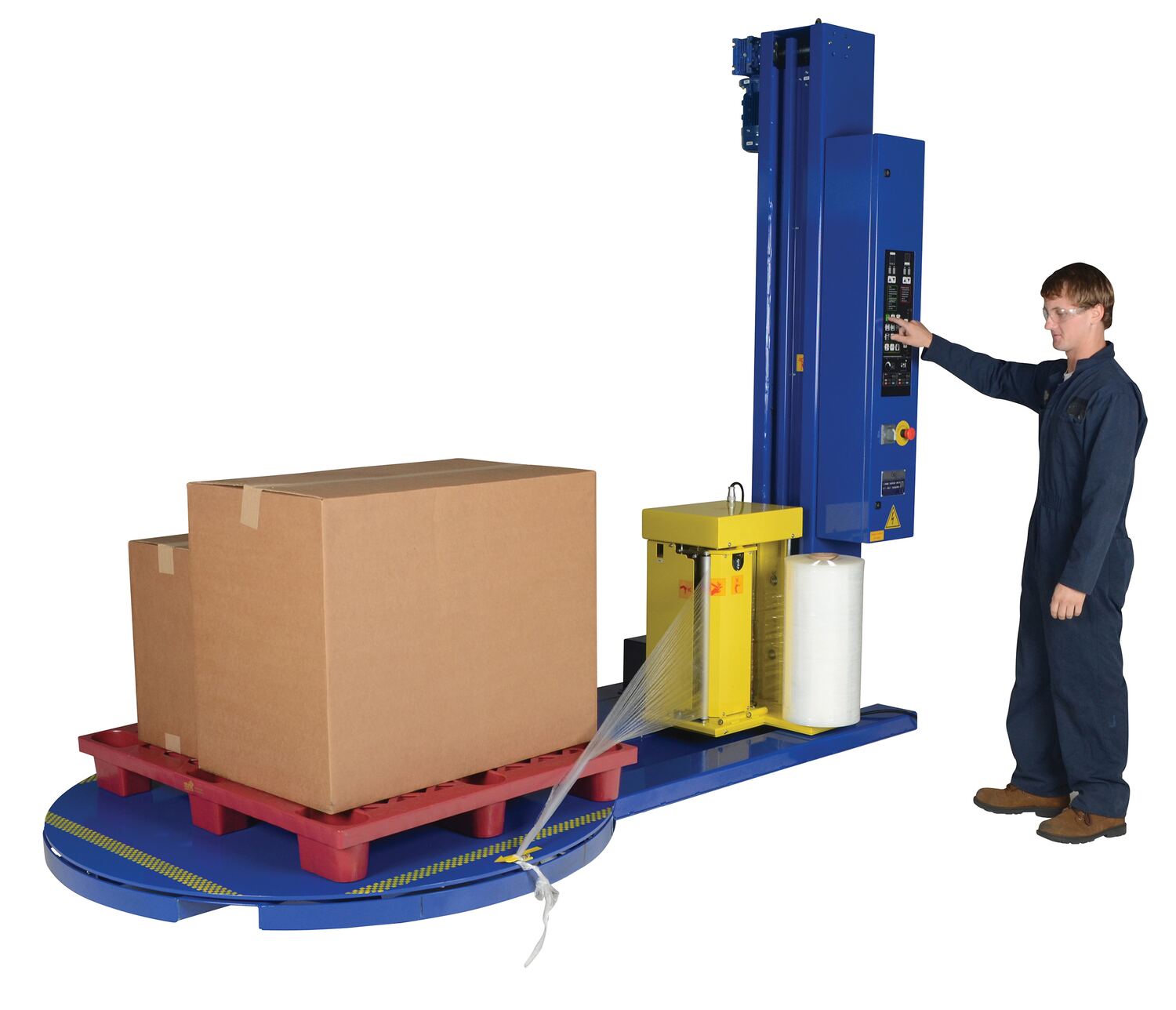

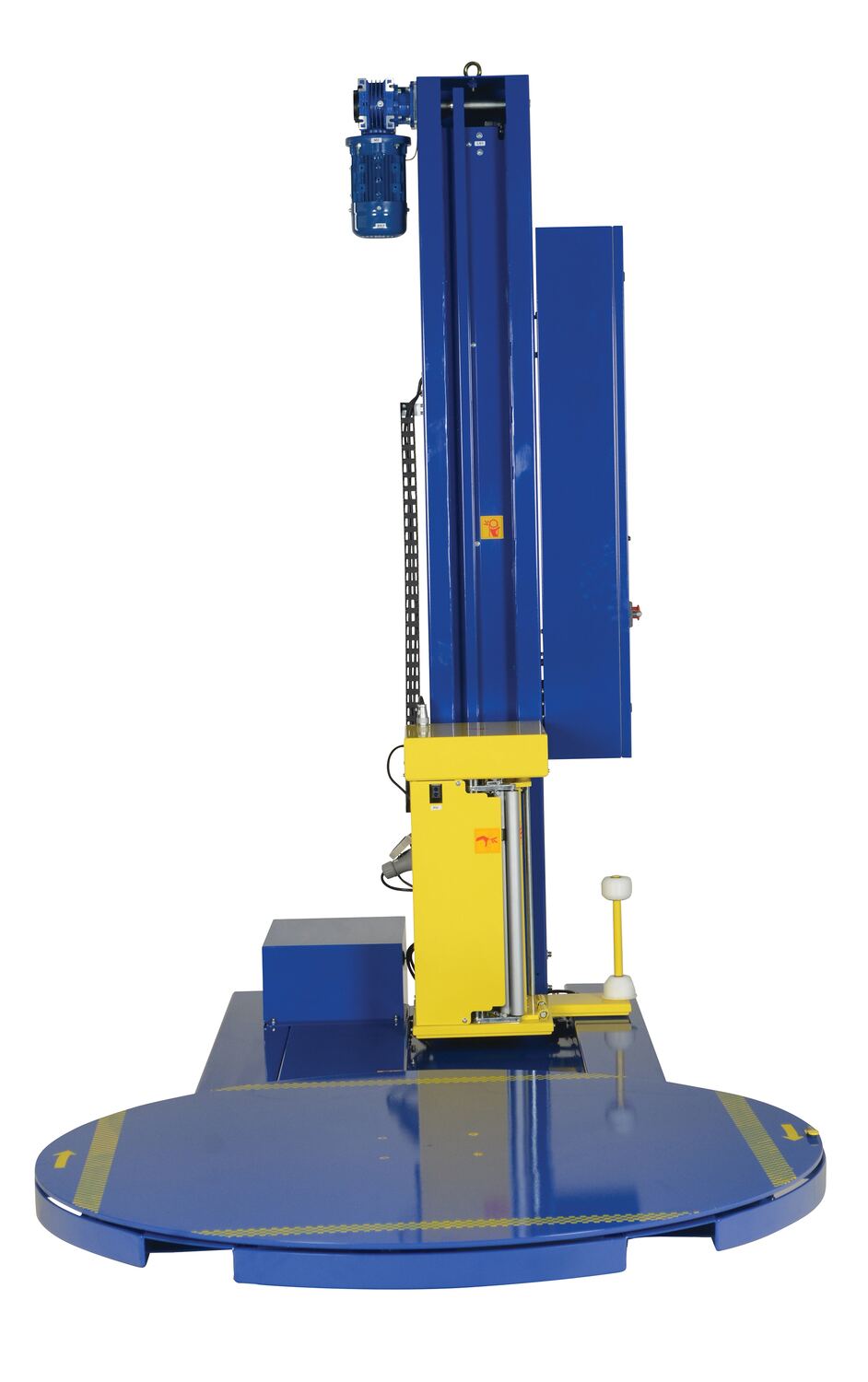

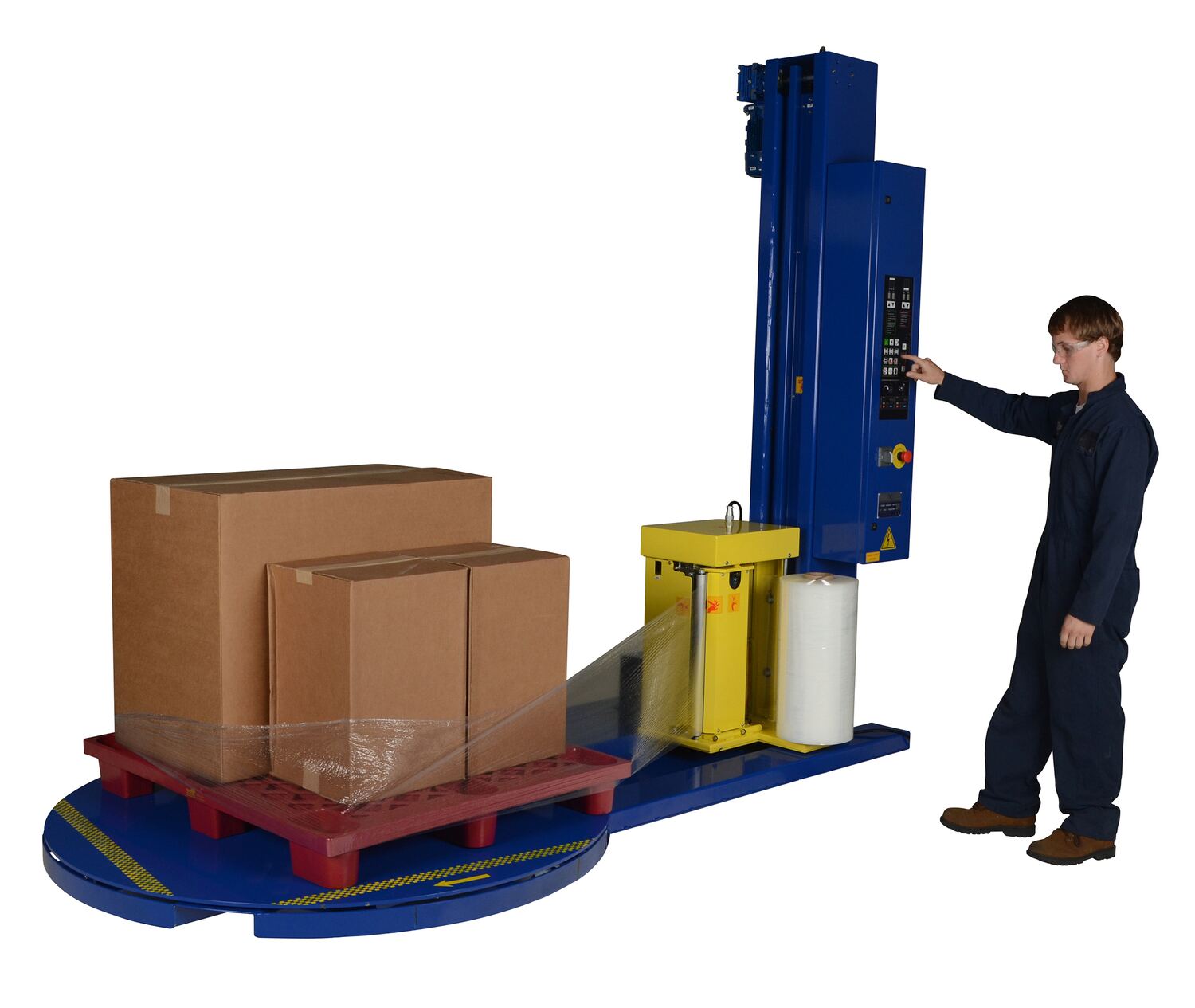

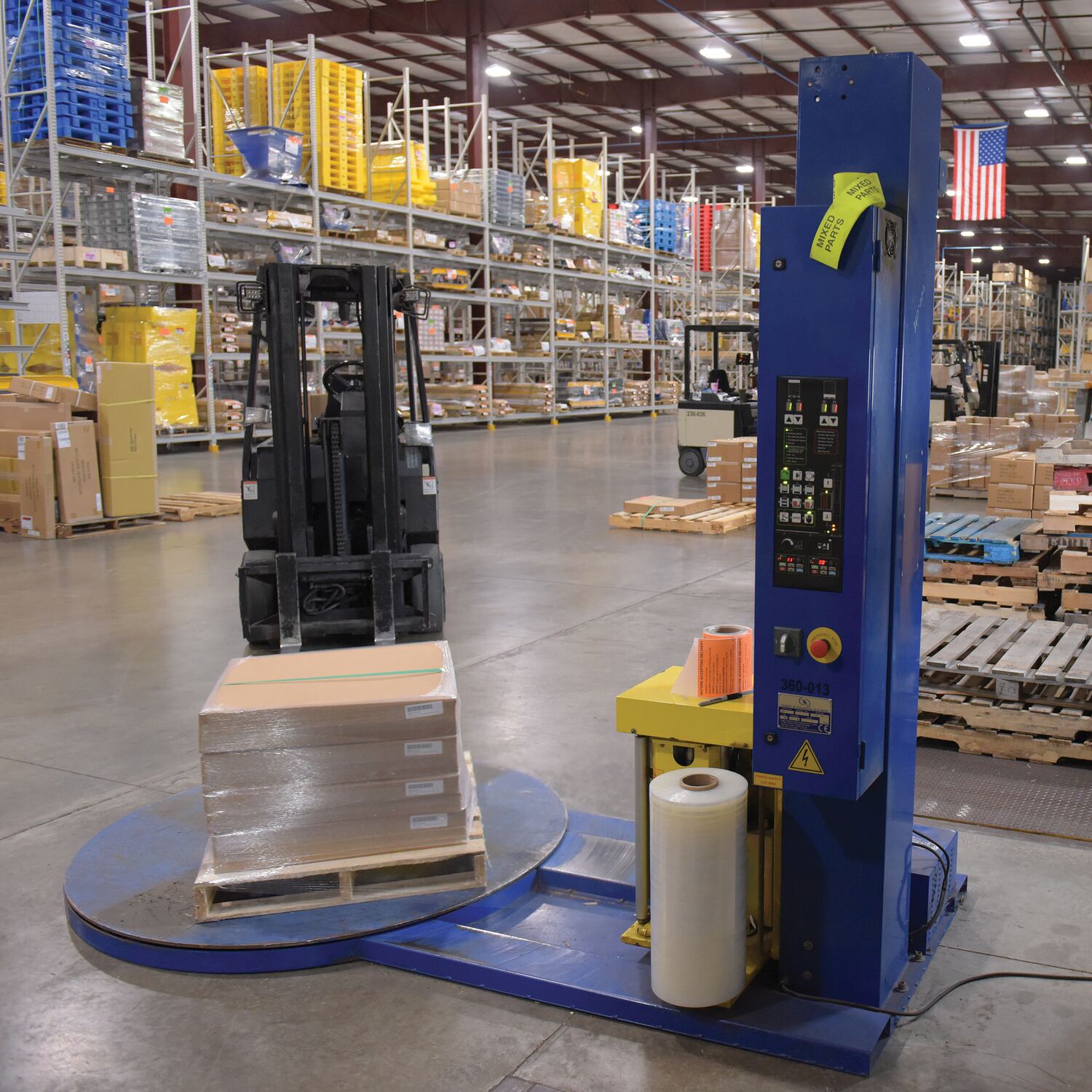

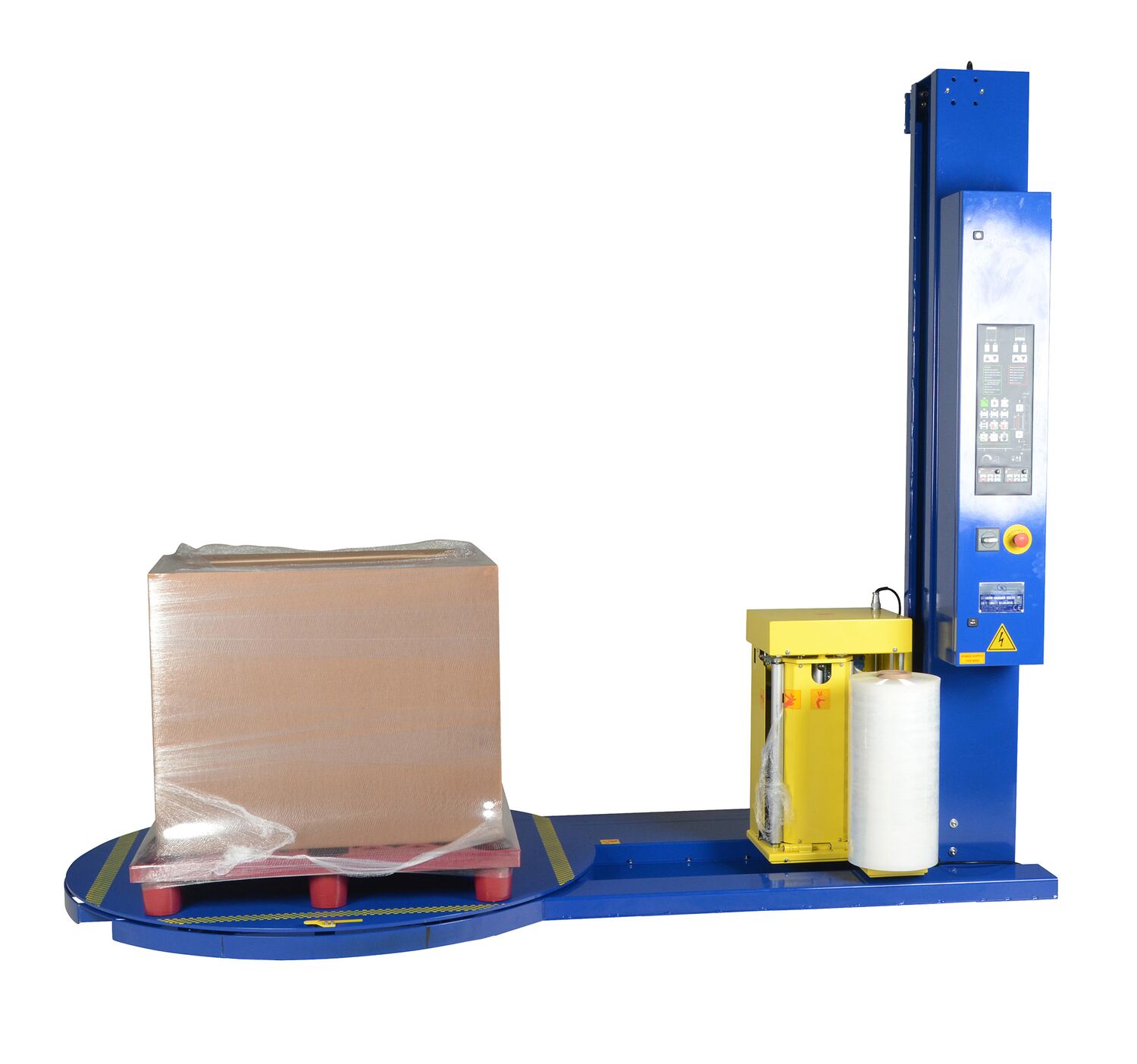

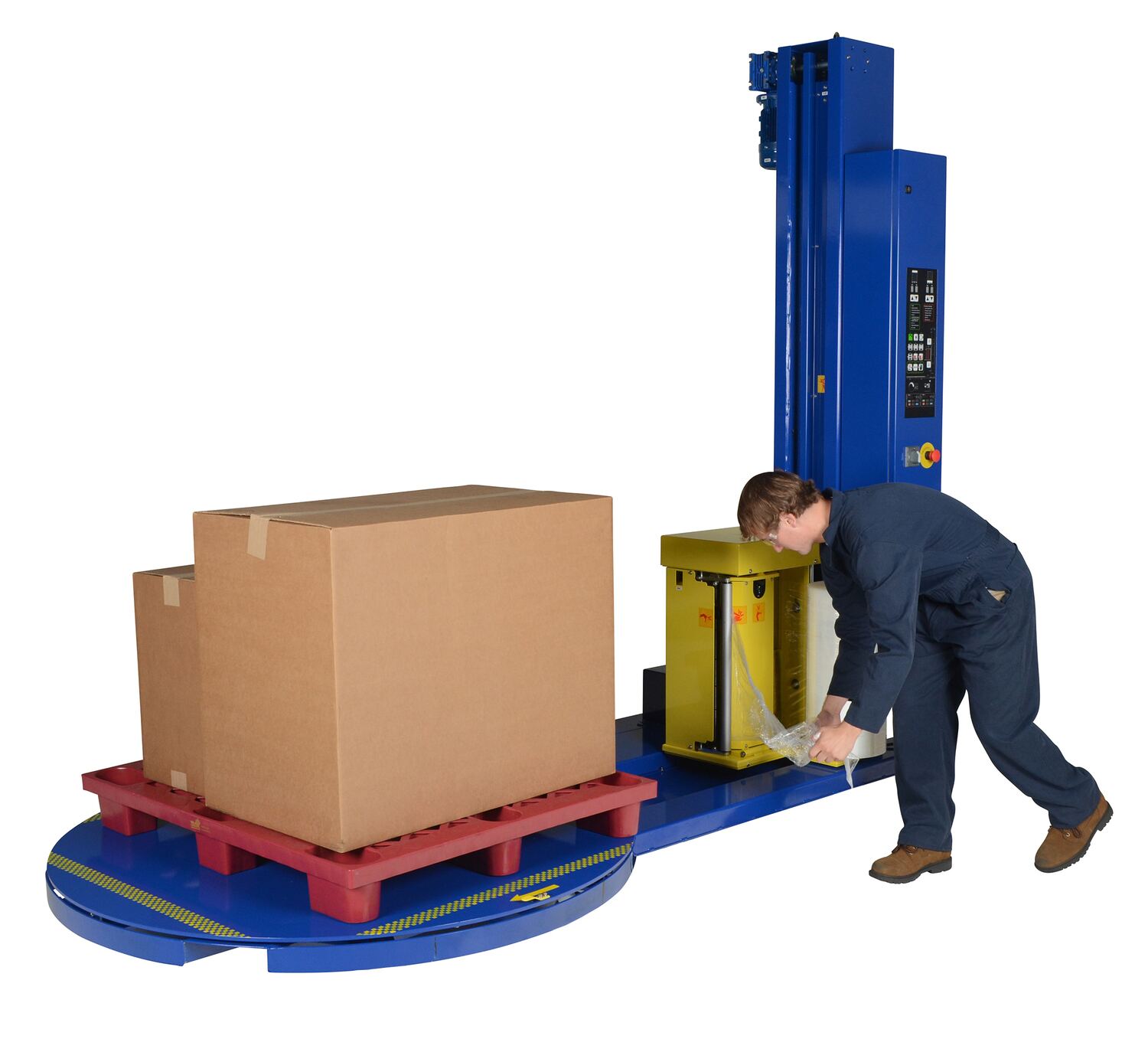

The Medium Duty High Performance Auto-Wrap Stretch Wrap Machine has a user friendly control center that provides workers with efficient control of the wrapping process. The state of the art digital control circuit allows the operator to set the number of pallet rotations and film wrapping patterns, with four (4) standard multifunction wrapping patterns. The operator ties off the film wrap on the carousel and presses the start button. When the unit has completed the wrapping process, the operator can cut film or use auto brake feature and remove the wrapped pallet. The powered carousel has variable speeds 0 to 13 with a soft start and stop feature. Photocell sensors automatically adjust to different pallet heights. Uniform capacity is 4,000 pounds.

SWA-60-AW can accept material rolls betwen 10" and 20".

  • Stretch wrap design increases shipping productivity
  • Simple to use automatic wrap technology
  • Adjustable wrap speed to fit users preference
  • Steel construction provides a long lasting rugged use

115V 1-Phase Standard

The Medium Duty High Performance Auto-Wrap Stretch Wrap Machine has a user friendly control center that provides workers with efficient control of the wrapping process. The state of the art digital control circuit allows the operator to set the number of pallet rotations and film wrapping patterns, with four (4) standard multifunction wrapping patterns. The operator ties off the film wrap on the carousel and presses the start button. When the unit has completed the wrapping process, the operator can cut film or use auto brake feature and remove the wrapped pallet. The powered carousel has variable speeds 0 to 13 with a soft start and stop feature. Photocell sensors automatically adjust to different pallet heights. Uniform capacity is 4,000 pounds.

SWA-60-AW can accept material rolls betwen 10" and 20".

  • Stretch wrap design increases shipping productivity
  • Simple to use automatic wrap technology
  • Adjustable wrap speed to fit users preference
  • Steel construction provides a long lasting rugged use

Other Stretch Wrap Machines

 Medium Duty Powered Stretch Wrap Machines Material Pallet Stretch Wrap Machines Low Profile Stretch Wrap Machine Powered Stretch Wrap Machines

Additional Models In This Family
view entire Image Gallery

SWA-R-60-AW

model SWA-R-60-AW

SWA-82-AW

model SWA-82-AW

SWA-R-60-AW-SCL

model SWA-R-60-AW-SCL

SWA-60-AW-SCL

model SWA-60-AW-SCL

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
SWA-60-AW SWA-60-AW1 Year Limited WarrantySteel Auto Wrap Stretch Wrap Machine 60 In. Turntable Diameter 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Turntable Diameter (in.): 59		1512

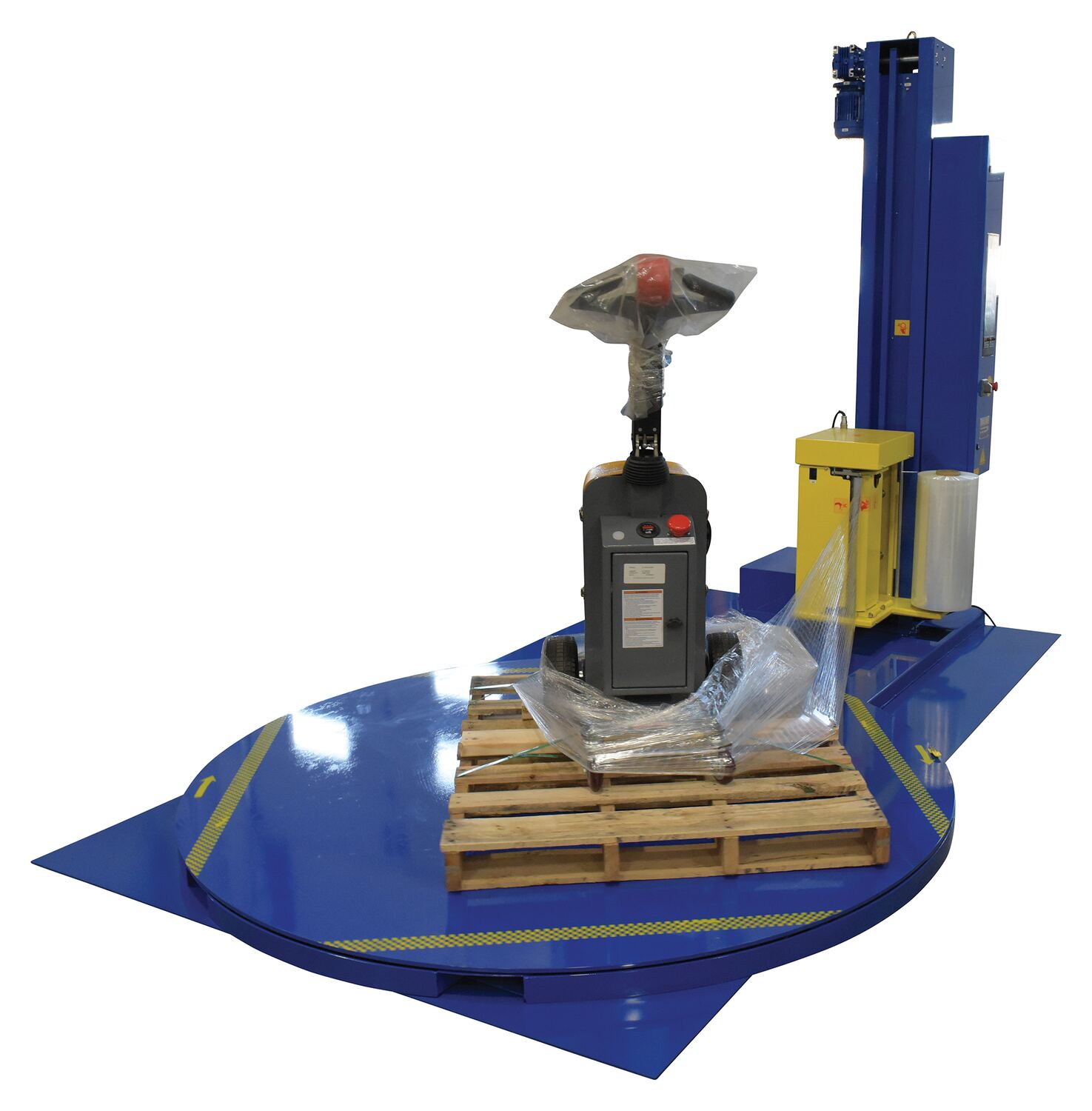

SWA-82-AW SWA-82-AW1 Year Limited WarrantySteel Auto Wrap Stretch Wrap Machine 78-3/4 In. Turntable Diameter 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Turntable Diameter (in.): 78-3/4		2186

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

SWA-60-AW
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Turntable Diameter (in.): 59
Uniform Capacity (lb.): 4,000
Turntable Diameter (in.): 59

SWA-82-AW
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Turntable Diameter (in.): 78-3/4
Uniform Capacity (lb.): 4,000
Turntable Diameter (in.): 78-3/4
For More Details of the Option Click the Red Model Button

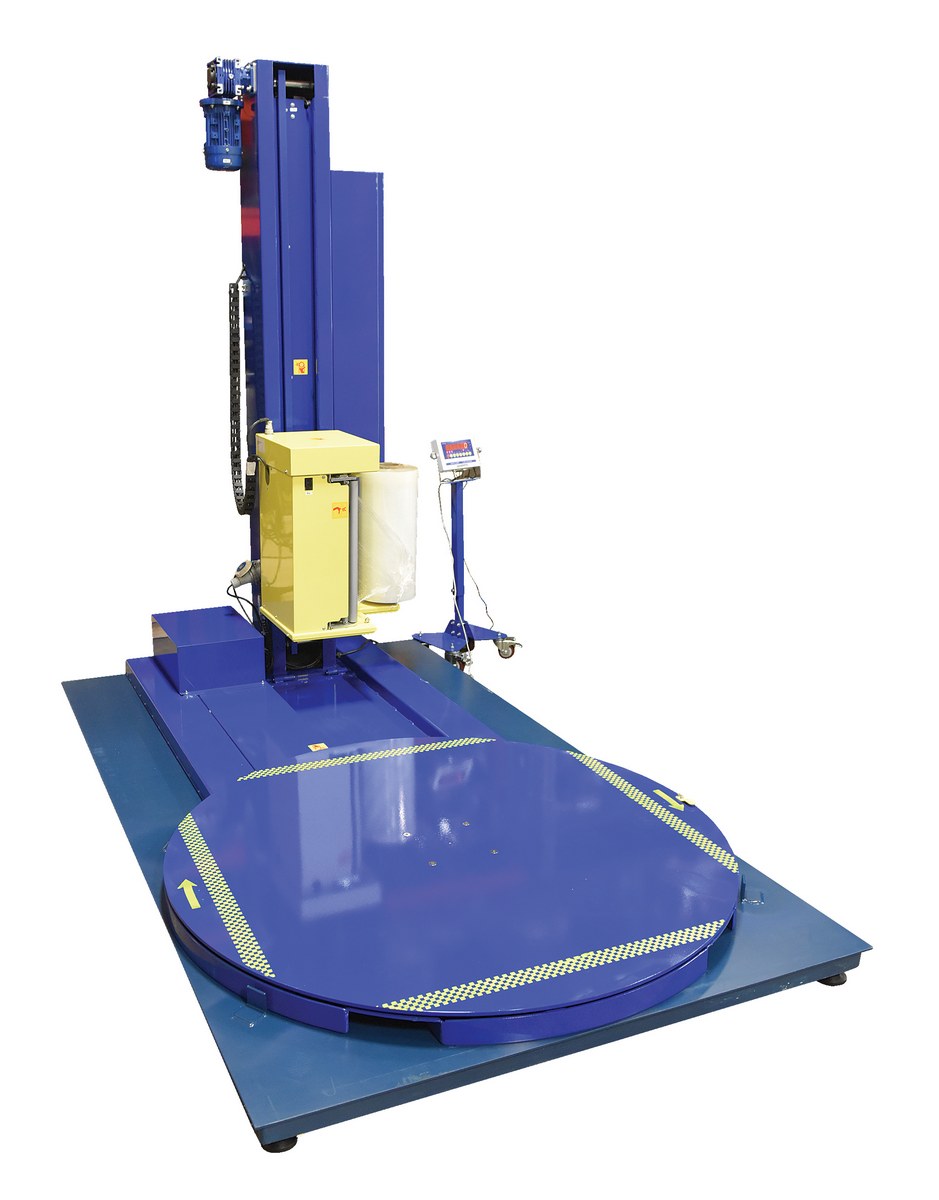

SWA-60-AW-SCL SWA-60-AW-SCL1 Year Limited WarrantyFactory Installed Digital Stretch Wrap Scale For Use With SWA-60-AWUniform Capacity (lb.): 10,000
Scale Height (in.): 3-1/2		924
SWA-R-60-AW SWA-R-60-AW90 Days Limited WarrantyFactory Installed Steel Approach Ramp For Stretch Wrap Machine SWA-60-AW 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Usable Width (in.): 48		334

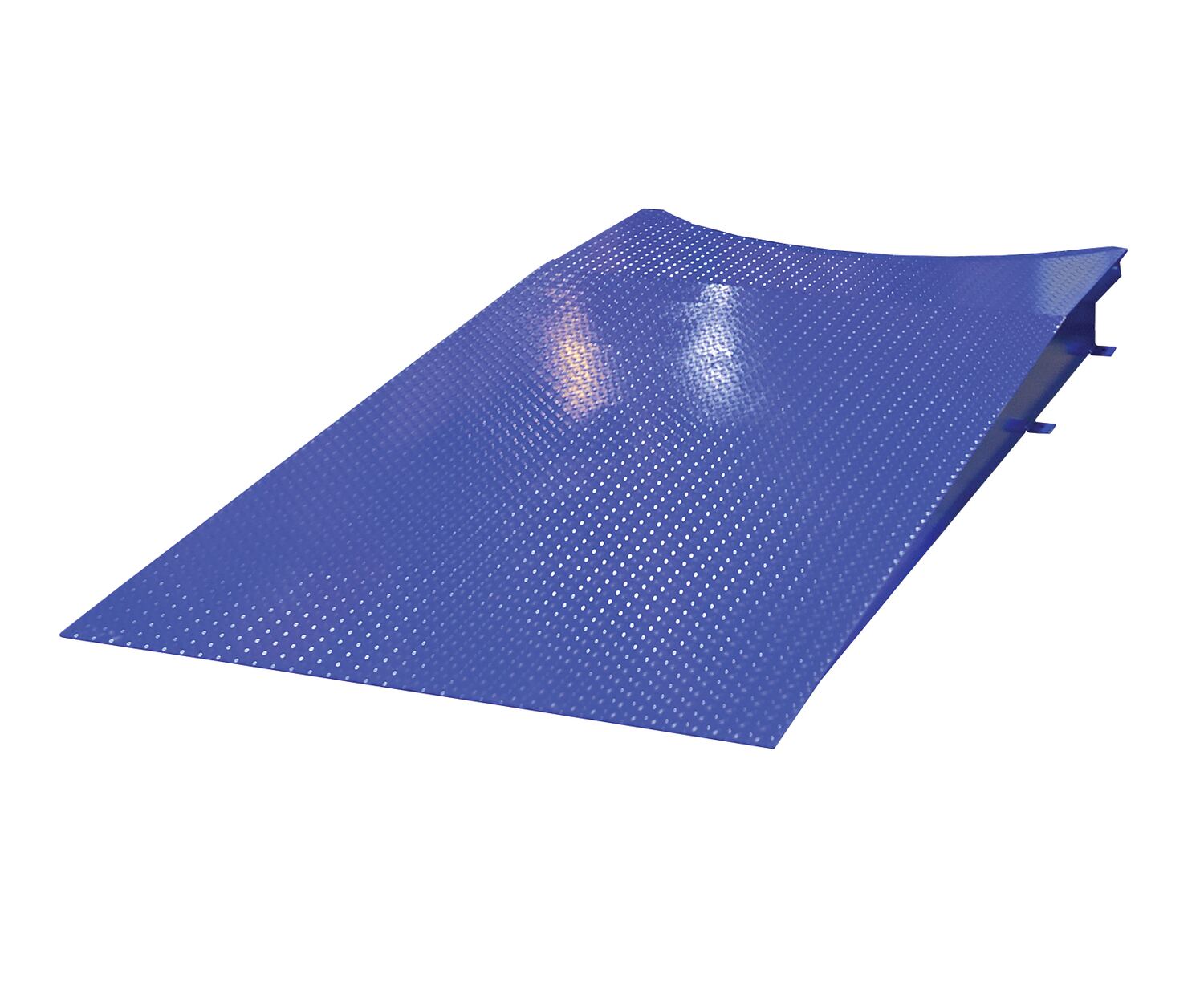

SWA-R-60-AW-SCL SWA-R-60-AW-SCL90 Days Limited WarrantySteel Approach Ramp with Scale 4,000 Lb. Capacity Blue For Use With SWA-60-AWUniform Capacity (lb.): 4,000
Usable Width (in.): 48		543

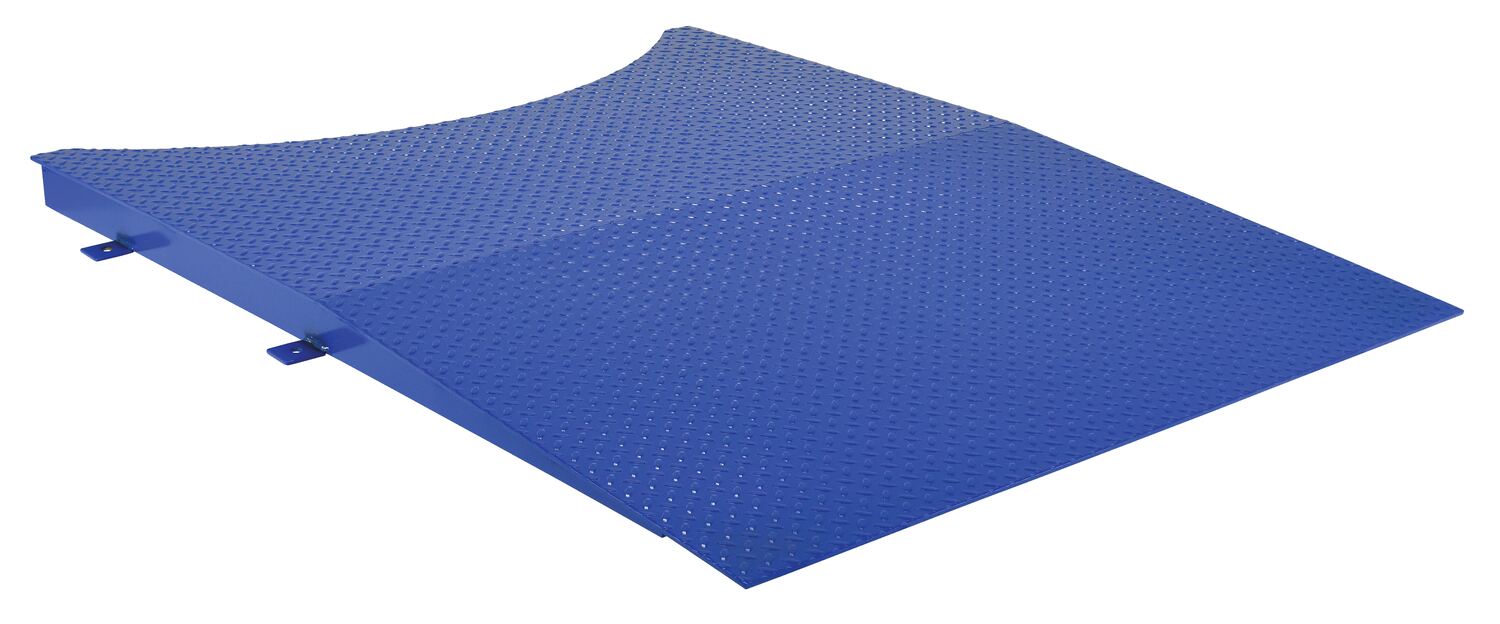

SWA-R-82-AW 90 Days Limited WarrantyFactory Installed Steel Approach Ramp For Stretch Wrap Machine SWA-82-AW 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Usable Width (in.): 48		329

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Medium Duty High Performance Auto-Wrap Stretch Wrap Machine PDF's will open in a new window when clicked.

Manuals


SWA-60-AW
Owners Manual

SWA-82-AW
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


SWA-60-AW

SWA-60-AW-SCL

SWA-82-AW

SWA-R-60-AW

SWA-R-60-AW-SCL

SWA-R-82-AW

Testing Certificates


SWA-60-AW

SWA-60-AW-SCL

SWA-82-AW

SWA-R-60-AW

SWA-R-60-AW-SCL

SWA-R-82-AW

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets

Q: What is the amp draw for SWA-60-AW?

A: 15 AMPS.

Q: Do you have to use the foot control to rotate the stretch wrap machine?

A: The AW models are automatic and do not use foot controls.

Q: What is SWA-60-AW-SCL accuracy ratio?

A: 0.1% of the applied load
