Options For Electric Hydraulic Equipment

- - - -

Description
Model Chart
PDF's
Image Gallery
RRC-2PB_A.jpg RRC-2PB_B.jpg
Options For Electric Hydraulic Equipment

model: RRC-2PB



Featured Ergonomic Solutions


Portable Load Lifters
Hefti-Lifts
Manual & DC Work Positioners
Low Profile Electric/Hydraulic Scissor Lift Tables
Safety Back Rest for Pallet Jacks
Conveyor with Retractable End Stops
Hydraulic Elevating Carts
Powered Pallet Trucks
Roller Conveyors
model chart

Product Family Overview

Print Friendly
Options For Electric Hydraulic Equipment
SERIES: -

Available at the time of sale for most of the powered products listed in the Ergonomic Solutions section. Consult the factory for details. For the acronyms LHL, DA, and L&T noted in the descriptions below:

LHL denotes a "Lift-Hold-Lower" power and control scheme (ex: EHLT, HDD, EM1-200)

DA denotes a "Double-Acting" power and control scheme (ex: EM1-500, TL-100-F, HBD-6)

L&T denotes a power and control scheme in which the platform, chute, etc. will both lift & tilt (ex: EHLTT, ZLTT, HLD)

Available at the time of sale for most of the powered products listed in the Ergonomic Solutions section. Consult the factory for details. For the acronyms LHL, DA, and L&T noted in the descriptions below:

LHL denotes a "Lift-Hold-Lower" power and control scheme (ex: EHLT, HDD, EM1-200)

DA denotes a "Double-Acting" power and control scheme (ex: EM1-500, TL-100-F, HBD-6)

L&T denotes a power and control scheme in which the platform, chute, etc. will both lift & tilt (ex: EHLTT, ZLTT, HLD)

Other Ergonomic Solutions

 Lift & Tilt Tables Work Positioners Stackers Dumpers

Additional Models In This Family
view entire Image Gallery

HPH-SM

HPH-SM

ADDL-FC-2

ADDL-FC-2

STROBE

STROBE

FC-4

FC-4

PLUG-AC

PLUG-AC

FC-2

FC-2

WD-WM2PB

WD-WM2PB

FLR-1/2

FLR-1/2

FLR-1/2

FLR-1/2

STROBE

STROBE

PM-12BRIDGE-A

PM-12BRIDGE-A

MOTOR-575V-2HP

MOTOR-575V-2HP

ADDL-HH2PB

ADDL-HH2PB

PM-18BRIDGE-S

PM-18BRIDGE-S

FC-2

FC-2

Applications



Cold Environments

Construction Projects

Farming and Agriculture

Municipalities

Superstores
model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
POWER AND CONTROL OPTIONS
Model Number Image Description
HCP-2642 HCP-2642 Optional Hand Control Pedestal
VCC-12VDC - VOLTAGE CHANGE FROM DEFAULT TO ONE (1) 12V DC (BATTERY) POWERED (EXTERNAL)
VCC-115-1 - VOLTAGE CHANGE TO 115V 1-PHASE AC POWER
VCC-208/230-1 - VOLTAGE CHANGE TO 208-230V 1-PHASE AC POWER
VCC-208/230-3 - VOLTAGE CHANGE TO 208-230V 3-PHASE AC POWER
VCC-460-3 - VOLTAGE CHANGE TO 460V 3-PHASE AC POWER
VCC-FP-2-DC12V - FOOT PUMP/HAND PUMP TO 12V DC POWER UNIT
VCC-FP-2-DC24V - FOOT PUMP/HAND PUMP TO 24V DC POWER UNIT
VCC-FP-2-AC115V-1 - FOOT PUMP/HAND PUMP TO 115V SINGLE PHASE, AC POWER UNIT
VCC-FP-2-AC230V-1 - FOOT PUMP/HAND PUMP TO 230V SINGLE PHASE, AC POWER UNIT
VCC-FP-2-AC208230V-3 - FOOT PUMP/HAND PUMP TO 208/230V THREE PHASE, AC POWER UNIT
VCC-FP-2-AC460V-3 - FOOT PUMP/HAND PUMP TO 460V THREE PHASE, AC POWER UNIT
VCC-FP-2-AIR-REC - FOOT PUMP/HAND PUMP TO TREADLE RECIPROCATING AIR/OIL POWER UNIT
VCC-FP-2-AIR - FOOT PUMP/HAND PUMP TO ROTARY AIR/OIL POWER UNIT
FC-2 Optional two pedal foot control on an 8' cord

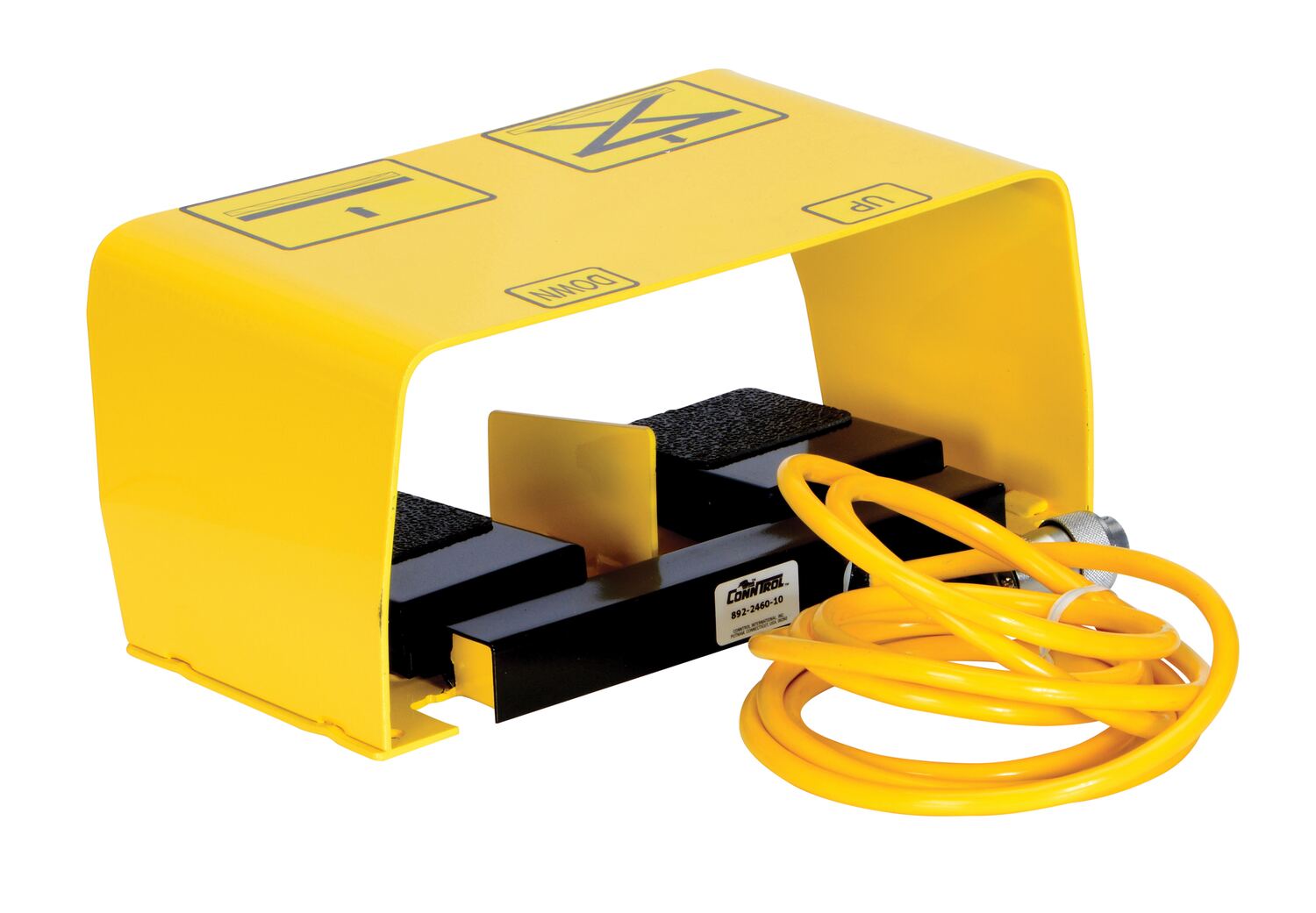

ADDL-FC-2 - Additional twin-foot switch on an 8' cord, point of purchase in additon to hand control

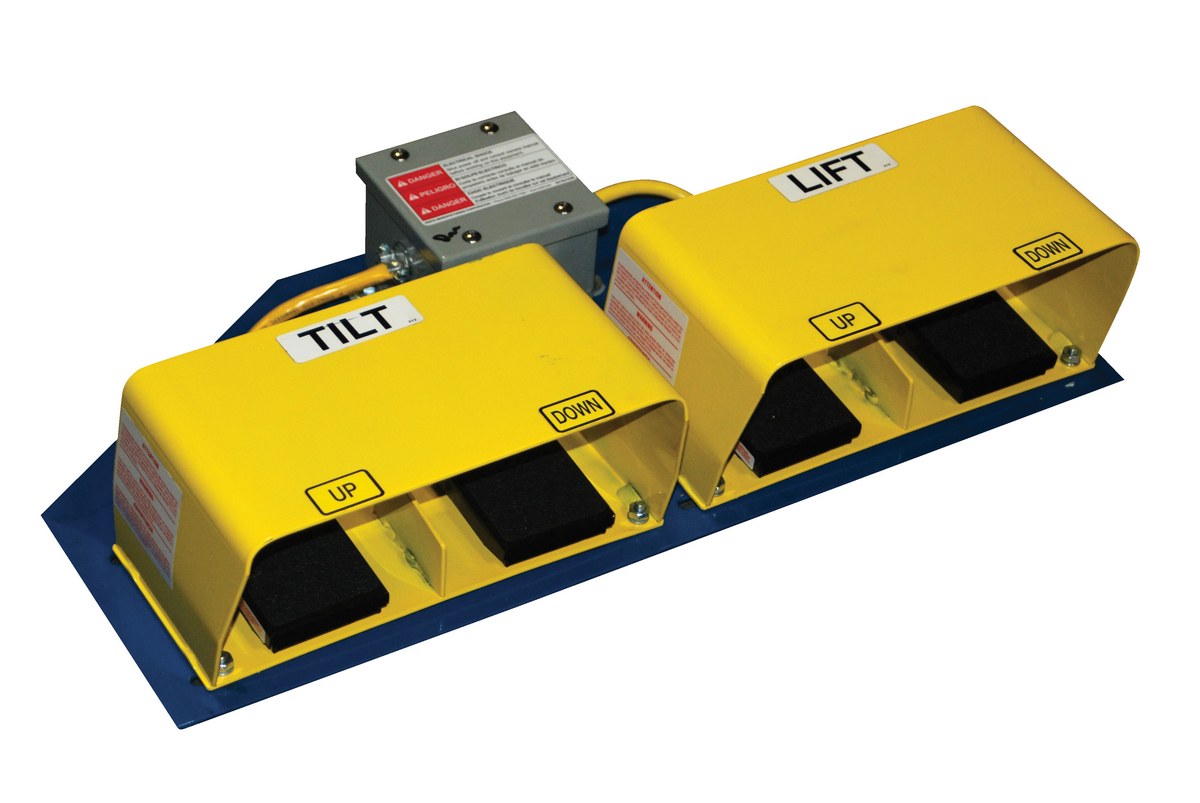

FC-4 L&T; DUAL TWIN FOOT SWITCH INSTEAD OF 4-BUTTON CONTROL

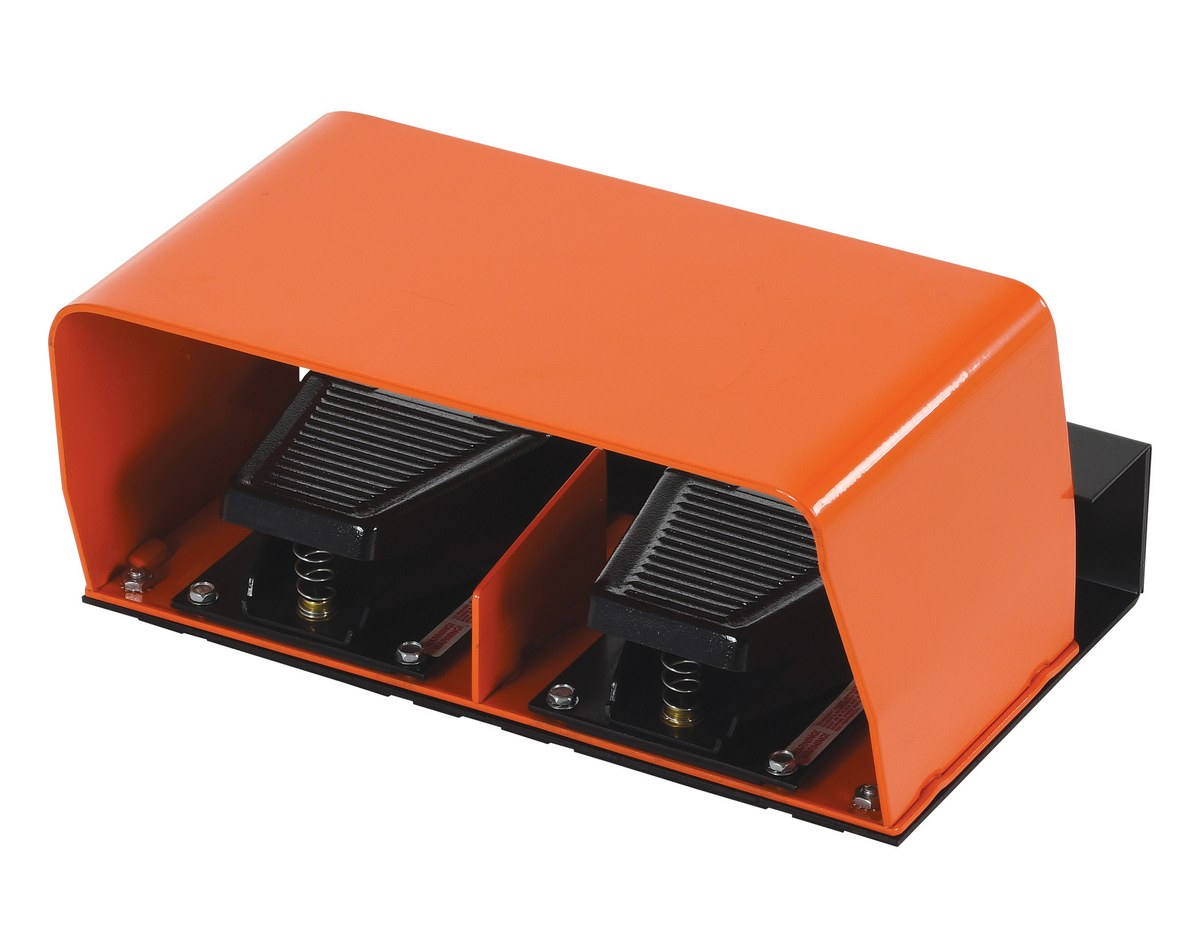

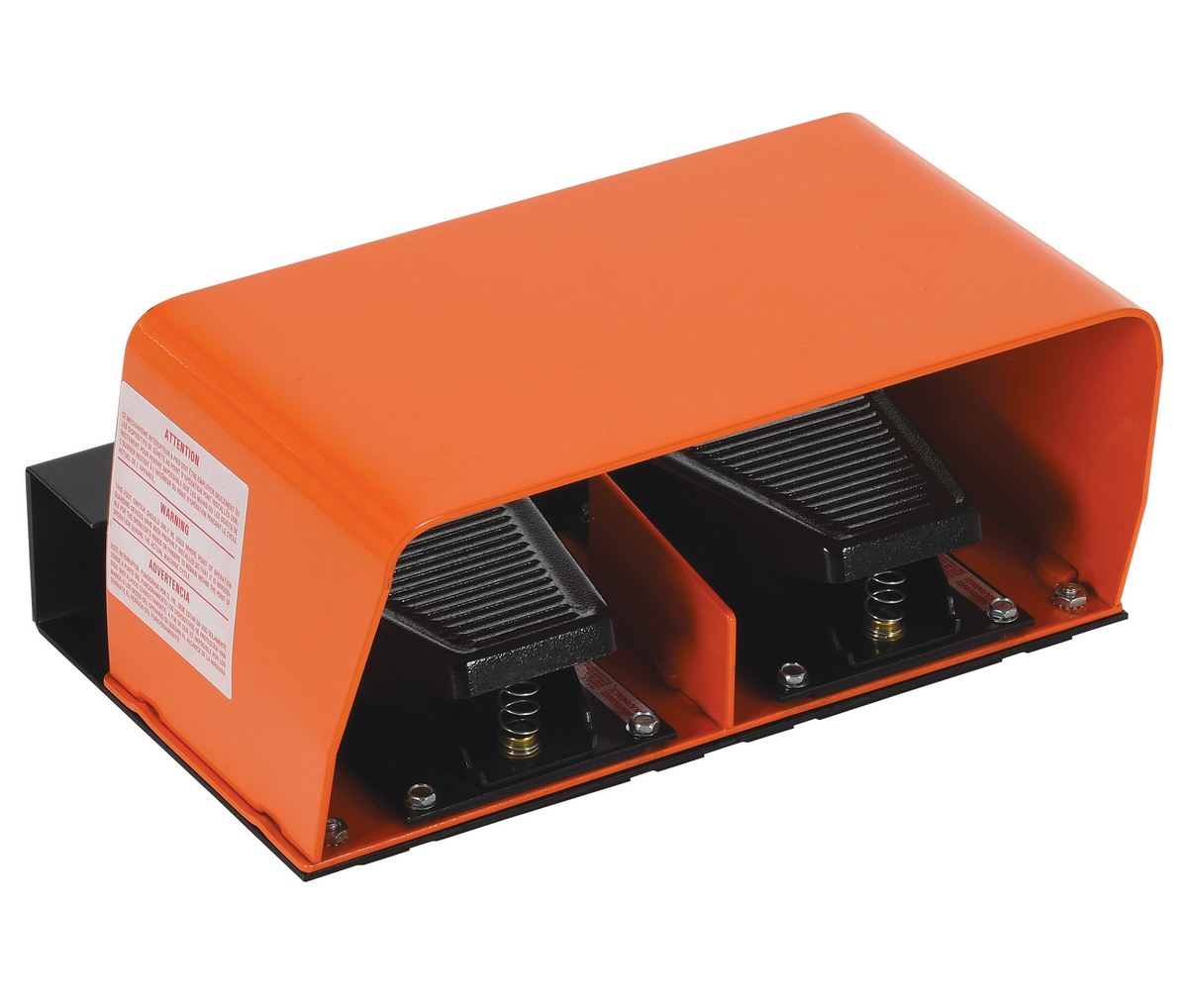

FC-2P Pneumatic twin foot switch (Option for ROTARY-LHL-HHPB and ROTARY-DA-HHPB only)
FCPN-2-FP - Steel Pneumatic Foot Control Two Button Assembly For Lift & Tilt Models Orange/Black

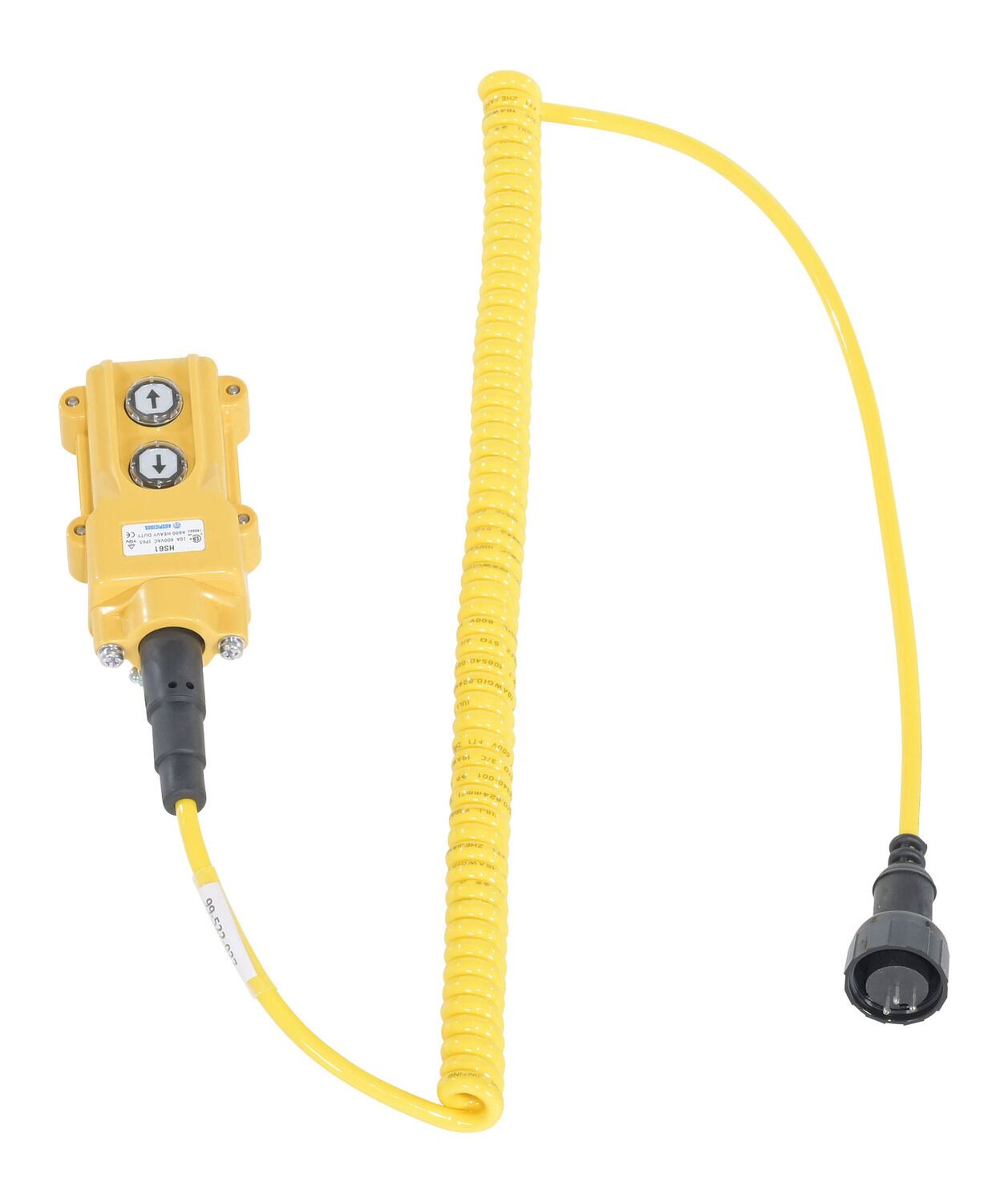

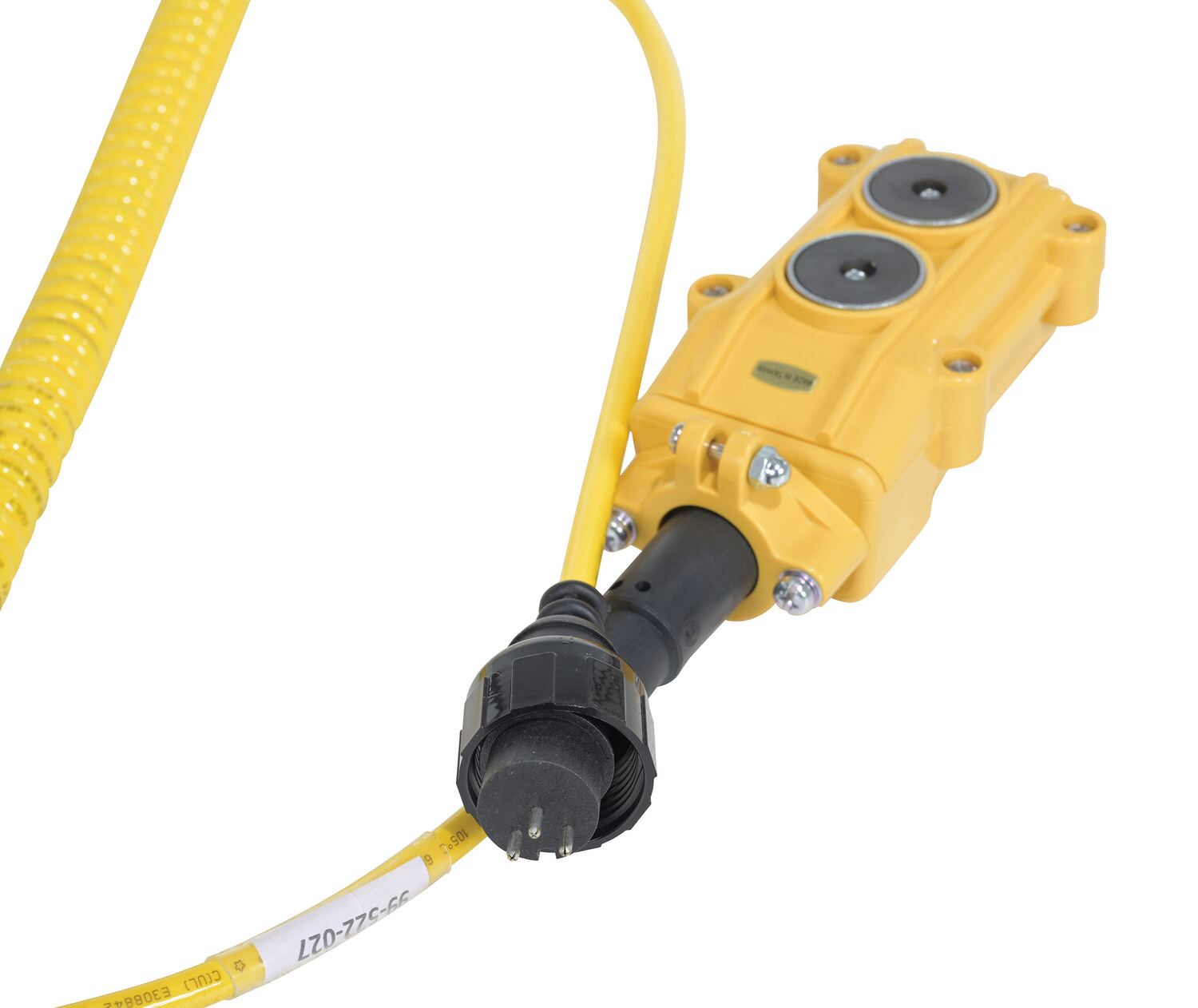

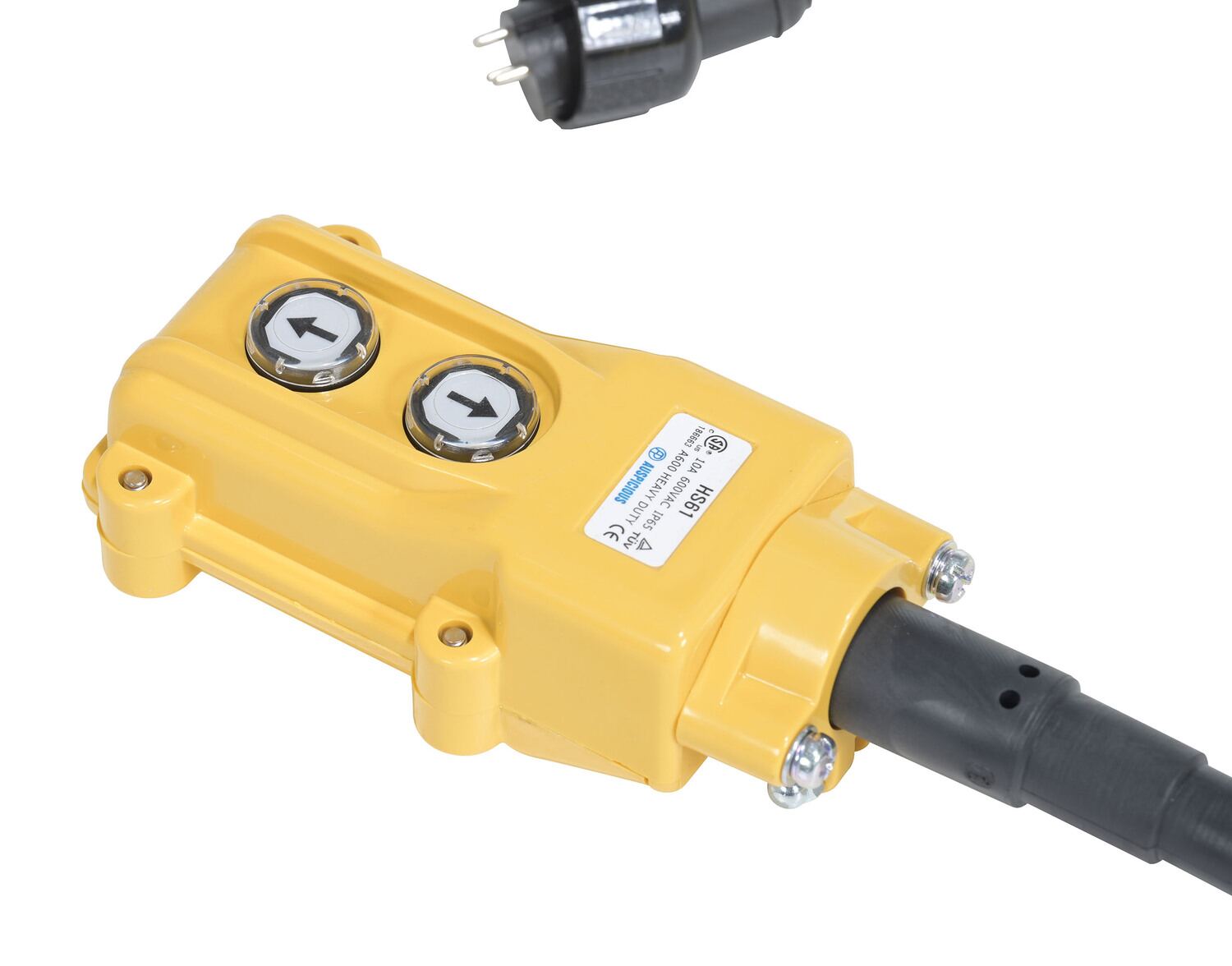

ADDL-HH2PB - LHL & DA; ADDITIONAL HANDHELD 2-BUTTON CONTROL ASSEMBLY ON 8' CORD
N4-WM2PB - LHL & DA; WALL-MOUNT NEMA 4/12 2-BUTTON CONTROL ON 8' CORD
N4-WM4PB - L&T; WALL-MOUNT NEMA 4/12 4-BUTTON CONTROL ON 8' CORD
N4-WM2PB-KSCL - LHL, DA & L&T; WALL-MOUNT NEMA 4/12 PUSH-BUTTON CONTROL WITH KEY SWITCH
ADDL-RALS - LHL; ONE ADDITIONAL ROLLER-ARM LIMIT SWITCH

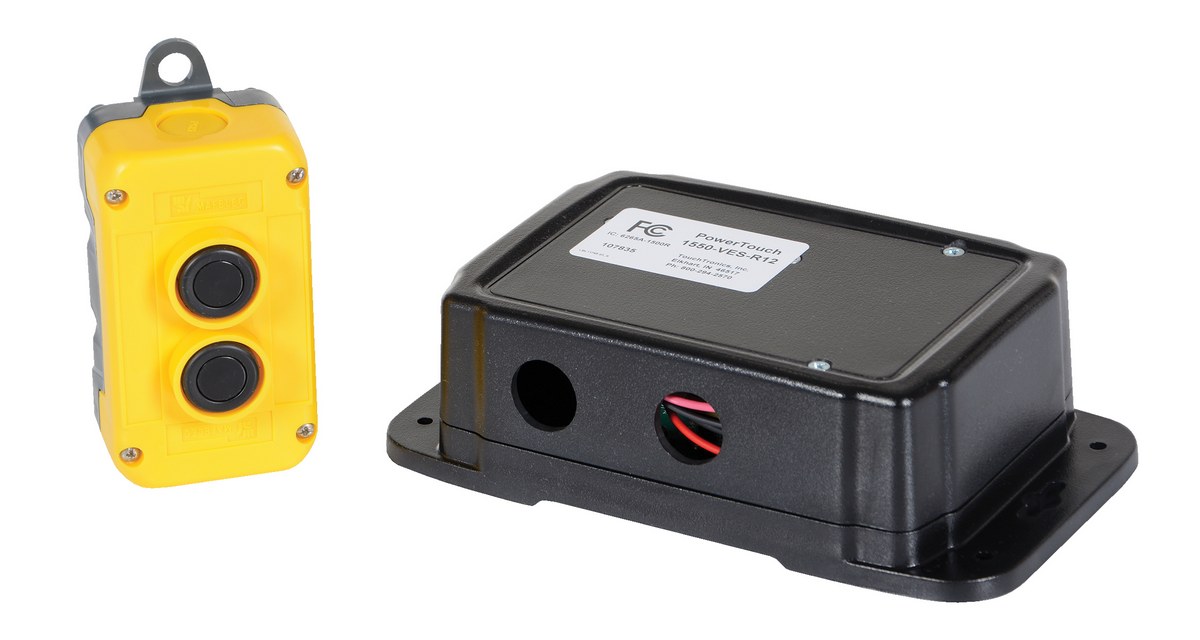

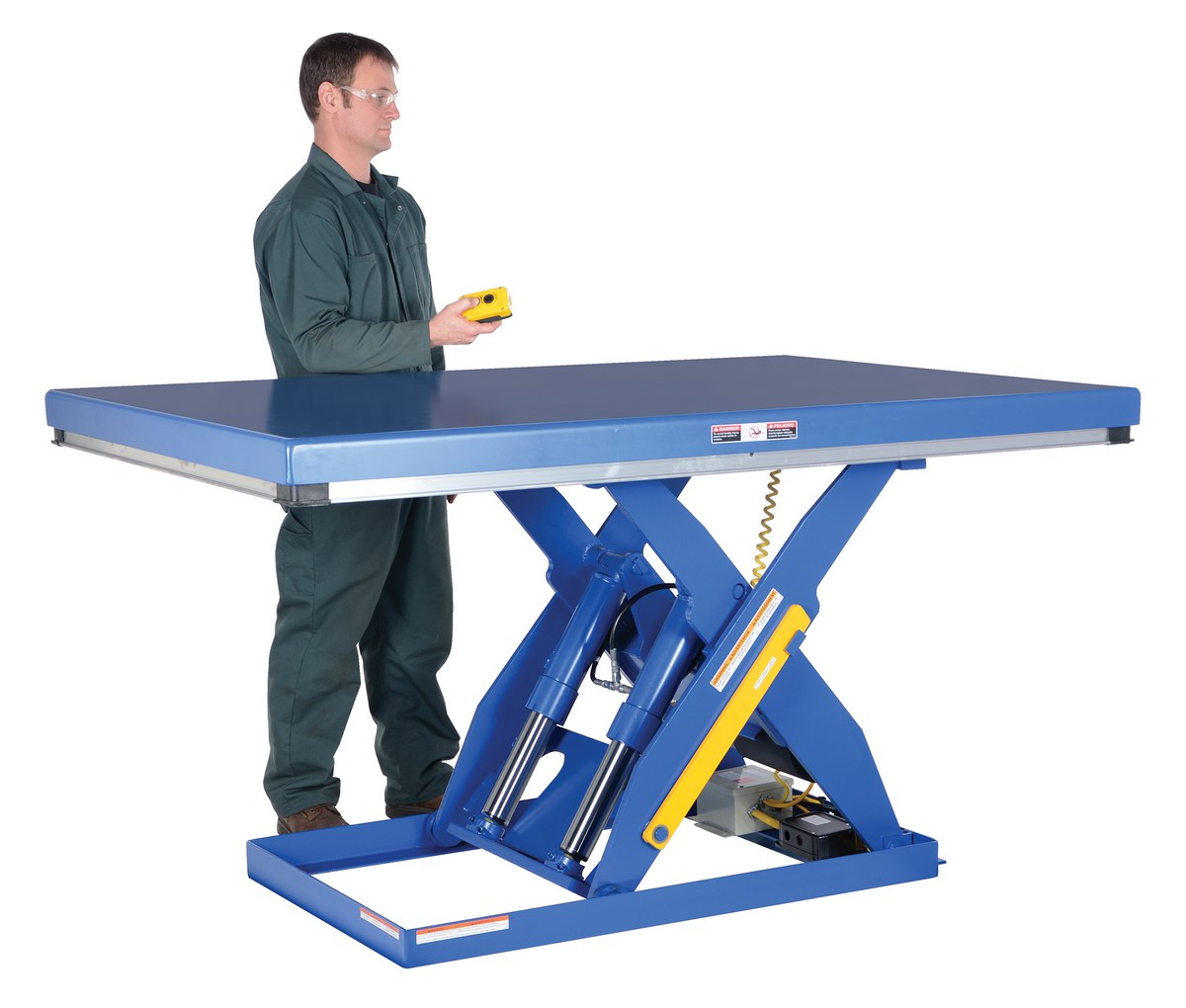

RRC-2PB LHL & DA; 2-BUTTON RADIO REMOTE CONTROL
RRC-4PB - L&T; 4-BUTTON RADIO REMOTE CONTROL
BEEPER - LHL; WARNING BEEPER, BOTH DIRECTIONS (85 DB)

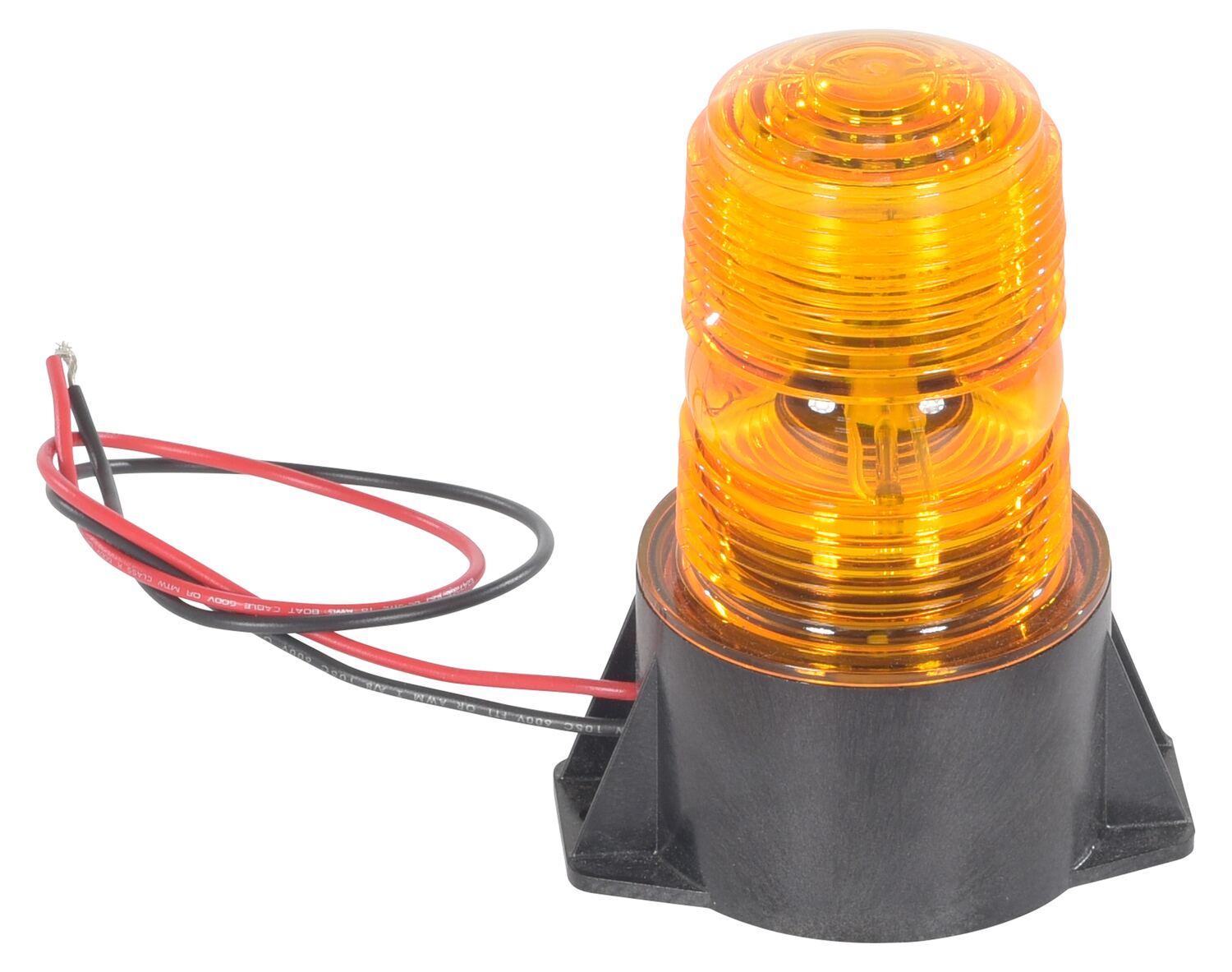

STROBE LHL; WARNING STROBE, BOTH DIRECTIONS
KSCL-WM - KEY SWITCH CONTROL LOCKOUT ONLY; IN A WALL-MOUNTED BOX
IOH-230V - IMMERSION OIL HEATER 250 watts (3HP & 6.5HP POWER UNITS ONLY)
IOH-460V IMMERSION OIL HEATER 500 watts (6.5HP POWER UNITS ONLY)
INDEX1-PHOTO - LHL; INDEXING CONTROL USING A PHOTO SWITCH, ONE DIRECTION
INDEX2-PHOTO - LHL; INDEXING CONTROL USING A PHOTO SWITCH, BOTH DIRECTIONS
HYDRAULIC OPTIONS
Model Number Image Description
STDHF-SM - STANDARD ANTI-WEAR HYDRAULIC OIL, PER GALLON
CWHF-SM - COLD-WEATHER OIL, LESS THAN 1/2 GALLON,OIL POUR POINT -50F
CWHF-MD - COLD-WEATHER OIL, UP TO 1 GALLON,OIL POUR POINT -50F
CWHF-LG - COLD-WEATHER OIL, UP TO 3 GALLON,OIL POUR POINT -50F
CWHF-XLG - COLD-WEATHER OIL, UP TO 16 GALLON,OIL POUR POINT -50F
FGHF-SM - FOOD-GRADE OIL, PER GALLON

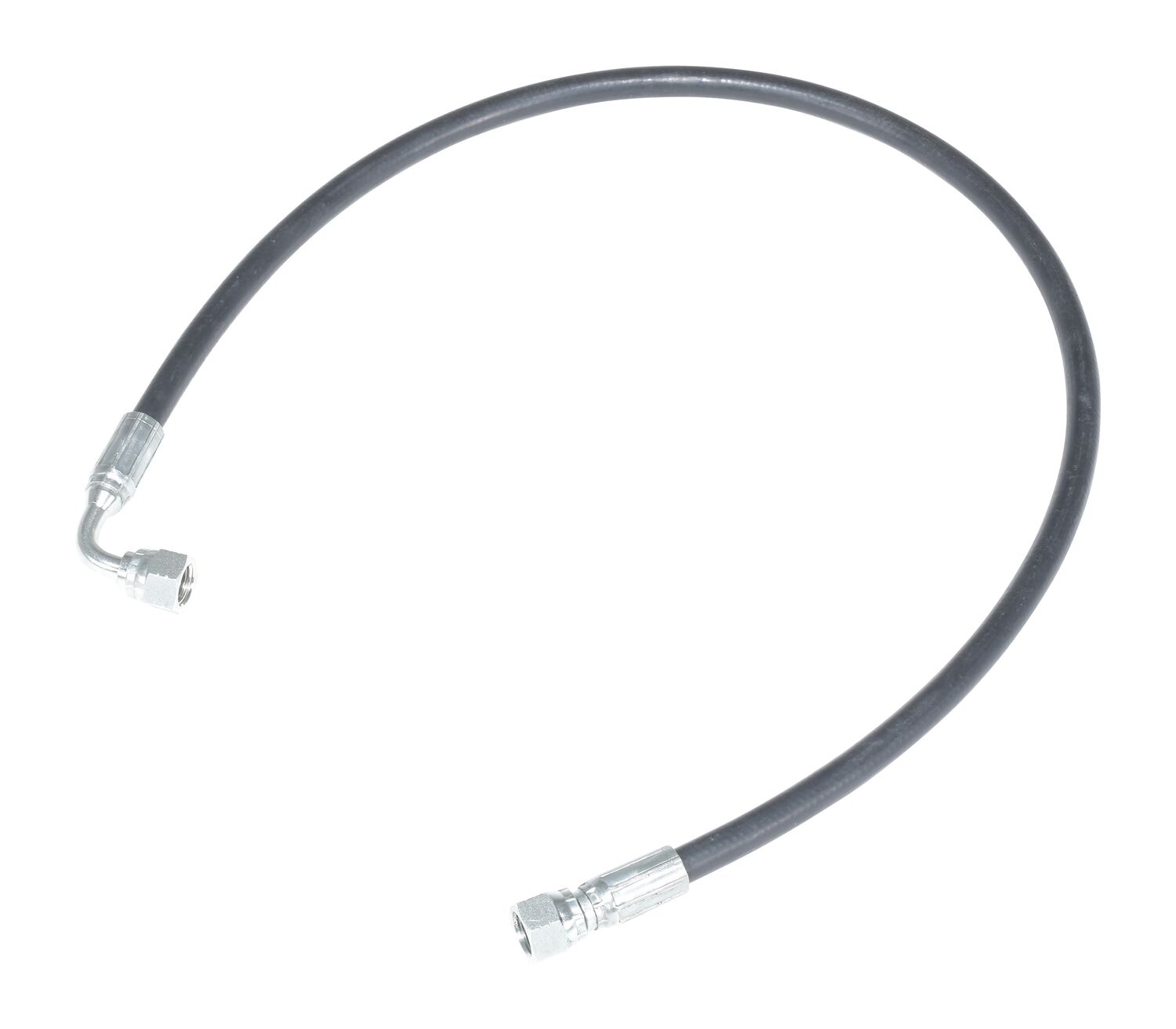

HPH-SM-(length in feet) 3/8" OR SMALLER, PRESSURE HOSE

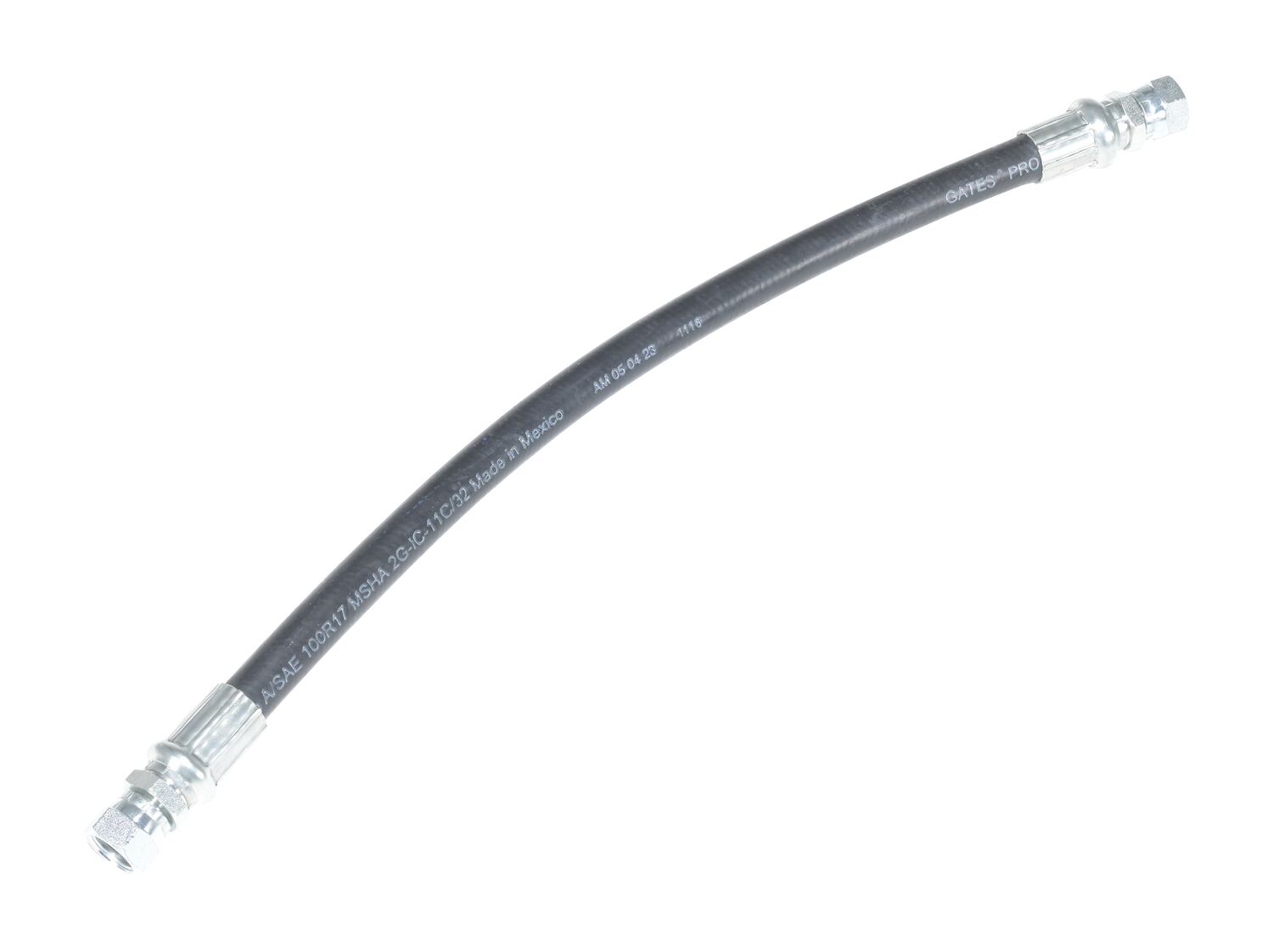

HPH-LG-(length in feet) 1/2" OR LARGER, PRESSURE HOSE

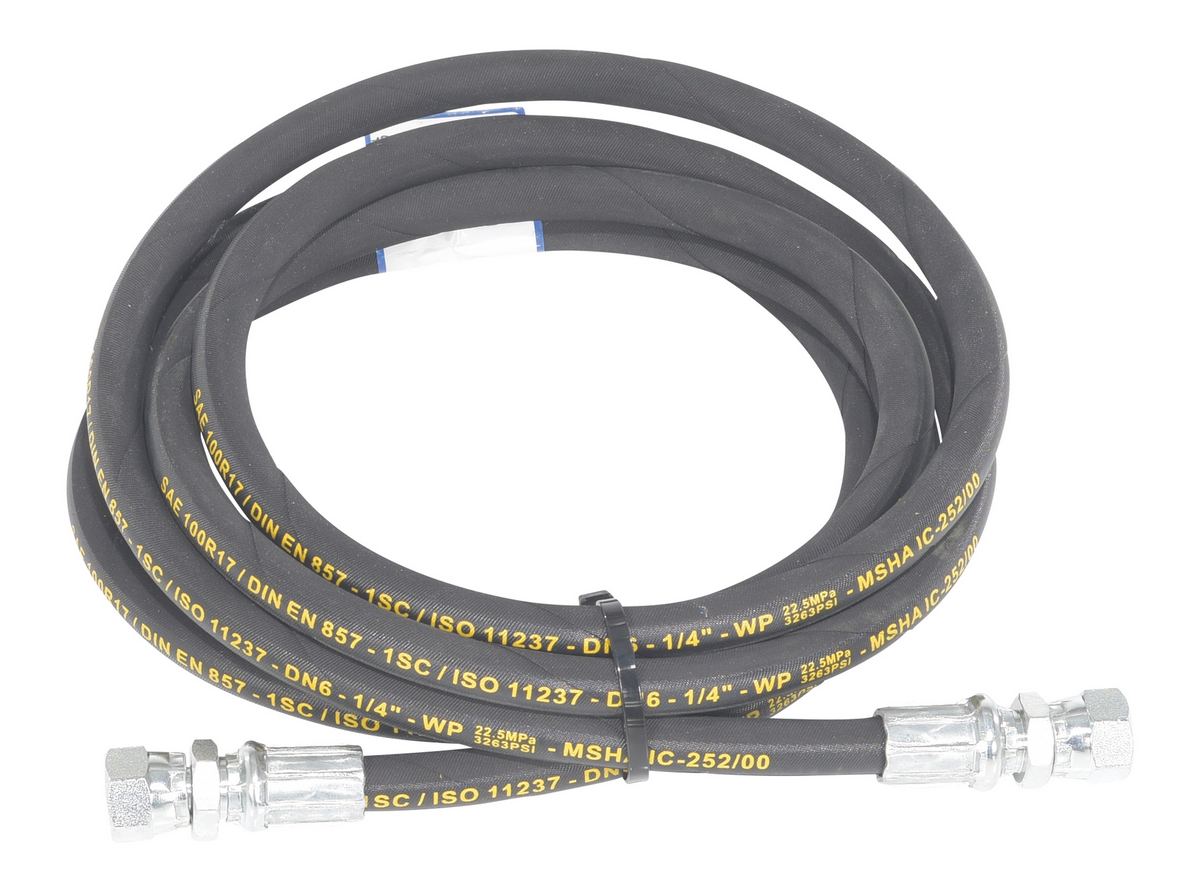

ADDL-HH-25-10 Synthetic Rubber 1/4 In. 10 Ft. Length Hydraulic Hose For Lift & Tilt Workstation Tables Black

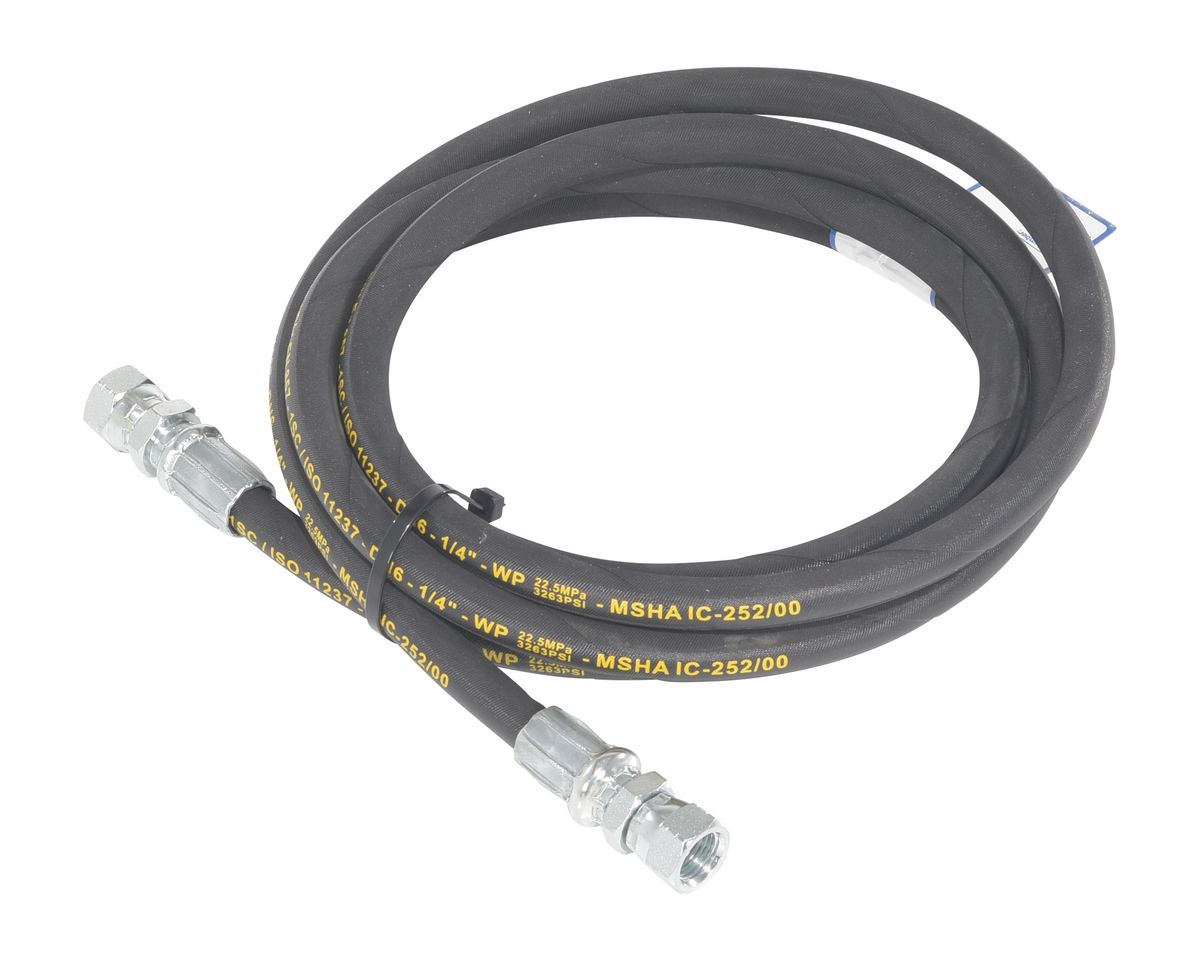

ADDL-HH-25-20 Synthetic Rubber 1/4 In. 20 Ft. Length Hydraulic Hose For Lift & Tilt Workstation Tables Black
SPECIAL LOCATION CONTROL OPTION PACKAGES
Model Number Image Description

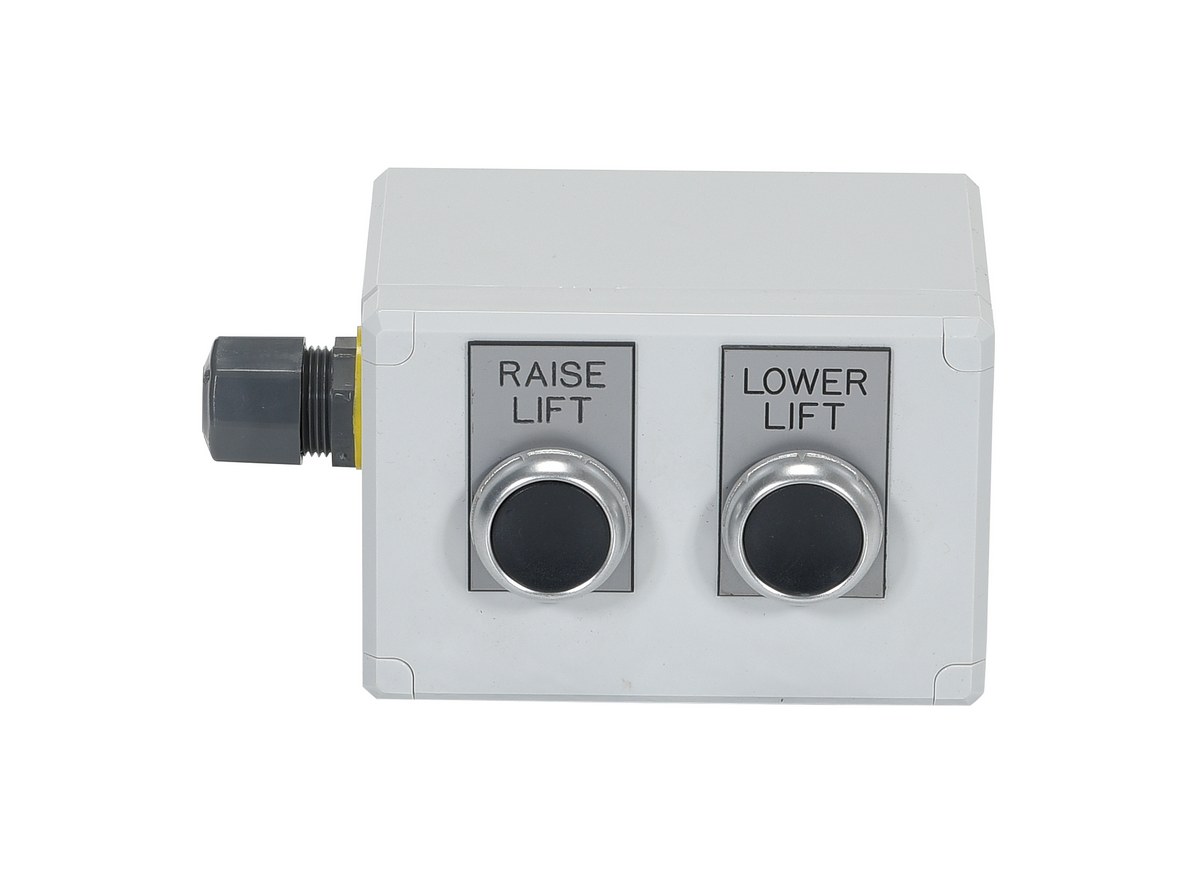

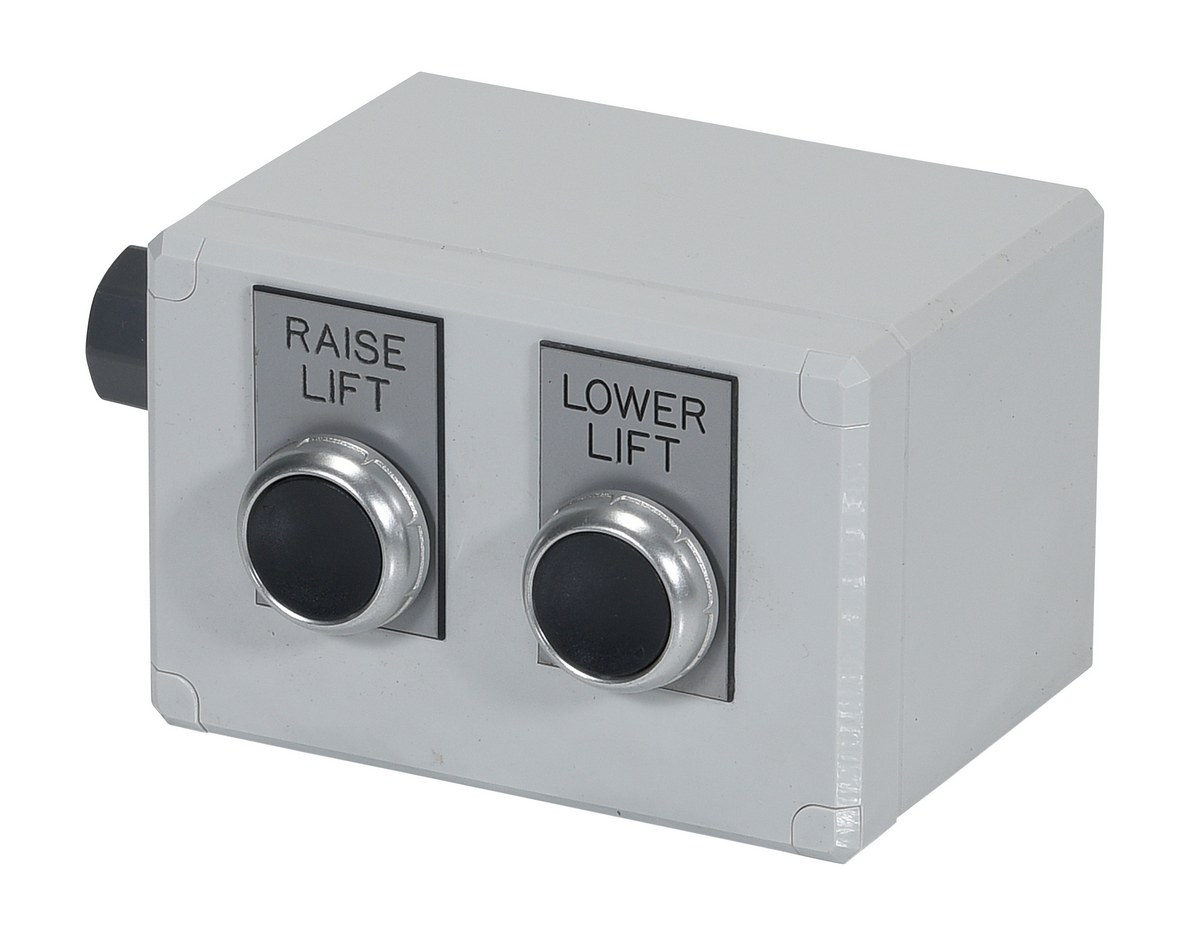

WD-WM2PB* LHL; WASHDOWN POWER & CONTROL PACKAGE FOR AC OR DC
WD-FC-2* - LHL; WASHDOWN POWER & CONTROL PACKAGE FOR AC OR DC, WITH TWIN FOOT SWITCH

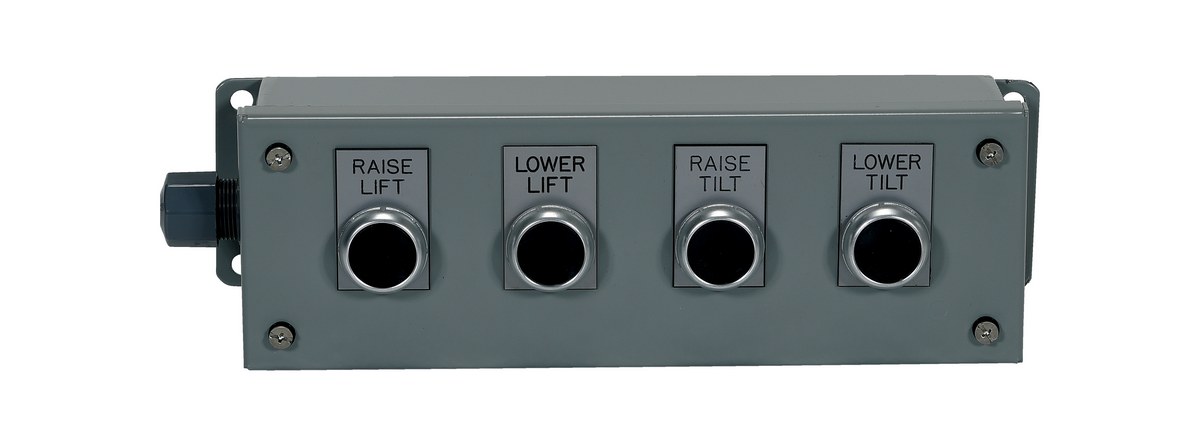

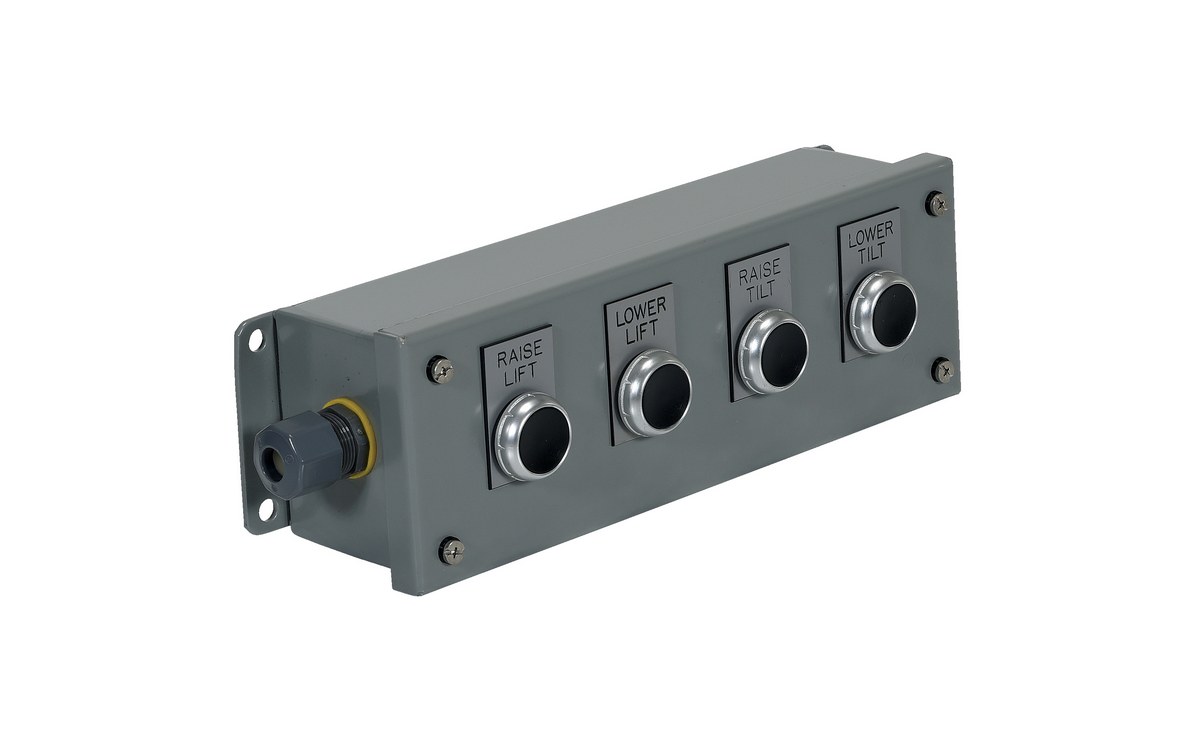

WD-WM4PB* L&T; WASHDOWN POWER & CONTROL PACKAGE, FULL-SIZE
WD-FC-4* - L&T; WASHDOWN POWER & CONTROL PACKAGE, FULL-SIZE, WITH DUAL TWIN FOOT SWITCH
EX-WMPB - LHL; CLASSIFIED LOCATIONS POWER & CONTROL PACKAGE
(OPTION MUST BE PRE-APPROVED BY ENGINEERING FOR APPLICATION)
N12 - LHL; NEMA 4/12 ENCLOSURES, FULL-SIZE (MAY REQUIRE AN EXTERNAL POWER UNIT)
NRTL-COMP-S - POWER UNIT UPGRADE TO UL/CSA COMPONENTS
*Not available for EHLT-ROTATE, EHLTD-ROTATE, EHLTX-ROTATE & AHLT-ROTATE
POWER UNIT OPTIONS
Model Number Image Description
ROTARY-LHL-HHPB* - LHL; ROTARY AIR/OIL, HANDHELD PUSH-BUTTON (REQUIRES FILTER & LUBRICATOR)
ROTARY-DA-HHPB* - DA; ROTARY AIR/OIL, HANDHELD PUSH-BUTTON (REQUIRES FILTER & LUBRICATOR)
ROTARY-LT-WMPB* - L&T; ROTARY AIR/OIL, WALL-MOUNT PUSH-BUTTON (REQUIRES FILTER & LUBRICATOR)
RECIPR-LHL - RECIPROCATING AIR/OIL, NON-CART, 80 PSI & 20 SCFM
RECIPR-CART - RECIPROCATING AIR/OIL, CARTS, 80 PSI & 20 SCFM

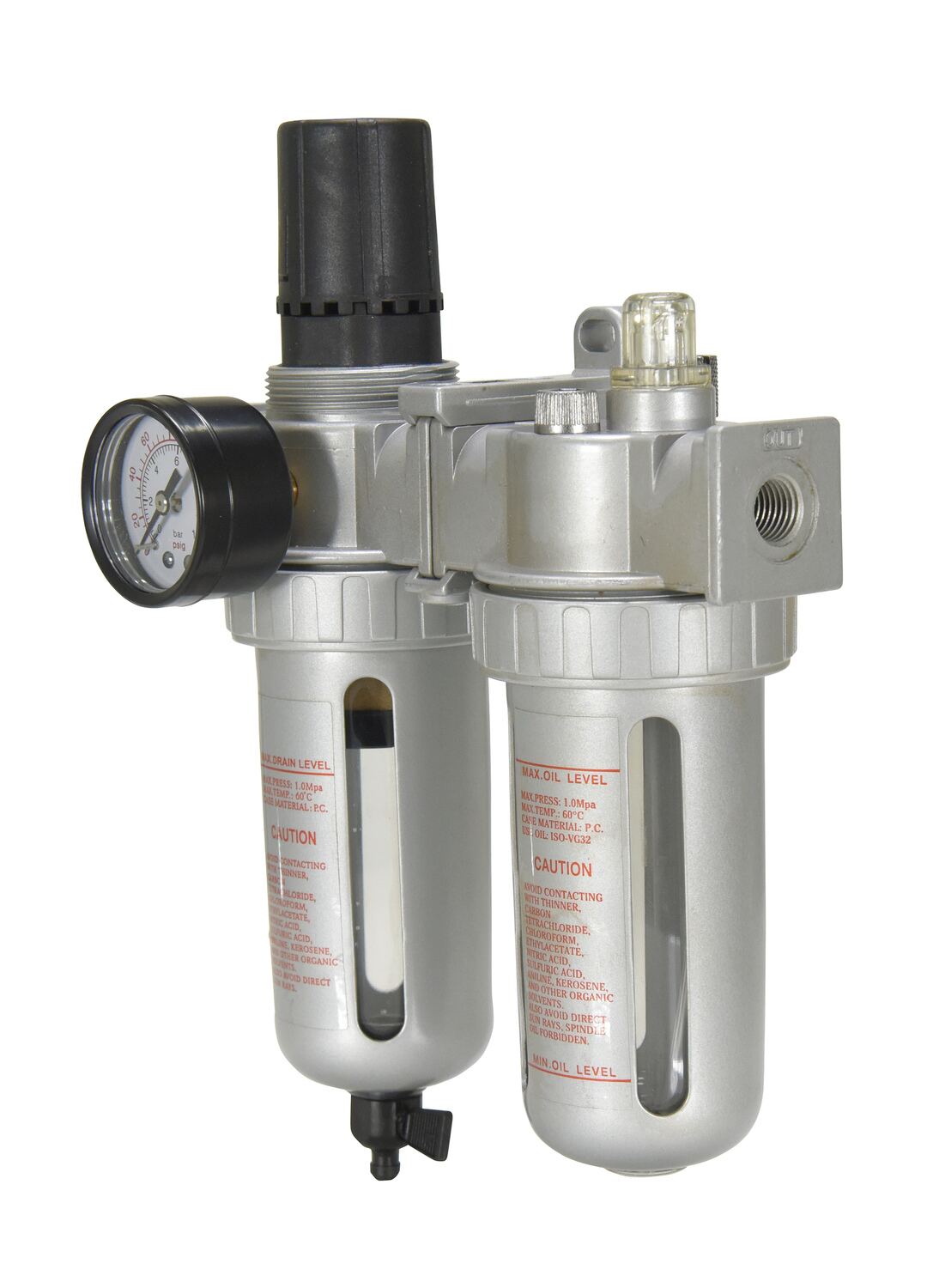

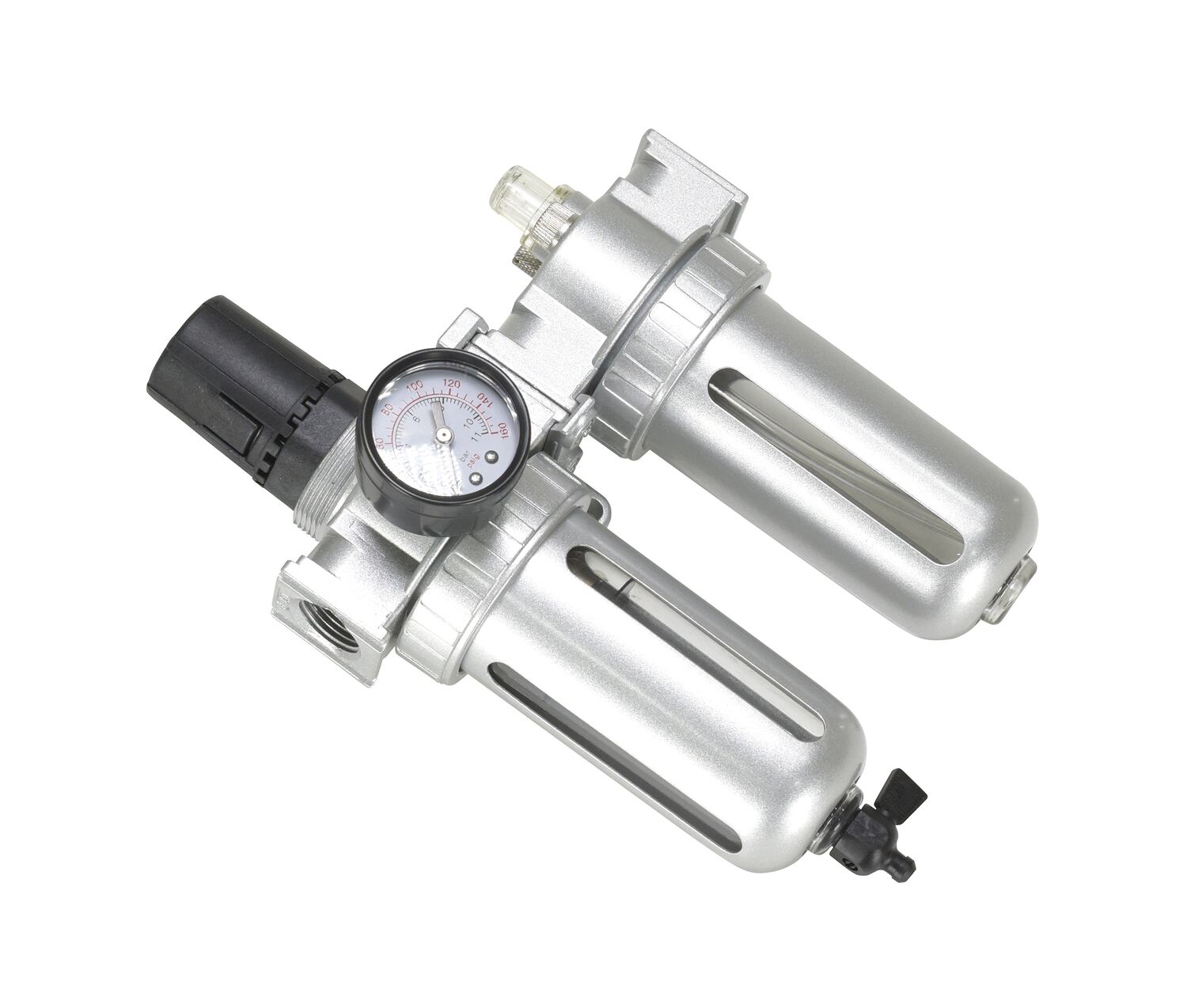

FLR-1/4 FILTER & LUBRICATOR FOR USE WITH OUR RECIPROCATING AIR/OIL POWER UNIT

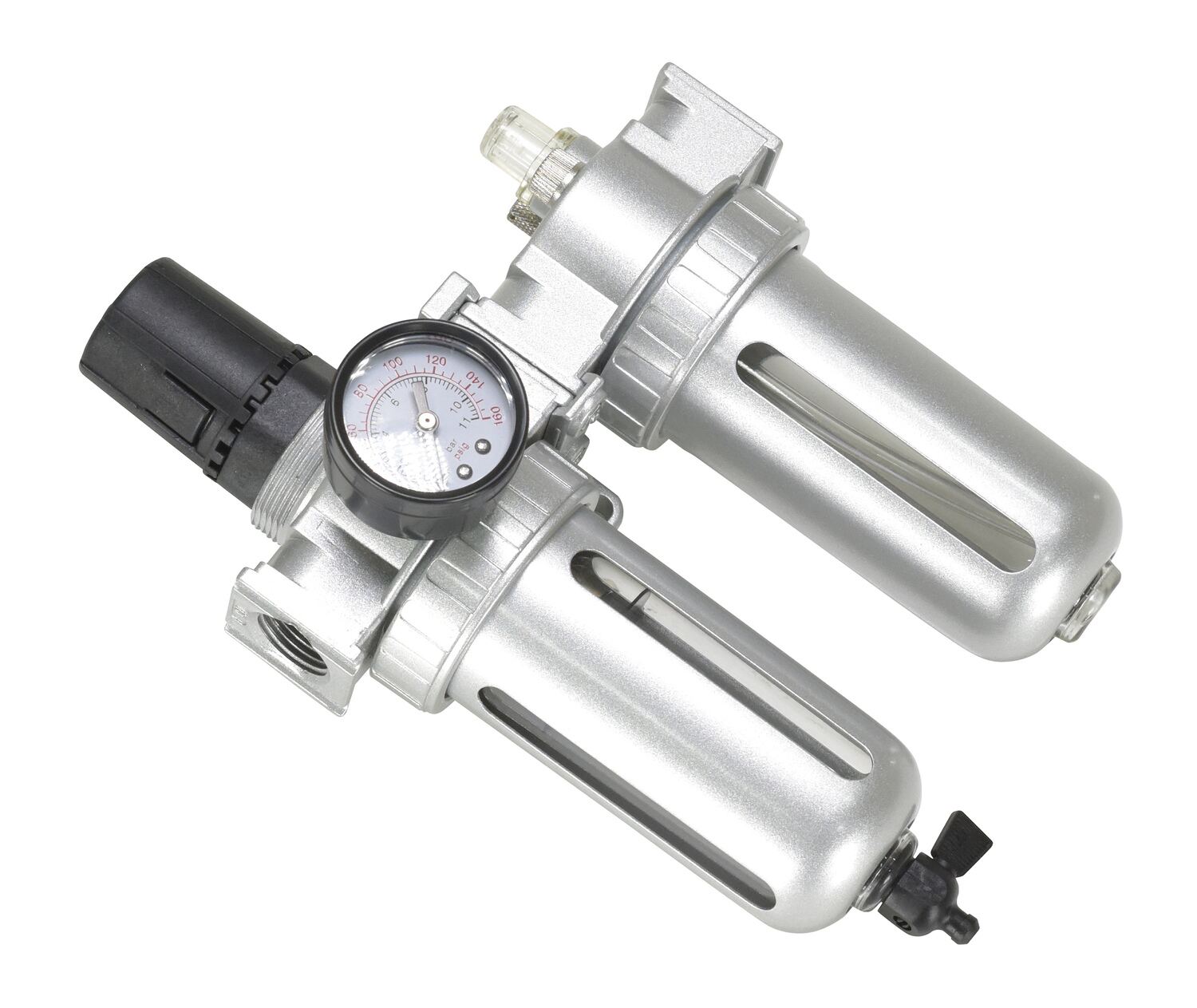

FLR-1/2 FILTER & LUBRICATOR FOR USE WITH ROTARY AIR/OIL POWER UNIT

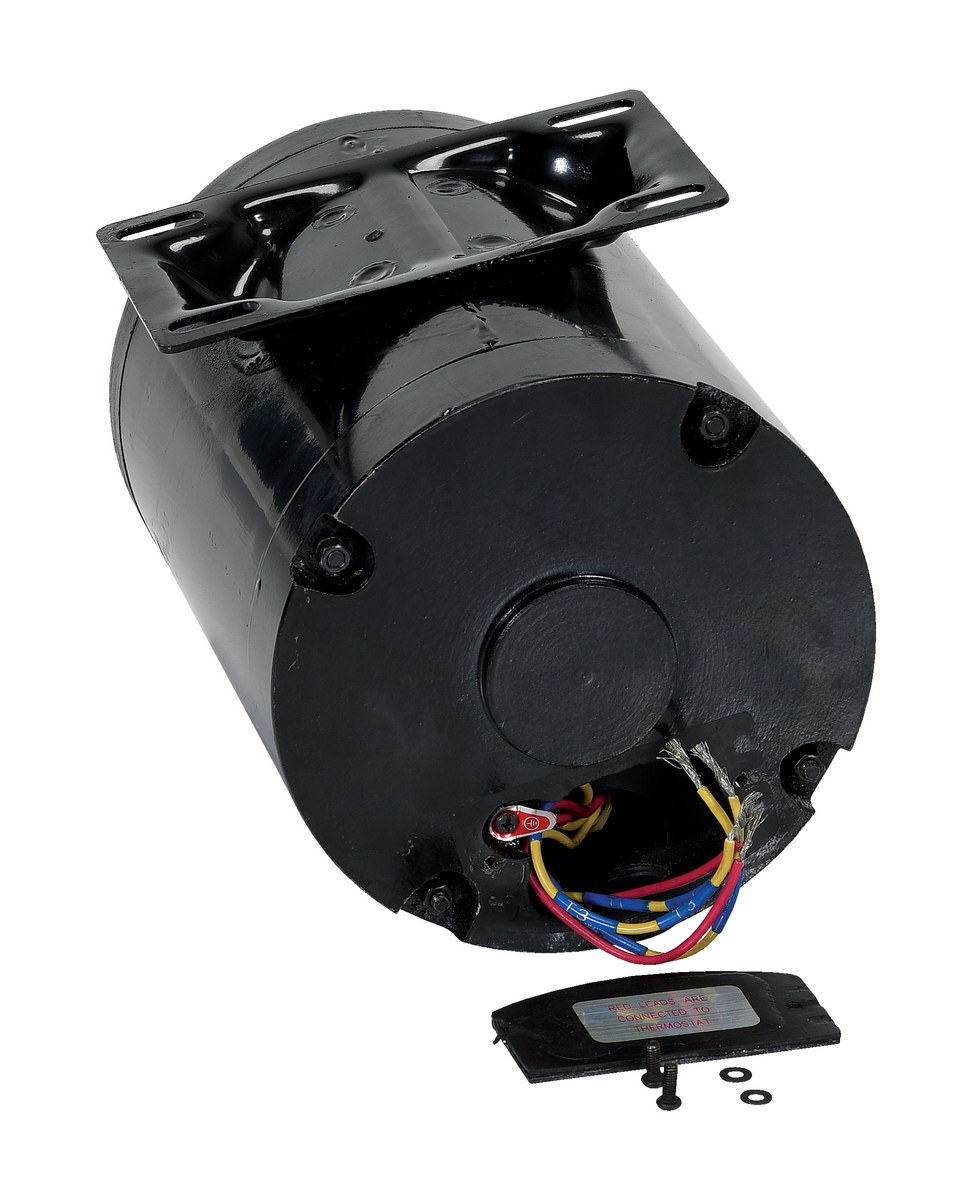

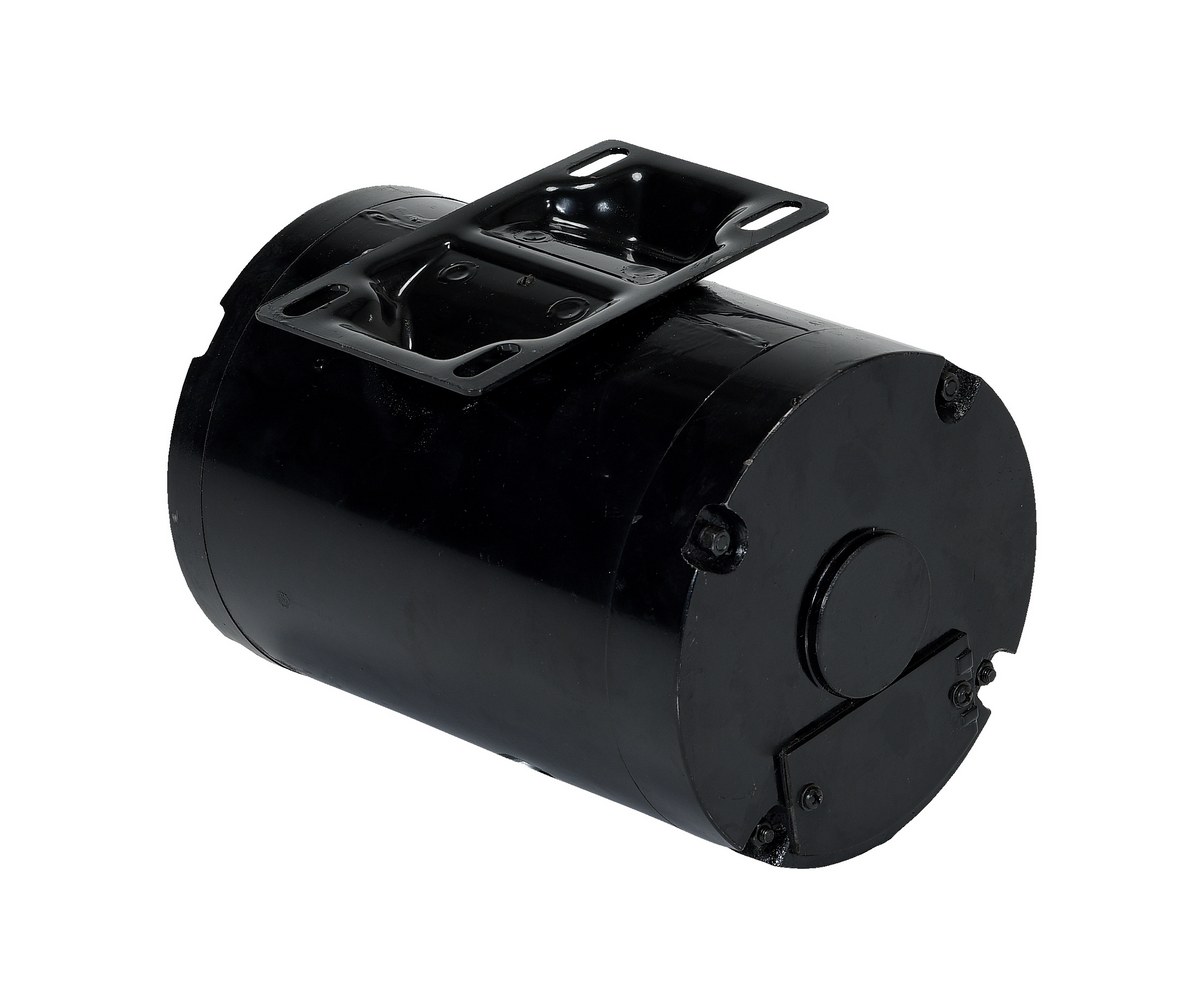

MOTOR-575V-2HP 575/660V MOTOR & TRANSFORMER FOR 2HP UNIT
MOTOR-575V-5HP - 575/600V MOTOR & TRANSFORMER FOR A WL-100 OR HDC-905

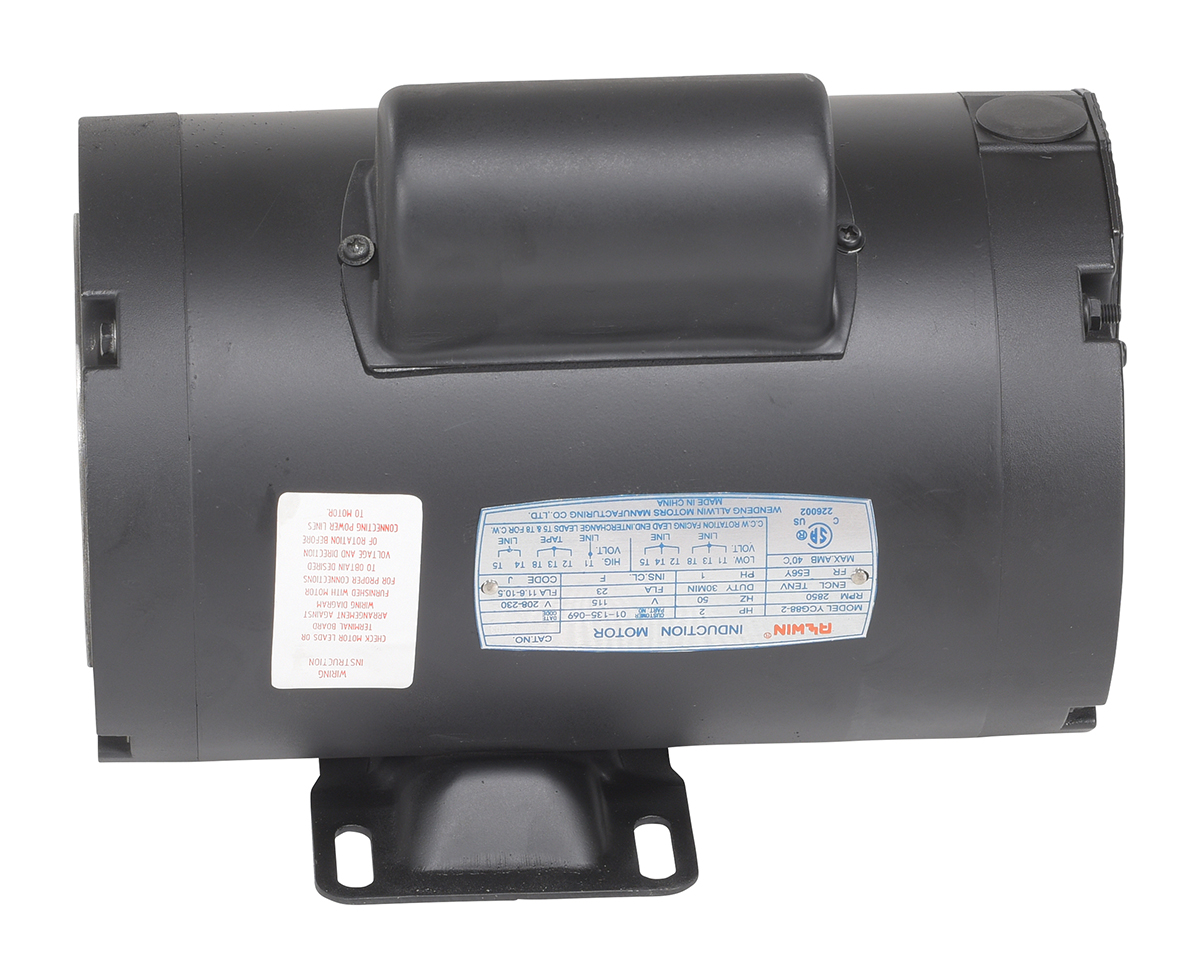

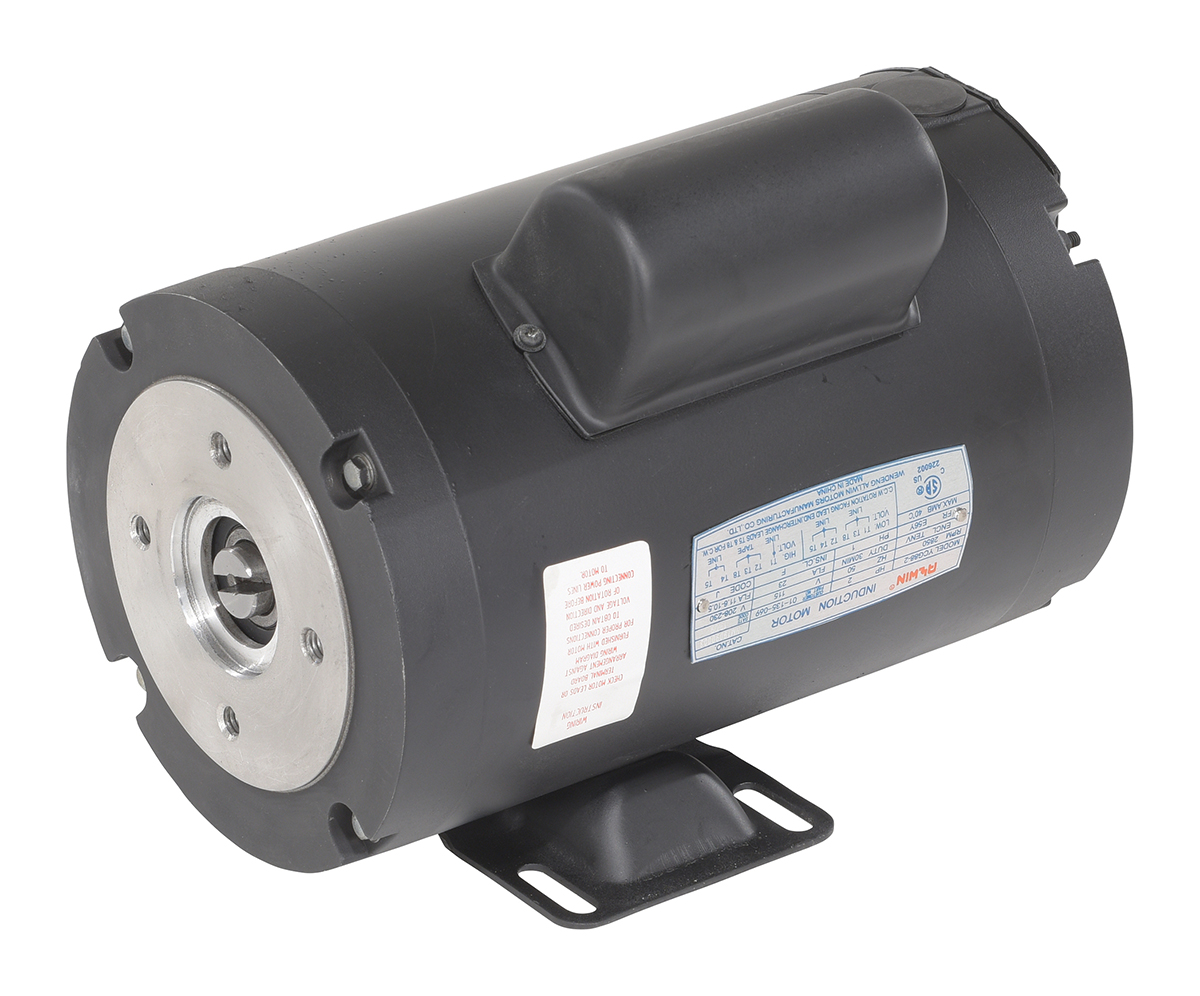

MOTOR-50HZ-2HP 50HZ MOTOR FOR A SINGLE-PHASE 3/4HP OR 2HP APPLICATION
MOTOR-50HZ-3HP - 50HZ MOTOR FOR A SINGLE-PHASE 3HP APPLICATION

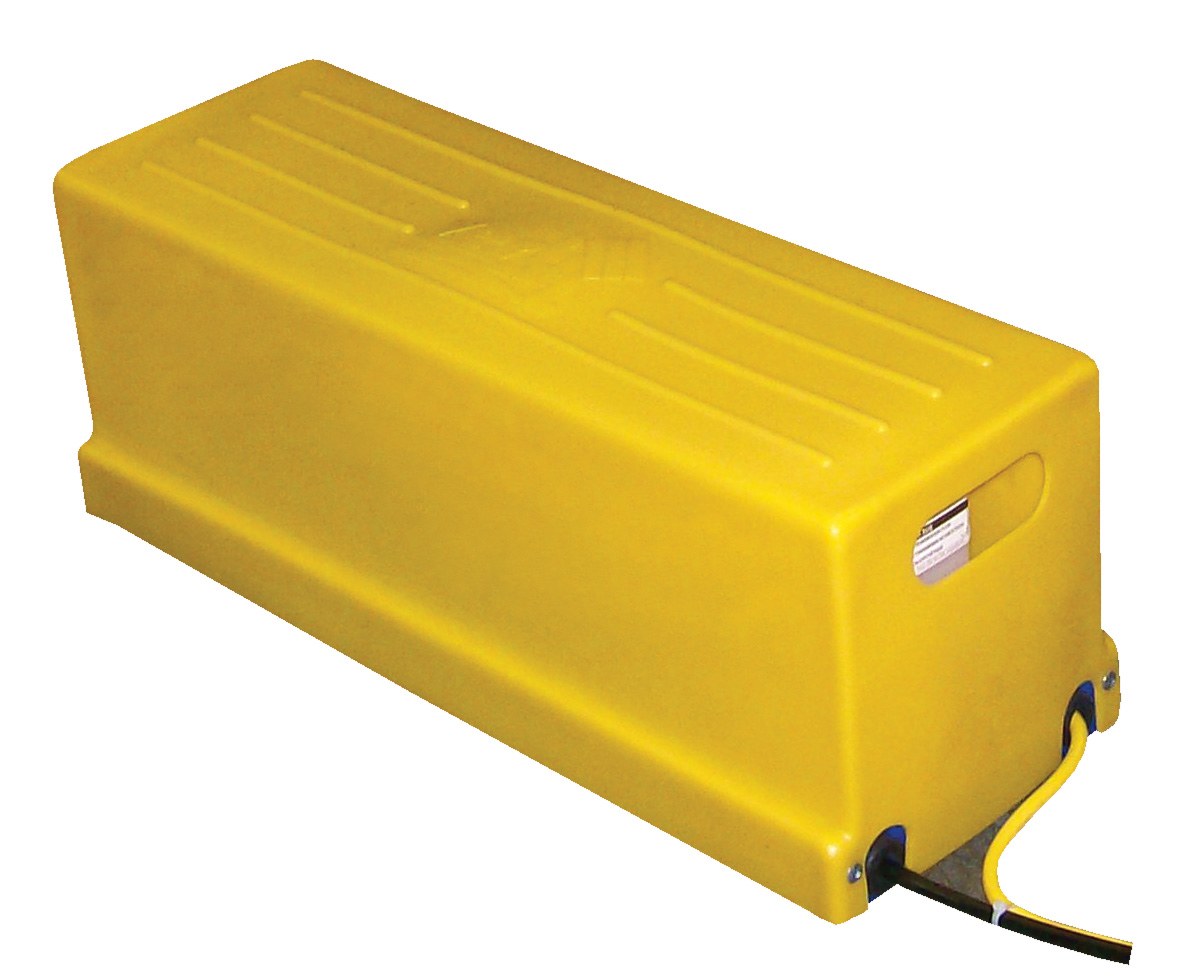

RPUA-OPTION REMOTELY-LOCATABLE POWER UNIT ASSEMBLY, 2HP OR LESS

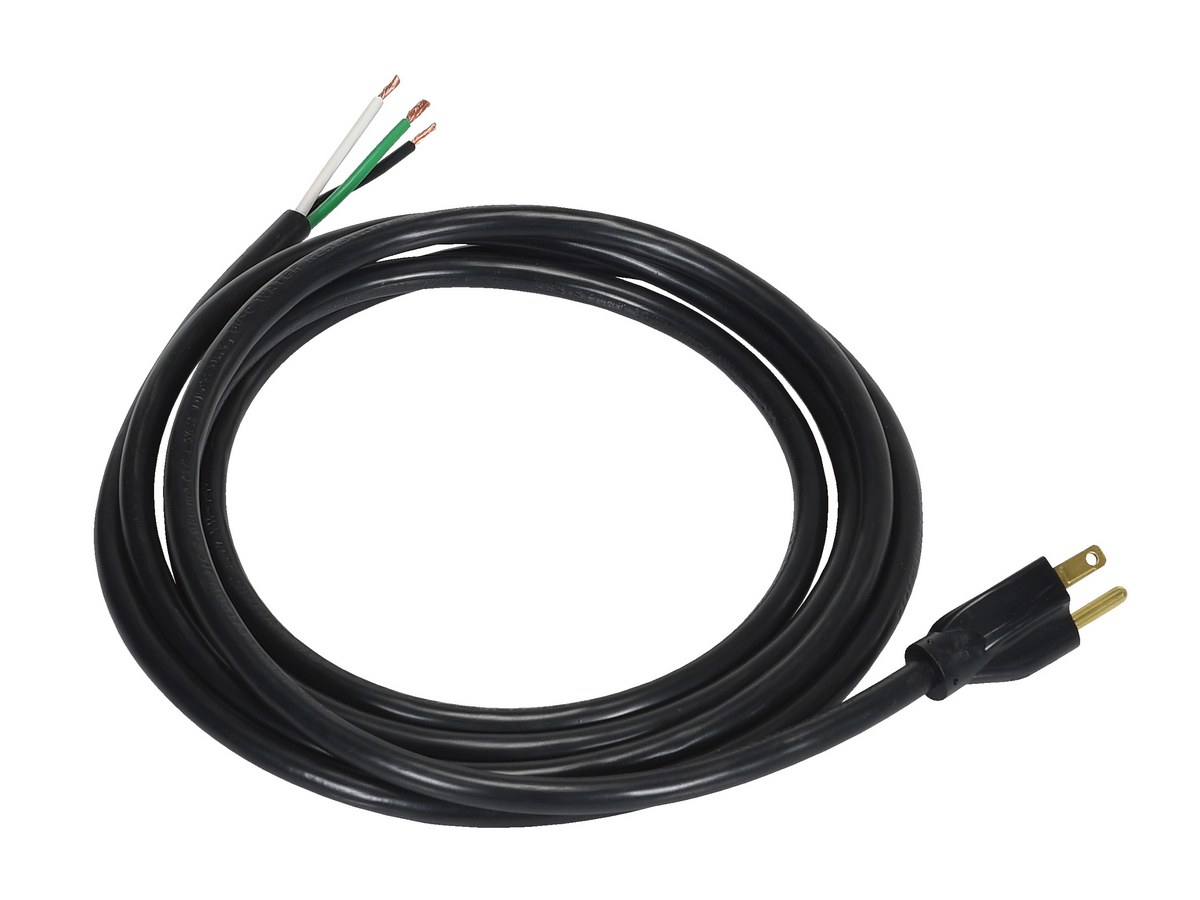

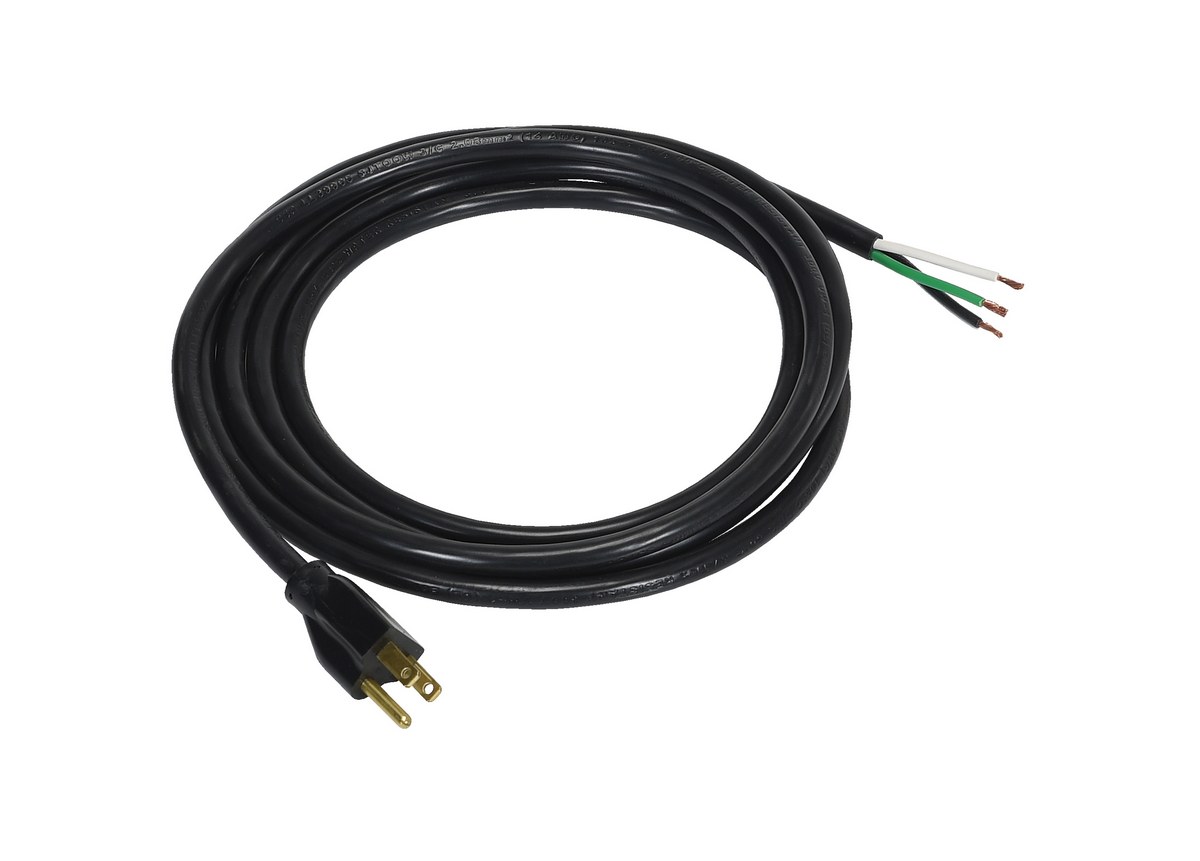

PLUG-AC-(###) PLUG INSTALLED ON POWER CORD (SPECIFY NEMA PLUG NUMBER)
*80 PSI & 80 SCFM
PMHR-REM-NRBC - REMOVABLE 42"H HANDRAIL, 21" MIDRAIL, & NON-REMOVABLE TOE-BOARD
PMHR-NREM-NRTB - NON-REMOVABLE 42"H HANDRAIL, 21" MIDRAIL, & TOE-BOARD
PMHR-LCG-(width) - LINK CHAIN CLOSURE GATE WITH SNAP HOOK ENDS FOR MAX. 6 FEET OPENING (kit includes: 1 chain, 2 hooks) Contact Factory For Quote
PLATE-TRDPL - 4-WAY ANTI-SKID STEEL TREAD PLATE DECK/PLATFORM
PORTABLE-SEMI MANUAL SEMI-PORTABILITY OPTION (INCLUDES TWO RIGID WHEELS WITH A TWO WHEEL DOLLY JACK)

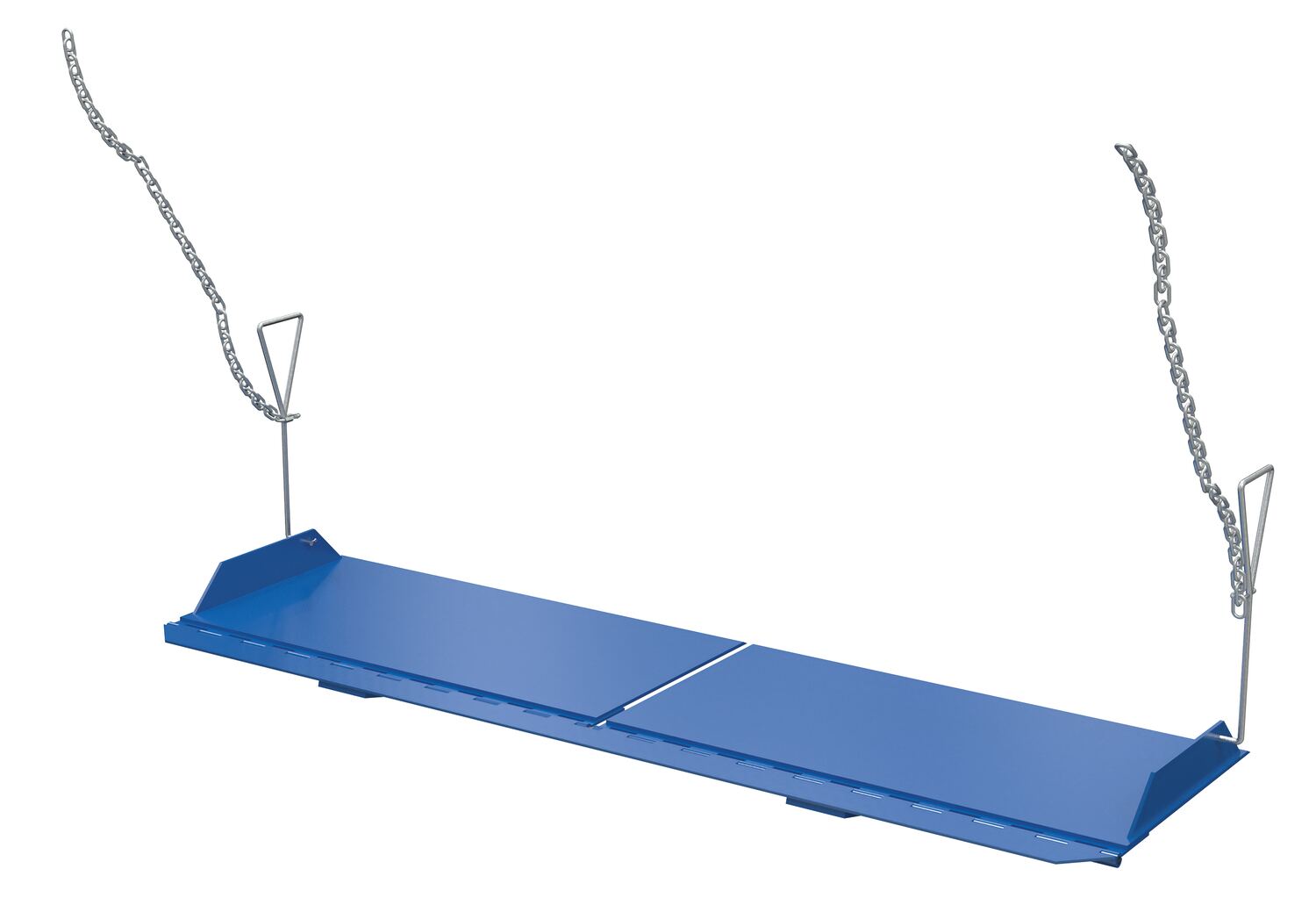

PM-12BRIDGE-S - 12"L SPLIT STEEL HINGED BRIDGE WITH RUNOFF GUARDS AND LIFTING CHAINS (72" WIDE)
PM-12BRIDGE-A - 12"L SPLIT ALUMINUM HINGED BRIDGE WITH RUNOFF GUARDS AND LIFTING CHAINS (72" WIDE)
PM-18BRIDGE-S - 18"L SPLIT STEEL HINGED BRIDGE WITH RUNOFF GUARDS AND LIFTING CHAINS (72" WIDE)

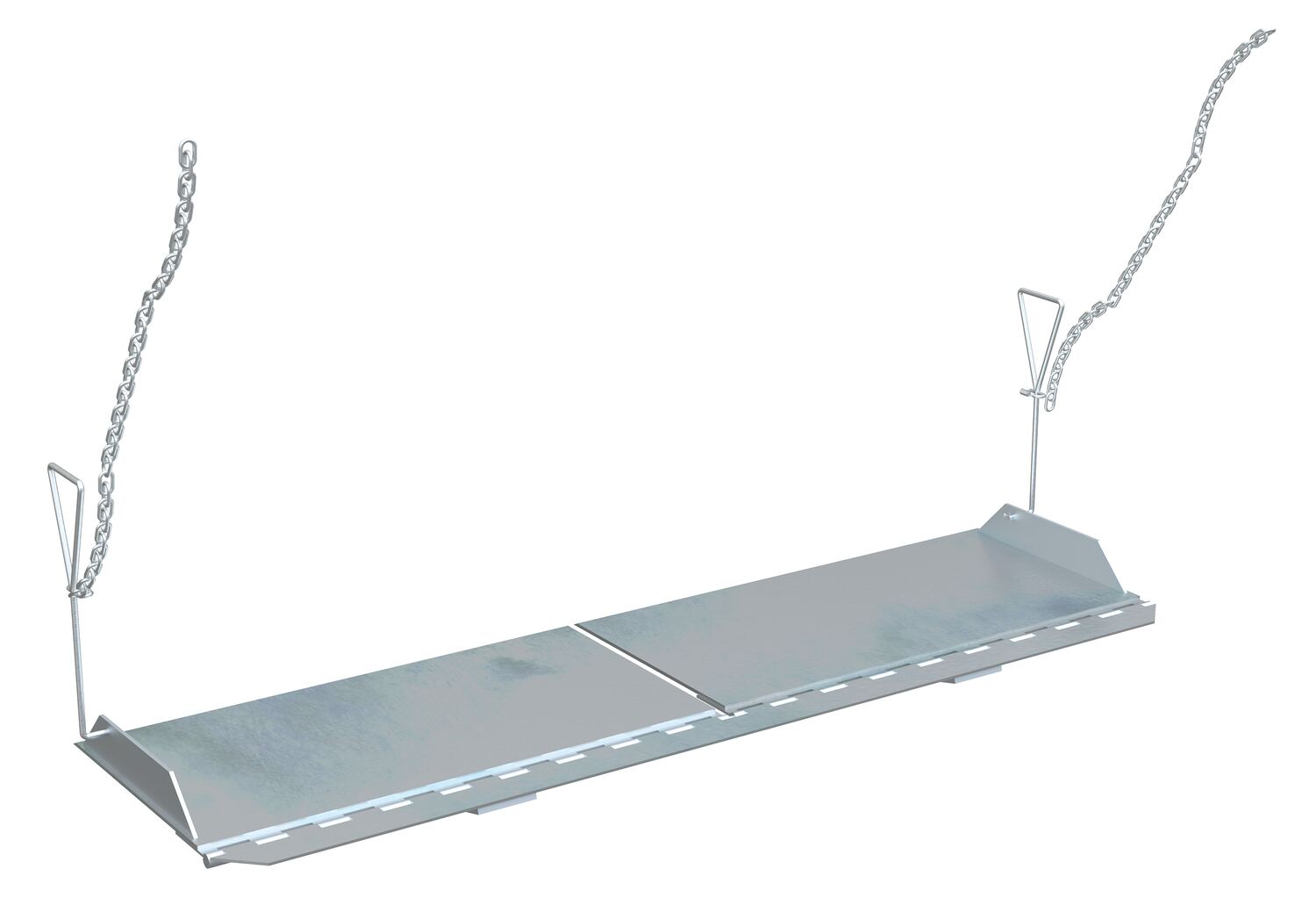

PM-18BRIDGE-A - 18"L SPLIT ALUMINUM HINGED BRIDGE WITH RUNOFF GUARDS AND LIFTING CHAINS (72" WIDE)
EHLT-AR-3665-7 - icon_approvaldrawings.jpgEHLT APPROACH RAMP 36"W X 64"L X 7"H (NO LEVEL-OFF, 6 DEGREE INCLINE)
EHLT-AR-RS-3642-7 - icon_approvaldrawings.jpg APPROACH RAMP SPACER 7" HEIGHT
HICYCLE-EHLT - HIGH CYCLE BEARING PACKAGE, EHLT (MAXIMUM CAPACITY IS 4,000 LBS.)

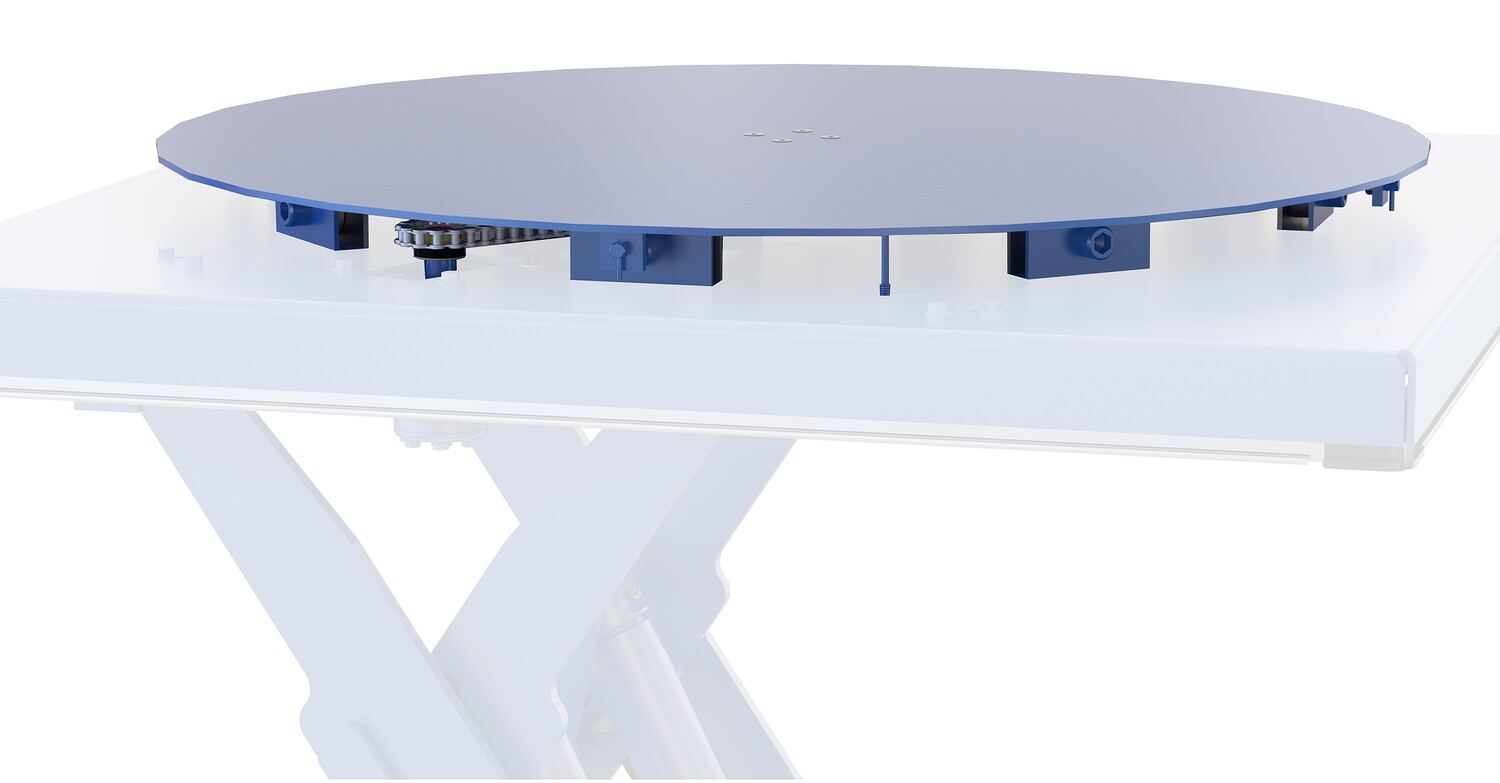

EHLT-POWCAR POWERED CAROUSEL (MINIMUM DECK SIZE 54"x 54", INCREASES LOWERED HEIGHT BY 3-1/2")
PLATF-MTG-CA - MOUNTING OF CONVEYOR or CA-SERIES CAROUSEL TO PLATFORM
When adding an option to a standard unit, deduct the weight of the option from the units capacity to get the current working capacity.

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

ADDL-FC-2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Cord Length (ft.): 8

Cord Length (ft.): 8

ADDL-HH-25-10
Unit:
Size: W x L x H
Weight:
Limited Warranty
Hose Inside Diameter (in): .25
Hose Outside Diameter (in): .25
Hose Inside Diameter (in): .25
Hose Outside Diameter (in): .25

ADDL-HH-25-20
Unit:
Size: W x L x H
Weight:
Limited Warranty
Hose Inside Diameter (in): .25
Hose Outside Diameter (in): .25
Hose Inside Diameter (in): .25
Hose Outside Diameter (in): .25

ADDL-HH2PB
Unit:
Size: W x L x H
Weight:
Limited Warranty
Cord Length (in.): 96

Cord Length (in.): 96


Unit:
Size: W x L x H
Weight:
Limited Warranty
Housing Material: Metal
Length (in): 3.5
Housing Material: Metal
Length (in): 3.5


Unit:
Size: W x L x H
Weight:
Limited Warranty
Decibels: 80

Decibels: 80


Unit:
Size: W x L x H
Weight:
Limited Warranty
Pricing: By the Gallon
Oil Type: Cold Weather
Pricing: By the Gallon
Oil Type: Cold Weather


Unit:
Size: W x L x H
Weight:
Limited Warranty
Pricing: By the Gallon
Oil Type: Cold Weather
Pricing: By the Gallon
Oil Type: Cold Weather


Unit:
Size: W x L x H
Weight:
Limited Warranty
Pricing: By the Gallon
Oil Type: Cold Weather
Pricing: By the Gallon
Oil Type: Cold Weather


Unit:
Size: W x L x H
Weight:
Limited Warranty
Pricing: By the Gallon
Oil Type: Cold Weather
Pricing: By the Gallon
Oil Type: Cold Weather

EHLT-POWCAR
Unit:
Size: W x L x H
Weight:
Limited Warranty
Minimum Deck Size Width/Length (in.): 54 x 54
Increases Lowered Height (in.): 3-1/2
Minimum Deck Size Width/Length (in.): 54 x 54
Increases Lowered Height (in.): 3-1/2


Unit:
Size: W x L x H
Weight:
Limited Warranty
Mount Location: Factory Installed

Mount Location: Factory Installed

FC-2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Cable Length (ft): 8
Number of Buttons: 2
Cable Length (ft): 8
Number of Buttons: 2

FC-2P
Unit:
Size: W x L x H
Weight:
Limited Warranty
Cable Length (ft): 8
Number of Buttons: 2
Cable Length (ft): 8
Number of Buttons: 2

FC-4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Cable Length (ft): 8
Number of Buttons: 4
Cable Length (ft): 8
Number of Buttons: 4


Unit:
Size: W x L x H
Weight:
Limited Warranty
Cable Length (ft): 8
Number of Buttons: 2
Cable Length (ft): 8
Number of Buttons: 2


Unit:
Size: W x L x H
Weight:
Limited Warranty
Oil Type: Food Grade
Pricing: By the Gallon
Oil Type: Food Grade
Pricing: By the Gallon

FLR-1/2
Unit:
Size: W x L x H
Weight:
Limited Warranty
NPT Port Size (in): 1/2

NPT Port Size (in): 1/2

FLR-1/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
NPT Port Size (in): 1/4

NPT Port Size (in): 1/4


Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Sizes: Fabricated to Fit Unit
Uniform Capacity (lb.): 4,000
Sizes: Fabricated to Fit Unit

HPH-LG
Unit:
Size: W x L x H
Weight:
Limited Warranty
Sizes: Fabricated to Fit Unit
Hose I.D.: 1/2
Sizes: Fabricated to Fit Unit
Hose I.D.: 1/2

HPH-SM
Unit:
Size: W x L x H
Weight:
Limited Warranty
Sizes: Fabricated to Fit Unit
Hose I.D.: 1/4
Sizes: Fabricated to Fit Unit
Hose I.D.: 1/4


Unit:
Size: W x L x H
Weight:
Limited Warranty
Sizes: Fabricated to Fit Unit

Sizes: Fabricated to Fit Unit


Unit:
Size: W x L x H
Weight:
Limited Warranty
Sizes: Fabricated to Fit Unit

Sizes: Fabricated to Fit Unit


Unit:
Size: W x L x H
Weight:
Limited Warranty
Sizes: Fabricated to Fit Unit

Sizes: Fabricated to Fit Unit

MOTOR-50HZ-2HP
Unit:
Size: W x L x H
Weight:
Limited Warranty
Flange Mount: Yes
Maximum RPM: 2850
Flange Mount: Yes
Maximum RPM: 2850


Unit:
Size: W x L x H
Weight:
Limited Warranty
Brand / Model Compatibility: Gas Powered Motors For Power Supplied Models
Additional Contents: Factory Installed Power Unit
Brand / Model Compatibility: Gas Powered Motors For Power Supplied Models
Additional Contents: Factory Installed Power Unit


Unit:
Size: W x L x H
Weight:
Limited Warranty
Brand / Model Compatibility: Gas Powered Motors For Power Supplied Models
Additional Contents: Factory Installed Power Unit
Brand / Model Compatibility: Gas Powered Motors For Power Supplied Models
Additional Contents: Factory Installed Power Unit

MOTOR-575V-2HP
Unit:
Size: W x L x H
Weight:
Limited Warranty
Flange Mount: Yes
Maximum RPM: 1725
Flange Mount: Yes
Maximum RPM: 1725


Unit:
Size: W x L x H
Weight:
Limited Warranty
Brand / Model Compatibility: Gas Powered Motors For Power Supplied Models
Additional Contents: Factory Installed Power Unit
Brand / Model Compatibility: Gas Powered Motors For Power Supplied Models
Additional Contents: Factory Installed Power Unit


Unit:
Size: W x L x H
Weight:
Limited Warranty
Box Mounting Method: Factory Installed on Unit
Corrosion Resistant: Yes
Box Mounting Method: Factory Installed on Unit
Corrosion Resistant: Yes


Unit:
Size: W x L x H
Weight:
Limited Warranty
Speeds: 1
Symbol Display: Yes
Speeds: 1
Symbol Display: Yes


Unit:
Size: W x L x H
Weight:
Limited Warranty
Size: Fabricated to Fit Unit

Size: Fabricated to Fit Unit


Unit:
Size: W x L x H
Weight:
Limited Warranty
Speeds: 2
Symbol Display: Yes
Speeds: 2
Symbol Display: Yes


Unit:
Size: W x L x H
Weight:
Limited Warranty
Brand / Model Compatibility: External Power Unit for Power Supplied Models
Additional Contents: Factory Installed Power Unit
Brand / Model Compatibility: External Power Unit for Power Supplied Models
Additional Contents: Factory Installed Power Unit


Unit:
Size: W x L x H
Weight:
Limited Warranty
Sizes: Fabricated to Fit Unit

Sizes: Fabricated to Fit Unit


Unit:
Size: W x L x H
Weight:
Limited Warranty
Sizes: Fabricated to Fit Unit

Sizes: Fabricated to Fit Unit

PLUG-AC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Accessory Type: AC Power Cord Replacement
Cord Length (ft): 8
Accessory Type: AC Power Cord Replacement
Cord Length (ft): 8

PM-12BRIDGE-A
Unit:
Size: W x L x H
Weight:
Limited Warranty
Size: Fabricated to Fit Unit

Size: Fabricated to Fit Unit

PM-12BRIDGE-S
Unit:
Size: W x L x H
Weight:
Limited Warranty
Size: Fabricated to Fit Unit

Size: Fabricated to Fit Unit

PM-18BRIDGE-A
Unit:
Size: W x L x H
Weight:
Limited Warranty
Size: Fabricated to Fit Unit

Size: Fabricated to Fit Unit

PM-18BRIDGE-S
Unit:
Size: W x L x H
Weight:
Limited Warranty
Size: Fabricated to Fit Unit

Size: Fabricated to Fit Unit


Unit:
Size: W x L x H
Weight:
Limited Warranty
Widest (in.): 72

Widest (in.): 72


Unit:
Size: W x L x H
Weight:
Limited Warranty
Midrail Height (in.): 21

Midrail Height (in.): 21


Unit:
Size: W x L x H
Weight:
Limited Warranty
Midrail Height (in.): 21

Midrail Height (in.): 21

PORTABLE-SEMI
Unit:
Size: W x L x H
Weight:
Limited Warranty
Rigid Wheel Quantity/Diameter/Width (in.): (2) 3 x 1
Dolly Jack Wheel Quantity/Diameter/Width (in.): (2) 5 x 2
Rigid Wheel Quantity/Diameter/Width (in.): (2) 3 x 1
Dolly Jack Wheel Quantity/Diameter/Width (in.): (2) 5 x 2


Unit:
Size: W x L x H
Weight:
Limited Warranty
Required (psi.): 80 @ 20 SCFM

Required (psi.): 80 @ 20 SCFM


Unit:
Size: W x L x H
Weight:
Limited Warranty
Required (psi.): 80 @ 20 SCFM

Required (psi.): 80 @ 20 SCFM


Unit:
Size: W x L x H
Weight:
Limited Warranty
Required (psi.): 80 @ 80 SCFM

Required (psi.): 80 @ 80 SCFM

RPUA-OPTION
Unit:
Size: W x L x H
Weight:
Limited Warranty
Corrosion Resistant: Yes
Weatherproof: Yes
Corrosion Resistant: Yes
Weatherproof: Yes


Unit:
Size: W x L x H
Weight:
Limited Warranty
Oil Type: Anti-Wear
Priced: By the Gallon
Oil Type: Anti-Wear
Priced: By the Gallon

STROBE
Unit:
Size: W x L x H
Weight:
Limited Warranty
Shape: Round
Light Color: Amber
Shape: Round
Light Color: Amber


Unit:
Size: W x L x H
Weight:
Limited Warranty
Voltage: 115
Phase: 1
Voltage: 115
Phase: 1


Unit:
Size: W x L x H
Weight:
Limited Warranty
Voltage: 12
Power: DC
Voltage: 12
Power: DC


Unit:
Size: W x L x H
Weight:
Limited Warranty
Voltage: 208-230
Phase: 1
Voltage: 208-230
Phase: 1


Unit:
Size: W x L x H
Weight:
Limited Warranty
Voltage: 460
Phase: 3
Voltage: 460
Phase: 3


Unit:
Size: W x L x H
Weight:
Limited Warranty
Voltage: 115
Phase: 1
Voltage: 115
Phase: 1


Unit:
Size: W x L x H
Weight:
Limited Warranty
Voltage: 208/230
Phase: 3
Voltage: 208/230
Phase: 3


Unit:
Size: W x L x H
Weight:
Limited Warranty
Voltage: 230
Phase: 1
Voltage: 230
Phase: 1


Unit:
Size: W x L x H
Weight:
Limited Warranty
Voltage: 460
Phase: 3
Voltage: 460
Phase: 3


Unit:
Size: W x L x H
Weight:
Limited Warranty
Brand / Model Compatibility: For All Foot/Hand Pump Operated Units
Additional Contents: Factory Installed
Brand / Model Compatibility: For All Foot/Hand Pump Operated Units
Additional Contents: Factory Installed


Unit:
Size: W x L x H
Weight:
Limited Warranty
Brand / Model Compatibility: For All Foot/Hand Pump Operated Units
Additional Contents: Factory Installed
Brand / Model Compatibility: For All Foot/Hand Pump Operated Units
Additional Contents: Factory Installed


Unit:
Size: W x L x H
Weight:
Limited Warranty
Voltage: 12
Power: DC
Voltage: 12
Power: DC


Unit:
Size: W x L x H
Weight:
Limited Warranty
Voltage: 24
Power: DC
Voltage: 24
Power: DC


Unit:
Size: W x L x H
Weight:
Limited Warranty
Foot Petal (qty.) : 2

Foot Petal (qty.) : 2


Unit:
Size: W x L x H
Weight:
Limited Warranty
Foot Petal (qty.) : 4

Foot Petal (qty.) : 4

WD-WM2PB
Unit:
Size: W x L x H
Weight:
Limited Warranty
Button Quantity: 2
Additional Contents: Factory Installed
Button Quantity: 2
Additional Contents: Factory Installed

WD-WM4PB
Unit:
Size: W x L x H
Weight:
Limited Warranty
Button Quantity: 4
Additional Contents: Factory Installed
Button Quantity: 4
Additional Contents: Factory Installed
Options For Electric Hydraulic Equipment PDF's will open in a new window when clicked.

Manuals


FOOT PUMP
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


EHLT-POWCAR

FC-2

FC-4

Testing Certificates


ADDL-FC-2

ADDL-HH2PB

ADDL-RALS

BEEPER

CWHF-SM

EHLT-POWCAR

EX-WMPB

FC-2

FC-2P

FC-4

FGHF-SM

FLR-1-2

FLR-1-4

HICYCLE-EHLT

HPH-LG

HPH-SM

KSCL-WM

MOTOR-50HZ-2HP

MOTOR-50HZ-3HP

MOTOR-575V-2HP

N12

N4-WM2PB

N4-WM2PB-KSCL

N4-WM4PB

PLATE-TRDPL

PLATF-MTG-CA

PLUG-AC

PM-12BRIDGE-A

PM-12BRIDGE-S

PM-18BRIDGE-A

PM-18BRIDGE-S

PMHR-LCG

PMHR-NREM-NRTB

PMHR-REM-NRBC

PORTABLE-SEMI

RECIPR-CART

RECIPR-LHL

ROTARY-LT-WMPB

RPUA-OPTION

STDHF-SM

STROBE

VCC-115-1

VCC-12VDC

VCC-460-3

WD-FC-2

WD-FC-4

WD-WM2PB

WD-WM4PB

SDS Sheets

Hydraulic Oil SDS Sheet for: EHLT-POWCAR
Hydraulic Oil SDS Sheet for: FRHF-SM
Hydraulic Oil SDS Sheet for: HPH-LG
Hydraulic Oil SDS Sheet for: HPH-SM
Hydraulic Oil SDS Sheet for: PLATF-MTG-CA
Hydraulic Oil SDS Sheet for: RECIPR-CART
Hydraulic Oil SDS Sheet for: RECIPR-LHL
Hydraulic Oil SDS Sheet for: STDHF-SM

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Related or Similar Products:

Electric Hydraulic Scissor Lift Tables
Product

Electric Hydraulic Scissor Lift Tables

Double Scissor Lift Tables
Product

Double Scissor Lift Tables

Ground Lift Scissor Tables
Product

Ground Lift Scissor Tables

Lift & Tilt Scissor Tables
Product

Lift & Tilt Scissor Tables

Tilt Master & Tilt Master Straddle
Product

Tilt Master & Tilt Master Straddle

Portable Scissor Lift Tables
Product

Portable Scissor Lift Tables

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Options For Electric Hydraulic...




Available at the time of sale for most of the powered products listed in the Ergonomic Solutions section. Consult the factory for details. For the acronyms LHL, DA, and L&T noted in the descriptions below:

LHL denotes a "Lift-Hold-Lower" power and control scheme (ex: EHLT, HDD, EM1-200)

DA denotes a "Double-Acting" power and control scheme (ex: EM1-500, TL-100-F, HBD-6)

L&T denotes a power and control scheme in which the platform, chute, etc. will both lift & tilt (ex: EHLTT, ZLTT, HLD)


Model # Description Attributes Net Wt.
(lbs)
ADDL-FC-2 ADDL-FC-2Factory Installed Steel Twin Foot Control For Lift & Tilt Workstation Tables With 8 Ft. Usable Cord Length YellowCord Length (ft.): 8
6
ADDL-HH-25-10 ADDL-HH-25-10Synthetic Rubber 1/4 In. 10 Ft. Length Hydraulic Hose For Lift & Tilt Workstation Tables BlackHose Inside Diameter (in): .25
Hose Outside Diameter (in): .25		3
ADDL-HH-25-20 ADDL-HH-25-20Synthetic Rubber 1/4 In. 20 Ft. Length Hydraulic Hose For Lift & Tilt Workstation Tables BlackHose Inside Diameter (in): .25
Hose Outside Diameter (in): .25		6
ADDL-HH2PB ADDL-HH2PBHand Control Assembly For Lift & Tilt Workstation Tables Two ButtonCord Length (in.): 96
2
ADDL-RALS Steel Additional Roller Arm Limit Switch For Lift & Tilt Workstation TablesHousing Material: Metal
Length (in): 3.5		2
BEEPER Factory Installed Warning Beeper 80 Decibels For Electric Hydraulic Lift TablesDecibels: 80
2
CWHF-LG Factory Installed Cold Weather Oil 3 Gallons For Electric Hydraulic Equipment/ModelsPricing: By the Gallon
Oil Type: Cold Weather		24
CWHF-MD Factory Installed Cold Weather Oil 1 Gallon For Electric Hydraulic Equipment/ModelsPricing: By the Gallon
Oil Type: Cold Weather		8
CWHF-SM Factory Installed Cold Weather Oil 1/2 Gallon For Electric Hydraulic Equipment/ModelsPricing: By the Gallon
Oil Type: Cold Weather		4
CWHF-XLG Factory Installed Cold Weather Oil 16 Gallons For Electric Hydraulic Equipment/ModelsPricing: By the Gallon
Oil Type: Cold Weather		120
EHLT-POWCAR EHLT-POWCARFactory Installed Steel Powered Carousel For EHLT Models BlueMinimum Deck Size Width/Length (in.): 54 x 54
Increases Lowered Height (in.): 3-1/2		306
EX-WMPB Factory Installed Classified Location Of Power And Control PackMount Location: Factory Installed
FC-2 FC-2Factory Installed Two Pedal Foot Control with 8 Foot Control For Lift & Tilt Workstation Tables Point of Purchase UpgradeCable Length (ft): 8
Number of Buttons: 2		10
FC-2P FC-2PSteel Pneumatic Twin Foot Switch For Lift & Tilt Workstation TablesCable Length (ft): 8
Number of Buttons: 2		11
FC-4 FC-4Steel Four Pedal Foot Control For Lift & Tilt Models Point of Purchase UpgradeCable Length (ft): 8
Number of Buttons: 4		30
FCPN-2-FP Steel Pneumatic Foot Control Two Button Assembly For Lift & Tilt Models Orange/BlackCable Length (ft): 8
Number of Buttons: 2		12
FGHF-SM Factory Installed Food Grade Hydraulic Oil Priced By The GallonOil Type: Food Grade
Pricing: By the Gallon		8
FLR-1/2 FLR-1/2Air Filter/Lubricator/Regulator Port Hole 1/2 In. For Rotary Air/Oil Powered Units SilverNPT Port Size (in): 1/2
4
FLR-1/4 FLR-1/4Air Filter/Lubricator/Regulator Port Hole 1/4 In. For Rotary Air/Oil Powered Units SilverNPT Port Size (in): 1/4
4
HICYCLE-EHLT Factory Installed High Cycle Bearing Package For Electric Hydraulic Scissor Lift TableUniform Capacity (lb.): 4,000
Sizes: Fabricated to Fit Unit
HPH-LG HPH-LGBraided Polyurethane (1/2” or Larger) Pressure Hose For Electric Hydraulic Scissor Lift Table ClearSizes: Fabricated to Fit Unit
Hose I.D.: 1/2		13
HPH-SM HPH-SMBraided Polyurethane (3/8” or Smaller) Pressure Hose For Electric Hydraulic Scissor Lift TableSizes: Fabricated to Fit Unit
Hose I.D.: 1/4		6
INDEX1-PHOTO Factory Installed One Direction Index Photo Switch Control For Ground And Electric Hydraulic Scissor Lift TablesSizes: Fabricated to Fit Unit
INDEX2-PHOTO Factory Installed Two Direction Index Photo Switch Control For Ground And Electric Hydraulic Scissor Lift TablesSizes: Fabricated to Fit Unit
KSCL-WM Factory Fabricated/Custom Built Wall Mount Key Switch Control Lockout For Lift/Tilt TablesSizes: Fabricated to Fit Unit
0
MOTOR-50HZ-2HP MOTOR-50HZ-2HPFactory Installed 50 Hertz Motor For Single Phase 3/4 or 2 Horsepower ApplicationFlange Mount: Yes
Maximum RPM: 2850
MOTOR-50HZ-3HP Factory Installed 50 Hertz Motor For Single Phase 3 Horsepower ApplicationBrand / Model Compatibility: Gas Powered Motors For Power Supplied Models
Additional Contents: Factory Installed Power Unit
MOTOR-50HZ-3PH-2HP Factory Installed 50 Hertz Motor For Three Phase 2 Horsepower ApplicationBrand / Model Compatibility: Gas Powered Motors For Power Supplied Models
Additional Contents: Factory Installed Power Unit
MOTOR-575V-2HP MOTOR-575V-2HPFactory Installed 575/660 Volt Motor And Transformer With A 2 Horsepower UnitFlange Mount: Yes
Maximum RPM: 1725
MOTOR-575V-5HP Factory Installed 575/660 Volt Motor And Transformer With A 5 Horsepower UnitBrand / Model Compatibility: Gas Powered Motors For Power Supplied Models
Additional Contents: Factory Installed Power Unit
N12 Factory Installed Full Size Weather Resistant Control Box EnclosureBox Mounting Method: Factory Installed on Unit
Corrosion Resistant: Yes
N4-WM2PB Plastic Wall Mount Control 2 Button with 8 Ft. Cord 3-1/2 In. x 3-1/4 In. x 4-3/4 In. Gray/TanSpeeds: 1
Symbol Display: Yes		2
N4-WM2PB-KSCL Factory Installed Plastic Two Button Water Resistant Wall Mount Control With Key Switch ControlSize: Fabricated to Fit Unit
2
N4-WM4PB Plastic Wall Mount Control 4 Button with 8 Ft. Cord 4 In. x 3-3/4 In. x 12 In. Gray/TanSpeeds: 2
Symbol Display: Yes		6
NRTL-COMP-S VESTIL POWERUNIT UPGRADE TO UL/CSA COMPONENTSBrand / Model Compatibility: External Power Unit for Power Supplied Models
Additional Contents: Factory Installed Power Unit
PLATE-TRDPL Factory Installed Steel Anti-Skid Tread Plate 4-Way Deck For Electric Hydraulic Scissor Lift TablesSizes: Fabricated to Fit Unit
PLATF-MTG-CA Factory Installed/Mounted CA-Series Carousel Or Custom Conveyor For Scissor Lift TablesSizes: Fabricated to Fit Unit
15
PLUG-AC PLUG-ACPlastic Coated AC Power Cord Replacement Plug Install For Electric Hydraulic Lift TablesAccessory Type: AC Power Cord Replacement
Cord Length (ft): 8		41
PM-12BRIDGE-A PM-12BRIDGE-AFactory Installed Aluminum Split Hinged Bridge 12 In. Length With Runoff Guards And Lifting ChainsSize: Fabricated to Fit Unit
468
PM-12BRIDGE-S PM-12BRIDGE-SFactory Installed Steel Split Hinged Bridge 12 In. Length With Runoff Guards And Lifting ChainsSize: Fabricated to Fit Unit
468
PM-18BRIDGE-A PM-18BRIDGE-AFactory Installed Aluminum Split Hinged Bridge 18 In. Length With Runoff Guards And Lifting ChainsSize: Fabricated to Fit Unit
468
PM-18BRIDGE-S PM-18BRIDGE-SFactory Installed Steel Split Hinged Bridge 18 In. Length With Runoff Guards And Lifting ChainsSize: Fabricated to Fit Unit
468
PMHR-LCG Factory Installed Link Chain Closer Gate With Snap Hook Ends For Electric Hydraulic Scissor LiftsWidest (in.): 72
4
PMHR-NREM-NRTB Factory Installed Non-Removable Handrail, Mid-Rail, And Toe Board For Electric Hydraulic Scissor Lift TablesMidrail Height (in.): 21
15
PMHR-REM-NRBC Factory Installed Removable Handrail & Mid-Rail And Non-Removable Toe Board For Electric Hydraulic Scissor Lift TablesMidrail Height (in.): 21
15
PORTABLE-SEMI PORTABLE-SEMIFactory Installed Manual Semi-Portability Wheel Dolly Jack For Electric Hydraulic Scissor Lift TablesRigid Wheel Quantity/Diameter/Width (in.): (2) 3 x 1
Dolly Jack Wheel Quantity/Diameter/Width (in.): (2) 5 x 2
RECIPR-CART Factory Installed Reciprocating Air/Oil Power Unit For Cart Powered UnitsRequired (psi.): 80 @ 20 SCFM
RECIPR-LHL Factory Installed Reciprocating Air/Oil Power Unit For Non-Cart Power UnitsRequired (psi.): 80 @ 20 SCFM
ROTARY-LT-WMPB Factory Installed Lift And Tilt Rotary Air/Oil Powered Wall Mounted Push Button ControlRequired (psi.): 80 @ 80 SCFM
2
RPUA-OPTION RPUA-OPTIONFactory Installed Remotely Locatable Power Unit Assembly For 2 Horse Power Or LessCorrosion Resistant: Yes
Weatherproof: Yes		0
STDHF-SM Factory Installed Anti-Wear Hydraulic Oil Priced By The GallonOil Type: Anti-Wear
Priced: By the Gallon		8
STROBE STROBEAcrylic Warning Strobe Light 3 In. x 4 In. x 5 In. Projection AmberShape: Round
Light Color: Amber		2
VCC-115-1 Factory Installed Voltage Change AC Power 115 Volt Single Phase For Powered UnitsVoltage: 115
Phase: 1
VCC-12VDC Factory Installed Voltage Change DC Power 12 Volt Battery For Powered UnitsVoltage: 12
Power: DC		78
VCC-208/230-1 Factory Installed Voltage Change AC Power 208-230 Volt Single Phase For Powered UnitsVoltage: 208-230
Phase: 1		0
VCC-460-3 Factory Installed Voltage Change AC Power 460 Volt Three Phase For Powered UnitsVoltage: 460
Phase: 3		0
VCC-FP-2-AC115V-1 Factory Installed Conversion Foot/Hand Pump to AC Power 115 Volt Single Phase UnitVoltage: 115
Phase: 1
VCC-FP-2-AC208230V-3 Factory Installed Conversion Foot/Hand Pump to AC Power 208-230 Volt Three Phase UnitVoltage: 208/230
Phase: 3
VCC-FP-2-AC230V-1 Factory Installed Conversion Foot/Hand Pump to AC Power 230 Volt Single Phase UnitVoltage: 230
Phase: 1
VCC-FP-2-AC460V-3 Factory Installed Conversion Foot/Hand Pump to AC Power 460 Volt Three Phase UnitVoltage: 460
Phase: 3
VCC-FP-2-AIR Factory Installed Conversion Foot/Hand Pump to Rotary Air/Oil Power UnitBrand / Model Compatibility: For All Foot/Hand Pump Operated Units
Additional Contents: Factory Installed
VCC-FP-2-AIR-REC Factory Installed Conversion Foot/Hand Pump to Reciprocating Air/Oil Power UnitBrand / Model Compatibility: For All Foot/Hand Pump Operated Units
Additional Contents: Factory Installed
VCC-FP-2-DC12V Factory Installed Conversion Foot/Hand Pump to DC Power 12 Volt Battery UnitVoltage: 12
Power: DC		42
VCC-FP-2-DC24V Factory Installed Conversion Foot/Hand Pump to DC Power 24 Volt Battery UnitVoltage: 24
Power: DC		42
WD-FC-2 Factory Installed Wash Down Power/Control Pack With Twin Foot Switch For AC/DC Power UnitsFoot Petal (qty.) : 2
81
WD-FC-4 Factory Installed Wash Down Power/Control Pack With Dual Twin Foot Switch For AC/DC Power UnitsFoot Petal (qty.) : 4
81
WD-WM2PB WD-WM2PBFactory Installed Wall Mount Wash Down Power Package With Two Push Button Control For AC/DC UnitsButton Quantity: 2
Additional Contents: Factory Installed
WD-WM4PB WD-WM4PBFactory Installed Wall Mount Wash Down Power Package With Four Push Button Control For AC/DC UnitsButton Quantity: 4
Additional Contents: Factory Installed		6

Our Customer Service Associates Are Here To Assist You!
Call Vestil At 260-665-7586 Or info@vestil.com
