Product Family Overview

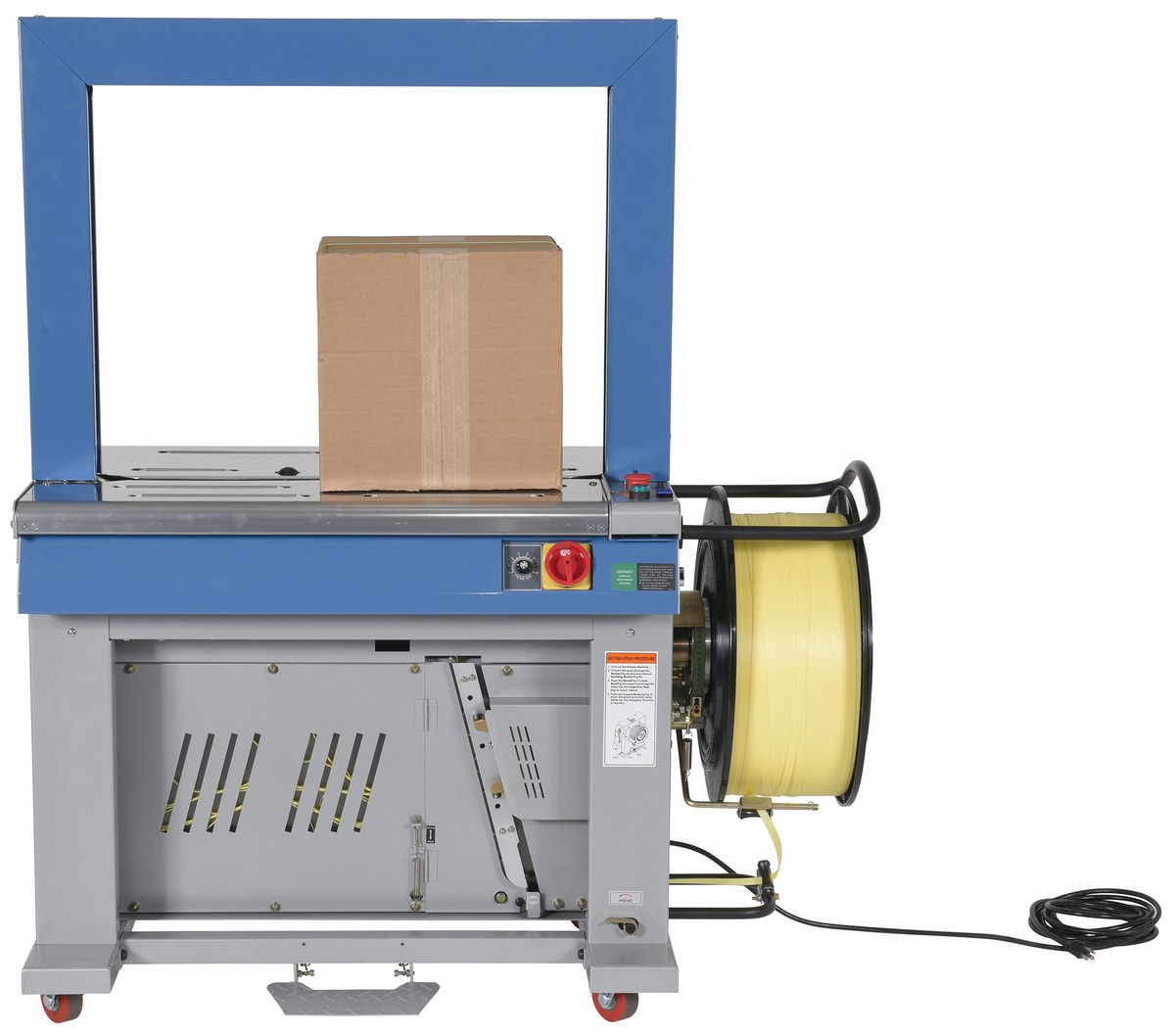

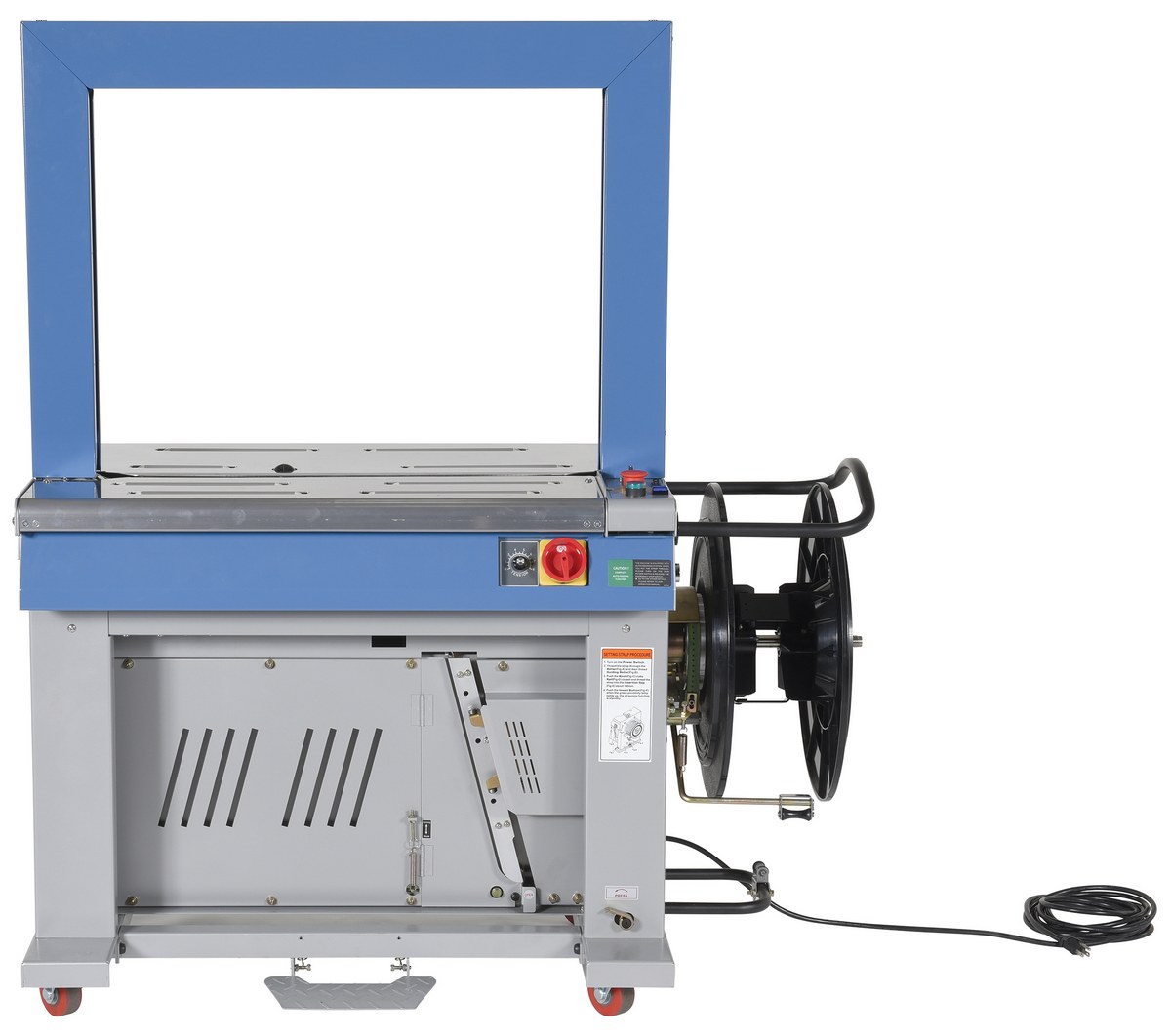

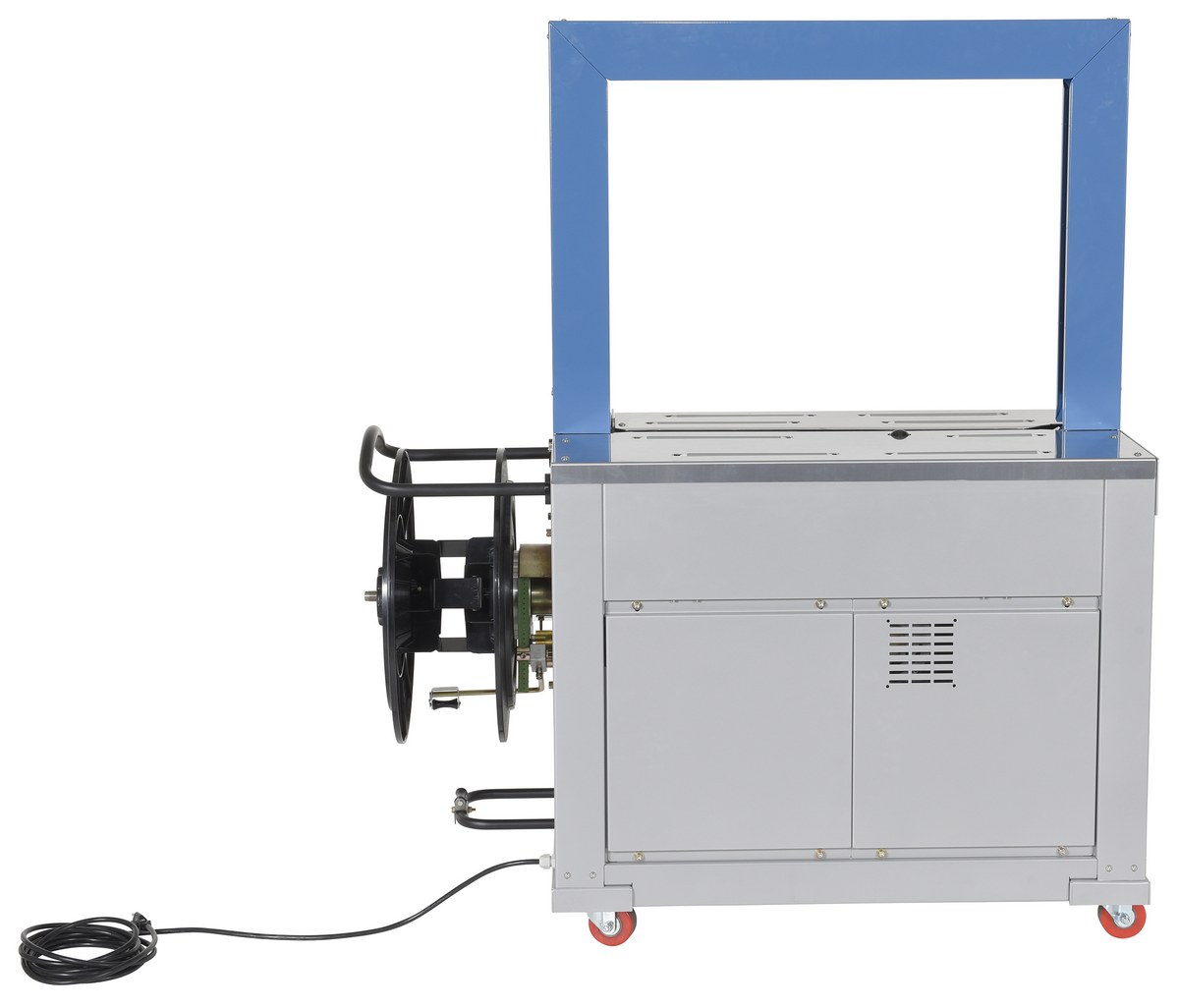

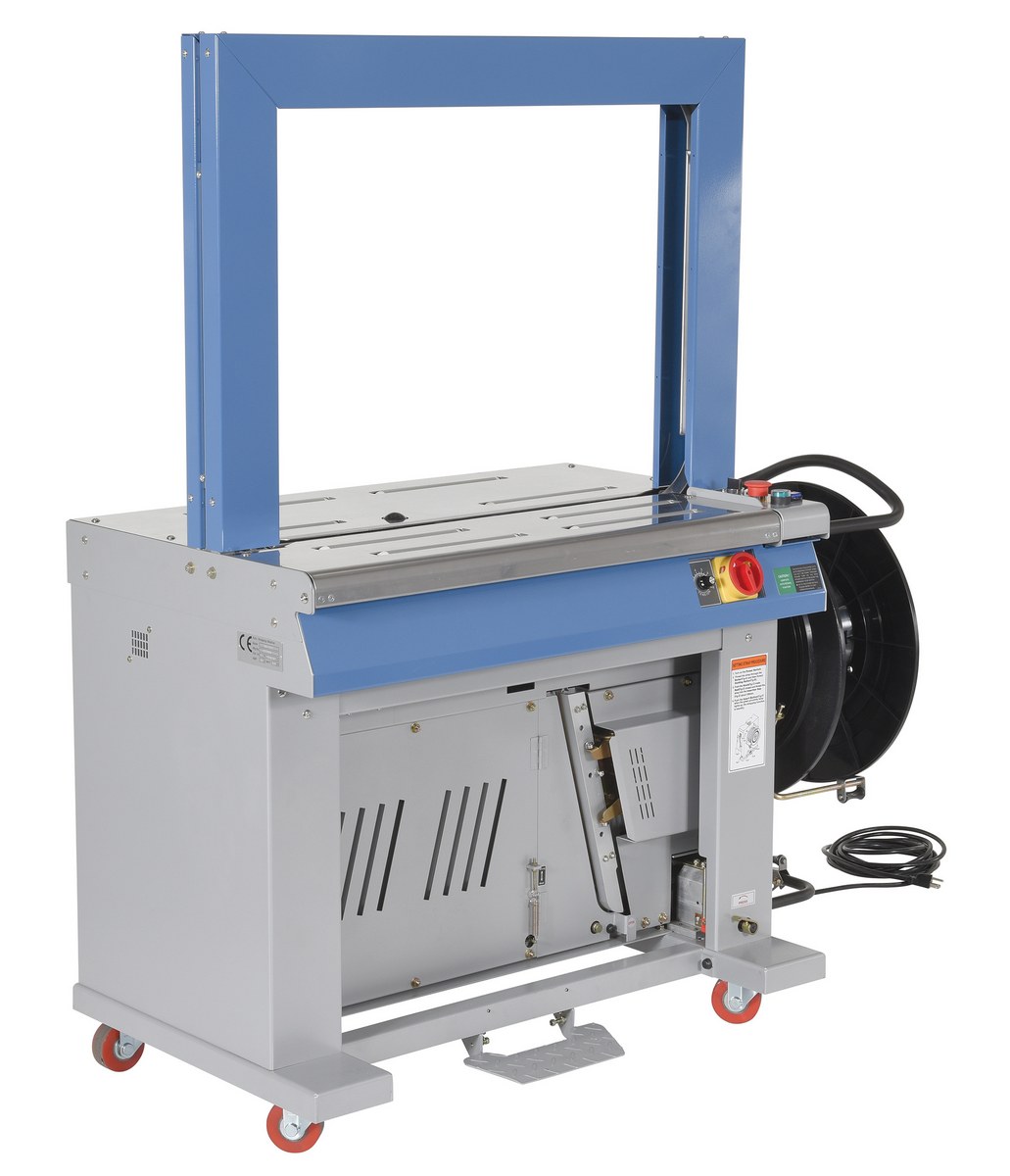

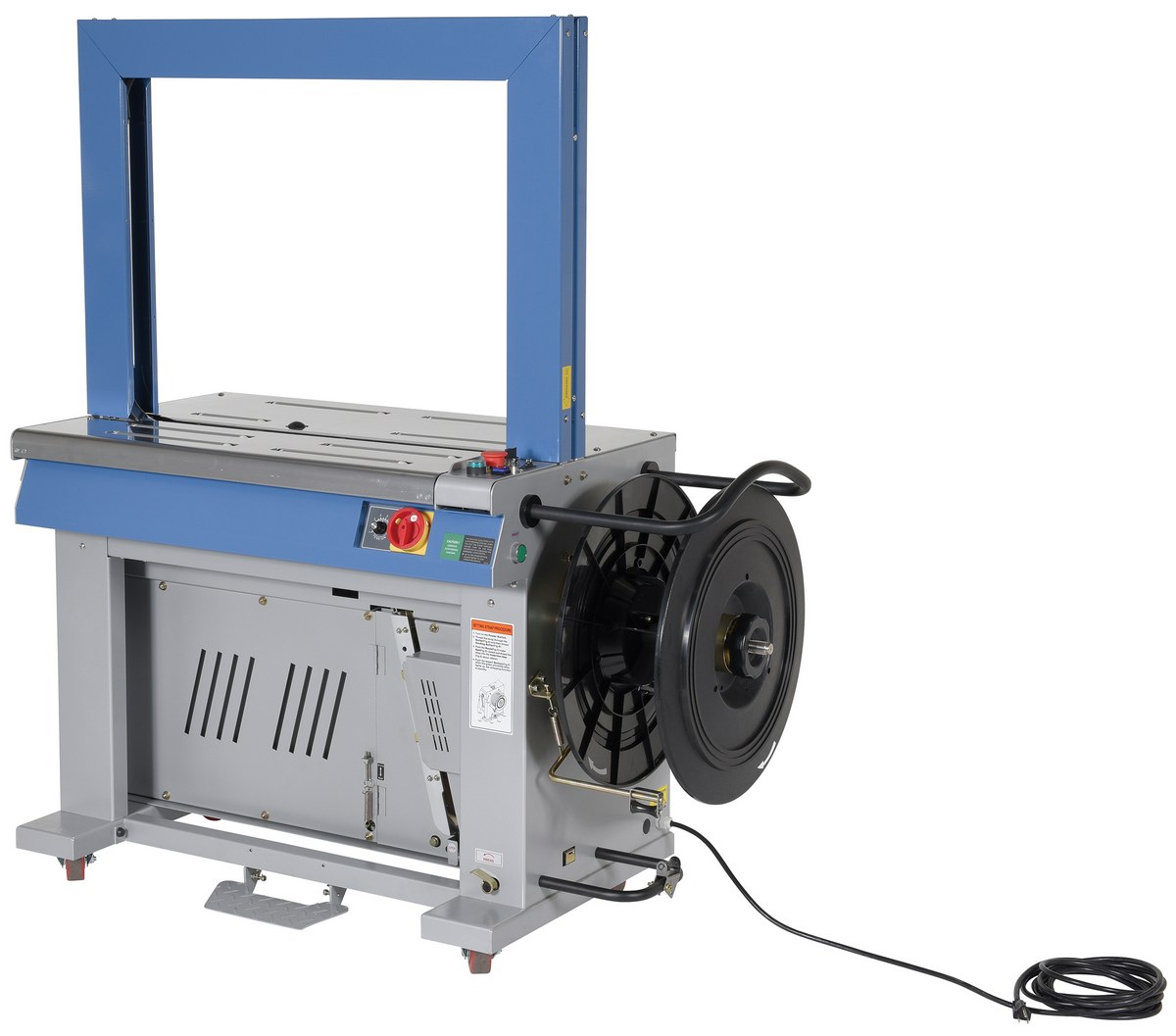

High Speed Strapping Machine
SERIES: ASM

* Dispenses 1/2" polypropylene strapping

* Automatic strapping operation

* Heat welded polypropylene strapping

* Up to 30 cycles per minute

* Strap tension is adjustable 15 lbs. to 150 lbs.

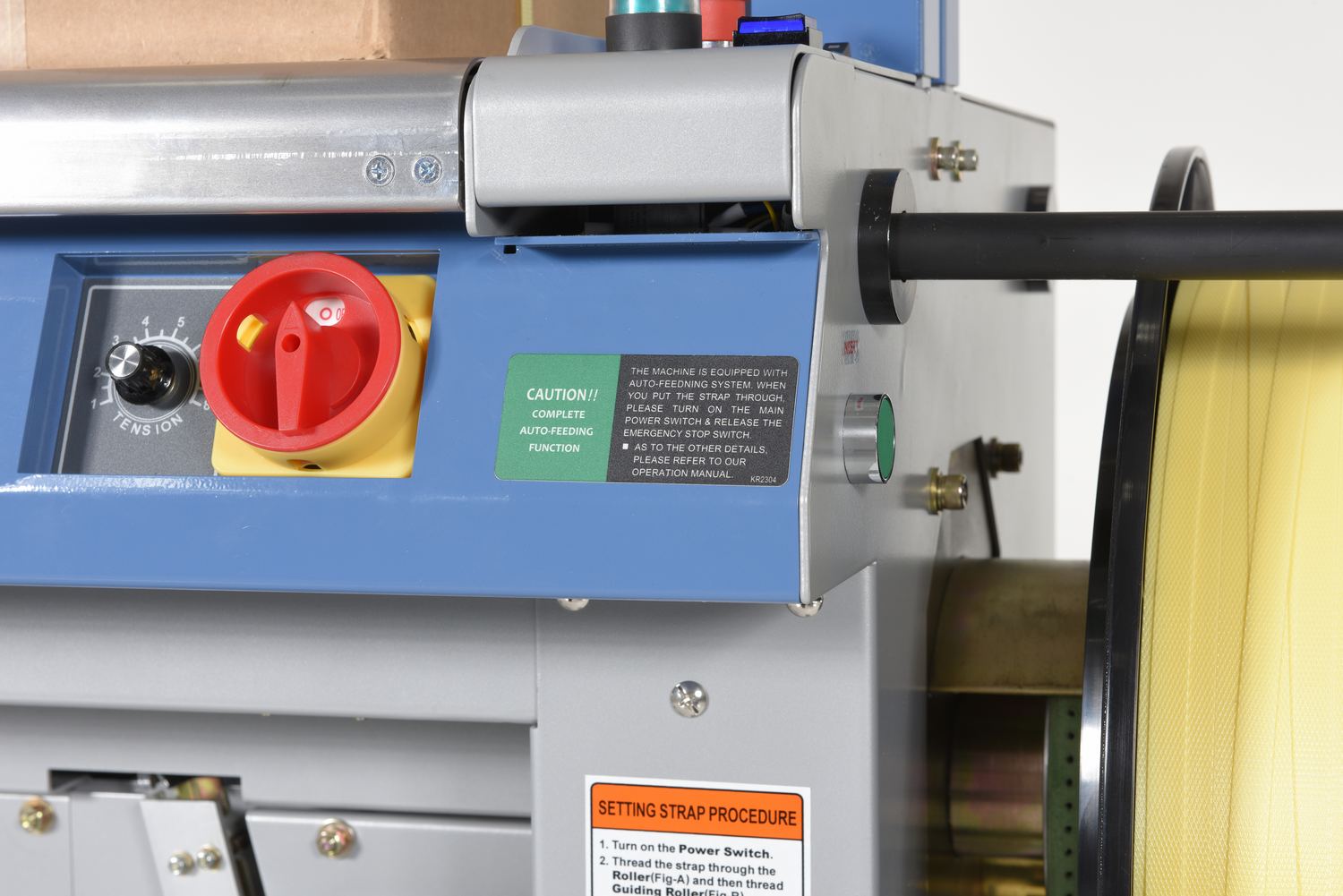

* User friendly controls

* Strapping Core size is 6" to 8"

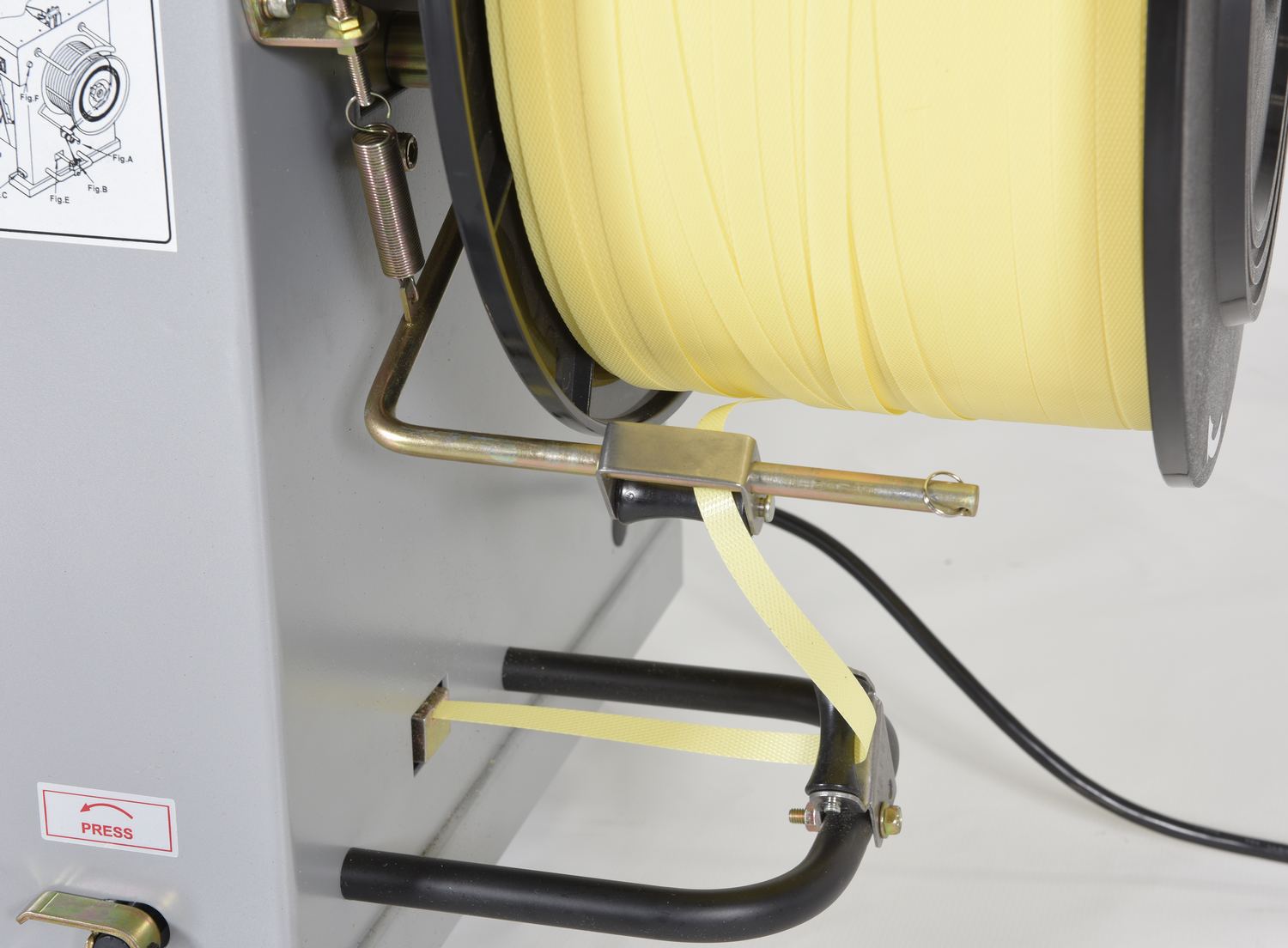

* Easy access for reloading strapping

The High Speed Strapping Machine is a productive solution to most polypropylene strapping tasks. This automatic Arch Strapping Machine features the "Auto-Feeding" function that automatically feeds polypropylene strapping to arch and is ready for each application. The "Auto-Positioning" system automatically positions and secures the polypropylene strapping efficiently for each cycle. The "Jam-Free" feature ejects missed strap cycles, and resets the unit. User friendly controls allow operator to choose between panel mounted controls, foot pedal, or table top ball switch. Actual production will vary depending on package size, chute size and operator dexterity. The unit has heat welded polypropylene strapping, easy access for reloading strapping and portability for convenience. 115V, 1phase power standard. Polypropylene strapping is sold separately.

  • Solution to most polypropylene strapping tasks
  • Auto-feeding automatically feeds arch and is ready for each application
  • Auto-positioning automatically positions and secures efficiently for each cycle
  • Jam-free feature ejects missed strap cycles and resets the unit

* Dispenses 1/2" polypropylene strapping

* Automatic strapping operation

* Heat welded polypropylene strapping

* Up to 30 cycles per minute

* Strap tension is adjustable 15 lbs. to 150 lbs.

* User friendly controls

* Strapping Core size is 6" to 8"

* Easy access for reloading strapping

The High Speed Strapping Machine is a productive solution to most polypropylene strapping tasks. This automatic Arch Strapping Machine features the "Auto-Feeding" function that automatically feeds polypropylene strapping to arch and is ready for each application. The "Auto-Positioning" system automatically positions and secures the polypropylene strapping efficiently for each cycle. The "Jam-Free" feature ejects missed strap cycles, and resets the unit. User friendly controls allow operator to choose between panel mounted controls, foot pedal, or table top ball switch. Actual production will vary depending on package size, chute size and operator dexterity. The unit has heat welded polypropylene strapping, easy access for reloading strapping and portability for convenience. 115V, 1phase power standard. Polypropylene strapping is sold separately.

  • Solution to most polypropylene strapping tasks
  • Auto-feeding automatically feeds arch and is ready for each application
  • Auto-positioning automatically positions and secures efficiently for each cycle
  • Jam-free feature ejects missed strap cycles and resets the unit

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
ASM-3123 ASM-312390 Days Limited WarrantySteel Automatic High Speed Strapping Machine 23-1/8 In. x 48-3/8 In. x 58 In. GrayMaximum Package Width (in.): 29-1/4
Maximum Package Height (in.): 22-1/2
531

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

ASM-3123
Unit:
Size: W x L x H
Weight:
Limited Warranty
Maximum Package Width (in.): 29-1/4
Maximum Package Height (in.): 22-1/2
Maximum Package Width (in.): 29-1/4
Maximum Package Height (in.): 22-1/2

High Speed Strapping Machine PDF's will open in a new window when clicked.

Manuals


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

No Approval Drawings For This Product

Testing Certificates


ASM-3123

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products


Q: What is the maximum weight of the box can be used on this?

A: Weight should not exceed 70 lbs.


Q: What is the arch size, speed/minute, strapping size(s)?

A: Fits 16" diameter roll, strapping size 1/2", 23 1/8"L x 48 3/8"W x 58"H.






Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





High Speed Strapping Machine




* Dispenses 1/2" polypropylene strapping

* Automatic strapping operation

* Heat welded polypropylene strapping

* Up to 30 cycles per minute

* Strap tension is adjustable 15 lbs. to 150 lbs.

* User friendly controls

* Strapping Core size is 6" to 8"

* Easy access for reloading strapping

The High Speed Strapping Machine is a productive solution to most polypropylene strapping tasks. This automatic Arch Strapping Machine features the "Auto-Feeding" function that automatically feeds polypropylene strapping to arch and is ready for each application. The "Auto-Positioning" system automatically positions and secures the polypropylene strapping efficiently for each cycle. The "Jam-Free" feature ejects missed strap cycles, and resets the unit. User friendly controls allow operator to choose between panel mounted controls, foot pedal, or table top ball switch. Actual production will vary depending on package size, chute size and operator dexterity. The unit has heat welded polypropylene strapping, easy access for reloading strapping and portability for convenience. 115V, 1phase power standard. Polypropylene strapping is sold separately.

  • Solution to most polypropylene strapping tasks
  • Auto-feeding automatically feeds arch and is ready for each application
  • Auto-positioning automatically positions and secures efficiently for each cycle
  • Jam-free feature ejects missed strap cycles and resets the unit


Model # Description Attributes Net Wt.
(lbs)
ASM-3123 ASM-3123Steel Automatic High Speed Strapping Machine 23-1/8 In. x 48-3/8 In. x 58 In. GrayMaximum Package Width (in.): 29-1/4
Maximum Package Height (in.): 22-1/2
531
