Product Family Overview


Aluminum Grip-Strut Walk Ramps
SERIES: AWR-G

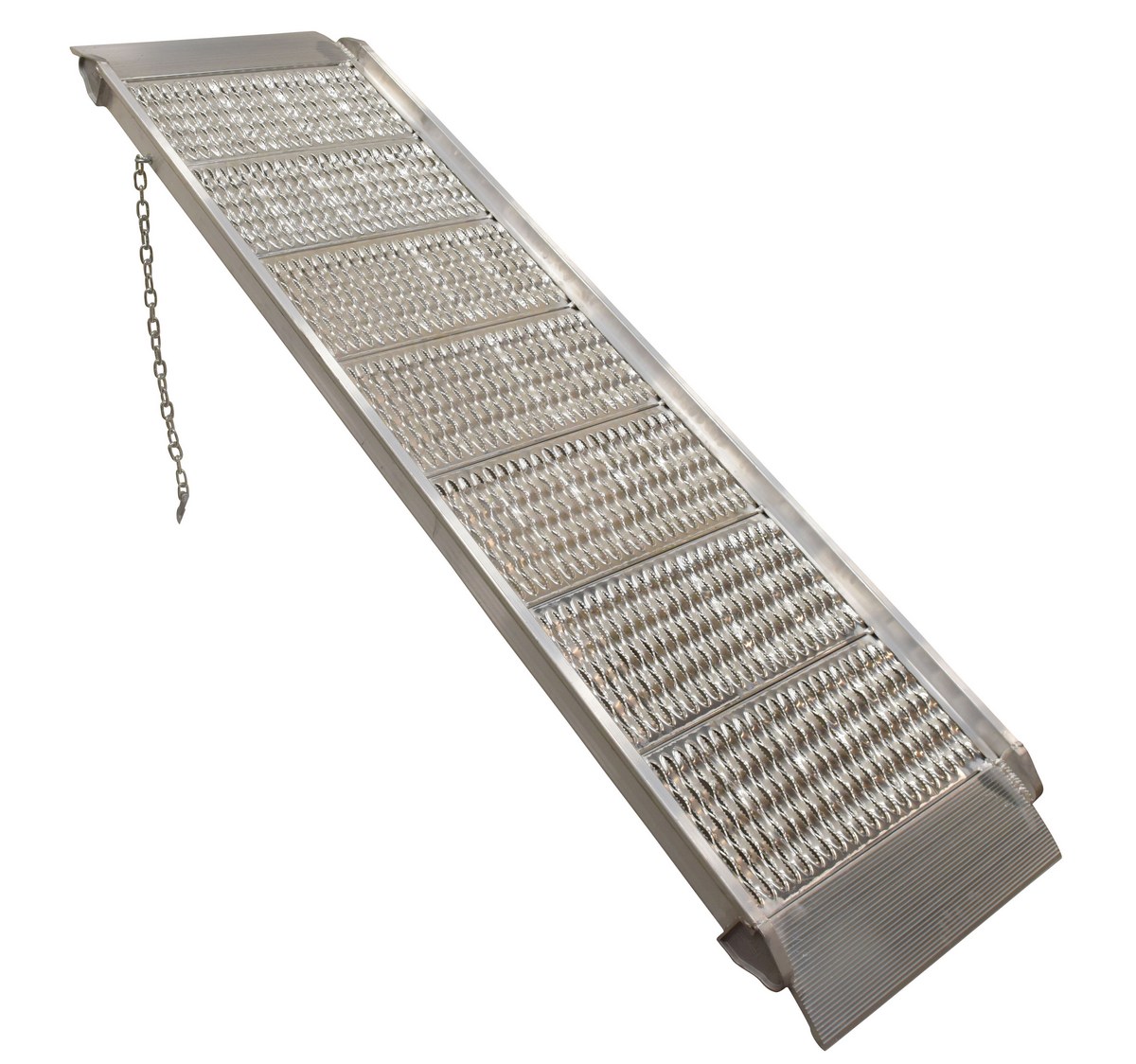

Load and unload trucks when docks are unavailable. The open deck design allows snow, ice, and water to fall through ramp providing a positive grip for delivery personnel, shippers, and receivers. One hundred percent welded aluminum construction is lightweight and will not rust. Ramps feature a 2" high safety curb on each side. Overlap style end lip rests on the trailer bed to provide a smooth transition. Each unit includes two (2) safety chains to connect the ramp to the trailer for safety. Not for pallet trucks or three-wheeled carts.

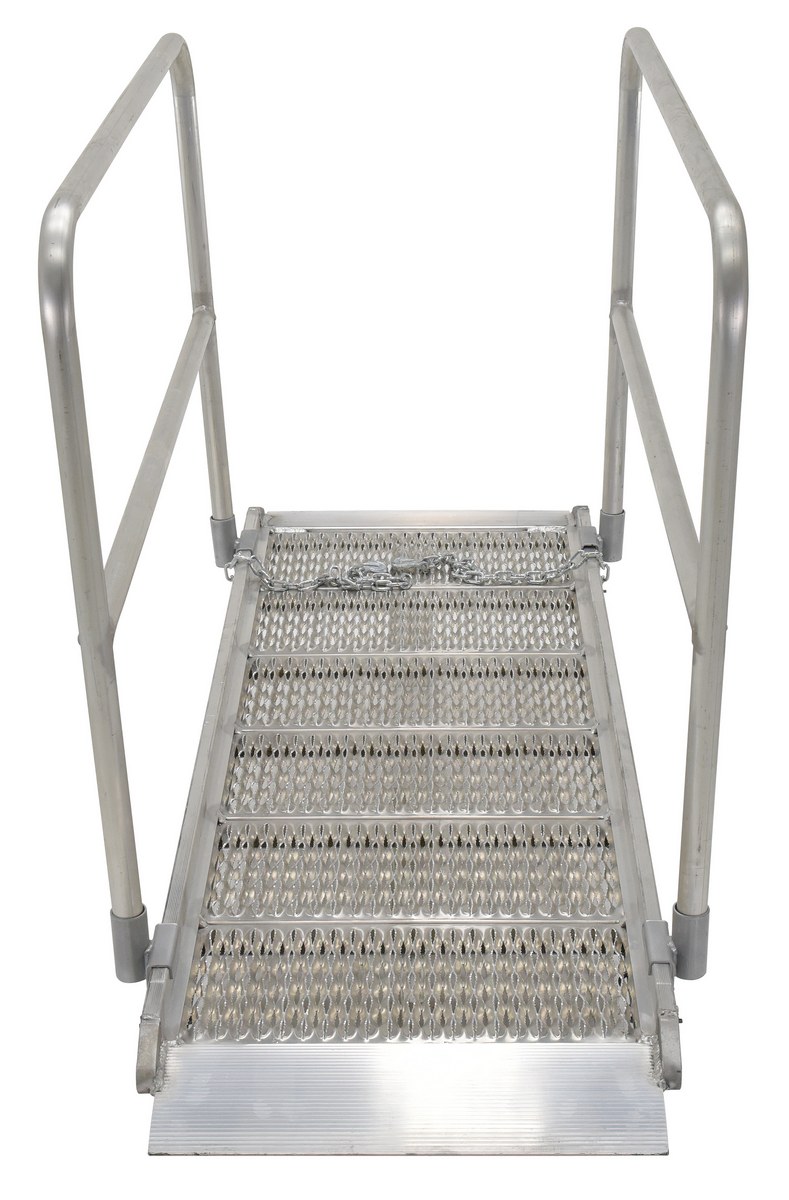

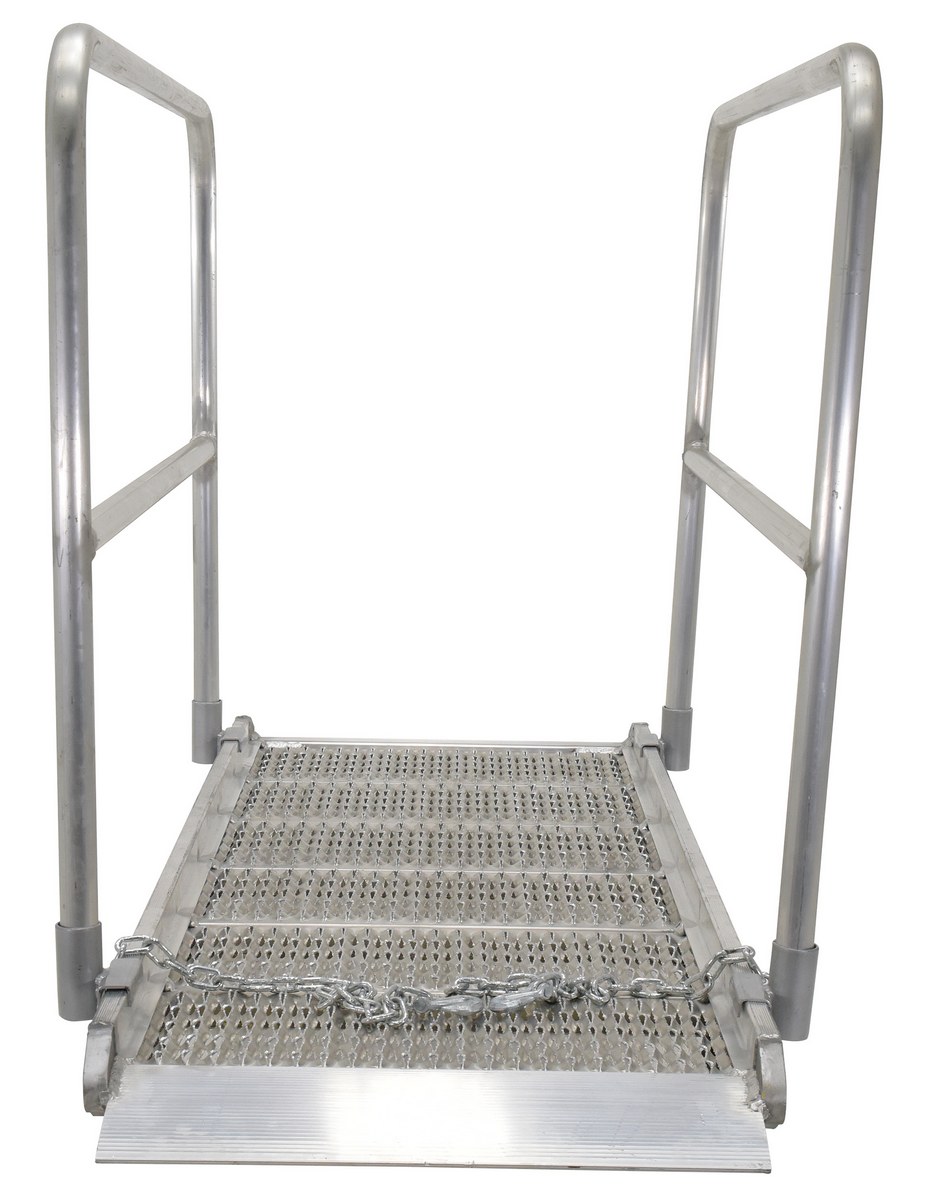

Aluminum Grip-Strut Walk Ramps with Handrail, offer the same durable ramp as above with more stability and security. Railing sections are 40-1/4" high with a 18-7/16" mid-rail. Handrails are bolted onto the aluminum walk ramps. Handrail may be attached to one side or both sides of ramp. Installation brackets and hardware included. Handrails are included for both sides of the ramp.

Load and unload trucks when docks are unavailable. The open deck design allows snow, ice, and water to fall through ramp providing a positive grip for delivery personnel, shippers, and receivers. One hundred percent welded aluminum construction is lightweight and will not rust. Ramps feature a 2" high safety curb on each side. Overlap style end lip rests on the trailer bed to provide a smooth transition. Each unit includes two (2) safety chains to connect the ramp to the trailer for safety. Not for pallet trucks or three-wheeled carts.

Aluminum Grip-Strut Walk Ramps with Handrail, offer the same durable ramp as above with more stability and security. Railing sections are 40-1/4" high with a 18-7/16" mid-rail. Handrails are bolted onto the aluminum walk ramps. Handrail may be attached to one side or both sides of ramp. Installation brackets and hardware included. Handrails are included for both sides of the ramp.

Additional Models In This Family

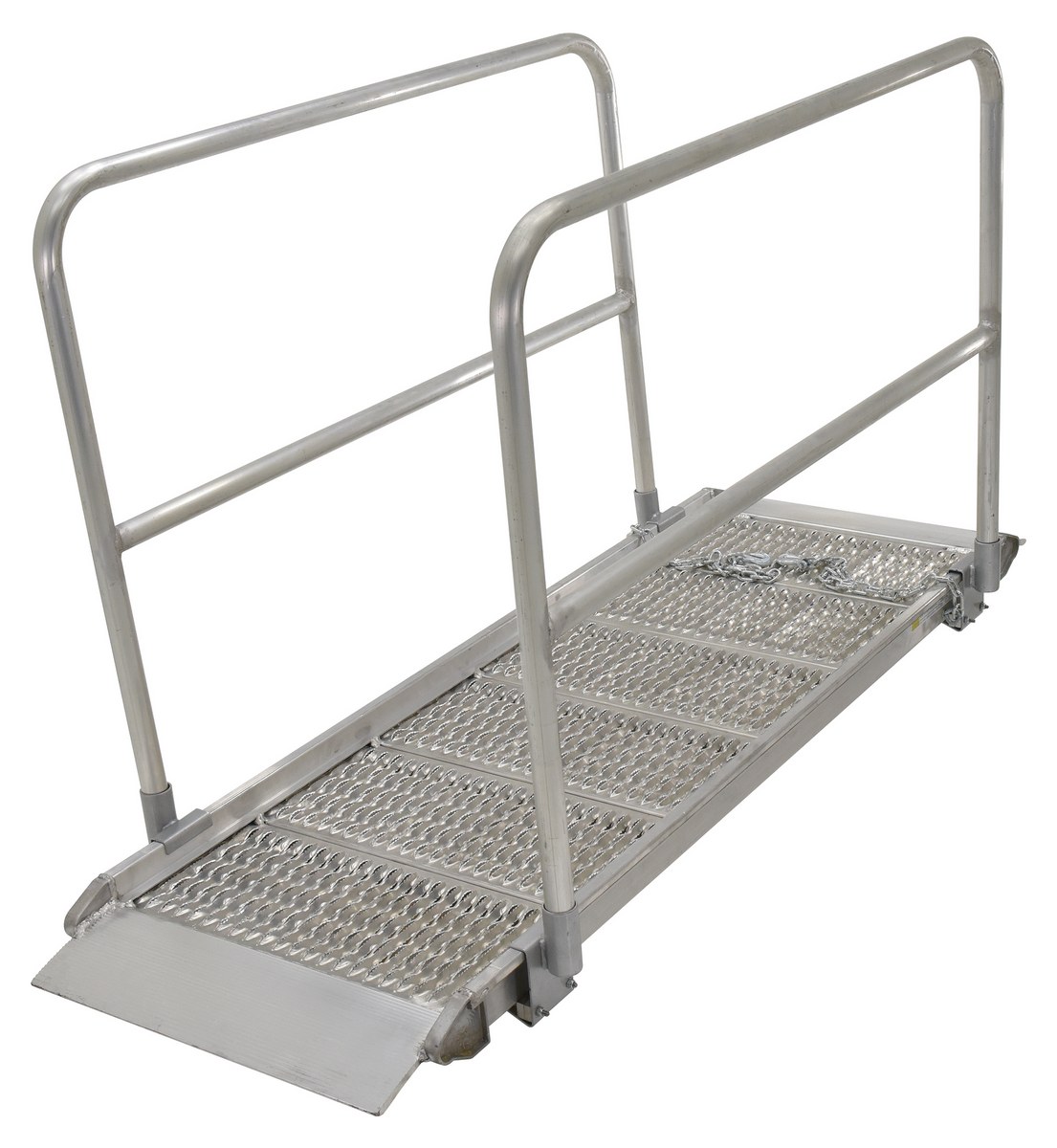

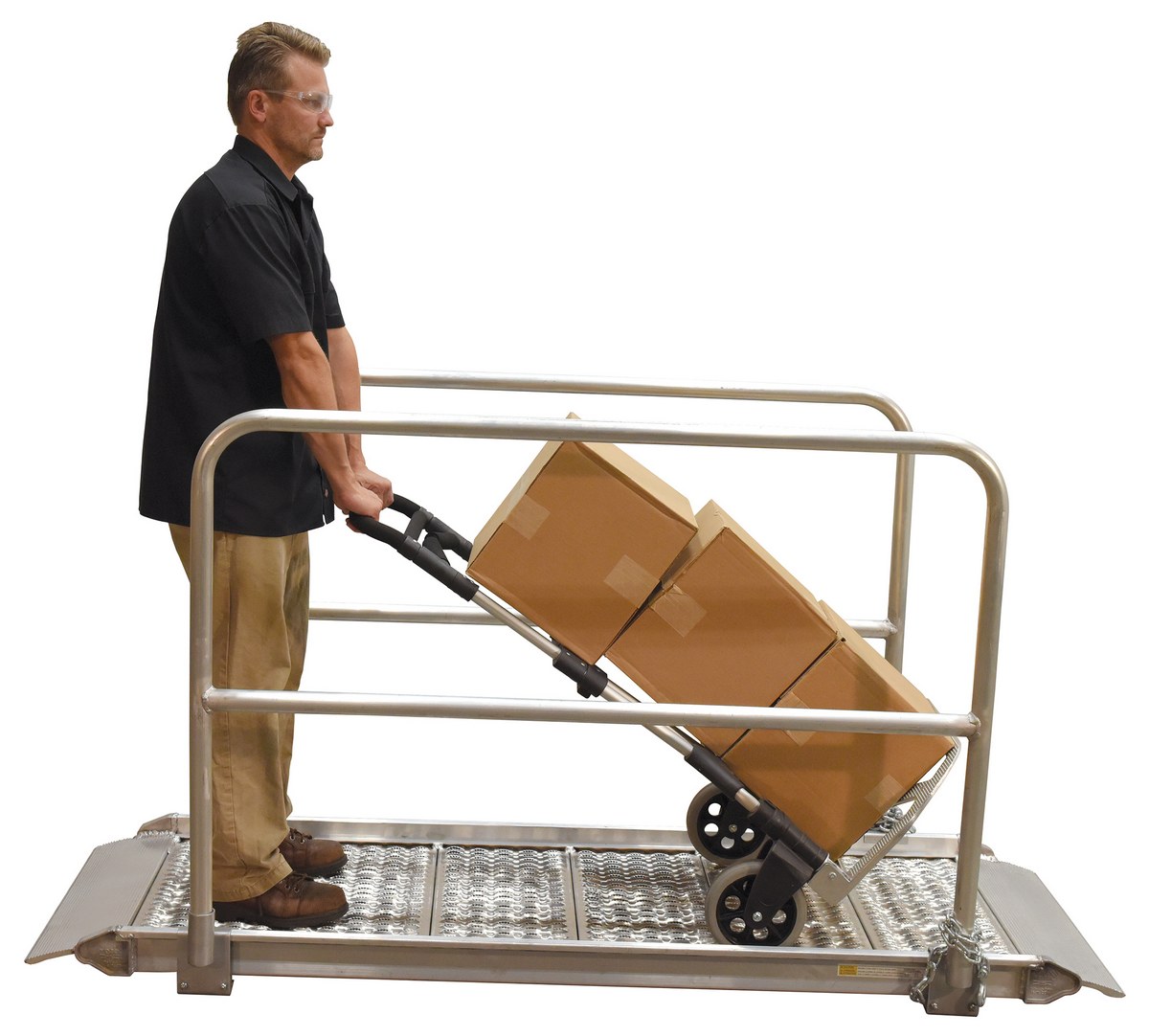

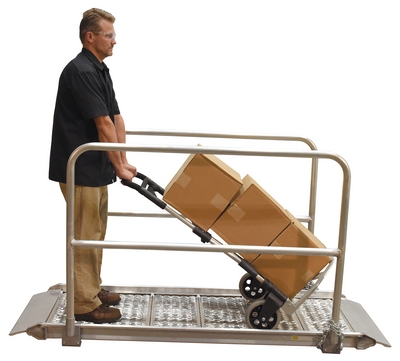

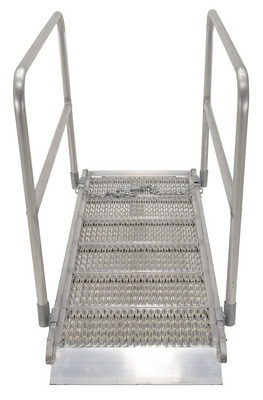

AWR-G-28-7A-HR

model AWR-G-28-7A-HR

AWR-G-18-ESR-12A

model AWR-G-18-ESR-12A

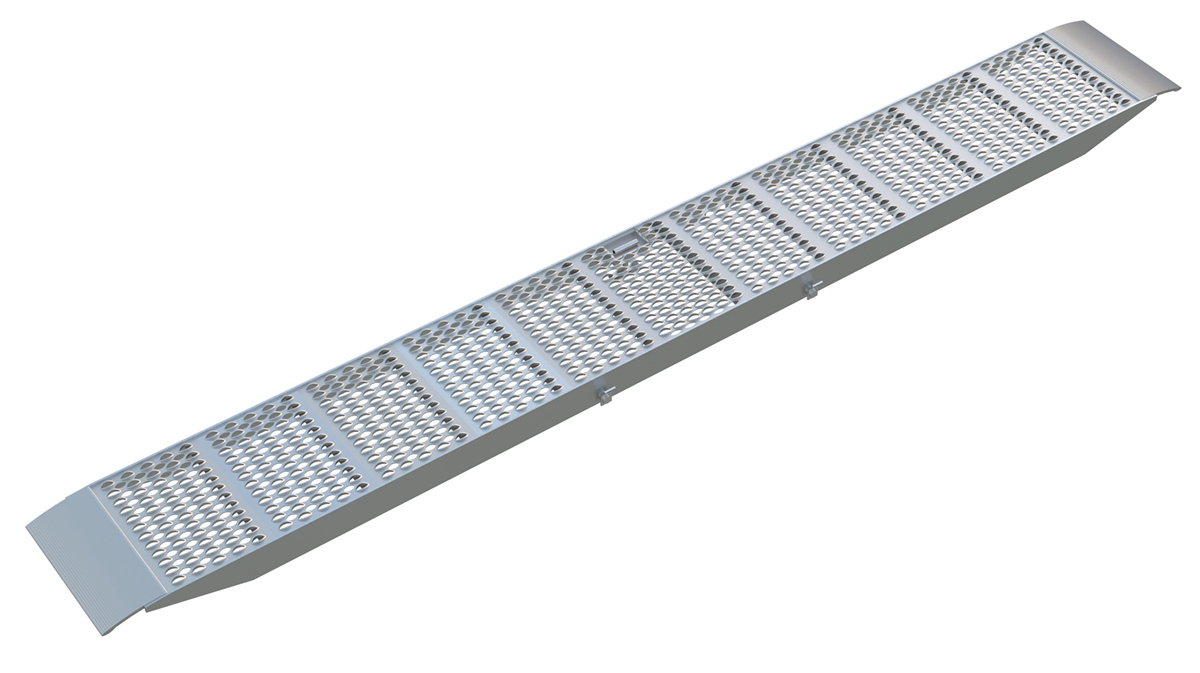

AWR-G-18-ESR-12A-EXT

model AWR-G-18-ESR-12A-EXT

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
AWR-G-28-10A AWR-G-28-10A90 Days Limited WarrantyAluminum Grip-Strut Walk Ramps 120-1/4 In. x 29-3/8 In. 2200 Lb. Capacity SilverUniform Capacity with 4-wheel cart (lb.): 2,200
Uniform Capacity with 2-wheel cart (lb.): 1,500
118
AWR-G-28-10A-HR AWR-G-28-10A-HR90 Days Limited WarrantyAluminum Grip-Strut Walk Ramps with Handrails 120-1/4 In. x 29-3/8 In. 2200 Lb. Capacity SilverUniform Capacity with 4-wheel cart (lb.): 2,200
Uniform Capacity with 2-wheel cart (lb.): 1,500
166
AWR-G-28-12A AWR-G-28-12A90 Days Limited WarrantyAluminum Grip-Strut Walk Ramps 143-3/4 In. x 29-3/8 In. 1900 Lb. Capacity SilverUniform Capacity with 4-wheel cart (lb.): 1,900
Uniform Capacity with 2-wheel cart (lb.): 1,400
129
AWR-G-28-12A-HR AWR-G-28-12A-HR90 Days Limited WarrantyAluminum Grip-Strut Walk Ramps with Handrails 143-3/4 In. x 29-3/8 In. 1900 Lb. Capacity SilverUniform Capacity with 4-wheel cart (lb.): 1,900
Uniform Capacity with 2-wheel cart (lb.): 1,400
153
AWR-G-28-14A AWR-G-28-14A90 Days Limited WarrantyAluminum Grip-Strut Walk Ramps 167-1/4 In. x 29-3/8 In. 1600 Lb. Capacity SilverUniform Capacity with 4-wheel cart (lb.): 1,600
Uniform Capacity with 2-wheel cart (lb.): 1,200
89
AWR-G-28-14A-HR AWR-G-28-14A-HR90 Days Limited WarrantyAluminum Grip-Strut Walk Ramps with Handrails 167-1/4 In. x 29-3/8 In. 1600 Lb. Capacity SilverUniform Capacity with 4-wheel cart (lb.): 1,600
Uniform Capacity with 2-wheel cart (lb.): 1,200
173

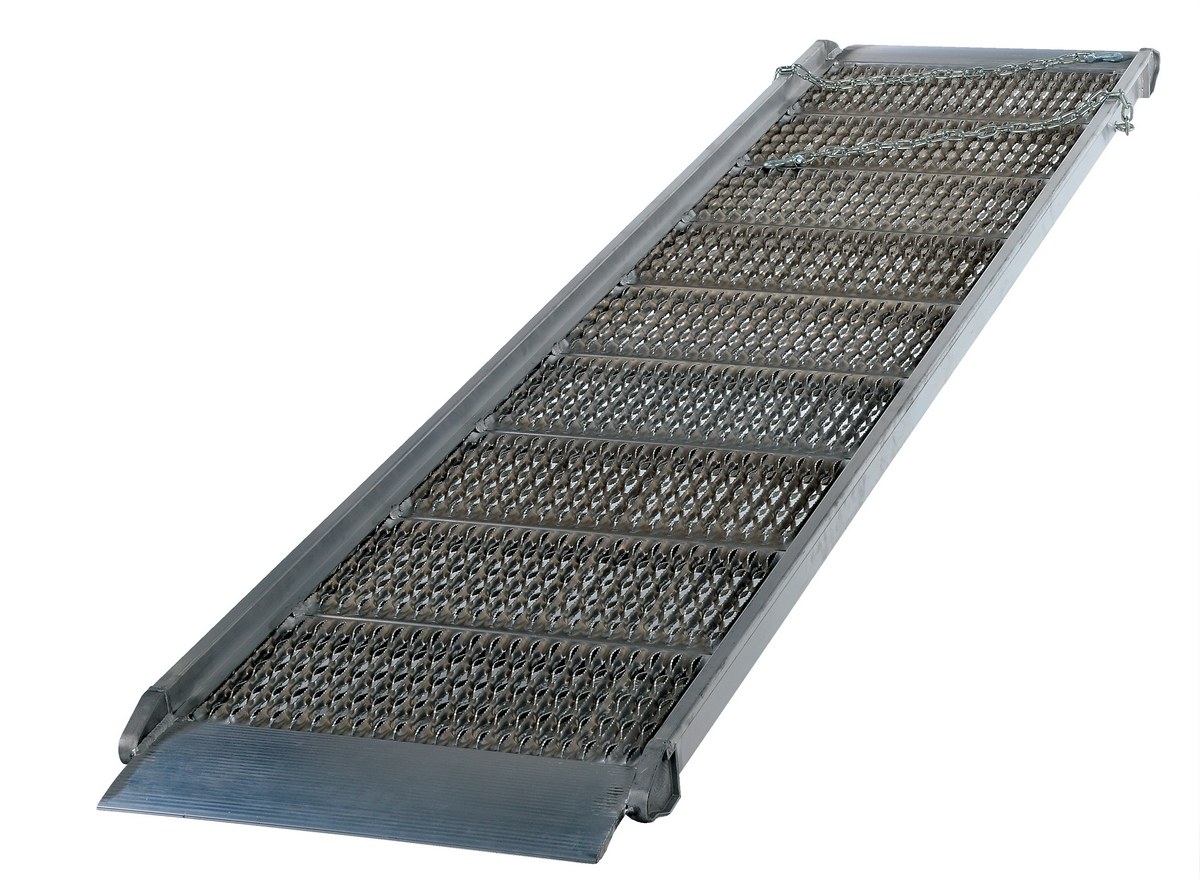

AWR-G-28-16A AWR-G-28-16A90 Days Limited WarrantyAluminum Grip-Strut Walk Ramps 190-3/4 In. x 29-3/8 In. 1000 Lb. Capacity SilverUniform Capacity with 4-wheel cart (lb.): 1,000
Uniform Capacity with 2-wheel cart (lb.): 1,000
122
AWR-G-28-16A-HR AWR-G-28-16A-HR90 Days Limited WarrantyAluminum Grip-Strut Walk Ramps with Handrails 190-3/4 In. x 29-3/8 In. 1000 Lb. Capacity SilverUniform Capacity with 4-wheel cart (lb.): 1,000
Uniform Capacity with 2-wheel cart (lb.): 1,000
210
AWR-G-28-6A AWR-G-28-6A90 Days Limited WarrantyAluminum Grip-Strut Walk Ramps 73-1/4 In. x 29-3/8 In. 2800 Lb. Capacity SilverUniform Capacity with 4-wheel cart (lb.): 2,800
Uniform Capacity with 2-wheel cart (lb.): 2,000
41
AWR-G-28-6A-HR AWR-G-28-6A-HR90 Days Limited WarrantyAluminum Grip-Strut Walk Ramps with Handrails 73-1/4 In. x 29-3/8 In. 2800 Lb. Capacity SilverUniform Capacity with 4-wheel cart (lb.): 2,800
Uniform Capacity with 2-wheel cart (lb.): 2,000
77
AWR-G-28-7A AWR-G-28-7A90 Days Limited WarrantyAluminum Grip-Strut Walk Ramps 85 In. x 29-3/8 In. 2800 Lb. Capacity SilverUniform Capacity with 4-wheel cart (lb.): 2,800
Uniform Capacity with 2-wheel cart (lb.): 1,800
59
AWR-G-28-7A-HR AWR-G-28-7A-HR90 Days Limited WarrantyAluminum Grip-Strut Walk Ramps with Handrails 85 In. x 29-3/8 In. 2800 Lb. Capacity SilverUniform Capacity with 4-wheel cart (lb.): 2,800
Uniform Capacity with 2-wheel cart (lb.): 1,800
97
AWR-G-28-8A AWR-G-28-8A90 Days Limited WarrantyAluminum Grip-Strut Walk Ramps 96-3/4 In. x 29-3/8 In. 2800 Lb. Capacity SilverUniform Capacity with 4-wheel cart (lb.): 2,500
Uniform Capacity with 2-wheel cart (lb.): 1,650
61
AWR-G-28-8A-HR AWR-G-28-8A-HR90 Days Limited WarrantyAluminum Grip-Strut Walk Ramps with Handrails 96-3/4 In. x 29-3/8 In. 2800 Lb. Capacity SilverUniform Capacity with 4-wheel cart (lb.): 2,500
Uniform Capacity with 2-wheel cart (lb.): 1,650
103
AWR-G-28-9A AWR-G-28-9A90 Days Limited WarrantyAluminum Grip-Strut Walk Ramps 108-1/2 In. x 29-3/8 In. 2800 Lb. Capacity SilverUniform Capacity with 4-wheel cart (lb.): 2,500
Uniform Capacity with 2-wheel cart (lb.): 1,600
63
AWR-G-28-9A-HR AWR-G-28-9A-HR90 Days Limited WarrantyAluminum Grip-Strut Walk Ramps with Handrails 108-1/2 In. x 29-3/8 In. 2800 Lb. Capacity SilverUniform Capacity with 4-wheel cart (lb.): 2,500
Uniform Capacity with 2-wheel cart (lb.): 1,600
107

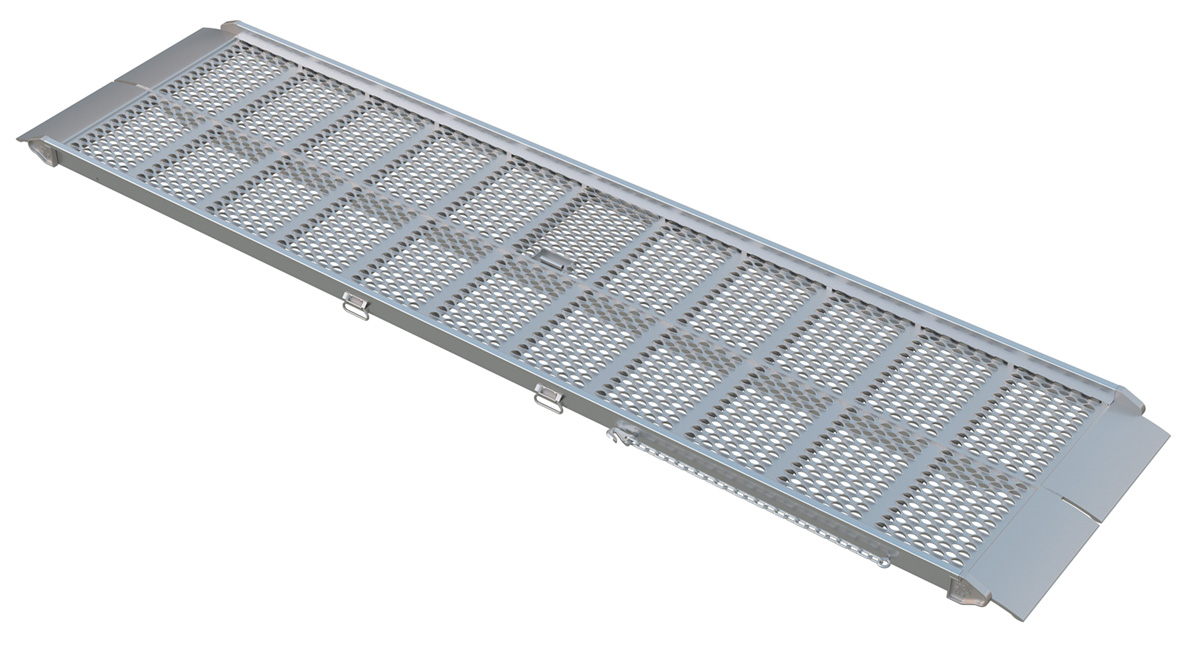

AWR-G-36-ESR-12A
AWR-G-36-ESR-12A90 Days Limited WarrantyAluminum Split Grip Ramp 143-3/4 In. x 35-7/8 In. x 6-9/16 In. 1800 Lb. Capacity SilverUniform Capacity with 4-wheel cart (lb.): 1800
Uniform Capacity with 2-wheel cart (lb.): 1400
265

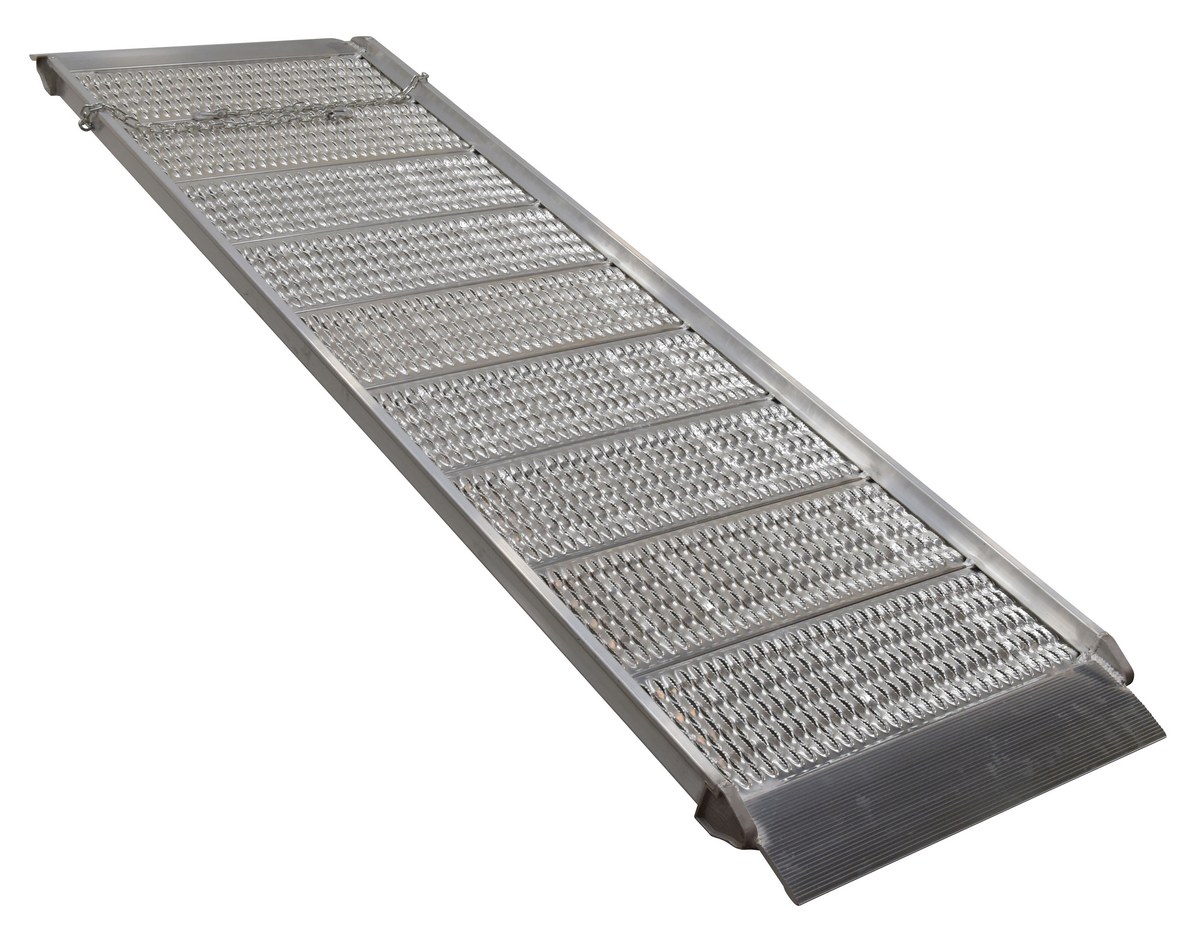

AWR-G-38-10A AWR-G-38-10A90 Days Limited WarrantyAluminum Grip-Strut Walk Ramps 120-1/4 In. x 39-3/8 In. 2200 Lb. Capacity SilverUniform Capacity with 4-wheel cart (lb.): 2,200
Uniform Capacity with 2-wheel cart (lb.): 1,500
80
AWR-G-38-10A-HR AWR-G-38-10A-HR90 Days Limited WarrantyAluminum Grip-Strut Walk Ramps with Handrails 120-1/4 In. x 39-3/8 In. 2200 Lb. Capacity SilverUniform Capacity with 4-wheel cart (lb.): 2,200
Uniform Capacity with 2-wheel cart (lb.): 1,500
128
AWR-G-38-12A AWR-G-38-12A90 Days Limited WarrantyAluminum Grip-Strut Walk Ramps 143-3/4 In. x 39-3/8 In. 1900 Lb. Capacity SilverUniform Capacity with 4-wheel cart (lb.): 1,900
Uniform Capacity with 2-wheel cart (lb.): 1,400
94
AWR-G-38-12A-HR AWR-G-38-12A-HR90 Days Limited WarrantyAluminum Grip-Strut Walk Ramps with Handrails 143-3/4 In. x 39-3/8 In. 1900 Lb. Capacity SilverUniform Capacity with 4-wheel cart (lb.): 1,900
Uniform Capacity with 2-wheel cart (lb.): 1,400
170
AWR-G-38-14A AWR-G-38-14A90 Days Limited WarrantyAluminum Grip-Strut Walk Ramps 167-1/4 In. x 39-3/8 In. 1600 Lb. Capacity SilverUniform Capacity with 4-wheel cart (lb.): 1,600
Uniform Capacity with 2-wheel cart (lb.): 1,200
123

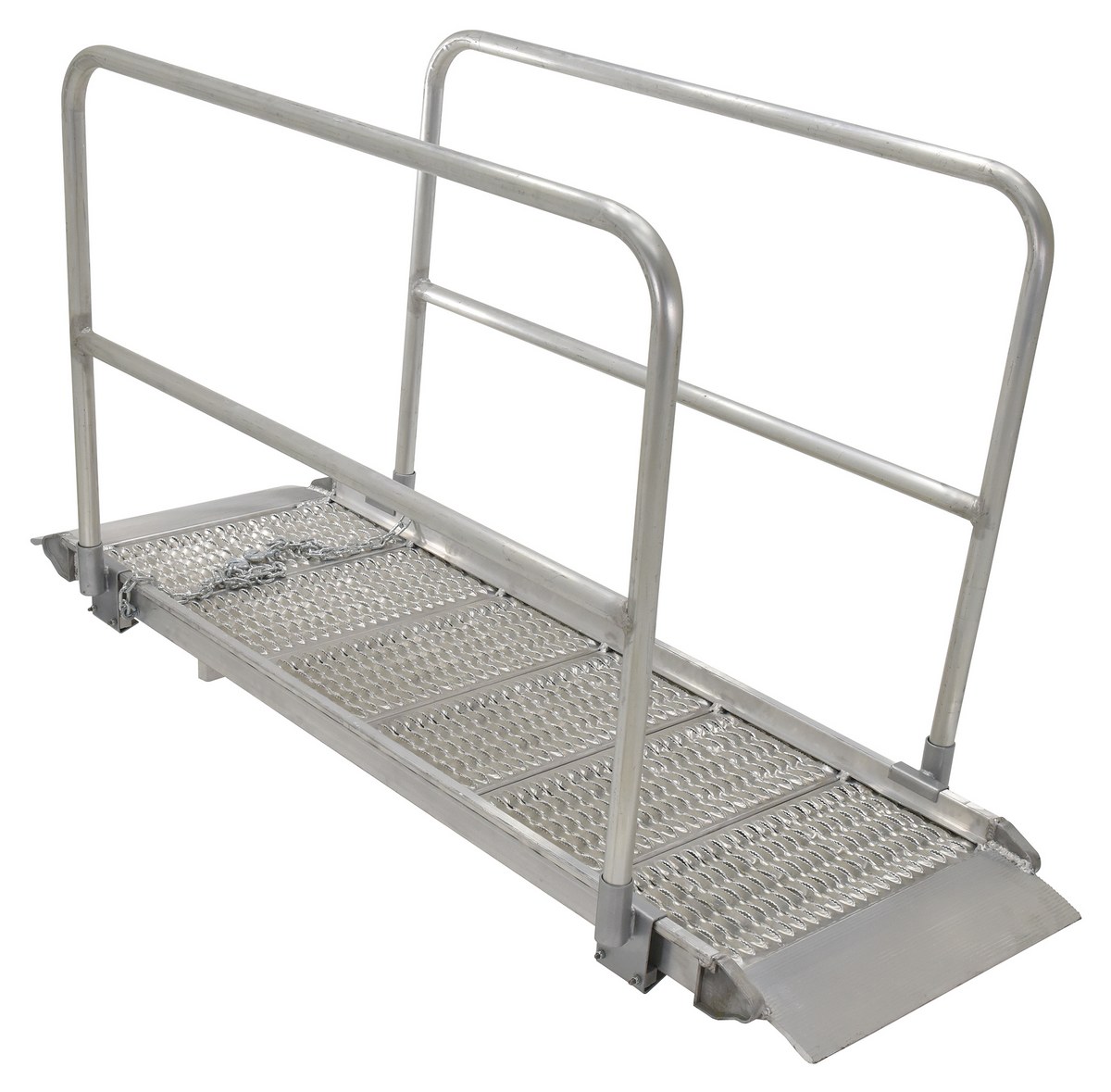

AWR-G-38-14A-HR AWR-G-38-14A-HR90 Days Limited WarrantyAluminum Grip-Strut Walk Ramps with Handrails 167-1/4 In. x 39-3/8 In. 1600 Lb. Capacity SilverUniform Capacity with 4-wheel cart (lb.): 1,600
Uniform Capacity with 2-wheel cart (lb.): 1,200
207
AWR-G-38-16A AWR-G-38-16A90 Days Limited WarrantyAluminum Grip-Strut Walk Ramps 190-3/4 In. x 39-3/8 In. 1000 Lb. Capacity SilverUniform Capacity with 4-wheel cart (lb.): 1,000
Uniform Capacity with 2-wheel cart (lb.): 1,000
232
AWR-G-38-16A-HR AWR-G-38-16A-HR90 Days Limited WarrantyAluminum Grip-Strut Walk Ramps with Handrails 190-3/4 In. x 39-3/8 In. 1000 Lb. Capacity SilverUniform Capacity with 4-wheel cart (lb.): 1,000
Uniform Capacity with 2-wheel cart (lb.): 1,000
230
AWR-G-38-6A AWR-G-38-6A90 Days Limited WarrantyAluminum Grip-Strut Walk Ramps 73-1/4 In. x 39-3/8 In. 2800 Lb. Capacity SilverUniform Capacity with 4-wheel cart (lb.): 2,800
Uniform Capacity with 2-wheel cart (lb.): 2,000
55
AWR-G-38-6A-HR AWR-G-38-6A-HR90 Days Limited WarrantyAluminum Grip-Strut Walk Ramps with Handrails 73-1/4 In. x 39-3/8 In. 2800 Lb. Capacity SilverUniform Capacity with 4-wheel cart (lb.): 2,800
Uniform Capacity with 2-wheel cart (lb.): 2,000
91

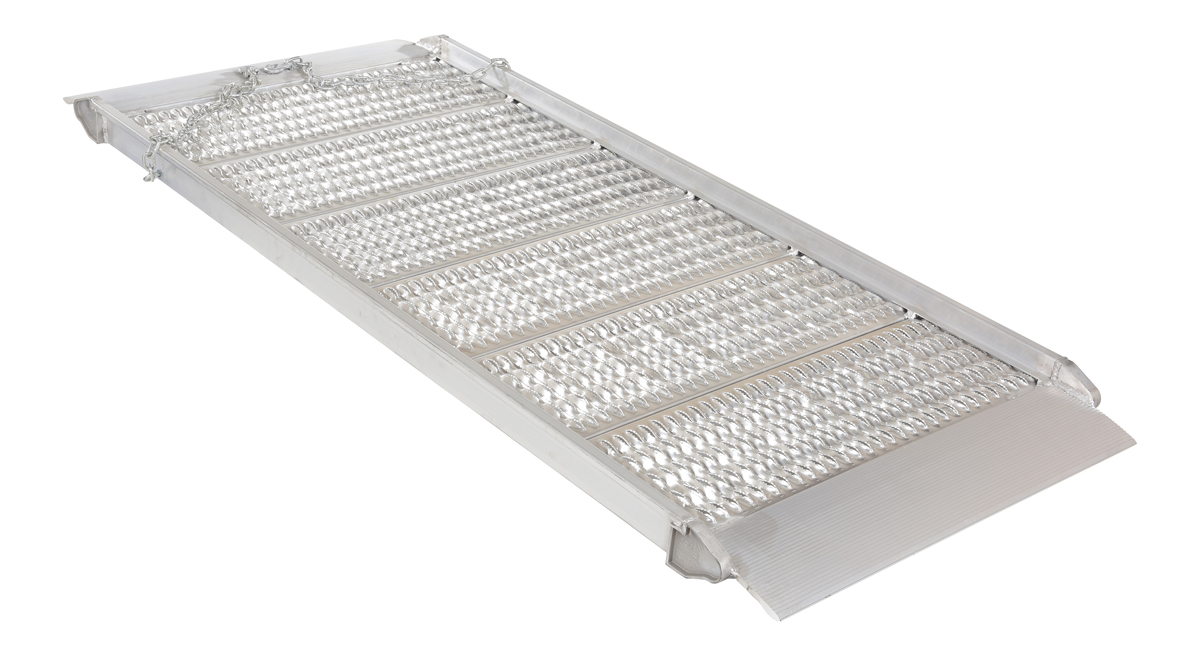

AWR-G-38-7A AWR-G-38-7A90 Days Limited WarrantyAluminum Grip-Strut Walk Ramps 85 In. x 39-3/8 In. 2800 Lb. Capacity SilverUniform Capacity with 4-wheel cart (lb.): 2,800
Uniform Capacity with 2-wheel cart (lb.): 1,800
59
AWR-G-38-7A-HR AWR-G-38-7A-HR90 Days Limited WarrantyAluminum Grip-Strut Walk Ramps with Handrails 85 In. x 39-3/8 In. 2800 Lb. Capacity SilverUniform Capacity with 4-wheel cart (lb.): 2,800
Uniform Capacity with 2-wheel cart (lb.): 1,800
97
AWR-G-38-8A AWR-G-38-8A90 Days Limited WarrantyAluminum Grip-Strut Walk Ramps 96-3/4 In. x 39-3/8 In. 2800 Lb. Capacity SilverUniform Capacity with 4-wheel cart (lb.): 2,500
Uniform Capacity with 2-wheel cart (lb.): 1,650
66
AWR-G-38-8A-HR AWR-G-38-8A-HR90 Days Limited WarrantyAluminum Grip-Strut Walk Ramps with Handrails 96-3/4 In. x 39-3/8 In. 2800 Lb. Capacity SilverUniform Capacity with 4-wheel cart (lb.): 2,500
Uniform Capacity with 2-wheel cart (lb.): 1,650
108
AWR-G-38-9A AWR-G-38-9A90 Days Limited WarrantyAluminum Grip-Strut Walk Ramps 108-1/2 In. x 39-3/8 In. 2800 Lb. Capacity SilverUniform Capacity with 4-wheel cart (lb.): 2,500
Uniform Capacity with 2-wheel cart (lb.): 1,600
73
AWR-G-38-9A-HR AWR-G-38-9A-HR90 Days Limited WarrantyAluminum Grip-Strut Walk Ramps with Handrails 108-1/2 In. x 39-3/8 In. 2800 Lb. Capacity SilverUniform Capacity with 4-wheel cart (lb.): 2,500
Uniform Capacity with 2-wheel cart (lb.): 1,600
117

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

AWR-G-28-10A
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity with 4-wheel cart (lb.): 2,200
Uniform Capacity with 2-wheel cart (lb.): 1,500
Uniform Capacity with 4-wheel cart (lb.): 2,200
Uniform Capacity with 2-wheel cart (lb.): 1,500

AWR-G-28-10A-HR
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity with 4-wheel cart (lb.): 2,200
Uniform Capacity with 2-wheel cart (lb.): 1,500
Uniform Capacity with 4-wheel cart (lb.): 2,200
Uniform Capacity with 2-wheel cart (lb.): 1,500

AWR-G-28-12A
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity with 4-wheel cart (lb.): 1,900
Uniform Capacity with 2-wheel cart (lb.): 1,400
Uniform Capacity with 4-wheel cart (lb.): 1,900
Uniform Capacity with 2-wheel cart (lb.): 1,400

AWR-G-28-12A-HR
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity with 4-wheel cart (lb.): 1,900
Uniform Capacity with 2-wheel cart (lb.): 1,400
Uniform Capacity with 4-wheel cart (lb.): 1,900
Uniform Capacity with 2-wheel cart (lb.): 1,400

AWR-G-28-14A
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity with 4-wheel cart (lb.): 1,600
Uniform Capacity with 2-wheel cart (lb.): 1,200
Uniform Capacity with 4-wheel cart (lb.): 1,600
Uniform Capacity with 2-wheel cart (lb.): 1,200

AWR-G-28-14A-HR
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity with 4-wheel cart (lb.): 1,600
Uniform Capacity with 2-wheel cart (lb.): 1,200
Uniform Capacity with 4-wheel cart (lb.): 1,600
Uniform Capacity with 2-wheel cart (lb.): 1,200

AWR-G-28-16A
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity with 4-wheel cart (lb.): 1,000
Uniform Capacity with 2-wheel cart (lb.): 1,000
Uniform Capacity with 4-wheel cart (lb.): 1,000
Uniform Capacity with 2-wheel cart (lb.): 1,000

AWR-G-28-16A-HR
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity with 4-wheel cart (lb.): 1,000
Uniform Capacity with 2-wheel cart (lb.): 1,000
Uniform Capacity with 4-wheel cart (lb.): 1,000
Uniform Capacity with 2-wheel cart (lb.): 1,000

AWR-G-28-6A
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity with 4-wheel cart (lb.): 2,800
Uniform Capacity with 2-wheel cart (lb.): 2,000
Uniform Capacity with 4-wheel cart (lb.): 2,800
Uniform Capacity with 2-wheel cart (lb.): 2,000

AWR-G-28-6A-HR
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity with 4-wheel cart (lb.): 2,800
Uniform Capacity with 2-wheel cart (lb.): 2,000
Uniform Capacity with 4-wheel cart (lb.): 2,800
Uniform Capacity with 2-wheel cart (lb.): 2,000

AWR-G-28-7A
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity with 4-wheel cart (lb.): 2,800
Uniform Capacity with 2-wheel cart (lb.): 1,800
Uniform Capacity with 4-wheel cart (lb.): 2,800
Uniform Capacity with 2-wheel cart (lb.): 1,800

AWR-G-28-7A-HR
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity with 4-wheel cart (lb.): 2,800
Uniform Capacity with 2-wheel cart (lb.): 1,800
Uniform Capacity with 4-wheel cart (lb.): 2,800
Uniform Capacity with 2-wheel cart (lb.): 1,800

AWR-G-28-8A
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity with 4-wheel cart (lb.): 2,500
Uniform Capacity with 2-wheel cart (lb.): 1,650
Uniform Capacity with 4-wheel cart (lb.): 2,500
Uniform Capacity with 2-wheel cart (lb.): 1,650

AWR-G-28-8A-HR
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity with 4-wheel cart (lb.): 2,500
Uniform Capacity with 2-wheel cart (lb.): 1,650
Uniform Capacity with 4-wheel cart (lb.): 2,500
Uniform Capacity with 2-wheel cart (lb.): 1,650

AWR-G-28-9A
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity with 4-wheel cart (lb.): 2,500
Uniform Capacity with 2-wheel cart (lb.): 1,600
Uniform Capacity with 4-wheel cart (lb.): 2,500
Uniform Capacity with 2-wheel cart (lb.): 1,600

AWR-G-28-9A-HR
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity with 4-wheel cart (lb.): 2,500
Uniform Capacity with 2-wheel cart (lb.): 1,600
Uniform Capacity with 4-wheel cart (lb.): 2,500
Uniform Capacity with 2-wheel cart (lb.): 1,600

AWR-G-36-ESR-12A
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity with 4-wheel cart (lb.): 1800
Uniform Capacity with 2-wheel cart (lb.): 1400
Uniform Capacity with 4-wheel cart (lb.): 1800
Uniform Capacity with 2-wheel cart (lb.): 1400

AWR-G-38-10A
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity with 4-wheel cart (lb.): 2,200
Uniform Capacity with 2-wheel cart (lb.): 1,500
Uniform Capacity with 4-wheel cart (lb.): 2,200
Uniform Capacity with 2-wheel cart (lb.): 1,500

AWR-G-38-10A-HR
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity with 4-wheel cart (lb.): 2,200
Uniform Capacity with 2-wheel cart (lb.): 1,500
Uniform Capacity with 4-wheel cart (lb.): 2,200
Uniform Capacity with 2-wheel cart (lb.): 1,500

AWR-G-38-12A
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity with 4-wheel cart (lb.): 1,900
Uniform Capacity with 2-wheel cart (lb.): 1,400
Uniform Capacity with 4-wheel cart (lb.): 1,900
Uniform Capacity with 2-wheel cart (lb.): 1,400

AWR-G-38-12A-HR
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity with 4-wheel cart (lb.): 1,900
Uniform Capacity with 2-wheel cart (lb.): 1,400
Uniform Capacity with 4-wheel cart (lb.): 1,900
Uniform Capacity with 2-wheel cart (lb.): 1,400

AWR-G-38-14A
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity with 4-wheel cart (lb.): 1,600
Uniform Capacity with 2-wheel cart (lb.): 1,200
Uniform Capacity with 4-wheel cart (lb.): 1,600
Uniform Capacity with 2-wheel cart (lb.): 1,200

AWR-G-38-14A-HR
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity with 4-wheel cart (lb.): 1,600
Uniform Capacity with 2-wheel cart (lb.): 1,200
Uniform Capacity with 4-wheel cart (lb.): 1,600
Uniform Capacity with 2-wheel cart (lb.): 1,200

AWR-G-38-16A
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity with 4-wheel cart (lb.): 1,000
Uniform Capacity with 2-wheel cart (lb.): 1,000
Uniform Capacity with 4-wheel cart (lb.): 1,000
Uniform Capacity with 2-wheel cart (lb.): 1,000

AWR-G-38-16A-HR
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity with 4-wheel cart (lb.): 1,000
Uniform Capacity with 2-wheel cart (lb.): 1,000
Uniform Capacity with 4-wheel cart (lb.): 1,000
Uniform Capacity with 2-wheel cart (lb.): 1,000

AWR-G-38-6A
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity with 4-wheel cart (lb.): 2,800
Uniform Capacity with 2-wheel cart (lb.): 2,000
Uniform Capacity with 4-wheel cart (lb.): 2,800
Uniform Capacity with 2-wheel cart (lb.): 2,000

AWR-G-38-6A-HR
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity with 4-wheel cart (lb.): 2,800
Uniform Capacity with 2-wheel cart (lb.): 2,000
Uniform Capacity with 4-wheel cart (lb.): 2,800
Uniform Capacity with 2-wheel cart (lb.): 2,000

AWR-G-38-7A
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity with 4-wheel cart (lb.): 2,800
Uniform Capacity with 2-wheel cart (lb.): 1,800
Uniform Capacity with 4-wheel cart (lb.): 2,800
Uniform Capacity with 2-wheel cart (lb.): 1,800

AWR-G-38-7A-HR
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity with 4-wheel cart (lb.): 2,800
Uniform Capacity with 2-wheel cart (lb.): 1,800
Uniform Capacity with 4-wheel cart (lb.): 2,800
Uniform Capacity with 2-wheel cart (lb.): 1,800

AWR-G-38-8A
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity with 4-wheel cart (lb.): 2,500
Uniform Capacity with 2-wheel cart (lb.): 1,650
Uniform Capacity with 4-wheel cart (lb.): 2,500
Uniform Capacity with 2-wheel cart (lb.): 1,650

AWR-G-38-8A-HR
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity with 4-wheel cart (lb.): 2,500
Uniform Capacity with 2-wheel cart (lb.): 1,650
Uniform Capacity with 4-wheel cart (lb.): 2,500
Uniform Capacity with 2-wheel cart (lb.): 1,650

AWR-G-38-9A
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity with 4-wheel cart (lb.): 2,500
Uniform Capacity with 2-wheel cart (lb.): 1,600
Uniform Capacity with 4-wheel cart (lb.): 2,500
Uniform Capacity with 2-wheel cart (lb.): 1,600

AWR-G-38-9A-HR
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity with 4-wheel cart (lb.): 2,500
Uniform Capacity with 2-wheel cart (lb.): 1,600
Uniform Capacity with 4-wheel cart (lb.): 2,500
Uniform Capacity with 2-wheel cart (lb.): 1,600
For More Details of the Option Click the Red Model Button
AWR-G-18-ESR-12A-EXT AWR-G-18-ESR-12A-EXT90 Days Limited WarrantyFactory Installed Aluminum Grip Ramp Extension 16-11/16 In. Width 1800 Lb. Capacity For AWR-G-36-ESR-12A SilverUniform Capacity with 4-wheel cart (lb.): 1800
Uniform Capacity with 2-wheel cart (lb.): 1400
64
Model Image Description
Walk Ramp Handrails Aluminum Bolt On Handrail For Aluminum Walk Ramps Retro Fit Silver
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above

Aluminum Grip-Strut Walk Ramps PDF's will open in a new window when clicked.

Manuals


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


AWR-G-18-ESR-12A-EXT

AWR-G-28-10A

AWR-G-28-10A-HR

AWR-G-28-12A

AWR-G-28-12A-HR

AWR-G-28-14A

AWR-G-28-14A-HR

AWR-G-28-16A

AWR-G-28-16A-HR

AWR-G-28-6A

AWR-G-28-6A-HR

AWR-G-28-7A

AWR-G-28-7A-HR

AWR-G-28-8A

AWR-G-28-8A-HR

AWR-G-28-9A

AWR-G-28-9A-HR

AWR-G-36-ESR-12A

AWR-G-38-10A

AWR-G-38-10A-HR

AWR-G-38-12A

AWR-G-38-12A-HR

AWR-G-38-14A

AWR-G-38-14A-HR

AWR-G-38-16A

AWR-G-38-16A-HR

AWR-G-38-6A

AWR-G-38-6A-HR

AWR-G-38-7A

AWR-G-38-7A-HR

AWR-G-38-8A

AWR-G-38-8A-HR

AWR-G-38-9A

AWR-G-38-9A-HR

SDS Sheets

No SDS Sheets For This Product

Other PDF's


Directory Links Of Available PDF's For All Products

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Aluminum Grip-Strut Walk Ramps




Load and unload trucks when docks are unavailable. The open deck design allows snow, ice, and water to fall through ramp providing a positive grip for delivery personnel, shippers, and receivers. One hundred percent welded aluminum construction is lightweight and will not rust. Ramps feature a 2" high safety curb on each side. Overlap style end lip rests on the trailer bed to provide a smooth transition. Each unit includes two (2) safety chains to connect the ramp to the trailer for safety. Not for pallet trucks or three-wheeled carts.

Aluminum Grip-Strut Walk Ramps with Handrail, offer the same durable ramp as above with more stability and security. Railing sections are 40-1/4" high with a 18-7/16" mid-rail. Handrails are bolted onto the aluminum walk ramps. Handrail may be attached to one side or both sides of ramp. Installation brackets and hardware included. Handrails are included for both sides of the ramp.



Model # Description Attributes Net Wt.
(lbs)
AWR-G-28-10A AWR-G-28-10AAluminum Grip-Strut Walk Ramps 120-1/4 In. x 29-3/8 In. 2200 Lb. Capacity SilverUniform Capacity with 4-wheel cart (lb.): 2,200
Uniform Capacity with 2-wheel cart (lb.): 1,500
118
AWR-G-28-10A-HR AWR-G-28-10A-HRAluminum Grip-Strut Walk Ramps with Handrails 120-1/4 In. x 29-3/8 In. 2200 Lb. Capacity SilverUniform Capacity with 4-wheel cart (lb.): 2,200
Uniform Capacity with 2-wheel cart (lb.): 1,500
166
AWR-G-28-12A AWR-G-28-12AAluminum Grip-Strut Walk Ramps 143-3/4 In. x 29-3/8 In. 1900 Lb. Capacity SilverUniform Capacity with 4-wheel cart (lb.): 1,900
Uniform Capacity with 2-wheel cart (lb.): 1,400
129
AWR-G-28-12A-HR AWR-G-28-12A-HRAluminum Grip-Strut Walk Ramps with Handrails 143-3/4 In. x 29-3/8 In. 1900 Lb. Capacity SilverUniform Capacity with 4-wheel cart (lb.): 1,900
Uniform Capacity with 2-wheel cart (lb.): 1,400
153
AWR-G-28-14A AWR-G-28-14AAluminum Grip-Strut Walk Ramps 167-1/4 In. x 29-3/8 In. 1600 Lb. Capacity SilverUniform Capacity with 4-wheel cart (lb.): 1,600
Uniform Capacity with 2-wheel cart (lb.): 1,200
89
AWR-G-28-14A-HR AWR-G-28-14A-HRAluminum Grip-Strut Walk Ramps with Handrails 167-1/4 In. x 29-3/8 In. 1600 Lb. Capacity SilverUniform Capacity with 4-wheel cart (lb.): 1,600
Uniform Capacity with 2-wheel cart (lb.): 1,200
173
AWR-G-28-16A AWR-G-28-16AAluminum Grip-Strut Walk Ramps 190-3/4 In. x 29-3/8 In. 1000 Lb. Capacity SilverUniform Capacity with 4-wheel cart (lb.): 1,000
Uniform Capacity with 2-wheel cart (lb.): 1,000
122
AWR-G-28-16A-HR AWR-G-28-16A-HRAluminum Grip-Strut Walk Ramps with Handrails 190-3/4 In. x 29-3/8 In. 1000 Lb. Capacity SilverUniform Capacity with 4-wheel cart (lb.): 1,000
Uniform Capacity with 2-wheel cart (lb.): 1,000
210
AWR-G-28-6A AWR-G-28-6AAluminum Grip-Strut Walk Ramps 73-1/4 In. x 29-3/8 In. 2800 Lb. Capacity SilverUniform Capacity with 4-wheel cart (lb.): 2,800
Uniform Capacity with 2-wheel cart (lb.): 2,000
41
AWR-G-28-6A-HR AWR-G-28-6A-HRAluminum Grip-Strut Walk Ramps with Handrails 73-1/4 In. x 29-3/8 In. 2800 Lb. Capacity SilverUniform Capacity with 4-wheel cart (lb.): 2,800
Uniform Capacity with 2-wheel cart (lb.): 2,000
77
AWR-G-28-7A AWR-G-28-7AAluminum Grip-Strut Walk Ramps 85 In. x 29-3/8 In. 2800 Lb. Capacity SilverUniform Capacity with 4-wheel cart (lb.): 2,800
Uniform Capacity with 2-wheel cart (lb.): 1,800
59
AWR-G-28-7A-HR AWR-G-28-7A-HRAluminum Grip-Strut Walk Ramps with Handrails 85 In. x 29-3/8 In. 2800 Lb. Capacity SilverUniform Capacity with 4-wheel cart (lb.): 2,800
Uniform Capacity with 2-wheel cart (lb.): 1,800
97
AWR-G-28-8A AWR-G-28-8AAluminum Grip-Strut Walk Ramps 96-3/4 In. x 29-3/8 In. 2800 Lb. Capacity SilverUniform Capacity with 4-wheel cart (lb.): 2,500
Uniform Capacity with 2-wheel cart (lb.): 1,650
61
AWR-G-28-8A-HR AWR-G-28-8A-HRAluminum Grip-Strut Walk Ramps with Handrails 96-3/4 In. x 29-3/8 In. 2800 Lb. Capacity SilverUniform Capacity with 4-wheel cart (lb.): 2,500
Uniform Capacity with 2-wheel cart (lb.): 1,650
103
AWR-G-28-9A AWR-G-28-9AAluminum Grip-Strut Walk Ramps 108-1/2 In. x 29-3/8 In. 2800 Lb. Capacity SilverUniform Capacity with 4-wheel cart (lb.): 2,500
Uniform Capacity with 2-wheel cart (lb.): 1,600
63
AWR-G-28-9A-HR AWR-G-28-9A-HRAluminum Grip-Strut Walk Ramps with Handrails 108-1/2 In. x 29-3/8 In. 2800 Lb. Capacity SilverUniform Capacity with 4-wheel cart (lb.): 2,500
Uniform Capacity with 2-wheel cart (lb.): 1,600
107
AWR-G-36-ESR-12A AWR-G-36-ESR-12AAluminum Split Grip Ramp 143-3/4 In. x 35-7/8 In. x 6-9/16 In. 1800 Lb. Capacity SilverUniform Capacity with 4-wheel cart (lb.): 1800
Uniform Capacity with 2-wheel cart (lb.): 1400
265
AWR-G-38-10A AWR-G-38-10AAluminum Grip-Strut Walk Ramps 120-1/4 In. x 39-3/8 In. 2200 Lb. Capacity SilverUniform Capacity with 4-wheel cart (lb.): 2,200
Uniform Capacity with 2-wheel cart (lb.): 1,500
80
AWR-G-38-10A-HR AWR-G-38-10A-HRAluminum Grip-Strut Walk Ramps with Handrails 120-1/4 In. x 39-3/8 In. 2200 Lb. Capacity SilverUniform Capacity with 4-wheel cart (lb.): 2,200
Uniform Capacity with 2-wheel cart (lb.): 1,500
128
AWR-G-38-12A AWR-G-38-12AAluminum Grip-Strut Walk Ramps 143-3/4 In. x 39-3/8 In. 1900 Lb. Capacity SilverUniform Capacity with 4-wheel cart (lb.): 1,900
Uniform Capacity with 2-wheel cart (lb.): 1,400
94
AWR-G-38-12A-HR AWR-G-38-12A-HRAluminum Grip-Strut Walk Ramps with Handrails 143-3/4 In. x 39-3/8 In. 1900 Lb. Capacity SilverUniform Capacity with 4-wheel cart (lb.): 1,900
Uniform Capacity with 2-wheel cart (lb.): 1,400
170
AWR-G-38-14A AWR-G-38-14AAluminum Grip-Strut Walk Ramps 167-1/4 In. x 39-3/8 In. 1600 Lb. Capacity SilverUniform Capacity with 4-wheel cart (lb.): 1,600
Uniform Capacity with 2-wheel cart (lb.): 1,200
123
AWR-G-38-14A-HR AWR-G-38-14A-HRAluminum Grip-Strut Walk Ramps with Handrails 167-1/4 In. x 39-3/8 In. 1600 Lb. Capacity SilverUniform Capacity with 4-wheel cart (lb.): 1,600
Uniform Capacity with 2-wheel cart (lb.): 1,200
207
AWR-G-38-16A AWR-G-38-16AAluminum Grip-Strut Walk Ramps 190-3/4 In. x 39-3/8 In. 1000 Lb. Capacity SilverUniform Capacity with 4-wheel cart (lb.): 1,000
Uniform Capacity with 2-wheel cart (lb.): 1,000
232
AWR-G-38-16A-HR AWR-G-38-16A-HRAluminum Grip-Strut Walk Ramps with Handrails 190-3/4 In. x 39-3/8 In. 1000 Lb. Capacity SilverUniform Capacity with 4-wheel cart (lb.): 1,000
Uniform Capacity with 2-wheel cart (lb.): 1,000
230
AWR-G-38-6A AWR-G-38-6AAluminum Grip-Strut Walk Ramps 73-1/4 In. x 39-3/8 In. 2800 Lb. Capacity SilverUniform Capacity with 4-wheel cart (lb.): 2,800
Uniform Capacity with 2-wheel cart (lb.): 2,000
55
AWR-G-38-6A-HR AWR-G-38-6A-HRAluminum Grip-Strut Walk Ramps with Handrails 73-1/4 In. x 39-3/8 In. 2800 Lb. Capacity SilverUniform Capacity with 4-wheel cart (lb.): 2,800
Uniform Capacity with 2-wheel cart (lb.): 2,000
91
AWR-G-38-7A AWR-G-38-7AAluminum Grip-Strut Walk Ramps 85 In. x 39-3/8 In. 2800 Lb. Capacity SilverUniform Capacity with 4-wheel cart (lb.): 2,800
Uniform Capacity with 2-wheel cart (lb.): 1,800
59
AWR-G-38-7A-HR AWR-G-38-7A-HRAluminum Grip-Strut Walk Ramps with Handrails 85 In. x 39-3/8 In. 2800 Lb. Capacity SilverUniform Capacity with 4-wheel cart (lb.): 2,800
Uniform Capacity with 2-wheel cart (lb.): 1,800
97
AWR-G-38-8A AWR-G-38-8AAluminum Grip-Strut Walk Ramps 96-3/4 In. x 39-3/8 In. 2800 Lb. Capacity SilverUniform Capacity with 4-wheel cart (lb.): 2,500
Uniform Capacity with 2-wheel cart (lb.): 1,650
66
AWR-G-38-8A-HR AWR-G-38-8A-HRAluminum Grip-Strut Walk Ramps with Handrails 96-3/4 In. x 39-3/8 In. 2800 Lb. Capacity SilverUniform Capacity with 4-wheel cart (lb.): 2,500
Uniform Capacity with 2-wheel cart (lb.): 1,650
108
AWR-G-38-9A AWR-G-38-9AAluminum Grip-Strut Walk Ramps 108-1/2 In. x 39-3/8 In. 2800 Lb. Capacity SilverUniform Capacity with 4-wheel cart (lb.): 2,500
Uniform Capacity with 2-wheel cart (lb.): 1,600
73
AWR-G-38-9A-HR AWR-G-38-9A-HRAluminum Grip-Strut Walk Ramps with Handrails 108-1/2 In. x 39-3/8 In. 2800 Lb. Capacity SilverUniform Capacity with 4-wheel cart (lb.): 2,500
Uniform Capacity with 2-wheel cart (lb.): 1,600
117

Options


Model Image Description
Walk Ramp Handrails Aluminum Bolt On Handrail For Aluminum Walk Ramps Retro Fit Silver

Our Customer Service Associates Are Here To Assist You!
Call Vestil At 260-665-7586 Or info@vestil.com
