Aluminum Vehicle Twin Ramps

- - - -

Description
Model Chart
PDF's
Image Gallery

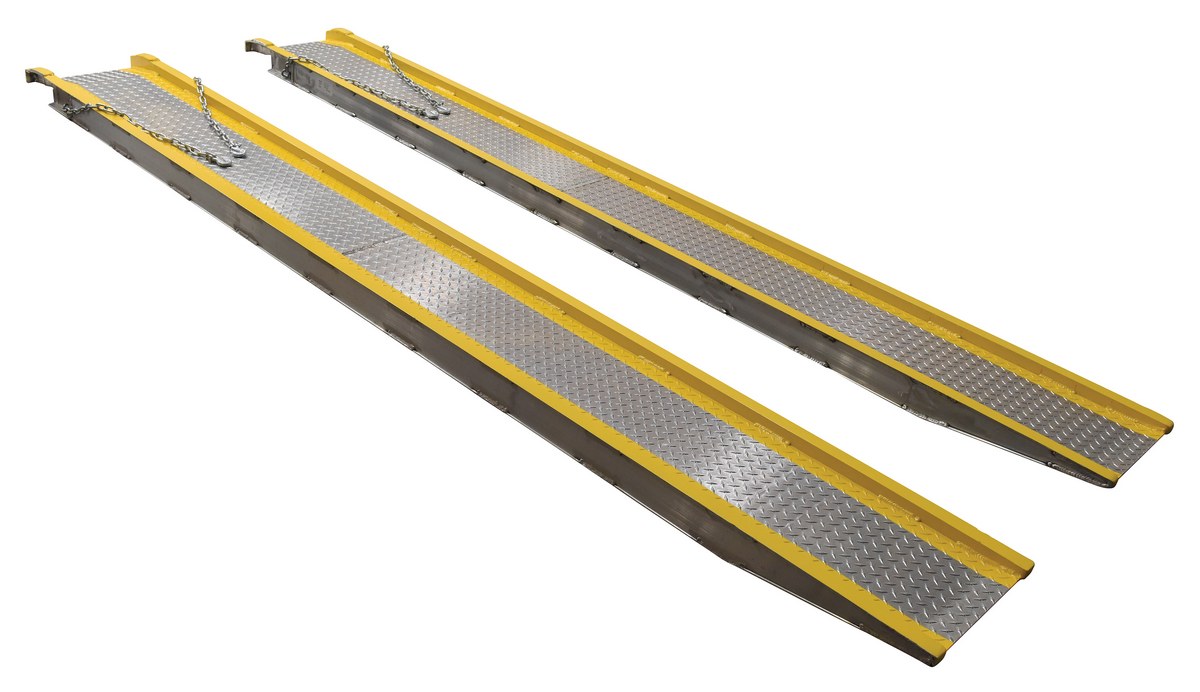

VTR-7-14-12_A.jpg VTR-7-14-12_B.jpg VTR-7-14-12_C.jpg VTR-7-14-12_D.jpg

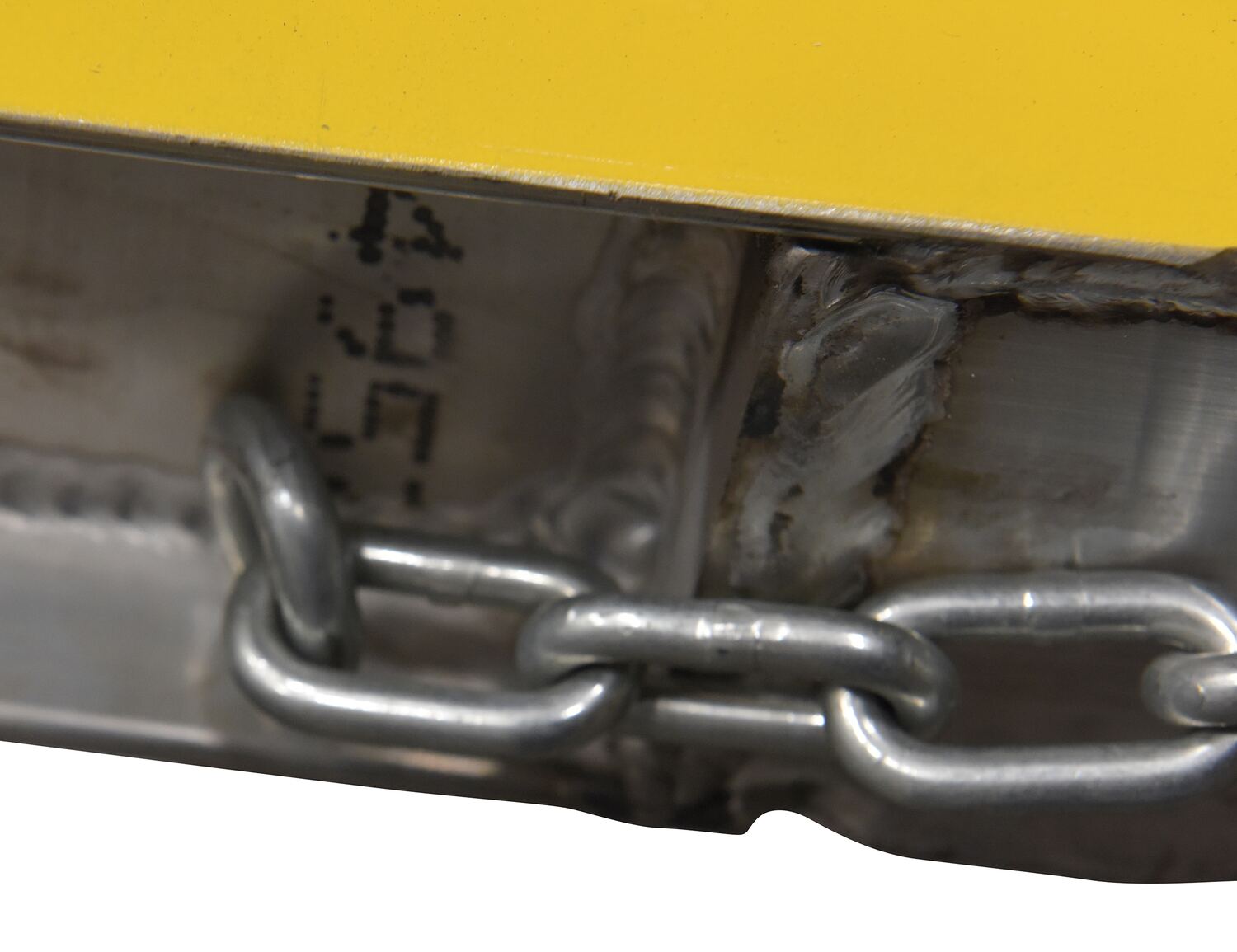

VTR-7-14-12_E.jpg VTR-7-14-12_F.jpg

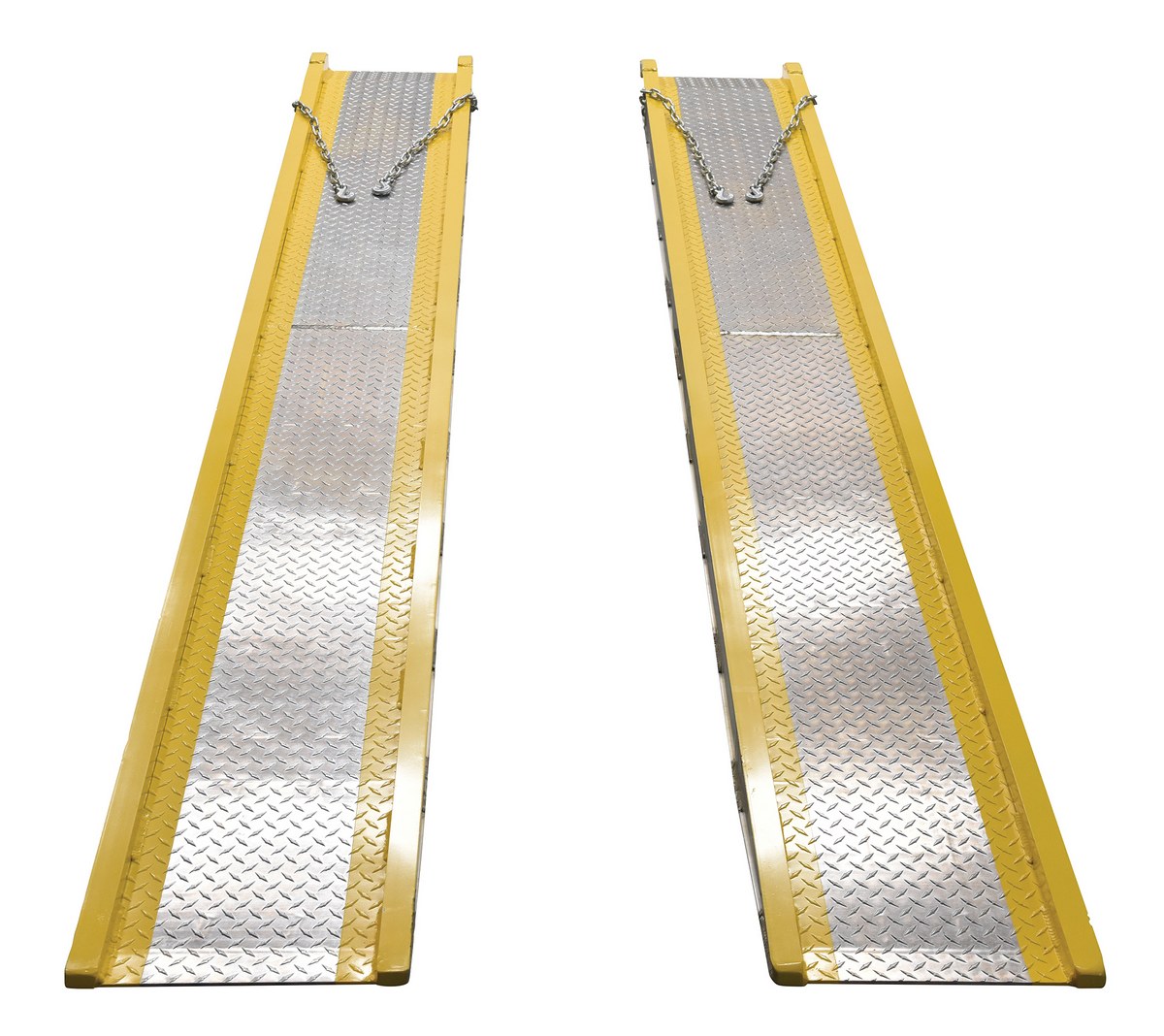

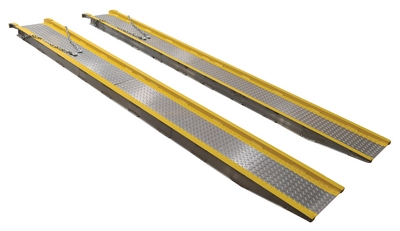

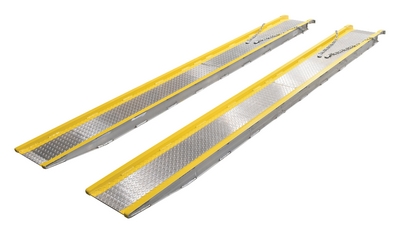

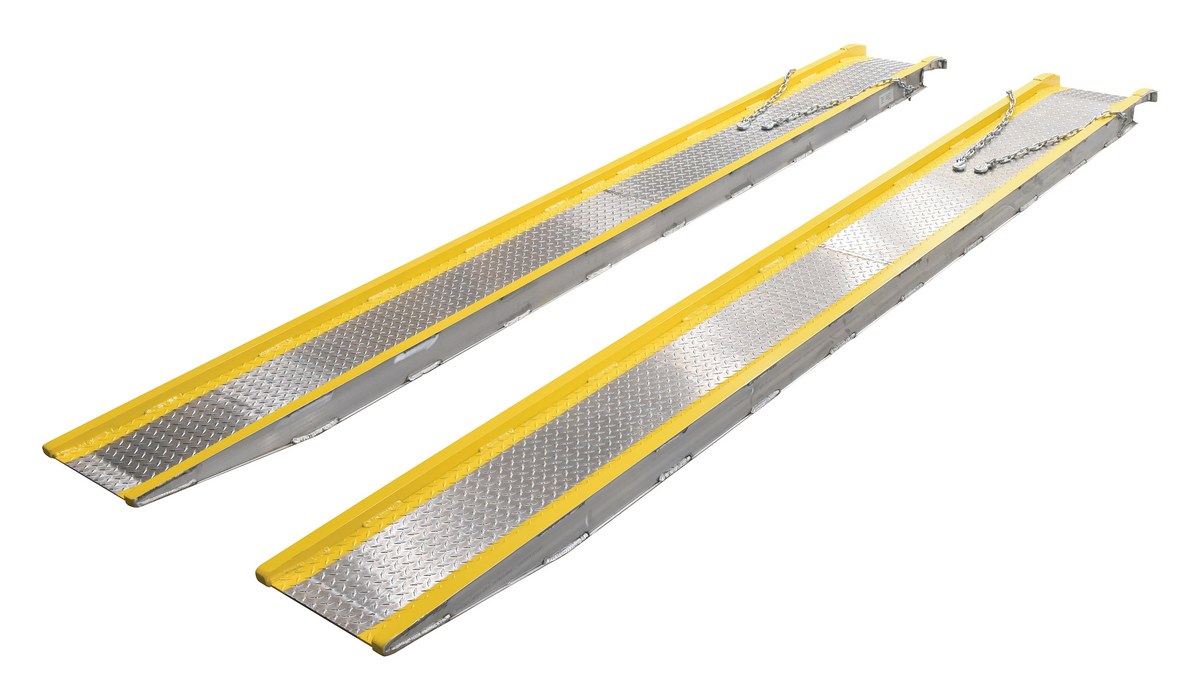

Aluminum Vehicle Twin Ramps

model: VTR-7-14-12



Featured Loading Dock Equipment


Specialty Molded Dock Bumpers
Fiberglass Autoloader Ramps
Retractable Dock Shelter
Shelter Guard Posts
LED Dock Loading Lights
Dock Leveler Insulation Blanket
Clearance Bars
Dock Chain Bollard Barrier Systems
Docklevelers
model chart

Product Family Overview

Print Friendly
Aluminum Vehicle Twin Ramps
SERIES: VTR

Provide a safe means for driving vans, pick-up trucks and some passenger vehicles from ground level into and out of high building entrances. Ramps can be securely fastened to dock with w/ chains (34") attached to ramps with hook on the end. To avoid hang-ups measure under clearance and wheelbase of vehicle. The usable width is 14". Side curbs are 1-1/4" high. Welded aluminum construction. Models are sold in pairs.

  • 5,500 lb to 7,000 lb capacity available
  • 1-1/4" high steel curbs help keep wheels centered on ramps

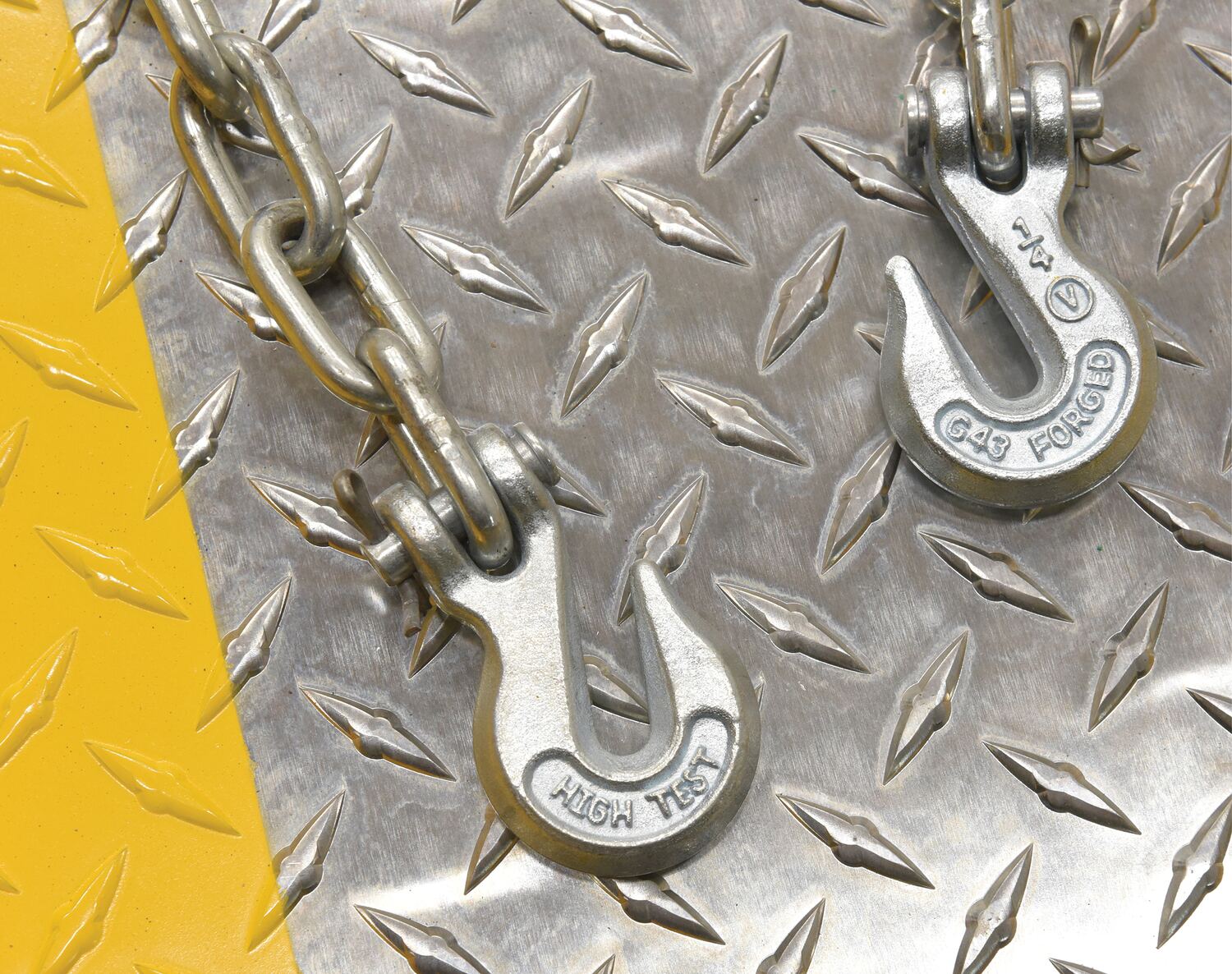

  • Hooks and chains are included to stabilize ramps when in use

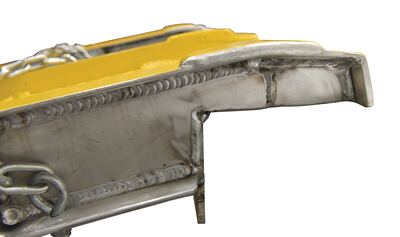

  • Constructed of robust welded aluminum tread plate for maximum strength and durability

Provide a safe means for driving vans, pick-up trucks and some passenger vehicles from ground level into and out of high building entrances. Ramps can be securely fastened to dock with w/ chains (34") attached to ramps with hook on the end. To avoid hang-ups measure under clearance and wheelbase of vehicle. The usable width is 14". Side curbs are 1-1/4" high. Welded aluminum construction. Models are sold in pairs.

  • 5,500 lb to 7,000 lb capacity available
  • 1-1/4" high steel curbs help keep wheels centered on ramps
  • Hooks and chains are included to stabilize ramps when in use
  • Constructed of robust welded aluminum tread plate for maximum strength and durability

Other Walk & Service Ramps

 Aluminum Grip-Strut Walk Ramps Heavy-Duty Fiberglass Walk Ramps Folding Ramp Steel Container Ramps with Side Rails

Additional Models In This Family
view entire Image Gallery

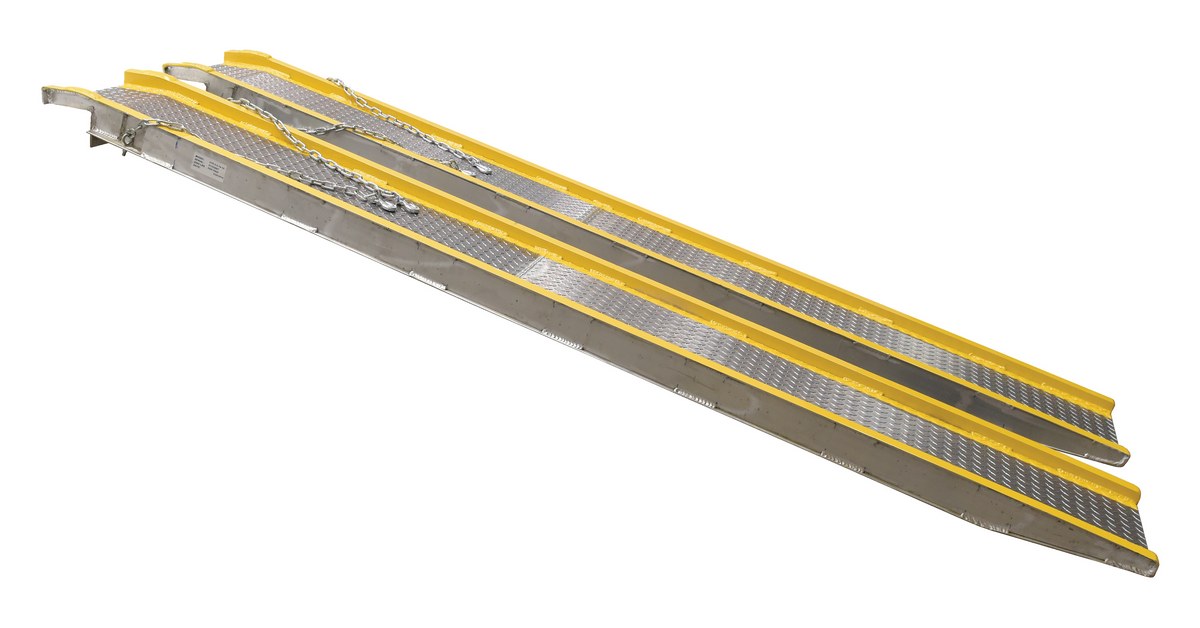

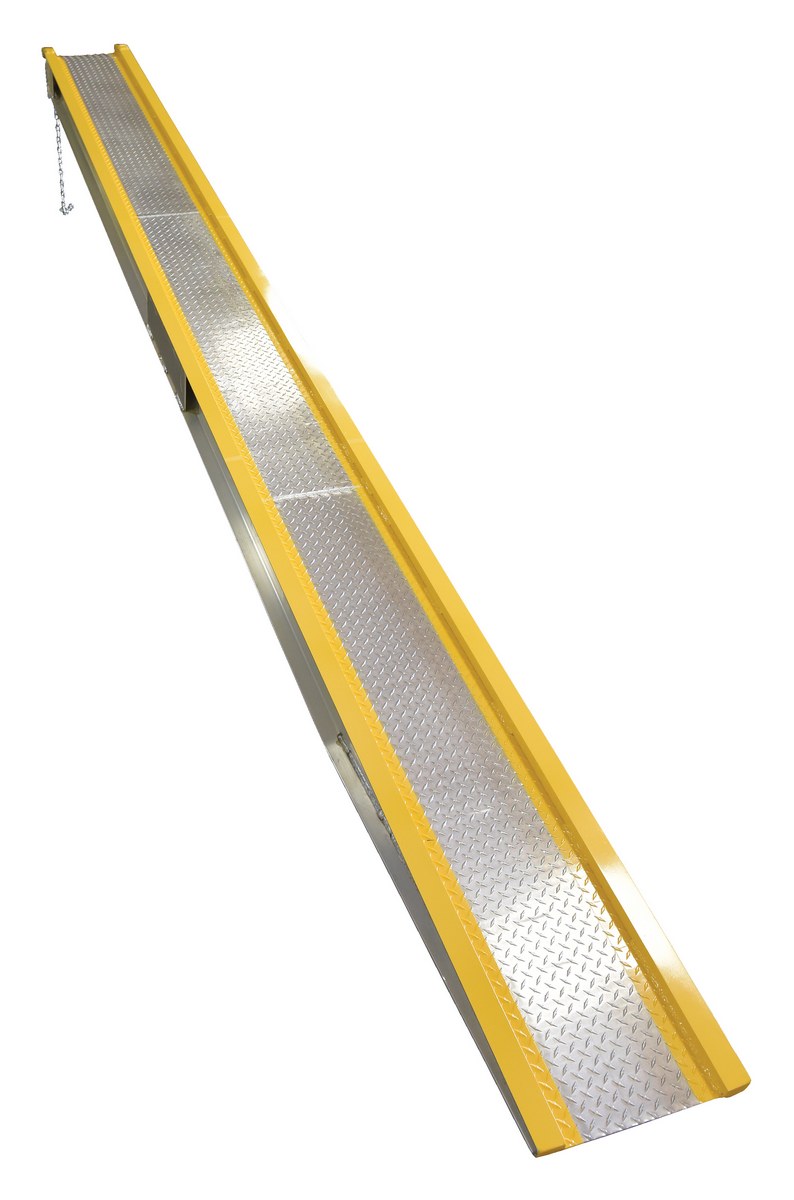

VTR-5.5-14-20

model VTR-5.5-14-20

VTR-5.5-14-10

model VTR-5.5-14-10

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
VTR-5.5-14-10
VTR-5.5-14-1090 Days Limited WarrantyPortable Aluminum Twin Vehicle Ramp 120 In. x 18 In. 5,500 Lb. Capacity SilverUniform Capacity Per Pair (lb.): 5500
Working Height Minimum (in.): 16		382
VTR-5.5-14-16
VTR-5.5-14-1690 Days Limited WarrantyPortable Aluminum Twin Vehicle Ramp 192 In. x 18 In. 5,500 Lb. Capacity SilverUniform Capacity Per Pair (lb.): 5500
Working Height Minimum (in.): 25-1/2		586
VTR-5.5-14-20
VTR-5.5-14-2090 Days Limited WarrantyPortable Aluminum Twin Vehicle Ramp 240 In. x 18 In. 5,500 Lb. Capacity SilverUniform Capacity Per Pair (lb.): 5500
Working Height Minimum (in.): 32-1/2		889
VTR-5.5-14-24
VTR-5.5-14-2490 Days Limited WarrantyPortable Aluminum Twin Vehicle Ramp 288 In. x 18 In. 5,500 Lb. Capacity SilverUniform Capacity Per Pair (lb.): 5500
Working Height Minimum (in.): 39		1083
VTR-6-14-14
VTR-6-14-1490 Days Limited WarrantyPortable Aluminum Twin Vehicle Ramp 168 In. x 18 In. 6,000 Lb. Capacity SilverUniform Capacity Per Pair (lb.): 6000
Working Height Minimum (in.): 22-1/2		487
VTR-6-14-18
VTR-6-14-1890 Days Limited WarrantyPortable Aluminum Twin Vehicle Ramp 216 In. x 18 In. 6,000 Lb. Capacity SilverUniform Capacity Per Pair (lb.): 6000
Working Height Minimum (in.): 29		801
VTR-7-14-12
VTR-7-14-1290 Days Limited WarrantyPortable Aluminum Twin Vehicle Ramp 144 In. x 18 In. 7,000 Lb. Capacity SilverUniform Capacity Per Pair (lb.): 7000
Working Height Minimum (in.): 19		417
VTR-7-14-8
VTR-7-14-890 Days Limited WarrantyPortable Aluminum Twin Vehicle Ramp 96 In. x 18 In. 7,000 Lb. Capacity SilverUniform Capacity Per Pair (lb.): 7000
Working Height Minimum (in.): 12-1/2		226

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

VTR-5.5-14-10
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Pair (lb.): 5500
Working Height Minimum (in.): 16
Uniform Capacity Per Pair (lb.): 5500
Working Height Minimum (in.): 16

VTR-5.5-14-16
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Pair (lb.): 5500
Working Height Minimum (in.): 25-1/2
Uniform Capacity Per Pair (lb.): 5500
Working Height Minimum (in.): 25-1/2

VTR-5.5-14-20
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Pair (lb.): 5500
Working Height Minimum (in.): 32-1/2
Uniform Capacity Per Pair (lb.): 5500
Working Height Minimum (in.): 32-1/2

VTR-5.5-14-24
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Pair (lb.): 5500
Working Height Minimum (in.): 39
Uniform Capacity Per Pair (lb.): 5500
Working Height Minimum (in.): 39

VTR-6-14-14
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Pair (lb.): 6000
Working Height Minimum (in.): 22-1/2
Uniform Capacity Per Pair (lb.): 6000
Working Height Minimum (in.): 22-1/2

VTR-6-14-18
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Pair (lb.): 6000
Working Height Minimum (in.): 29
Uniform Capacity Per Pair (lb.): 6000
Working Height Minimum (in.): 29

VTR-7-14-12
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Pair (lb.): 7000
Working Height Minimum (in.): 19
Uniform Capacity Per Pair (lb.): 7000
Working Height Minimum (in.): 19

VTR-7-14-8
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Pair (lb.): 7000
Working Height Minimum (in.): 12-1/2
Uniform Capacity Per Pair (lb.): 7000
Working Height Minimum (in.): 12-1/2
Aluminum Vehicle Twin Ramps PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings


VTR-5.5-14-10

VTR-5.5-14-16

VTR-5.5-14-20

VTR-6-14-14

VTR-6-14-18

VTR-7-14-12

VTR-7-14-8

Testing Certificates


VTR-5.5-14-10

VTR-5.5-14-16

VTR-5.5-14-20

VTR-5.5-14-24

VTR-6-14-14

VTR-6-14-18

VTR-7-14-12

VTR-7-14-8

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets

Related or Similar Products:

Fiberglass Autoloader Ramps
Product

Fiberglass Autoloader Ramps

Heavy-Duty Fiberglass Walk Ramps
Product

Heavy-Duty Fiberglass Walk Ramps

Aluminum Truck Mounted Walk Ramps
Product

Aluminum Truck Mounted Walk Ramps

Aluminum Pick-Up/Van Ramp
Product

Aluminum Pick-Up/Van Ramp

Folding Ramp
Product

Folding Ramp

Steel Pick-Up/Van Ramps
Product

Steel Pick-Up/Van Ramps

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Aluminum Vehicle Twin Ramps




Provide a safe means for driving vans, pick-up trucks and some passenger vehicles from ground level into and out of high building entrances. Ramps can be securely fastened to dock with w/ chains (34") attached to ramps with hook on the end. To avoid hang-ups measure under clearance and wheelbase of vehicle. The usable width is 14". Side curbs are 1-1/4" high. Welded aluminum construction. Models are sold in pairs.

  • 5,500 lb to 7,000 lb capacity available
  • 1-1/4" high steel curbs help keep wheels centered on ramps
  • Hooks and chains are included to stabilize ramps when in use
  • Constructed of robust welded aluminum tread plate for maximum strength and durability

Model # Description Attributes Net Wt.
(lbs)
VTR-5.5-14-10 VTR-5.5-14-10Portable Aluminum Twin Vehicle Ramp 120 In. x 18 In. 5,500 Lb. Capacity SilverUniform Capacity Per Pair (lb.): 5500
Working Height Minimum (in.): 16		382
VTR-5.5-14-16 VTR-5.5-14-16Portable Aluminum Twin Vehicle Ramp 192 In. x 18 In. 5,500 Lb. Capacity SilverUniform Capacity Per Pair (lb.): 5500
Working Height Minimum (in.): 25-1/2		586
VTR-5.5-14-20 VTR-5.5-14-20Portable Aluminum Twin Vehicle Ramp 240 In. x 18 In. 5,500 Lb. Capacity SilverUniform Capacity Per Pair (lb.): 5500
Working Height Minimum (in.): 32-1/2		889
VTR-5.5-14-24 VTR-5.5-14-24Portable Aluminum Twin Vehicle Ramp 288 In. x 18 In. 5,500 Lb. Capacity SilverUniform Capacity Per Pair (lb.): 5500
Working Height Minimum (in.): 39		1083
VTR-6-14-14 VTR-6-14-14Portable Aluminum Twin Vehicle Ramp 168 In. x 18 In. 6,000 Lb. Capacity SilverUniform Capacity Per Pair (lb.): 6000
Working Height Minimum (in.): 22-1/2		487
VTR-6-14-18 VTR-6-14-18Portable Aluminum Twin Vehicle Ramp 216 In. x 18 In. 6,000 Lb. Capacity SilverUniform Capacity Per Pair (lb.): 6000
Working Height Minimum (in.): 29		801
VTR-7-14-12 VTR-7-14-12Portable Aluminum Twin Vehicle Ramp 144 In. x 18 In. 7,000 Lb. Capacity SilverUniform Capacity Per Pair (lb.): 7000
Working Height Minimum (in.): 19		417
VTR-7-14-8 VTR-7-14-8Portable Aluminum Twin Vehicle Ramp 96 In. x 18 In. 7,000 Lb. Capacity SilverUniform Capacity Per Pair (lb.): 7000
Working Height Minimum (in.): 12-1/2		226
