Product Family Overview


Aluminum Pallets & Skids
SERIES: AP

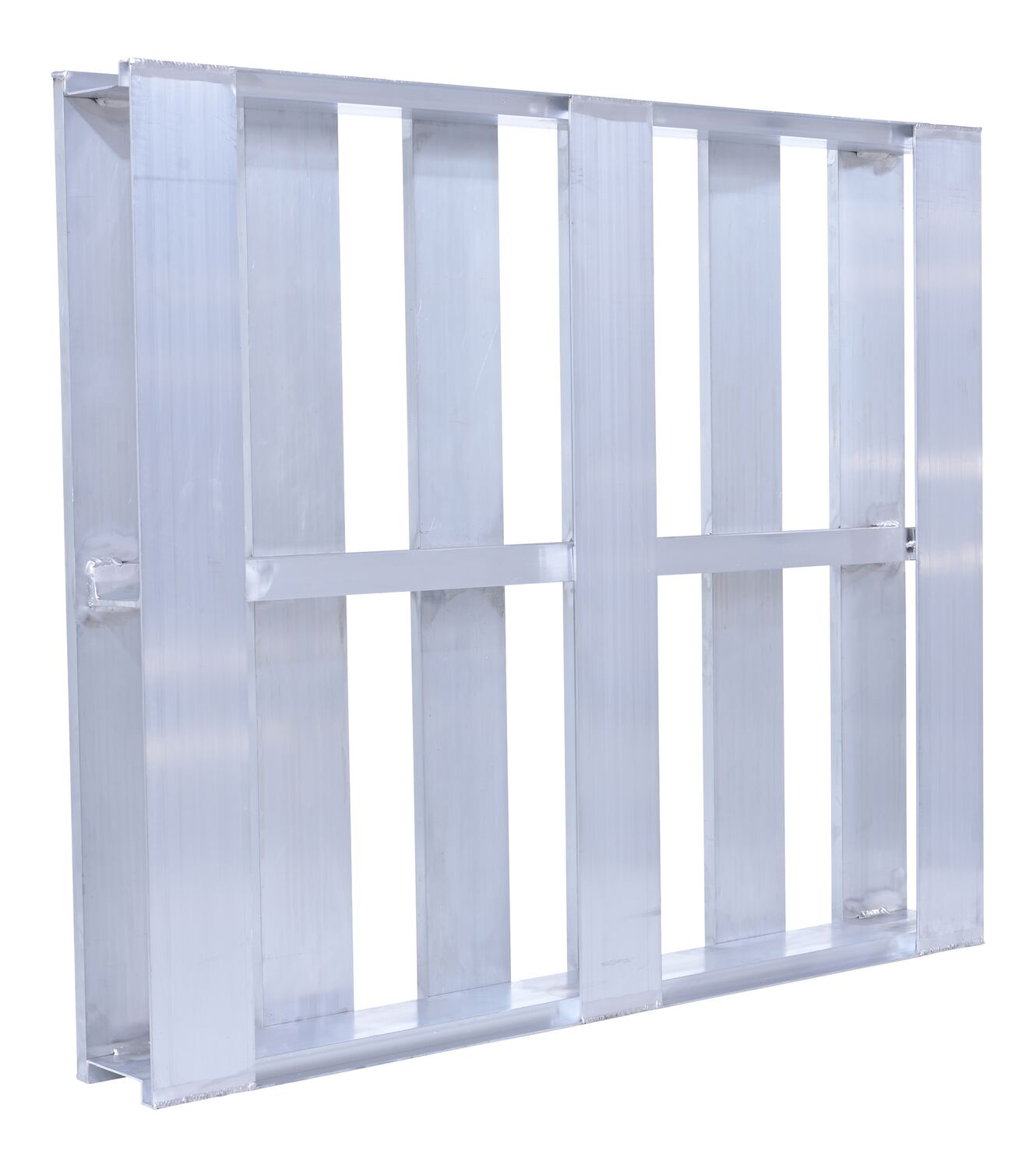

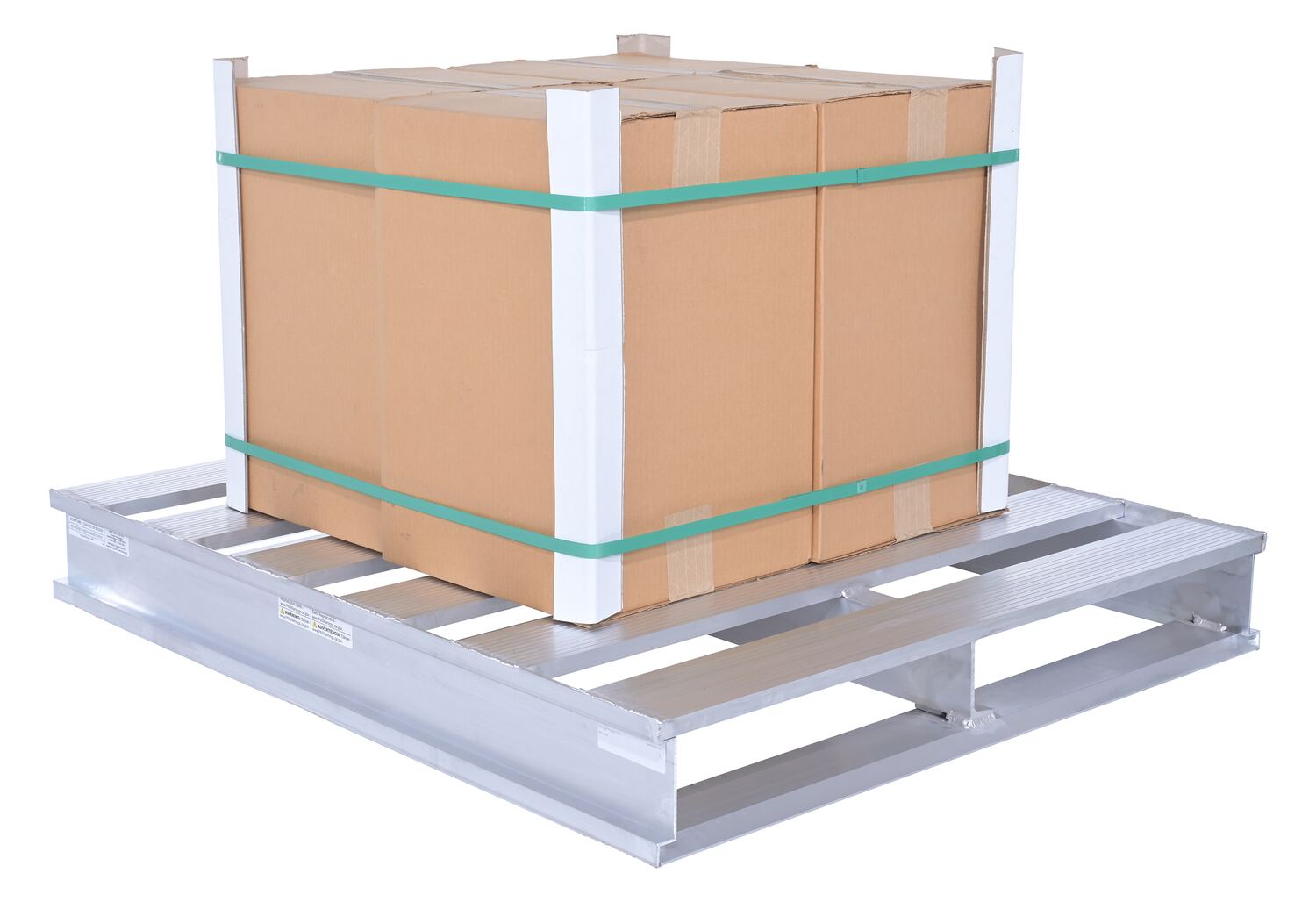

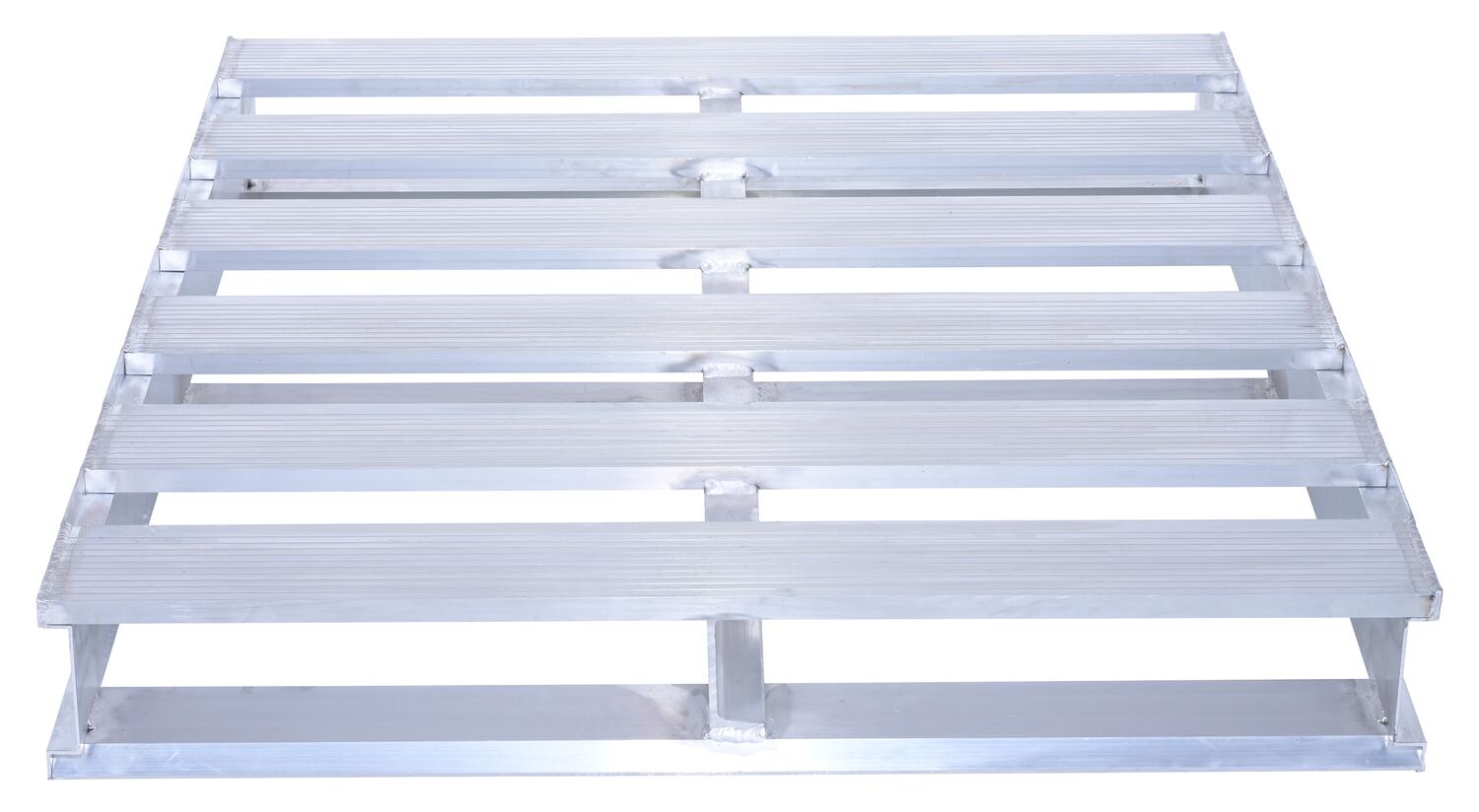

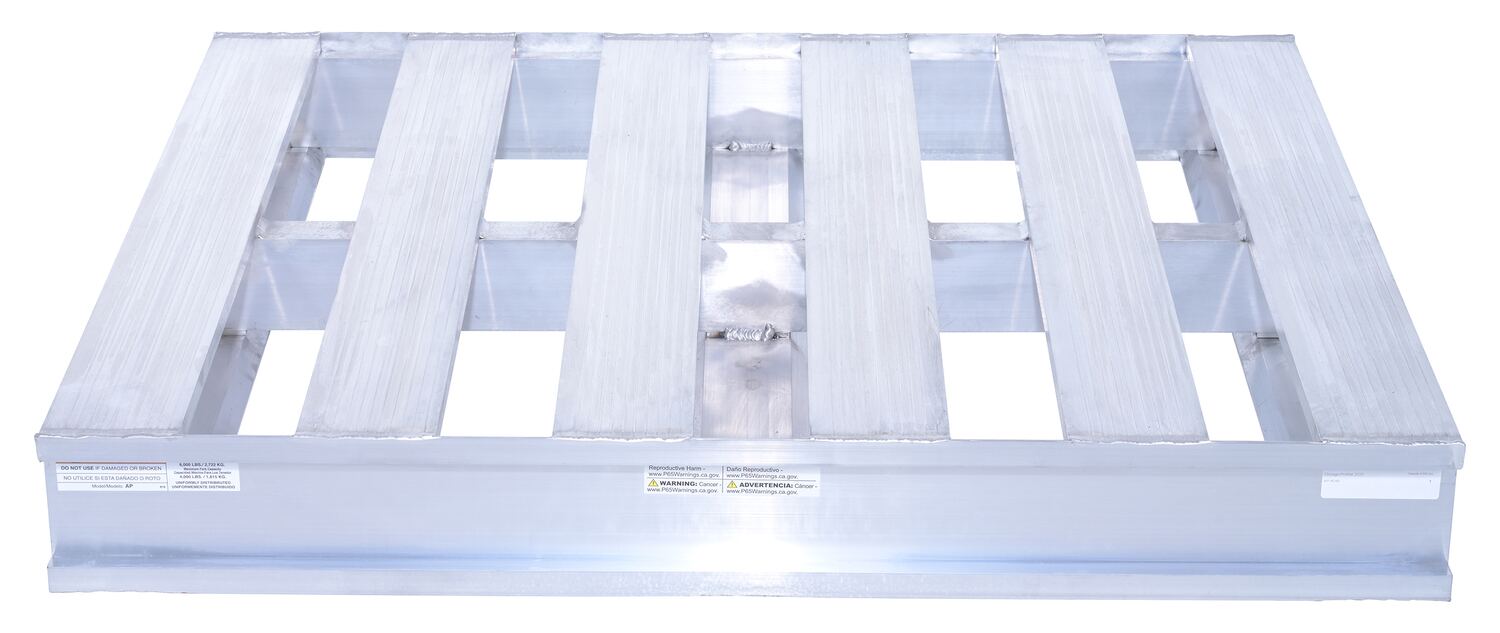

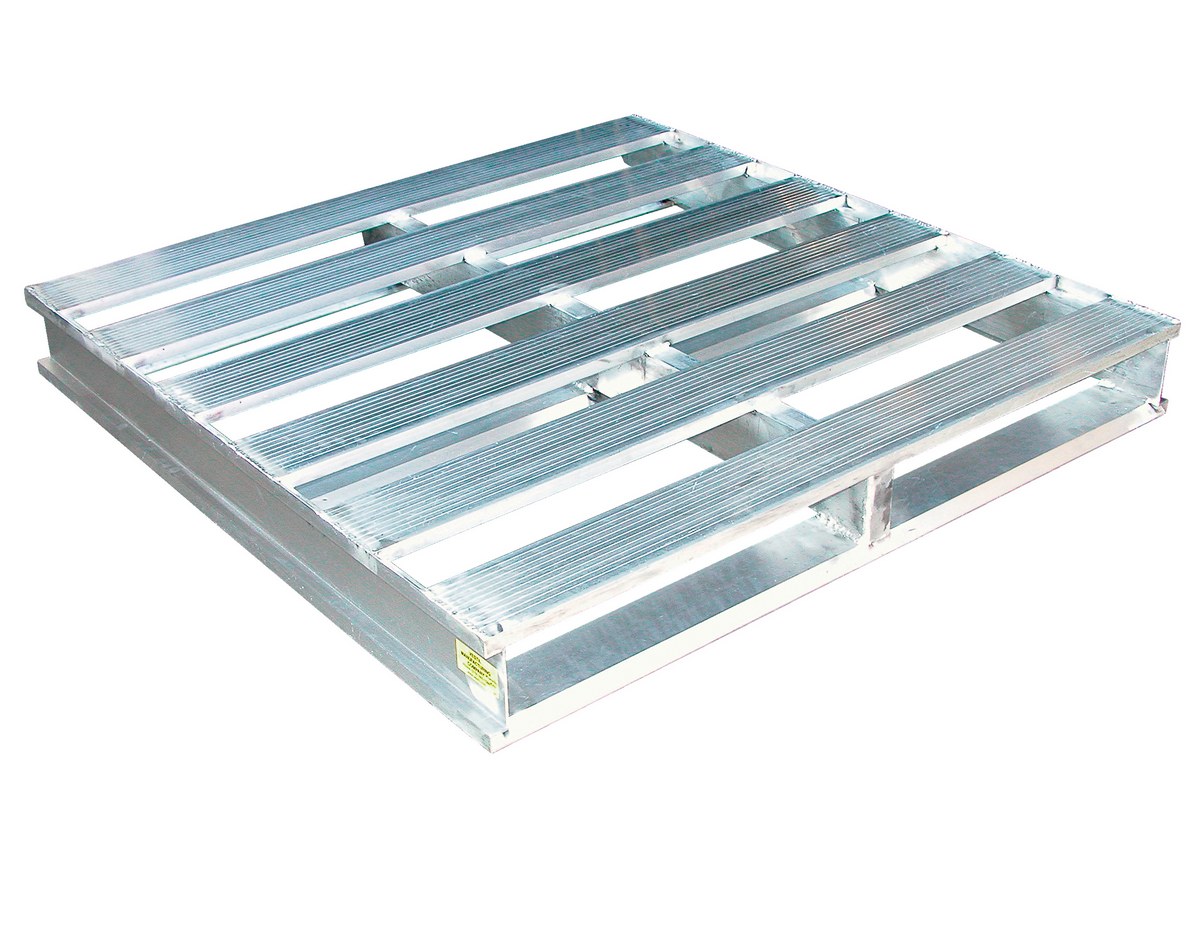

A welded Aluminum Pallet is a great asset for a variety of industries. The open design enables quick and simple cleaning. This pallet is durable and re-usable with a two-way entry for pallet and fork truck use. Large static capacity allows for load both big and small.

  • Solid top surface provides easy transportation of products
  • Simple access points for quick lifting
  • Sleek surface limits abrasions
  • Compact design for minimal storage

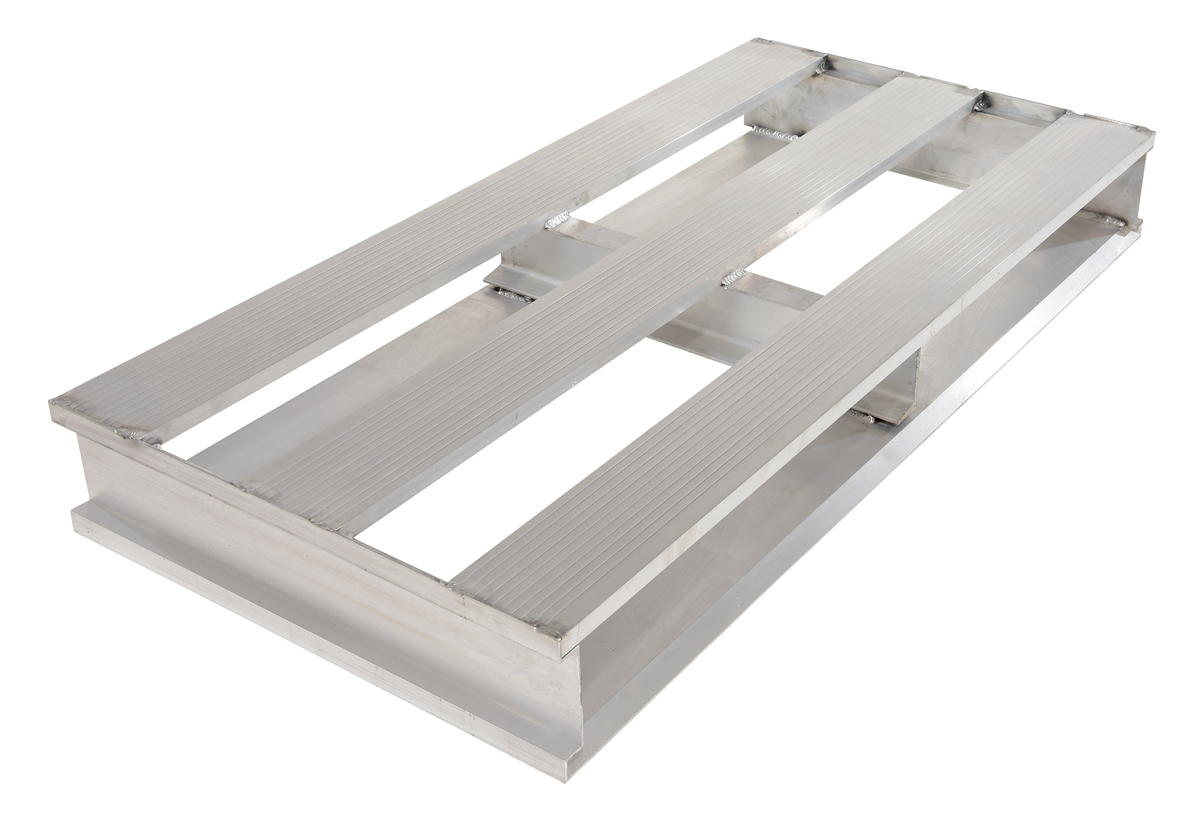

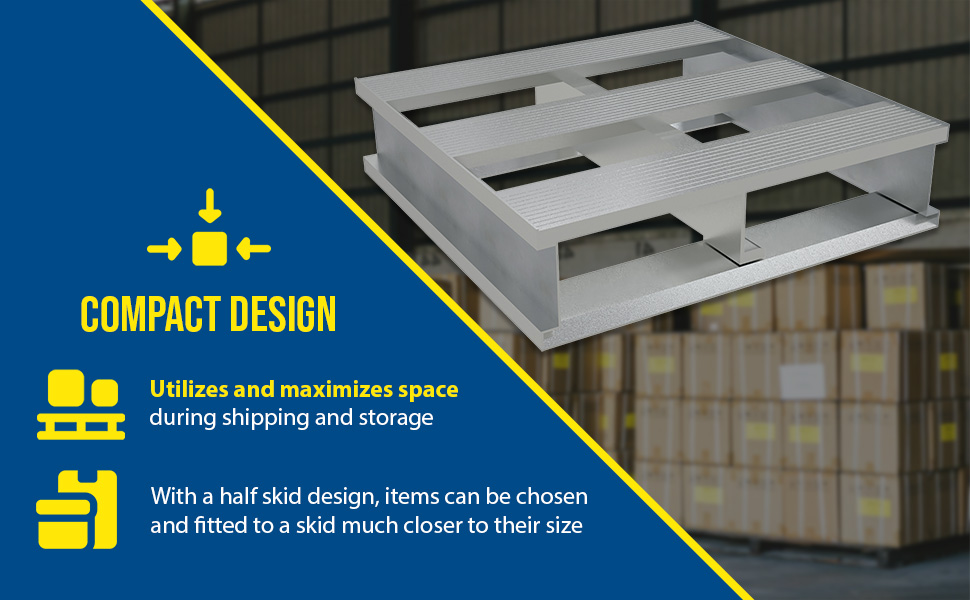

An Aluminum Half Pallet is a great asset for a variety of industries. With the half pallet design, items can be chosen and fitted to a pallet much closer to their size. This utilizes and maximizes space during shipping and floor space during any storage. The open design enables quick and simple cleaning.

A welded Aluminum Pallet is a great asset for a variety of industries. The open design enables quick and simple cleaning. This pallet is durable and re-usable with a two-way entry for pallet and fork truck use. Large static capacity allows for load both big and small.

  • Solid top surface provides easy transportation of products
  • Simple access points for quick lifting
  • Sleek surface limits abrasions
  • Compact design for minimal storage

An Aluminum Half Pallet is a great asset for a variety of industries. With the half pallet design, items can be chosen and fitted to a pallet much closer to their size. This utilizes and maximizes space during shipping and floor space during any storage. The open design enables quick and simple cleaning.

Additional Models In This Family

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

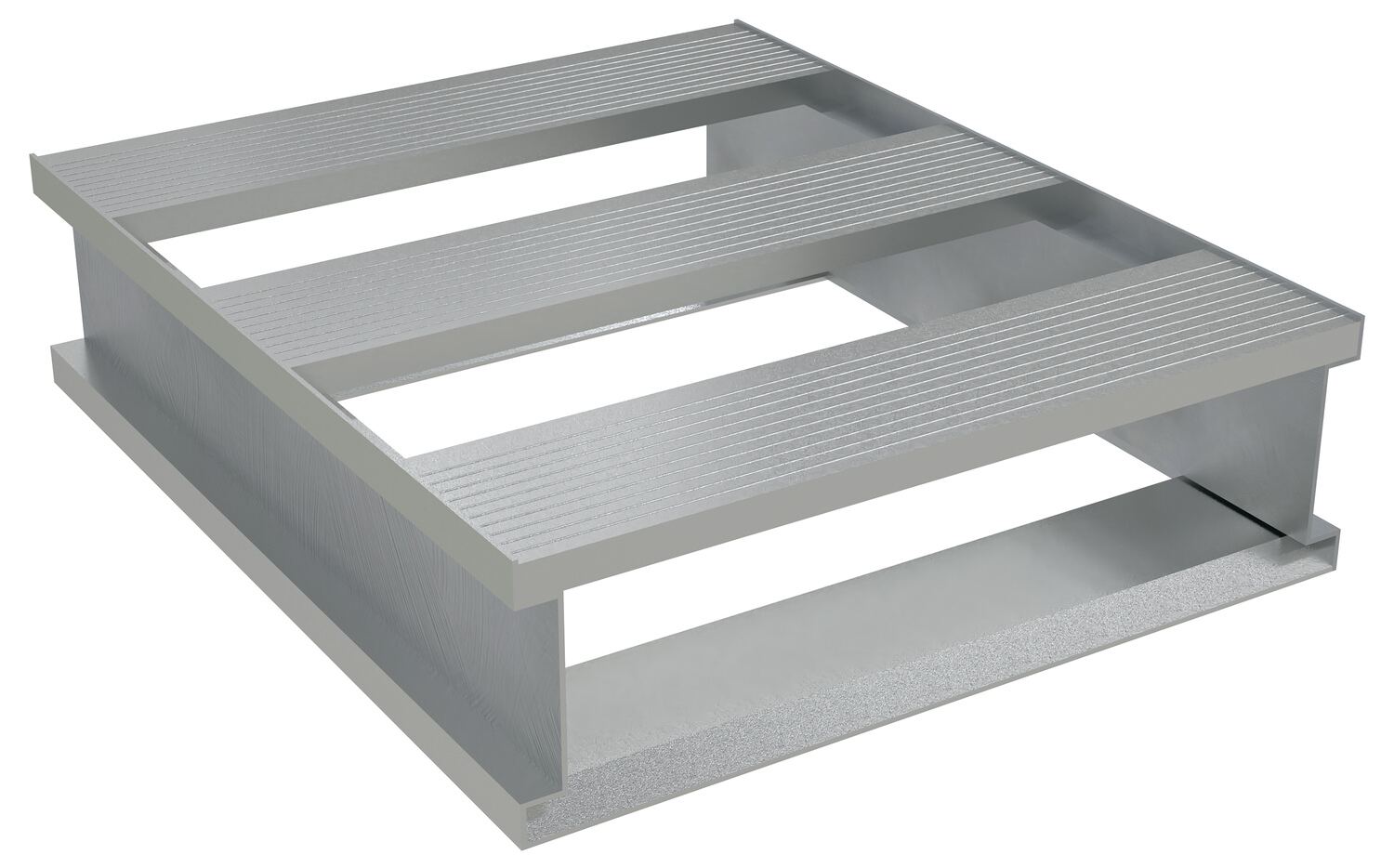

AP-2024 AP-202490 Days Limited WarrantyAluminum Heavy Duty Half Pallet 20 In x 24 In x 6 In 4000 Lb. Capacity SilverUniform Capacity: 4000
Fork Pocket Width(in.): 22.5625
12

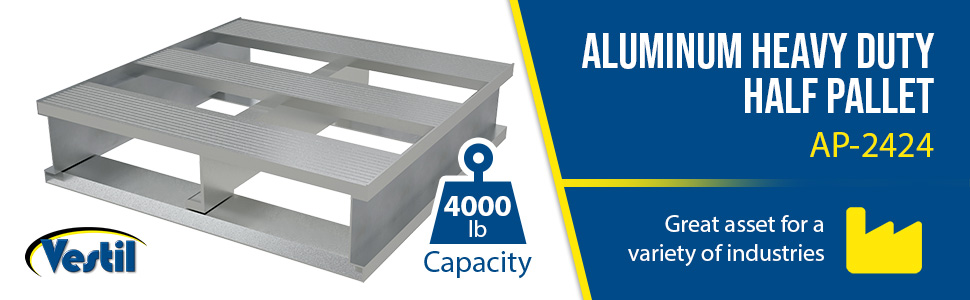

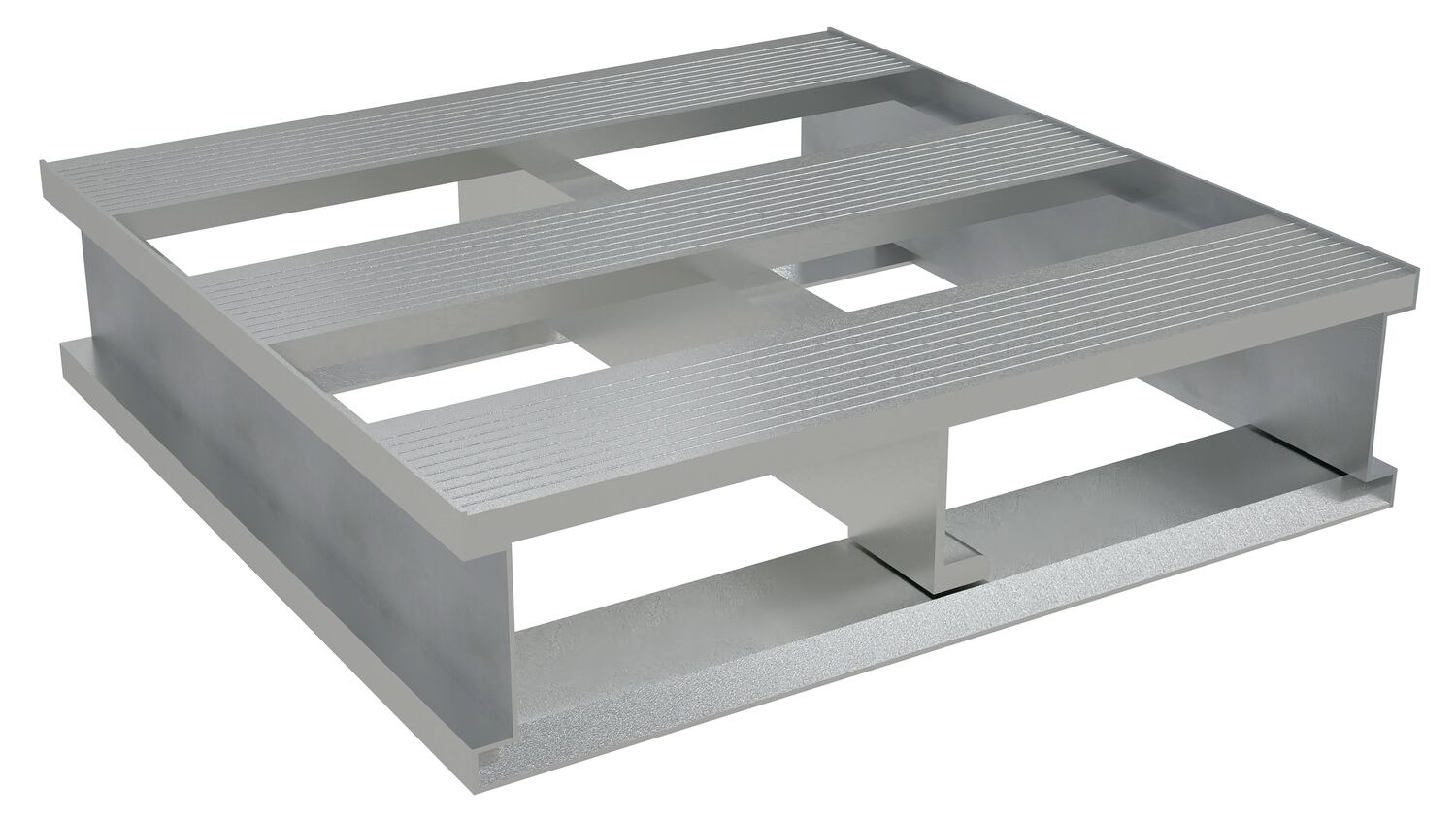

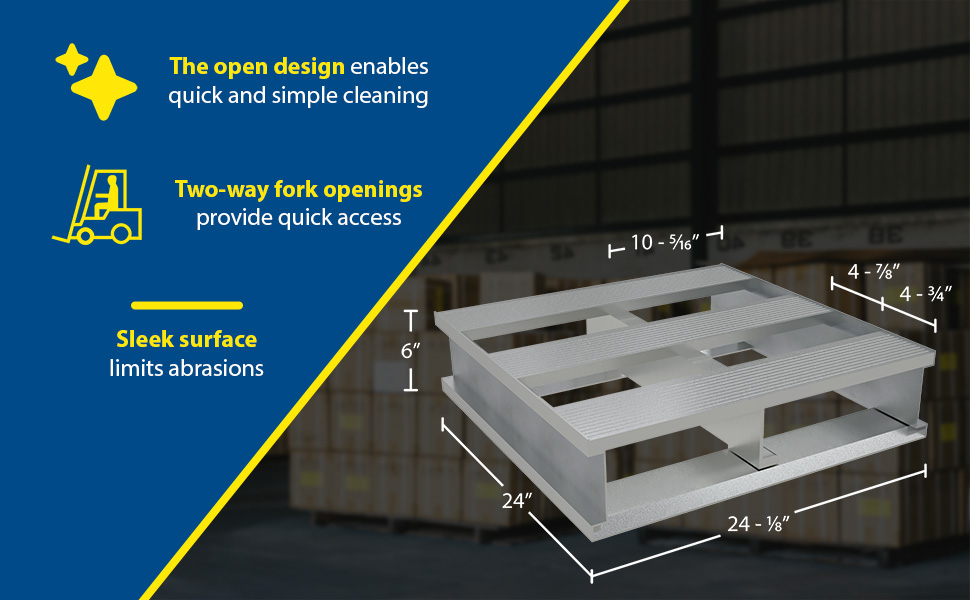

AP-2424 AP-242490 Days Limited WarrantyAluminum Heavy Duty Half Pallet 24 In. x 24 In. x 6 In. 4000 Lb. Capacity SilverUniform Capacity: 4000
Fork Pocket Width(in.): 22.5625
13

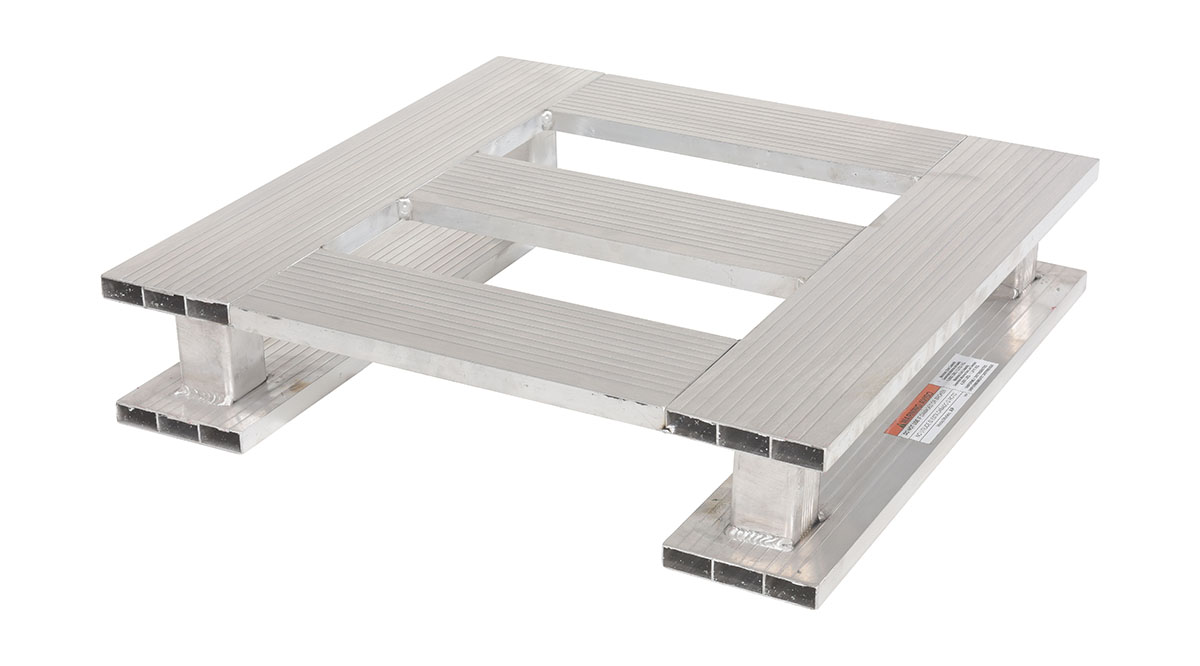

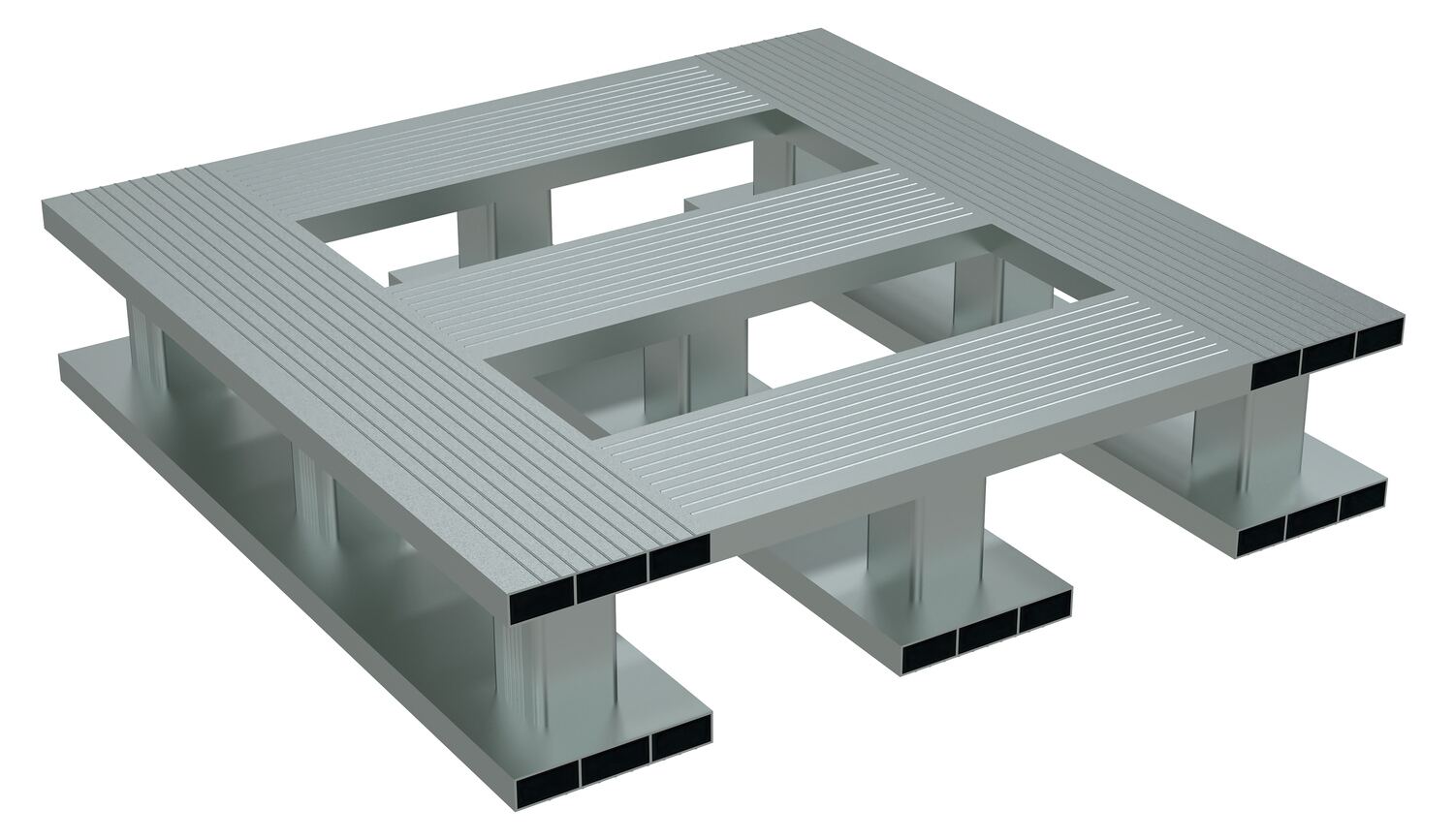

AP-2424-SB AP-2424-SB90 Days Limited WarrantyAluminum Half Skid Bottom Pallet 24 In. x 24 In. x 5-1/16 In. 4000 Lb. Capacity SilverUniform Capacity: 4000
Fork Pocket Width(in.): 19.5625
12

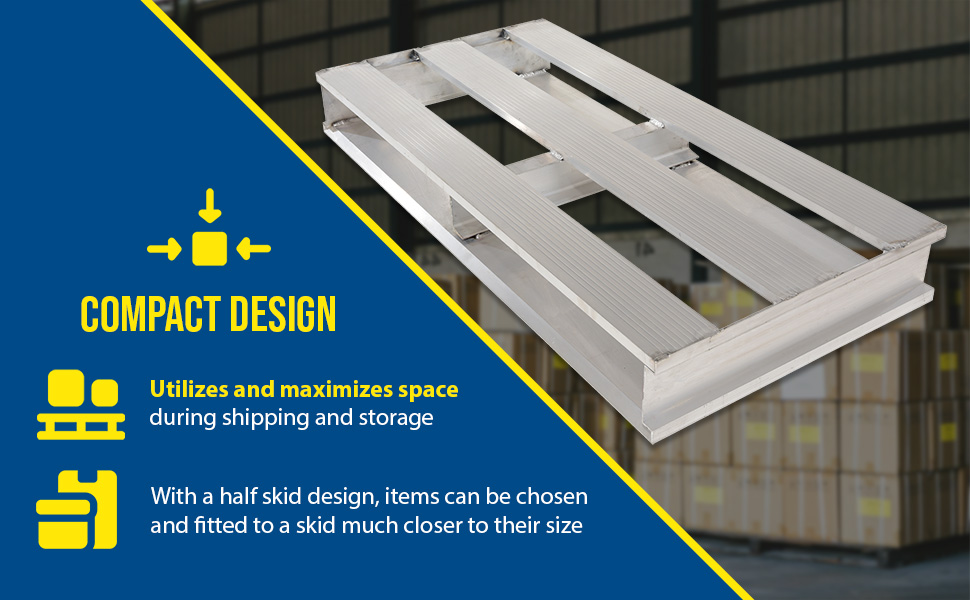

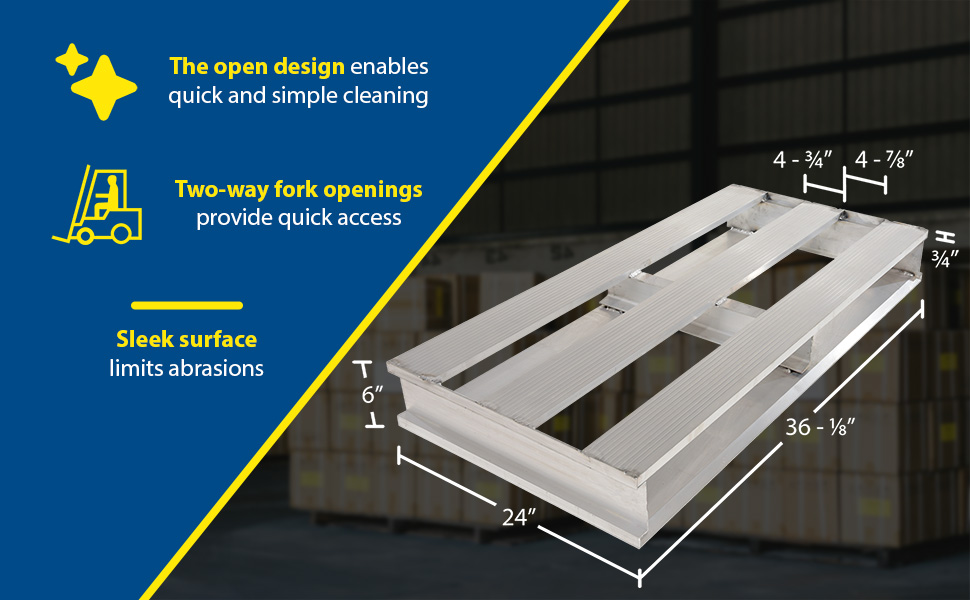

AP-3624 AP-362490 Days Limited WarrantyAluminum Heavy Duty Half Pallet 24 In. x 36 In. x 6 In. 4000 Lb. Capacity SilverUniform Capacity: 4000
Fork Pocket Width(in.): 8.3125
17
AP-3624-SB AP-3624-SB90 Days Limited WarrantyAluminum Half Skid Bottom Pallet 24 In. x 36 In. x 5-1/16 In. 4000 Lb. Capacity SilverUniform Capacity: 4000
Fork Pocket Width(in.): 11.625
16
AP-4024 AP-402490 Days Limited WarrantyAluminum Heavy Duty Half Pallet 24 In. x 40 In. x 6 In. 4000 Lb. Capacity SilverUniform Capacity: 4000
Fork Pocket Width(in.): 16.5625
21

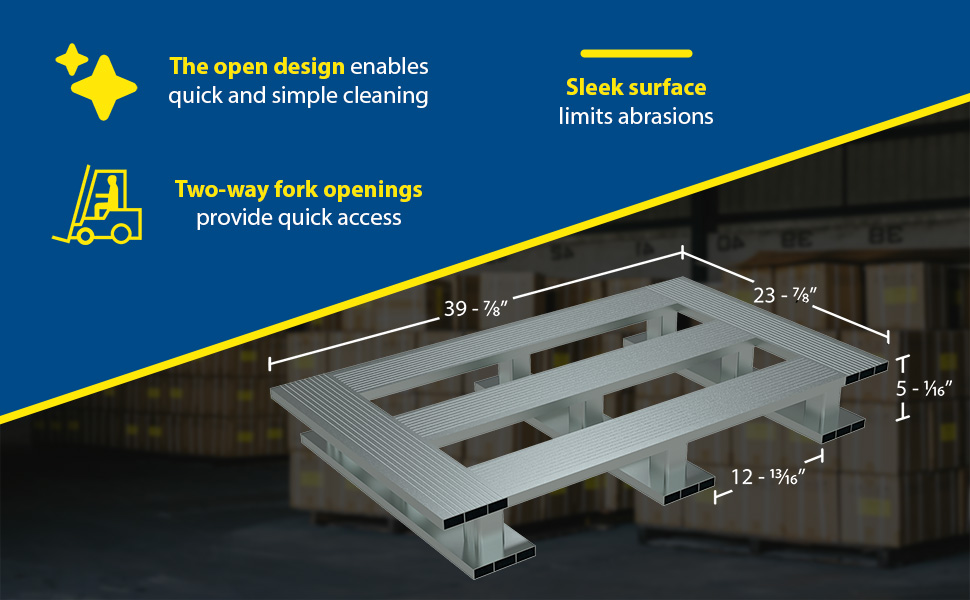

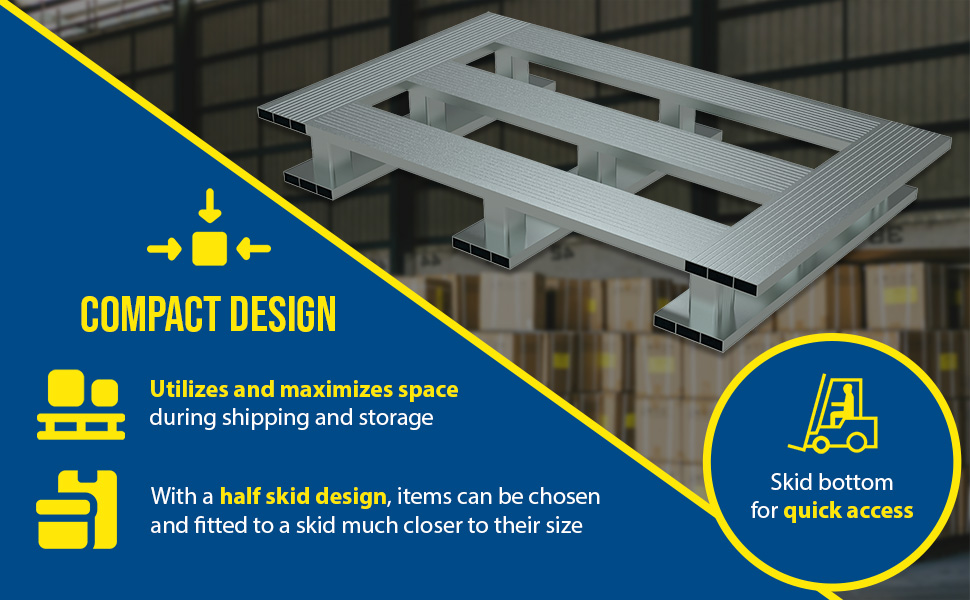

AP-4024-SB AP-4024-SB90 Days Limited WarrantyAluminum Skid Bottom Half Pallet 24 In. x 40 In. x 5-1/16 In. 4000 Lb. Capacity SilverUniform Capacity: 4000
Fork Pocket Width(in.): 15.625
19

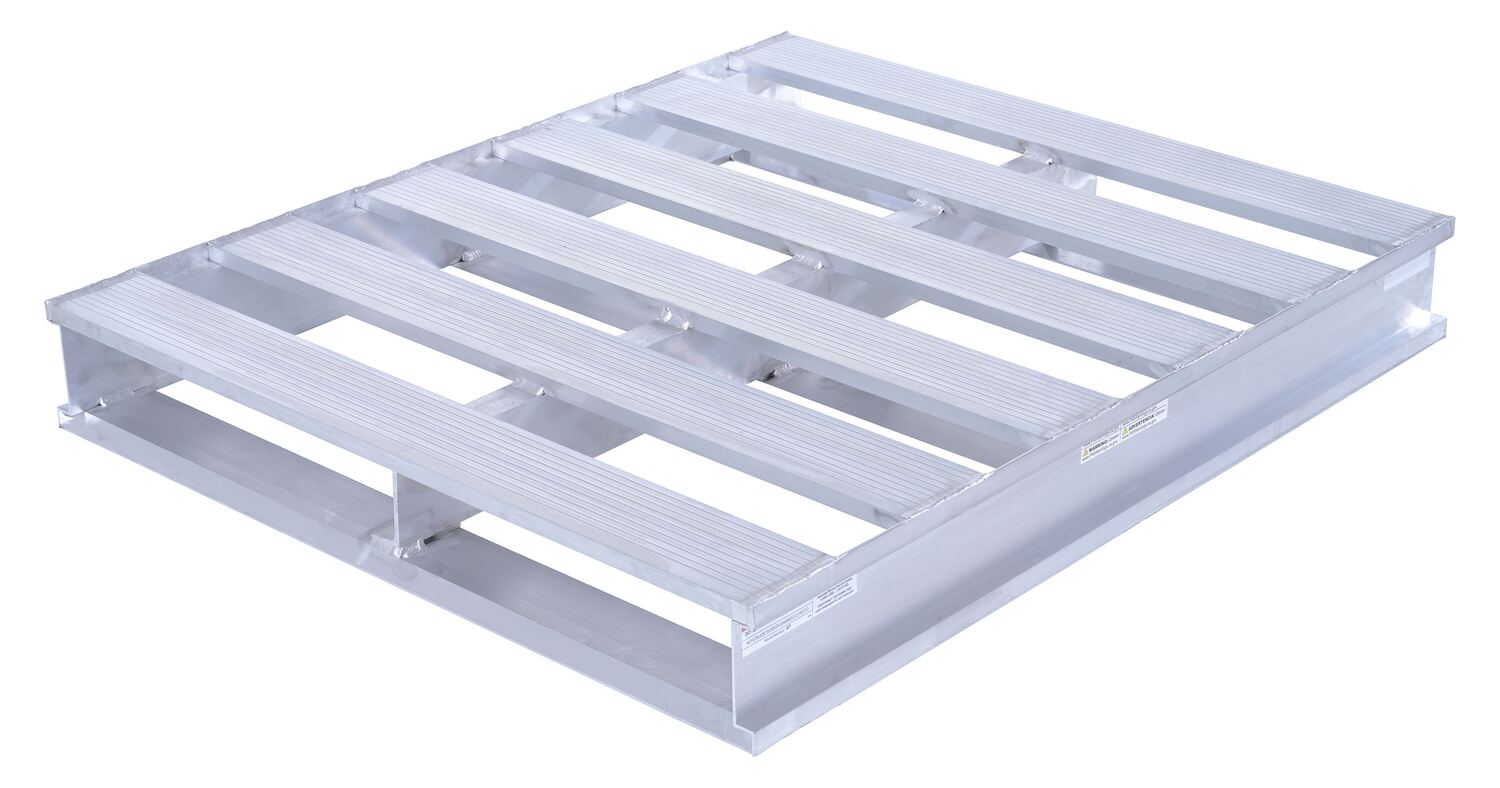

AP-4048 AP-404890 Days Limited WarrantyAluminum Heavy Duty Pallet 48 In. x 40-1/8 In. x 6 In. 6000 Lb. Capacity SilverTop Board Width (in.): 4-3/4
Fork Opening Width (in.): 18-5/16
85

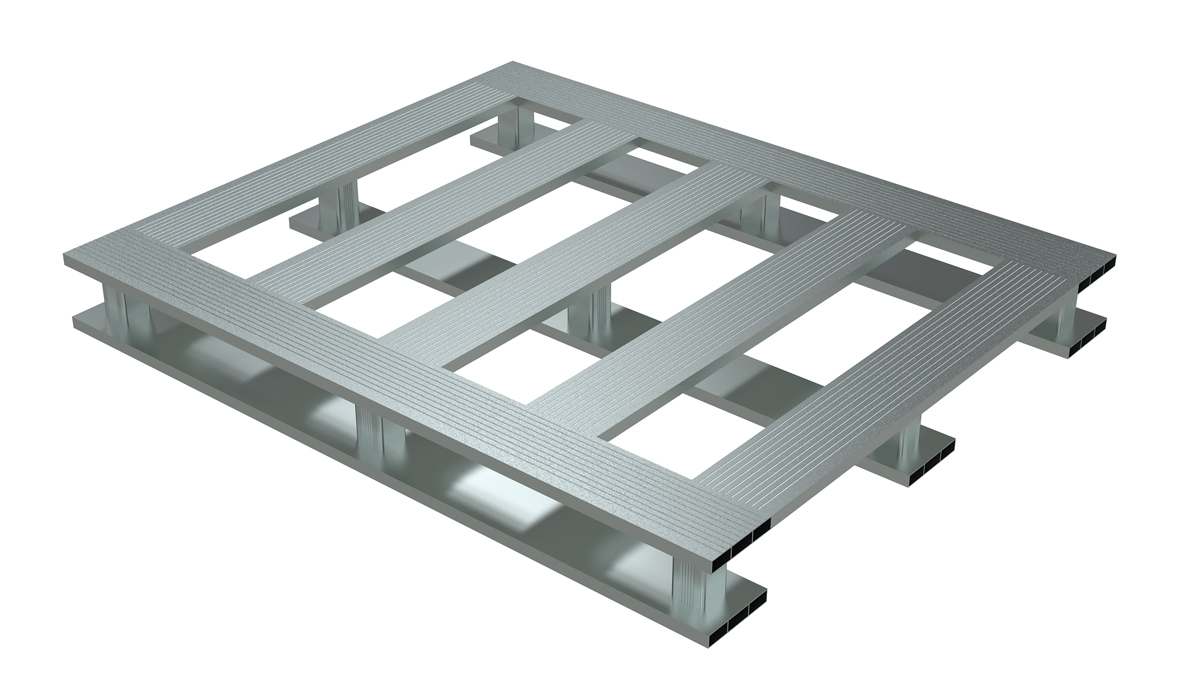

AP-4048-SB AP-4048-SB90 Days Limited WarrantyAluminum Skid Bottom Pallet 47-7/8 In. x 40 In. x 5-1/16 In. 6000 Lb. Capacity SilverTop Board Width (in.): 4-3/4
Fork Opening Widths (in.): 19-9/16, 15-5/8
85

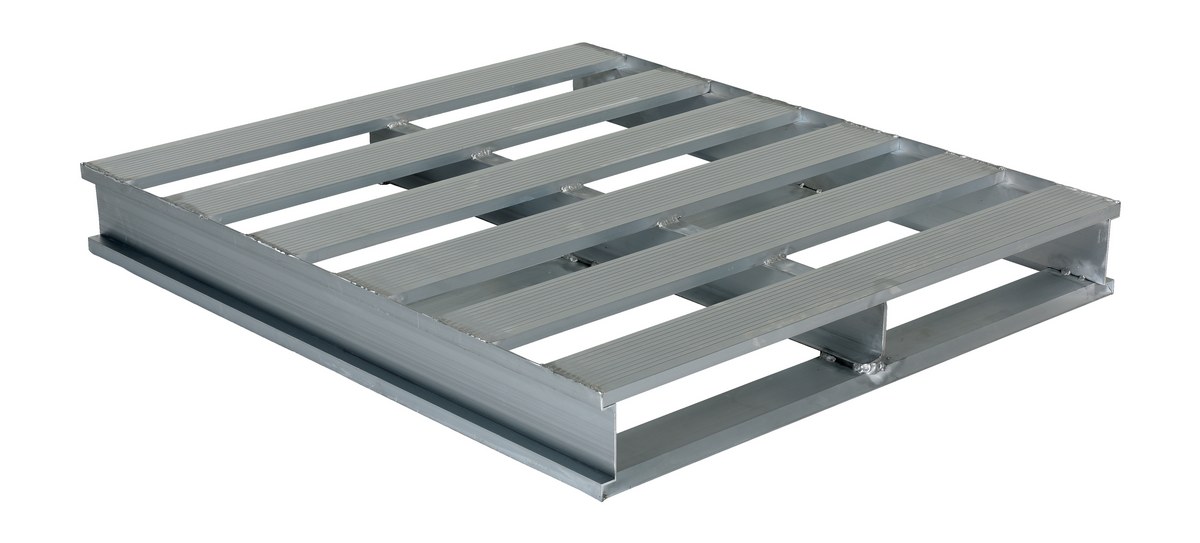

AP-4248 AP-424890 Days Limited WarrantyAluminum Heavy Duty Pallet 48 In. x 42-1/8 In. x 6 In. 6000 Lb. Capacity SilverTop Board Width (in.): 4-3/4
Fork Opening Width (in.): 19-5/16
86

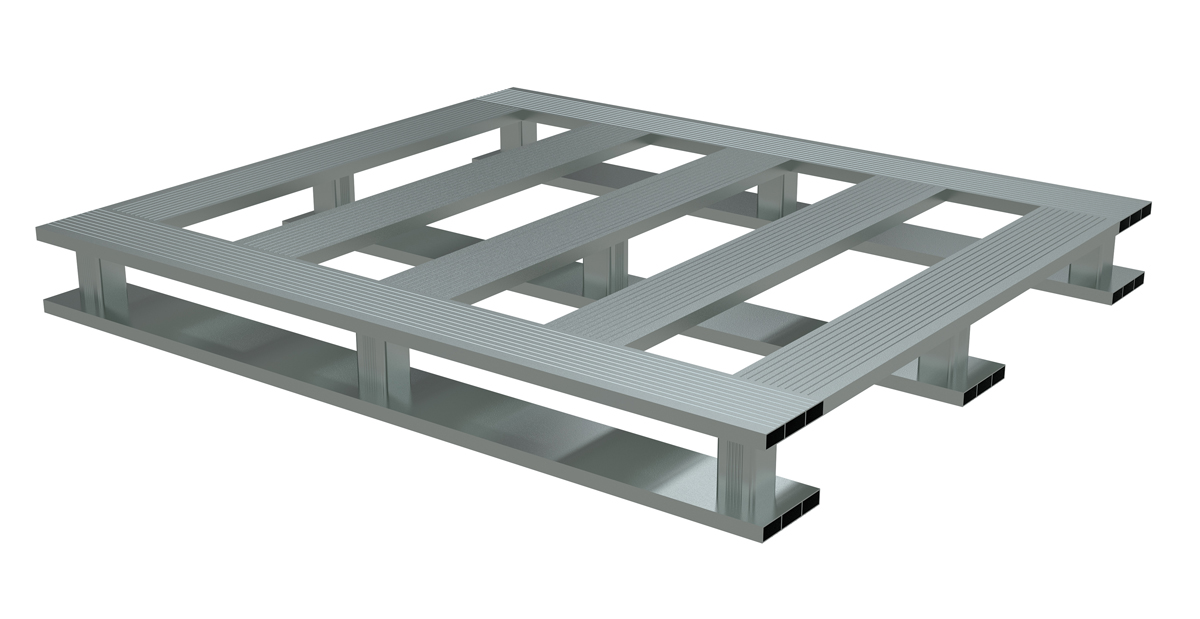

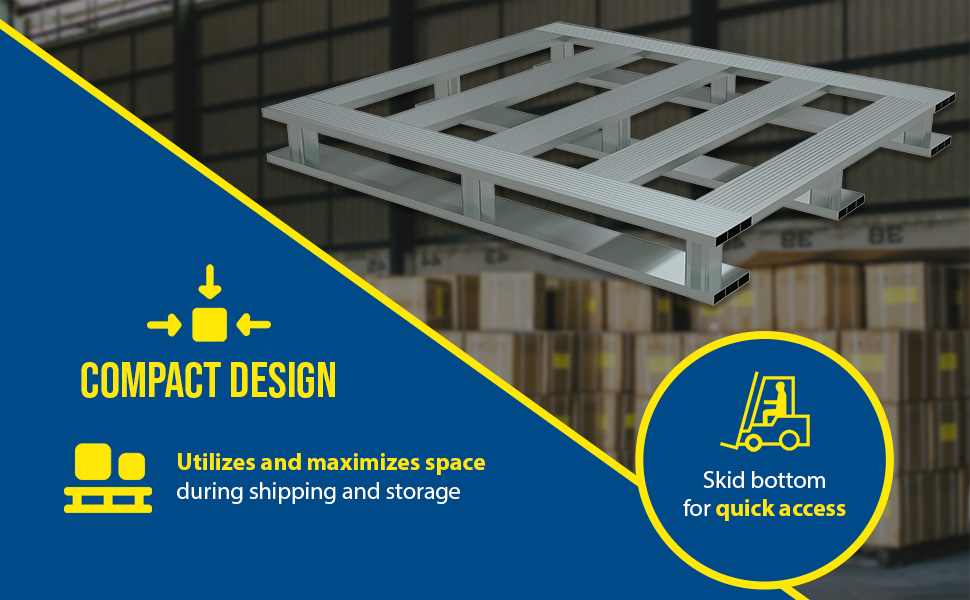

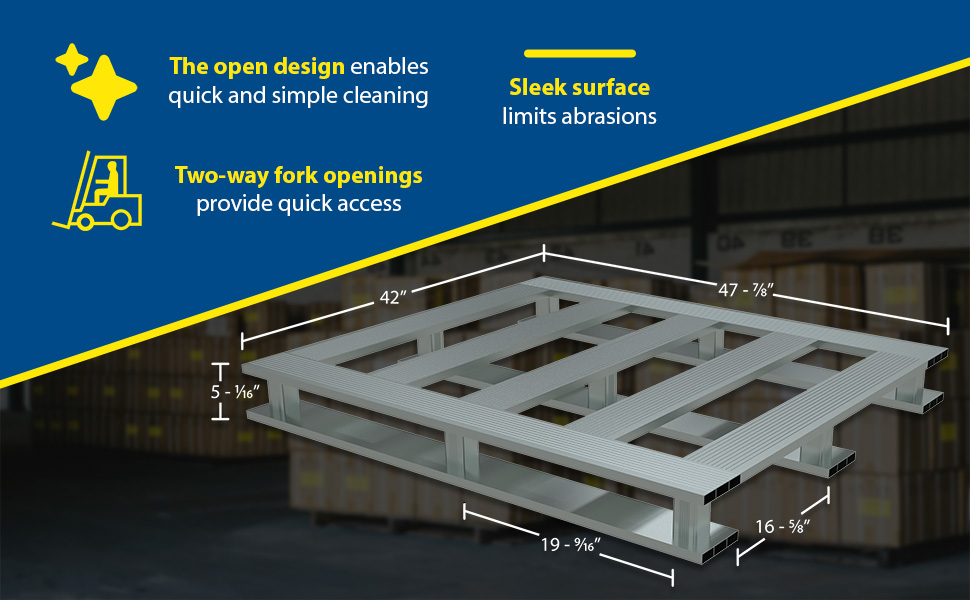

AP-4248-SB AP-4248-SB90 Days Limited WarrantyAluminum Skid Bottom Pallet 47-7/8 In. x 42 In. x 5-1/16 In. 6000 Lb. Capacity SilverTop Board Width (in.): 4-3/4
Fork Opening Widths (in.): 19-9/16, 15-5/8
87

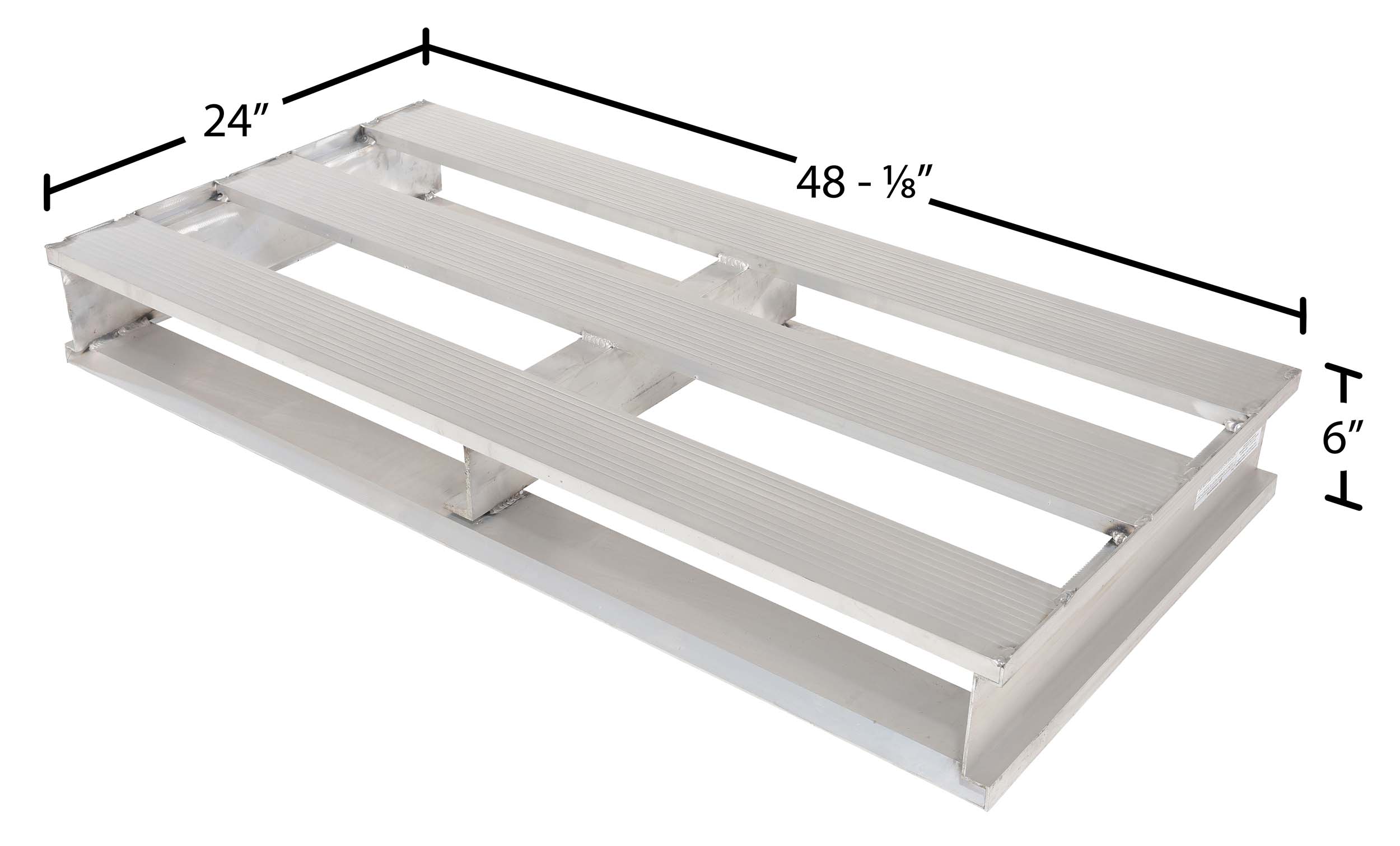

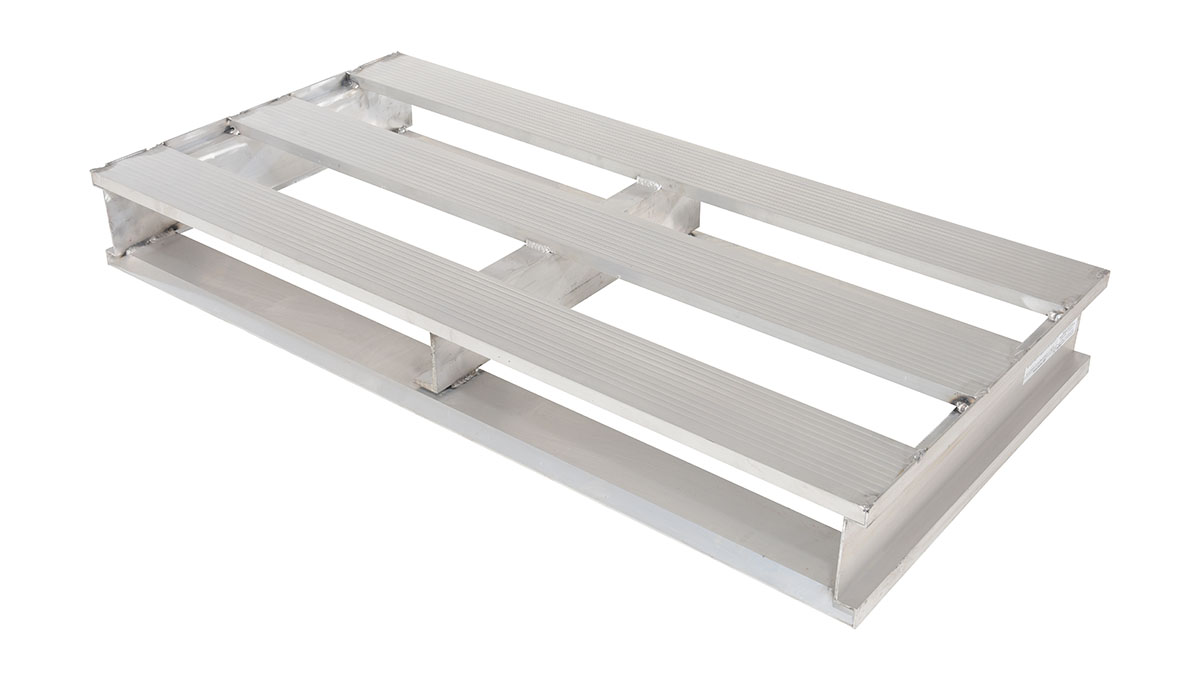

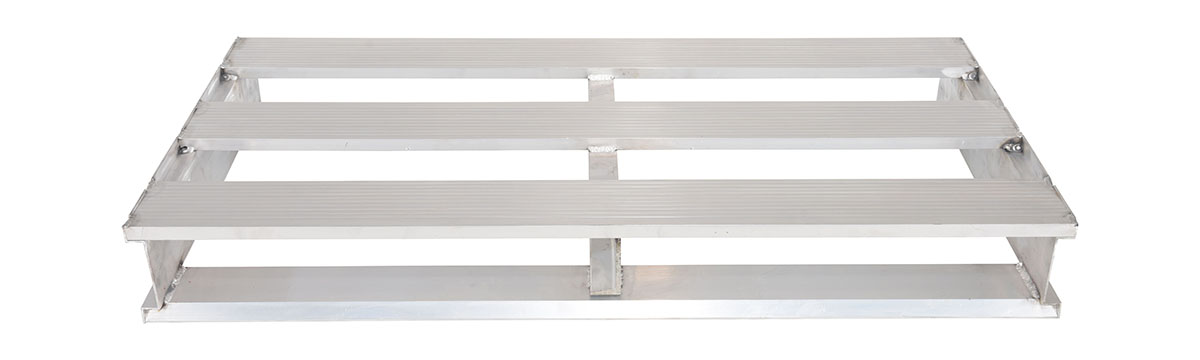

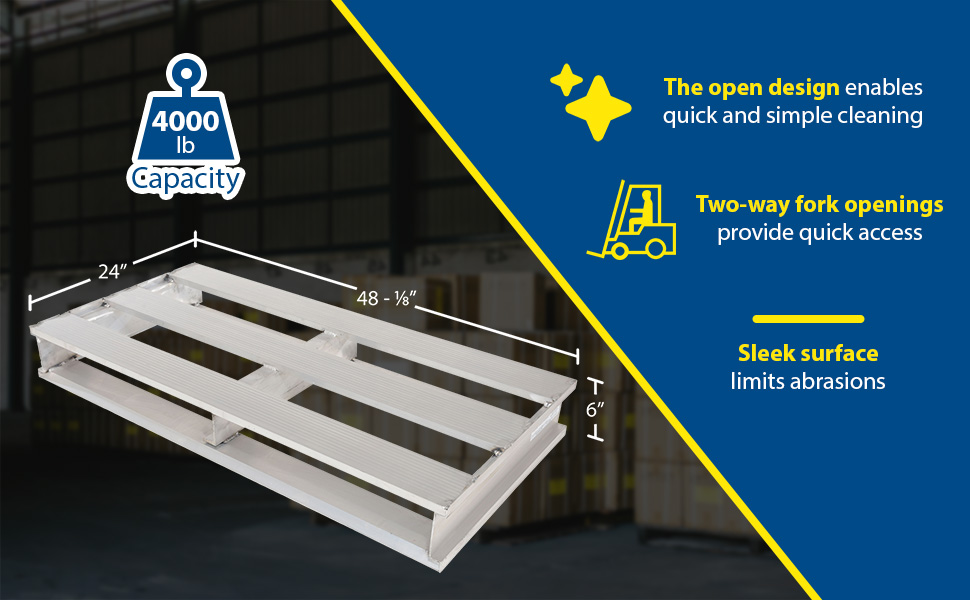

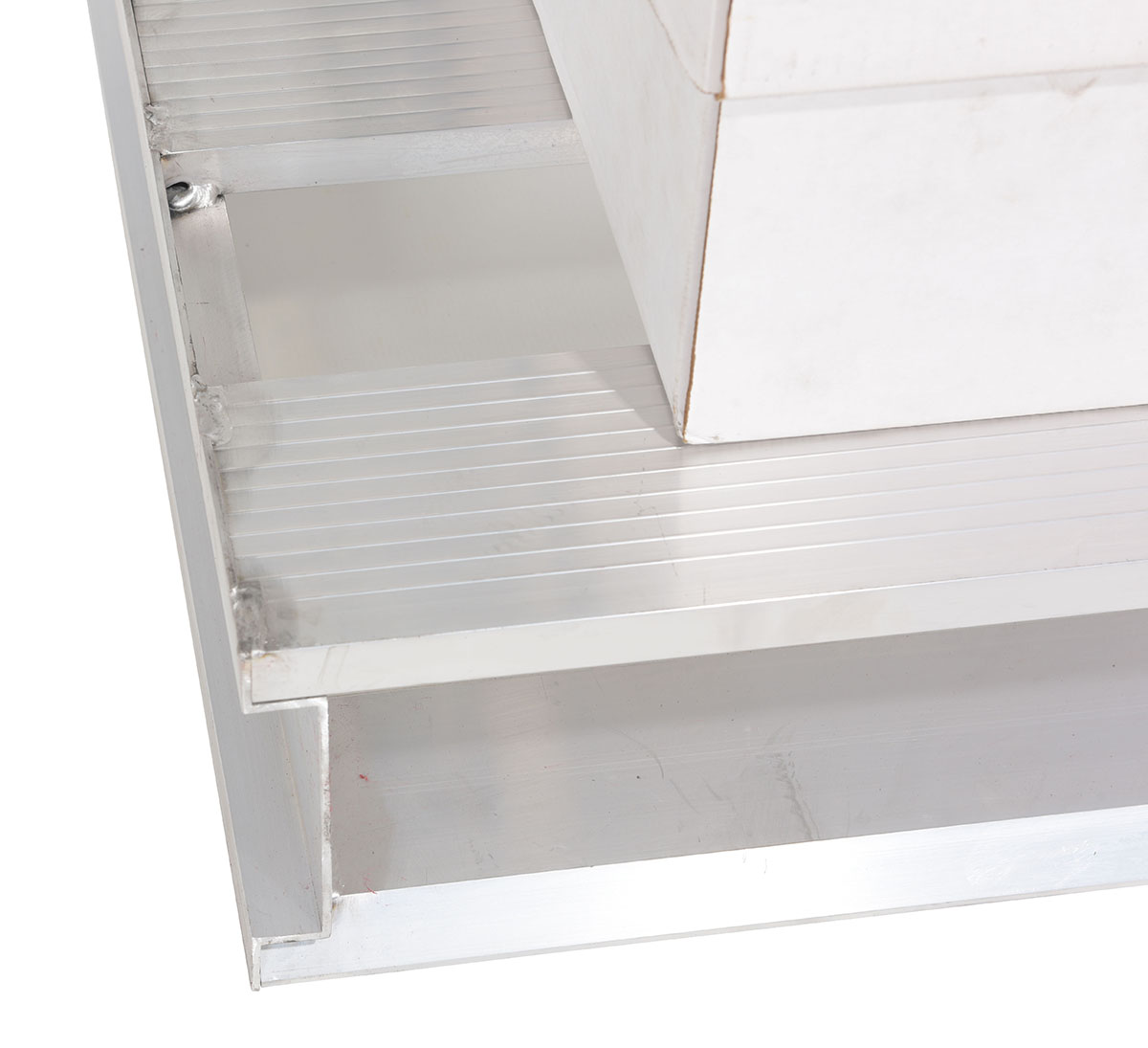

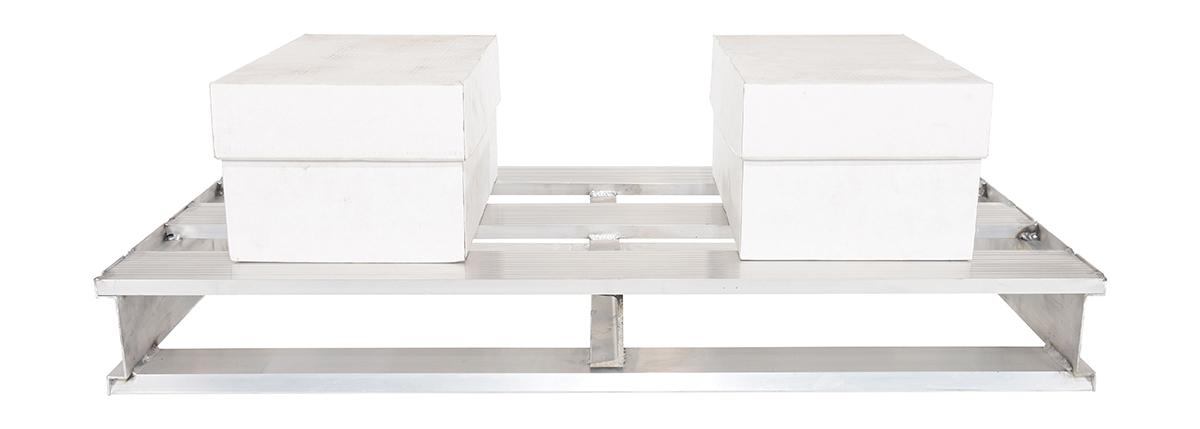

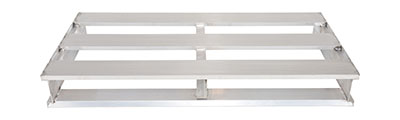

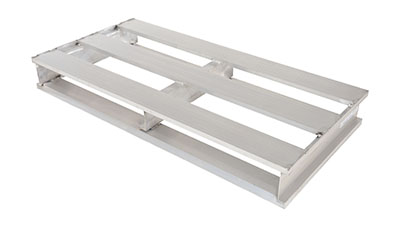

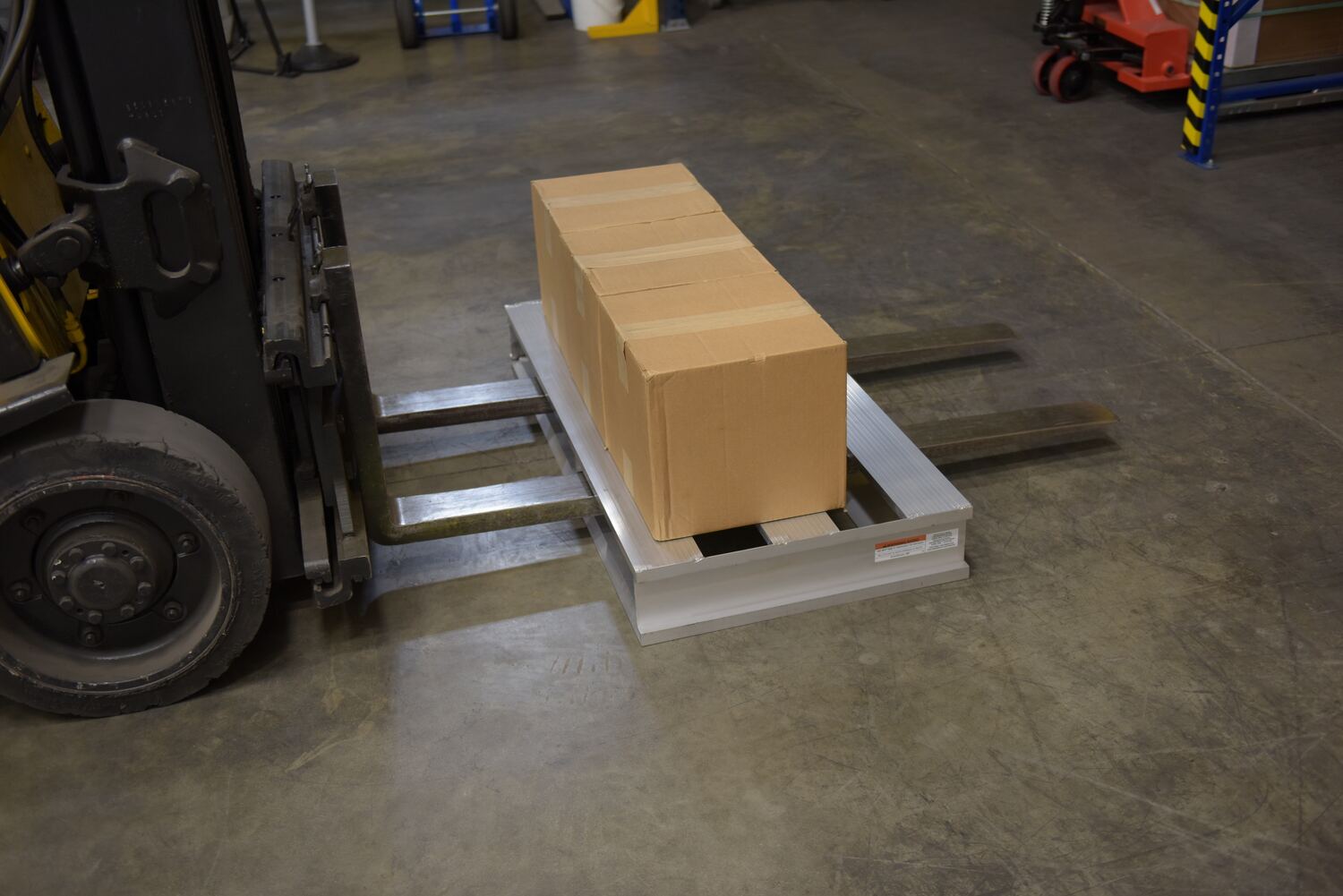

AP-4824 AP-482490 Days Limited WarrantyAluminum Heavy Duty Pallet 24 In. x 48 In. x 6 In. 4000 Lb. Capacity SilverUniform Capacity: 4000
Fork Pocket Width(in.): 22.5625
26

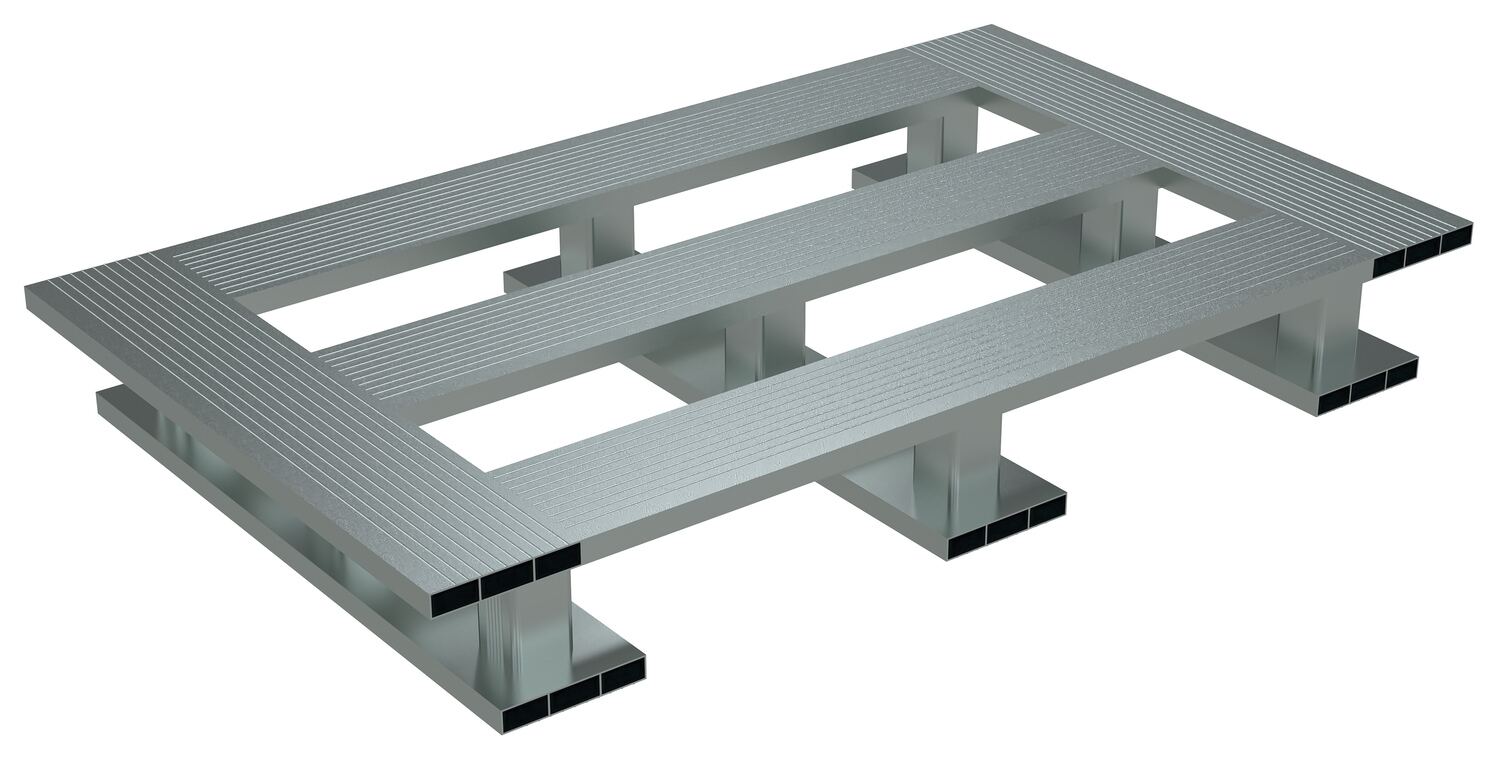

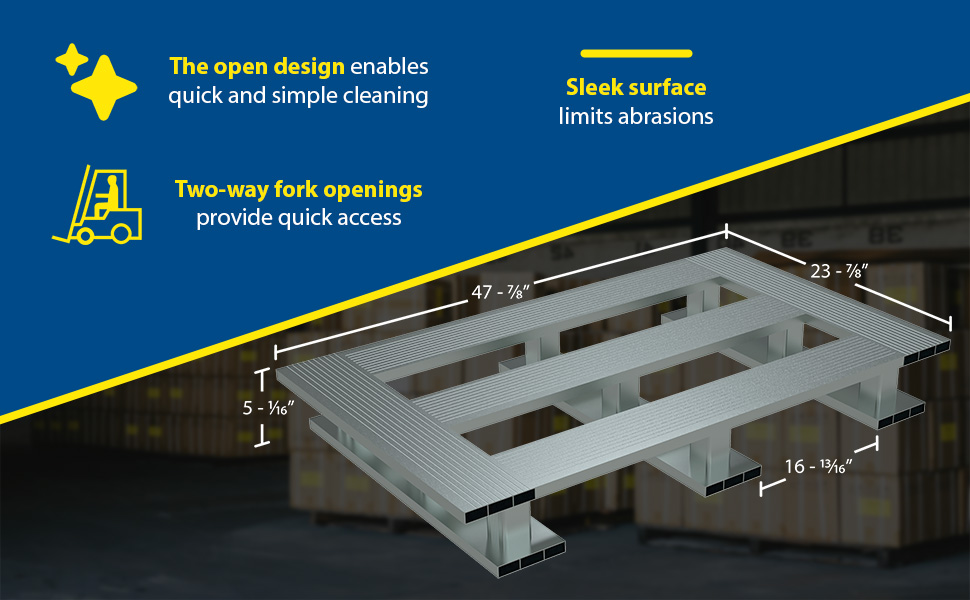

AP-4824-SB AP-4824-SB90 Days Limited WarrantyAluminum Skid Bottom Pallet 24 In. x 48 In. x 5-1/16 In. 4000 Lb. Capacity SilverUniform Capacity: 4000
Fork Pocket Width(in.): 19.5625
23
AP-4848 AP-484890 Days Limited WarrantyAluminum Heavy Duty Pallet 48 In. x 48-1/8 In. x 6 In. 6000 Lb. Capacity SilverTop Board Width (in.): 4-3/4
Fork Opening Width (in.): 22-5/16
89

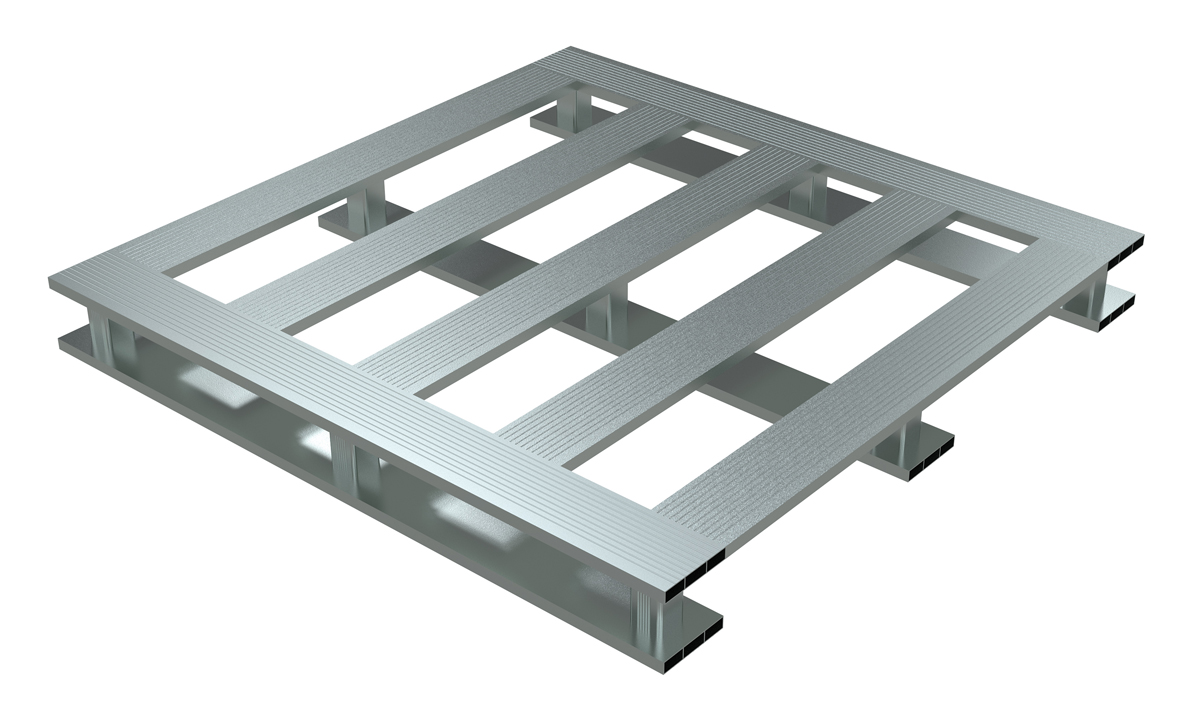

AP-4848-SB AP-4848-SB90 Days Limited WarrantyAluminum Skid Bottom Pallet 47-7/8 In. x 47-7/8 In. x 5-1/16 In. 6000 Lb. Capacity SilverTop Board Width (in.): 4-3/4
Fork Opening Widths (in.): 19-9/16, 19-9/16
89

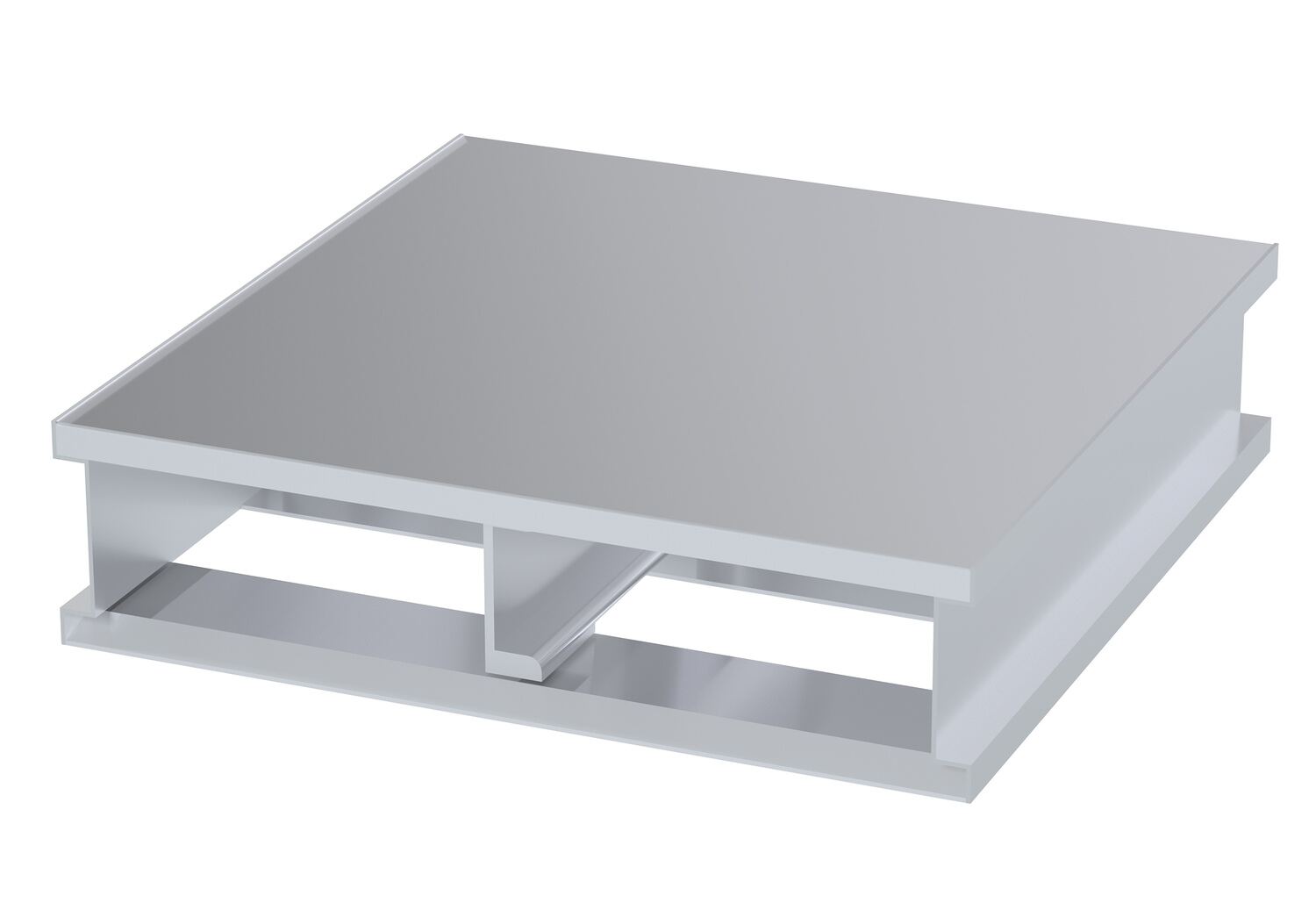

AP-ST-2424 AP-ST-242490 Days Limited WarrantyAluminum Heavy Duty Solid Top Half Pallet 24 In. x 24 In. x 6 In. 4000 Lb. SilverUniform Capacity: 4000
Fork Pocket Width(in.): 22.5625
18

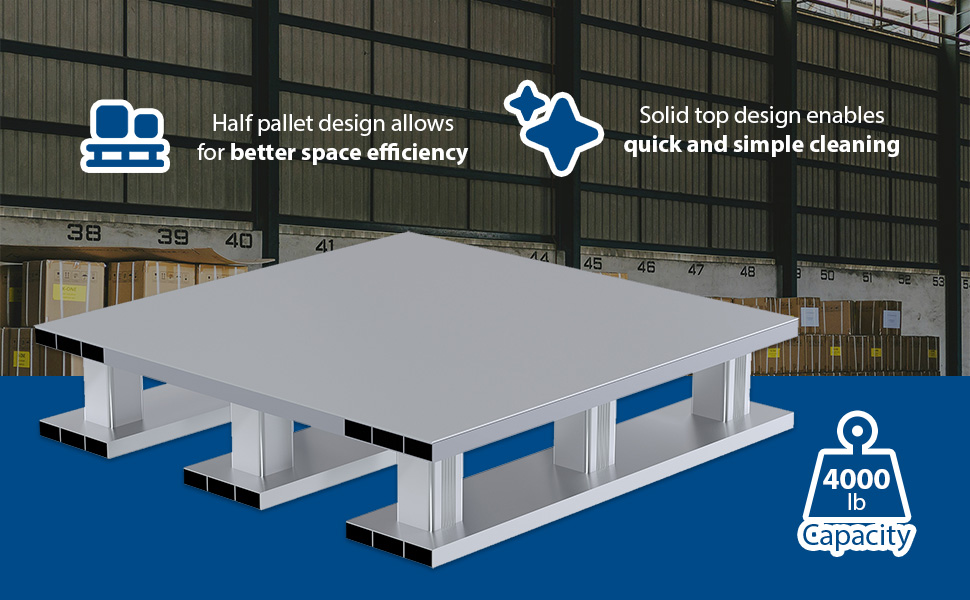

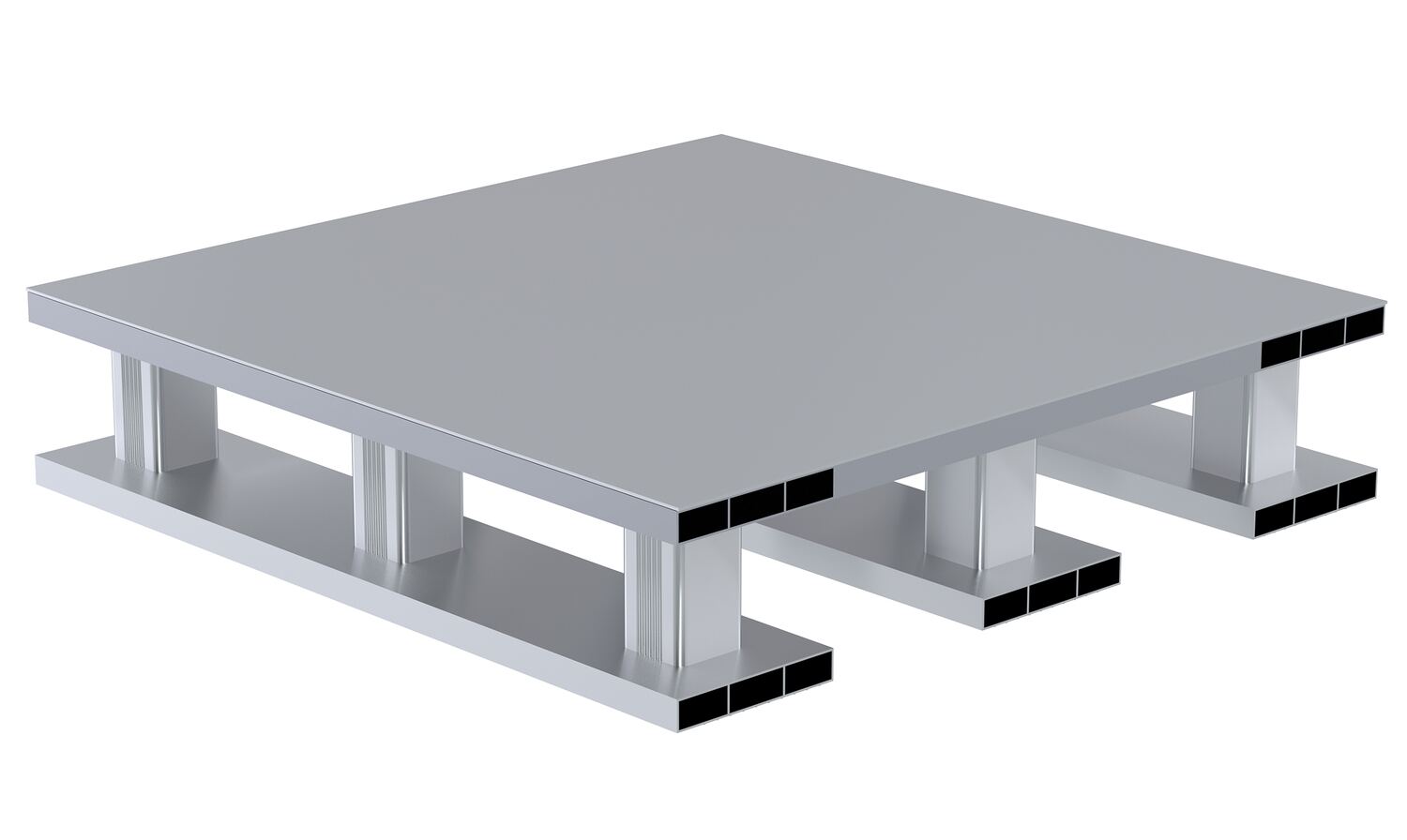

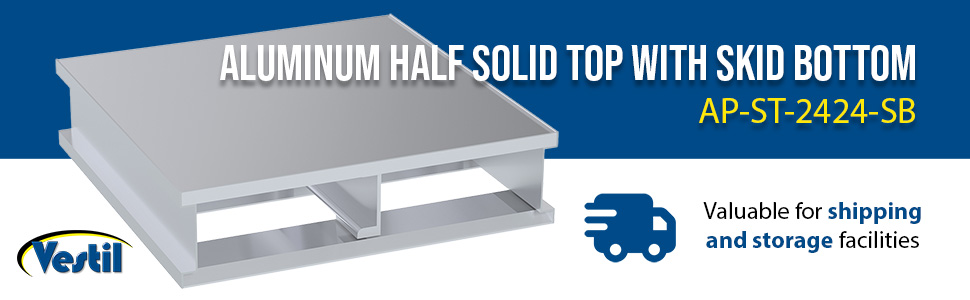

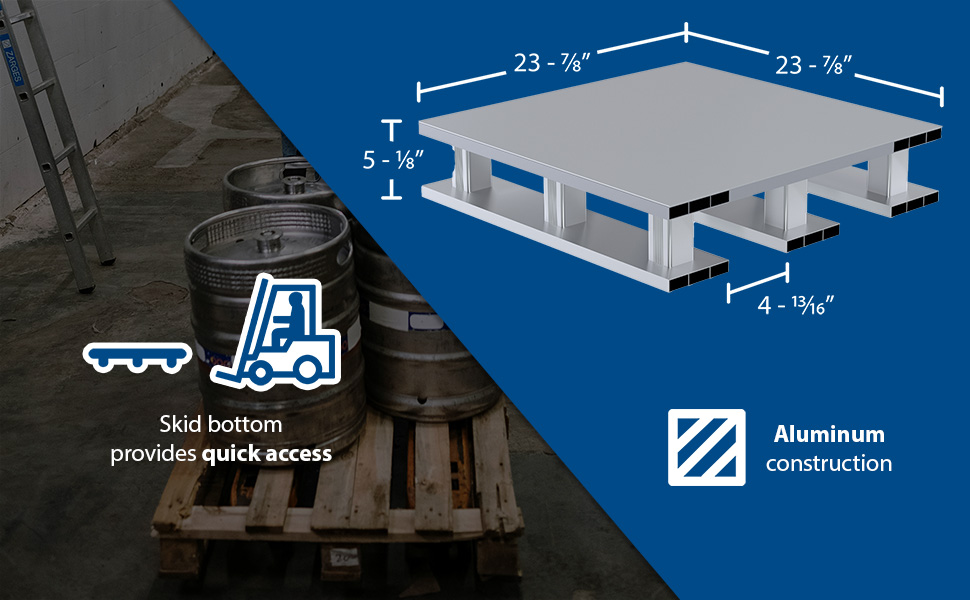

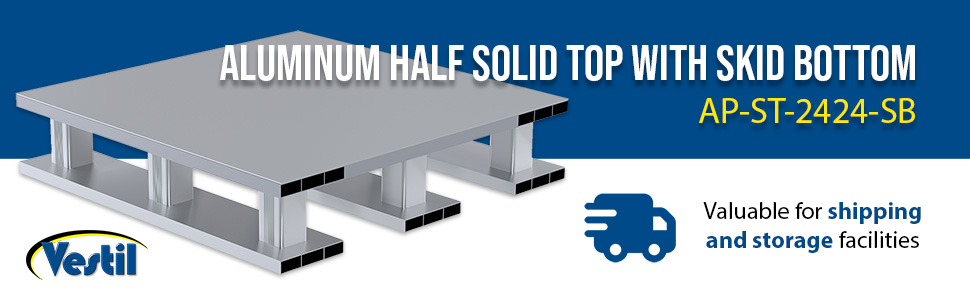

AP-ST-2424-SB AP-ST-2424-SB90 Days Limited WarrantyAluminum Half Solid Top with Skid Bottom 24 In. x 24 In. x 5-1/16 In. 4000 Lb. Capacity SilverUniform Capacity: 4000
Fork Pocket Width(in.): 19.5625
17

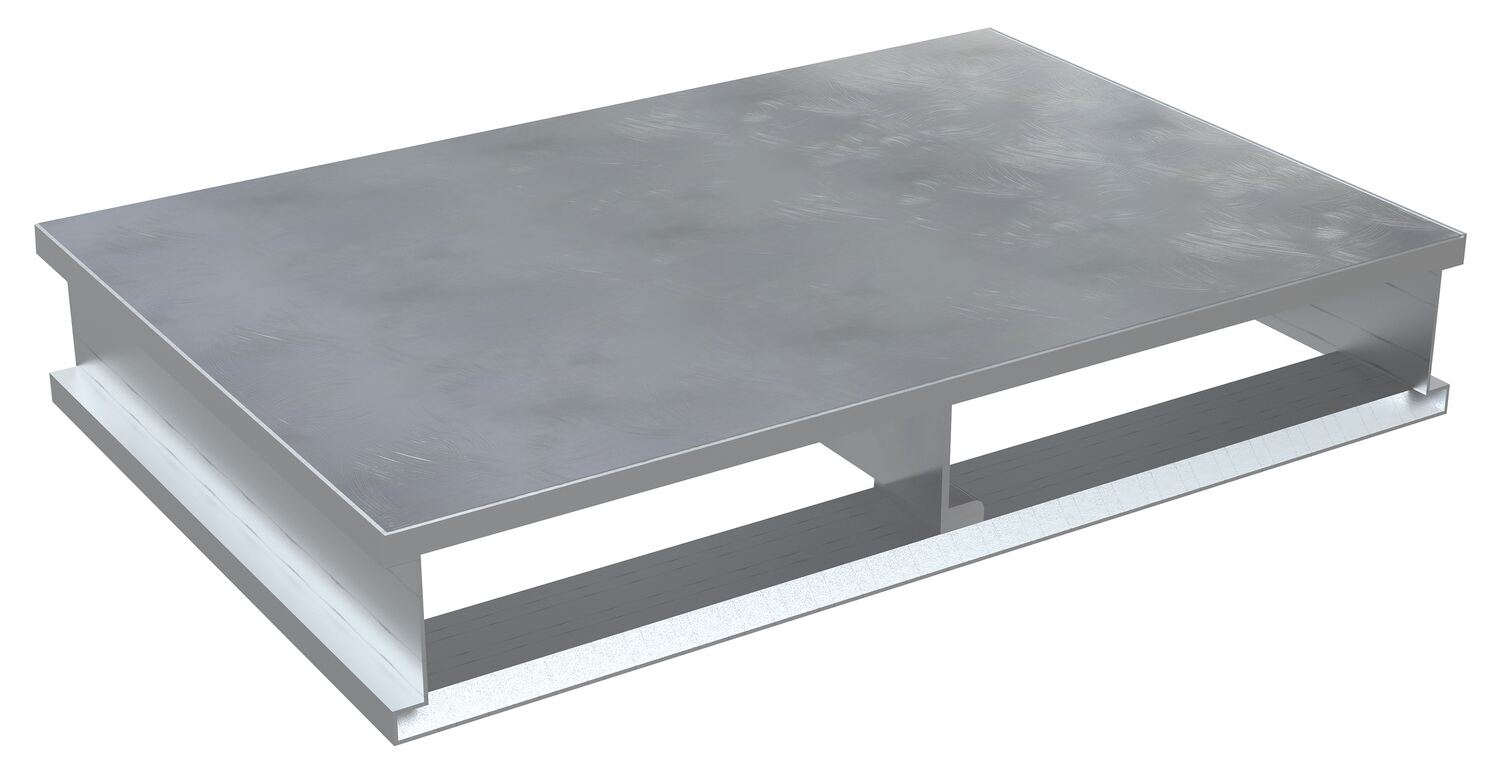

AP-ST-3624 NEW AP-ST-362490 Days Limited WarrantyAluminum Heavy Duty Solid Top Pallet 36 In. x 24 In. x 6 In. 4000 Lb. SilverUniform Capacity: 4000
Fork Pocket Width (in.): 16-5/16
26

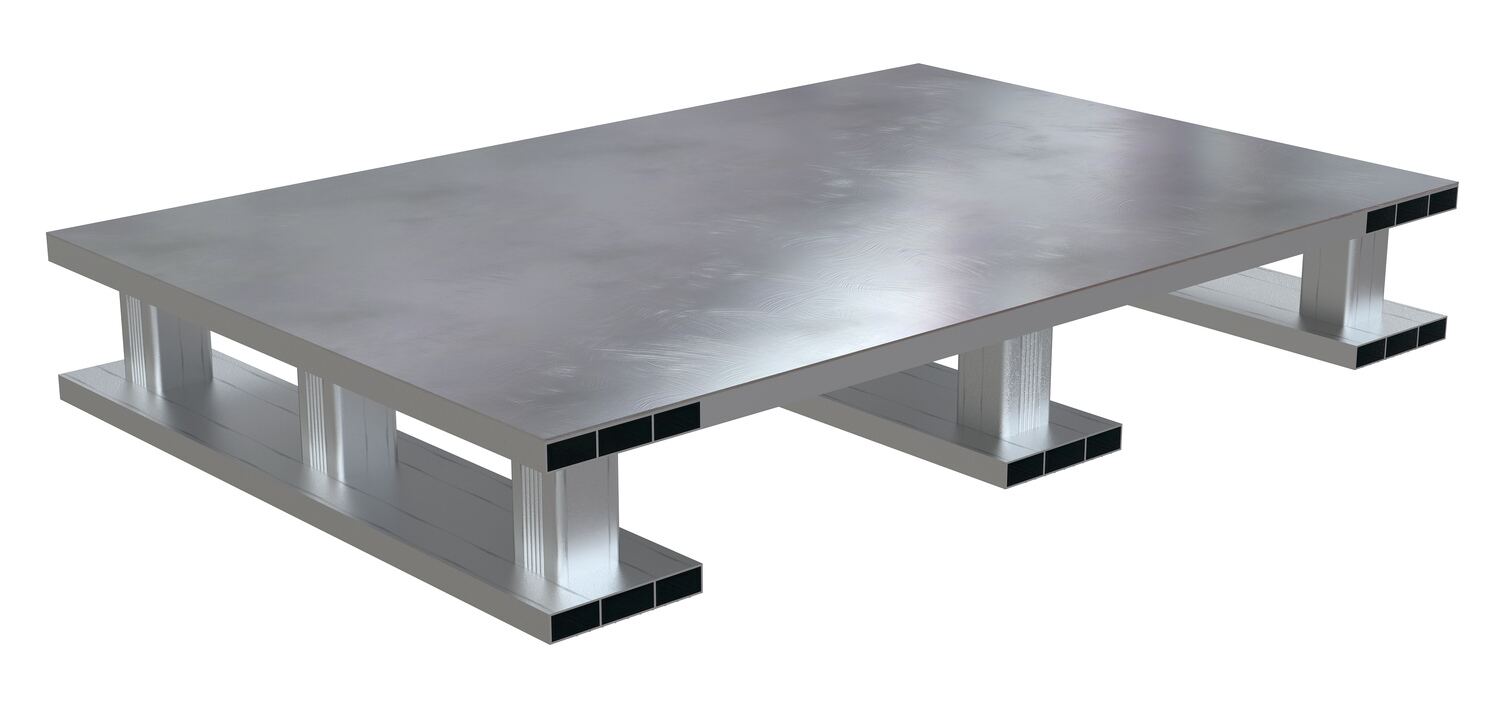

AP-ST-3624-SB NEW AP-ST-3624-SB90 Days Limited WarrantyAluminum Solid Top Skid Bottom Pallet 36 In. x 24 In. x 6 In. 4000 Lb. SilverUniform Capacity (lbs.): 4,000
Fork Pocket Width (in.): 10-13/16
24

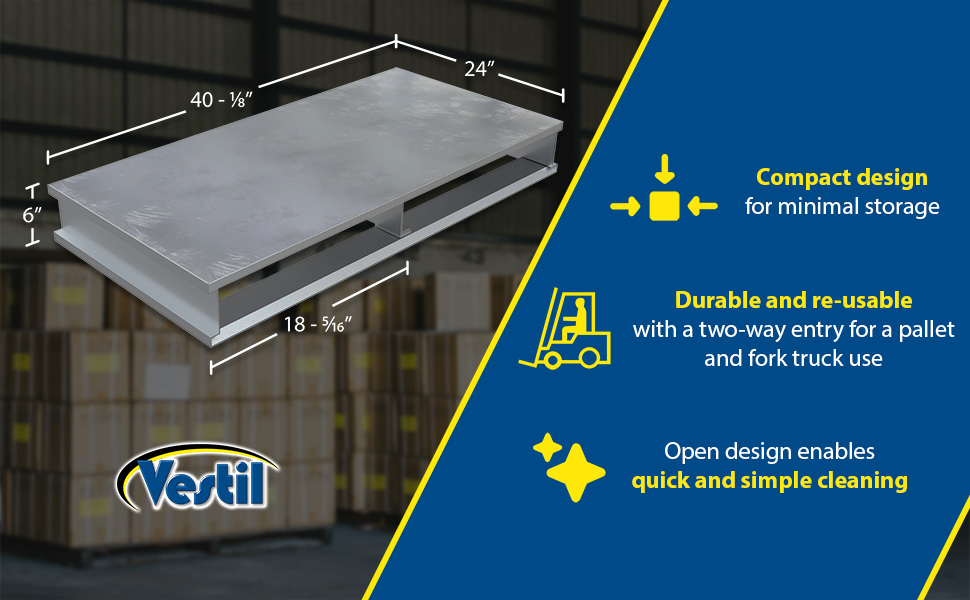

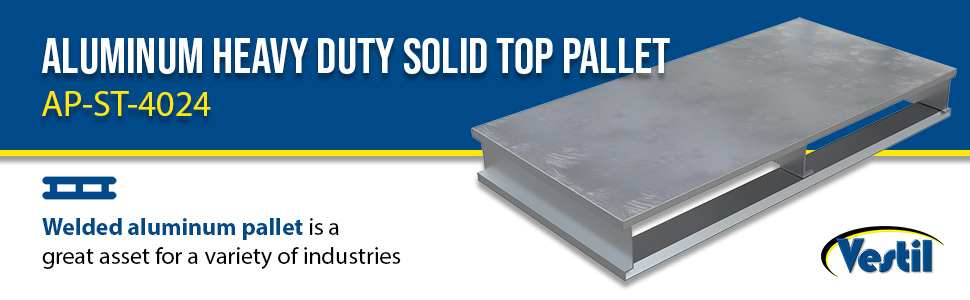

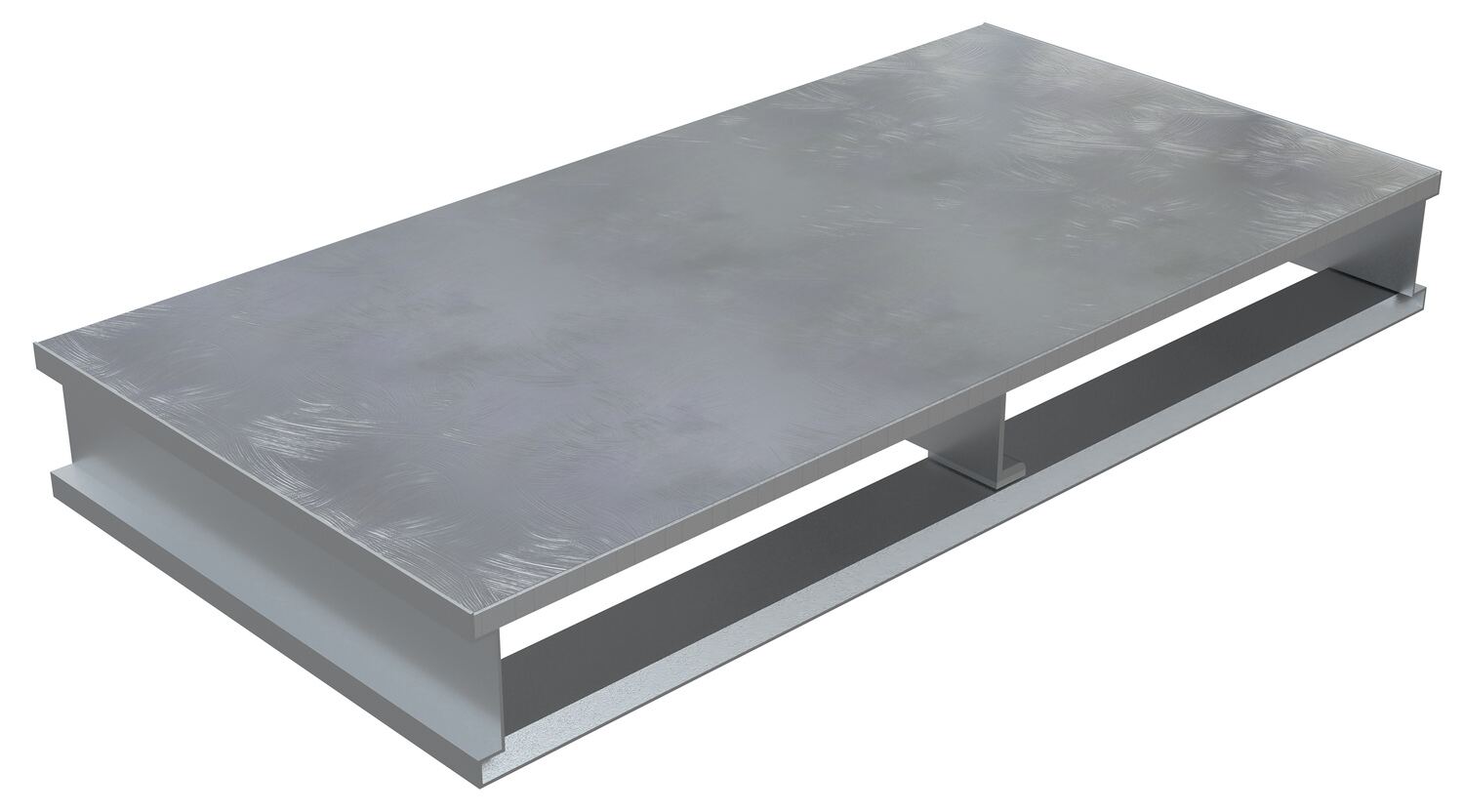

AP-ST-4024 AP-ST-402490 Days Limited WarrantyAluminum Heavy Duty Solid Top Half Pallet 24 In. x 40 In. x 6 In. 4000 Lb. Capacity SilverUniform Capacity: 4000
Fork Pocket Width(in.): 18.312
33

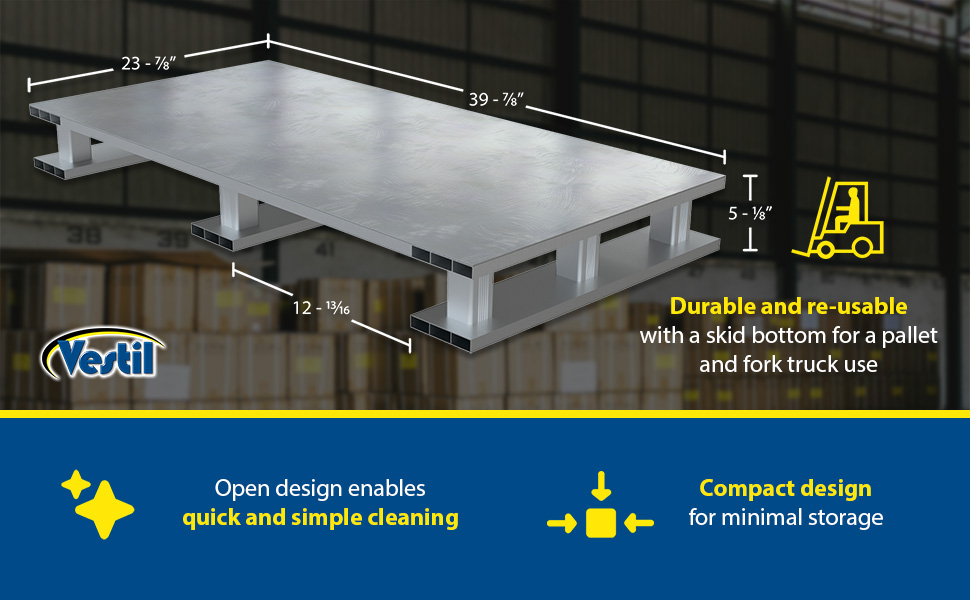

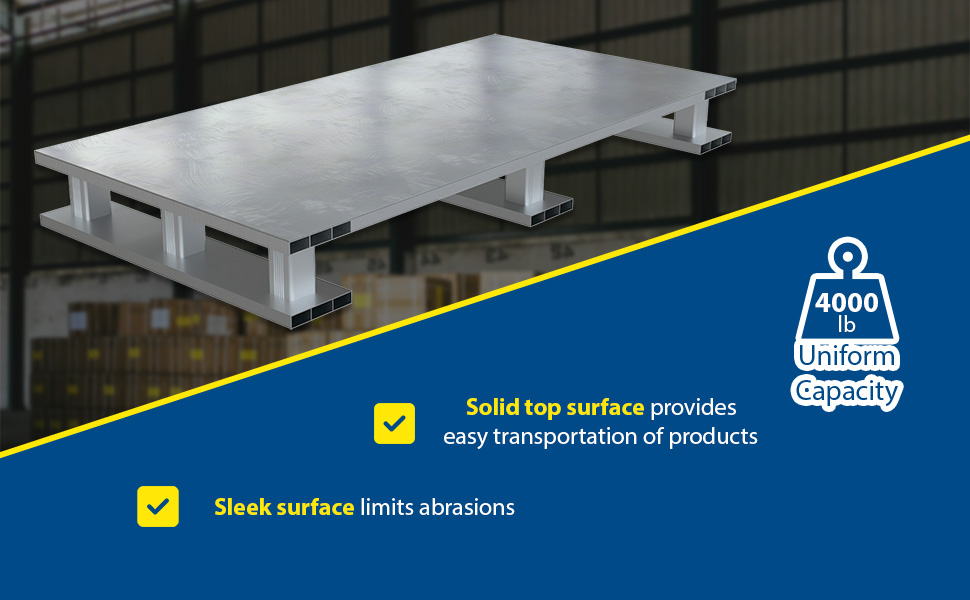

AP-ST-4024-SB AP-ST-4024-SB90 Days Limited WarrantyAluminum Half Solid Top with Skid Bottom 24 In. x 40 In. x 5-1/16 In. 4000 Lb. Capacity SilverUniform Capacity: 4000
Fork Pocket Width(in.): 15.625
28

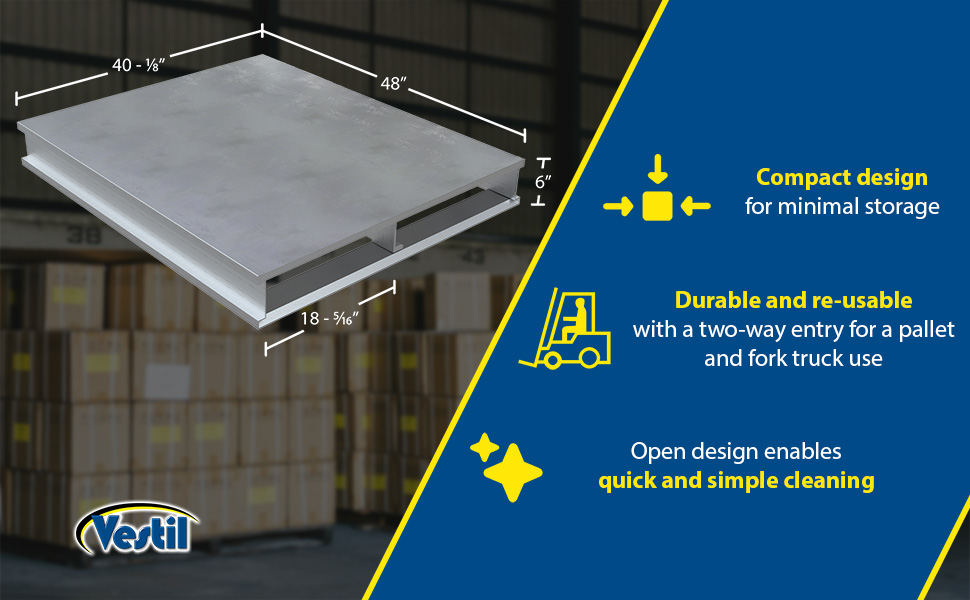

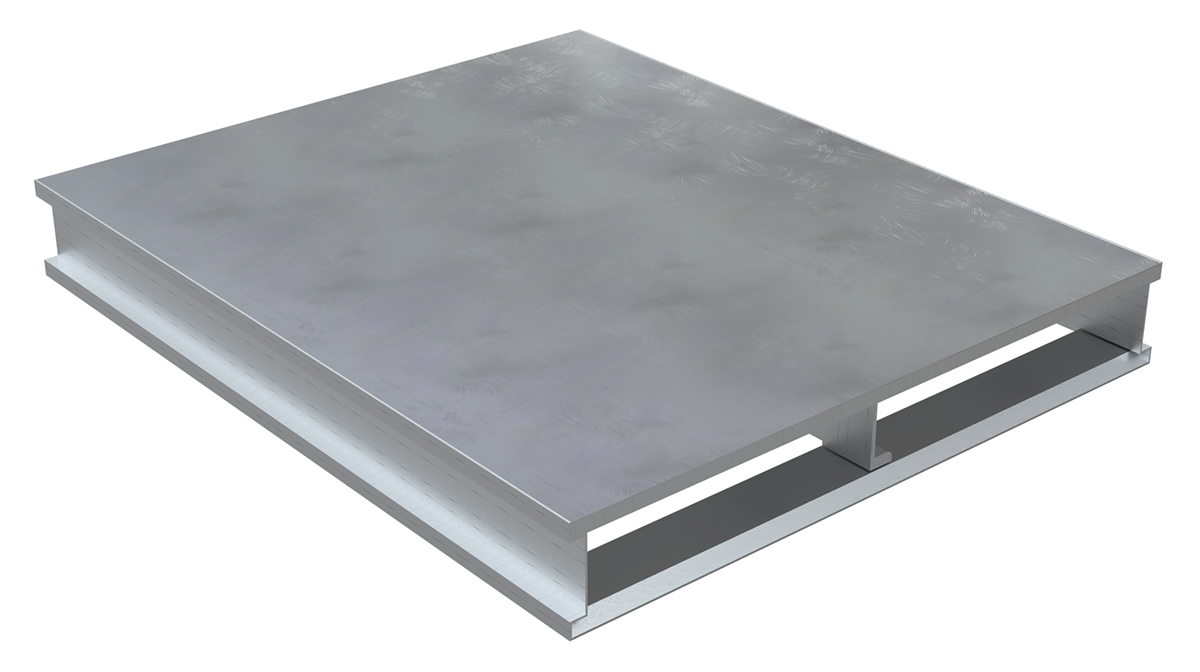

AP-ST-4048 AP-ST-404890 Days Limited WarrantyAluminum Heavy Duty Solid Top Pallet 48 In. x 40-1/8 In. x 6 In. 6000 Lb. Capacity SilverEntry: 2-Way
Fork Opening Width (in.): 18-5/16
113

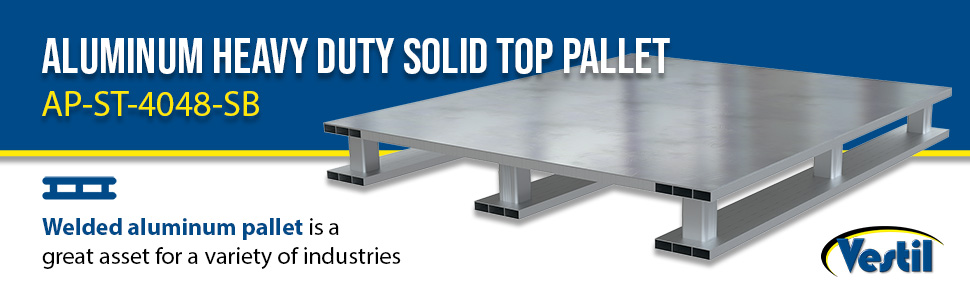

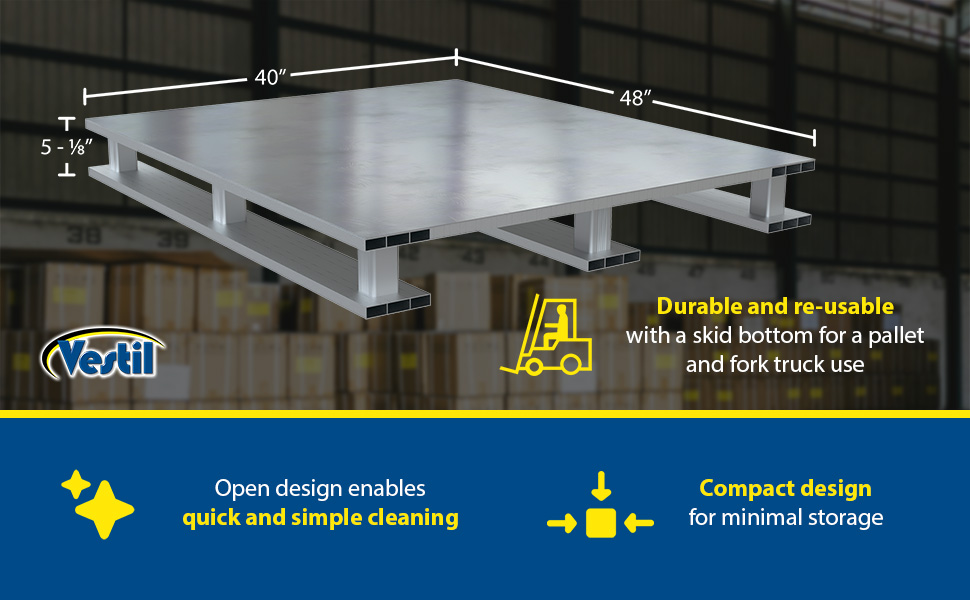

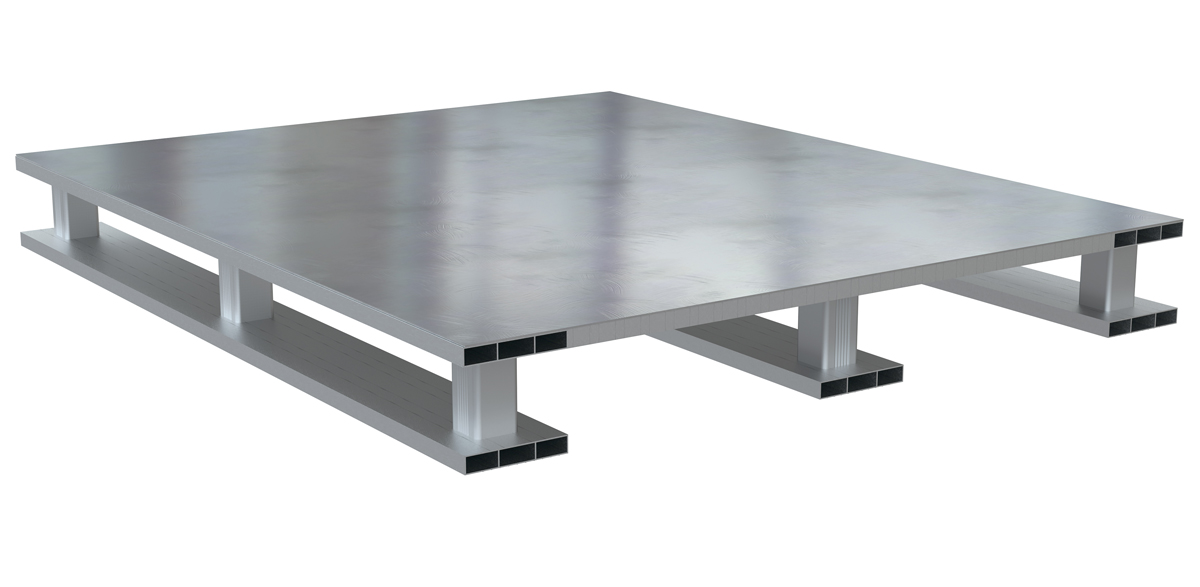

AP-ST-4048-SB AP-ST-4048-SB90 Days Limited WarrantyAluminum Solid Top with Skid Bottom 47-7/8 In. x 40 In. x 5-1/16 In. 6000 Lb. Capacity SilverEntry: Skid Bottom
Fork Opening Widths (in.): 19-9/16, 15-5/8
113

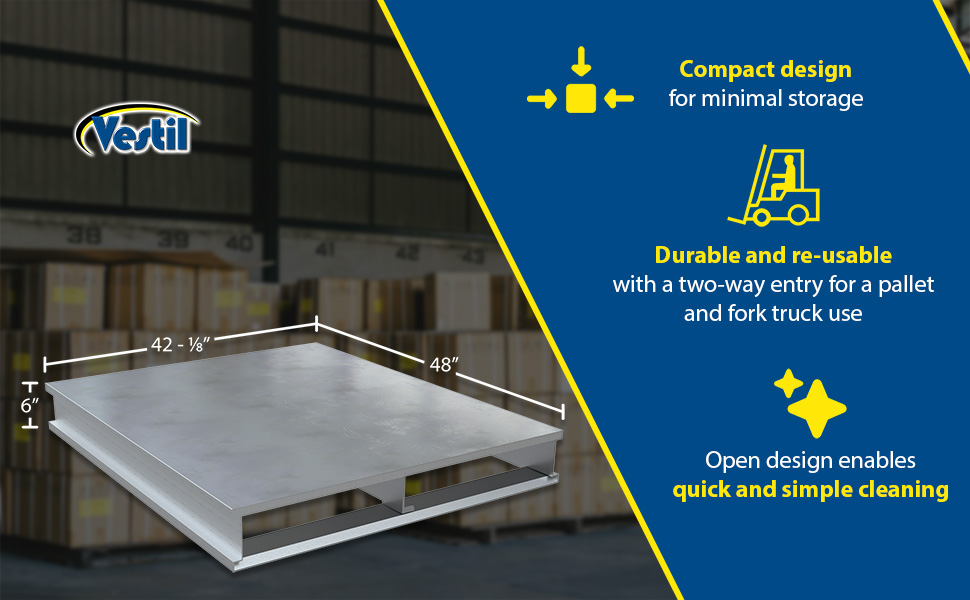

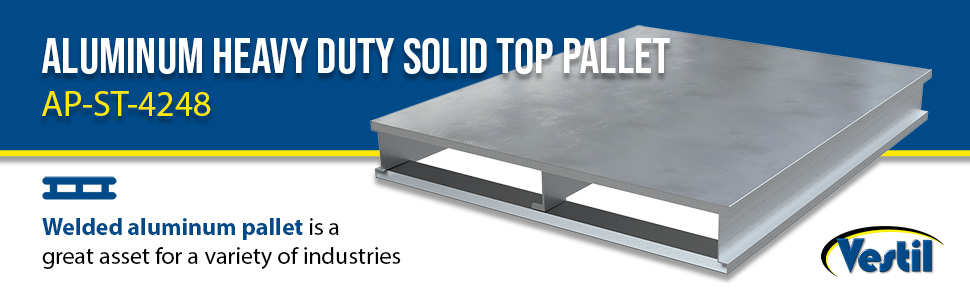

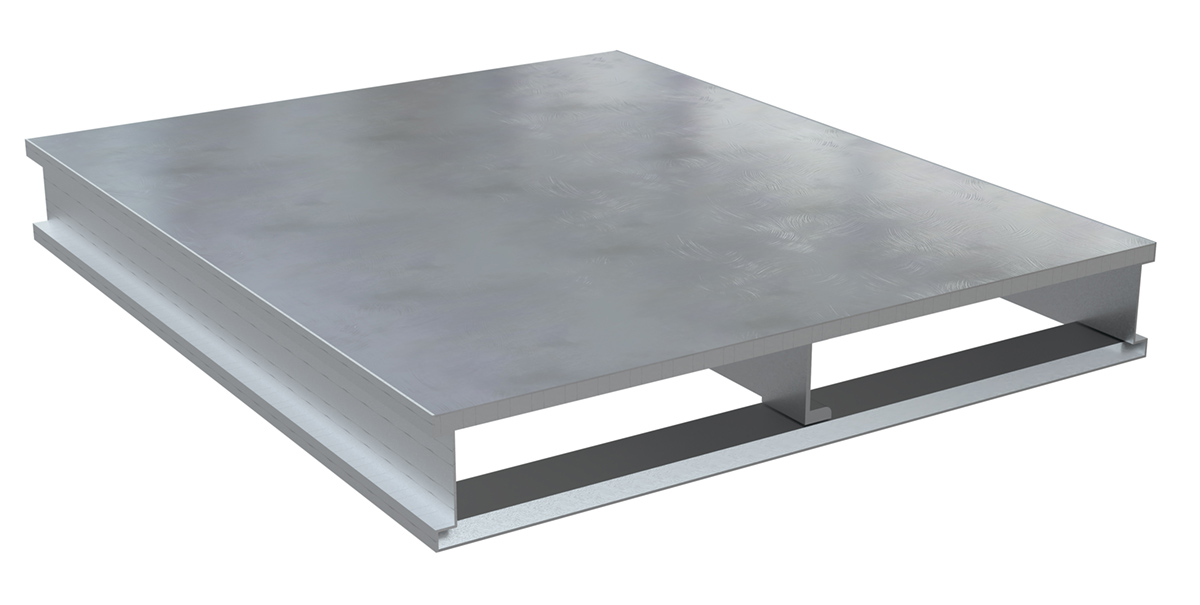

AP-ST-4248 AP-ST-424890 Days Limited WarrantyAluminum Heavy Duty Solid Top Pallet 48 In. x 42-1/8 In. x 6 In. 6000 Lb. Capacity SilverEntry: 2-Way
Fork Opening Width (in.): 19-5/16
114

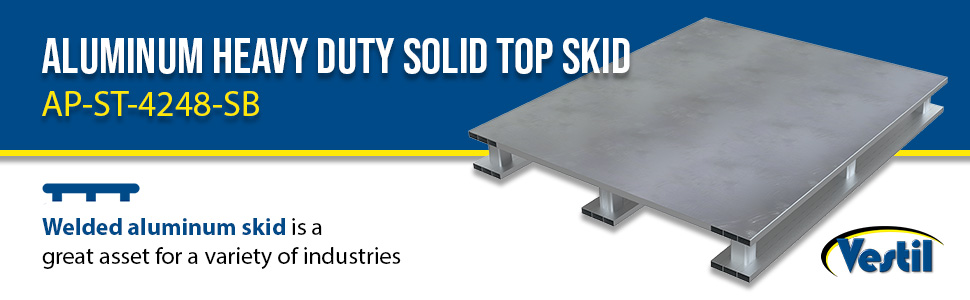

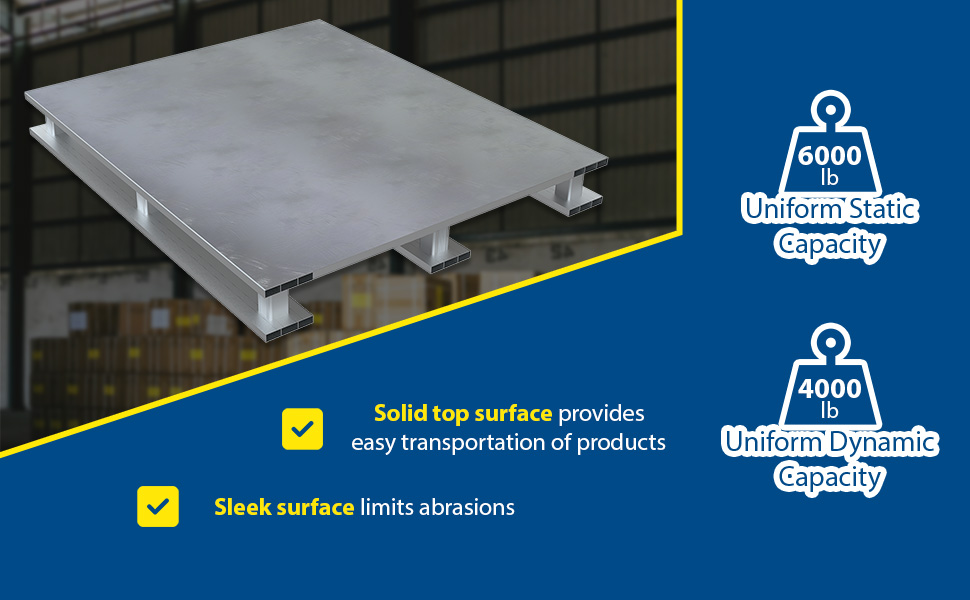

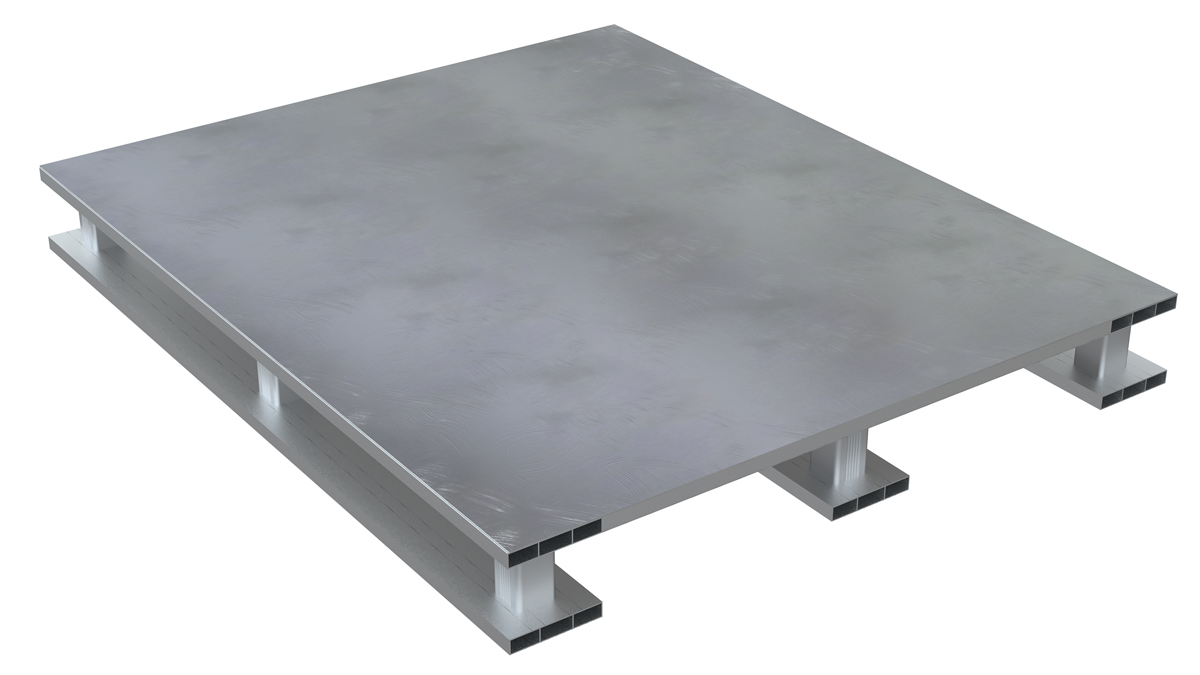

AP-ST-4248-SB AP-ST-4248-SB90 Days Limited WarrantyAluminum Solid Top with Skid Bottom 47-7/8 In. x 42 In. x 5-1/16 In. 6000 Lb. Capacity SilverEntry: Skid Bottom
Fork Opening Widths (in.): 19-9/16, 15-5/8
115

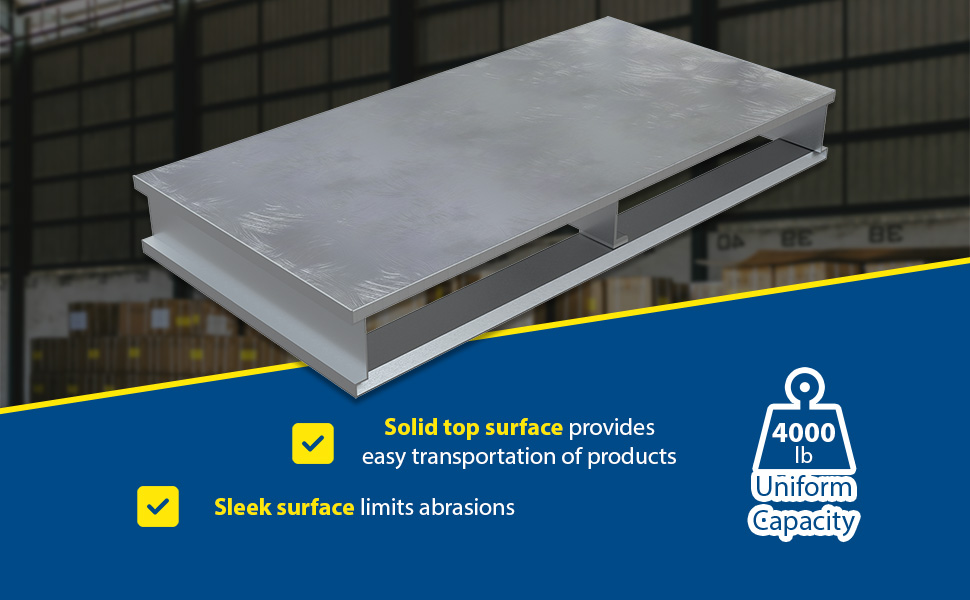

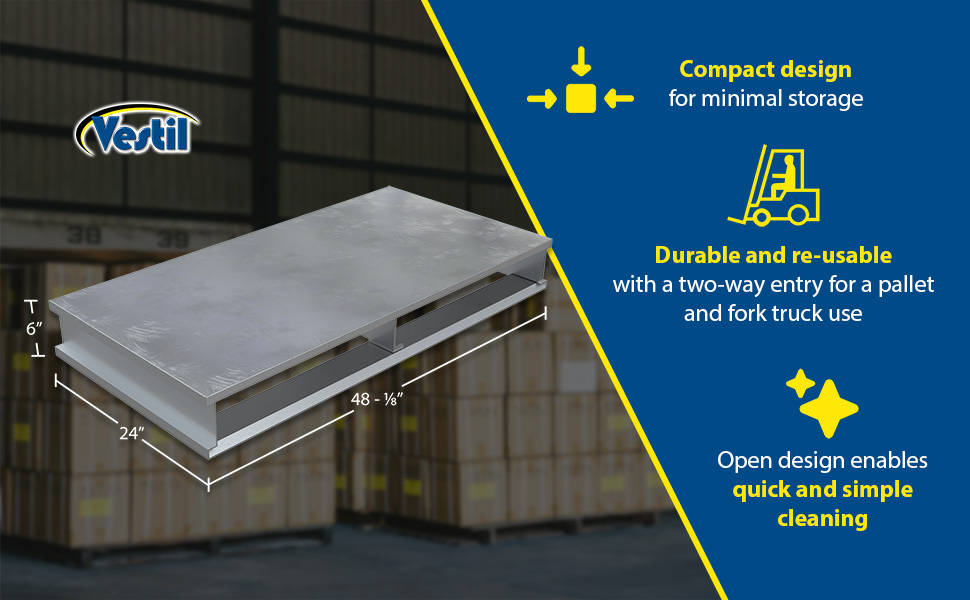

AP-ST-4824 AP-ST-482490 Days Limited WarrantyAluminum Heavy Duty Solid Top Pallet 24 In. x 48 In. x 6 In. 4000 Lb. Capacity SilverUniform Capacity: 4000
Fork Pocket Width(in.): 22.5625
36

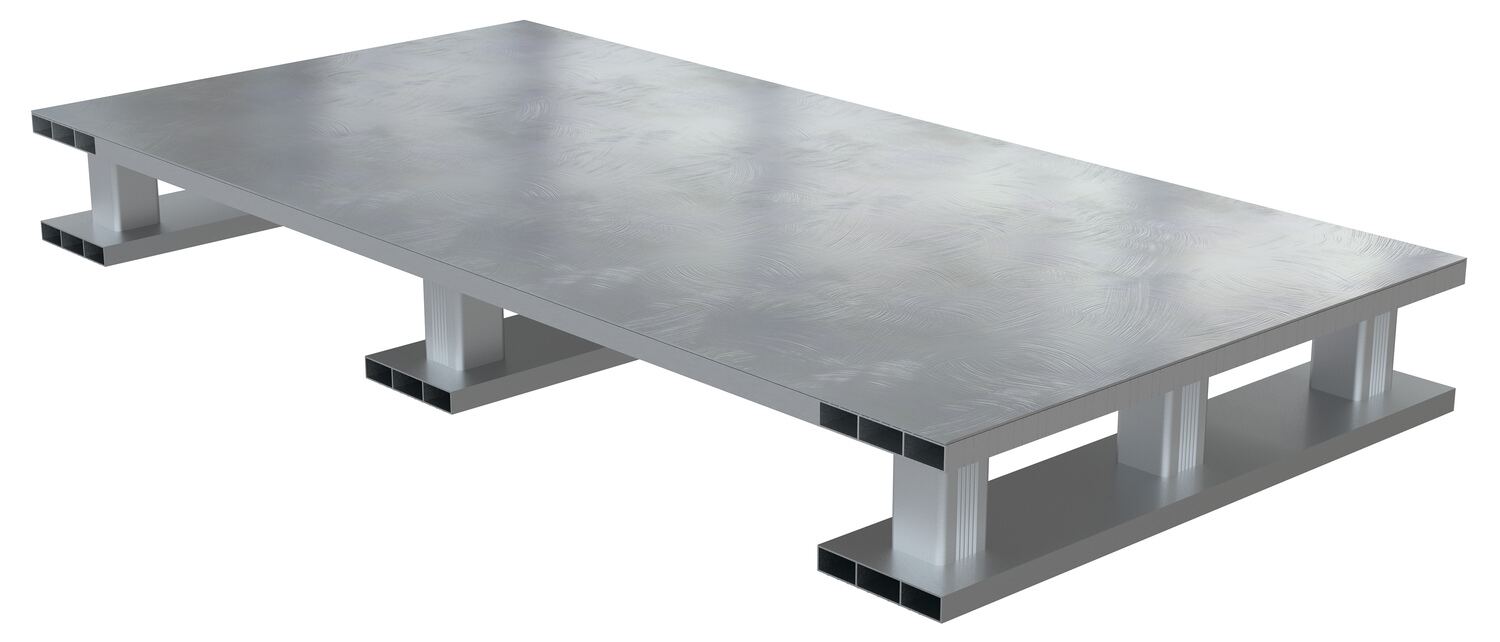

AP-ST-4824-SB AP-ST-4824-SB90 Days Limited WarrantyAluminum Solid Top with Skid Bottom 24 In. x 48 In. x 5-1/16 In. 4000 Lb. Capacity SilverUniform Capacity: 4000
Fork Pocket Width(in.): 19.5625
32

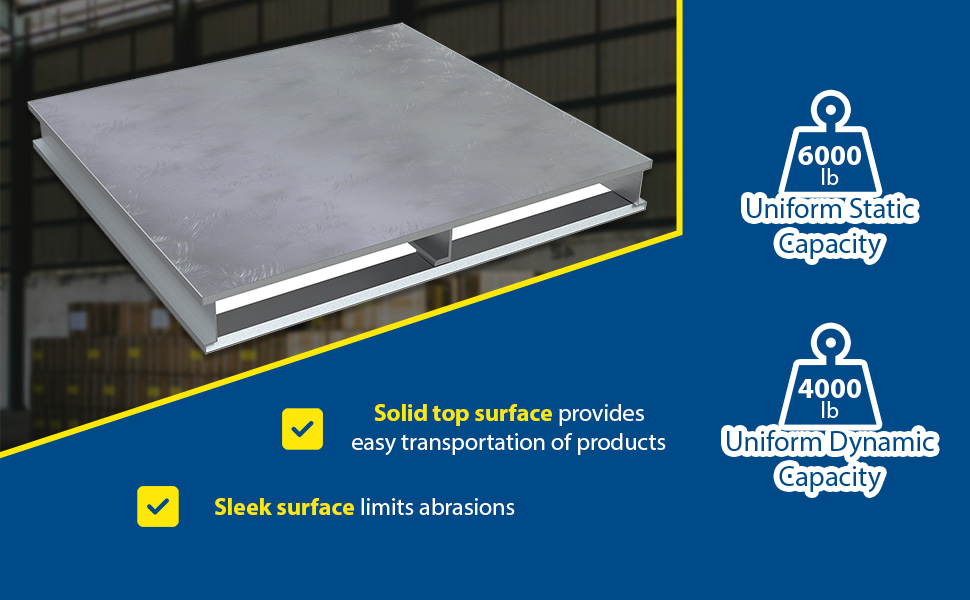

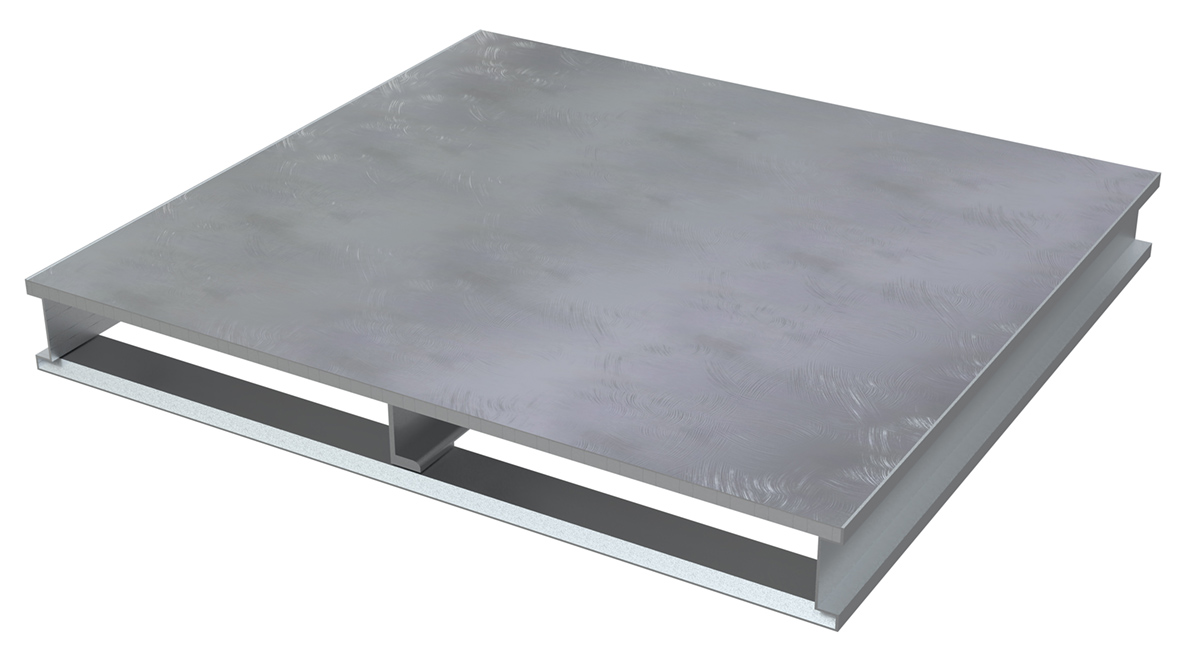

AP-ST-4848 AP-ST-484890 Days Limited WarrantyAluminum Heavy Duty Solid Top Pallet 48 In. x 48-1/8 In. x 6 In. 6000 Lb. Capacity SilverUniform Floor (static) Capacity (lb.): 6000
Uniform Fork (dynamic) Capacity (lb.): 4000
117

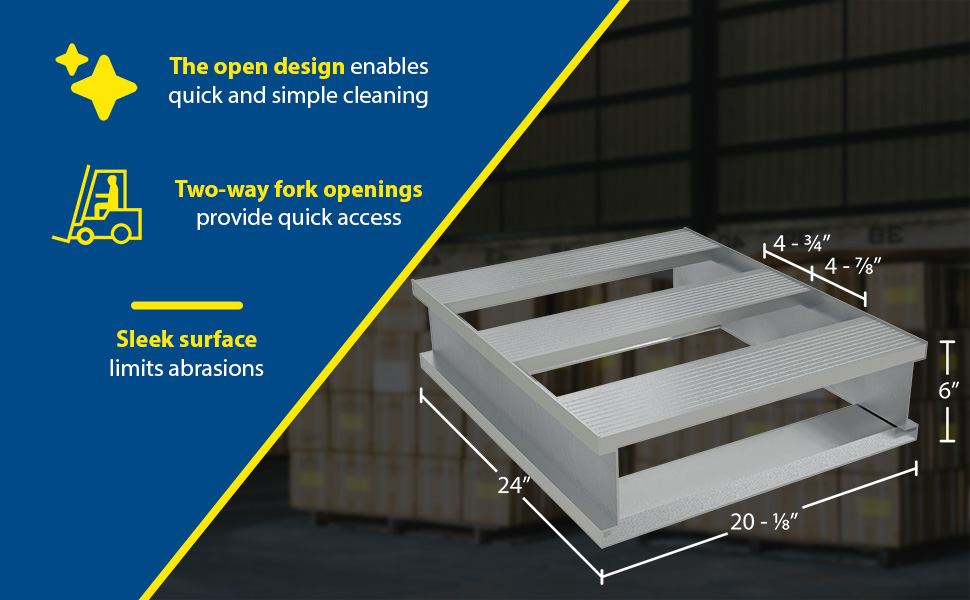

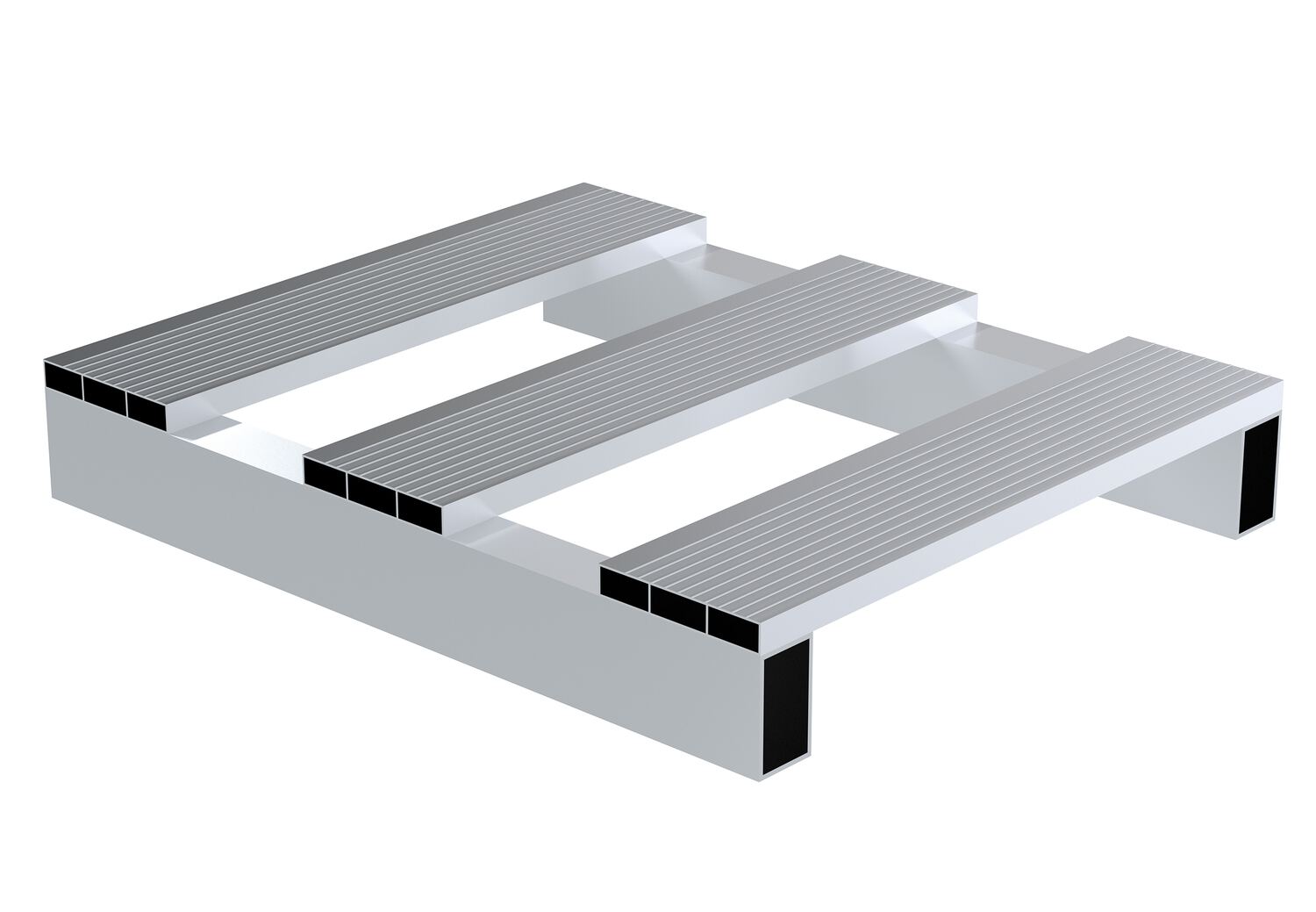

SKID-2024-A SKID-2024-A90 Days Limited WarrantyAluminum Skid 20 In x 24 In 4,000 Lb. Capacity SilverUniform Capacity: 4000
Fork Pocket Width(in.): 12.375
7

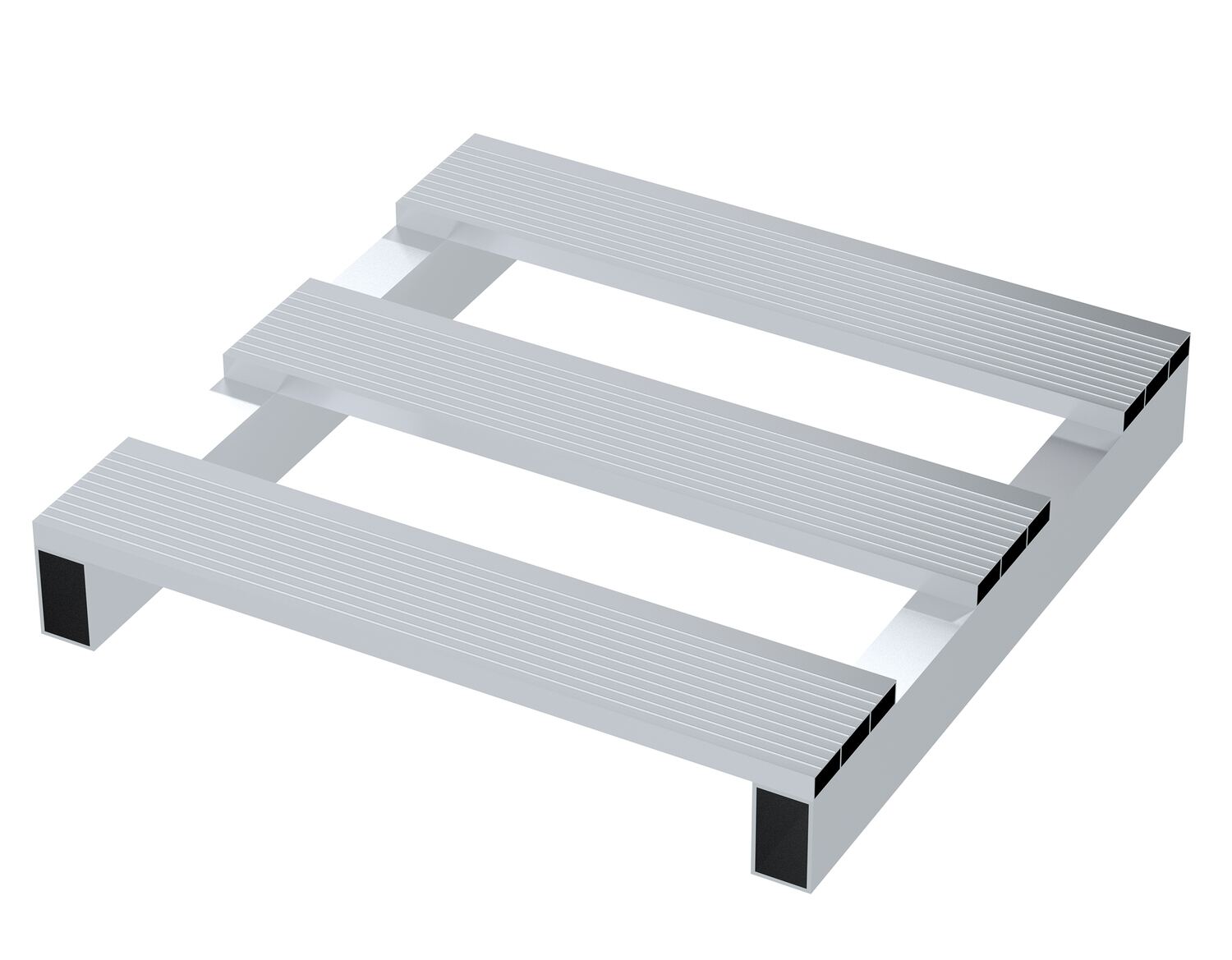

SKID-2424-A SKID-2424-A90 Days Limited WarrantyAluminum Half Skid 24 In. x 24 In. x 3-3/4 In. 4,000 Lb. Capacity SilverUniform Capacity: 4000
Fork Pocket Width(in.): 12.375
8

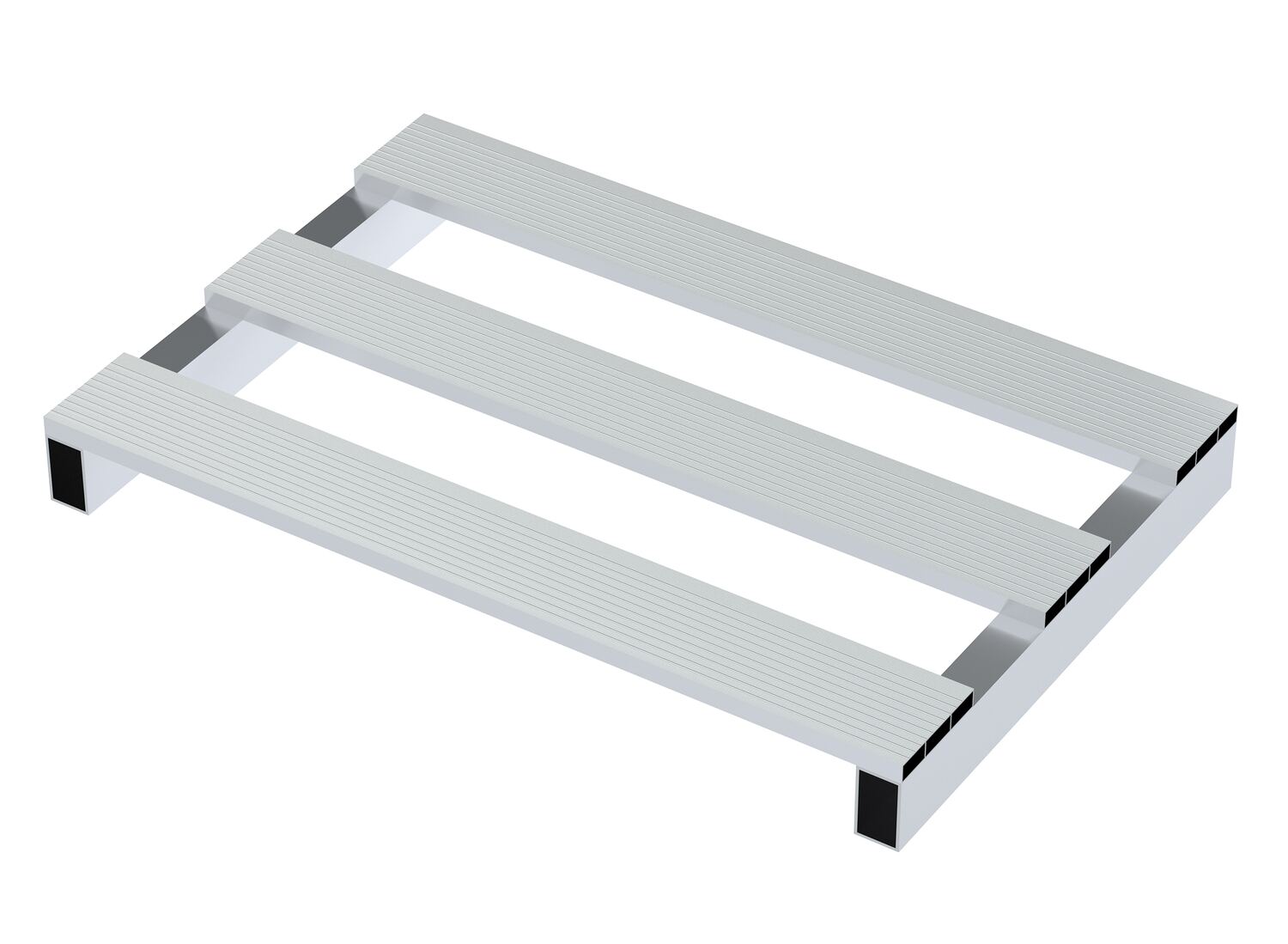

SKID-3624-A SKID-3624-A90 Days Limited WarrantyAluminum Half Skid 24 In. x 36 In. x 3-3/4 In. 4,000 Lb. Capacity SilverUniform Capacity: 4000
Fork Pocket Width(in.): 24.375
11

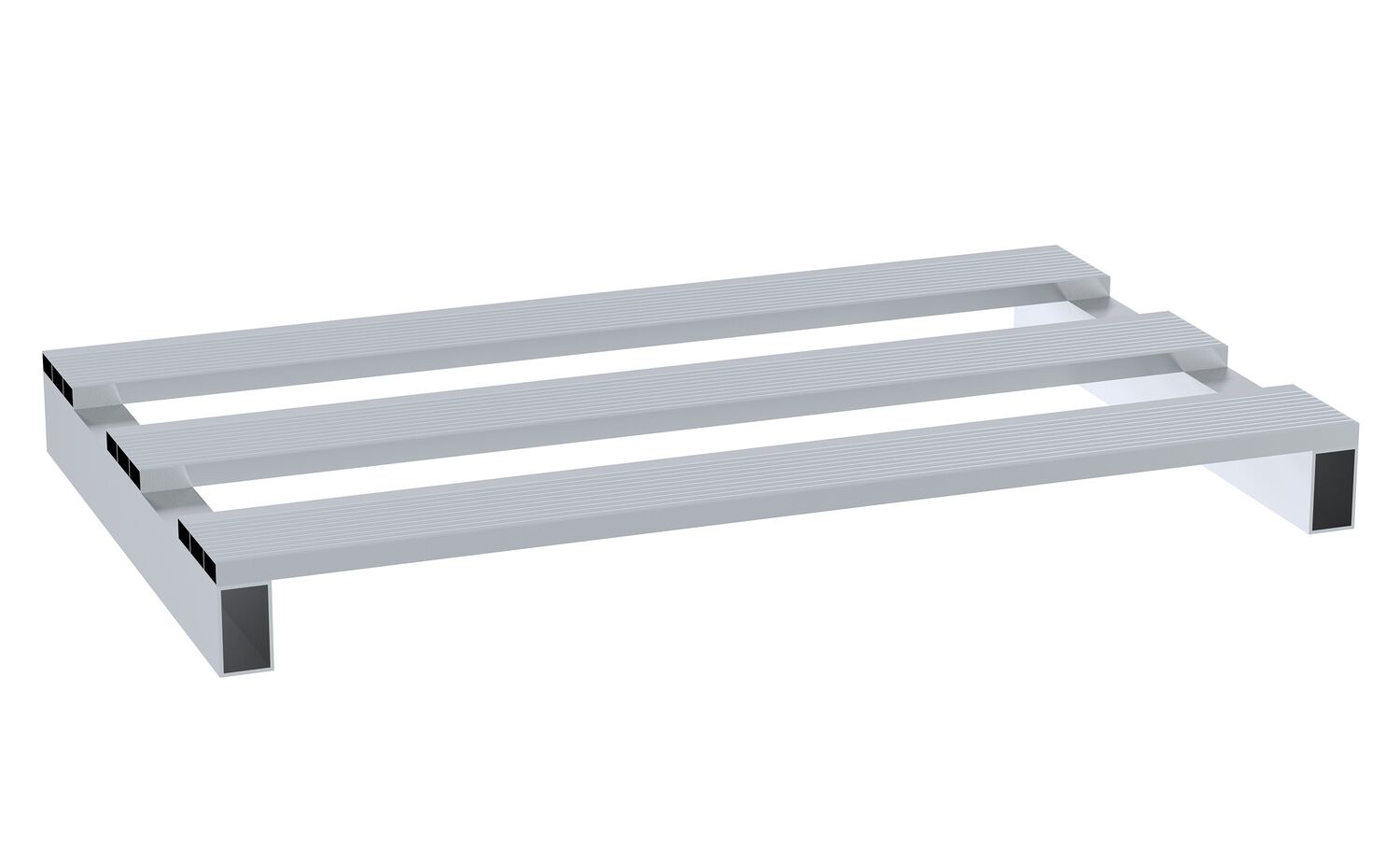

SKID-4024-A SKID-4024-A90 Days Limited WarrantyAluminum Half Skid 24 In. x 40 In. x 3-3/4 In. 4,000 Lb. Capacity SilverUniform Capacity: 4000
Fork Pocket Width(in.): 28.375
13

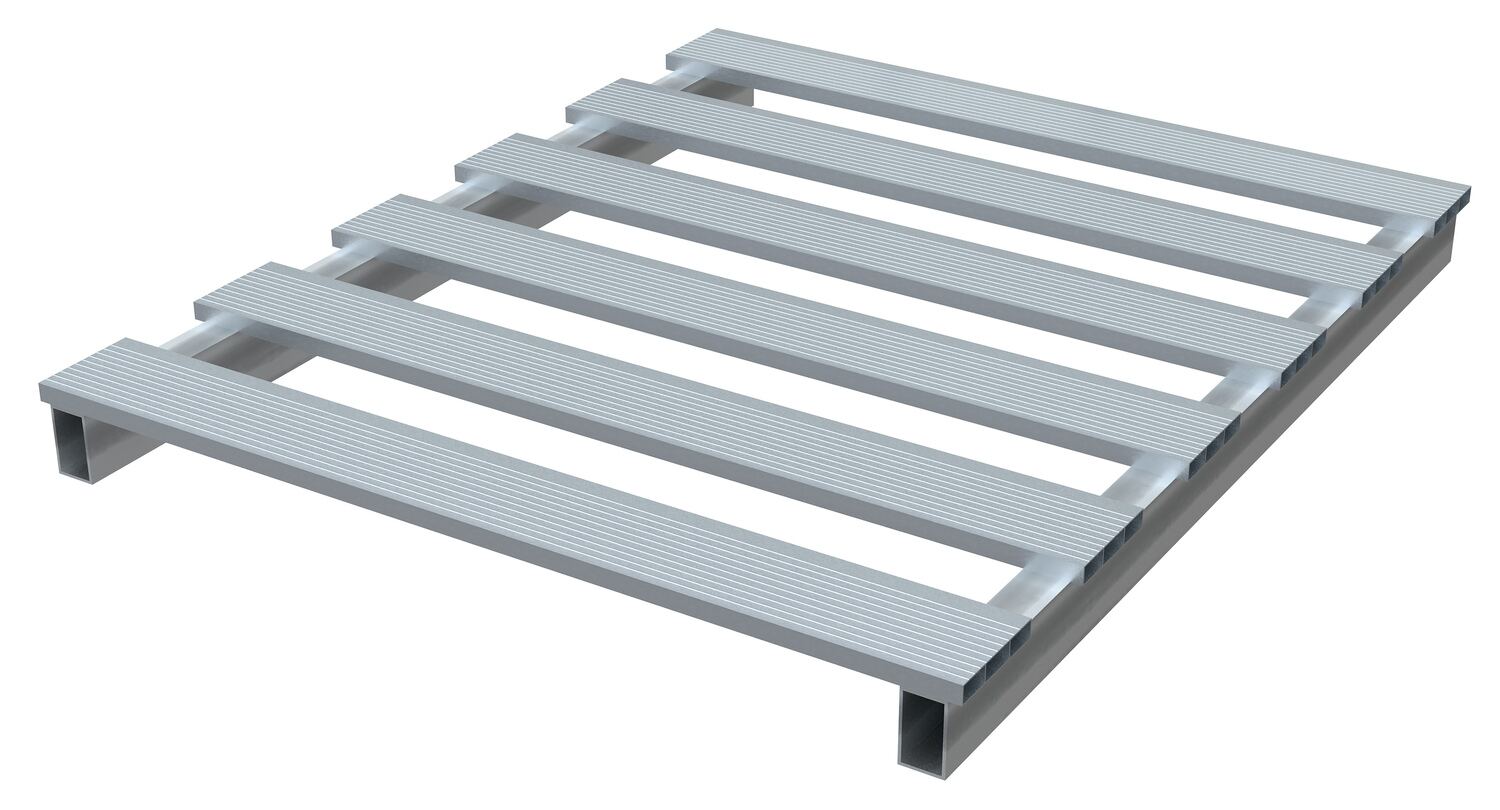

SKID-4048-A SKID-4048-A90 Days Limited WarrantyAluminum Skid 48 In. x 39-7/8 In. x 4 In. 4,000 Lb. Capacity SilverUniform Capacity (lb.): 4000
Fork Pocket Width (in.): 28 3/8
28

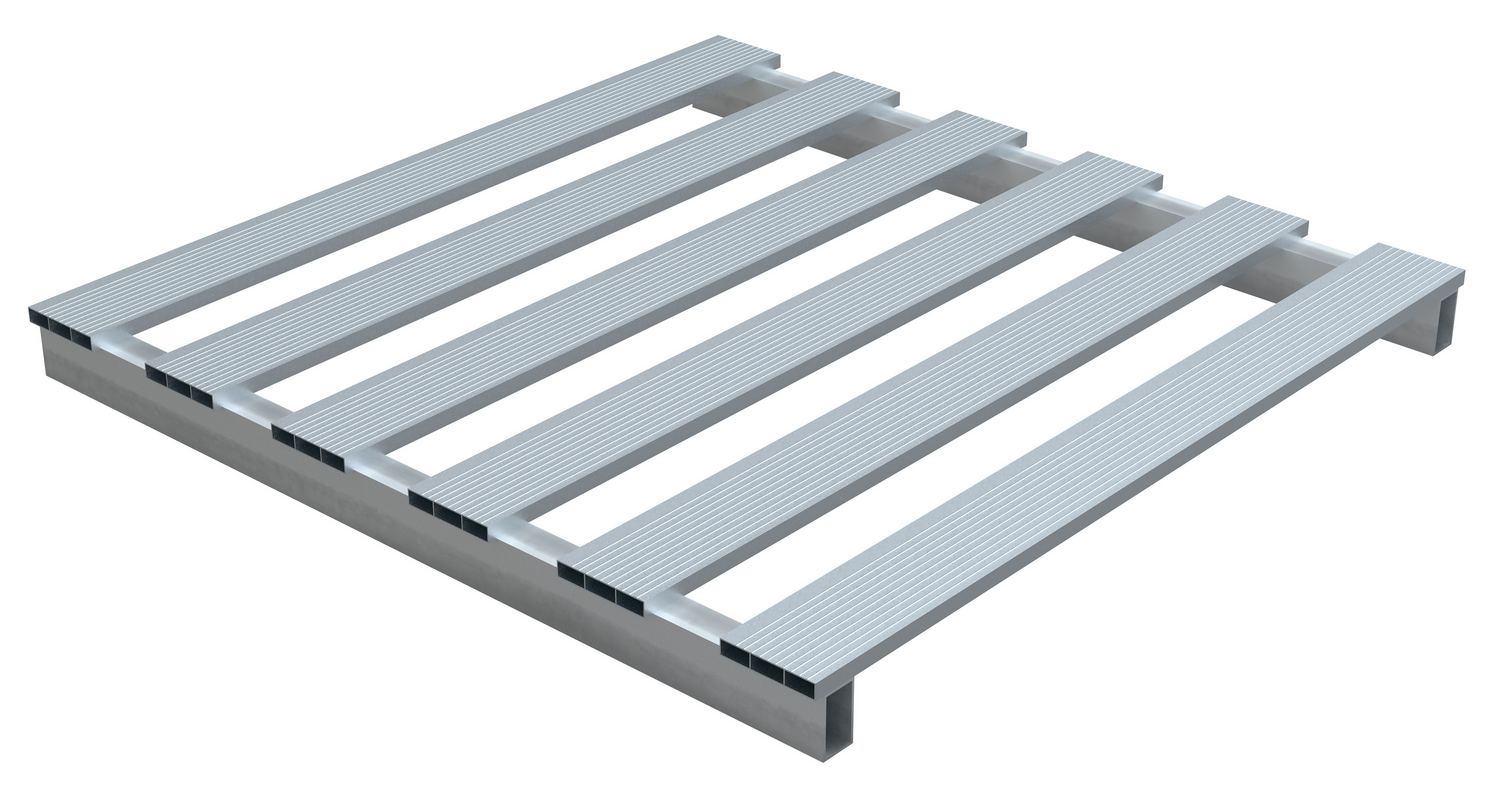

SKID-4248-A SKID-4248-A90 Days Limited WarrantyAluminum Skid 48 In. x 41-7/8 In. x 4 In. 4,000 Lb. Capacity SilverUniform Capacity (lb.): 4000
Fork Pocket Width (in.): 30 3/8
29

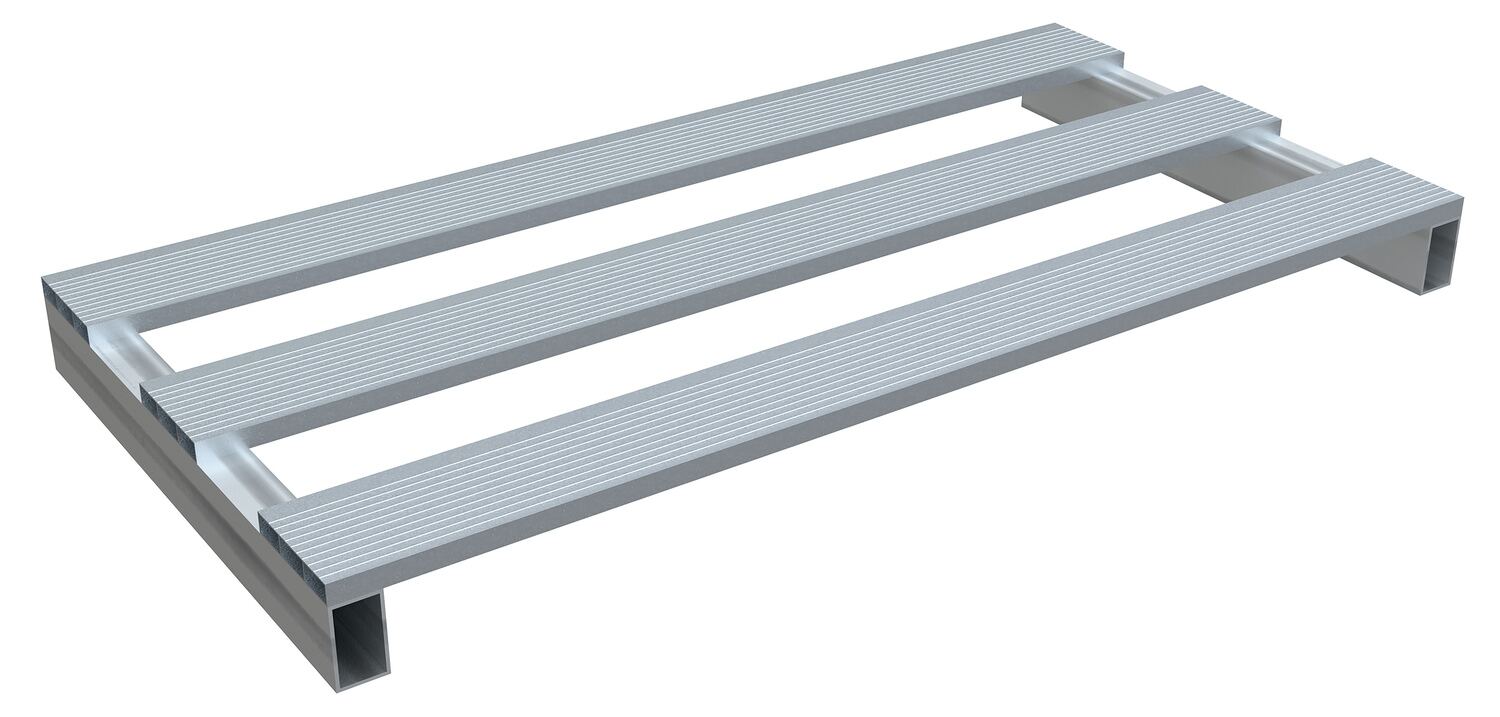

SKID-4824-A SKID-4824-A90 Days Limited WarrantyAluminum Half Skid 24 In. x 48 In. x 3-3/4 In. 4,000 Lb. Capacity SilverUniform Capacity: 4000
Fork Pocket Width(in.): 36.375
15

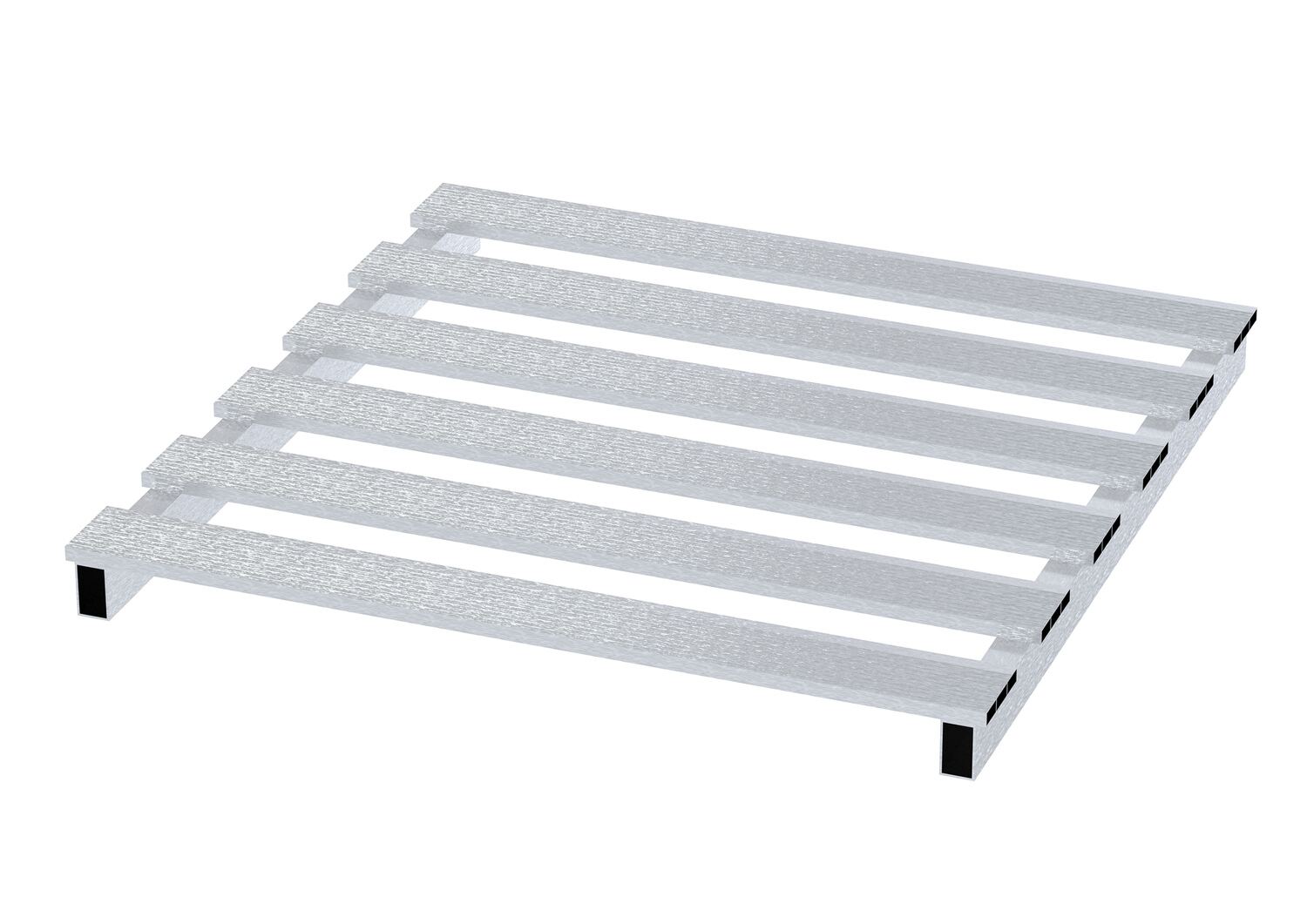

SKID-4848-A SKID-4848-A90 Days Limited WarrantyAluminum Skid 48 In. x 47-7/8 In. x 4 In. 4,000 Lb. Capacity SilverUniform Capacity (lb.): 4000
Fork Pocket Width (in.): 36 3/8
31

* Click the Comparison Table link above this table, or compare up to 3 products side-by-side by clicking Green +

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

AP-2024
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity: 4000
Fork Pocket Width(in.): 22.5625
Uniform Capacity: 4000
Fork Pocket Width(in.): 22.5625

AP-2424
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity: 4000
Fork Pocket Width(in.): 22.5625
Uniform Capacity: 4000
Fork Pocket Width(in.): 22.5625

AP-2424-SB
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity: 4000
Fork Pocket Width(in.): 19.5625
Uniform Capacity: 4000
Fork Pocket Width(in.): 19.5625

AP-3624
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity: 4000
Fork Pocket Width(in.): 8.3125
Uniform Capacity: 4000
Fork Pocket Width(in.): 8.3125

AP-3624-SB
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity: 4000
Fork Pocket Width(in.): 11.625
Uniform Capacity: 4000
Fork Pocket Width(in.): 11.625

AP-4024
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity: 4000
Fork Pocket Width(in.): 16.5625
Uniform Capacity: 4000
Fork Pocket Width(in.): 16.5625

AP-4024-SB
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity: 4000
Fork Pocket Width(in.): 15.625
Uniform Capacity: 4000
Fork Pocket Width(in.): 15.625

AP-4048
Unit:
Size: W x L x H
Weight:
Limited Warranty
Top Board Width (in.): 4-3/4
Fork Opening Width (in.): 18-5/16
Top Board Width (in.): 4-3/4
Fork Opening Width (in.): 18-5/16

AP-4048-SB
Unit:
Size: W x L x H
Weight:
Limited Warranty
Top Board Width (in.): 4-3/4
Fork Opening Widths (in.): 19-9/16, 15-5/8
Top Board Width (in.): 4-3/4
Fork Opening Widths (in.): 19-9/16, 15-5/8

AP-4248
Unit:
Size: W x L x H
Weight:
Limited Warranty
Top Board Width (in.): 4-3/4
Fork Opening Width (in.): 19-5/16
Top Board Width (in.): 4-3/4
Fork Opening Width (in.): 19-5/16

AP-4248-SB
Unit:
Size: W x L x H
Weight:
Limited Warranty
Top Board Width (in.): 4-3/4
Fork Opening Widths (in.): 19-9/16, 15-5/8
Top Board Width (in.): 4-3/4
Fork Opening Widths (in.): 19-9/16, 15-5/8

AP-4824
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity: 4000
Fork Pocket Width(in.): 22.5625
Uniform Capacity: 4000
Fork Pocket Width(in.): 22.5625

AP-4824-SB
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity: 4000
Fork Pocket Width(in.): 19.5625
Uniform Capacity: 4000
Fork Pocket Width(in.): 19.5625

AP-4848
Unit:
Size: W x L x H
Weight:
Limited Warranty
Top Board Width (in.): 4-3/4
Fork Opening Width (in.): 22-5/16
Top Board Width (in.): 4-3/4
Fork Opening Width (in.): 22-5/16

AP-4848-SB
Unit:
Size: W x L x H
Weight:
Limited Warranty
Top Board Width (in.): 4-3/4
Fork Opening Widths (in.): 19-9/16, 19-9/16
Top Board Width (in.): 4-3/4
Fork Opening Widths (in.): 19-9/16, 19-9/16

AP-ST-2424
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity: 4000
Fork Pocket Width(in.): 22.5625
Uniform Capacity: 4000
Fork Pocket Width(in.): 22.5625

AP-ST-2424-SB
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity: 4000
Fork Pocket Width(in.): 19.5625
Uniform Capacity: 4000
Fork Pocket Width(in.): 19.5625

AP-ST-3624
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity: 4000
Fork Pocket Width (in.): 16-5/16
Uniform Capacity: 4000
Fork Pocket Width (in.): 16-5/16

AP-ST-3624-SB
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 4,000
Fork Pocket Width (in.): 10-13/16
Uniform Capacity (lbs.): 4,000
Fork Pocket Width (in.): 10-13/16

AP-ST-4024
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity: 4000
Fork Pocket Width(in.): 18.312
Uniform Capacity: 4000
Fork Pocket Width(in.): 18.312

AP-ST-4024-SB
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity: 4000
Fork Pocket Width(in.): 15.625
Uniform Capacity: 4000
Fork Pocket Width(in.): 15.625

AP-ST-4048
Unit:
Size: W x L x H
Weight:
Limited Warranty
Entry: 2-Way
Fork Opening Width (in.): 18-5/16
Entry: 2-Way
Fork Opening Width (in.): 18-5/16

AP-ST-4048-SB
Unit:
Size: W x L x H
Weight:
Limited Warranty
Entry: Skid Bottom
Fork Opening Widths (in.): 19-9/16, 15-5/8
Entry: Skid Bottom
Fork Opening Widths (in.): 19-9/16, 15-5/8

AP-ST-4248
Unit:
Size: W x L x H
Weight:
Limited Warranty
Entry: 2-Way
Fork Opening Width (in.): 19-5/16
Entry: 2-Way
Fork Opening Width (in.): 19-5/16

AP-ST-4248-SB
Unit:
Size: W x L x H
Weight:
Limited Warranty
Entry: Skid Bottom
Fork Opening Widths (in.): 19-9/16, 15-5/8
Entry: Skid Bottom
Fork Opening Widths (in.): 19-9/16, 15-5/8

AP-ST-4824
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity: 4000
Fork Pocket Width(in.): 22.5625
Uniform Capacity: 4000
Fork Pocket Width(in.): 22.5625

AP-ST-4824-SB
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity: 4000
Fork Pocket Width(in.): 19.5625
Uniform Capacity: 4000
Fork Pocket Width(in.): 19.5625

AP-ST-4848
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Floor (static) Capacity (lb.): 6000
Uniform Fork (dynamic) Capacity (lb.): 4000
Uniform Floor (static) Capacity (lb.): 6000
Uniform Fork (dynamic) Capacity (lb.): 4000

SKID-2024-A
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity: 4000
Fork Pocket Width(in.): 12.375
Uniform Capacity: 4000
Fork Pocket Width(in.): 12.375

SKID-2424-A
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity: 4000
Fork Pocket Width(in.): 12.375
Uniform Capacity: 4000
Fork Pocket Width(in.): 12.375

SKID-3624-A
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity: 4000
Fork Pocket Width(in.): 24.375
Uniform Capacity: 4000
Fork Pocket Width(in.): 24.375

SKID-4024-A
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity: 4000
Fork Pocket Width(in.): 28.375
Uniform Capacity: 4000
Fork Pocket Width(in.): 28.375

SKID-4048-A
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Fork Pocket Width (in.): 28 3/8
Uniform Capacity (lb.): 4000
Fork Pocket Width (in.): 28 3/8

SKID-4248-A
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Fork Pocket Width (in.): 30 3/8
Uniform Capacity (lb.): 4000
Fork Pocket Width (in.): 30 3/8

SKID-4824-A
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity: 4000
Fork Pocket Width(in.): 36.375
Uniform Capacity: 4000
Fork Pocket Width(in.): 36.375

SKID-4848-A
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Fork Pocket Width (in.): 36 3/8
Uniform Capacity (lb.): 4000
Fork Pocket Width (in.): 36 3/8

Aluminum Pallets & Skids PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


AP-2024

AP-2424

AP-2424-SB

AP-3624

AP-3624-SB

AP-4024

AP-4024-SB

AP-4048

AP-4048-SB

AP-4248

AP-4248-SB

AP-4824

AP-4824-SB

AP-4848

AP-4848-SB

AP-ST-2424

AP-ST-2424-SB

AP-ST-3624

AP-ST-3624-SB

AP-ST-4024

AP-ST-4024-SB

AP-ST-4048

AP-ST-4048-SB

AP-ST-4248

AP-ST-4248-SB

AP-ST-4824

AP-ST-4824-SB

AP-ST-4848

SKID-2024-A

SKID-2424-A

SKID-3624-A

SKID-4024-A

SKID-4048-A

SKID-4248-A

SKID-4824-A

SKID-4848-A

SDS Sheets

No SDS Sheets For This Product

Other PDF's


Directory Links Of Available PDF's For All Products


Q: What material is used for the solid top pallet?

A: The top plate on the solid top units is aluminum tread plate with the tread pattern facing down. It is 3003-H22 aluminum. The frame cross members are extruded aluminum - 6063-T6 The riser tubes in the middle are extruded aluminum - 6105-T5






Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Aluminum Pallets & Skids

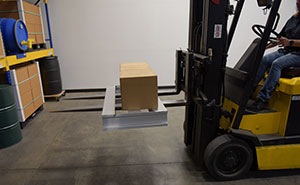

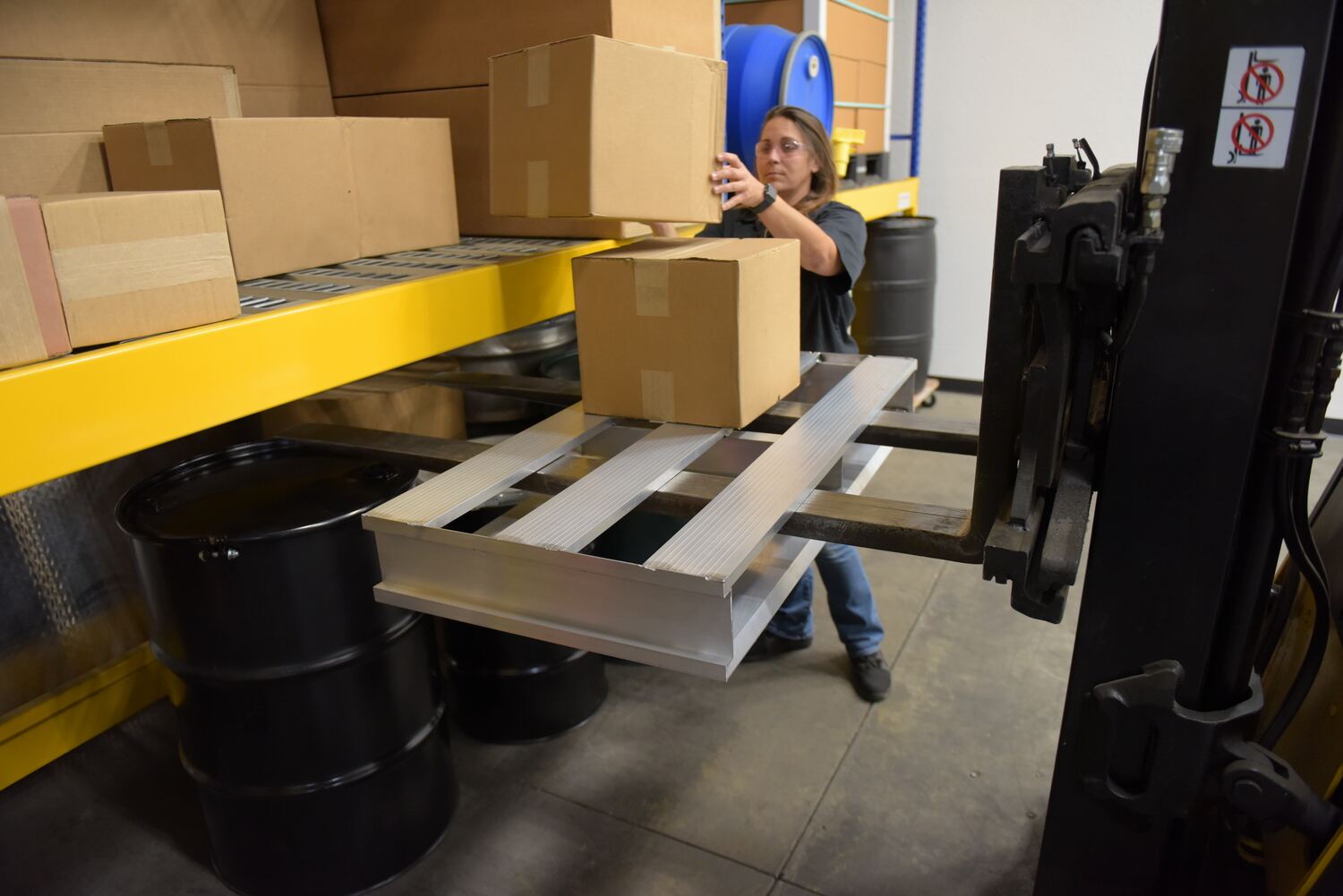

A welded Aluminum Pallet is a great asset for a variety of industries. The open design enables quick and simple cleaning. This pallet is durable and re-usable with a two-way entry for pallet and fork truck use. Large static capacity allows for load both big and small.

  • Solid top surface provides easy transportation of products
  • Simple access points for quick lifting
  • Sleek surface limits abrasions
  • Compact design for minimal storage

An Aluminum Half Pallet is a great asset for a variety of industries. With the half pallet design, items can be chosen and fitted to a pallet much closer to their size. This utilizes and maximizes space during shipping and floor space during any storage. The open design enables quick and simple cleaning.



Model # Description Attributes Net Wt.
(lbs)
AP-2024 AP-2024Aluminum Heavy Duty Half Pallet 20 In x 24 In x 6 In 4000 Lb. Capacity SilverUniform Capacity: 4000
Fork Pocket Width(in.): 22.5625
12
AP-2424 AP-2424Aluminum Heavy Duty Half Pallet 24 In. x 24 In. x 6 In. 4000 Lb. Capacity SilverUniform Capacity: 4000
Fork Pocket Width(in.): 22.5625
13
AP-2424-SB AP-2424-SBAluminum Half Skid Bottom Pallet 24 In. x 24 In. x 5-1/16 In. 4000 Lb. Capacity SilverUniform Capacity: 4000
Fork Pocket Width(in.): 19.5625
12
AP-3624 AP-3624Aluminum Heavy Duty Half Pallet 24 In. x 36 In. x 6 In. 4000 Lb. Capacity SilverUniform Capacity: 4000
Fork Pocket Width(in.): 8.3125
17
AP-3624-SB AP-3624-SBAluminum Half Skid Bottom Pallet 24 In. x 36 In. x 5-1/16 In. 4000 Lb. Capacity SilverUniform Capacity: 4000
Fork Pocket Width(in.): 11.625
16
AP-4024 AP-4024Aluminum Heavy Duty Half Pallet 24 In. x 40 In. x 6 In. 4000 Lb. Capacity SilverUniform Capacity: 4000
Fork Pocket Width(in.): 16.5625
21
AP-4024-SB AP-4024-SBAluminum Skid Bottom Half Pallet 24 In. x 40 In. x 5-1/16 In. 4000 Lb. Capacity SilverUniform Capacity: 4000
Fork Pocket Width(in.): 15.625
19
AP-4048 AP-4048Aluminum Heavy Duty Pallet 48 In. x 40-1/8 In. x 6 In. 6000 Lb. Capacity SilverTop Board Width (in.): 4-3/4
Fork Opening Width (in.): 18-5/16
85
AP-4048-SB AP-4048-SBAluminum Skid Bottom Pallet 47-7/8 In. x 40 In. x 5-1/16 In. 6000 Lb. Capacity SilverTop Board Width (in.): 4-3/4
Fork Opening Widths (in.): 19-9/16, 15-5/8
85
AP-4248 AP-4248Aluminum Heavy Duty Pallet 48 In. x 42-1/8 In. x 6 In. 6000 Lb. Capacity SilverTop Board Width (in.): 4-3/4
Fork Opening Width (in.): 19-5/16
86
AP-4248-SB AP-4248-SBAluminum Skid Bottom Pallet 47-7/8 In. x 42 In. x 5-1/16 In. 6000 Lb. Capacity SilverTop Board Width (in.): 4-3/4
Fork Opening Widths (in.): 19-9/16, 15-5/8
87
AP-4824 AP-4824Aluminum Heavy Duty Pallet 24 In. x 48 In. x 6 In. 4000 Lb. Capacity SilverUniform Capacity: 4000
Fork Pocket Width(in.): 22.5625
26
AP-4824-SB AP-4824-SBAluminum Skid Bottom Pallet 24 In. x 48 In. x 5-1/16 In. 4000 Lb. Capacity SilverUniform Capacity: 4000
Fork Pocket Width(in.): 19.5625
23
AP-4848 AP-4848Aluminum Heavy Duty Pallet 48 In. x 48-1/8 In. x 6 In. 6000 Lb. Capacity SilverTop Board Width (in.): 4-3/4
Fork Opening Width (in.): 22-5/16
89
AP-4848-SB AP-4848-SBAluminum Skid Bottom Pallet 47-7/8 In. x 47-7/8 In. x 5-1/16 In. 6000 Lb. Capacity SilverTop Board Width (in.): 4-3/4
Fork Opening Widths (in.): 19-9/16, 19-9/16
89
AP-ST-2424 AP-ST-2424Aluminum Heavy Duty Solid Top Half Pallet 24 In. x 24 In. x 6 In. 4000 Lb. SilverUniform Capacity: 4000
Fork Pocket Width(in.): 22.5625
18
AP-ST-2424-SB AP-ST-2424-SBAluminum Half Solid Top with Skid Bottom 24 In. x 24 In. x 5-1/16 In. 4000 Lb. Capacity SilverUniform Capacity: 4000
Fork Pocket Width(in.): 19.5625
17
AP-ST-3624 AP-ST-3624Aluminum Heavy Duty Solid Top Pallet 36 In. x 24 In. x 6 In. 4000 Lb. SilverUniform Capacity: 4000
Fork Pocket Width (in.): 16-5/16
26
AP-ST-3624-SB AP-ST-3624-SBAluminum Solid Top Skid Bottom Pallet 36 In. x 24 In. x 6 In. 4000 Lb. SilverUniform Capacity (lbs.): 4,000
Fork Pocket Width (in.): 10-13/16
24
AP-ST-4024 AP-ST-4024Aluminum Heavy Duty Solid Top Half Pallet 24 In. x 40 In. x 6 In. 4000 Lb. Capacity SilverUniform Capacity: 4000
Fork Pocket Width(in.): 18.312
33
AP-ST-4024-SB AP-ST-4024-SBAluminum Half Solid Top with Skid Bottom 24 In. x 40 In. x 5-1/16 In. 4000 Lb. Capacity SilverUniform Capacity: 4000
Fork Pocket Width(in.): 15.625
28
AP-ST-4048 AP-ST-4048Aluminum Heavy Duty Solid Top Pallet 48 In. x 40-1/8 In. x 6 In. 6000 Lb. Capacity SilverEntry: 2-Way
Fork Opening Width (in.): 18-5/16
113
AP-ST-4048-SB AP-ST-4048-SBAluminum Solid Top with Skid Bottom 47-7/8 In. x 40 In. x 5-1/16 In. 6000 Lb. Capacity SilverEntry: Skid Bottom
Fork Opening Widths (in.): 19-9/16, 15-5/8
113
AP-ST-4248 AP-ST-4248Aluminum Heavy Duty Solid Top Pallet 48 In. x 42-1/8 In. x 6 In. 6000 Lb. Capacity SilverEntry: 2-Way
Fork Opening Width (in.): 19-5/16
114
AP-ST-4248-SB AP-ST-4248-SBAluminum Solid Top with Skid Bottom 47-7/8 In. x 42 In. x 5-1/16 In. 6000 Lb. Capacity SilverEntry: Skid Bottom
Fork Opening Widths (in.): 19-9/16, 15-5/8
115
AP-ST-4824 AP-ST-4824Aluminum Heavy Duty Solid Top Pallet 24 In. x 48 In. x 6 In. 4000 Lb. Capacity SilverUniform Capacity: 4000
Fork Pocket Width(in.): 22.5625
36
AP-ST-4824-SB AP-ST-4824-SBAluminum Solid Top with Skid Bottom 24 In. x 48 In. x 5-1/16 In. 4000 Lb. Capacity SilverUniform Capacity: 4000
Fork Pocket Width(in.): 19.5625
32
AP-ST-4848 AP-ST-4848Aluminum Heavy Duty Solid Top Pallet 48 In. x 48-1/8 In. x 6 In. 6000 Lb. Capacity SilverUniform Floor (static) Capacity (lb.): 6000
Uniform Fork (dynamic) Capacity (lb.): 4000
117
SKID-2024-A SKID-2024-AAluminum Skid 20 In x 24 In 4,000 Lb. Capacity SilverUniform Capacity: 4000
Fork Pocket Width(in.): 12.375
7
SKID-2424-A SKID-2424-AAluminum Half Skid 24 In. x 24 In. x 3-3/4 In. 4,000 Lb. Capacity SilverUniform Capacity: 4000
Fork Pocket Width(in.): 12.375
8
SKID-3624-A SKID-3624-AAluminum Half Skid 24 In. x 36 In. x 3-3/4 In. 4,000 Lb. Capacity SilverUniform Capacity: 4000
Fork Pocket Width(in.): 24.375
11
SKID-4024-A SKID-4024-AAluminum Half Skid 24 In. x 40 In. x 3-3/4 In. 4,000 Lb. Capacity SilverUniform Capacity: 4000
Fork Pocket Width(in.): 28.375
13
SKID-4048-A SKID-4048-AAluminum Skid 48 In. x 39-7/8 In. x 4 In. 4,000 Lb. Capacity SilverUniform Capacity (lb.): 4000
Fork Pocket Width (in.): 28 3/8
28
SKID-4248-A SKID-4248-AAluminum Skid 48 In. x 41-7/8 In. x 4 In. 4,000 Lb. Capacity SilverUniform Capacity (lb.): 4000
Fork Pocket Width (in.): 30 3/8
29
SKID-4824-A SKID-4824-AAluminum Half Skid 24 In. x 48 In. x 3-3/4 In. 4,000 Lb. Capacity SilverUniform Capacity: 4000
Fork Pocket Width(in.): 36.375
15
SKID-4848-A SKID-4848-AAluminum Skid 48 In. x 47-7/8 In. x 4 In. 4,000 Lb. Capacity SilverUniform Capacity (lb.): 4000
Fork Pocket Width (in.): 36 3/8
31


Our Customer Service Associates Are Here To Assist You!
Call Vestil At 260-665-7586 Or info@vestil.com
