Single Fork Skid Positioner Lifter

- - - -

Description
Model Chart
PDF's
Image Gallery
VHPS-NM-600-39_A.jpg VHPS-NM-600-39_B.jpg VHPS-NM-600-39_C.jpg VHPS-NM-600-39_D.jpg
VHPS-NM-600-39_E.jpg VHPS-NM-600-39_F.jpg VHPS-NM-600-39_1.jpg

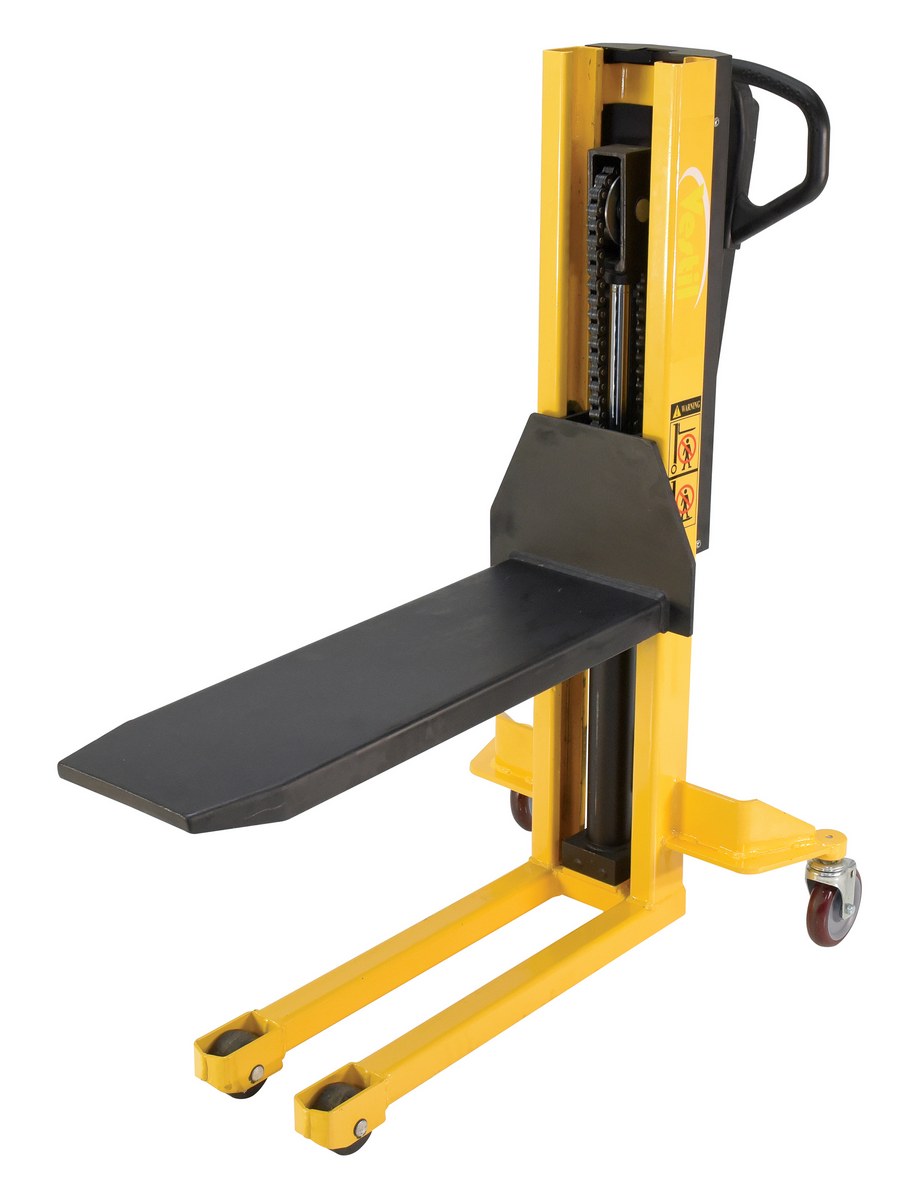

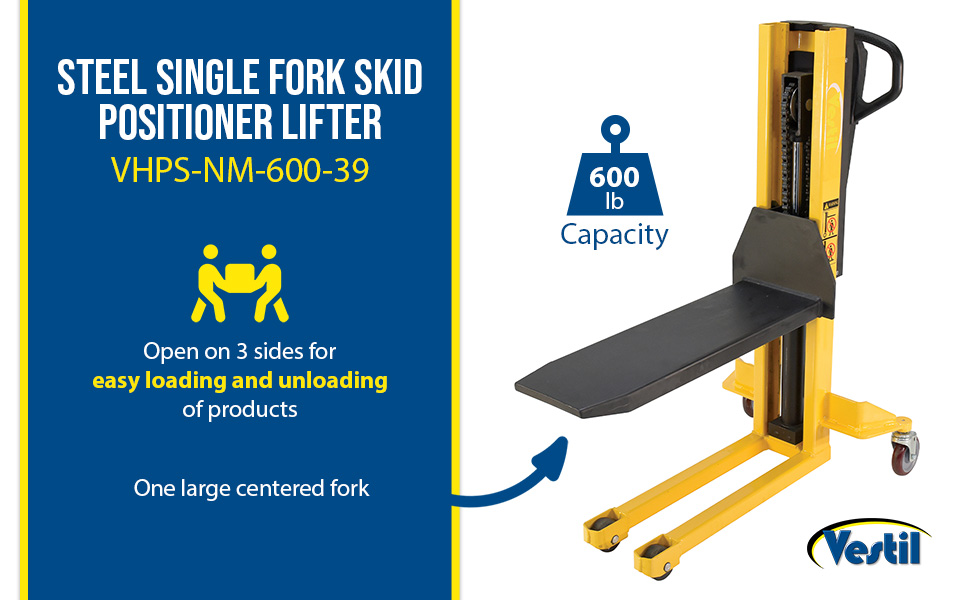

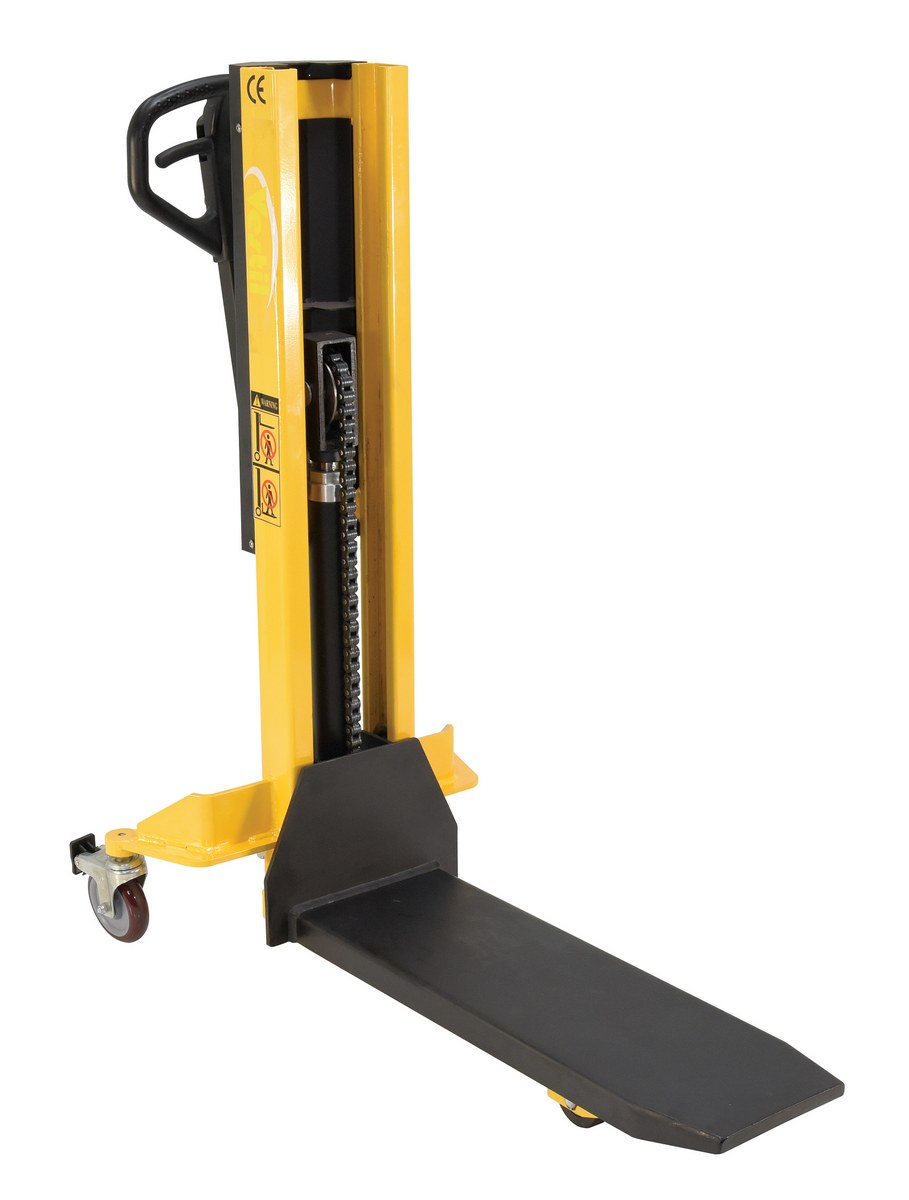

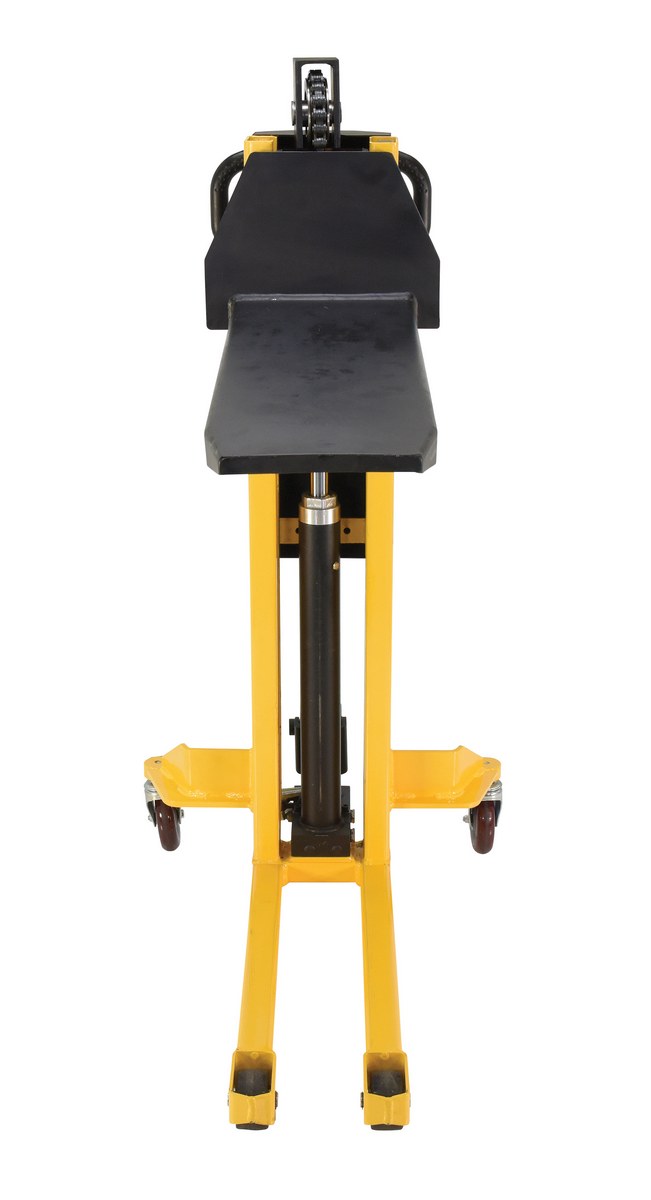

Single Fork Skid Positioner Lifter

model: VHPS-NM-600-39



Featured Ergonomic Solutions


Electric Order Pickers
Pallet Truck Chock
Powered Lift Table With Manual Rotation
Electric Powered Stacker
All Terrain Pallet Trucks
Portable Hand Winch Lifter
Air Corner Tilters
Rotary Air/Hydraulic Scissor Lift Tables
Work Positioners
model chart

Product Family Overview

Print Friendly
Single Fork Skid Positioner Lifter
SERIES: VHPS-NM

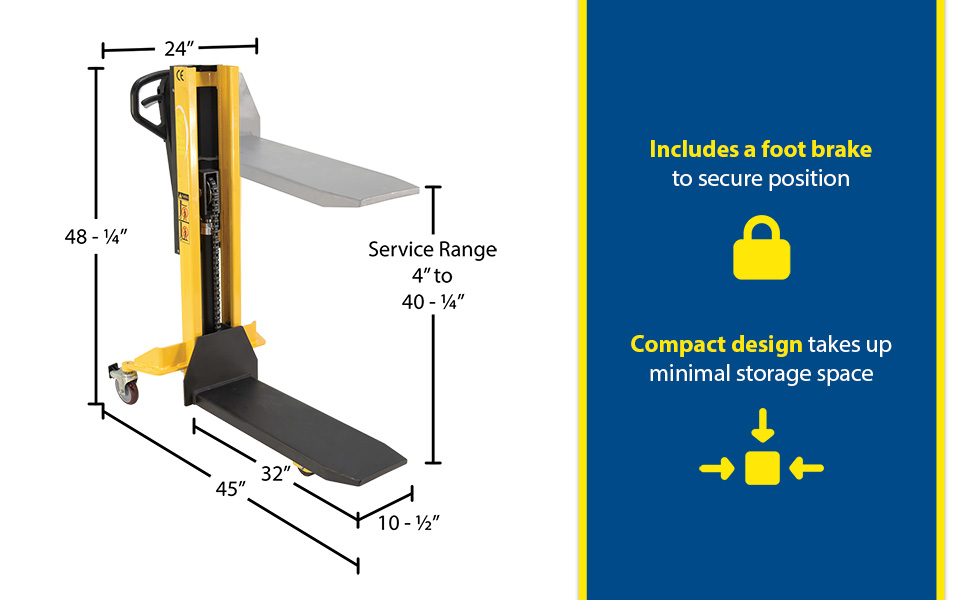

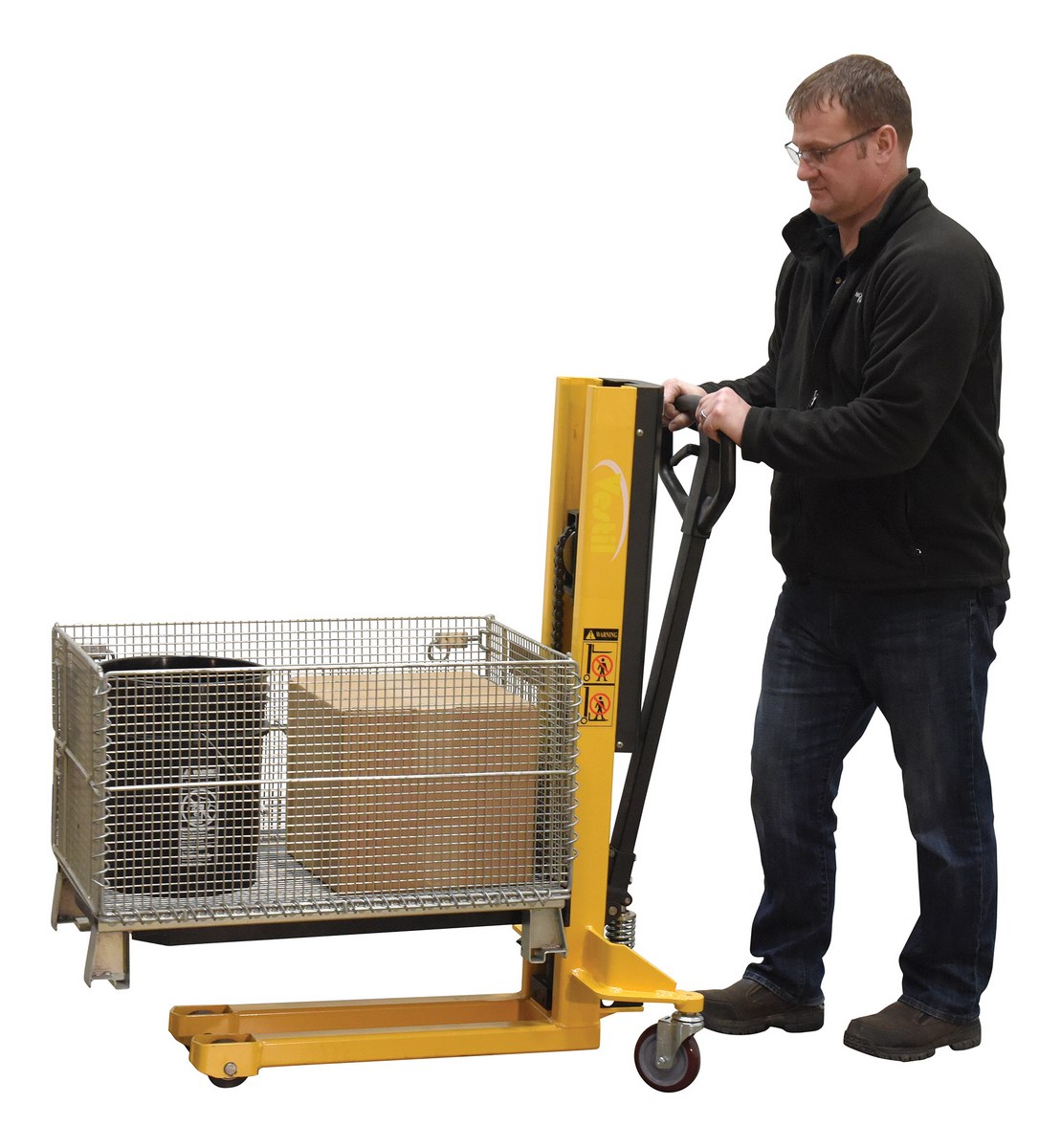

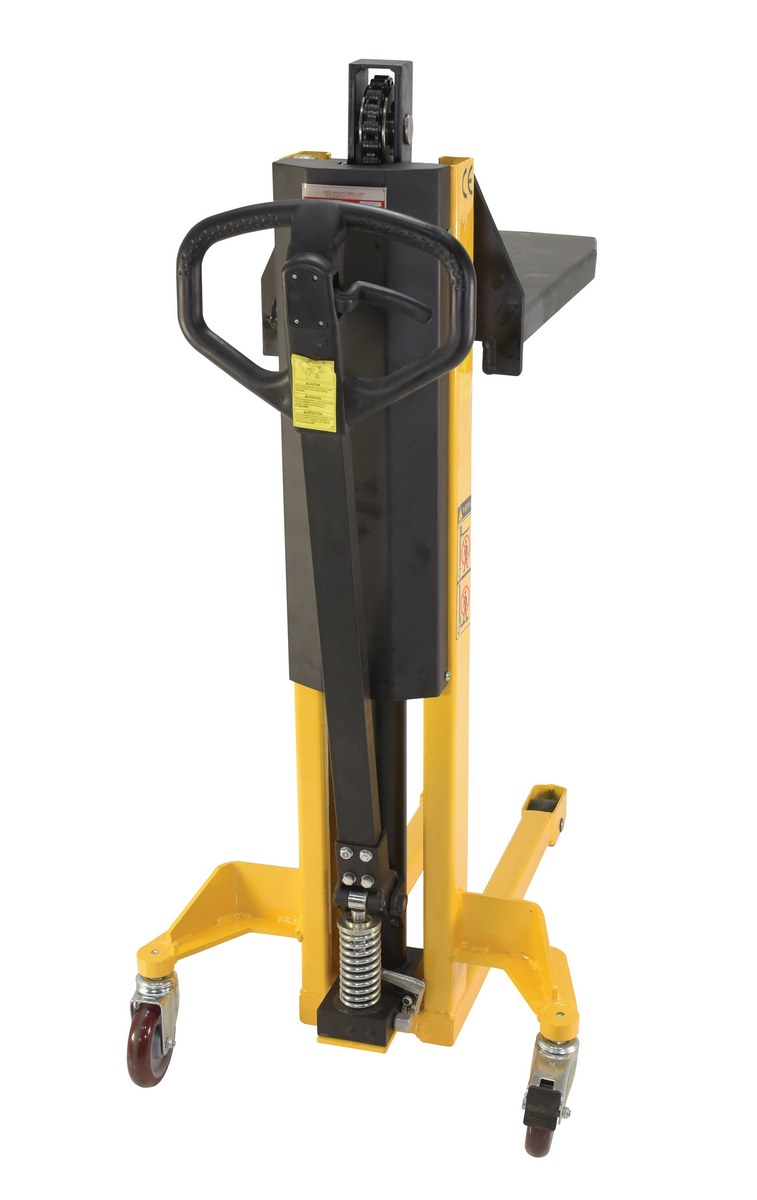

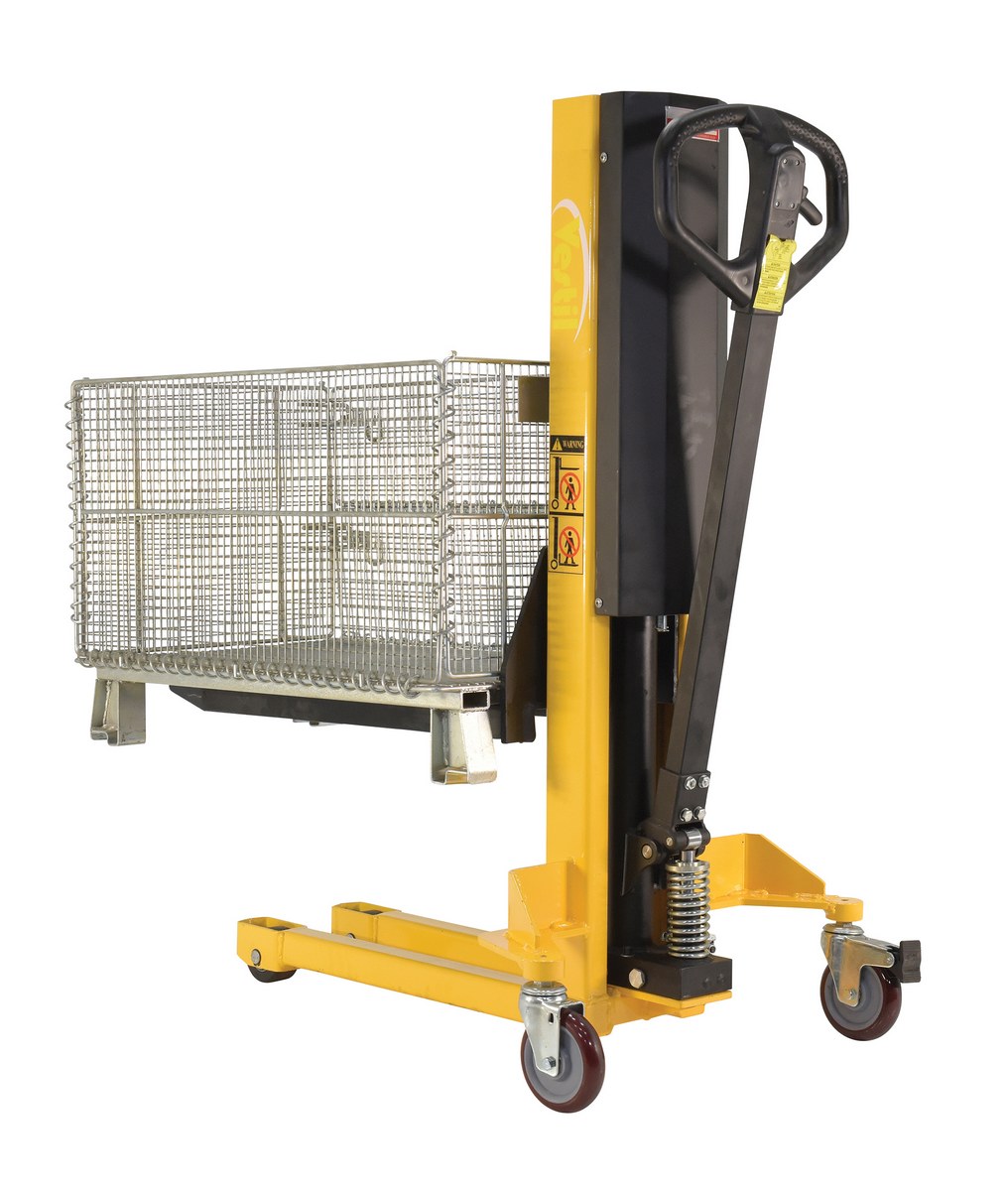

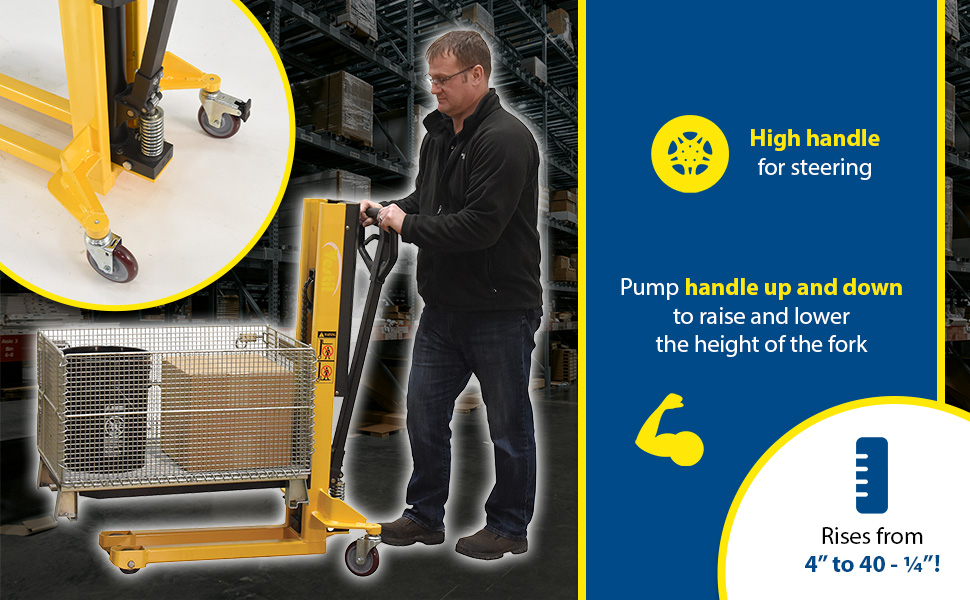

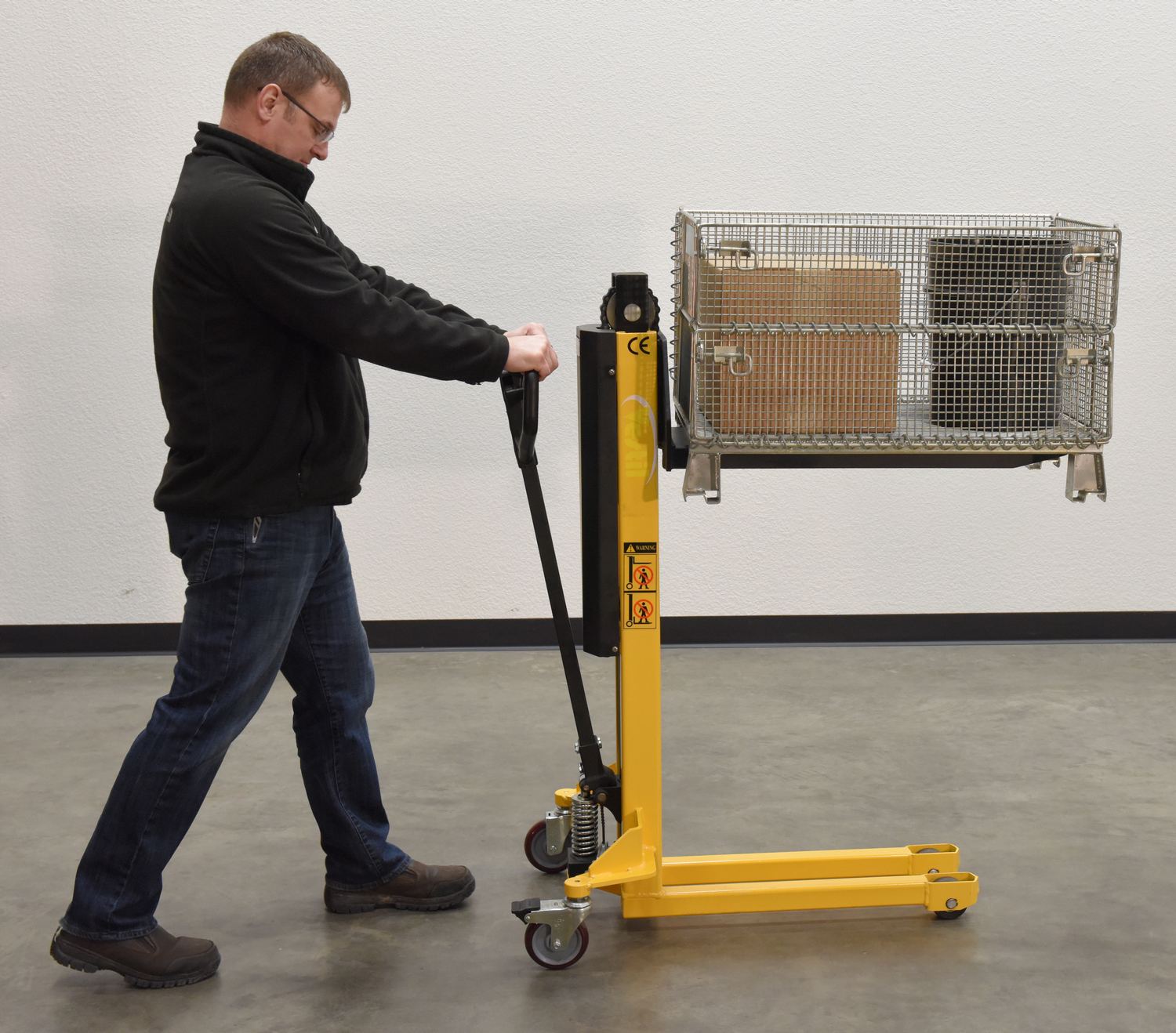

A single fork skid positioner is a new design of an old classic. Instead of the usual two skinny forks to lift open bottom skids, crates, and baskets this model has one large centered fork. The fork is open on 3 sides for easy loading and unloading of products. The high handle not only allows for steering, but as the pumping mechanism to raise and lower the height of the fork. Unit rolls on 5" poly-on-poly casters and includes a foot brake for secured positioning during transition periods. The compact design takes up minimal storage space, when not in use.

  • Narrow leading base to fit in tight spaces
  • Manual hand pump for precise positioning
  • Poly-on-steel casters make for smooth rolling on a variety of surfaces
  • Brightly colored for clear visibility


Works Well With Our Aluminum Half-Size Skids

A single fork skid positioner is a new design of an old classic. Instead of the usual two skinny forks to lift open bottom skids, crates, and baskets this model has one large centered fork. The fork is open on 3 sides for easy loading and unloading of products. The high handle not only allows for steering, but as the pumping mechanism to raise and lower the height of the fork. Unit rolls on 5" poly-on-poly casters and includes a foot brake for secured positioning during transition periods. The compact design takes up minimal storage space, when not in use.

  • Narrow leading base to fit in tight spaces
  • Manual hand pump for precise positioning
  • Poly-on-steel casters make for smooth rolling on a variety of surfaces
  • Brightly colored for clear visibility


Works Well With Our Aluminum Half-Size Skids

Other Tote/ Skid Lifters

 Tote Lifters High Rise Lift Trucks Dual Power Tote Lifter High Tote Lifter

Additional Models In This Family
view entire Image Gallery

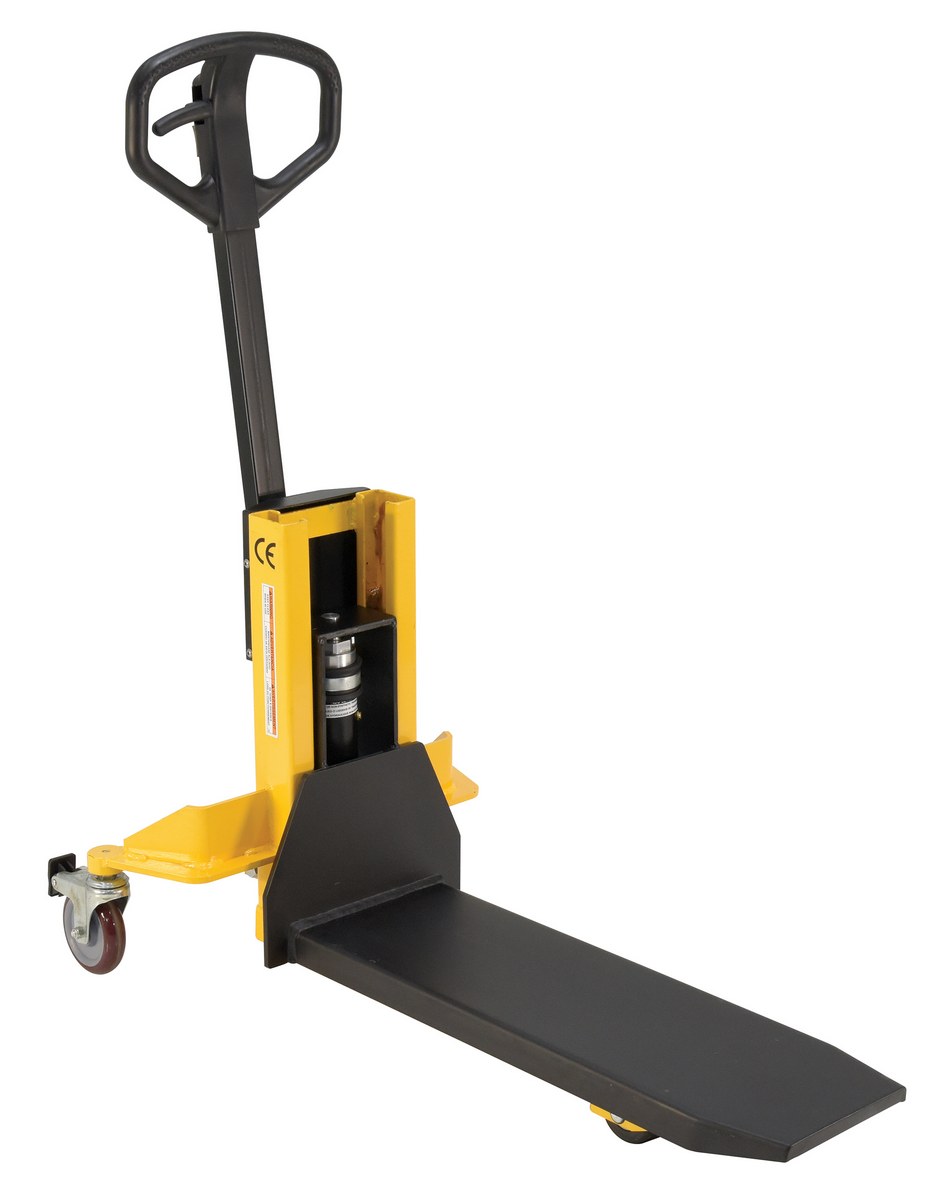

VHPS-NM-800-11

model VHPS-NM-800-11

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
VHPS-NM-600-39
VHPS-NM-600-391 YEAR Limited WarrantySteel Single Fork Skid Positioner Lifter 600 Lb. Capacity Yellow / BlackUniform Capacity (lb.): 600
Service Range (in.): 4 to 40-1/4		200

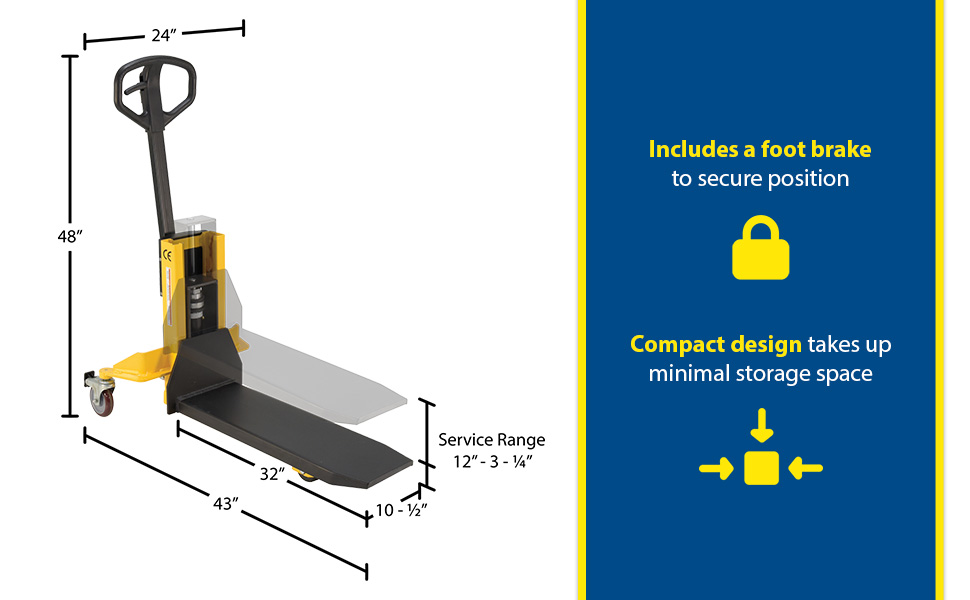

VHPS-NM-800-11

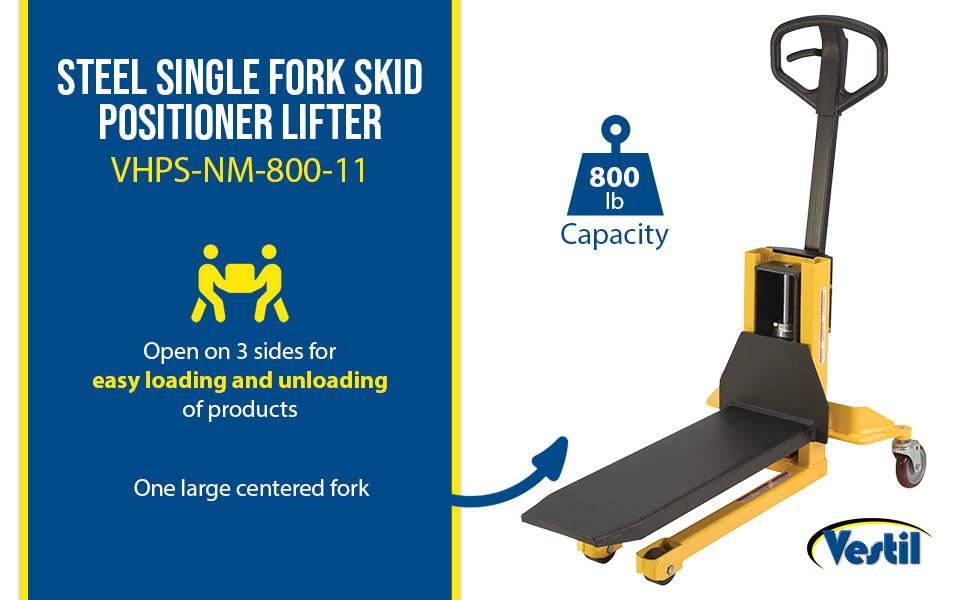

VHPS-NM-800-111 Year Limited WarrantySteel Single Fork Skid Positioner Lifter 800 Lb. Capacity Yellow / BlackUniform Capacity (lb.): 800
Service Range (in.): 3-1/4 to 12		232

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

VHPS-NM-600-39
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 600
Service Range (in.): 4 to 40-1/4
Uniform Capacity (lb.): 600
Service Range (in.): 4 to 40-1/4

VHPS-NM-800-11
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 800

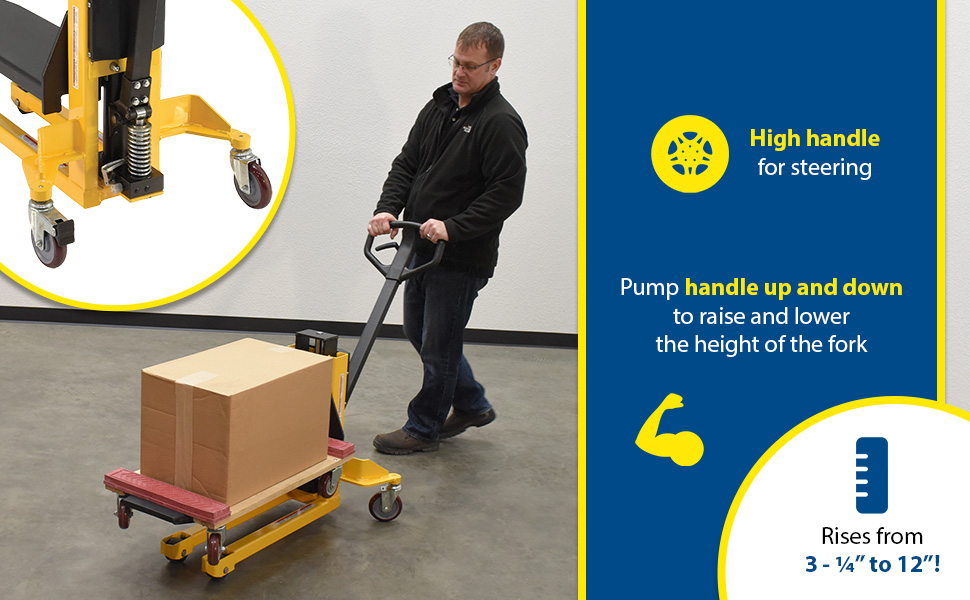

Service Range (in.): 3-1/4 to 12
Uniform Capacity (lb.): 800
Service Range (in.): 3-1/4 to 12
Single Fork Skid Positioner Lifter PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings


VHPS-NM-600-39

VHPS-NM-800-11

Testing Certificates


VHPS-NM-600-39

VHPS-NM-800-11

SDS Sheets

No SDS Sheets For This Product

Other PDF's


Single Fork Skid Positioner Lifter Mailing Brochure

Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Q: What is the thickness of the fork on model VHPS-NM-600-39?

A: The fork is 1 3/4" thick.
