Product Family Overview

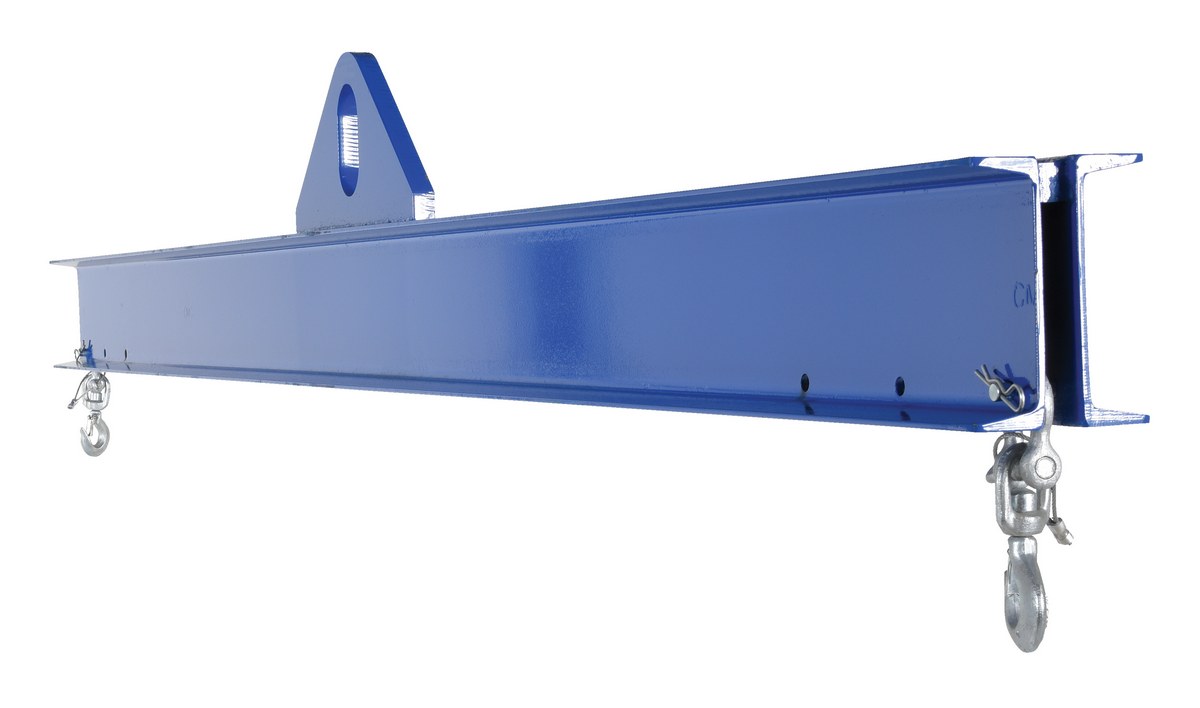

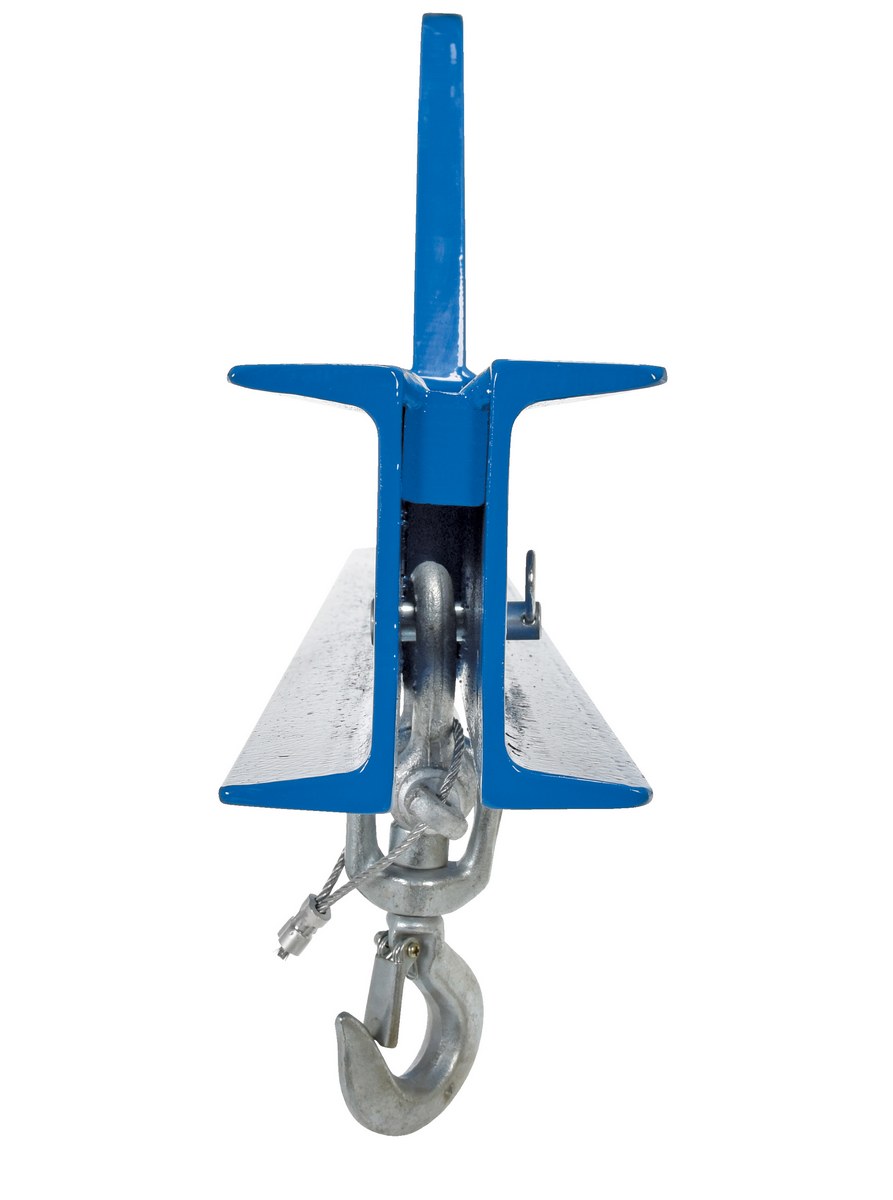

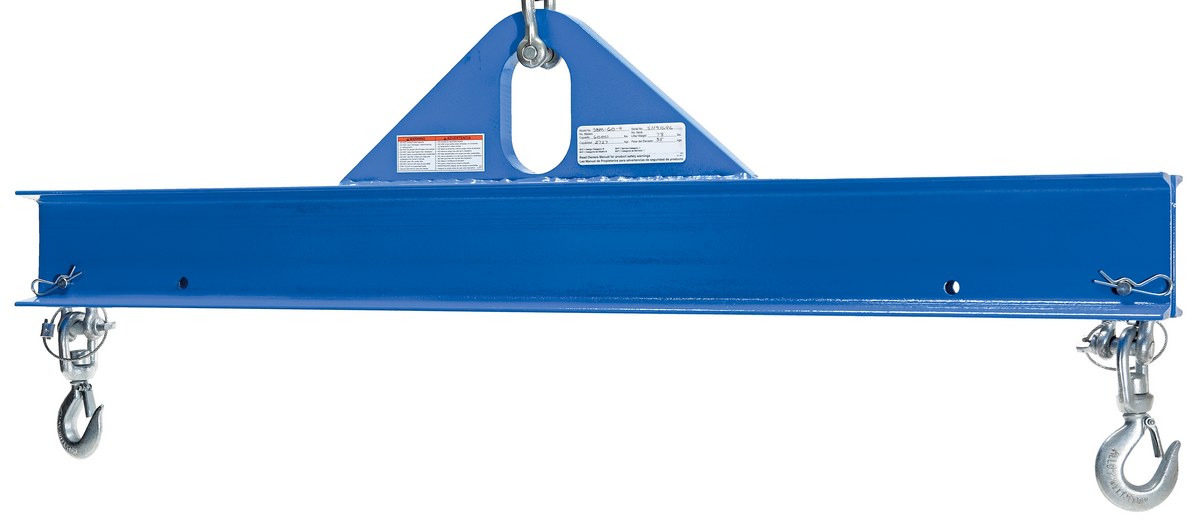

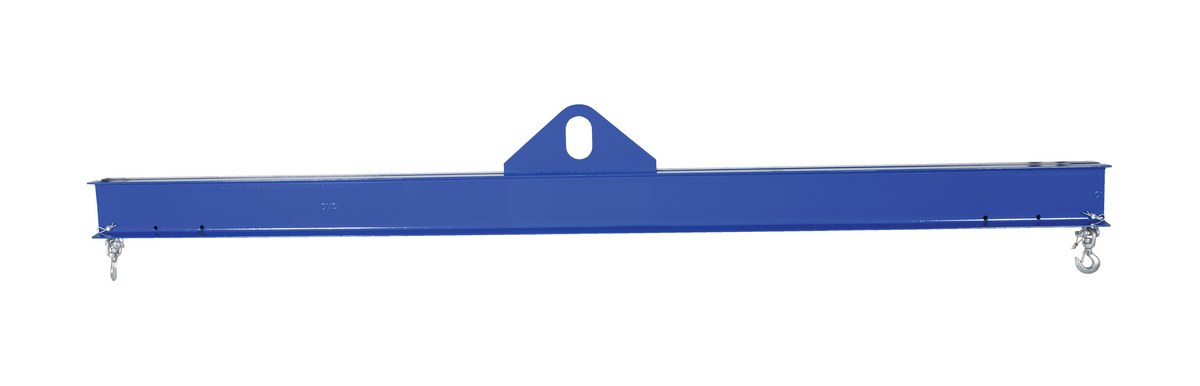

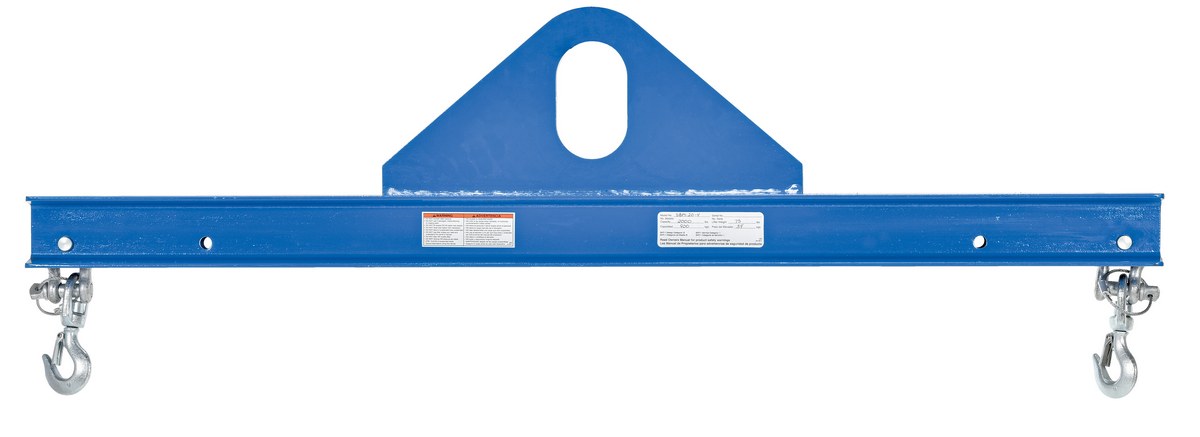

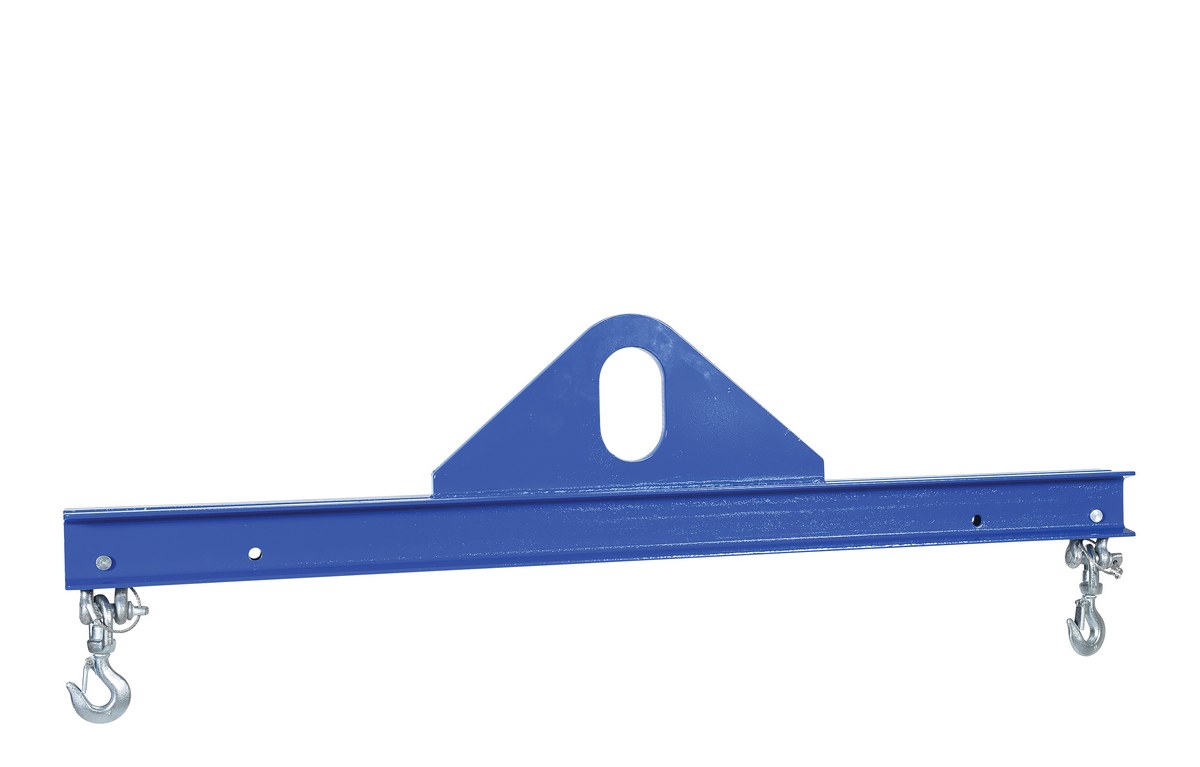

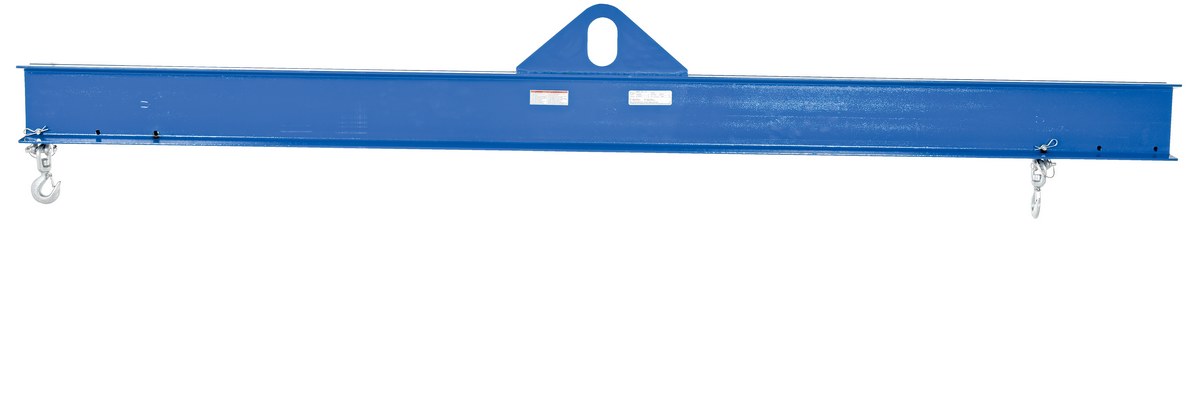

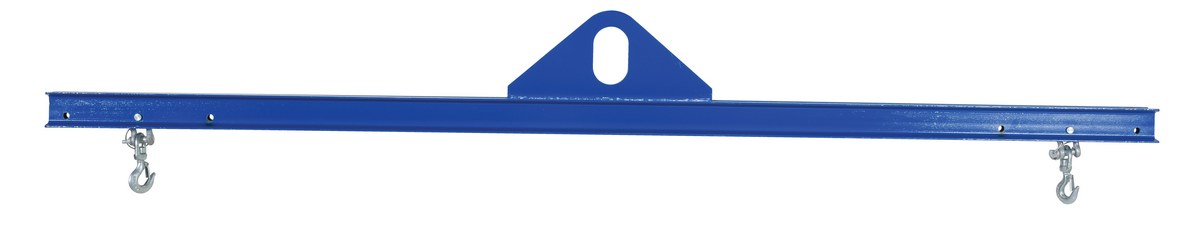

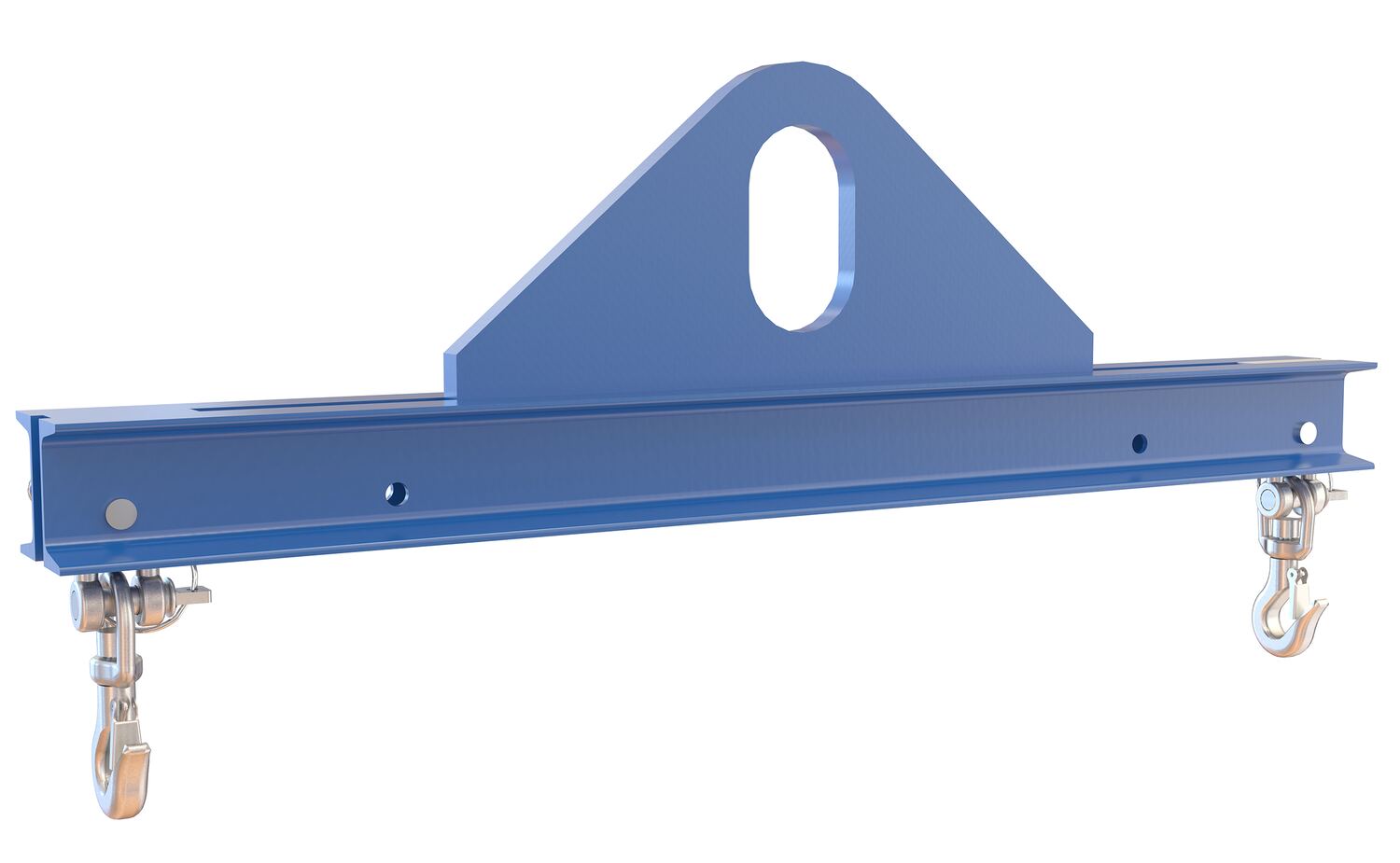

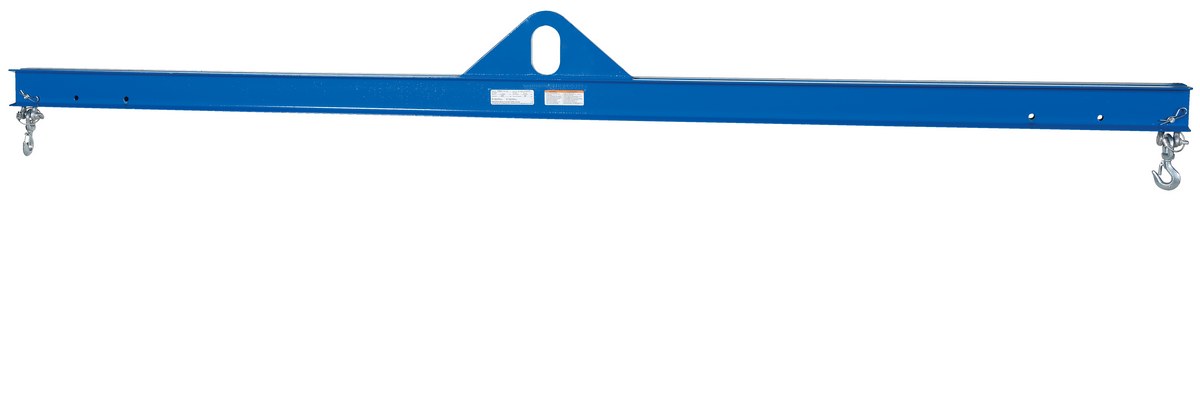

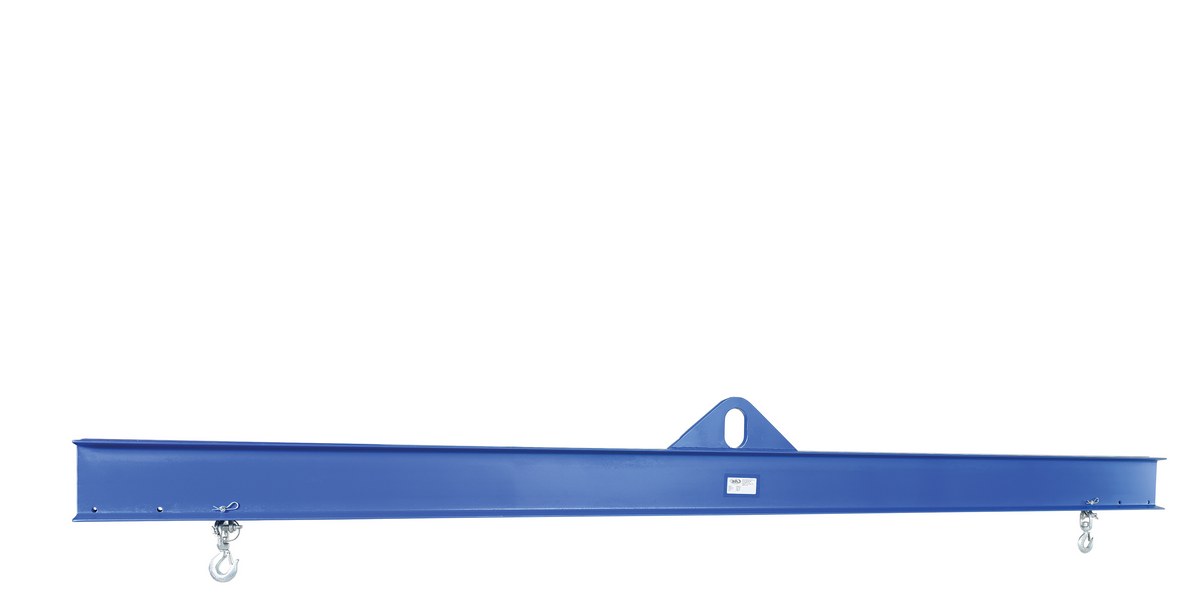

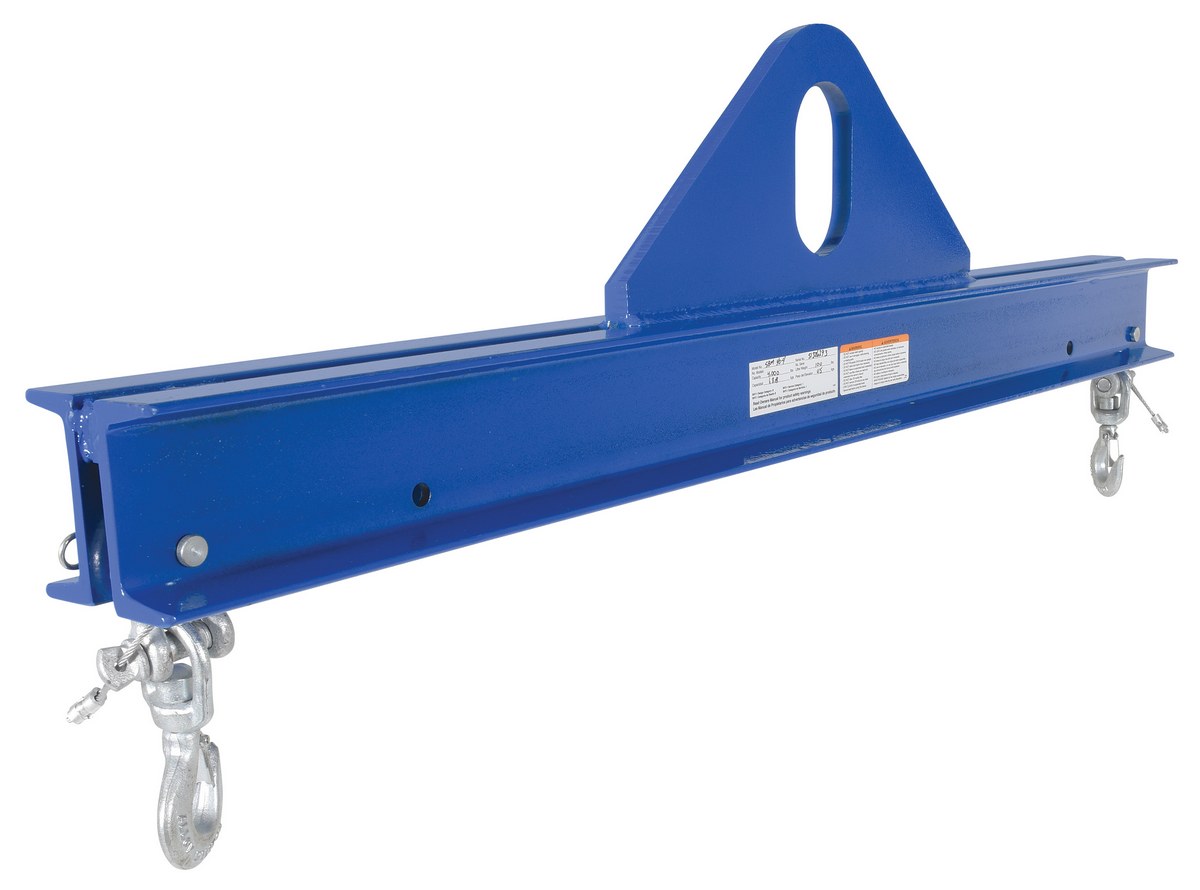

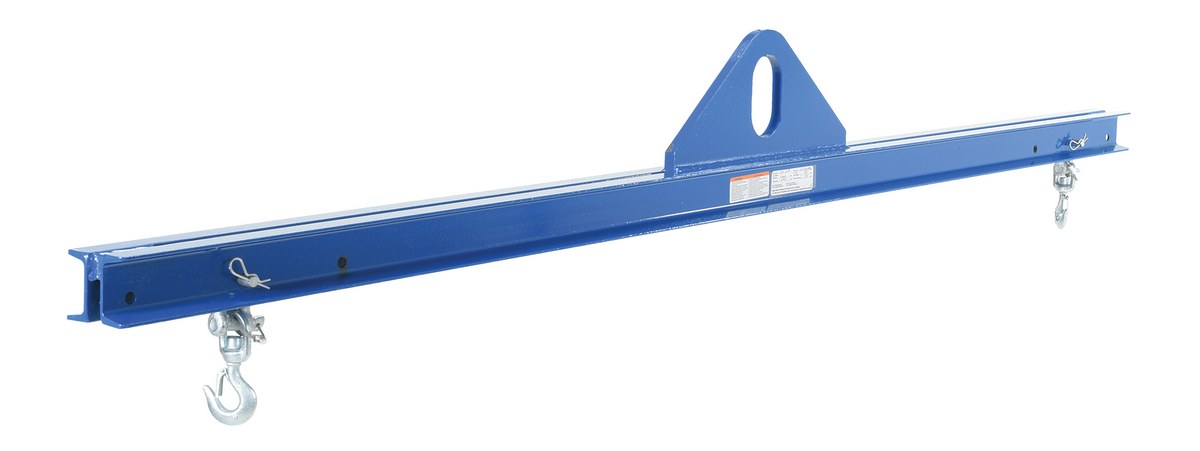

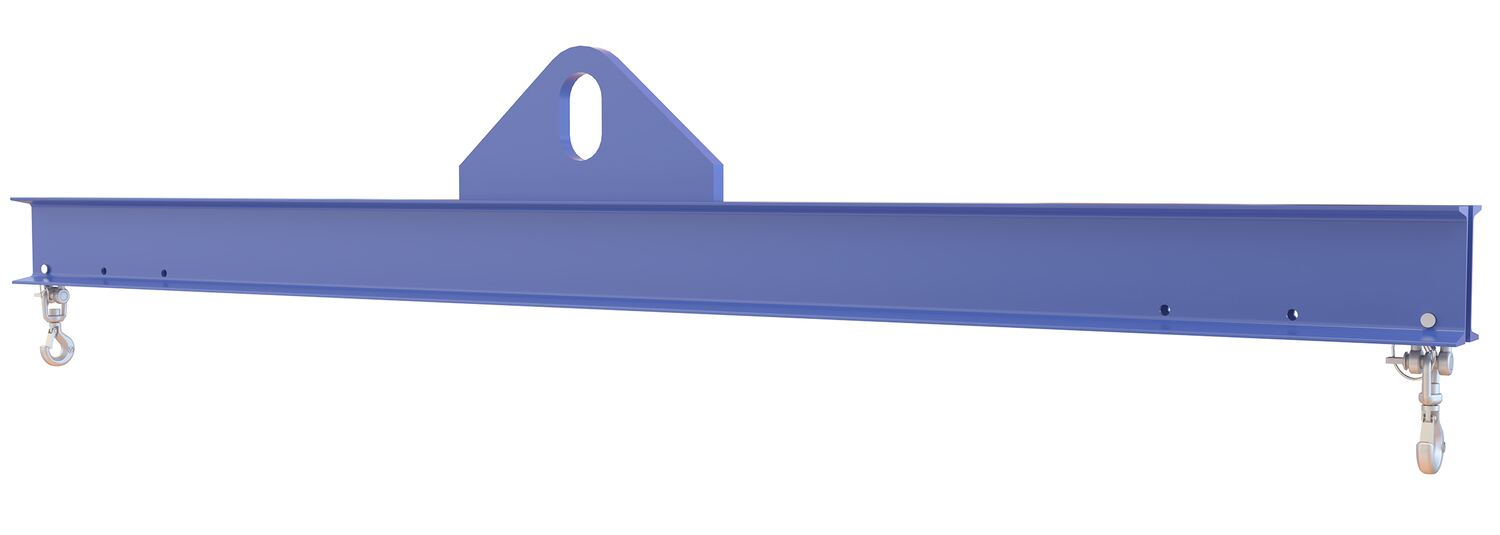

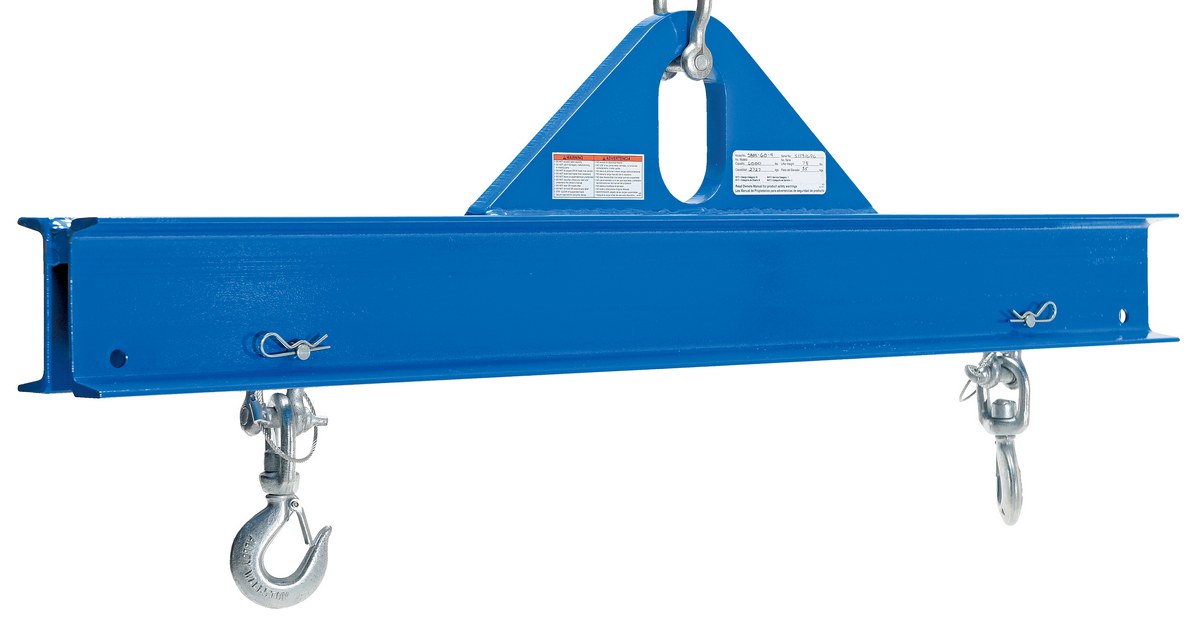

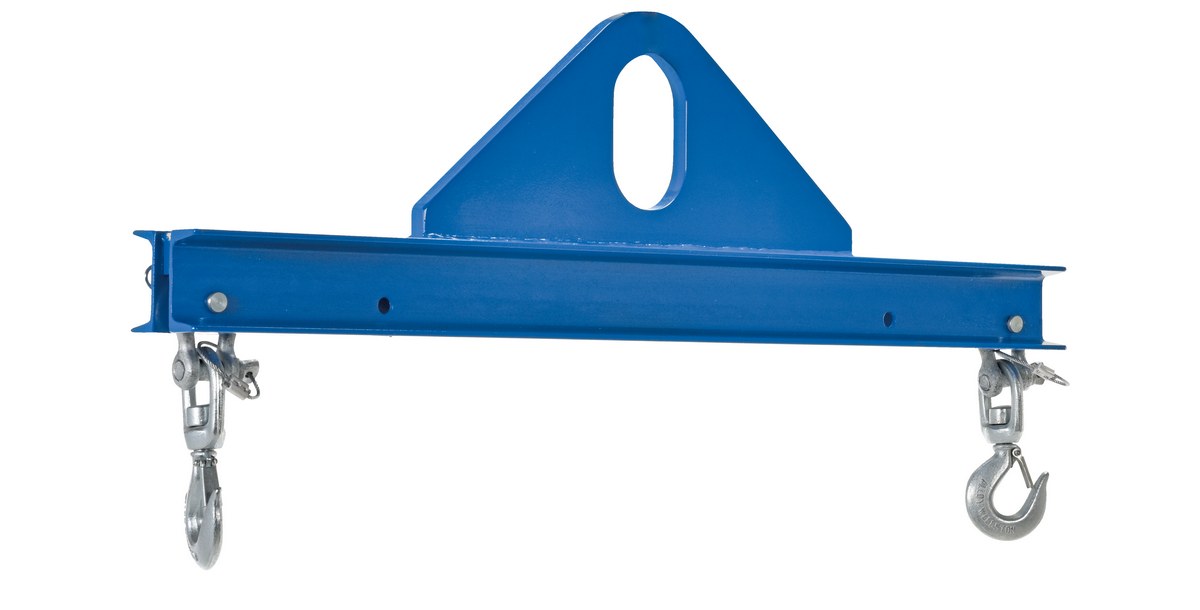

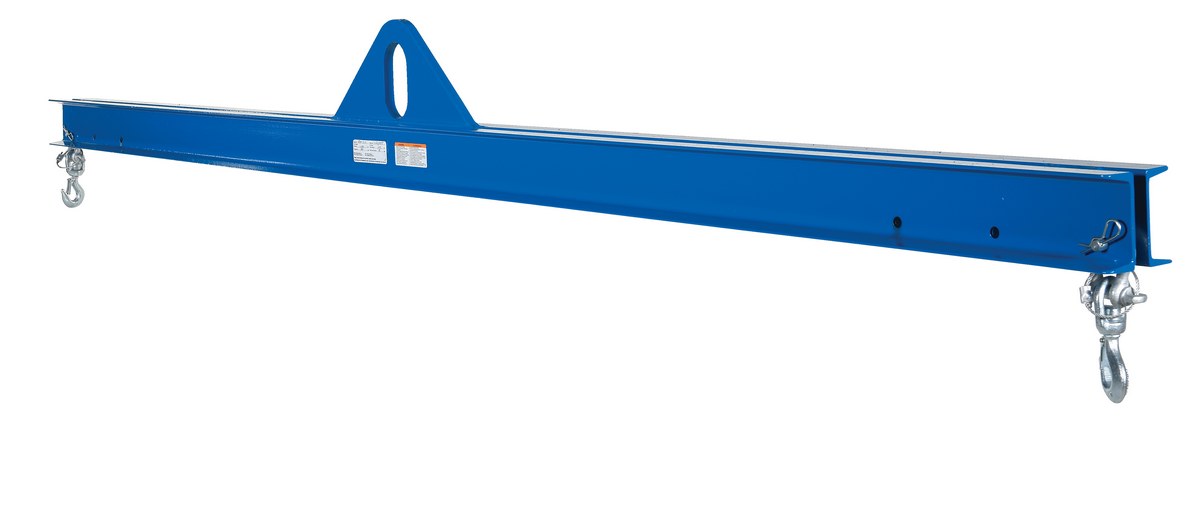

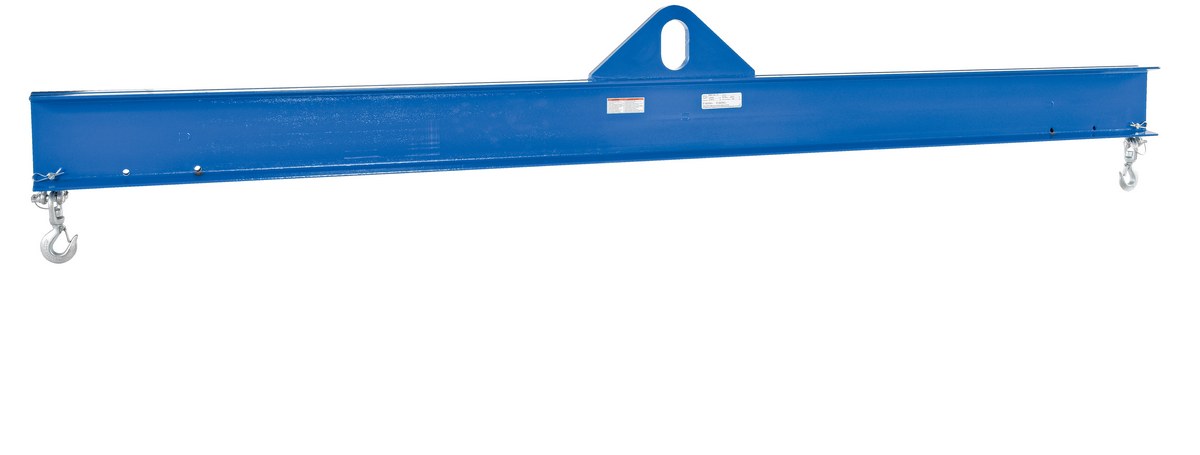

Economy Spreader Beams
SERIES: SBM

These versatile lifters are ideal for lifting a variety of loads where headroom is limited. Complies with OSHA and ANSI B30.20 standards. Usable bail is 3" wide, 5" high. Two safety swivel hooks and durable baked-in powder-coat finish for toughness. Heavy-duty welded steel construction.

  • Designed to lift and move uneven and awkward loads
  • Complies with ASME B30.20-1993 standards

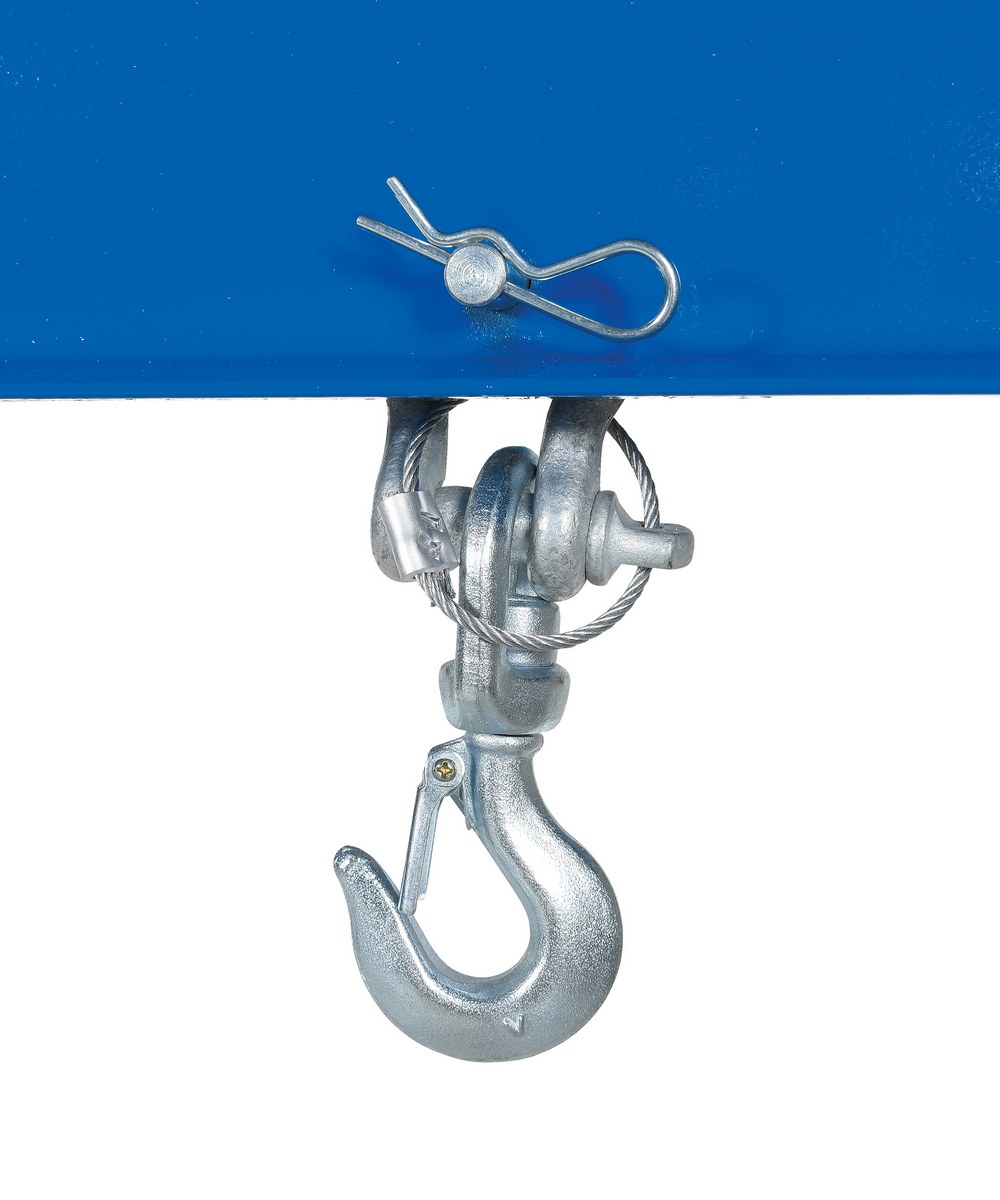

  • Includes two swivel lifting hooks for added versatility
  • Welded steel construction for heavy duty performance

These versatile lifters are ideal for lifting a variety of loads where headroom is limited. Complies with OSHA and ANSI B30.20 standards. Usable bail is 3" wide, 5" high. Two safety swivel hooks and durable baked-in powder-coat finish for toughness. Heavy-duty welded steel construction.

  • Designed to lift and move uneven and awkward loads
  • Complies with ASME B30.20-1993 standards
  • Includes two swivel lifting hooks for added versatility
  • Welded steel construction for heavy duty performance

Additional Models In This Family

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

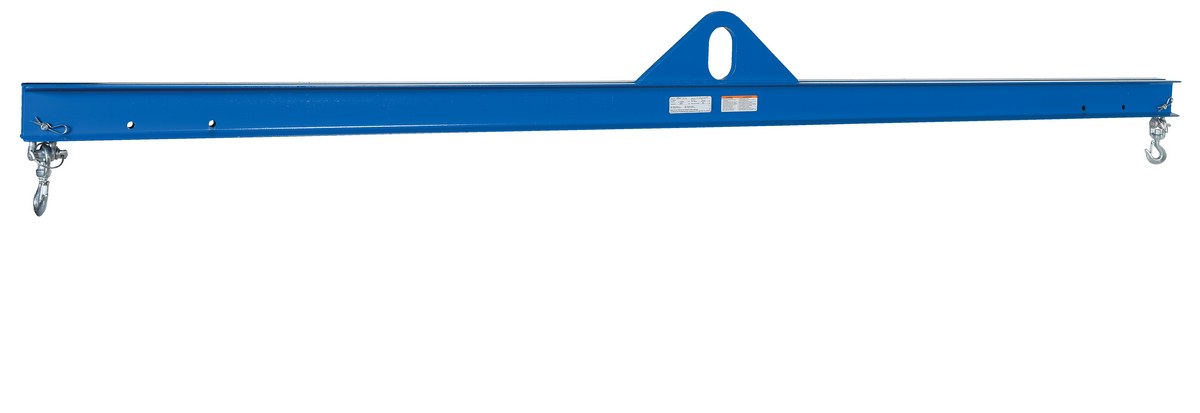

SBM-10-10 SBM-10-1090 Days Limited WarrantySteel Economy Spreader Beam 120 In Length 1,000 Lb. Capacity BlueUniform Capacity (lb.): 1000
Headroom (in.): 14
2148

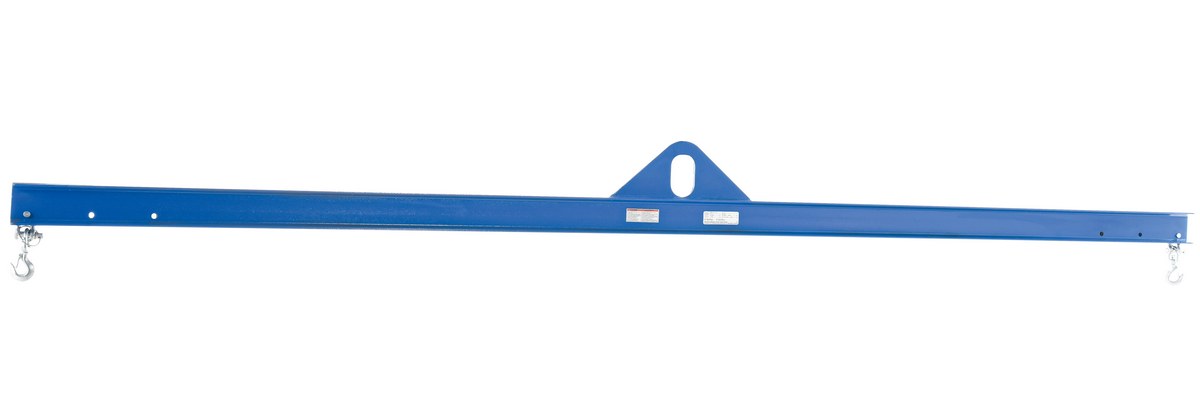

SBM-10-12 SBM-10-1290 Days Limited WarrantySteel Economy Spreader Beam 144 In Length 1,000 Lb. Capacity BlueUniform Capacity (lb.): 1000
Headroom (in.): 14
2215
SBM-10-3 SBM-10-390 Days Limited WarrantySteel Economy Spreader Beam 36 In. Length 1,000 Lb. Capacity BlueUniform Capacity (lb.): 1000
Headroom (in.): 14
270
SBM-10-4 SBM-10-490 Days Limited WarrantySteel Economy Spreader Beam 48 In Length 1,000 Lb. Capacity BlueUniform Capacity (lb.): 1000
Headroom (in.): 14
278
SBM-10-6 SBM-10-690 Days Limited WarrantySteel Economy Spreader Beam 72 In Length 1,000 Lb. Capacity BlueUniform Capacity (lb.): 1000
Headroom (in.): 14
140
SBM-10-8 SBM-10-890 Days Limited WarrantySteel Economy Spreader Beam 96 In Length 1,000 Lb. Capacity BlueUniform Capacity (lb.): 1000
Headroom (in.): 14
2112
SBM-20-10 SBM-20-1090 Days Limited WarrantySteel Economy Spreader Beam 120 In Length 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Headroom (in.): 15
2192
SBM-20-12 SBM-20-1290 Days Limited WarrantySteel Economy Spreader Beam 144 In Length 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Headroom (in.): 15
2272
SBM-20-3 SBM-20-390 Days Limited WarrantySteel Economy Spreader Beam 36 In. Length 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Headroom (in.): 14
257

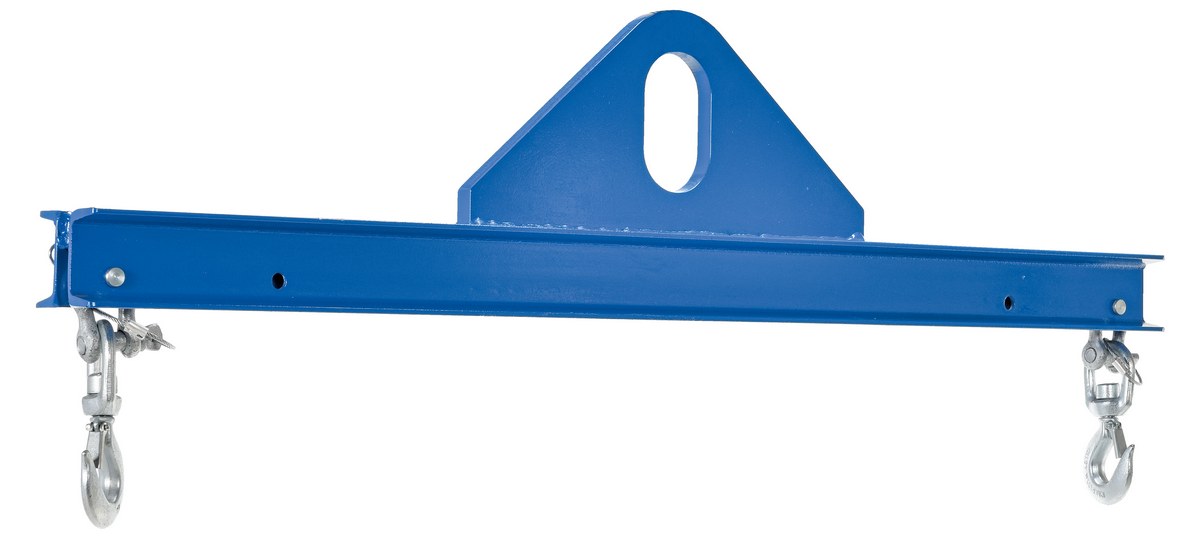

SBM-20-4 SBM-20-490 Days Limited WarrantySteel Economy Spreader Beam 48 In Length 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Headroom (in.): 14
264

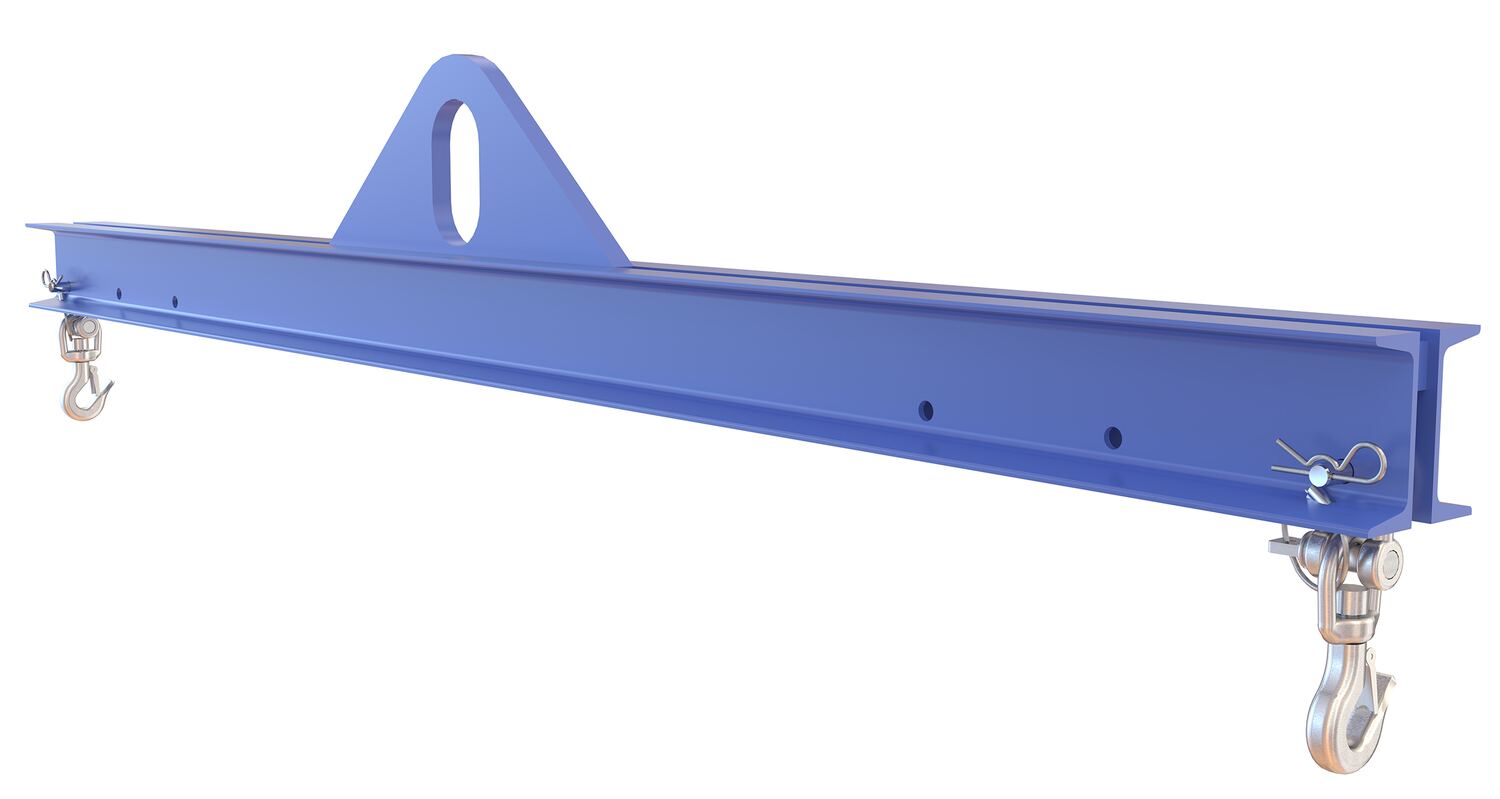

SBM-20-6 SBM-20-690 Days Limited WarrantySteel Economy Spreader Beam 72 In Length 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Headroom (in.): 14
2106
SBM-20-8 SBM-20-890 Days Limited WarrantySteel Economy Spreader Beam 96 In Length 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Headroom (in.): 14
2166

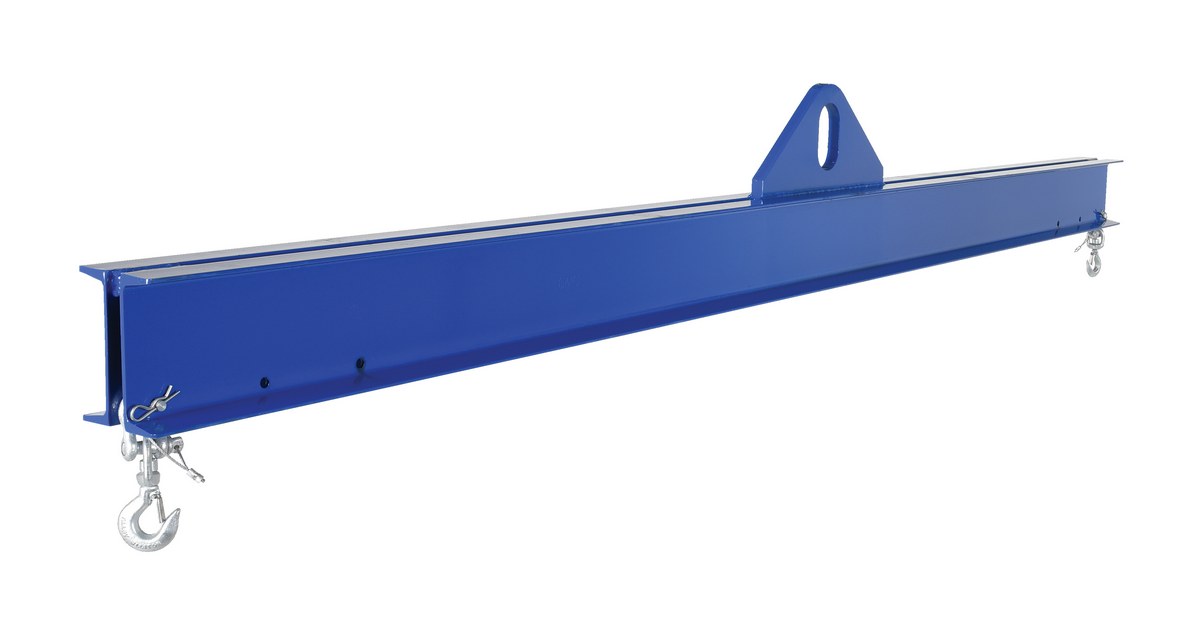

SBM-40-10 SBM-40-1090 Days Limited WarrantySteel Economy Spreader Beam 120 In Length 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Headroom (in.): 18-3/8
2282

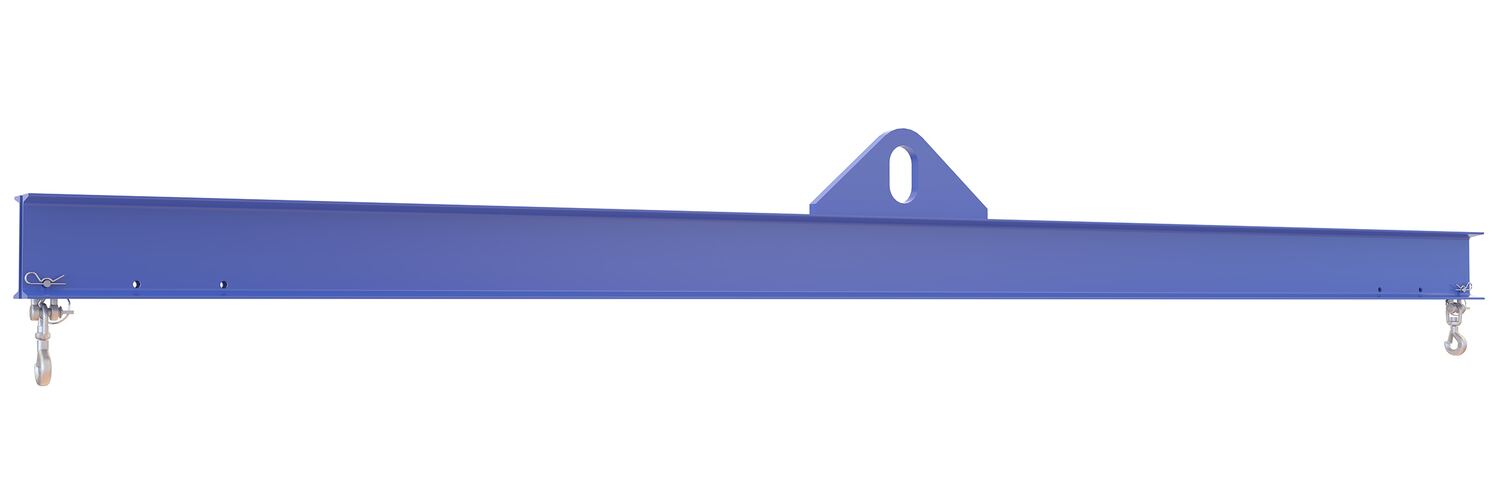

SBM-40-12 SBM-40-1290 Days Limited WarrantySteel Economy Spreader Beam 144 In Length 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Headroom (in.): 18-3/8
2302

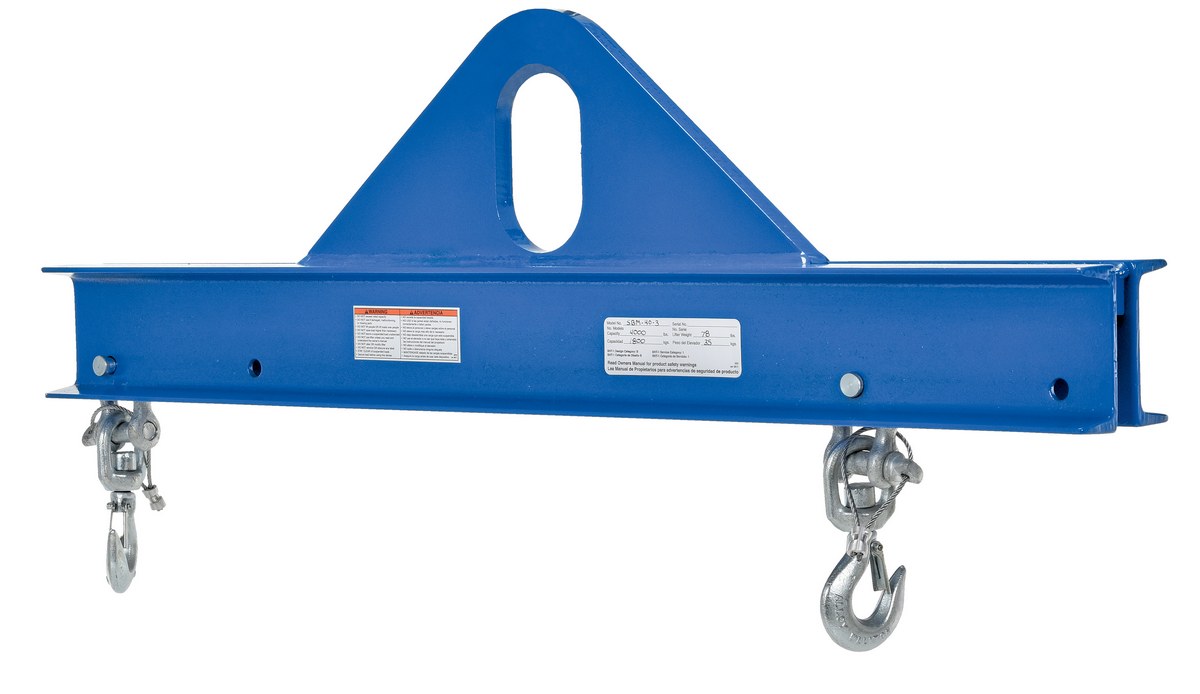

SBM-40-3 SBM-40-390 Days Limited WarrantySteel Economy Spreader Beam 36 In. Length 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Headroom (in.): 14-3/8
282
SBM-40-4 SBM-40-490 Days Limited WarrantySteel Economy Spreader Beam 48 In Length 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Headroom (in.): 14-3/8
2115

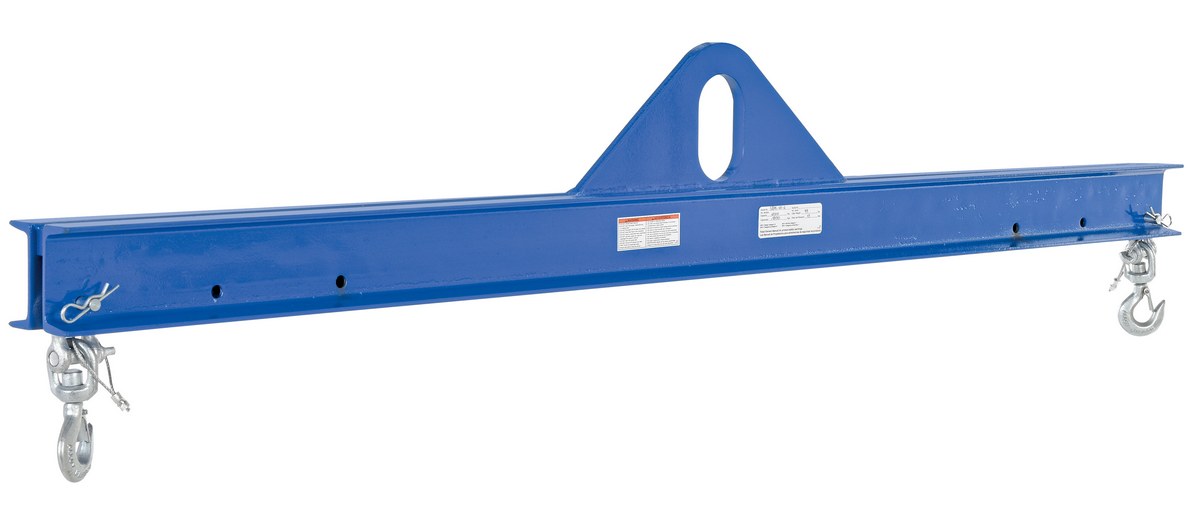

SBM-40-6 SBM-40-690 Days Limited WarrantySteel Economy Spreader Beam 72 In Length 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Headroom (in.): 15-3/8
2150
SBM-40-8 SBM-40-890 Days Limited WarrantySteel Economy Spreader Beam 96 In Length 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Headroom (in.): 18-3/8
2229
SBM-60-10 SBM-60-1090 Days Limited WarrantySteel Economy Spreader Beam 120 In Length 6,000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Headroom (in.): 18-11/16
2312
SBM-60-12 SBM-60-1290 Days Limited WarrantySteel Economy Spreader Beam 144 In Length 6,000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Headroom (in.): 18-11/16
2396
SBM-60-3 SBM-60-390 Days Limited WarrantySteel Economy Spreader Beam 36 In Length 6,000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Headroom (in.): 15-11/16
285
SBM-60-4 SBM-60-490 Days Limited WarrantySteel Economy Spreader Beam 48 In Length 6,000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Headroom (in.): 15-11/16
2153
SBM-60-6 SBM-60-690 Days Limited WarrantySteel Economy Spreader Beam 72 In Length 6,000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Headroom (in.): 18-11/16
2190
SBM-60-8 SBM-60-890 Days Limited WarrantySteel Economy Spreader Beam 96 In Length 6,000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Headroom (in.): 18-11/16
2250

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

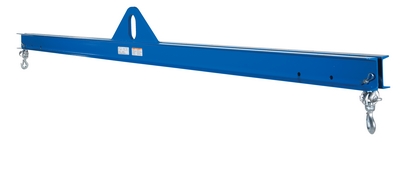

SBM-10-10
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1000
Headroom (in.): 14
Uniform Capacity (lb.): 1000
Headroom (in.): 14

SBM-10-12
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1000
Headroom (in.): 14
Uniform Capacity (lb.): 1000
Headroom (in.): 14

SBM-10-3
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1000
Headroom (in.): 14
Uniform Capacity (lb.): 1000
Headroom (in.): 14

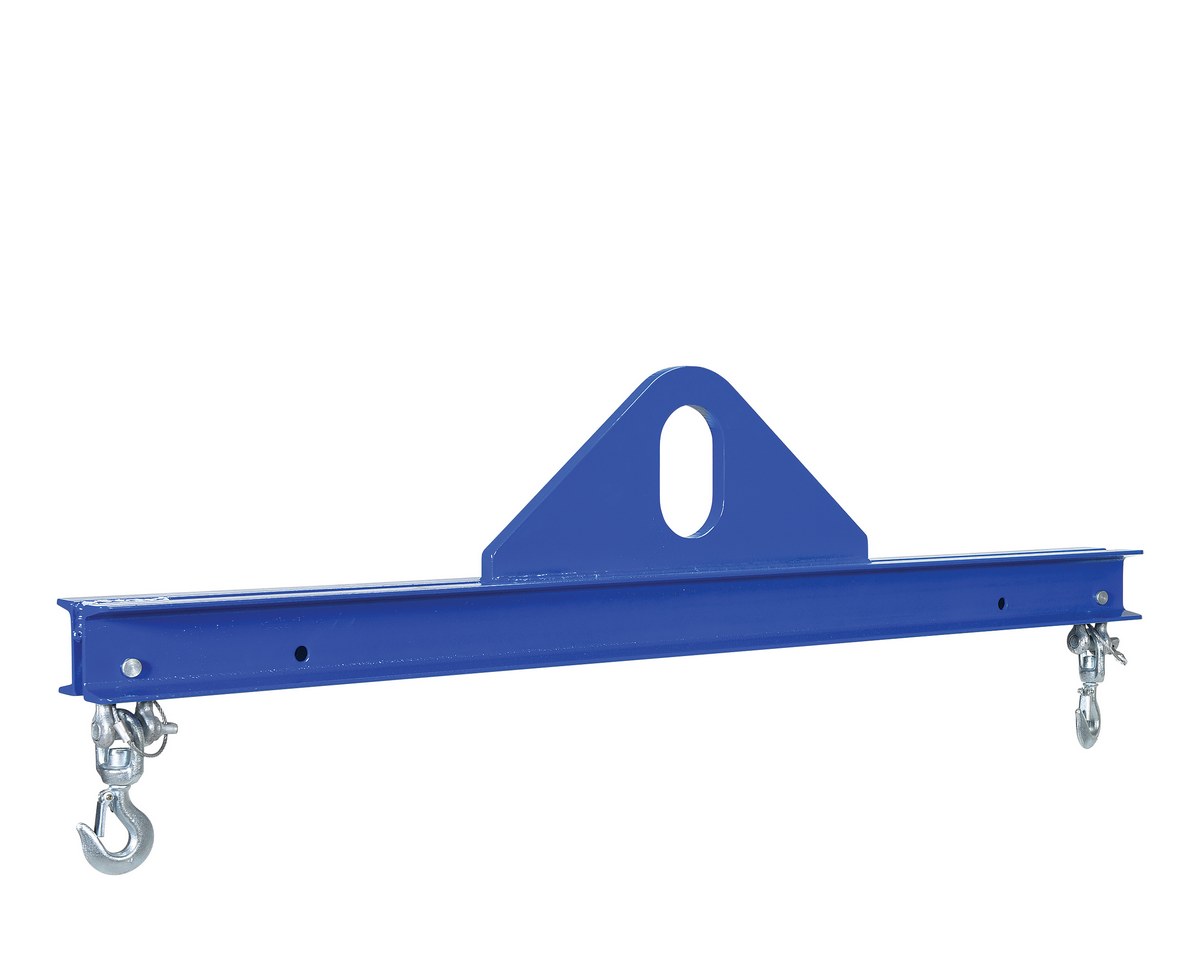

SBM-10-4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1000
Headroom (in.): 14
Uniform Capacity (lb.): 1000
Headroom (in.): 14

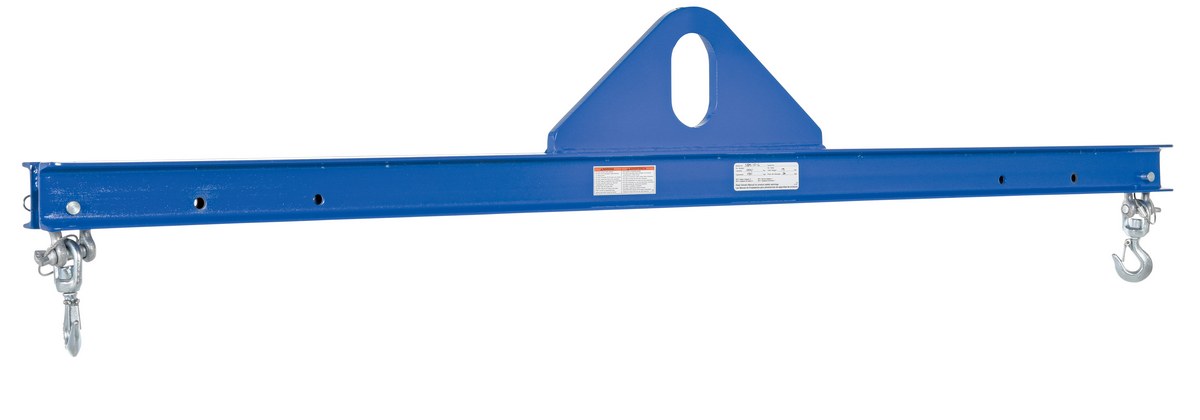

SBM-10-6
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1000
Headroom (in.): 14
Uniform Capacity (lb.): 1000
Headroom (in.): 14

SBM-10-8
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1000
Headroom (in.): 14
Uniform Capacity (lb.): 1000
Headroom (in.): 14

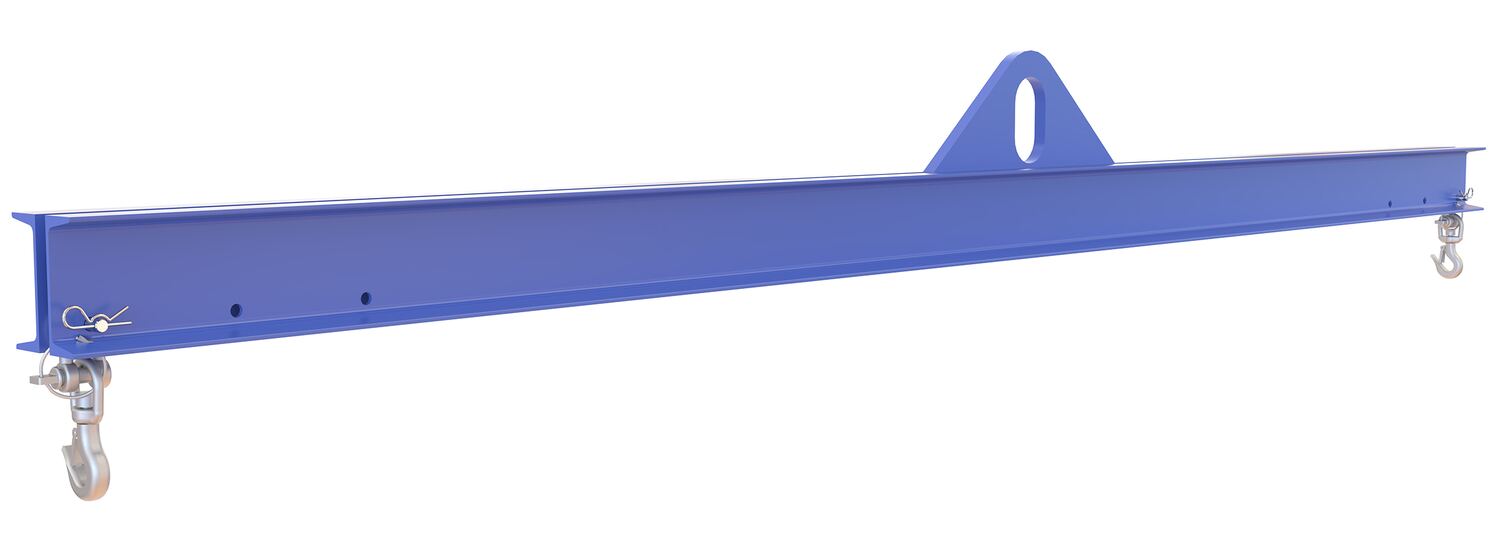

SBM-20-10
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Headroom (in.): 15
Uniform Capacity (lb.): 2000
Headroom (in.): 15

SBM-20-12
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Headroom (in.): 15
Uniform Capacity (lb.): 2000
Headroom (in.): 15

SBM-20-3
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Headroom (in.): 14
Uniform Capacity (lb.): 2000
Headroom (in.): 14

SBM-20-4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Headroom (in.): 14
Uniform Capacity (lb.): 2000
Headroom (in.): 14

SBM-20-6
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Headroom (in.): 14
Uniform Capacity (lb.): 2000
Headroom (in.): 14

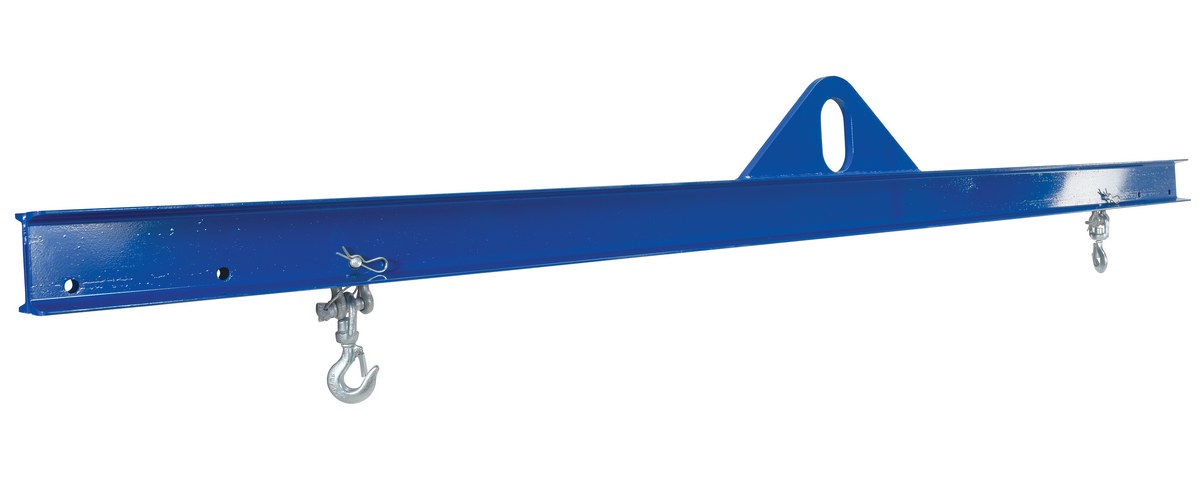

SBM-20-8
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Headroom (in.): 14
Uniform Capacity (lb.): 2000
Headroom (in.): 14

SBM-40-10
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Headroom (in.): 18-3/8
Uniform Capacity (lb.): 4,000
Headroom (in.): 18-3/8

SBM-40-12
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Headroom (in.): 18-3/8
Uniform Capacity (lb.): 4,000
Headroom (in.): 18-3/8

SBM-40-3
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Headroom (in.): 14-3/8
Uniform Capacity (lb.): 4,000
Headroom (in.): 14-3/8

SBM-40-4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Headroom (in.): 14-3/8
Uniform Capacity (lb.): 4,000
Headroom (in.): 14-3/8

SBM-40-6
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Headroom (in.): 15-3/8
Uniform Capacity (lb.): 4,000
Headroom (in.): 15-3/8

SBM-40-8
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Headroom (in.): 18-3/8
Uniform Capacity (lb.): 4,000
Headroom (in.): 18-3/8

SBM-60-10
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Headroom (in.): 18-11/16
Uniform Capacity (lb.): 6,000
Headroom (in.): 18-11/16

SBM-60-12
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Headroom (in.): 18-11/16
Uniform Capacity (lb.): 6,000
Headroom (in.): 18-11/16

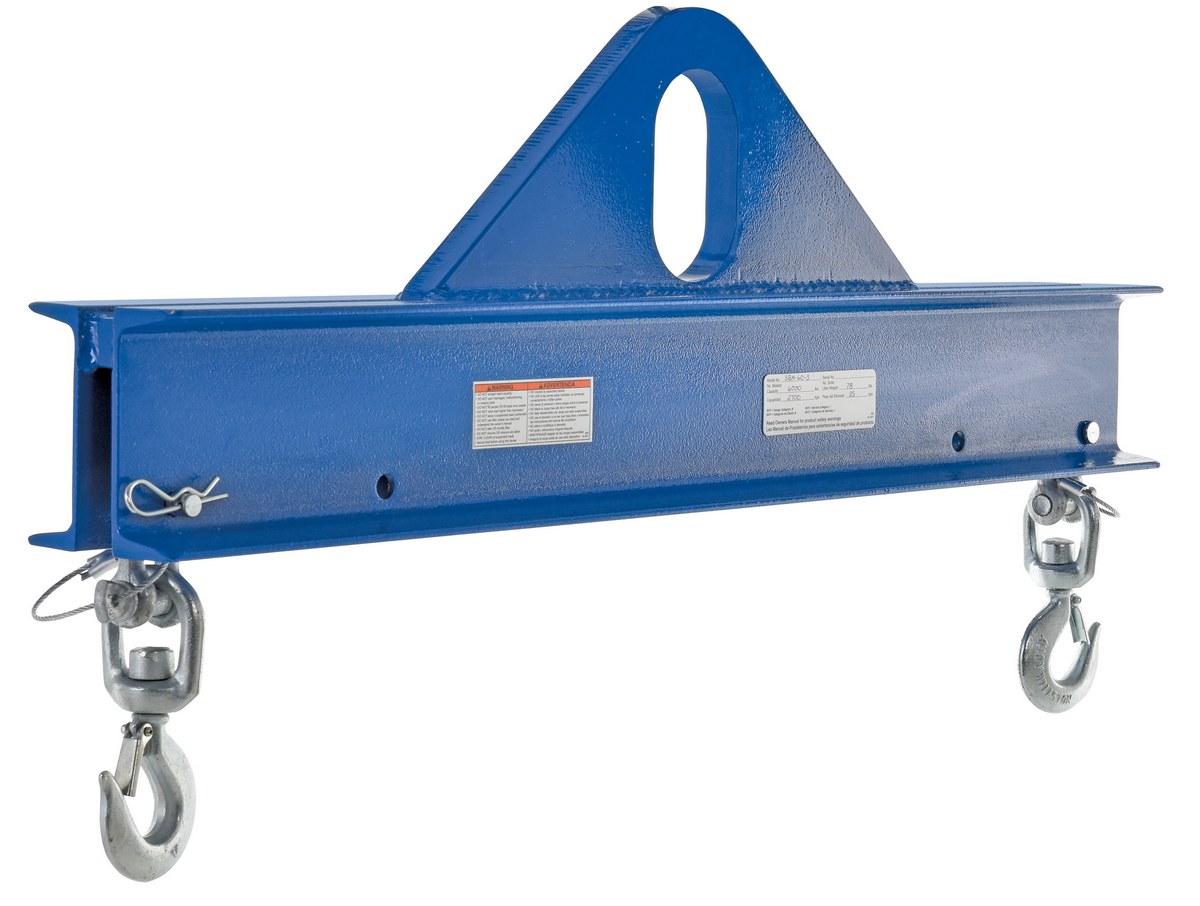

SBM-60-3
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Headroom (in.): 15-11/16
Uniform Capacity (lb.): 6,000
Headroom (in.): 15-11/16

SBM-60-4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Headroom (in.): 15-11/16
Uniform Capacity (lb.): 6,000
Headroom (in.): 15-11/16

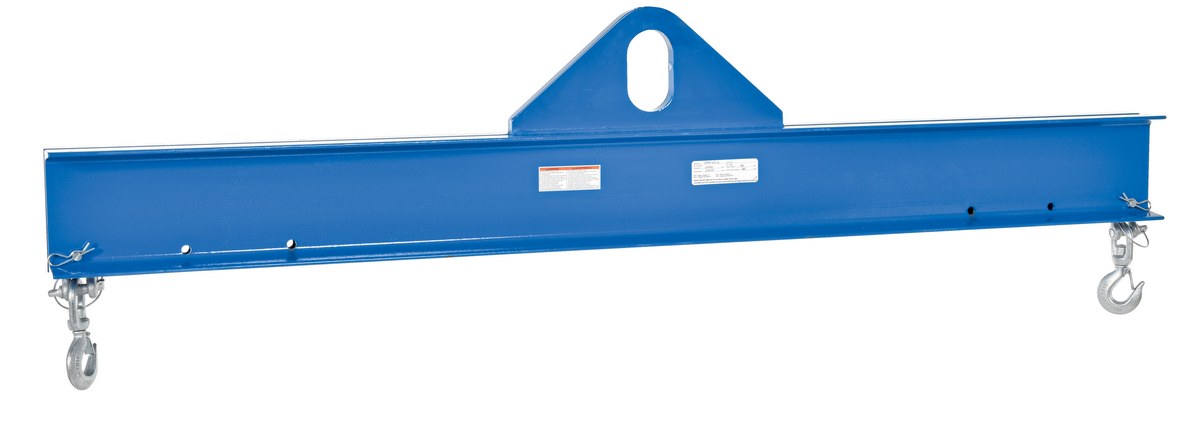

SBM-60-6
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Headroom (in.): 18-11/16
Uniform Capacity (lb.): 6,000
Headroom (in.): 18-11/16

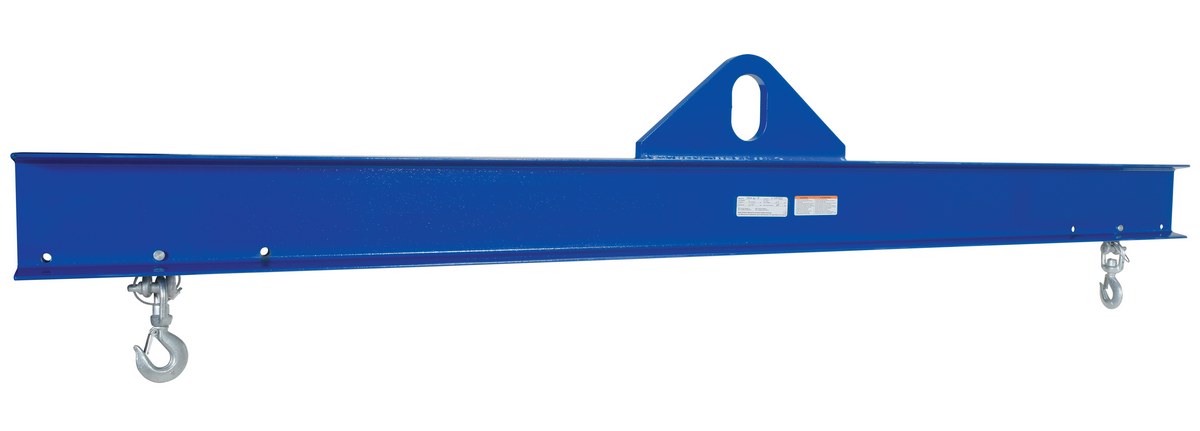

SBM-60-8
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Headroom (in.): 18-11/16
Uniform Capacity (lb.): 6,000
Headroom (in.): 18-11/16

Economy Spreader Beams PDF's will open in a new window when clicked.

Manuals


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


SBM-10-10

SBM-10-12

SBM-10-3

SBM-10-4

SBM-10-6

SBM-10-8

SBM-20-10

SBM-20-12

SBM-20-3

SBM-20-4

SBM-20-6

SBM-20-8

SBM-40-10

SBM-40-12

SBM-40-3

SBM-40-4

SBM-40-6

SBM-40-8

SBM-60-10

SBM-60-12

SBM-60-3

SBM-60-4

SBM-60-6

SBM-60-8

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products


Q: What service class is the SBM-60-12 built to?

A: Design Category B and Service Category 1






Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Economy Spreader Beams




These versatile lifters are ideal for lifting a variety of loads where headroom is limited. Complies with OSHA and ANSI B30.20 standards. Usable bail is 3" wide, 5" high. Two safety swivel hooks and durable baked-in powder-coat finish for toughness. Heavy-duty welded steel construction.

  • Designed to lift and move uneven and awkward loads
  • Complies with ASME B30.20-1993 standards
  • Includes two swivel lifting hooks for added versatility
  • Welded steel construction for heavy duty performance


Model # Description Attributes Net Wt.
(lbs)
SBM-10-10 SBM-10-10Steel Economy Spreader Beam 120 In Length 1,000 Lb. Capacity BlueUniform Capacity (lb.): 1000
Headroom (in.): 14
141
SBM-10-12 SBM-10-12Steel Economy Spreader Beam 144 In Length 1,000 Lb. Capacity BlueUniform Capacity (lb.): 1000
Headroom (in.): 14
212
SBM-10-3 SBM-10-3Steel Economy Spreader Beam 36 In. Length 1,000 Lb. Capacity BlueUniform Capacity (lb.): 1000
Headroom (in.): 14
67
SBM-10-4 SBM-10-4Steel Economy Spreader Beam 48 In Length 1,000 Lb. Capacity BlueUniform Capacity (lb.): 1000
Headroom (in.): 14
75
SBM-10-6 SBM-10-6Steel Economy Spreader Beam 72 In Length 1,000 Lb. Capacity BlueUniform Capacity (lb.): 1000
Headroom (in.): 14
140
SBM-10-8 SBM-10-8Steel Economy Spreader Beam 96 In Length 1,000 Lb. Capacity BlueUniform Capacity (lb.): 1000
Headroom (in.): 14
105
SBM-20-10 SBM-20-10Steel Economy Spreader Beam 120 In Length 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Headroom (in.): 15
188
SBM-20-12 SBM-20-12Steel Economy Spreader Beam 144 In Length 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Headroom (in.): 15
268
SBM-20-3 SBM-20-3Steel Economy Spreader Beam 36 In. Length 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Headroom (in.): 14
54
SBM-20-4 SBM-20-4Steel Economy Spreader Beam 48 In Length 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Headroom (in.): 14
61
SBM-20-6 SBM-20-6Steel Economy Spreader Beam 72 In Length 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Headroom (in.): 14
103
SBM-20-8 SBM-20-8Steel Economy Spreader Beam 96 In Length 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Headroom (in.): 14
159
SBM-40-10 SBM-40-10Steel Economy Spreader Beam 120 In Length 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Headroom (in.): 18-3/8
275
SBM-40-12 SBM-40-12Steel Economy Spreader Beam 144 In Length 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Headroom (in.): 18-3/8
295
SBM-40-3 SBM-40-3Steel Economy Spreader Beam 36 In. Length 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Headroom (in.): 14-3/8
79
SBM-40-4 SBM-40-4Steel Economy Spreader Beam 48 In Length 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Headroom (in.): 14-3/8
112
SBM-40-6 SBM-40-6Steel Economy Spreader Beam 72 In Length 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Headroom (in.): 15-3/8
147
SBM-40-8 SBM-40-8Steel Economy Spreader Beam 96 In Length 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Headroom (in.): 18-3/8
222
SBM-60-10 SBM-60-10Steel Economy Spreader Beam 120 In Length 6,000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Headroom (in.): 18-11/16
305
SBM-60-12 SBM-60-12Steel Economy Spreader Beam 144 In Length 6,000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Headroom (in.): 18-11/16
393
SBM-60-3 SBM-60-3Steel Economy Spreader Beam 36 In Length 6,000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Headroom (in.): 15-11/16
78
SBM-60-4 SBM-60-4Steel Economy Spreader Beam 48 In Length 6,000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Headroom (in.): 15-11/16
146
SBM-60-6 SBM-60-6Steel Economy Spreader Beam 72 In Length 6,000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Headroom (in.): 18-11/16
187
SBM-60-8 SBM-60-8Steel Economy Spreader Beam 96 In Length 6,000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Headroom (in.): 18-11/16
247


Our Customer Service Associates Are Here To Assist You!
Call Vestil At 260-665-7586 Or info@vestil.com
