Product Family Overview


Adjustable Spreader Beams
SERIES: SBM

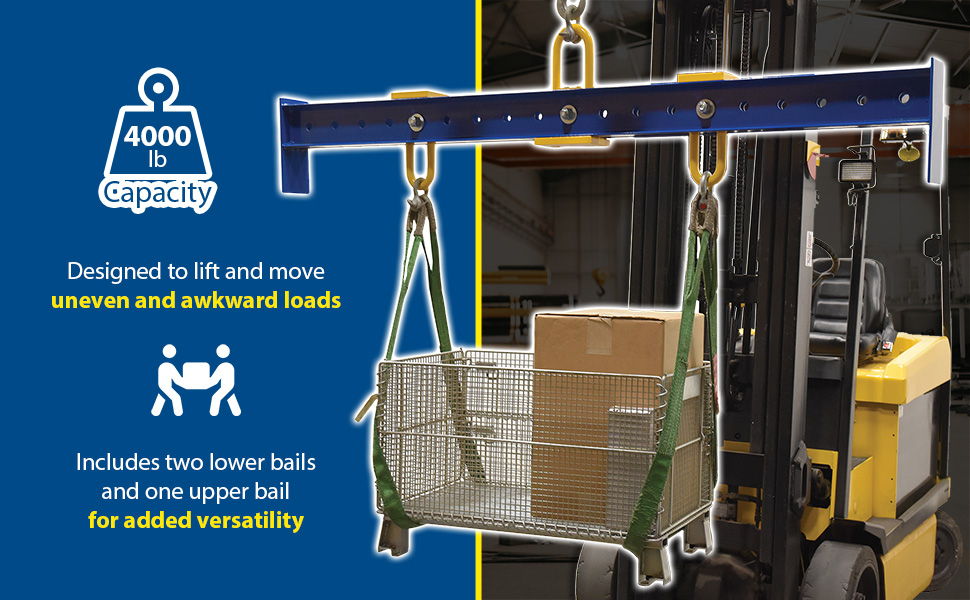

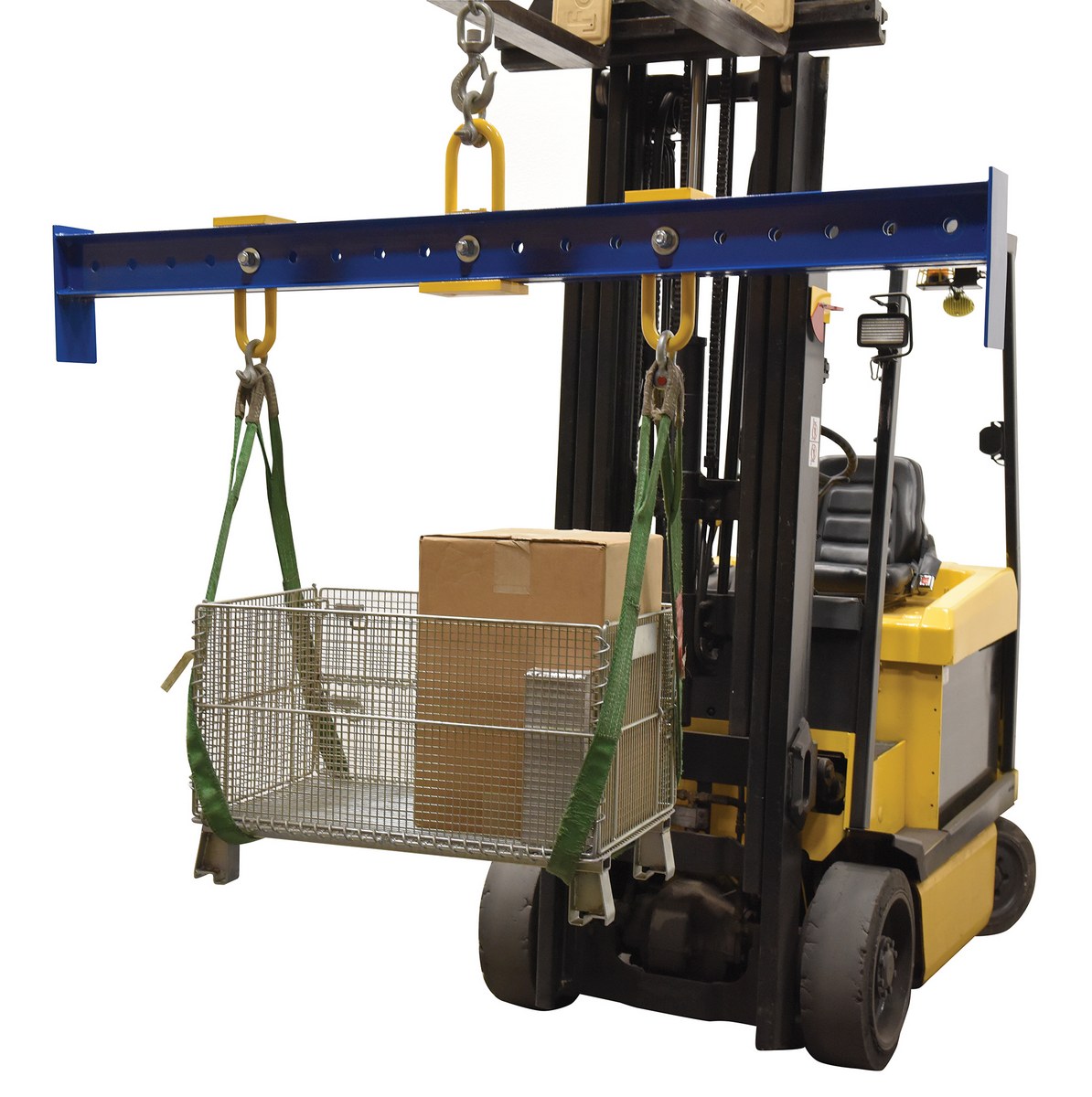

Lift uneven loads and keep them level with increased safety. Includes two lower bails and one upper bail. Adjust bails in 4" increments. The bails slide between two 5" high C-Channels (8" high model SBM-80). Meets ASME B30.20-1993 standard. Baked-in powder-coated finish for added toughness.

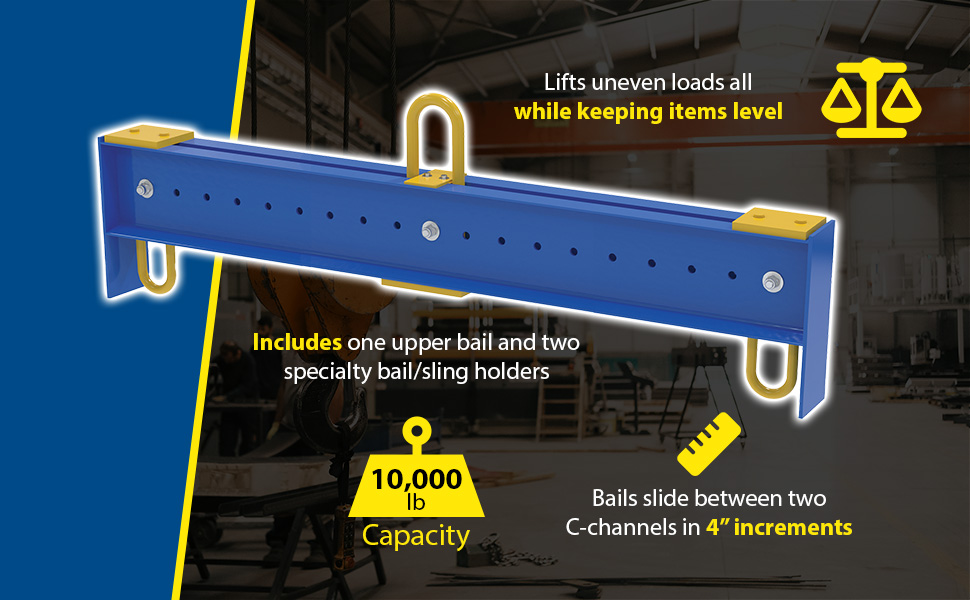

The SBM-BFB-100-10 models lifts uneven loads and keep them level with increased safety. Includes one upper bail and two specialty designed bail/sling holders. Bails are adjustable in 4" increments. The bails slide between two (2) 5" high C-Channels. Meets ASME B30.20-1993 standard. Baked-in powdercoated toughness. Polyester lifting slings sold separately. Additional bails are available for purchase. Additonal bail hardware sold separately.

Lift uneven loads and keep them level with increased safety. Includes two lower bails and one upper bail. Adjust bails in 4" increments. The bails slide between two 5" high C-Channels (8" high model SBM-80). Meets ASME B30.20-1993 standard. Baked-in powder-coated finish for added toughness.

The SBM-BFB-100-10 models lifts uneven loads and keep them level with increased safety. Includes one upper bail and two specialty designed bail/sling holders. Bails are adjustable in 4" increments. The bails slide between two (2) 5" high C-Channels. Meets ASME B30.20-1993 standard. Baked-in powdercoated toughness. Polyester lifting slings sold separately. Additional bails are available for purchase. Additonal bail hardware sold separately.

Additional Models In This Family

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

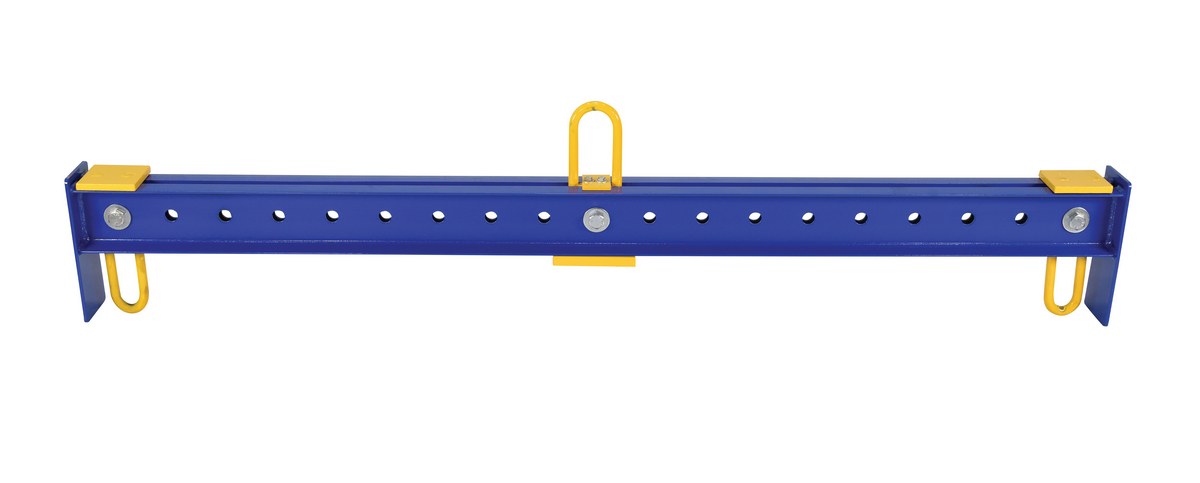

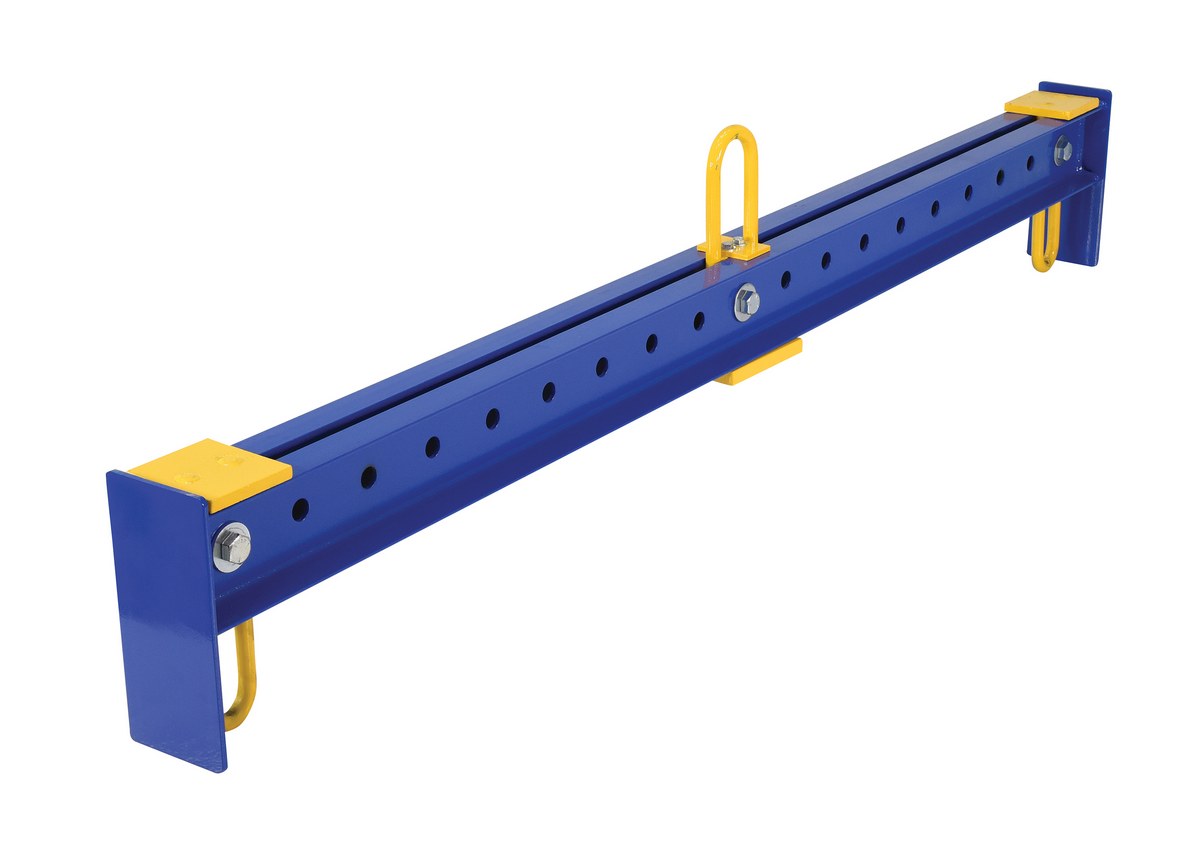

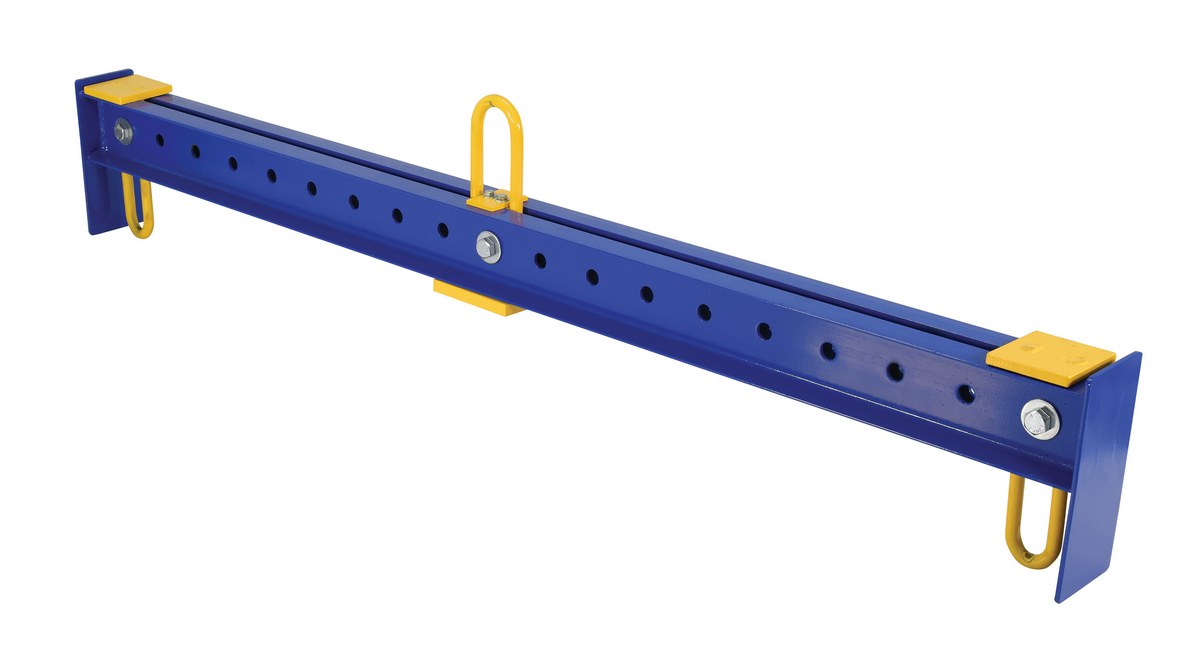

SBM-25 SBM-2590 Days Limited WarrantySteel Adjustable Spreader Beam 78 In. Length 2,500 Lb. Capacity BlueUniform Capacity (lb.): 2,500
Headroom (in.): 14-3/4
178

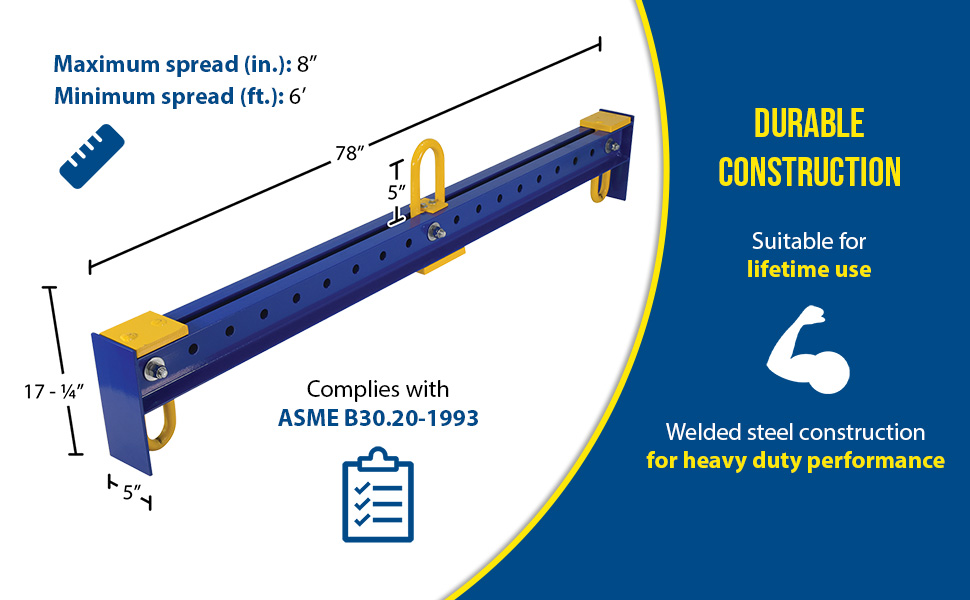

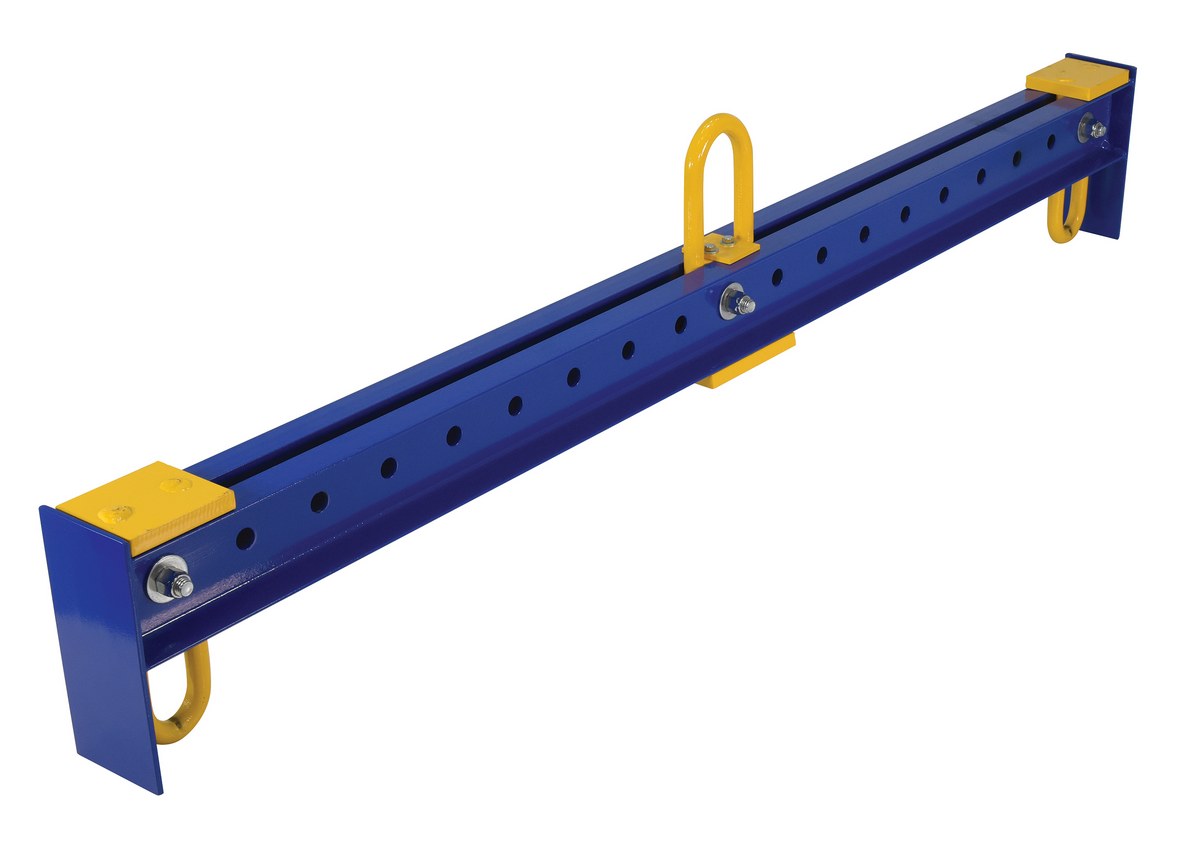

SBM-40 SBM-4090 Days Limited WarrantySteel Adjustable Spreader Beam 78 In Length 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Headroom (in.): 14-3/4
196

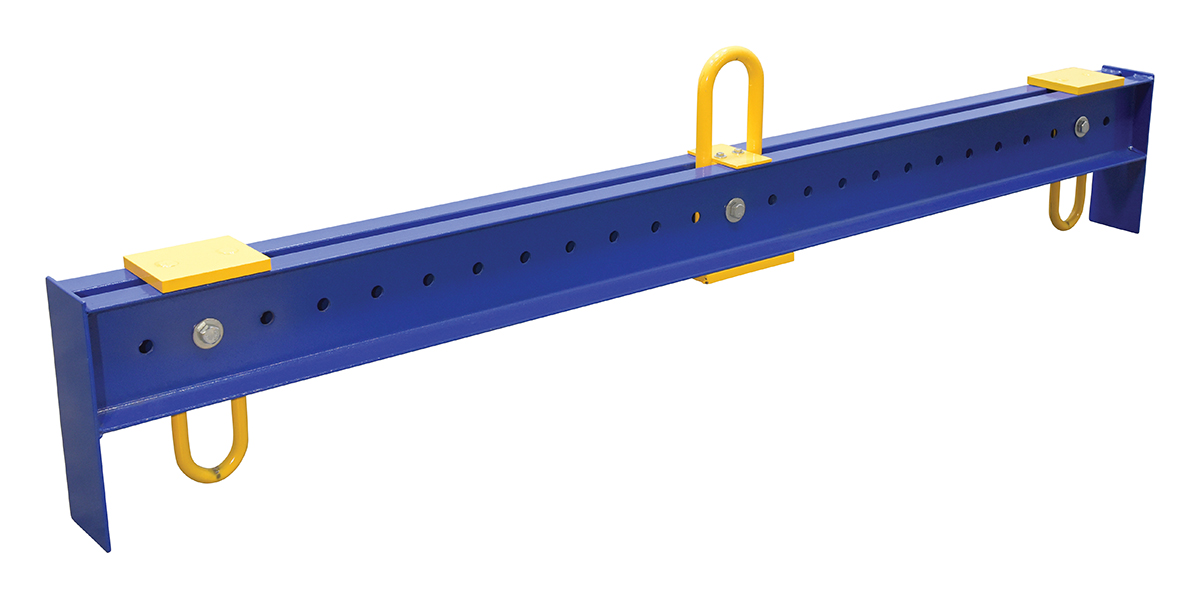

SBM-80 SBM-8090 Days Limited WarrantySteel Adjustable Spreader Beam 104-1/2 In Length 8,000 Lb. Capacity BlueUniform Capacity (lb.): 8,000
Headroom (in.): 20-3/4
336

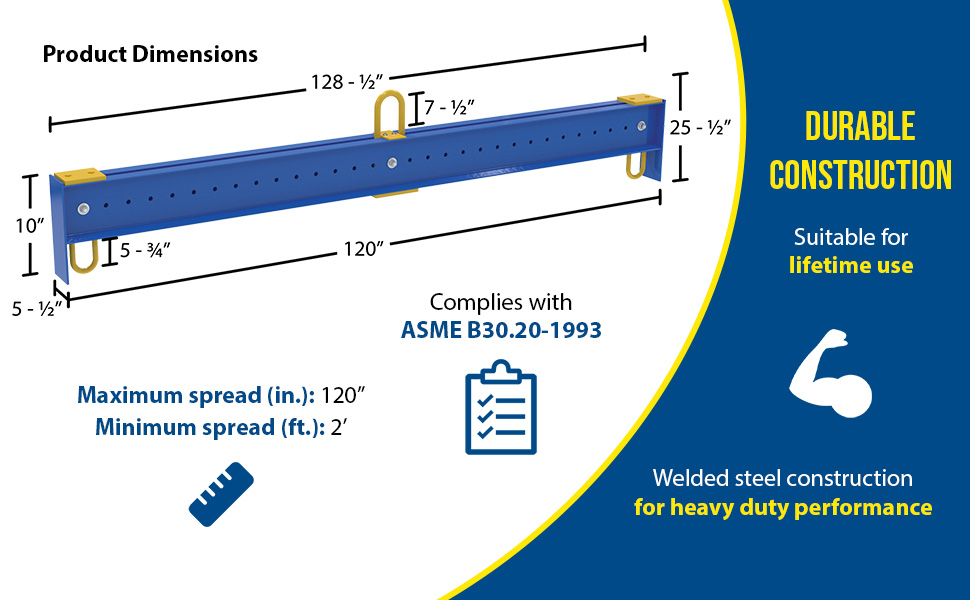

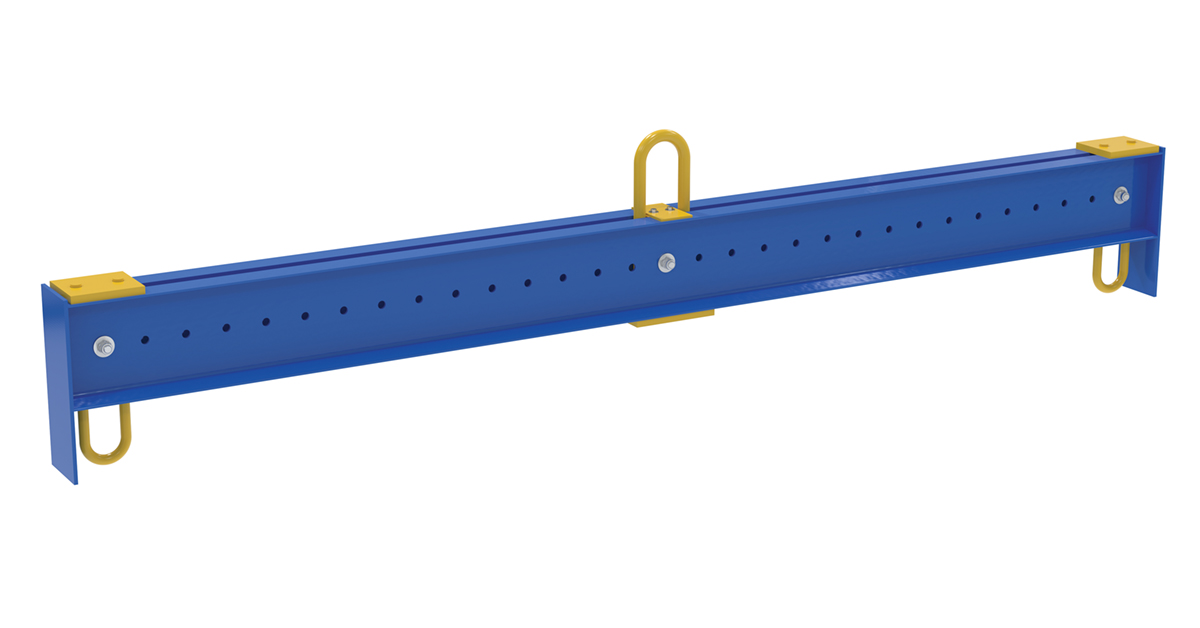

SBM-BFB-100-10 SBM-BFB-100-1090 Days Limited WarrantySteel Adjustable Spreader Beam 128-1/2 In Length 10,000 Lb. Capacity BlueUniform Capacity (lb.): 10000
Lower Bail Width (in): 3
508

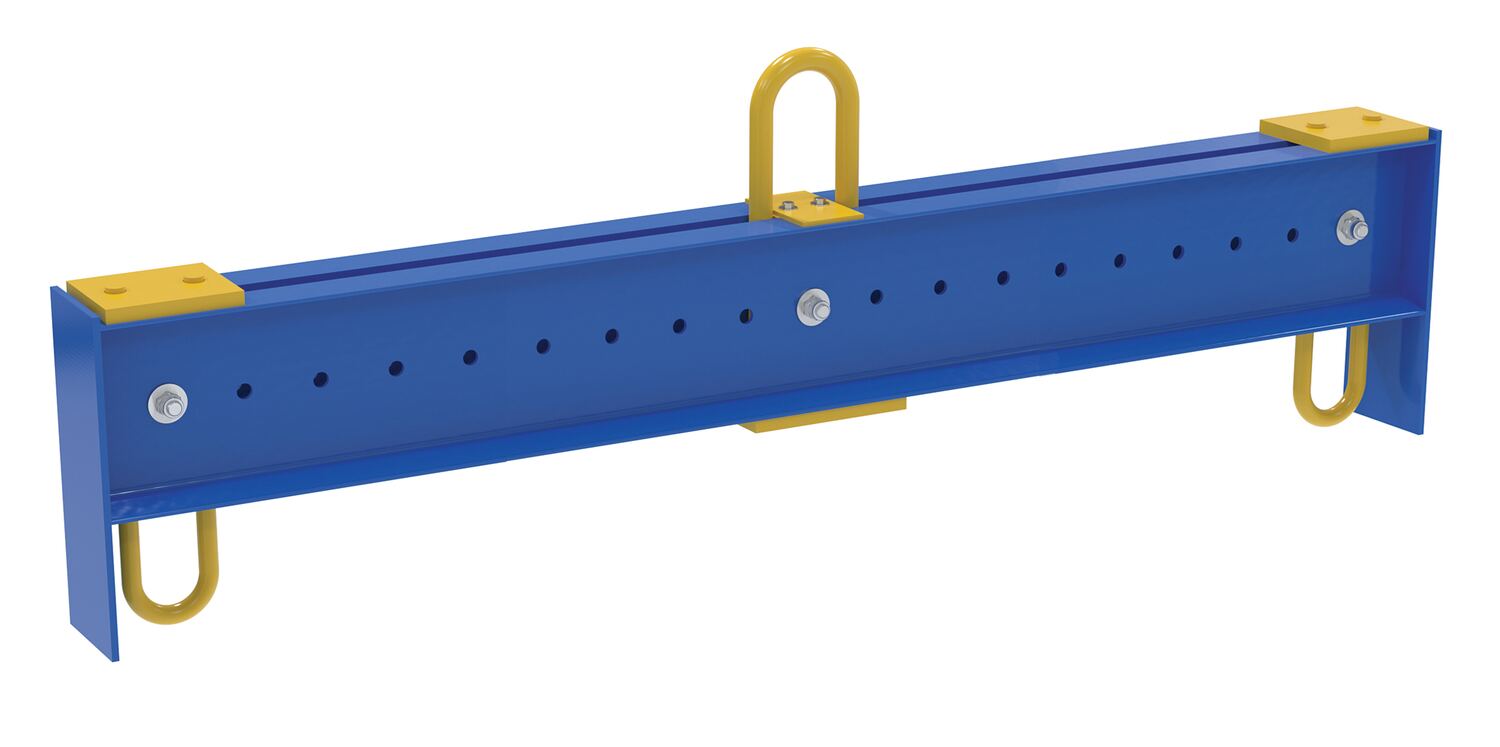

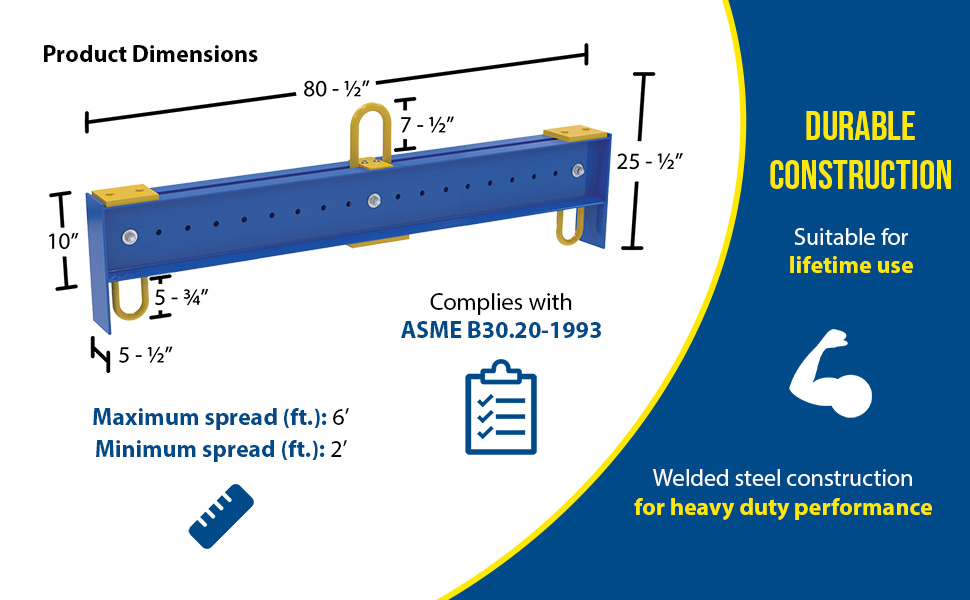

SBM-BFB-100-6 SBM-BFB-100-690 Days Limited WarrantySteel Adjustable Spreader Beam 6 Ft Maximum Spread 10,000 Lb. Capacity BlueUniform Capacity: 10000
Lower Bail Width (in): 3
388

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

SBM-25
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,500
Headroom (in.): 14-3/4
Uniform Capacity (lb.): 2,500
Headroom (in.): 14-3/4

SBM-40
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Headroom (in.): 14-3/4
Uniform Capacity (lb.): 4,000
Headroom (in.): 14-3/4

SBM-80
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 8,000
Headroom (in.): 20-3/4
Uniform Capacity (lb.): 8,000
Headroom (in.): 20-3/4

SBM-BFB-100-10
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 10000
Lower Bail Width (in): 3
Uniform Capacity (lb.): 10000
Lower Bail Width (in): 3

SBM-BFB-100-6
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity: 10000
Lower Bail Width (in): 3
Uniform Capacity: 10000
Lower Bail Width (in): 3
For More Details of the Option Click the Red Model Button

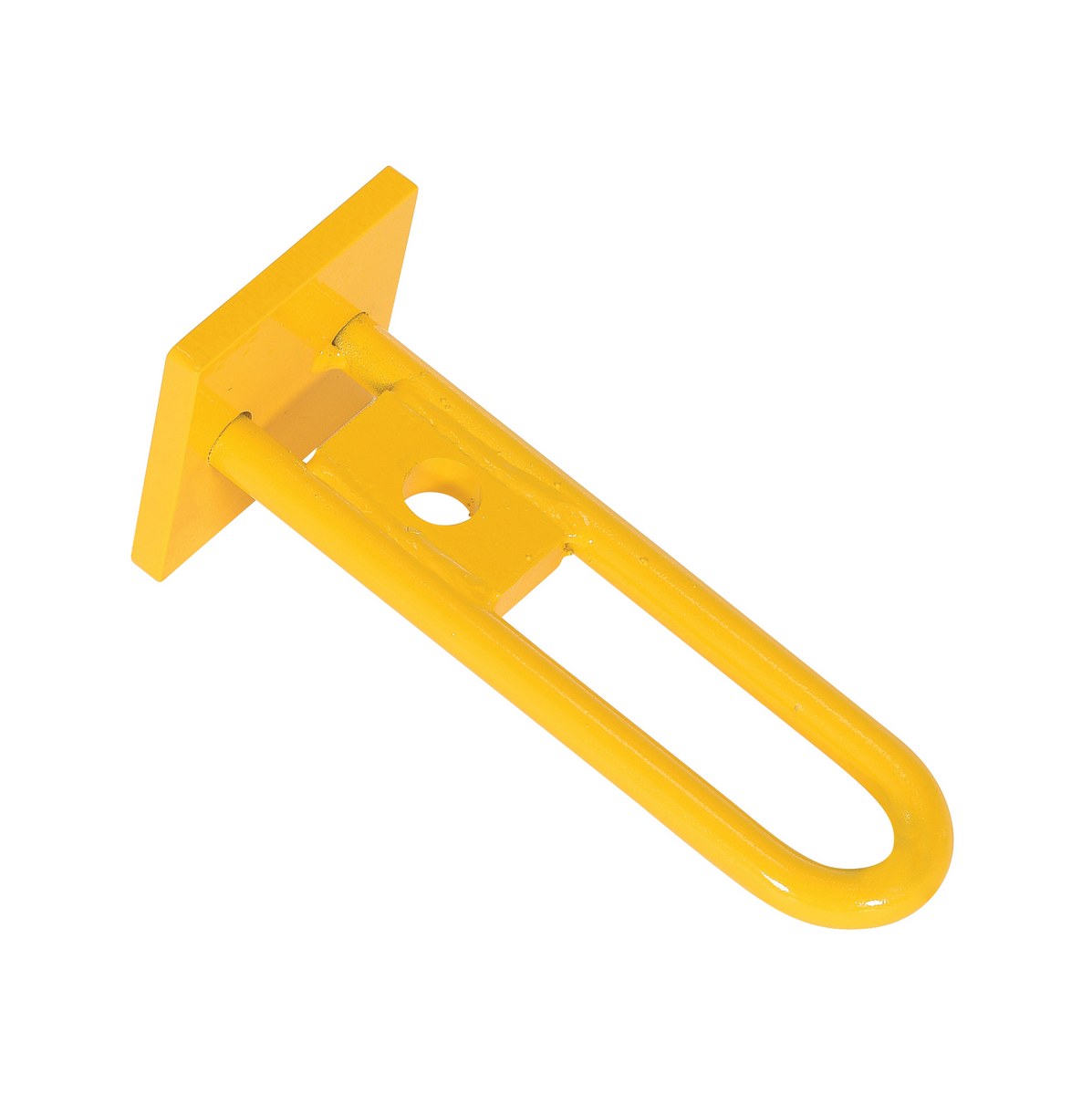

SM-LB-25 SM-LB-2590 Days Limited WarrantySteel Lower Bail 4-1/4 In. x 4-1/2 In. x 17-1/2 In. For Adjustable Spreader BeamsMeets ASME Standards: No
Meets ASTM Standards for Strollers: No
10

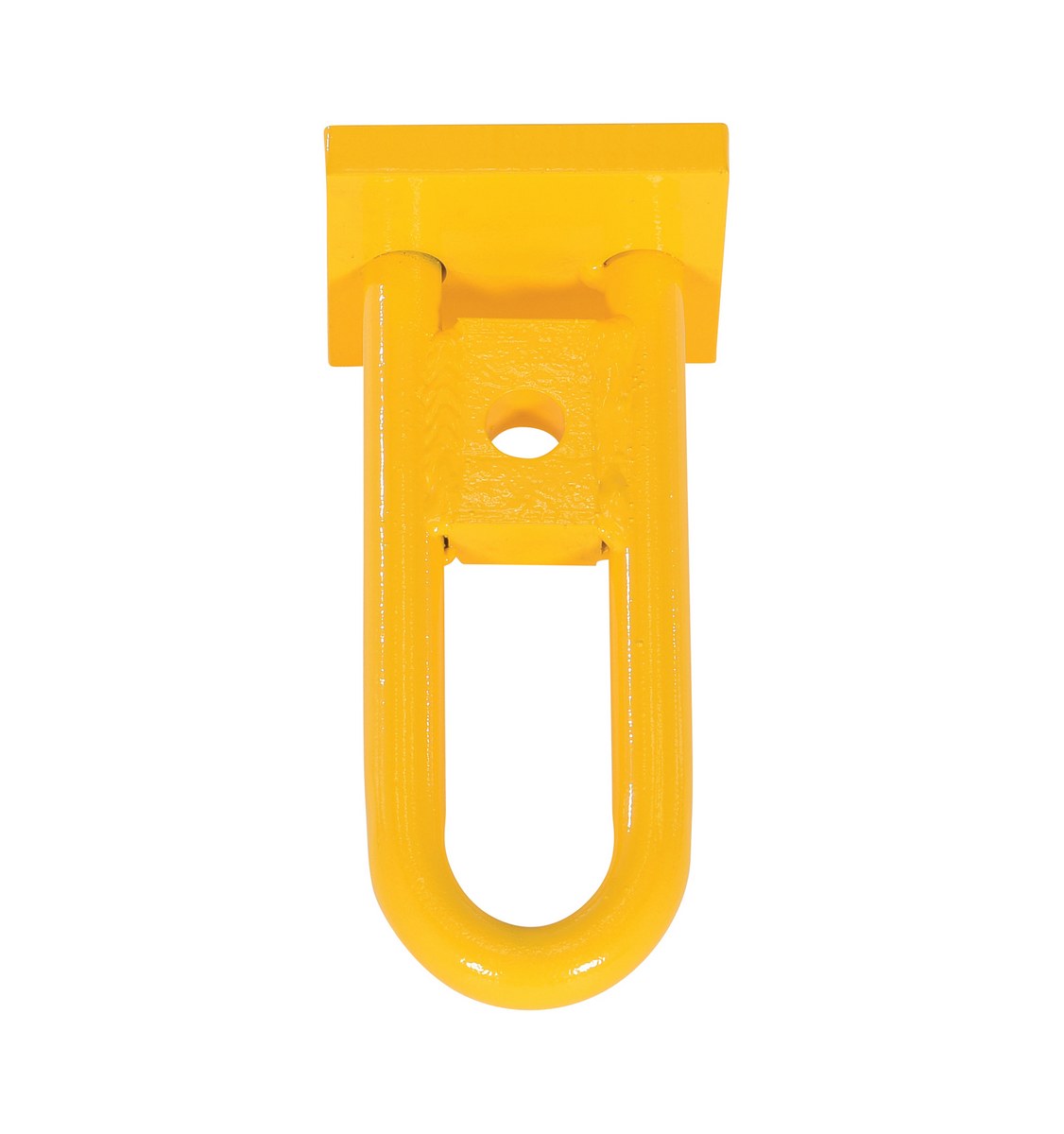

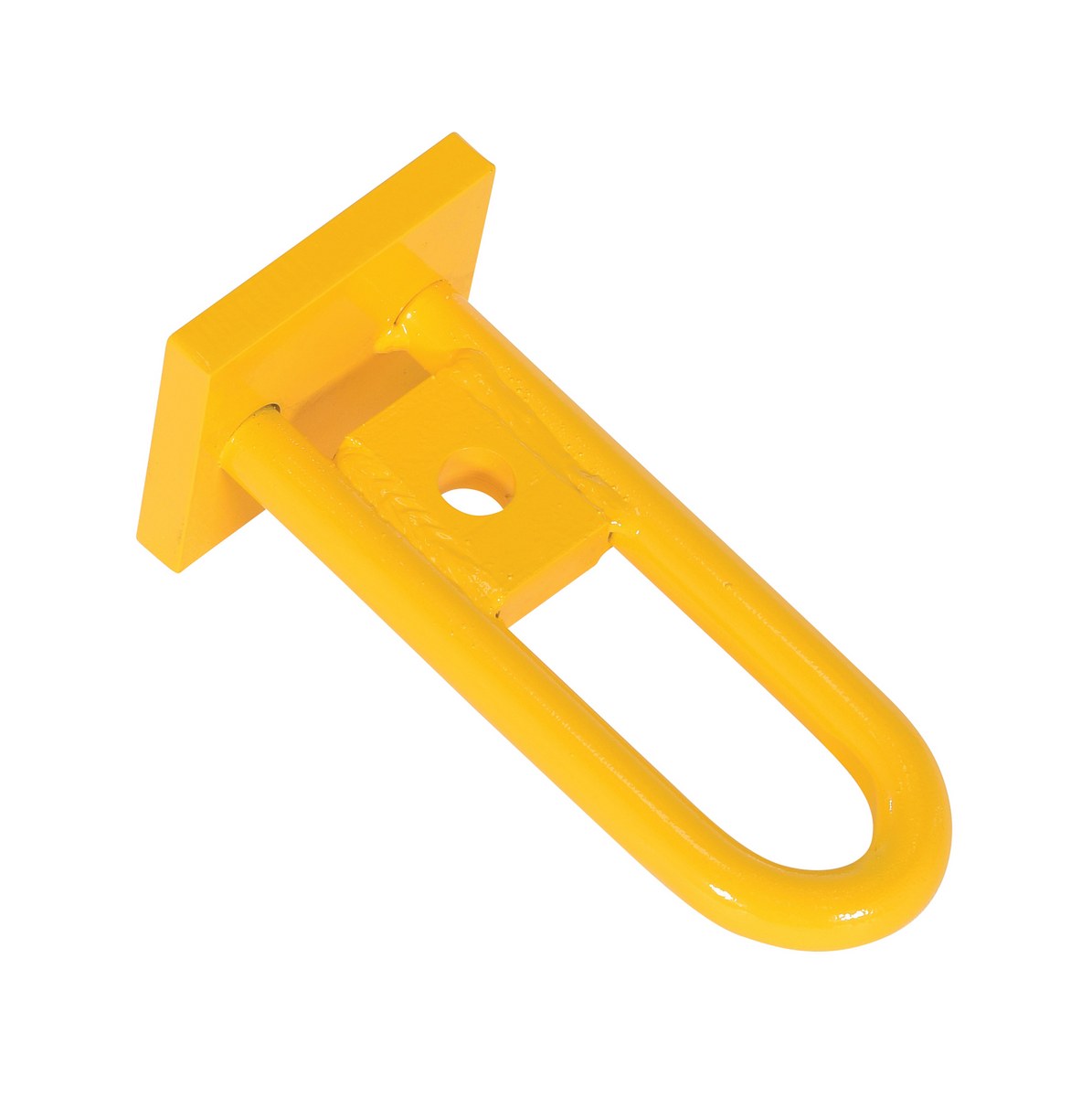

SM-LB-40 SM-LB-4090 Days Limited WarrantySteel Lower Bail 4-1/2 In. x 5 In. x 11-1/4 In. For Adjustable Spreader BeamsMeets ASME Standards: No
Meets ASTM Standards for Strollers: No
16

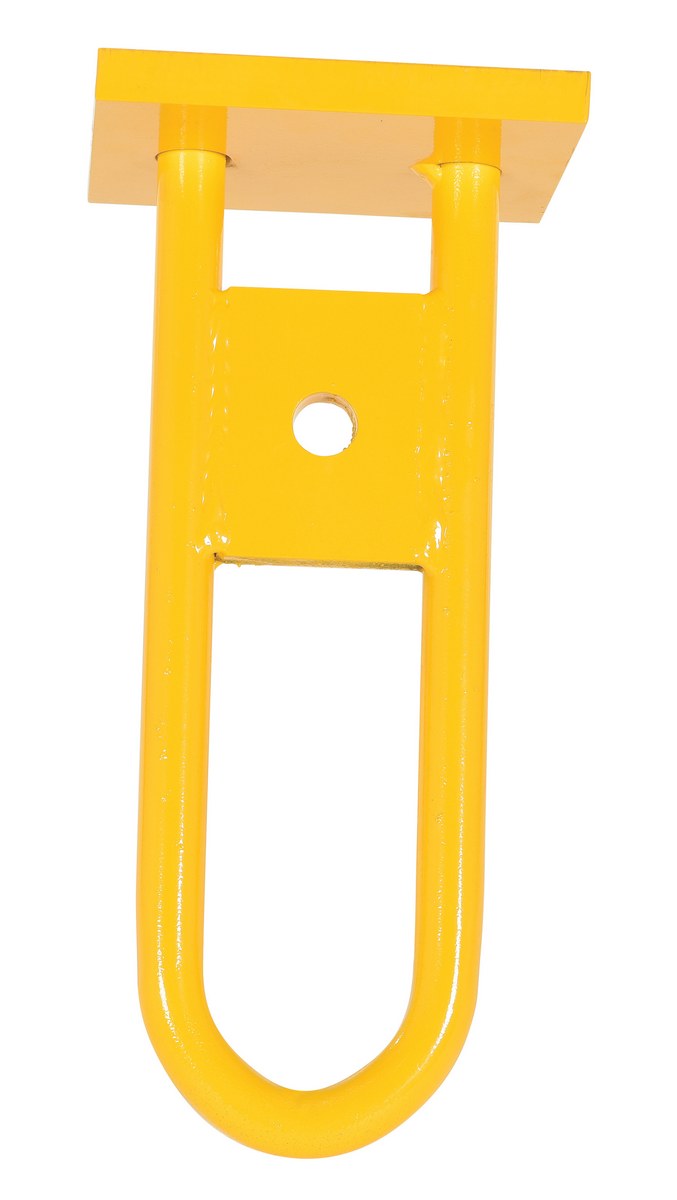

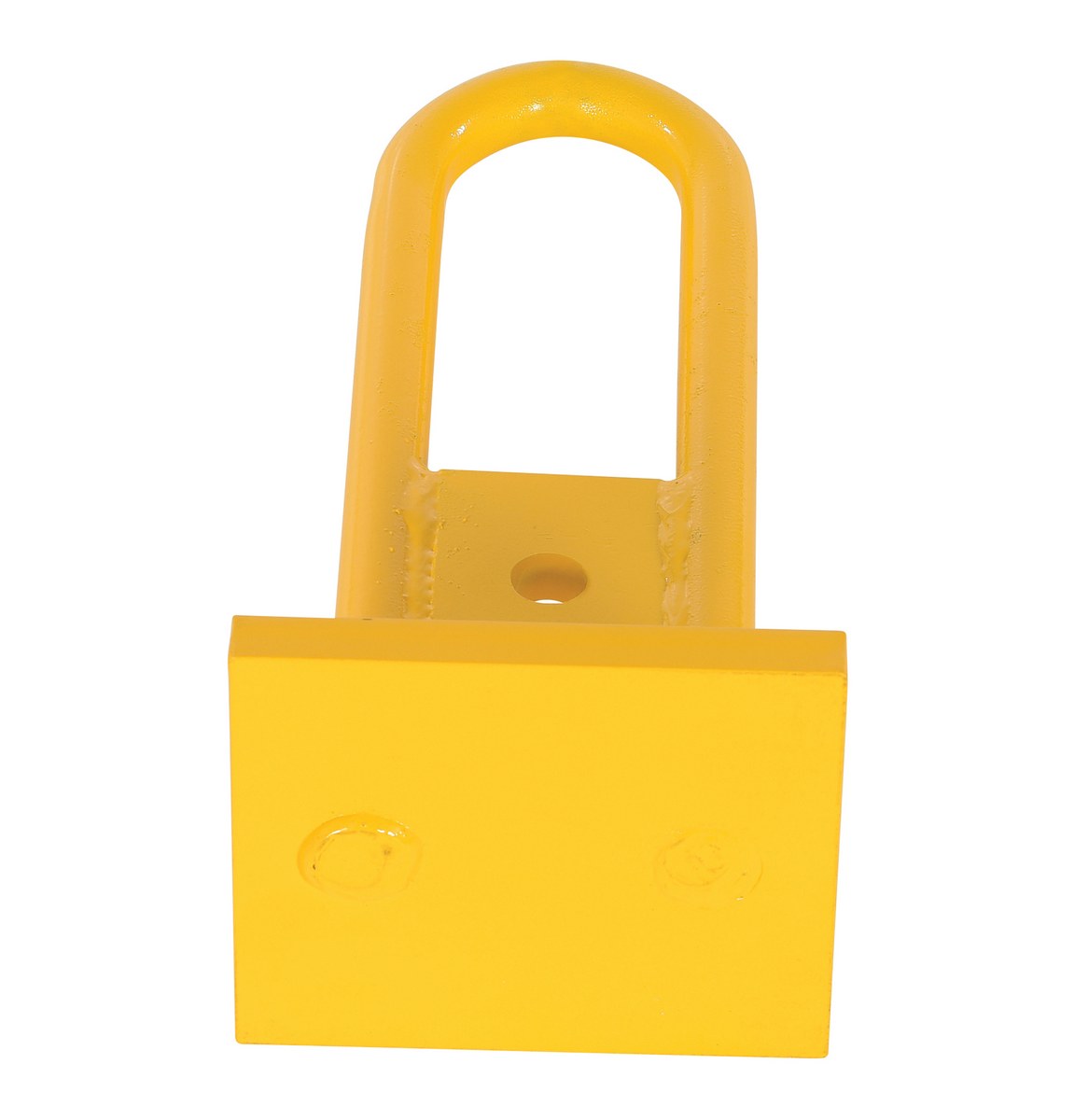

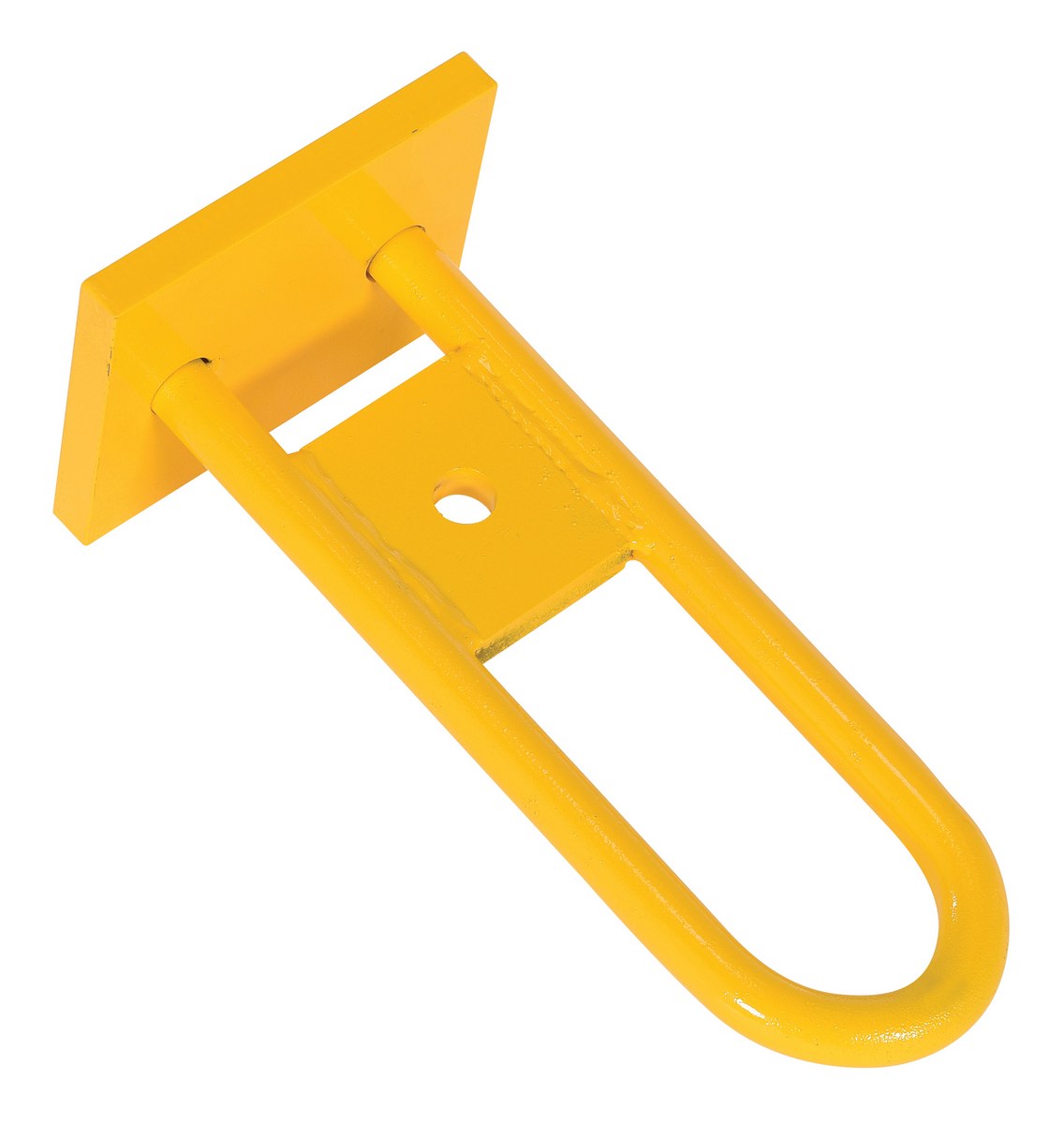

SM-LB-80 SM-LB-8090 Days Limited WarrantySteel Lower Bail 6 In. x 7 In. x 15-3/4 In. For Adjustable Spreader BeamsMeets ASME Standards: No
Meets ASTM Standards for Strollers: No
32

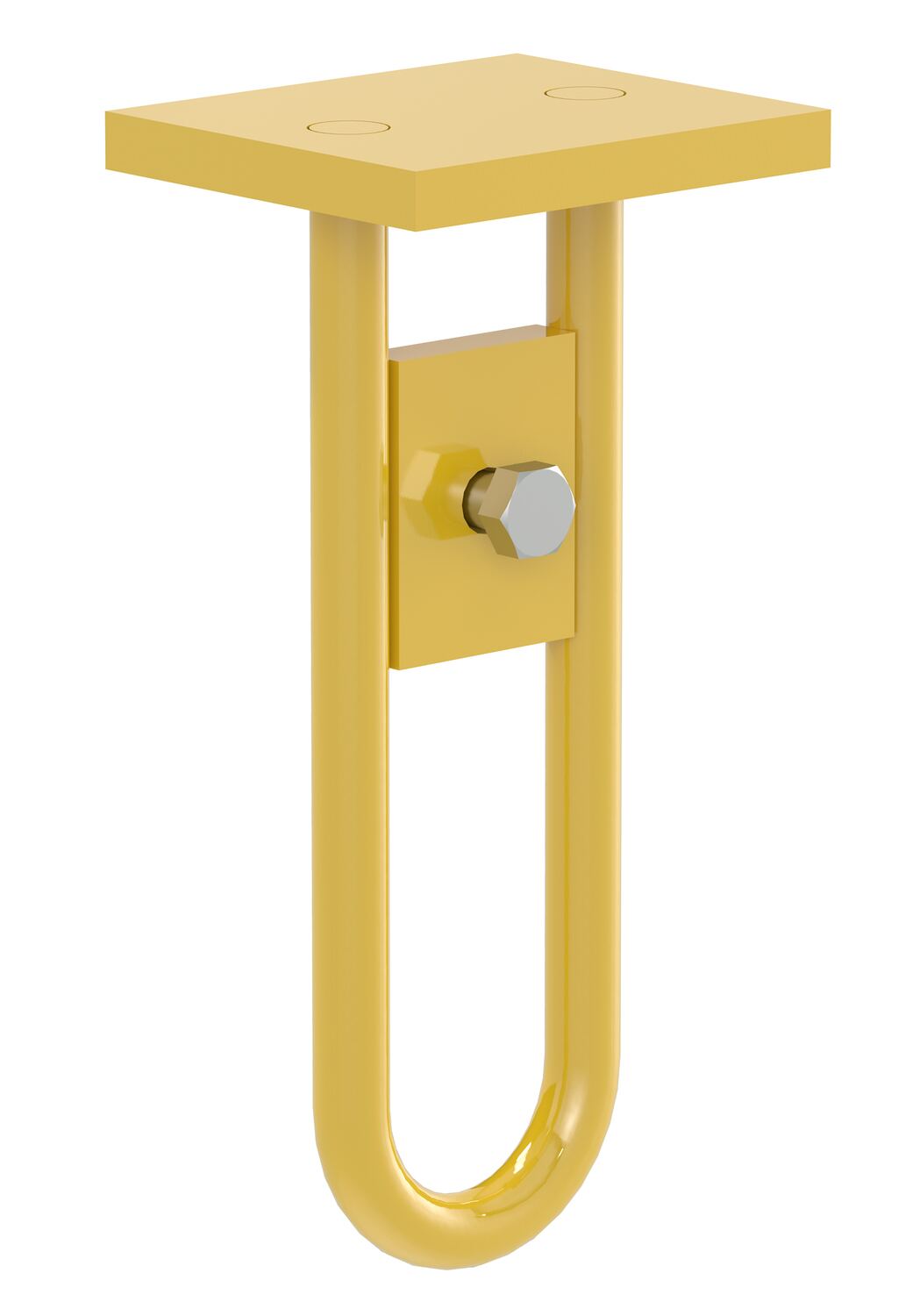

SM-LB-BFB-100 NEW SM-LB-BFB-10090 Days Limited WarrantySteel Lower Bail Kit For Adjustable Spreader Beams SBM-BFB-100 Series 6 X 7 X 17.75 YellowMeets ASME Standards: No
Meets ASTM Standards for Strollers: No
22

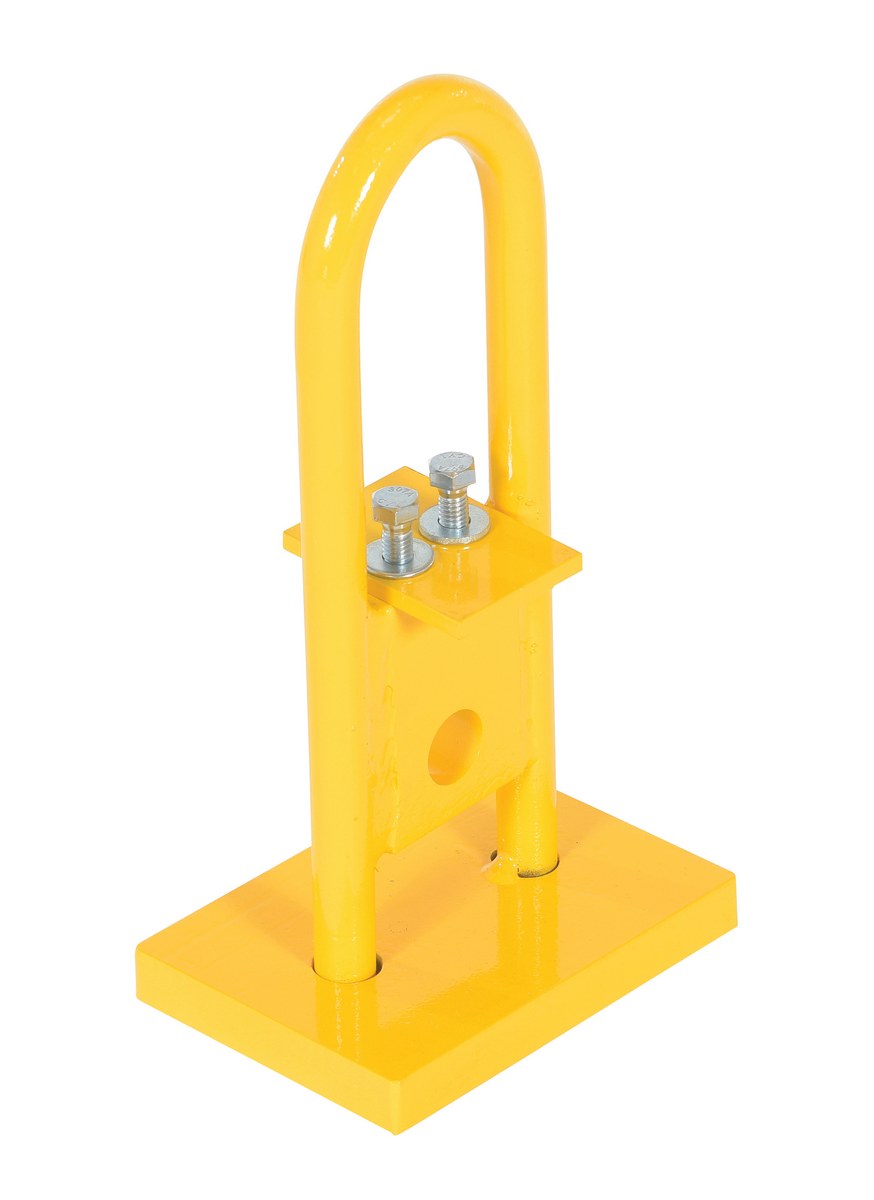

SM-UB-25 SM-UB-2590 Days Limited WarrantySteel Upper Bail 4-1/2 In. x 6-1/4 In. x 12 In. For Adjustable Spreader BeamsMeets ASME Standards: No
Meets ASTM Standards for Strollers: No
11

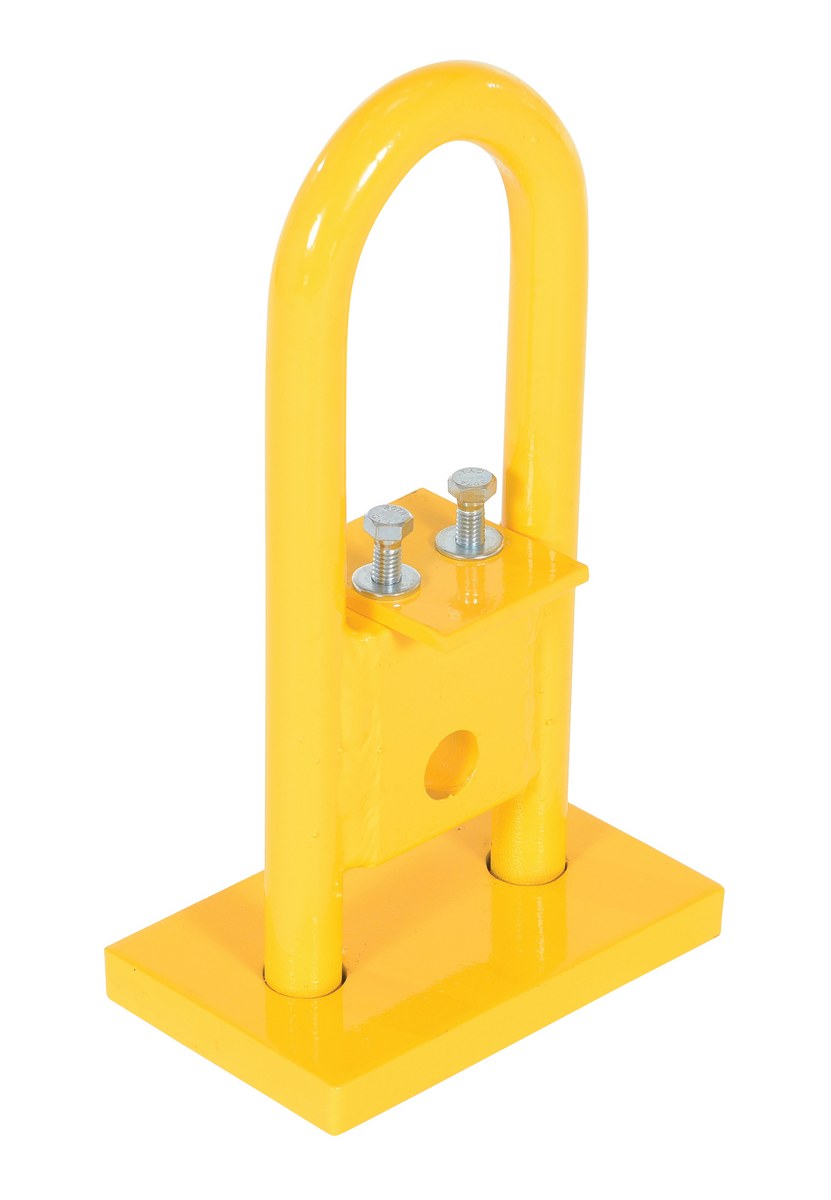

SM-UB-40 SM-UB-4090 Days Limited WarrantySteel Upper Bail 4-1/2 In. x 7 In. x 13 In. For Adjustable Spreader BeamsMeets ASME Standards: No
Meets ASTM Standards for Strollers: No
17

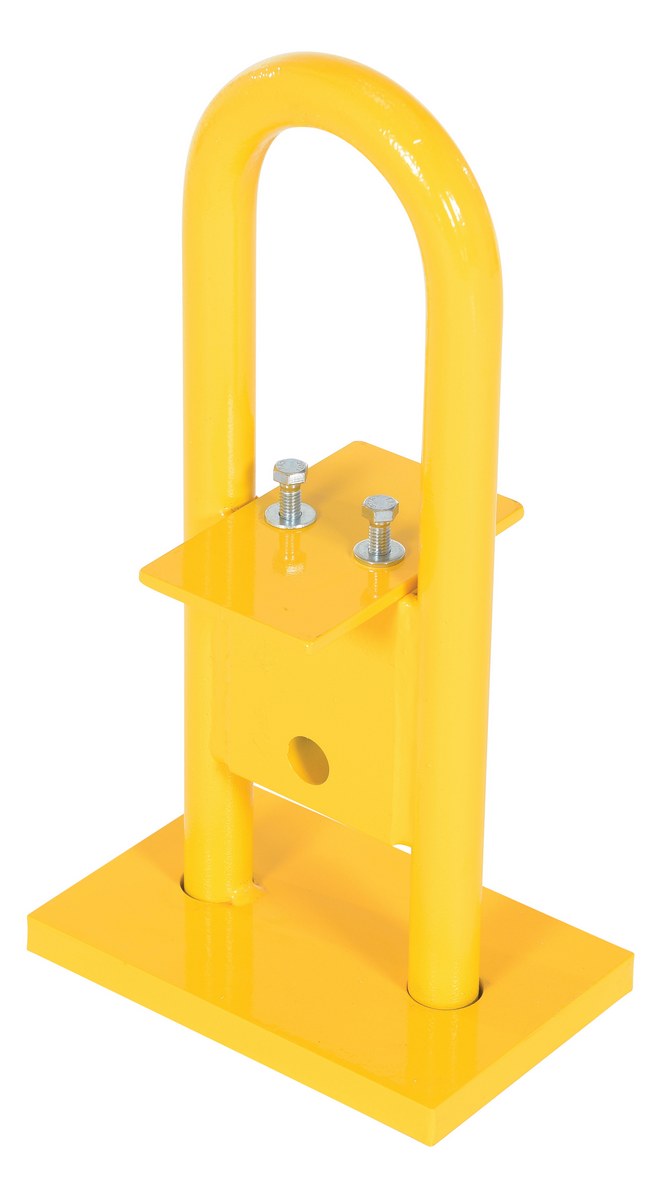

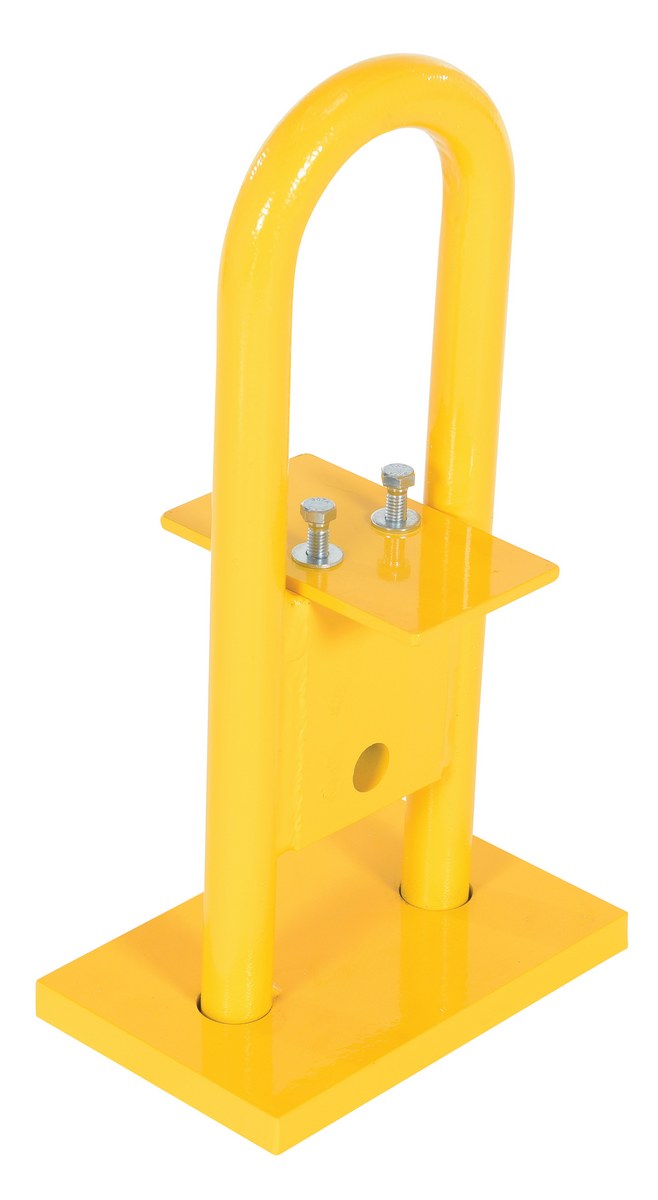

SM-UB-80 SM-UB-8090 Days Limited WarrantySteel Upper Bail 6 In. x 9-1/4 In. x 17-1/2 In. For Adjustable Spreader BeamsMeets ASME Standards: No
Meets ASTM Standards for Strollers: No
33

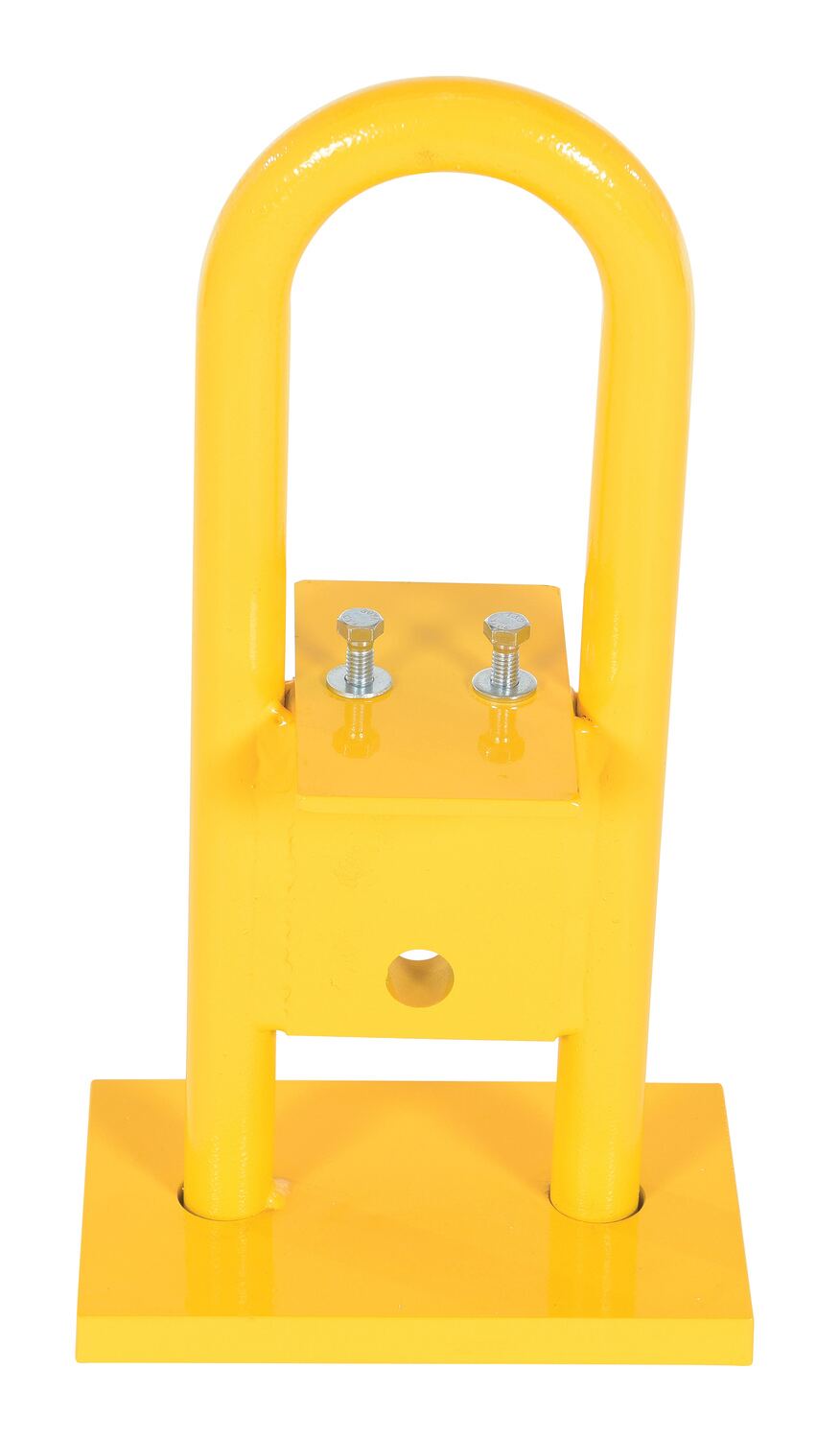

SM-UB-BFB-100 NEW SM-UB-BFB-10090 Days Limited WarrantySteel Upper Bail Kit For Adjustable Spreader Beams SBM-BFB-100 Series 6 X 9.25 X 19.75 YellowMeets ASME Standards: No
Meets ASTM Standards for Strollers: No
38

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above

Adjustable Spreader Beams PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


SBM-25

SBM-40

SBM-80

SBM-BFB-100-10

SBM-BFB-100-6

SM-LB-25

SM-LB-40

SM-LB-80

SM-UB-25

SM-UB-40

SM-UB-80

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products


Q: What is the diameter of the bails?

A: The lower bails have a 1" diameter. The upper bail has a 1 14"diameter.
