Shop Crane Engine Hoists

- - - -

Description
Model Chart
PDF's
Image Gallery

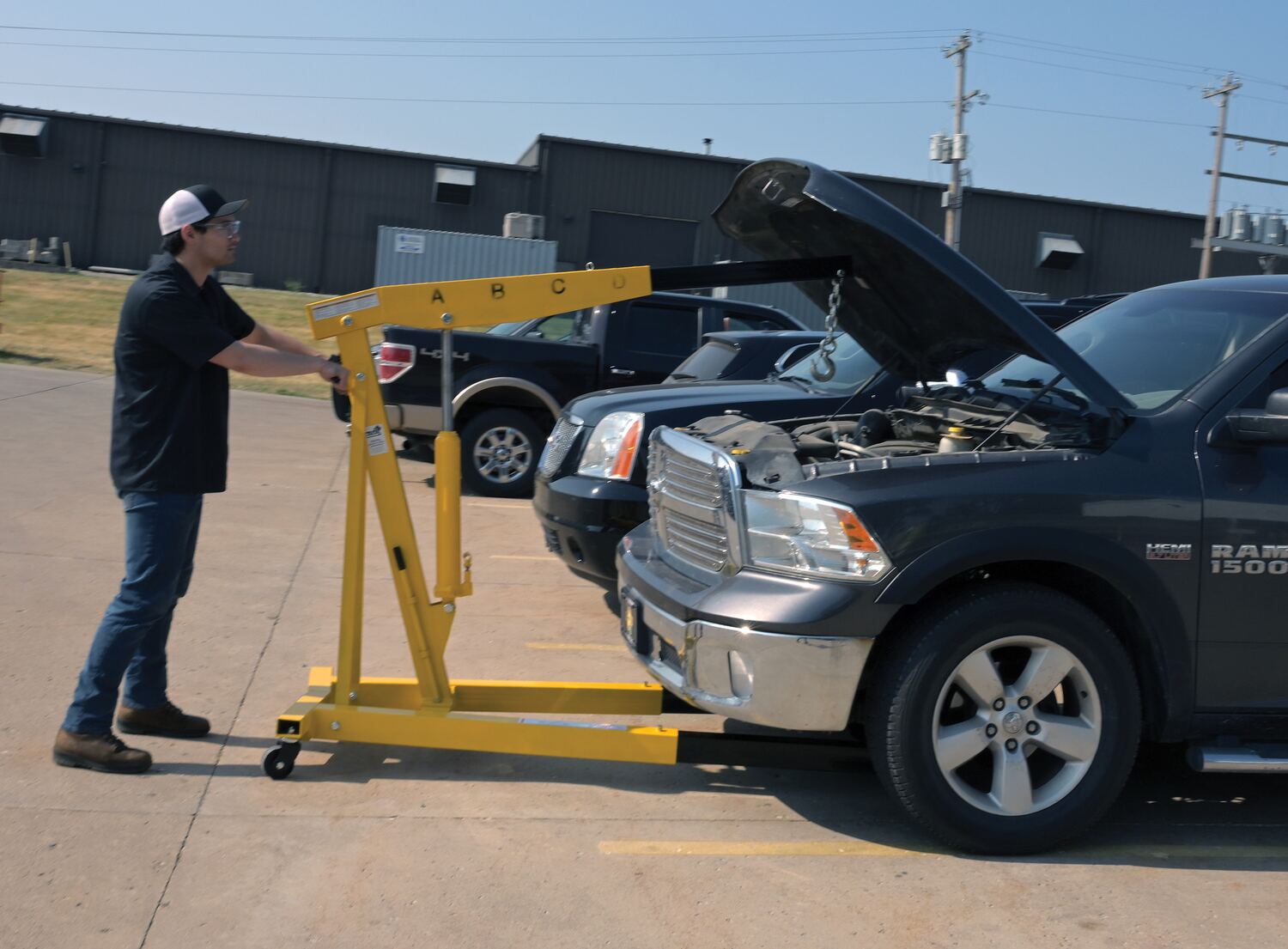

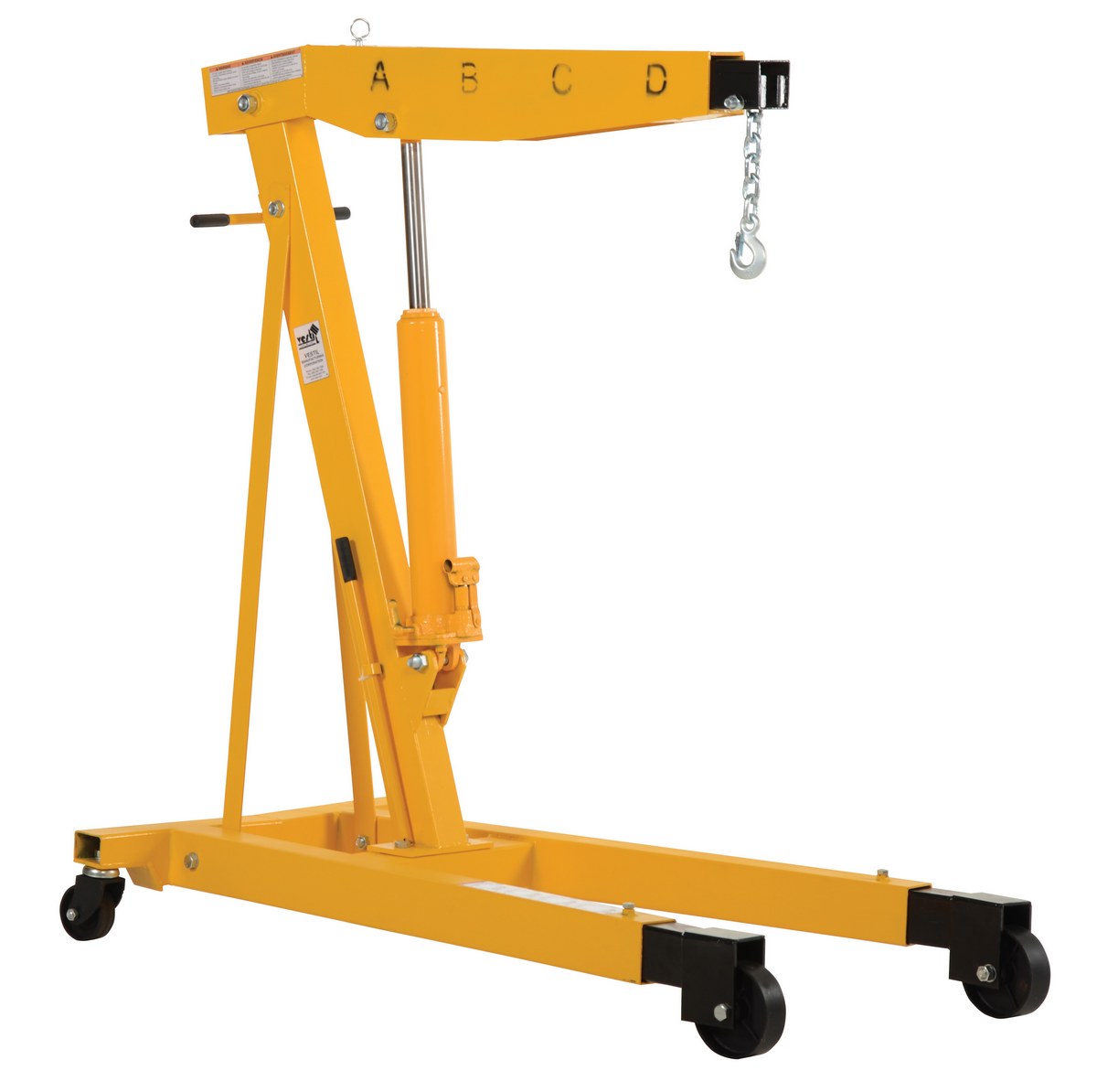

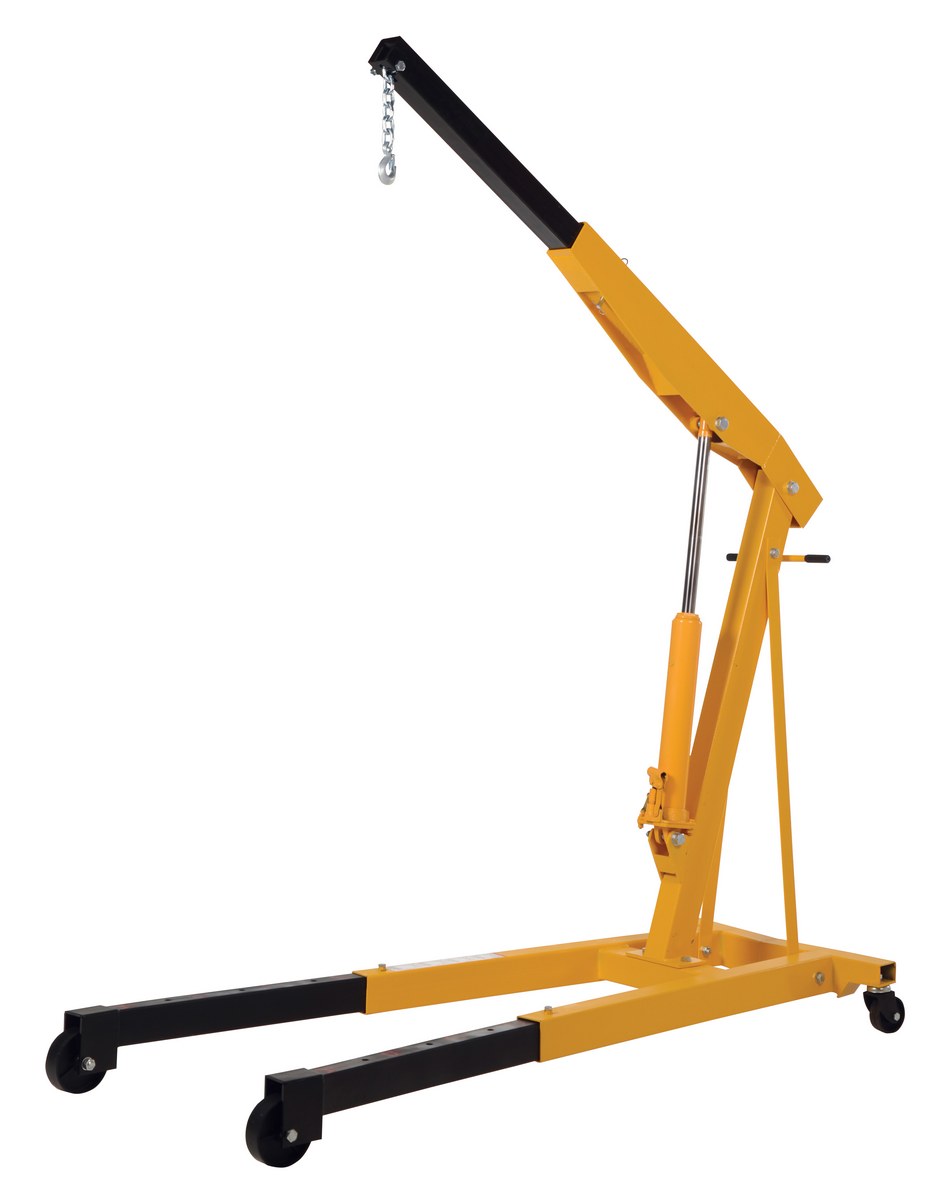

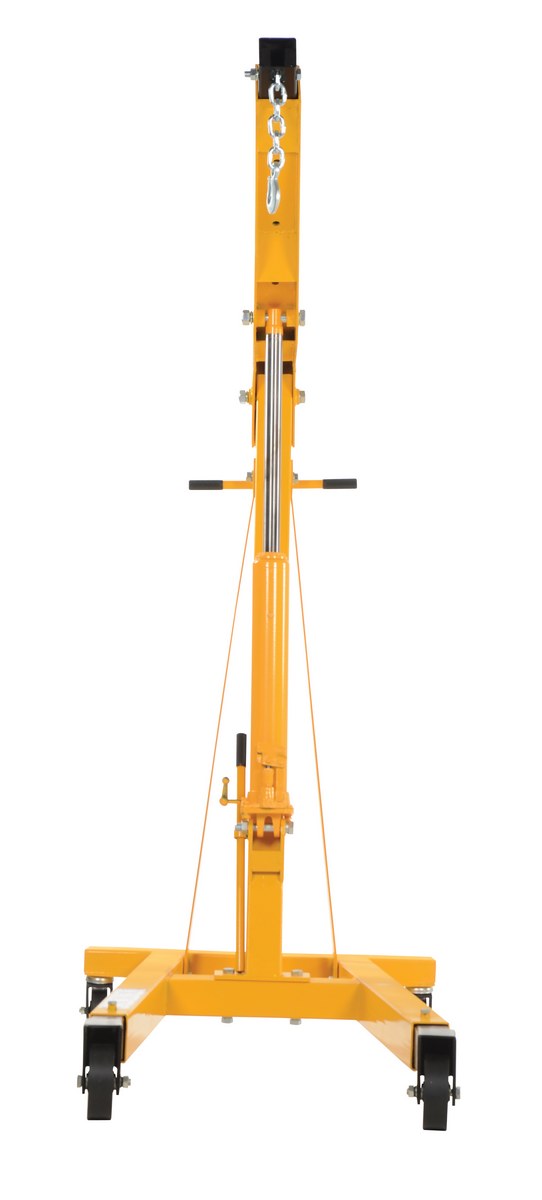

EHN-60-T_B.jpg EHN-60-T_A.jpg EHN-60-T_D.jpg EHN-60-T_E.jpg

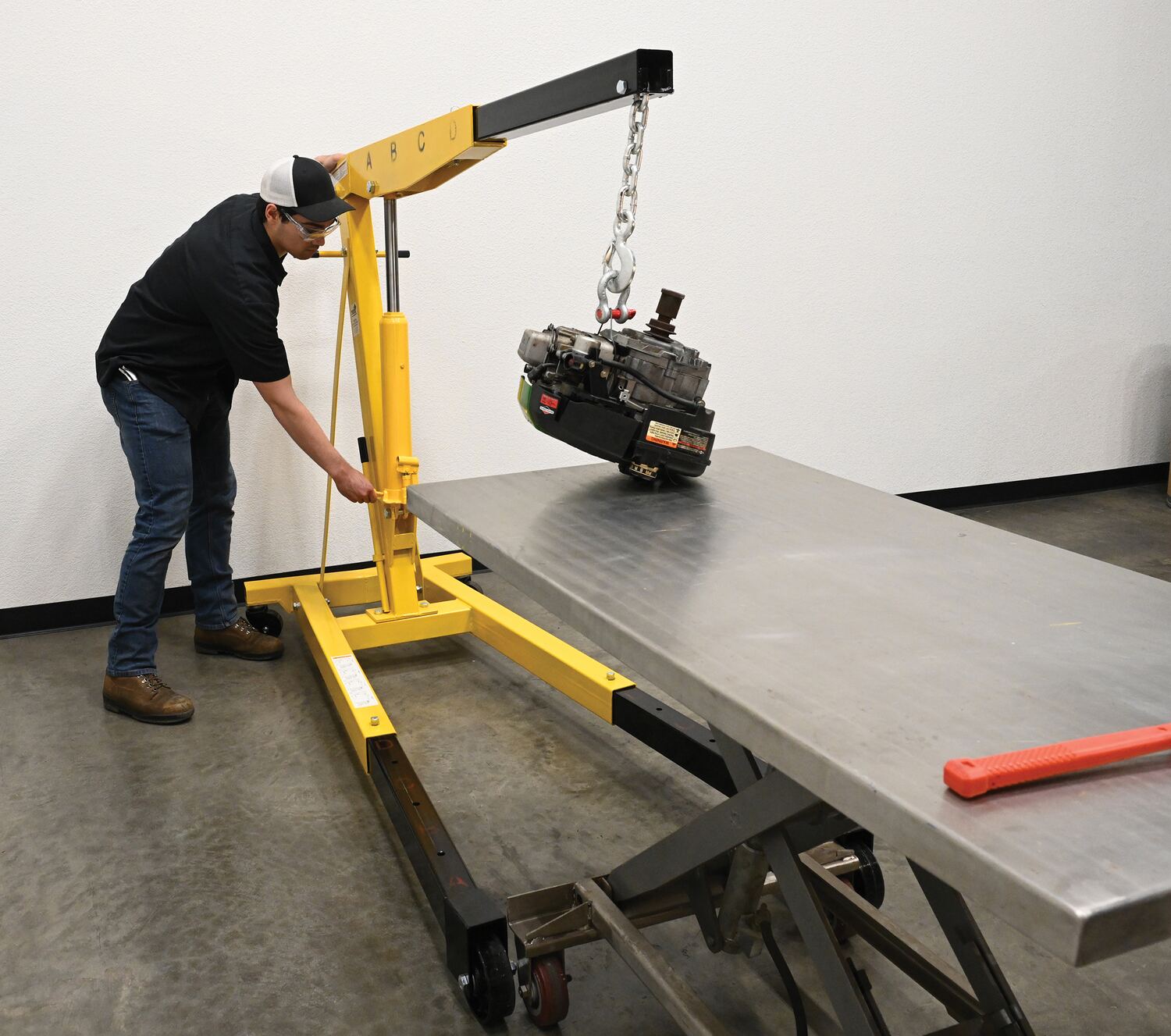

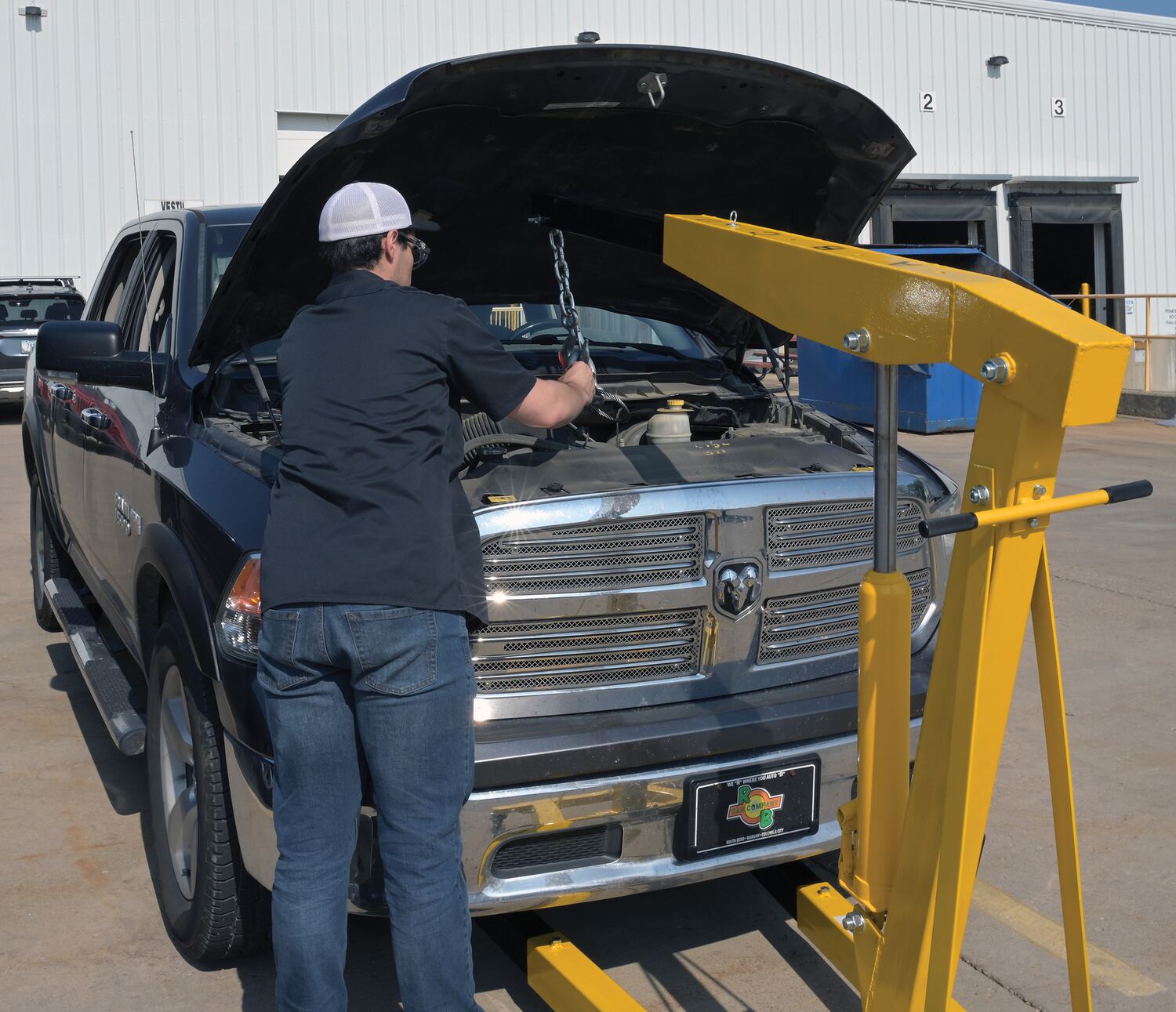

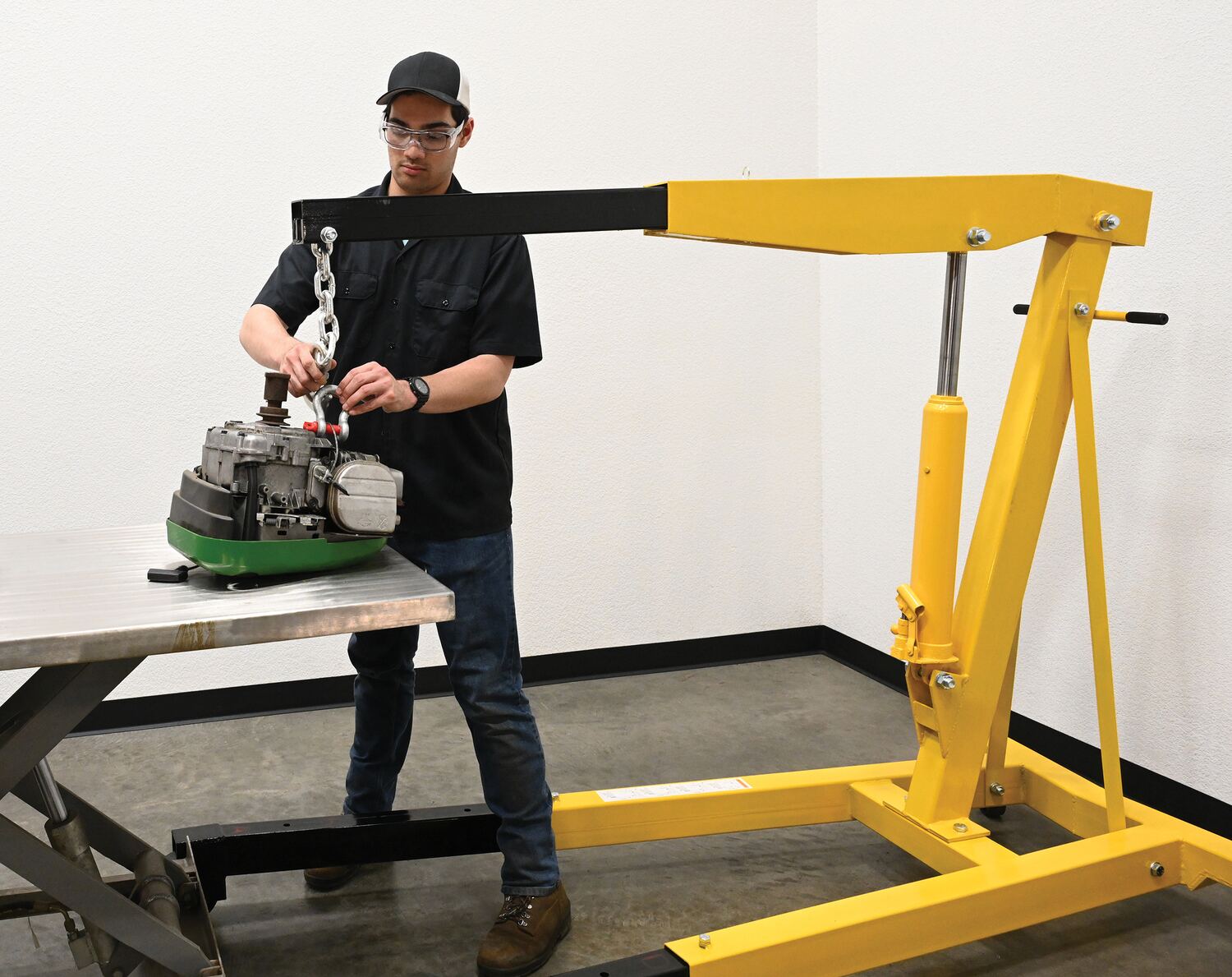

EHN-60-T_H.jpg EHN-60-T_I.jpg EHN-60-T_J.jpg EHN-60-T_K.jpg
Shop Crane Engine Hoists

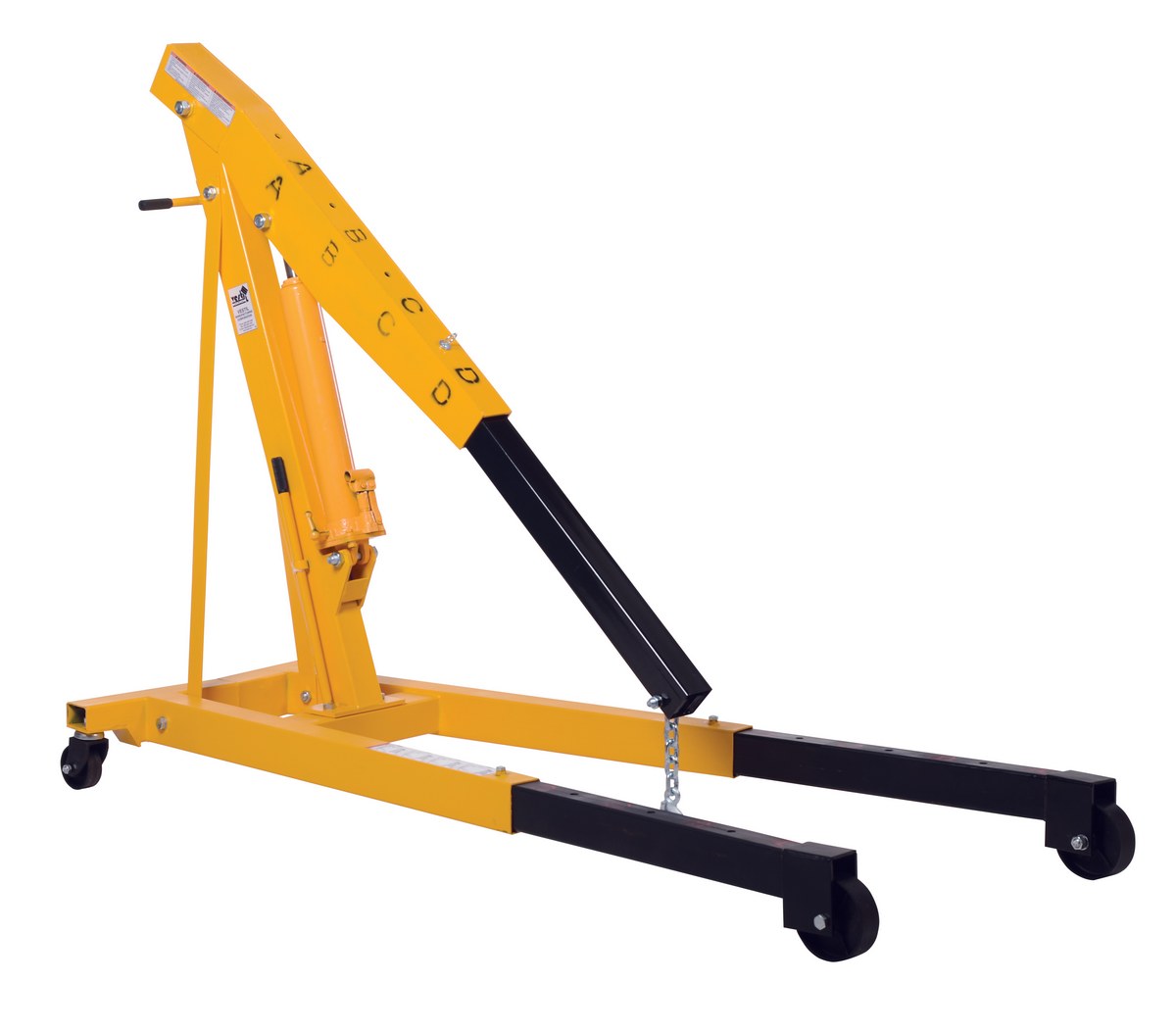

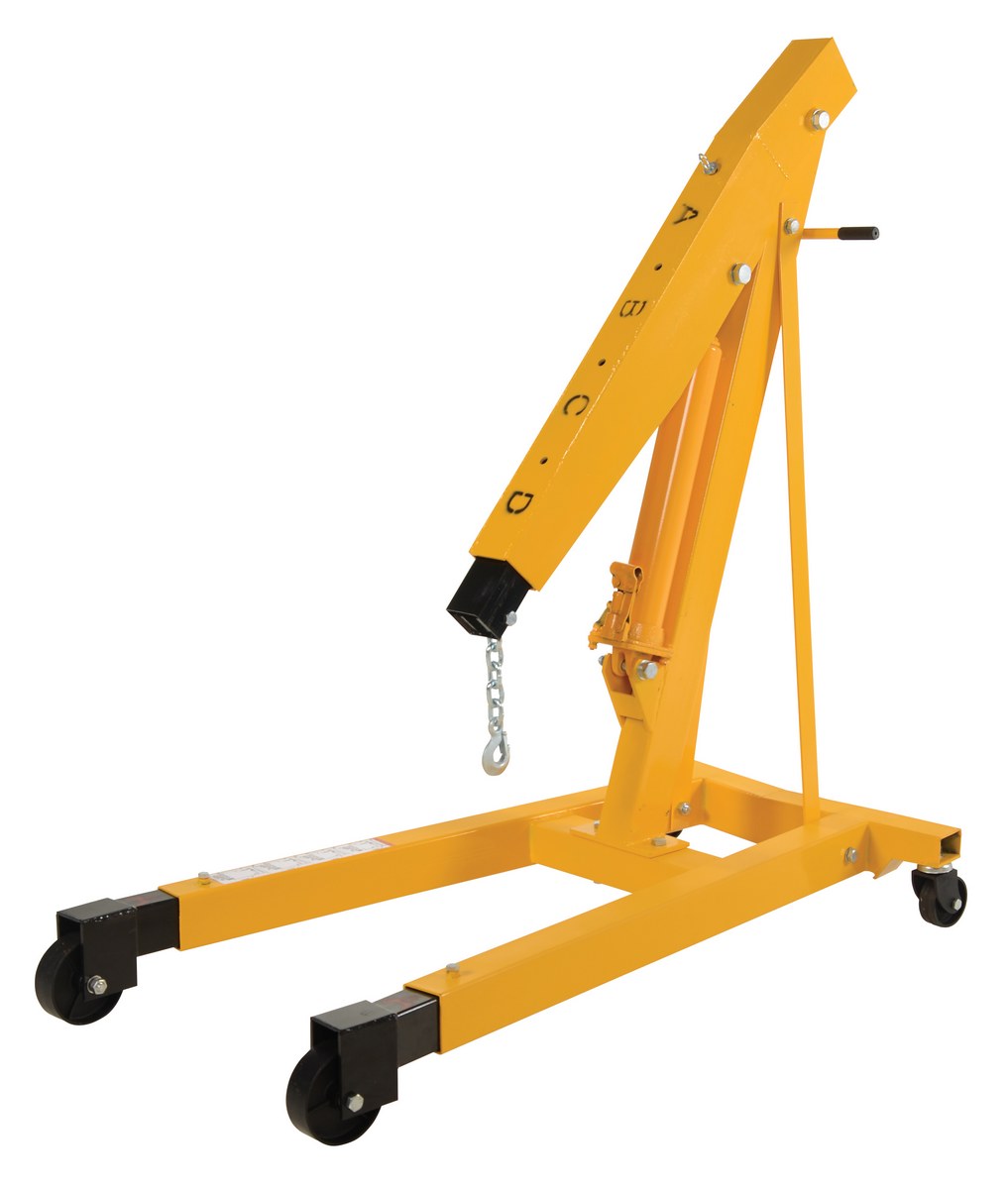

model: EHN-60-T



Featured Overhead Lifting


Gantry Sling Racks
Fixed Height Steel Gantry Cranes - Knockdown
Tripod Hoist Stands
Winch Operated Truck Jib Cranes
Adjustable Height Aluminum Gantry Cranes with Adjustable Leveling Option
Adjustable Steel Gantry Cranes with Total Locking Casters
Adjustable Steel Gantry Cranes with Pneumatic Casters
Sheet Handlers
Hoists & Trollies
model chart

Product Family Overview

Print Friendly
Shop Crane Engine Hoists
SERIES: EHN

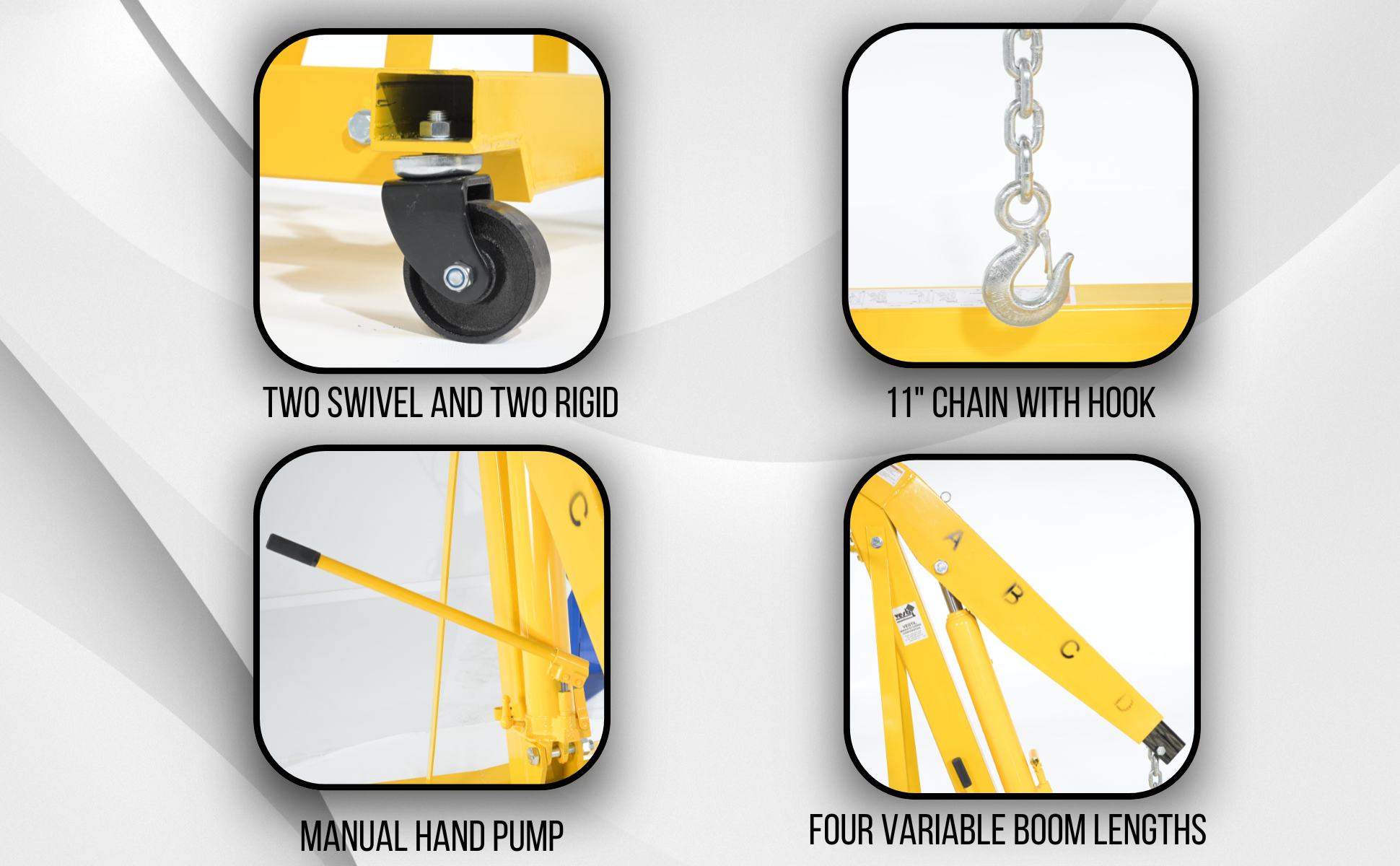

EHN-60-GThese portable units are great for hundreds of lifting applications. Telescopic boom for multiple lifting heights and capacities. Boom is raised and lowered with a manual hydraulic hand pump. The high-capacity hydraulic cylinder provides for faster lifting action and features a large diameter ram to withstand angled loads when lifting. Includes two rigid and two swivel casters for portability. Heavy-duty steel construction and painted finish.

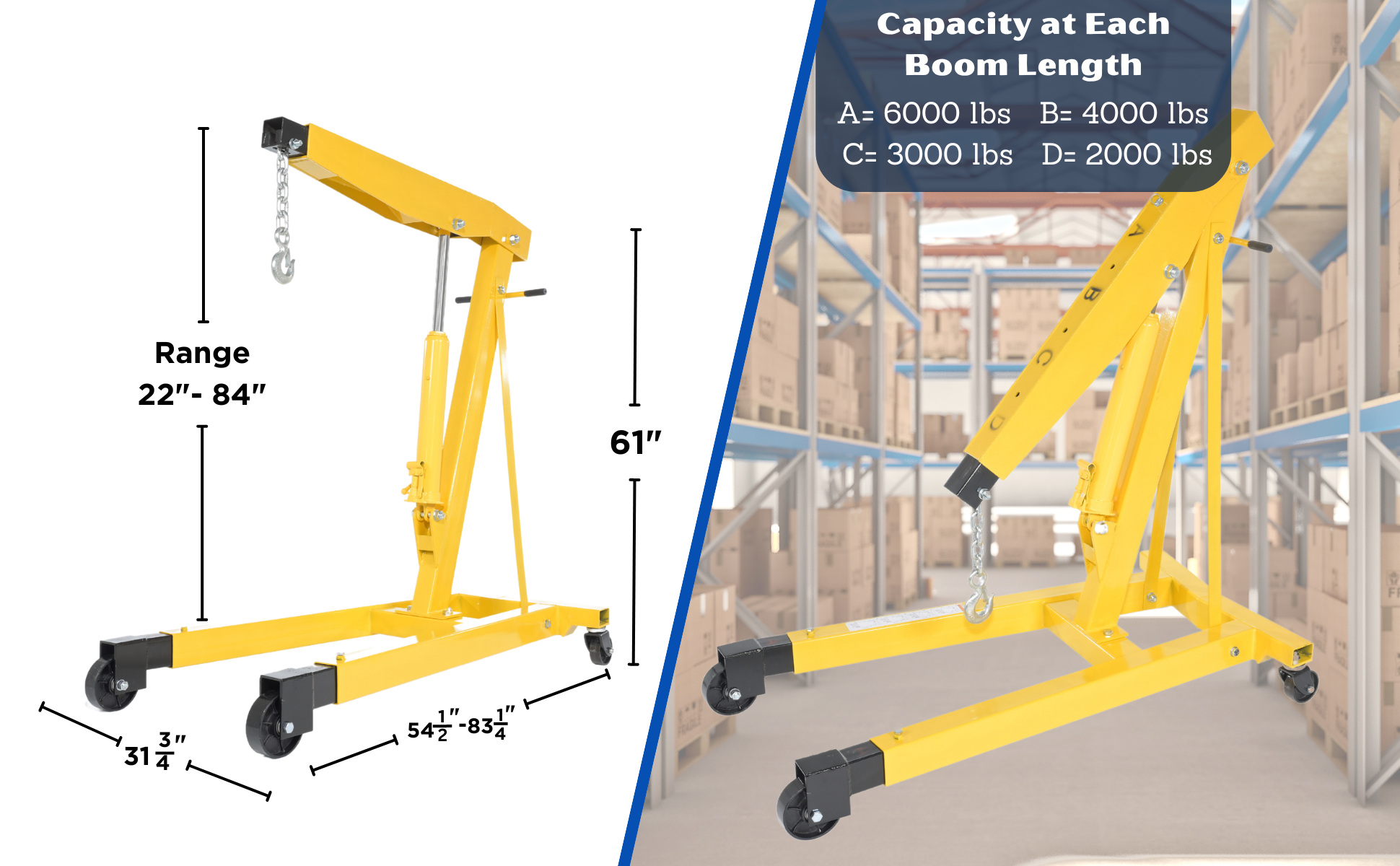

  • Telescopic boom with four settings for different lifting heights and capacities
  • Boom is raised and lowered with a manual hydraulic hand pump
  • High-capacity hydraulic cylinder provides for faster lifting action
  • Features a large diameter ram to withstand angled loads when lifting

EHN-60-GThese portable units are great for hundreds of lifting applications. Telescopic boom for multiple lifting heights and capacities. Boom is raised and lowered with a manual hydraulic hand pump. The high-capacity hydraulic cylinder provides for faster lifting action and features a large diameter ram to withstand angled loads when lifting. Includes two rigid and two swivel casters for portability. Heavy-duty steel construction and painted finish.

  • Telescopic boom with four settings for different lifting heights and capacities
  • Boom is raised and lowered with a manual hydraulic hand pump
  • High-capacity hydraulic cylinder provides for faster lifting action
  • Features a large diameter ram to withstand angled loads when lifting

Other Engine Hoists & Floor Cranes

 Pallet Truck Hoist Winch Operated Truck Jib Cranes Air/Hand Pump Hydraulic Shop Crane Shop Crane Engine Hoists

Additional Models In This Family
view entire Image Gallery

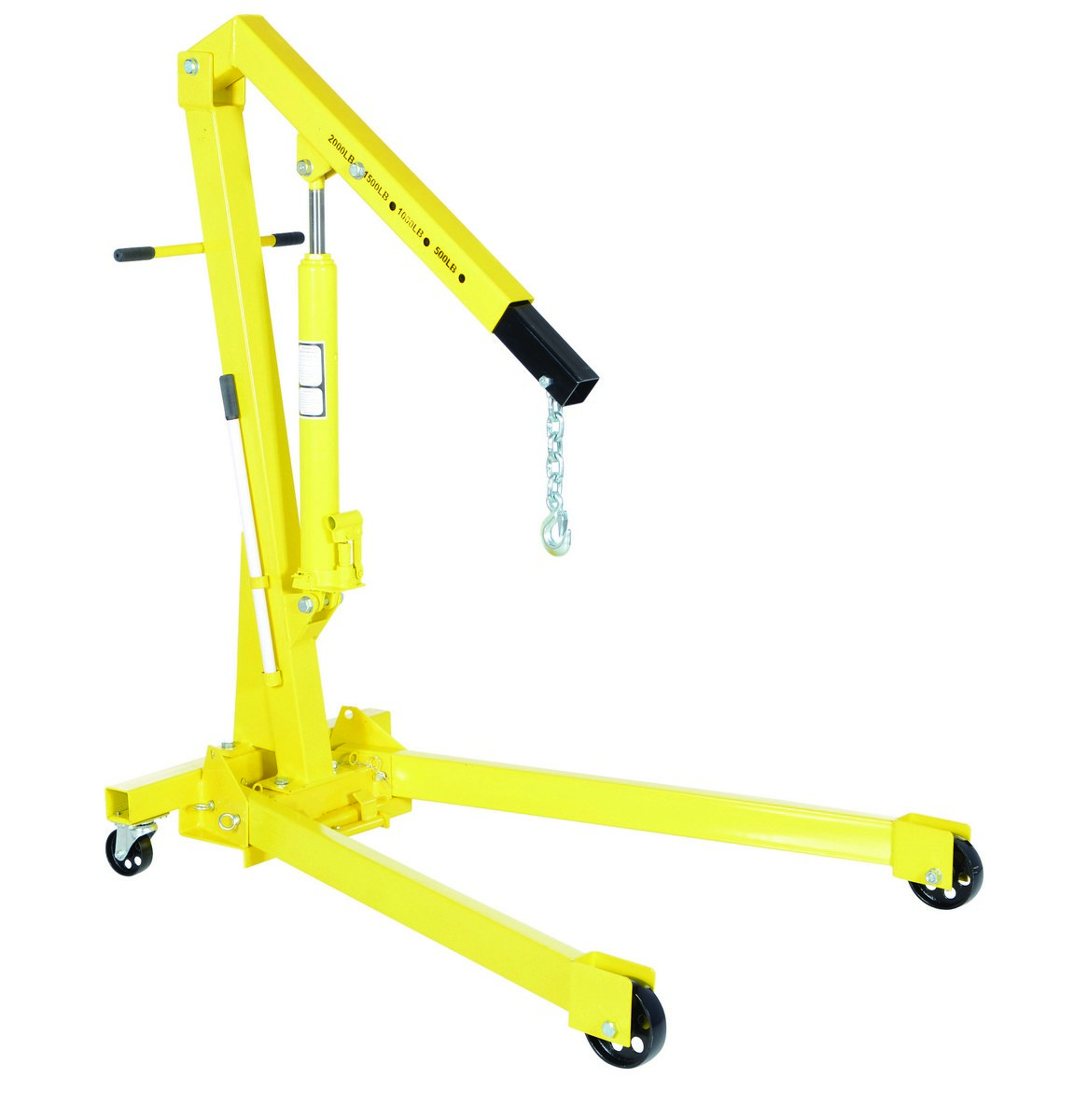

EHN-20-C

model EHN-20-C

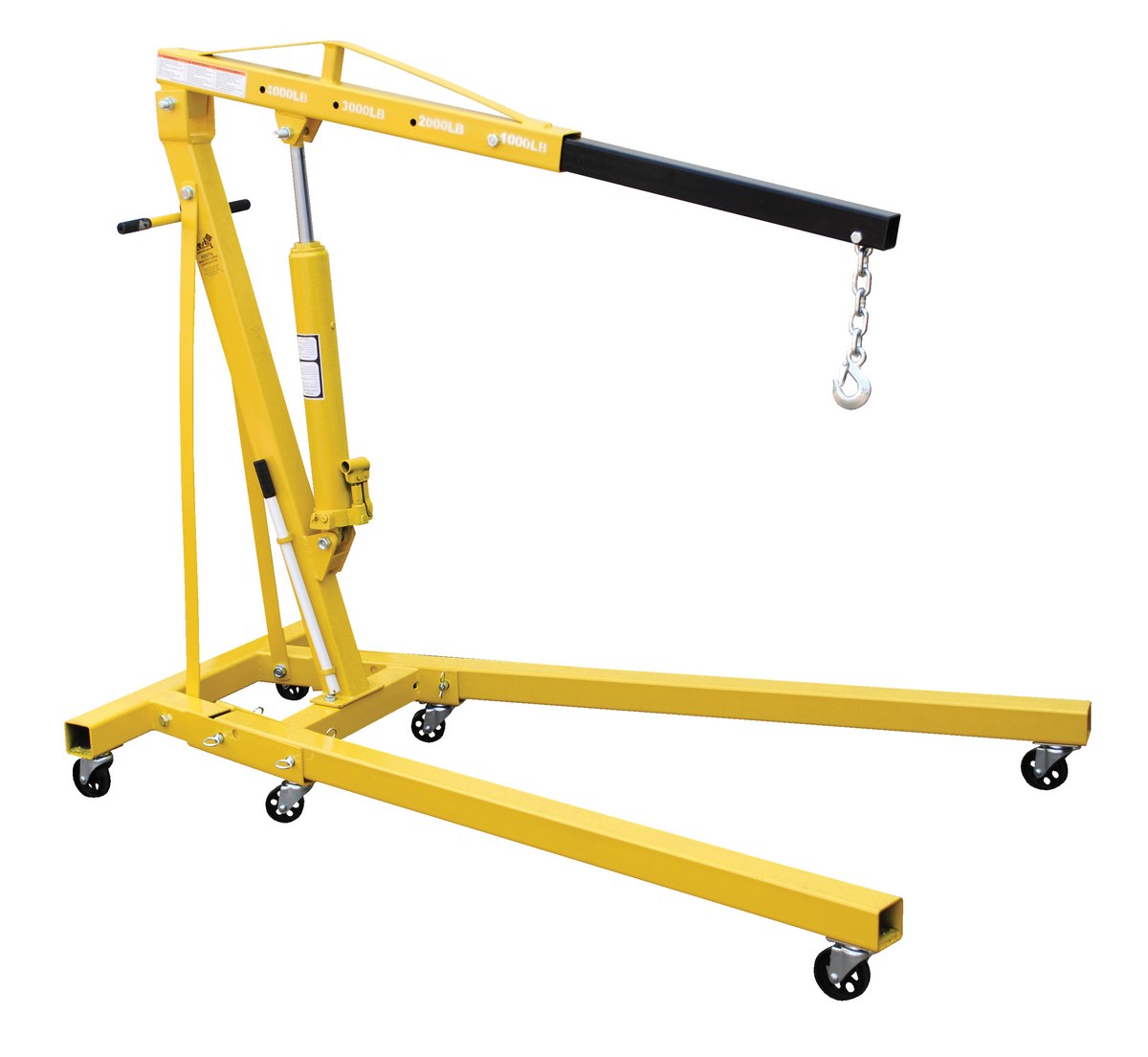

EHN-40-C

model EHN-40-C

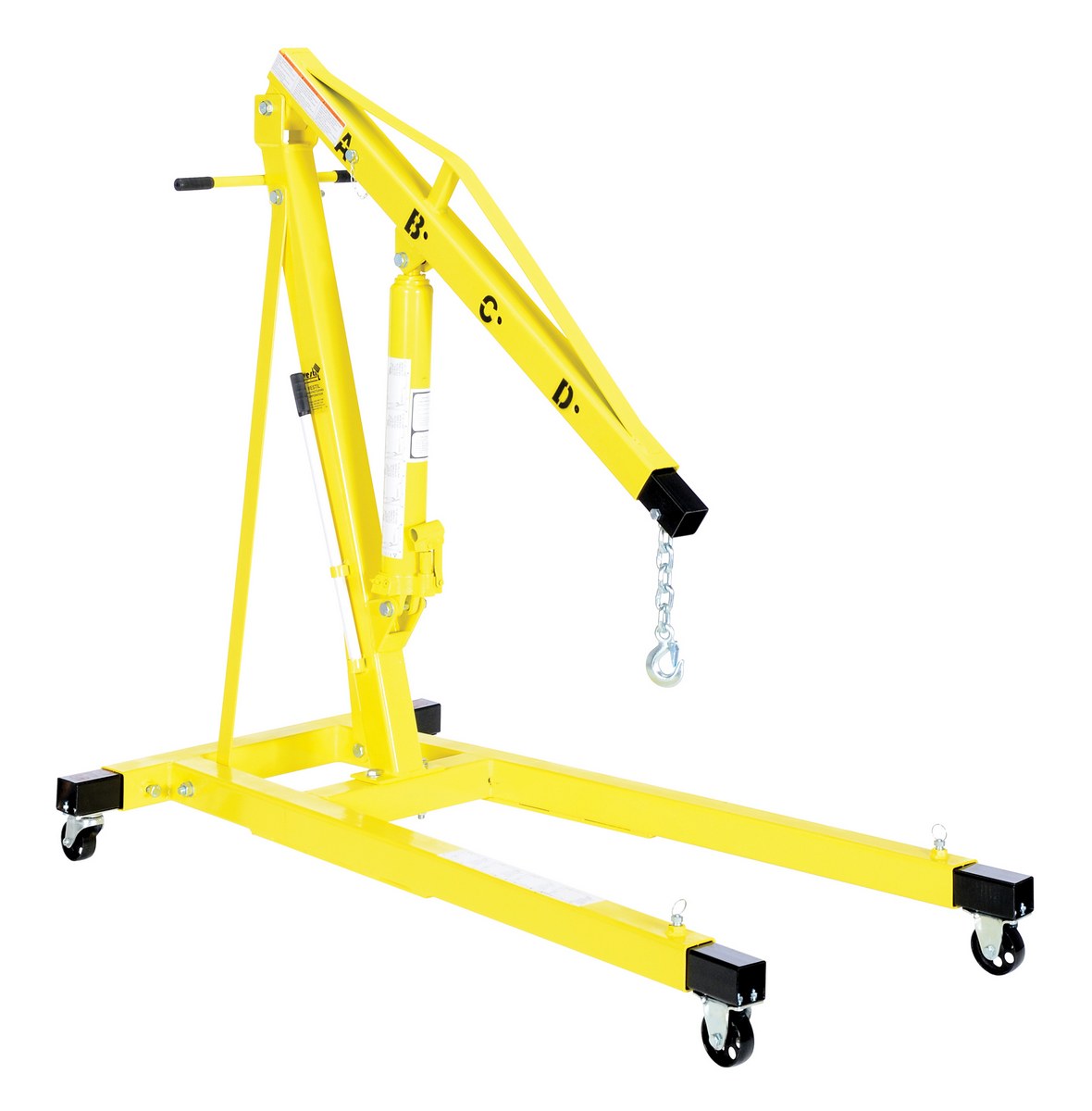

EHN-40-T

model EHN-40-T

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
EHN-20-C EHN-20-C90 Days Limited WarrantySteel Shop Crane Engine Hoist with Folding Legs 2000 Lb. Capacity YellowUniform Capacity (lb.): 2,000
Leg Design: Foldable		207
EHN-40-C EHN-40-C90 Days Limited WarrantySteel Shop Crane Engine Hoist with Folding Legs 4000 Lb. Capacity YellowUniform Capacity (lb.): 4,000
Leg Design: Foldable		238

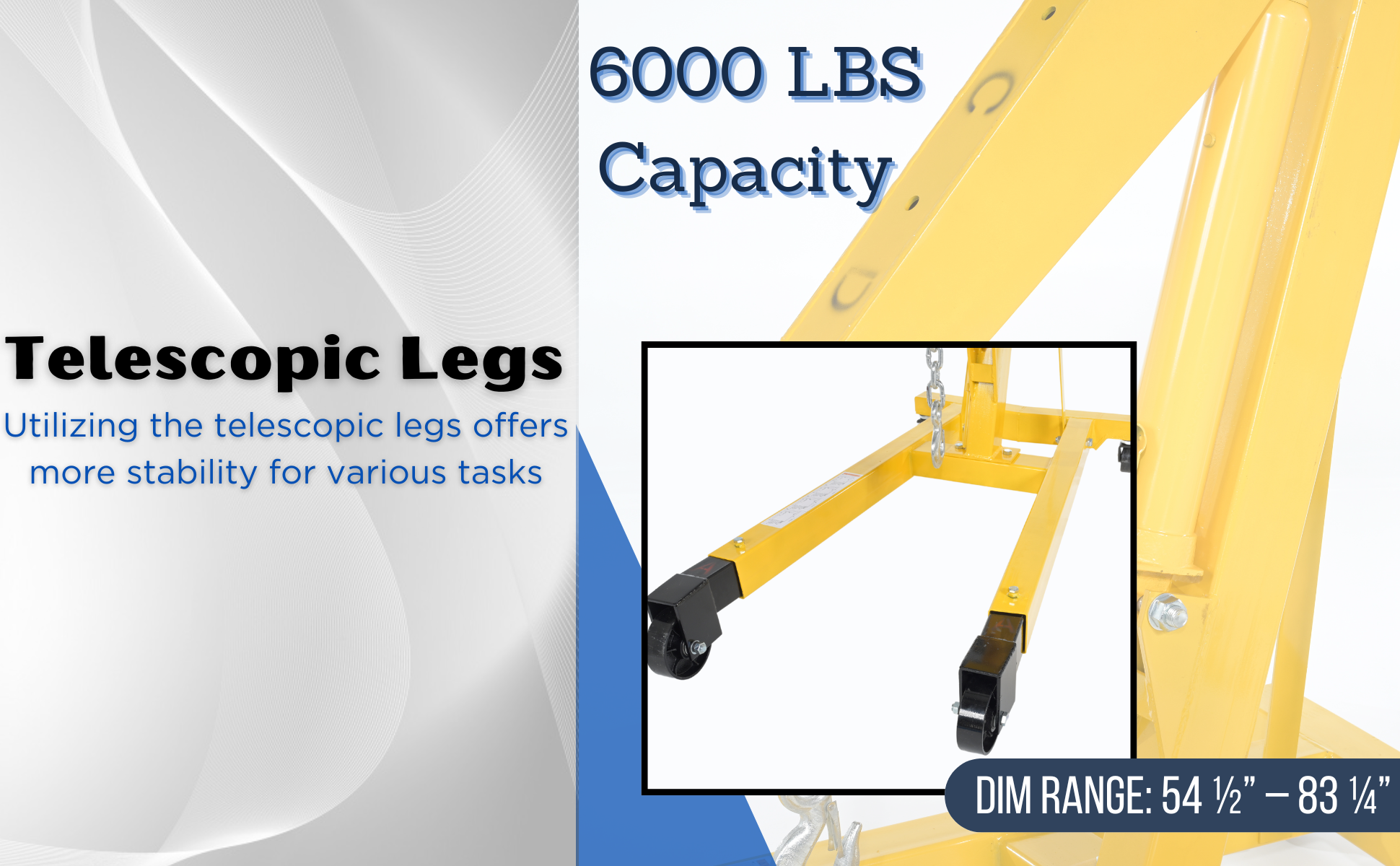

EHN-40-T EHN-40-T90 Days Limited WarrantySteel Shop Crane Engine Hoist with Telescopic Legs 4000 Lb. Capacity YellowUniform Capacity (lb.): 4,000
Leg Design: Telescopic		277
EHN-60-T EHN-60-T90 Days Limited WarrantySteel Shop Crane Engine Hoist with Telescopic Legs 6000 Lb. Capacity YellowUniform Capacity (lb.): 6,000
Leg Design: Telescopic		358

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

EHN-20-C
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Leg Design: Foldable
Uniform Capacity (lb.): 2,000
Leg Design: Foldable

EHN-40-C
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Leg Design: Foldable
Uniform Capacity (lb.): 4,000
Leg Design: Foldable

EHN-40-T
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Leg Design: Telescopic
Uniform Capacity (lb.): 4,000
Leg Design: Telescopic

EHN-60-T
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Leg Design: Telescopic
Uniform Capacity (lb.): 6,000
Leg Design: Telescopic
Shop Crane Engine Hoists PDF's will open in a new window when clicked.

Manuals


EHN-20-C
Owners Manual

EHN-40-C
Owners Manual

EHN-40-T
Owners Manual

EHN-60-T
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


EHN-20-C

EHN-40-C

EHN-40-T

EHN-60-T

Testing Certificates


EHN-20-C

EHN-40-C

EHN-40-T

EHN-60-T

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Q: Can you please confirm lifting capacity, the description on Home Depot website says 4,000 lb. capacity.

A: 6,000 lb. capacity engine hoist is correct.

Q: What is the safety factor for the EHN-20-C?

A: 1:1.25

Q: What is the distance from the "HOOK" to where it attaches to the crane boom on the EHN-60-T when fully extended?

A: The distance from the attached chain to the hook is 13"

Q: What are the casters made of on the EHN-60-T?

A: The casters are steel.

Q: What are the dims for the square tubing on EHN-60-T?

A: ID is 2-7/8" x 2-7/8" and OD is 3-1/8" x 3-1/8"
