Counter Balanced Floor Cranes

- - - -

Description
Model Chart
Options
PDF's
Image Gallery

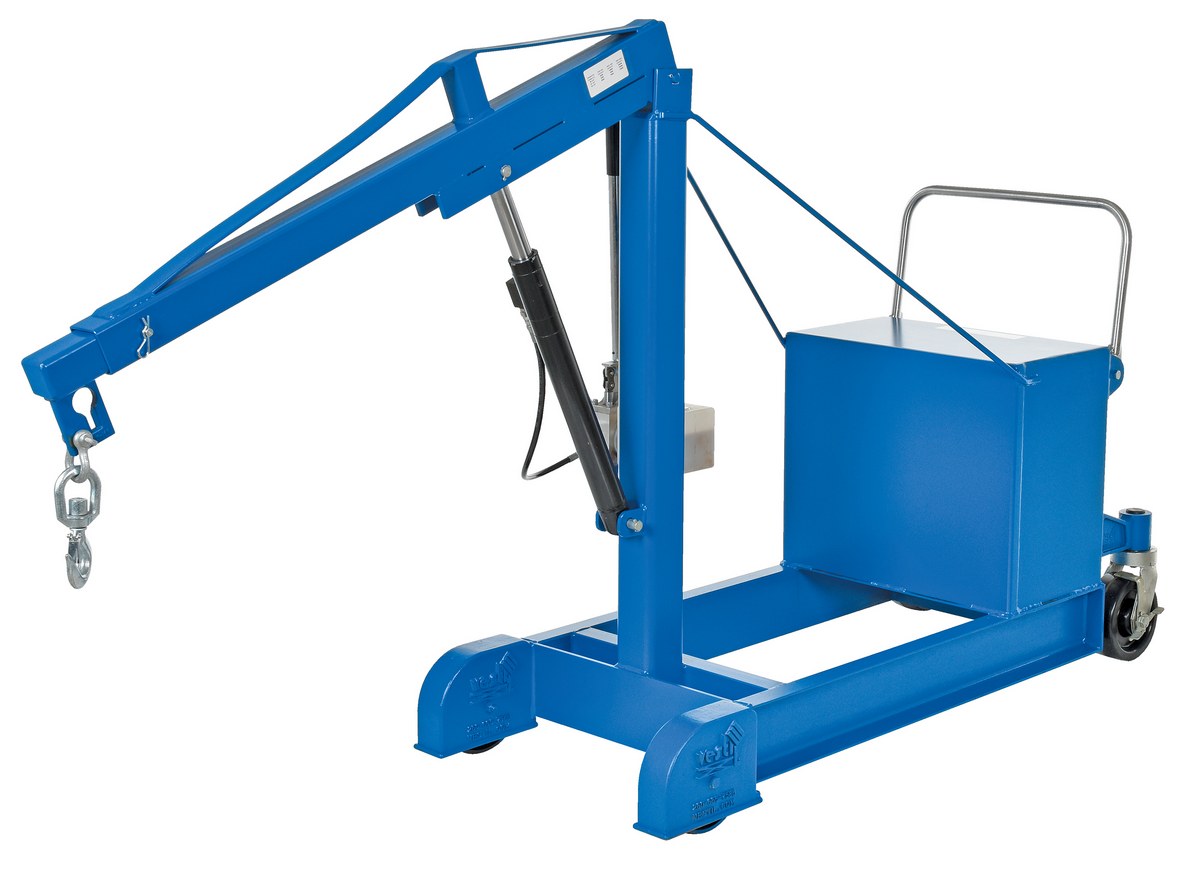

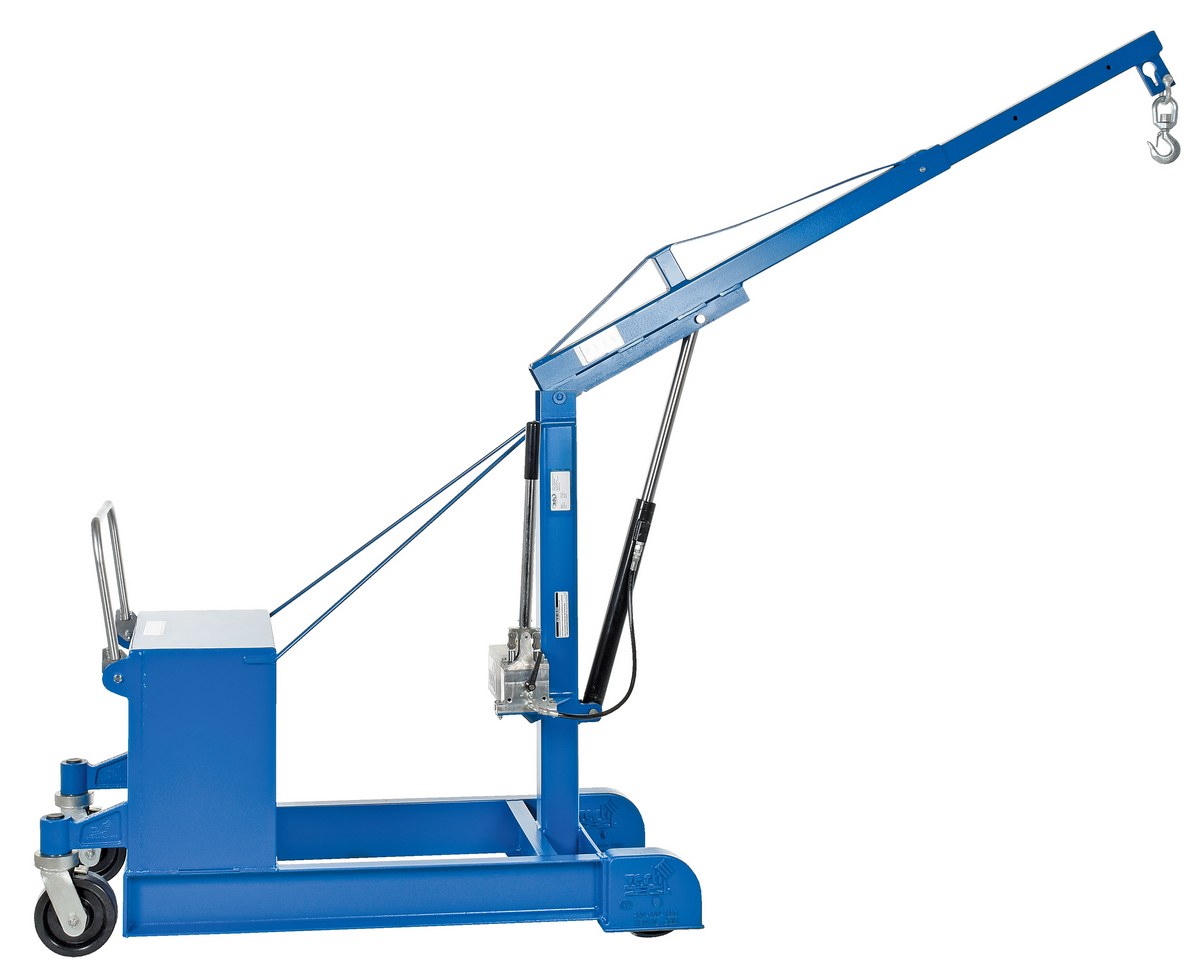

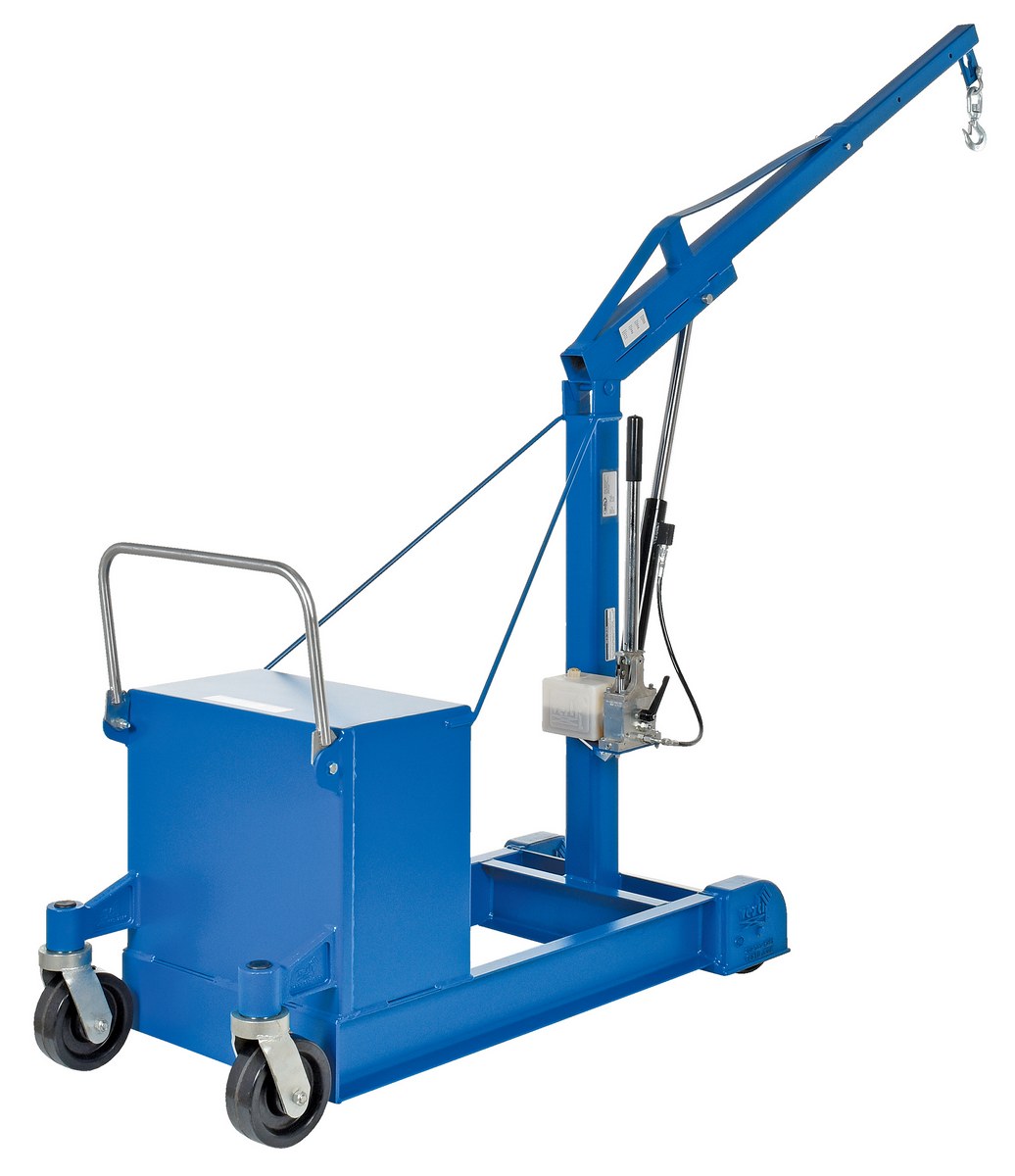

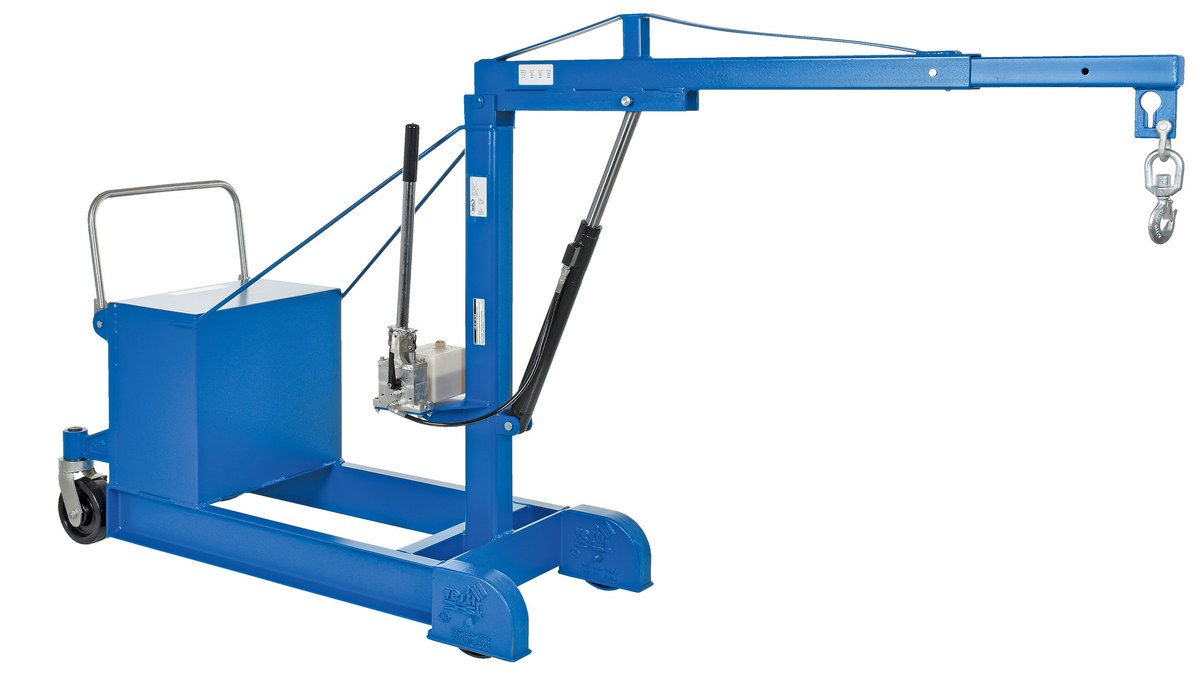

CBFC-500_A.jpg CBFC-500_B.jpg CBFC-500_C.jpg CBFC-500_D.jpg
CBFC-500_E.jpg CBFC-500_F.jpg CBFC-500_G.jpg CBFC_Z.gif
Counter Balanced Floor Cranes

model: CBFC-500



Featured Overhead Lifting


Professional Lever Hoists (disc brake)
Overhead Load Lifters
Work Area Portable Steel Gantry Cranes
Adjustable Height Aluminum Gantry Cranes
Magnetic Easy Lift
Fixed Height Steel Gantry Cranes with Total Locking Casters - Knockdown
High Speed Electric Chain Hoist
Roto Grip Magnets
Coil Lifter
model chart

Product Family Overview

Print Friendly
Counter Balanced Floor Cranes
SERIES: CBFC

This Crane has an adjustable boom to allow for maximum adjustment and versatility to lift a variety of loads. Boom is raised with a manual hydraulic hand pump or push of a button on DC powered units. Boom also telescopes out for greater reach. The counterbalance design eliminates the need for front legs, making the unit easier to maneuver and ideal for reaching tight, hard to reach areas. Units roll on two (2) rigid 8" x 2" glass-filled nylon and two (2) swivel 8" x 3" phenolic casters with side brake. Counterbalance included. Welded steel construction. Painted finish. Air operation available, contact factory.

Reduce worker fatigue and injury with the Power Traction Drive System. An alternative to costly fork trucks. This state of the art option allows a single operator to safely and ergonomically transport products. Maximum speed is 2.5 m.p.h. CBFC-PTDS-E includes: Combination throttle / direction controller, An auto reverse emergency "belly switch", (2) 12V batteries.

This Crane has an adjustable boom to allow for maximum adjustment and versatility to lift a variety of loads. Boom is raised with a manual hydraulic hand pump or push of a button on DC powered units. Boom also telescopes out for greater reach. The counterbalance design eliminates the need for front legs, making the unit easier to maneuver and ideal for reaching tight, hard to reach areas. Units roll on two (2) rigid 8" x 2" glass-filled nylon and two (2) swivel 8" x 3" phenolic casters with side brake. Counterbalance included. Welded steel construction. Painted finish. Air operation available, contact factory.

Reduce worker fatigue and injury with the Power Traction Drive System. An alternative to costly fork trucks. This state of the art option allows a single operator to safely and ergonomically transport products. Maximum speed is 2.5 m.p.h. CBFC-PTDS-E includes: Combination throttle / direction controller, An auto reverse emergency "belly switch", (2) 12V batteries.

Other Engine Hoists & Floor Cranes

 Pallet Truck Hoist Lifter Jibs Winch Operated Truck Jib Cranes Shop Crane Engine Hoists

Additional Models In This Family
view entire Image Gallery

CBFC-PTDS-E

CBFC-PTDS-E

CBFC-PTDS-E

CBFC-PTDS-E

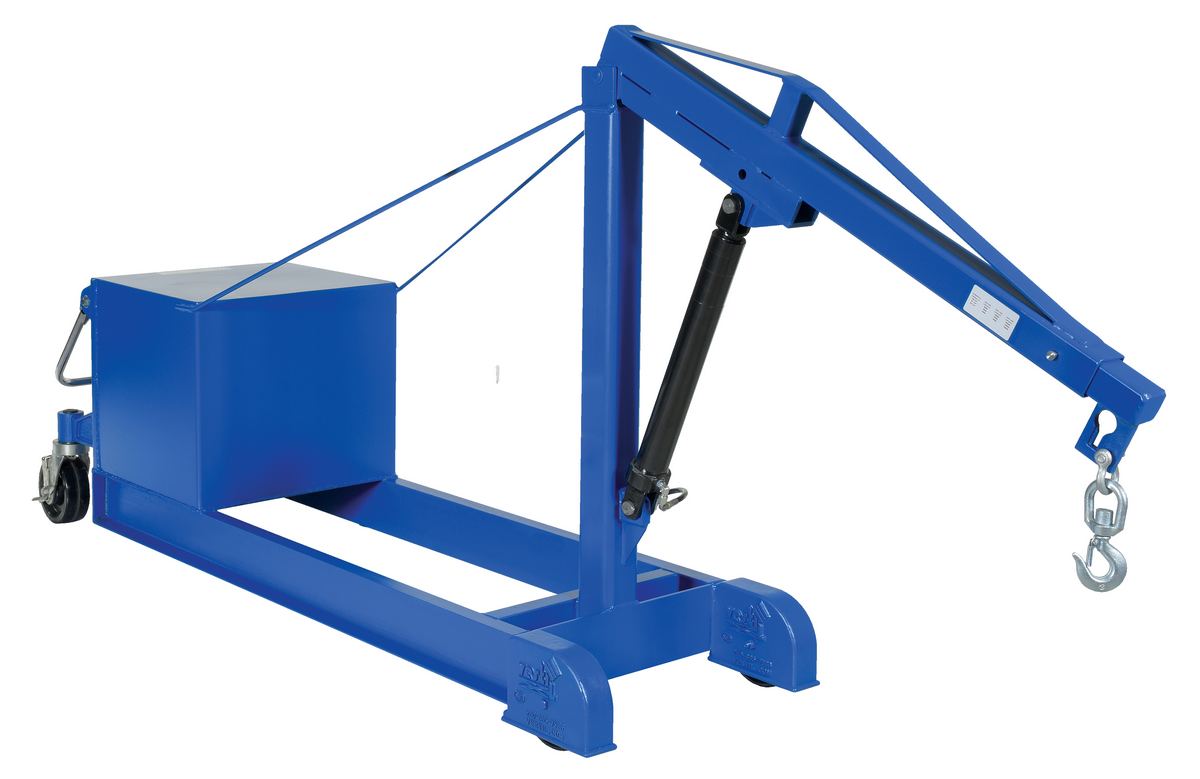

CBFC-2000-AIR

CBFC-2000-AIR

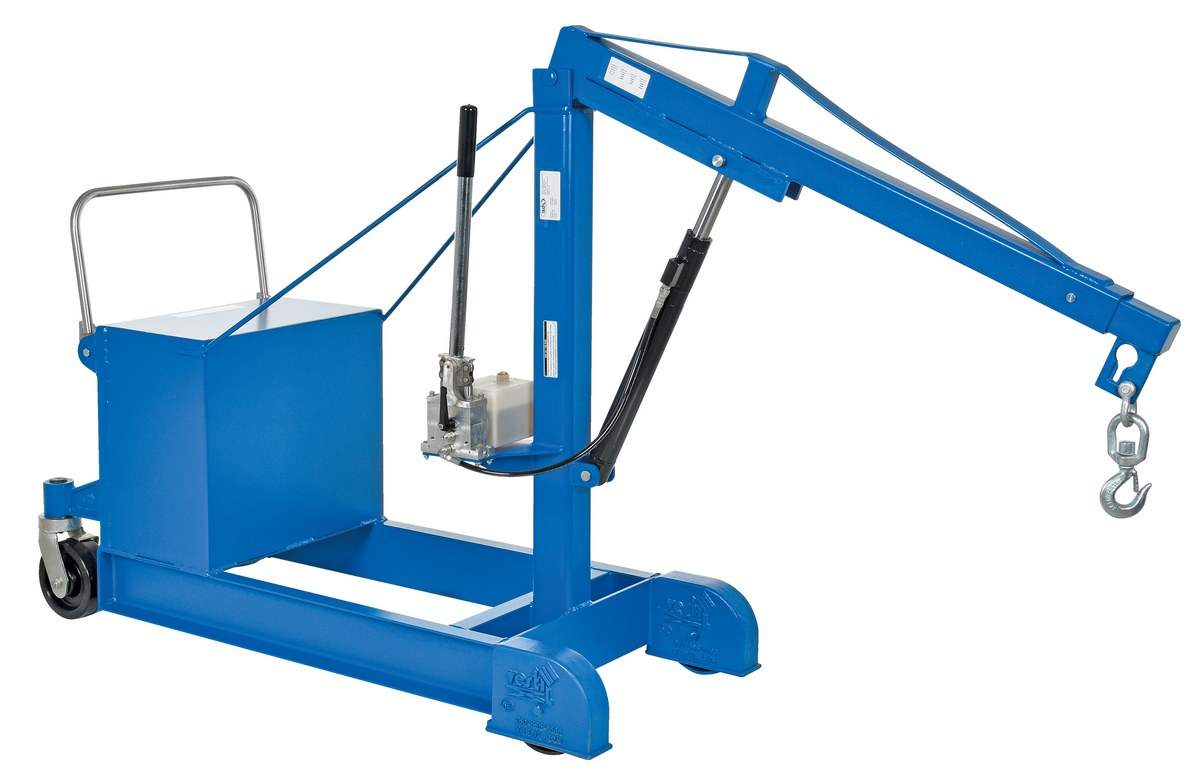

CBFC-500

CBFC-500

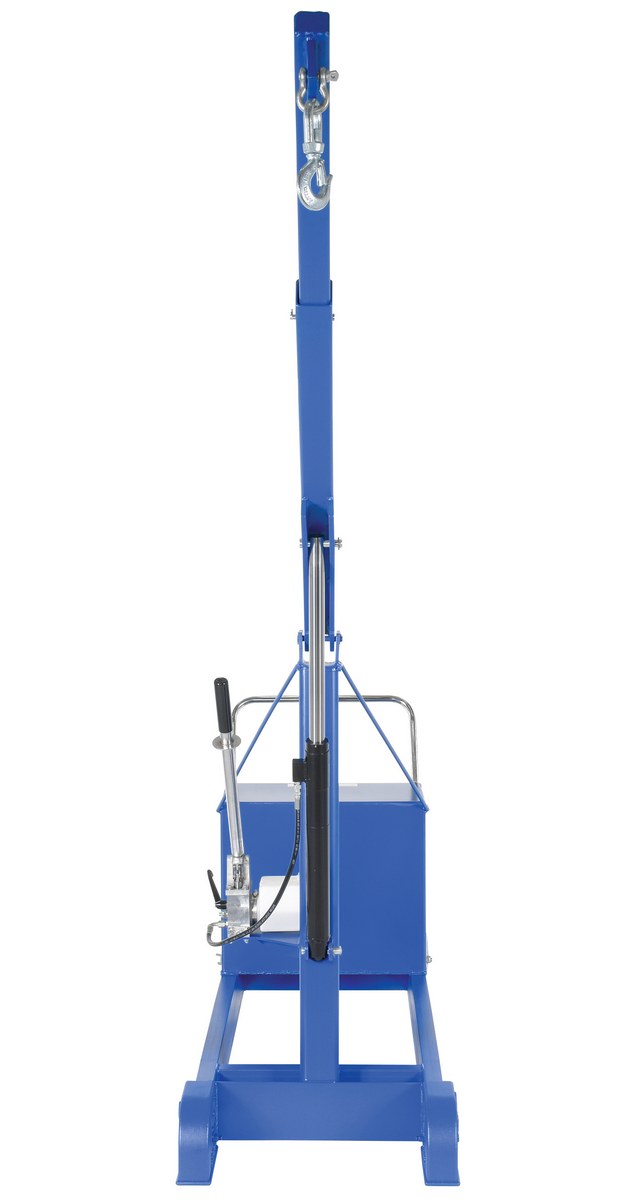

CBFC-1000

CBFC-1000

CBFC-1000

CBFC-1000

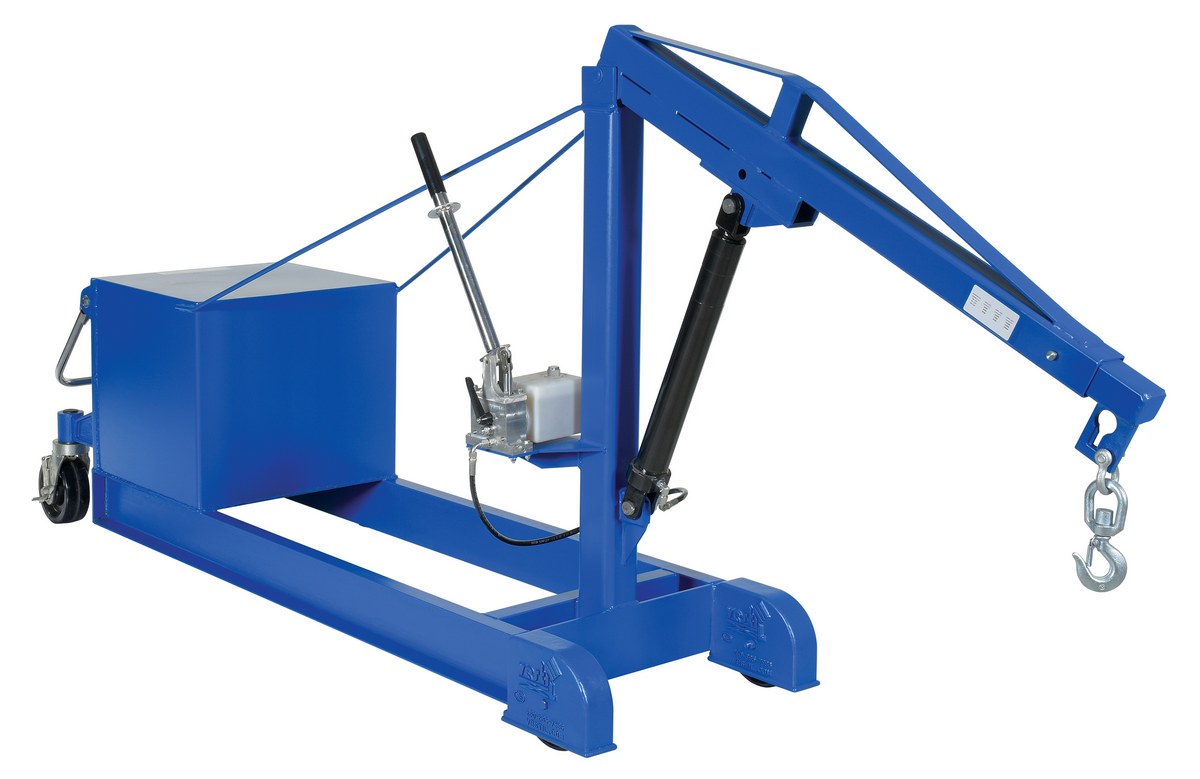

CBFC-2000

CBFC-2000

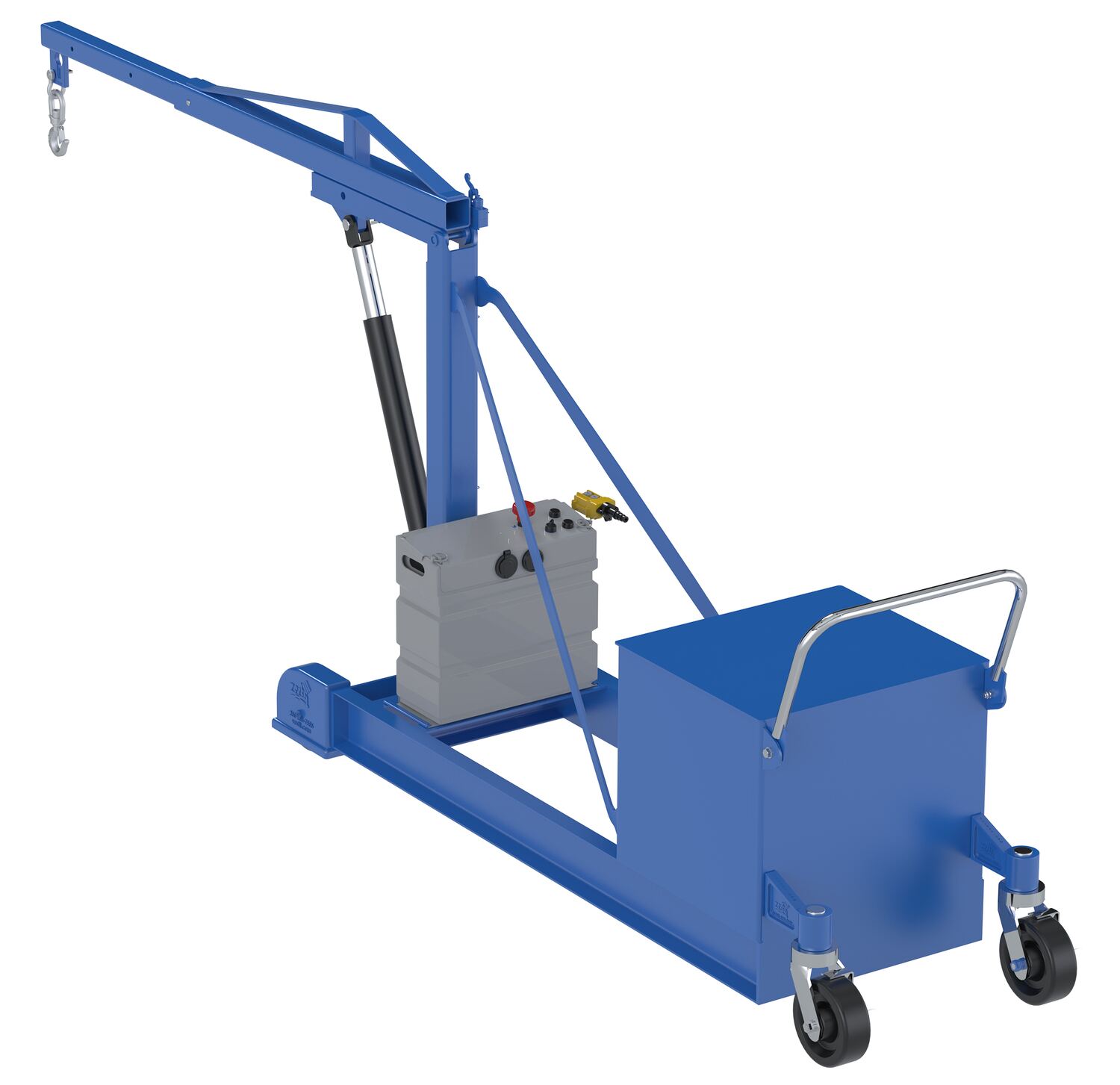

CBFC-PTDS-E

CBFC-PTDS-E

CBFC-500

CBFC-500

CBFC-500

CBFC-500

CBFC-2000

CBFC-2000

CBFC-500

CBFC-500

CBFC-2000

CBFC-2000

CBFC-2000

CBFC-2000

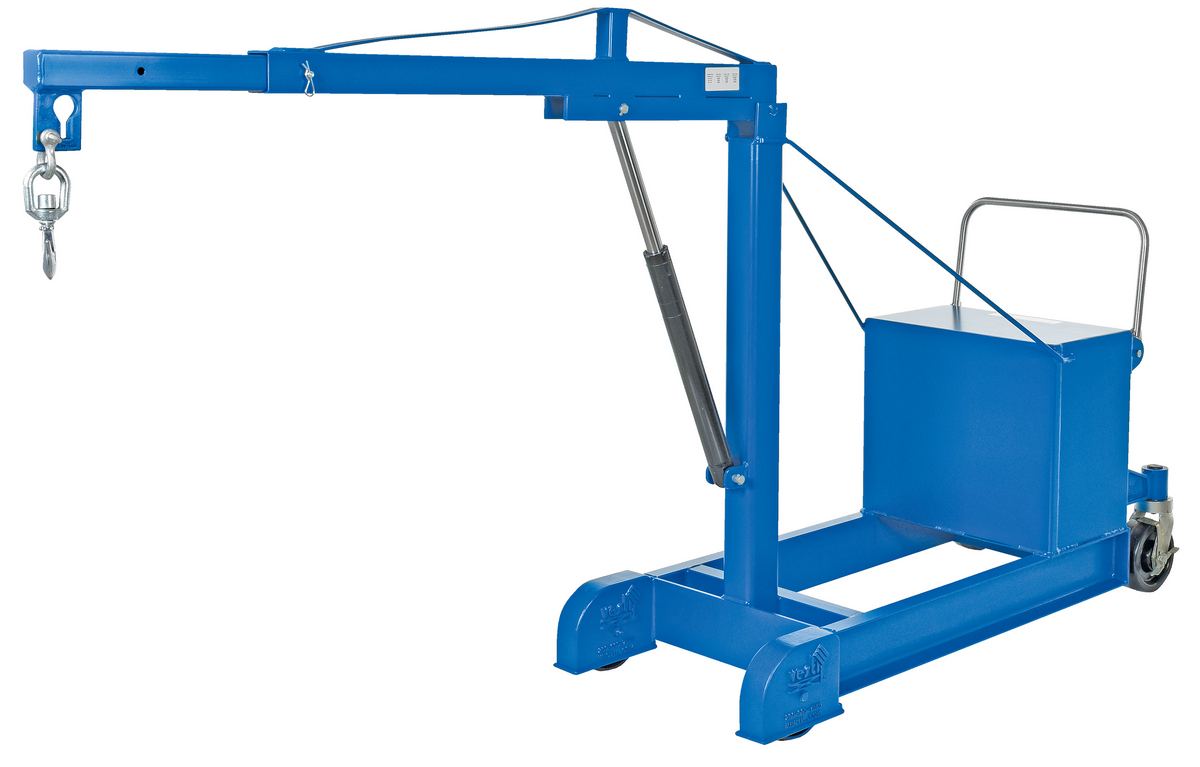

CBFC-500-AIR

CBFC-500-AIR

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

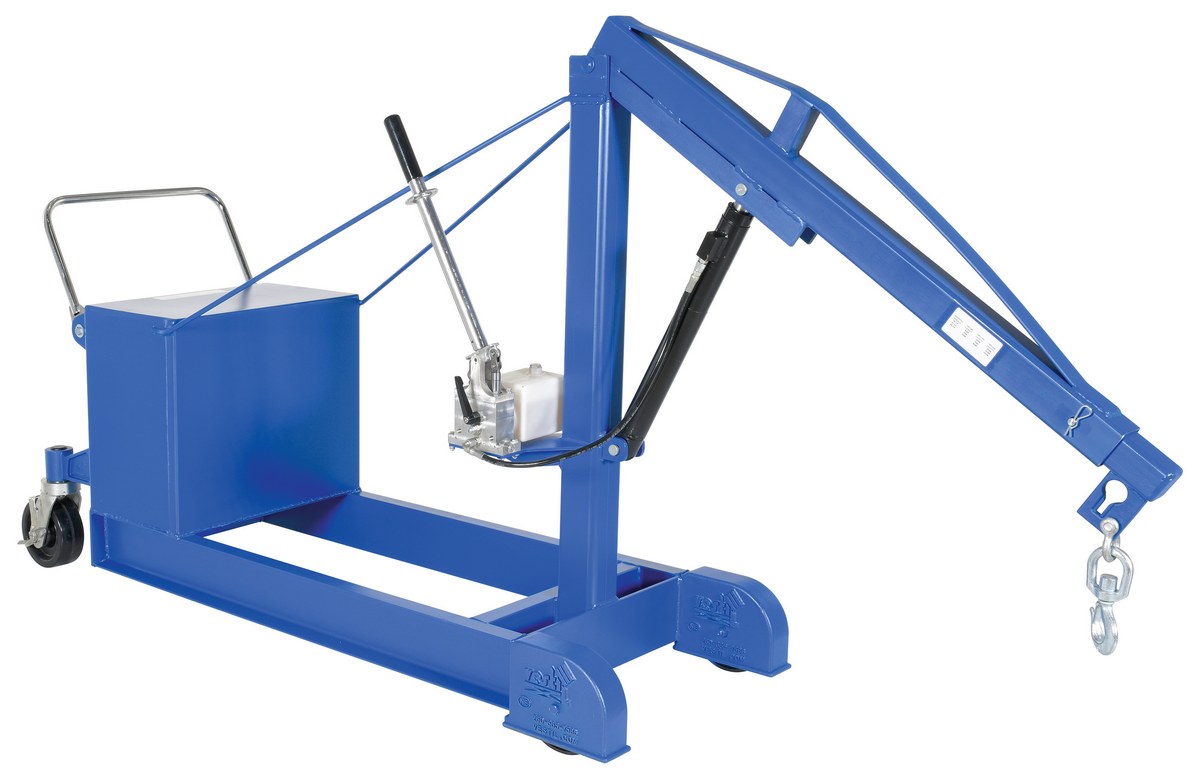

CBFC-1000 CBFC-10001 Year Limited WarrantySteel Counter Balance Floor Crane 1000 Lb. Capacity BlueUniform Capacity (lb.): 1,000
Uniform Capacity extended 39-1/4"(lb.): 1000		1690

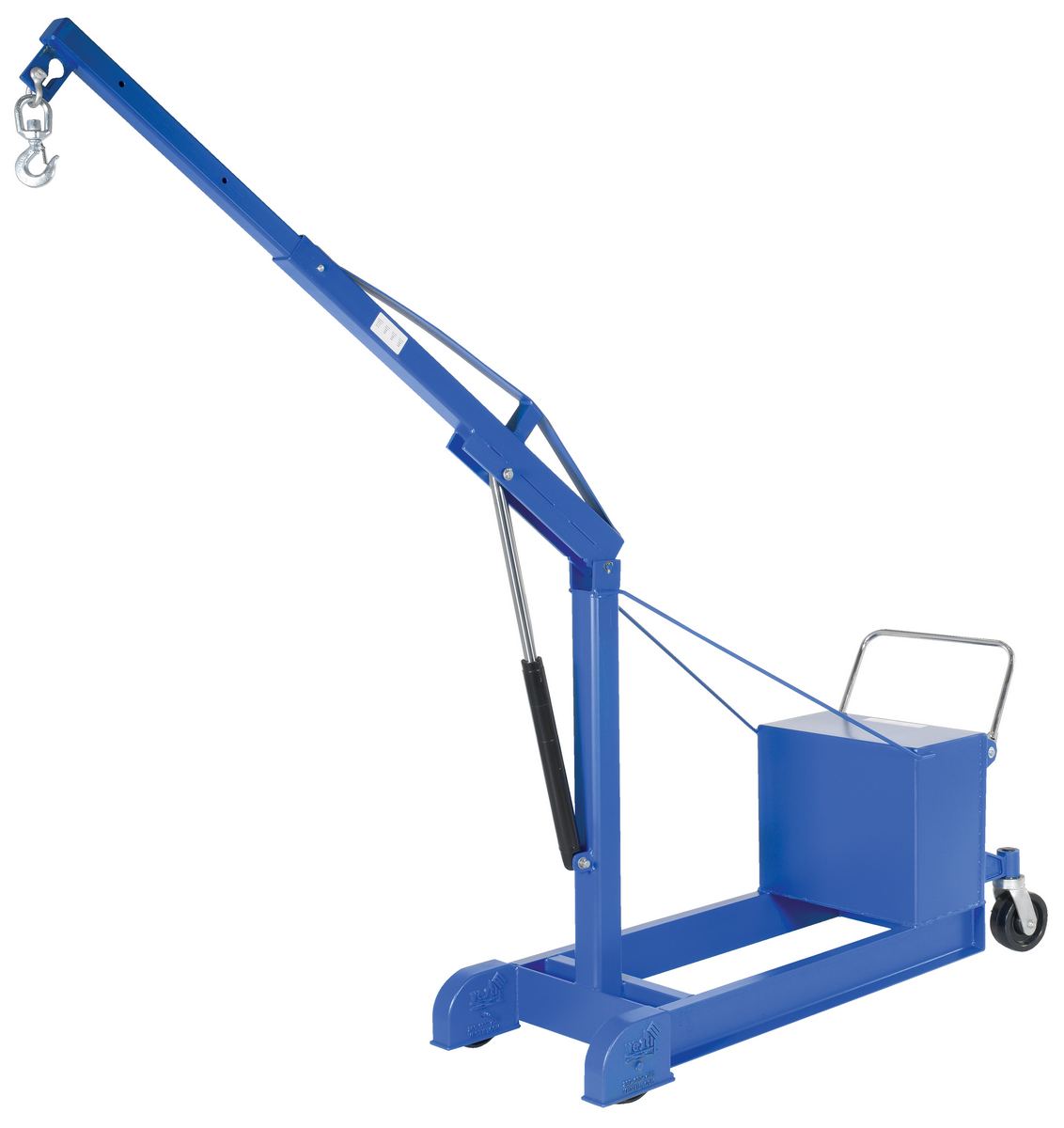

CBFC-1000-AIR
CBFC-1000-AIR1 Year Limited WarrantySteel Air Counter Balance Floor Crane 1000 Lb. Capacity BlueUniform Capacity (lb.): 1,000
Uniform Capacity extended 39-1/4"(lb.): 1000		1906
CBFC-1000-DC CBFC-1000-DC1 Year Limited WarrantySteel DC Counter Balance Floor Crane 1000 Lb. Capacity BlueUniform Capacity (lb.): 1,000
Uniform Capacity extended 39-1/4"(lb.): 1000		1906
CBFC-2000 CBFC-20001 Year Limited WarrantySteel Counter Balance Floor Crane 2000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Uniform Capacity extended 39-1/4"(lb.): 2000		2646
CBFC-2000-AIR
CBFC-2000-AIR1 Year Limited WarrantySteel Air Counter Balance Floor Crane 2000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Uniform Capacity extended 39-1/4"(lb.): 2000		2356
CBFC-2000-DC CBFC-2000-DC1 Year Limited WarrantySteel DC Counter Balance Floor Crane 2000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Uniform Capacity extended 39-1/4"(lb.): 2000		2631
CBFC-500 CBFC-5001 Year Limited WarrantySteel Counter Balance Floor Crane 500 Lb. Capacity BlueUniform Capacity (lb.): 500
Uniform Capacity extended 39-1/4"(lb.): 500		1259
CBFC-500-AIR
CBFC-500-AIR1 Year Limited WarrantySteel Air Counter Balance Floor Crane 500 Lb. Capacity BlueUniform Capacity (lb.): 500
Uniform Capacity extended 39-1/4"(lb.): 500		1259

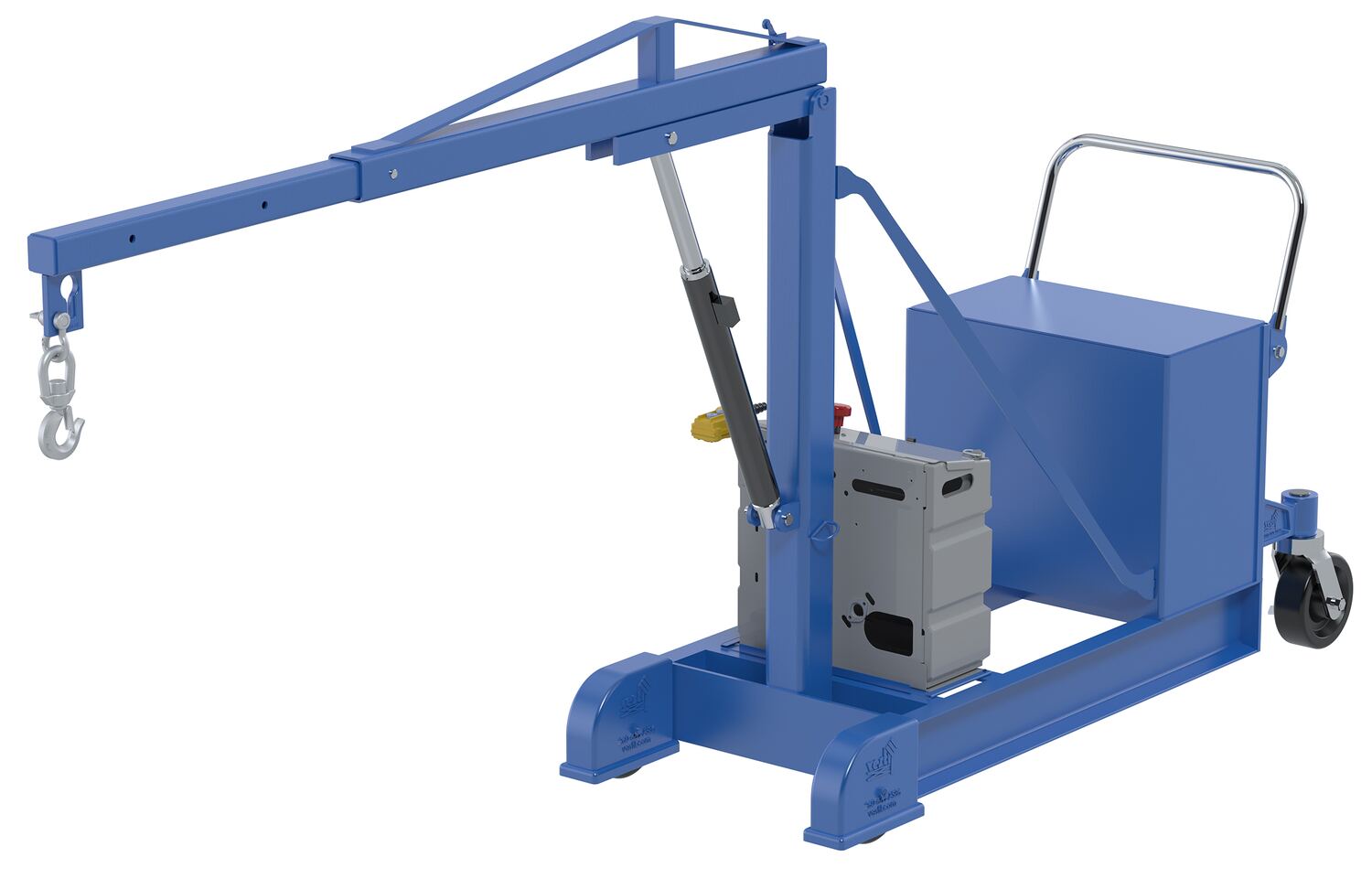

CBFC-500-DC CBFC-500-DC1 Year Limited WarrantySteel DC Counter Balance Floor Crane 500 Lb. Capacity BlueUniform Capacity (lb.): 500
Uniform Capacity extended 39-1/4"(lb.): 500		1277

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

CBFC-1000
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Uniform Capacity extended 39-1/4"(lb.): 1000
Uniform Capacity (lb.): 1,000
Uniform Capacity extended 39-1/4"(lb.): 1000

CBFC-1000-AIR
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Uniform Capacity extended 39-1/4"(lb.): 1000
Uniform Capacity (lb.): 1,000
Uniform Capacity extended 39-1/4"(lb.): 1000

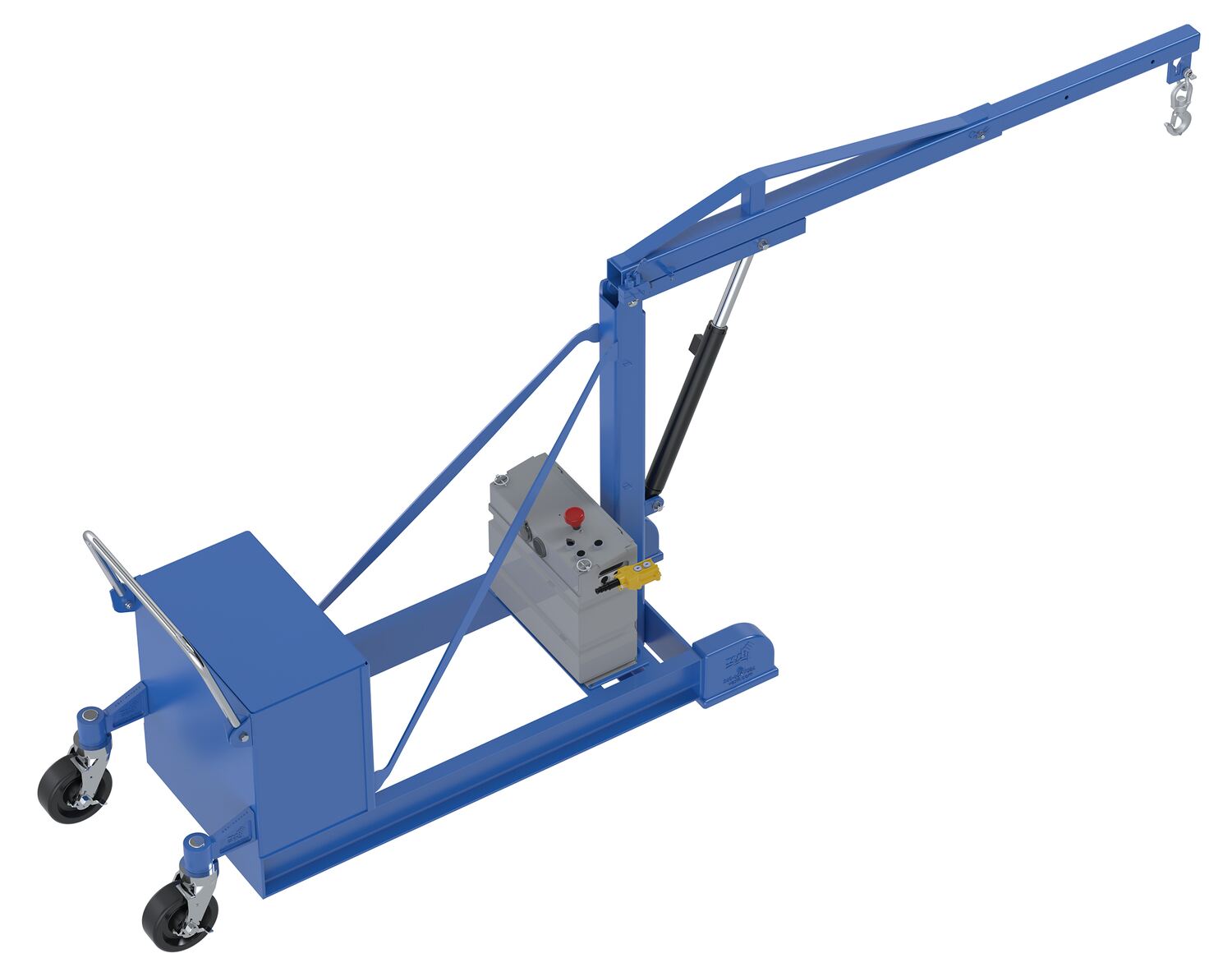

CBFC-1000-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Uniform Capacity extended 39-1/4"(lb.): 1000
Uniform Capacity (lb.): 1,000
Uniform Capacity extended 39-1/4"(lb.): 1000

CBFC-2000
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Uniform Capacity extended 39-1/4"(lb.): 2000
Uniform Capacity (lb.): 2,000
Uniform Capacity extended 39-1/4"(lb.): 2000

CBFC-2000-AIR
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Uniform Capacity extended 39-1/4"(lb.): 2000
Uniform Capacity (lb.): 2,000
Uniform Capacity extended 39-1/4"(lb.): 2000

CBFC-2000-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Uniform Capacity extended 39-1/4"(lb.): 2000
Uniform Capacity (lb.): 2,000
Uniform Capacity extended 39-1/4"(lb.): 2000

CBFC-500
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 500
Uniform Capacity extended 39-1/4"(lb.): 500
Uniform Capacity (lb.): 500
Uniform Capacity extended 39-1/4"(lb.): 500

CBFC-500-AIR
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 500
Uniform Capacity extended 39-1/4"(lb.): 500
Uniform Capacity (lb.): 500
Uniform Capacity extended 39-1/4"(lb.): 500

CBFC-500-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 500
Uniform Capacity extended 39-1/4"(lb.): 500
Uniform Capacity (lb.): 500
Uniform Capacity extended 39-1/4"(lb.): 500
For More Details of the Option Click the Red Model Button

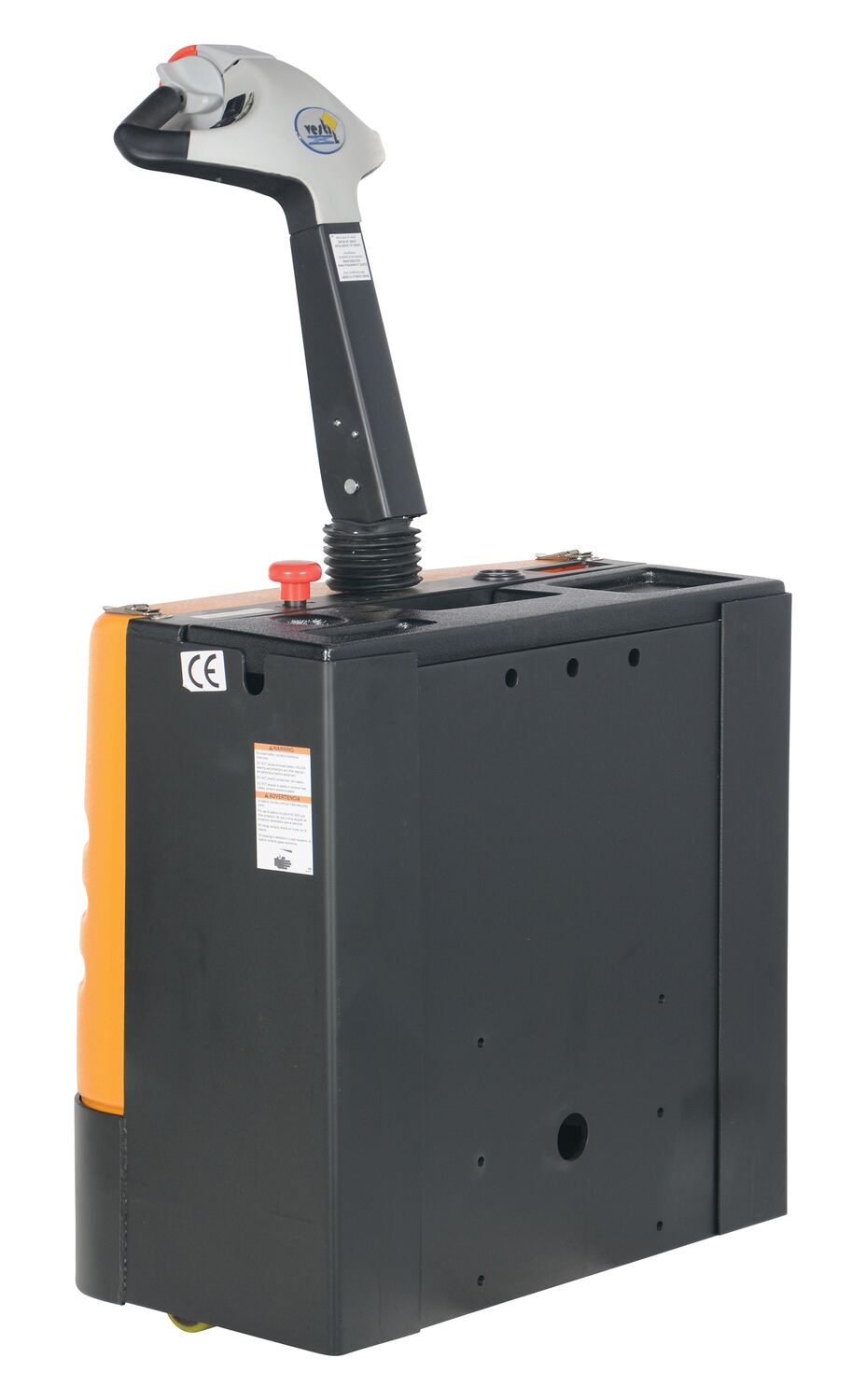

CBFC-PTDS-E CBFC-PTDS-E1 Year Limited WarrantyFactory Installed Power Traction Drive System For Counter Balanced Floor Crane Models-
255

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Counter Balanced Floor Cranes PDF's will open in a new window when clicked.

Manuals


CBFC
Owners Manual

CBFC-DC
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


CBFC-1000

CBFC-1000-DC

CBFC-2000

CBFC-2000-DC

CBFC-500

CBFC-500-DC

Testing Certificates


CBFC-1000

CBFC-1000-DC

CBFC-2000

CBFC-2000-DC

CBFC-500

CBFC-500-DC

CBFC-PTDS-E

SDS Sheets

Hydraulic Oil SDS Sheet for: CBFC-1000
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: CBFC-1000-DC
Hydraulic Oil SDS Sheet for: CBFC-1000-DC
Hydraulic Oil SDS Sheet for: CBFC-2000
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: CBFC-2000-DC
Hydraulic Oil SDS Sheet for: CBFC-2000-DC
Hydraulic Oil SDS Sheet for: CBFC-500
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: CBFC-500-DC
Hydraulic Oil SDS Sheet for: CBFC-500-DC
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: CBFC-PTDS-E
Hydraulic Oil SDS Sheet for: CBFC-PTDS-E

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Q: What is the clearance from the floor to the covering over the front casters?

A: The dimension is 1".

Q: How many pumps does it take to extend the boom?

A: It is approximately 30 pumps to extend the boom.

Q: How does the onboard charging system work on the CBFC-1000-DC?

A: Customer uses their own extension cord to charge. One end plugs into the power unit and the other end plugs into the wall.

Q: What is the safety factor for this crane?

A: The safety factor for the CBFC-2000 is 3:1

Q: Is the CBFC-1000-DC CSA compliant?

A: Yes, the CBFC-1000-DC is CSA compliant.

Q: How long does it take for the battery to recharge for CBFC-500-DC, CBFC-1000-DC and CBFC-2000-DC?

A: We recommend charging the battery when it displays approximately 50% on the battery gauge. At this level, it will take approximately 10 hours to fully charge the battery.

Q: How long can the battery be run before the next charge on CBFC-500-DC and CBFC-1000-DC?

A: If fully charged, the battery will run for approximately 28 minutes of total run time or approximately 160 complete raise/lower cycles. The battery gauge should display approximately 50% charge after running this many cycles.

Q: How long can the battery be run before the next charge on CBFC-2000-DC?

A: If fully charged, the battery will run for approximately 28 minutes of total run time or approximately 90 complete raise/lower cycles. The battery gauge should display approximately 50% charge after running this many cycles.
