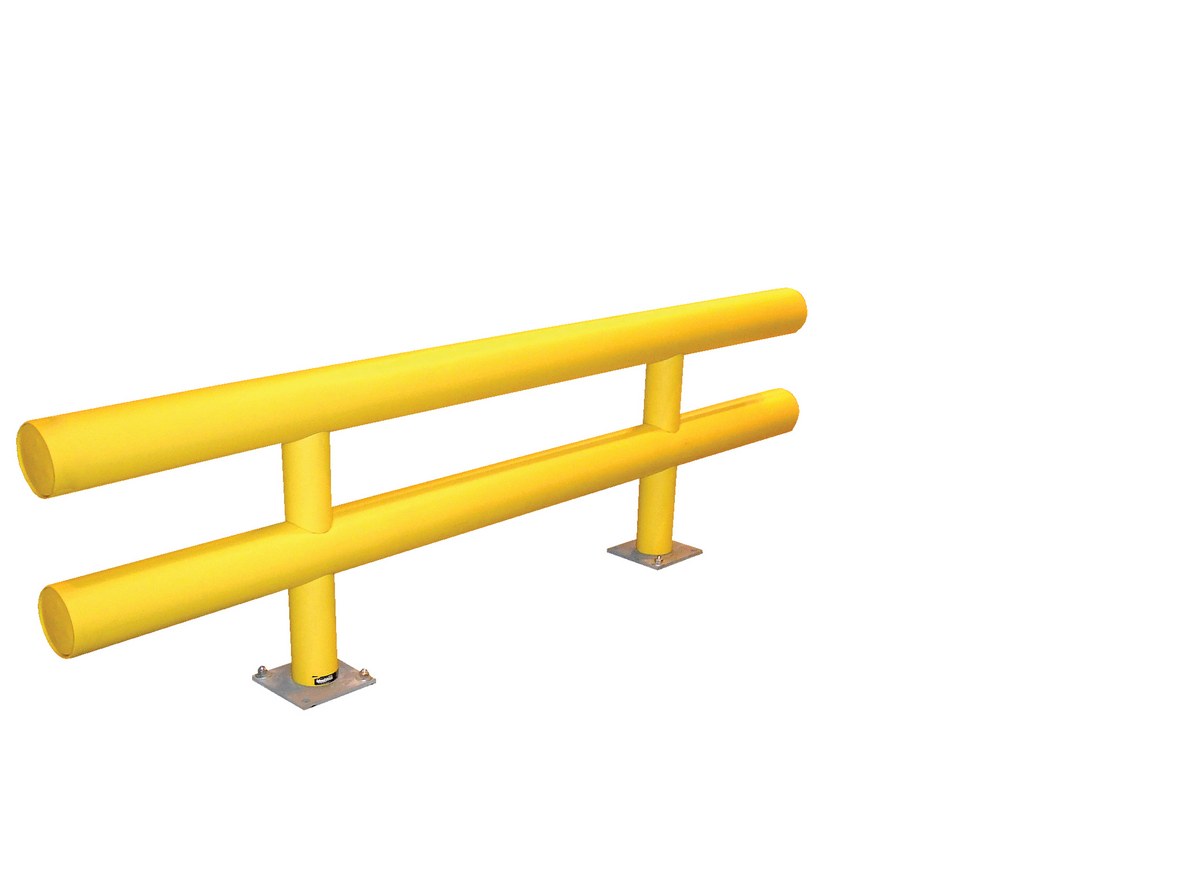

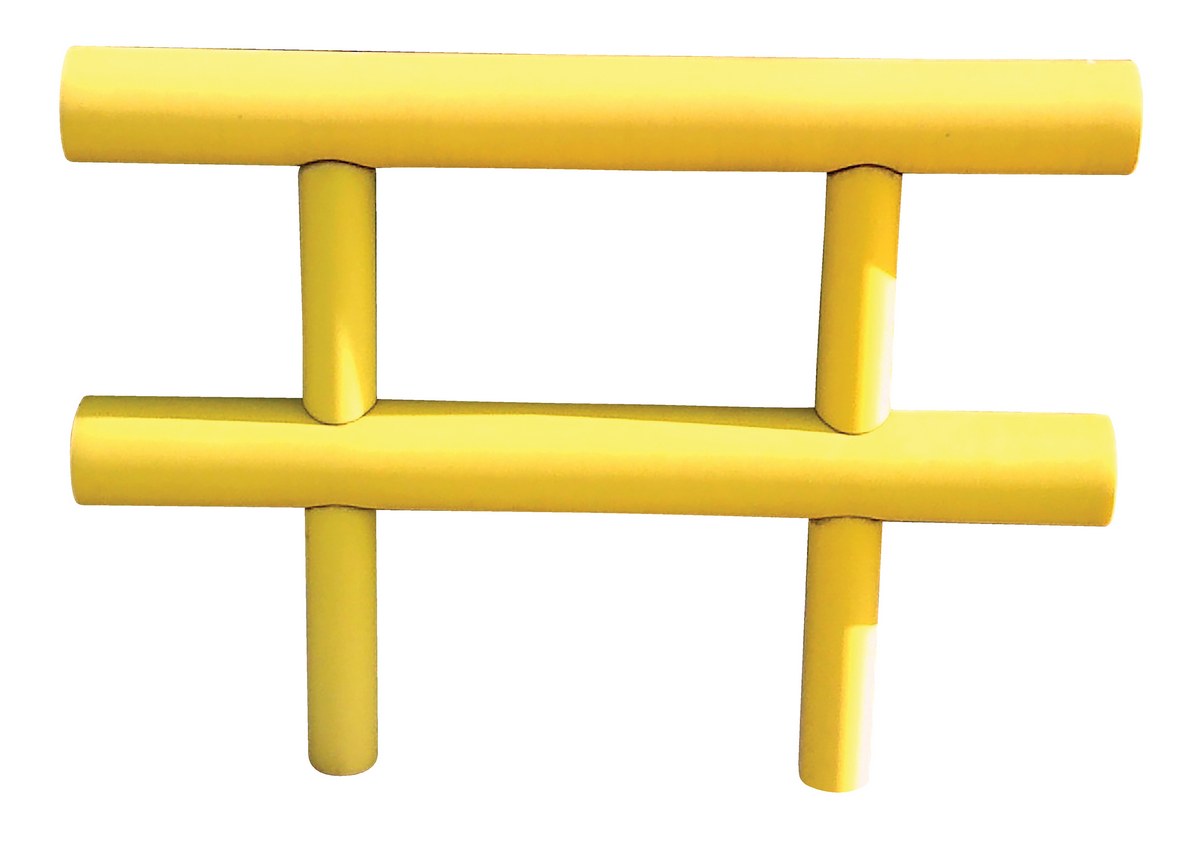

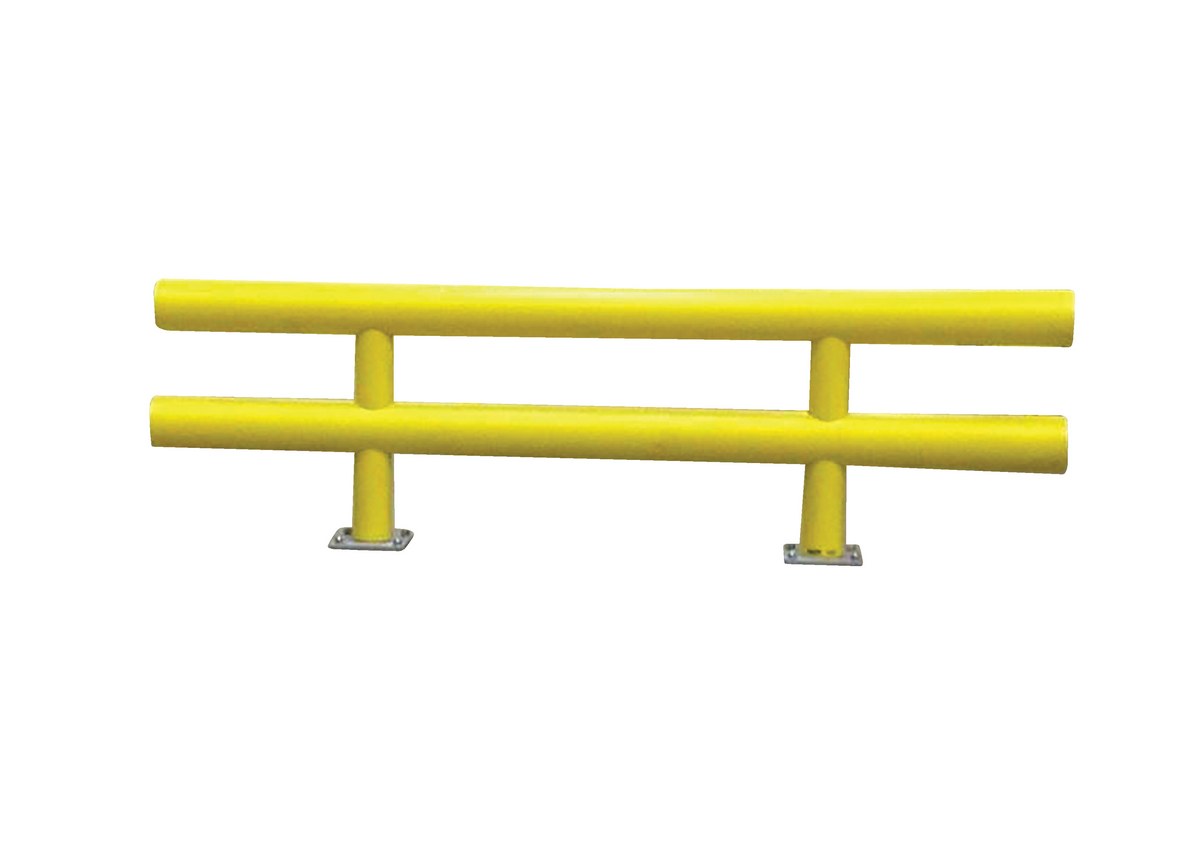

Heavy Duty Guard Rails
SERIES: HDGR

This heavy duty guardrail is one of the strongest on the market. Stops a 12,000 lb. forklift traveling at 8 mph in its tracks. Heavy duty pipe sleeved in durable HDPE plastic, where pipe post is 4" schedule 80 pipe, and pipe rail is 6" schedule 40 pipe. Standard color is safety yellow. The maintenance-free, never paint again system will keep your facility looking clean and new. Units arrive fully assembled. Other configurations and sizes available, contact factory.

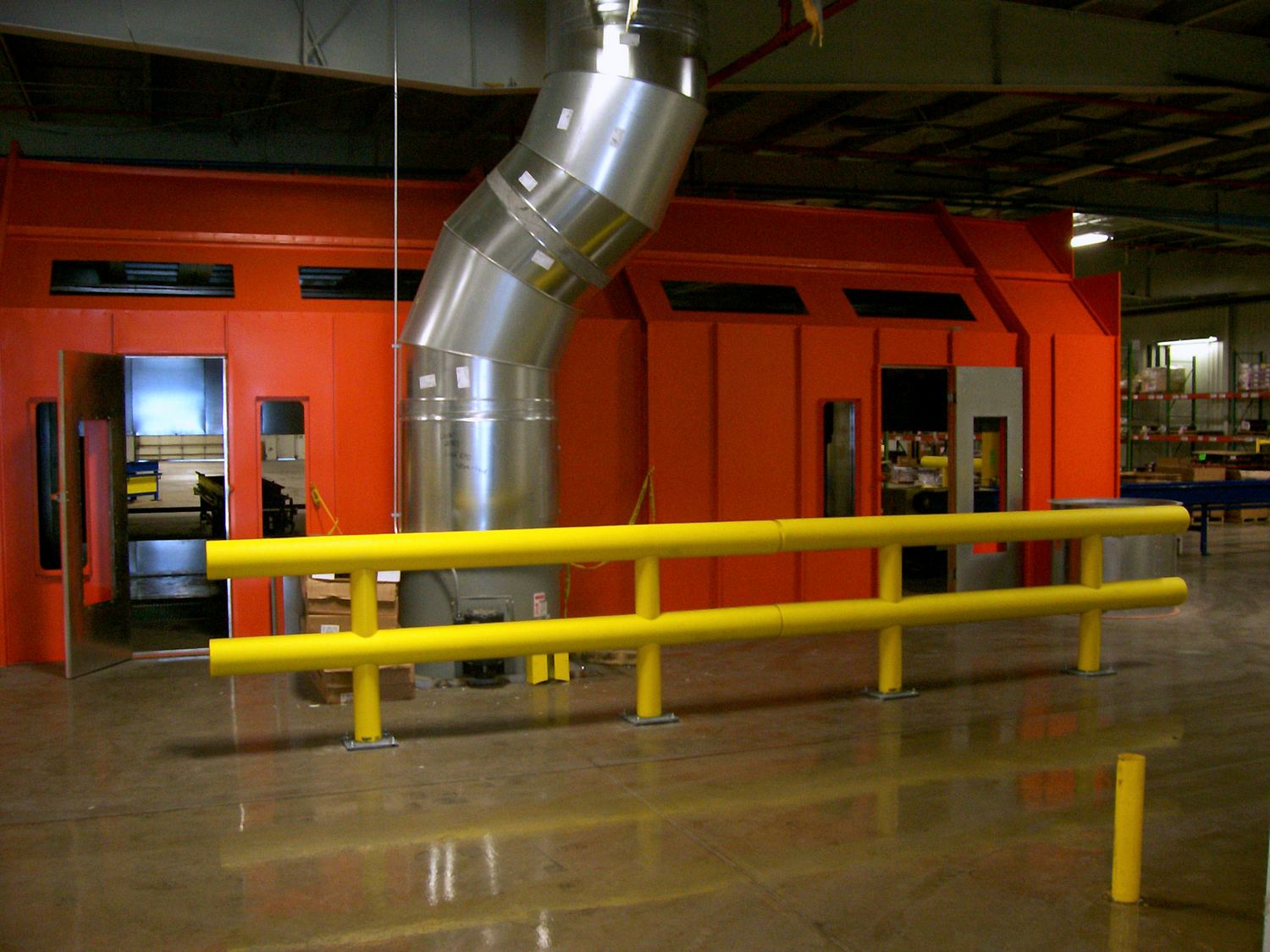

  • Heavy duty guard rail is ideal for protecting appliances and products
  • Rail pipe is tucked inside a durable HDPE plastic sheath for longevity
  • Features a four bolt mount for easy and precise positioning
  • Use in industrial applications for optimal results

This heavy duty guardrail is one of the strongest on the market. Stops a 12,000 lb. forklift traveling at 8 mph in its tracks. Heavy duty pipe sleeved in durable HDPE plastic, where pipe post is 4" schedule 80 pipe, and pipe rail is 6" schedule 40 pipe. Standard color is safety yellow. The maintenance-free, never paint again system will keep your facility looking clean and new. Units arrive fully assembled. Other configurations and sizes available, contact factory.

  • Heavy duty guard rail is ideal for protecting appliances and products
  • Rail pipe is tucked inside a durable HDPE plastic sheath for longevity
  • Features a four bolt mount for easy and precise positioning
  • Use in industrial applications for optimal results

Other Guard Rail Systems

 Curved Guardrail Reflectors Structural Guard Rails (drop-in and bolt-on style) Highway Guard Rail Systems Bolt Covers

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
HDGR-10-27 HDGR-10-2790 Days Limited WarrantySteel Heavy Duty Guard Rail 120 In. x 27 In. 12,000 Lb. Capacity YellowCrash Rating (lb.) at 8 MPH: 12000
Steel Rails (in./schedule): 6/40		563
HDGR-10-36 HDGR-10-3690 Days Limited WarrantySteel Heavy Duty Guard Rail 120 In. x 36 In. 12,000 Lb. Capacity YellowCrash Rating (lb.) at 8 MPH: 12000
Steel Rails (in./schedule): 6/40		585
HDGR-10-42 HDGR-10-4290 Days Limited WarrantySteel Heavy Duty Guard Rail 120 In. x 42 In. 12,000 Lb. Capacity YellowCrash Rating (lb.) at 8 MPH: 12000
Steel Rails (in./schedule): 6/40		600
HDGR-12-27 HDGR-12-2790 Days Limited WarrantySteel Heavy Duty Guard Rail 144 In. x 27 In. 12,000 Lb. Capacity YellowCrash Rating (lb.) at 8 MPH: 12000
Steel Rails (in./schedule): 6/40		651
HDGR-12-36 HDGR-12-3690 Days Limited WarrantySteel Heavy Duty Guard Rail 144 In. x 36 In. 12,000 Lb. Capacity YellowCrash Rating (lb.) at 8 MPH: 12000
Steel Rails (in./schedule): 6/40		673
HDGR-12-42 HDGR-12-4290 Days Limited WarrantySteel Heavy Duty Guard Rail 144 In. x 42 In. 12000 Lb. Capacity YellowCrash Rating (lb.) at 8 MPH: 12000
Steel Rails (in./schedule): 6/40		688
HDGR-4-27 HDGR-4-2790 Days Limited WarrantySteel Heavy Duty Guard Rail 48 In. x 27 In. 12,000 Lb. Capacity YellowCrash Rating (lb.) at 8 MPH: 12000
Steel Rails (in./schedule): 6/40		299
HDGR-4-36 HDGR-4-3690 Days Limited WarrantySteel Heavy Duty Guard Rail 48 In. x 36 In. 12,000 Lb. Capacity YellowCrash Rating (lb.) at 8 MPH: 12000
Steel Rails (in./schedule): 6/40		321
HDGR-4-42 HDGR-4-4290 Days Limited WarrantySteel Heavy Duty Guard Rail 48 In. x 42 In. 12,000 Lb. Capacity YellowCrash Rating (lb.) at 8 MPH: 12000
Steel Rails (in./schedule): 6/40		336
HDGR-6-27 HDGR-6-2790 Days Limited WarrantySteel Heavy Duty Guard Rail 72 In. x 27 In. 12,000 Lb. Capacity YellowCrash Rating (lb.) at 8 MPH: 12000
Steel Rails (in./schedule): 6/40		387
HDGR-6-36 HDGR-6-3690 Days Limited WarrantySteel Heavy Duty Guard Rail 72 In. x 36 In. 12,000 Lb. Capacity YellowCrash Rating (lb.) at 8 MPH: 12000
Steel Rails (in./schedule): 6/40		409
HDGR-6-42 HDGR-6-4290 Days Limited WarrantySteel Heavy Duty Guard Rail 72 In. x 42 In. 12,000 Lb. Capacity YellowCrash Rating (lb.) at 8 MPH: 12000
Steel Rails (in./schedule): 6/40		424
HDGR-8-27 HDGR-8-2790 Days Limited WarrantySteel Heavy Duty Guard Rail 96 In. x 27 In. 12,000 Lb. Capacity YellowCrash Rating (lb.) at 8 MPH: 12000
Steel Rails (in./schedule): 6/40		475
HDGR-8-36 HDGR-8-3690 Days Limited WarrantySteel Heavy Duty Guard Rail 96 In. x 36 In. 12,000 Lb. Capacity YellowCrash Rating (lb.) at 8 MPH: 12000
Steel Rails (in./schedule): 6/40		497
HDGR-8-42 HDGR-8-4290 Days Limited WarrantySteel Heavy Duty Guard Rail 96 In. x 42 In. 12,000 Lb. Capacity YellowCrash Rating (lb.) at 8 MPH: 12000
Steel Rails (in./schedule): 6/40		512

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

HDGR-10-27
Unit:
Size: W x L x H
Weight:
Limited Warranty
Crash Rating (lb.) at 8 MPH: 12000
Steel Rails (in./schedule): 6/40
Crash Rating (lb.) at 8 MPH: 12000
Steel Rails (in./schedule): 6/40

HDGR-10-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Crash Rating (lb.) at 8 MPH: 12000
Steel Rails (in./schedule): 6/40
Crash Rating (lb.) at 8 MPH: 12000
Steel Rails (in./schedule): 6/40

HDGR-10-42
Unit:
Size: W x L x H
Weight:
Limited Warranty
Crash Rating (lb.) at 8 MPH: 12000
Steel Rails (in./schedule): 6/40
Crash Rating (lb.) at 8 MPH: 12000
Steel Rails (in./schedule): 6/40

HDGR-12-27
Unit:
Size: W x L x H
Weight:
Limited Warranty
Crash Rating (lb.) at 8 MPH: 12000
Steel Rails (in./schedule): 6/40
Crash Rating (lb.) at 8 MPH: 12000
Steel Rails (in./schedule): 6/40

HDGR-12-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Crash Rating (lb.) at 8 MPH: 12000
Steel Rails (in./schedule): 6/40
Crash Rating (lb.) at 8 MPH: 12000
Steel Rails (in./schedule): 6/40

HDGR-12-42
Unit:
Size: W x L x H
Weight:
Limited Warranty
Crash Rating (lb.) at 8 MPH: 12000
Steel Rails (in./schedule): 6/40
Crash Rating (lb.) at 8 MPH: 12000
Steel Rails (in./schedule): 6/40

HDGR-4-27
Unit:
Size: W x L x H
Weight:
Limited Warranty
Crash Rating (lb.) at 8 MPH: 12000
Steel Rails (in./schedule): 6/40
Crash Rating (lb.) at 8 MPH: 12000
Steel Rails (in./schedule): 6/40

HDGR-4-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Crash Rating (lb.) at 8 MPH: 12000
Steel Rails (in./schedule): 6/40
Crash Rating (lb.) at 8 MPH: 12000
Steel Rails (in./schedule): 6/40

HDGR-4-42
Unit:
Size: W x L x H
Weight:
Limited Warranty
Crash Rating (lb.) at 8 MPH: 12000
Steel Rails (in./schedule): 6/40
Crash Rating (lb.) at 8 MPH: 12000
Steel Rails (in./schedule): 6/40

HDGR-6-27
Unit:
Size: W x L x H
Weight:
Limited Warranty
Crash Rating (lb.) at 8 MPH: 12000
Steel Rails (in./schedule): 6/40
Crash Rating (lb.) at 8 MPH: 12000
Steel Rails (in./schedule): 6/40

HDGR-6-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Crash Rating (lb.) at 8 MPH: 12000
Steel Rails (in./schedule): 6/40
Crash Rating (lb.) at 8 MPH: 12000
Steel Rails (in./schedule): 6/40

HDGR-6-42
Unit:
Size: W x L x H
Weight:
Limited Warranty
Crash Rating (lb.) at 8 MPH: 12000
Steel Rails (in./schedule): 6/40
Crash Rating (lb.) at 8 MPH: 12000
Steel Rails (in./schedule): 6/40

HDGR-8-27
Unit:
Size: W x L x H
Weight:
Limited Warranty
Crash Rating (lb.) at 8 MPH: 12000
Steel Rails (in./schedule): 6/40
Crash Rating (lb.) at 8 MPH: 12000
Steel Rails (in./schedule): 6/40

HDGR-8-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Crash Rating (lb.) at 8 MPH: 12000
Steel Rails (in./schedule): 6/40
Crash Rating (lb.) at 8 MPH: 12000
Steel Rails (in./schedule): 6/40

HDGR-8-42
Unit:
Size: W x L x H
Weight:
Limited Warranty
Crash Rating (lb.) at 8 MPH: 12000
Steel Rails (in./schedule): 6/40
Crash Rating (lb.) at 8 MPH: 12000
Steel Rails (in./schedule): 6/40
For More Details of the Option Click the Red Model Button
Model Images PDF Description Wt.
AS-346 icon_warranty.jpg (1) 3/4" x 6 " Concrete Anchor bolt 2
AS-346-4PK icon_warranty.jpg (4) 3/4" x 6 " Concrete Anchor bolts 4
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Heavy Duty Guard Rails PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

No Approval Drawings For This Product

Testing Certificates

No Testing Certificates For This Product

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets

Related or Similar Products:

Structural Channel Guard Rail Systems
Product

Structural Channel Guard Rail Systems

Structural Guard Rails (drop-in and bolt-on style)
Product

Structural Guard Rails (drop-in and bolt-on style)

Highway Guard Rail Systems
Product

Highway Guard Rail Systems

Indoor Personnel Guidance Barriers
Product

Indoor Personnel Guidance Barriers

Plastic Chain Barricades
Product

Plastic Chain Barricades

Web Barrier Stakes
Product

Web Barrier Stakes

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Heavy Duty Guard Rails




This heavy duty guardrail is one of the strongest on the market. Stops a 12,000 lb. forklift traveling at 8 mph in its tracks. Heavy duty pipe sleeved in durable HDPE plastic, where pipe post is 4" schedule 80 pipe, and pipe rail is 6" schedule 40 pipe. Standard color is safety yellow. The maintenance-free, never paint again system will keep your facility looking clean and new. Units arrive fully assembled. Other configurations and sizes available, contact factory.

  • Heavy duty guard rail is ideal for protecting appliances and products
  • Rail pipe is tucked inside a durable HDPE plastic sheath for longevity
  • Features a four bolt mount for easy and precise positioning
  • Use in industrial applications for optimal results

Model # Description Attributes Net Wt.
(lbs)
HDGR-10-27 HDGR-10-27Steel Heavy Duty Guard Rail 120 In. x 27 In. 12,000 Lb. Capacity YellowCrash Rating (lb.) at 8 MPH: 12000
Steel Rails (in./schedule): 6/40		563
HDGR-10-36 HDGR-10-36Steel Heavy Duty Guard Rail 120 In. x 36 In. 12,000 Lb. Capacity YellowCrash Rating (lb.) at 8 MPH: 12000
Steel Rails (in./schedule): 6/40		585
HDGR-10-42 HDGR-10-42Steel Heavy Duty Guard Rail 120 In. x 42 In. 12,000 Lb. Capacity YellowCrash Rating (lb.) at 8 MPH: 12000
Steel Rails (in./schedule): 6/40		600
HDGR-12-27 HDGR-12-27Steel Heavy Duty Guard Rail 144 In. x 27 In. 12,000 Lb. Capacity YellowCrash Rating (lb.) at 8 MPH: 12000
Steel Rails (in./schedule): 6/40		651
HDGR-12-36 HDGR-12-36Steel Heavy Duty Guard Rail 144 In. x 36 In. 12,000 Lb. Capacity YellowCrash Rating (lb.) at 8 MPH: 12000
Steel Rails (in./schedule): 6/40		673
HDGR-12-42 HDGR-12-42Steel Heavy Duty Guard Rail 144 In. x 42 In. 12000 Lb. Capacity YellowCrash Rating (lb.) at 8 MPH: 12000
Steel Rails (in./schedule): 6/40		688
HDGR-4-27 HDGR-4-27Steel Heavy Duty Guard Rail 48 In. x 27 In. 12,000 Lb. Capacity YellowCrash Rating (lb.) at 8 MPH: 12000
Steel Rails (in./schedule): 6/40		299
HDGR-4-36 HDGR-4-36Steel Heavy Duty Guard Rail 48 In. x 36 In. 12,000 Lb. Capacity YellowCrash Rating (lb.) at 8 MPH: 12000
Steel Rails (in./schedule): 6/40		321
HDGR-4-42 HDGR-4-42Steel Heavy Duty Guard Rail 48 In. x 42 In. 12,000 Lb. Capacity YellowCrash Rating (lb.) at 8 MPH: 12000
Steel Rails (in./schedule): 6/40		336
HDGR-6-27 HDGR-6-27Steel Heavy Duty Guard Rail 72 In. x 27 In. 12,000 Lb. Capacity YellowCrash Rating (lb.) at 8 MPH: 12000
Steel Rails (in./schedule): 6/40		387
HDGR-6-36 HDGR-6-36Steel Heavy Duty Guard Rail 72 In. x 36 In. 12,000 Lb. Capacity YellowCrash Rating (lb.) at 8 MPH: 12000
Steel Rails (in./schedule): 6/40		409
HDGR-6-42 HDGR-6-42Steel Heavy Duty Guard Rail 72 In. x 42 In. 12,000 Lb. Capacity YellowCrash Rating (lb.) at 8 MPH: 12000
Steel Rails (in./schedule): 6/40		424
HDGR-8-27 HDGR-8-27Steel Heavy Duty Guard Rail 96 In. x 27 In. 12,000 Lb. Capacity YellowCrash Rating (lb.) at 8 MPH: 12000
Steel Rails (in./schedule): 6/40		475
HDGR-8-36 HDGR-8-36Steel Heavy Duty Guard Rail 96 In. x 36 In. 12,000 Lb. Capacity YellowCrash Rating (lb.) at 8 MPH: 12000
Steel Rails (in./schedule): 6/40		497
HDGR-8-42 HDGR-8-42Steel Heavy Duty Guard Rail 96 In. x 42 In. 12,000 Lb. Capacity YellowCrash Rating (lb.) at 8 MPH: 12000
Steel Rails (in./schedule): 6/40		512

Options


Model Images PDF Description Wt.
AS-346 icon_warranty.jpg (1) 3/4" x 6 " Concrete Anchor bolt 2
AS-346-4PK icon_warranty.jpg (4) 3/4" x 6 " Concrete Anchor bolts 4
