Steel Pipe Safety Bollards (BOL) - Product Family Page

Model #		Description	Attributes	Net Wt. (lbs)
BOL-24-2	90 Days Limited Warranty	Steel Pipe Safety Bollard 24 In. x 1-3/4 In. Yellow	Anchor Bolt: AS-383 Anchor Bolt Kit: AS-383-4PK	6
BOL-24-4.5	90 Days Limited Warranty	Steel Pipe Safety Bollard 24 In. x 4-1/2 In. Yellow	Anchor Bolt: AS-344 Anchor Bolt Kit: AS-344-PK	17
BOL-24-4.5	90 Days Limited Warranty	Steel Pipe Safety Bollard 24 In. x 4-1/2 In. Yellow	Anchor Bolt: AS-344 Anchor Bolt Kit: AS-344-PK	17

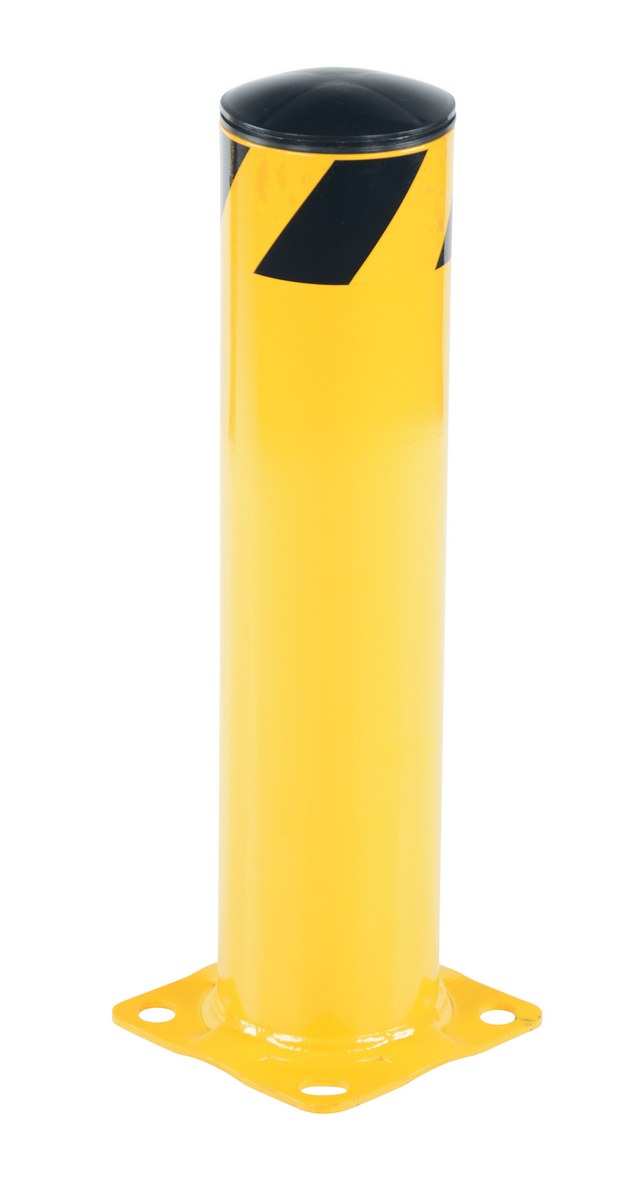

BOL-24-5.5	90 Days Limited Warranty	Steel Pipe Safety Bollard 24 In. x 5-1/2 In. Yellow	Anchor Bolt: AS-344 Anchor Bolt Kit: AS-344-4PK	20
BOL-36-2	90 Days Limited Warranty	Steel Pipe Safety Bollard 36 In. x 1-3/4 In. Yellow	Anchor Bolt: AS-383 Anchor Bolt Kit: AS-383-4PK	9
BOL-36-4.5	90 Days Limited Warranty	Steel Pipe Safety Bollard 36 In. x 4-1/2 In. Yellow	Anchor Bolt: AS-344 Anchor Bolt Kit: AS-344-4PK	22

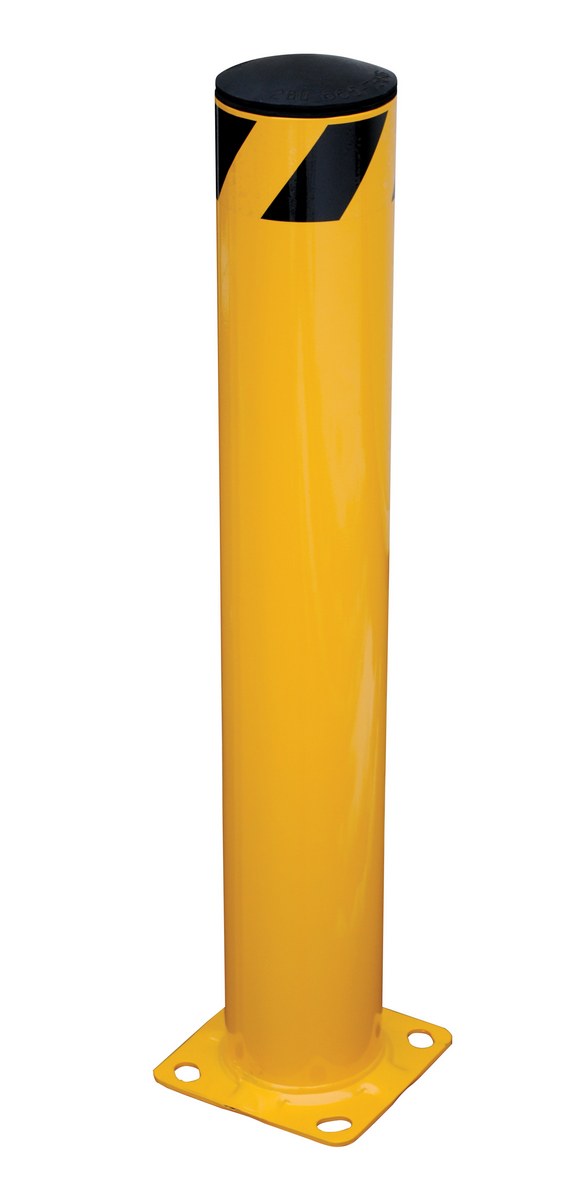

BOL-36-5.5	90 Days Limited Warranty	Steel Pipe Safety Bollard 36 In. x 5-1/2 In. Yellow	Anchor Bolt: AS-344 Anchor Bolt Kit: AS-344-4PK	29

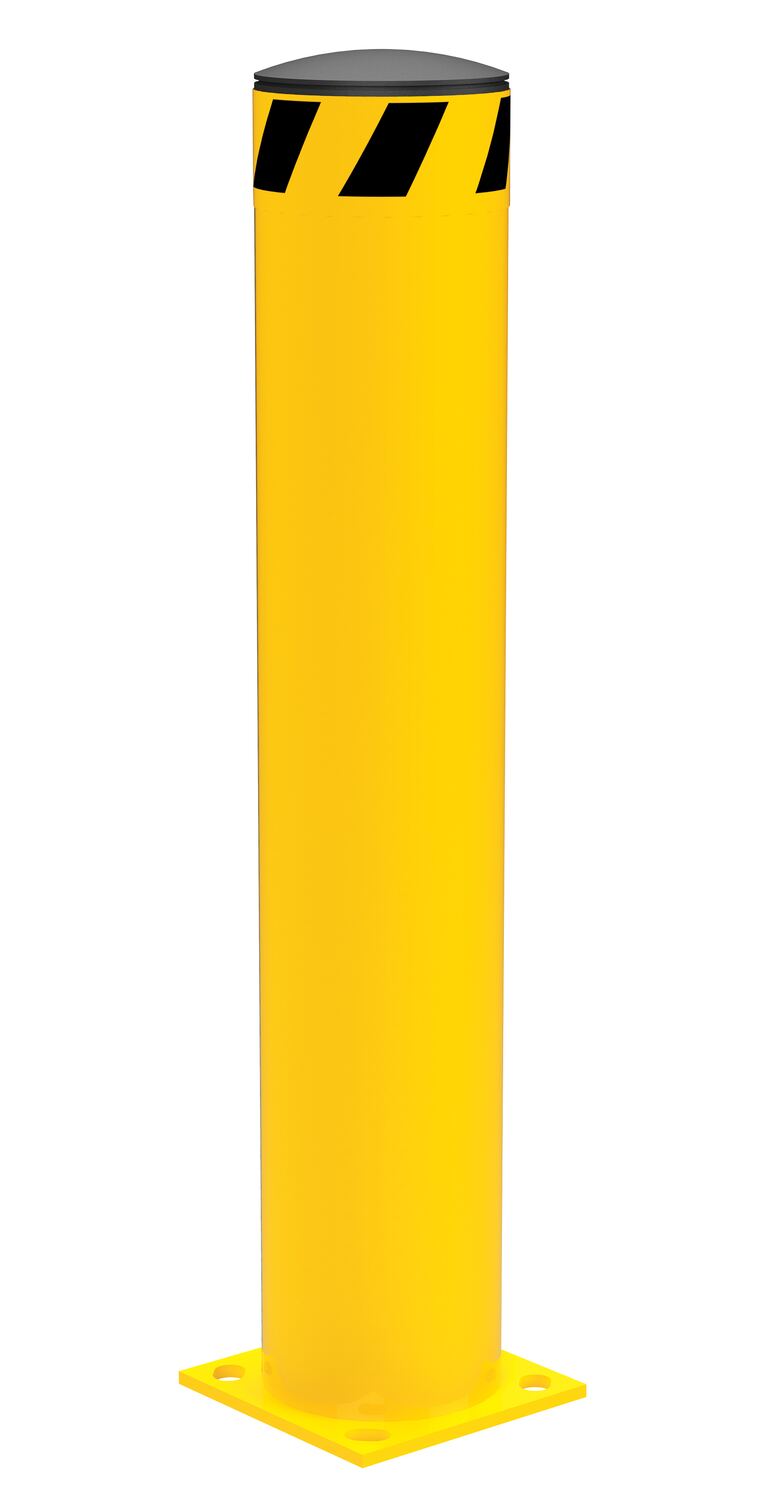

BOL-36-6.5	90 Days Limited Warranty	Steel Pipe Safety Bollard 36 In. x 6-1/2 In. Yellow	Anchor Bolt: AS-344 Anchor Bolt Kit: AS-344-4PK	36
BOL-36-8.5	90 Days Limited Warranty	Steel Pipe Safety Bollard 36 In. x 8-1/2 In. Yellow	Anchor Bolt: AS-344 Anchor Bolt Kit: AS-344-4PK	70
BOL-42-2	90 Days Limited Warranty	Steel Pipe Safety Bollard 42 In. x 1-3/4 In. Yellow	Anchor Bolt: AS-383 Anchor Bolt Kit: AS-383-4PK	9
BOL-42-4.5	90 Days Limited Warranty	Steel Pipe Safety Bollard 42 In. x 4-1/2 In. Yellow	Anchor Bolt: AS-344 Anchor Bolt Kit: AS-344-4PK	25

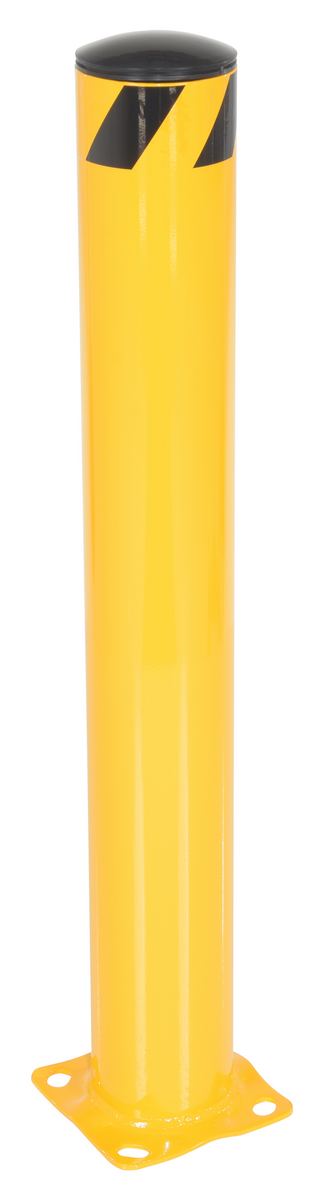

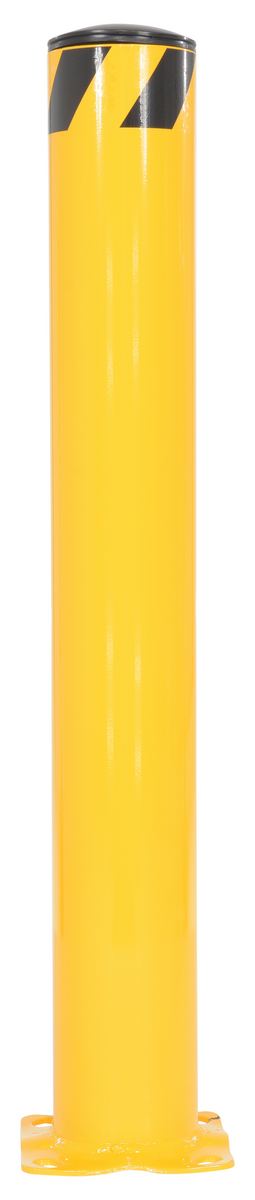

BOL-42-5.5	90 Days Limited Warranty	Steel Pipe Safety Bollard 42 In. x 5-1/2 In. Yellow	Anchor Bolt: AS-344 Anchor Bolt Kit: AS-344-4PK	33
BOL-42-6.5	90 Days Limited Warranty	Steel Pipe Safety Bollard 42 In. x 6-1/2 In. Yellow	Anchor Bolt: AS-344 Anchor Bolt Kit: AS-344-4PK	49
BOL-42-8.5	90 Days Limited Warranty	Steel Pipe Safety Bollard 42 In. x 8-1/2 In. Yellow	Anchor Bolt: AS-344 Anchor Bolt Kit: AS-344-4PK	72

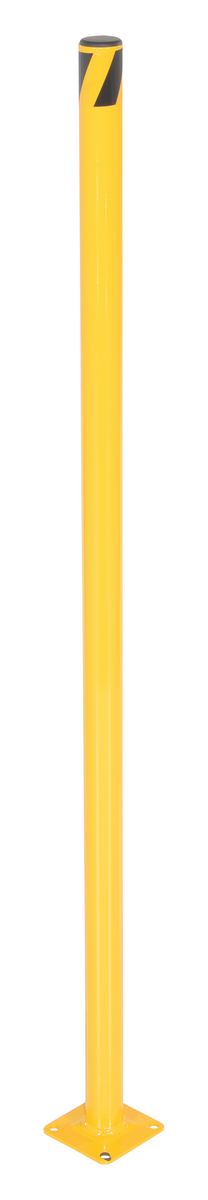

BOL-48-2	90 Days Limited Warranty	Steel Pipe Safety Bollard 48 In. x 1-3/4 In. Yellow	Anchor Bolt: AS-383 Anchor Bolt Kit: AS-383-4PK	11
BOL-48-4.5	90 Days Limited Warranty	Steel Pipe Safety Bollard 48 In. x 4-1/2 In. Yellow	Anchor Bolt: AS-344 Anchor Bolt Kit: AS-344-4PK	29
BOL-48-5.5	90 Days Limited Warranty	Steel Pipe Safety Bollard 48 In. x 5-1/2 In. Yellow	Anchor Bolt: AS-344 Anchor Bolt Kit: AS-344-4PK	37

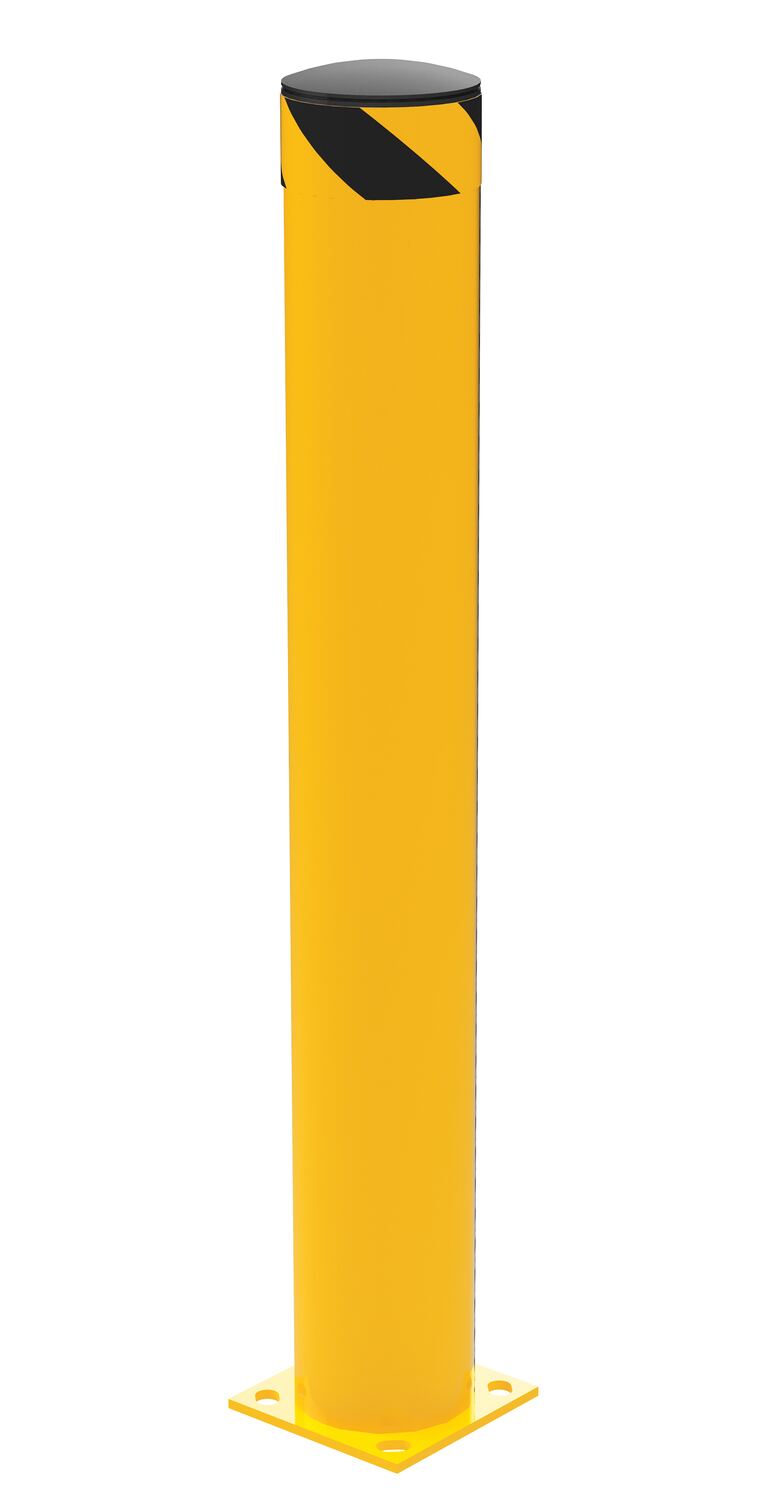

BOL-48-6.5	90 Days Limited Warranty	Steel Pipe Safety Bollard 48 In. x 6-1/2 In. Yellow	Anchor Bolt: AS-344 Anchor Bolt Kit: AS-344-4PK	46

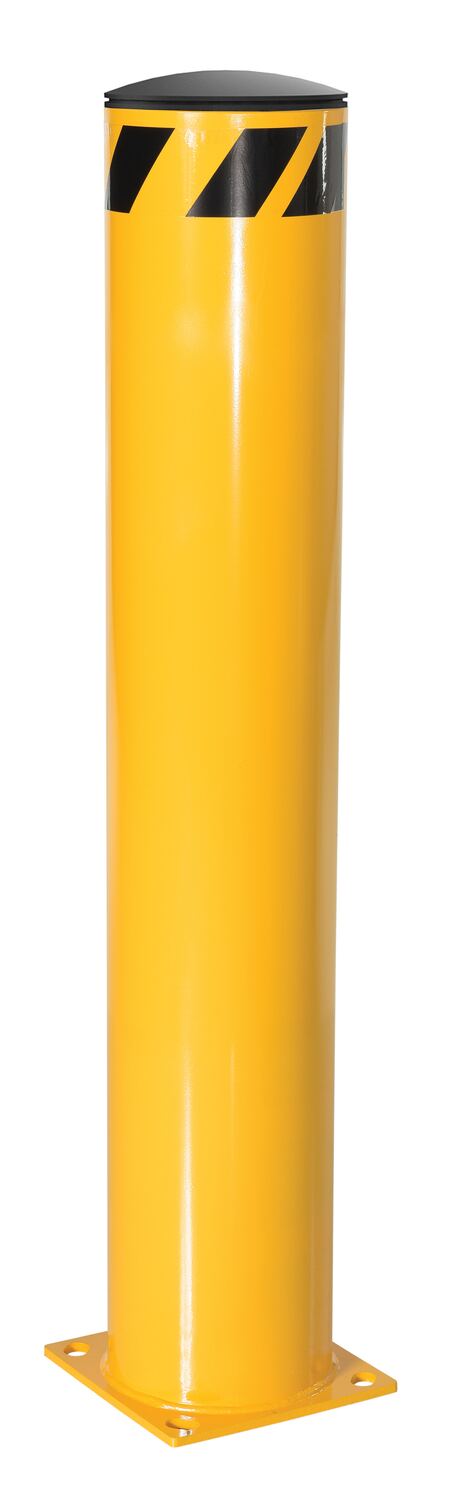

BOL-48-8.5	90 Days Limited Warranty	Steel Pipe Safety Bollard 48 In. x 8-1/2 In. Yellow	Anchor Bolt: AS-344 Anchor Bolt Kit: AS-344-4PK	82

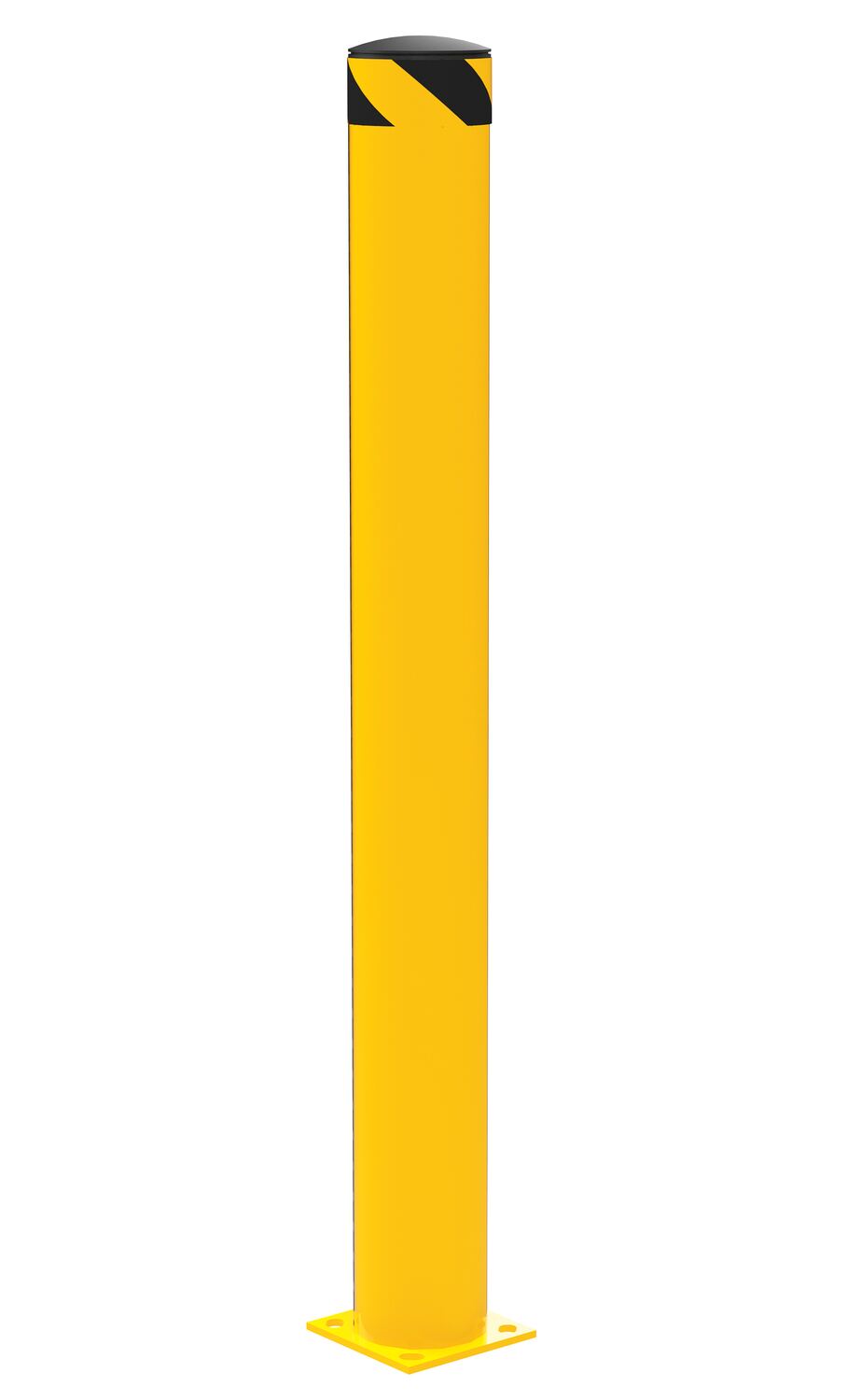

BOL-62-4.5	90 Days Limited Warranty	Steel Pipe Safety Bollard 62 In. x 4-1/2 In. Yellow	Anchor Bolt: AS-344 Anchor Bolt Kit: AS-344-4PK	39
BOL-62-5.5	90 Days Limited Warranty	Steel Pipe Safety Bollard 62 In. x 5-1/2 In. Yellow	Anchor Bolt: AS-344 Anchor Bolt Kit: AS-344-4PK	45
BOL-62-6.5	90 Days Limited Warranty	Steel Pipe Safety Bollard 62 In. x 6-1/2 In. Yellow	Anchor Bolt: AS-344 Anchor Bolt Kit: AS-344-4PK	61

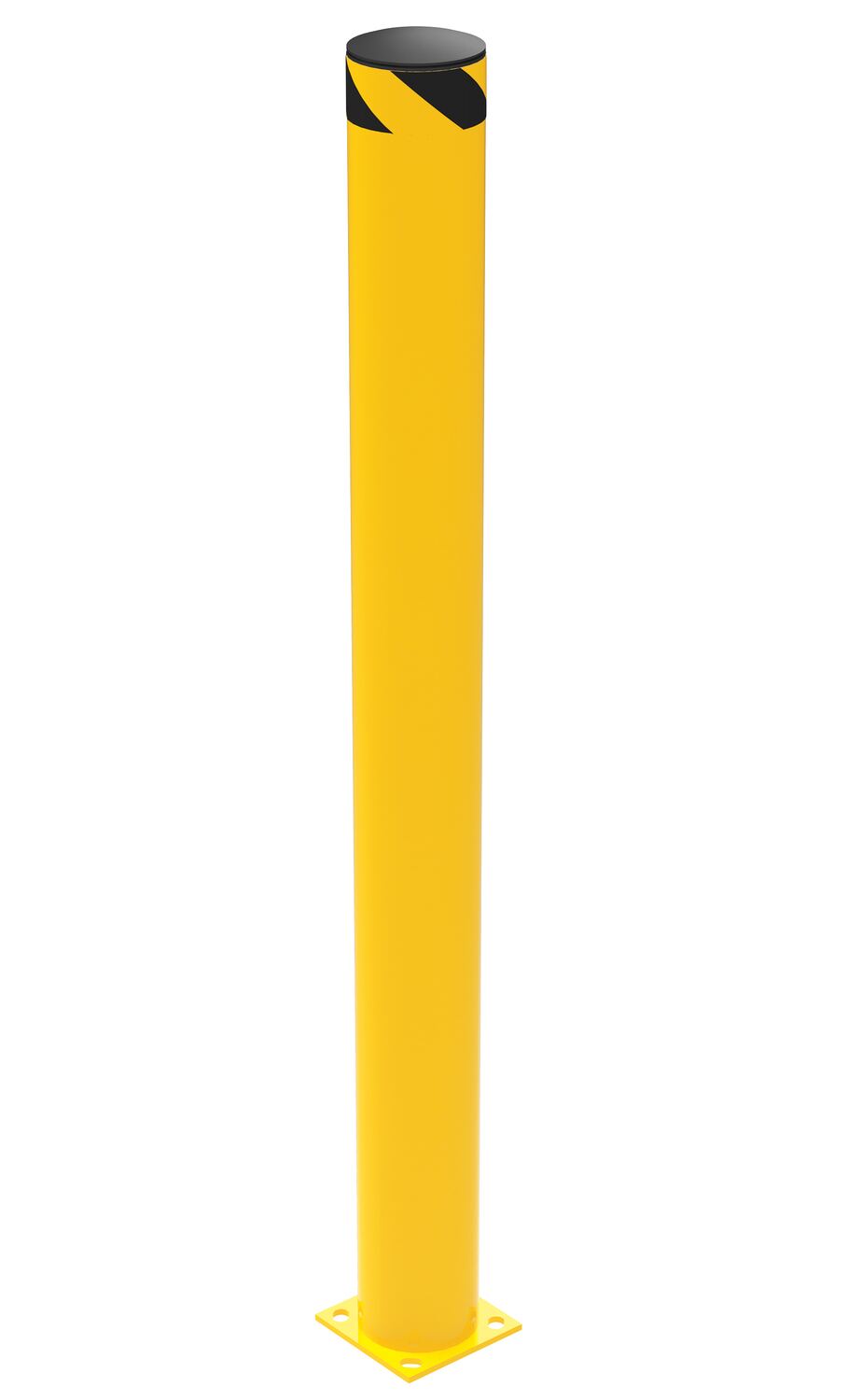

BOL-72-4.5	90 Days Limited Warranty	Steel Pipe Safety Bollard 72 In. x 4-1/2 In. Yellow	Anchor Bolt: AS-344 Anchor Bolt Kit: AS-344-4PK	49
BOL-72-5.5	90 Days Limited Warranty	Steel Pipe Safety Bollard 72 In. x 5-1/2 In. Yellow	Anchor Bolt: AS-344 Anchor Bolt Kit: AS-344-4PK	55
BOL-72-6.5	90 Days Limited Warranty	Steel Pipe Safety Bollard 72 In. x 6-1/2 In. Yellow	Anchor Bolt: AS-344 Anchor Bolt Kit: AS-344-4PK	71

Model #

Description

Attributes

Net Wt.
(lbs)

90 Days Limited Warranty

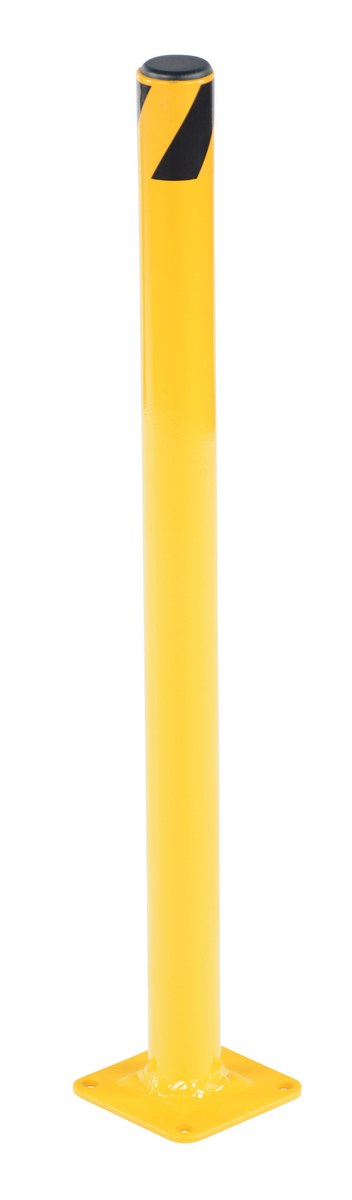

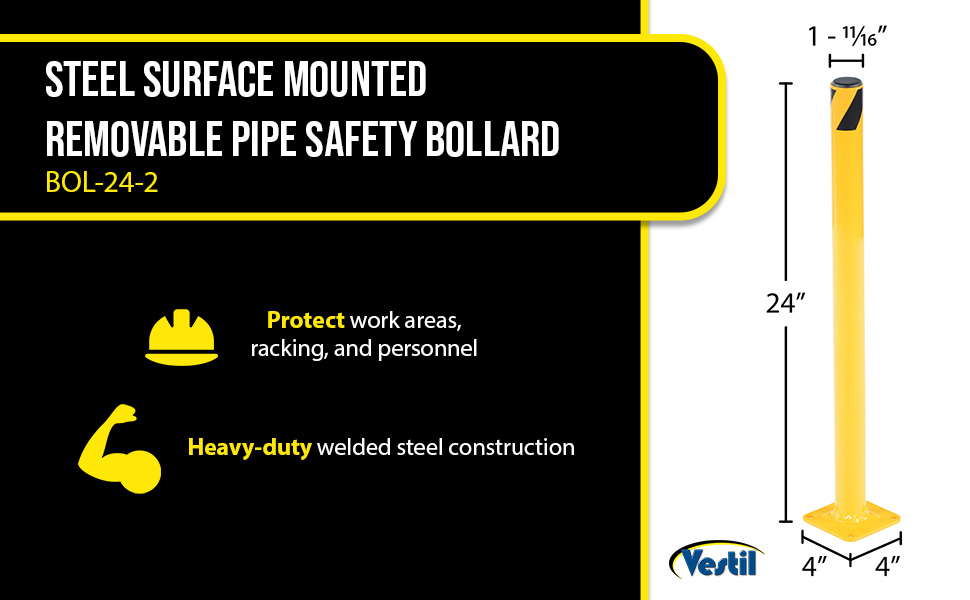

Steel Pipe Safety Bollard 24 In. x 1-3/4 In. Yellow

Anchor Bolt: AS-383
Anchor Bolt Kit: AS-383-4PK

90 Days Limited Warranty

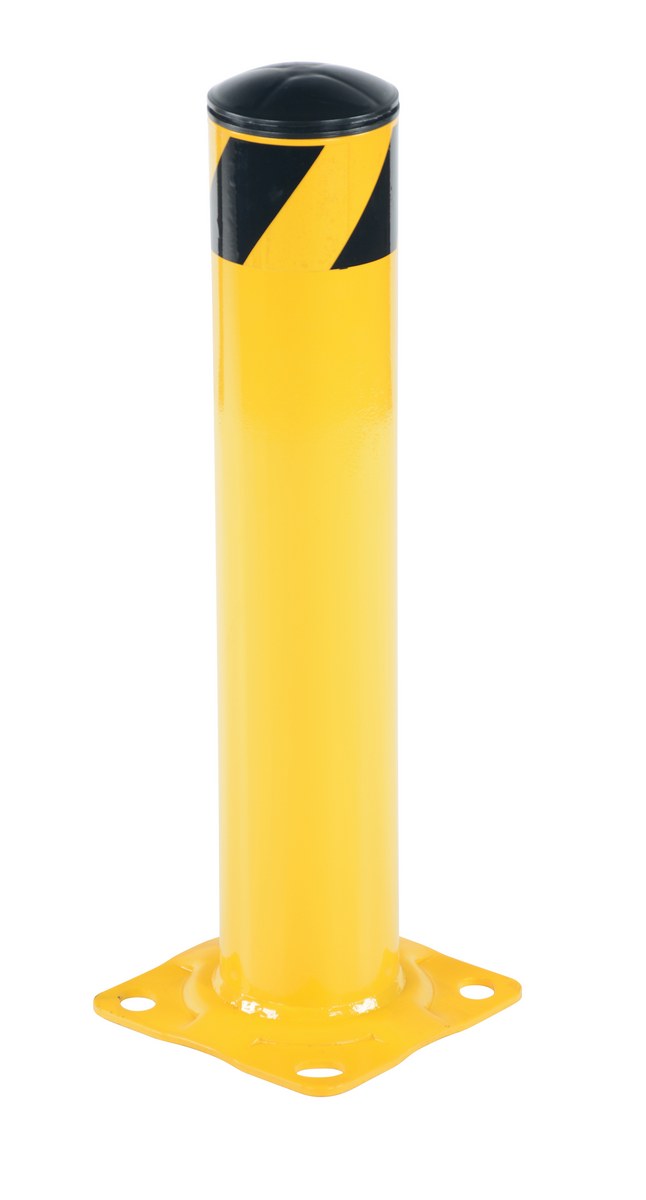

Steel Pipe Safety Bollard 24 In. x 4-1/2 In. Yellow

Anchor Bolt: AS-344
Anchor Bolt Kit: AS-344-PK

90 Days Limited Warranty

Steel Pipe Safety Bollard 24 In. x 4-1/2 In. Yellow

Anchor Bolt: AS-344
Anchor Bolt Kit: AS-344-PK

90 Days Limited Warranty

Steel Pipe Safety Bollard 24 In. x 5-1/2 In. Yellow

Anchor Bolt: AS-344
Anchor Bolt Kit: AS-344-4PK

90 Days Limited Warranty

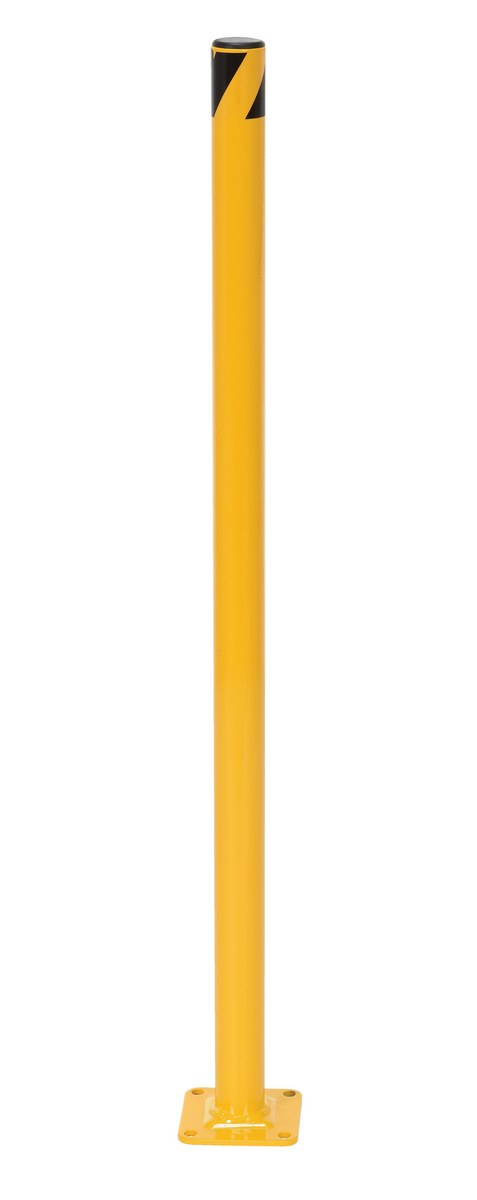

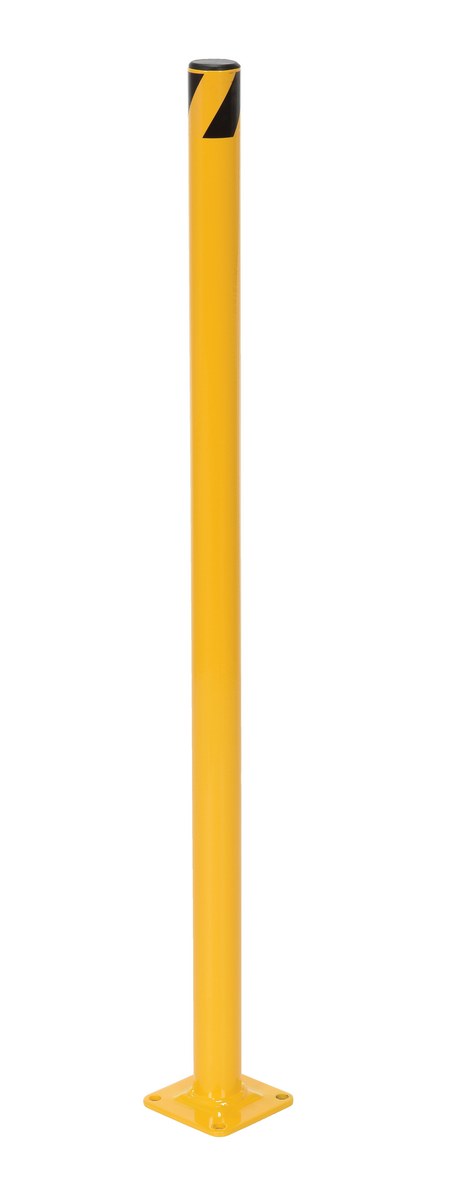

Steel Pipe Safety Bollard 36 In. x 1-3/4 In. Yellow

Anchor Bolt: AS-383
Anchor Bolt Kit: AS-383-4PK

90 Days Limited Warranty

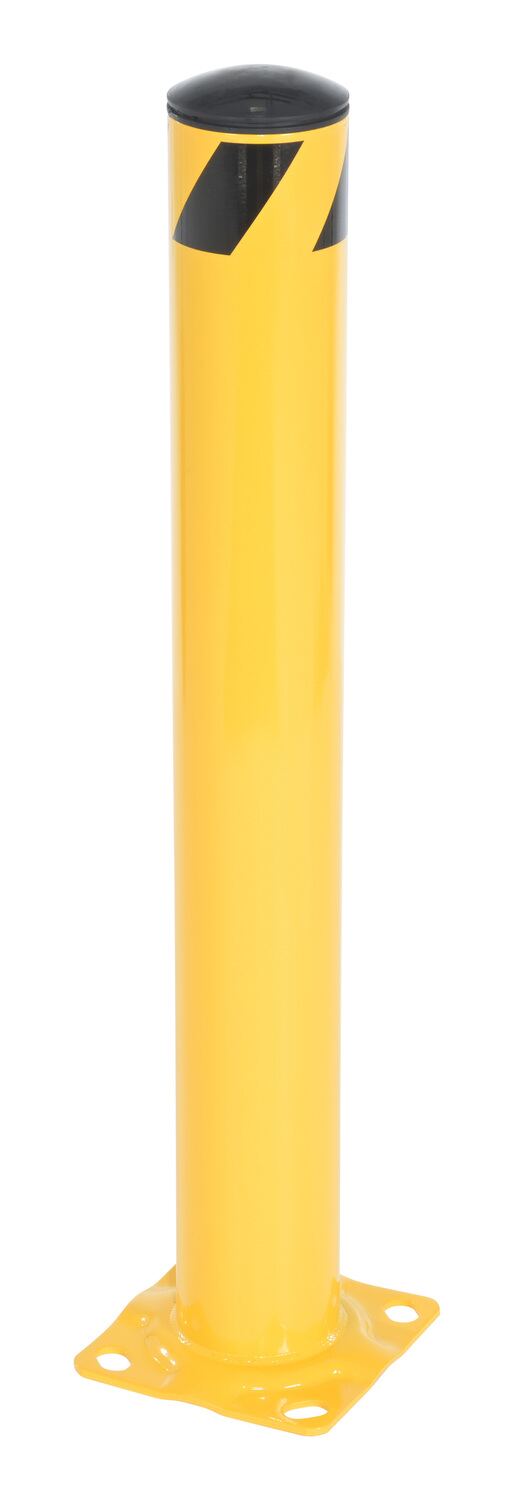

Steel Pipe Safety Bollard 36 In. x 4-1/2 In. Yellow

Anchor Bolt: AS-344
Anchor Bolt Kit: AS-344-4PK

90 Days Limited Warranty

Steel Pipe Safety Bollard 36 In. x 5-1/2 In. Yellow

Anchor Bolt: AS-344
Anchor Bolt Kit: AS-344-4PK

90 Days Limited Warranty

Steel Pipe Safety Bollard 36 In. x 6-1/2 In. Yellow

Anchor Bolt: AS-344
Anchor Bolt Kit: AS-344-4PK

90 Days Limited Warranty

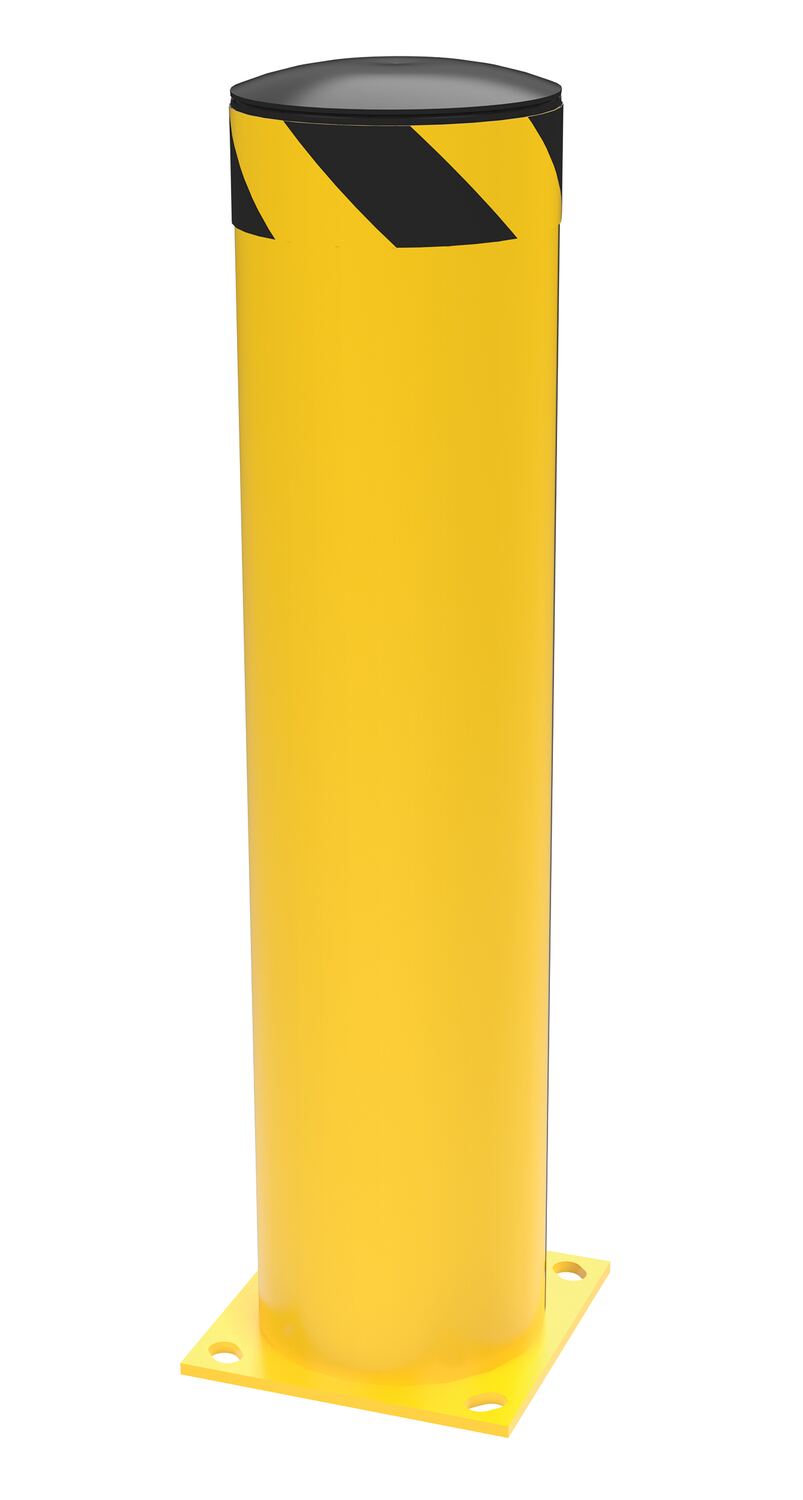

Steel Pipe Safety Bollard 36 In. x 8-1/2 In. Yellow

Anchor Bolt: AS-344
Anchor Bolt Kit: AS-344-4PK

90 Days Limited Warranty

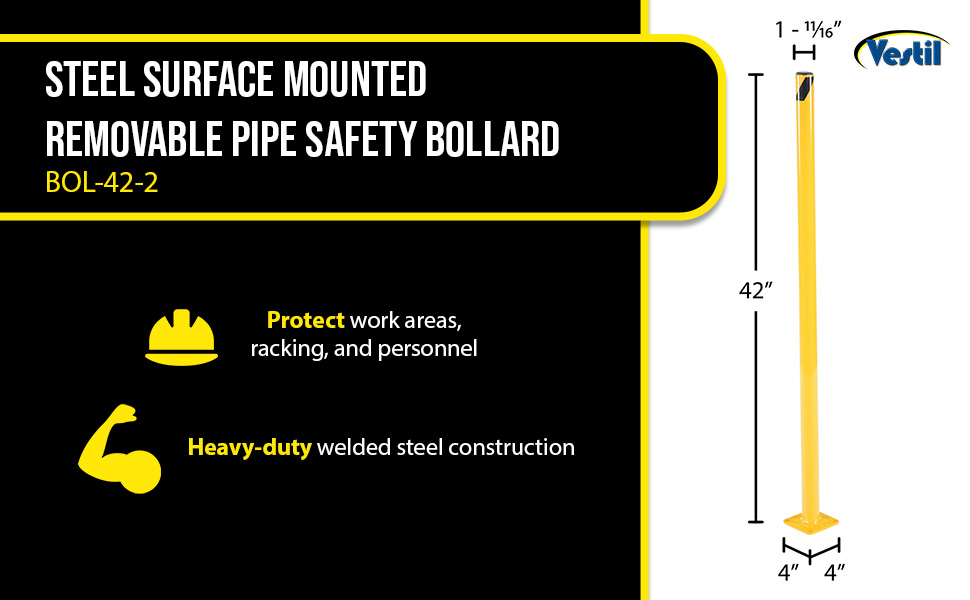

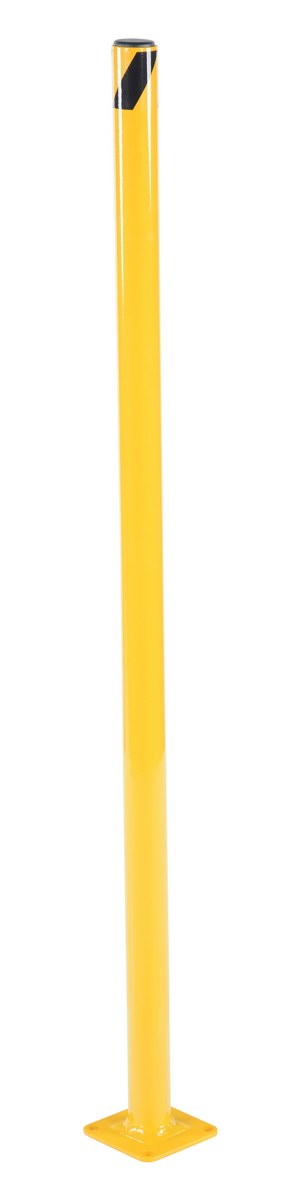

Steel Pipe Safety Bollard 42 In. x 1-3/4 In. Yellow

Anchor Bolt: AS-383
Anchor Bolt Kit: AS-383-4PK

90 Days Limited Warranty

Steel Pipe Safety Bollard 42 In. x 4-1/2 In. Yellow

Anchor Bolt: AS-344
Anchor Bolt Kit: AS-344-4PK

90 Days Limited Warranty

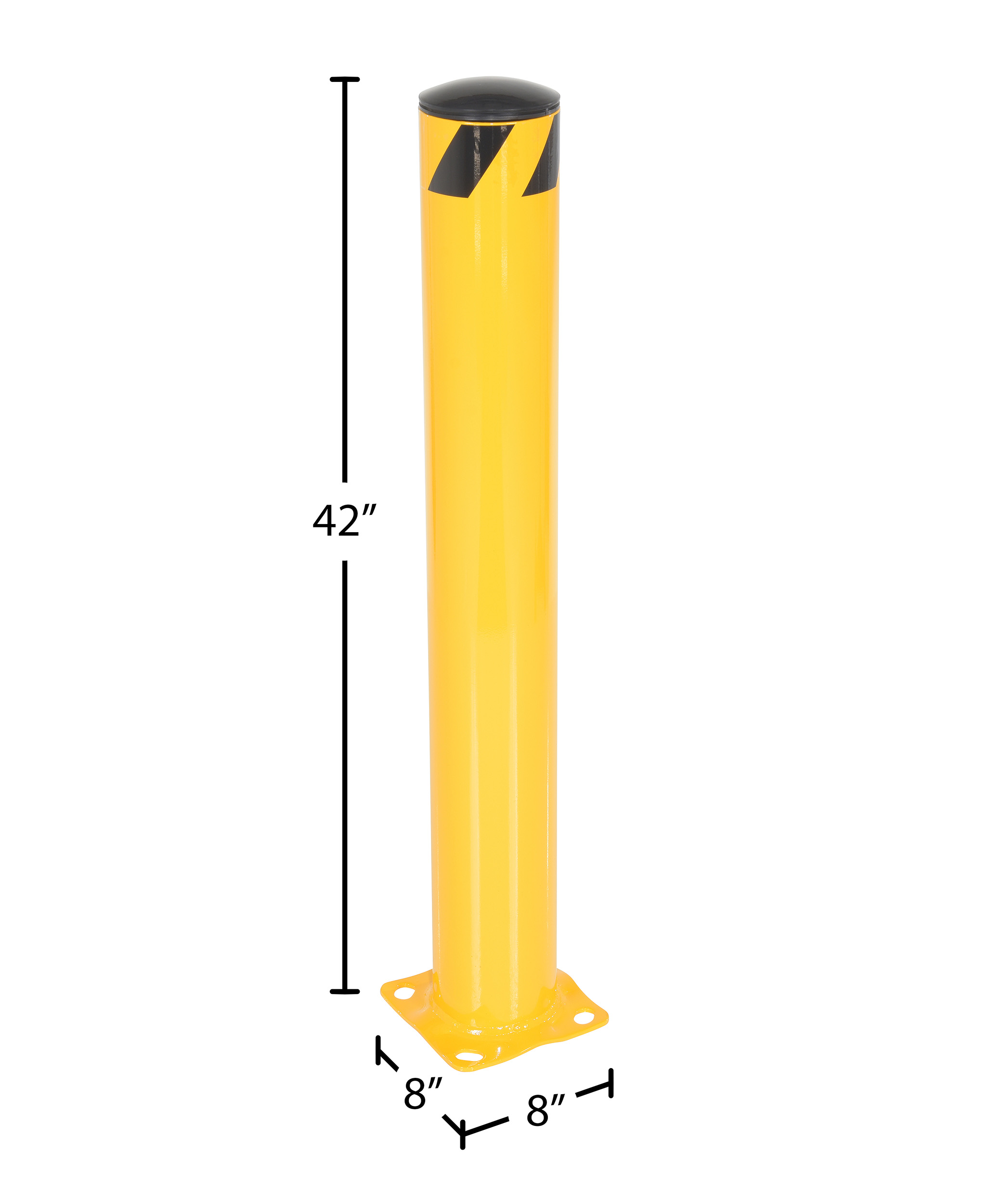

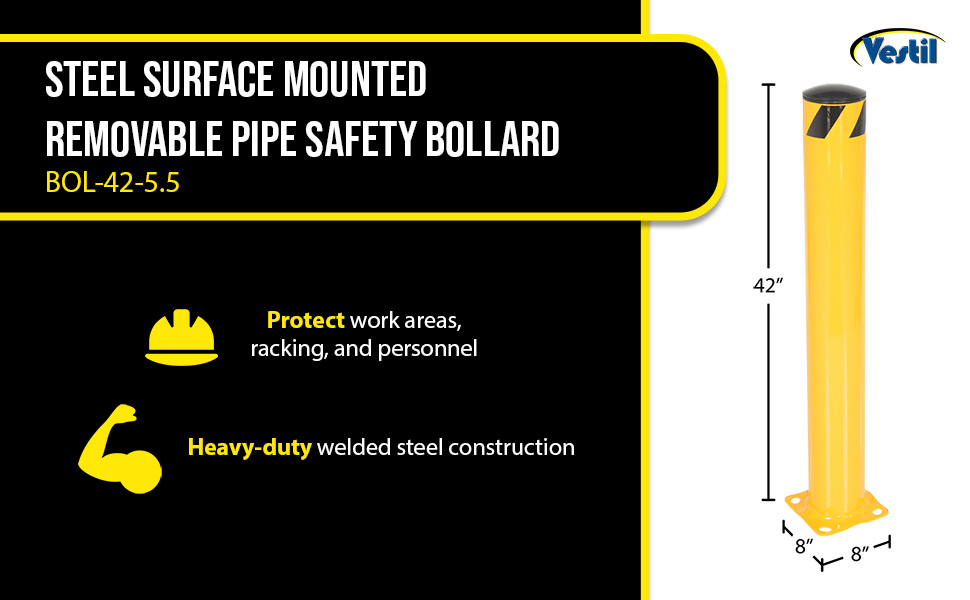

Steel Pipe Safety Bollard 42 In. x 5-1/2 In. Yellow

Anchor Bolt: AS-344
Anchor Bolt Kit: AS-344-4PK

90 Days Limited Warranty

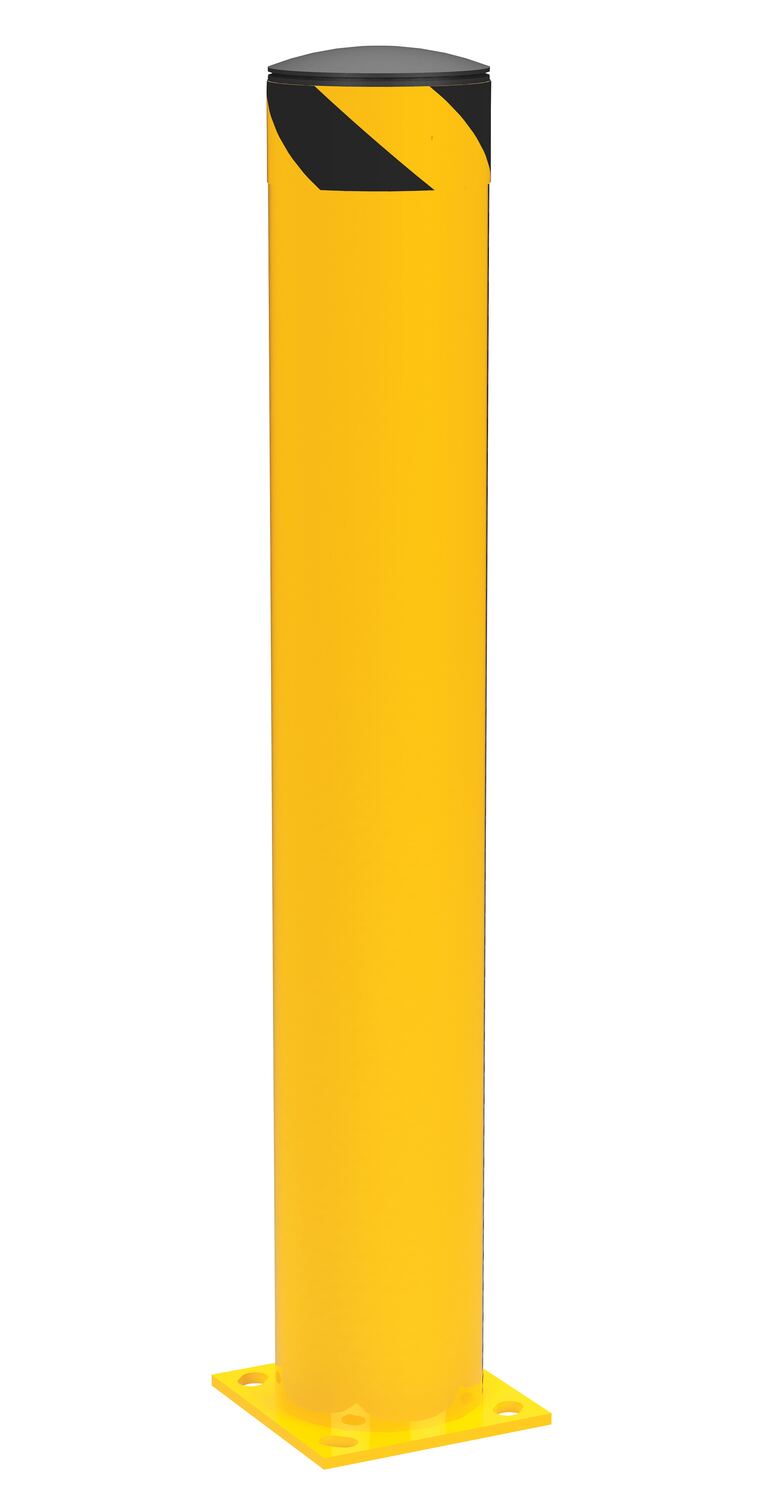

Steel Pipe Safety Bollard 42 In. x 6-1/2 In. Yellow

Anchor Bolt: AS-344
Anchor Bolt Kit: AS-344-4PK

90 Days Limited Warranty

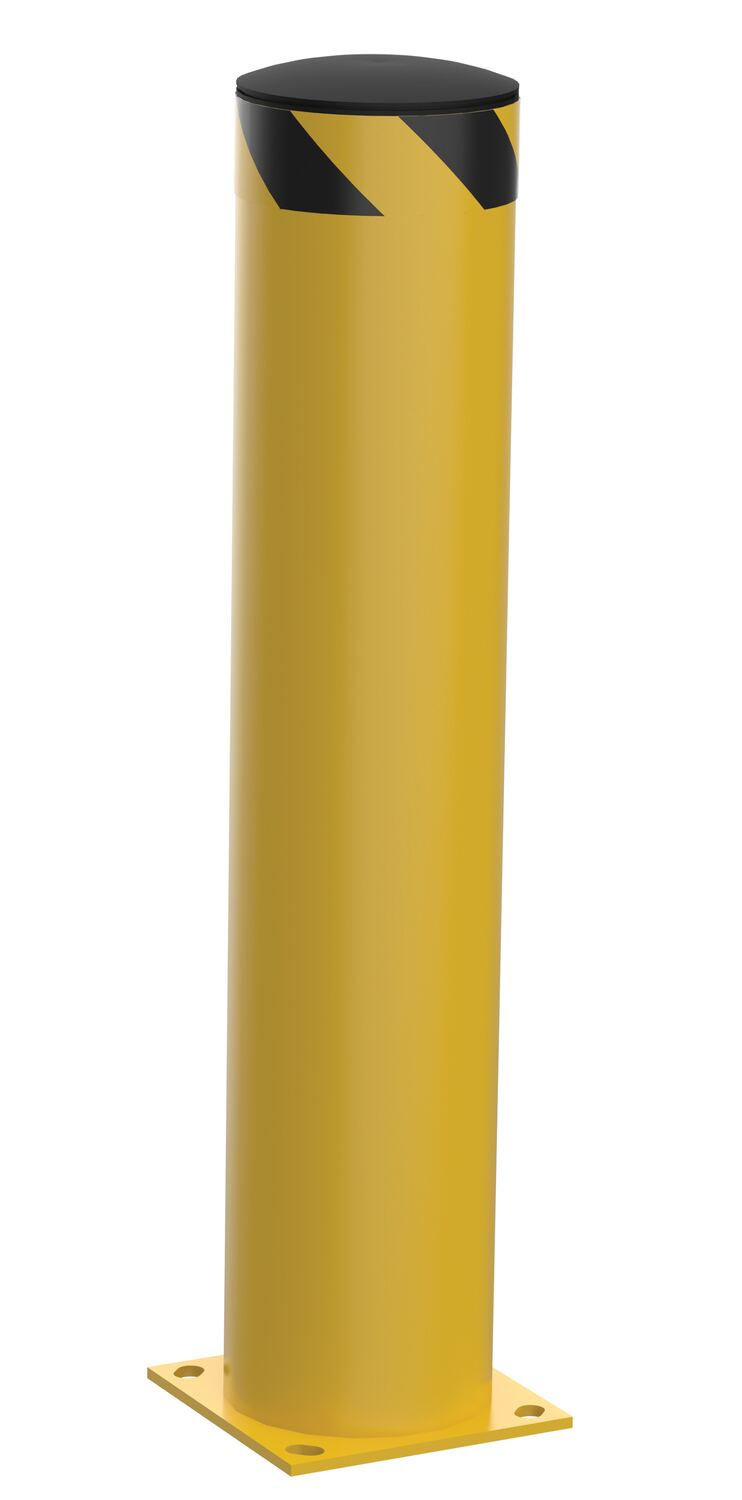

Steel Pipe Safety Bollard 42 In. x 8-1/2 In. Yellow

Anchor Bolt: AS-344
Anchor Bolt Kit: AS-344-4PK

90 Days Limited Warranty

Steel Pipe Safety Bollard 48 In. x 1-3/4 In. Yellow

Anchor Bolt: AS-383
Anchor Bolt Kit: AS-383-4PK

90 Days Limited Warranty

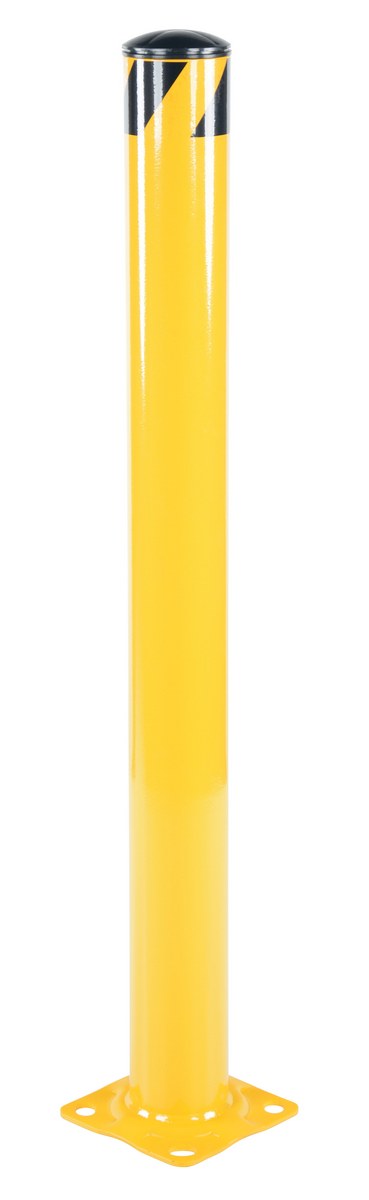

Steel Pipe Safety Bollard 48 In. x 4-1/2 In. Yellow

Anchor Bolt: AS-344
Anchor Bolt Kit: AS-344-4PK

90 Days Limited Warranty

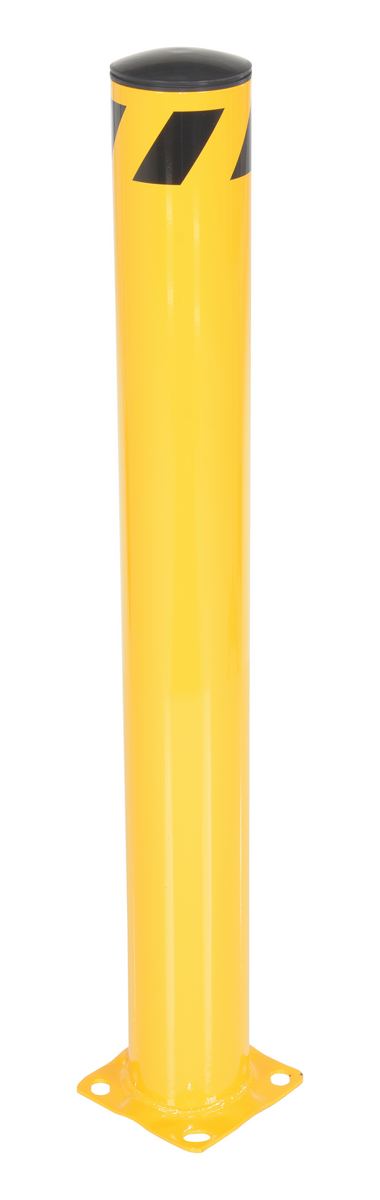

Steel Pipe Safety Bollard 48 In. x 5-1/2 In. Yellow

Anchor Bolt: AS-344
Anchor Bolt Kit: AS-344-4PK

90 Days Limited Warranty

Steel Pipe Safety Bollard 48 In. x 6-1/2 In. Yellow

Anchor Bolt: AS-344
Anchor Bolt Kit: AS-344-4PK

90 Days Limited Warranty

Steel Pipe Safety Bollard 48 In. x 8-1/2 In. Yellow

Anchor Bolt: AS-344
Anchor Bolt Kit: AS-344-4PK

90 Days Limited Warranty

Steel Pipe Safety Bollard 62 In. x 4-1/2 In. Yellow

Anchor Bolt: AS-344
Anchor Bolt Kit: AS-344-4PK

90 Days Limited Warranty

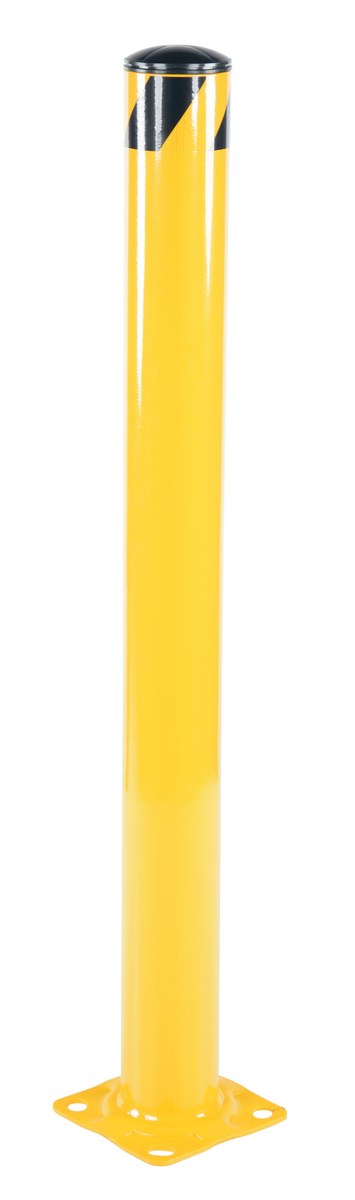

Steel Pipe Safety Bollard 62 In. x 5-1/2 In. Yellow

Anchor Bolt: AS-344
Anchor Bolt Kit: AS-344-4PK

90 Days Limited Warranty

Steel Pipe Safety Bollard 62 In. x 6-1/2 In. Yellow

Anchor Bolt: AS-344
Anchor Bolt Kit: AS-344-4PK

90 Days Limited Warranty

Steel Pipe Safety Bollard 72 In. x 4-1/2 In. Yellow

Anchor Bolt: AS-344
Anchor Bolt Kit: AS-344-4PK

90 Days Limited Warranty

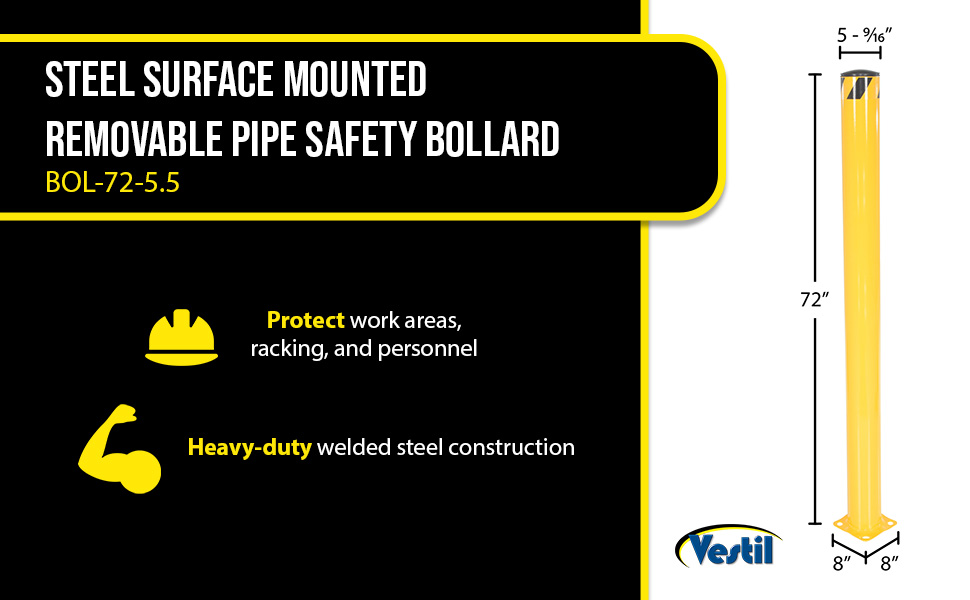

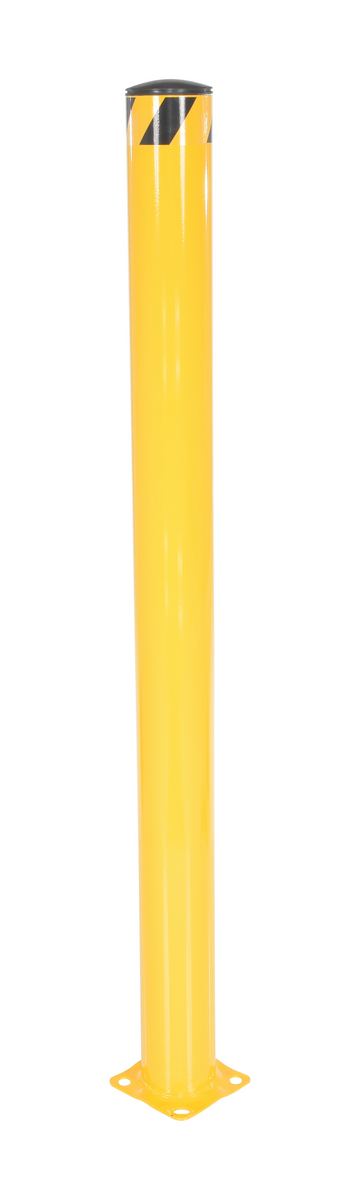

Steel Pipe Safety Bollard 72 In. x 5-1/2 In. Yellow

Anchor Bolt: AS-344
Anchor Bolt Kit: AS-344-4PK

90 Days Limited Warranty

Steel Pipe Safety Bollard 72 In. x 6-1/2 In. Yellow

Anchor Bolt: AS-344
Anchor Bolt Kit: AS-344-4PK

For More Details of the Option Click the Red Model Button

Model	Image	Description	WT.
BOL-CAP-1.75-P		Plastic Bollard Cap Replacement For Schedule 40 Steel 1-1/4 In. Pipe Black	2
BOL-CAP-4.5-P		Plastic Bollard Cap Replacement For Schedule 10 Steel 4 In. Pipe Black	2
BOL-CAP-5.5-P		Plastic Bollard Cap Replacement For Schedule 10 Steel 5 In. Pipe Black	2
BOL-CAP-6.5-P		Plastic Bollard Cap Replacement For Schedule 10 Steel 6.5 In. Pipe Black	2
BOL-CAP-8.5-P		Plastic Bollard Cap Replacement For Schedule 10 Steel 8.55 In. Pipe Black	3
AS-383		Concrete (1) 3/8"x 3" Anchor Bolts (1-3/4" units)	1
AS-383-4PK		Concrete (4) 3/8"x 3" Anchor Bolts (1-3/4" units)	4

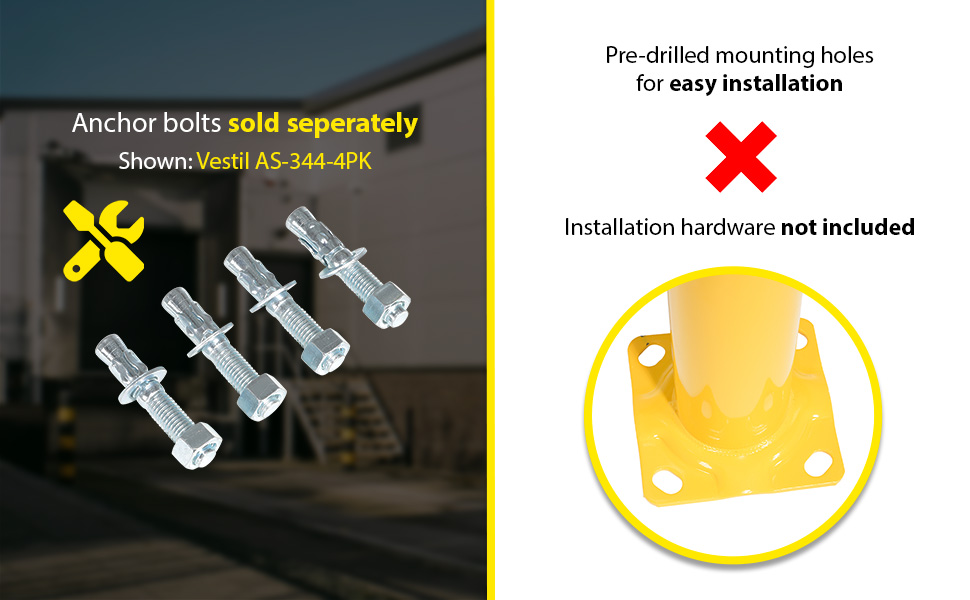

AS-344		Concrete (1) 3/4"x 4" Anchor Bolts (Other Units)	1
AS-344-4PK		Concrete (4) 3/4"x 4" Anchor Bolts (Other Units)	4
DCBB-B-KIT		Steel Dock Chain Barrier Bollard Conversion Hardware Kit Yellow	2
BOL-CHAIN		Steel Barrier System Chain 3/16 In. Sold Per Foot Yellow	2

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above

Steel Pipe Safety Bollards PDF's will open in a new window when clicked.

Manuals

BOL
Owners Manual

Survey Sheets

No Survey Sheets For This Product

Approval Drawings

BOL-24-2

BOL-24-4.5

BOL-24-5.5

BOL-36-2

BOL-36-4.5

BOL-36-5.5

BOL-36-6.5

BOL-36-8.5

BOL-42-2

BOL-42-4.5

BOL-42-5.5

BOL-42-6.5

BOL-42-8.5

BOL-48-2

BOL-48-4.5

BOL-48-5.5

BOL-48-6.5

BOL-48-8.5

BOL-62-4.5

BOL-62-5.5

BOL-62-6.5

BOL-72-4.5

BOL-72-5.5

BOL-72-6.5

Testing Certificates

BOL-24-2

BOL-24-4.5

BOL-24-5.5

BOL-36-2

BOL-36-4.5

BOL-36-5.5

BOL-36-6.5

BOL-36-8.5

BOL-42-2

BOL-42-4.5

BOL-42-5.5

BOL-42-6.5

BOL-42-8.5

BOL-48-2

BOL-48-4.5

BOL-48-5.5

BOL-48-6.5

BOL-48-8.5

BOL-62-4.5

BOL-62-5.5

BOL-62-6.5

BOL-72-4.5

BOL-72-5.5

BOL-72-6.5

SDS Sheets

No SDS Sheets For This Product

Other PDF's

Parking Lot Safety Mailing Brochure

Directory Links Of Available PDF's For All Products

Q: What is the schedule of the bollard?

A: The 2" bollard is 1 1/4" schedule-10 pipe. (.109" wall)

Q: What is the schedule of the bollard?

A: The 4.5" bollard is 4" schedule-10 pipe. (.120" wall)

Q: What is the schedule of the bollard?

A: The 5.5" bollard is 5" schedule-10 pipe. (.134" wall)

Q: What is the schedule of the bollard?

A: The 6.5" bollard is 6" schedule-10 pipe. (.134" wall)

Q: What is the schedule of the bollard?

A: The 8.5" bollard is 8" schedule-10 pipe. (.148" wall)

Q: What metal are the anchor bolts ?

A: The anchor bolts are zinc plated steel.

Q: What is the impact rating of the bollard?

A: The impact rating for the bollard is 4,000 lbs. force at 4 MPH

Q: What is the impact rating of the bollard?

A: The 5.5" bollard has an impact rating of 4,000 lbs. force at 4 MPH.

Q: What is the impact rating of the bollard?

A: The bollard has an impact rating of 4,000 lbs. of force at 4 MPH.

Q: What is the center to center measurement in the bolt pattern please?

A: The center to center measurement in the bolt pattern is 6".

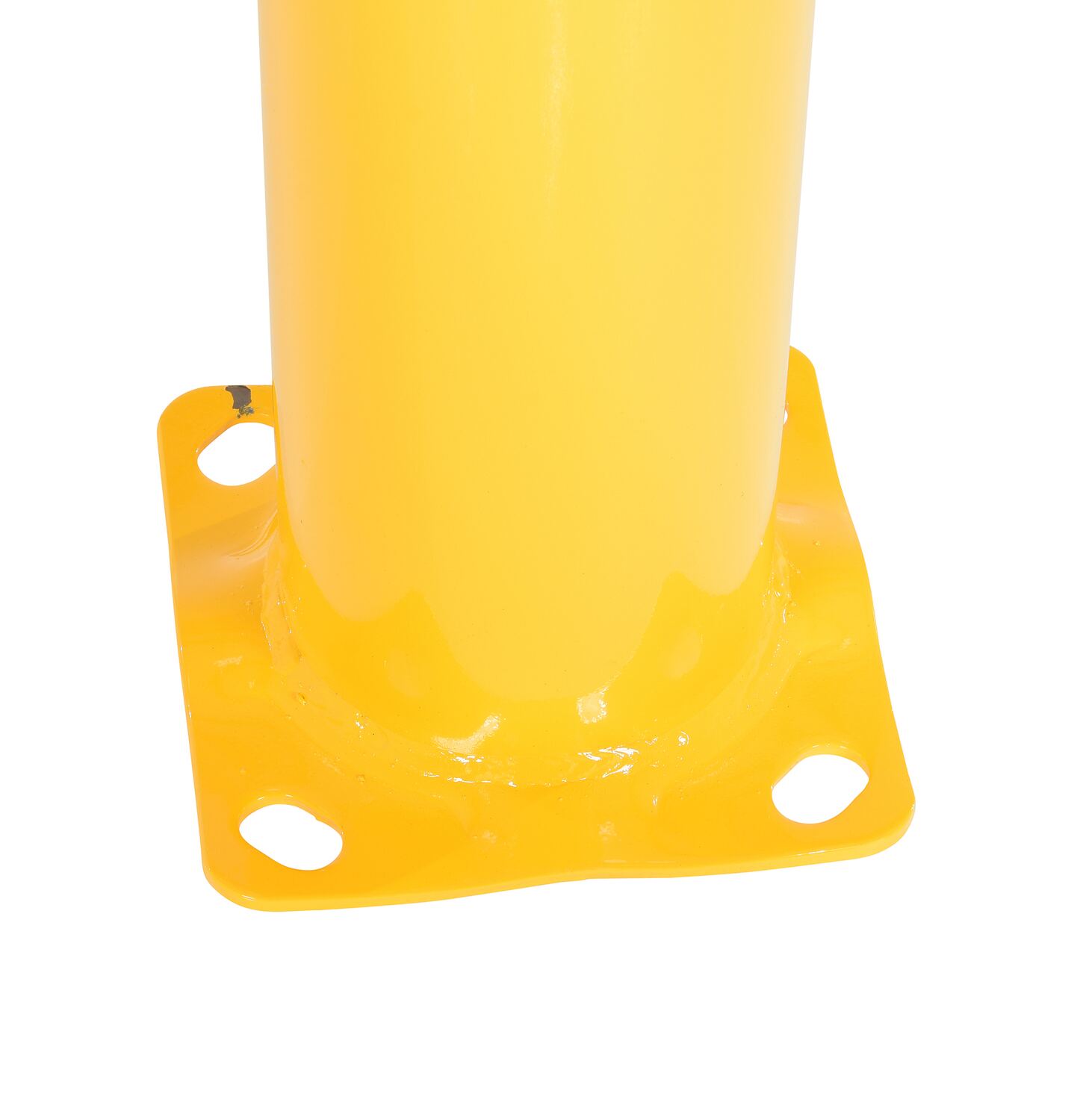

Q: What size footing must I pour to mount this on?

A: Outside diameter is 4.5 inches and base is 8" x 8" and the thickness is 0.625 inches. We recommend a 4 in minimum footing.

Q: Is it hollow? And if so, what is inside diameter??

A: Yes and inside diameter is 5.25".

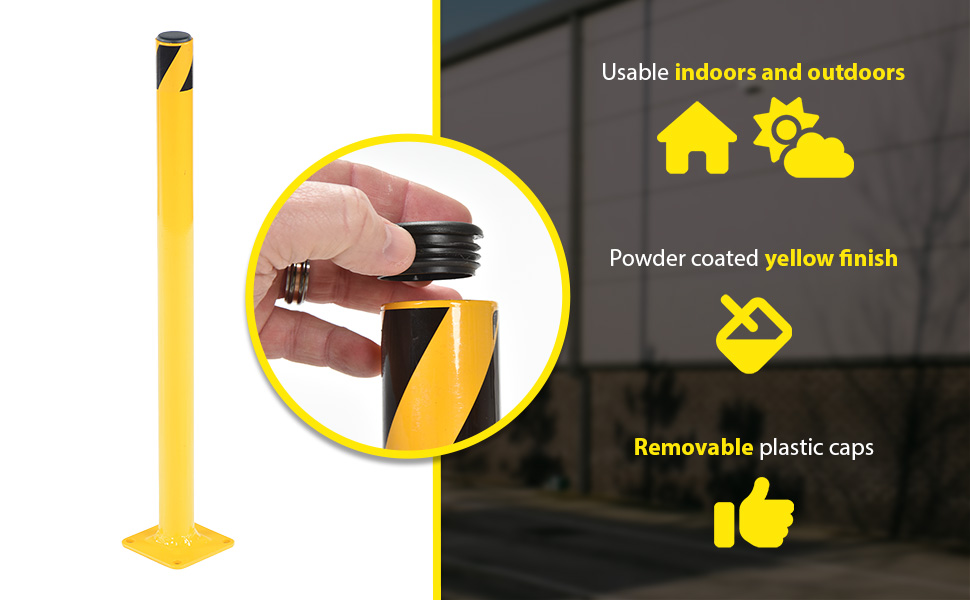

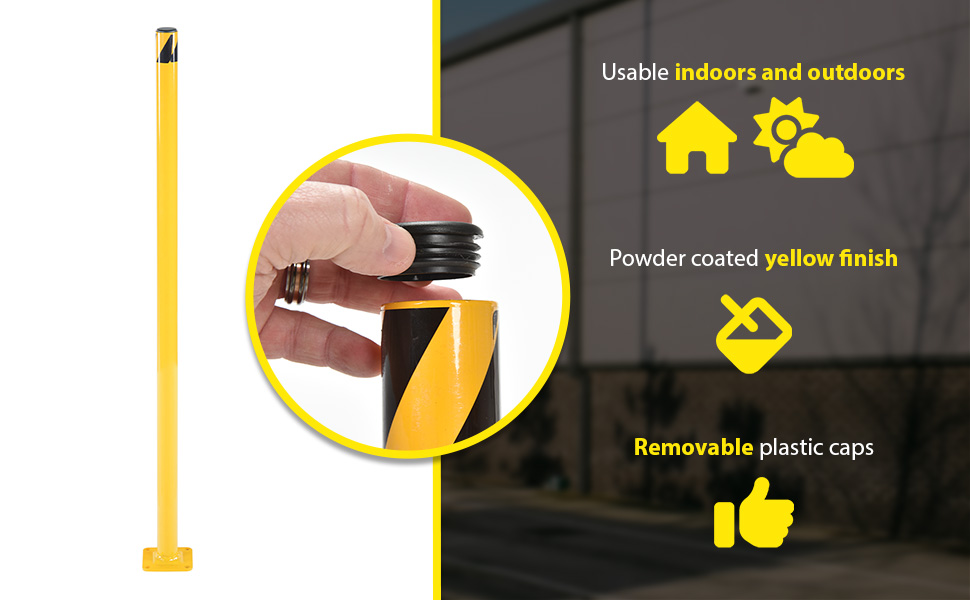

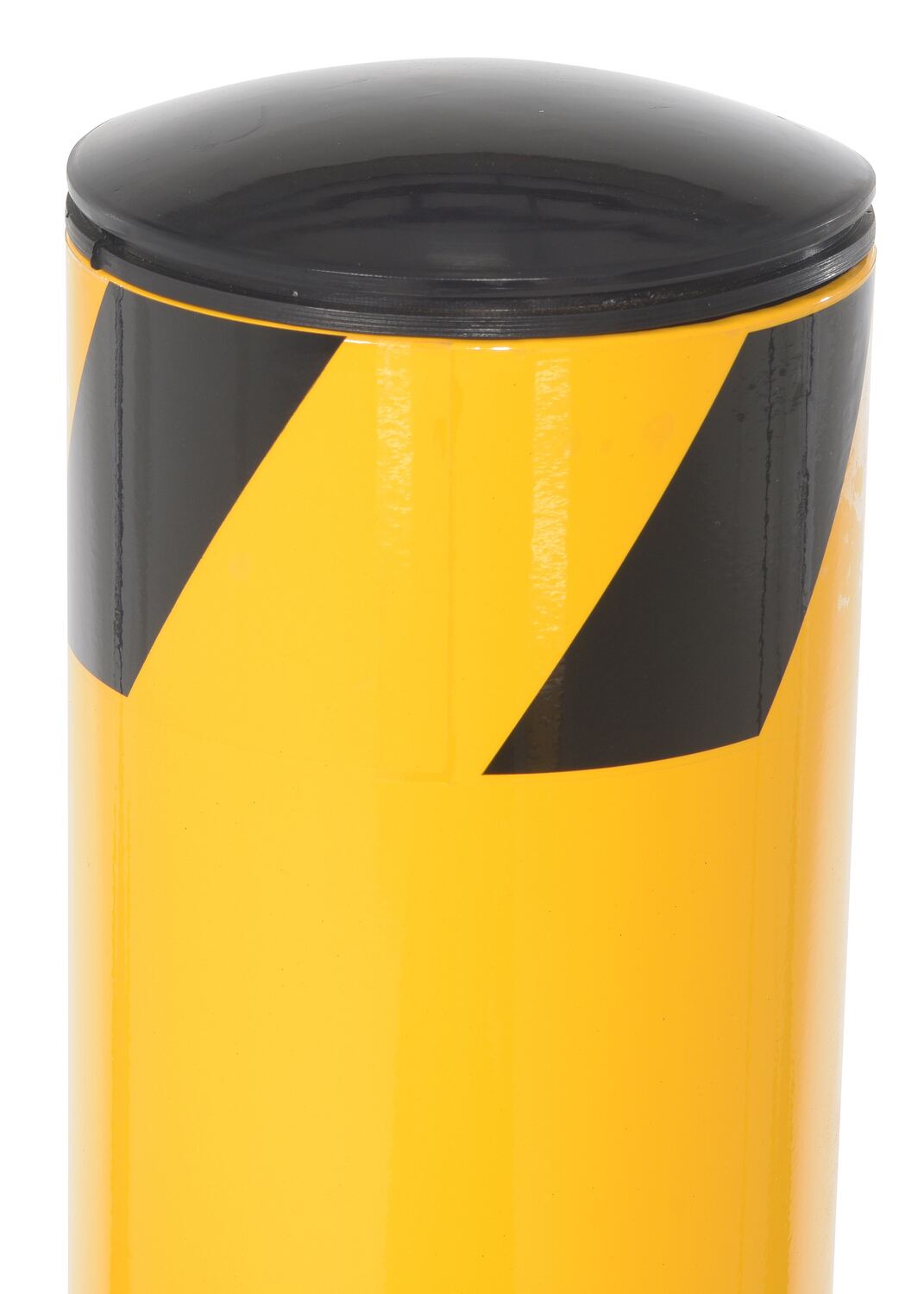

Q: is the cap removable to add concrete inside the pipe?

A: Cap is removable and made of plastic. Powder coat finish for baked in added toughness.
