Product Family Overview

Print Friendly

Cargo Bars

SERIES: CB,EB,CL,CH

Keep trailer contents in place -- eliminate damaged goods

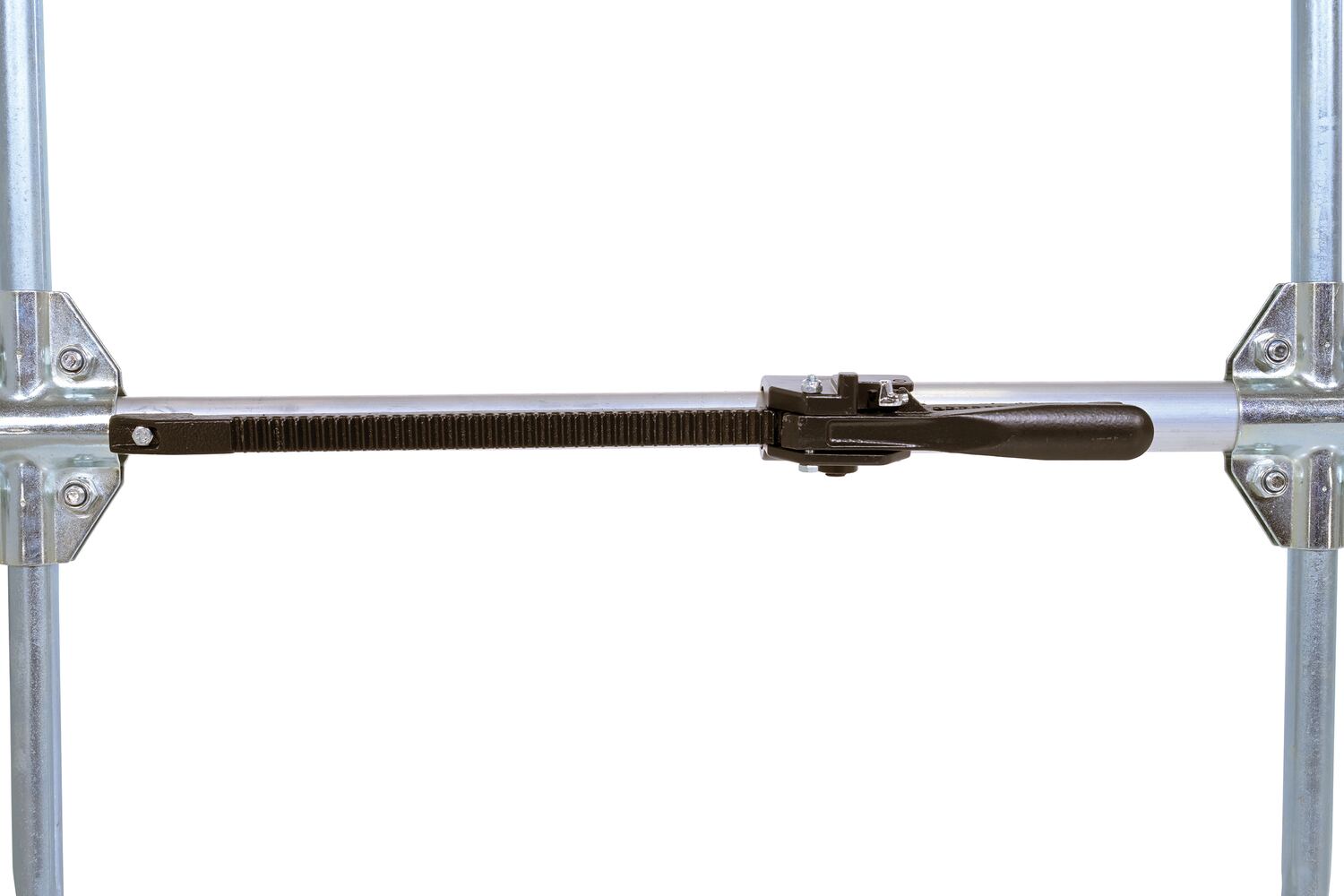

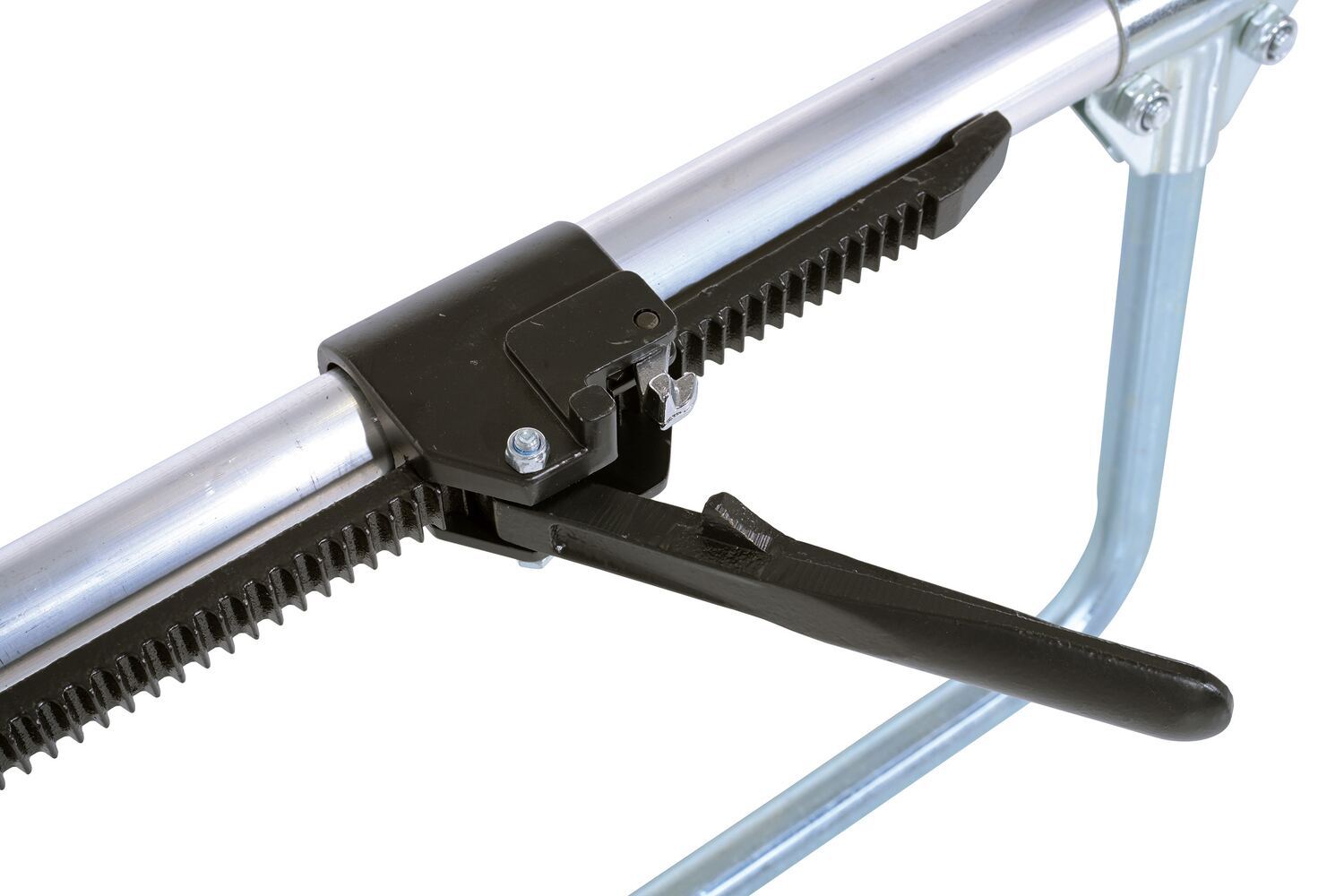

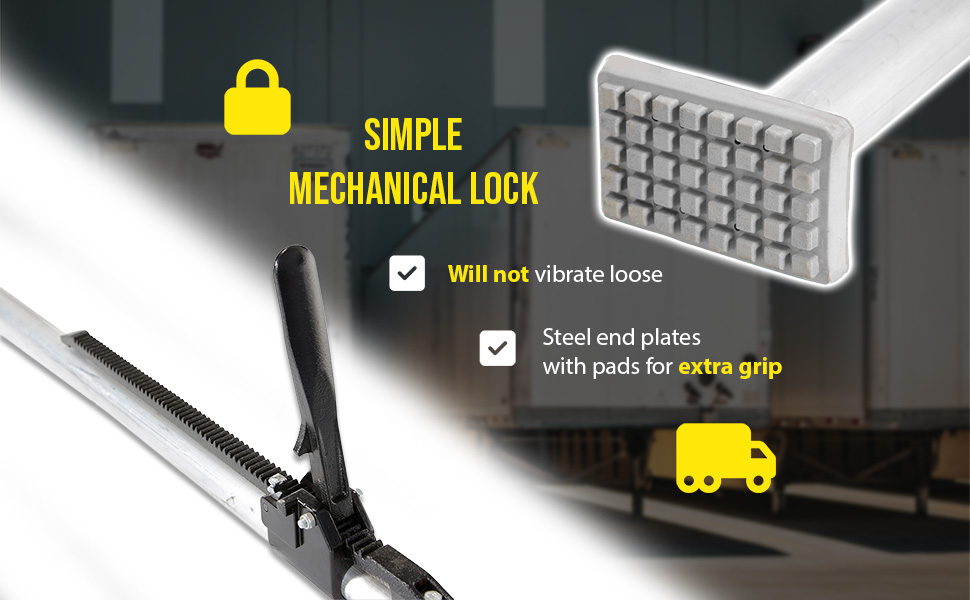

Simple mechanical lock - will not vibrate loose

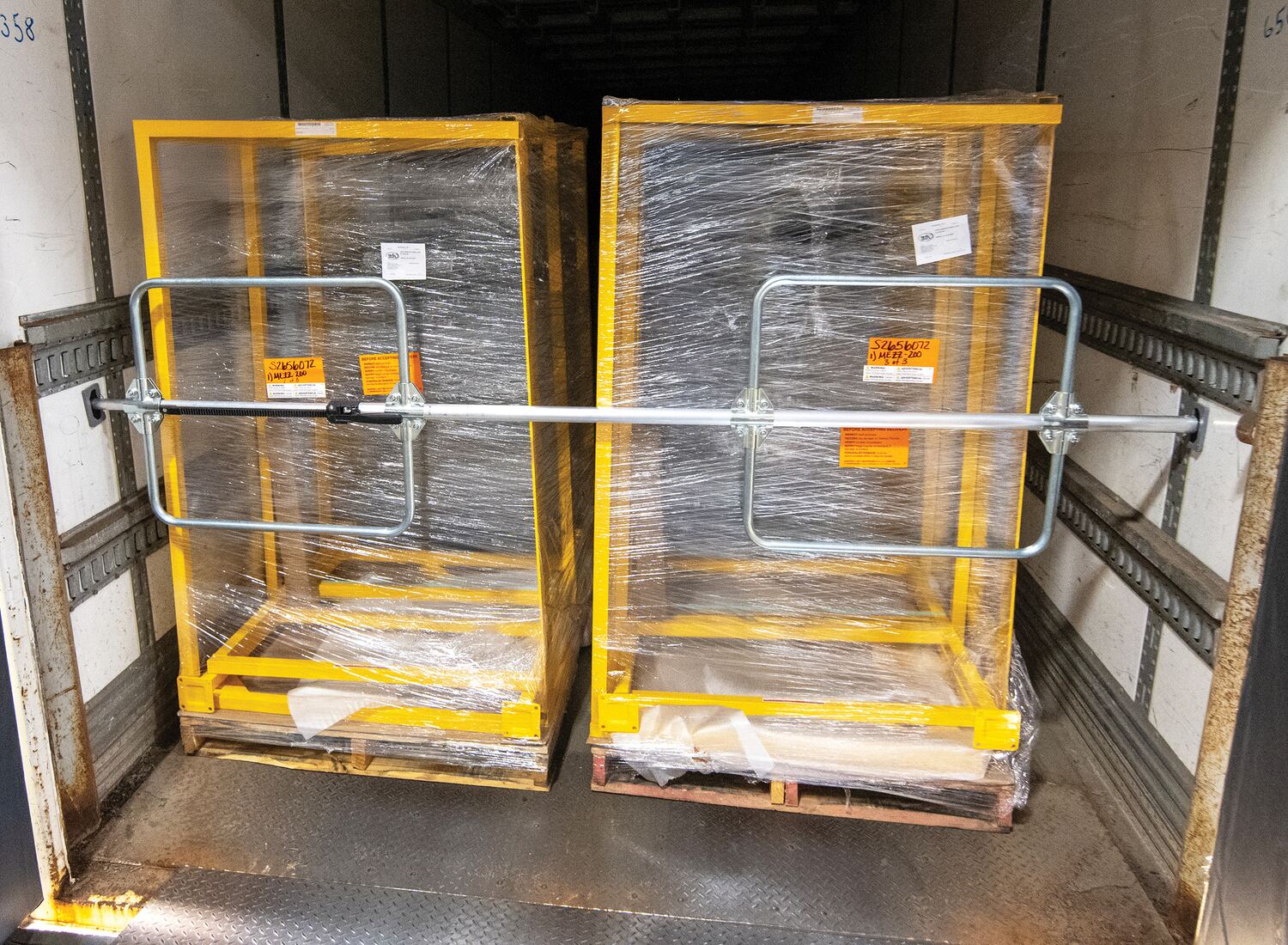

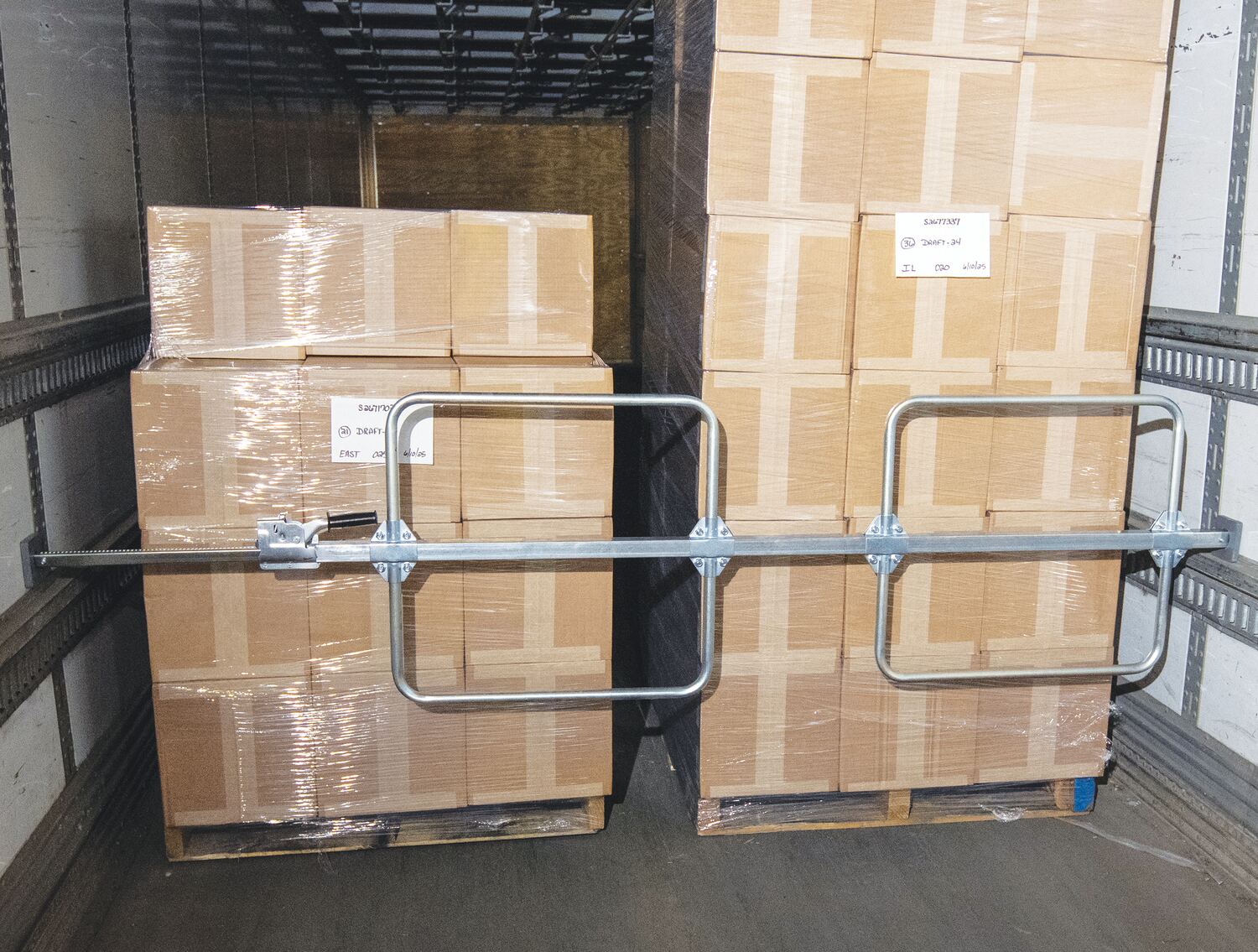

During transport, keep trailer contents securely in place with these easy to use Cargo Bars. Constructed of 1-1/2." square tubing, unless specified. Wall construction is lightweight, yet extremely strong. Square articulating steel end plates feature rubber pads for positive gripping action. End plates measure 4" x 4" on models CL-15, CL-16, CL-17 & CL-20. End plates measure 4" x 2-3/8" on model CB-5, CB-7 & CB-7-S and 3-3/4." x 3-3/4." on model CL-18. End plates measure 2-3/8" x 3" on model CB-PU-3. Bars fit between trailer walls.

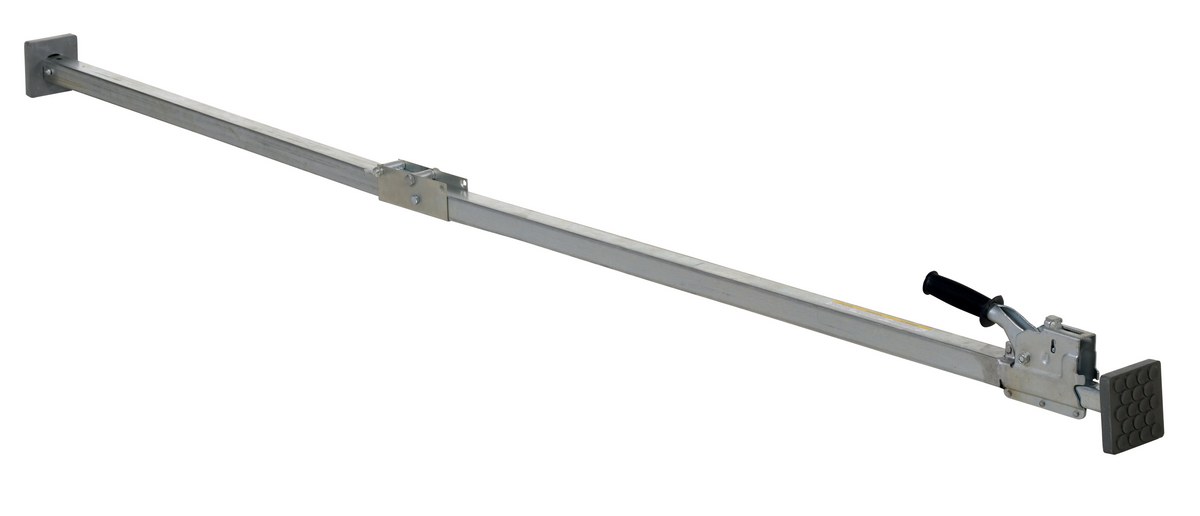

model CL-17 shown in use

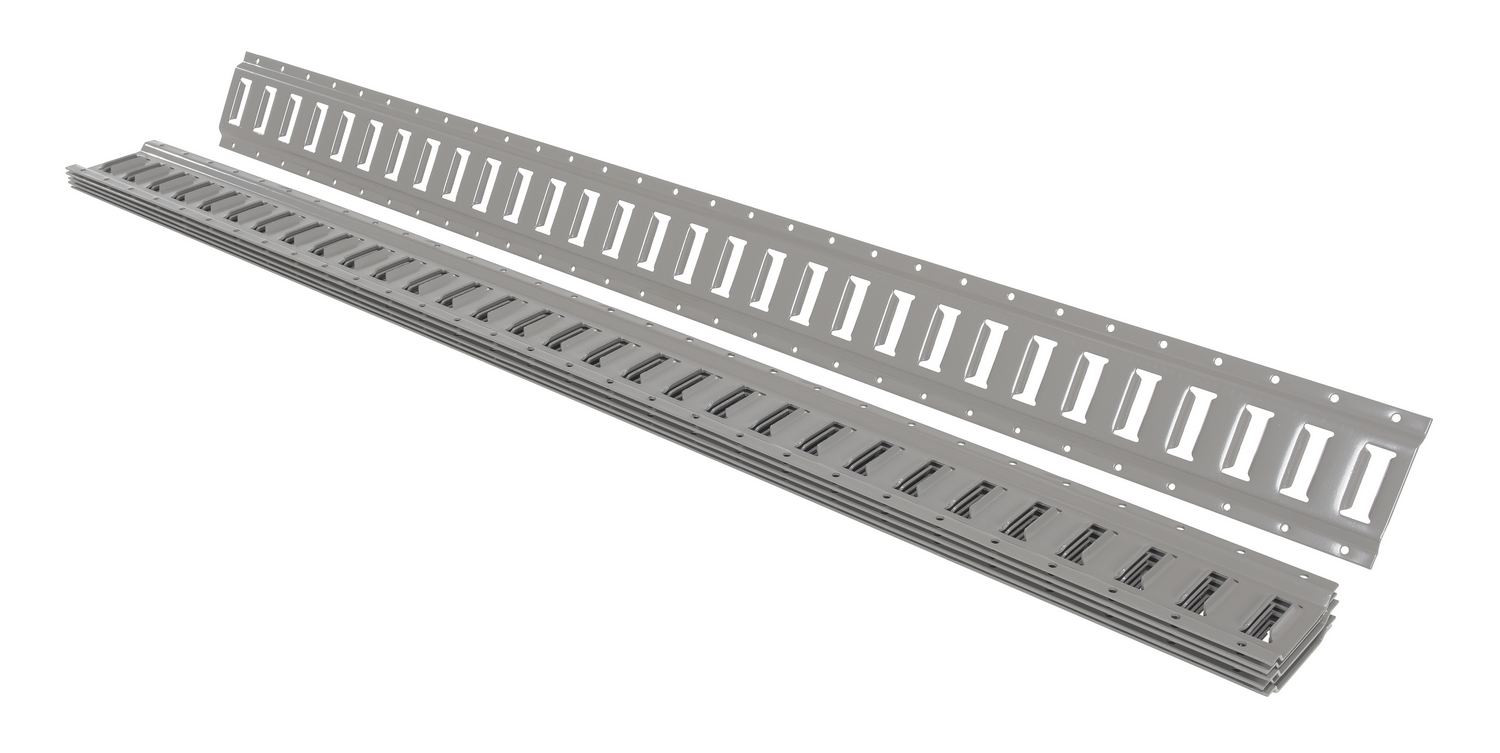

E-TRACK:
The E-track is a great benefit to shipping and cargo loads. With a steel construction the track allows additional bars to become attached to it. Once, the additional bars are in place the shifting of items becomes minimized. The track design lets the user choose from an array of ports for precise placement. E-TRACK Cargo Bar Assist Tool also available.

Keep trailer contents in place -- eliminate damaged goods
Simple mechanical lock - will not vibrate loose

During transport, keep trailer contents securely in place with these easy to use Cargo Bars. Constructed of 1-1/2." square tubing, unless specified. Wall construction is lightweight, yet extremely strong. Square articulating steel end plates feature rubber pads for positive gripping action. End plates measure 4" x 4" on models CL-15, CL-16, CL-17 & CL-20. End plates measure 4" x 2-3/8" on model CB-5, CB-7 & CB-7-S and 3-3/4." x 3-3/4." on model CL-18. End plates measure 2-3/8" x 3" on model CB-PU-3. Bars fit between trailer walls.

model CL-17 shown in use

E-TRACK:
The E-track is a great benefit to shipping and cargo loads. With a steel construction the track allows additional bars to become attached to it. Once, the additional bars are in place the shifting of items becomes minimized. The track design lets the user choose from an array of ports for precise placement. E-TRACK Cargo Bar Assist Tool also available.

Other Cargo Restraints

Quilted Moving Pads

Cargo Strapping

Pallet Cargo Decker

Follow @vestilmfg

Additional Models In This Family
view entire Image Gallery

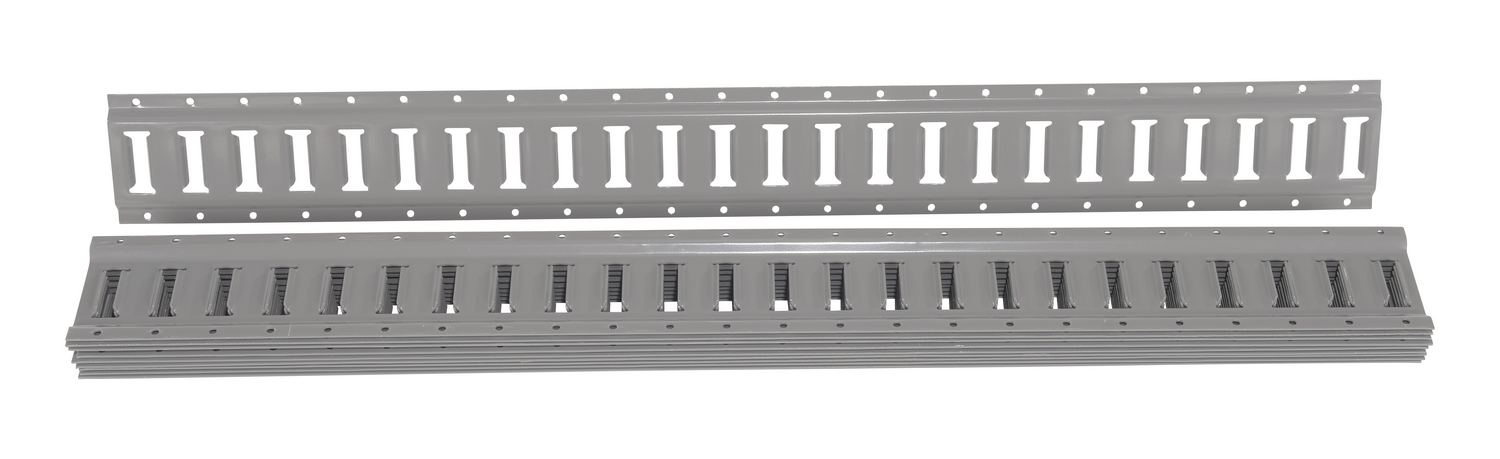

E-TRK-4-GY-4PK

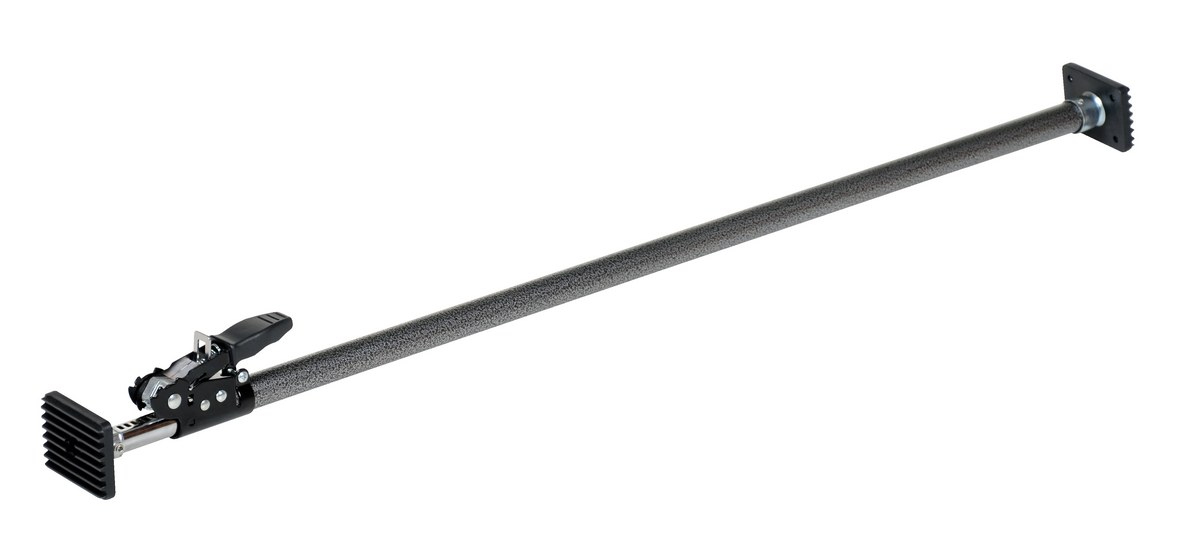

CB-PU-3

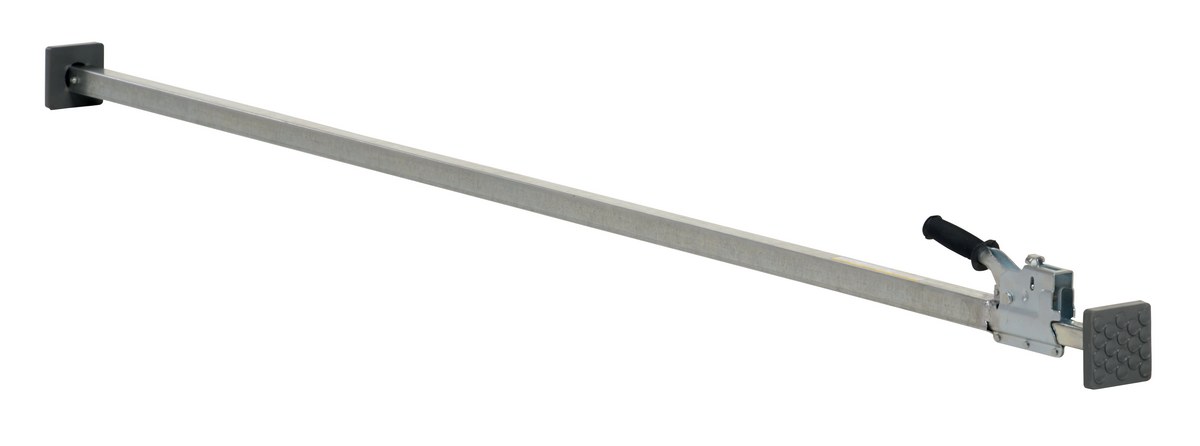

CL-15

E-TRK-10-ZN-2PK

E-TRK-10-ZN-2PK

E-TRK-5-GY-2PK

CB-7

E-TRK-4-GY-2PK

E-TRK-2-GY-10PK

E-TRK-2-GY-10PK

E-TRK-4-ZN-6PK

CL-20

E-TRK-5-GY-10PK

E-TRK-5-GY-10PK

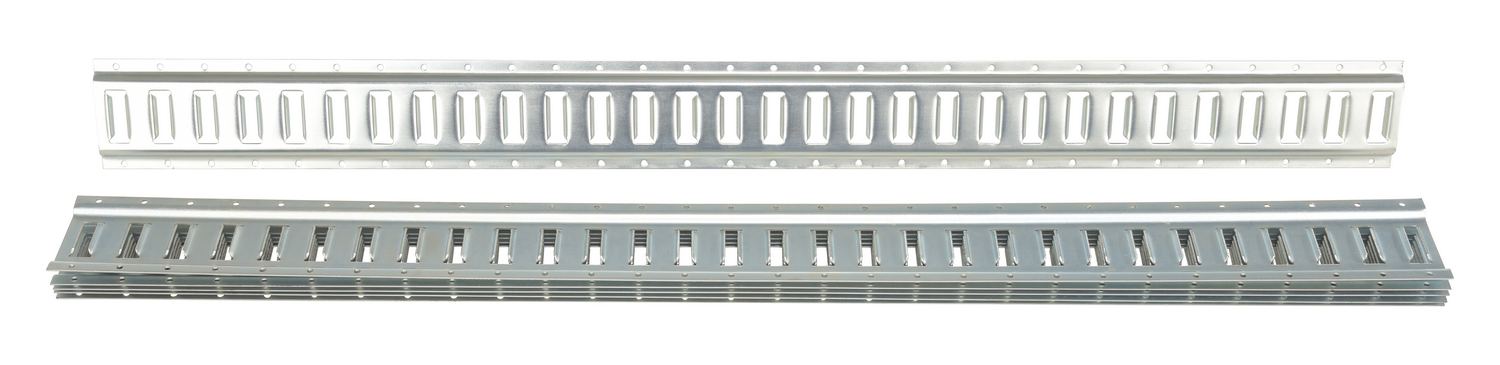

E-TRK-5-ZN-6PK

E-TRK-2-GY-4PK

EB-96

CL-18

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.

	Model #				Description	Attributes	Net Wt. (lbs)

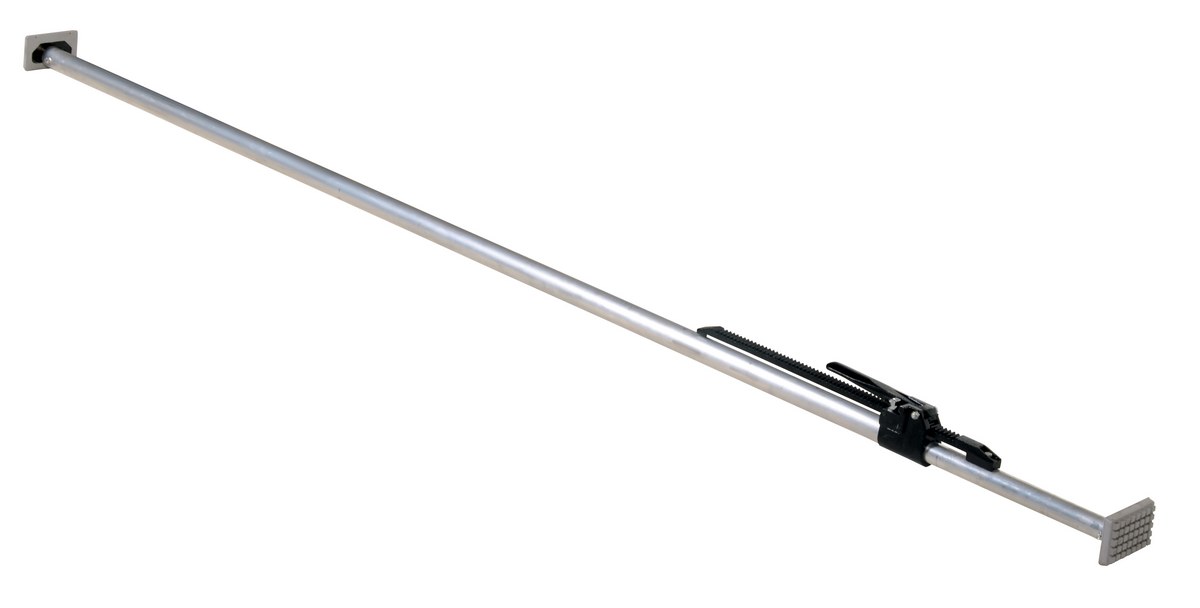

	CB-5			30 Days Limited Warranty	Aluminum Round Cargo Bar 88 In. to 103 In. Silver	Round Tubing Size (in.): 1-1/2 Wall Construction (gage): 14	13

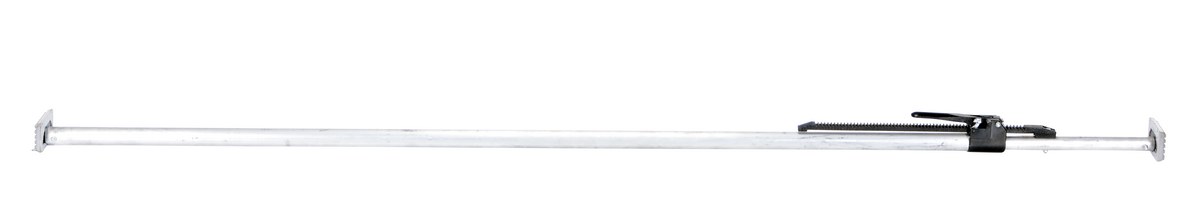

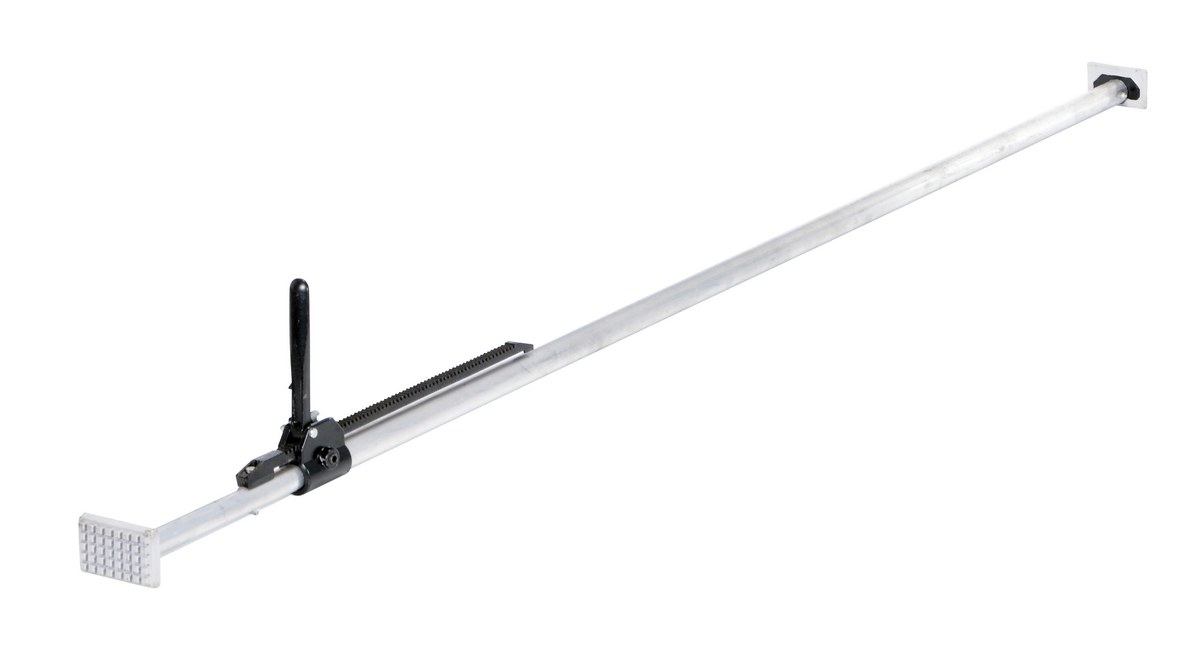

	CB-7			30 Days Limited Warranty	Heavy Duty Aluminum Round Cargo Bar 89 In. to 104 In. Silver	Round Tubing Size (in.): 1-1/2 Wall Construction (gage): 14	13

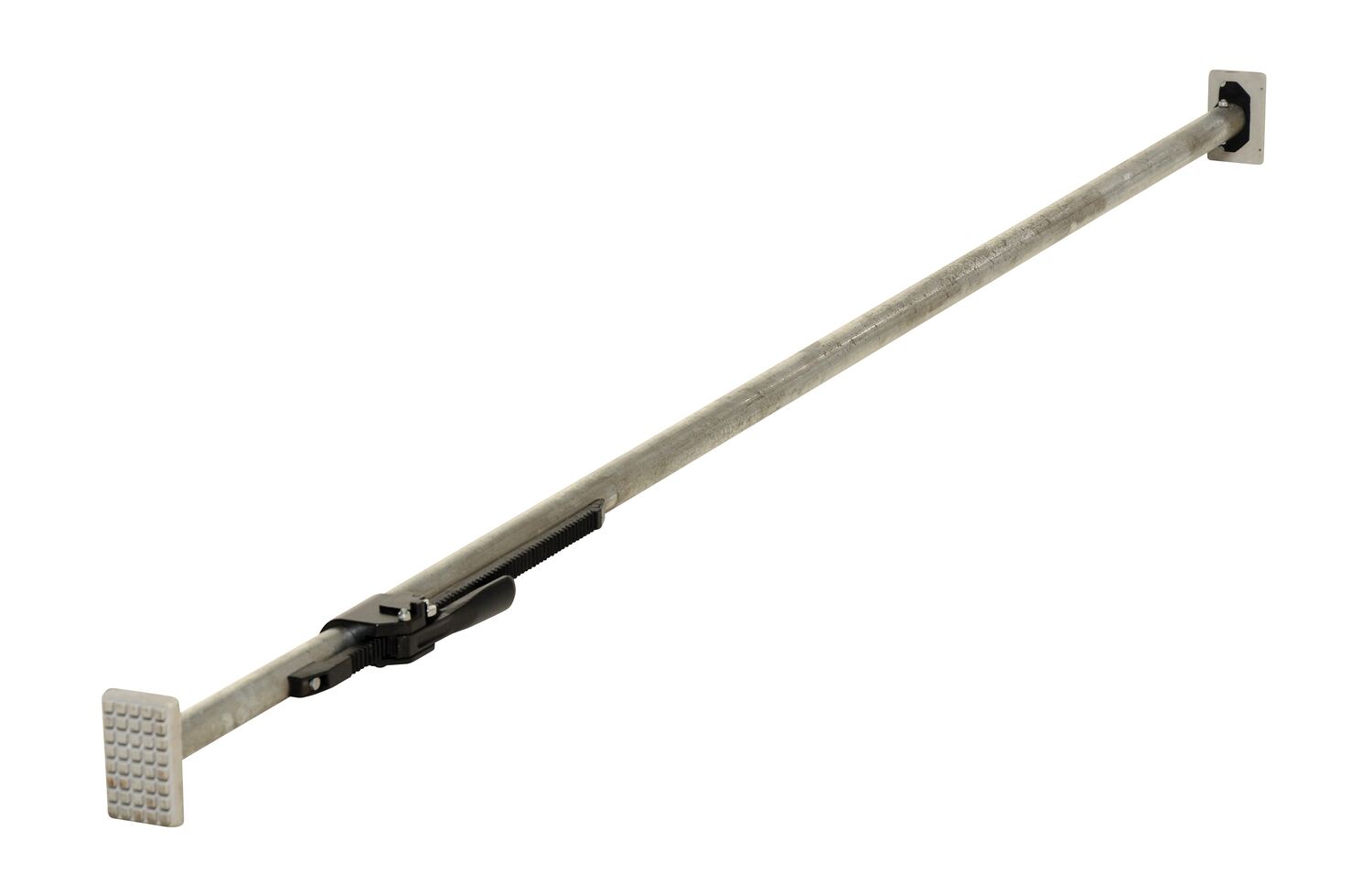

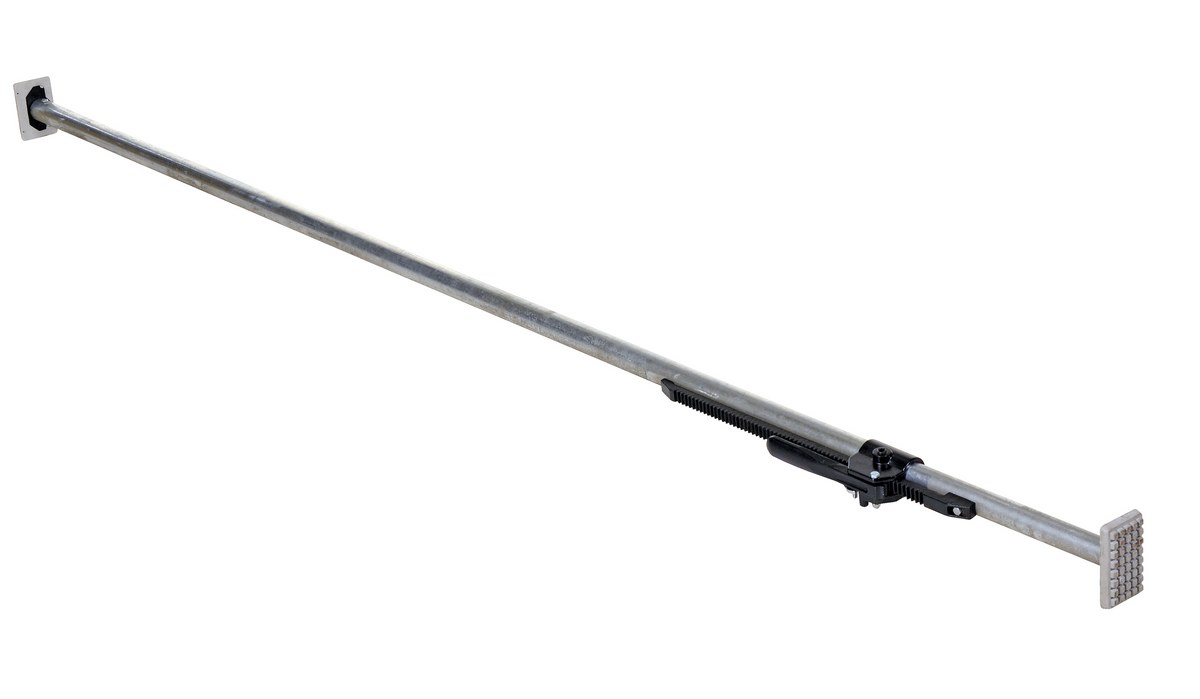

	CB-7-S			30 Days Limited Warranty	Heavy Duty Steel Round Tube Cargo Bar 89 In. to 104 In. Silver	Round Tubing Size (in.): 1-1/2 Wall Construction (gage): 14	12
	CB-PU-3			30 Days Limited Warranty	Steel Pick-Up Truck Cargo Bar 40 In. Gray	Service Range (in.): 40 to 70 End Pad Width (in.): 2-3/8	5

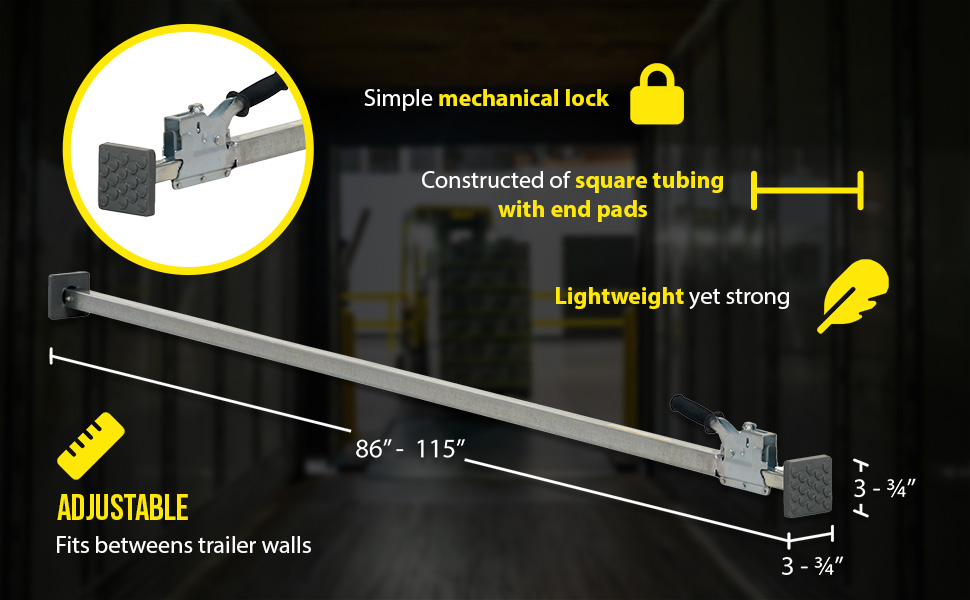

	CL-15			30 Days Limited Warranty	Steel One Piece Cargo Bar 87 In. to 119 In. Silver	Square Tubing Size (in.): 1-1/2 Wall Construction (gage): 14	15
	CL-16			30 Days Limited Warranty	Galvanized One Piece Cargo Bar 87 In. to 119 In. Gray	Square Tubing Size (in.): 1-1/2 Wall Construction (gage): 14	15
	CL-17			30 Days Limited Warranty	Steel Two Piece Folding Cargo Bar 88 In. to 116 In. Gray	Square Tubing Size (in.): 1-1/2 Wall Construction (gage): 14	17

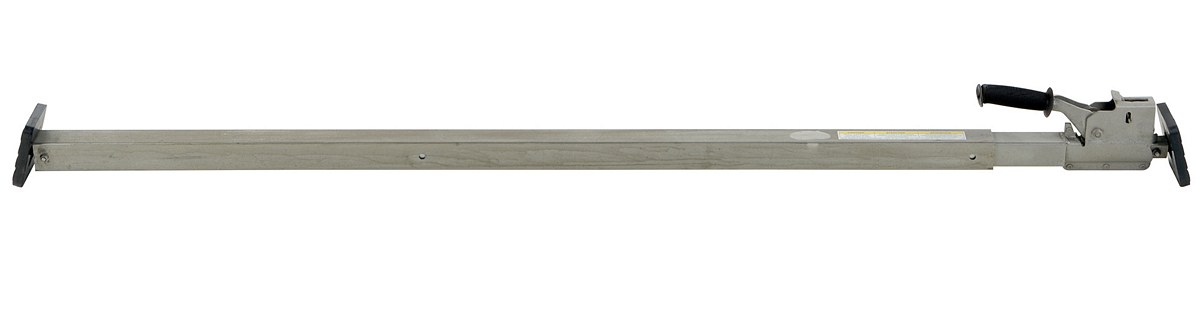

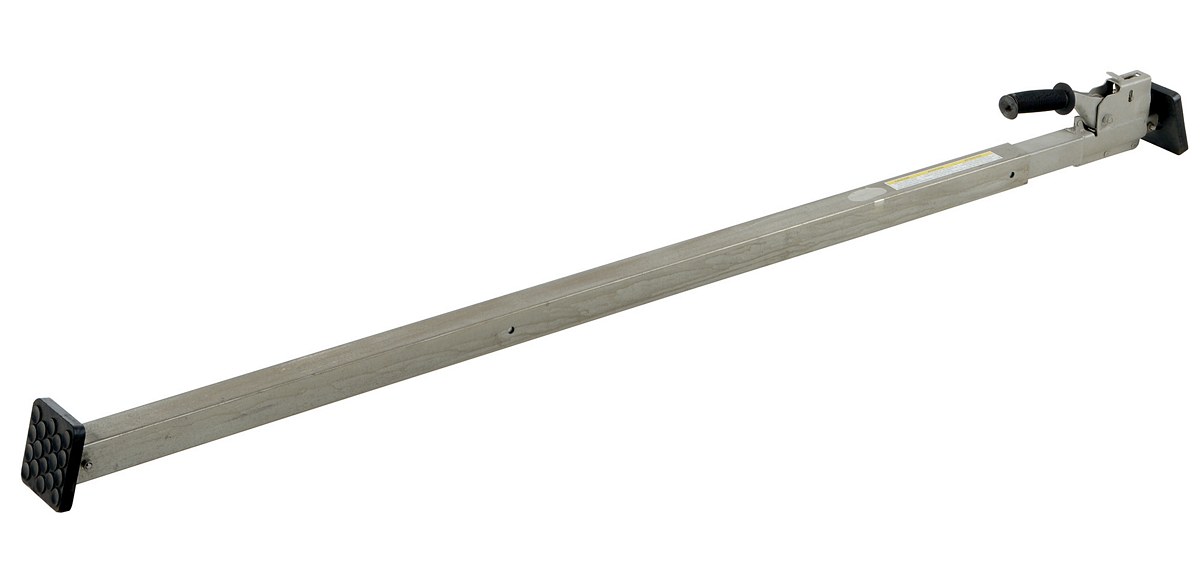

	CL-18			30 Days Limited Warranty	Galvanized Two Piece Telescopic Cargo Bar 90-3/8 In. to 139-9/16 In. Gray	Square Tubing Size (in.): 1-1/2 Wall Construction (gage): 14	25

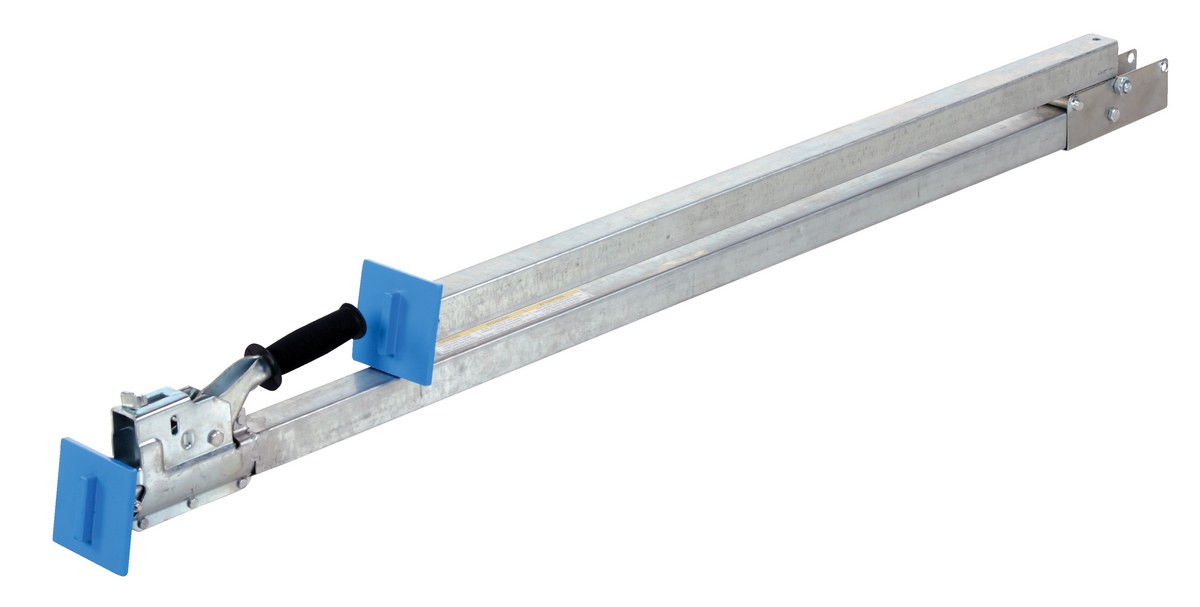

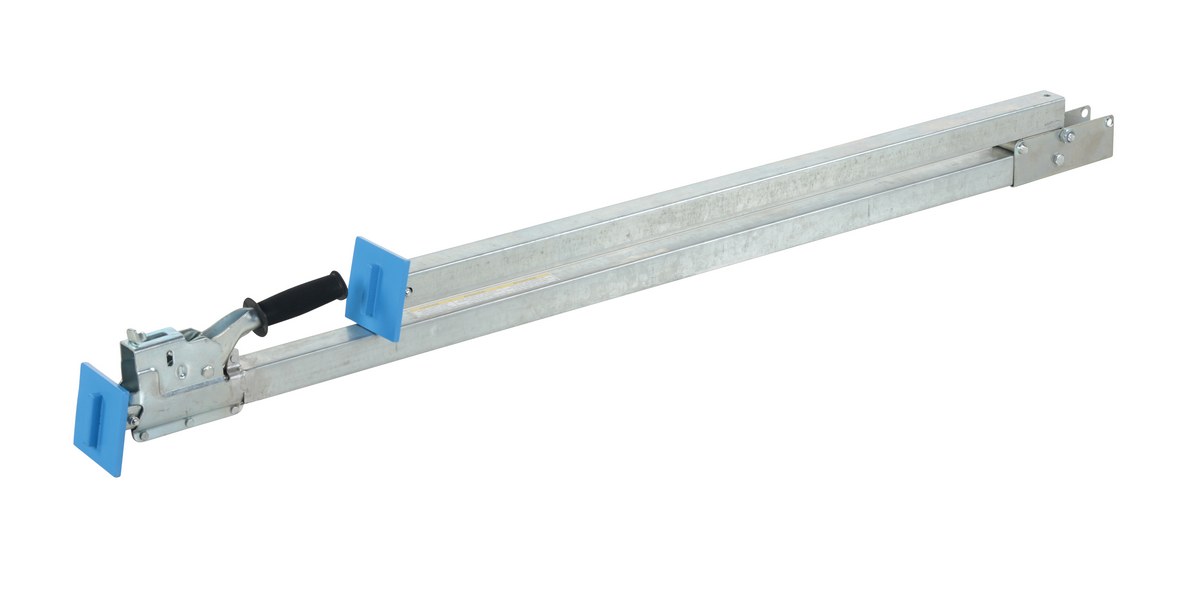

	CL-20			30 Days Limited Warranty	Steel Two Piece Cargo Bar for E & A Track 87 In. to 116 In. Silver	Square Tubing Size (in.): 1-1/2 Wall Construction (gage): 14	18

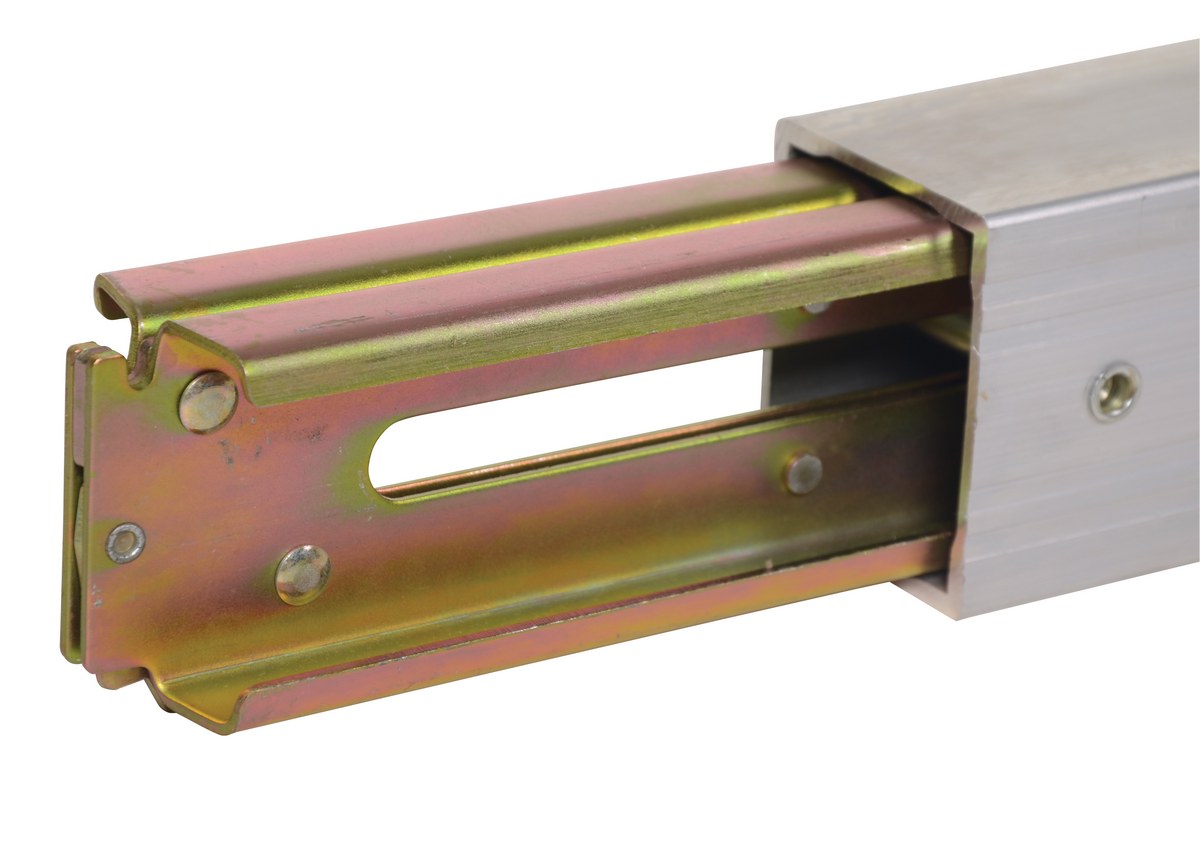

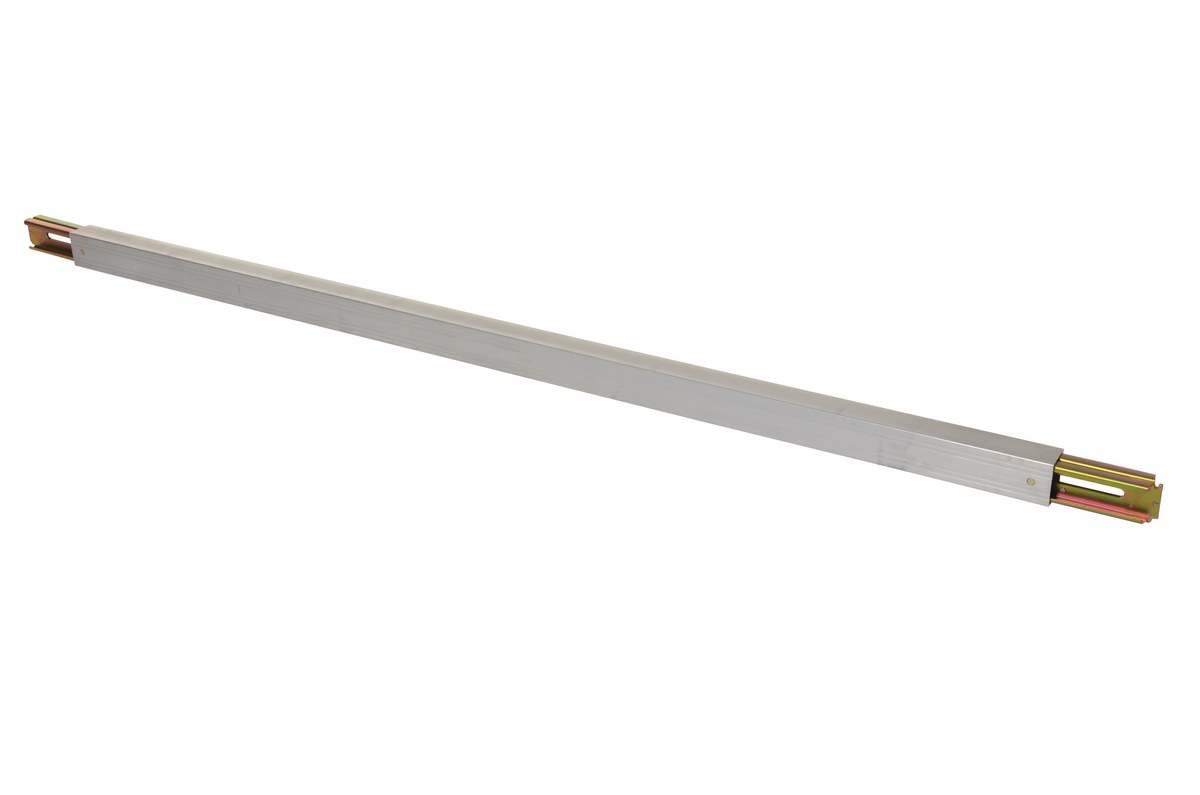

	EB-102			30 Days Limited Warranty	Aluminum One Piece E-Track 102 In. Extension Silver	Square Tubing Size (in.): 1-1/2 Wall Construction (gage): 14	21

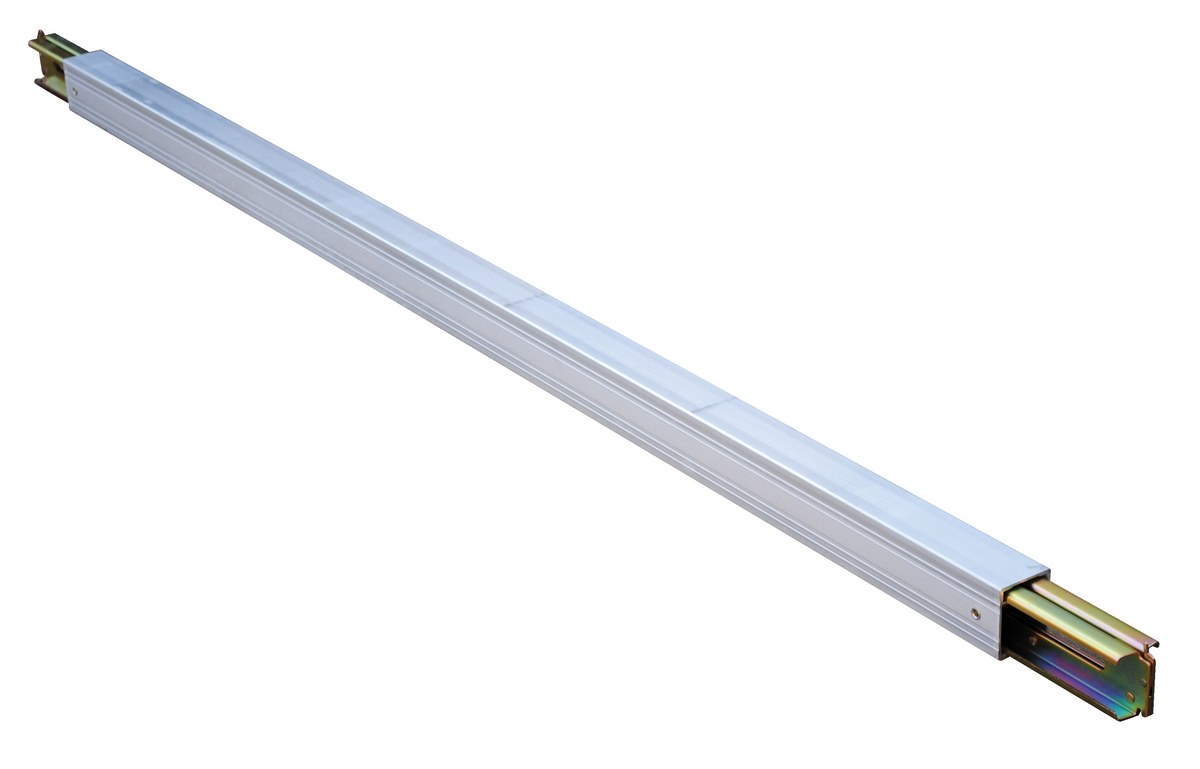

	EB-96			30 Days Limited Warranty	Aluminum One Piece E-Track 96 In. Extension Silver	Square Tubing Size (in.): 1-1/2 Wall Construction (gage): 14	19

* E-TRK sections located under Options Tab

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

CB-5

Unit:
Size: W x L x H
Weight:
Limited Warranty
Round Tubing Size (in.): 1-1/2
Wall Construction (gage): 14
Round Tubing Size (in.): 1-1/2
Wall Construction (gage): 14

CB-7

Unit:
Size: W x L x H
Weight:
Limited Warranty
Round Tubing Size (in.): 1-1/2
Wall Construction (gage): 14
Round Tubing Size (in.): 1-1/2
Wall Construction (gage): 14

CB-7-S

Unit:
Size: W x L x H
Weight:
Limited Warranty
Round Tubing Size (in.): 1-1/2
Wall Construction (gage): 14
Round Tubing Size (in.): 1-1/2
Wall Construction (gage): 14

CB-PU-3

Unit:
Size: W x L x H
Weight:
Limited Warranty
Service Range (in.): 40 to 70
End Pad Width (in.): 2-3/8
Service Range (in.): 40 to 70
End Pad Width (in.): 2-3/8

CL-15

Unit:
Size: W x L x H
Weight:
Limited Warranty
Square Tubing Size (in.): 1-1/2
Wall Construction (gage): 14
Square Tubing Size (in.): 1-1/2
Wall Construction (gage): 14

CL-16

Unit:
Size: W x L x H
Weight:
Limited Warranty
Square Tubing Size (in.): 1-1/2
Wall Construction (gage): 14
Square Tubing Size (in.): 1-1/2
Wall Construction (gage): 14

CL-17

Unit:
Size: W x L x H
Weight:
Limited Warranty
Square Tubing Size (in.): 1-1/2
Wall Construction (gage): 14
Square Tubing Size (in.): 1-1/2
Wall Construction (gage): 14

CL-18

Unit:
Size: W x L x H
Weight:
Limited Warranty
Square Tubing Size (in.): 1-1/2
Wall Construction (gage): 14
Square Tubing Size (in.): 1-1/2
Wall Construction (gage): 14

CL-20

Unit:
Size: W x L x H
Weight:
Limited Warranty
Square Tubing Size (in.): 1-1/2
Wall Construction (gage): 14
Square Tubing Size (in.): 1-1/2
Wall Construction (gage): 14

EB-102

Unit:
Size: W x L x H
Weight:
Limited Warranty
Square Tubing Size (in.): 1-1/2
Wall Construction (gage): 14
Square Tubing Size (in.): 1-1/2
Wall Construction (gage): 14

EB-96

Unit:
Size: W x L x H
Weight:
Limited Warranty
Square Tubing Size (in.): 1-1/2
Wall Construction (gage): 14
Square Tubing Size (in.): 1-1/2
Wall Construction (gage): 14

For More Details of the Option Click the Red Model Button

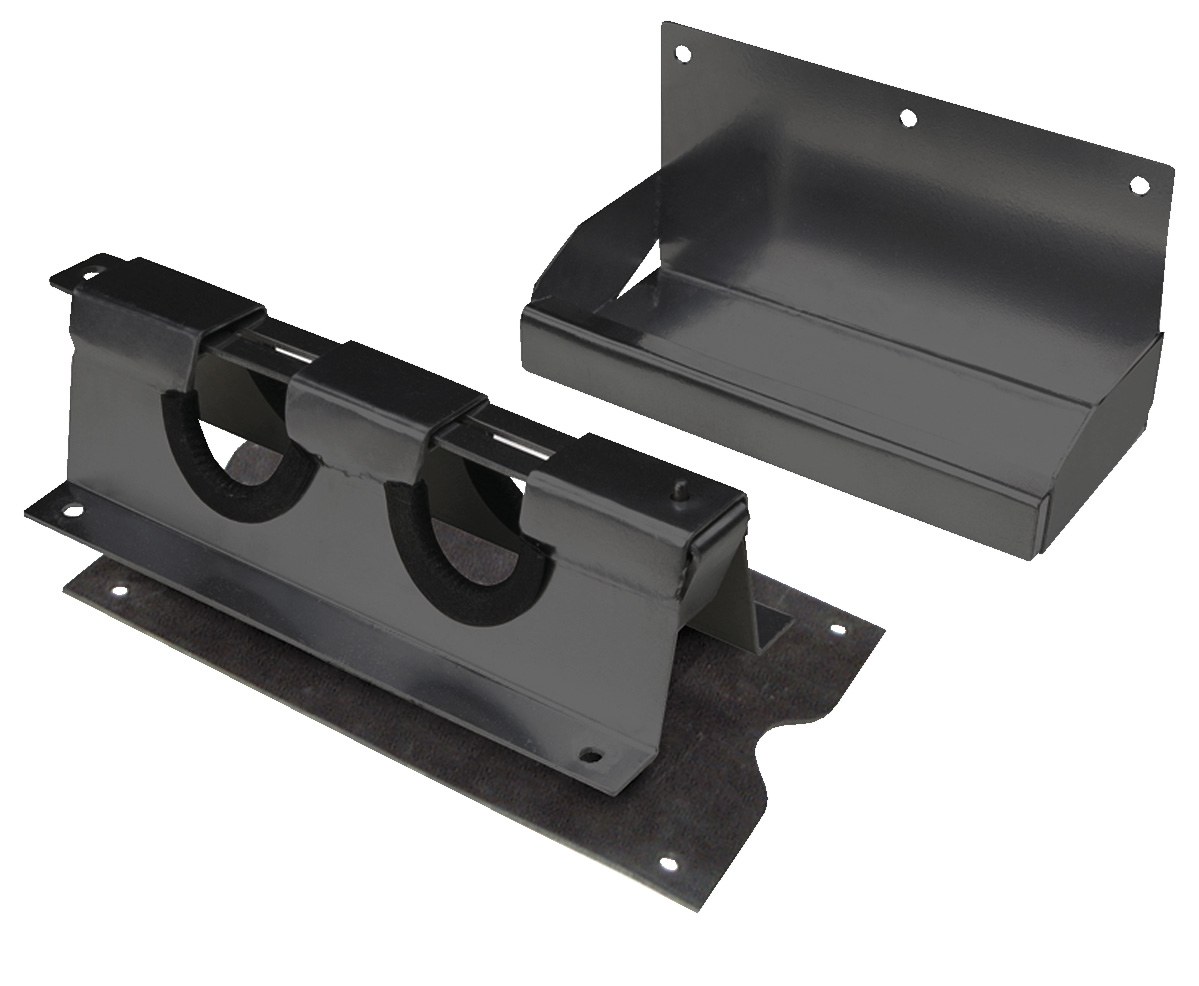

CB-HLDR			90 Days Limited Warranty	Steel Cargo Bar Holder 11 In. Black	Adjustment Method: Bracket Mounted Max Foot Pad Size (in.): 4 x 4	7

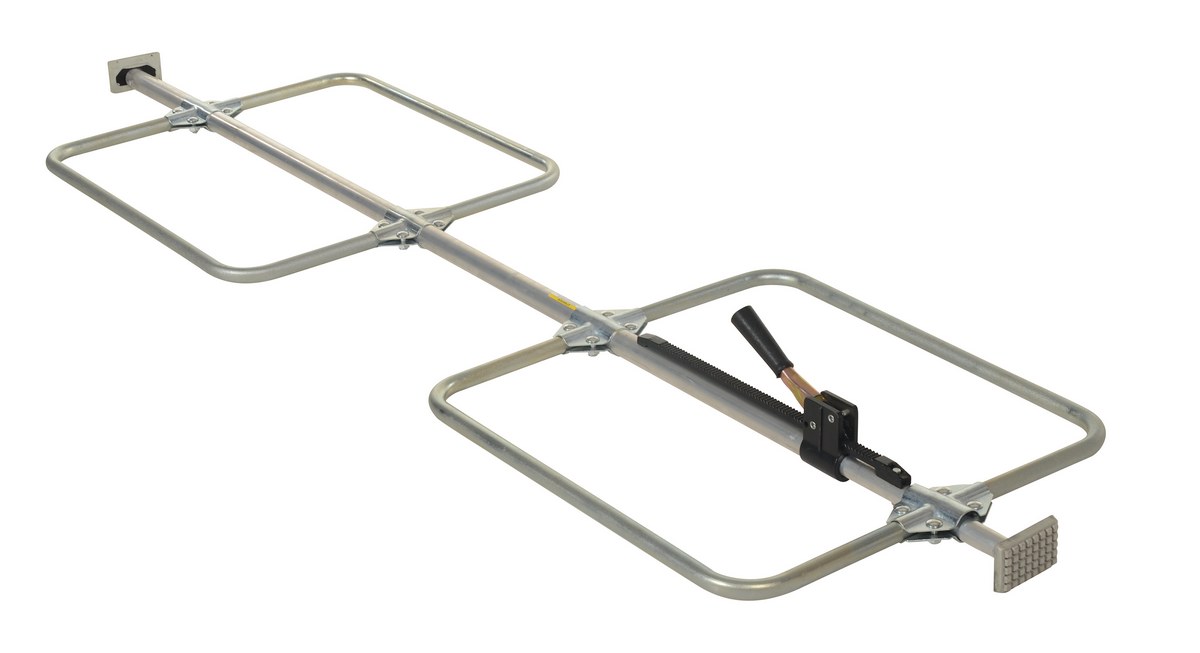

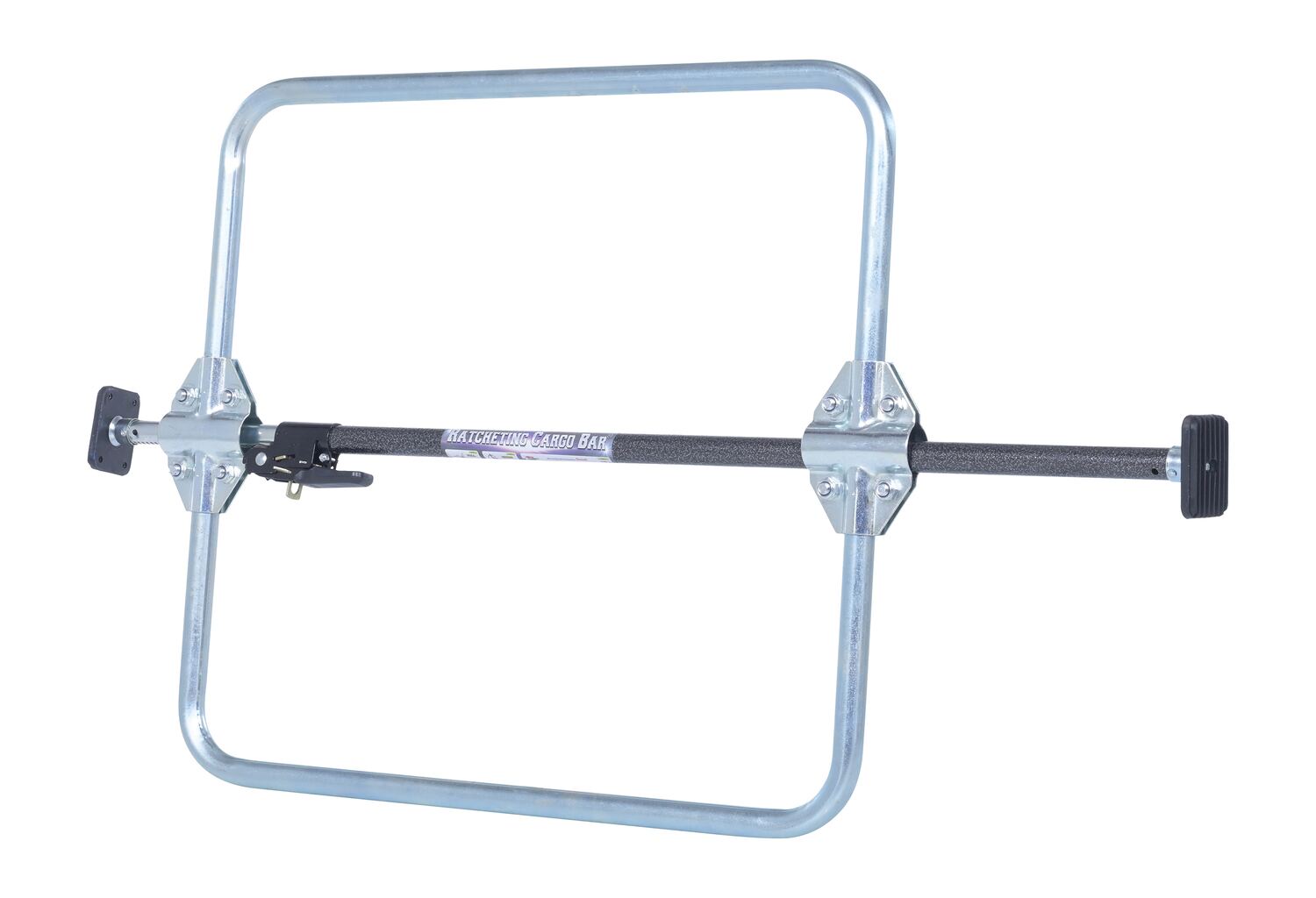

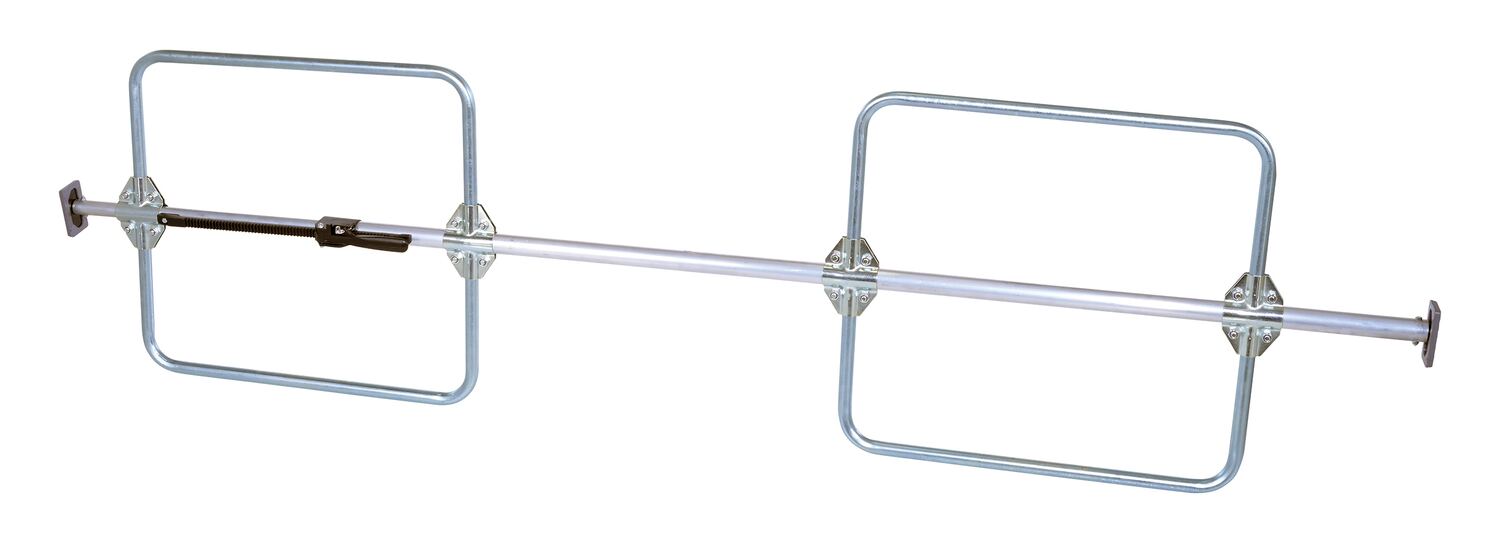

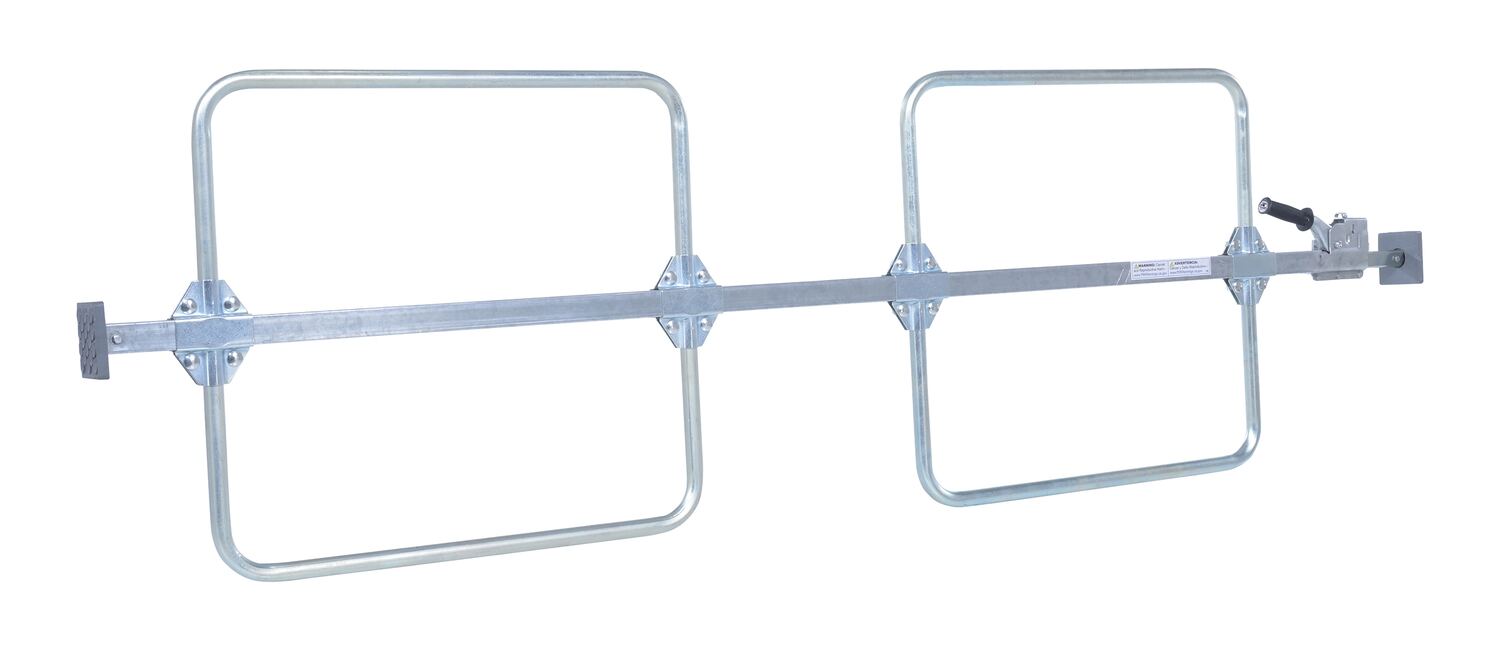

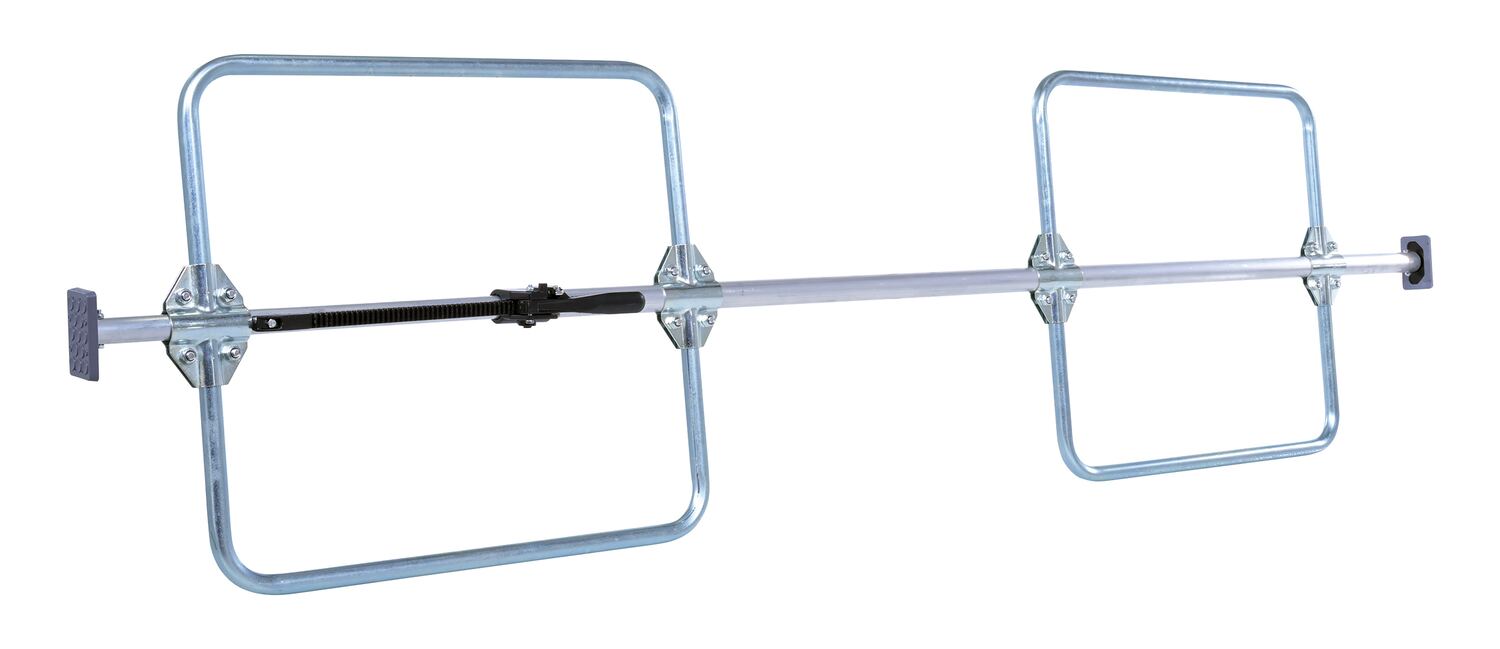

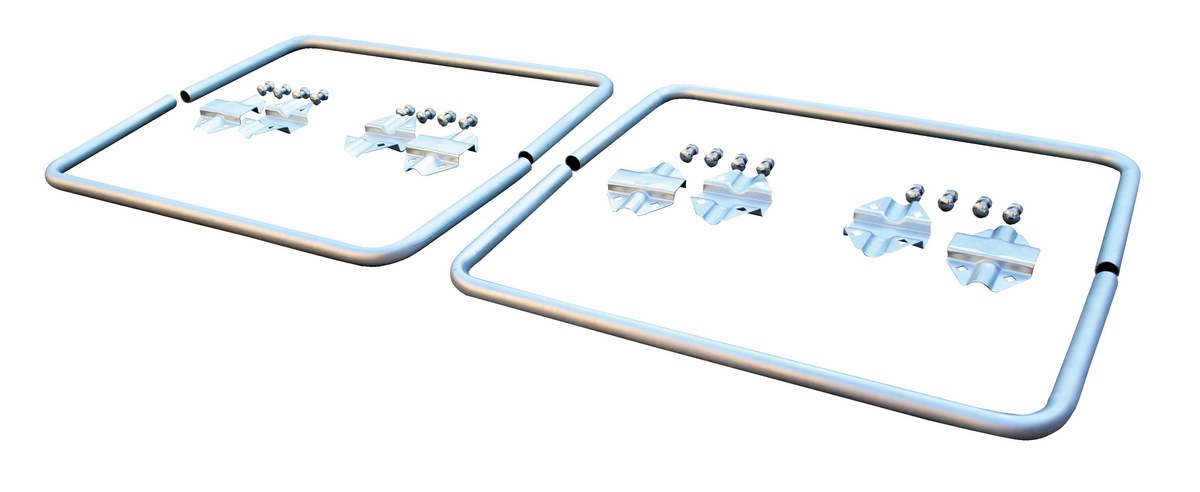

CH-3			30 Days Limited Warranty	Galvanized Steel Cargo Bar Hoops for CL Series 1.5 In. Projection	-	15

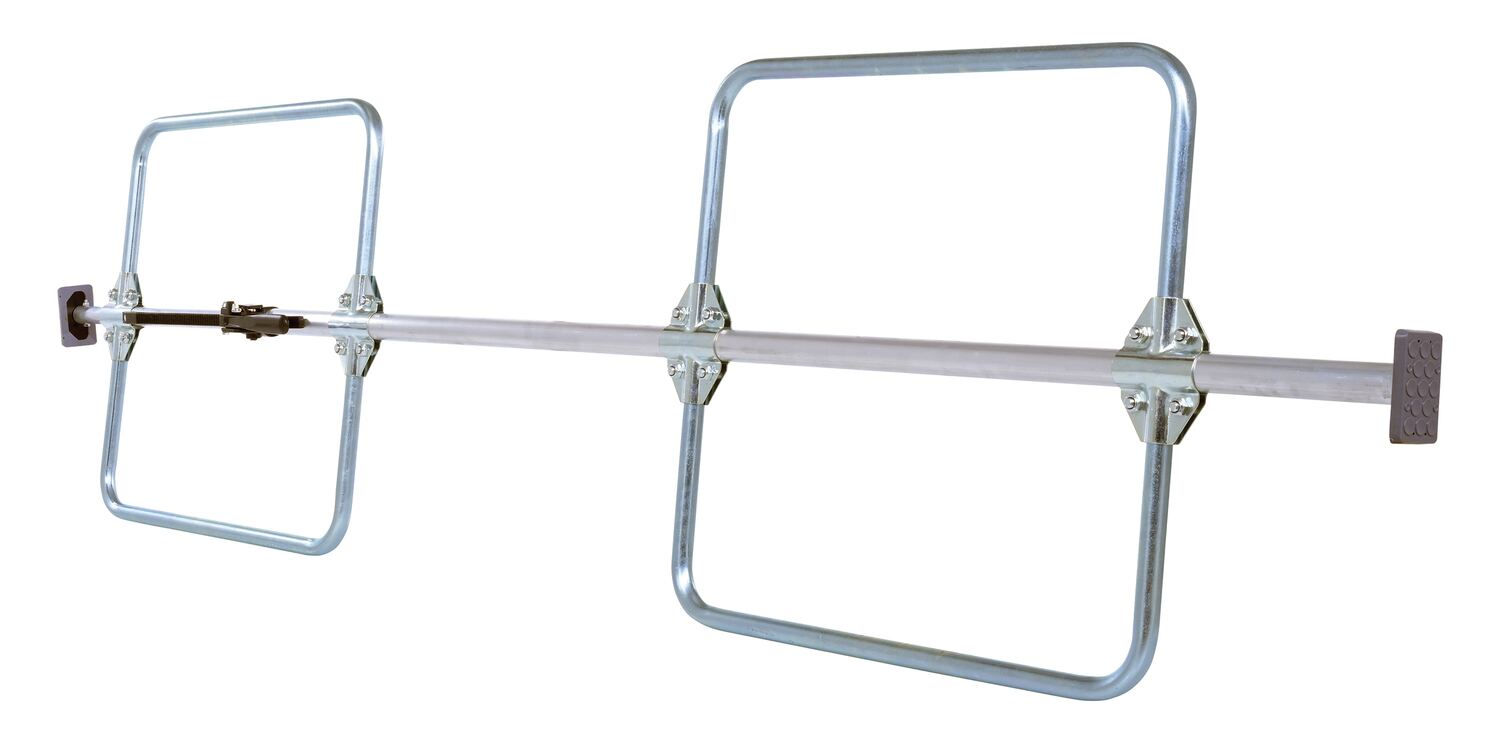

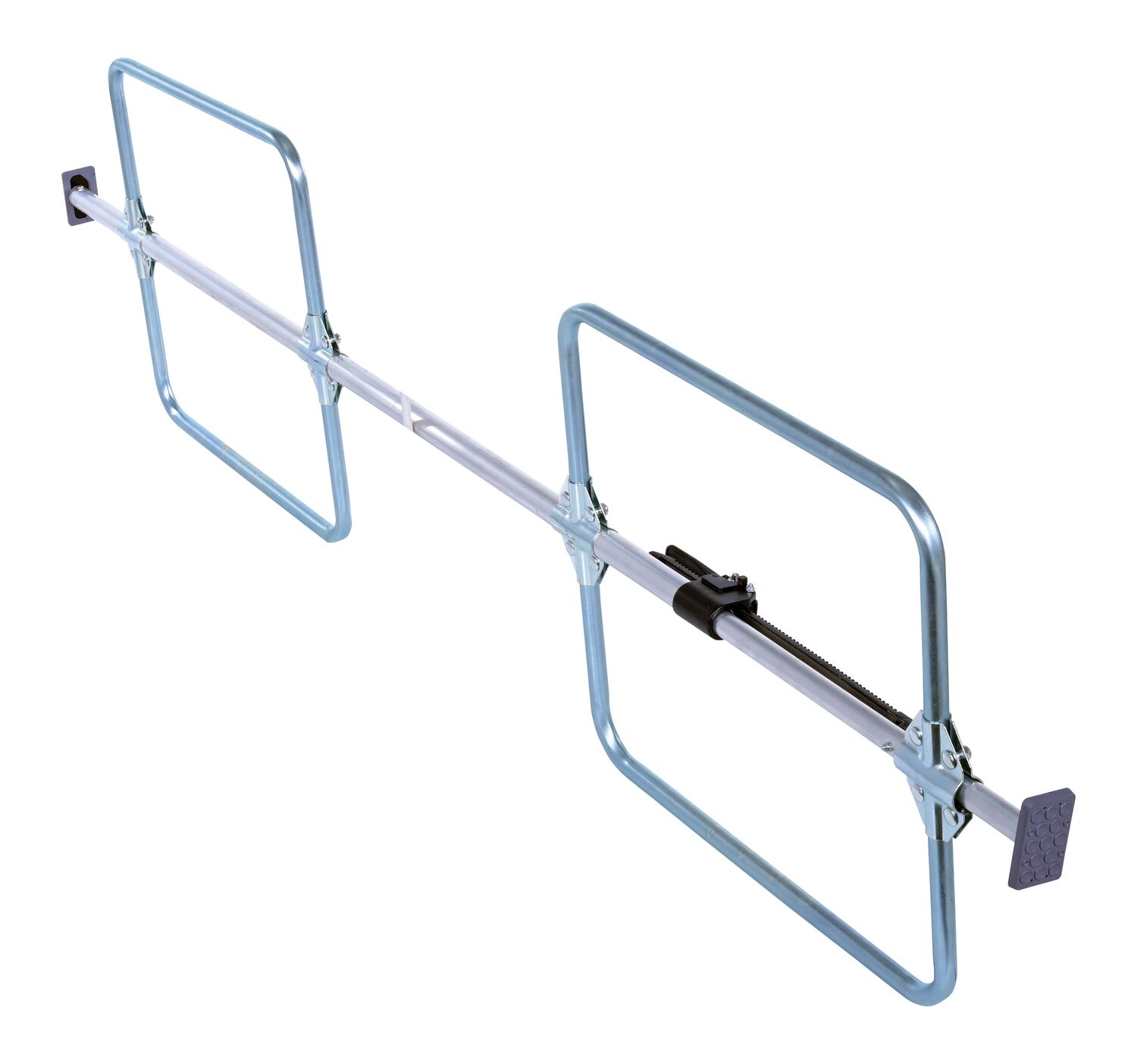

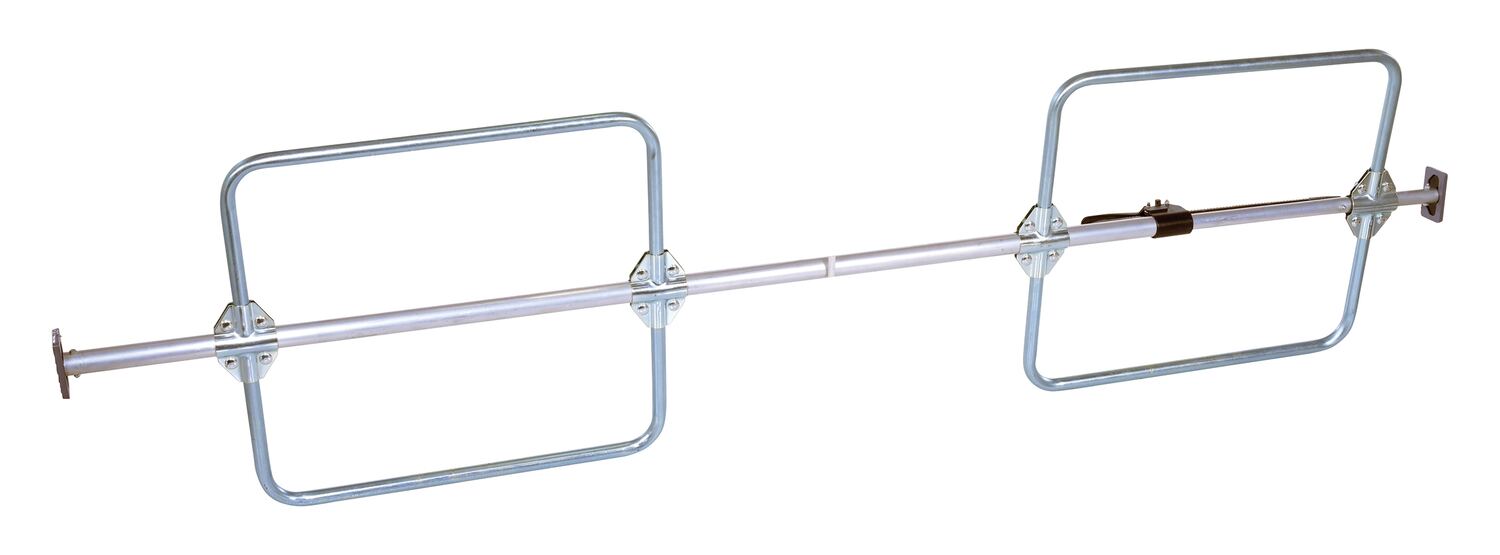

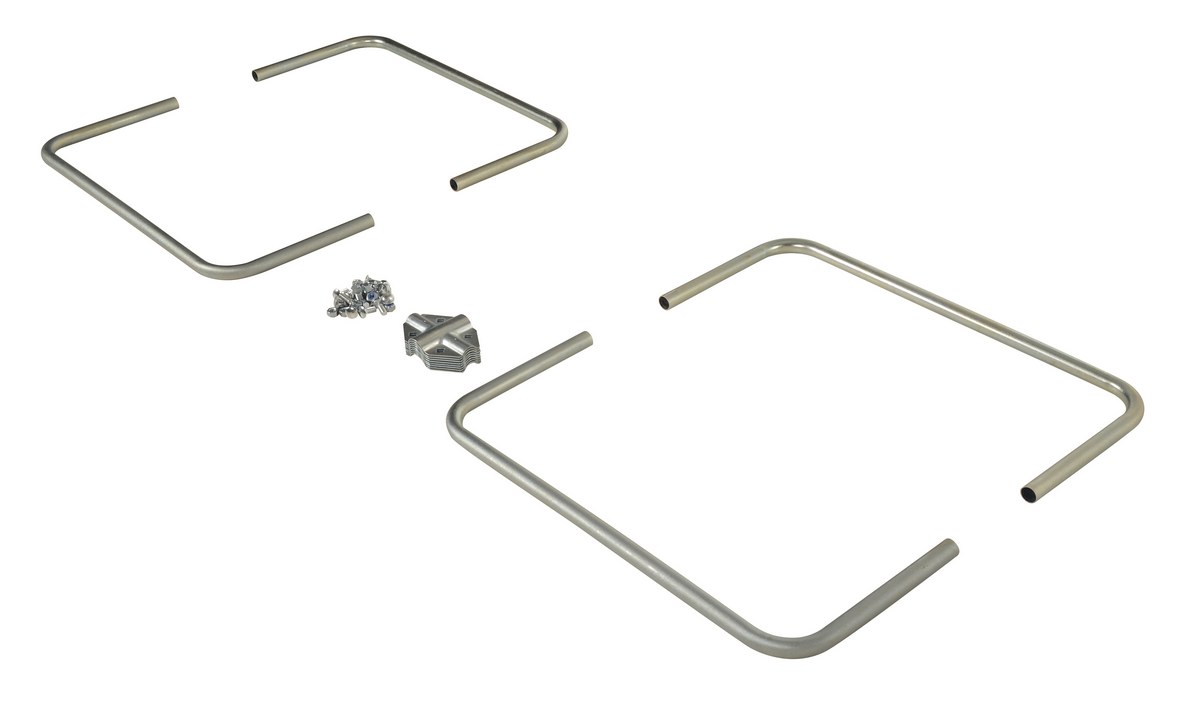

CH-7			30 Days Limited Warranty	Galvanized Steel Cargo Bar Hoops for CB Series 1 In. Projection	-	16

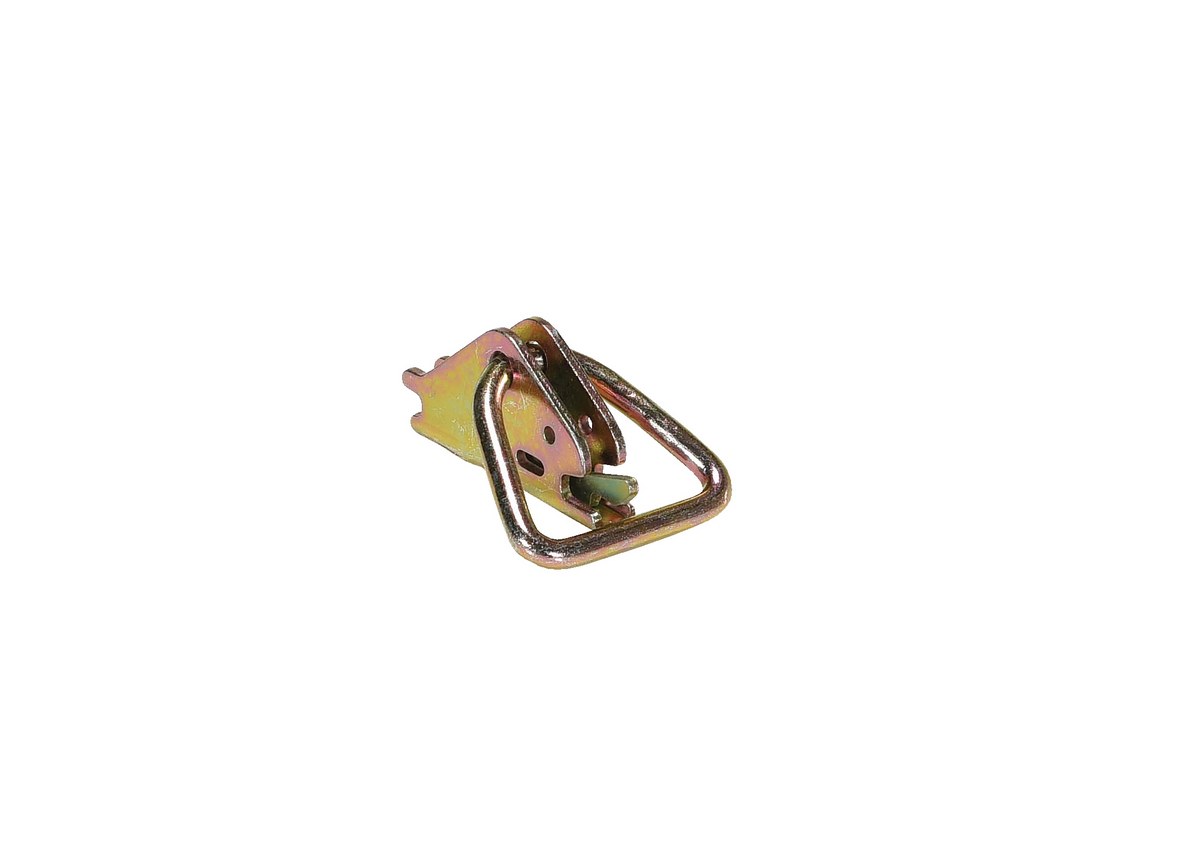

E-CLIP-D			30 Days Limited Warranty	Metal "D" Ring Tie Off For Attachment To E-Track Models Gold	Gauge: 10 Length (in): 4.5	1

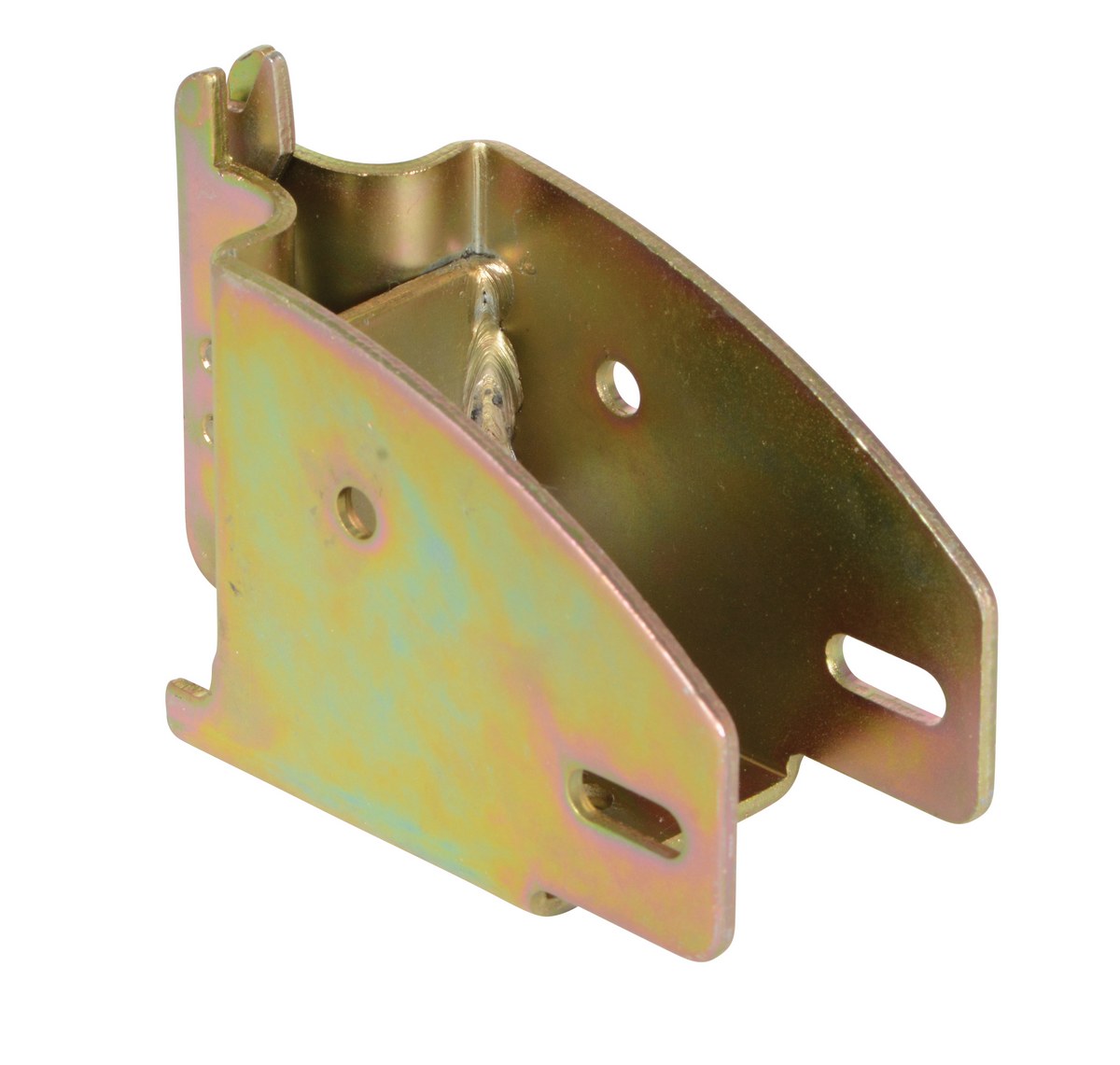

E-CLIP-W			30 Days Limited Warranty	Metal Beam E-Socket Support For Standard 2 In. x 4 In. Wood Board Gold	Clamping Diameter (in): 1.5 Opening Height (in): 4.375	2

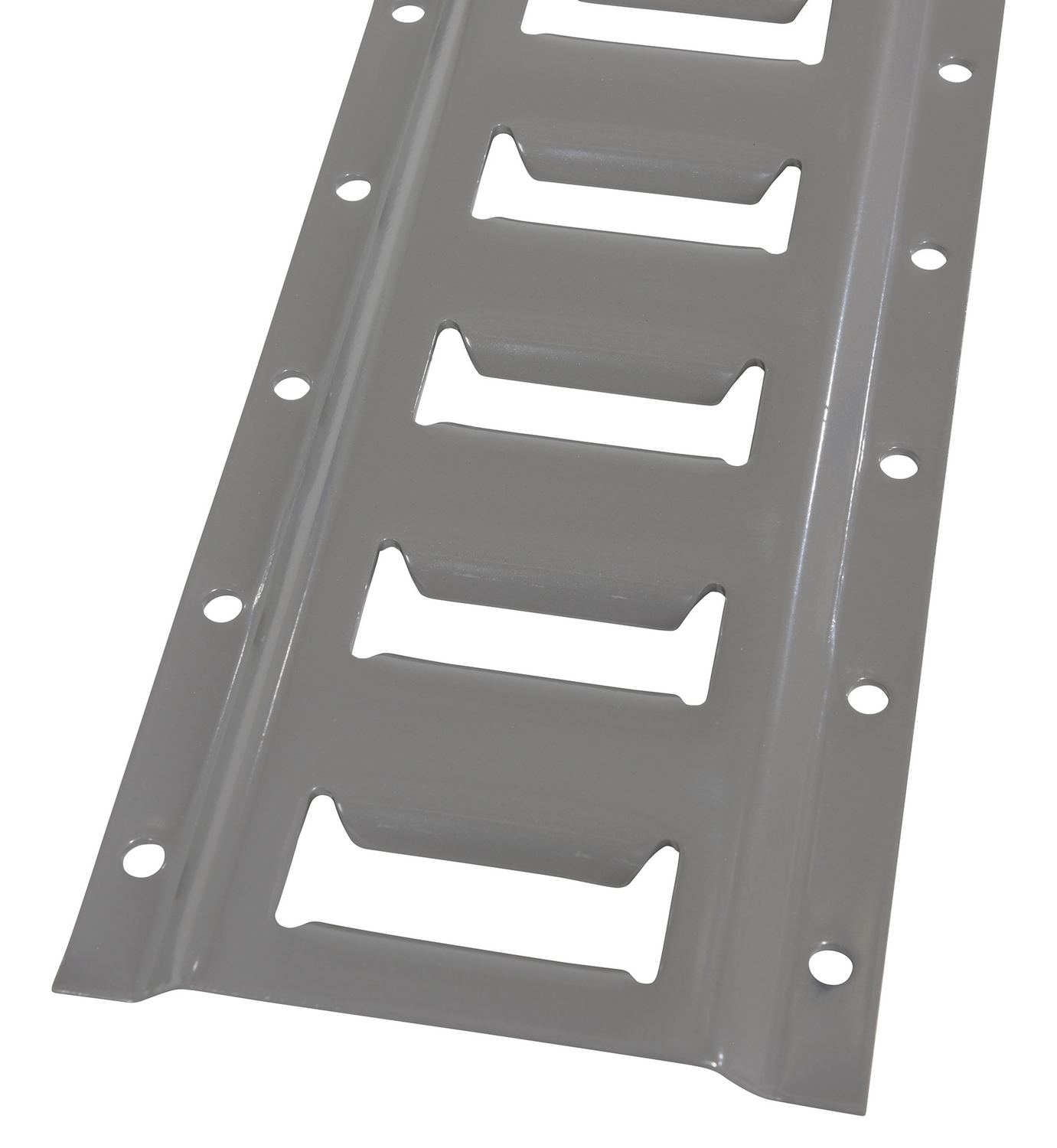

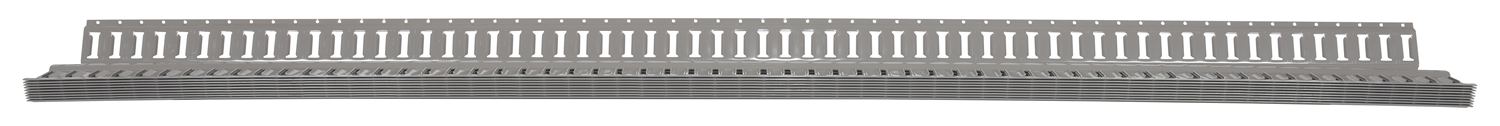

E-TRK-10-GY-10PK			90 Days Limited Warranty	Steel E-Track 10 Ft. Length 10 Pack Gray	Mounting Hole Quantity: 120 Mounting Hole Diameter (in.): 9/32	184

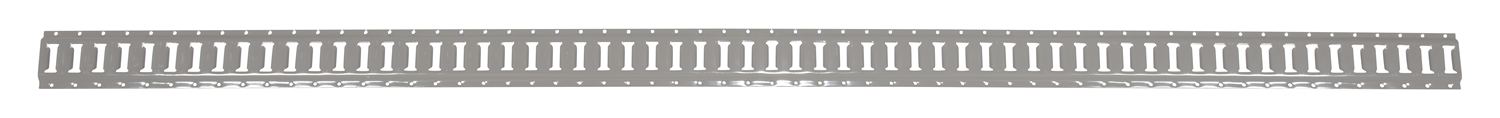

E-TRK-10-GY-1PK			90 Days Limited Warranty	Steel E-Track 10 Ft. Length 1 Pack Gray	Mounting Hole Quantity: 120 Mounting Hole Diameter (in.): 9/32	40

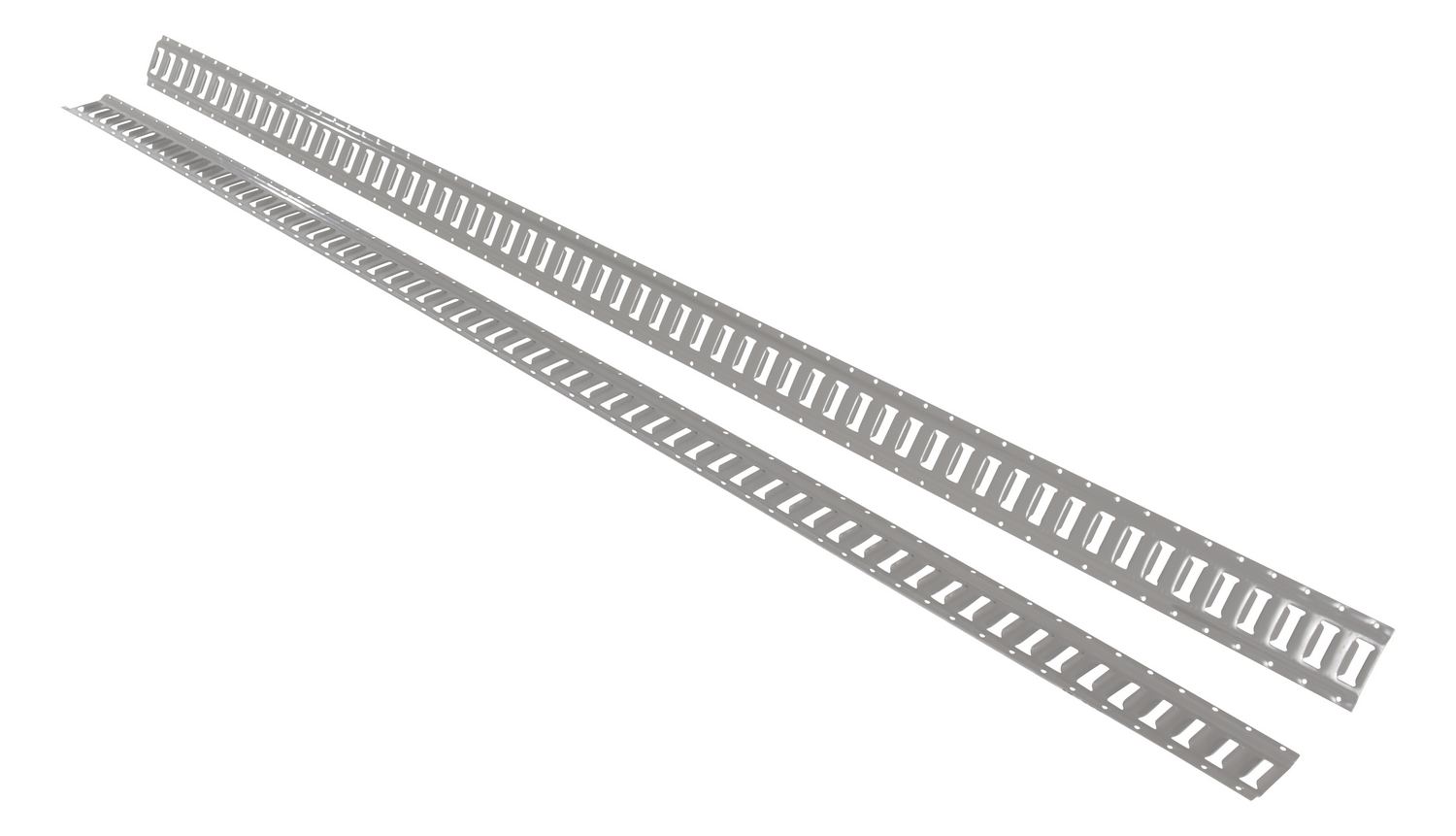

E-TRK-10-GY-2PK			90 Days Limited Warranty	Steel E-Track 10 Ft. Length 2 Pack Gray	Mounting Hole Quantity: 120 Mounting Hole Diameter (in.): 9/32	56

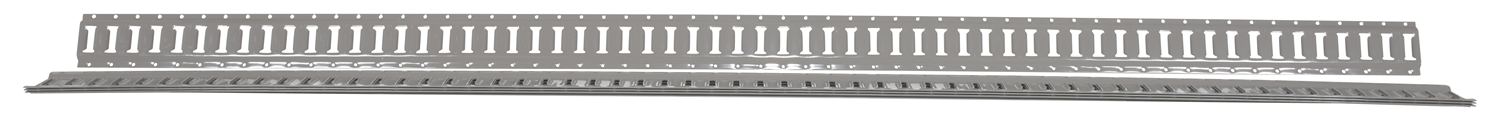

E-TRK-10-GY-4PK			90 Days Limited Warranty	Steel E-Track 10 Ft. Length 4 Pack Gray	Mounting Hole Quantity: 120 Mounting Hole Diameter (in.): 9/32	88

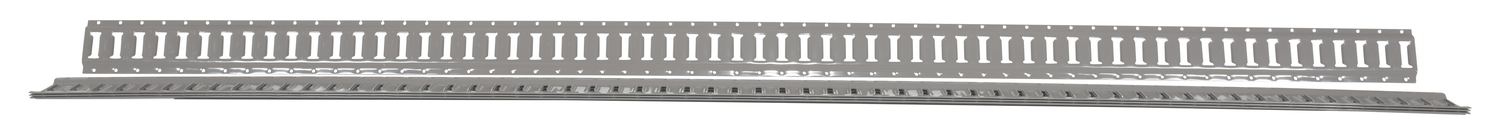

E-TRK-10-GY-6PK			90 Days Limited Warranty	Steel E-Track 10 Ft. Length 6 Pack Gray	Mounting Hole Quantity: 120 Mounting Hole Diameter (in.): 9/32	120

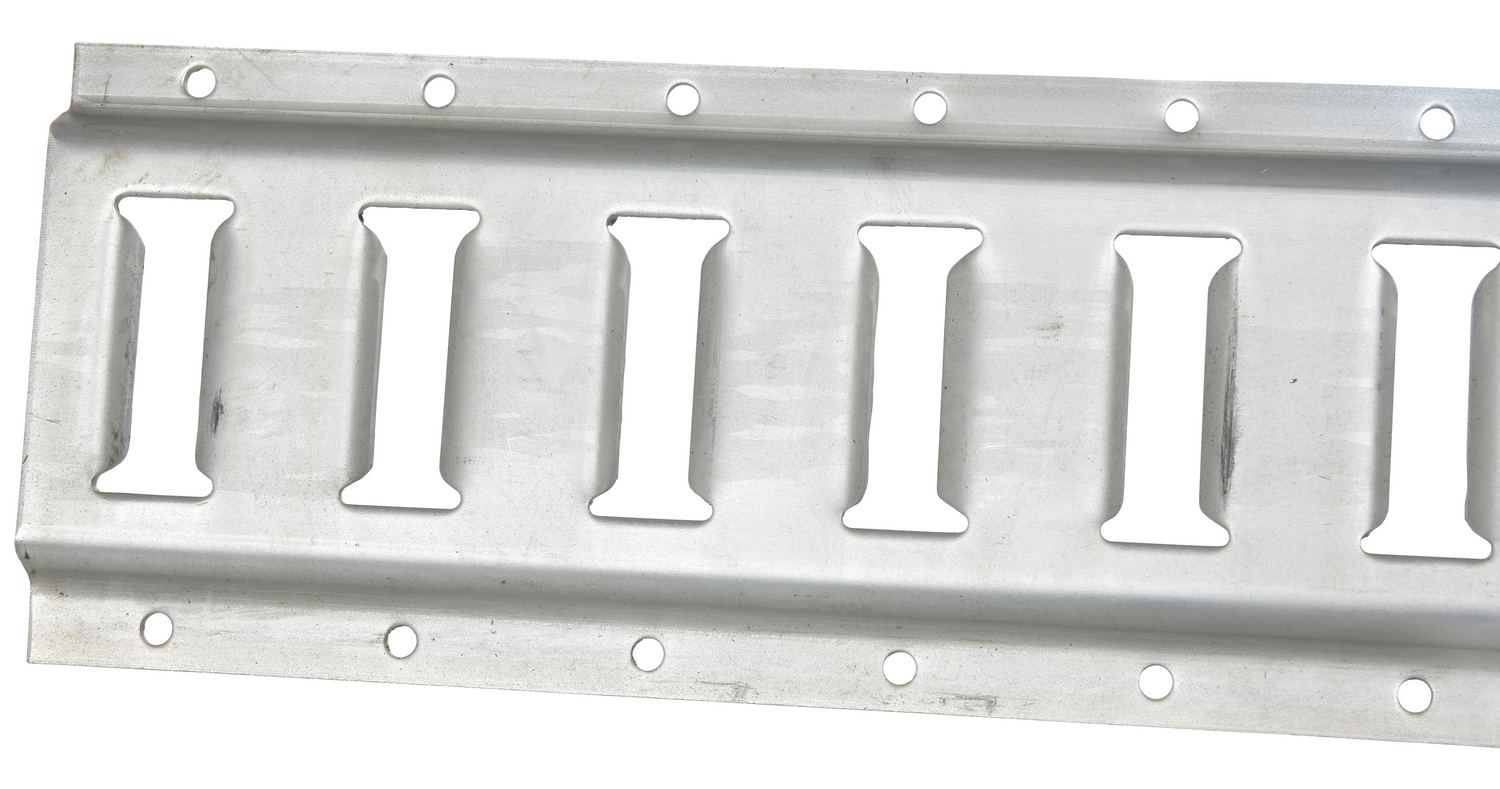

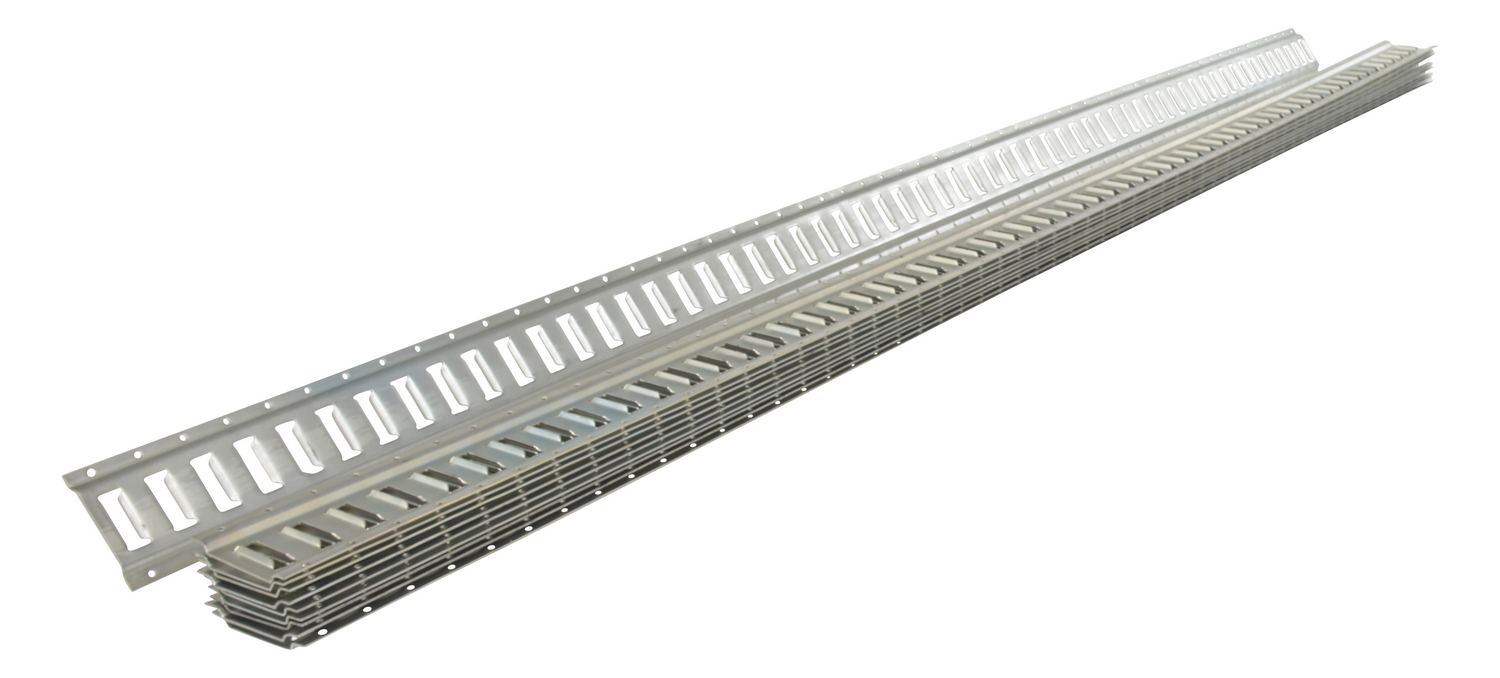

E-TRK-10-ZN-10PK			90 Days Limited Warranty	Steel Zinc Plated E-Track 10 Ft. Length 10 Pack Gray	Mounting Hole Quantity: 120 Mounting Hole Diameter (in.): 9/32	184

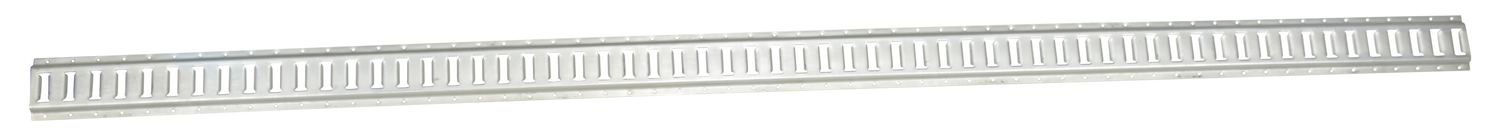

E-TRK-10-ZN-1PK			90 Days Limited Warranty	Steel Zinc Plated E-Track 10 Ft. Length 1 Pack Gray	Mounting Hole Quantity: 120 Mounting Hole Diameter (in.): 9/32	40

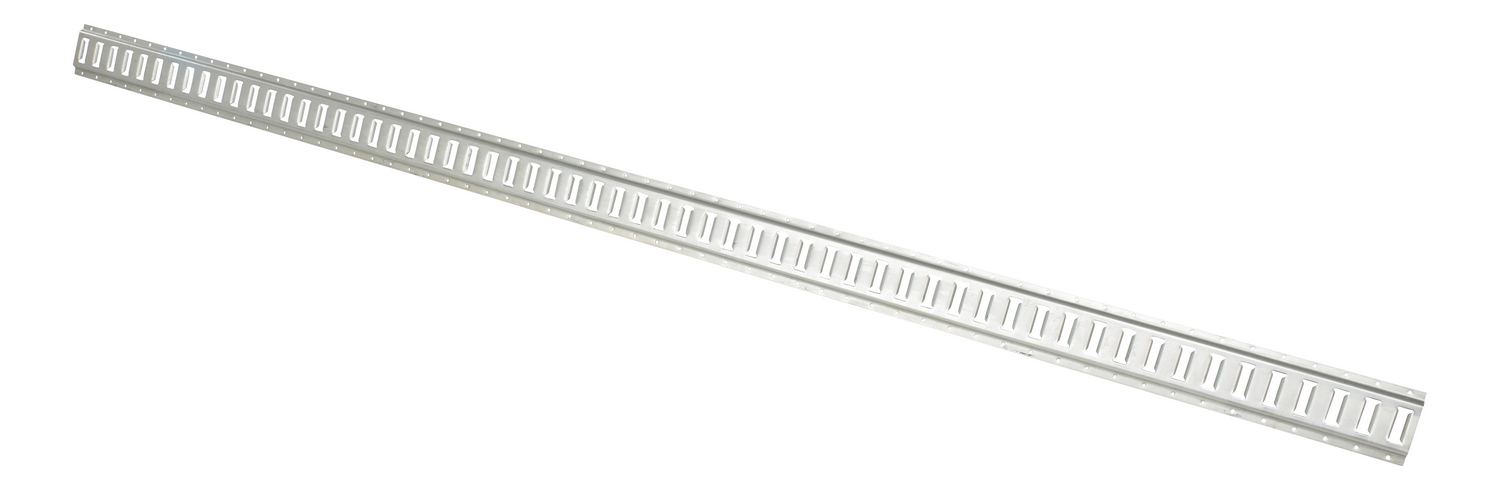

E-TRK-10-ZN-2PK			90 Days Limited Warranty	Steel Zinc Plated E-Track 10 Ft. Length 2 Pack Gray	Mounting Hole Quantity: 120 Mounting Hole Diameter (in.): 9/32	56

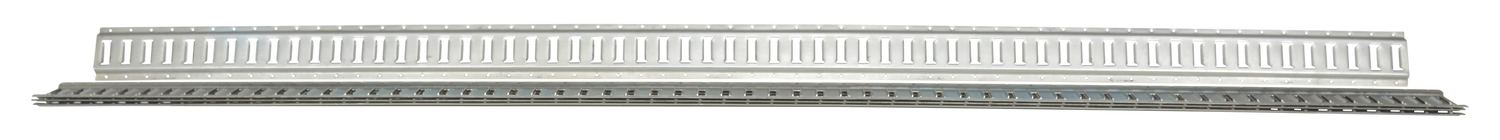

E-TRK-10-ZN-4PK			90 Days Limited Warranty	Steel Zinc Plated E-Track 10 Ft. Length 4 Pack Gray	Mounting Hole Quantity: 120 Mounting Hole Diameter (in.): 9/32	88

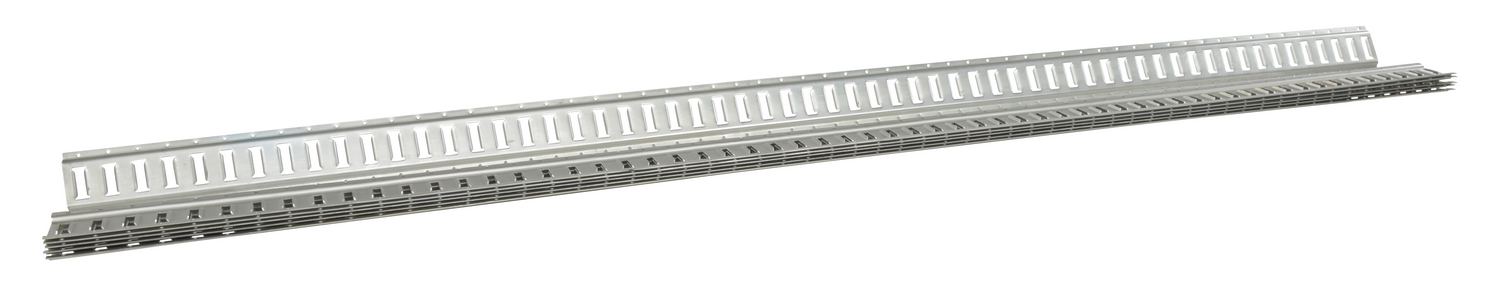

E-TRK-10-ZN-6PK			90 Days Limited Warranty	Steel Zinc Plated E-Track 10 Ft. Length 6 Pack Gray	Mounting Hole Quantity: 120 Mounting Hole Diameter (in.): 9/32	120

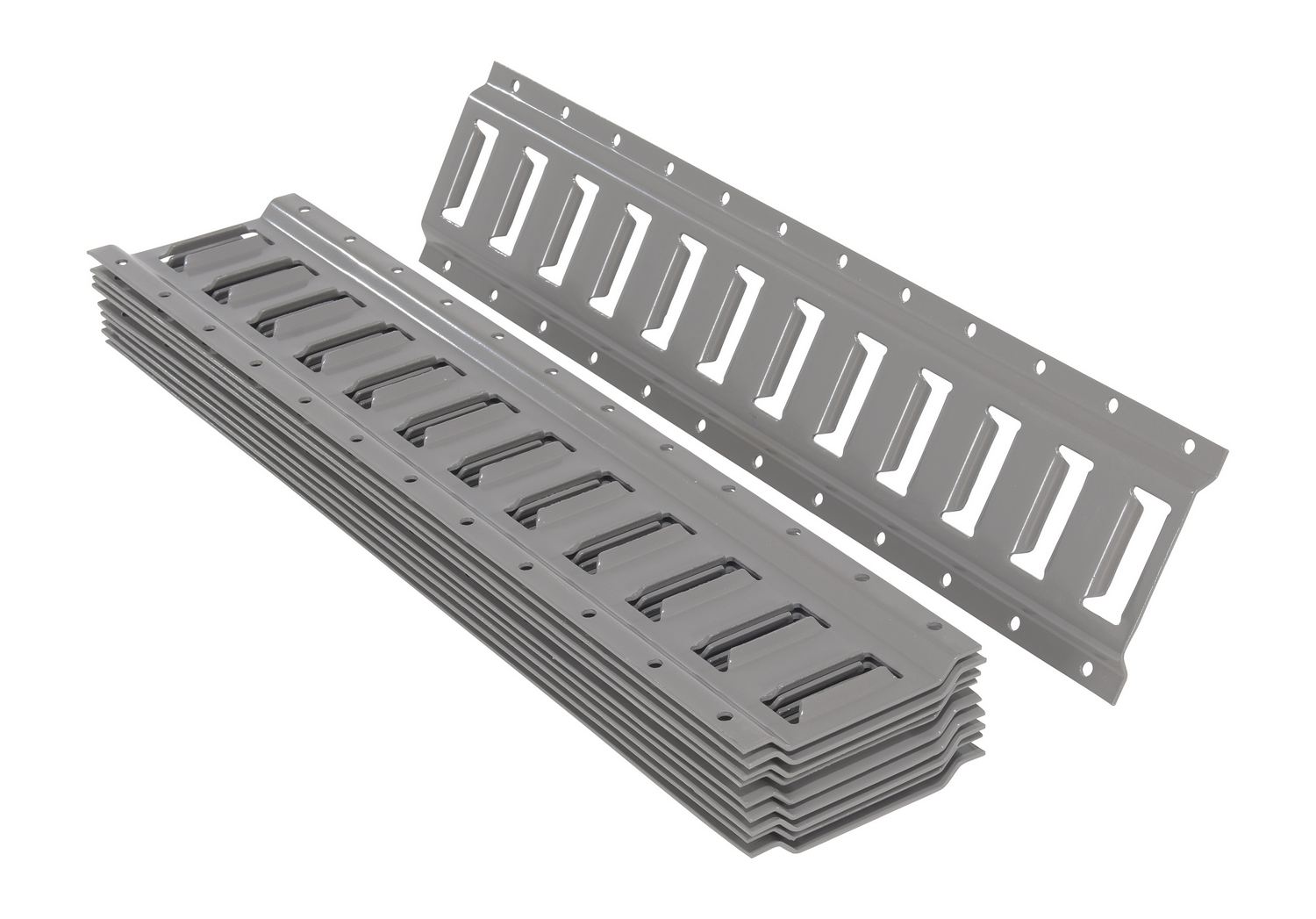

E-TRK-2-GY-10PK			90 Days Limited Warranty	Steel E-Track 2 Ft. Length 10 Pack Gray	Mounting Hole Quantity: 24 Mounting Hole Diameter (in.): 9/32	30

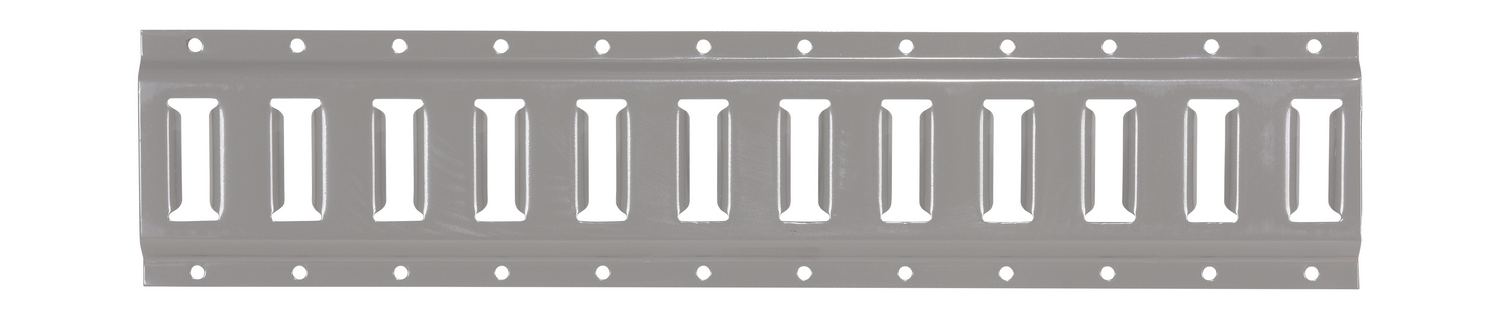

E-TRK-2-GY-1PK			90 Days Limited Warranty	Steel E-Track 2 Ft. Length 1 Pack Gray	Mounting Hole Quantity: 24 Mounting Hole Diameter (in.): 9/32	3

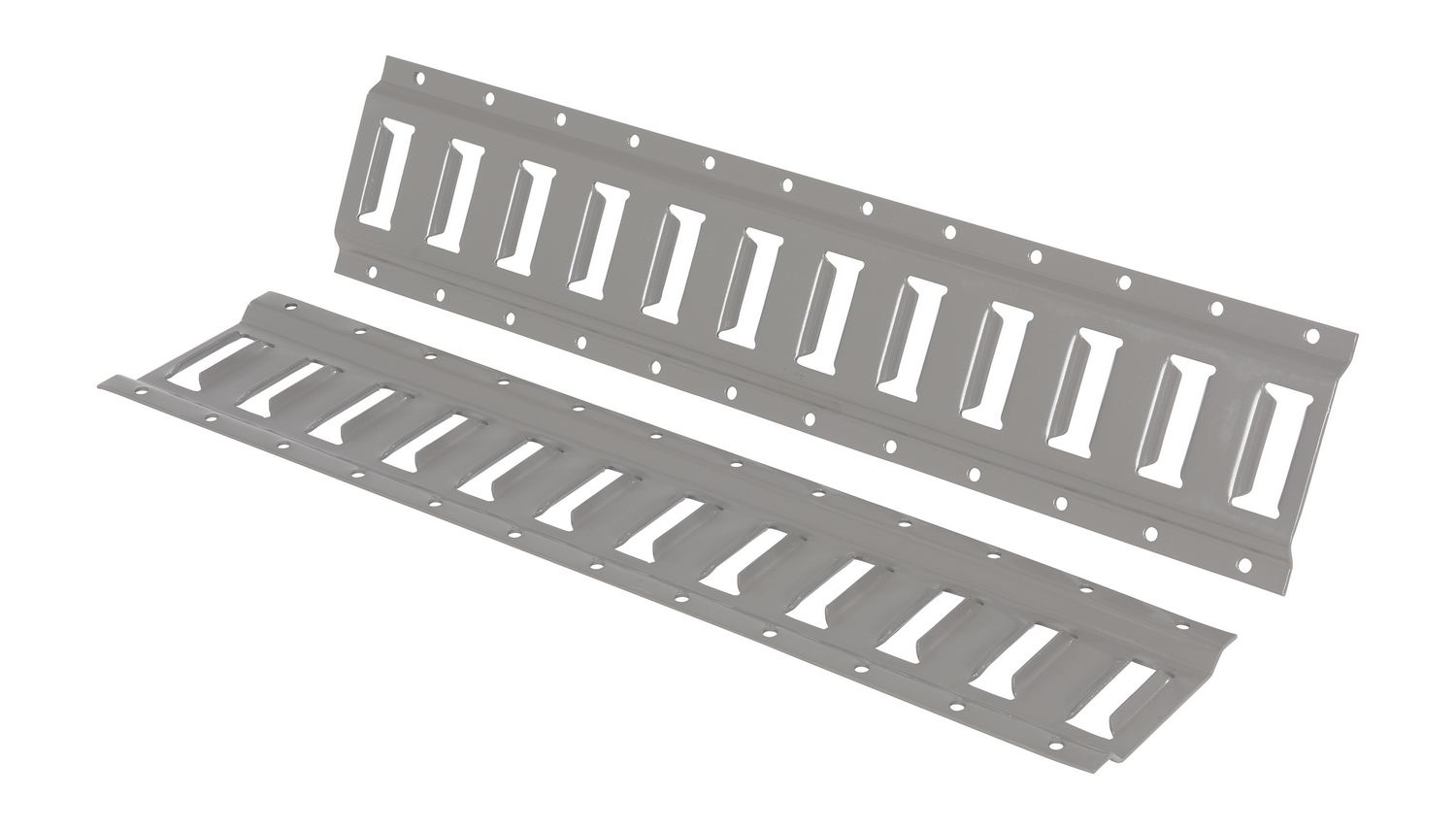

E-TRK-2-GY-2PK			90 Days Limited Warranty	Steel E-Track 2 Ft. Length 2 Pack Gray	Mounting Hole Quantity: 24 Mounting Hole Diameter (in.): 9/32	6

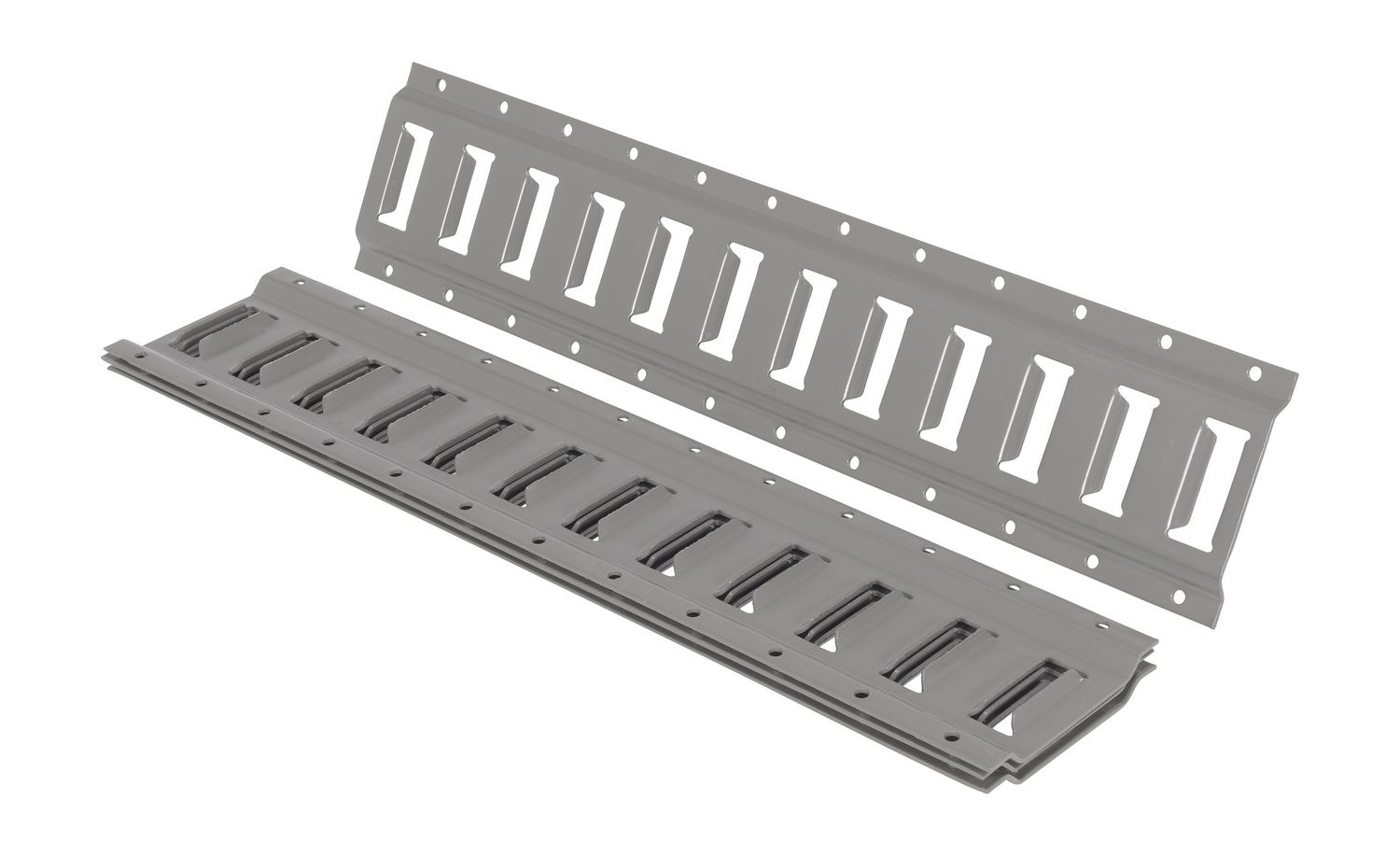

E-TRK-2-GY-4PK			90 Days Limited Warranty	Steel E-Track 2 Ft. Length 4 Pack Gray	Mounting Hole Quantity: 24 Mounting Hole Diameter (in.): 9/32	12

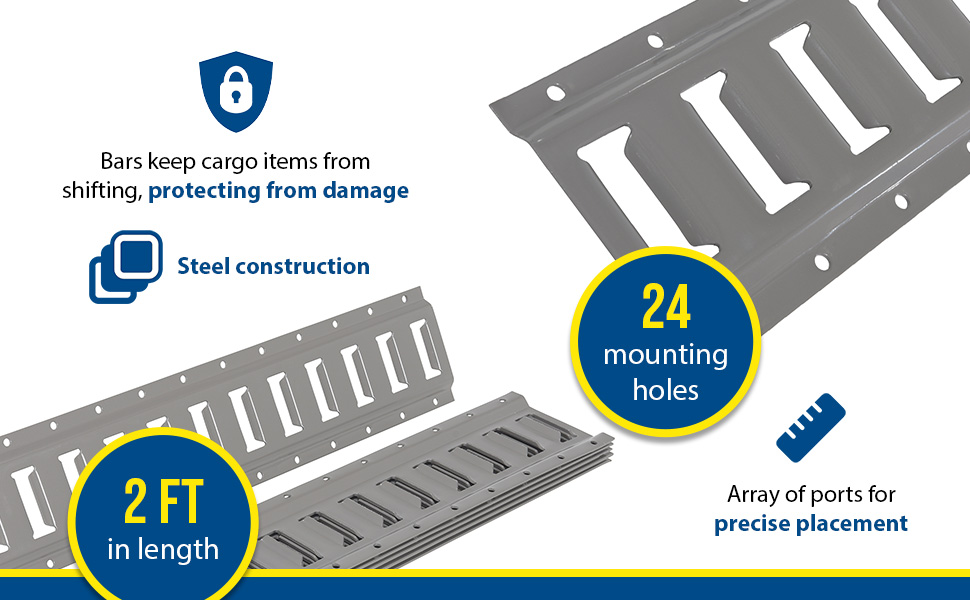

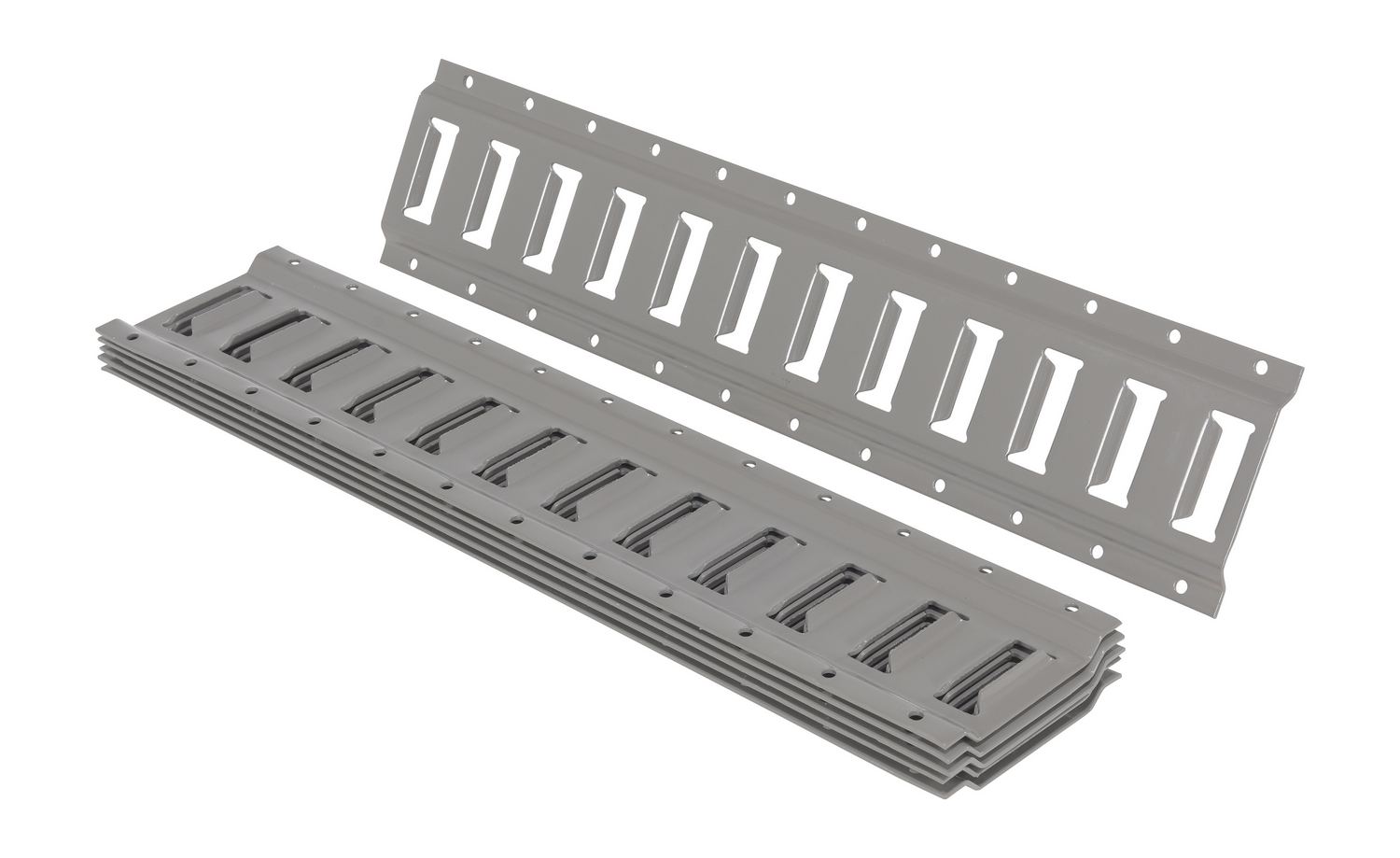

E-TRK-2-GY-6PK			90 Days Limited Warranty	Steel E-Track 2 Ft. Length 6 Pack Gray	Mounting Hole Quantity: 24 Mounting Hole Diameter (in.): 9/32	18

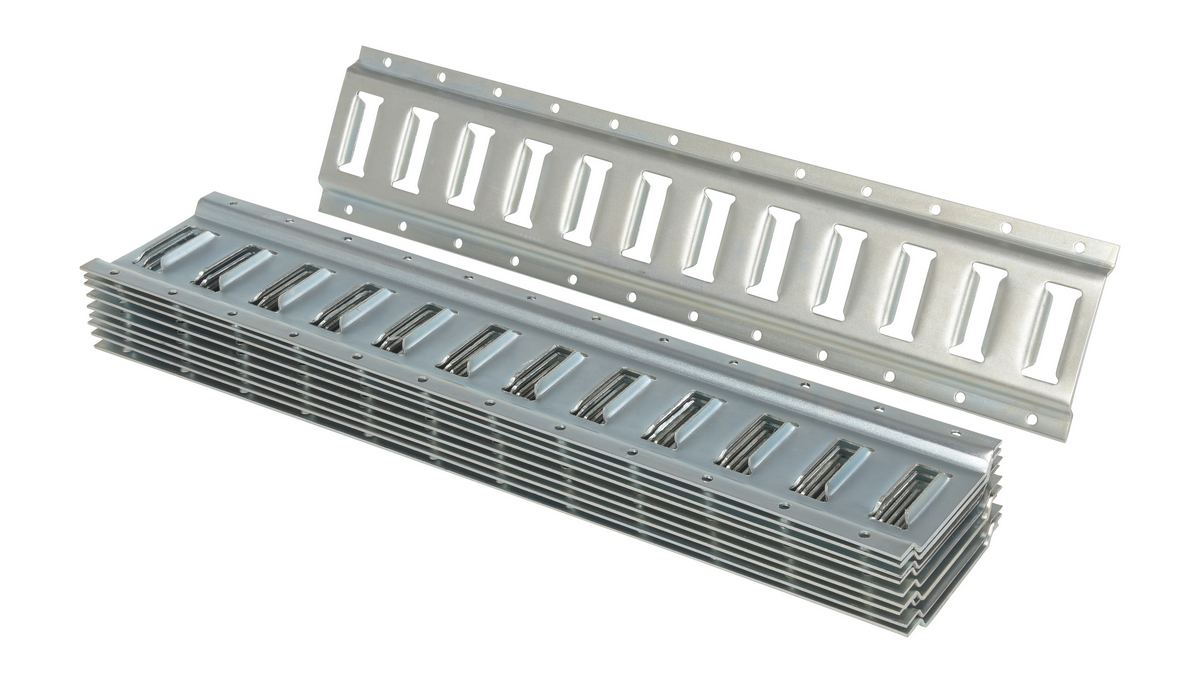

E-TRK-2-ZN-10PK			90 Days Limited Warranty	Steel Zinc Plated E-Track 2 Ft. Length 10 Pack Gray	Mounting Hole Quantity: 24 Mounting Hole Diameter (in.): 9/32	30

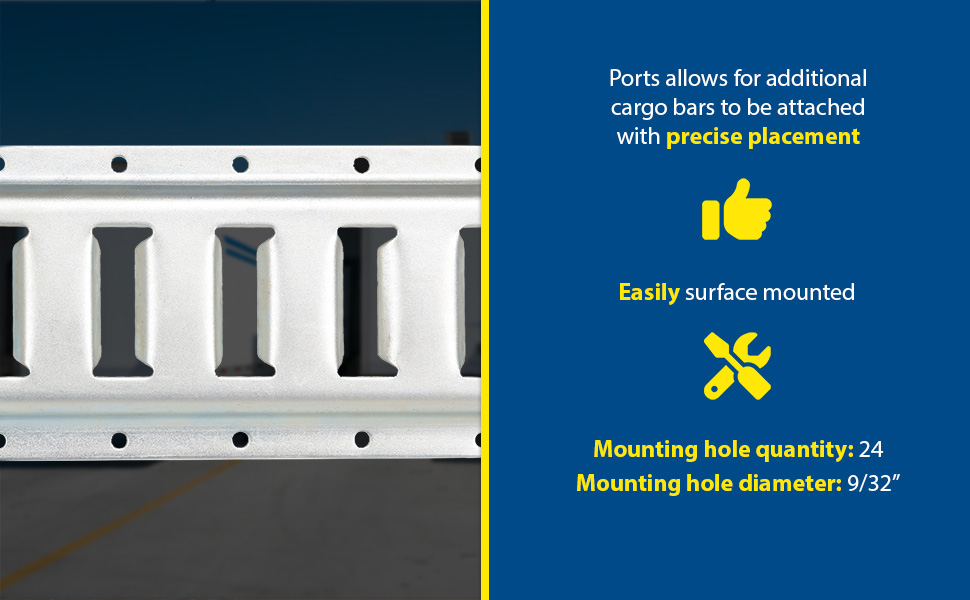

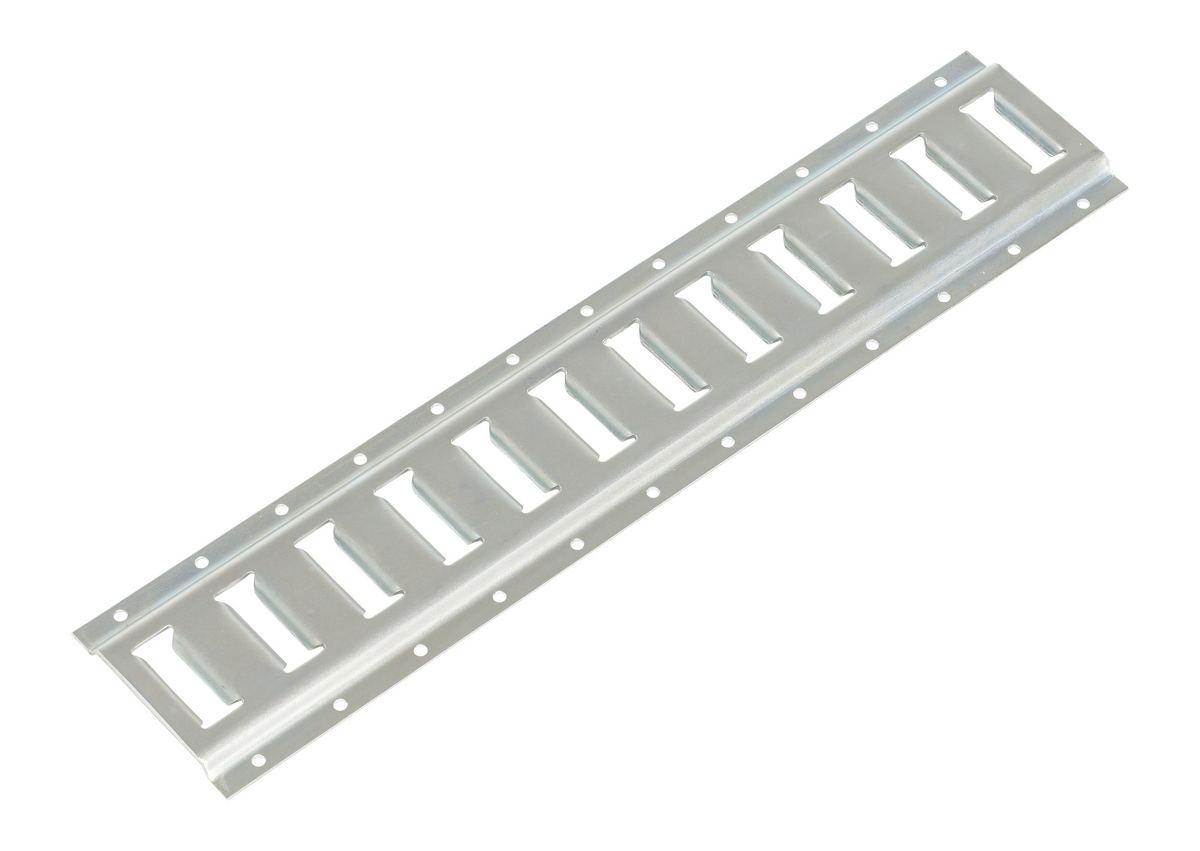

E-TRK-2-ZN-1PK			90 Days Limited Warranty	Steel Zinc Plated E-Track 2 Ft. Length 1 Pack Gray	Mounting Hole Quantity: 24 Mounting Hole Diameter (in.): 9/32	3

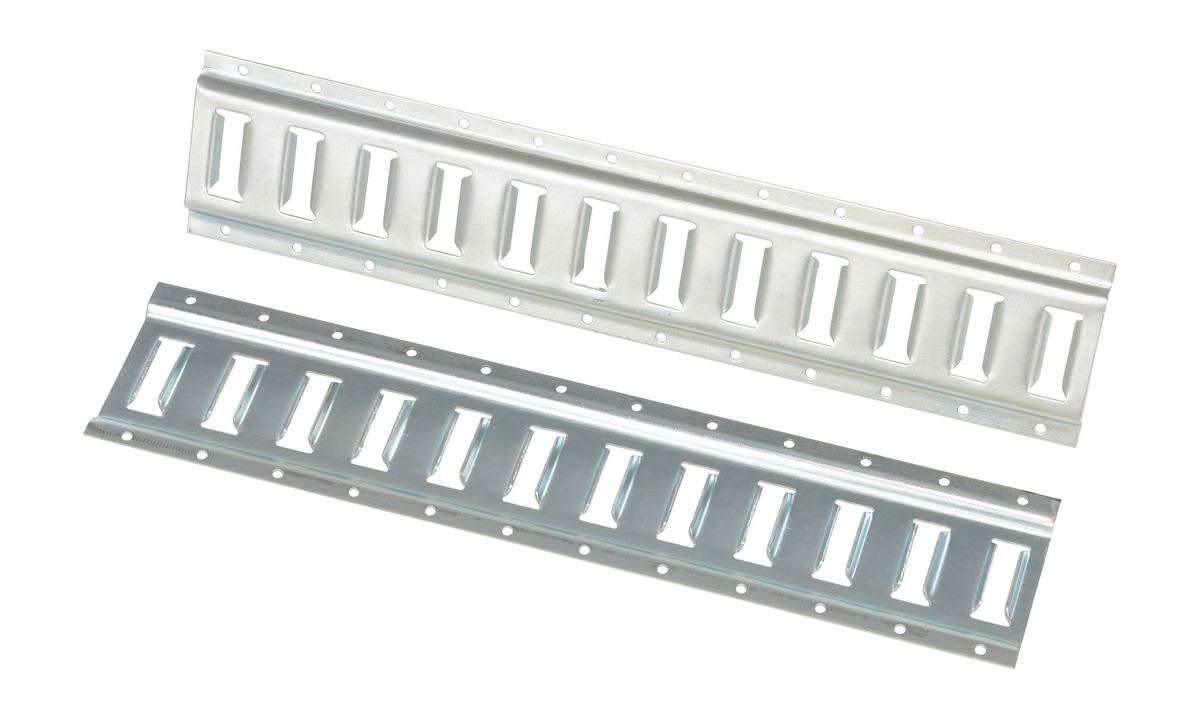

E-TRK-2-ZN-2PK			90 Days Limited Warranty	Steel Zinc Plated E-Track 2 Ft. Length 2 Pack Gray	Mounting Hole Quantity: 24 Mounting Hole Diameter (in.): 9/32	6

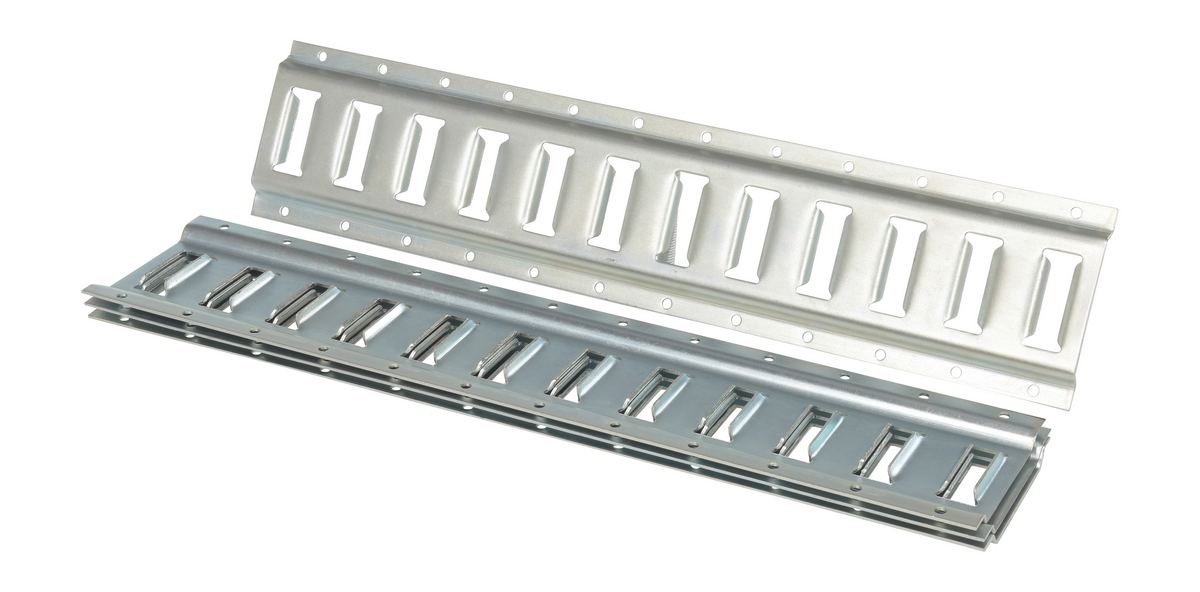

E-TRK-2-ZN-4PK			90 Days Limited Warranty	Steel Zinc Plated E-Track 2 Ft. Length 4 Pack Gray	Mounting Hole Quantity: 24 Mounting Hole Diameter (in.): 9/32	12

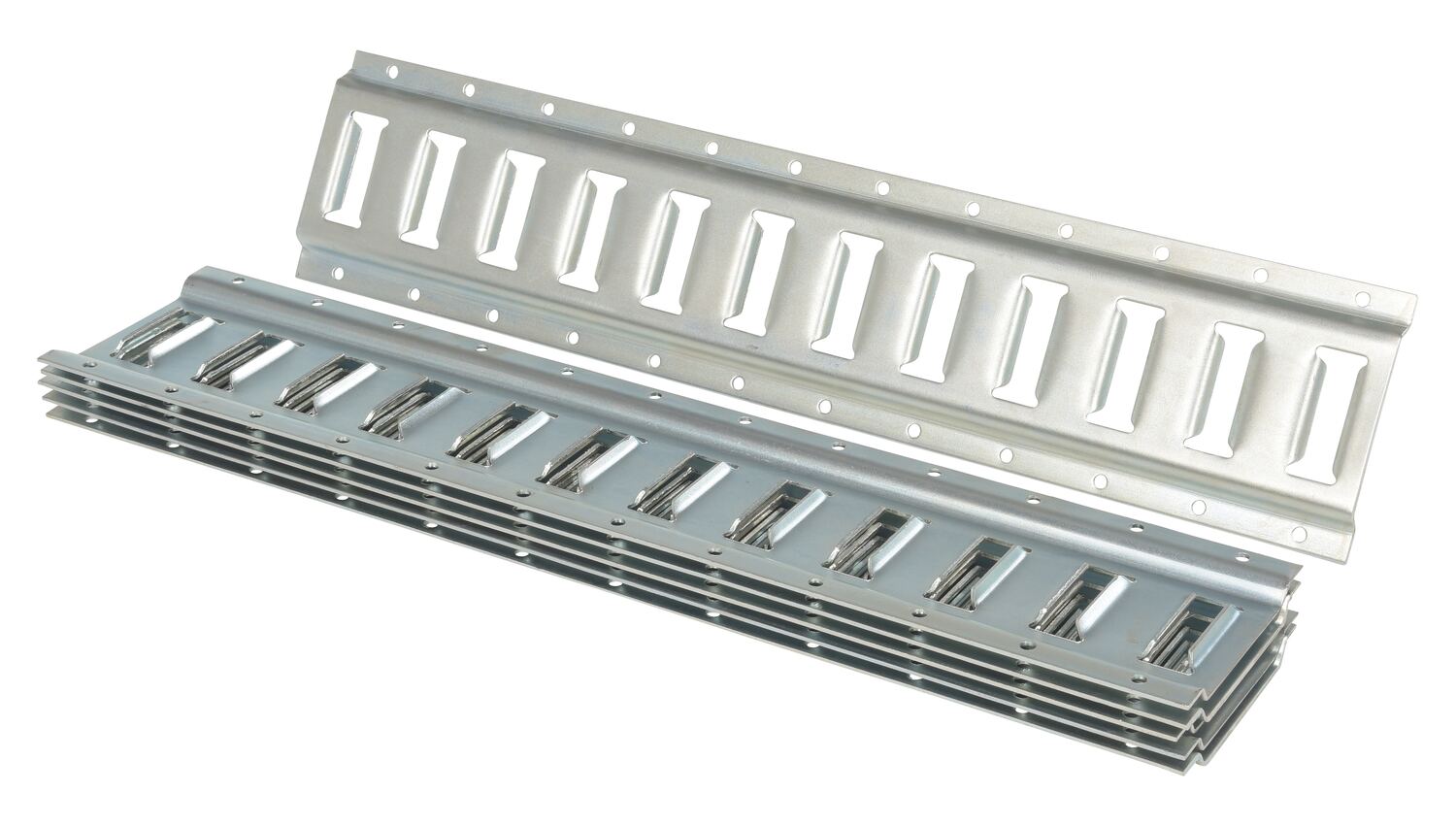

E-TRK-2-ZN-6PK			90 Days Limited Warranty	Steel Zinc Plated E-Track 2 Ft. Length 6 Pack Gray	Mounting Hole Quantity: 24 Mounting Hole Diameter (in.): 9/32	18
E-TRK-4-GY-10PK			90 Days Limited Warranty	Steel E-Track 4 Ft. Length 10 Pack Gray	Mounting Hole Quantity: 48 Mounting Hole Diameter (in.): 9/32	60

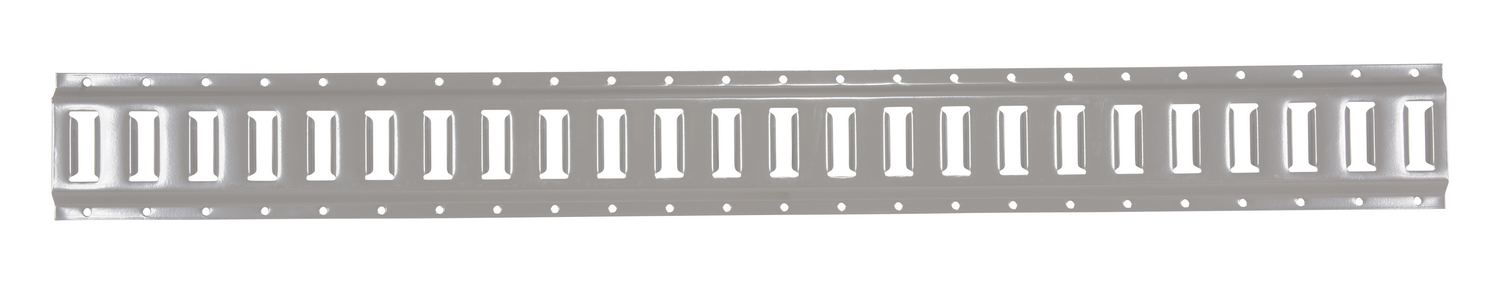

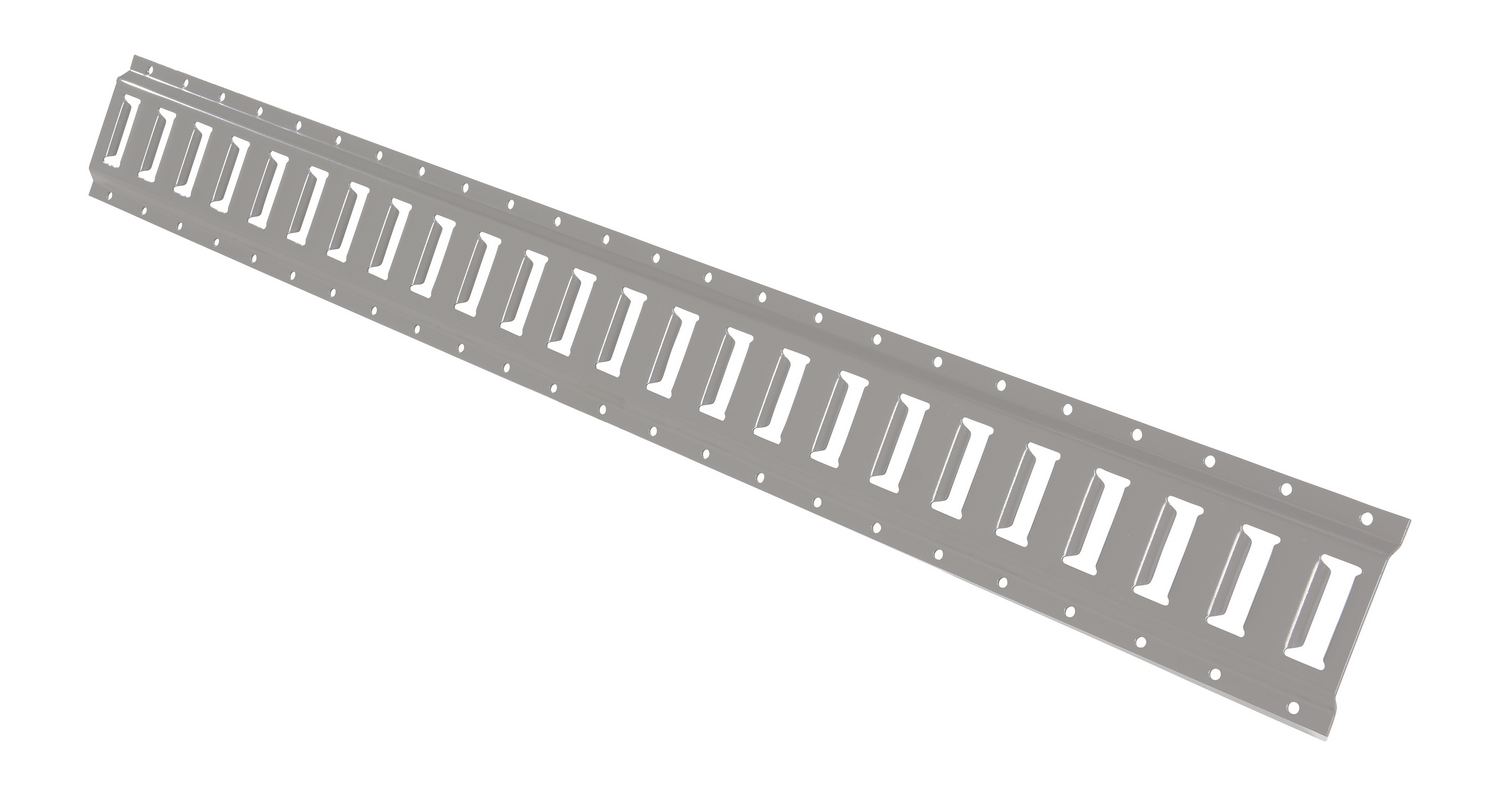

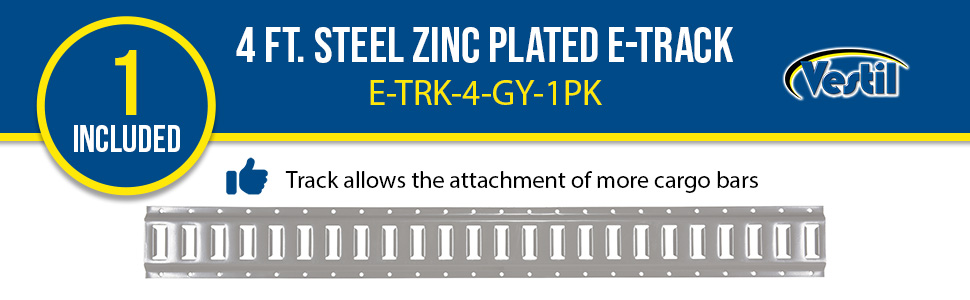

E-TRK-4-GY-1PK			90 Days Limited Warranty	Steel E-Track 4 Ft. Length 1 Pack Gray	Mounting Hole Quantity: 48 Mounting Hole Diameter (in.): 9/32	6

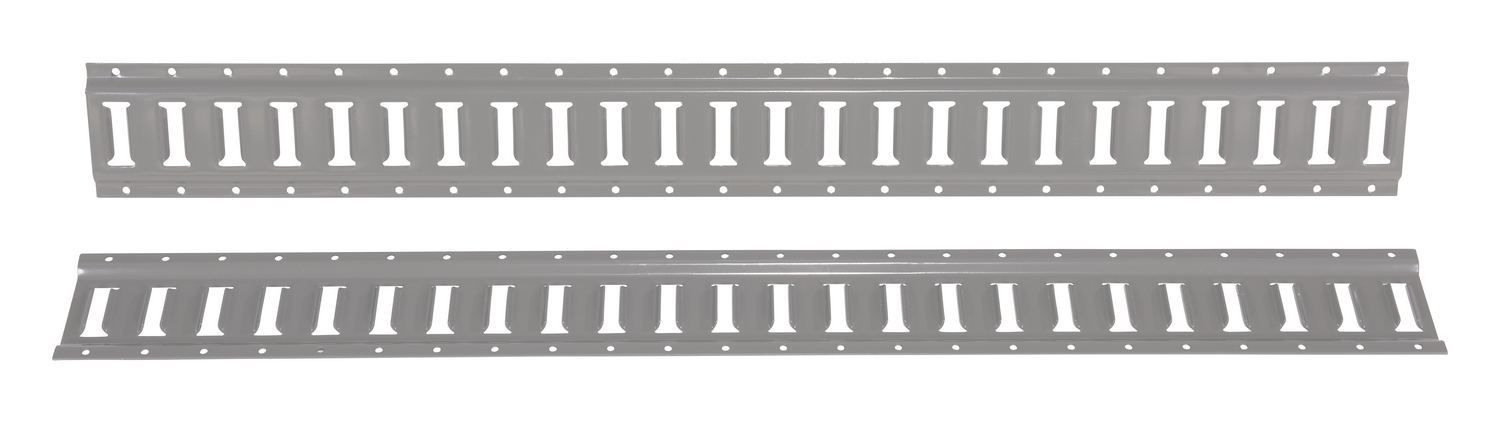

E-TRK-4-GY-2PK			90 Days Limited Warranty	Steel E-Track 4 Ft. Length 2 Pack Gray	Mounting Hole Quantity: 48 Mounting Hole Diameter (in.): 9/32	12

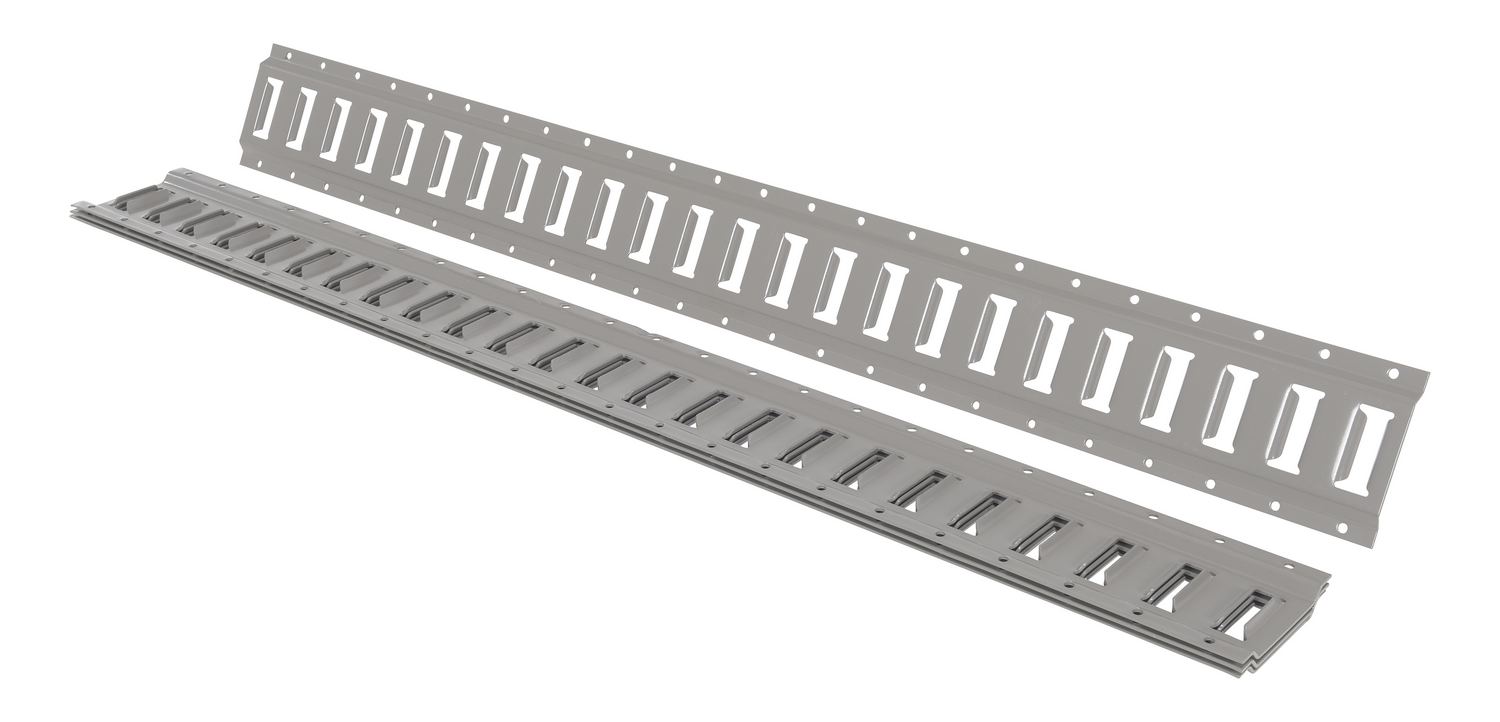

E-TRK-4-GY-4PK			90 Days Limited Warranty	Steel E-Track 4 Ft. Length 4 Pack Gray	Mounting Hole Quantity: 48 Mounting Hole Diameter (in.): 9/32	24

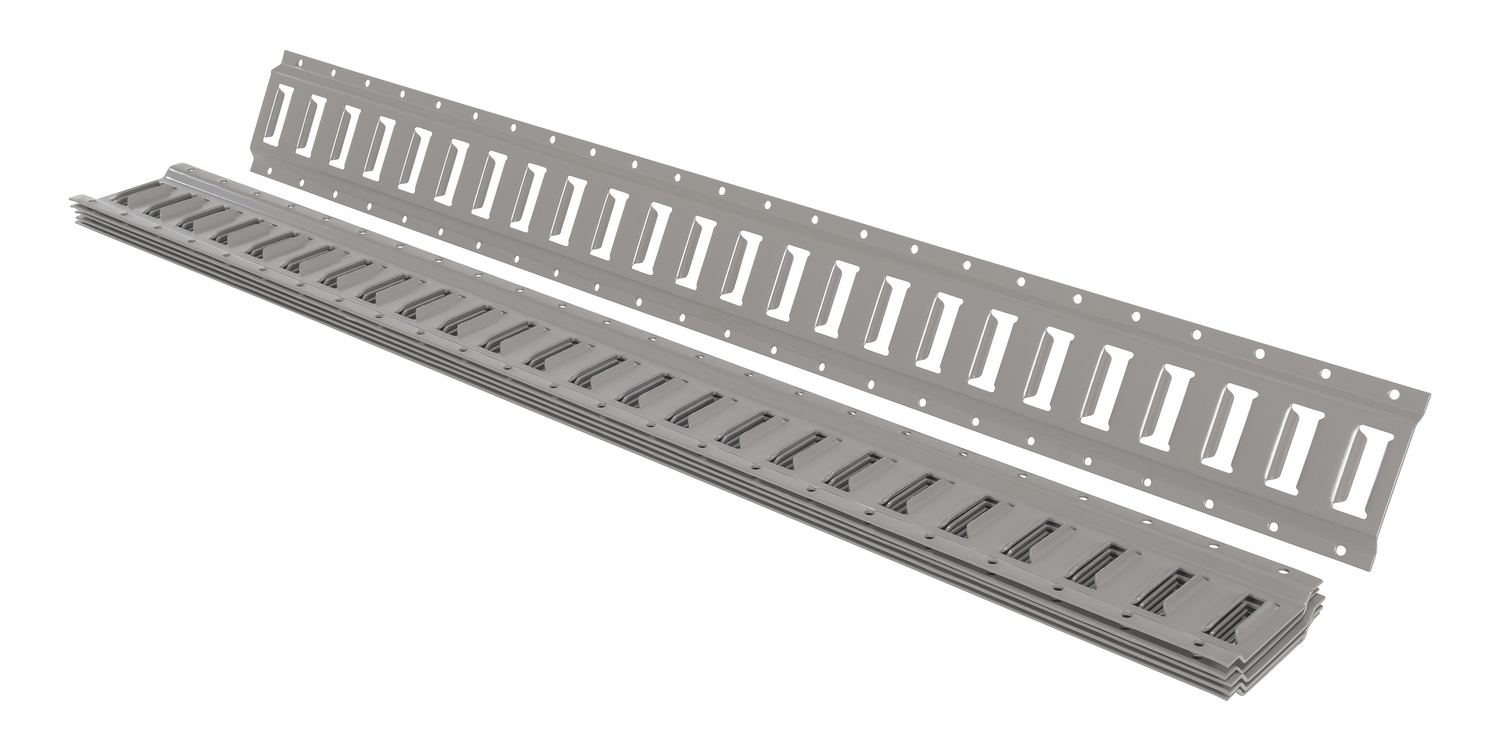

E-TRK-4-GY-6PK			90 Days Limited Warranty	Steel E-Track 4 Ft. Length 6 Pack Gray	Mounting Hole Quantity: 48 Mounting Hole Diameter (in.): 9/32	36

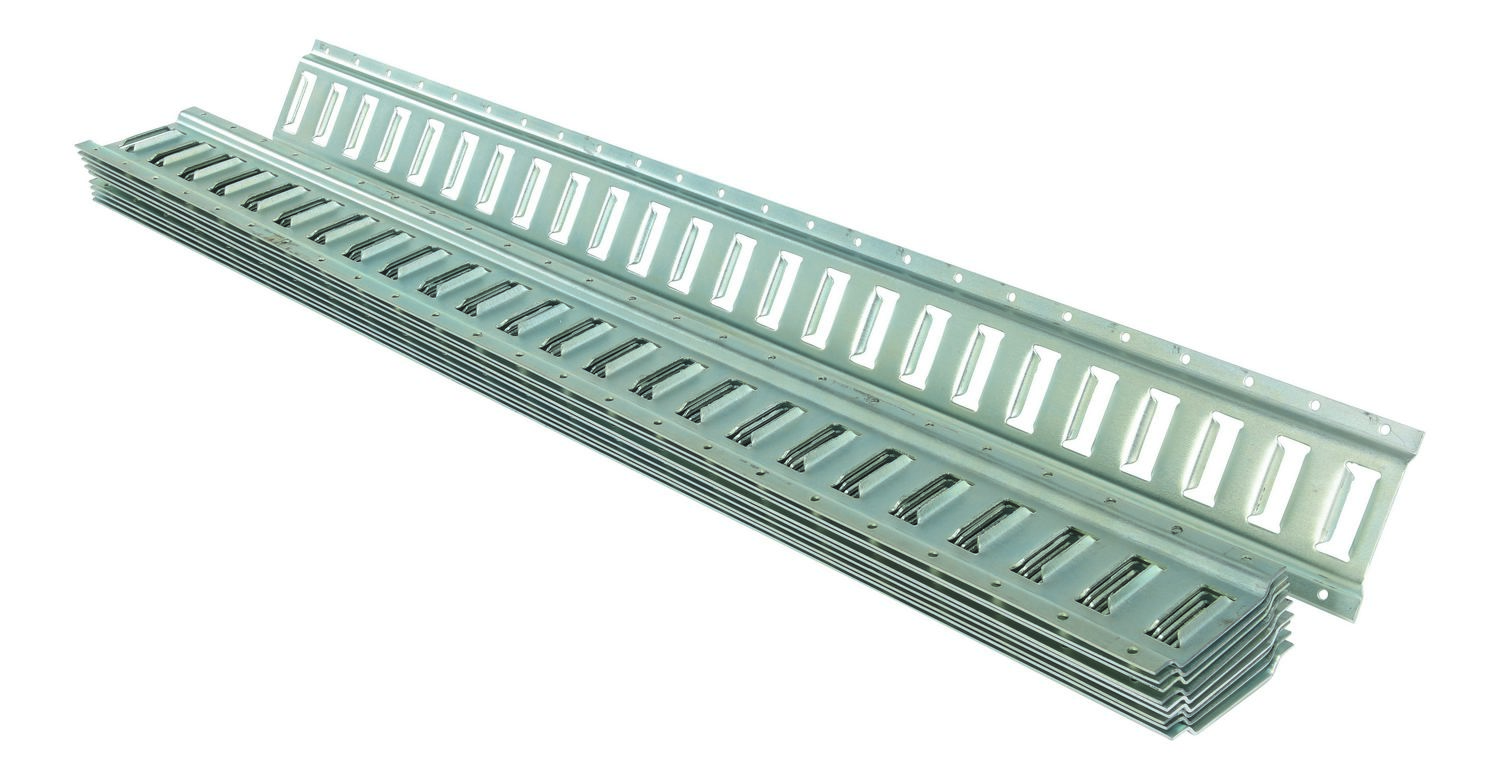

E-TRK-4-ZN-10PK			90 Days Limited Warranty	Steel Zinc Plated E-Track 4 Ft. Length 10 Pack Gray	Mounting Hole Quantity: 48 Mounting Hole Diameter (in.): 9/32	60

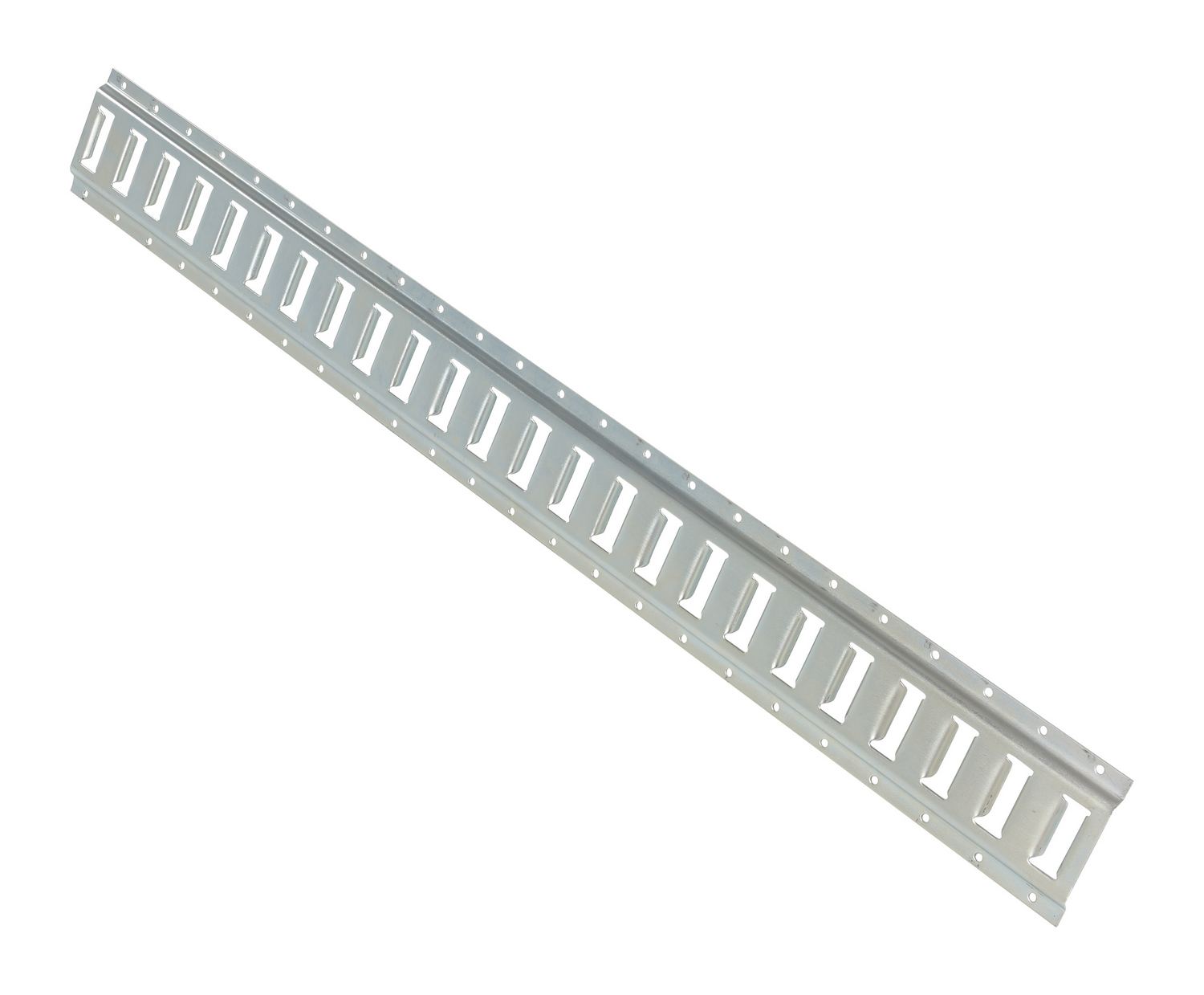

E-TRK-4-ZN-1PK			90 Days Limited Warranty	Steel Zinc Plated E-Track 4 Ft. Length 1 Pack Gray	Mounting Hole Quantity: 48 Mounting Hole Diameter (in.): 9/32	6

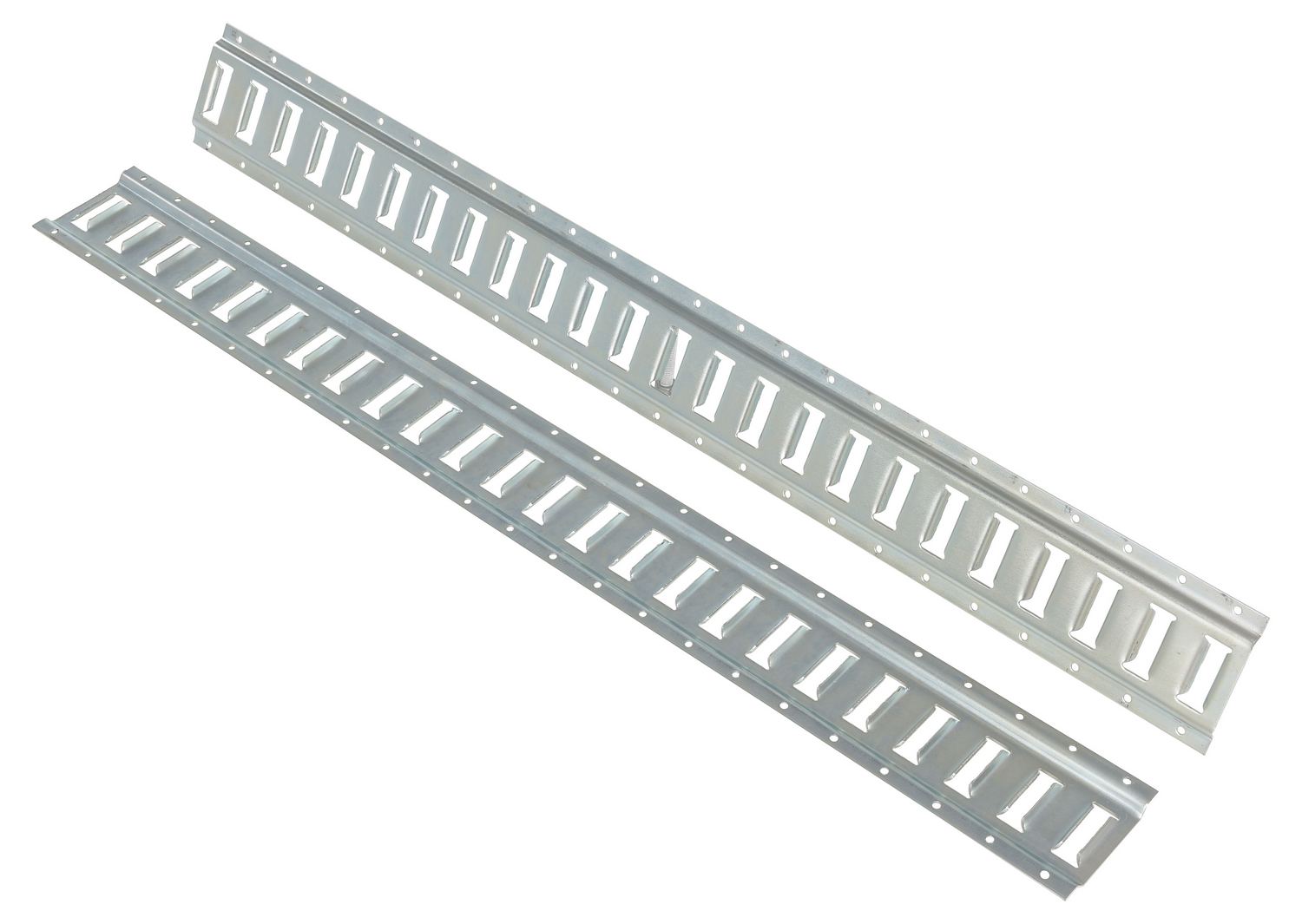

E-TRK-4-ZN-2PK			90 Days Limited Warranty	Steel Zinc Plated E-Track 4 Ft. Length 2 Pack Gray	Mounting Hole Quantity: 48 Mounting Hole Diameter (in.): 9/32	12

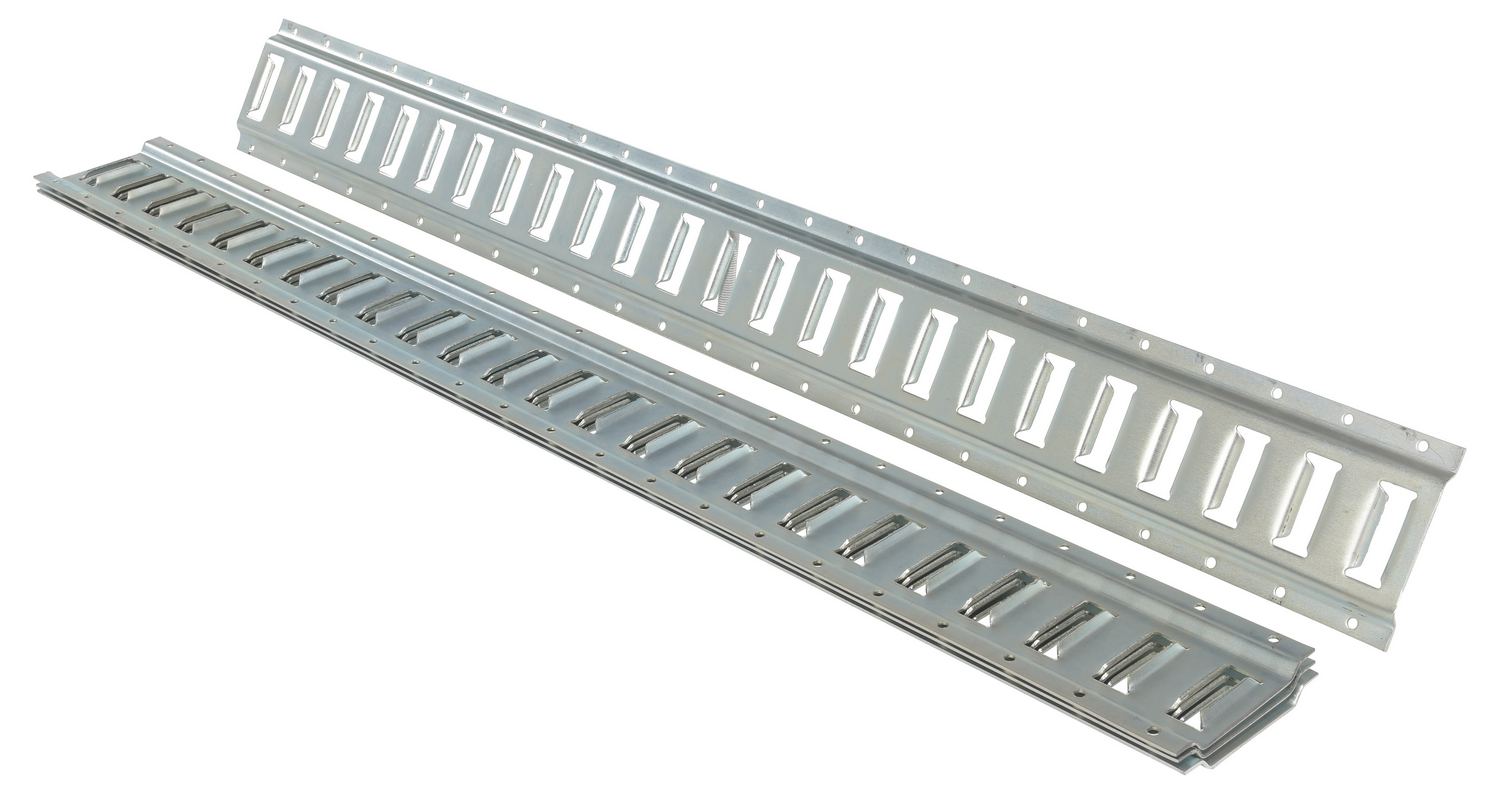

E-TRK-4-ZN-4PK			90 Days Limited Warranty	Steel Zinc Plated E-Track 4 Ft. Length 4 Pack Gray	Mounting Hole Quantity: 48 Mounting Hole Diameter (in.): 9/32	24

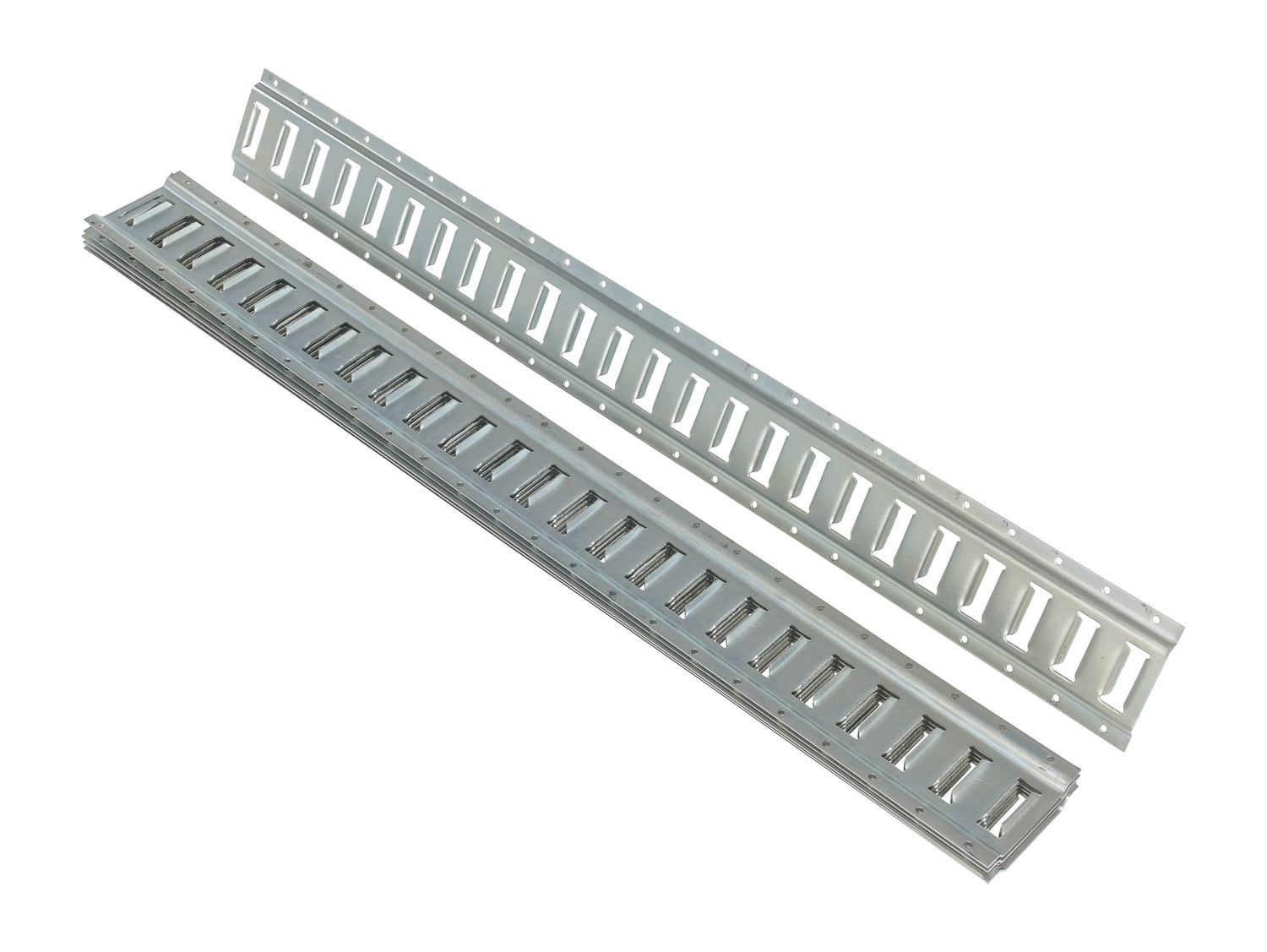

E-TRK-4-ZN-6PK			90 Days Limited Warranty	Steel Zinc Plated E-Track 4 Ft. Length 6 Pack Gray	Mounting Hole Quantity: 48 Mounting Hole Diameter (in.): 9/32	36

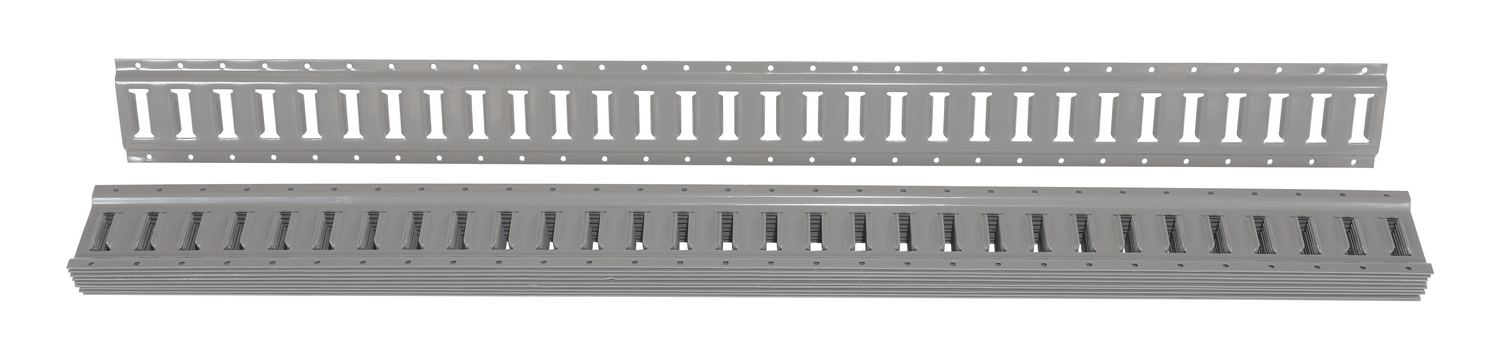

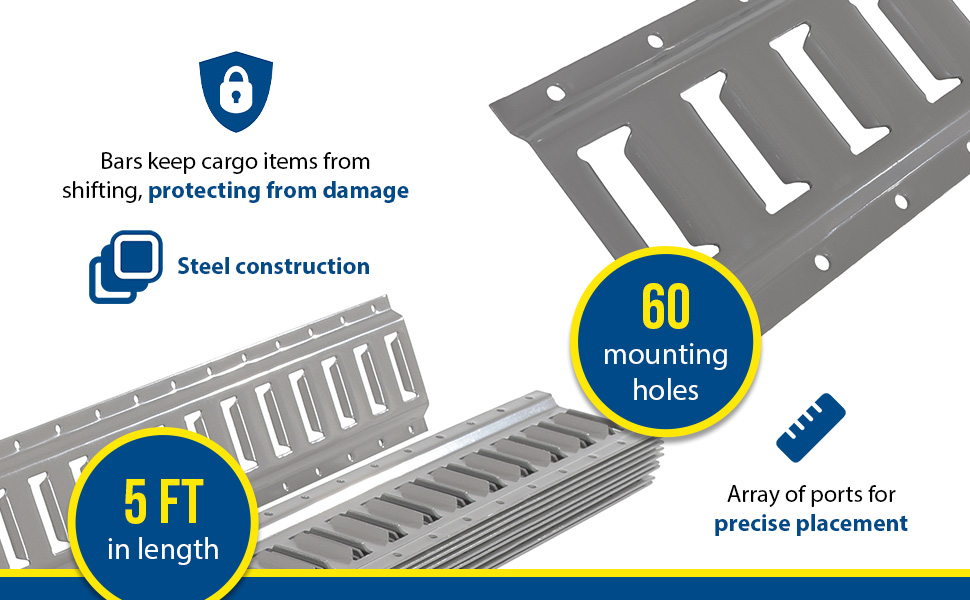

E-TRK-5-GY-10PK			90 Days Limited Warranty	Steel E-Track 5 Ft. Length 10 Pack Gray	Mounting Hole Quantity: 60 Mounting Hole Diameter (in.): 9/32	80

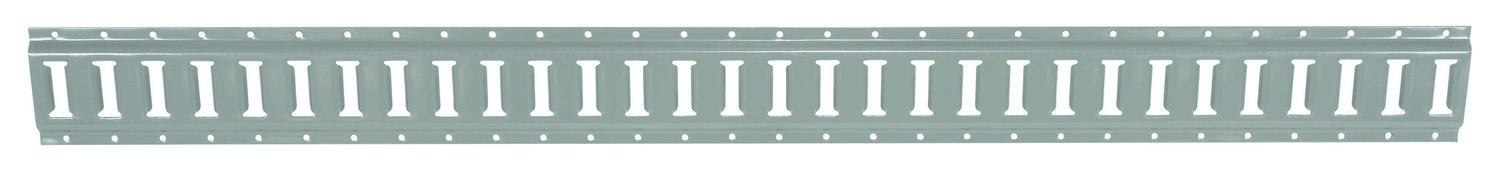

E-TRK-5-GY-1PK			90 Days Limited Warranty	Steel E-Track 5 Ft. Length 1 Pack Gray	Mounting Hole Quantity: 60 Mounting Hole Diameter (in.): 9/32	8

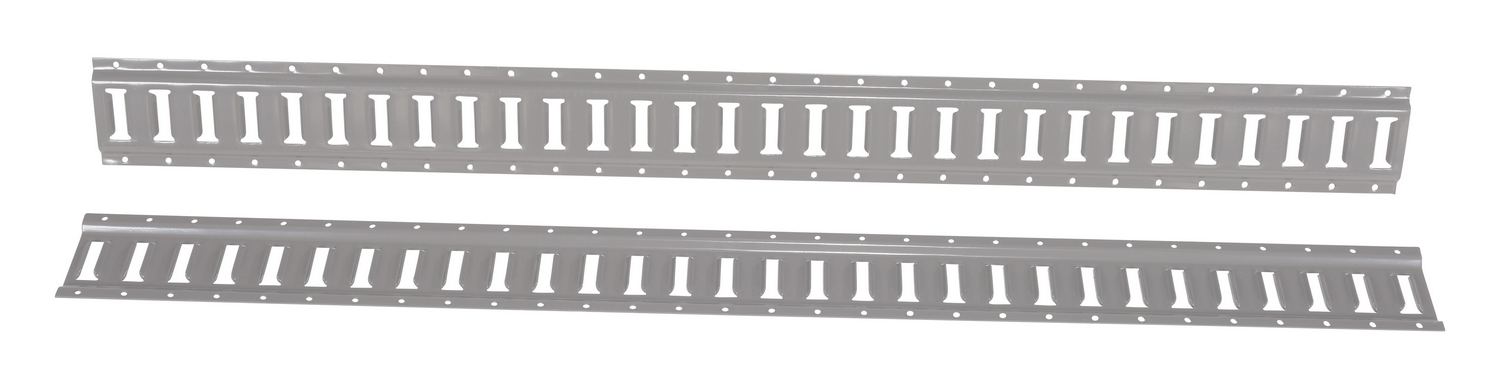

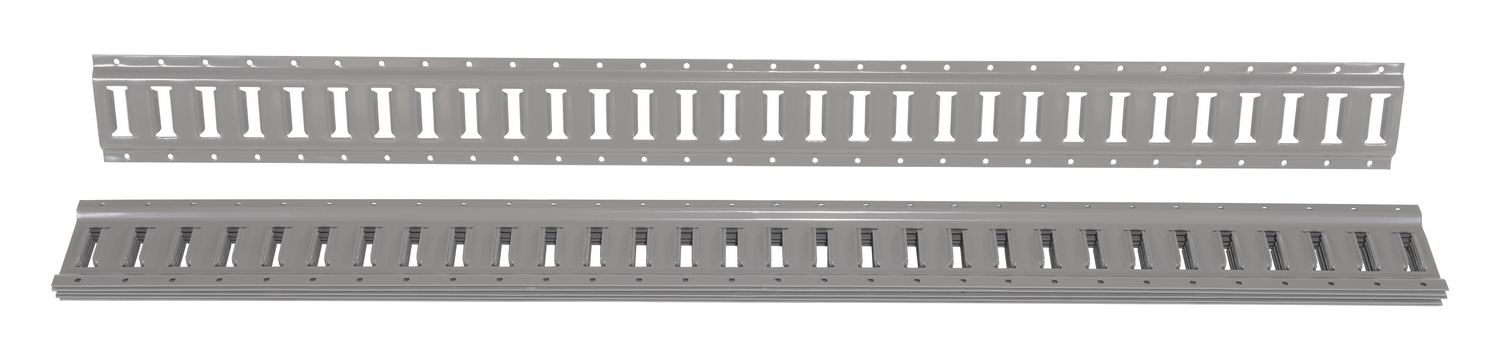

E-TRK-5-GY-2PK			90 Days Limited Warranty	Steel E-Track 5 Ft. Length 2 Pack Gray	Mounting Hole Quantity: 60 Mounting Hole Diameter (in.): 9/32	16

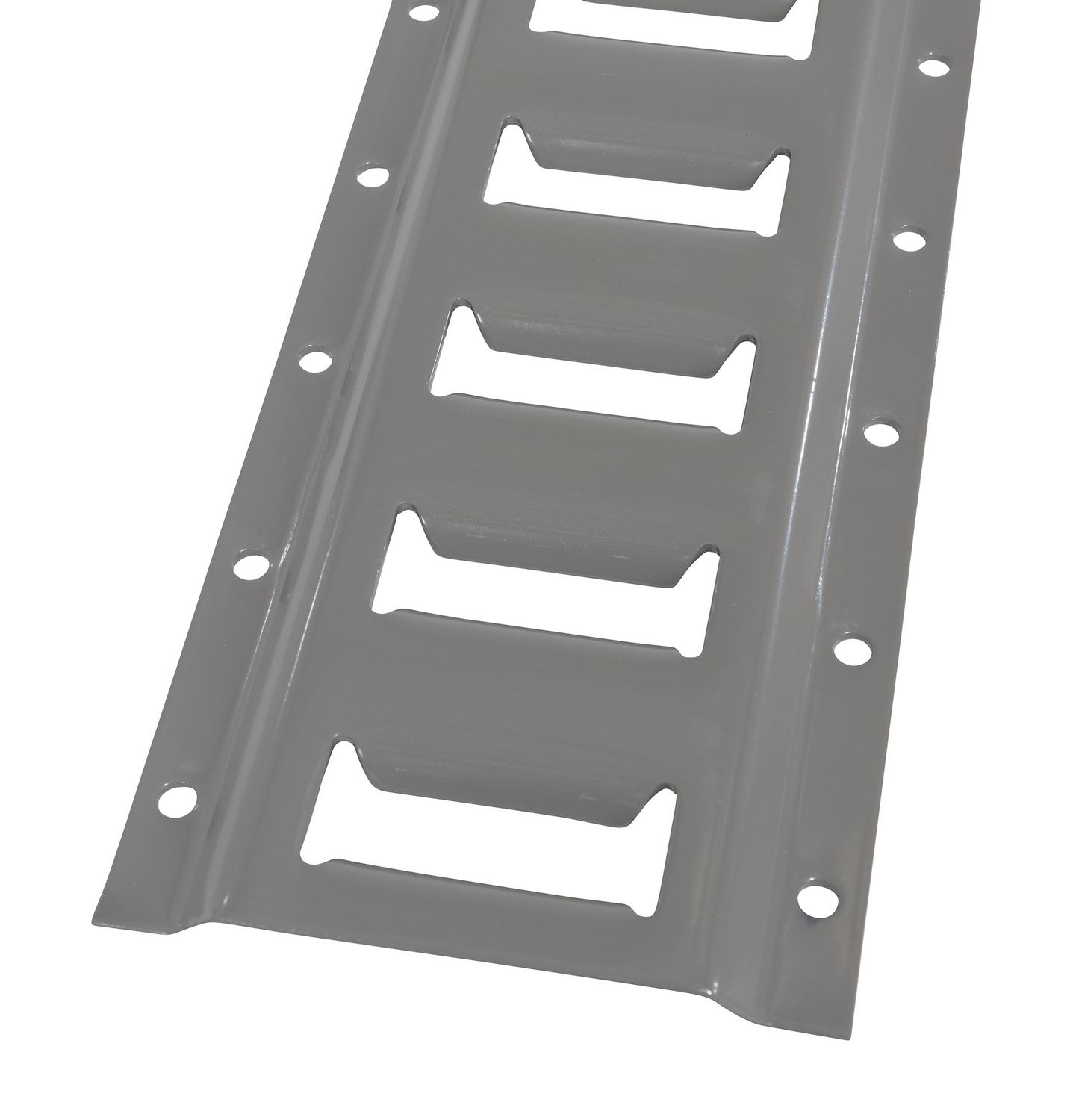

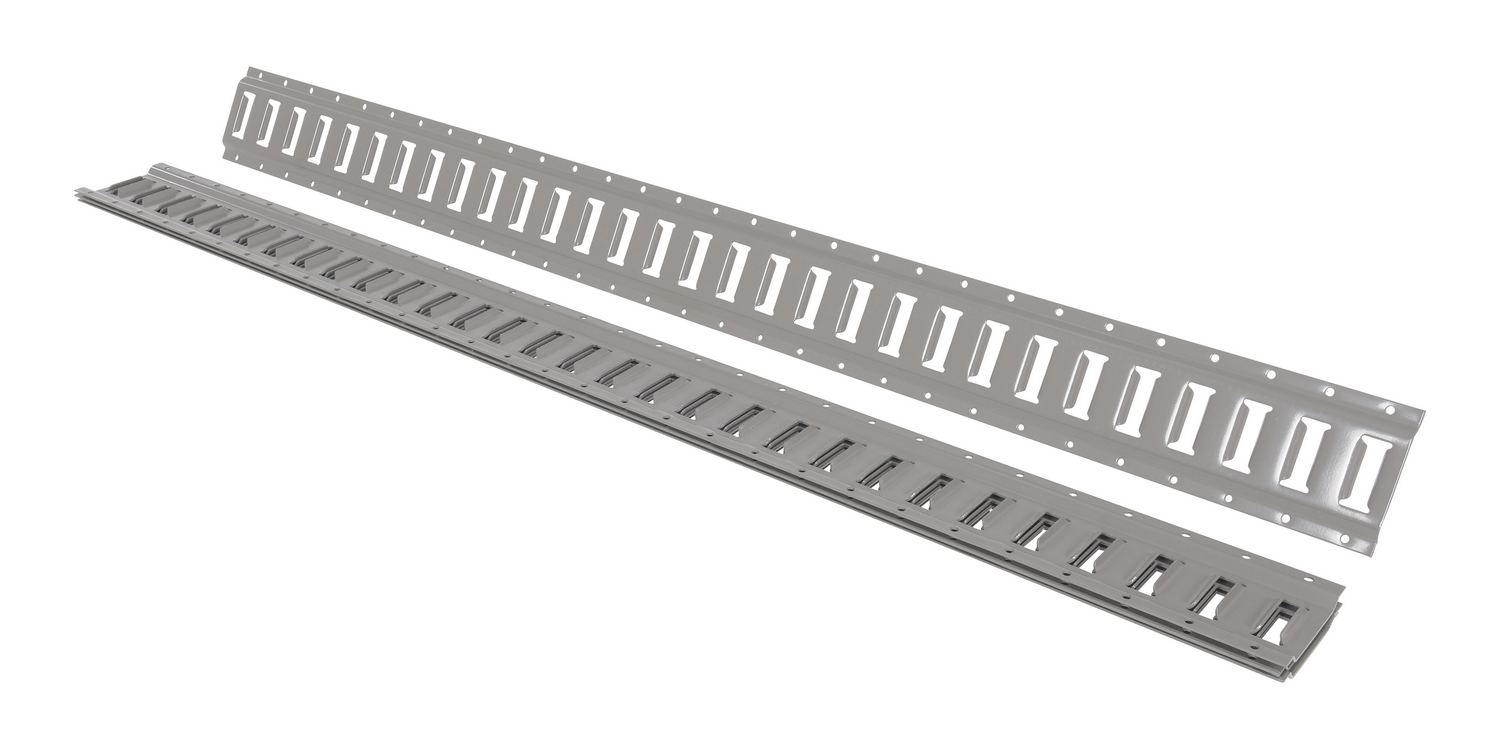

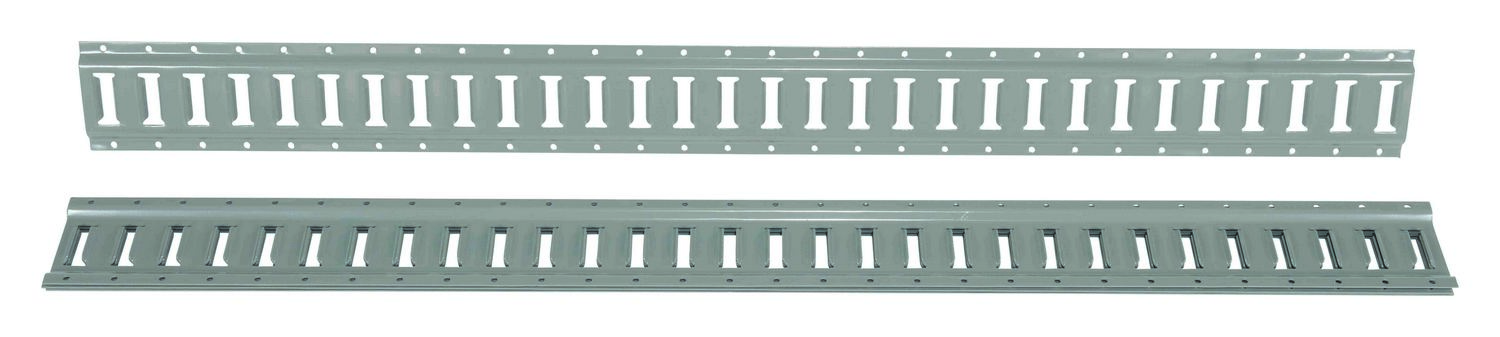

E-TRK-5-GY-4PK			90 Days Limited Warranty	Steel E-Track 5 Ft. Length 4 Pack Gray	Mounting Hole Quantity: 60 Mounting Hole Diameter (in.): 9/32	32
E-TRK-5-GY-6PK			90 Days Limited Warranty	Steel E-Track 5 Ft. Length 6 Pack Gray	Mounting Hole Quantity: 60 Mounting Hole Diameter (in.): 9/32	48

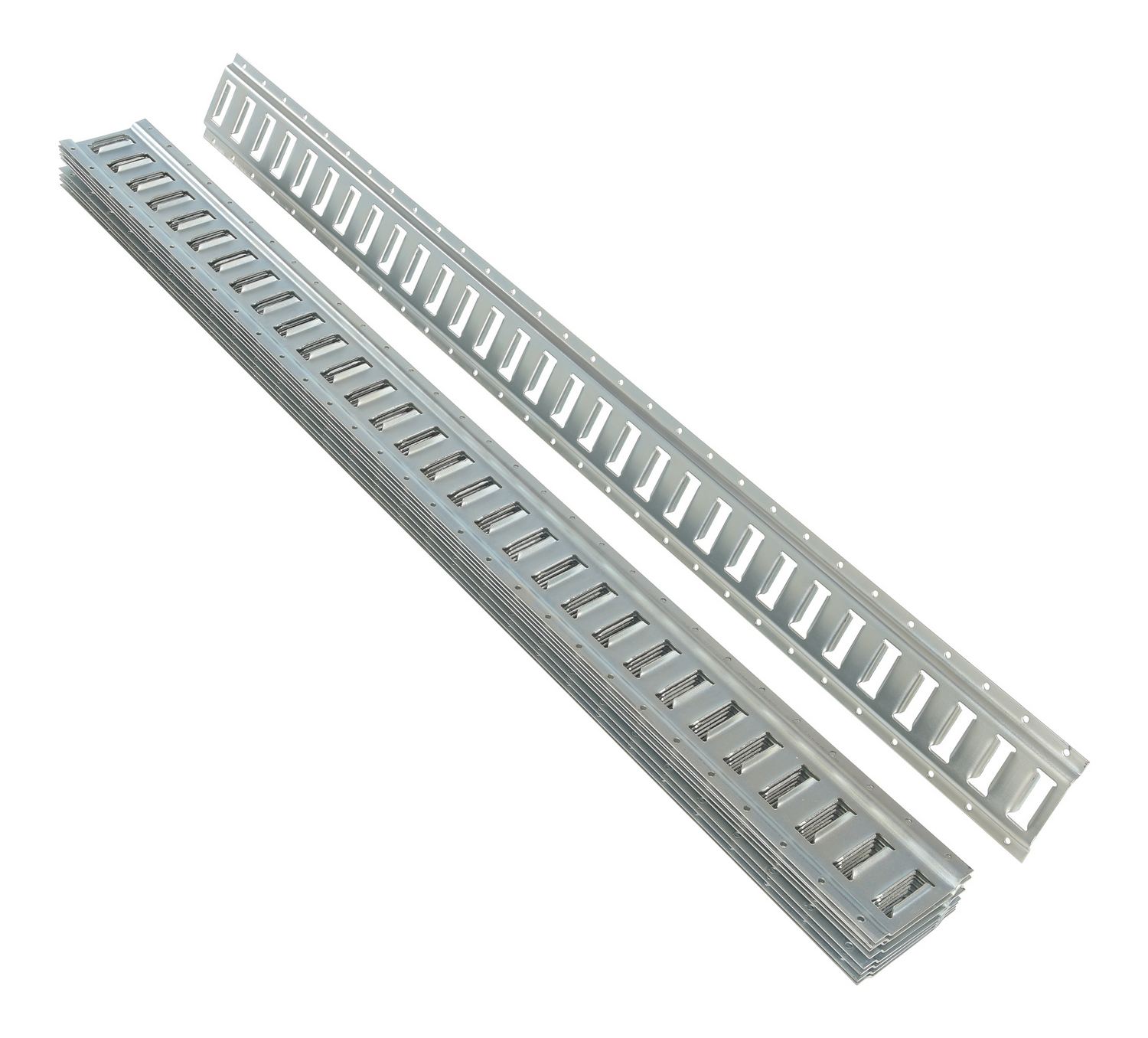

E-TRK-5-ZN-10PK			90 Days Limited Warranty	Steel Zinc Plated E-Track 5 Ft. Length 10 Pack Gray	Mounting Hole Quantity: 60 Mounting Hole Diameter (in.): 9/32	80

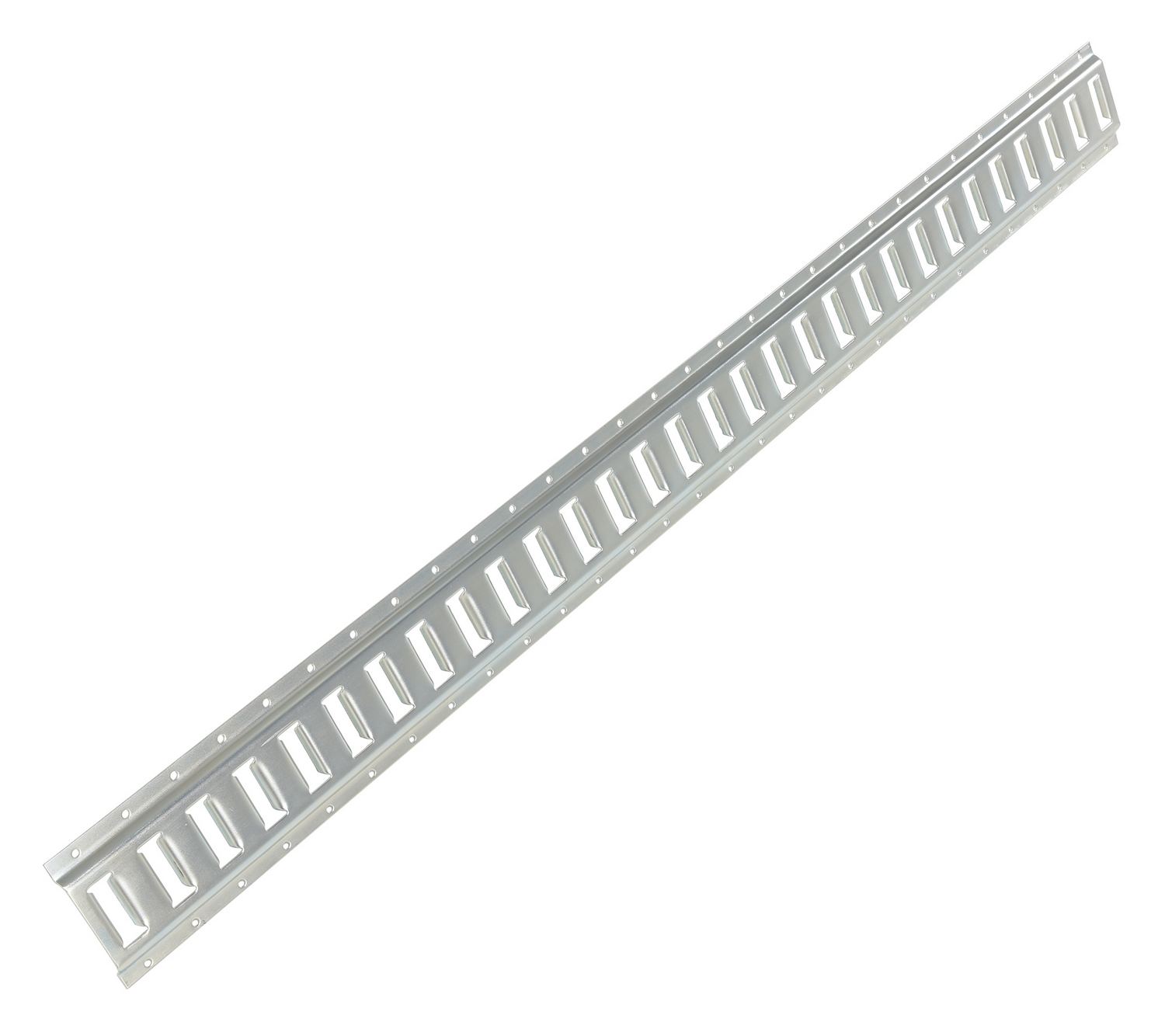

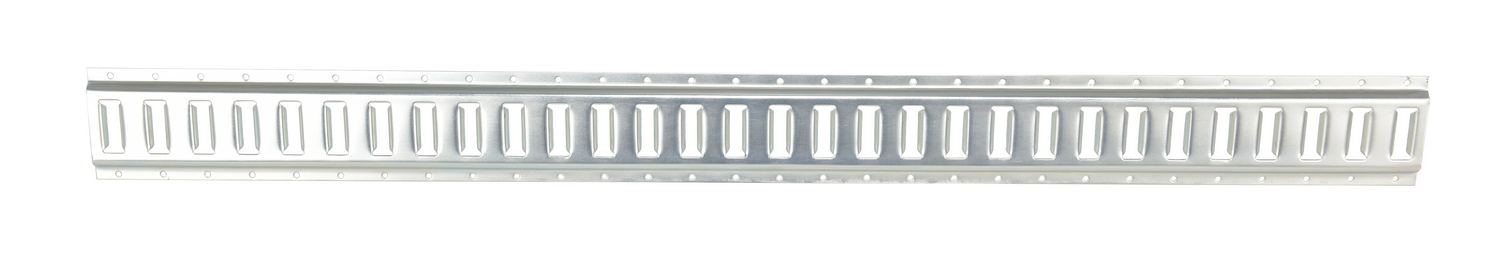

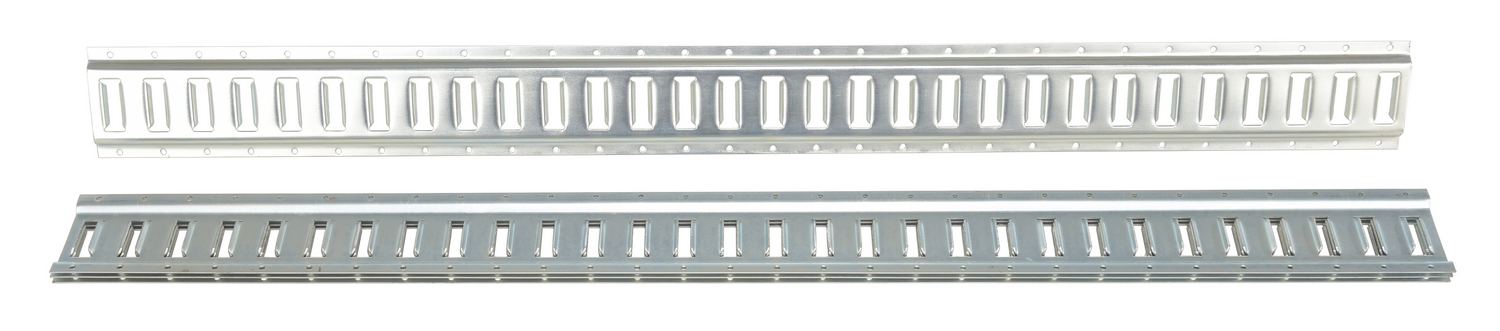

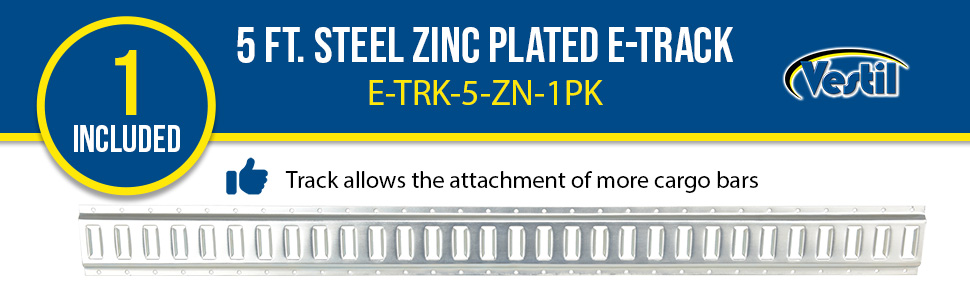

E-TRK-5-ZN-1PK			90 Days Limited Warranty	Steel Zinc Plated E-Track 5 Ft. Length 1 Pack Gray	Mounting Hole Quantity: 60 Mounting Hole Diameter (in.): 9/32	8

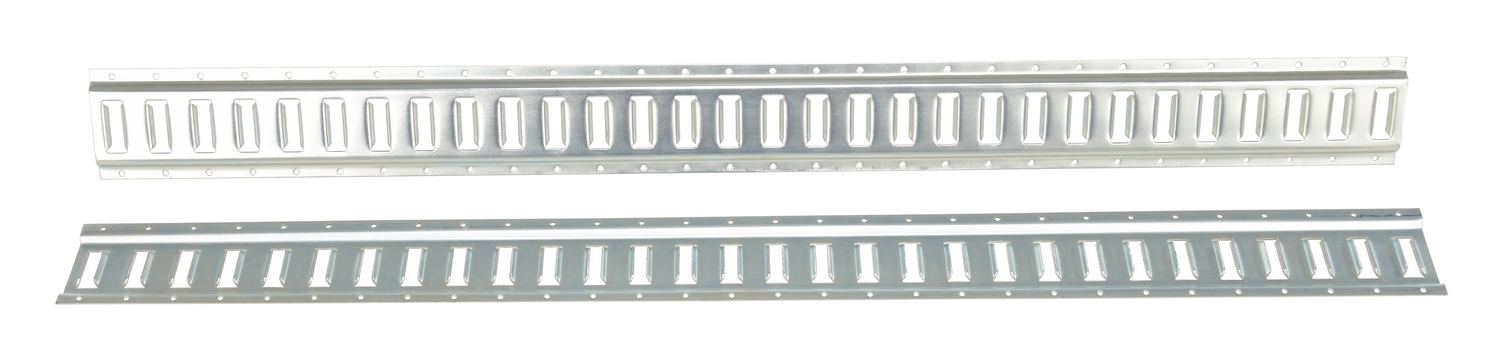

E-TRK-5-ZN-2PK			90 Days Limited Warranty	Steel Zinc Plated E-Track 5 Ft. Length 2 Pack Gray	Mounting Hole Quantity: 60 Mounting Hole Diameter (in.): 9/32	16
E-TRK-5-ZN-4PK			90 Days Limited Warranty	Steel Zinc Plated E-Track 5 Ft. Length 4 Pack Gray	Mounting Hole Quantity: 60 Mounting Hole Diameter (in.): 9/32	32
E-TRK-5-ZN-6PK			90 Days Limited Warranty	Steel Zinc Plated E-Track 5 Ft. Length 6 Pack Gray	Mounting Hole Quantity: 60 Mounting Hole Diameter (in.): 9/32	48

E-TRK-CBAT		E-TRACK Cargo Bar Assist Tool	7

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above

Cargo Bars PDF's will open in a new window when clicked.

Manuals

EB-96 & -102
Owners Manual

Survey Sheets

No Survey Sheets For This Product

Approval Drawings

Testing Certificates

CB-HLDR

CB-PU-3

E-CLIP-D

E-CLIP-W

E-TRK-10-GY-10PK

E-TRK-10-GY-1PK

E-TRK-10-GY-2PK

E-TRK-10-GY-4PK

E-TRK-10-GY-6PK

E-TRK-10-ZN-10PK

E-TRK-10-ZN-1PK

E-TRK-10-ZN-2PK

E-TRK-10-ZN-4PK

E-TRK-10-ZN-6PK

E-TRK-2-GY-10PK

E-TRK-2-GY-1PK

E-TRK-2-GY-2PK

E-TRK-2-GY-4PK

E-TRK-2-GY-6PK

E-TRK-2-ZN-10PK

E-TRK-2-ZN-1PK

E-TRK-2-ZN-2PK

E-TRK-2-ZN-4PK

E-TRK-2-ZN-6PK

E-TRK-4-GY-10PK

E-TRK-4-GY-1PK

E-TRK-4-GY-2PK

E-TRK-4-GY-4PK

E-TRK-4-GY-6PK

E-TRK-4-ZN-10PK

E-TRK-4-ZN-1PK

E-TRK-4-ZN-2PK

E-TRK-4-ZN-4PK

E-TRK-4-ZN-6PK

E-TRK-5-GY-10PK

E-TRK-5-GY-1PK

E-TRK-5-GY-2PK

E-TRK-5-GY-4PK

E-TRK-5-GY-6PK

E-TRK-5-ZN-10PK

E-TRK-5-ZN-1PK

E-TRK-5-ZN-2PK

E-TRK-5-ZN-4PK

E-TRK-5-ZN-6PK

SDS Sheets

No SDS Sheets For This Product

Other PDF's

Cargo Bars Mailing Brochure

Directory Links Of Available PDF's For All Products

Print Friendly

Related or Similar Products:

Truck Mounted Strap Winches

Product

Truck Mounted Strap Winches

E-TRACK Cargo Bar Assist Tool

Product

E-TRACK Cargo Bar Assist Tool

Pallet Cargo Decker

Product

Pallet Cargo Decker

Reusable Inflatable Dunnage Bags

Product

Reusable Inflatable Dunnage Bags

Cargo Strapping

Product

Cargo Strapping

Lockable Load Binders

Product

Lockable Load Binders

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date

Cargo Bars

Keep trailer contents in place -- eliminate damaged goods
Simple mechanical lock - will not vibrate loose

During transport, keep trailer contents securely in place with these easy to use Cargo Bars. Constructed of 1-1/2." square tubing, unless specified. Wall construction is lightweight, yet extremely strong. Square articulating steel end plates feature rubber pads for positive gripping action. End plates measure 4" x 4" on models CL-15, CL-16, CL-17 & CL-20. End plates measure 4" x 2-3/8" on model CB-5, CB-7 & CB-7-S and 3-3/4." x 3-3/4." on model CL-18. End plates measure 2-3/8" x 3" on model CB-PU-3. Bars fit between trailer walls.

model CL-17 shown in use

E-TRACK:
The E-track is a great benefit to shipping and cargo loads. With a steel construction the track allows additional bars to become attached to it. Once, the additional bars are in place the shifting of items becomes minimized. The track design lets the user choose from an array of ports for precise placement. E-TRACK Cargo Bar Assist Tool also available.

Model #		Description	Attributes	Net Wt. (lbs)
CB-5		Aluminum Round Cargo Bar 88 In. to 103 In. Silver	Round Tubing Size (in.): 1-1/2 Wall Construction (gage): 14	13
CB-7		Heavy Duty Aluminum Round Cargo Bar 89 In. to 104 In. Silver	Round Tubing Size (in.): 1-1/2 Wall Construction (gage): 14	13
CB-7-S		Heavy Duty Steel Round Tube Cargo Bar 89 In. to 104 In. Silver	Round Tubing Size (in.): 1-1/2 Wall Construction (gage): 14	12
CB-PU-3		Steel Pick-Up Truck Cargo Bar 40 In. Gray	Service Range (in.): 40 to 70 End Pad Width (in.): 2-3/8	5
CL-15		Steel One Piece Cargo Bar 87 In. to 119 In. Silver	Square Tubing Size (in.): 1-1/2 Wall Construction (gage): 14	15
CL-16		Galvanized One Piece Cargo Bar 87 In. to 119 In. Gray	Square Tubing Size (in.): 1-1/2 Wall Construction (gage): 14	15
CL-17		Steel Two Piece Folding Cargo Bar 88 In. to 116 In. Gray	Square Tubing Size (in.): 1-1/2 Wall Construction (gage): 14	17
CL-18		Galvanized Two Piece Telescopic Cargo Bar 90-3/8 In. to 139-9/16 In. Gray	Square Tubing Size (in.): 1-1/2 Wall Construction (gage): 14	25
CL-20		Steel Two Piece Cargo Bar for E & A Track 87 In. to 116 In. Silver	Square Tubing Size (in.): 1-1/2 Wall Construction (gage): 14	18
EB-102		Aluminum One Piece E-Track 102 In. Extension Silver	Square Tubing Size (in.): 1-1/2 Wall Construction (gage): 14	21
EB-96		Aluminum One Piece E-Track 96 In. Extension Silver	Square Tubing Size (in.): 1-1/2 Wall Construction (gage): 14	19

Options

E-TRK-CBAT		E-TRACK Cargo Bar Assist Tool	7
