Product Family Overview


Reusable Inflatable Dunnage Bags
SERIES: BAG

Often used for rail, vessel, and inter modal shipments

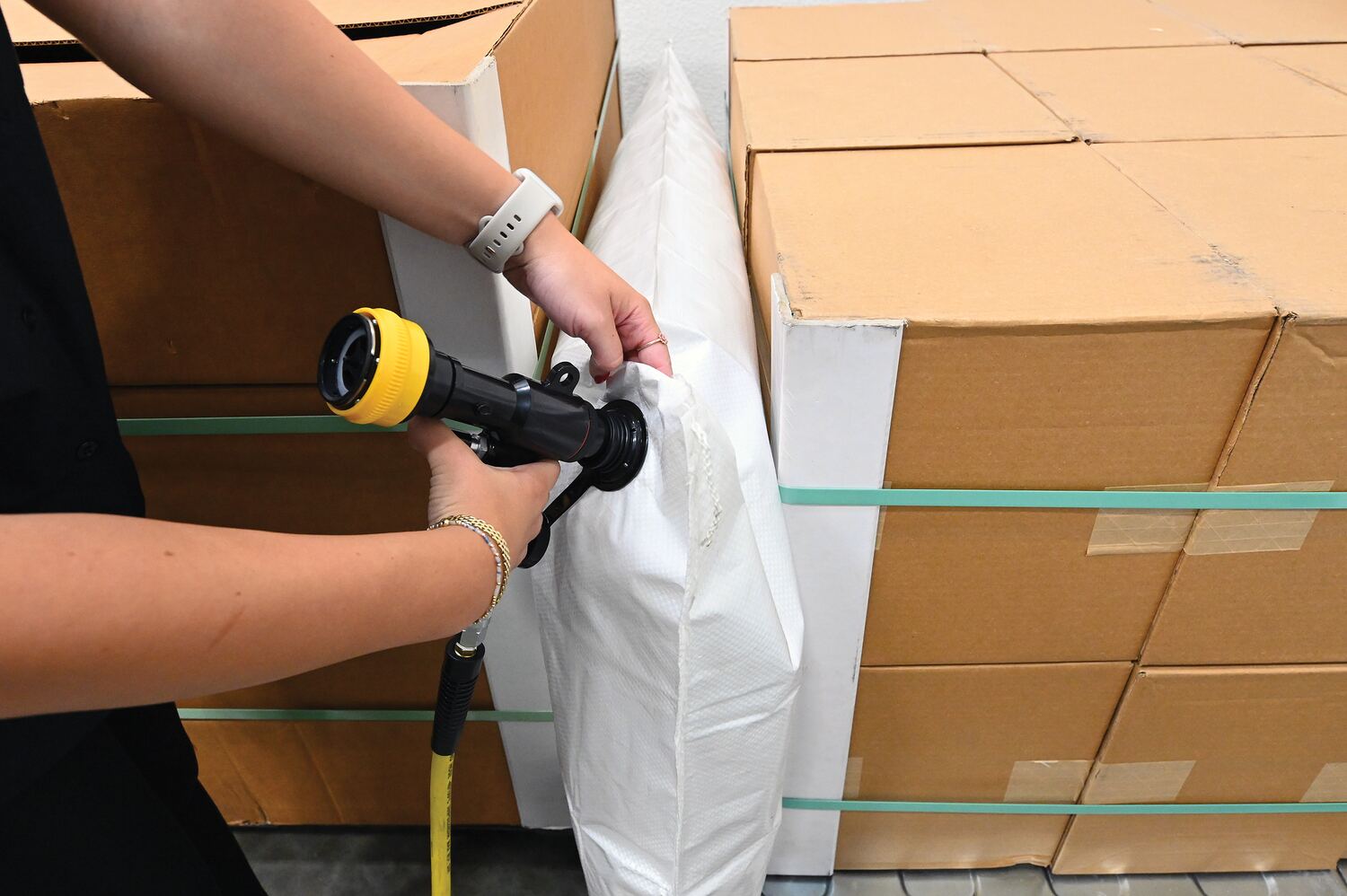

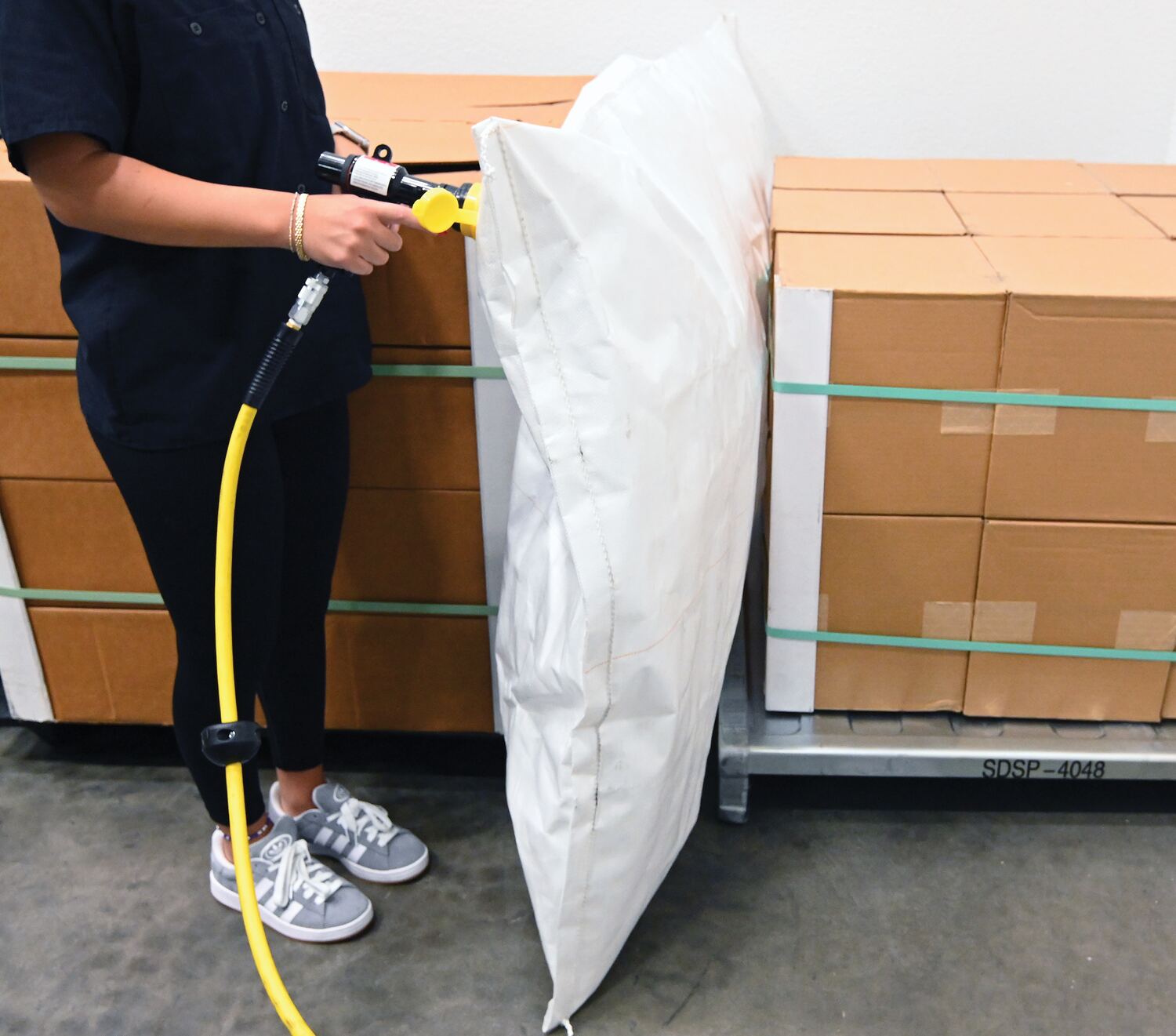

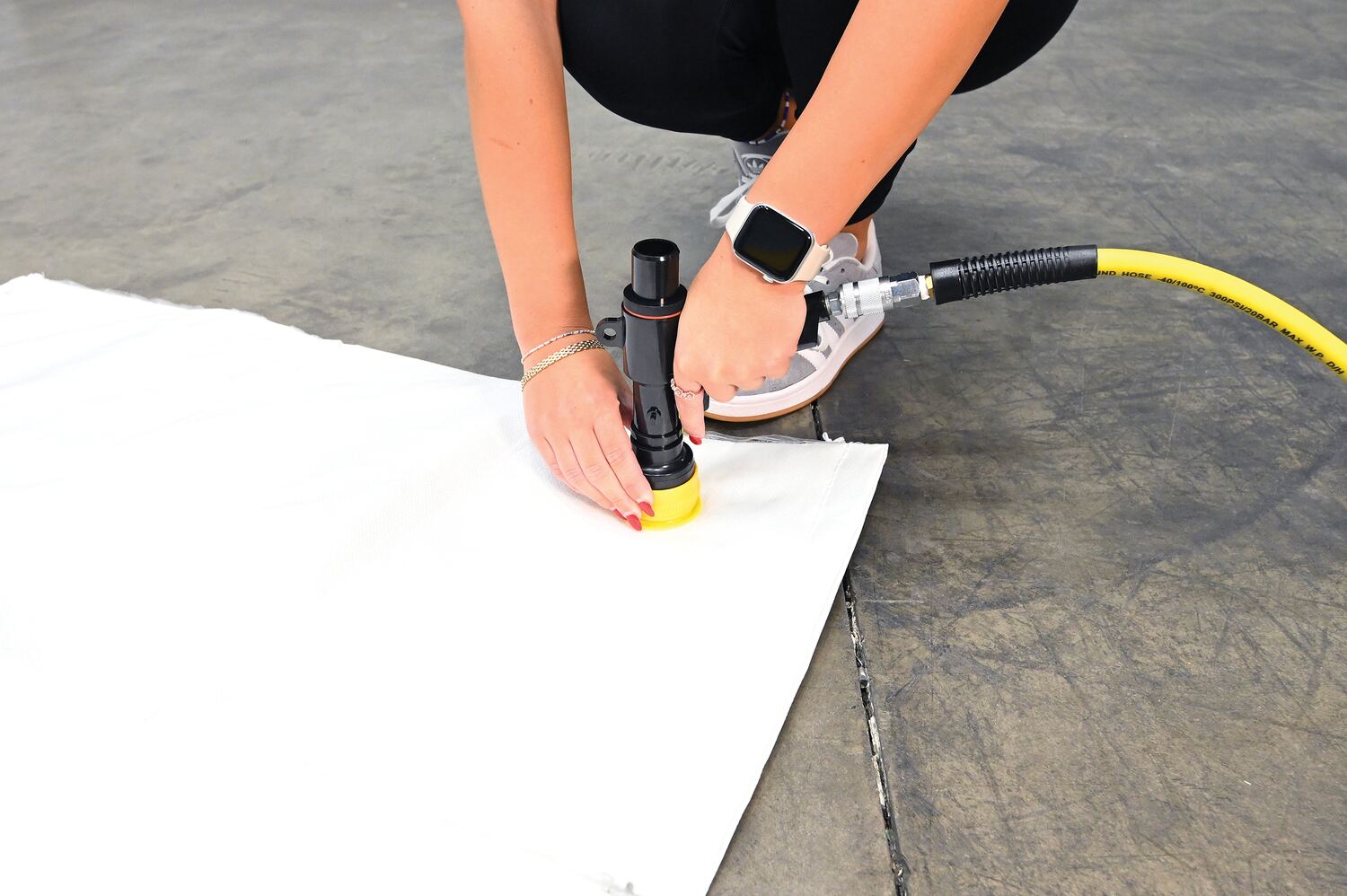

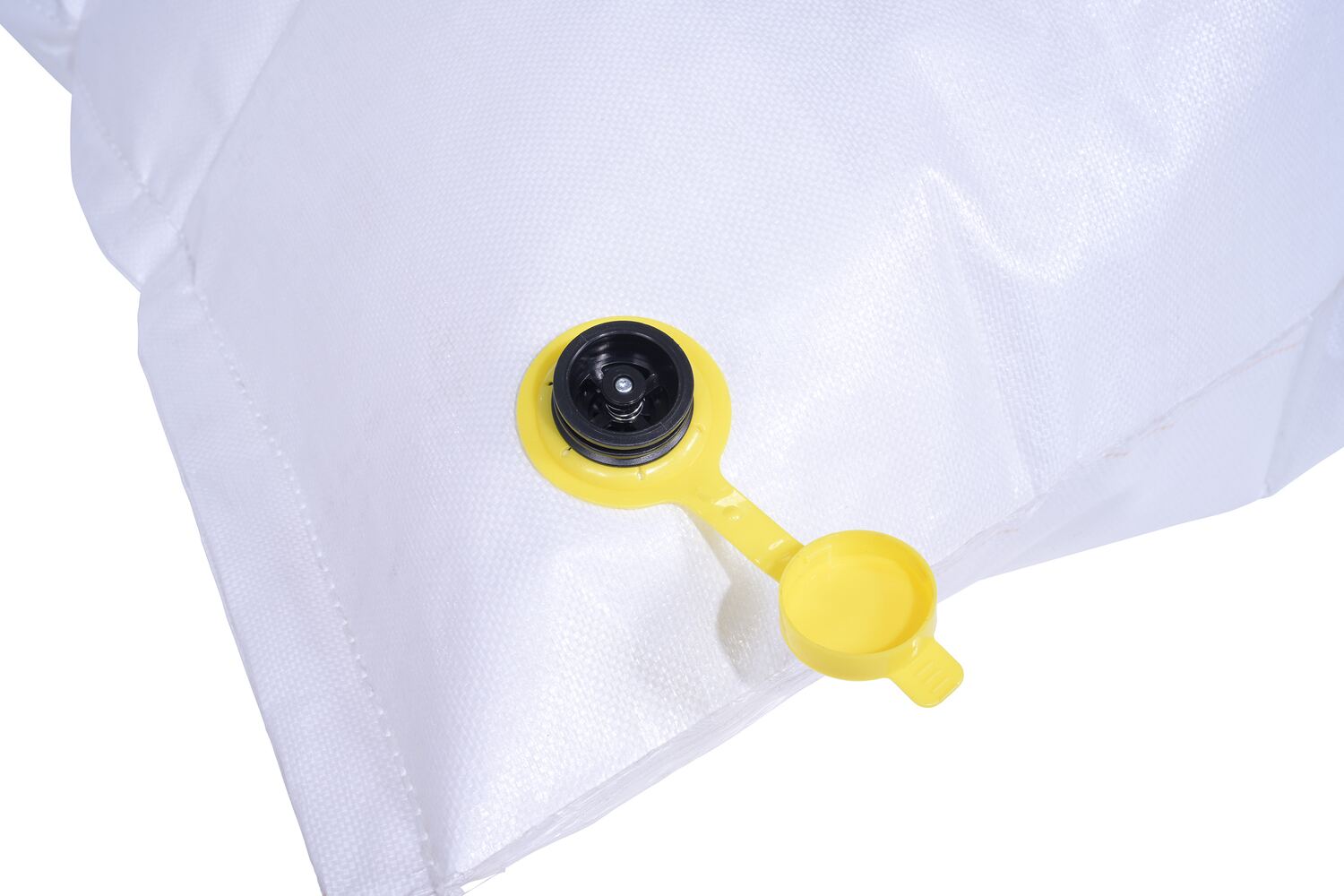

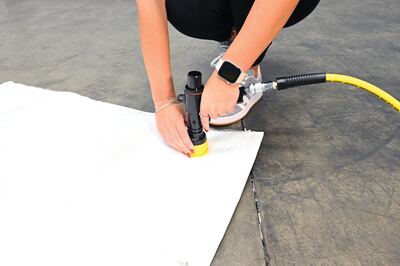

Minimize product shifting and damage in transit. The 2-ply construction consists of a polypropylene weave outer bag protecting a polyethylene inner bag. The bag provides 6 psi pressure seal. Stores flat when empty. Fill with standard shop air. Air Bag Inflation Valve tool offers easy grip for convenient use. Press and hold red vinyl coated lever. The cast zinc body has a chrome plated finish. Air inlet thread female 1/4" NPT.

  • Minimizes product shifting and damage in transit
  • 2-Ply construction consists of a polypropylene weave outer bag
  • Outer bag protects a polyethylene inner bag
  • Can be filled with standard shop air
AAR Level Working Pressure Burst Pressure
L0 <0.10 Bar/ 1.45 Psi 0.4 Bar/ 5.8 Psi
L1 <0.20 Bar/ 2.90 Psi 0.6 Bar/ 8.7 Psi
L2 <0.40 Bar/ 6.00 Psi 1.2 Bar/ 17 Psi
L3 <0.55 Bar/ 8.00 Psi 1.7 Bar/ 25 Psi
L4 <0.70 Bar/ 10.0 Psi 2.0 Bar/ 30 Psi
Flat <0.20 Bar/ 2.90 Psi /

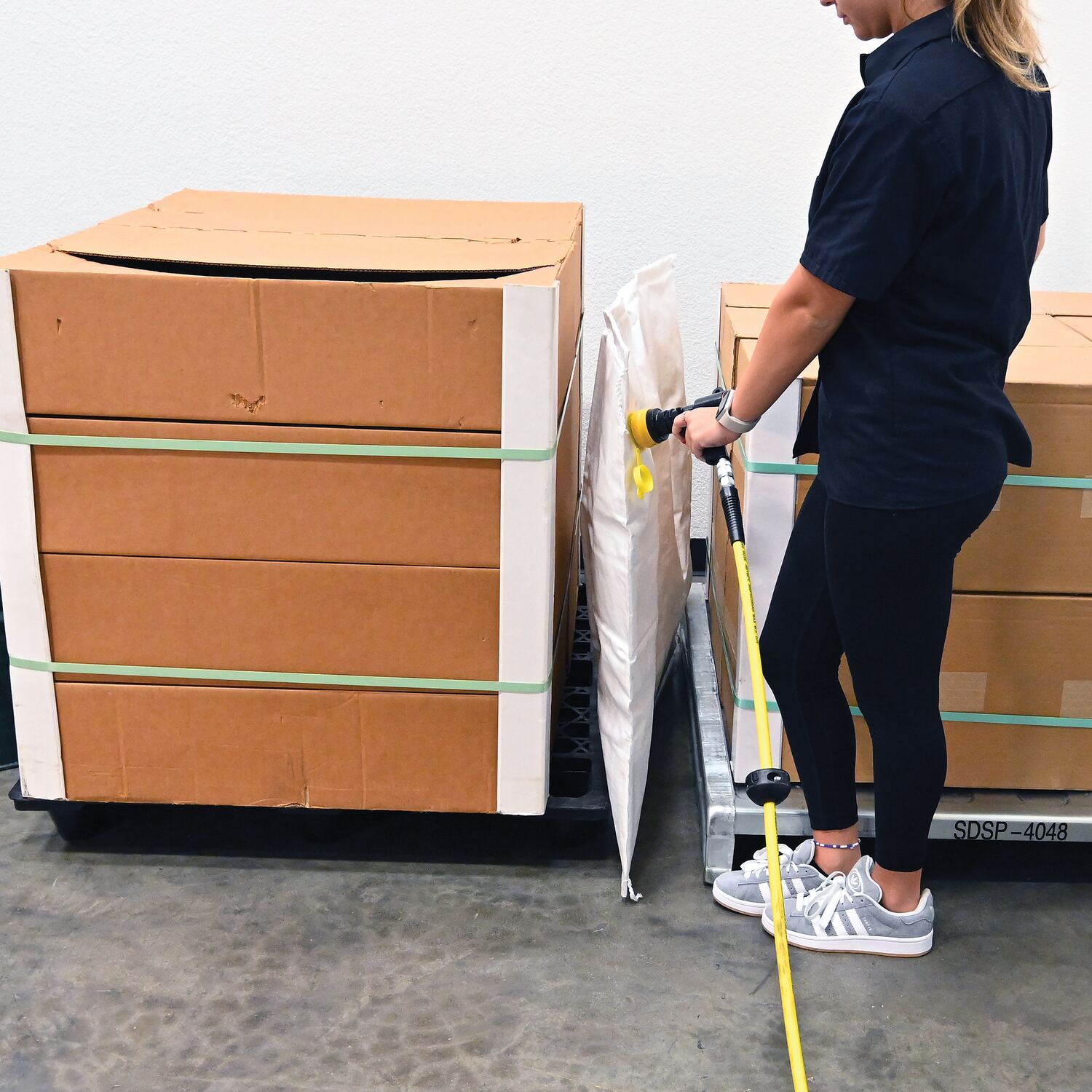

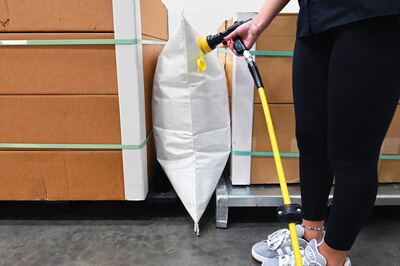

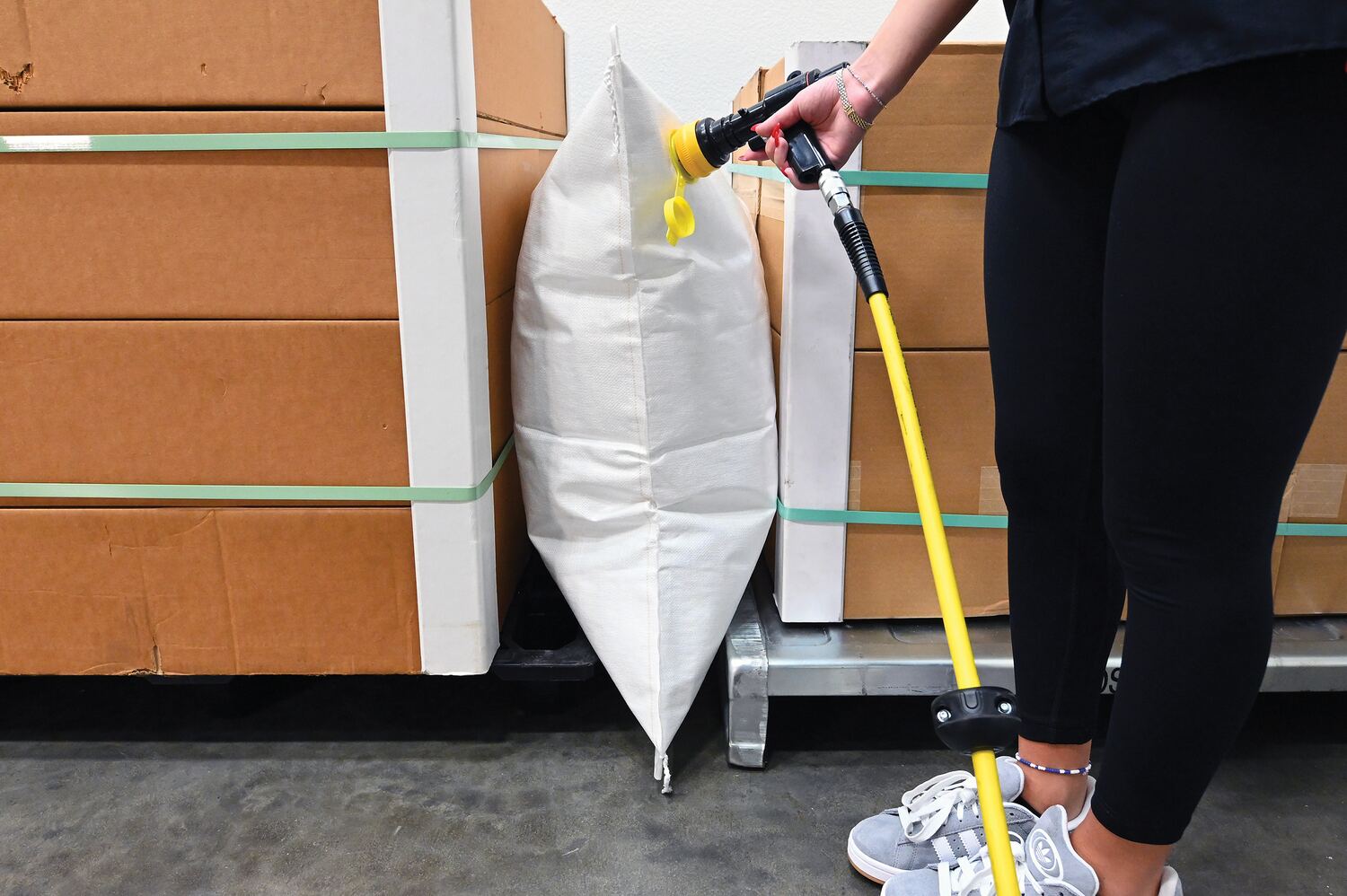

  • Lightweight dunnage air bag, Level 0-1, is mostly used as lateral void fillers in boxcars, trailers and sea containers
  • Heavyweight dunnage air bag, Level 2-4, is used as lengthwise void fillers in boxcars with payload weight ranging from less than 75,000 lbs. to as high as 205,000 lbs.
BAG-L-IG_I.jpg BAG-4884-L1_K.jpg

Often used for rail, vessel, and inter modal shipments

Minimize product shifting and damage in transit. The 2-ply construction consists of a polypropylene weave outer bag protecting a polyethylene inner bag. The bag provides 6 psi pressure seal. Stores flat when empty. Fill with standard shop air. Air Bag Inflation Valve tool offers easy grip for convenient use. Press and hold red vinyl coated lever. The cast zinc body has a chrome plated finish. Air inlet thread female 1/4" NPT.

  • Minimizes product shifting and damage in transit
  • 2-Ply construction consists of a polypropylene weave outer bag
  • Outer bag protects a polyethylene inner bag
  • Can be filled with standard shop air
AAR Level Working Pressure Burst Pressure
L0 <0.10 Bar/ 1.45 Psi 0.4 Bar/ 5.8 Psi
L1 <0.20 Bar/ 2.90 Psi 0.6 Bar/ 8.7 Psi
L2 <0.40 Bar/ 6.00 Psi 1.2 Bar/ 17 Psi
L3 <0.55 Bar/ 8.00 Psi 1.7 Bar/ 25 Psi
L4 <0.70 Bar/ 10.0 Psi 2.0 Bar/ 30 Psi
Flat <0.20 Bar/ 2.90 Psi /
  • Lightweight dunnage air bag, Level 0-1, is mostly used as lateral void fillers in boxcars, trailers and sea containers
  • Heavyweight dunnage air bag, Level 2-4, is used as lengthwise void fillers in boxcars with payload weight ranging from less than 75,000 lbs. to as high as 205,000 lbs.
BAG-L-IG_I.jpg BAG-4884-L1_K.jpg

Additional Models In This Family

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

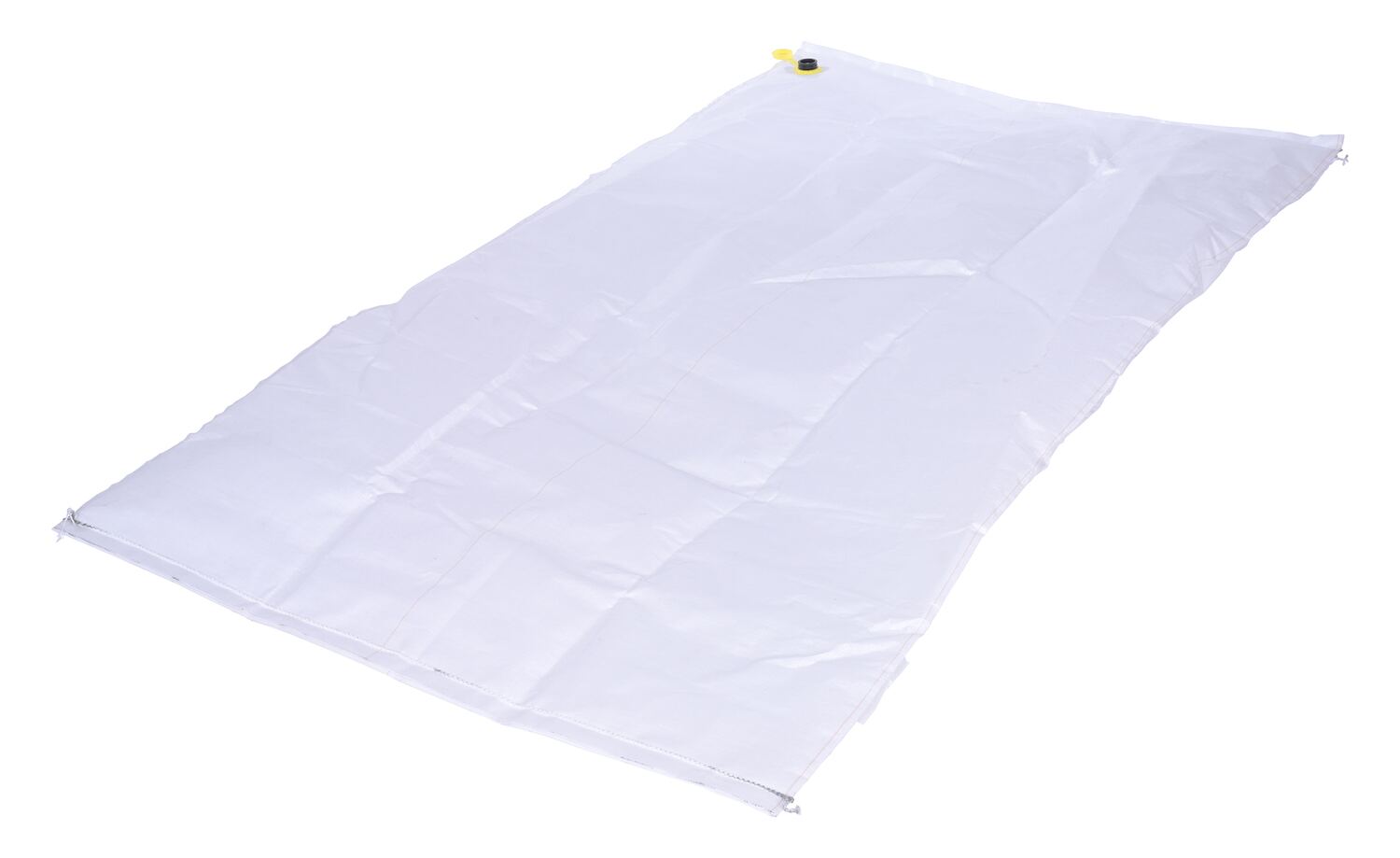

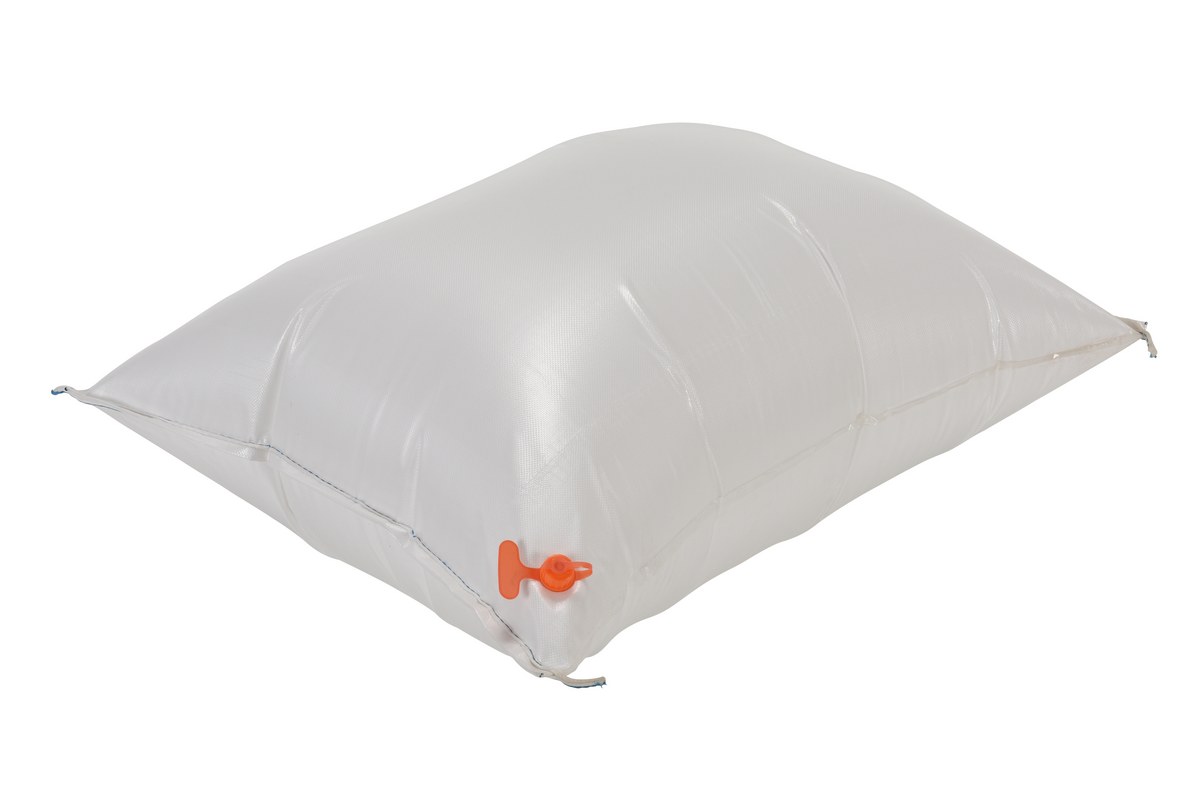

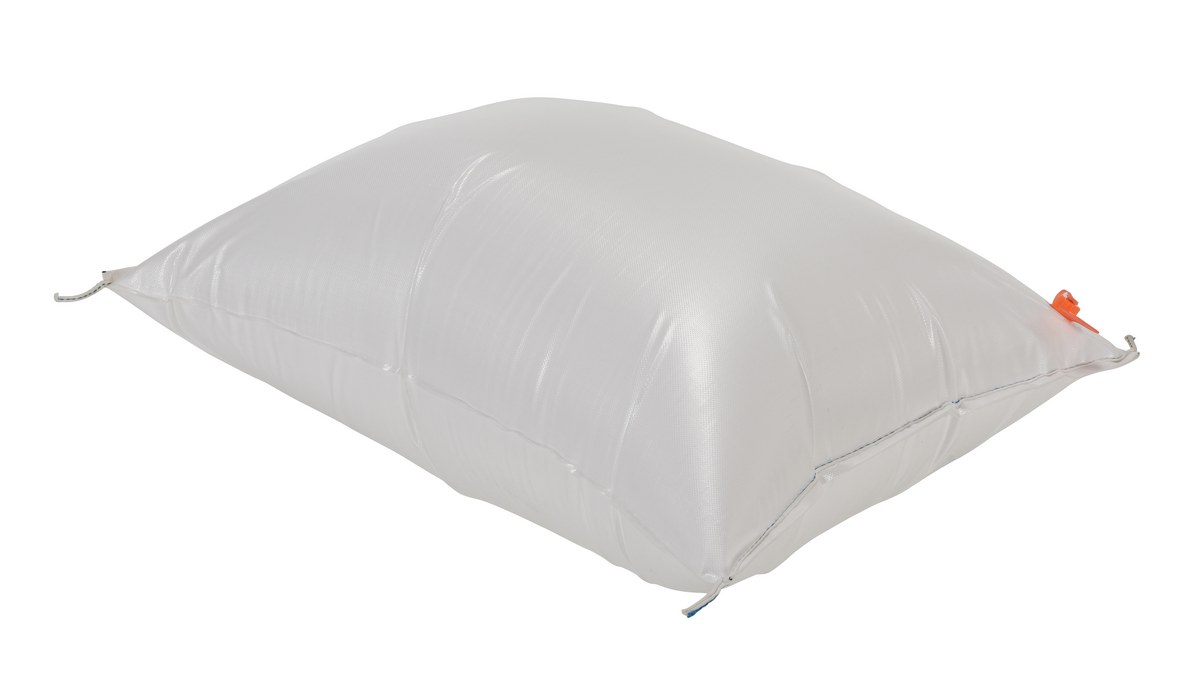

BAG-4836 BAG-483630 Days Limited WarrantyPolypropylene Reusable Dunnage Bag 48 In. x 36 In. WhitePressure Seal (psi.): 6
Maximum Working Pressure (psi.): 8
2

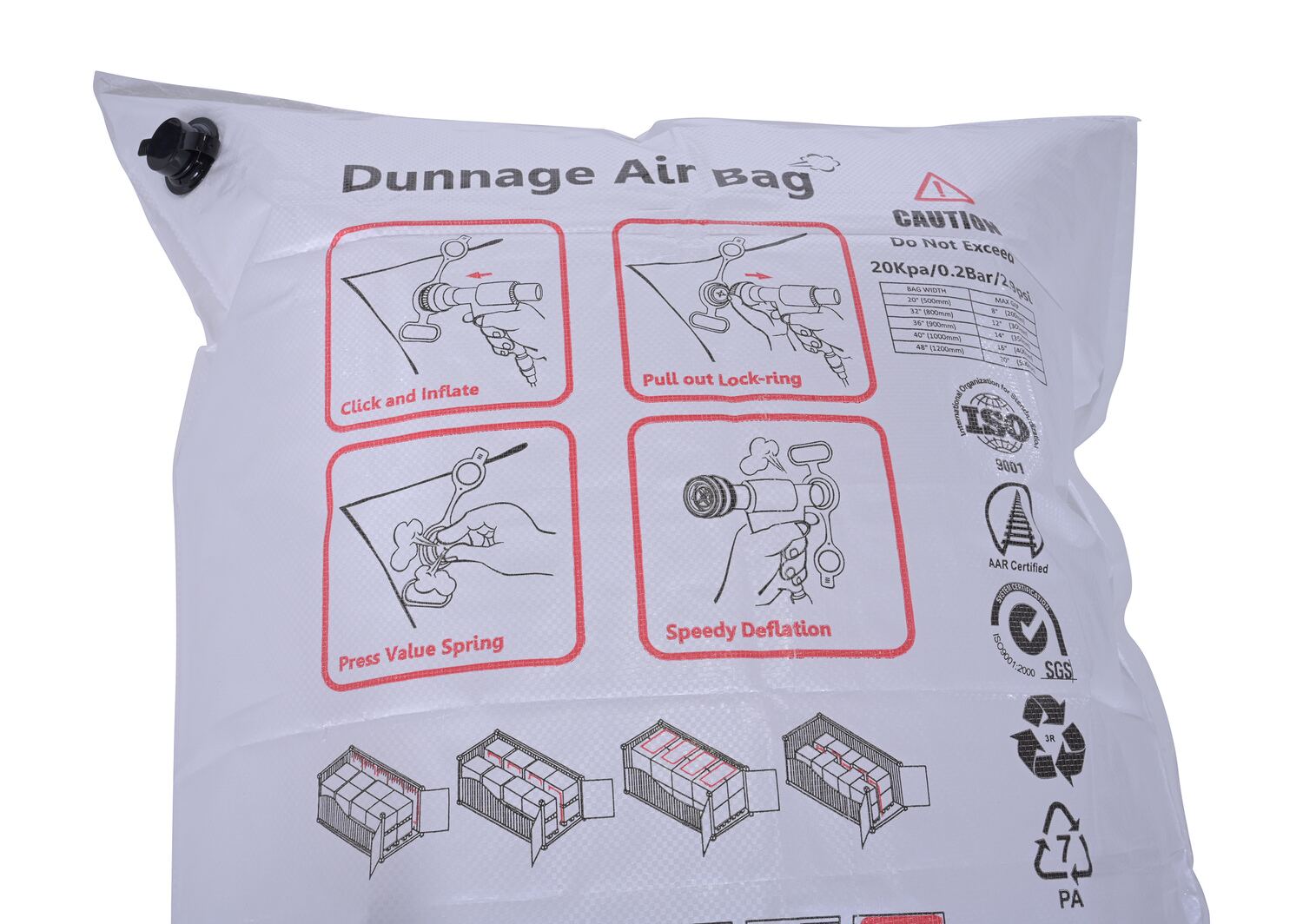

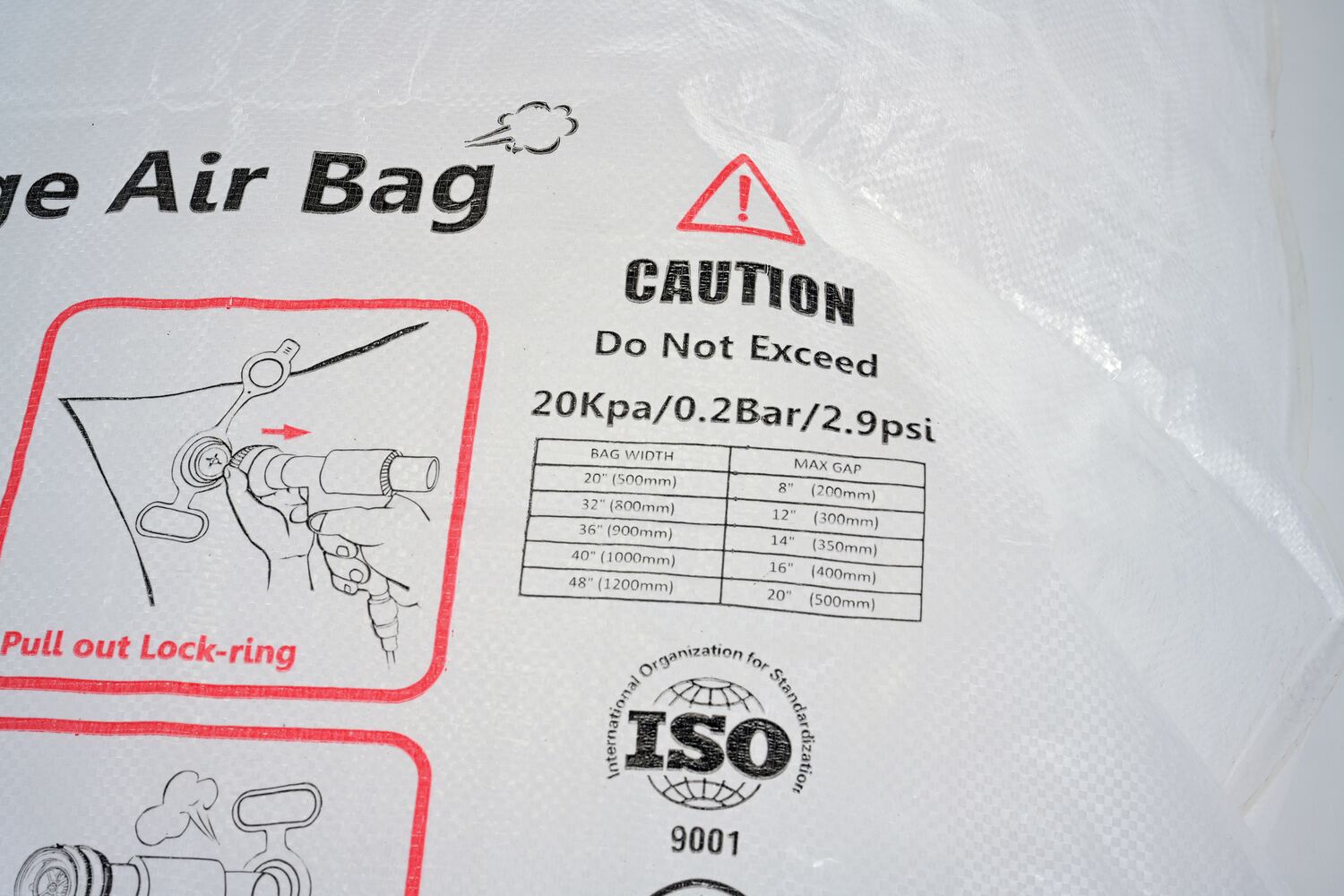

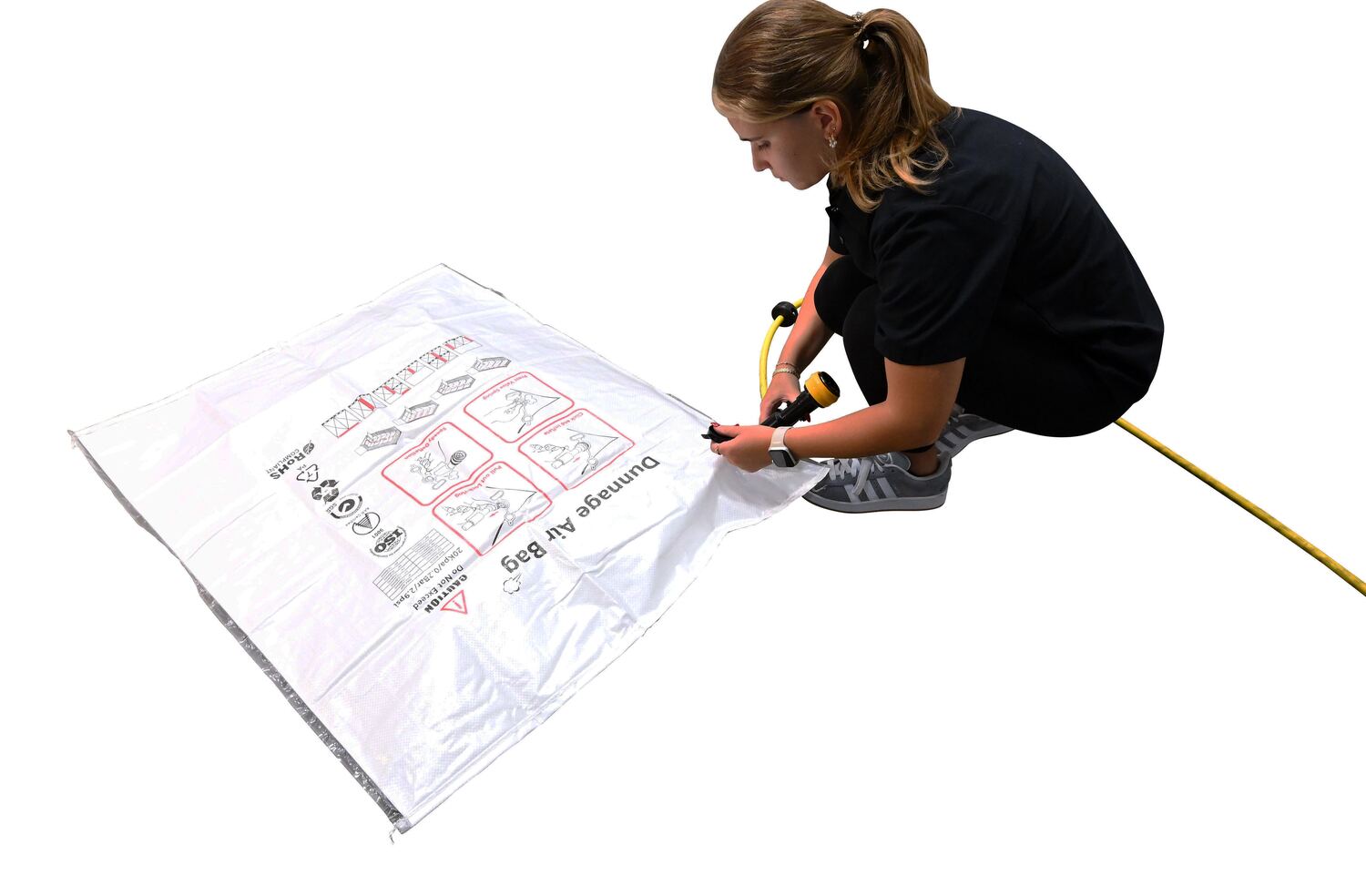

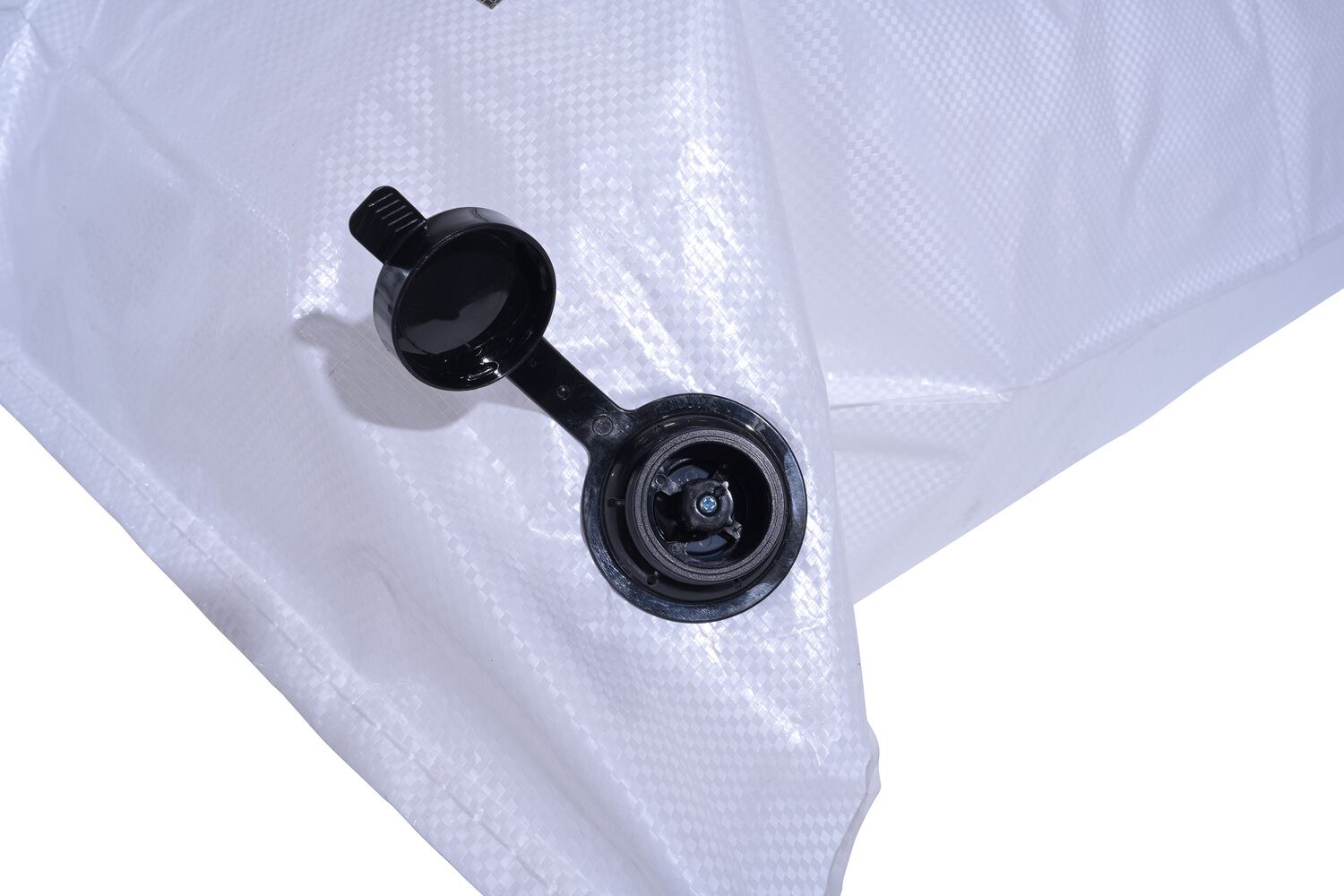

BAG-4836-L1 NEW BAG-4836-L130 Days Limited Limited WarrantyPolypropylene Reusable Dunnage Bag 48 In. x 36 In. Level 1 WhitePressure Seal (psi.): 2.9
Maximum Working Pressure (psi.): 8
3

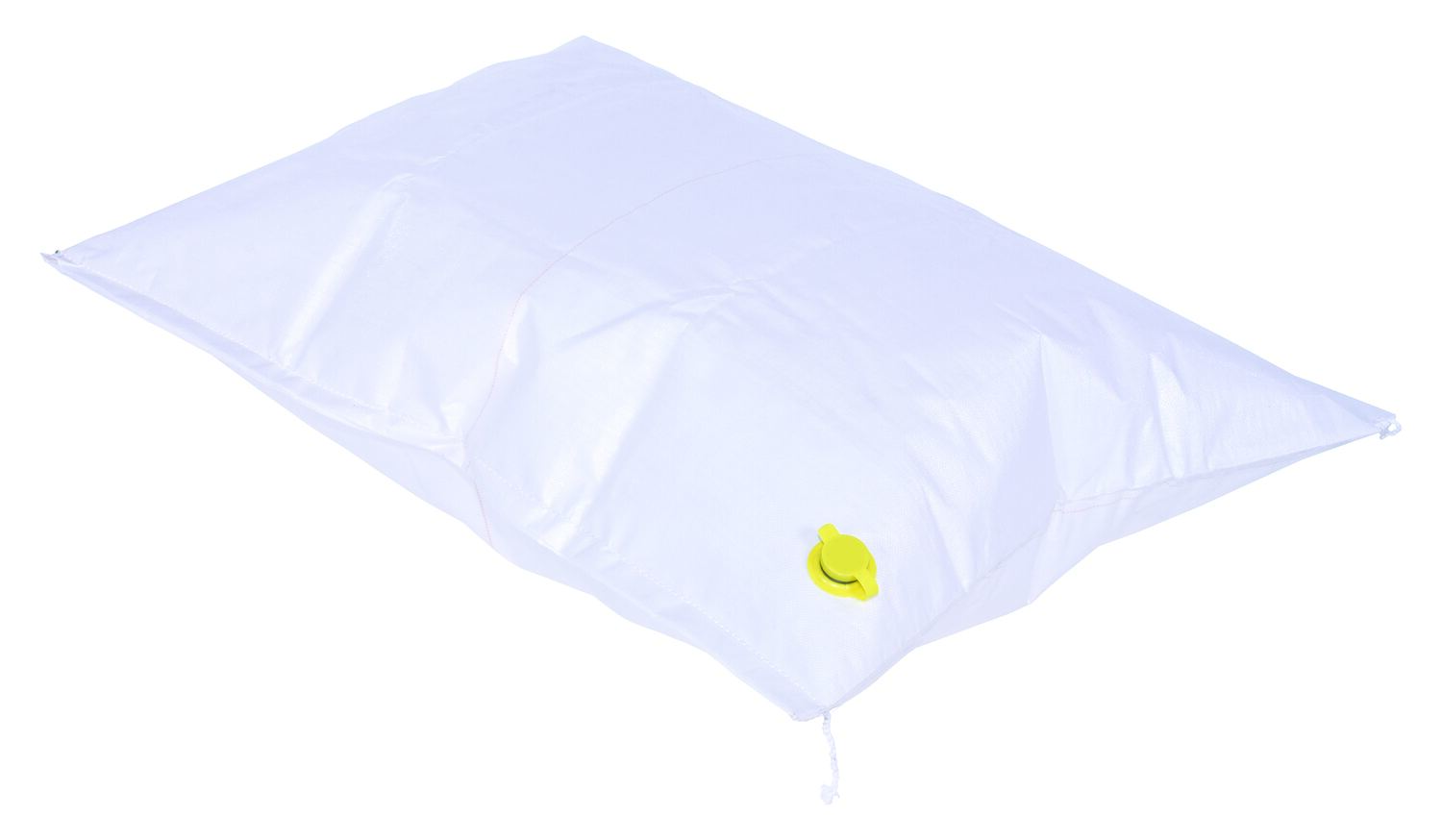

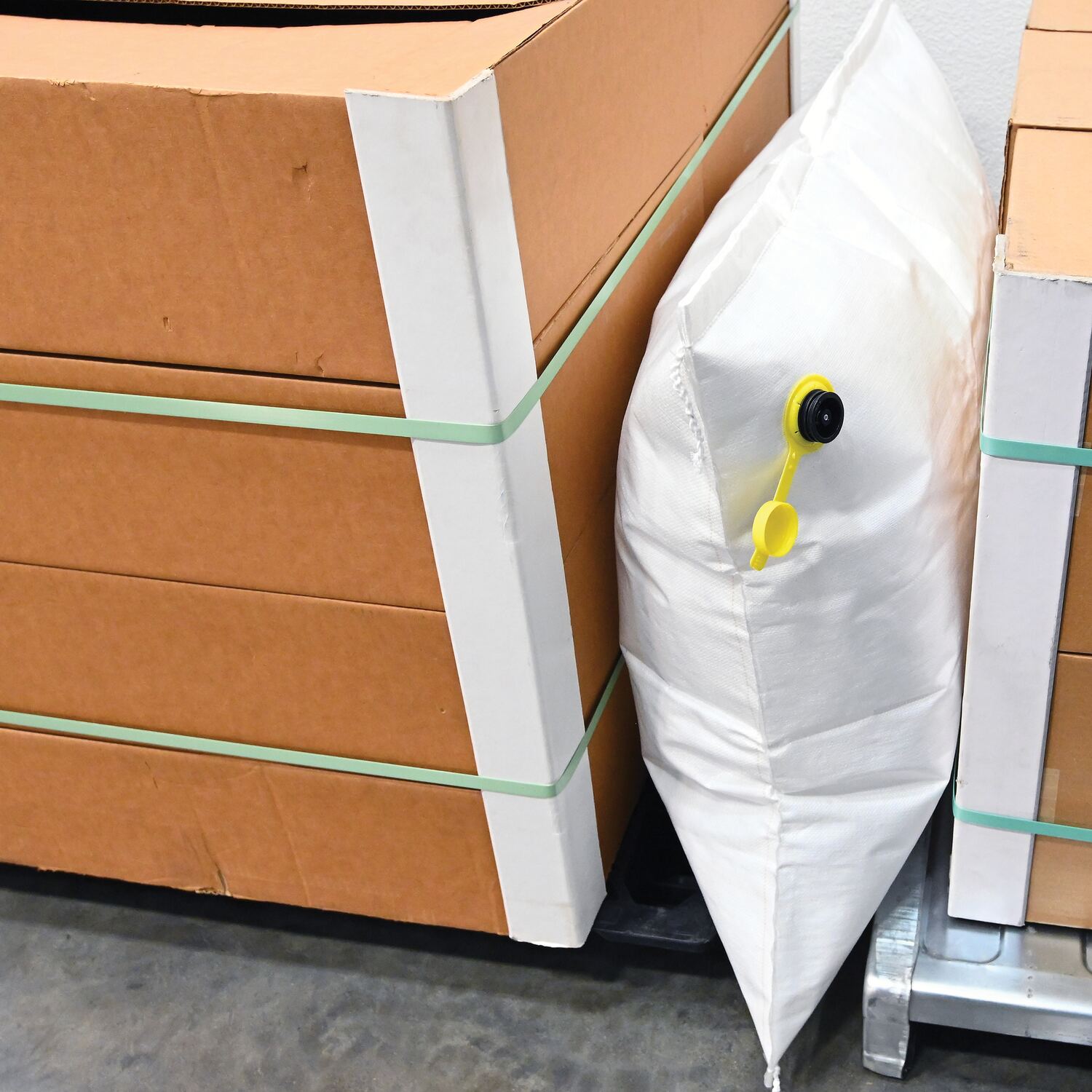

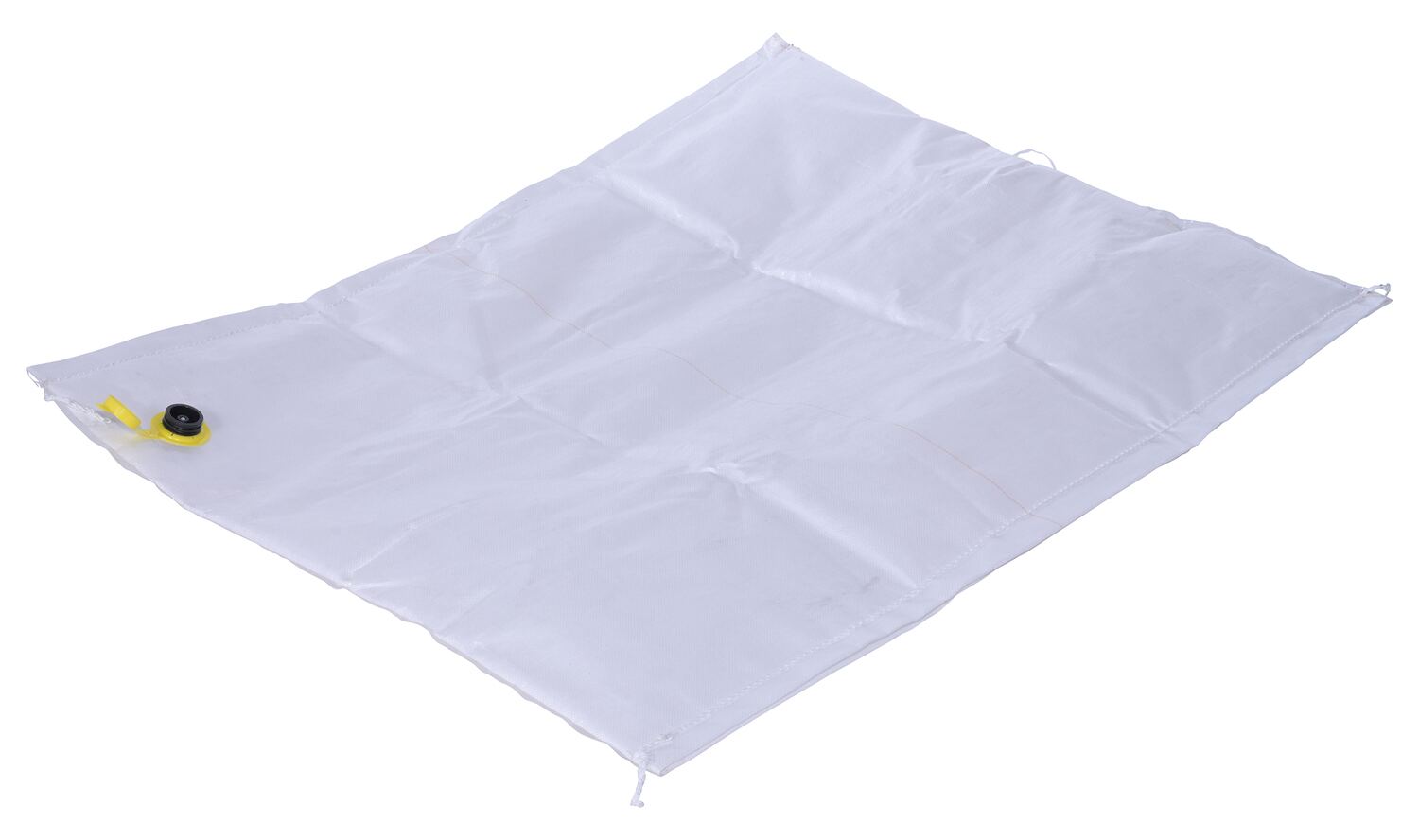

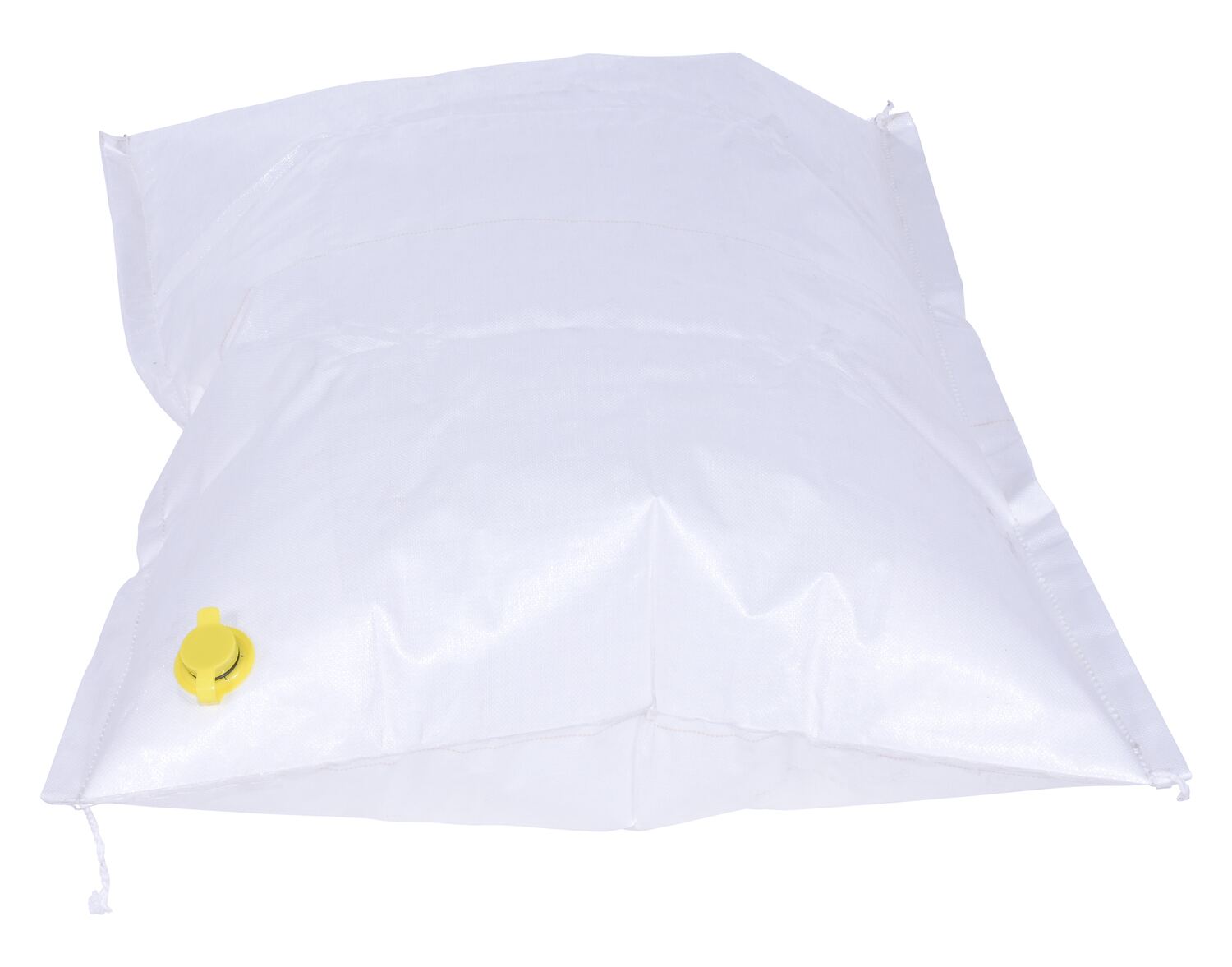

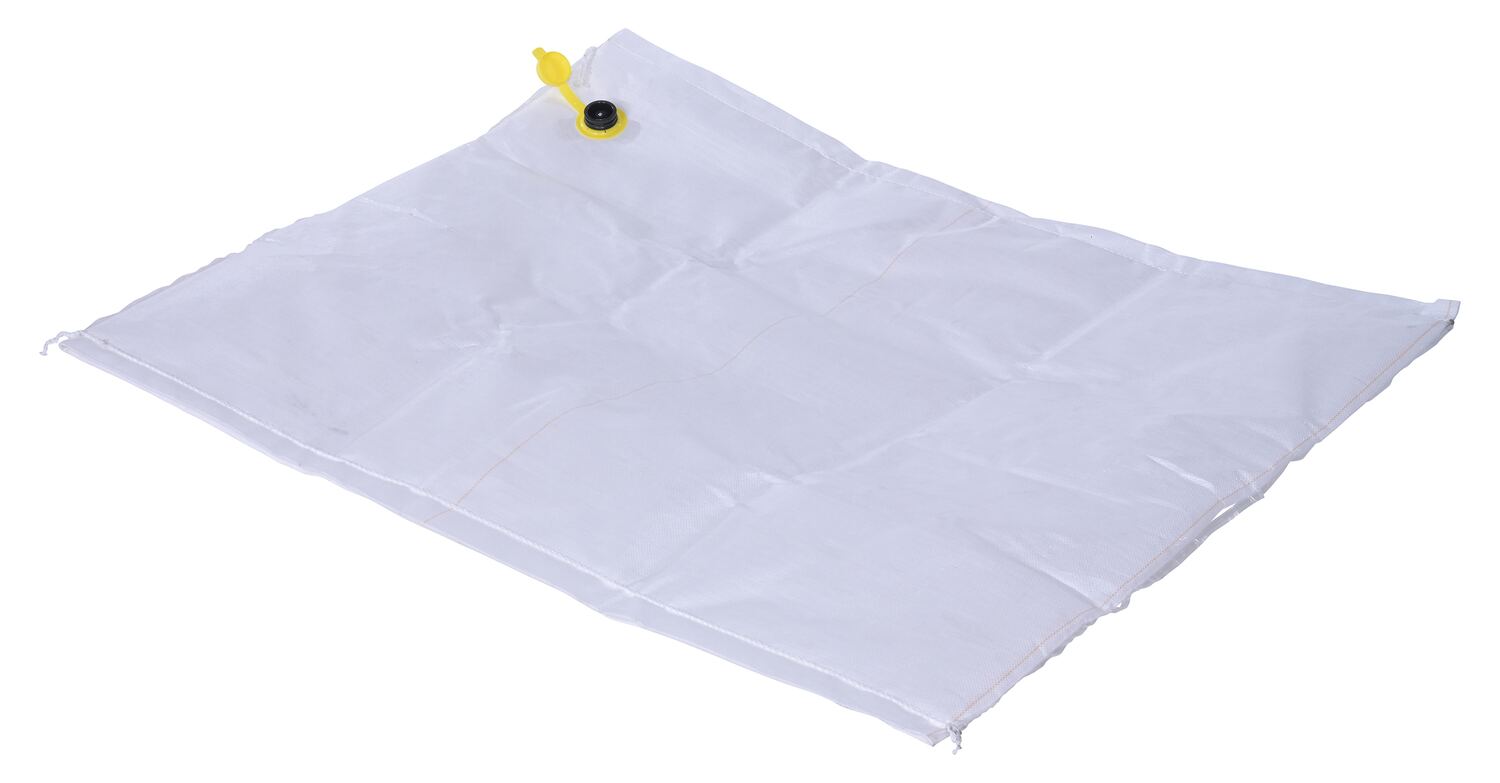

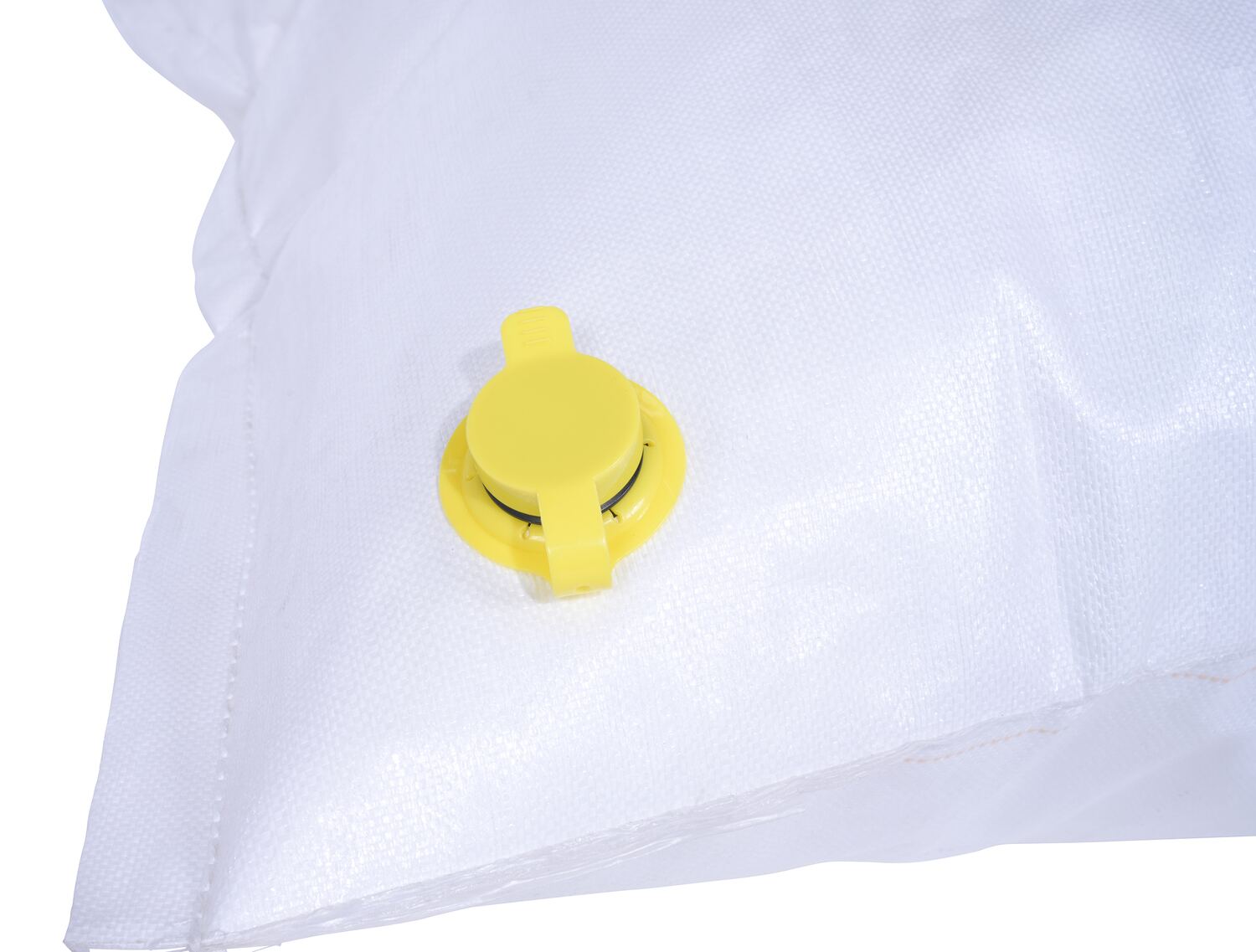

BAG-4836-L3 NEW BAG-4836-L330 Days Limited Limited WarrantyPolypropylene Reusable Dunnage Bag 48 In. x 36 In. Level 3 WhitePressure Seal (psi.): 8
Maximum Working Pressure (psi.): 25
3
BAG-4884 BAG-488430 Days Limited WarrantyPolypropylene Reusable Dunnage Bag 48 In. x 84 In. WhitePressure Seal (psi.): 6
Maximum Working Pressure (psi.): 8
2

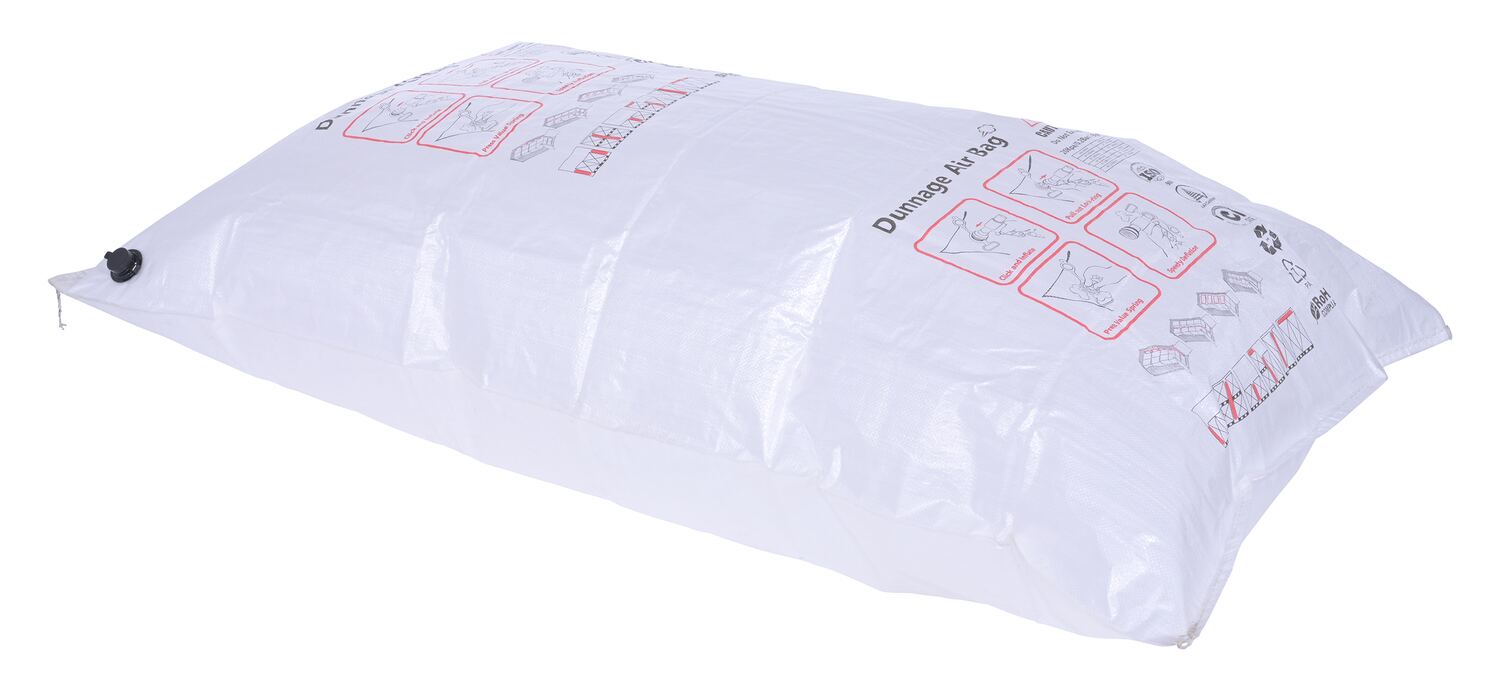

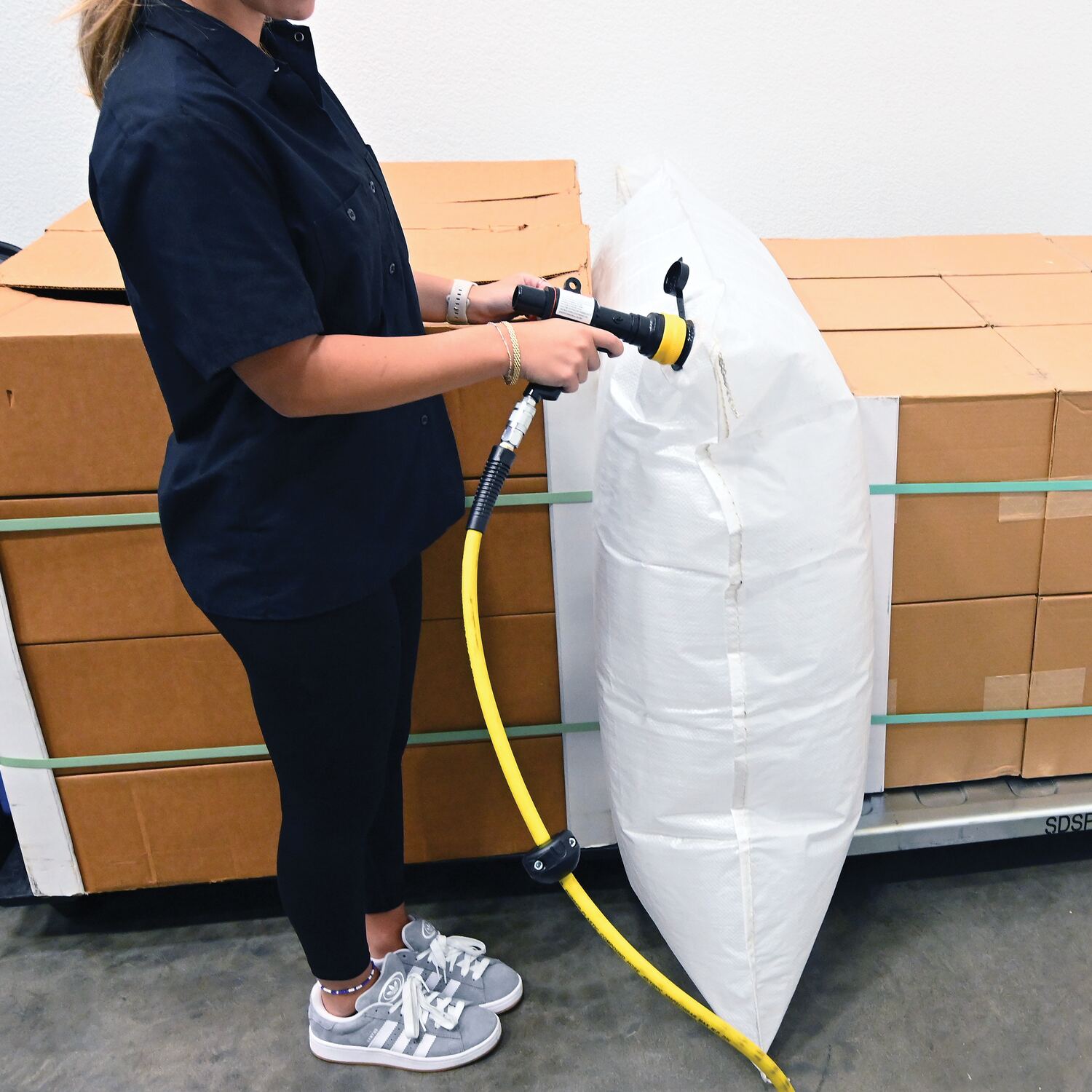

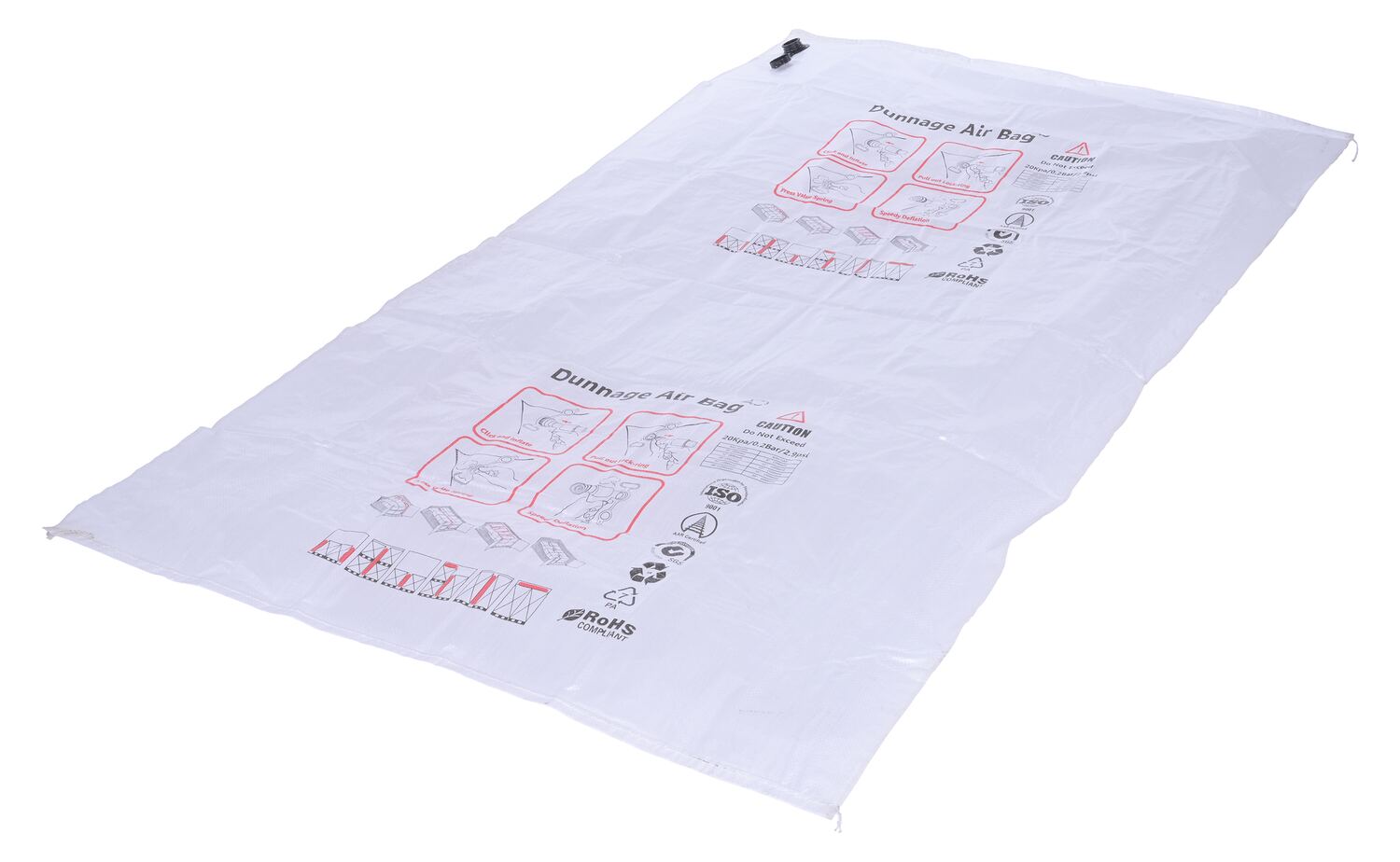

BAG-4884-L1 NEW BAG-4884-L130 Days Limited Limited WarrantyPolypropylene Reusable Dunnage Bag 48 In. x 84 In. Level 1 WhitePressure Seal (psi.): 2.9
Maximum Working Pressure (psi.): 8
3

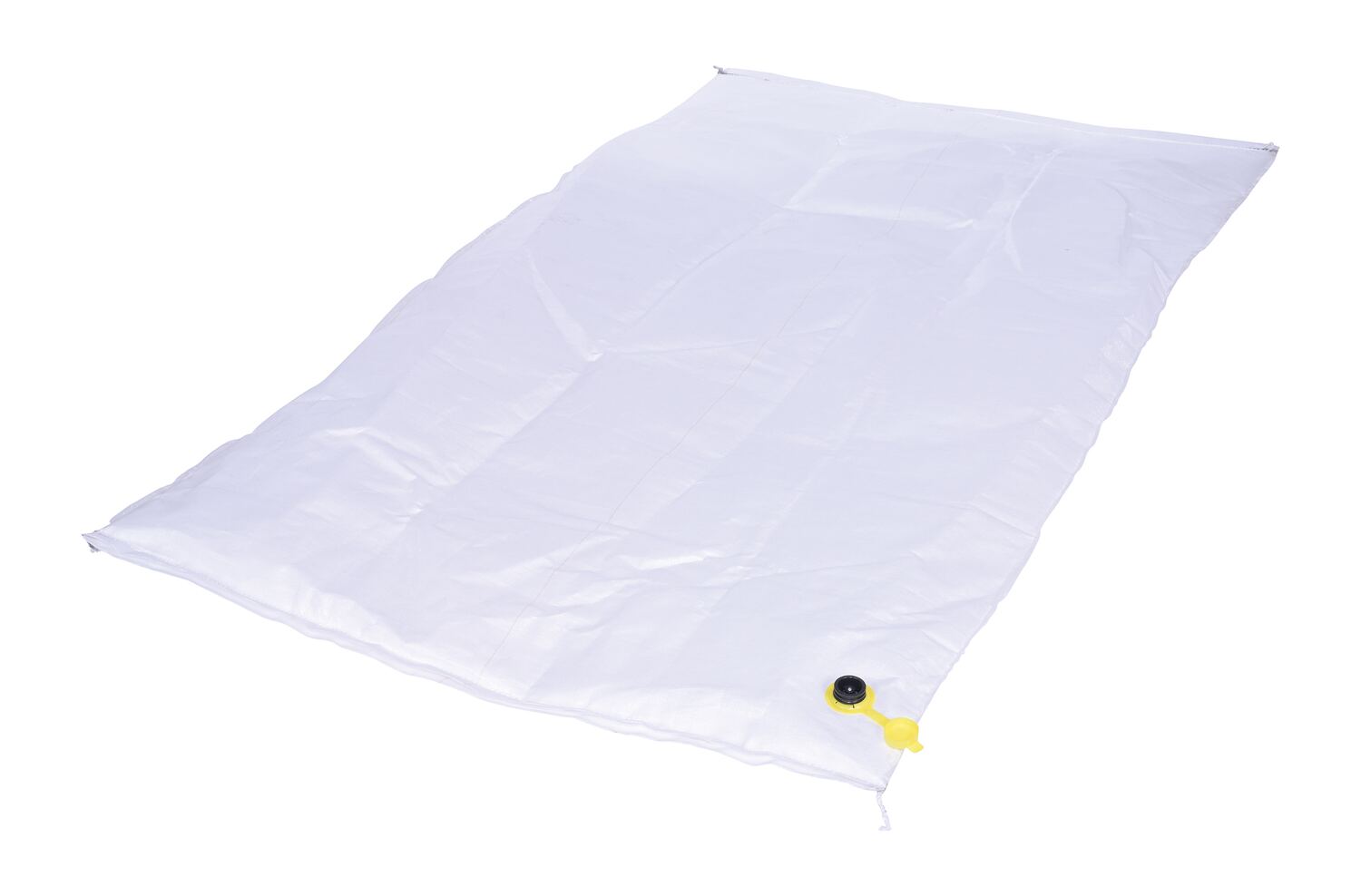

BAG-4884-L3 NEW BAG-4884-L330 Days Limited Limited WarrantyPolypropylene Reusable Dunnage Bag 48 In. x 84 In. Level 3 WhitePressure Seal (psi.): 8
Maximum Working Pressure (psi.): 25
3

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

BAG-4836
Unit:
Size: W x L x H
Weight:
Limited Warranty
Pressure Seal (psi.): 6
Maximum Working Pressure (psi.): 8
Pressure Seal (psi.): 6
Maximum Working Pressure (psi.): 8

BAG-4884
Unit:
Size: W x L x H
Weight:
Limited Warranty
Pressure Seal (psi.): 6
Maximum Working Pressure (psi.): 8
Pressure Seal (psi.): 6
Maximum Working Pressure (psi.): 8

BAG-4836-L1
Unit:
Size: W x L x H
Weight:
Limited Warranty
Pressure Seal (psi.): 2.9
Maximum Working Pressure (psi.): 8
Pressure Seal (psi.): 2.9
Maximum Working Pressure (psi.): 8

BAG-4836-L3
Unit:
Size: W x L x H
Weight:
Limited Warranty
Pressure Seal (psi.): 8
Maximum Working Pressure (psi.): 25
Pressure Seal (psi.): 8
Maximum Working Pressure (psi.): 25

BAG-4884-L1
Unit:
Size: W x L x H
Weight:
Limited Warranty
Pressure Seal (psi.): 2.9
Maximum Working Pressure (psi.): 8
Pressure Seal (psi.): 2.9
Maximum Working Pressure (psi.): 8

BAG-4884-L3
Unit:
Size: W x L x H
Weight:
Limited Warranty
Pressure Seal (psi.): 8
Maximum Working Pressure (psi.): 25
Pressure Seal (psi.): 8
Maximum Working Pressure (psi.): 25
For More Details of the Option Click the Red Model Button

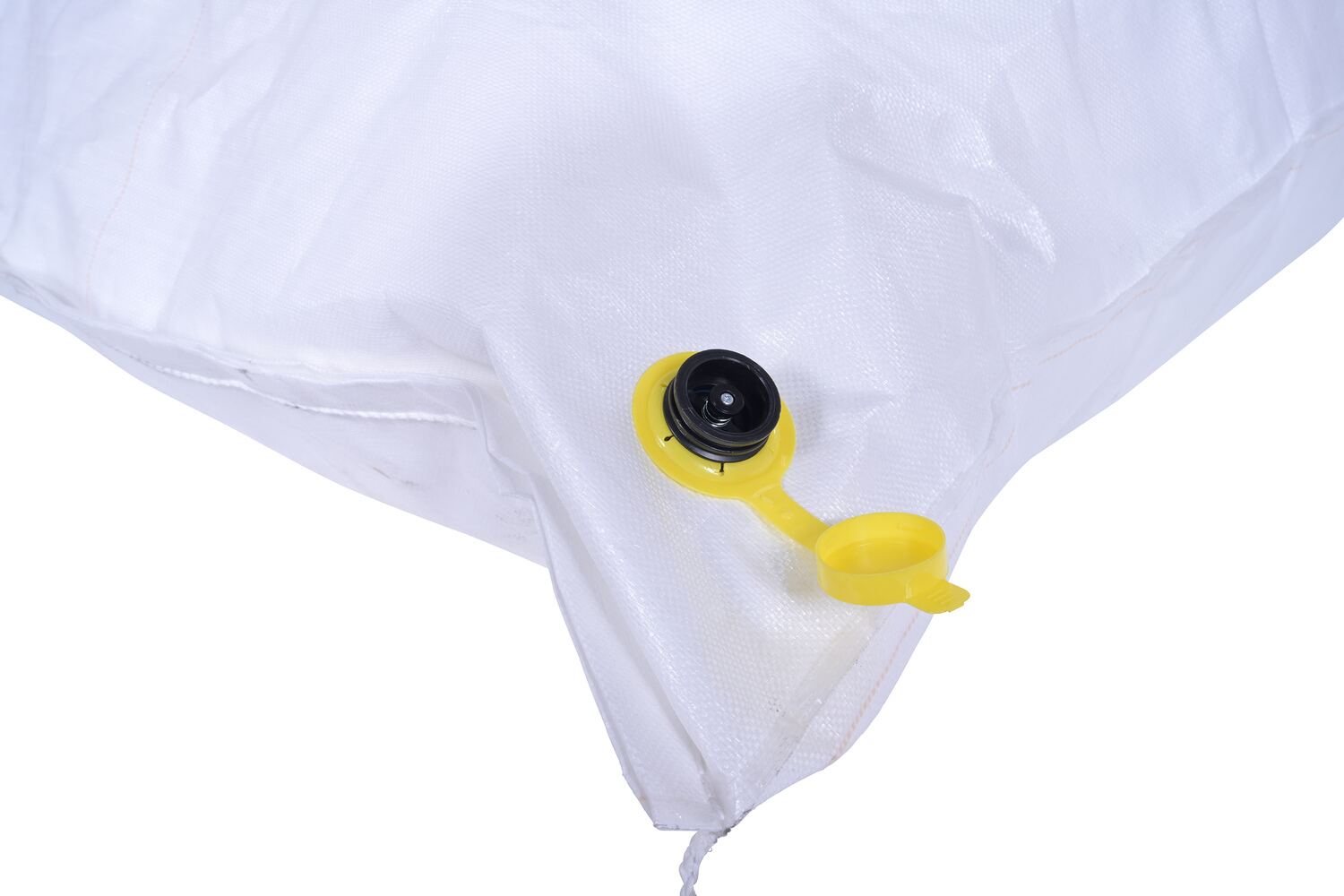

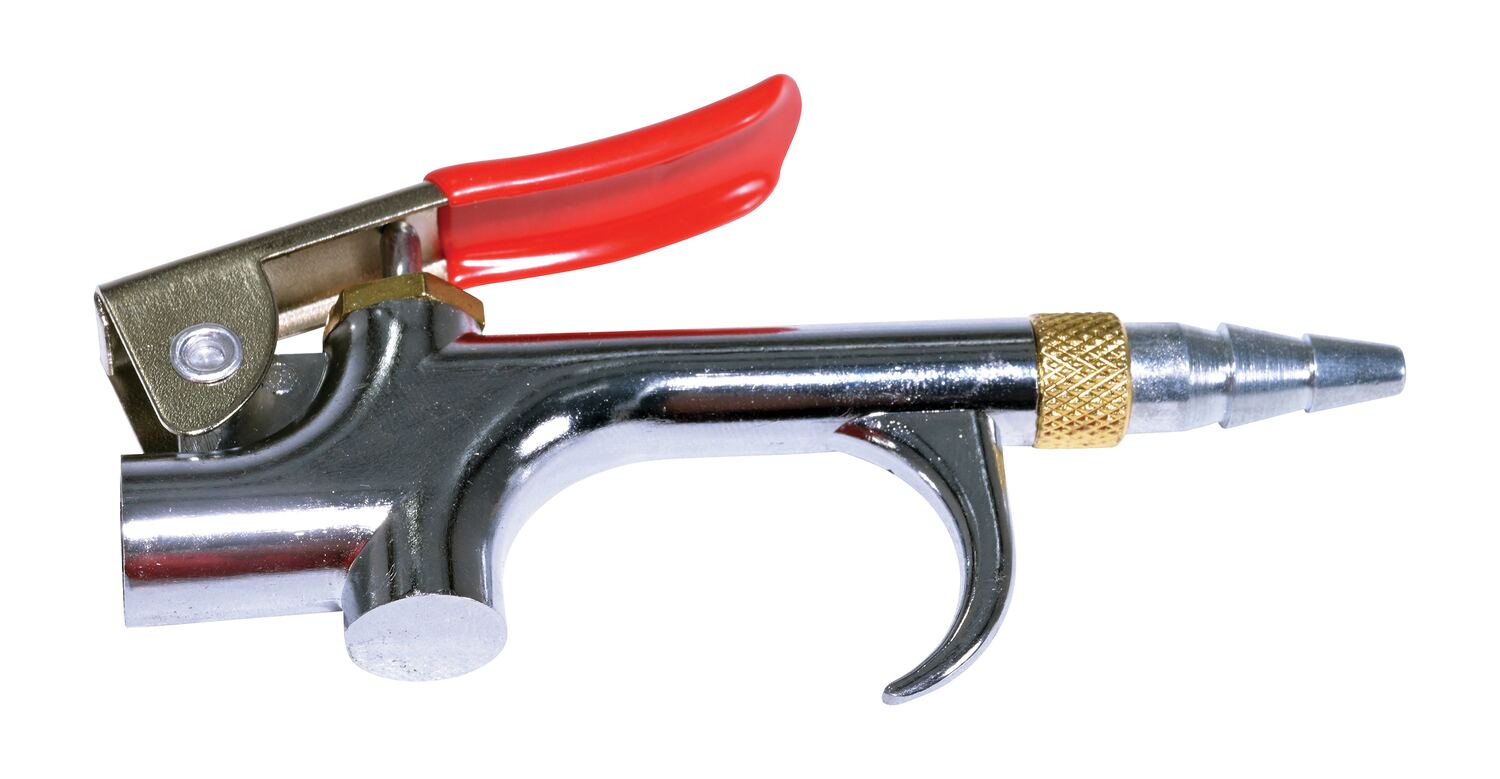

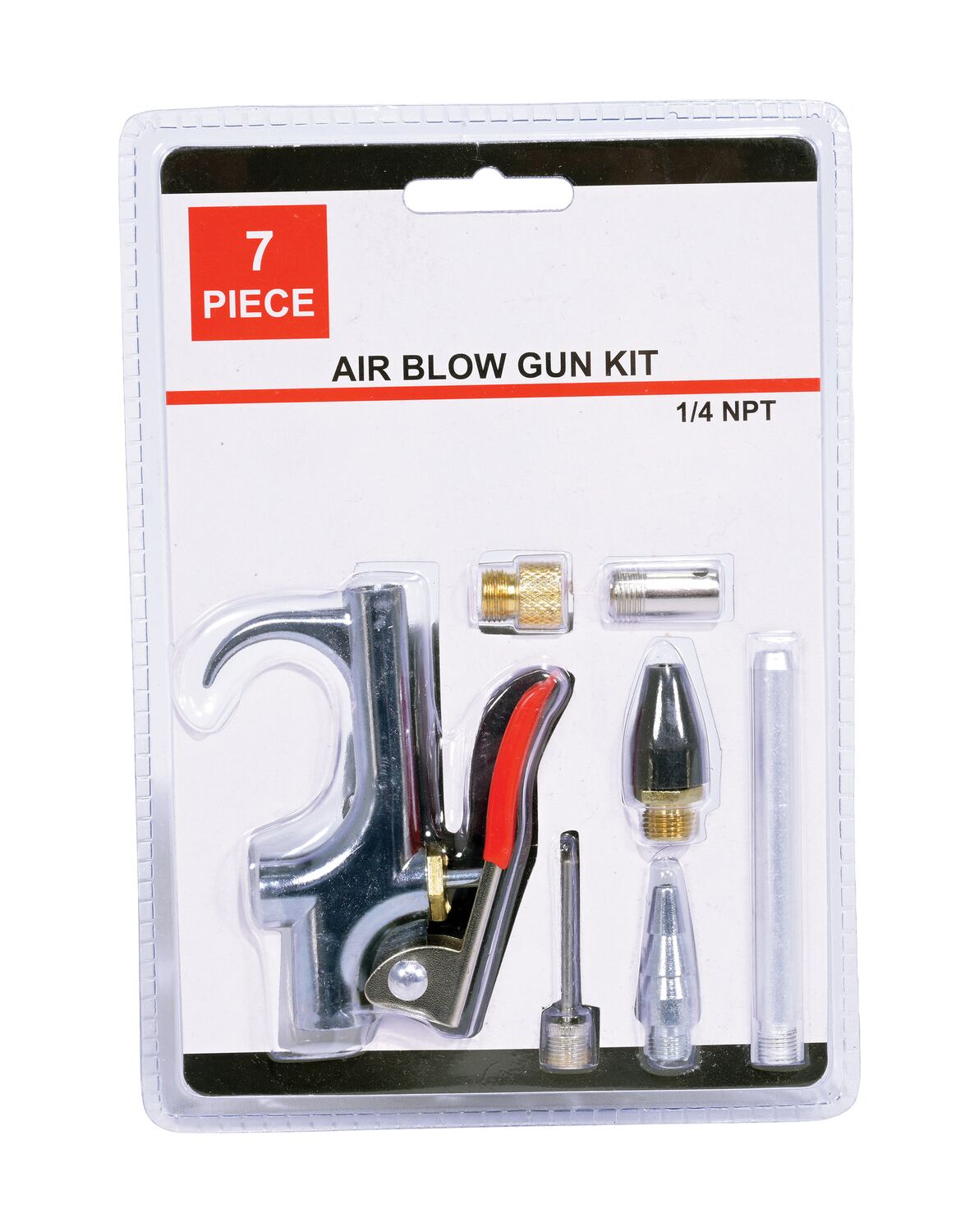

BAG-I BAG-I30 Days Limited WarrantyZinc 1/4 In. Thread Inflation Valve For Dunnage BagsAir inlet thread NPT female (in.): 1/4
1

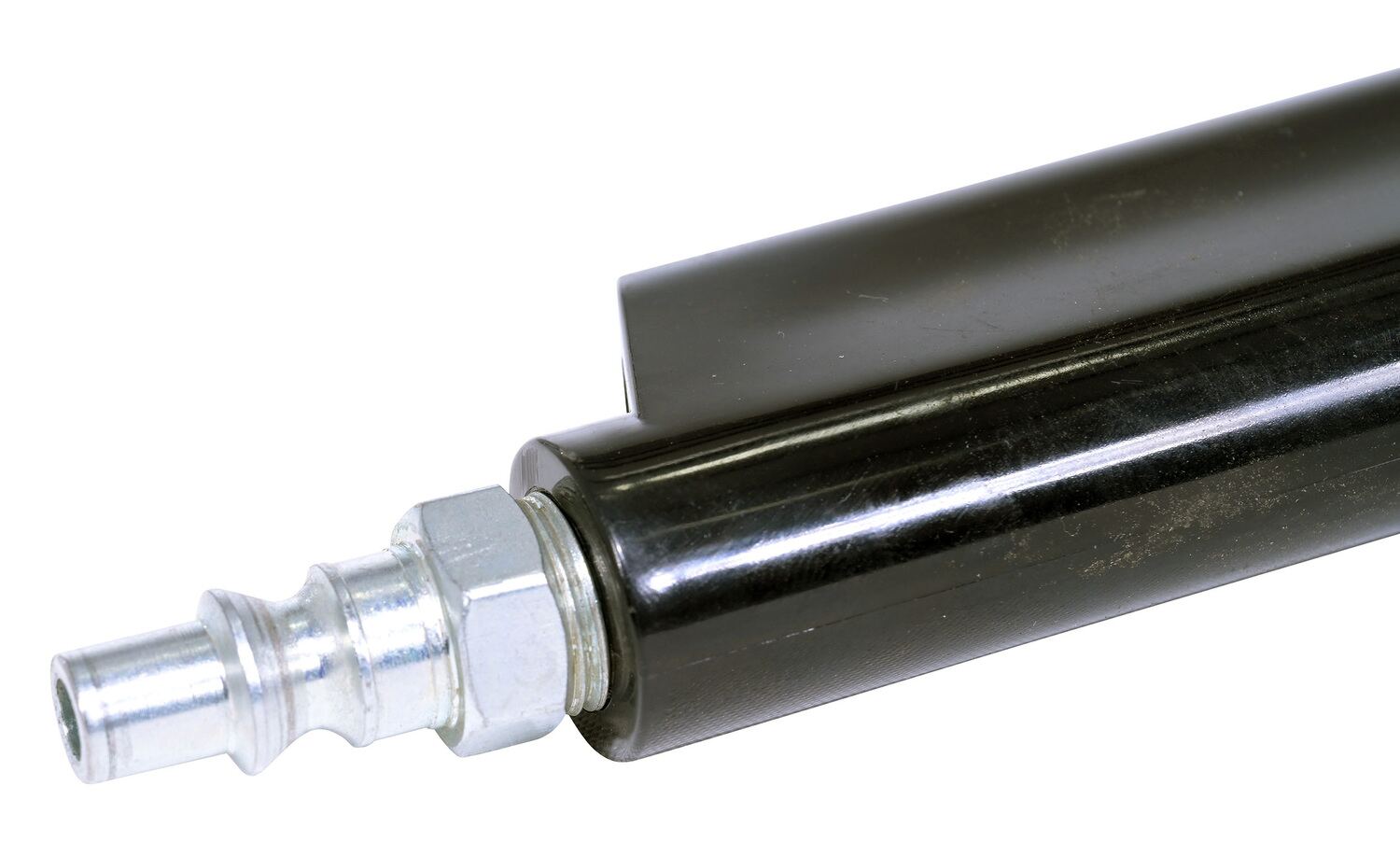

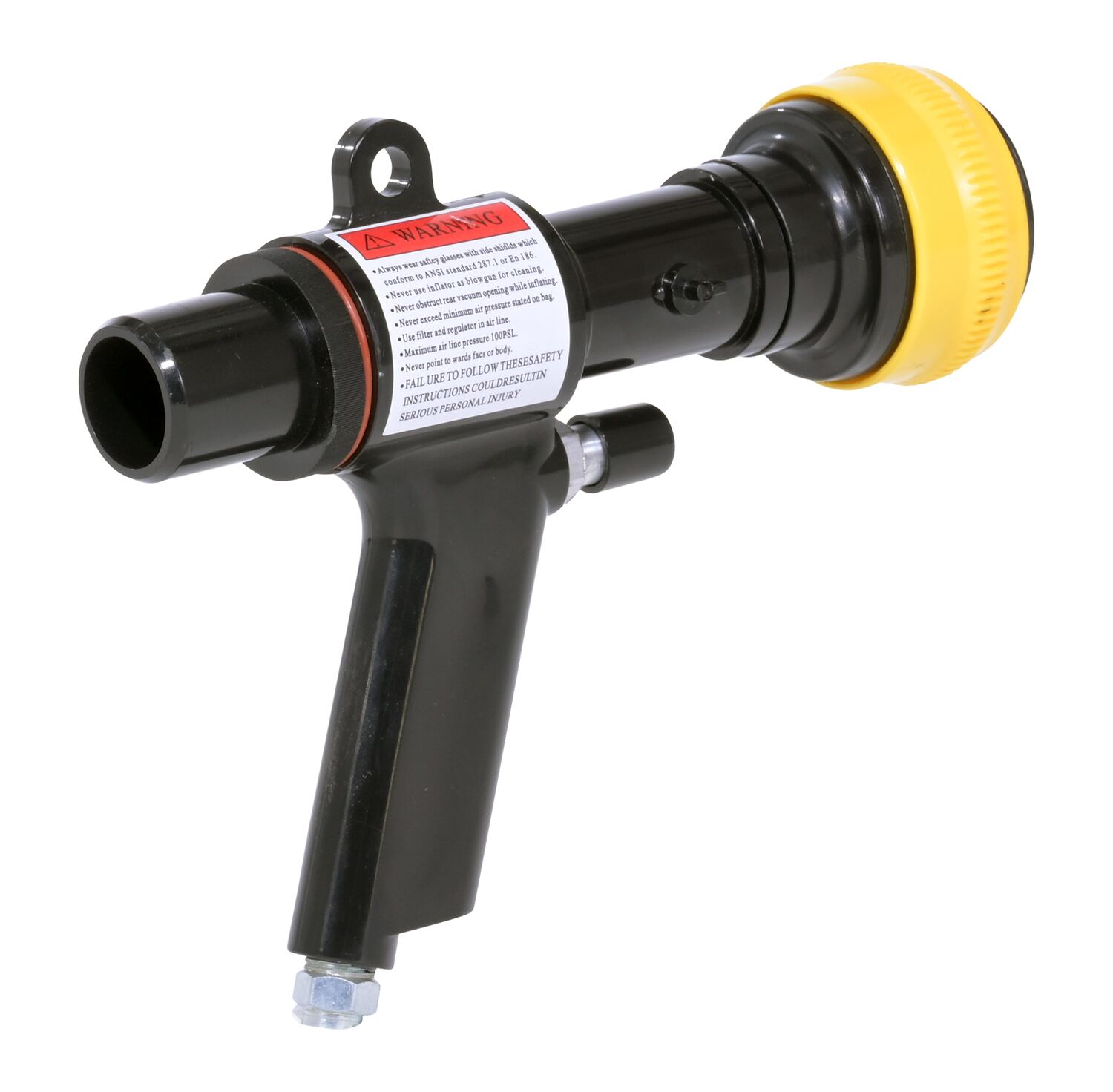

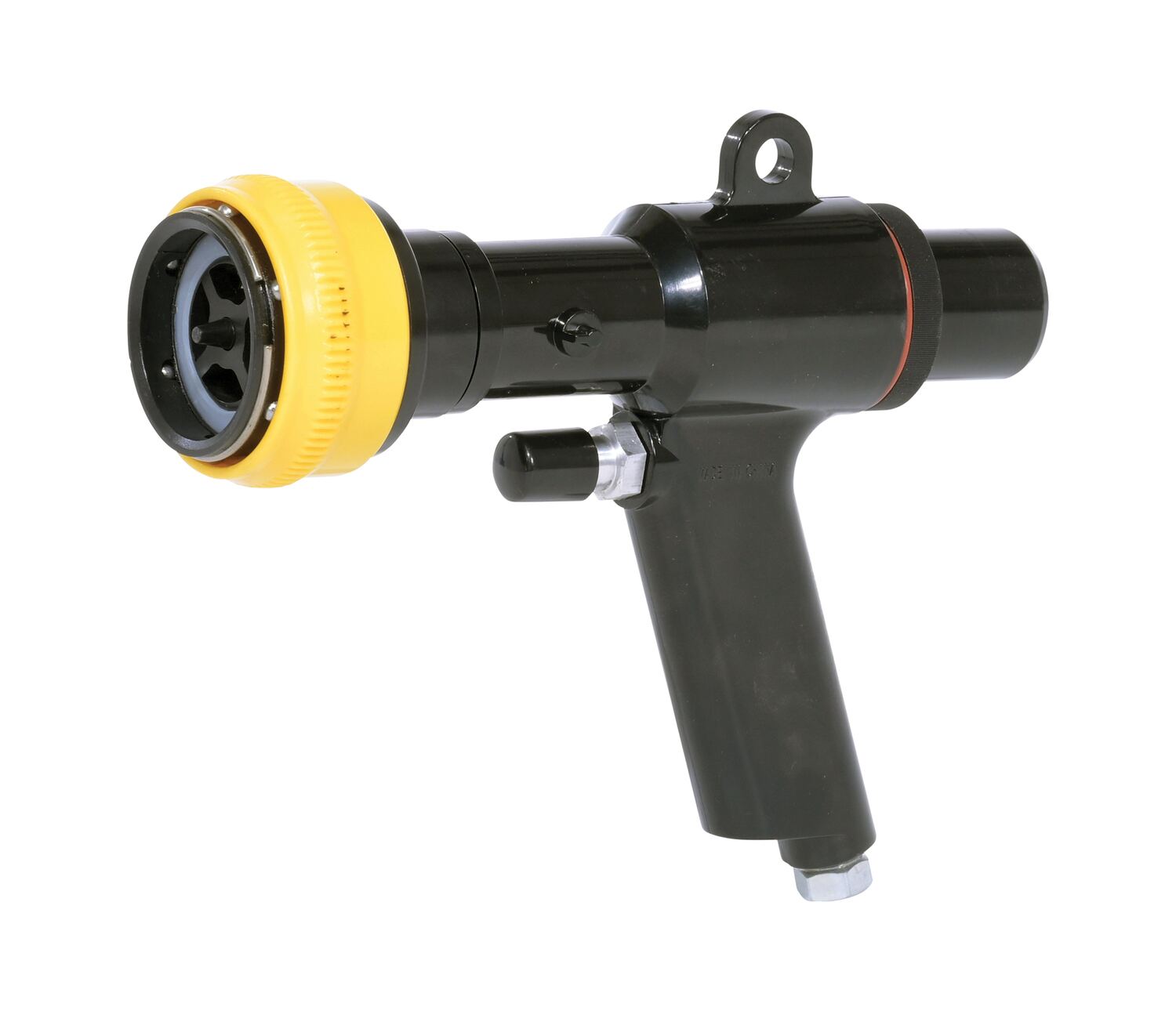

BAG-L-IG NEW BAG-L-IG30 Days Limited Limited WarrantyDunnage Bag Inflation Gun for Bag L1 & L3 BlackAir inlet thread NPT female (in.): 1/4
2

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above

Reusable Inflatable Dunnage Bags PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

No Approval Drawings For This Product

Testing Certificates


BAG-4836

BAG-4836-L1

BAG-4836-L3

BAG-4884

BAG-4884-L1

BAG-4884-L3

BAG-I

BAG-L-IG

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products


Q: Are the bags recyclable?

A: These are made of polypropylene outer and polyethylene inner. Both are recyclable
