Rack Guards with Rubber Bumper Insert

- - - -

Description
Model Chart
PDF's
Image Gallery
RUD-48_D.jpg RUD-24_C.jpg RUD-36_A.jpg
Rack Guards with Rubber Bumper Insert

model: RUD-48



Featured Protective Barriers


Plastic Chain Barricades
Rotating Mezzanine Safety Gate System
Galvanized Construction Barrier Systems
Energy Absorbing Mat (for Bollards)
Economical Safety Swing Gate
Expand-A-Gates
Triple Elbow Guards with Center Support
Bolt Covers
Stainless Steel Bollards
model chart

Product Family Overview

Print Friendly
Rack Guards with Rubber Bumper Insert
SERIES: RUD

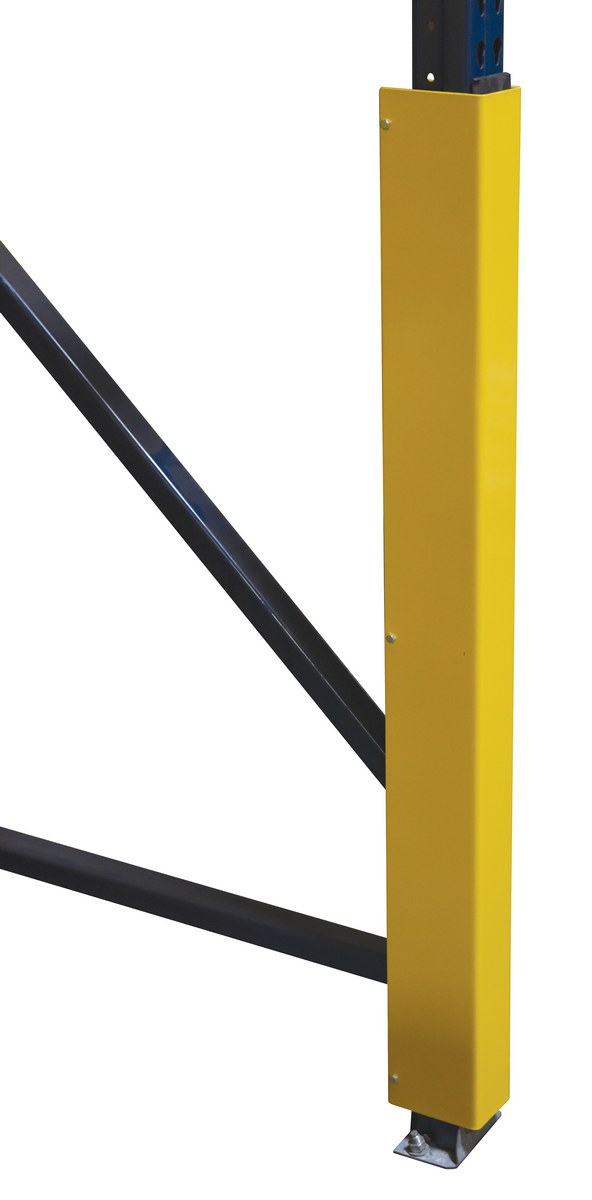

Protect pallet racking with durable wrap around protection. Safeguards against those bumps and scraps that are prone to happen, unexpectedly. Increase pallet rack column strength on impact by over 100%. Baked-in powder-coated toughness.

  • Built from 10 gauge steel
  • No concrete drilling required

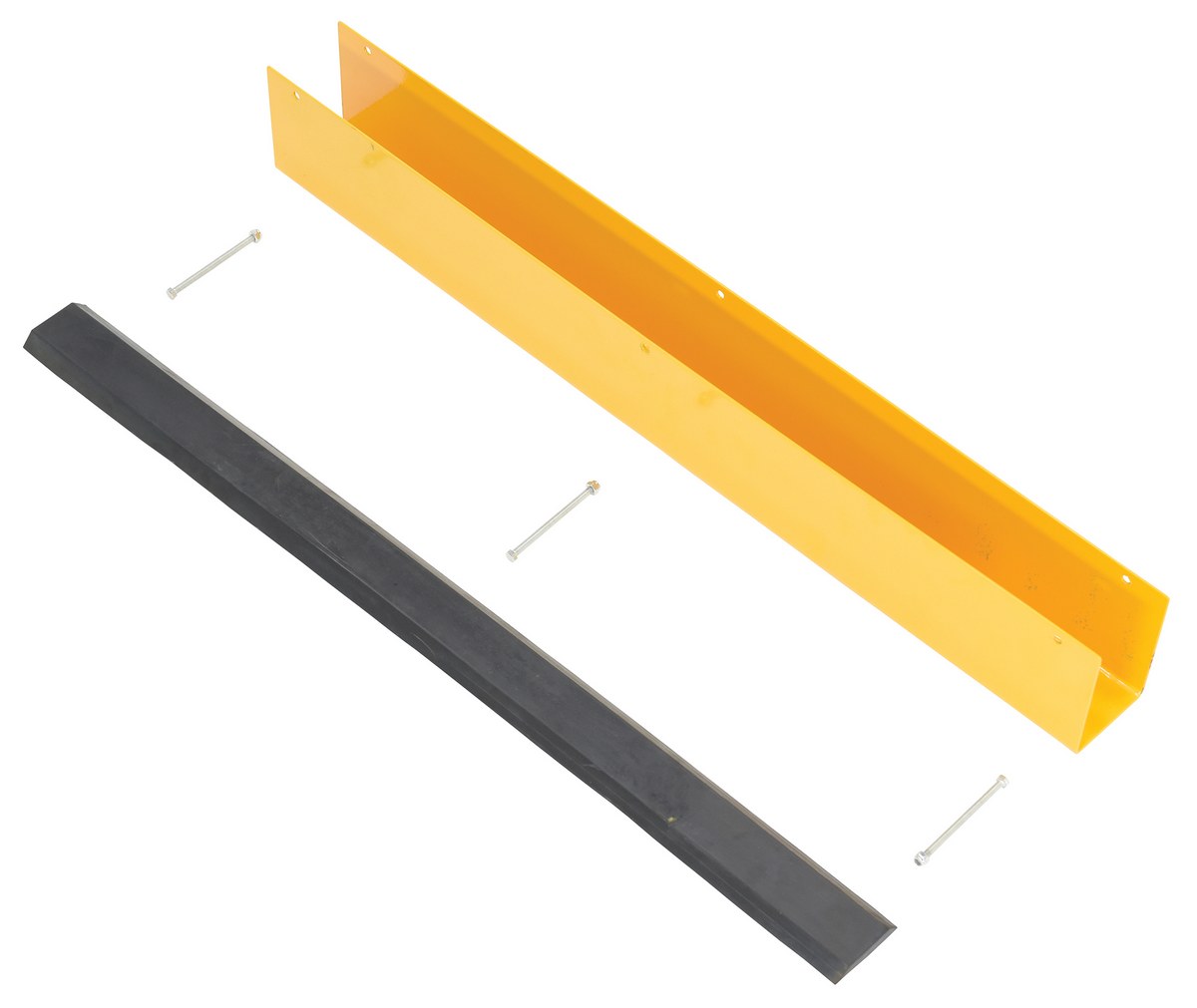

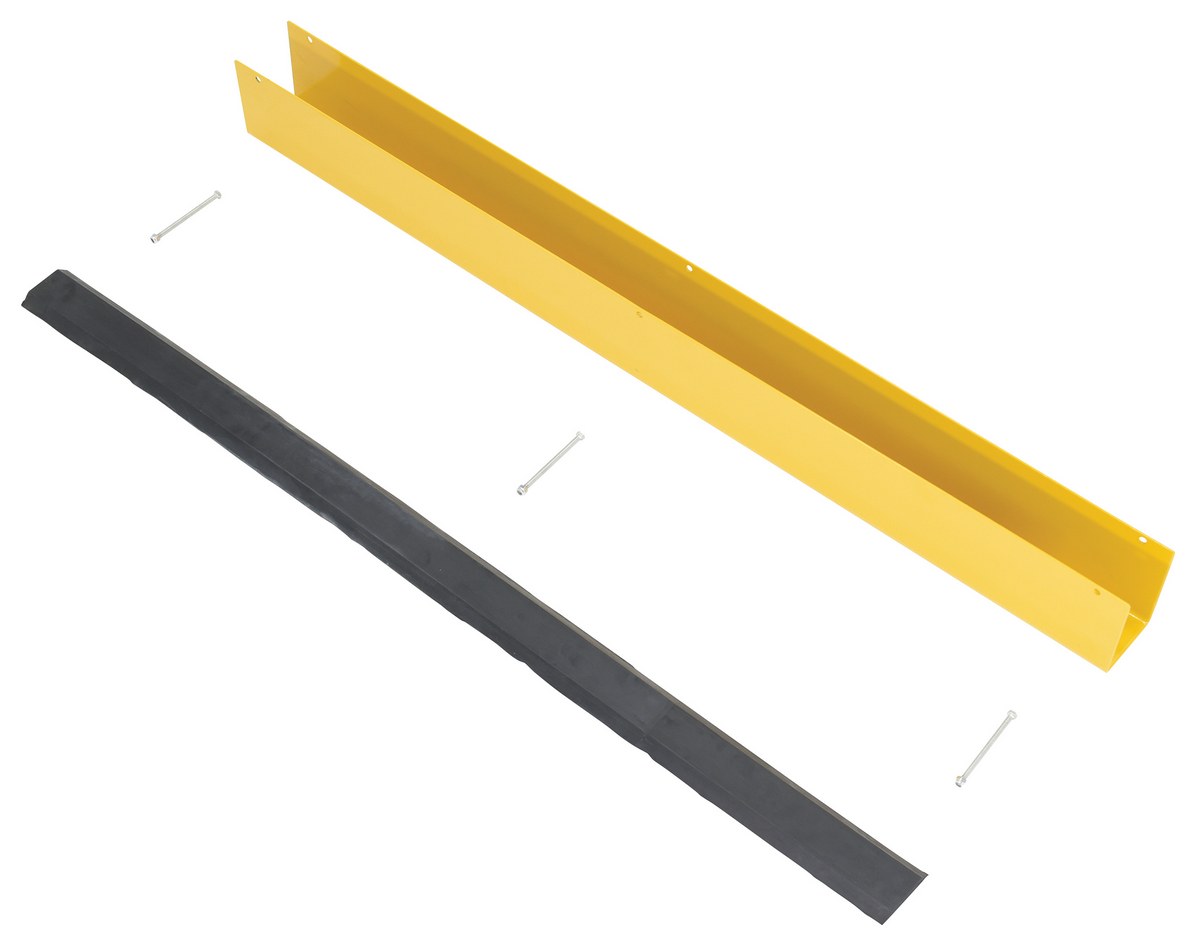

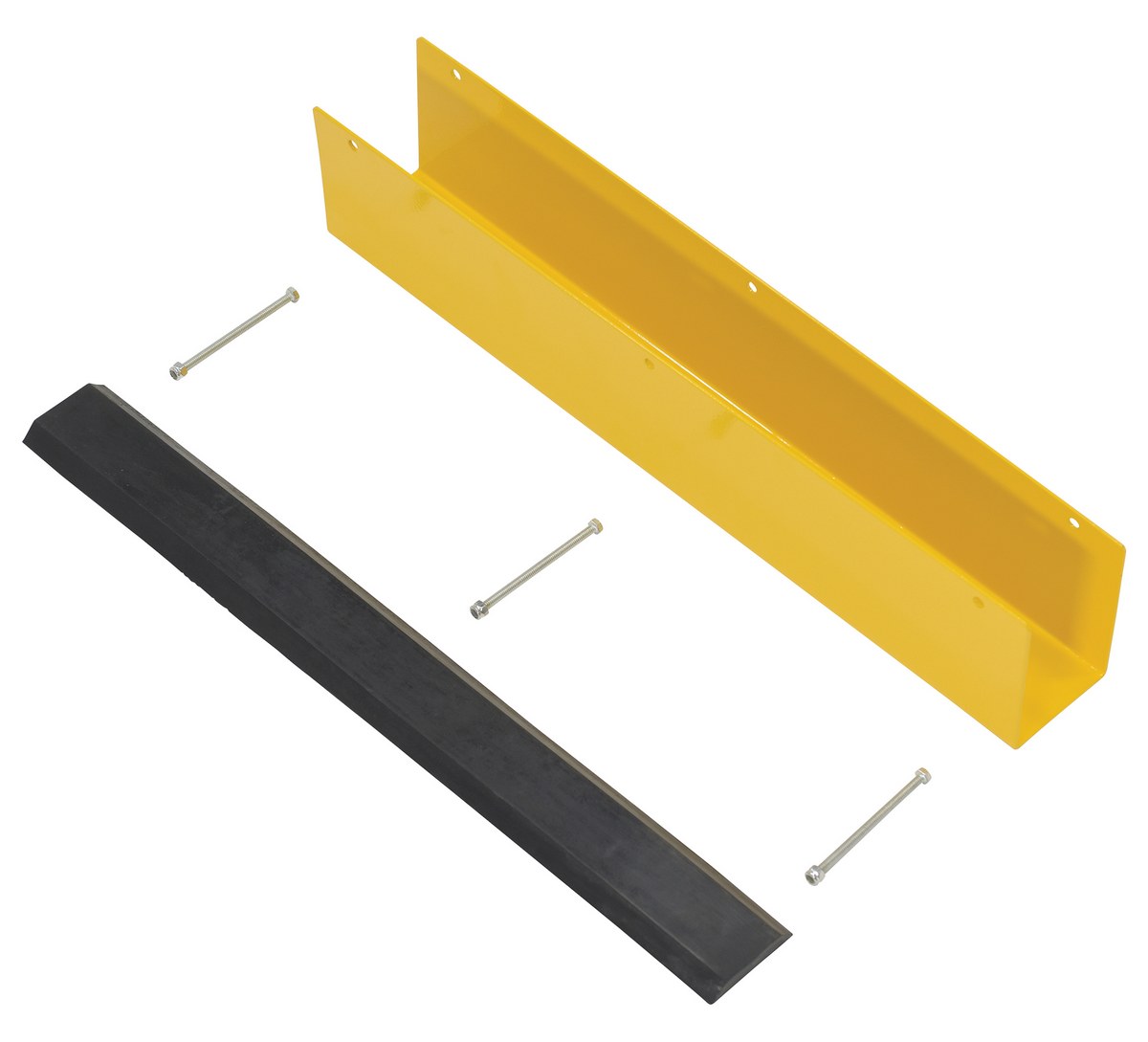

  • Includes rubber bumper insert and hardware
  • Easy to install with wrench or socket

Protect pallet racking with durable wrap around protection. Safeguards against those bumps and scraps that are prone to happen, unexpectedly. Increase pallet rack column strength on impact by over 100%. Baked-in powder-coated toughness.

  • Built from 10 gauge steel
  • No concrete drilling required
  • Includes rubber bumper insert and hardware
  • Easy to install with wrench or socket

Other Rack Guards

 Structural Rack Guards Rack Upright Guards Inline Safety Guard Floor Curb Rack Shields

Additional Models In This Family
view entire Image Gallery

RUD-24

model RUD-24

RUD-36

model RUD-36

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
RUD-24 RUD-2430 Days Limited WarrantySteel Rack Guard With Rubber Bumper Insert 4-7/8 In. x 3-3/8 In. x 24 In. YellowRubber Insert Thickness (in.): 1/2
Usable Width with Bumper (in.): 3-1/8		13
RUD-36 RUD-3630 Days Limited WarrantySteel Rack Guard With Rubber Bumper Insert 4-7/8 In. x 3-3/8 In. x 36 In. YellowRubber Insert Thickness (in.): 1/2
Usable Width (in.): 3-1/8		18
RUD-48 RUD-4830 Days Limited WarrantySteel Rack Guard With Rubber Bumper Insert 4-7/8 In. x 3-3/8 In. x 48 In. YellowRubber Insert Thickness (in.): 1/2
Usable Width (in.): 3-1/8		23

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

RUD-24
Unit:
Size: W x L x H
Weight:
Limited Warranty
Rubber Insert Thickness (in.): 1/2
Usable Width with Bumper (in.): 3-1/8
Rubber Insert Thickness (in.): 1/2
Usable Width with Bumper (in.): 3-1/8

RUD-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Rubber Insert Thickness (in.): 1/2
Usable Width (in.): 3-1/8
Rubber Insert Thickness (in.): 1/2
Usable Width (in.): 3-1/8

RUD-48
Unit:
Size: W x L x H
Weight:
Limited Warranty
Rubber Insert Thickness (in.): 1/2
Usable Width (in.): 3-1/8
Rubber Insert Thickness (in.): 1/2
Usable Width (in.): 3-1/8
Rack Guards with Rubber Bumper Insert PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings


RUD-24

RUD-36

RUD-48

Testing Certificates


RUD-24

RUD-36

RUD-48

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Related or Similar Products:

Structural Rack Guards
Product

Structural Rack Guards

Low Profile Rack Guards
Product

Low Profile Rack Guards

Corner Guards
Product

Corner Guards

Rack Shields
Product

Rack Shields

Polyethylene Rack Protector
Product

Polyethylene Rack Protector

High Impact Plastic Upright Rack Guard
Product

High Impact Plastic Upright Rack Guard

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Rack Guards with Rubber Bumper...




Protect pallet racking with durable wrap around protection. Safeguards against those bumps and scraps that are prone to happen, unexpectedly. Increase pallet rack column strength on impact by over 100%. Baked-in powder-coated toughness.

  • Built from 10 gauge steel
  • No concrete drilling required
  • Includes rubber bumper insert and hardware
  • Easy to install with wrench or socket

Model # Description Attributes Net Wt.
(lbs)
RUD-24 RUD-24Steel Rack Guard With Rubber Bumper Insert 4-7/8 In. x 3-3/8 In. x 24 In. YellowRubber Insert Thickness (in.): 1/2
Usable Width with Bumper (in.): 3-1/8		13
RUD-36 RUD-36Steel Rack Guard With Rubber Bumper Insert 4-7/8 In. x 3-3/8 In. x 36 In. YellowRubber Insert Thickness (in.): 1/2
Usable Width (in.): 3-1/8		18
RUD-48 RUD-48Steel Rack Guard With Rubber Bumper Insert 4-7/8 In. x 3-3/8 In. x 48 In. YellowRubber Insert Thickness (in.): 1/2
Usable Width (in.): 3-1/8		23
