Pallet Rack Drum Cradles

- - - -

Description
Model Chart
Options
PDF's
Image Gallery
PRDC-42-R_F.jpg PRDC-42-R_A.jpg PRDC-42-R_B.jpg PRDC-42-R_C.jpg

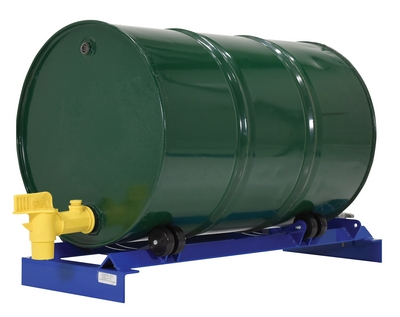

PRDC-42-R_D.jpg PRDC-42-R_E.jpg
Pallet Rack Drum Cradles

model: PRDC-42-R



Featured Drum Handling Equipment


Fiber Drums
Cylinder Storage Stand
Cylinder Storage Cabinets (USA sales)
Cylinder Bracket Stands
Multi-Purpose Drum & Hand Trucks
Overpack Drum Dollies
Drum Crushers/ Compactors
Drum Grippers
Pneumatic Trash (55 Gallon Drum) Compactor
model chart

Product Family Overview

Print Friendly
Pallet Rack Drum Cradles
SERIES: PRDC

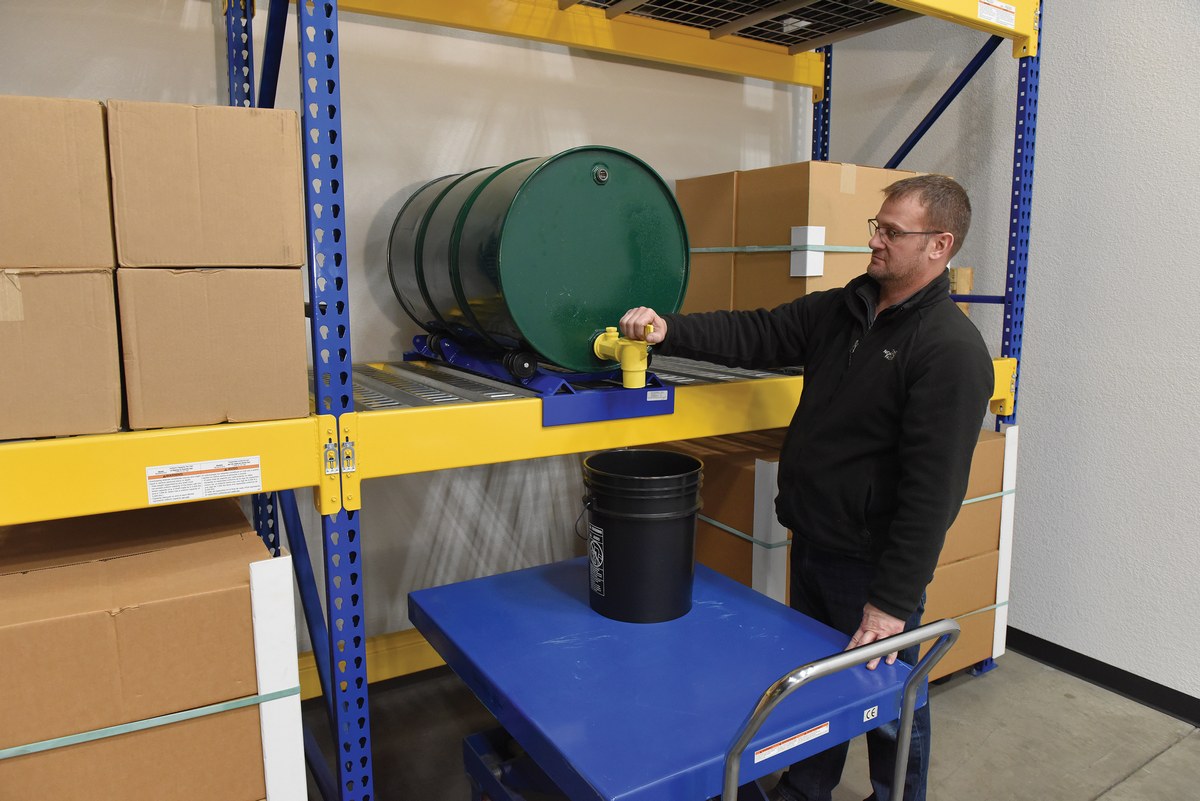

The Pallet Rack Drum Cradle converts standard (42 inch) pallet racks into a versatile horizontal drum cradle. The unit works with either box beams and/or step beams. Accepts 30- and 55-gallon steel drums. The drum angle is adjustable by using the height-adjustment turn knobs (sloping drum allows user to get 3% more fluid out. Works well with the Hydraulic Drum Stacker and the Drum Positioner. Steel construction with baked in powder coat finish for added toughness.

  • Unique design converts standard pallet rack into a horizontal drum cradle
  • Adjustable angle bolts tilt drum into desired position
  • Universal design work with box or step beams
  • Solid steel construction provides long lasting rugged use

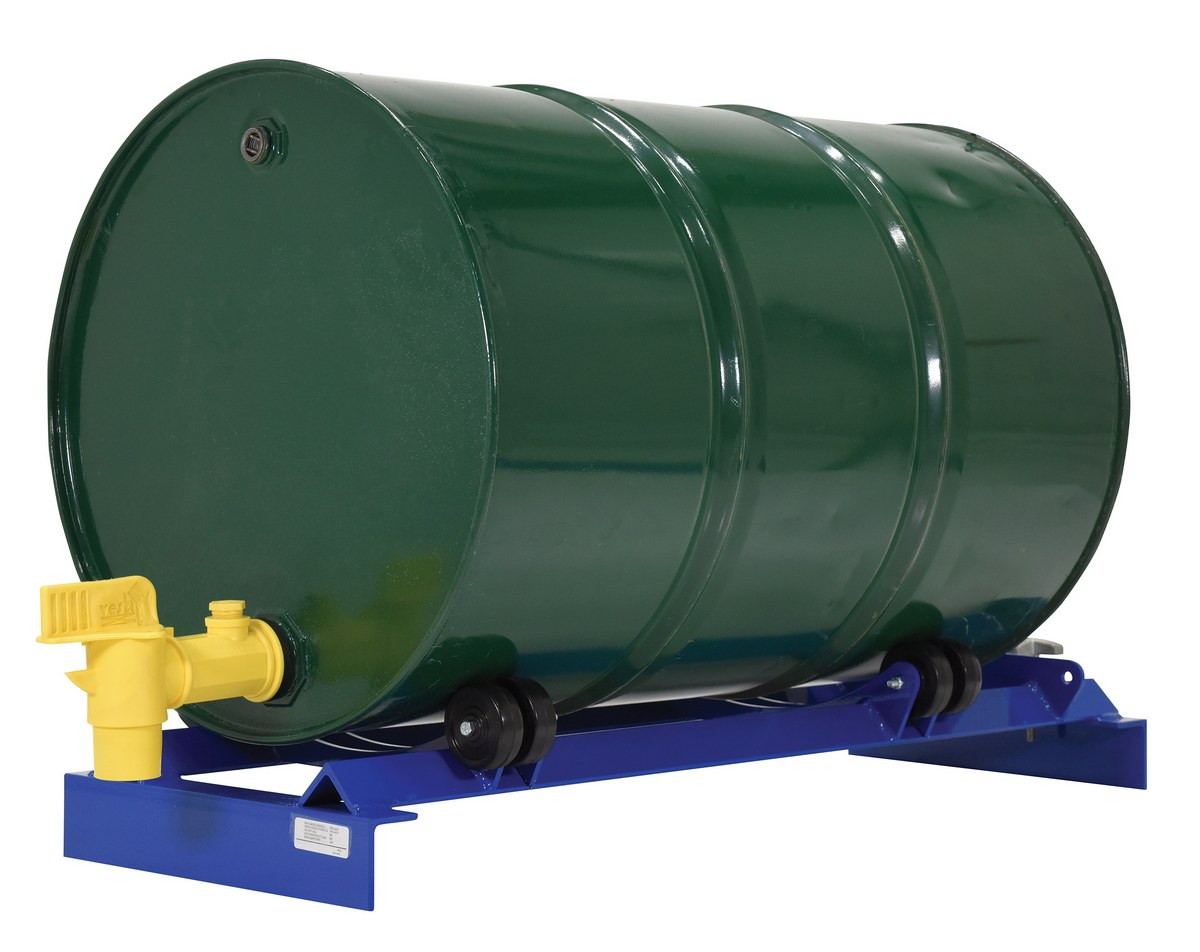

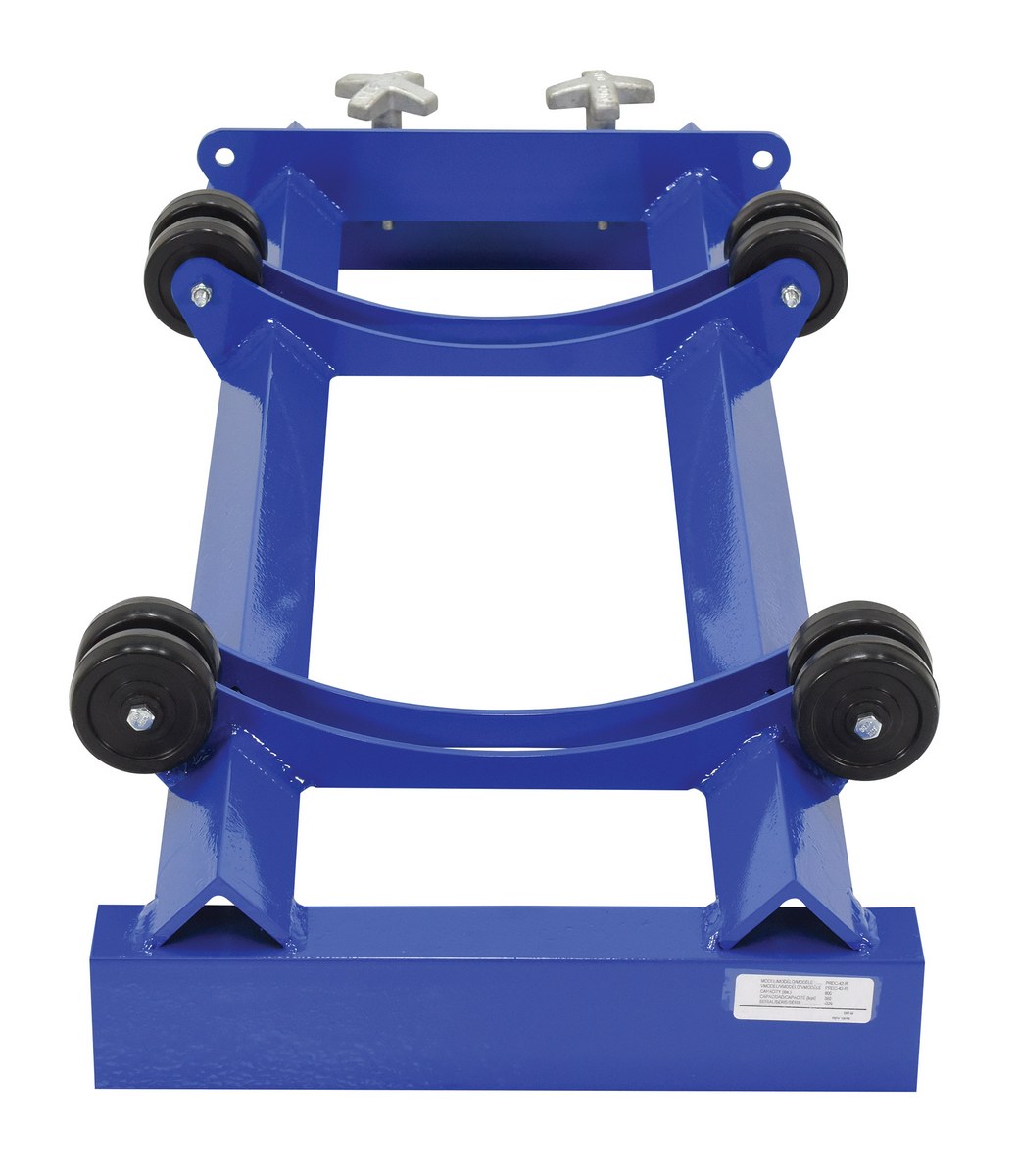

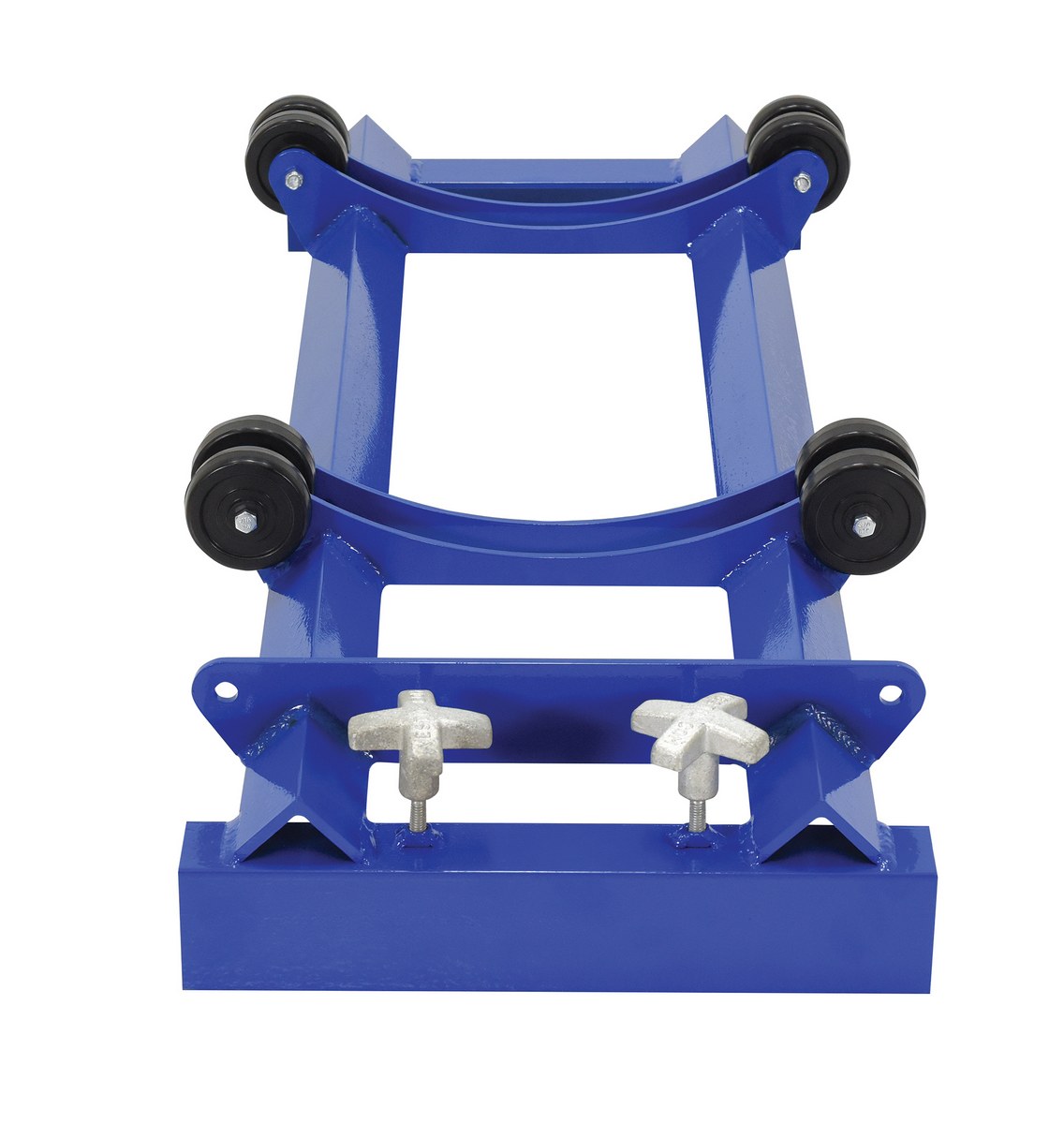

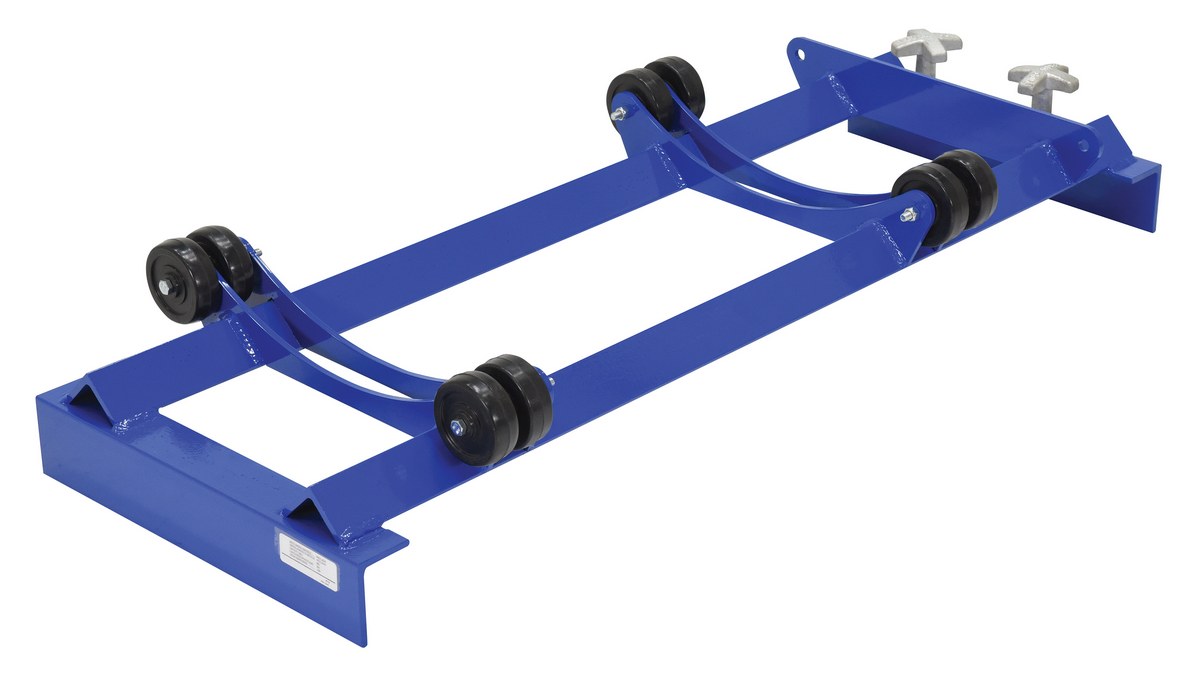

Model PRDC-42-R features 3" diameter poly rollers that allow manual drum rotation, making faucet and vent installation more convenient.

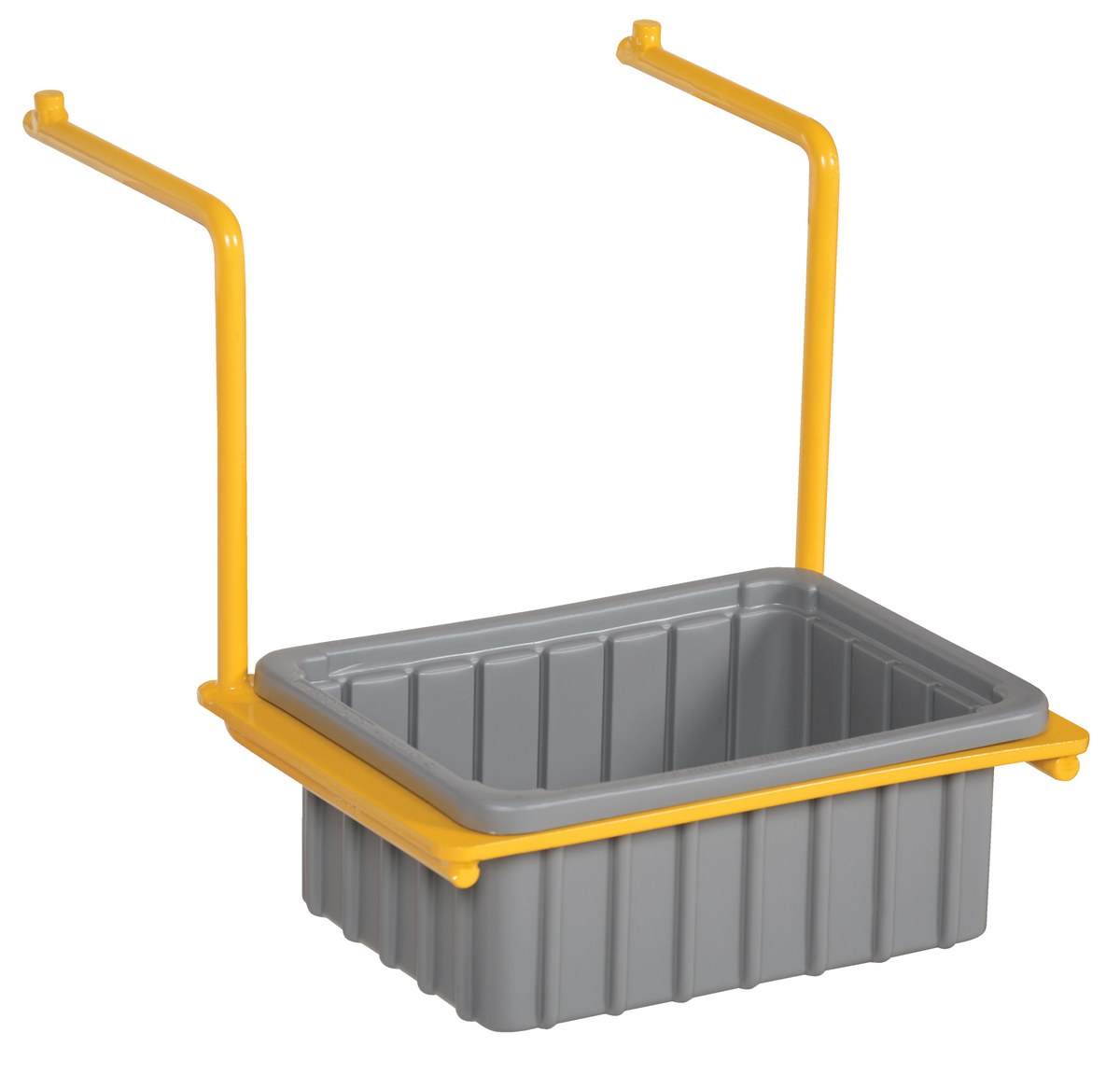

Model PRD-DPN includes brackets and prevents leaks from going to the floor. Usable dimensions: 9-3/4"W x 7-1/8"L x 4-3/16"H.

The Pallet Rack Drum Cradle converts standard (42 inch) pallet racks into a versatile horizontal drum cradle. The unit works with either box beams and/or step beams. Accepts 30- and 55-gallon steel drums. The drum angle is adjustable by using the height-adjustment turn knobs (sloping drum allows user to get 3% more fluid out. Works well with the Hydraulic Drum Stacker and the Drum Positioner. Steel construction with baked in powder coat finish for added toughness.

  • Unique design converts standard pallet rack into a horizontal drum cradle
  • Adjustable angle bolts tilt drum into desired position
  • Universal design work with box or step beams
  • Solid steel construction provides long lasting rugged use

Model PRDC-42-R features 3" diameter poly rollers that allow manual drum rotation, making faucet and vent installation more convenient.

Model PRD-DPN includes brackets and prevents leaks from going to the floor. Usable dimensions: 9-3/4"W x 7-1/8"L x 4-3/16"H.

Other Drum Racks

 Pallet Rack Drum Cradles Drum Rack With Fork Pockets Stackable Horizontal Drum Storage Racks Horizontal Drum Storage Racks

Additional Models In This Family
view entire Image Gallery

PRDC-DPN

PRDC-DPN

PRDC-42

PRDC-42

PRDC-42-R

PRDC-42-R

PRDC-36-R

PRDC-36-R

PRDC-DPN

PRDC-DPN

PRDC-42

PRDC-42

PRDC-RK-RF

PRDC-RK-RF

PRDC-DPN

PRDC-DPN

PRDC-36

PRDC-36

PRDC-RK-RF

PRDC-RK-RF

PRDC-42-R

PRDC-42-R

PRDC-36

PRDC-36

PRDC-36-R

PRDC-36-R

PRDC-36

PRDC-36

PRDC-36-R

PRDC-36-R

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

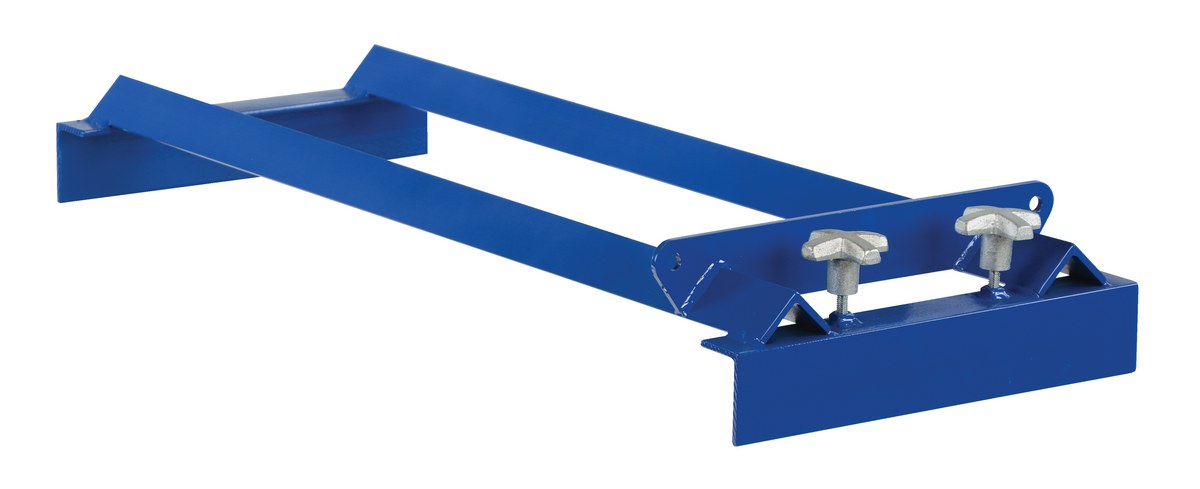

PRDC-36 PRDC-3690 Days Limited WarrantySteel Pallet Rack Drum Cradle 36-1/2 In. x 15-7/8 In. x 5-5/8 In. 800 Lb. Capacity BlueUniform Capacity (lb.): 800
Acceptable Drum Size (gal.): 30 & 55		61

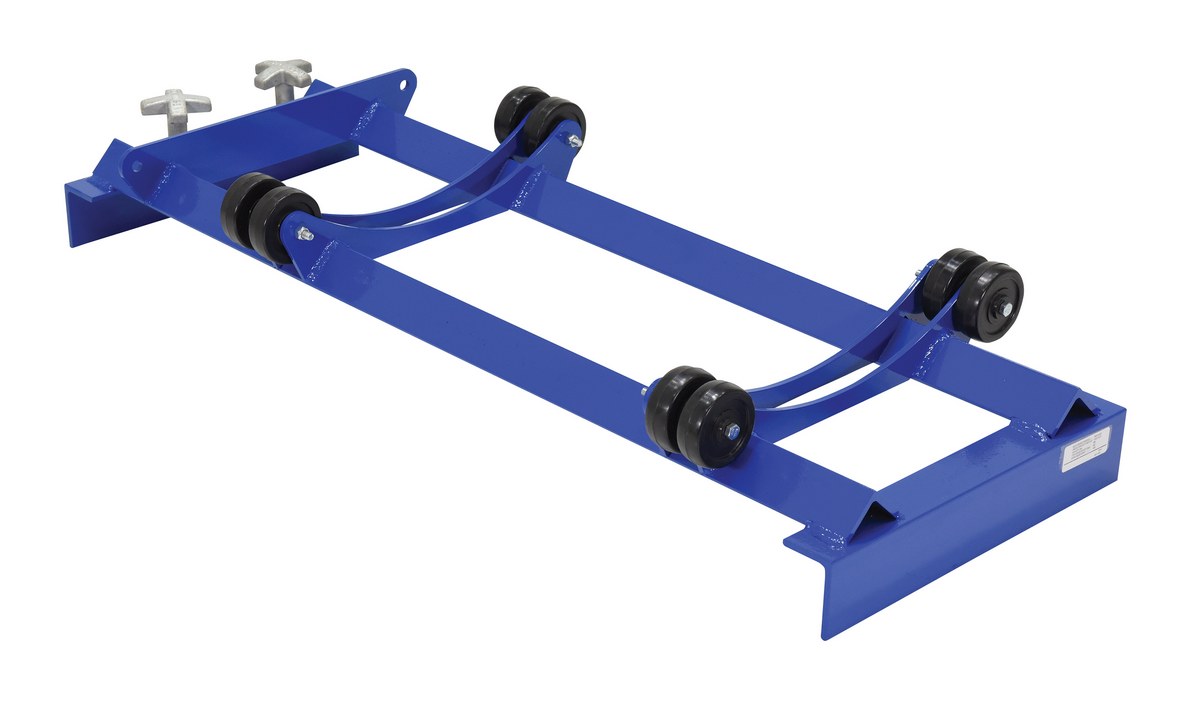

PRDC-36-R PRDC-36-R90 Days Limited WarrantySteel Pallet Rack Drum Roller Cradle 36-1/2 In. x 17-3/8 In. x 6-15/16 In. 800 Lb. Capacity BlueUniform Capacity (lb.): 800
Acceptable Drum Size (gal.): 30 & 55		52
PRDC-42 PRDC-4290 Days Limited WarrantySteel Pallet Rack Drum Cradle 42-1/2 In. x 15-7/8 In. x 5-5/8 In. 800 Lb. Capacity BlueUniform Capacity (lb.): 800
Acceptable Drum Size (gal.): 30 & 55		36
PRDC-42-R PRDC-42-R90 Days Limited WarrantySteel Pallet Rack Drum Roller Cradle 42-1/2 In. x 17-3/8 In. x 6-15/16 In. 800 Lb. Capacity BlueUniform Capacity (lb.): 800
Acceptable Drum Size (gal.): 30 & 55		58

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

PRDC-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 800
Acceptable Drum Size (gal.): 30 & 55
Uniform Capacity (lb.): 800
Acceptable Drum Size (gal.): 30 & 55

PRDC-36-R
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 800
Acceptable Drum Size (gal.): 30 & 55
Uniform Capacity (lb.): 800
Acceptable Drum Size (gal.): 30 & 55

PRDC-42
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 800
Acceptable Drum Size (gal.): 30 & 55
Uniform Capacity (lb.): 800
Acceptable Drum Size (gal.): 30 & 55

PRDC-42-R
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 800
Acceptable Drum Size (gal.): 30 & 55
Uniform Capacity (lb.): 800
Acceptable Drum Size (gal.): 30 & 55
For More Details of the Option Click the Red Model Button

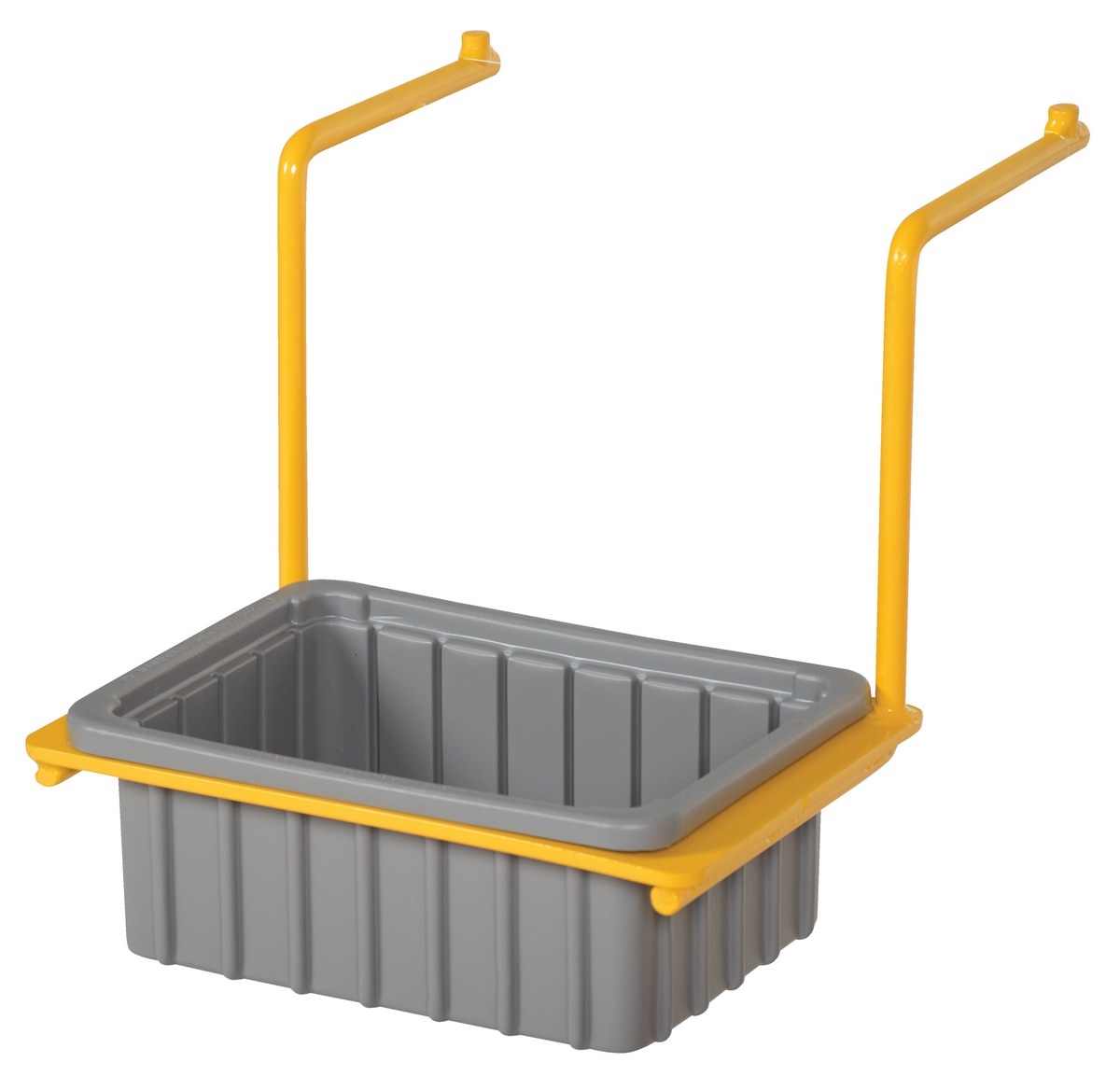

PRDC-DPN PRDC-DPN30 Days Limited WarrantySteel Drip Pan For PRDC Models YellowLength Added (in.): 8-5/8
Usable Width (in.): 9-3/4		5

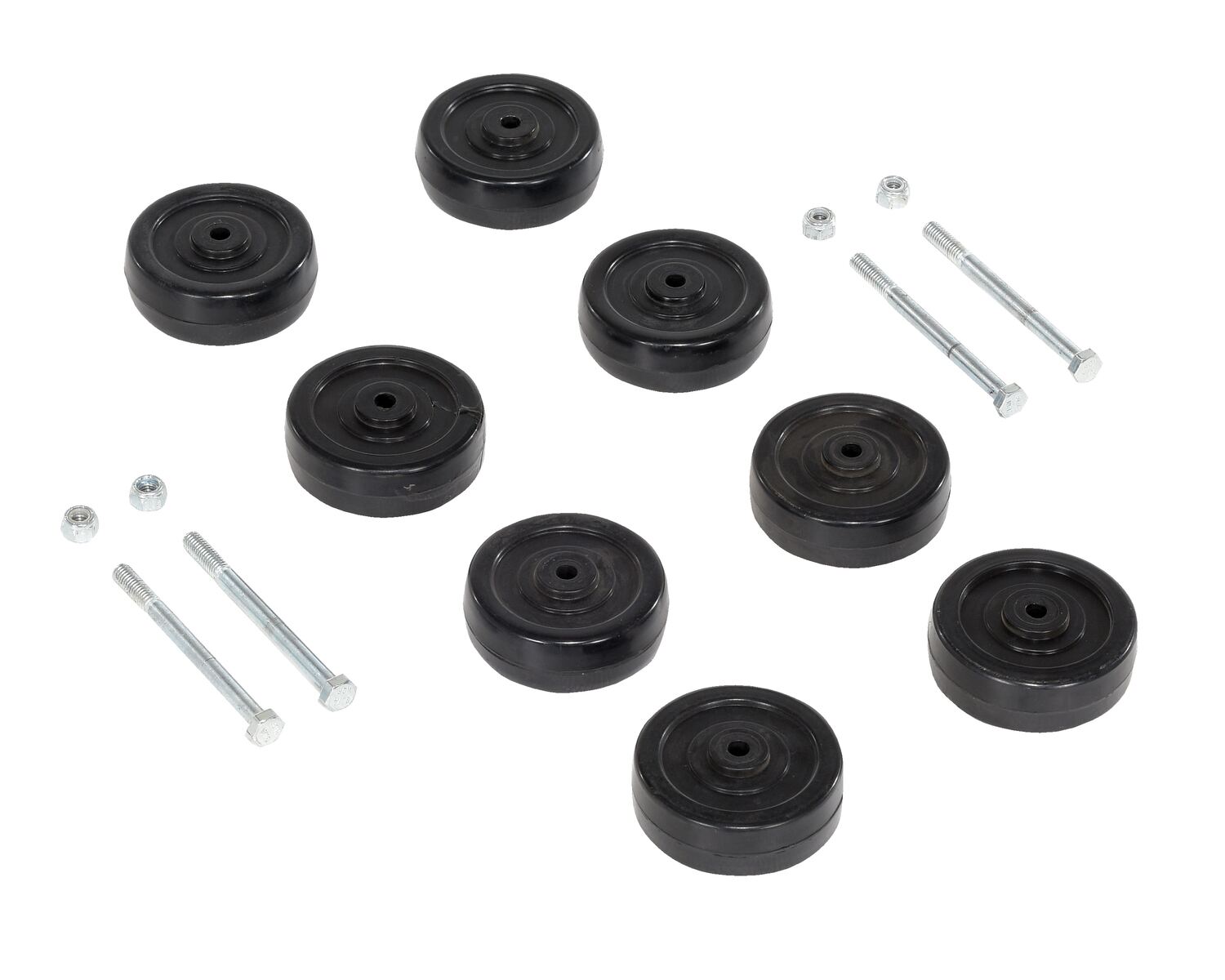

PRDC-RK-RF PRDC-RK-RF90 Days Limited WarrantyHard Rubber Retro Fit Roller Kit 3 In. x 1 In. For PRDC Models BlackApplication: For use with PRDC-36 and PRDC-42
Package Contents: (6) Retro Fit Rollers and hardware		4

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Pallet Rack Drum Cradles PDF's will open in a new window when clicked.

Manuals


PRDC
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


PRDC-36

PRDC-36-R

PRDC-42

PRDC-42-R

PRDC-DPN

Testing Certificates


PRDC-36

PRDC-36-R

PRDC-42

PRDC-42-R

PRDC-DPN

SDS Sheets

No SDS Sheets For This Product

Other PDF's


Pallet Rack Drum Cradle Mailing Brochure

Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Q: Can this be used with plastic drums?

A: The shape of a plastic drum can be affected by temperature and weight. As a result, We don't recommend these drum cradles for use with plastic drums.

Q: Can I use the PRDC-42 on my 48" wide pallet rack?

A: :No, it will not work on a 48" wide rack. You will have to switch out your current pallet racking for the 42" wide pallet racks.
