Fork Mounted Drum Lifters| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

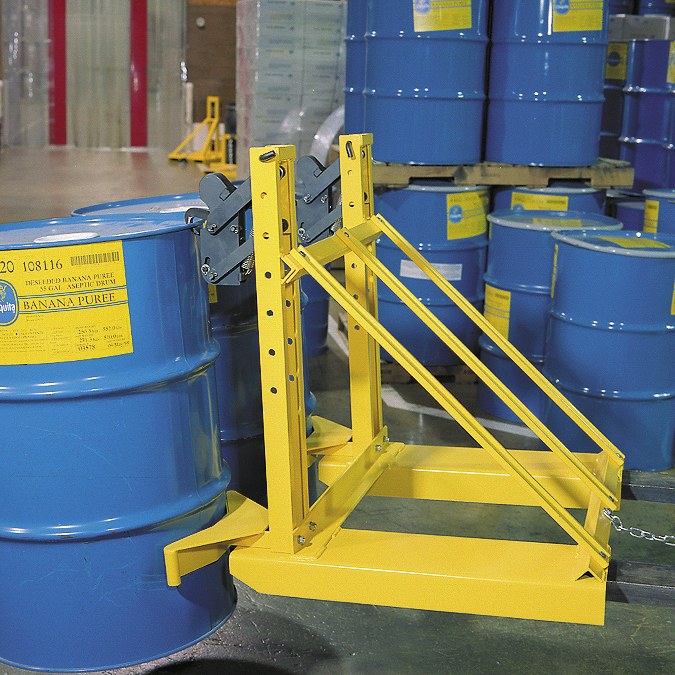

| FMDDL-1700 |  | 90 Days Limited Warranty | Steel Fork Mounted Lifter 2 Drum 1,500 Lb. Capacity Yellow | Uniform Capacity (lb.): 1,500 Accepts (qty.): 2 | 200 | ||

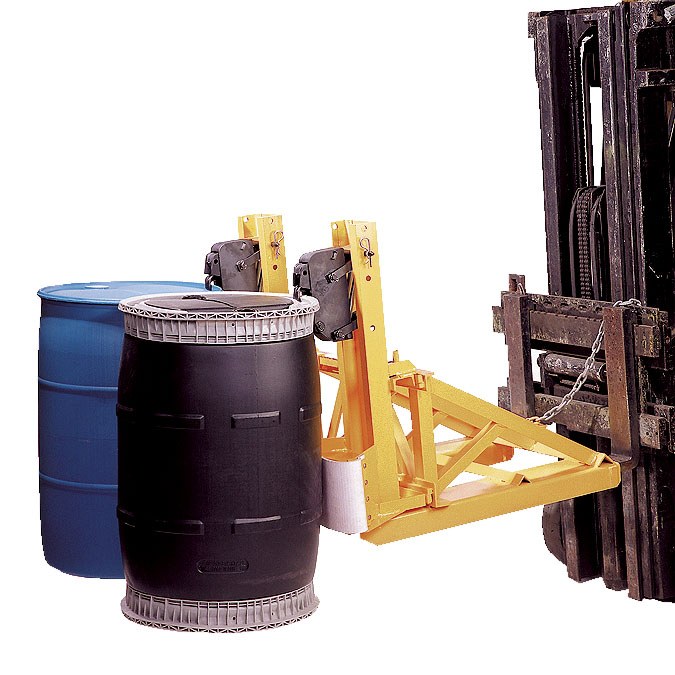

| FMDDL-3000 |  | 90 Days Limited Warranty | Steel Fork Mounted Lifter 2 Drum 3,000 Lb. Capacity Yellow | Uniform Capacity (lb.): 3,000 Accepts (qty.): 2 | 432 | ||

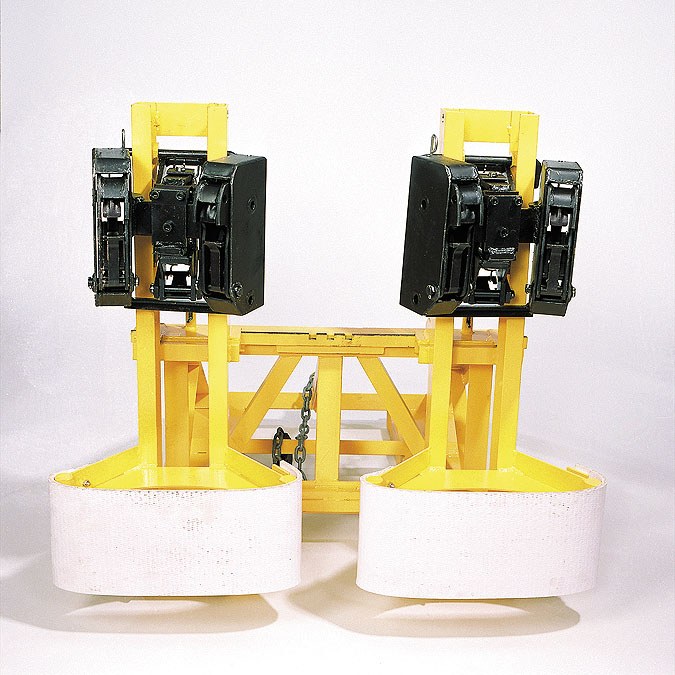

| FMDDL-4000 |  | 90 Days Limited Warranty | Steel Fork Mounted Lifter 2 Drum 4,000 Lb. Capacity Yellow | Uniform Capacity (lb.): 4,000 Accepts (qty.): 2 | 500 | ||

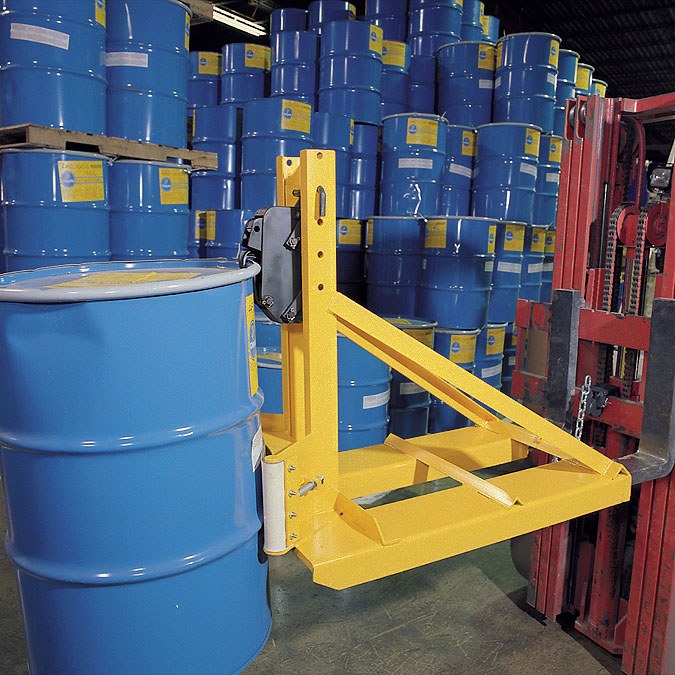

| FMDL-1500 |  | 90 Days Limited Warranty | Steel Fork Mounted Drum Lifter 1,500 Lb. Capacity Yellow | Uniform Capacity (lb.): 1,500 Accepts (qty.): 1 | 340 | ||

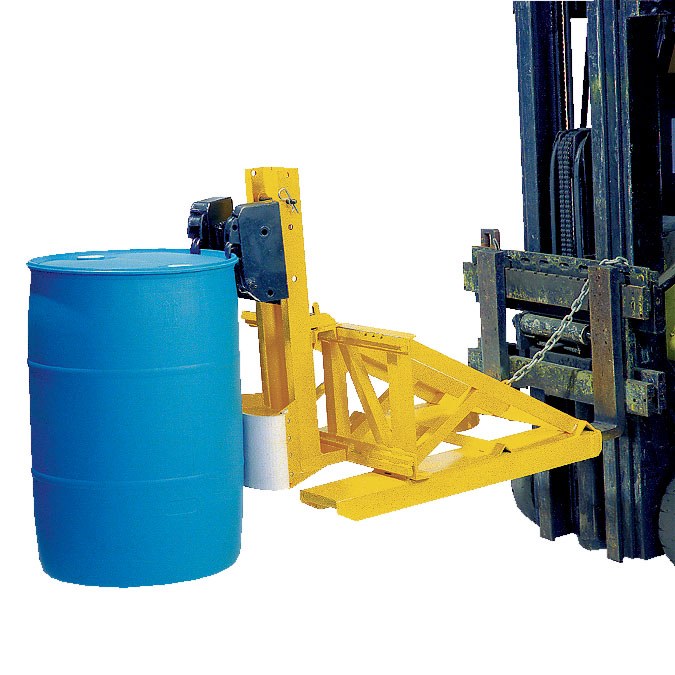

| FMDL-2000 |  | 90 Days Limited Warranty | Steel Fork Mounted Drum Lifter 2,000 Lb. Capacity Yellow | Uniform Capacity (lb.): 2,000 Accepts (qty.): 1 | 366 | ||

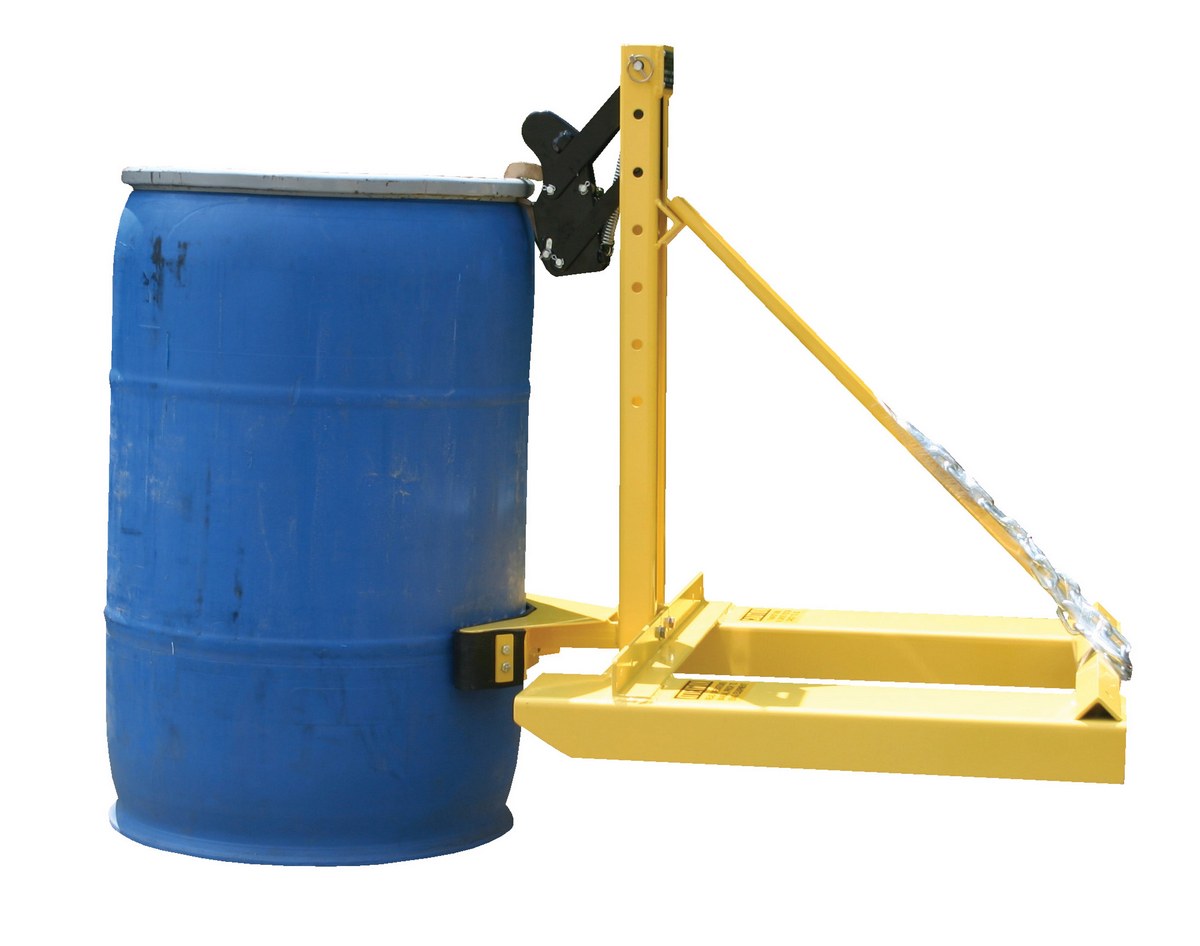

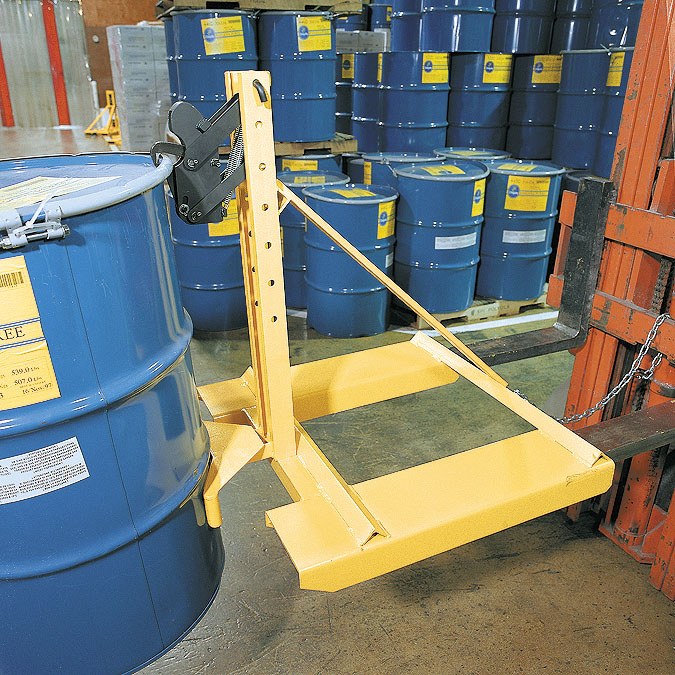

| FMDL-850 |  | 30 Days Limited Warranty | Steel Fork Mounted Drum Lifter 750 Lb. Capacity Yellow | Uniform Capacity (lb.): 750 Accepts (qty.): 1 | 170 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
| Model | Image | PDFs | Description | |
| DLH-CL2-1 |  |
 |
Fork Mounted Drum Lifter Carraige Option | |
A: The pockets measure 7" wide x 2.5" tall.
|
|||||||||||||||||||||||||||||||||||||
Fork Mounted Drum Lifters |
|||||||||||||||||||||||||||||||||||||
 |
|||||||||||||||||||||||||||||||||||||
Fork truck attachments utilize a light duty single automatic clamping mechanism for handling any size steel or plastic chimed drum. Model FMDL-850 is a knockdown unit that bolts together. Fork pockets and safety chain provide quick and easy installation. Model FMDDL-1700 is fork mounted, with fork pockets and safety chain. The following are fork mounted drum lifters that enable fork truck operators to install or remove the attachment in seconds without any tools. Totally enclosed fork pockets with attached safety chain and cam lock secures the attachment to the fork truck. Models FMDL-1500 & FMDDL-3000 - Fork truck attachments utilize a heavy duty single automatic clamping mechanism for handling steel, fiber and plastic chimed drums in high volume applications. Models FMDL-2000 & FMDDL-4000 feature heavy-duty double articulating clamping mechanisms for handling any steel, plastic or fiber chimed drums in high volume applications. Each drum is gripped with two upper and lower jaws in heads that are spaced about 6 inches apart. |
|||||||||||||||||||||||||||||||||||||
 |
|||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||
