Hoist Mounted Drum Carrier/Rotators

- - - -

Description
Model Chart
Options
PDF's
Image Gallery
DCT-2000_B.jpg DCT-2000_A.jpg DCT-2000_C.jpg DCT-2000_D.jpg
DCT-2000_E.jpg DCT-2000_1.jpg DCT-2000_2.jpg
Hoist Mounted Drum Carrier/Rotators

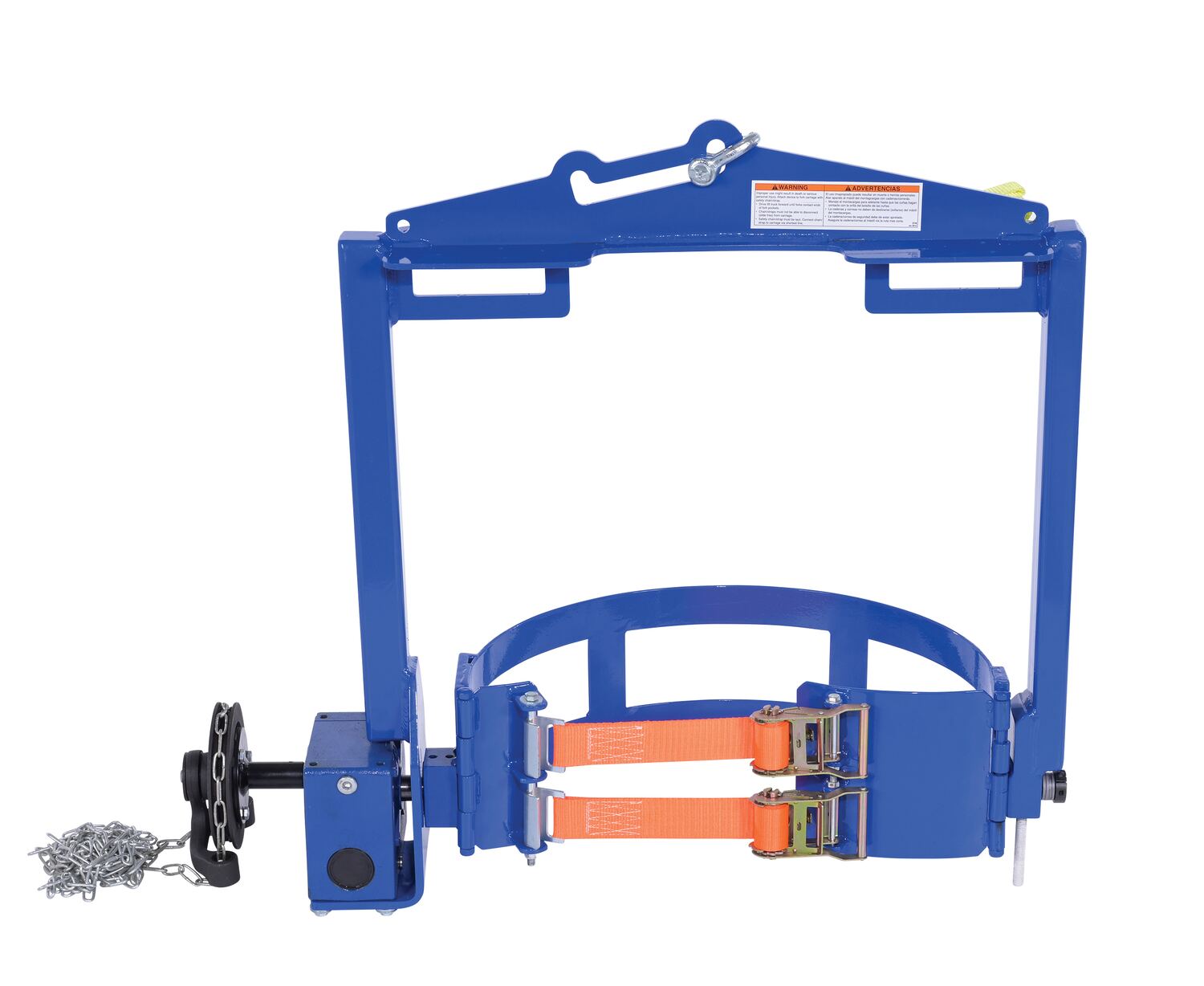

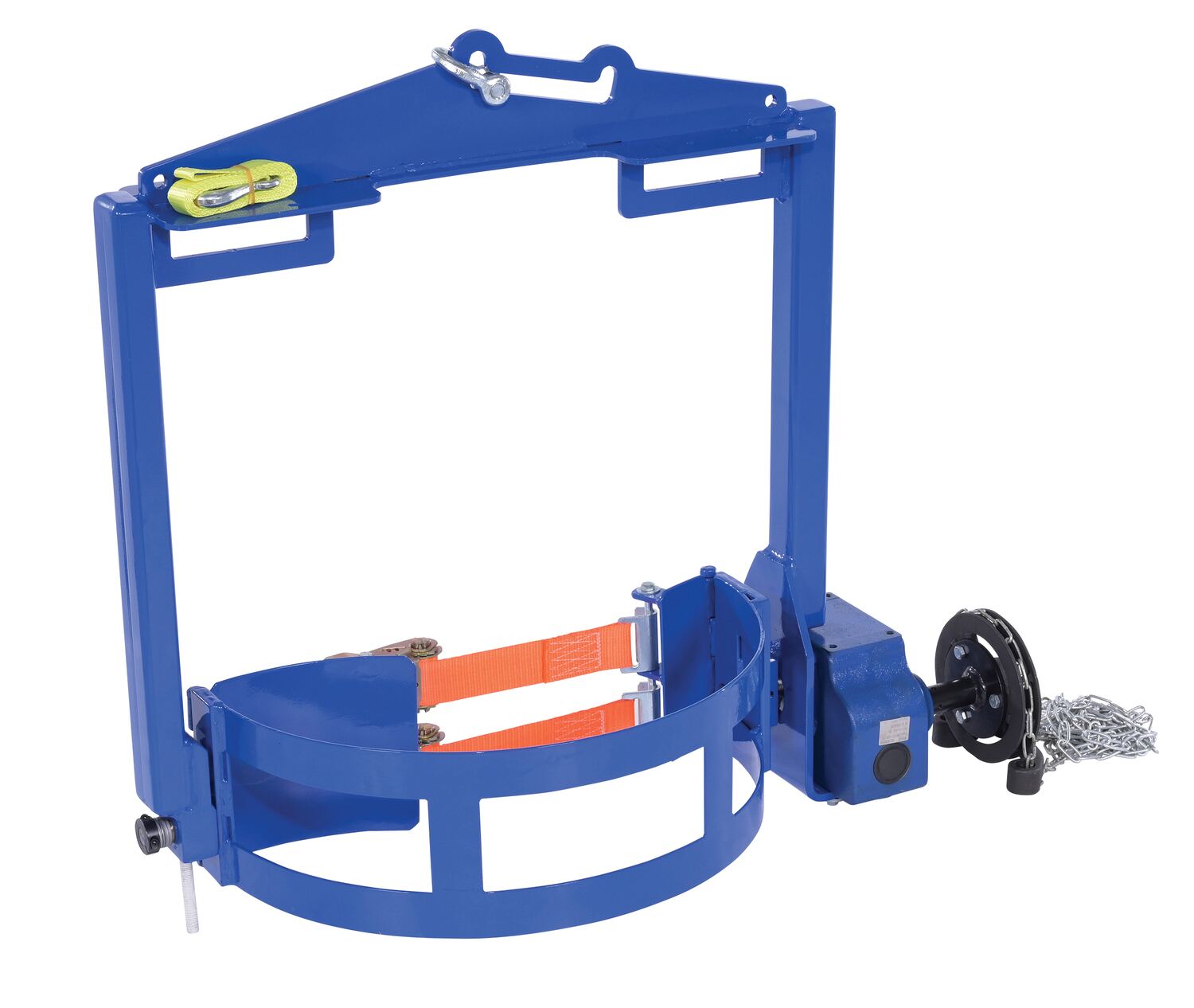

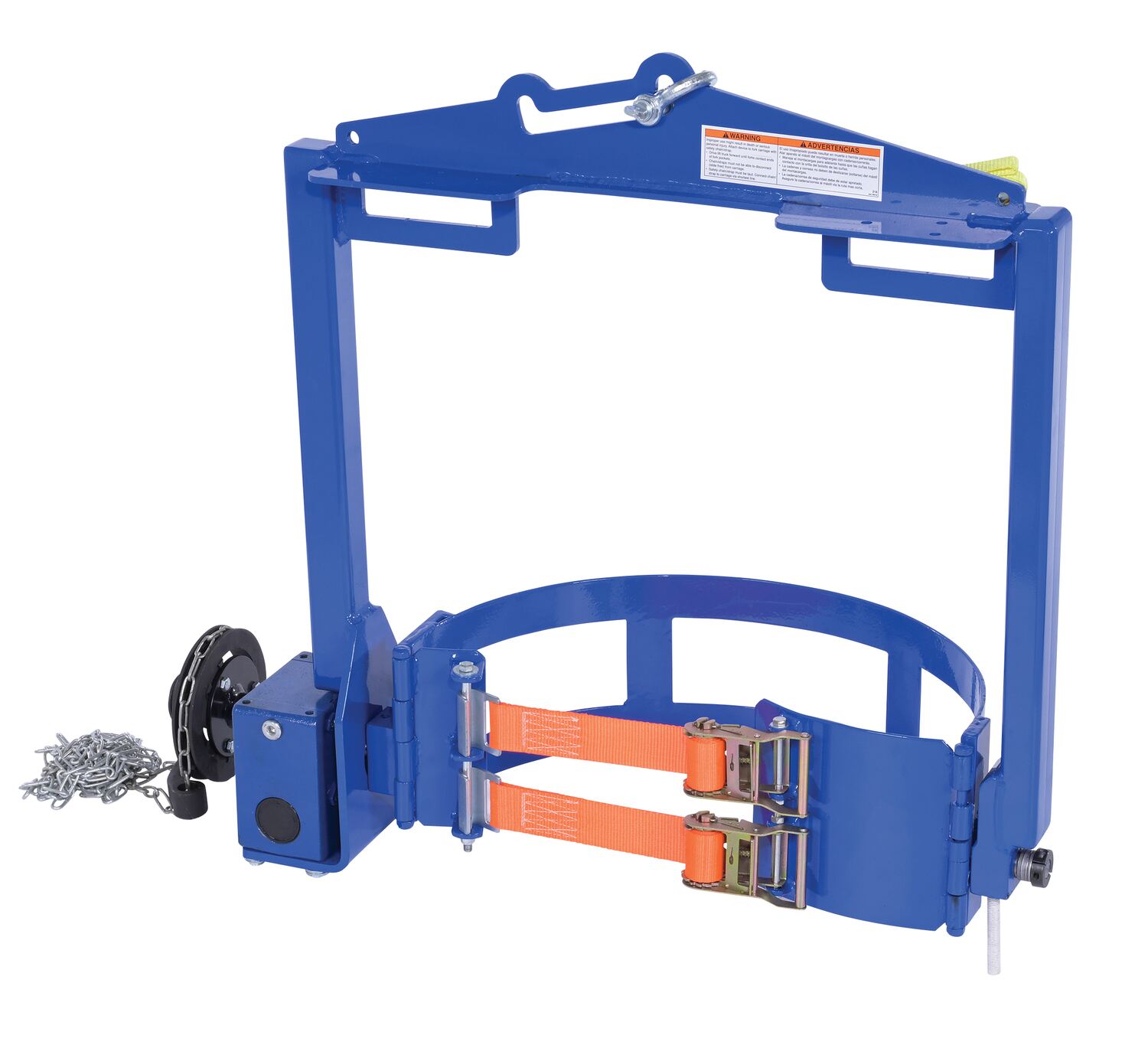

model: DCT-2000



Featured Drum Handling Equipment


Horizontal Semi-Automatic Drum Tong
Propane Exchange Cylinder Cabinets
Manual Drum Carrier/Rotator
Four-Wheel Drum Trucks with Tilt-Back Spring Assist
Fuel Tank Containment with Drain
Economical Drum Transporters
Portable Cylinder Lifters
Drum Stand
Drum Vents
model chart

Product Family Overview

Print Friendly
Hoist Mounted Drum Carrier/Rotators
SERIES: DCT

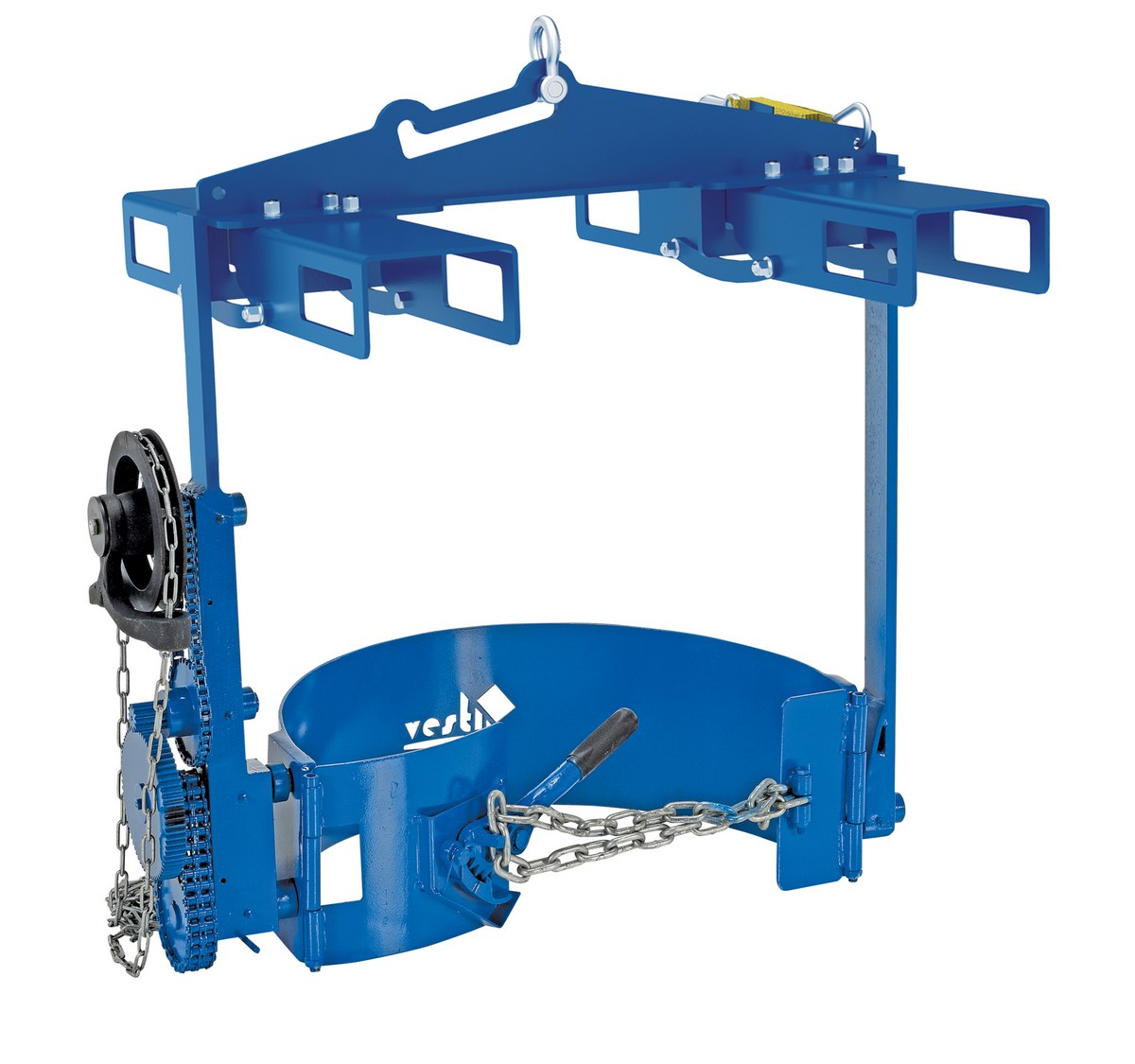

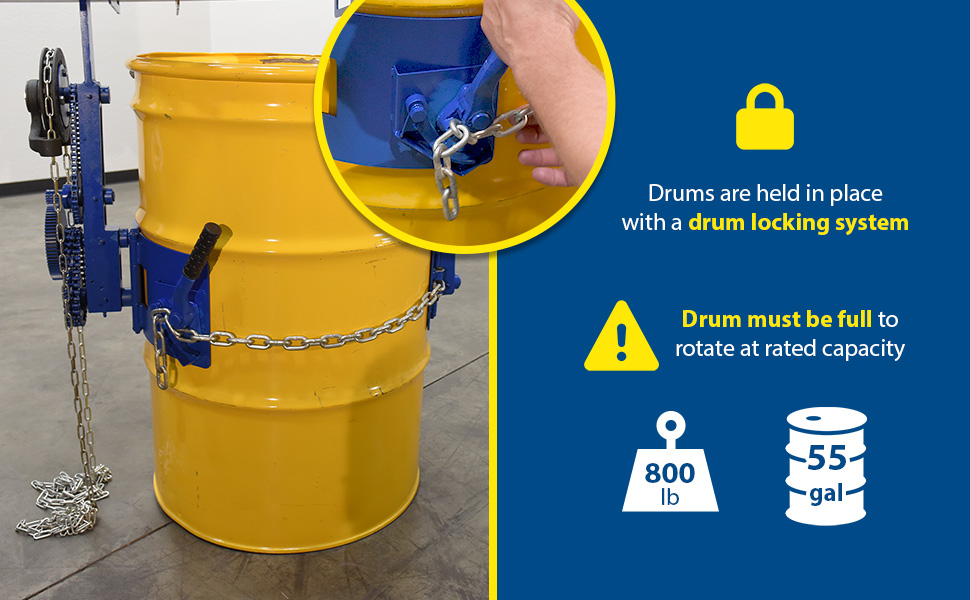

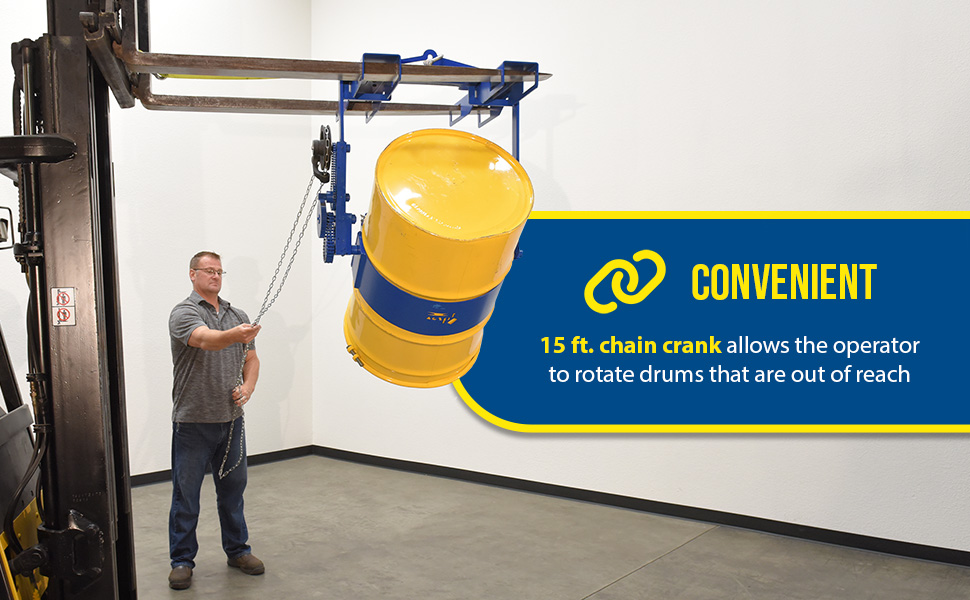

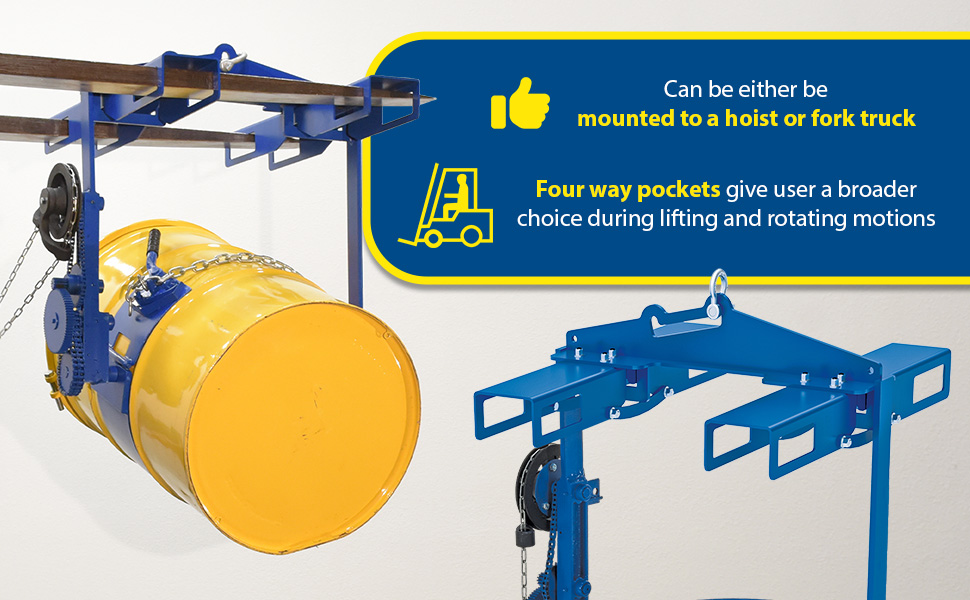

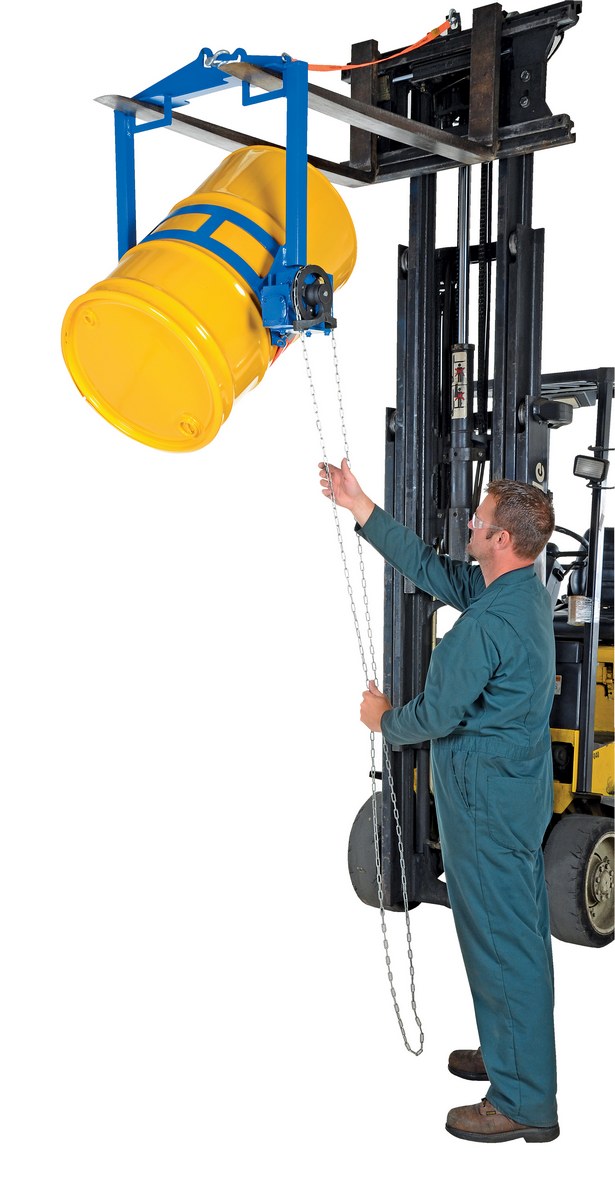

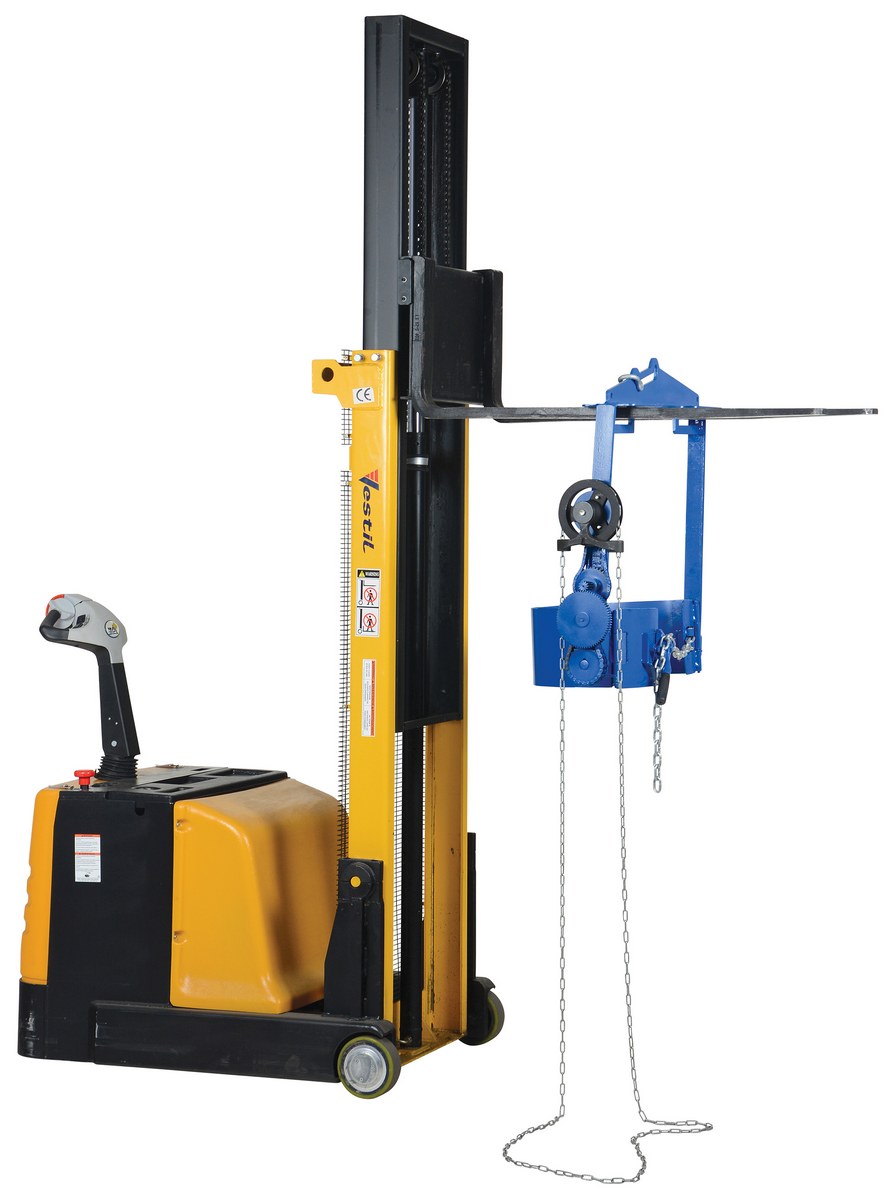

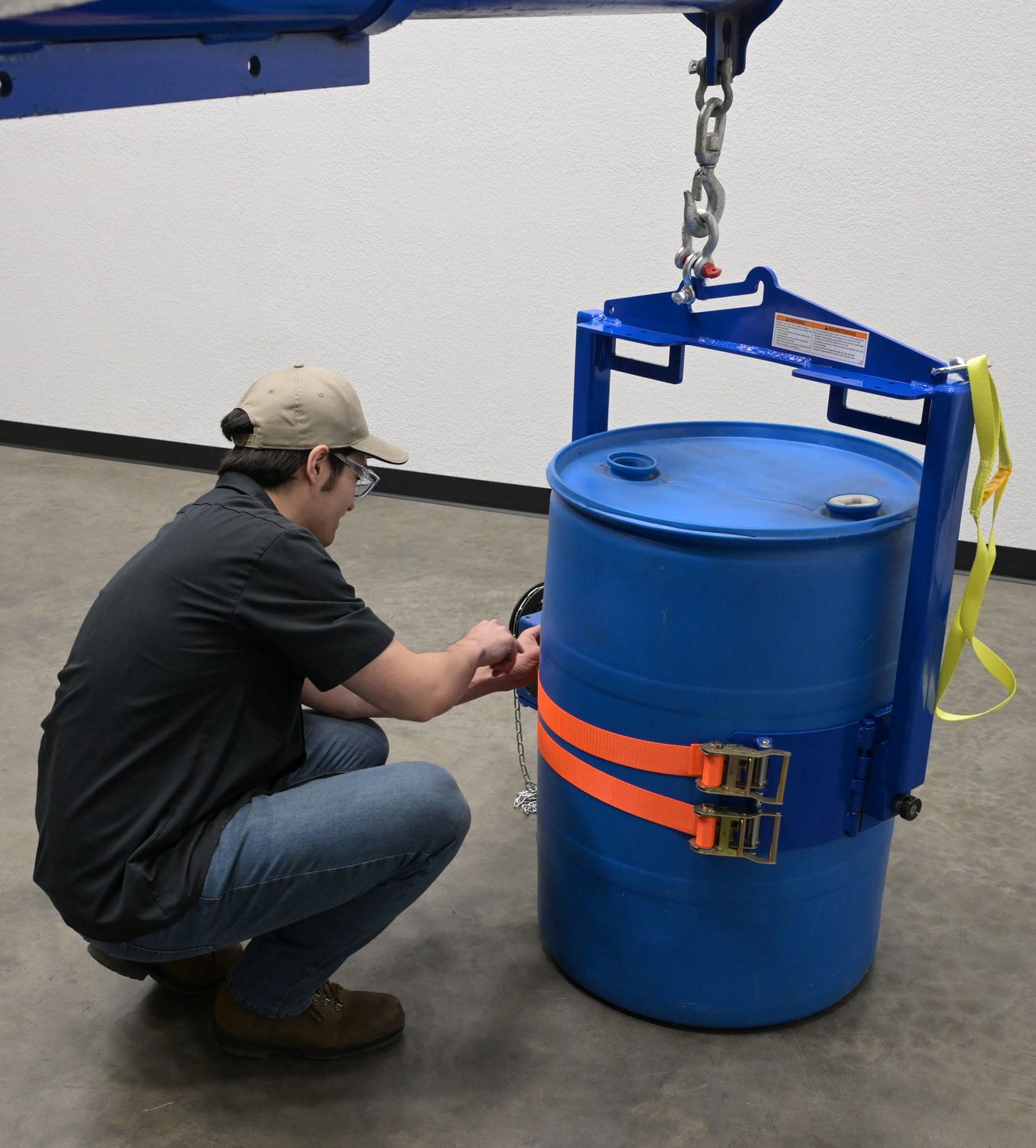

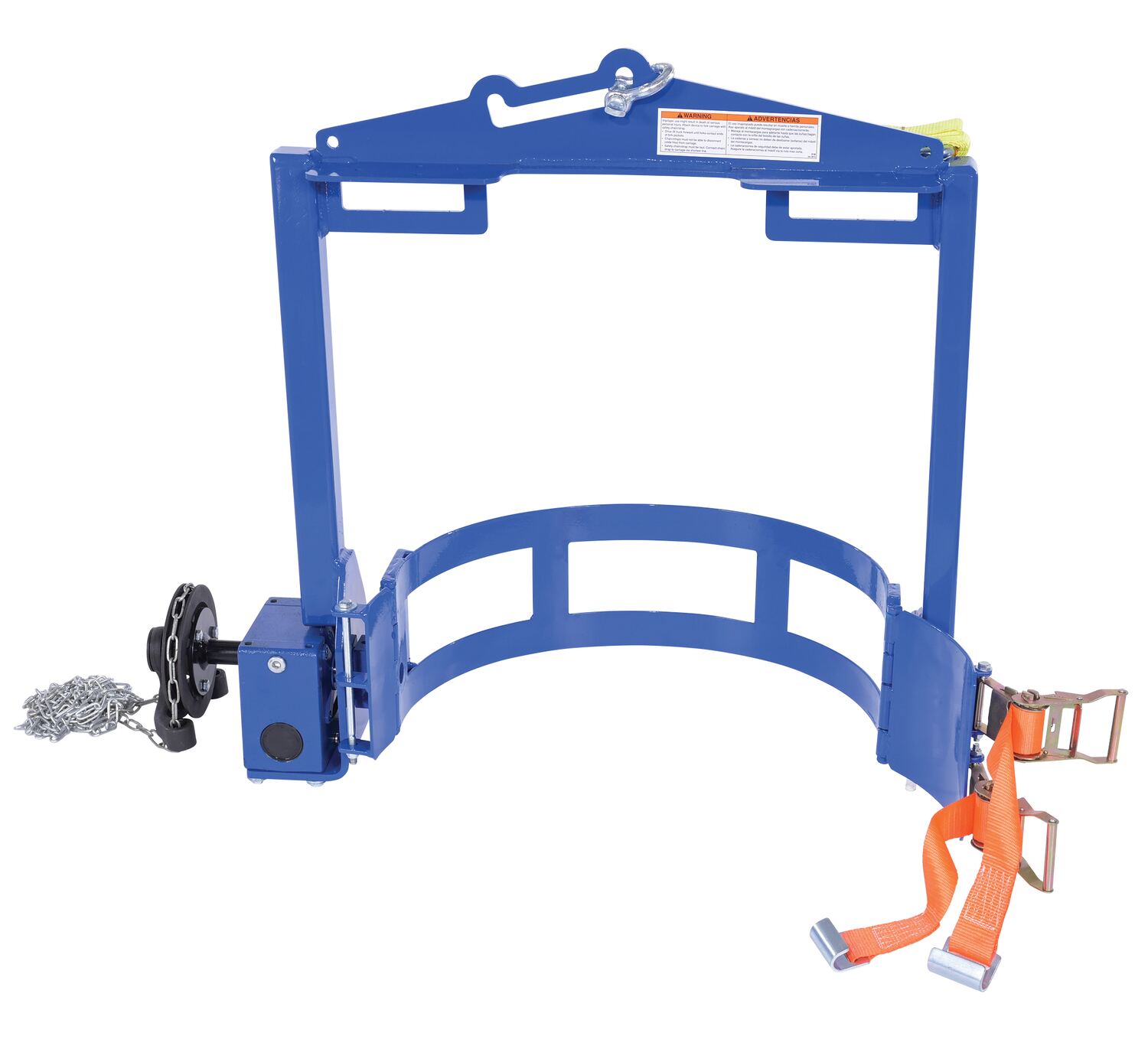

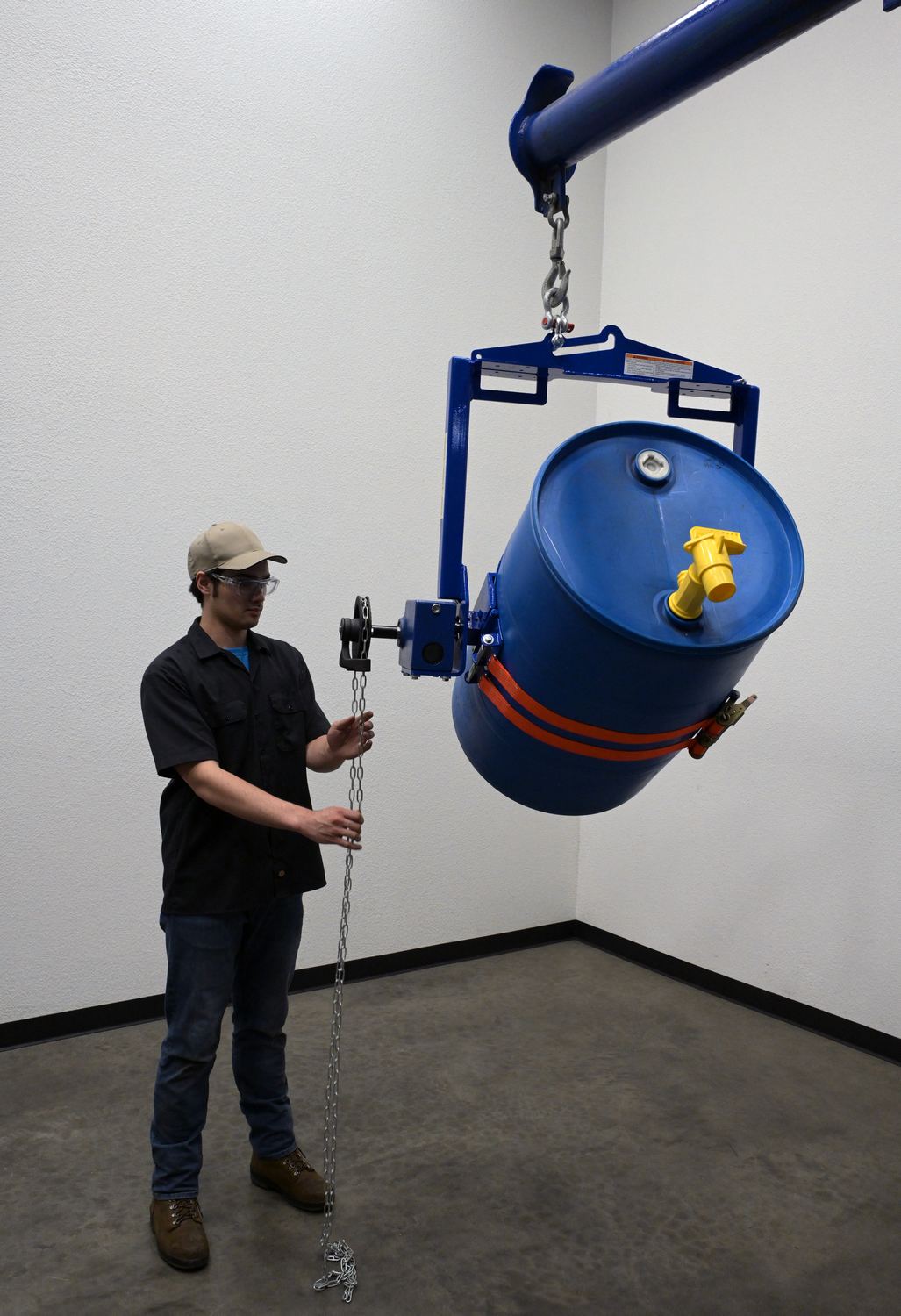

Rotate and position a fully loaded 55 gallon steel drum with ease. Use with an overhead hoist or a fork truck. Fork pockets measure 5-1/2"W x 1-15/16"H usable. Features a chain crank that allows the operator to rotate 360 degrees drums that are out of reach. Drums are held in place with a drum locking system. Meets OSHA 1910.179 requirements. Model DCT-2000 features gear box operation. Models ending with suffix "4WFP" have bolt on fork pockets for 4 way entry, usable 5"W x 1-9/16"H and 5-1/2"W x 1-15/16"H.

Adaptor to handle plastic and fiber drums available here.

Rotate and position a fully loaded 55 gallon steel drum with ease. Use with an overhead hoist or a fork truck. Fork pockets measure 5-1/2"W x 1-15/16"H usable. Features a chain crank that allows the operator to rotate 360 degrees drums that are out of reach. Drums are held in place with a drum locking system. Meets OSHA 1910.179 requirements. Model DCT-2000 features gear box operation. Models ending with suffix "4WFP" have bolt on fork pockets for 4 way entry, usable 5"W x 1-9/16"H and 5-1/2"W x 1-15/16"H.

Adaptor to handle plastic and fiber drums available here.

Other Drum Positioners & Dumpers

 Portable Hydraulic Drum Carrier/Rotator/Booms Drum Positioners Economy Drum Positioner Lift-and-Dump Hydraulic Drum Dumpers

Additional Models In This Family
view entire Image Gallery

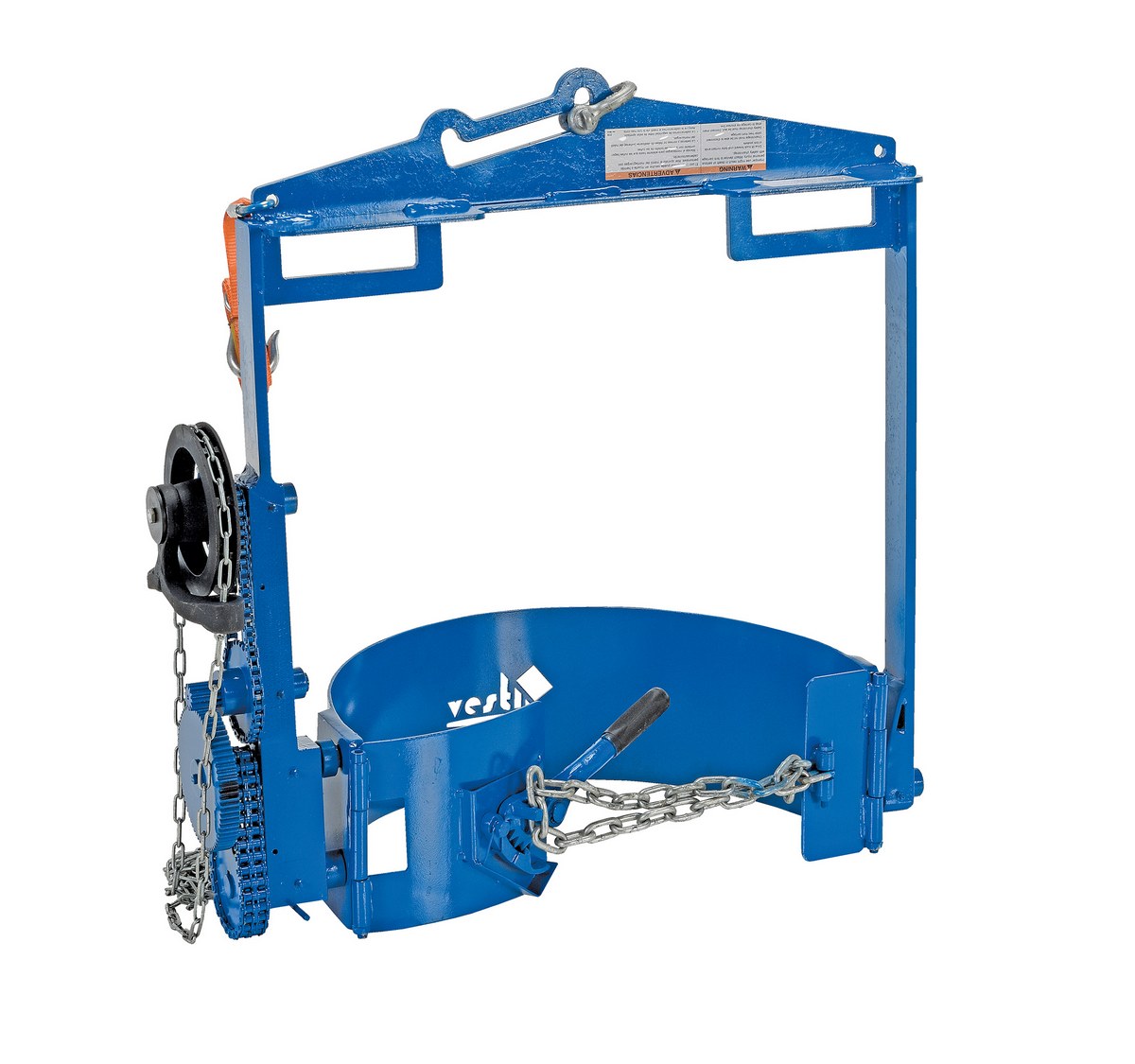

DCT-75

model DCT-75

DCT-85

model DCT-85

DCT-75-4WFP

model DCT-75-4WFP

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
DCT-2000 DCT-200090 Days Limited WarrantySteel Hoist Mounted Drum Carrier/Rotator 55 Gallon 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Accepts: 55-gallon steel drum		169
DCT-75 DCT-7590 Days Limited WarrantySteel Hoist Mounted Drum Carrier/Rotator 55 Gallon 800 Lb. Capacity BlueUniform Capacity (lb.): 800
Accepts: 55-gallon steel drum		145
DCT-75-4WFP DCT-75-4WFP90 Days Limited WarrantySteel Hoist Mounted Drum Carrier/Rotator with Four Way Pocket 55 Gallon 800 Lb. Capacity BlueUniform Capacity (lb.): 800
Accepts: 55-gallon steel drum		171
DCT-85 DCT-8590 Days Limited WarrantySteel Hoist Mounted Drum Carrier/Rotator 55 Gallon 1500 Lb. Capacity BlueUniform Capacity (lb.): 1,500
Accepts: 55-gallon steel drum		145
DCT-85-4WFP DCT-85-4WFP90 Days Limited WarrantySteel Hoist Mounted Drum Carrier/Rotator with Four Way Pocket 55 Gallon 1500 Lb. Capacity BlueUniform Capacity (lb.): 1,500
Accepts: 55-gallon steel drum		175

* Drum must be full to rotate at rated capacity

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

DCT-2000
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Accepts: 55-gallon steel drum
Uniform Capacity (lb.): 2000
Accepts: 55-gallon steel drum

DCT-75
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 800
Accepts: 55-gallon steel drum
Uniform Capacity (lb.): 800
Accepts: 55-gallon steel drum

DCT-75-4WFP
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 800
Accepts: 55-gallon steel drum
Uniform Capacity (lb.): 800
Accepts: 55-gallon steel drum

DCT-85
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,500
Accepts: 55-gallon steel drum
Uniform Capacity (lb.): 1,500
Accepts: 55-gallon steel drum

DCT-85-4WFP
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,500
Accepts: 55-gallon steel drum
Uniform Capacity (lb.): 1,500
Accepts: 55-gallon steel drum
For More Details of the Option Click the Red Model Button
Model Image Description Wt (lbs.)
FDC-30 Adapter for plastic and fiber drums

18
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Hoist Mounted Drum Carrier/Rotators PDF's will open in a new window when clicked.

Manuals


DCT-75
Owners Manual

DCT-85
Owners Manual

DCT-2000
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


DCT-2000

DCT-75

DCT-75-4WFP

DCT-85

DCT-85-4WFP

Testing Certificates


DCT-2000

DCT-75

DCT-75-4WFP

DCT-85

DCT-85-4WFP

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Q: Will the DCT-2000 work with a 30 gallon drum?

A: We offer an adapter for 30 gallon drums. The FDC-30 will work with the DCT-2000 to accommodate 30 gallon drums.

Q: What is the size of the clevis hook at the top of the DCT-75 and DCT-85?

A: Usable opening on the clevis hook is 1-1/4 inches.
