A-Frame Steel Trucks

- - - -

Description
Model Chart
PDF's
Image Gallery
Click Image to Enlarge

model: AFC-2242-R



Featured Industrial Carts & Dollies


Pneumatic Tire Steel Platform Trucks
Portable Carpet Dollies & Dispensers
Fold-Flat Plastic Cart
Steel Pro-Movers
Horizontal Panel Cart
Plastic Rubber End Dolly
Tilting Wood Platform Trucks
Hi-Duty & Hi-Frame Stockpicker Trucks
Aluminum Folding Nose Extension
model chart

Product Family Overview

Print Friendly

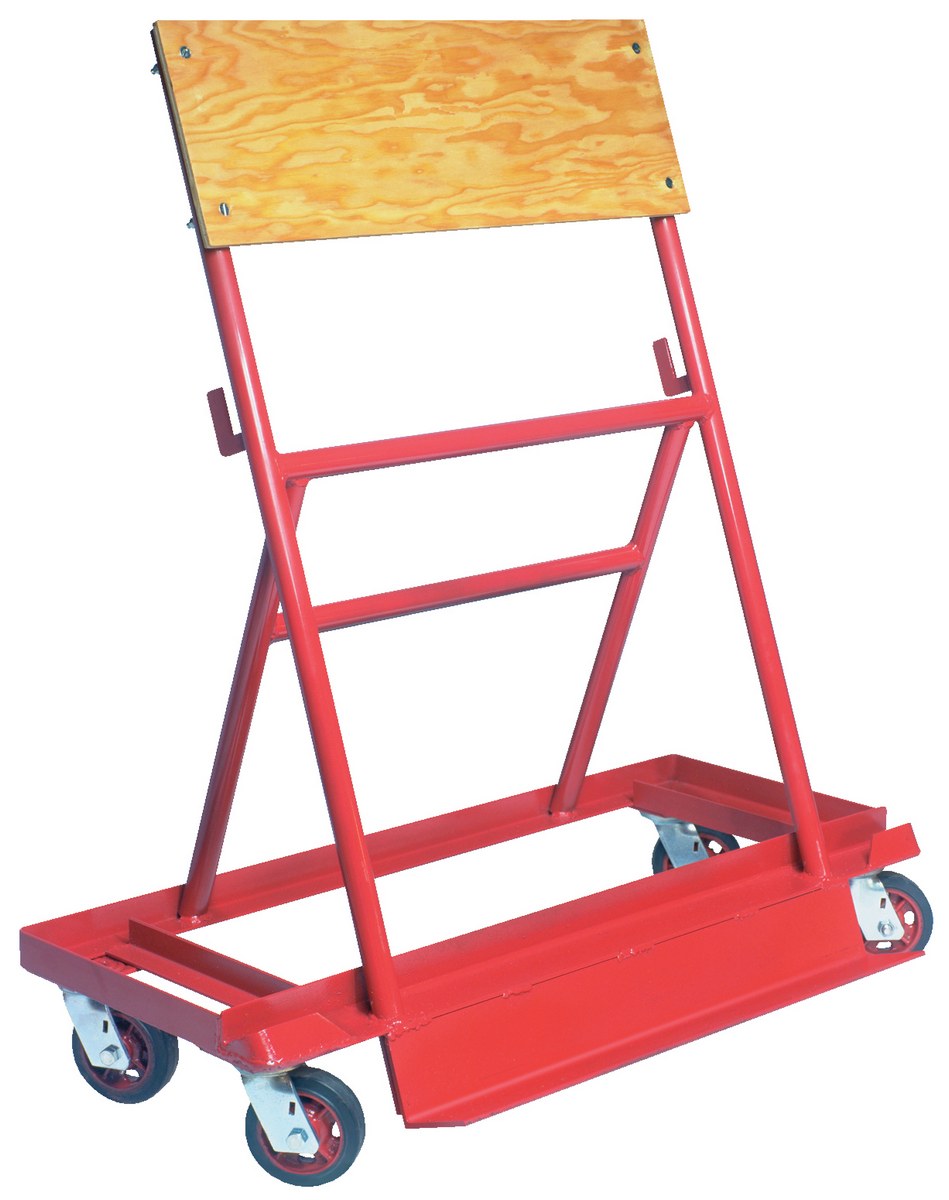

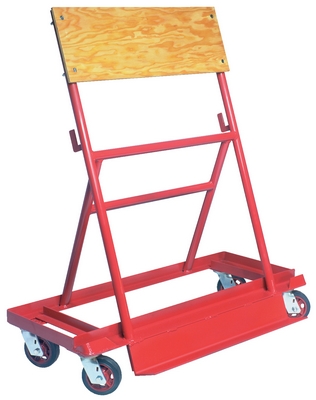

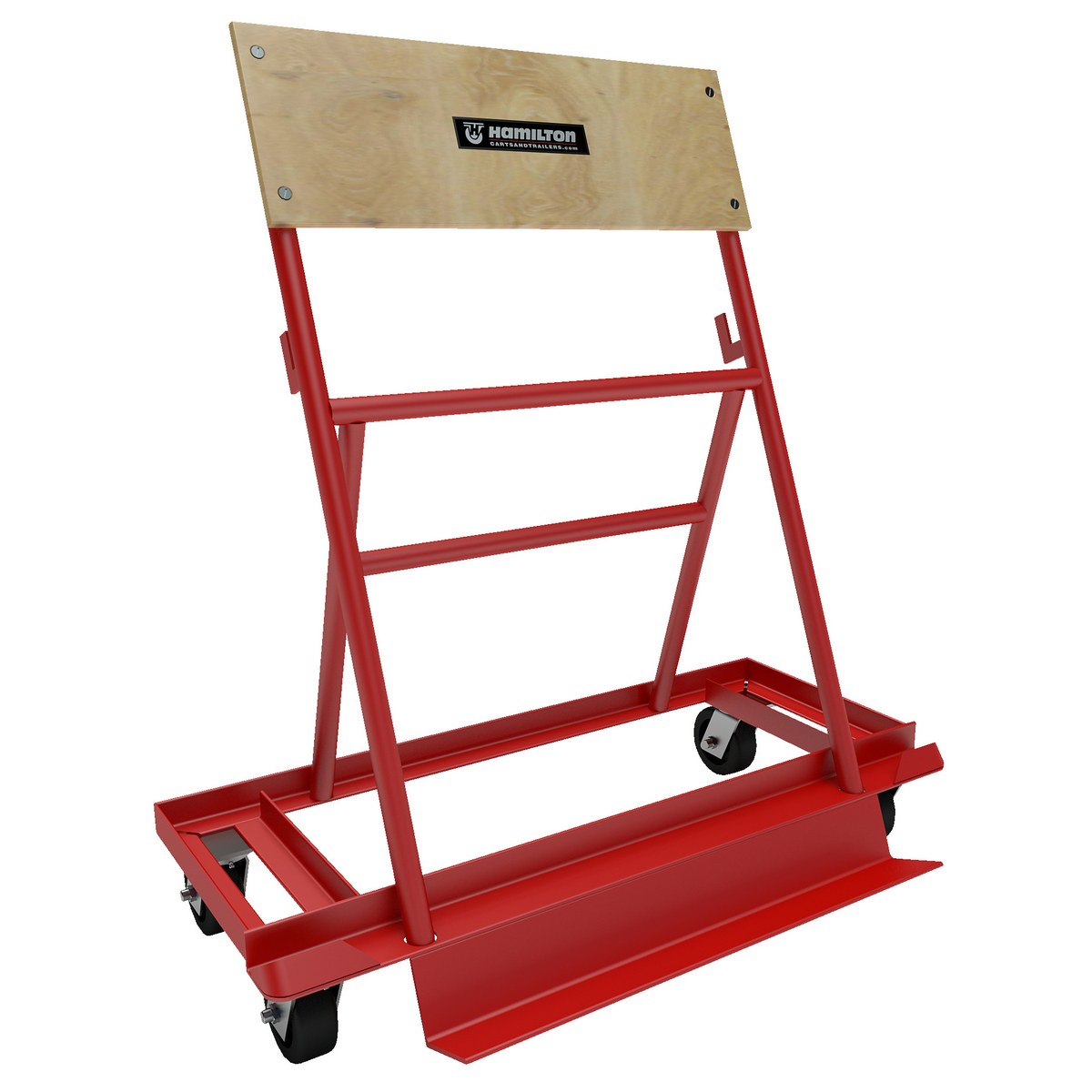

A-Frame Steel Trucks
SERIES: AFC

A-Frame Steel Trucks make it easy to move sheets and panels. All steel frames with 3/16" angle base and A-Frame of structural tubing. L-shaped lugs on rear of frame support length of pipe which can be inserted to support extra-long loads. Units come with four swivel casters 5" x 1-1/2".

  • A-Frame cart is ideal for manufacturing and industrial settings
  • Steel brace panels and other pieces are for security and safety
  • Nose plate lets the material rest at an angle for a comfortable lifting position
  • Rubber casters allow for smooth transportation

A-Frame Steel Trucks make it easy to move sheets and panels. All steel frames with 3/16" angle base and A-Frame of structural tubing. L-shaped lugs on rear of frame support length of pipe which can be inserted to support extra-long loads. Units come with four swivel casters 5" x 1-1/2".

  • A-Frame cart is ideal for manufacturing and industrial settings
  • Steel brace panels and other pieces are for security and safety
  • Nose plate lets the material rest at an angle for a comfortable lifting position
  • Rubber casters allow for smooth transportation

Other A-Frame Carts

 A-Frame Storage Cart A-Frame Steel Trucks

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
AFC-2242-M AFC-2242-M1 Year Limited WarrantySteel A-Frame Cart with Steel Casters 42-5/8 In. x 22-3/4 In. x 47 In. 1,500 Lb. Capacity RedUniform Capacity (lb.): 1,500
Angle Base (in.): 3/16		180
AFC-2242-P AFC-2242-P1 Year Limited WarrantySteel A-Frame Cart with Phenolic Casters 42-5/8 In. x 22-3/4 In. x 47 In. 1,500 Lb. Capacity RedUniform Capacity (lb.): 1,500
Angle Base (in.): 3/16		180
AFC-2242-R AFC-2242-R1 Year Limited WarrantySteel A-Frame Cart with Mold On Rubber Casters 42-5/8 In. x 22-3/4 In. x 47 In. 1,500 Lb. Capacity RedUniform Capacity (lb.): 800
Angle Base (in.): 3/16		180

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

AFC-2242-M
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,500
Angle Base (in.): 3/16
Uniform Capacity (lb.): 1,500
Angle Base (in.): 3/16

AFC-2242-P
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,500
Angle Base (in.): 3/16
Uniform Capacity (lb.): 1,500
Angle Base (in.): 3/16

AFC-2242-R
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 800
Angle Base (in.): 3/16
Uniform Capacity (lb.): 800
Angle Base (in.): 3/16
A-Frame Steel Trucks PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

No Approval Drawings For This Product

Testing Certificates

No Testing Certificates For This Product

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets

Related or Similar Products:

Heavy-Duty Plate/Slab Dollies
Product

Heavy-Duty Plate/Slab Dollies

Adjustable Panel Dollies
Product

Adjustable Panel Dollies

Easy Move Panel Cart
Product

Easy Move Panel Cart

A-Frame Carts
Product

A-Frame Carts

A-Frame Storage Cart
Product

A-Frame Storage Cart

Platform Carts with Versatile Dividers
Product

Platform Carts with Versatile Dividers

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





A-Frame Steel Trucks




A-Frame Steel Trucks make it easy to move sheets and panels. All steel frames with 3/16" angle base and A-Frame of structural tubing. L-shaped lugs on rear of frame support length of pipe which can be inserted to support extra-long loads. Units come with four swivel casters 5" x 1-1/2".

  • A-Frame cart is ideal for manufacturing and industrial settings
  • Steel brace panels and other pieces are for security and safety
  • Nose plate lets the material rest at an angle for a comfortable lifting position
  • Rubber casters allow for smooth transportation

Model # Description Attributes Net Wt.
(lbs)
AFC-2242-M AFC-2242-MSteel A-Frame Cart with Steel Casters 42-5/8 In. x 22-3/4 In. x 47 In. 1,500 Lb. Capacity RedUniform Capacity (lb.): 1,500
Angle Base (in.): 3/16		180
AFC-2242-P AFC-2242-PSteel A-Frame Cart with Phenolic Casters 42-5/8 In. x 22-3/4 In. x 47 In. 1,500 Lb. Capacity RedUniform Capacity (lb.): 1,500
Angle Base (in.): 3/16		180
AFC-2242-R AFC-2242-RSteel A-Frame Cart with Mold On Rubber Casters 42-5/8 In. x 22-3/4 In. x 47 In. 1,500 Lb. Capacity RedUniform Capacity (lb.): 800
Angle Base (in.): 3/16		180
