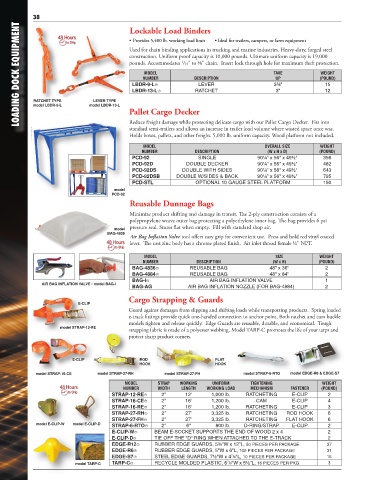

Page 32 - Vestil Catalog 112

38 • Provides 5,400 lb. working load limit • Ideal for trailers, campers, or farm equipment
LOADING DOCK EQUIPMENT RATCHET TYPE LEVER TYPE Used for chain binding applications in trucking and marine industries. Heavy-duty, forged steel
Lockable Load Binders

construction. Uniform proof capacity is 10,000 pounds. Ultimate uniform capacity is 19,000
pounds. Accommodates /16" to ⅜" chain. Insert lock through hole for maximum theft protection.
5
MODEL
TAKE
WEIGHT
NUMBER
UP
DESCRIPTION
(POUND)
15
LEVER
3¾"
LBDR-9-L�
12
RATCHET
3"
LBDR-13-L�
model LBDR-9-L
model LBDR-13-L
Pallet Cargo Decker
Reduce freight damage while protecting delicate cargo with our Pallet Cargo Decker. Fits into
standard semi-trailers and allows an increase in trailer load volume where wasted space once was.
Holds boxes, pallets, and other freight. 5,000 lb. uniform capacity. Wood platform not included.
MODEL OVERALL SIZE WEIGHT
NUMBER DESCRIPTION (W x H x D) (POUND)
PCD-92 SINGLE 90¼" x 56" x 49½" 356
PCD-92D DOUBLE DECKER 90¼" x 56" x 49½" 482
PCD-92DS DOUBLE WITH SIDES 90¼" x 56" x 49½" 643
PCD-92DSB DOUBLE W/SIDES & BACK 90¼" x 56" x 49½" 795
PCD-STL OPTIONAL 10 GAUGE STEEL PLATFORM 150
model
PCD-92
Reusable Dunnage Bags
Minimize product shifting and damage in transit. The 2-ply construction consists of a
polypropylene weave outer bag protecting a polyethylene inner bag. The bag provides 6 psi
pressure seal. Stores flat when empty. Fill with standard shop air.
model
BAG-4836
Air Bag Inflation Valve tool offers easy grip for convenient use. Press and hold red vinyl coated
lever. The cast zinc body has a chrome plated finish. Air inlet thread female ¼" NPT.
MODEL SIZE WEIGHT
NUMBER DESCRIPTION (W x H) (POUND)
BAG-4836� REUSABLE BAG 48" x 36" 2
BAG-4884� REUSABLE BAG 48" x 84" 2
BAG-I� AIR BAG INFLATION VALVE 1
AIR BAG INFLATION VALVE • model BAG-I
BAG-AG AIR BAG INFLATION NOZZLE (FOR BAG-4884) 2
Cargo Strapping & Guards
E-CLIP
Guard against damages from slipping and shifting loads while transporting products. Spring loaded
e-track fittings provide quick one-handed connection to anchor point. Both ratchet and cam buckle
models tighten and release quickly. Edge Guards are reusable, durable, and economical. Tough
model STRAP-12-RE
strapping fabric is made of a polyester webbing. Model TARP-C promotes the life of your tarps and
protect sharp product corners.

E-CLIP ROD FLAT
HOOK HOOK
model STRAP-16-CE model STRAP-27-RH model STRAP-27-FH model STRAP-6-RTO model EDGE-R6 & EDGE-S7
MODEL STRAP WORKING UNIFORM TIGHTENING WEIGHT
NUMBER WIDTH LENGTH WORKING LOAD MECHANISM FASTENER (POUND)
STRAP-12-RE� 2" 12' 1,000 lb. RATCHETING E-CLIP 2
STRAP-16-CE� 2" 16' 1,200 lb. CAM E-CLIP 4
STRAP-16-RE� 2" 16' 1,200 lb. RATCHETING E-CLIP 3
STRAP-27-RH� 2" 27' 3,325 lb. RATCHETING ROD HOOK 6
STRAP-27-FH� 2" 27' 3,325 lb. RATCHETING FLAT HOOK 6
model E-CLIP-W model E-CLIP-D STRAP-6-RTO� 2" 6" 800 lb. D-RING/STRAP E-CLIP 2
E-CLIP-W� BEAM E-SOCKET SUPPORTS THE END OF WOOD 2 x 4 2
E-CLIP-D� TIE OFF THE "D" RING WHEN ATTACHED TO THE E-TRACK 2
EDGE-R12� RUBBER EDGE GUARDS, 5¾"W x 12"L, 50 PIECES PER PACKAGE 37
EDGE-R6� RUBBER EDGE GUARDS, 5"W x 6"L, 100 PIECES PER PACKAGE 31
7
EDGE-S7� STEEL EDGE GUARDS, 7½"W x 4 /8"L, 10 PIECES PER PACKAGE 15
7
model TARP-C TARP-C� RECYCLE MOLDED PLASTIC, 6 /8"W x 5½"L, 16 PIECES PER PKG. 3
