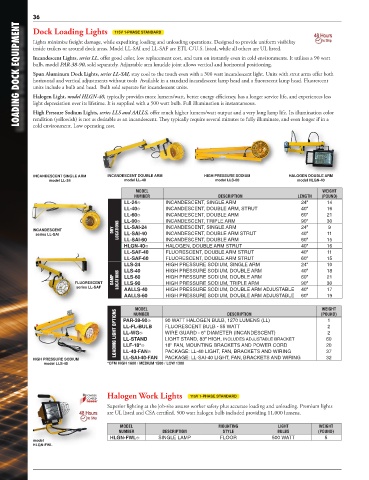

Page 30 - Vestil Catalog 112

36 115V 1-PHASE STANDARD
LOADING DOCK EQUIPMENT inside trailers or around dock areas. Model LL-SAI and LL-SAF are ETL C/U.S. listed, while all others are UL listed.
Dock Loading Lights

Lights minimize freight damage, while expediting loading and unloading operations. Designed to provide uniform visibility

Incandescent Lights, series LL. offer good color, low replacement cost, and turn on instantly even in cold environments. It utilizes a 90 watt
bulb, model PAR-38-90, sold separately. Adjustable arm knuckle joint allows vertical and horizontal positioning.
Spun Aluminum Dock Lights, series LL-SAI, stay cool to the touch even with a 300 watt incandescent light. Units with strut arms offer both
horizontal and vertical adjustments without tools Available in a standard incandescent lamp head and a fluorescent lamp head. Fluorescent
units include a bulb and head. Bulb sold separate for incandescent units.
Halogen Light, model HLGN-40, typically provides more lumens/watt, better energy efficiency, has a longer service life, and experiences less
light depreciation over its lifetime. It is supplied with a 500 watt bulb. Full illumination is instantaneous.
High Pressure Sodium Lights, series LLS and AALLS, offer much higher lumens/watt output and a very long lamp life. Its illumination color
rendition (yellowish) is not as desirable as an incandescent. They typically require several minutes to fully illuminate, and even longer if in a
cold environment. Low operating cost.

INCANDESCENT SINGLE ARM INCANDESCENT DOUBLE ARM HIGH PRESSURE SODIUM HALOGEN DOUBLE ARM
model LL-24 model LL-40 model LLS-60 model HLGN-40
MODEL WEIGHT
NUMBER DESCRIPTION LENGTH (POUND)
LL-24� INCANDESCENT, SINGLE ARM 24" 14
LL-40� INCANDESCENT, DOUBLE ARM, STRUT 40" 16
LL-60� INCANDESCENT, DOUBLE ARM 60" 21
30
90"
INCANDESCENT, TRIPLE ARM
LL-90�
LOCATIONS
INCANDESCENT DRY LL-SAI-24 INCANDESCENT, SINGLE ARM 24" 9
series LL-SAI LL-SAI-40 INCANDESCENT, DOUBLE ARM STRUT 40" 11
LL-SAI-60
INCANDESCENT, DOUBLE ARM
15
60"
HLGN-40� HALOGEN, DOUBLE ARM STRUT 40" 16
LL-SAF-40 FLUORESCENT, DOUBLE ARM STRUT 40" 11
LL-SAF-60 FLUORESCENT, DOUBLE ARM STRUT 60" 15
LLS-24 HIGH PRESSURE SODIUM, SINGLE ARM 24" 10
LLS-40 HIGH PRESSURE SODIUM, DOUBLE ARM 40" 18
DAMP LOCATIONS LLS-60 HIGH PRESSURE SODIUM, DOUBLE ARM 60" 21
FLUORESCENT LLS-90 HIGH PRESSURE SODIUM, TRIPLE ARM 90" 30
series LL-SAF AALLS-40 HIGH PRESSURE SODIUM, DOUBLE ARM ADJUSTABLE 40" 17
AALLS-60 HIGH PRESSURE SODIUM, DOUBLE ARM ADJUSTABLE 60" 19
WEIGHT
MODEL 90 WATT HALOGEN BULB, 1270 LUMENS (LL) (POUND)
LOADING LIGHT OPTIONS LL-FL-BULB FLUORESCENT BULB - 55 WATT 60
NUMBER
DESCRIPTION
1
PAR-38-90
2
2
WIRE GUARD - 6" DIAMETER (INCANDESCENT)
LL-WG
LL-STAND
LIGHT STAND, 83" HIGH, INCLUDES ADJUSTABLE BRACKET
20
18" FAN, MOUNTING BRACKETS AND POWER CORD
LLF-18*
LL-SAI-40-FAN
32
PACKAGE: LL-SAI-40 LIGHT, FAN, BRACKETS AND WIRING
HIGH PRESSURE SODIUM LL-40-FAN PACKAGE: LL-40 LIGHT, FAN, BRACKETS AND WIRING 37
model LLS-40 *CFM HIGH 1800 / MEDIUM 1500 / LOW 1300
Halogen Work Lights 115V 1-PHASE STANDARD
Superior lighting at the job-site assures worker safety plus accurate loading and unloading. Premium lights
are UL listed and CSA certified. 500 watt halogen bulb included providing 11,000 lumens.
MODEL MOUNTING LIGHT WEIGHT
NUMBER DESCRIPTION STYLE BULBS (POUND)
HLGN-FWL SINGLE LAMP FLOOR 500 WATT 5
model
HLGN-FWL
