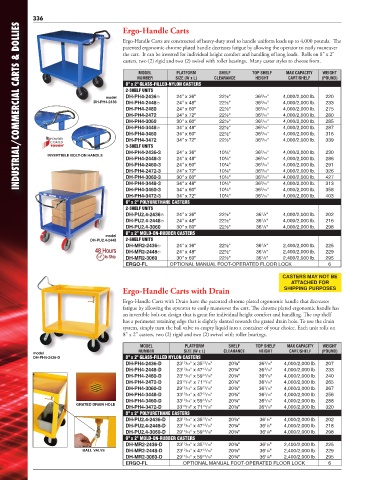

Page 330 - Vestil Catalog 112

336
INDUSTRIAL/COMMERCIAL CARTS & DOLLIES
Ergo-Handle Carts

Ergo-Handle Carts are constructed of heavy-duty steel to handle uniform loads up to 4,000 pounds. The
patented ergonomic chrome plated handle decreases fatigue by allowing the operator to easily maneuver
the cart. It can be inverted for individual height comfort and handling of long loads. Rolls on 8" x 2"
casters, two (2) rigid and two (2) swivel with roller bearings. Many caster styles to choose from.
MODEL PLATFORM SHELF TOP SHELF MAX CAPACITY WEIGHT
NUMBER SIZE (W x L) CLEARANCE HEIGHT CART/SHELF (POUND)
8" x 2" GLASS-FILLED-NYLON CASTERS
2-SHELF UNITS
3
model DH-PH4-2436 24" x 36" 22½" 36 /16" 4,000/2,000 lb. 220
DH-PH4-2436 DH-PH4-2448 24" x 48" 22½" 36 /16" 4,000/2,000 lb. 233
3
DH-PH4-2460 24" x 60" 22½" 36 /16" 4,000/2,000 lb. 275
3
DH-PH4-2472 24" x 72" 22½" 36 /16" 4,000/2,000 lb. 280
3
DH-PH4-3060 30" x 60" 22½" 36 /16" 4,000/2,000 lb. 285
3
3
DH-PH4-3448 34" x 48" 22½" 36 /16" 4,000/2,000 lb. 287
DH-PH4-3460 34" x 60" 22½" 36 /16" 4,000/2,000 lb. 316
3
DH-PH4-3472 34" x 72" 22½" 36 /16" 4,000/2,000 lb. 339
3
3-SHELF UNITS
DH-PH4-2436-3 24" x 36" 10¼" 36 /16" 4,000/2,000 lb. 230
3
INVERTIBLE BOLT-ON HANDLE
DH-PH4-2448-3 24" x 48" 10¼" 36 /16" 4,000/2,000 lb. 286
3
DH-PH4-2460-3 24" x 60" 10¼" 36 /16" 4,000/2,000 lb. 291
3
DH-PH4-2472-3 24" x 72" 10¼" 36 /16" 4,000/2,000 lb. 326
3
DH-PH4-3060-3 30" x 60" 10¼" 36 /16" 4,000/2,000 lb. 427
3
DH-PH4-3448-3 34" x 48" 10¼" 36 /16" 4,000/2,000 lb. 313
3
DH-PH4-3460-3 34" x 60" 10¼" 36 /16" 4,000/2,000 lb. 358
3
DH-PH4-3472-3 34" x 72" 10¼" 36 /16" 4,000/2,000 lb. 403
3
8" x 2" POLYURETHANE CASTERS
2-SHELF UNITS
DH-PU2.4-2436 24" x 36" 22½" 36 /8" 4,000/2,000 lb. 202
1
DH-PU2.4-2448 24" x 48" 22½" 36 /8" 4,000/2,000 lb. 216
1
DH-PU2.4-3060 30" x 60" 22½" 36 /8" 4,000/2,000 lb. 298
1
8" x 2" MOLD-ON-RUBBER CASTERS
model
DH-PU2.4-2448 2-SHELF UNITS
1
DH-MR2-2436 24" x 36" 22½" 36 /8" 2,400/2,000 lb. 225
1
DH-MR2-2448 24" x 48" 22½" 36 /8" 2,400/2,000 lb. 229
DH-MR2-3060 30" x 60" 22½" 36 /8" 2,400/2,000 lb. 295
1
ERGO-FL OPTIONAL MANUAL FOOT-OPERATED FLOOR LOCK 6
CASTERS MAY NOT BE
ATTACHED FOR
Ergo-Handle Carts with Drain SHIPPING PURPOSES
Ergo-Handle Carts with Drain have the patented chrome plated ergonomic handle that decreases
fatigue by allowing the operator to easily maneuver the cart. The chrome plated ergonomic handle has
an invertible bolt-on design that is great for individual height comfort and handling. The top shelf
has a perimeter retaining edge that is slightly slanted towards the grated drain hole. To use the drain
system, simply turn the ball valve to empty liquid into a container of your choice. Each unit rolls on
8" x 2" casters, two (2) rigid and two (2) swivel with roller bearings.
MODEL PLATFORM SHELF TOP SHELF MAX CAPACITY WEIGHT
NUMBER SIZE (W x L) CLEARANCE HEIGHT CART/SHELF (POUND)
model
DH-PH4-2436-D 8" x 2" GLASS-FILLED NYLON CASTERS
DH-PH4-2436-D 23 /16" x 35 /16" 20¾" 36 /16" 4,000/2,000 lb. 207
3
13
13
DH-PH4-2448-D 23 /16" x 47 /16" 20¾" 36 /16" 4,000/2,000 lb. 233
13
13
3
DH-PH4-2460-D 23 /16" x 59 /16" 20¾" 36 /16" 4,000/2,000 lb. 240
13
13
3
DH-PH4-2472-D 23 /16" x 71 /16" 20¾" 36 /16" 4,000/2,000 lb. 265
13
3
13
DH-PH4-3060-D 29 /16" x 59 /16" 20¾" 36 /16" 4,000/2,000 lb. 267
13
3
13
DH-PH4-3448-D 33 /16" x 47 /16" 20¾" 36 /16" 4,000/2,000 lb. 256
3
13
13
DH-PH4-3460-D 33 /16" x 59 /16" 20¾" 36 /16" 4,000/2,000 lb. 288
13
3
13
GRATED DRAIN HOLE
DH-PH4-3472-D 33 /16" x 71 /16" 20¾" 36 /16" 4,000/2,000 lb. 320
13
3
13
8" x 2" POLYURETHANE CASTERS
DH-PU2.4-2436-D 23 /16" x 35 /16" 20¾" 36 /8" 4,000/2,000 lb. 202
13
13
1
DH-PU2.4-2448-D 23 /16" x 47 /16" 20¾" 36 /8" 4,000/2,000 lb. 218
13
1
13
DH-PU2.4-3060-D 29 /16" x 59 /16" 20¾" 36 /8" 4,000/2,000 lb. 298
13
13
1
8" x 2" MOLD-ON-RUBBER CASTERS
DH-MR2-2436-D 23 /16" x 35 /16" 20¾" 36 /8" 2,400/2,000 lb. 225
13
1
13
BALL VALVE DH-MR2-2448-D 23 /16" x 47 /16" 20¾" 36 /8" 2,400/2,000 lb. 229
1
13
13
DH-MR2-3060-D 29 /16" x 59 /16" 20¾" 36 /8" 2,400/2,000 lb. 295
13
1
13
ERGO-FL OPTIONAL MANUAL FOOT-OPERATED FLOOR LOCK 6
