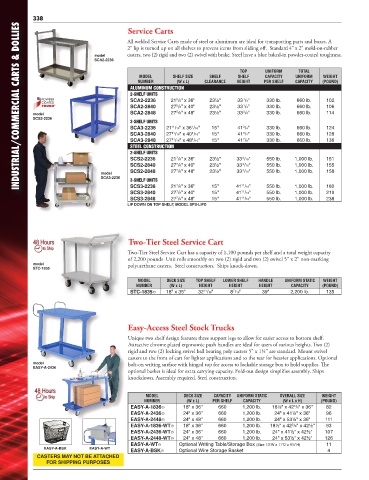

Page 332 - Vestil Catalog 112
P. 332
338
INDUSTRIAL/COMMERCIAL CARTS & DOLLIES
Service Carts
All welded Service Carts made of steel or aluminum are ideal for transporting parts and boxes. A
2" lip is turned up on all shelves to prevent items from sliding off. Standard 4" x 2" mold-on-rubber
model casters, two (2) rigid and two (2) swivel with brake. Steel have a blue baked-in powder-coated toughness.
SCA2-2236
TOP UNIFORM TOTAL
MODEL SHELF SIZE SHELF SHELF CAPACITY UNIFORM WEIGHT
NUMBER (W x L) CLEARANCE HEIGHT PER SHELF CAPACITY (POUND)
ALUMINUM CONSTRUCTION
2-SHELF UNITS
SCA2-2236 21 /8" x 36" 23½" 33 /4" 330 lb. 660 lb. 102
1
5
SCA2-2840 27 /8" x 40" 23½" 33 /4" 330 lb. 660 lb. 106
5
1
5
3
model SCA2-2848 27 /8" x 48" 23½" 33 /8" 330 lb. 660 lb. 114
SCS2-2236
3-SHELF UNITS
SCA3-2236 21 /16" x 36 /16" 15" 41 /4" 330 lb. 660 lb. 124
11
1
3
SCA3-2840 27 /16" x 40 /16" 15" 41 /4" 330 lb. 660 lb. 128
1
3
11
SCA3-2848 27 /16" x 48 /16" 15" 41 /8" 330 lb. 660 lb. 136
1
7
11
STEEL CONSTRUCTION
2-SHELF UNITS
SCS2-2236 21 /8" x 36" 23½" 33 /16" 550 lb. 1,000 lb. 151
7
3
SCS2-2840 27 /8" x 40" 23½" 33 /16" 550 lb. 1,000 lb. 155
7
3
SCS2-2848 27 /8" x 48" 23½" 33 /16" 550 lb. 1,000 lb. 158
7
3
model
SCA3-2236
3-SHELF UNITS
SCS3-2236 21 /8" x 36" 15" 41 /16" 550 lb. 1,000 lb. 180
11
7
SCS3-2840 27 /8" x 40" 15" 41 /16" 550 lb. 1,000 lb. 219
7
11
SCS3-2848 27 /8" x 48" 15" 41 /16" 550 lb. 1,000 lb. 238
7
11
LIP DOWN ON TOP SHELF, MODEL SPS-LIPD
Two-Tier Steel Service Cart
Two-Tier Steel Service Cart has a capacity of 1,100 pounds per shelf and a total weight capacity
of 2,200 pounds Unit rolls smoothly on two (2) rigid and two (2) swivel 5" x 2" non-marking
model polyurethane casters. Steel construction. Ships knock-down.
STC-1835
MODEL DECK SIZE TOP SHELF LOWER SHELF HANDLE UNIFORM STATIC WEIGHT
NUMBER (W x L) HEIGHT HEIGHT HEIGHT CAPACITY (POUND)
11
7
STC-1835 18" x 35" 32 /16" 8 /16" 39" 2,200 lb. 135
Easy-Access Steel Stock Trucks
Unique two shelf design features three support legs to allow for easier access to bottom shelf.
Attractive chrome plated ergonomic push handles are ideal for users of various heights. Two (2)
rigid and two (2) locking swivel ball bearing poly casters 5" x 1¼" are standard. Mount swivel
casters to the front of cart for lighter applications and to the rear for heavier applications. Optional
model bolt-on writing surface with hinged top for access to lockable storage box to hold supplies. The
EASY-A-2436
optional basket is ideal for extra carrying capacity. Fold-out design simplifies assembly. Ships
knockdown. Assembly required. Steel construction.
MODEL DECK SIZE CAPACITY UNIFORM STATIC OVERALL SIZE WEIGHT
NUMBER (W x L) PER SHELF CAPACITY (W x L x H) (POUND)
3
EASY-A-1836 18" x 36" 660 1,200 lb. 18½" x 42 /8" x 36" 82
EASY-A-2436 24" x 36" 660 1,200 lb. 24" x 41½" x 36" 96
EASY-A-2448 24" x 48" 660 1,200 lb. 24" x 53½" x 36" 111
3
EASY-A-1836-WT 18" x 36" 660 1,200 lb. 18½" x 42 /8" x 42½" 93
EASY-A-2436-WT 24" x 36" 660 1,200 lb. 24" x 41½" x 42½" 107
EASY-A-2448-WT 24" x 48" 660 1,200 lb. 24" x 53½" x 42½" 126
EASY-A-WT Optional Writing Table/Storage Box (Size 13"W x 11"D x 9½"H) 11
EASY-A-BSK EASY-A-WT
EASY-A-BSK Optional Wire Storage Basket 4
CASTERS MAY NOT BE ATTACHED
FOR SHIPPING PURPOSES
