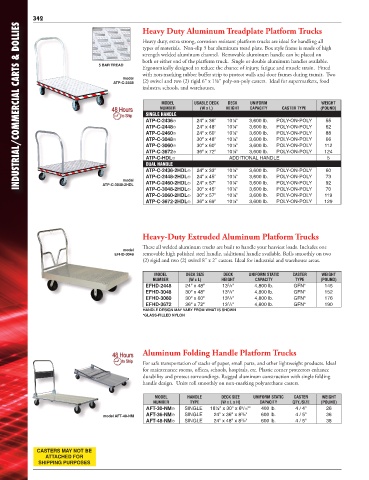

Page 336 - Vestil Catalog 112

342
INDUSTRIAL/COMMERCIAL CARTS & DOLLIES
Heavy Duty Aluminum Treadplate Platform Trucks

Heavy duty, extra strong, corrosion resistant platform trucks are ideal for handling all
types of materials. Non-slip 5 bar aluminum tread plate. Box style frame is made of high
strength welded aluminum channel. Removable aluminum handle can be placed on
both or either end of the platform truck. Single or double aluminum handles available.
5 BAR TREAD
Ergonomically designed to reduce the chance of injury, fatigue and muscle strain. Fitted
with non-marking rubber buffer strip to protect walls and door frames during transit. Two
model
ATP-C-2448 (2) swivel and two (2) rigid 6" x 1⅝" poly-on-poly casters. Ideal for supermarkets, food
industry, schools, and warehouses.
MODEL USABLE DECK DECK UNIFORM WEIGHT
NUMBER (W x L) HEIGHT CAPACITY CASTER TYPE (POUND)
SINGLE HANDLE
ATP-C-2436 24" x 36" 10¼" 3,600 lb. POLY-ON-POLY 55
ATP-C-2448 24" x 48" 10¼" 3,600 lb. POLY-ON-POLY 62
ATP-C-2460 24" x 60" 10¼" 3,600 lb. POLY-ON-POLY 88
ATP-C-3048 30" x 48" 10¼" 3,600 lb. POLY-ON-POLY 66
ATP-C-3060 30" x 60" 10¼" 3,600 lb. POLY-ON-POLY 112
ATP-C-3672 36" x 72" 10¼" 3,600 lb. POLY-ON-POLY 124
ATP-C-HDL ADDITIONAL HANDLE 5
DUAL HANDLE
ATP-C-2436-2HDL 24" x 33" 10¼" 3,600 lb. POLY-ON-POLY 60
ATP-C-2448-2HDL 24" x 45" 10¼" 3,600 lb. POLY-ON-POLY 73
model
ATP-C-3048-2HDL ATP-C-2460-2HDL 24" x 57" 10¼" 3,600 lb. POLY-ON-POLY 92
ATP-C-3048-2HDL 30" x 45" 10¼" 3,600 lb. POLY-ON-POLY 70
ATP-C-3060-2HDL 30" x 57" 10¼" 3,600 lb. POLY-ON-POLY 119
ATP-C-3672-2HDL 36" x 69" 10¼" 3,600 lb. POLY-ON-POLY 129

Heavy-Duty Extruded Aluminum Platform Trucks

These all welded aluminum trucks are built to handle your heaviest loads. Includes one
model
EFHD-3048 removable high polished steel handle, additional handle available. Rolls smoothly on two
(2) rigid and two (2) swivel 8" x 2" casters. Ideal for industrial and warehouse areas.
MODEL DECK SIZE DECK UNIFORM STATIC CASTER WEIGHT
NUMBER (W x L) HEIGHT CAPACITY TYPE (POUND)
EFHD-2448 24" x 48" 13 /8" 4,800 lb. GFN* 145
3
EFHD-3048 30" x 48" 13 /8" 4,800 lb. GFN* 152
3
EFHD-3060 30" x 60" 13 /8" 4,800 lb. GFN* 176
3
EFHD-3672 36" x 72" 13 /4" 4,800 lb. GFN* 190
1
HANDLE DESIGN MAY VARY FROM WHAT IS SHOWN
*GLASS-FILLED NYLON

Aluminum Folding Handle Platform Trucks
For safe transportation of stacks of paper, small parts, and other lightweight products. Ideal
for maintenance rooms, offices, schools, hospitals, etc. Plastic corner protectors enhance
durability and protect surroundings. Rugged aluminum construction with single folding
handle design. Units roll smoothly on non-marking polyurethane casters.

MODEL HANDLE DECK SIZE UNIFORM STATIC CASTER WEIGHT
NUMBER TYPE (W x L x H) CAPACITY QTY./SIZE (POUND)
AFT-30-NM SINGLE 18½" x 30" x 6 /16"" 400 lb. 4 / 4" 26
5
3
model AFT-48-NM AFT-36-NM SINGLE 24" x 36" x 8 /8" 600 lb. 4 / 5" 36
3
AFT-48-NM SINGLE 24" x 48" x 8 /8" 600 lb. 4 / 5" 38

CASTERS MAY NOT BE
ATTACHED FOR
SHIPPING PURPOSES
