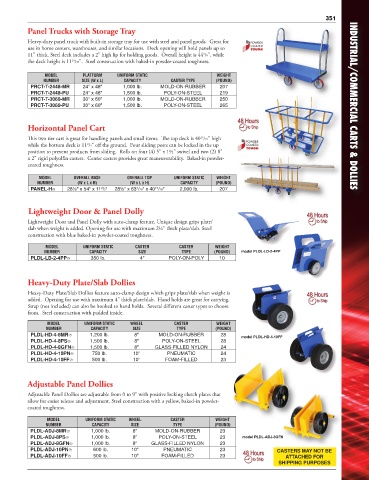

Page 345 - Vestil Catalog 112
P. 345
351
Panel Trucks with Storage Tray
Heavy-duty panel truck with built-in storage tray for use with steel and panel goods. Great for
use in home centers, warehouses, and similar locations. Deck opening will hold panels up to
11" thick. Steel deck includes a 2" high lip for holding goods. Overall height is 44 /8", while
3
the deck height is 11 /32". Steel construction with baked-in powder-coated toughness.
19
MODEL PLATFORM UNIFORM STATIC WEIGHT
NUMBER SIZE (W x L) CAPACITY CASTER TYPE (POUND)
PRCT-T-2448-MR 24" x 48" 1,000 lb. MOLD-ON-RUBBER 207
PRCT-T-2448-PU 24" x 48" 1,500 lb. POLY-ON-STEEL 219
PRCT-T-3060-MR 30" x 60" 1,000 lb. MOLD-ON-RUBBER 250
PRCT-T-3060-PU 30" x 60" 1,500 lb. POLY-ON-STEEL 265 INDUSTRIAL/COMMERCIAL CARTS & DOLLIES
Horizontal Panel Cart
This two tier cart is great for handling panels and small items. The top deck is 40 /16" high
15
while the bottom deck is 11 /3" off the ground. Four sliding posts can be locked in the up
2
position to prevent products from sliding. Rolls on four (4) 5" x 1½" swivel and two (2) 8"
x 2" rigid polyolfin casters. Center casters provides great maneuverability. Baked-in powder-
coated toughness.
MODEL OVERALL BASE OVERALL TOP UNIFORM STATIC WEIGHT
NUMBER (W x L x H) (W x L x H) CAPACITY (POUND)
15
PANEL-H 28½" x 54" x 11 /3" 28½" x 63 /16" x 40 /16" 2,000 lb. 207
7
2
Lightweight Door & Panel Dolly
Lightweight Door and Panel Dolly with auto-clamp feature. Unique design grips plate/
slab when weight is added. Opening for use with maximum 2¼" thick plate/slab. Steel
construction with blue baked-in powder-coated toughness.
MODEL UNIFORM STATIC CASTER CASTER WEIGHT
NUMBER CAPACITY SIZE TYPE (POUND) model PLDL-LD-2-4PP
PLDL-LD-2-4PP 350 lb. 4" POLY-ON-POLY 10
Heavy-Duty Plate/Slab Dollies
Heavy-Duty Plate/Slab Dollies feature auto-clamp design which grips plate/slab when weight is
added. Opening for use with maximum 4" thick plate/slab. Hand holds are great for carrying.
Strap (not included) can also be hooked to hand holds. Several different caster types to choose
from. Steel construction with padded inside.
MODEL UNIFORM STATIC WHEEL CASTER WEIGHT
NUMBER CAPACITY SIZE TYPE (POUND)
PLDL-HD-4-8MR 1,200 lb. 8" MOLD-ON-RUBBER 28 model PLDL-HD-4-10FF
PLDL-HD-4-8PS 1,500 lb. 8" POLY-ON-STEEL 28
PLDL-HD-4-8GFN 1,500 lb. 8" GLASS-FILLED NYLON 24
PLDL-HD-4-10PN 750 lb. 10" PNEUMATIC 24
PLDL-HD-4-10FF 500 lb. 10" FOAM-FILLED 23
Adjustable Panel Dollies
Adjustable Panel Dollies are adjustable from 0 to 9" with positive locking clutch plates that
allow for easier release and adjustment. Steel construction with a yellow, baked-in powder-
coated toughness.
MODEL UNIFORM STATIC WHEEL CASTER WEIGHT
NUMBER CAPACITY SIZE TYPE (POUND)
PLDL-ADJ-8MR 1,000 lb. 8" MOLD-ON-RUBBER 23
PLDL-ADJ-8PS 1,000 lb. 8" POLY-ON-STEEL 23 model PLDL-ADJ-8GFN
PLDL-ADJ-8GFN 1,000 lb. 8" GLASS-FILLED NYLON 23
PLDL-ADJ-10PN 600 lb. 10" PNEUMATIC 23 CASTERS MAY NOT BE
PLDL-ADJ-10FF 500 lb. 10" FOAM-FILLED 23 ATTACHED FOR
SHIPPING PURPOSES
