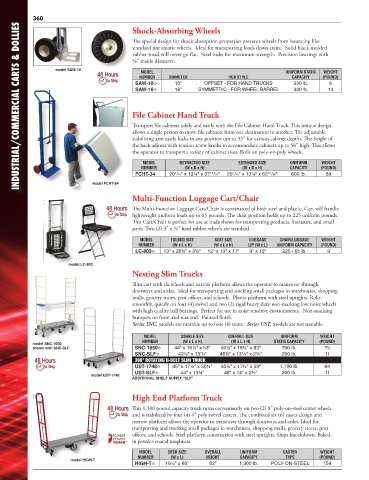

Page 354 - Vestil Catalog 112
P. 354
360
INDUSTRIAL/COMMERCIAL CARTS & DOLLIES
Shock-Absorbing Wheels
The special design for shock absorption properties prevents wheels from bouncing like
standard pneumatic wheels. Ideal for transporting loads down stairs. Solid black molded
rubber tread will never go flat. Steel hubs for maximum strength. Precision bearings with
⅝" inside diameter.
model SAW-10
MODEL UNIFORM STATIC WEIGHT
NUMBER DIAMETER HUB STYLE CAPACITY (POUND)
SAW-10 10" OFFSET - FOR HAND TRUCKS 330 lb. 6
SAW-16 16" SYMMETRIC - FOR WHEEL BARREL 330 lb. 14
File Cabinet Hand Truck
Transport file cabinets safely and easily with the File Cabinet Hand Truck. This unique design
allows a single person to move file cabinets from one destination to another. The adjustable
stabilizing arm easily locks in any position out to 33" for various cabinet depths. The height of
the back adjusts with tension screw knobs to accommodate cabinets up to 56" high. This allows
the operator to transport a variety of cabinet sizes. Rolls on poly-on-poly wheels.
MODEL RETRACTED SIZE EXTENDED SIZE UNIFORM WEIGHT
NUMBER (W x D x H) (W x D x H) CAPACITY (POUND)
FCHT-34 20 /16" x 13¼" x 37 /16" 20 /16" x 13¼" x 62 /16" 600 lb. 89
15
1
15
1
model FCHT-34
Multi-Function Luggage Cart/Chair
The Multi-Function Luggage Cart/Chair is constructed of both steel and plastic. Cart will handle
lightweight uniform loads up to 65 pounds. The chair position holds up to 225 uniform pounds.
This Cart/Chair is perfect for use at trade shows for transporting products, literature, and small
parts. Two (2) 3" x ¾" hard rubber wheels are standard.
MODEL FOLDED SIZE SEAT SIZE LUGGAGE CHAIR/LUGGAGE WEIGHT
NUMBER (W x L x H) (W x L x H) LIP (W x L) UNIFORM CAPACITY (POUND)
LC-803 13" x 26½" x 3½" 12" x 13" x 17" 9" x 12" 225 / 65 lb. 9
model LC-803
Nesting Slim Trucks
Slim cart with six wheels and narrow platform allows the operator to maneuver through
doorways and aisles. Ideal for transporting and stocking small packages in warehouses, shopping
malls, grocery stores, post offices, and schools. Plastic platform with steel uprights. Rolls
smoothly, quietly on four (4) swivel and two (2) rigid heavy duty non-marking low noise wheels
with high quality ball bearings. Perfect for use in noise sensitive environments. Non-marking
bumpers on front and rear end. Painted finish.
Series SNC, models are nestable up to four (4) units. Series UST, models are not nestable.
MODEL USABLE SIZE OVERALL SIZE UNIFORM WEIGHT
NUMBER (W x L x H) (W x L x H) STATIC CAPACITY (POUND)
model SNC-1650
shown with SNC-SLF SNC-1650 44" x 16½" x 53" 50½" x 16½" x 63" 700 lb. 75
5
7
SNC-SLF 42½" x 13 /8" 46½" x 13 /8" x 2¼" 200 lb. 11
360° ROTATING U-BOLT SLIM TRUCK
UST-1748 45" x 17½" x 50½" 50½" x 17½" x 59" 1,100 lb. 64
model UST-1748 UST-SLF 44" x 13¼" 48" x 14" x 2½" 200 lb. 11
ADDITIONAL SHELF SUFFIX "SLF"
High End Platform Truck
This 1,300 pound capacity truck turns conveniently on two (2) 8" poly-on-steel center wheels
and is stabilized by four (4) 4" poly swivel casters. The combined six (6) caster design and
narrow platform allows the operator to maneuver through doorways and aisles. Ideal for
transporting and stocking small packages in warehouses, shopping malls, grocery stores, post
offices, and schools. Steel platform construction with steel uprights. Ships knockdown. Baked-
in powder-coated toughness
MODEL DECK SIZE OVERALL UNIFORM CASTER WEIGHT
NUMBER (W x L) HEIGHT CAPACITY TYPE (POUND)
model HIGH-T
HIGH-T 16¼" x 60" 63" 1,300 lb. POLY-ON-STEEL 154
