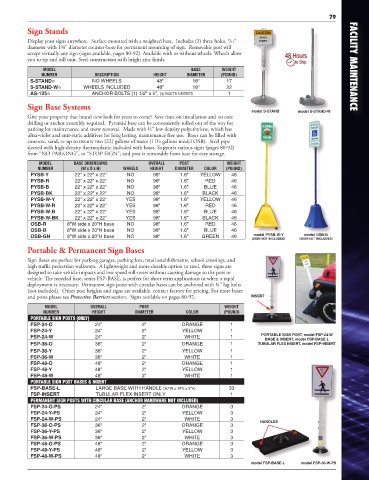

Page 73 - Vestil Catalog 112

79
Sign Stands

9
Display your signs anywhere. Surface mounted with a weighted base. Includes (3) three holes, /16"
diameter with 1⅜" diameter counter-bore for permanent mounting of sign. Removable post will
accept virtually any sign (signs available, pages 80-92). Available with or without wheels. Wheels allow
you to tip and roll unit. Steel construction with bright zinc finish.
MODEL BASE WEIGHT FACILITY MAINTENANCE
NUMBER DESCRIPTION HEIGHT DIAMETER (POUND)
S-STAND� NO WHEELS 48" 18" 17
S-STAND-W� WHEELS INCLUDED 48" 18" 22
AS-125� ANCHOR BOLTS (1) 1/2" x 5", (3) BOLTS NEEDED 1
Sign Base Systems
model S-STAND model S-STAND-W
Give your property that brand new look for years to come! Save time on installation and no core
drilling or anchor assembly required. Pyramid base can be conveniently rolled out of the way for
parking lot maintenance and snow removal. Made with ¼" low density polyethylene, which has
ultra-violet and anti-static additives for long lasting, maintenance free use. Bases can be filled with
concrete, sand, or up to twenty two (22) gallons of water (11½ gallons model OSB). Steel pipe
sleeved with high-density thermoplastic included with bases. Supports various signs (pages 80-92)
from “NO PARKING”, to “STOP SIGN”, and post is removable from base for easy storage.
MODEL BASE DIMENSIONS OVERALL POST WEIGHT
NUMBER (W x D x H) WHEELS HEIGHT DIAMETER COLOR (POUND)
PYSB-Y 22" x 22" x 22" NO 98" 1.6" YELLOW 46
PYSB-R 22" x 22" x 22" NO 98" 1.6" RED 46
PYSB-B 22" x 22" x 22" NO 98" 1.6" BLUE 46
PYSB-BK 22" x 22" x 22" NO 98" 1.6" BLACK 46
PYSB-W-Y 22" x 22" x 22" YES 98" 1.6" YELLOW 46
PYSB-W-R 22" x 22" x 22" YES 98" 1.6" RED 46
PYSB-W-B 22" x 22" x 22" YES 98" 1.6" BLUE 46
PYSB-W-BK 22" x 22" x 22" YES 98" 1.6" BLACK 46
OSB-R 8"W side x 20"H base NO 98" 1.6" RED 46
OSB-B 8"W side x 20"H base NO 98" 1.6" BLUE 46
OSB-GN 8"W side x 20"H base NO 98" 1.6" GREEN 46 model PYSB-W-Y model OSB-B
(SIGN NOT INCLUDED) (SIGN NOT INCLUDED)
Portable & Permanent Sign Bases
Sign Bases are perfect for parking garages, parking lots, retail establishments, school crossings, and
high traffic pedestrian walkways. A lightweight and more durable option to steel, these signs are
designed to take vehicle impacts and low speed roll-overs without causing damage to the post or
vehicle. The recycled base, series FSP-BASE, is perfect for short term applications or when a rapid
deployment is necessary. Permanent sign posts with circular bases can be anchored with ¼" lag bolts
(not included). Other post heights and signs are available, contact factory for pricing. For more bases
and posts please see Protective Barriers section. Signs available on pages 80-92. INSERT
MODEL OVERALL POST WEIGHT
NUMBER HEIGHT DIAMETER COLOR (POUND)
PORTABLE SIGN POSTS (ONLY)
FSP-24-O 24" 2" ORANGE 1
FSP-24-Y 24" 2" YELLOW 1
FSP-24-W 24" 2" WHITE 1 PORTABLE SIGN POST, model FSP-24-W
BASE & INSERT, model FSP-BASE-L
FSP-36-O 36" 2" ORANGE 1 TUBULAR FLEX INSERT, model FSP-INSERT
FSP-36-Y 36" 2" YELLOW 1
FSP-36-W 36" 2" WHITE 1
FSP-48-O 48" 2" ORANGE 1
FSP-48-Y 48" 2" YELLOW 1
FSP-48-W 48" 2" WHITE 1
PORTABLE SIGN POST BASES & INSERT
FSP-BASE-L LARGE BASE WITH HANDLE (30"W x 14"L x 2"H) 33
FSP-INSERT TUBULAR FLEX INSERT ONLY 1
PERMANENT SIGN POSTS WITH CIRCULAR BASE (ANCHOR HARDWARE NOT INCLUDED)
FSP-24-O-PS 24" 2" ORANGE 3
FSP-24-Y-PS 24" 2" YELLOW 3
FSP-24-W-PS 24" 2" WHITE 3 HANDLES
FSP-36-O-PS 36" 2" ORANGE 3
FSP-36-Y-PS 36" 2" YELLOW 3
FSP-36-W-PS 36" 2" WHITE 3
FSP-48-O-PS 48" 2" ORANGE 3
FSP-48-Y-PS 48" 2" YELLOW 3
FSP-48-W-PS 48" 2" WHITE 3
model FSP-BASE-L model FSP-36-W-PS
