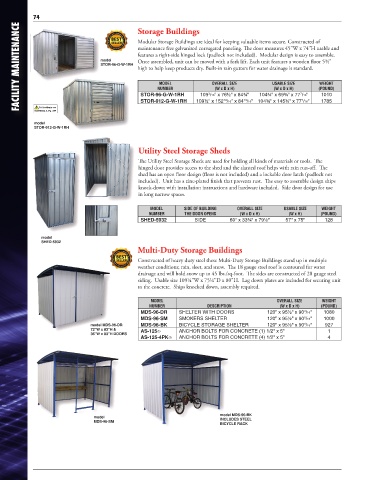

Page 68 - Vestil Catalog 112

74 Storage Buildings
FACILITY MAINTENANCE FACILITIES MAINTENANCE model maintenance free galvanized corrugated paneling. The door measures 45"W x 74"H usable and

Modular Storage Buildings are ideal for keeping valuable items secure. Constructed of
features a right-side hinged lock (padlock not included). Modular design is easy to assemble.
Once assembled, unit can be moved with a fork lift. Each unit features a wooden floor 5¾"
STOR-96-G-W-1RH
high to help keep products dry. Built-in rain gutters for water drainage is standard.
MODEL
USABLE SIZE
WEIGHT
OVERALL SIZE
(W x D x H)
(POUND)
NUMBER
(W x D x H)
STOR-96-G-W-1RH
109 /16" x 76½" x 84¾"
3
104¾" x 69¾" x 77 /16"
1010
7
13
7
13
CA Residents see
WARNING A, Pg. 459
model STOR-912-G-W-1RH 109½" x 152 /16" x 84 /16" 104¾" x 145¾" x 77 /16" 1785
STOR-912-G-W-1RH
Utility Steel Storage Sheds
The Utility Steel Storage Sheds are used for holding all kinds of materials or tools. The
hinged door provides access to the shed and the slanted roof helps with rain run-off. The
shed has an open floor design (floor is not included) and a lockable door latch (padlock not
included). Unit has a zinc-plated finish that prevents rust. The easy to assemble design ships
knock-down with installation instructions and hardware included. Side door design for use
in long narrow spaces.
MODEL SIDE OF BUILDING OVERALL SIZE USABLE SIZE WEIGHT
NUMBER THE DOOR OPENS (W x D x H) (W x H) (POUND)
SHED-5932 SIDE 60" x 33¾" x 79½" 57" x 75" 128
model
SHED-5932
Multi-Duty Storage Buildings
Constructed of heavy duty steel these Multi-Duty Storage Buildings stand up in multiple
weather conditions; rain, sleet, and snow. The 18 gauge steel roof is contoured for water
drainage and will hold snow up to 45 lbs./sq-foot. The sides are constructed of 28 gauge steel
siding. Usable size 109¼"W x 75¼"D x 80"H. Lag down plates are included for securing unit
to the concrete. Ships knocked down, assembly required.

MODEL OVERALL SIZE WEIGHT
NUMBER DESCRIPTION (W x D x H) (POUND)
MDS-96-DR SHELTER WITH DOORS 120" x 95½" x 90 /16" 1080
1
MDS-96-SM SMOKERS SHELTER 120" x 95½" x 90 /16" 1000
1
model MDS-96-DR MDS-96-BK BICYCLE STORAGE SHELTER 120" x 95½" x 90 /16" 927
1
72"W x 83"H & AS-125� ANCHOR BOLTS FOR CONCRETE (1) 1/2" x 5" 1
36"W x 83"H DOORS
AS-125-4PK� ANCHOR BOLTS FOR CONCRETE (4) 1/2" x 5" 4

model MDS-96-BK
model INCLUDES STEEL
MDS-96-SM BICYCLE RACK
