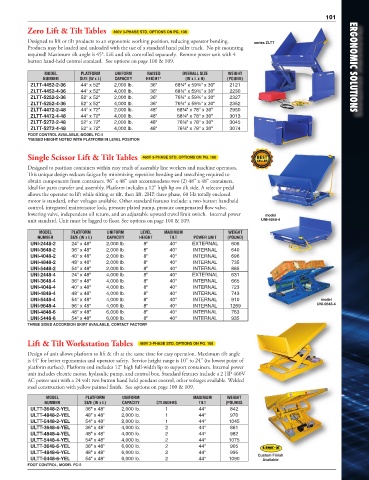

Page 95 - Vestil Catalog 112

101
Zero Lift & Tilt Tables 460V 3-PHASE STD, OPTIONS ON PG. 108

Designed to lift or tilt products to an ergonomic working position, reducing operator bending. series ZLTT
Products may be loaded and unloaded with the use of a standard hand pallet truck. No pit mounting
required! Maximum tilt angle is 45°. Lift and tilt controlled separately. Remote power unit with 4
button hand-held control standard. See options on page 100 & 109.
MODEL PLATFORM UNIFORM RAISED OVERALL SIZE WEIGHT ERGONOMIC SOLUTIONS
NUMBER SIZE (W x L) CAPACITY HEIGHT* (W x L x H) (POUND)
ZLTT-4452-2-36 44" x 52" 2,000 lb. 36" 68¾" x 59¾" x 30" 2121
ZLTT-4452-4-36 44" x 52" 4,000 lb. 36" 68¾" x 59¾" x 30" 2230
ZLTT-5252-2-36 52" x 52" 2,000 lb. 36" 76¾" x 59¾" x 30" 2327
ZLTT-5252-4-36 52" x 52" 4,000 lb. 36" 76¾" x 59¾" x 30" 2352
ZLTT-4472-2-48 44" x 72" 2,000 lb. 48" 68¾" x 78" x 30" 2950
ZLTT-4472-4-48 44" x 72" 4,000 lb. 48" 68¾" x 78" x 30" 3013
ZLTT-5272-2-48 52" x 72" 2,000 lb. 48" 76¾" x 78" x 30" 3045
ZLTT-5272-4-48 52" x 72" 4,000 lb. 48" 76¾" x 78" x 30" 3074
FOOT CONTROL AVAILABLE, MODEL FC-4
*RAISED HEIGHT NOTED WITH PLATFORM IN LEVEL POSITION

Single Scissor Lift & Tilt Tables 460V 3-PHASE STD, OPTIONS ON PG. 108

Designed to position containers within easy reach of assembly line workers and machine operators.
This unique design reduces fatigue by minimizing repetitive bending and stretching required to
obtain components from containers. 96" x 48" unit accommodates two (2) 48" x 48" containers,
ideal for parts transfer and assembly. Platform includes a 12" high lip on tilt side. A selector pedal
allows the operator to lift while tilting or tilt, then lift. 2HP, three phase, 60 Hz totally enclosed
motor is standard, other voltages available. Other standard features include: a two-button handheld
control, integrated maintenance lock, pressure plated pump, pressure compensated flow valve,
lowering valve, independent oil return, and an adjustable upward travel limit switch. Internal power model
unit standard. Unit must be lagged to floor. See options on page 100 & 109. UNI-4848-4

MODEL PLATFORM UNIFORM LEVEL MAXIMUM WEIGHT
NUMBER SIZE (W x L) CAPACITY HEIGHT TILT POWER UNIT (POUND)
UNI-2448-2 24" x 48" 2,000 lb. 8" 40° EXTERNAL 606
UNI-3648-2 36" x 48" 2,000 lb. 8" 40° INTERNAL 640
UNI-4048-2 40" x 48" 2,000 lb. 8" 40° INTERNAL 696
UNI-4848-2 48" x 48" 2,000 lb. 8" 40° INTERNAL 735
UNI-5448-2 54" x 48" 2,000 lb. 8" 40° INTERNAL 885
UNI-2448-4 24" x 48" 4,000 lb. 8" 40° EXTERNAL 631
UNI-3648-4 36" x 48" 4,000 lb. 8" 40° INTERNAL 665
UNI-4048-4 40" x 48" 4,000 lb. 8" 40° INTERNAL 723
UNI-4848-4 48" x 48" 4,000 lb. 8" 40° INTERNAL 743
UNI-5448-4 54" x 48" 4,000 lb. 8" 40° INTERNAL 910 model
UNI-9648-4 96" x 48" 4,000 lb. 8" 40° INTERNAL 1269 UNI-9648-4
UNI-4848-6 48" x 48" 6,000 lb. 8" 40° INTERNAL 763
UNI-5448-6 54" x 48" 6,000 lb. 8" 40° INTERNAL 935
THREE SIDED ACCORDION SKIRT AVAILABLE, CONTACT FACTORY

Lift & Tilt Workstation Tables 460V 3-PHASE STD, OPTIONS ON PG. 108

Design of unit allows platform to lift & tilt at the same time for easy operation. Maximum tilt angle
is 44° for better ergonomics and operator safety. Service height range is 10" to 24" (to lowest point of
platform surface). Platform end includes 12" high full-width lip to support containers. Internal power
unit includes electric motor, hydraulic pump, and control box. Standard features include a 2 HP 460V
AC power unit with a 24 volt two button hand held pendant control, other voltages available. Welded
steel construction with yellow painted finish. See options on page 100 & 109.
MODEL PLATFORM UNIFORM MAXIMUM WEIGHT
NUMBER SIZE (W x L) CAPACITY CYLINDERS TILT (POUNDS
ULTT-3648-2-YEL 36" x 48" 2,000 lb. 1 44° 842
ULTT-4848-2-YEL 48" x 48" 2,000 lb. 1 44° 970
ULTT-5448-2-YEL 54" x 48" 2,000 lb. 1 44° 1045
ULTT-3648-4-YEL 36" x 48" 4,000 lb. 2 44° 861
ULTT-4848-4-YEL 48" x 48" 4,000 lb. 2 44° 982
ULTT-5448-4-YEL 54" x 48" 4,000 lb. 2 44° 1075
ULTT-3648-6-YEL 36" x 48" 6,000 lb. 2 44° 905
ULTT-4848-6-YEL 48" x 48" 6,000 lb. 2 44° 995 Custom Finish
ULTT-5448-6-YEL 54" x 48" 6,000 lb. 2 44° 1090 Available
FOOT CONTROL, MODEL FC-2
