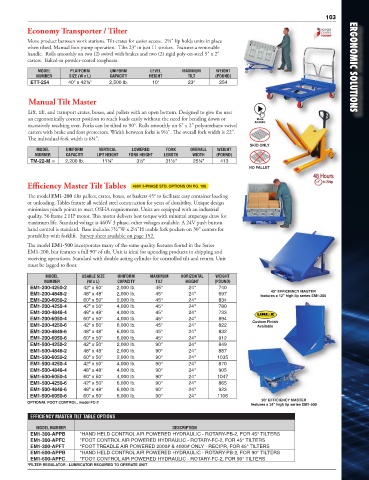

Page 97 - Vestil Catalog 112

103
Economy Transporter / Tilter

Move product between work stations. Tilt crates for easier access. 2½" lip holds units in place
when tilted. Manual foot pump operation. Tilts 23° in just 11 strokes. Features a removable
handle. Rolls smoothly on two (2) swivel with brakes and two (2) rigid poly-on-steel 5" x 2"
casters. Baked-in powder-coated toughness.
MODEL PLATFORM UNIFORM LEVEL MAXIMUM WEIGHT ERGONOMIC SOLUTIONS
NUMBER SIZE (W x L) CAPACITY HEIGHT TILT (POUND)
ETT-254 40" x 42¼" 2,500 lb. 10" 23° 254

Manual Tilt Master
Lift, tilt, and transport crates, boxes, and pallets with an open bottom. Designed to give the user
an ergonomically correct position to reach loads easily without the need for bending down or
excessively reaching over. Forks can be tilted to 90°. Rolls smoothly on 6" x 2" polyurethane swivel
casters with brake and foot protectors. Width between forks is 9½". The overall fork width is 22".
The individual fork width is 6¼".
SKID ONLY
MODEL UNIFORM VERTICAL LOWERED FORK OVERALL WEIGHT
NUMBER CAPACITY LIFT HEIGHT FORK HEIGHT LENGTH WIDTH (POUND)
TM-22-M � 2,200 lb. 11¼" 3½" 31½" 25¼" 413
NO PALLET

Efficiency Master Tilt Tables 460V 3-PHASE STD, OPTIONS ON PG. 108
The model EM1-200 tilts pallets, crates, boxes, or baskets 45° to facilitate easy container loading
or unloading. Tables feature all welded steel construction for years of durability. Unique design
minimizes pinch points to meet OSHA requirements. Units are equipped with an industrial
quality, 56 frame 2 HP motor. This motor delivers best torque with minimal amperage draw for
maximum life. Standard voltage is 460V 3 phase, other voltages available. A 24V push button
hand control is standard. Base includes 7½"W x 2½"H usable fork pockets on 30" centers for
portability with forklift. Survey sheet available on page 152.
The model EM1-500 incorporates many of the same quality features found in the Series
EM1-200, but features a full 90° of tilt. Unit is ideal for upending products in shipping and
receiving operations. Standard with double acting cylinder for controlled tilt and return. Unit
must be lagged to floor.

MODEL USABLE SIZE UNIFORM MAXIMUM HORIZONTAL WEIGHT
NUMBER (W x L) CAPACITY TILT HEIGHT (POUND)
EM1-200-4250-2 42" x 50" 2,000 lb. 45° 24" 740
45° EFFICIENCY MASTER
EM1-200-4848-2 48" x 48" 2,000 lb. 45° 24" 697 features a 12" high lip series EM1-200
EM1-200-6050-2 60" x 50" 2,000 lb. 45° 24" 834
EM1-200-4250-4 42" x 50" 4,000 lb. 45° 24" 780
EM1-200-4848-4 48" x 48" 4,000 lb. 45° 24" 733
EM1-200-6050-4 60" x 50" 4,000 lb. 45° 24" 894 Custom Finish
EM1-200-4250-6 42" x 50" 6,000 lb. 45° 24" 822 Available
EM1-200-4848-6 48" x 48" 6,000 lb. 45° 24" 832
EM1-200-6050-6 60" x 50" 6,000 lb. 45° 24" 912
EM1-500-4250-2 42" x 50" 2,000 lb. 90° 24" 849
EM1-500-4848-2 48" x 48" 2,000 lb. 90° 24" 887
EM1-500-6050-2 60" x 50" 2,000 lb. 90° 24" 1035
EM1-500-4250-4 42" x 50" 4,000 lb. 90° 24" 870
EM1-500-4848-4 48" x 48" 4,000 lb. 90° 24" 905
EM1-500-6050-4 60" x 50" 4,000 lb. 90° 24" 1047
EM1-500-4250-6 42" x 50" 6,000 lb. 90° 24" 865
EM1-500-4848-6 48" x 48" 6,000 lb. 90° 24" 923
EM1-500-6050-6 60" x 50" 6,000 lb. 90° 24" 1106
90° EFFICIENCY MASTER
OPTIONAL FOOT CONTROL, model FC-2
features a 24" high lip series EM1-500
EFFICIENCY MASTER TILT TABLE OPTIONS

MODEL NUMBER DESCRIPTION
EM1-300-APPB *HAND HELD CONTROL AIR POWERED HYDRAULIC - ROTARY-PB-2, FOR 45° TILTERS
EM1-300-APFC *FOOT CONTROL AIR POWERED HYDRAULIC - ROTARY-FC-2, FOR 45° TILTERS
EM1-300-APFT *FOOT TREADLE AIR POWERED 2000# & 4000# ONLY - RECIPR, FOR 45° TILTERS
EM1-600-APPB *HAND HELD CONTROL AIR POWERED HYDRAULIC - ROTARY-PB-2, FOR 90° TILTERS
EM1-600-APFC *FOOT CONTROL AIR POWERED HYDRAULIC - ROTARY-FC-2, FOR 90° TILTERS
*FILTER REGULATOR - LUBRICATOR REQUIRED TO OPERATE UNIT
