A-LIFT-R

Aluminum/Steel Fixed Straddle Manual Hand Winch Lift Trucks 500 Lb. Capacity Silver/Blue

The hand winch lift truck is compact and designed to lift material to and from shelves, move office equipment, and install ceiling/wall appliances. It's constructed of durable steel-and-aluminum. Operated by a hand-crank winch that features a reversible handle and hold-down device for securing the carriage during transport.

  • Lightweight portable lifts are great for hundreds of applications

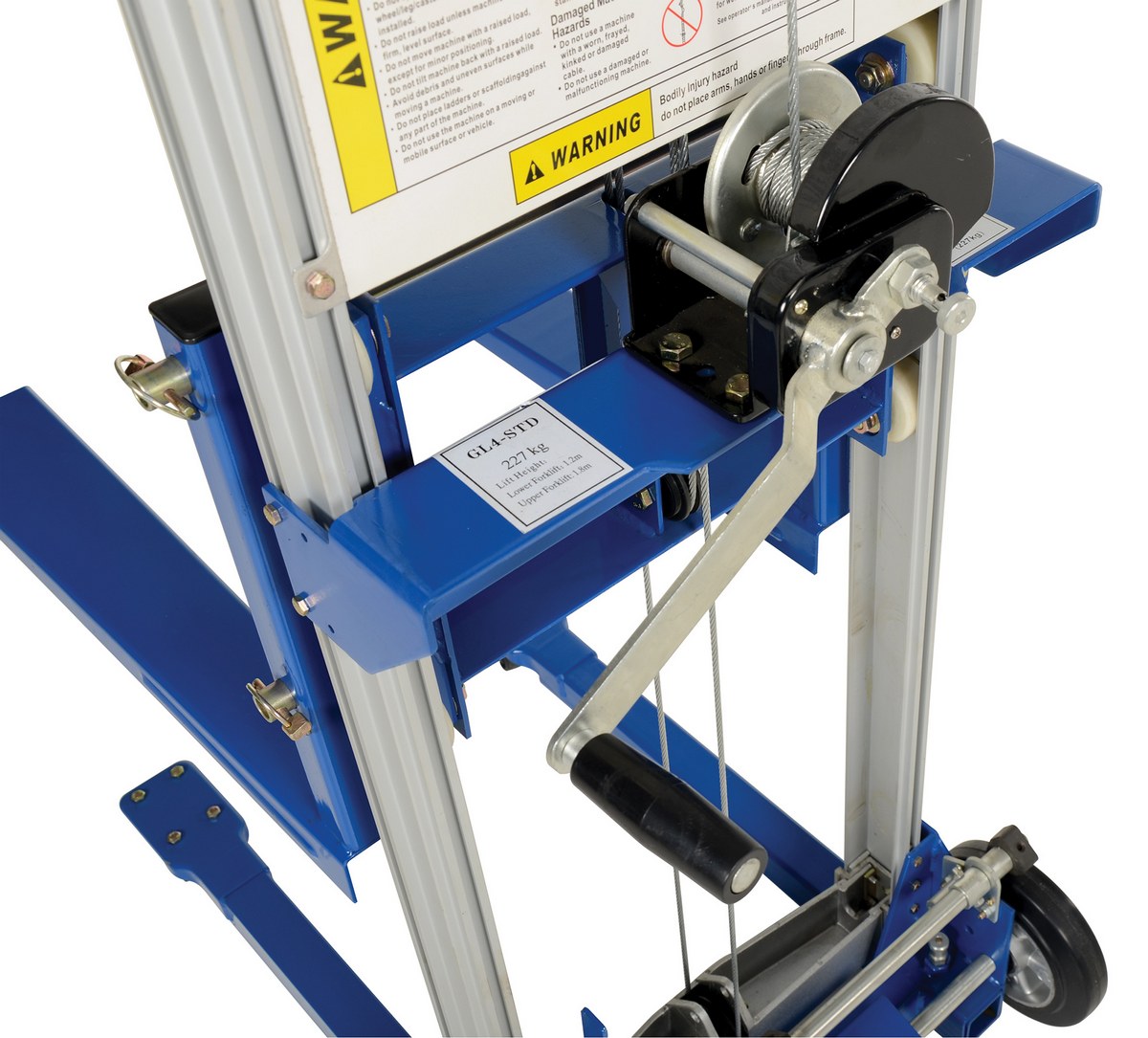

  • Manual cable winch easily raises and lowers forks

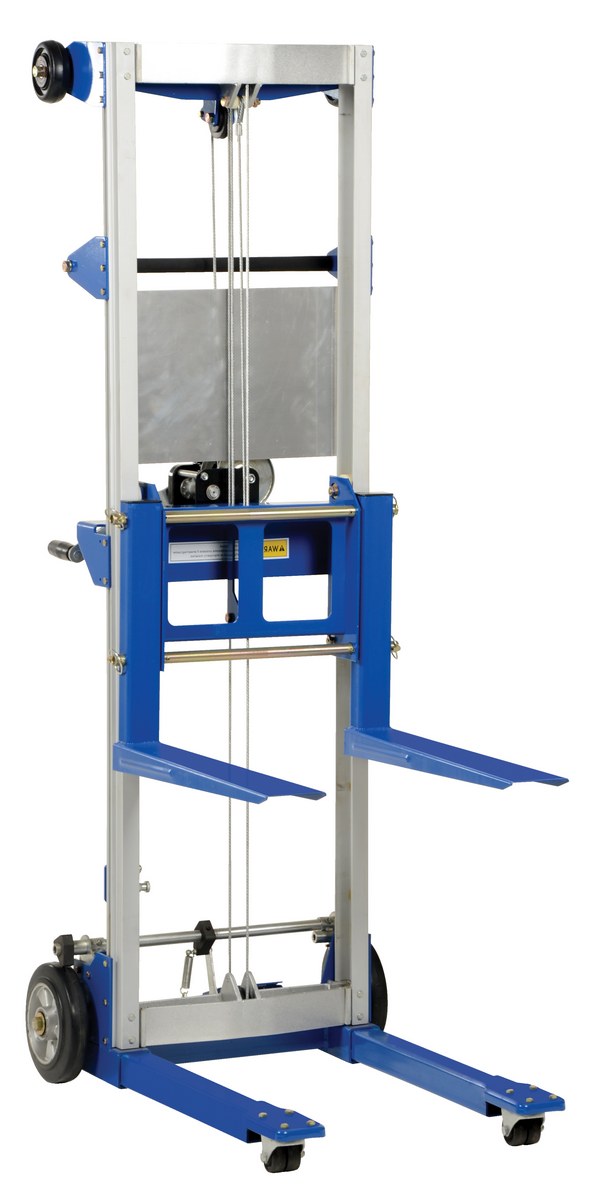

  • Invertible forks provide additional height capabilities

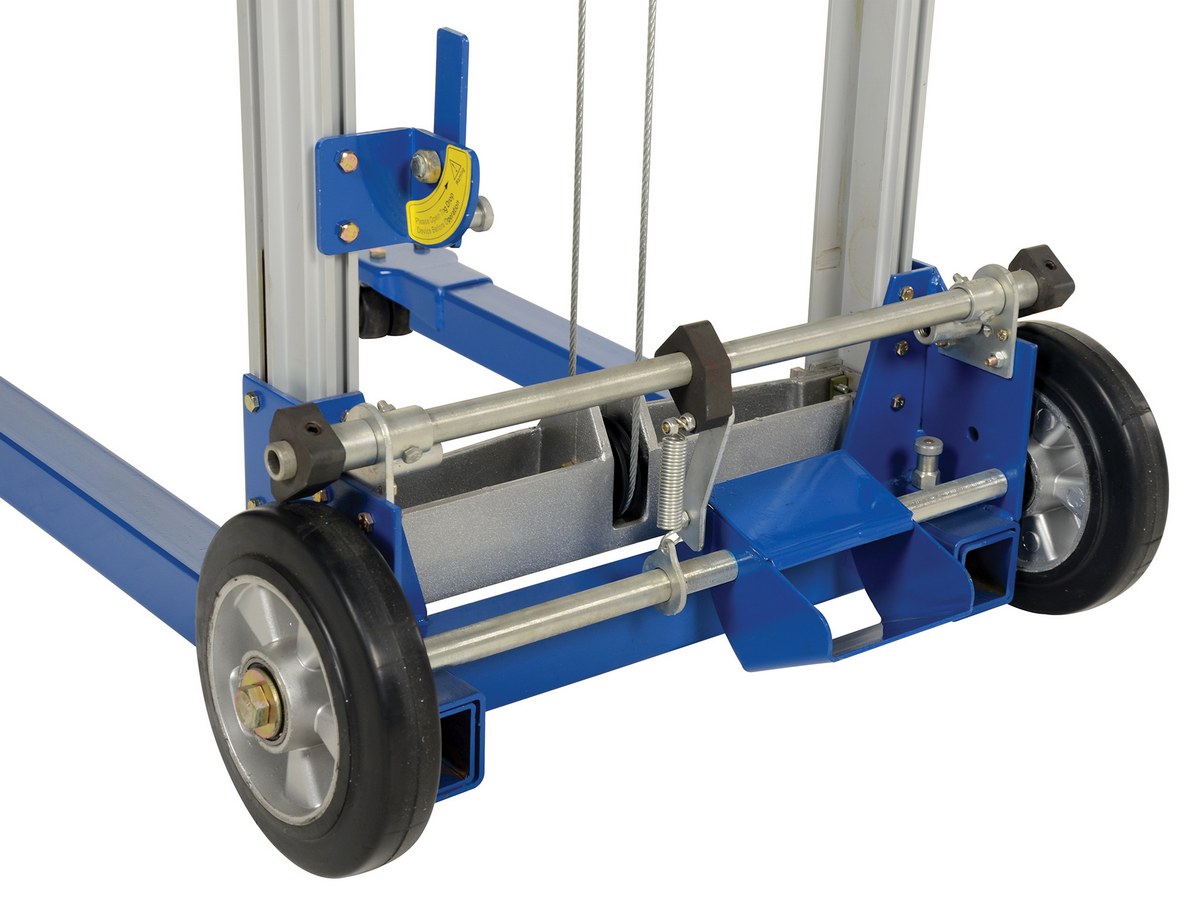

  • Hold-down device secures carriage during transport
Total Ship Wt.(lbs.): 191 (only 1 package) Size: 29.375"W x 67.3125"L x 68.75"H Color: Silver

Uniform Capacity (lb.): 500 Lowered Height (in.): 3-1/2 / 23-1/2 Raised Height with Forks Down (in.): 47
Raised Height with Forks Up (in.): 67 Fork Width (in.): 4 Fork Height (in.): 1-3/4
Fork Length (in.): 22-7/16 Fork Outside Diameter (in.): 20-1/2 Fork Raise per Hand Crank Rotation (in.): 1
Rear Non-Marking Wheel Diameter (in.): 8 Front Swivel Wheel Diameter (in.): 2 Inside Straddle Width (in.): 12-1/2
Outside Straddle Width (in.): 20-1/2 Design: Standard

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: A-LIFT-R
A-LIFT-R

Aluminum/Steel Fixed Straddle Manual Hand Winch Lift Trucks 500 Lb. Capacity Silver/Blue

The hand winch lift truck is compact and designed to lift material to and from shelves, move office equipment, and install ceiling/wall appliances. It's constructed of durable steel-and-aluminum. Operated by a hand-crank winch that features a reversible handle and hold-down device for securing the carriage during transport.

  • Lightweight portable lifts are great for hundreds of applications
  • Manual cable winch easily raises and lowers forks
  • Invertible forks provide additional height capabilities
  • Hold-down device secures carriage during transport
Dimensions: 29.375"W x 67.3125"L x 68.75"H Sell UOM: EA-Each Color: Silver
Material: Aluminum/Steel UPC: 691215002219 GTIN: 00691215002219
Warranty: -- Shipping Weight: 191 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 500 Lowered Height (in.): 3-1/2 / 23-1/2 Raised Height with Forks Down (in.): 47
Raised Height with Forks Up (in.): 67 Fork Width (in.): 4 Fork Height (in.): 1-3/4
Fork Length (in.): 22-7/16 Fork Outside Diameter (in.): 20-1/2 Fork Raise per Hand Crank Rotation (in.): 1
Rear Non-Marking Wheel Diameter (in.): 8 Front Swivel Wheel Diameter (in.): 2 Inside Straddle Width (in.): 12-1/2
Outside Straddle Width (in.): 20-1/2 Design: Standard
