A-LIFT-S-EHP

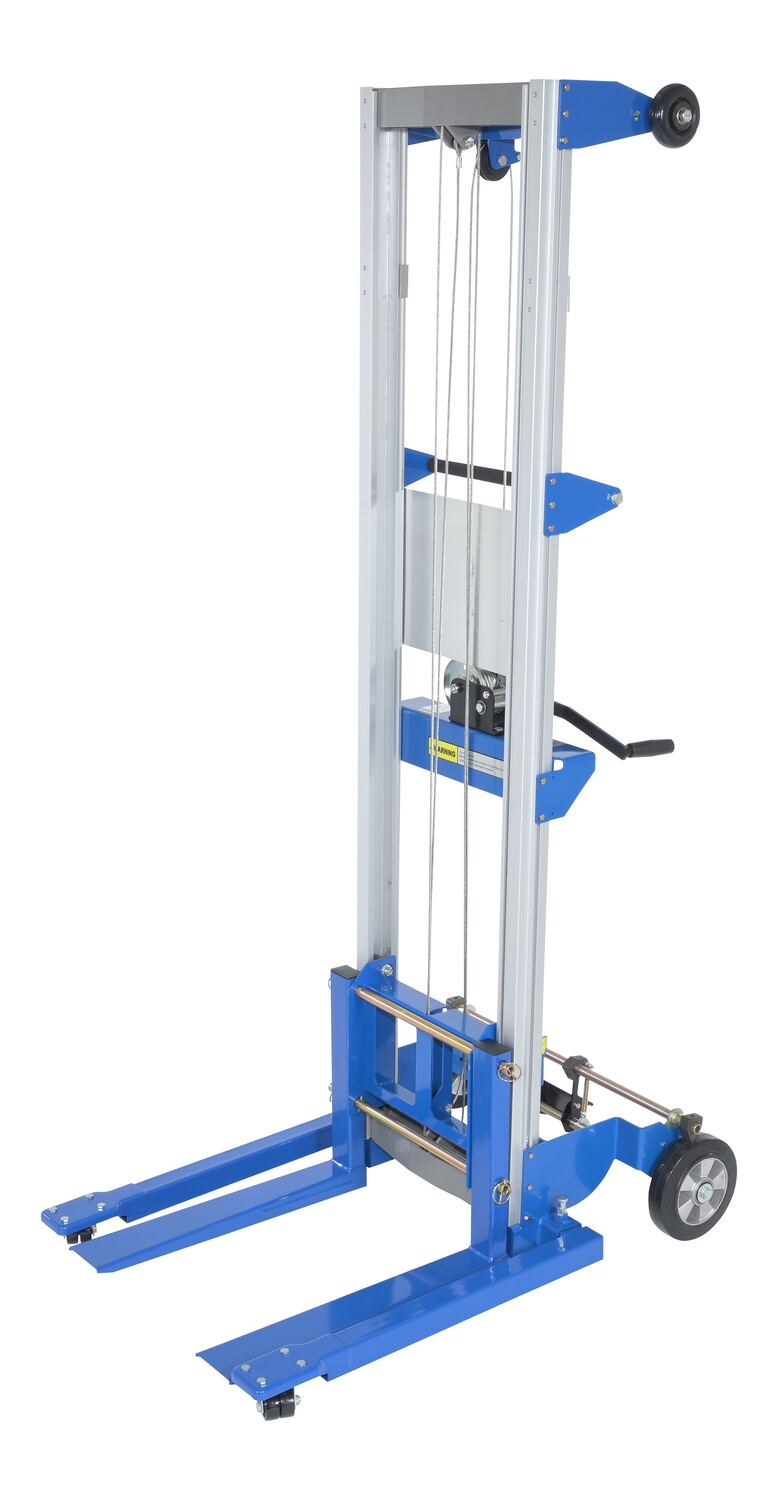

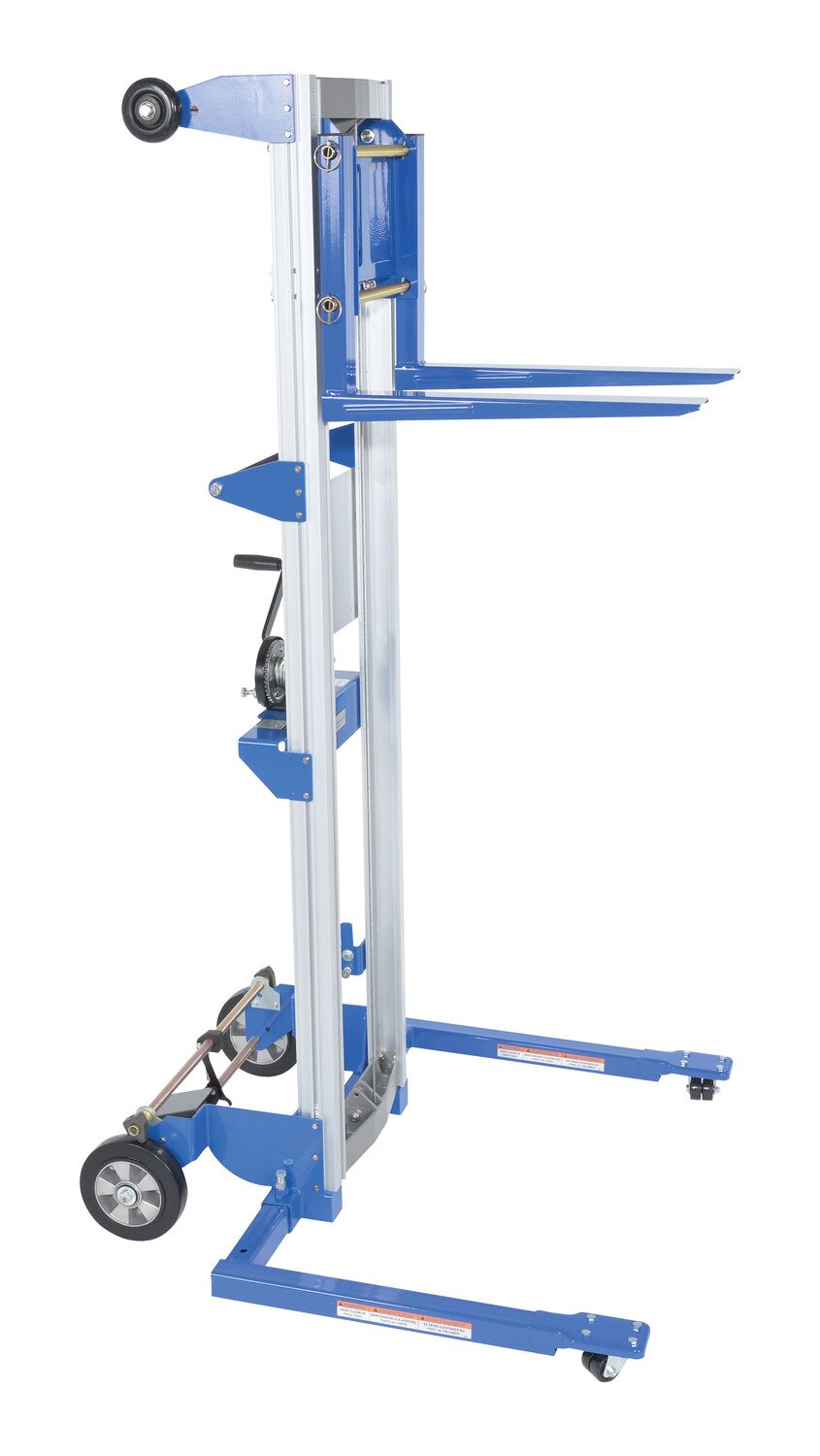

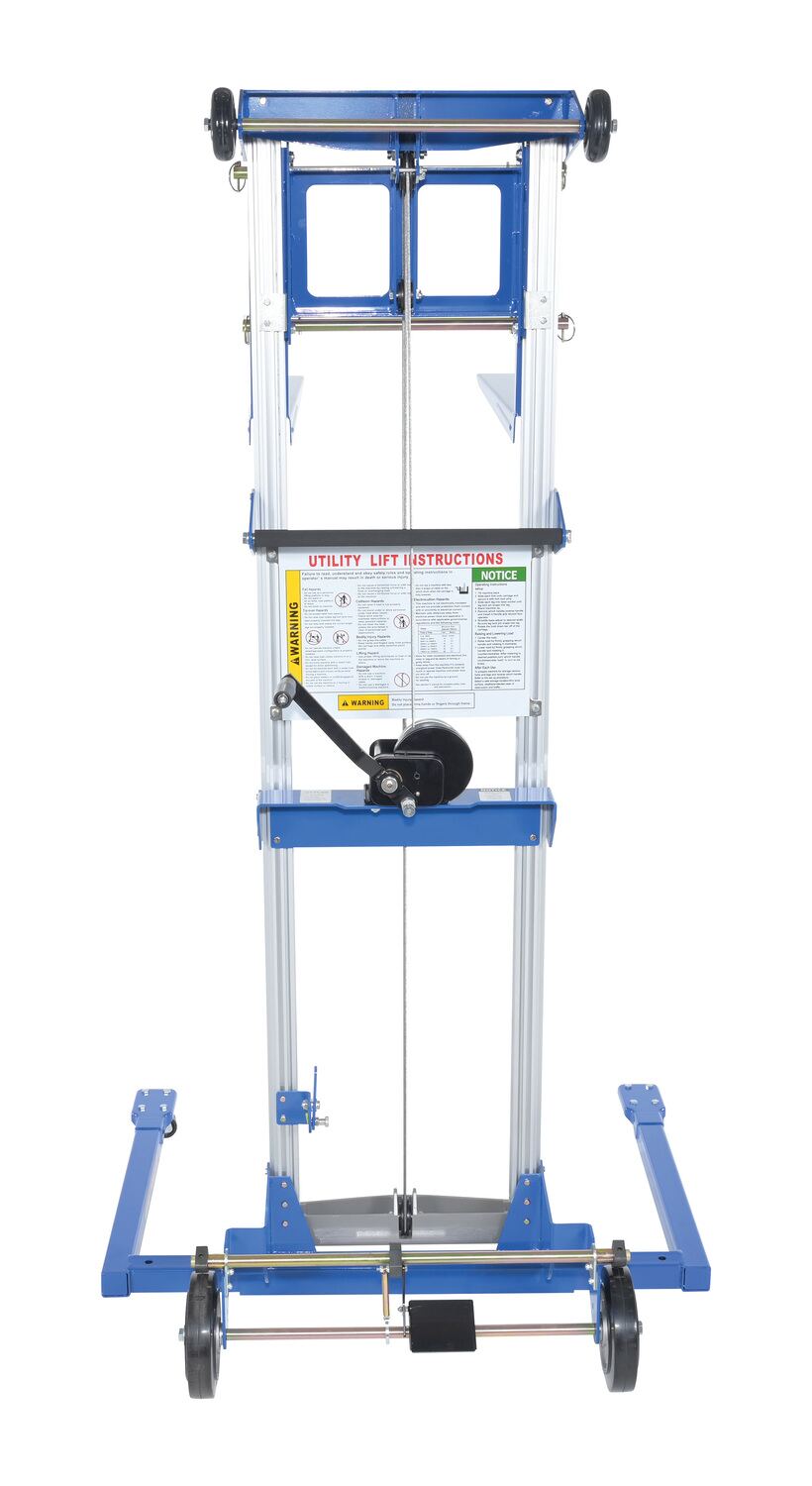

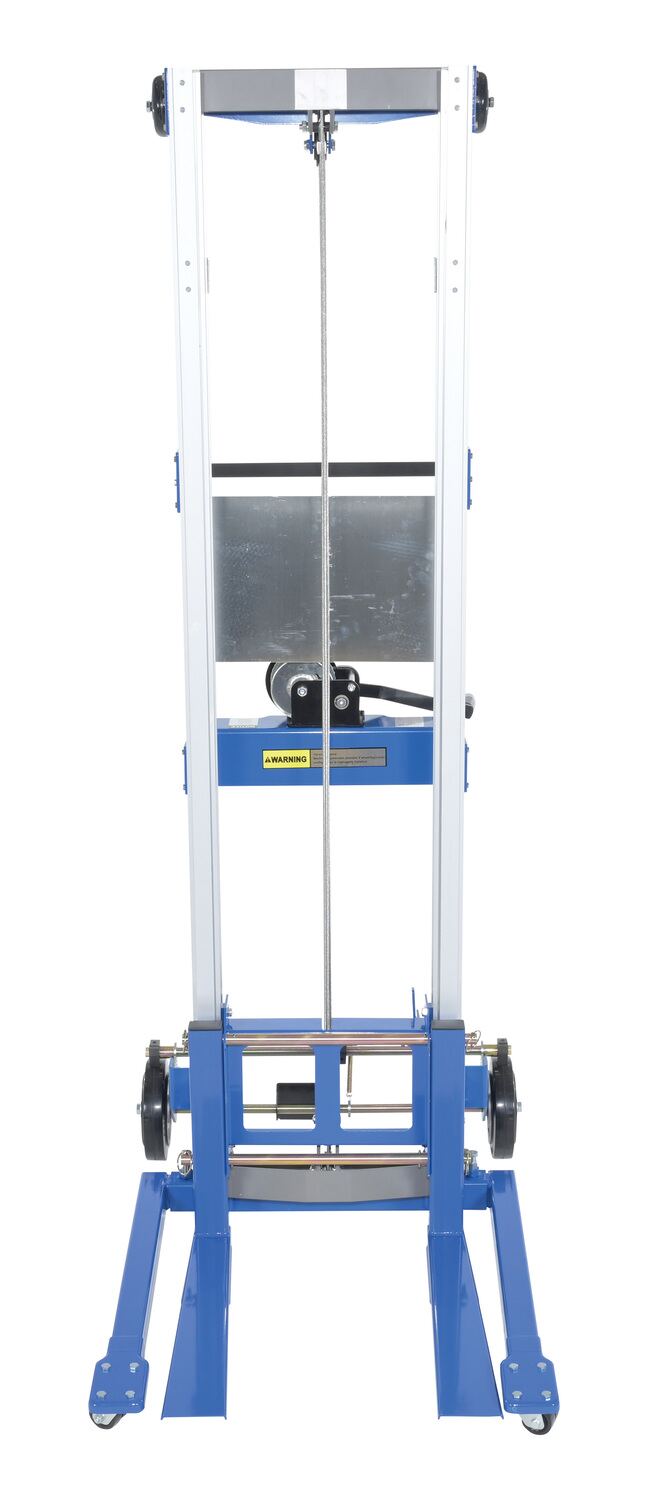

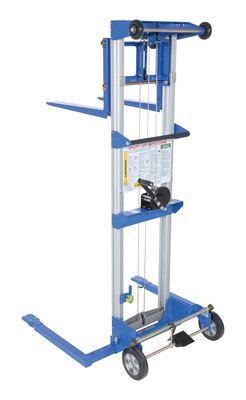

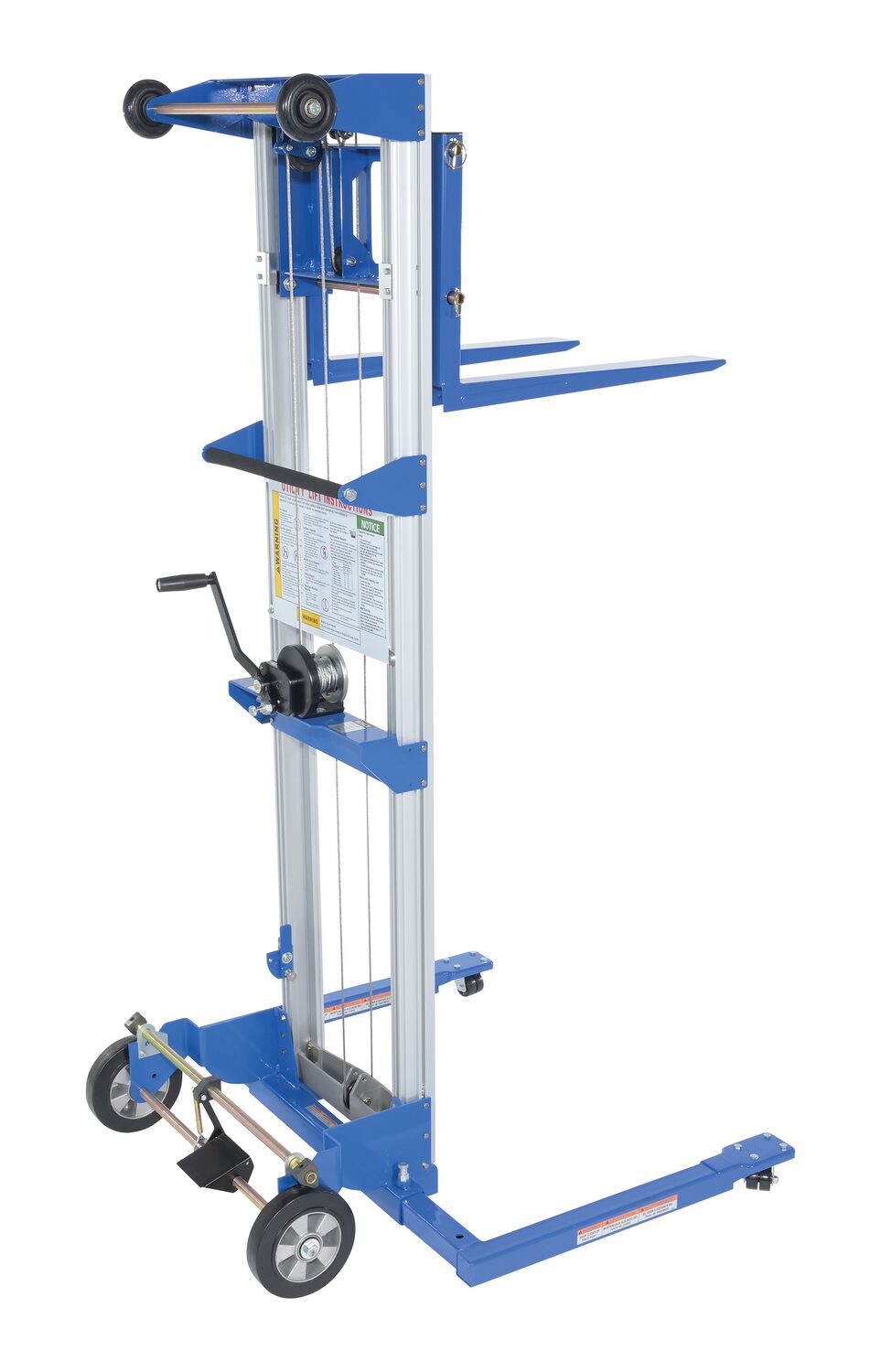

Aluminum/Steel Adjustable Straddle Manual Hand Winch Lift Trucks 350 Lb. Capacity Silver/Blue

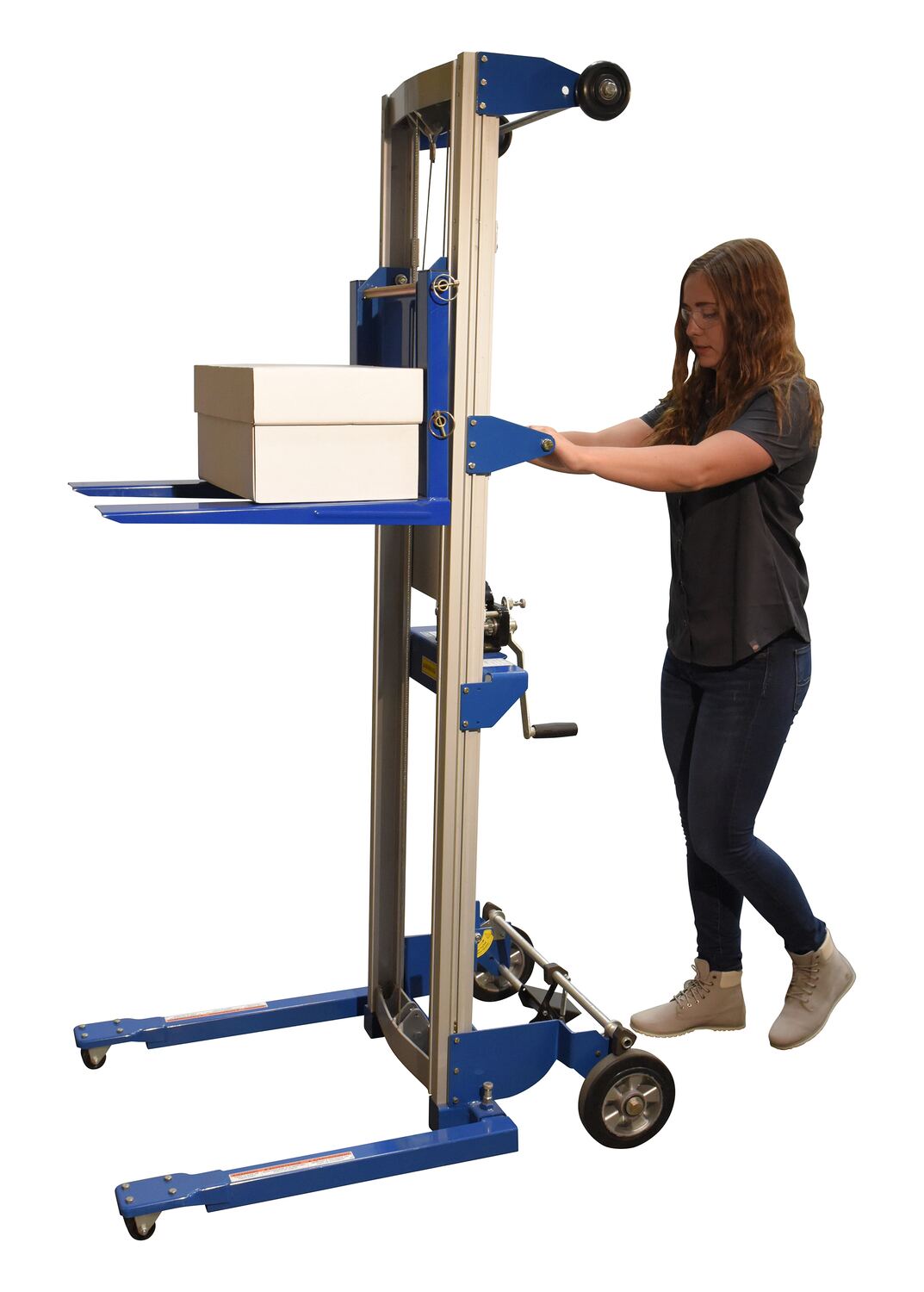

The hand winch lift truck is compact and designed to lift material to and from shelves, move office equipment, and install ceiling/wall appliances. It's constructed of durable steel-and-aluminum. Operated by a hand-crank winch that features a reversible handle and hold-down device for securing the carriage during transport.

  • Lightweight portable lifts are great for hundreds of applications

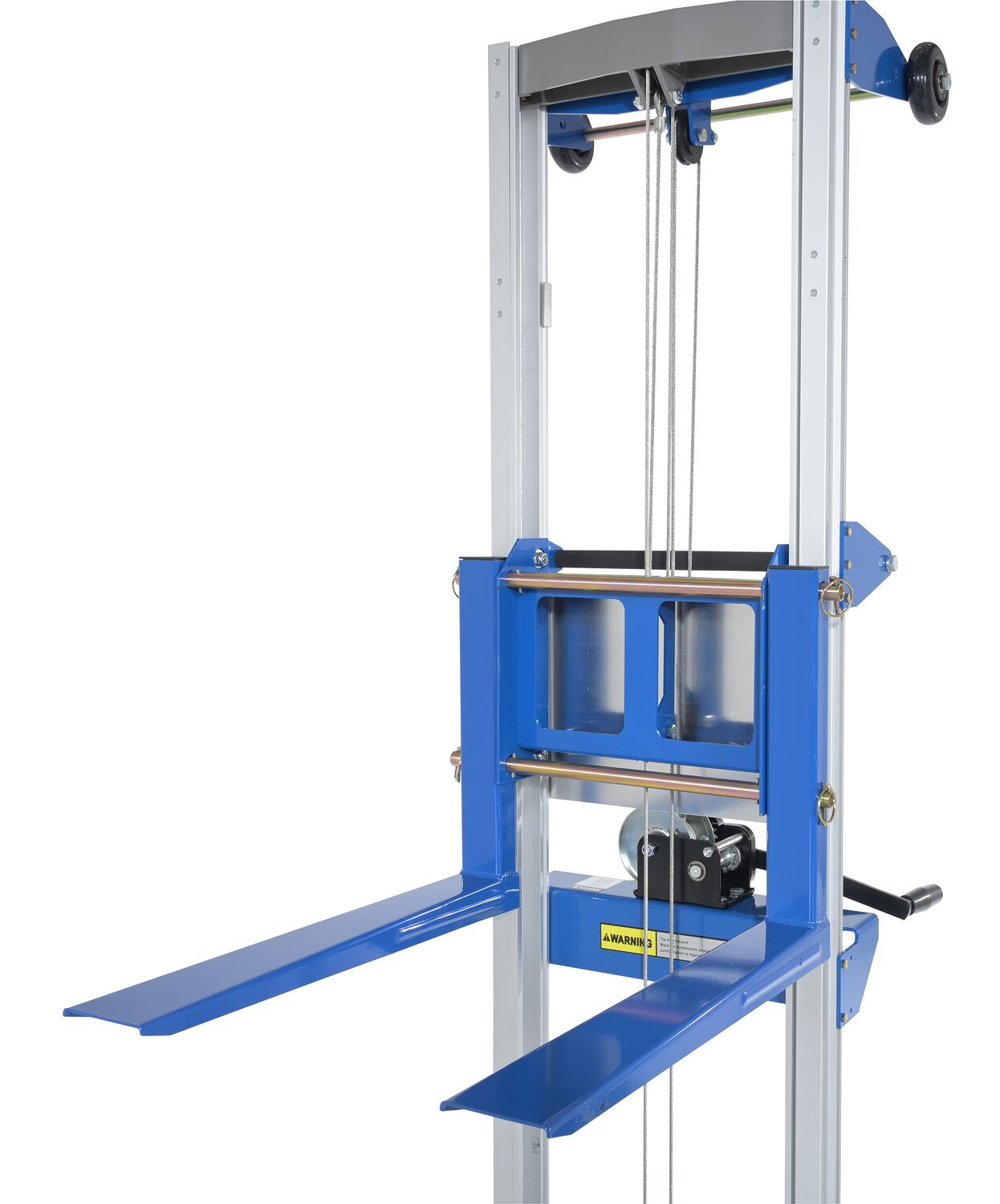

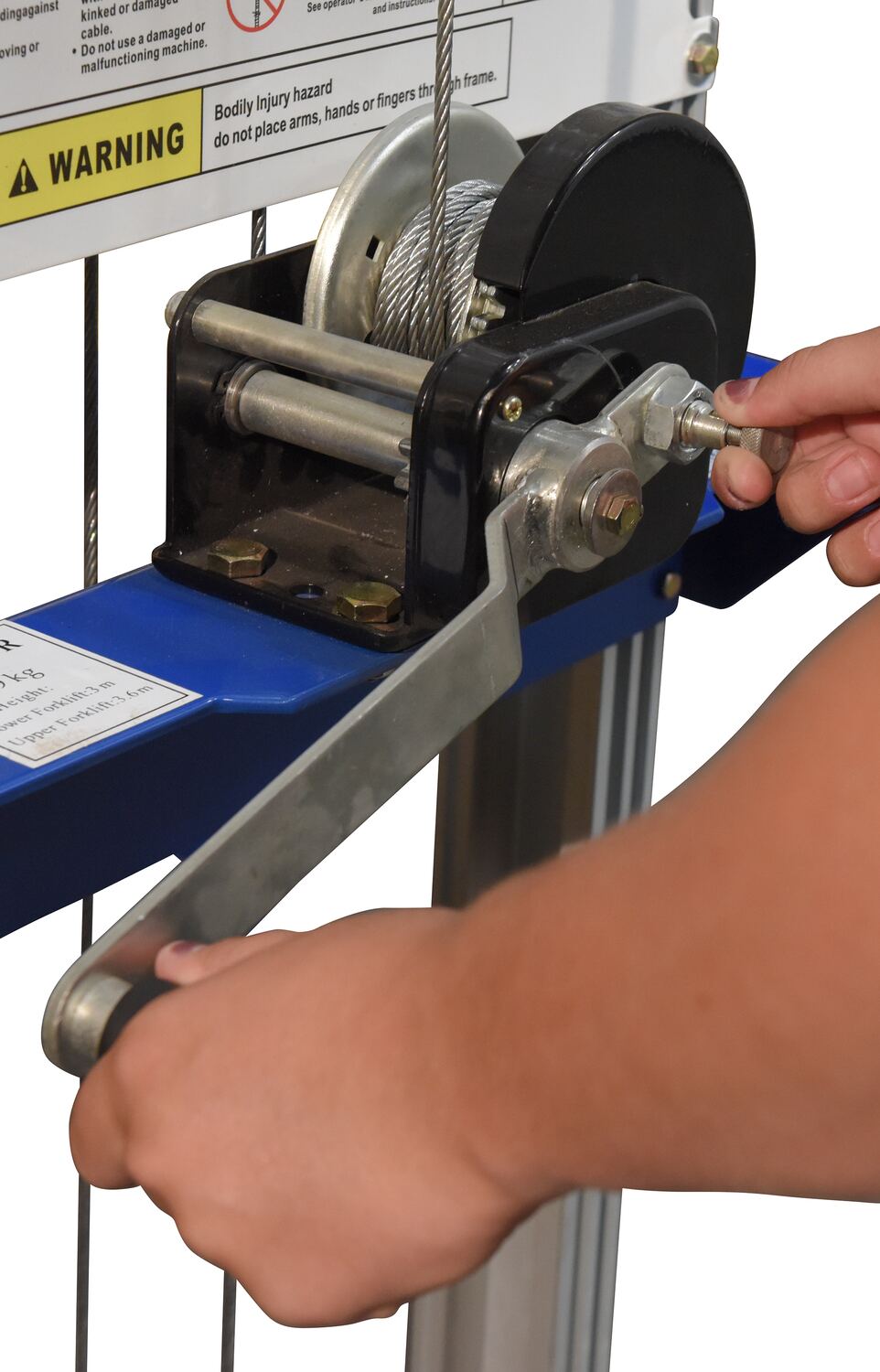

  • Manual cable winch easily raises and lowers forks
  • Adjustable straddle width for varying load sizes

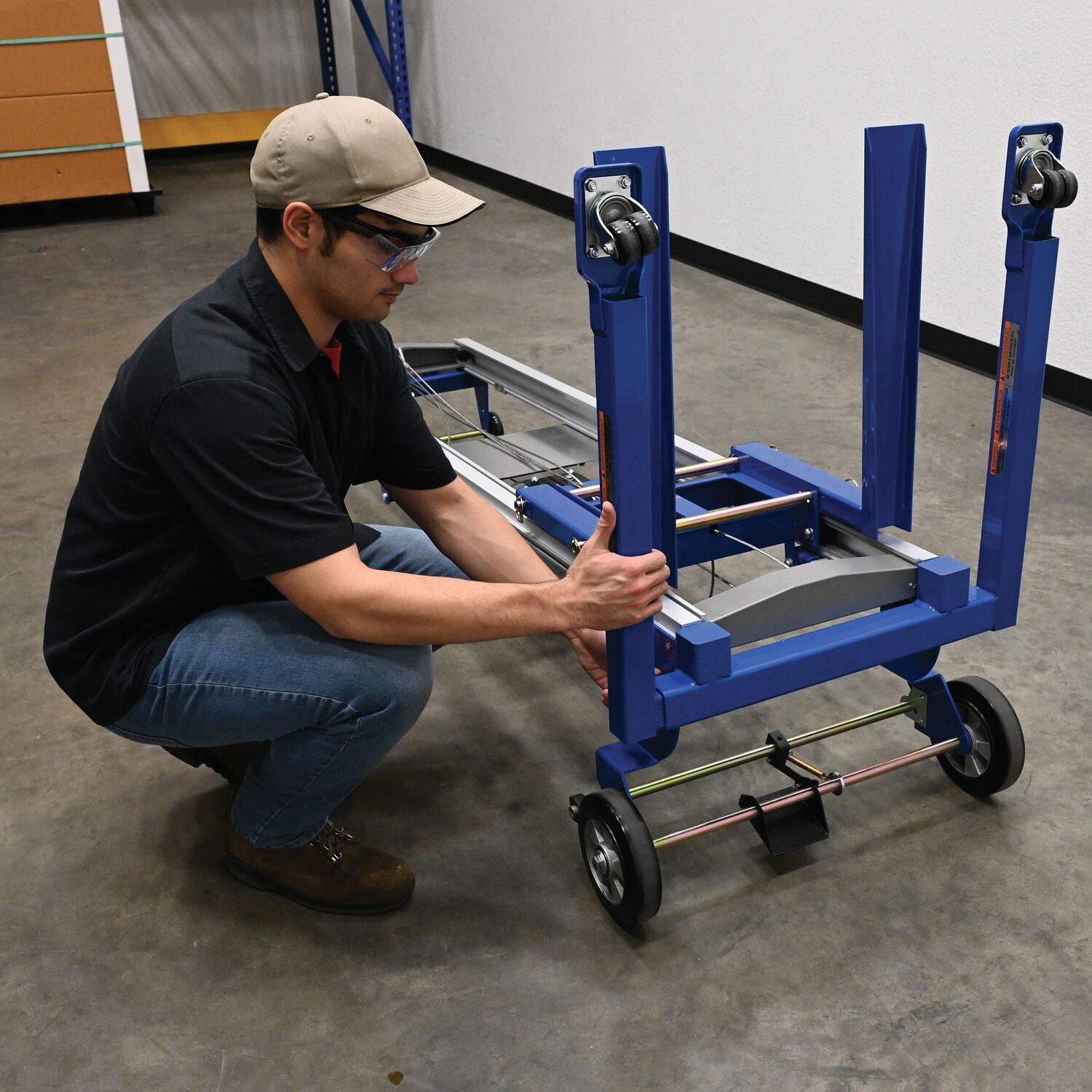

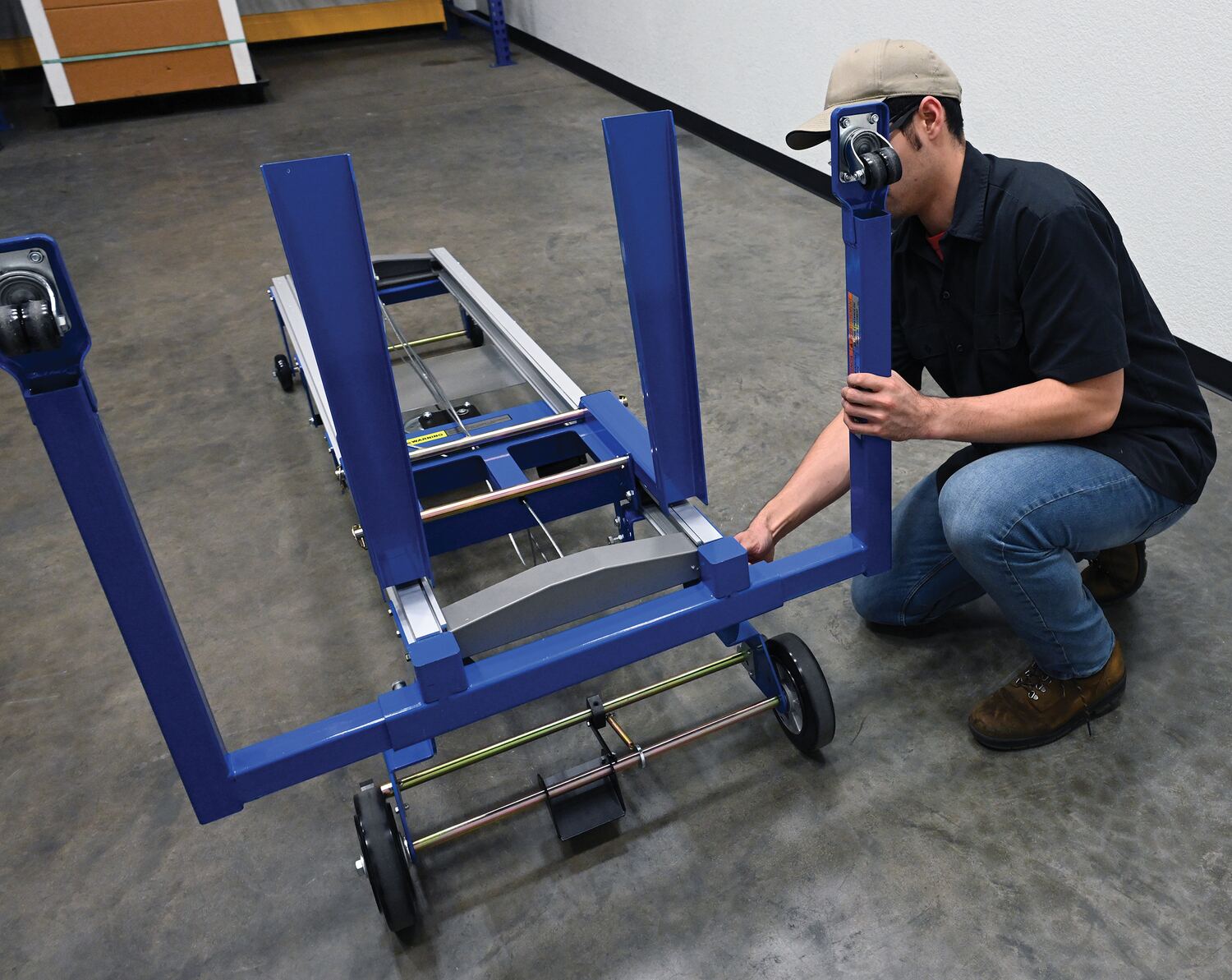

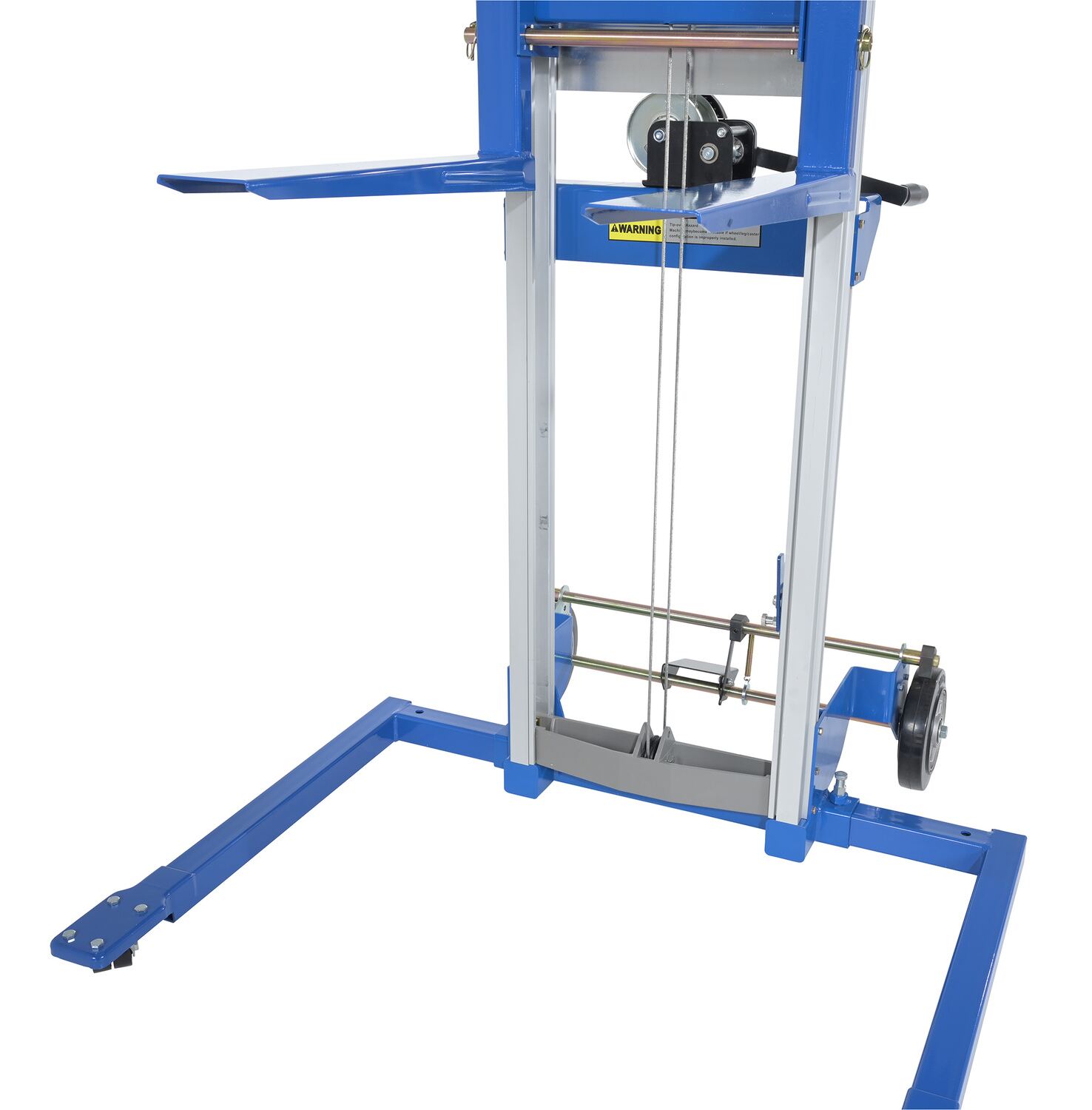

  • Hold-down device secures carriage during transport

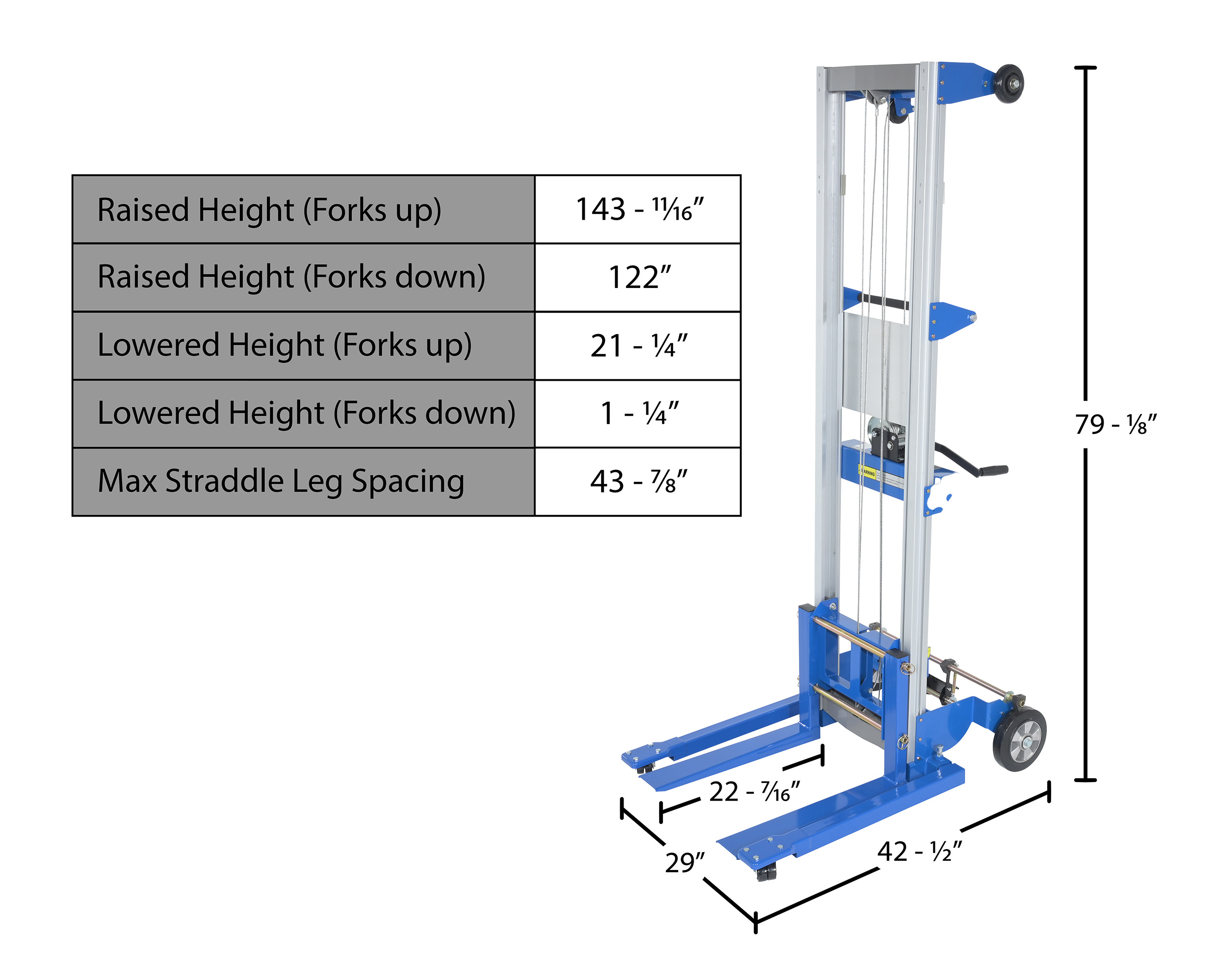

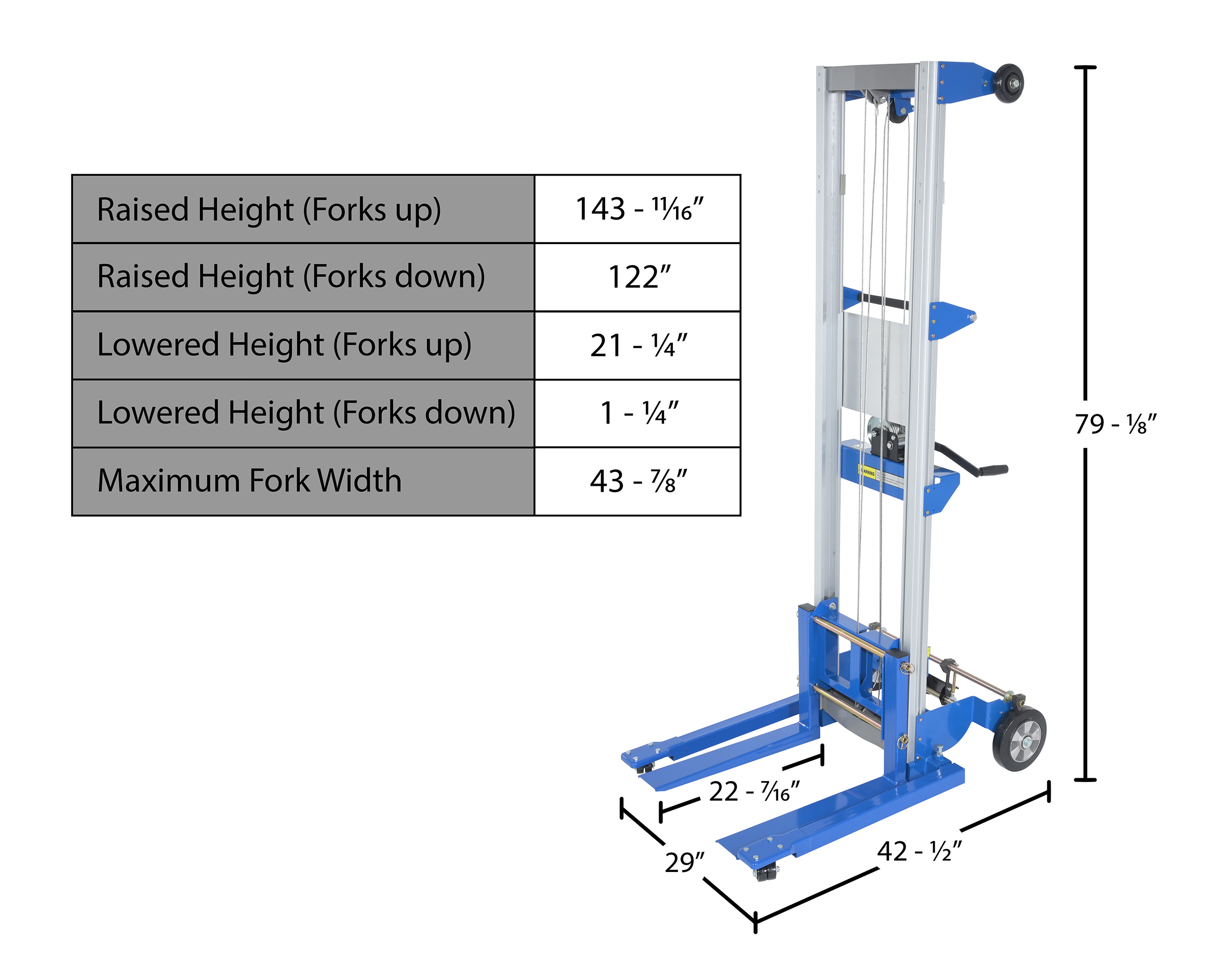

Total Ship Wt.(lbs.): 226 (only 1 package) Size: 43.875"W x 42.5"L x 79.125"H Color: Silver

Uniform Capacity (lb.): 350 Lowered Height (in.): 1-1/4 / 21-1/4 Raised Height with Forks Down (in.): 122
Raised Height with Forks Up (in.): 143-11/16 Fork Width (in.): 4 Fork Height (in.): 1-3/4
Fork Length (in.): 22-7/16 Fork Outside Diameter (in.): 20-7/8 Fork Raise per Hand Crank Rotation (in.): 1
Rear Non-Marking Wheel Diameter (in.): 8 Front Swivel Wheel Diameter (in.): 2 Inside Straddle Width (in.): 21-3/4 - 36-1/4
Outside Straddle Width (in.): 29 - 43-7/8 Design: Straddle

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: A-LIFT-S-EHP
A-LIFT-S-EHP

Aluminum/Steel Adjustable Straddle Manual Hand Winch Lift Trucks 350 Lb. Capacity Silver/Blue

The hand winch lift truck is compact and designed to lift material to and from shelves, move office equipment, and install ceiling/wall appliances. It's constructed of durable steel-and-aluminum. Operated by a hand-crank winch that features a reversible handle and hold-down device for securing the carriage during transport.

  • Lightweight portable lifts are great for hundreds of applications
  • Manual cable winch easily raises and lowers forks
  • Adjustable straddle width for varying load sizes
  • Hold-down device secures carriage during transport
Dimensions: 43.875"W x 42.5"L x 79.125"H Sell UOM: EA-Each Color: Silver
Material: Aluminum/Steel UPC: 691215057578 GTIN: 00691215057578
Warranty: -- Shipping Weight: 226 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 350 Lowered Height (in.): 1-1/4 / 21-1/4 Raised Height with Forks Down (in.): 122
Raised Height with Forks Up (in.): 143-11/16 Fork Width (in.): 4 Fork Height (in.): 1-3/4
Fork Length (in.): 22-7/16 Fork Outside Diameter (in.): 20-7/8 Fork Raise per Hand Crank Rotation (in.): 1
Rear Non-Marking Wheel Diameter (in.): 8 Front Swivel Wheel Diameter (in.): 2 Inside Straddle Width (in.): 21-3/4 - 36-1/4
Outside Straddle Width (in.): 29 - 43-7/8 Design: Straddle
