Model Details

AIR-J

AIR-J

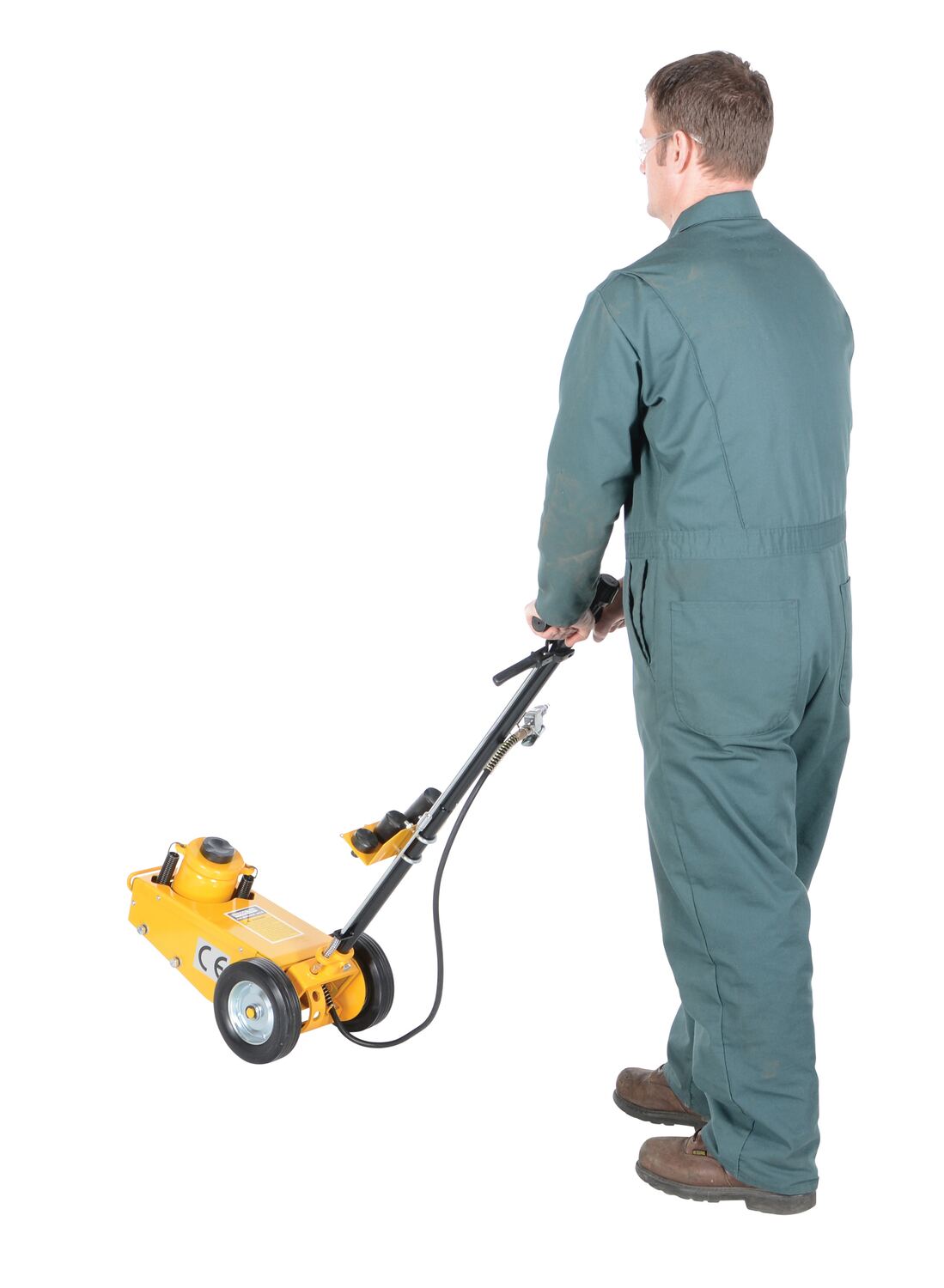

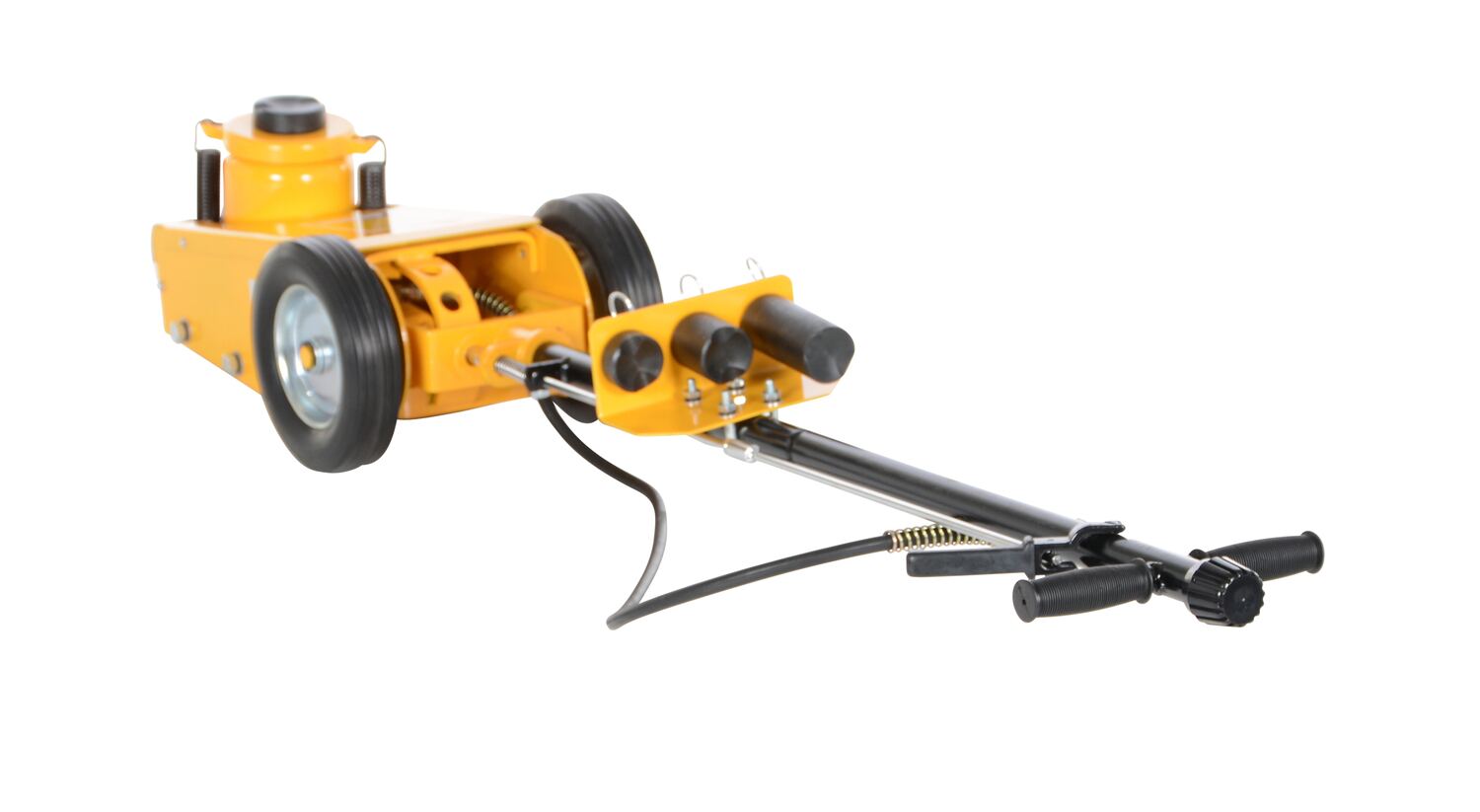

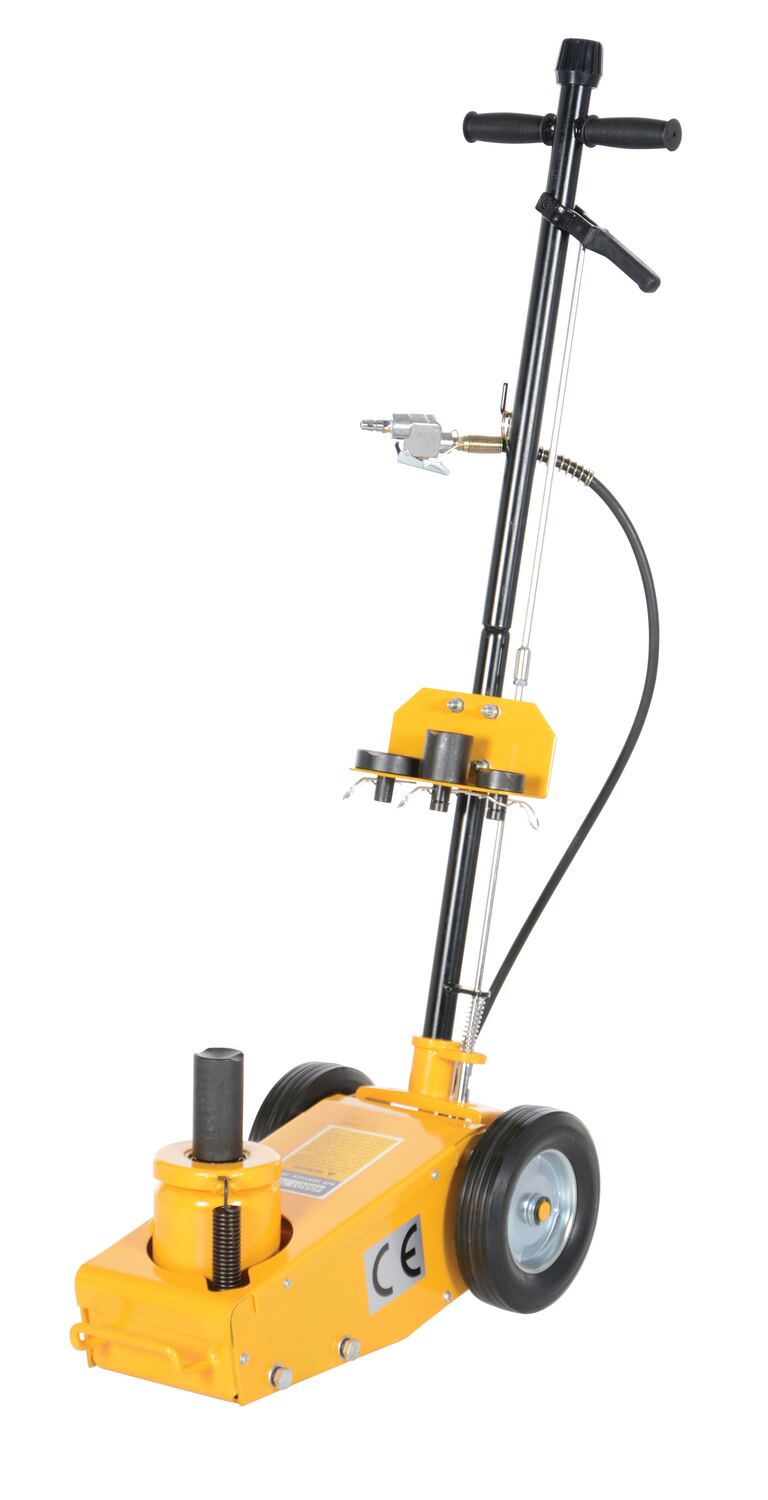

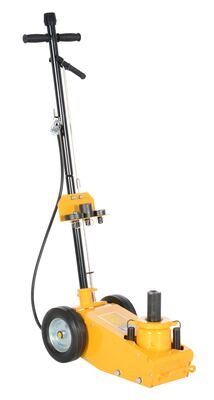

Steel Air Powered Fork Truck Jack 8-1/2 In. - 18-1/4 In. Lift Height 44,000 Lb. Capacity Yellow

The air powered Fork Truck jack has an air-assist motor that quickly raises saddle to lift point and then lifts load to desired height. The air power allows for quick and easy operation. Unit uses standard coupler hook-up to a shop air compressor with air regulator control lever handle. Pressure relief valve is located on top of handle for metered control and load height adjustment.

  • Air-assist motor lifts load to desired height
  • Air power allows for quick and easy operation
  • Unit uses coupler hook-up to a shop air compressor
  • Pressure relief valve is located on top of handle for metered control
Total Ship Wt.(lbs.): 146 (only 1 package) Size: 12"W x 25"L x 48"H Color: Yellow

Uniform Capacity (lb.): 44,000 Lowered Height (in.): 8-1/4 Raised Height (in.): 18-1/4

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: AIR-J


AIR-J

Steel Air Powered Fork Truck Jack 8-1/2 In. - 18-1/4 In. Lift Height 44,000 Lb. Capacity Yellow

The air powered Fork Truck jack has an air-assist motor that quickly raises saddle to lift point and then lifts load to desired height. The air power allows for quick and easy operation. Unit uses standard coupler hook-up to a shop air compressor with air regulator control lever handle. Pressure relief valve is located on top of handle for metered control and load height adjustment.

  • Air-assist motor lifts load to desired height
  • Air power allows for quick and easy operation
  • Unit uses coupler hook-up to a shop air compressor
  • Pressure relief valve is located on top of handle for metered control
Dimensions: 12"W x 25"L x 48"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215002172 GTIN: 00691215002172
Warranty: -- Shipping Weight: 146 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 44,000 Lowered Height (in.): 8-1/4 Raised Height (in.): 18-1/4
