ALL-T-HD

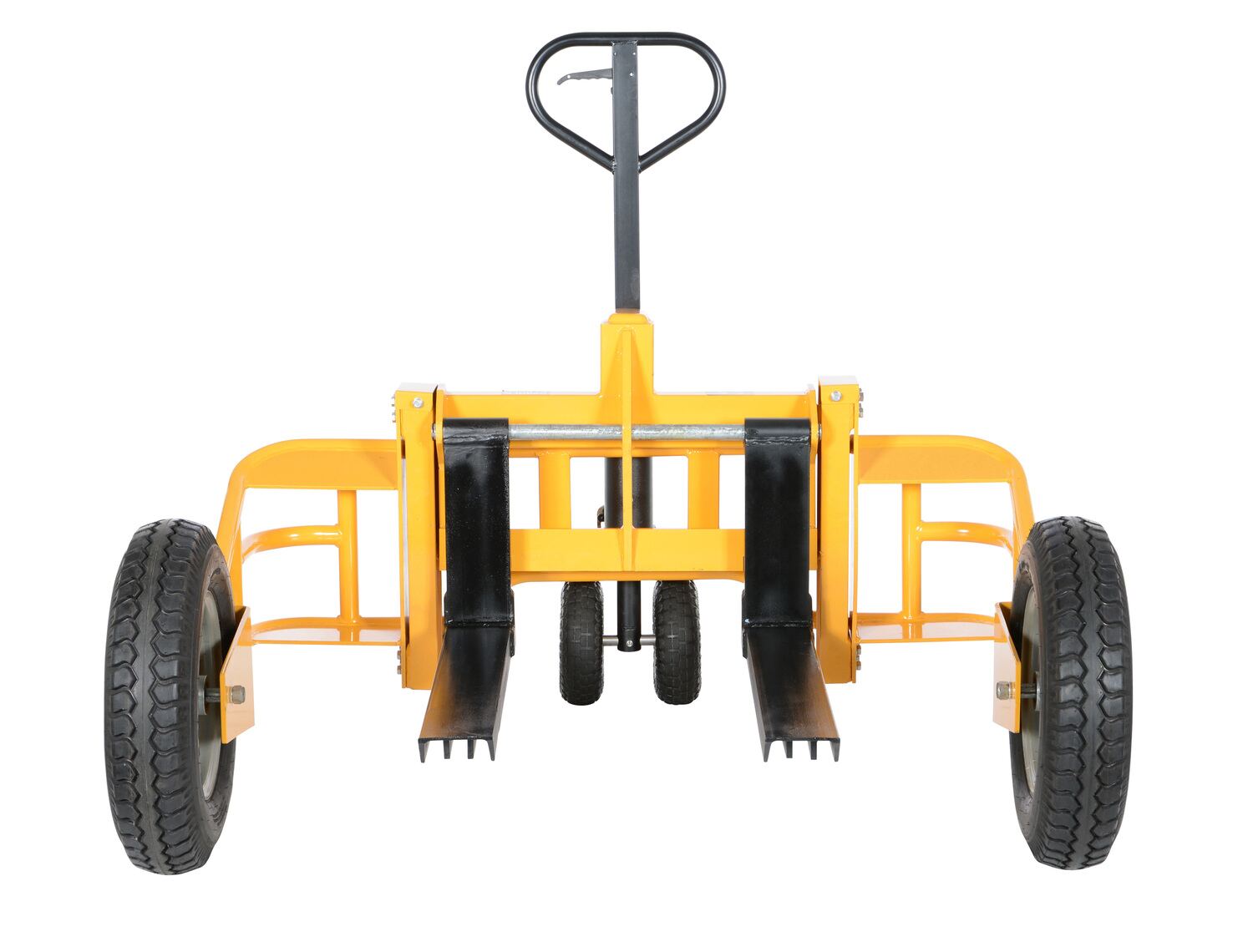

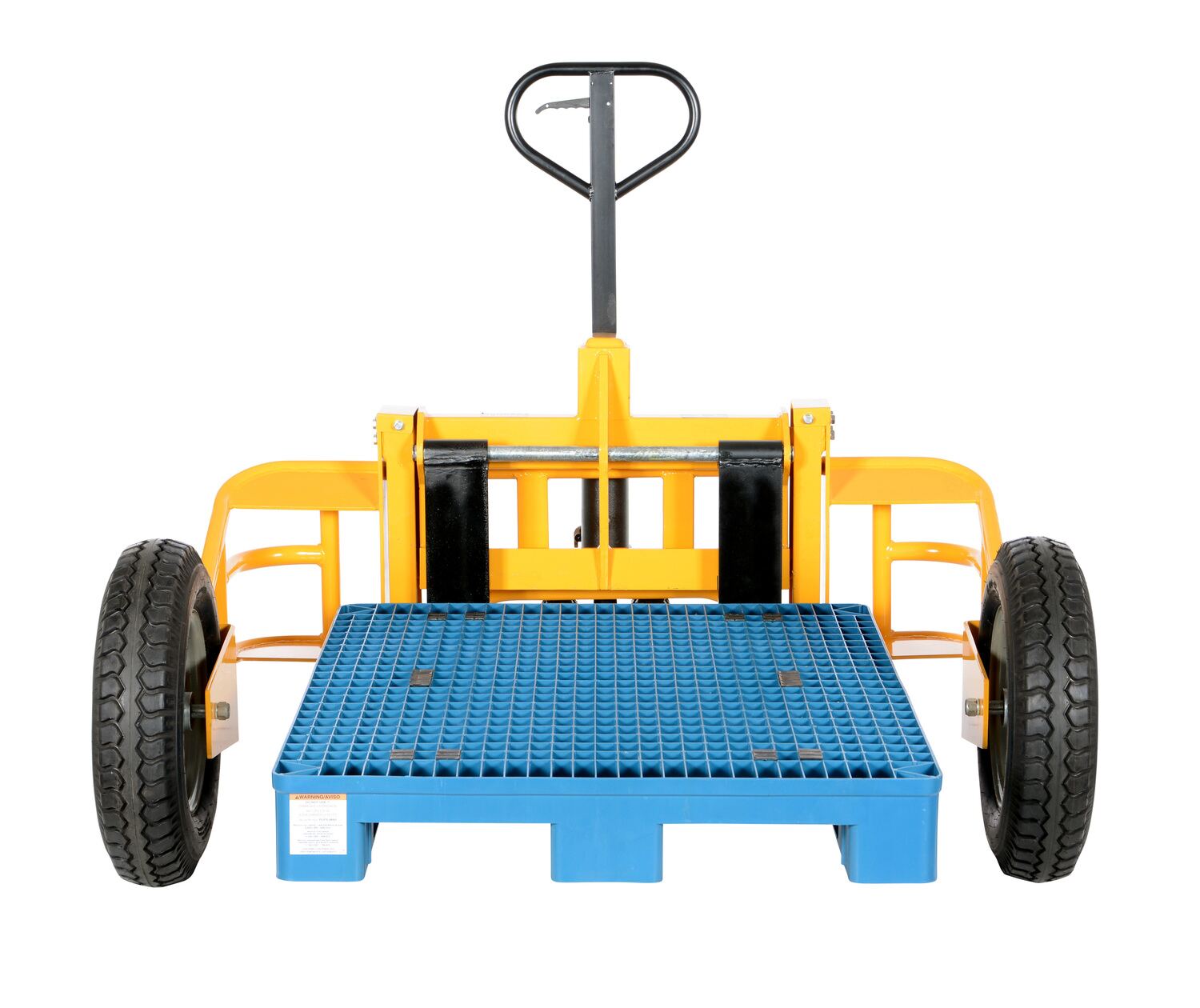

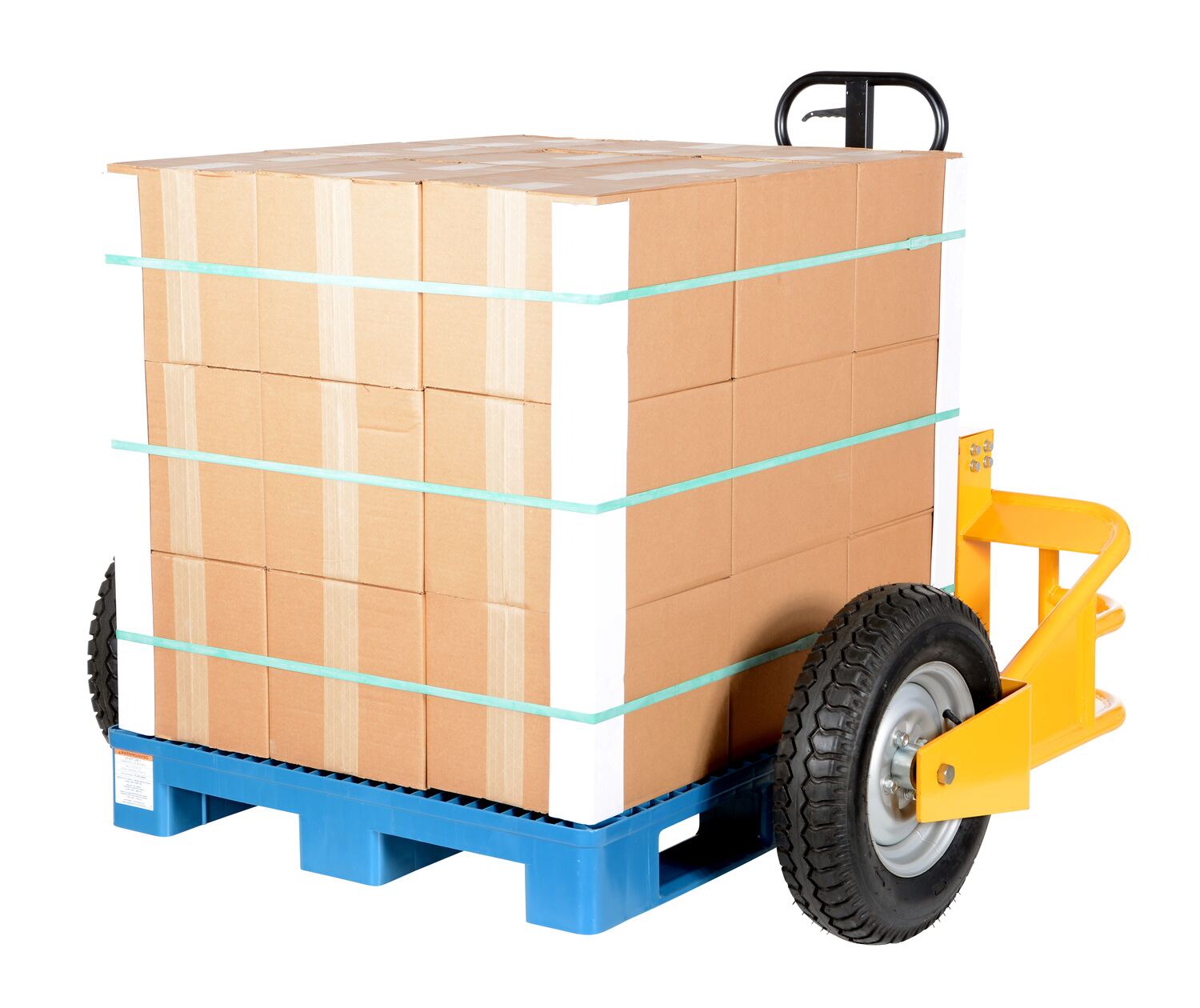

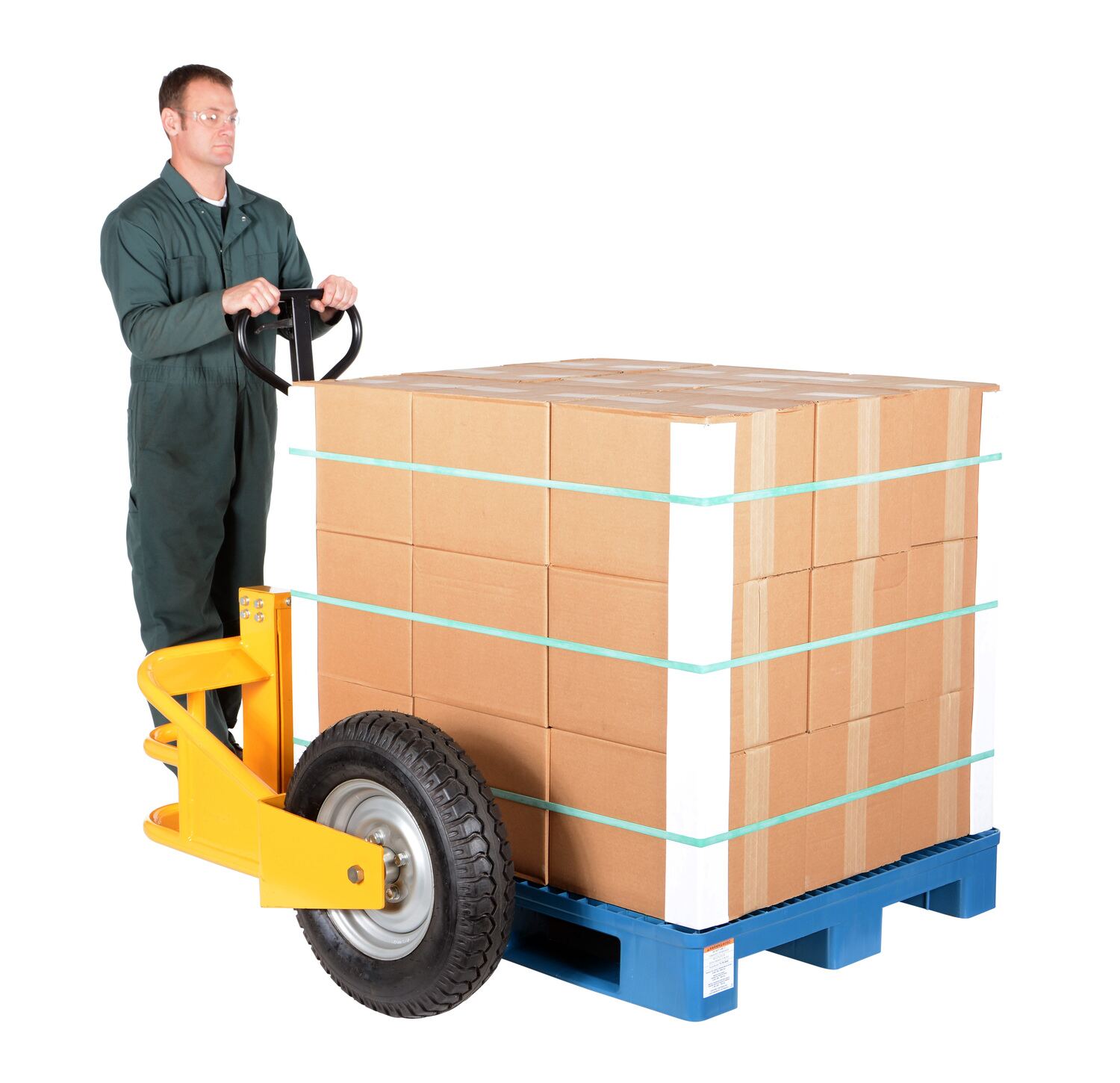

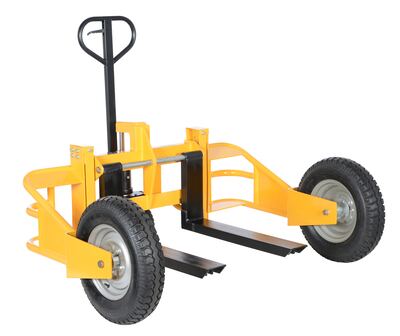

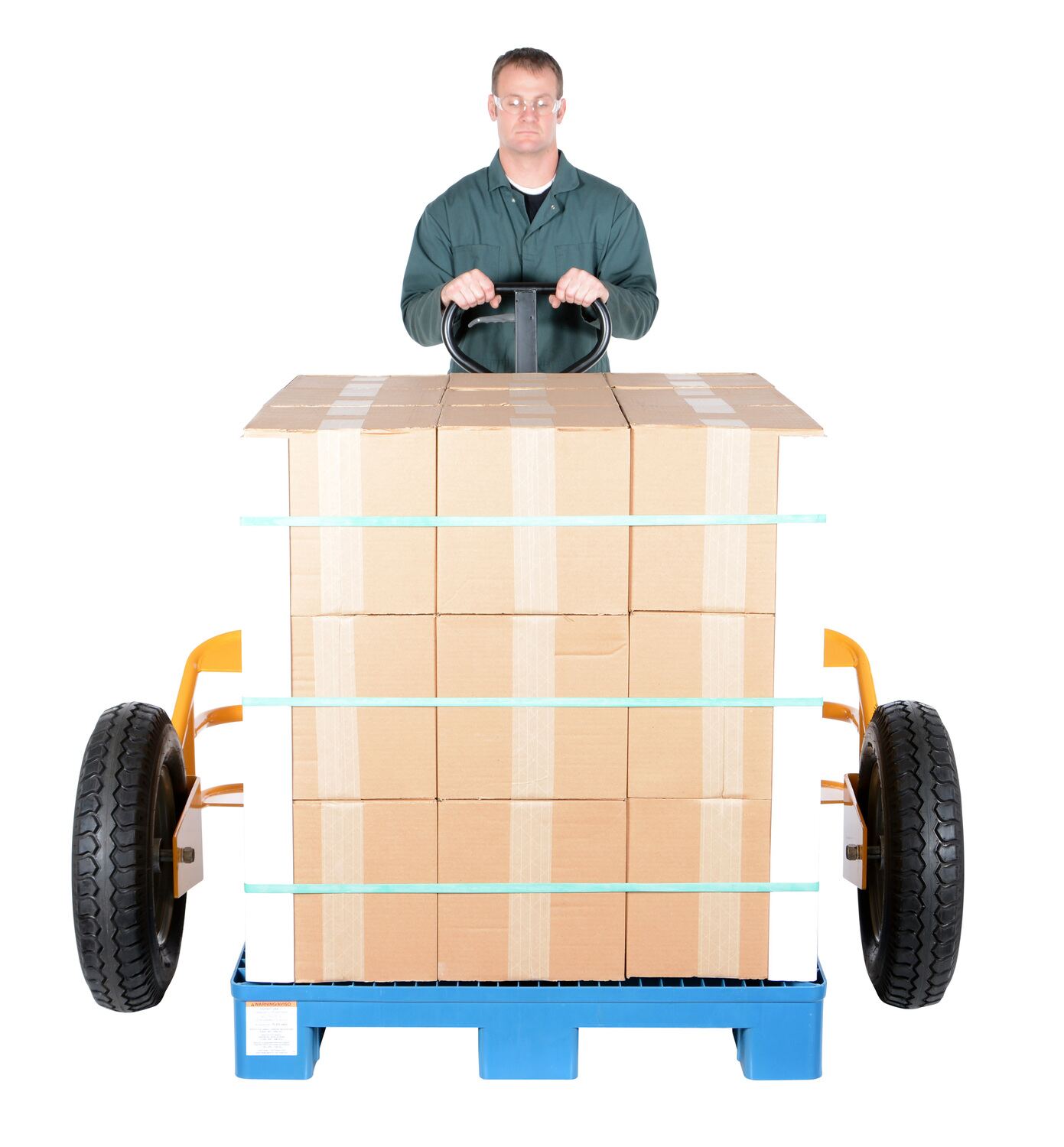

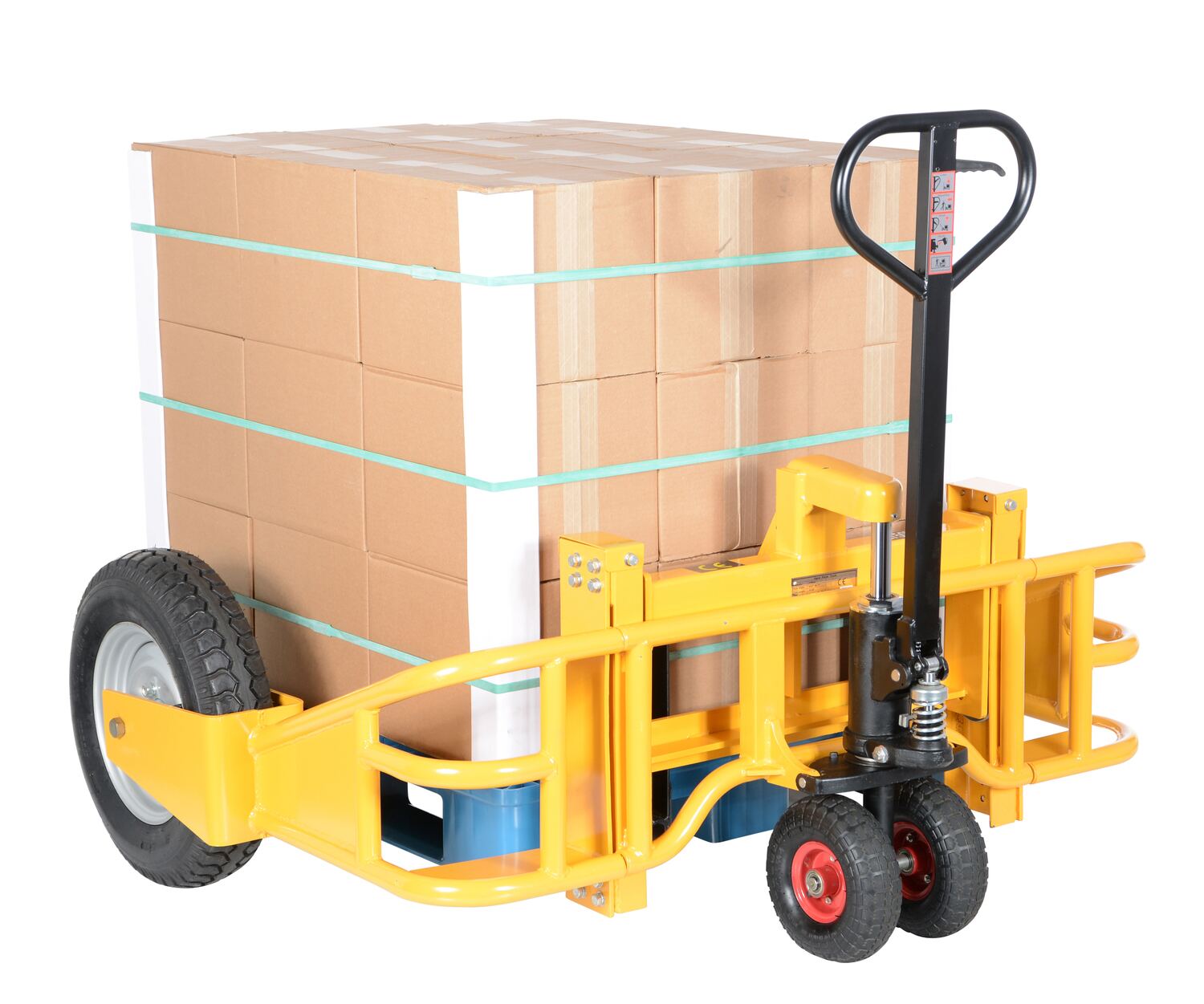

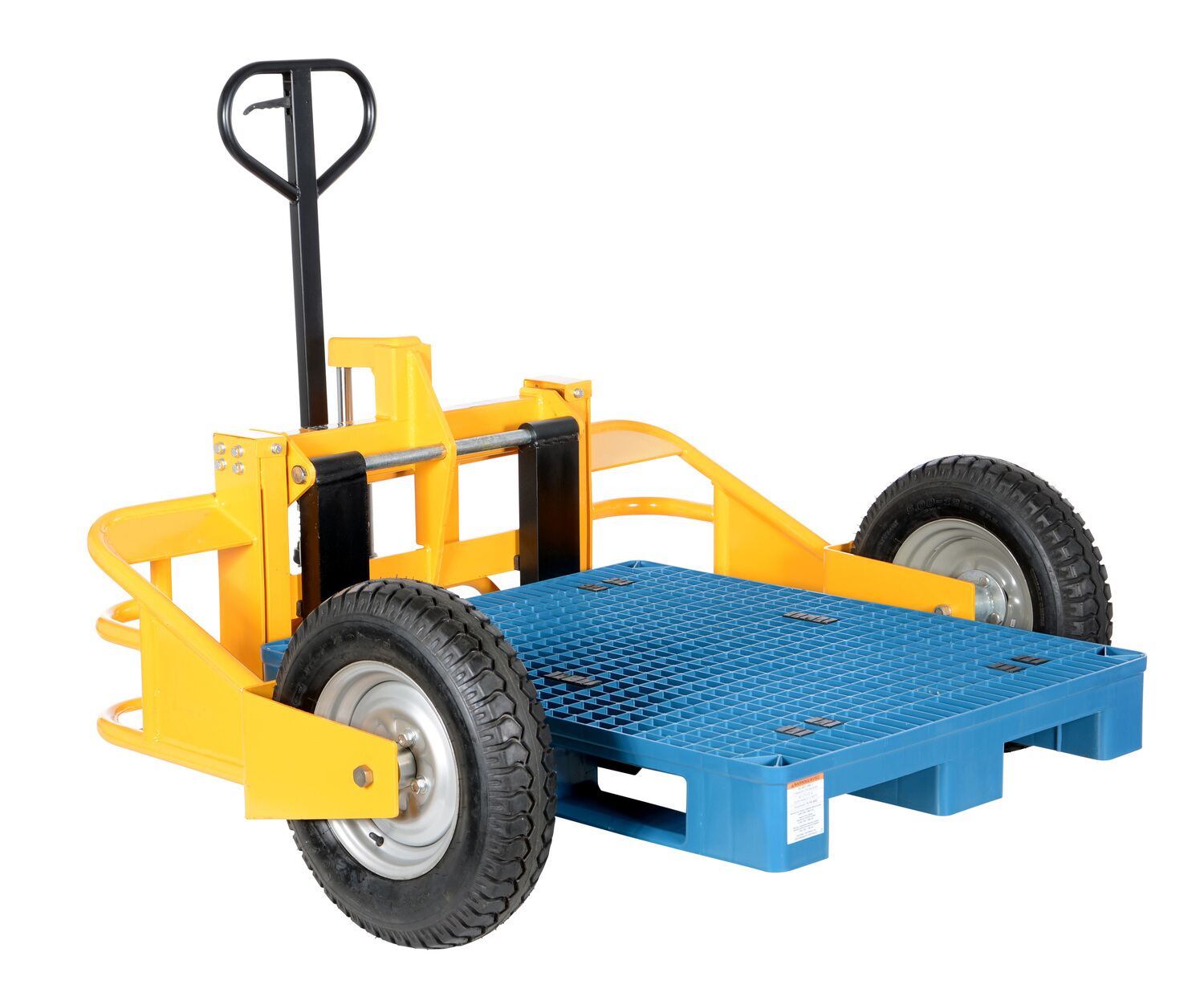

Steel All-Terrain Pallet Truck 32 In. Fork Length 2500 Lb. Capacity Yellow

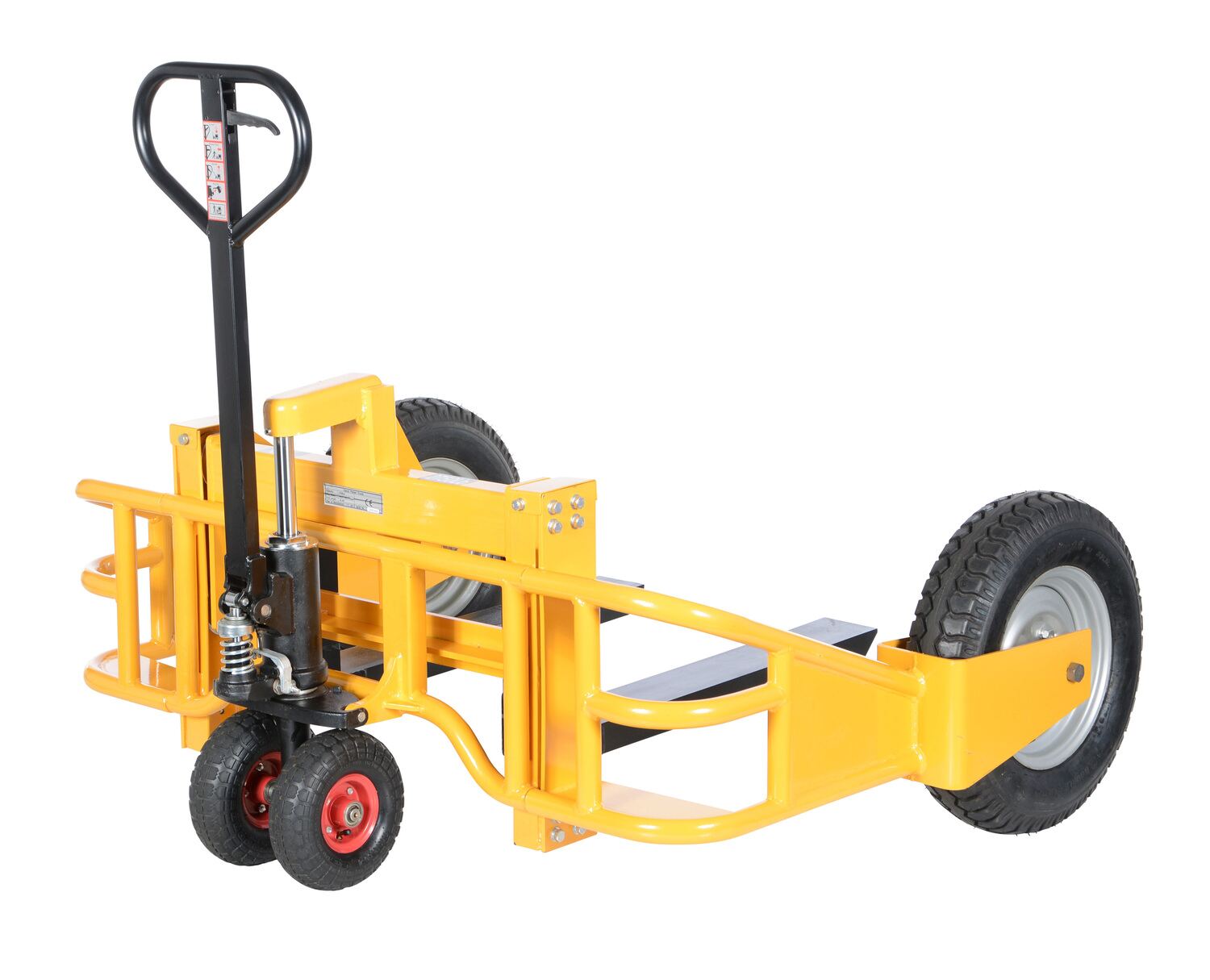

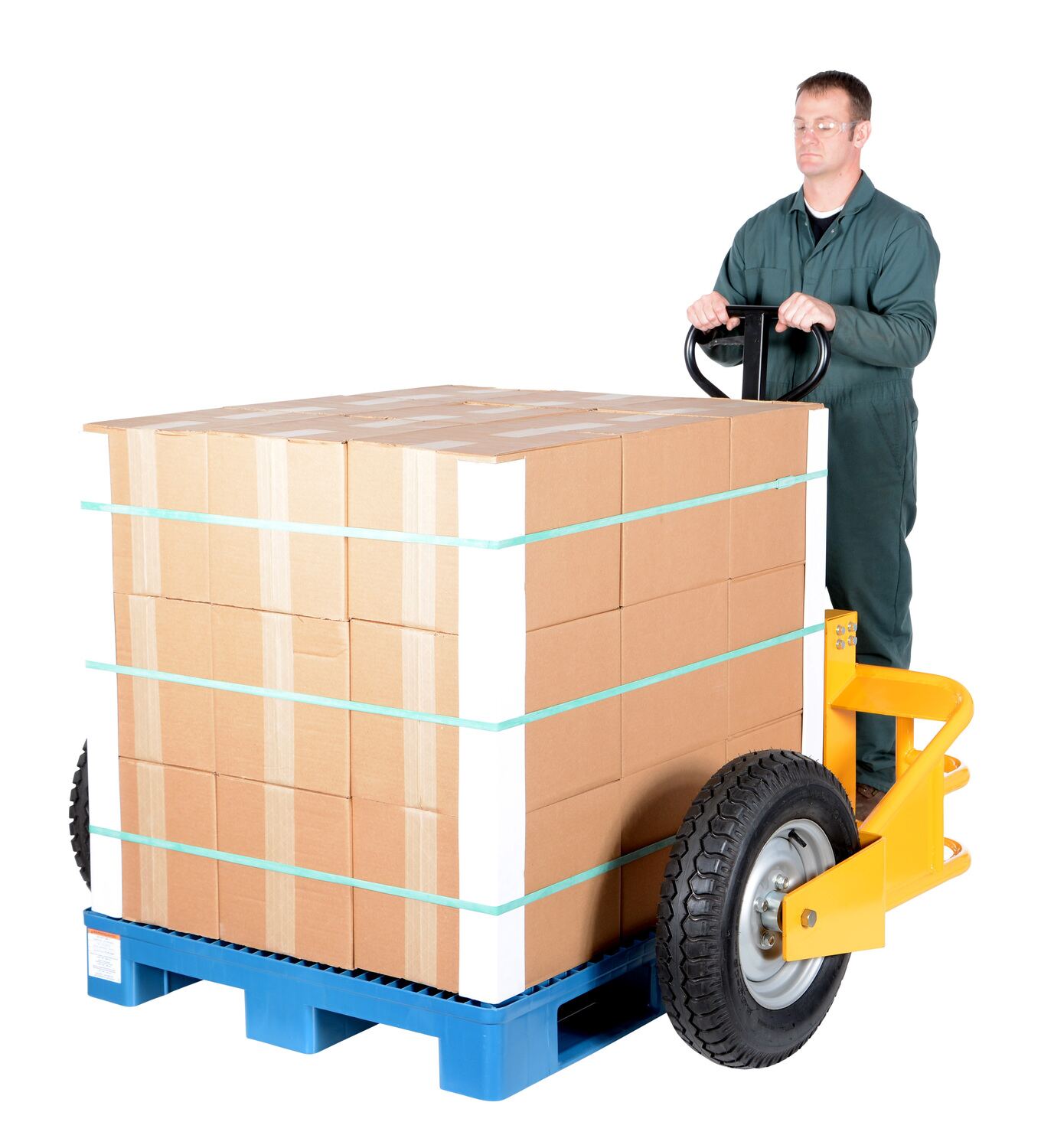

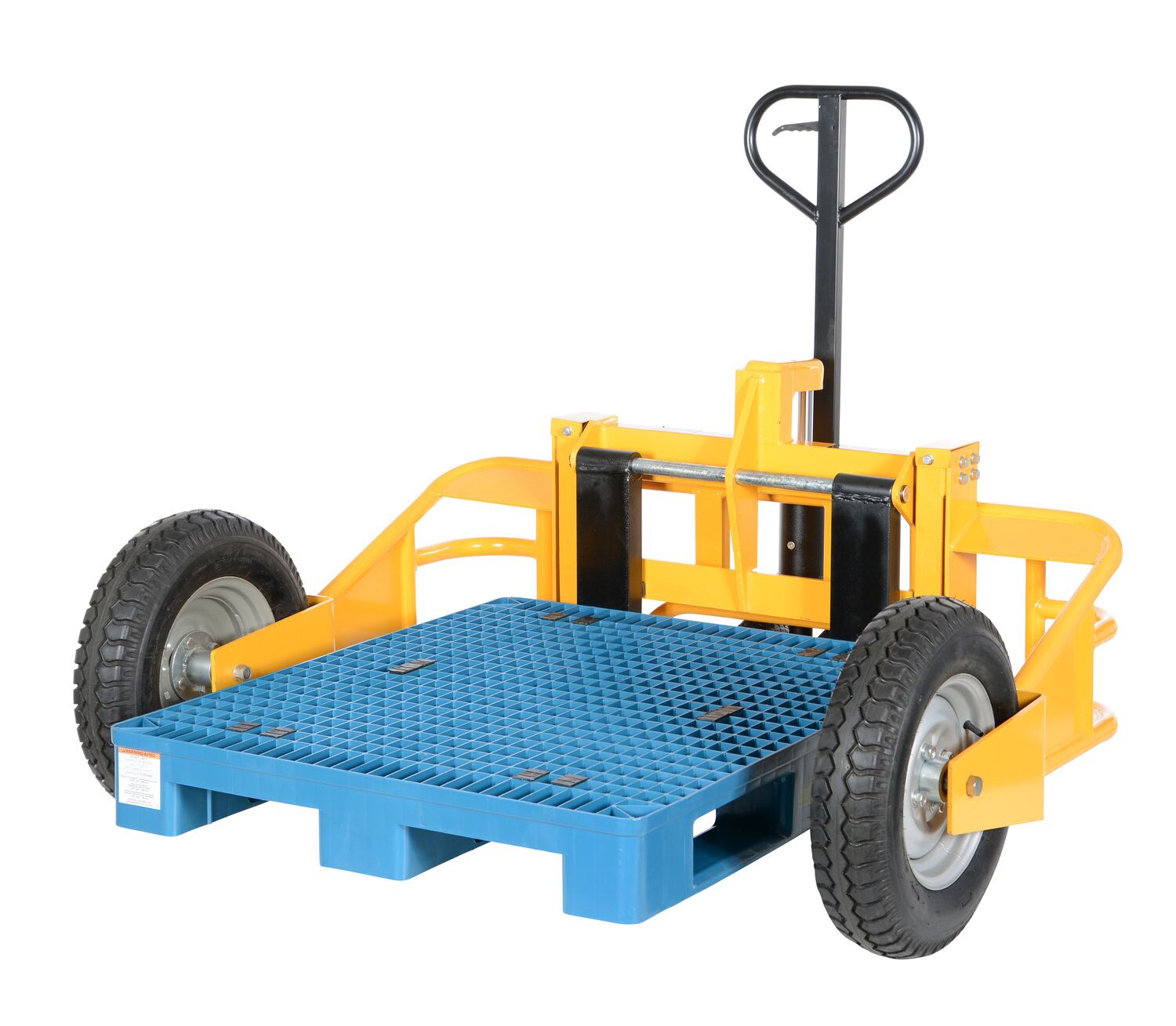

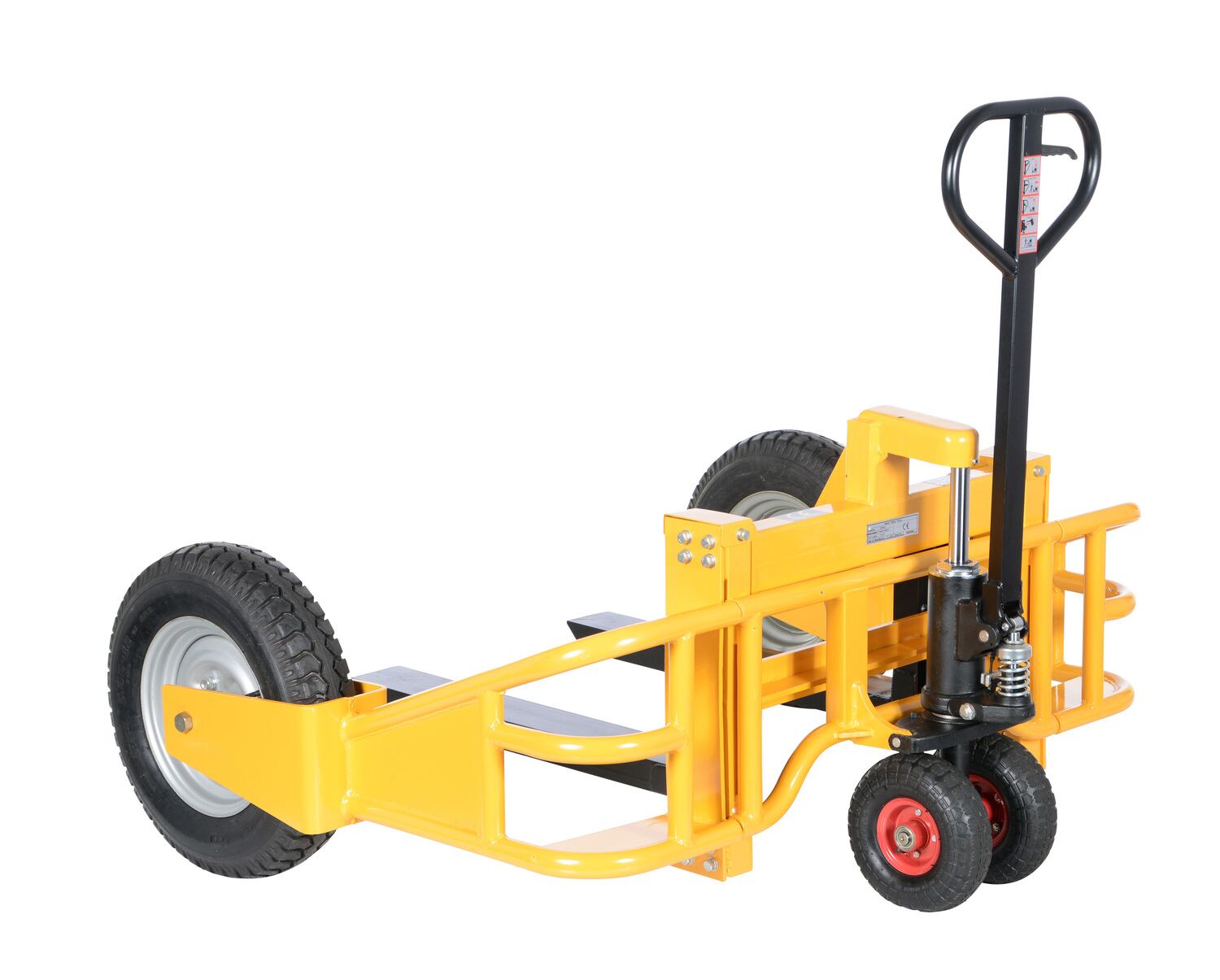

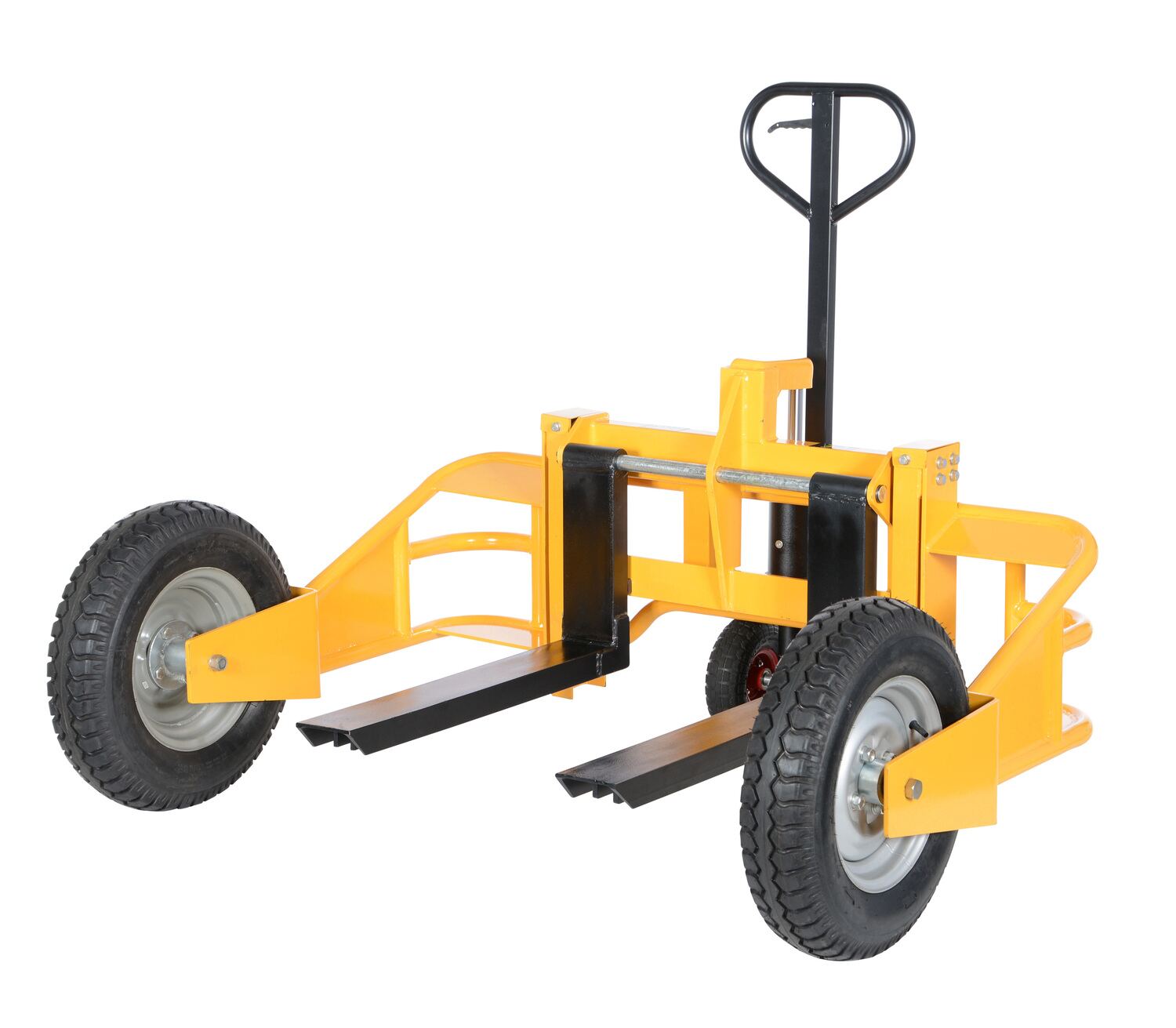

The all terrain pallet truck is lightweight yet the strong tubular frame design handles evenly distributed loads. The large wheels allow for movement over most surfaces. Unit is great for use at construction sites, gravel pits, and nurseries. It's easy to operate with three position handle, up, down, and neutral. Unit rolls on pneumatic front tires and pneumatic steering wheels.

  • Lightweight yet the strong tubular frame design handles evenly distributed loads
  • Large wheels allow for movement over most surfaces
  • Three position handle( up, down, and neutral) make it easy to operate
  • Pneumatic tires create smooth maneuverability
Total Ship Wt.(lbs.): 546 (only 1 package) Size: 64"W x 50"L x 51"H Color: Yellow

Uniform Capacity (lb.) at 12 (in.) Horizontal Load Center: 2,500 Uniform Capacity (lb.) at 15 (in.) Horizontal Load Center: 2,000 Uniform Capacity (lb.) at 24 (in.) Horizontal Load Center: 1,500
Adjustable Fork Width Minimum (in.): 12 Adjustable Fork Width Maximum (in.): 26-3/4 Fork Length (in.): 32
Lowered Height (in.): 3 Raised Height (in.): 9 Individual Fork Width (in.): 4-3/4
Individual Fork Height (in.): 2 Front Tire Diameter (in.): 22 Back Steering Wheel Diameter (in.): 10
Inside Straddle (in.): 48 Outside Straddle (in.): 64 Operation: Hand Pump
Handle Length (in.): 32 Handle Material: Steel Load Center (in.): 12
Type: Heavy Duty

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: ALL-T-HD
ALL-T-HD

Steel All-Terrain Pallet Truck 32 In. Fork Length 2500 Lb. Capacity Yellow

The all terrain pallet truck is lightweight yet the strong tubular frame design handles evenly distributed loads. The large wheels allow for movement over most surfaces. Unit is great for use at construction sites, gravel pits, and nurseries. It's easy to operate with three position handle, up, down, and neutral. Unit rolls on pneumatic front tires and pneumatic steering wheels.

  • Lightweight yet the strong tubular frame design handles evenly distributed loads
  • Large wheels allow for movement over most surfaces
  • Three position handle( up, down, and neutral) make it easy to operate
  • Pneumatic tires create smooth maneuverability
Dimensions: 64"W x 50"L x 51"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215075701 GTIN: 00691215075701
Warranty: -- Shipping Weight: 546 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.) at 12 (in.) Horizontal Load Center: 2,500 Uniform Capacity (lb.) at 15 (in.) Horizontal Load Center: 2,000 Uniform Capacity (lb.) at 24 (in.) Horizontal Load Center: 1,500
Adjustable Fork Width Minimum (in.): 12 Adjustable Fork Width Maximum (in.): 26-3/4 Fork Length (in.): 32
Lowered Height (in.): 3 Raised Height (in.): 9 Individual Fork Width (in.): 4-3/4
Individual Fork Height (in.): 2 Front Tire Diameter (in.): 22 Back Steering Wheel Diameter (in.): 10
Inside Straddle (in.): 48 Outside Straddle (in.): 64 Operation: Hand Pump
Handle Length (in.): 32 Handle Material: Steel Load Center (in.): 12
Type: Heavy Duty
