All Terrain Pallet Trucks

- - - -

Description
Model Chart
Options
PDF's
Image Gallery
ALL-T-2_A.jpg ALL-T-2_B.jpg ALL-T-2_C.jpg ALL-T-2_D.jpg
ALL-T-2_E.jpg ALL-T-2_F.jpg ALL-T-2_G.jpg ALL-T-2_Z.gif
All Terrain Pallet Trucks

model: ALL-T-2



Featured Ergonomic Solutions


All Terrain Pallet Trucks
Mechanical Scissor Cart (partially stainless steel)
Tilt Master & Tilt Master Straddle
Lift & Tilt Cart with Sequence Select (partially stainless steel)
Manual Adjustable Ergonomic Work Benches
Low Profile Electric/Hydraulic Scissor Lift Tables
Powered Stacker with Power Drive, Power Lift, & Power Fork Reach
Linearizer Electric Worker Platforms
Pneumatic Scissor Lift Table
model chart

Product Family Overview

Print Friendly

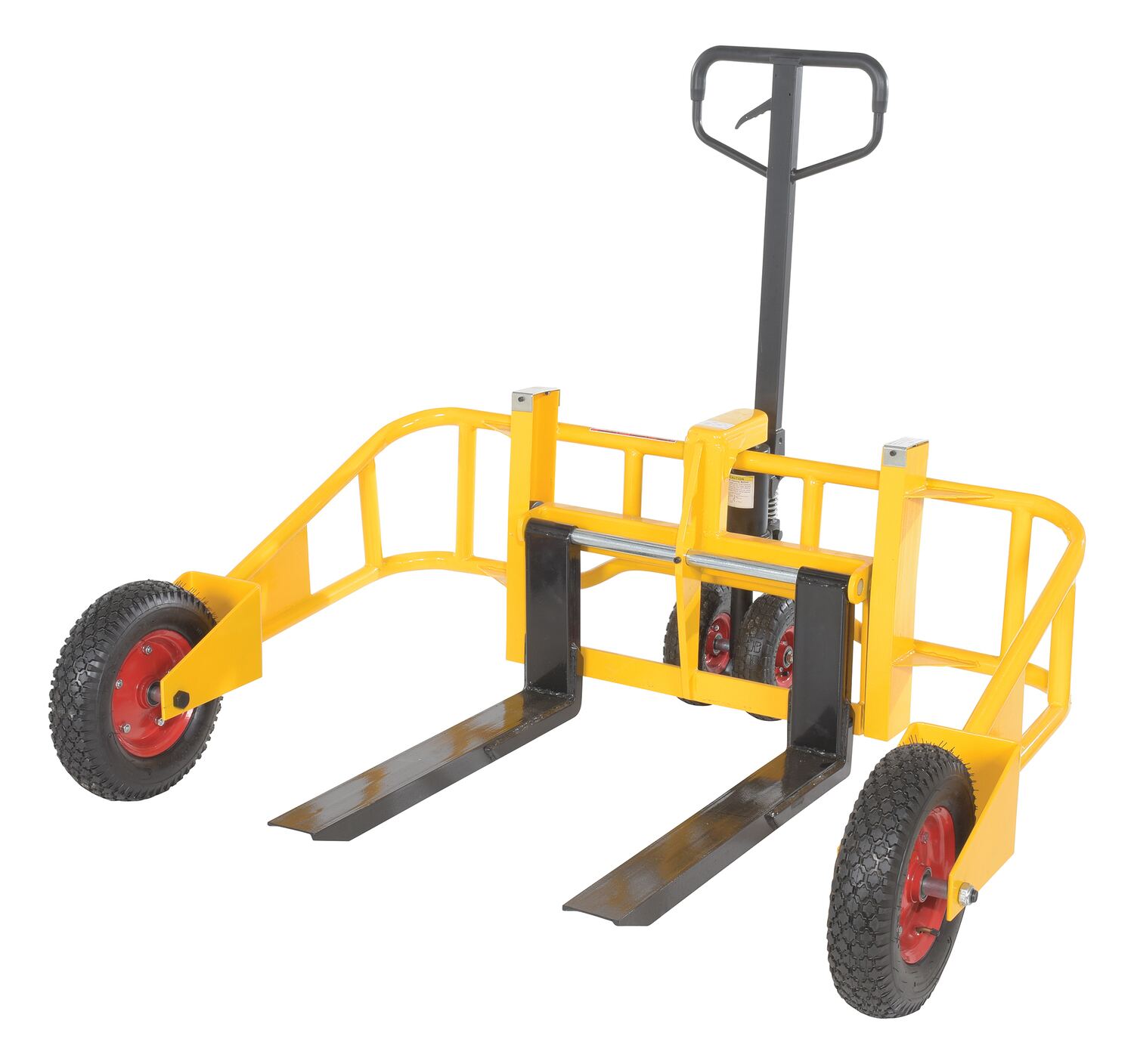

All Terrain Pallet Trucks
SERIES: ALL-T

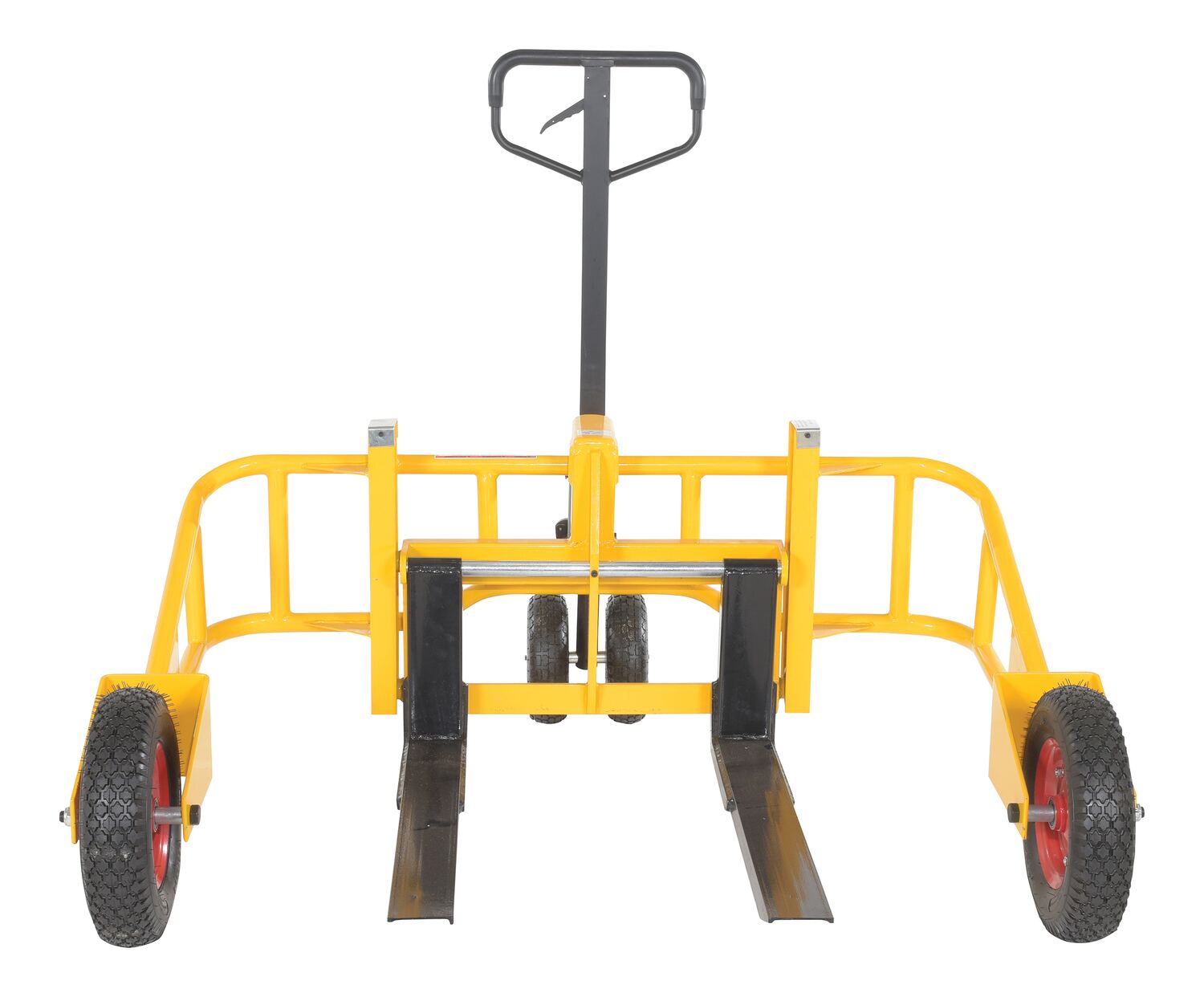

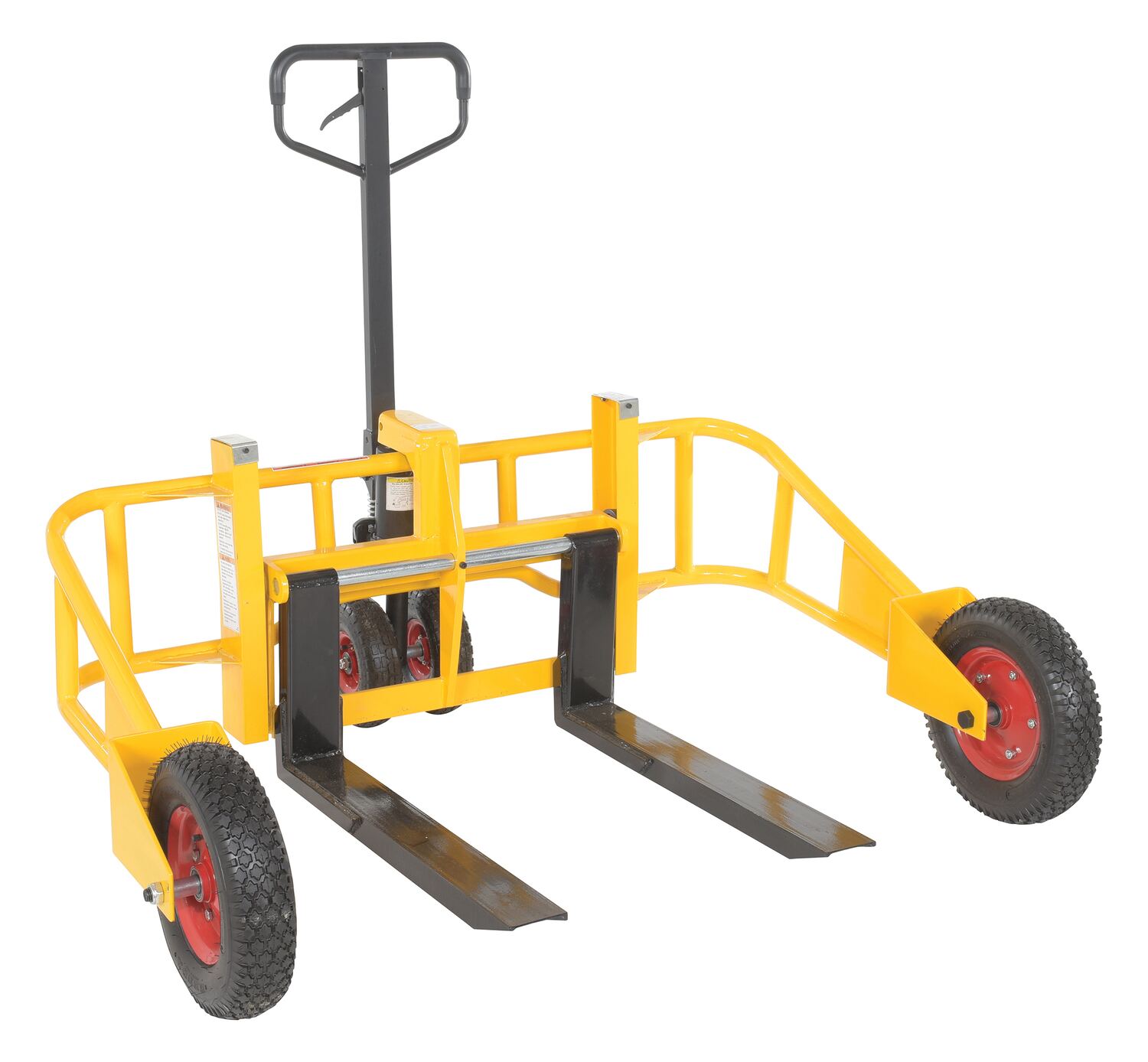

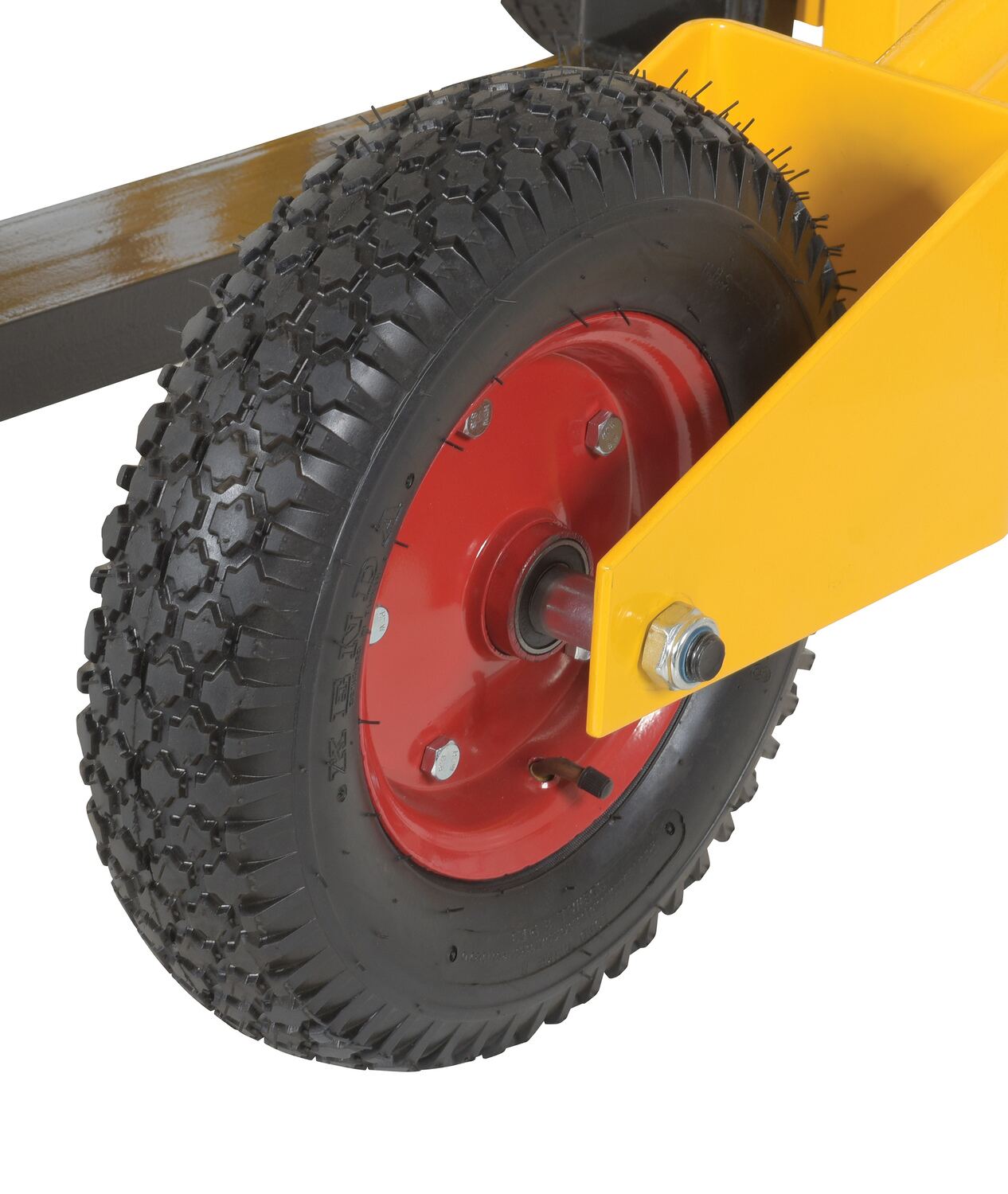

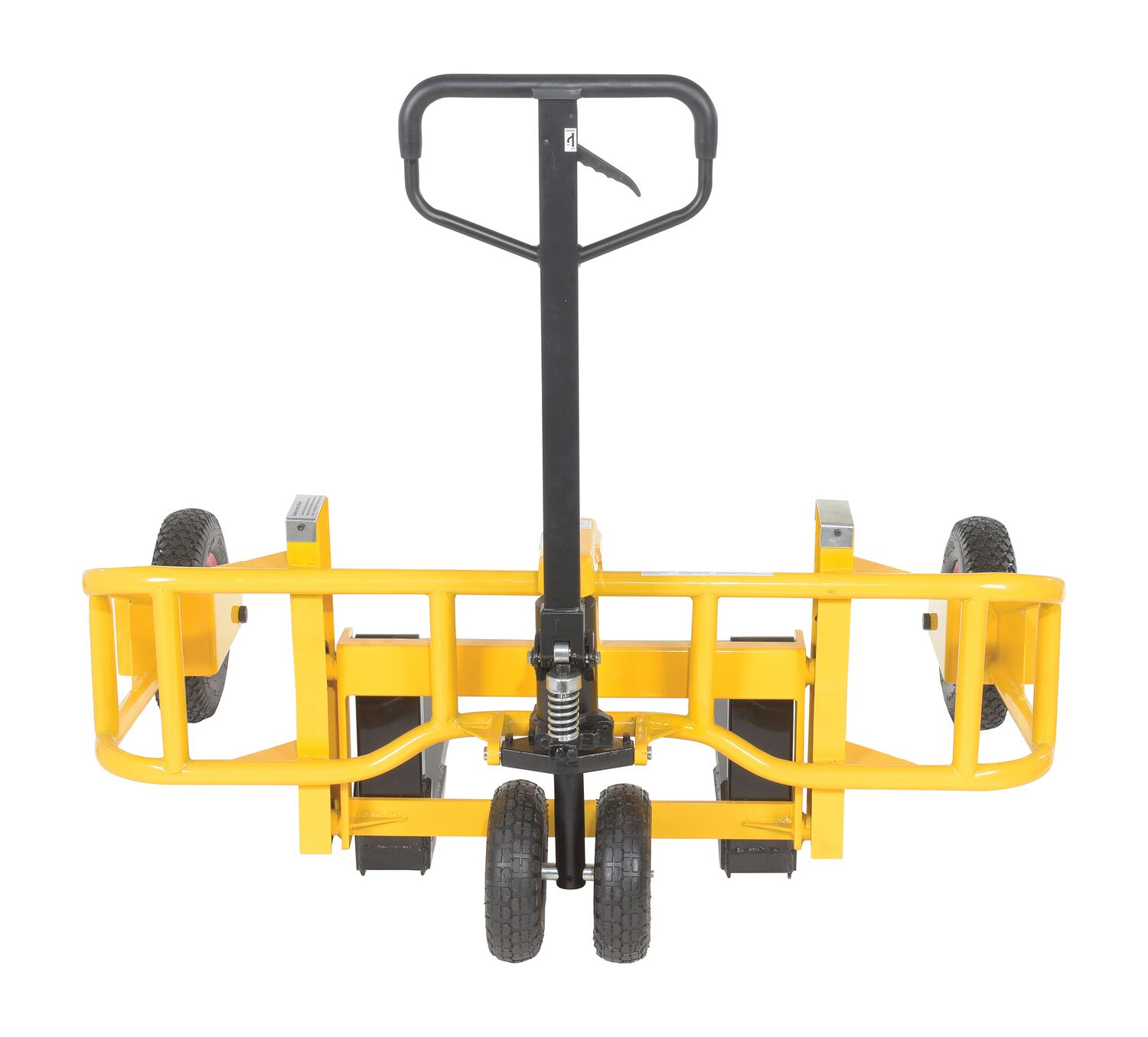

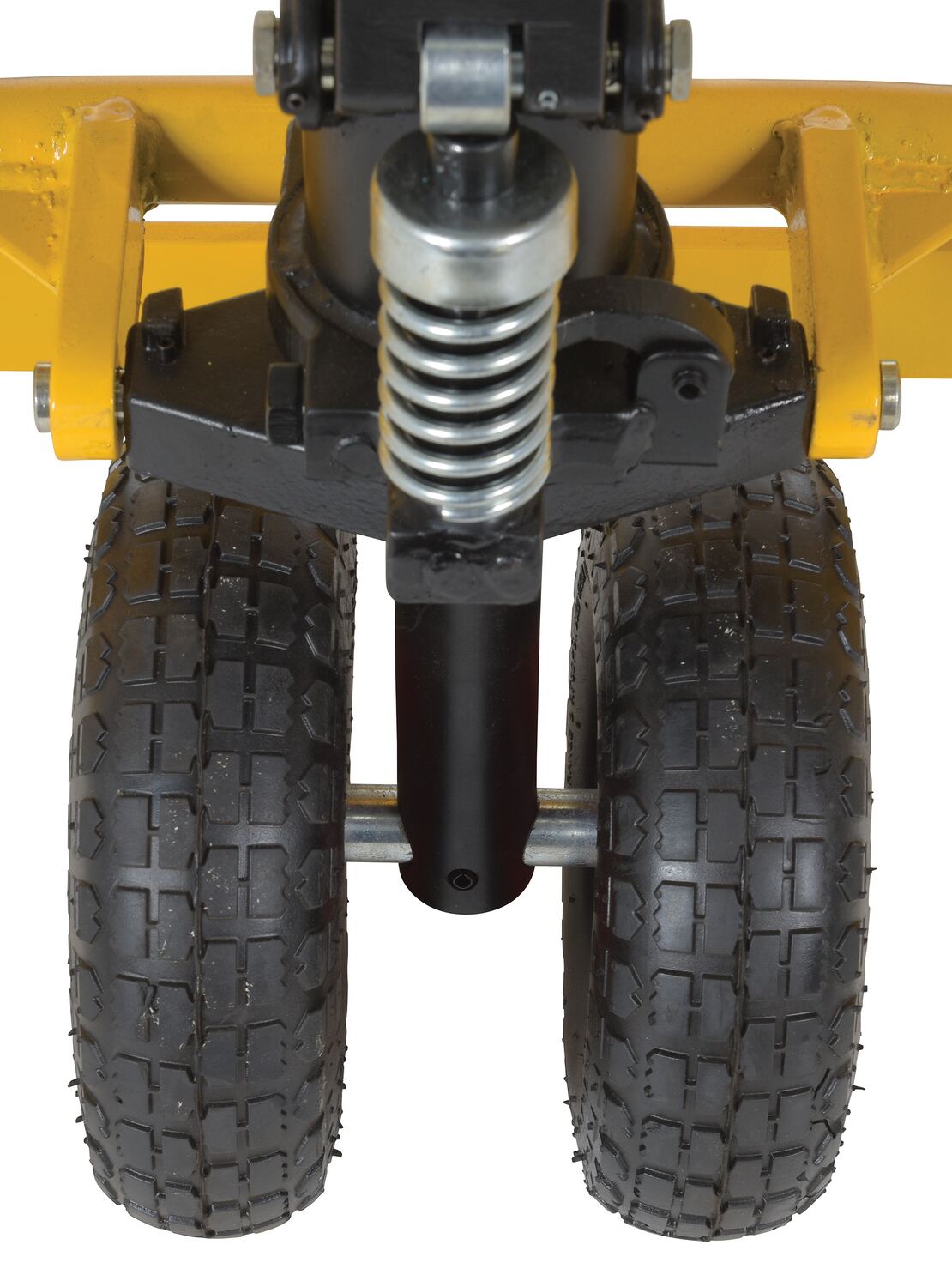

ALL-T-FORKS.jpgThis lightweight, yet strong tubular frame design handles evenly distributed loads. Large wheels allow for movement over most surfaces. Use at construction sites, gravel pits, and nurseries. Features large 16" front pneumatic tires (22" on ALL-T-HD) and 10" pneumatic steering wheels. Individual forks are 4"W x 2"H (4-3/4"W on ALL-T-HD). Easy to operate with three position handle (UP, DOWN, and NEUTRAL). Usable width between outriggers is 48".

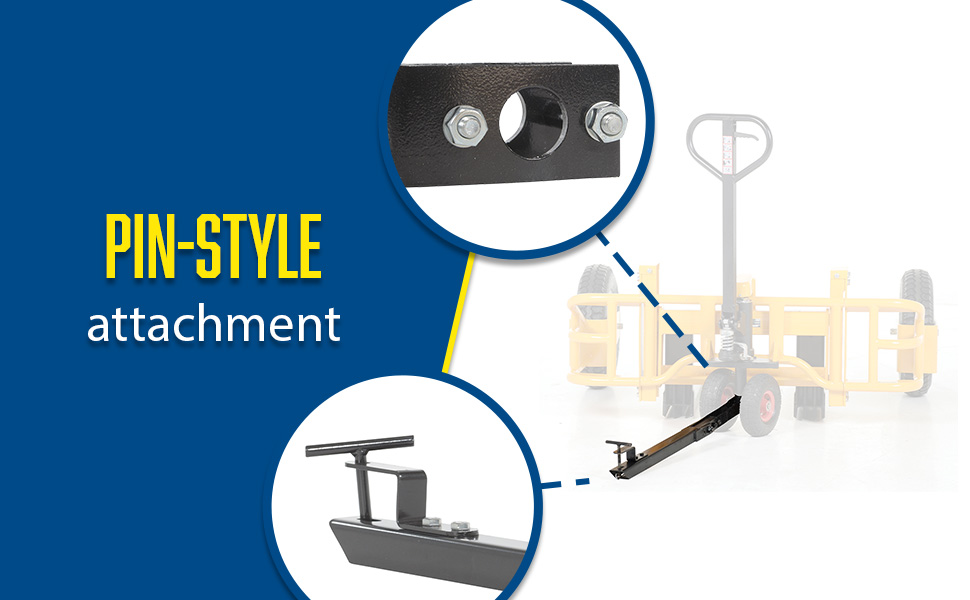

Optional Tow Bar package allows unit to be towed by an ATV or small utility tractor. Designed for pulling in either loaded or unloaded position.

For model ALL-T-2, the recommended PSI for the large front tires is 36. The Steering Tires have a 30 PSI recommendation.

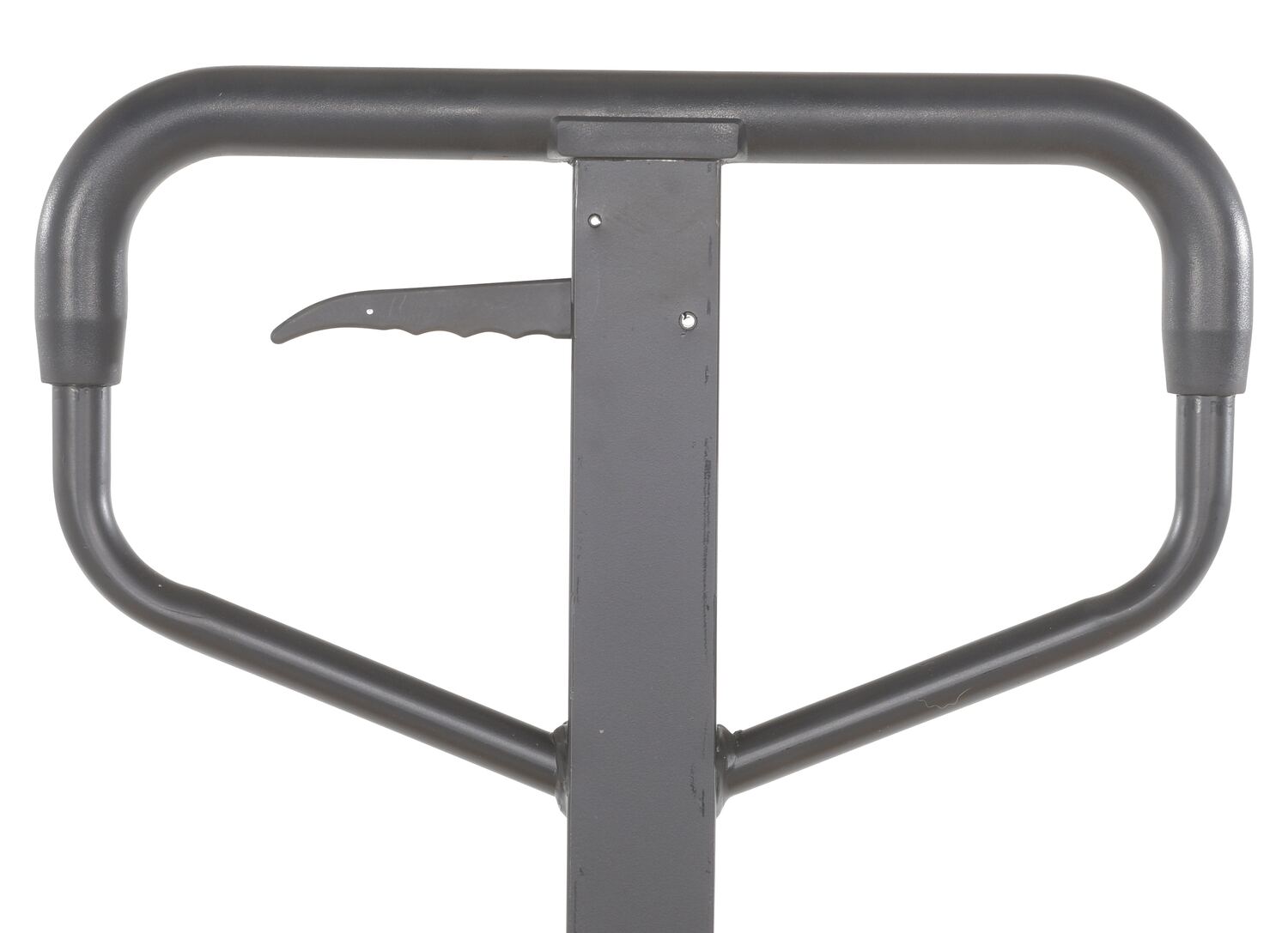

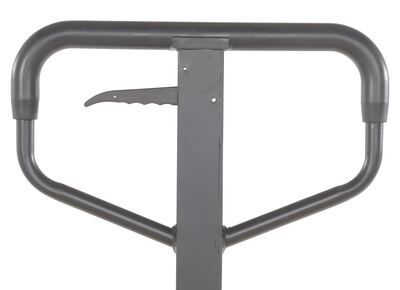

  • Three position handle makes operation easy
  • Unique design easily rolls on pneumatic tires
  • Welded steel tubular frame construction provides maximum strength
  • Sealed bearing wheels provide dust protection and long life

ALL-T-FORKS.jpgThis lightweight, yet strong tubular frame design handles evenly distributed loads. Large wheels allow for movement over most surfaces. Use at construction sites, gravel pits, and nurseries. Features large 16" front pneumatic tires (22" on ALL-T-HD) and 10" pneumatic steering wheels. Individual forks are 4"W x 2"H (4-3/4"W on ALL-T-HD). Easy to operate with three position handle (UP, DOWN, and NEUTRAL). Usable width between outriggers is 48".

Optional Tow Bar package allows unit to be towed by an ATV or small utility tractor. Designed for pulling in either loaded or unloaded position.

For model ALL-T-2, the recommended PSI for the large front tires is 36. The Steering Tires have a 30 PSI recommendation.

  • Three position handle makes operation easy
  • Unique design easily rolls on pneumatic tires
  • Welded steel tubular frame construction provides maximum strength
  • Sealed bearing wheels provide dust protection and long life

Other Manual Pallet Trucks

 Standard Pallet Truck Pallet Trucks with P-CADDY Super Low Profile Pallet Trucks Pallet Trucks with Hand Brake

Additional Models In This Family
view entire Image Gallery

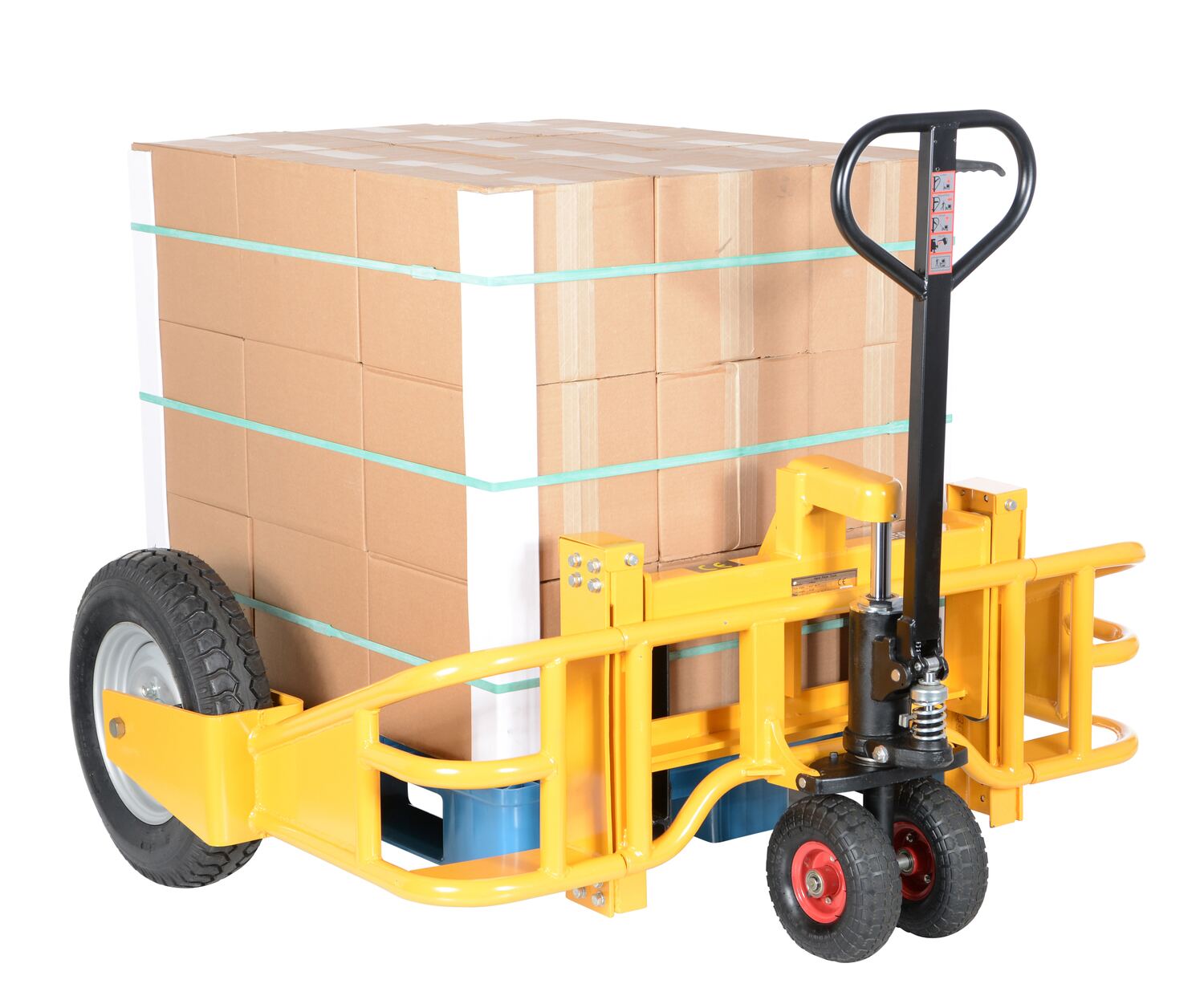

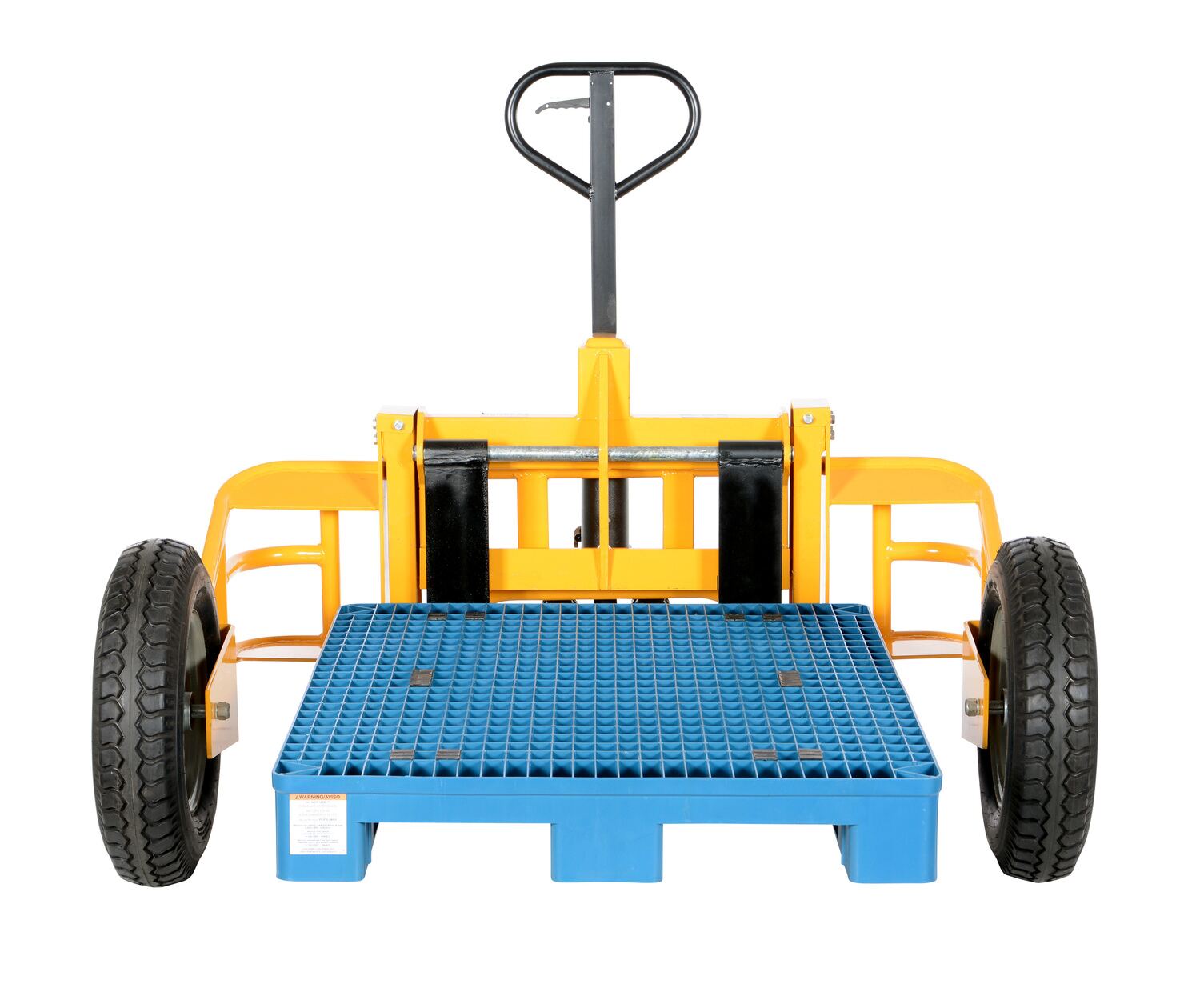

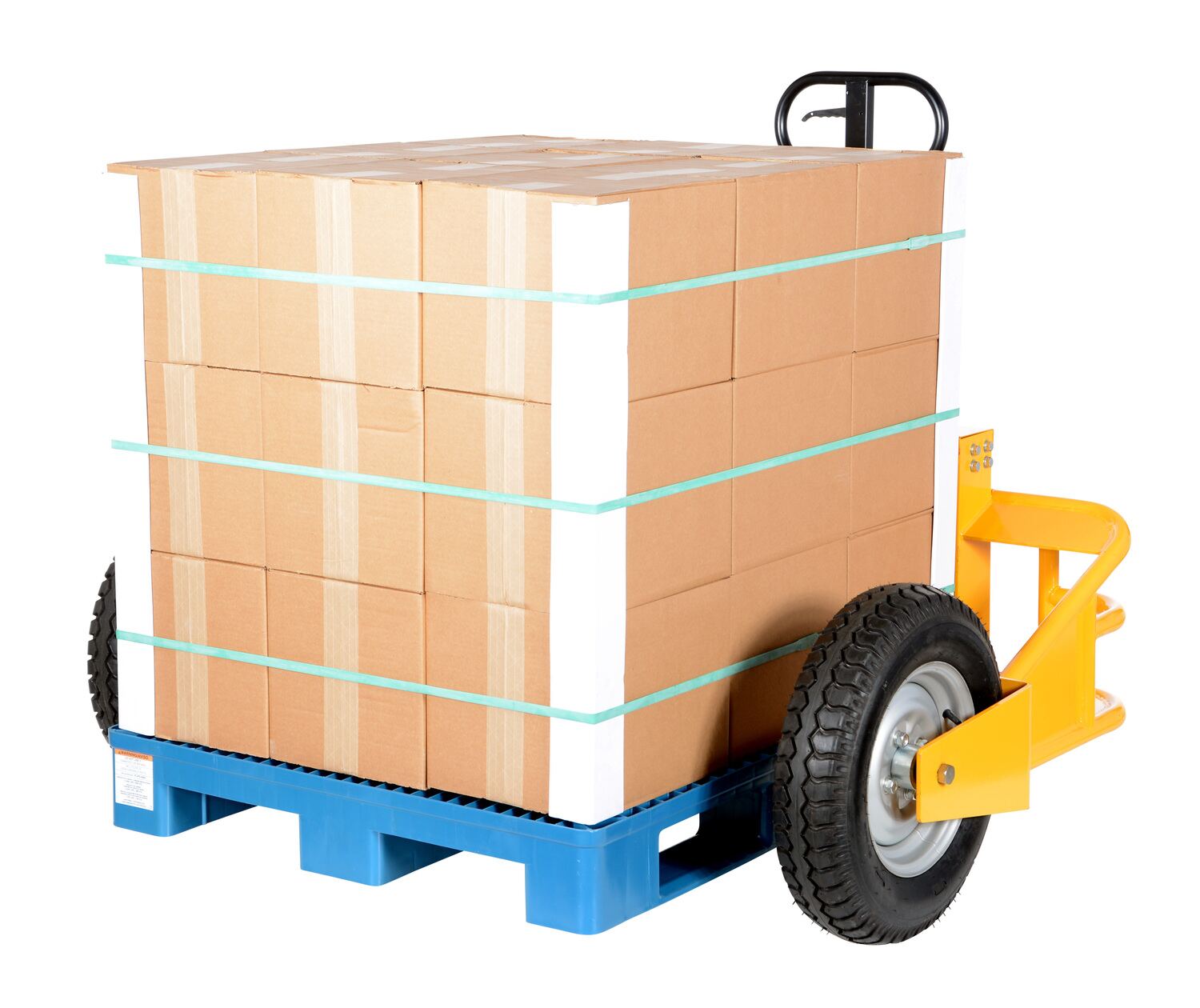

ALL-T-HD

ALL-T-HD

ALL-T-2

ALL-T-2

ALL-T-2

ALL-T-2

ALL-T-HD

ALL-T-HD

ALL-T-2

ALL-T-2

ALL-T-HD

ALL-T-HD

ALL-T-HD

ALL-T-HD

ALL-TTB

ALL-TTB

ALL-T-2

ALL-T-2

ALL-T-2-48

ALL-T-2-48

ALL-T-2

ALL-T-2

ALL-TTB

ALL-TTB

ALL-T-2

ALL-T-2

ALL-TTB

ALL-TTB

ALL-T-HD

ALL-T-HD

Applications



Construction Projects

Farming and Agriculture

Municipalities

Warehouses

Warehouses
model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
ALL-T-2 ALL-T-21 Year Limited WarrantySteel Manual All-Terrain Pallet Truck 32 In. Long Adjustable Width Forks 2,000 Lb. Capacity YellowUniform Capacity (lb.) at 12 (in.) Horizontal Load Center: 2,000
Uniform Capacity (lb.) at 15 (in.) Horizontal Load Center: 1,500		328

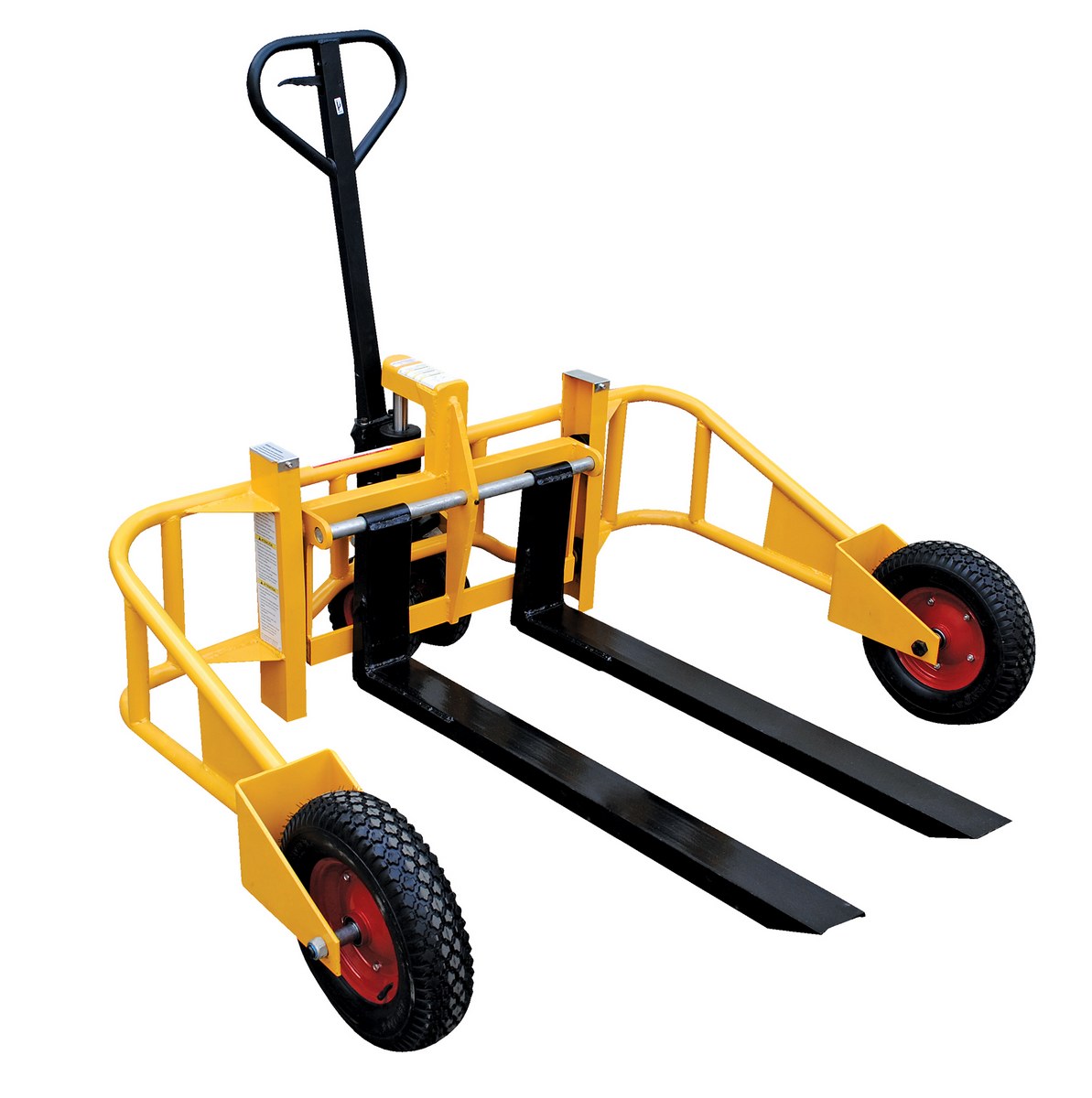

ALL-T-2-48 ALL-T-2-481 Year Limited WarrantySteel Manual All-Terrain Pallet Truck 48 In. Long Adjustable Width Forks 2,000 Lb. Capacity YellowUniform Capacity (lb.) at 24 (in.) Horizontal Load Center: 2,000
Uniform Capacity (lb.) at 27 (in.) Horizontal Load Center: 1,500		328

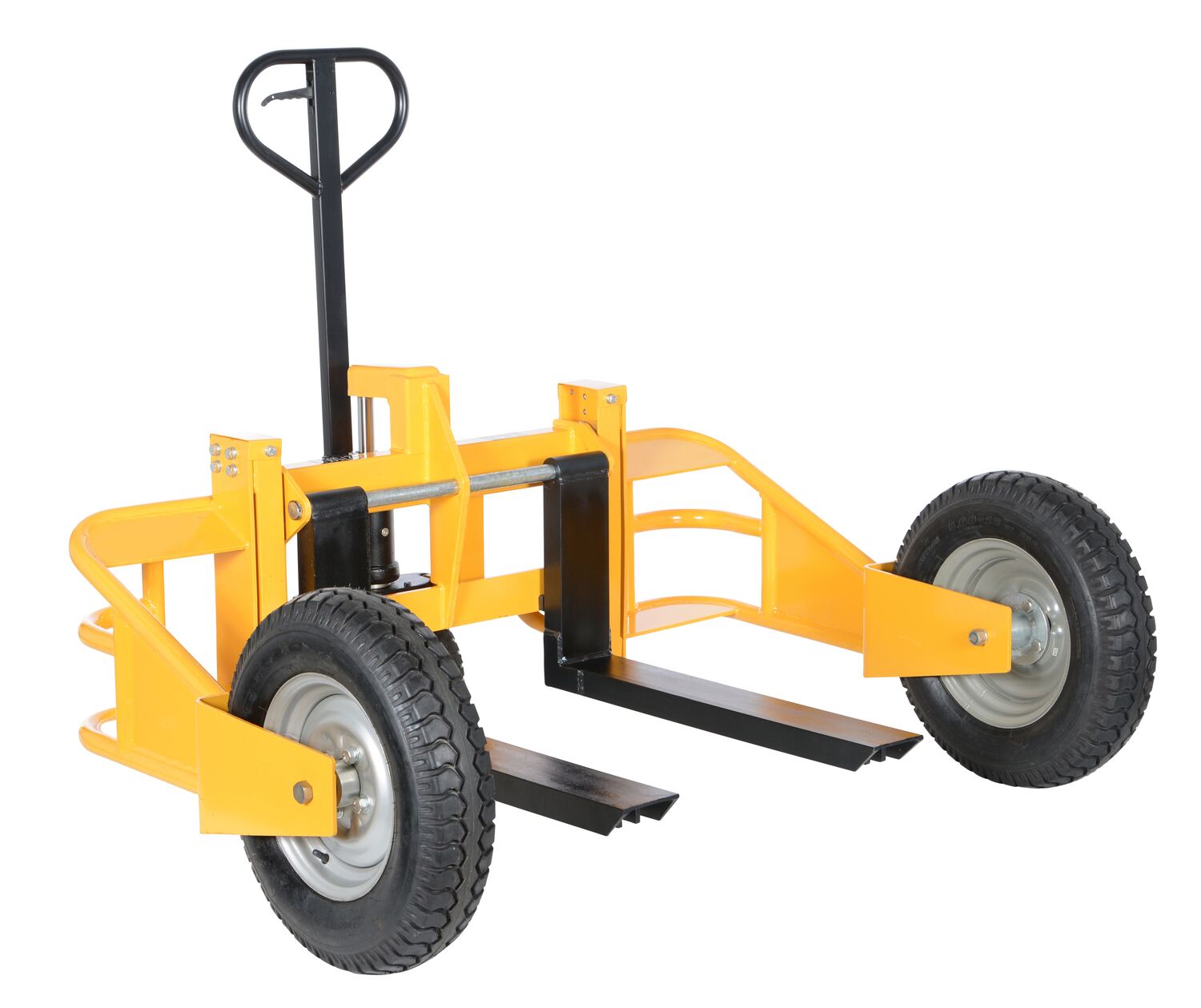

ALL-T-HD ALL-T-HD1 Year Limited WarrantySteel All-Terrain Pallet Truck 32 In. Fork Length 2500 Lb. Capacity YellowUniform Capacity (lb.) at 12 (in.) Horizontal Load Center: 2,500
Uniform Capacity (lb.) at 15 (in.) Horizontal Load Center: 2,000		546

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

ALL-T-2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.) at 12 (in.) Horizontal Load Center: 2,000
Uniform Capacity (lb.) at 15 (in.) Horizontal Load Center: 1,500
Uniform Capacity (lb.) at 12 (in.) Horizontal Load Center: 2,000
Uniform Capacity (lb.) at 15 (in.) Horizontal Load Center: 1,500

ALL-T-2-48
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.) at 24 (in.) Horizontal Load Center: 2,000
Uniform Capacity (lb.) at 27 (in.) Horizontal Load Center: 1,500
Uniform Capacity (lb.) at 24 (in.) Horizontal Load Center: 2,000
Uniform Capacity (lb.) at 27 (in.) Horizontal Load Center: 1,500

ALL-T-HD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.) at 12 (in.) Horizontal Load Center: 2,500
Uniform Capacity (lb.) at 15 (in.) Horizontal Load Center: 2,000
Uniform Capacity (lb.) at 12 (in.) Horizontal Load Center: 2,500
Uniform Capacity (lb.) at 15 (in.) Horizontal Load Center: 2,000
For More Details of the Option Click the Red Model Button

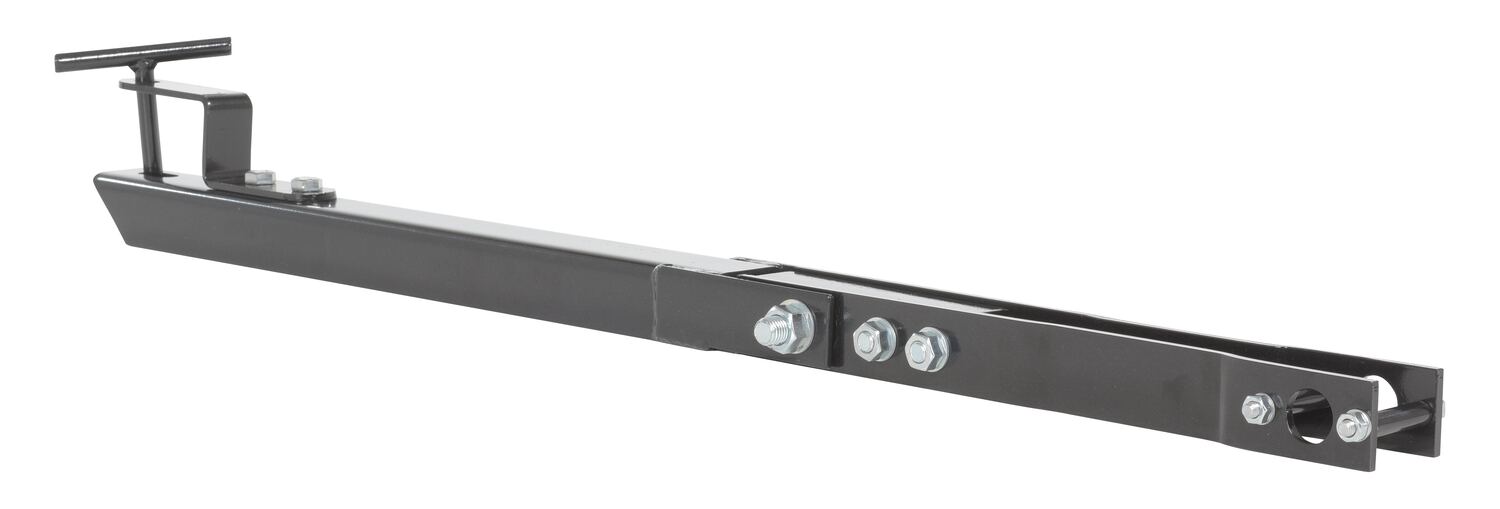

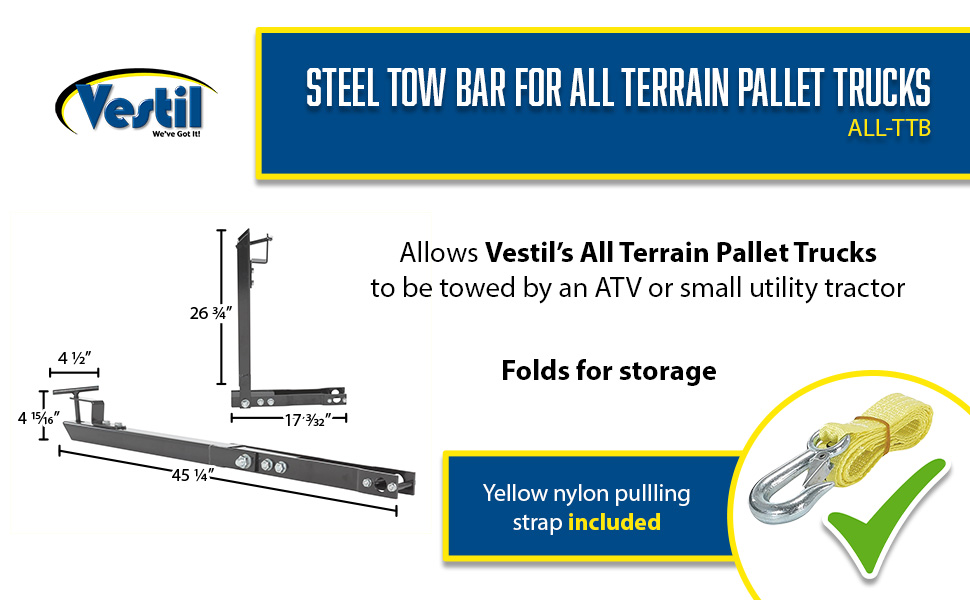

ALL-TTB ALL-TTB30 Days Limited WarrantySteel Tow Bar Package For All Terrain Pallet Trucks Black-
16

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
All Terrain Pallet Trucks PDF's will open in a new window when clicked.

Manuals


ALL-T-2
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


ALL-T-2

ALL-T-2-48

ALL-T-HD

ALL-TTB

Testing Certificates


ALL-T-2

ALL-T-2-48

ALL-T-HD

ALL-TTB

SDS Sheets

Hydraulic Oil SDS Sheet for: ALL-T-2
Hydraulic Oil SDS Sheet for: ALL-T-2-48
Hydraulic Oil SDS Sheet for: ALL-T-HD

Other PDF's


All Terrain Pallet Trucks Mailing Brochure

Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Q: What is the recommended PSI of the tires on the ALL-T-2-48?

A: It is marked on the side of the tires themselves. 36 PSI for the large tires and 30 PSI for the steer tires.

Q: What is the fork thickness of model ALL-T-2?

A: 2" at the heel and tapers down to 1/4" at the tip.

Q: What is the steering arc for model ALL-T-2?

A: 180 degrees
