Model Details

CBFC-2000

Printer Friendly
CBFC-2000

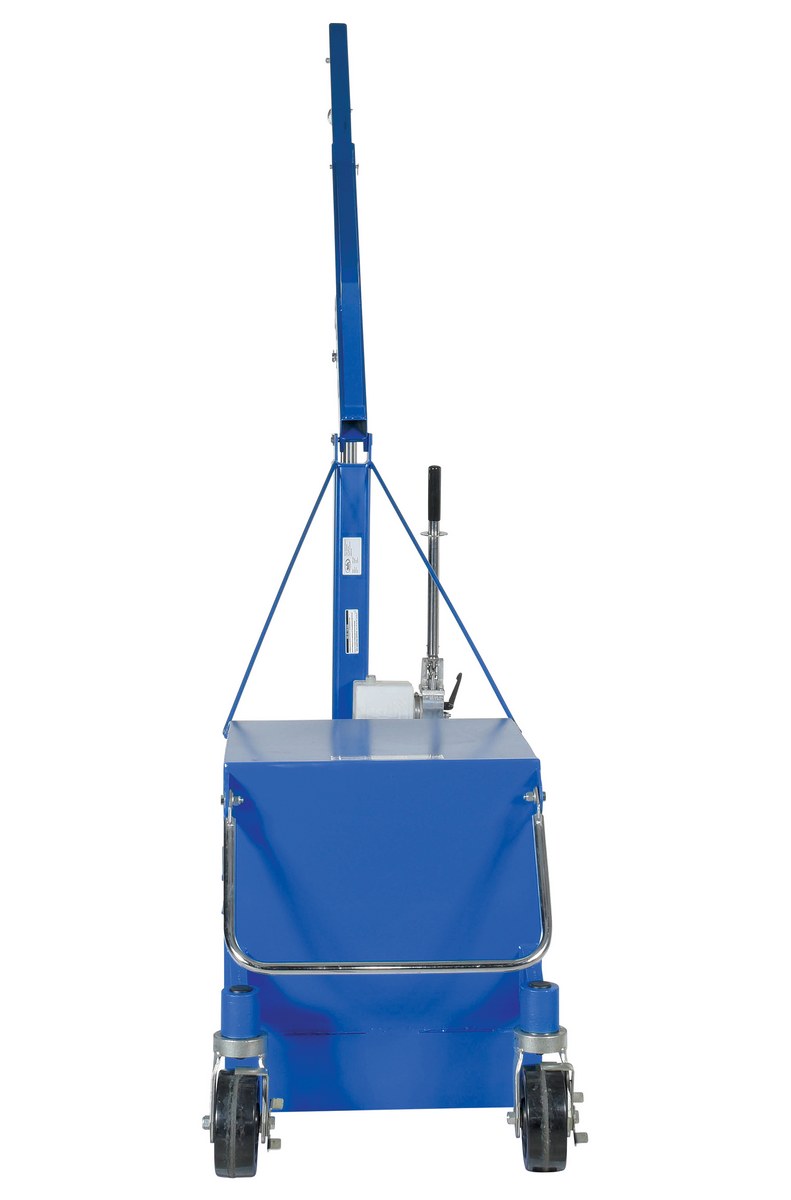

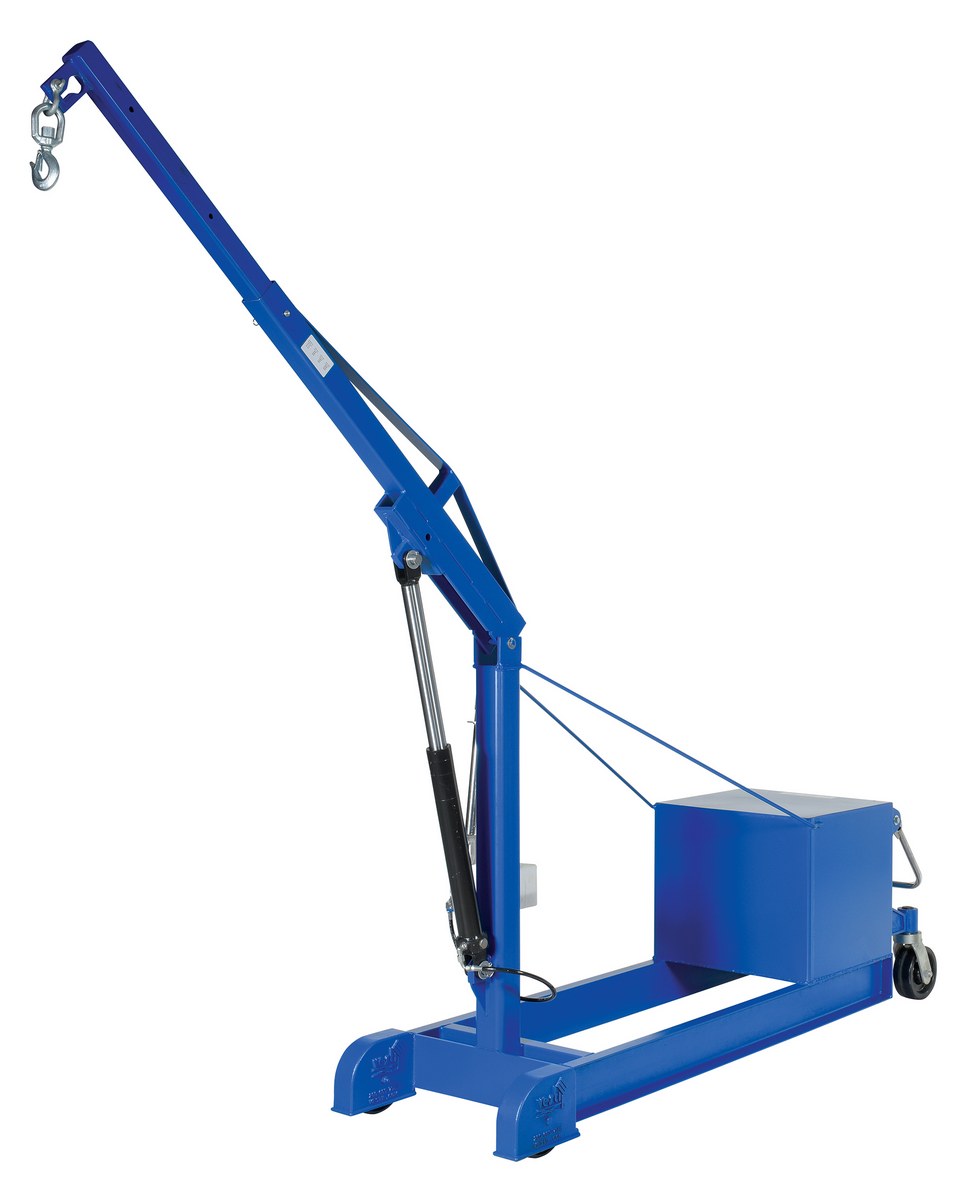

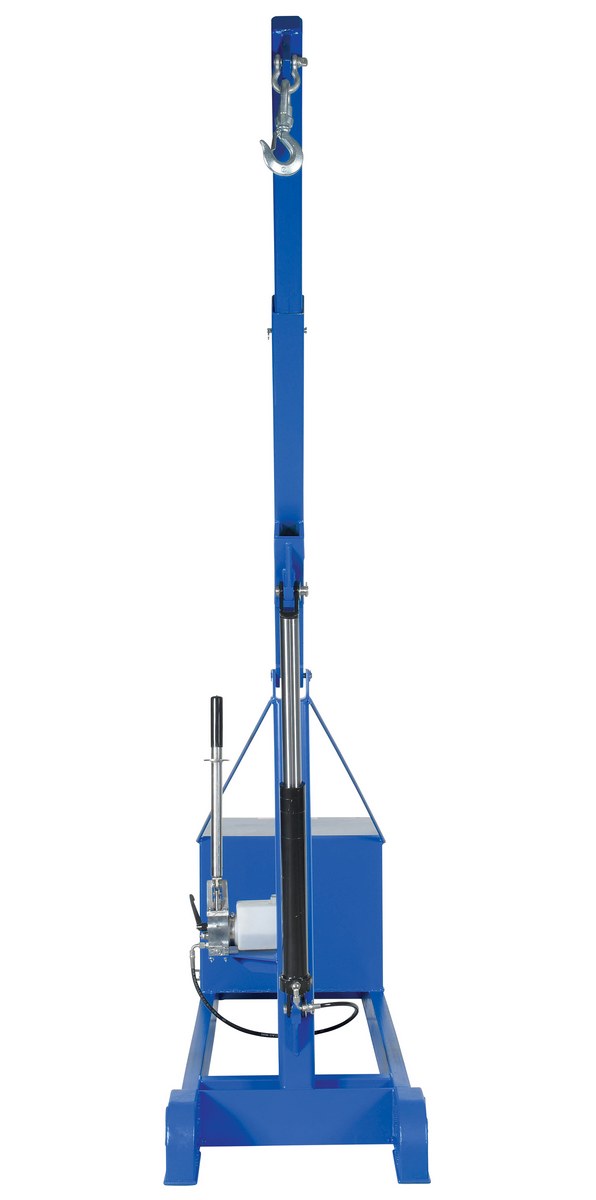

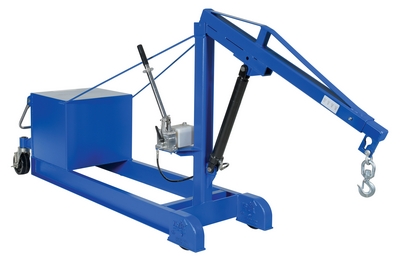

Steel Counter Balance Floor Crane 2000 Lb. Capacity Blue

This Counter Balanced floor crane has an adjustable boom to allow for maximum adjustment and versatility to lift a variety of loads. Boom is raised with a manual hydraulic hand pump. Boom also telescopes out for greater reach. The counterbalance design eliminates the need for front legs. This makes the unit easier to maneuver and allows the crane to reach tight, hard to reach areas. Counterbalance included. Welded steel construction.

  • Unique design allows access to hard to reach areas
  • Counterbalance weights eliminate the need for legs
  • Telescoping boom allows for greater reach when needed
  • Solid steel construction provides a long lasting rugged use
Total Ship Wt.(lbs.): 2646 (only 1 package) Size: 29"W x 159.125"L x 107.5"H Color: Blue

Uniform Capacity (lb.): 2,000 Uniform Capacity extended 39-1/4"(lb.): 2000 Uniform Capacity extended 51-1/4" (lb.): 1500
Uniform Capacity extended 63-1/4" (lb.): 1000 Lowered Arm Fully Extended (in.): 15 Raised Arm Fully Extended (in.): 96
Base Length (in.): 94 Base Width (in.): 29 Boom Length Minimum/Maximum (in.): 53-1/2 to 77-1/2
Design: Counter Balance Function: Floor Crane Rigid Caster Quantity/Diameter/Width (in.): (2)8 x 2
Rigid Caster Material: Glass-Filled Nylon Swivel Caster w/Side Brake Quantity/Diameter/Width (in.): (2)8 x 3 Swivel Caster Material: Phenolic

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: CBFC-2000
CBFC-2000

Steel Counter Balance Floor Crane 2000 Lb. Capacity Blue

This Counter Balanced floor crane has an adjustable boom to allow for maximum adjustment and versatility to lift a variety of loads. Boom is raised with a manual hydraulic hand pump. Boom also telescopes out for greater reach. The counterbalance design eliminates the need for front legs. This makes the unit easier to maneuver and allows the crane to reach tight, hard to reach areas. Counterbalance included. Welded steel construction.

  • Unique design allows access to hard to reach areas
  • Counterbalance weights eliminate the need for legs
  • Telescoping boom allows for greater reach when needed
  • Solid steel construction provides a long lasting rugged use
Dimensions: 29"W x 159.125"L x 107.5"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215010764 GTIN: 00691215010764
Warranty: -- Shipping Weight: 2646 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 2,000 Uniform Capacity extended 39-1/4"(lb.): 2000 Uniform Capacity extended 51-1/4" (lb.): 1500
Uniform Capacity extended 63-1/4" (lb.): 1000 Lowered Arm Fully Extended (in.): 15 Raised Arm Fully Extended (in.): 96
Base Length (in.): 94 Base Width (in.): 29 Boom Length Minimum/Maximum (in.): 53-1/2 to 77-1/2
Design: Counter Balance Function: Floor Crane Rigid Caster Quantity/Diameter/Width (in.): (2)8 x 2
Rigid Caster Material: Glass-Filled Nylon Swivel Caster w/Side Brake Quantity/Diameter/Width (in.): (2)8 x 3 Swivel Caster Material: Phenolic
