Model Details

CBFC-2000-DC

Printer Friendly
CBFC-2000-DC

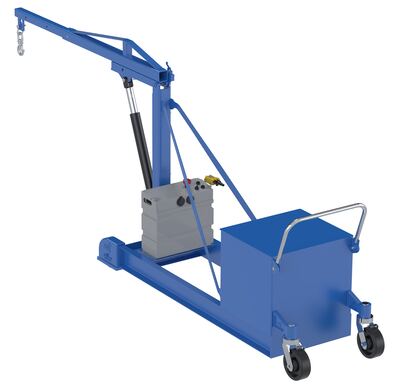

Steel DC Counter Balance Floor Crane 2000 Lb. Capacity Blue

This crane has an adjustable boom to allow for maximum adjustment and versatility to lift a variety of loads. Boom is raised with a push of a button on DC powered units. Boom also telescopes out for greater reach. The counterbalance design eliminates the need for front legs, making the unit easier to maneuver and ideal for reaching tight, hard to reach areas. Units roll on two (2) rigid 8" x 2" glass-filled nylon and two (2) swivel 8" x 3" phenolic caster with side brake. Counterbalance included. Welded steel construction.

  • DC powered for use in multiple areas
  • Maneuverable for precise positioning
  • Casters for smooth transference
  • Counterbalanced for all around stability
Total Ship Wt.(lbs.): 2631 (only 1 package) Size: 29"W x 159.125"L x 107.5"H Color: Blue

Uniform Capacity (lb.): 2,000 Uniform Capacity extended 39-1/4"(lb.): 2000 Uniform Capacity extended 51-1/4" (lb.): 1500
Uniform Capacity extended 63-1/4" (lb.): 1000 Lowered Arm Fully Extended (in.): 15 Raised Arm Fully Extended (in.): 96
Base Length (in.): 94 Base Width (in.): 29 Boom Length Minimum/Maximum (in.): 53-1/2 to 77-1/2
Design: Counter Balance Function: Floor Crane Rigid Caster Quantity/Diameter/Width (in.): (2)8 x 2
Rigid Caster Material: Glass-Filled Nylon Swivel Caster w/Side Brake Quantity/Diameter/Width (in.): (2)8 x 3 Swivel Caster Material: Phenolic
Hook Material: Steel Hook Opening (in.): 1-1/32 Specifications: ASME-PASE

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: CBFC-2000-DC
CBFC-2000-DC

Steel DC Counter Balance Floor Crane 2000 Lb. Capacity Blue

This crane has an adjustable boom to allow for maximum adjustment and versatility to lift a variety of loads. Boom is raised with a push of a button on DC powered units. Boom also telescopes out for greater reach. The counterbalance design eliminates the need for front legs, making the unit easier to maneuver and ideal for reaching tight, hard to reach areas. Units roll on two (2) rigid 8" x 2" glass-filled nylon and two (2) swivel 8" x 3" phenolic caster with side brake. Counterbalance included. Welded steel construction.

  • DC powered for use in multiple areas
  • Maneuverable for precise positioning
  • Casters for smooth transference
  • Counterbalanced for all around stability
Dimensions: 29"W x 159.125"L x 107.5"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215221818 GTIN: 00691215221818
Warranty: -- Shipping Weight: 2631 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 2,000 Uniform Capacity extended 39-1/4"(lb.): 2000 Uniform Capacity extended 51-1/4" (lb.): 1500
Uniform Capacity extended 63-1/4" (lb.): 1000 Lowered Arm Fully Extended (in.): 15 Raised Arm Fully Extended (in.): 96
Base Length (in.): 94 Base Width (in.): 29 Boom Length Minimum/Maximum (in.): 53-1/2 to 77-1/2
Design: Counter Balance Function: Floor Crane Rigid Caster Quantity/Diameter/Width (in.): (2)8 x 2
Rigid Caster Material: Glass-Filled Nylon Swivel Caster w/Side Brake Quantity/Diameter/Width (in.): (2)8 x 3 Swivel Caster Material: Phenolic
Hook Material: Steel Hook Opening (in.): 1-1/32 Specifications: ASME-PASE
